USER-CENTERED DESIGN OF GPU-BASED SHADER PROGRAMS

Martin Kraus

Department of Architecture, Design and Media Technology, Aalborg University,

Niels Jernes Vej 14, 9220 Aalborg Øst, Denmark

Keywords:

GPU, Shader, User-centered Design, User Interface.

Abstract:

In the context of game engines with graphical user interfaces, shader programs for GPUs (graphics processing

units) are an asset for game development that is often used by artists and game developers without knowledge

of shader programming. Thus, it is important that non-programmers are enabled to explore and exploit the

full potential of shader programs. To this end, we develop principles and guidelines for the design of user-

centered graphical interfaces for shaders. With the help of several examples, we show how the requirements of

a user-centered interface design inﬂuence the choice of widgets as well as the choice of the underlying shader

parameters.

1 INTRODUCTION

In recent years, game engines with graphical user

interfaces (e.g. Blender (Blender Foundation, 2011)

or Unity (Unity Technologies, 2011)) gained popu-

larity and enabled non-programmers to develop full-

ﬂedged, three-dimensional games with a minimum of

scripting. In this context, vertex and pixel shaders for

GPUs (graphics processing units) are just one kind

of assets among others (e.g. meshes, animations, tex-

ture images, etc.), which are combined and manipu-

lated by game developers and artists who often have

very little (if any) knowledge of shader programming.

In order to allow non-programmers to take full ad-

vantage of these GPU-based shaders, it is therefore

important that shader programmers implement appro-

priate user interfaces for their shaders. This aspect of

shader programming has received very little attention

until recently although it is presumably crucial for the

usability and commercial success of shader programs.

This work focuses on the user-centered design of

interfaces for GPU-based vertex and pixel shaders in

game engines and is, therefore, partly based on the

principles for artist-friendly controls of Renderman

shaders proposed by Sadeghi et al. (Sadeghi et al.,

2010), which are reviewed in Section 2. However,

we also take the actual user interface (including the

choice and design of widgets) into account. This re-

sults in additional requirements, which are based on

principles of user-centered design. We discuss these

requirements and principles in Section 3.

Based on these principles, several more speciﬁc

guidelines for the design of user interfaces of shader

programs are developed in Section 4 — speciﬁcally

for the choice and design of widgets.

In order to illustrate the principles and guidelines

and to compare the resulting shader parameters with

more traditional parameters, several examples are dis-

cussed in Section 5. In Section 6, conclusions and

future work are described.

2 RELATED WORK

Surprisingly little work has been published on the de-

sign of user interfaces for shader programs. One rea-

son is that the interface between the main applica-

tion and shader programs often is an internal, tech-

nical interface that is only necessary because of the

graphics API (application programming interface) to

program GPUs, e.g. OpenGL or Direct3D; therefore,

both sides of the interface are usually implemented by

one and the same programmer. If a user interface is

necessary to control a shader program, this interface is

usually considered part of the application’s user inter-

face; therefore, it is considered an issue of user inter-

face design instead of an issue of graphics program-

ming.

On the other hand, some game engines, e.g. Unity

(Unity Technologies, 2011), automatically generate

graphical user interfaces for shader parameters from

the source code of the shader deﬁnition. For example,

248

Kraus M..

USER-CENTERED DESIGN OF GPU-BASED SHADER PROGRAMS.

DOI: 10.5220/0003815902480253

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2012), pages 248-253

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

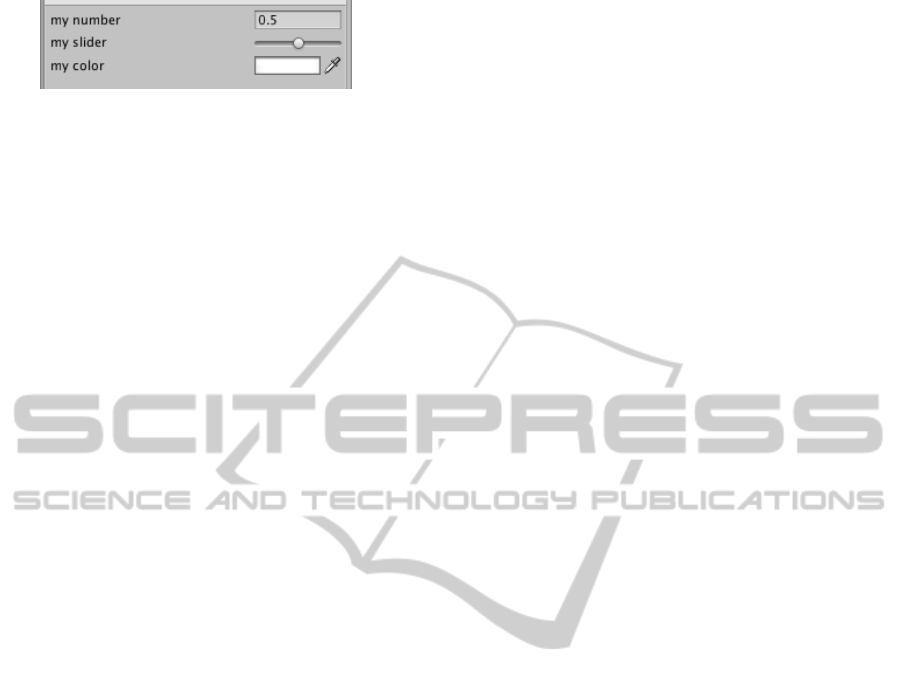

Figure 1: User interface for shader parameters in Unity.

the following shader code deﬁnes the user interface

shown in Figure 1 for three shader parameters in the

game engine Unity:

Properties {

_MyFloat ("my number", Float) = 0.5

_OtherFloat ("my slider", Range(0,1)) = 0.5

_MyColor ("my color", Color) = (1,1,1,1)

}

Thus, parameters of shaders can be manipulated

by game developers and technical artists with little or

no knowledge of shader programming. In contrast to

traditional systems, this approach puts the responsi-

bility for the design of the shaders’ interface on the

shader programmer, who might lack the knowledge

and skills to design an appropriate user interface.

One of the very few publications concerned with

the design of user interfaces for shaders is the work by

Sadeghi et al. (Sadeghi et al., 2010), who identiﬁed

three requirements for artist-friendly control parame-

ters:

• intuitive behavior, i.e. “control parameters should

correspond to visually distinct features and be-

have predictably”.

• decoupling, i.e. “changes to one visually distinct

feature (e.g. brightness of primary highlight, color

of the secondary highlight) should not affect other

visually distinct features”.

• going beyond reality, i.e. “controls which cover

the physically correct domain, but which extend

seamlessly into the non-physical domain”.

However, Sadeghi et al. mention cases where the cou-

pling of parameters is desirable to deﬁne one parame-

ter relative to others. Furthermore, they describe one

case where the coupling of parameters is useful but

should optionally be broken later in the artistic pro-

cess to allow for the independent manipulation of all

parameters.

It is notable that these principles are only con-

cerned with the choice of numeric parameters while

the design of the actual user interface (i.e. the wid-

gets to specify these numeric parameters or their cou-

pling) are of no concern. This might be due to the

fact that Sadeghi et al. are only concerned with Ren-

derman shaders.

Sadeghi et al. also discuss a procedure to deﬁne

artist-friendly controls for the speciﬁcation of pseudo

scattering functions; however, several of these steps

are speciﬁc to the particular shaders. The gener-

ally applicable steps are: examination of the physical

model; decomposition into visually distinct features

(e.g. highlights, glints, and rim light); and deﬁnition

of artist-friendly controls (e.g. color, intensity, size,

shape, and position) for each distinct feature.

3 PRINCIPLES OF

USER-CENTERED DESIGN OF

SHADER INTERFACES

In this section, we apply results of user-centered de-

sign as presented by Norman (Norman, 2002, Chap-

ter 7), who proposed seven principles for transform-

ing difﬁcult tasks into simple ones (Norman, 2002,

pages 188-189): 1) use both knowledge in the world

and knowledge in the head; 2) simplify the structure

of tasks; 3) make things visible: bridge the gulfs of

execution and evaluation; 4) get the mappings right;

5) exploit the power of constraints, both natural and

artiﬁcial; 6) design for error; 7) when all else fails,

standardize.

Based on these principles, we extended the three

principles proposed by Sadeghi et al. (Sadeghi et al.,

2010) and include three additional principles. Thus,

our six principles for the user-centered design of in-

terfaces to control parameters of shaders are:

1. Intuitive Behavior: parameters should control

visually distinct features, which can be identiﬁed

by the user by means of comprehensible labels;

changes of quantitative parameters should corre-

spond to appropriately scaled changes in the ap-

pearance of features; the behavior of widgets to

manipulate parameters should be known to users.

2. Decoupling: each parameter should control one

and only one visually distinct feature; (optional)

exceptions should be communicated to the user.

3. Artistic Freedom: parameters should neither be

constrained by the limits of physical models nor

should their availability be constrained, i.e. any

parameter may be manipulated at any time.

4. Visible Parameter Values: the current parameter

settings, and — for quantitive parameters — de-

fault values, extreme values, and all possible val-

ues should be represented graphically.

5. Interactive Feedback: the effect of user-

speciﬁed parameters should be displayed inter-

actively while the parameters are manipulated in

order to encourage interactive exploration; users

USER-CENTERED DESIGN OF GPU-BASED SHADER PROGRAMS

249

should be able to apply shaders to any appropri-

ate model or system-provideddefault models; fur-

thermore, feedback should be given in the case

of “implicit” couplings where one parameter be-

comes ineffective for speciﬁc settings of other pa-

rameters.

6. Design for Error: changes of parameters should

be reversible at any time by manipulation, undo-

ing the most recent manipulation, or reverting to a

saved set of parameters.

In the following, we discuss how Norman’s gen-

eral principles of user-centered design manifest them-

selves in the proposed principles.

External and Internal Knowledge. External

knowledge is employed by the labeling of parameters

in Principle 1, the communication of coupled parame-

ters in Principle 2, the visual representation of default

and extreme values in Principle 4, and the feedback

in Principle 5. Principle 1 also employs internal

knowledge since the labels rely on knowledge of the

denoted features. Furthermore, internal knowledge is

also required by Principle 1 to use the widgets that

control the shader parameters.

Simpliﬁed Tasks. Practically all principles are de-

signed to simplify various tasks associated with the

manipulation of shader parameters; however, Prin-

ciples 1 and 2 are particularly important simpliﬁca-

tions since the systematic manipulation of unintuitive,

coupled parameters can be an extremely difﬁcult and

cumbersome process that mainly consists of trial and

error. A further fundamental simpliﬁcation can be

achieved by offering a library of ready-made parame-

ter presets. The possibility of such presets is required

by Principle 6.

Visibility for Execution. Users often require sup-

port to determine which actions are required to

achieve certain intentions. The visual feedback of the

applied shader in Principle 5 helps users to determine

which visual feature they want to change. The cor-

respondence of visual distinct features to a single pa-

rameter (Principles 1 and 2) helps them to identify the

parameter that should be manipulated to change the

feature. Principle 3 makes sure that this parameter can

be manipulated at any time and Principle 4 supports

users in determining what kind of change is likely to

be appropriate by communicating the current value,

the default value and extreme values. Note that the

appropriate rate of change of appearance required by

Principle 1 also helps to estimate the required change.

In case the change turns out to be ineffective,the feed-

back required by Principle 5 should support the user

to identify the parameter that has to be changed to

achieve the intended effect.

Visibility for Evaluation. Apart from Principles 1

and 2, the main means to support visibility for evalua-

tion is interactive visual feedback by applying the pa-

rameterized shader to a user-speciﬁed model in Prin-

ciple 5; however, the graphical representation of cur-

rent values of parameters in Principle 4 and the feed-

back about ineffective parameters is also crucial to en-

able users to evaluate their actions.

Good Mappings. Norman summarizes different

kinds of mappings (Norman, 2002, page 199). In our

case, Principles 1 and 3 ensure a good mapping be-

tween intentions to change speciﬁc visual features and

possible actions. Furthermore, Principles 1, 2, and 4

ensure a good mapping between actions and their ef-

fects. Moreover, the graphical representation of the

current settings in Principle 4 ensures a good mapping

between the actual system state and what is displayed.

Finally, the visual feedback required by Principle 5,

ensures that the system state can be compared to the

intentions and expectations of the user.

Constraints. Principles 1 and 2 constrain the user

to changes of parameters that are limited to certain vi-

sually distinct features. Furthermore, Principle 4 will

not only constrain users to the appropriate range of

parameter values but usually also to an appropriate

minimum change since each allowed parameter value

is often represented by at least one pixel.

Design for Error. Principle 6 was included particu-

larly to support design for error.

Standards. Principle 1 — and in practice also Prin-

ciple 4 — encourages the use of standard widgets.

Moreover, Principle 1 results in a set of standard fea-

tures such as identiﬁed by Sadeghi et al.: color (in-

cluding opacity), intensity, shape, position, etc.

4 GUIDELINES FOR USER

INTERFACES OF SHADERS

The six principles that were proposed in the previ-

ous section are illustrated by several examples in Sec-

tion 5. It is, however, useful to develop some more

speciﬁc guidelines based on these principles — in

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

250

particular with respect to the choice and design of

the widgets to manipulate shader parameters, ways to

communicate couplings of parameters, and the com-

putation of parameters of GPU-based shaders from

user-speciﬁed parameters.

4.1 Color Selection

One or more colors are usually among the visual dis-

tinct features of a surface shader. Appropriate col-

ors should potentially (i.e. under very speciﬁc circum-

stances) appear in a rendered image exactly as speci-

ﬁed by the user. This is implied by Principle 1, which

requires parameters that control visual features: a

color that cannot appear in a rendered image would

not be a visual feature. Moreover, this requirement

tends to make it possible to pick speciﬁc colors in

photos or artwork.

Principle 1 encourages the use of standard widgets

in order to guarantee an intuitive behavior of widgets.

Thus, the standard color selector is usually the best

way to specify colors. This includes opacities of fea-

tures if their speciﬁcation is supported by the standard

color selector; otherwise a slider should be used as

discussed below.

If a default value of a color is available, it should

not only be used as initial value for the color selector

but it should always be represented graphically in the

widget as suggested by Principle 4. Alternatively, a

button might be added that allows the user to select

the default color.

4.2 Sliders

Sliders are often the best widget to interactively spec-

ify scalar numbers such as intensities, opacities, sizes,

translations in a certain direction, etc. The behavior of

a standard slider widget is very likely to be familiar to

users in accordance with Principle 1.

Moreover, most sliders visualize the current set-

ting as well as the extreme values and, in fact, all pos-

sible values as required by Principle 4. If the default

value is not one of the extreme values, it is often pos-

sible to deﬁne the parameter such that the center posi-

tion of the slider represents the default value, which is

conveyed to users even without any explicit labels if

the default value is also the initial value of the widget.

In Western culture, Principle 1 suggests that a

slider movement to the right or up should correspond

to an increase of the parameter. Furthermore, changes

should correspond to appropriately scaled changes in

appearance. Speciﬁcally, the perceived “sensitivity”

of the slider (i.e. the change of appearance per dis-

tance moved by the slider) should be appropriate over

the whole range of possible values, i.e. the sensitivity

should not be too high, which would make it difﬁ-

cult — or even impossible — to choose a sufﬁciently

good approximation to a particular value, nor should

it be too low, which would require largemovements of

the slider for visible changes of the appearance of the

shader and therefore might appear to the user as if the

slider was ineffective. In order to satisfy this require-

ment, it is often necessary to introduce a non-linear

mapping from user-speciﬁed parameters to low-level

GPU-shader parameters. For example, the range from

0 to 1 of a user-deﬁned parameter can be mapped to

the range from 0 to inﬁnity of a low-level parameter

by the mapping x 7→ ((1− x)

−c

− 1)c

with two posi-

tive real numbers c

and c

, which can be adjusted by

the programmer to provide an appropriate sensitivity.

4.3 Couplings of Parameters

While Principle 2 encourages decoupled parameters,

there are various cases in which coupled parameters

are actually more user-friendly. One reason for the

coupling of parameters is to offer users alternative

ways of specifying the same (low-level) parameters.

An example is the speciﬁcation of a color either in the

RGB or the HSV space. In these cases, the coupling

should be clearly communicated to the user, for ex-

ample by displaying only one set of independent pa-

rameters (e.g. either the RGB coordinates or the HSV

coordinates) at a time.

As discussed by Sadeghi et al. (Sadeghi et al.,

2010), it is sometimes useful to optionally couple pa-

rameters; for example, in order to allow users to ﬁnd

an initial solution by manipulating only a subset of

all parameters and automatically computing further,

coupled parameters. Novice users who are not famil-

iar with all parameters would particularly beneﬁt from

such a coupling. However, later in the artistic process,

some users might want to ﬁne tune these additional

parameters separately without the coupling between

parameters. Some expert users might even prefer to

always use the decoupled version.

Thus, a shader interface should allow the user to

enable or disable the coupling of shader parameters.

This can be achieved with the help of a checkbox or

similar widgets. In fact, the concept of optionallycou-

pled parameters is familiar to many users; for exam-

ple, several image editing tools allow to ﬁx the as-

pect ratio of an image when specifying a new width

or height.

In some cases, couplings are unavoidable; for ex-

ample, highlights become invisible if their color is

set to black; thus, other parameters, e.g. the size of

the highlight, become ineffective as the highlight no

USER-CENTERED DESIGN OF GPU-BASED SHADER PROGRAMS

251

longer exists. This is problematic if users don’t un-

derstand the reason for the apparent ineffectiveness

of a parameter. A possible solution is to add a text la-

bel next to the control of an ineffective parameter that

refers to the parameter setting that caused the param-

eter to become ineffective.

4.4 Preprocessing of Parameters

There are several situations that require preprocess-

ing of parameters outside of GPU-based shaders; for

example, the computation of low-level shader pa-

rameters from artist-friendly parameters; see Sec-

tion 5. Similarly, some shaders require the computa-

tion of textures (e.g. for lookup tables) based on user-

speciﬁed parameters. Therefore, it is often useful to

include an additional preprocessing step to map user-

speciﬁed parameters to the low-level shader parame-

ters of a GPU-based shader. In some game engines,

this can be accomplished with the help of a script that

processes user-speciﬁed parameters and sets shader

parameters accordingly.

5 EXAMPLES

This section discusses the application of the proposed

principles and guidelines to actual examples.

5.1 Phong Reﬂection Model

Most shader implementations of the Phong reﬂection

model (Phong, 1975) employ color parameters for the

reﬂectance coefﬁcients of diffuse and specular reﬂec-

tion. These colors correspond to actual visible colors

under particular lighting conditions. Moreover, they

are decoupled and they are not restricted by a physi-

cal model. In other words, they fulﬁll Principles 1, 2,

and 3, which probably has contributed to the tremen-

dous success of the Phong reﬂection model in com-

puter graphics.

Furthermore, Phong introduced an exponent n be-

tween 0 and inﬁnity, which models the dependency

of the specular reﬂection on the angle s between the

direction of the reﬂected light and direction from the

surface point to the camera by the term (cos(s))

. The

parameter n is sometimes described as “shininess”

since larger values correspond to smaller highlights,

i.e. shinier surfaces. Unfortunately, it is difﬁcult to

control this parameter by a slider since the sensitiv-

ity of the changes in appearance vary dramatically:

values between 0 and about 20 correspond to signiﬁ-

cantly different sizes of highlights while larger values

have less and less inﬂuence.

In order to determine the low-level parameter n

by a slider parameter x for the size of highlights, we

could employ a non-linear mapping, e.g. n = (x

−2

−

1) × 20. This mapping allows users to change n be-

tween inﬁnity and 0 with reasonable sensitivity by

manipulating the slider parameter x between 0 and 1.

The center value x = 0.5 corresponds to a reasonable

default value n = 60. Using an interactive slider with

this mapping to control the size of highlights would

satisfy Principles 1 to 5 and therefore is very likely to

provide a signiﬁcantly improved experience for users

of the shader.

It should also be noted that this mapping is a good

example for the beneﬁts of a preprocessing step since

n has to be computed only once for each material in-

stead of once per vertex or fragment.

5.2 Schlick’s Fresnel Factor

For many materials, the specular reﬂectance coefﬁ-

cients depend on the angle between incident and re-

ﬂected light. For wavelength λ, the Fresnel factor

(u) models this dependency on the cosine u of the

angle between the direction to the camera and the

halfway vector (i.e. the normalized sum of the nor-

malized directions to the camera and the light source).

Schlick (Schlick, 1994) proposed the approximation

(u) = f

+ (1− f

)(1− u)

(1)

for this factor. In actual shader implementations, three

values f

for red, green, and blue wavelengths are

usually combined in one color parameter. Since u is

not a parameter, Schlick’s Fresnel factor has only one

color parameter. It is noteworthy that this color pa-

rameter is in fact visible in images if the camera, the

light source and the surface normal vector are aligned;

thus, Principle 1 is satisﬁed. The factor is also de-

coupled from other parameters and therefore satisﬁes

Principle 2. However, Schlick’s approximation does

not provide any artistic freedom beyond the speciﬁca-

tion of f

In order to provide artists with more control over

the Fresnel factor as suggested by Principle 3, the

power 5 in Equation 1 could be replaced by another

decoupled, user-speciﬁed shader parameter p. Since

the effect becomes very subtle for larger powers than

5, a suitable range for the parameter p is from 0 to

10 such that the value at the center of the slider cor-

responds to the value 5 in Schlick’s approximation.

In this way, the default value and reasonable extreme

values are communicated to the user in accordance

with Principle 4. Furthermore, since the effect be-

comes less visible for larger powers p, a mapping

p = 10 × (1 − x) for a slider parameter x between 0

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

252

and 1 is useful such that a larger slider parameter cor-

responds to a stronger visual effect in accordance with

Principle 1.

5.3 Ward’s Anisotropic Reﬂection

Ward’s anisotropic reﬂection model (Ward, 1992) in-

troduces two parameters α

and α

(see Equation 5a

in (Ward, 1992)), which are the standard deviations

of the surface slope in an x and y direction, which are

orthogonal to the surface normal direction. The pa-

rameters are sometimes described as the “roughness”

of the surface in the two directions and therefore de-

termine the extent of specular highlights in those di-

rections. As noted by Ward, the two parameters are

uncorrelated, i.e. decoupled. Moreover, the extent of

highlights in two directions can be considered visu-

ally distinct features.

However, both parameters are coupled with a third

parameter, namely the specular reﬂectance coefﬁ-

cient, which is divided by α

and α

in the cited

equation. Together, these three parameters determine

the maximum intensity of specular highlights in a

way to guarantee energy conservation. This coupling

is particularly problematic because it makes it ex-

tremely difﬁcult to change the size of highlights with-

out changing their maximum intensity since this task

would require users to manipulate these three param-

eters at the same time in a nonlinear way. On the other

hand, the task of changing the size of a highlight with-

out changing its color is easily accomplished in the

Phong reﬂection model.

Apart from avoiding the most important cou-

plings, it is also necessary to identify those parame-

ters which are most easily understood and controlled

by users. As mentioned in Section 4, there might

be more than one set of decoupled parameters, e.g.

either HSV or RGB coordinates. However, in the

case of Ward’s anisotropic reﬂection model, the most

artist-friendly set of parameters probably consists of

the maximum color of the specular highlight (corre-

sponding to the specular reﬂectance coefﬁcient but

without the division by α

and α

in Equation 5a of

(Ward, 1992)) and two parameters to control the size

and shape of highlights. Speciﬁcally, the two parame-

ters could correspond to the sum α

+ α

and the dif-

ference α

− α

. The latter is a good measure of the

anisotropy of the reﬂection as a difference of 0 corre-

sponds to an isotropic highlight (which is therefore a

good default value). If the difference is kept constant,

the sum α

+ α

controls only the size of highlights

(in both directions).

Note that it would be possible to compute the

original parameters of Ward’s anisotropic reﬂection

model from the proposed artist-friendly parameters

in a preprocessing step and then implement Ward’s

model in a shader. However, this would not result in

the most efﬁcient solution since it would include the

division by α

and α

in the shader.

6 CONCLUSIONS

The examples in the previous section illustrate how to

construct artist-friendly shader parameters from the

six principles and the guidelines proposed in Sec-

tions 3 and 4. Not only can these principles and guide-

lines serve as a checklist for speciﬁc sets of parame-

ters, but they can also guide shader programmers to

ﬁnd more artist-friendly parameters in order to pro-

vide a better user experience.

The principles and guidelines were derived by ap-

plying results from research on user-centered design

to GPU-based shader programming. One of the im-

portant results is how user-centered design inﬂuences

the choice and mappings of shader parameters. Fur-

thermore, the examples show that an additional pre-

processing step is useful in many cases in order to

map user-speciﬁed parameters to low-level shader pa-

rameters. For best performance, however, changes to

the shader programs are inevitable even if such a pre-

processing step is employed.

Future work has to experimentally validate the

proposed principles and guidelines by applying them

to more shaders and conductingappropriate user tests.

REFERENCES

Blender Foundation (2011). Blender 3d content creation

suite. Web site: http://www.blender.org.

Norman, D. A. (2002). The Design of Everyday Things.

Basic Books, New York, reprint paperback edition.

Phong, B. T. (1975). Illumination for computer generated

pictures. Commun. ACM, 18:311–317.

Sadeghi, I., Pritchett, H., Jensen, H. W., and Tamstorf, R.

(2010). An artist friendly hair shading system. ACM

Trans. Graph., 29:56:1–56:10.

Schlick, C. (1994). An inexpensive brdf model for

physically-based rendering. Computer Graphics Fo-

rum, 13(3):233–246.

Unity Technologies (2011). Unity game engine. Web site:

http://www.unity3d.com.

Ward, G. J. (1992). Measuring and modeling anisotropic

reﬂection. SIGGRAPH Comput. Graph., 26:265–272.

USER-CENTERED DESIGN OF GPU-BASED SHADER PROGRAMS

253
