A SERVICE-DRIVEN DEVELOPMENT TOOL FOR WIRELESS

SENSOR NETWORK

Zhen Yu Song

, Luciano Lavagno

, Riccardo Tomasi

and Maurizio A. Spirito

Dipartimento di Elettronica, Politecnico di Torino, Torino, Italy

Pervasive Technologies Area, Istituto Superiore Mario Boella, Torino, Italy

Keywords:

WSN Programming, WSN Development Tools.

Abstract:

Thanks to advances in the area of embedded low-power microprocessors and short-range wireless commu-

nication, pervasive technologies such as Wireless Sensor Networks (WSNs) are easing the collection and

integration of real-world data into ICT systems. However, developing and testing application logic for hetero-

geneous WSN devices remains a challenging and cumbersome task. In order to make prototyping of WSN

solutions faster and less error-prone, in this paper we propose a set of development tools for WSNs based on

object-oriented and service-driven models. Within these tools, applications are modelled as sets of intercon-

nected blocks, each providing or using a number of services deﬁned at design time. Externally, each block is a

self-contained black-box exposing a set of service interfaces and tunable attributes; internally, an event-driven

state-chart model represents its logical behaviour. All blocks are automatically created as skeleton templates

by the tools, and then can be graphically developed and debugged in different hierarchical depths through

widely used Mathworks



tools. Moreover, the developed functional blocks can be automatically converted

to platform-speciﬁc binaries to ease deployment on actual devices (e.g. on TinyOS-based platforms) and large

scale simulation (e.g. in MiXiM) enriched with HIL (Hardware In the Loop) capabilities.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) are communi-

ties of tiny, cooperating, resource-constrained objects

used to sense and collect physical information.

While in past years WSNs have been considered

mostly from the research point of view, nowadays

WSN technology has become mature and many dif-

ferent WSN commercial solutions are now available.

Despite the relative maturity of WSN technology,

when designing and operating a WSN in real-world

scenarios, a number of speciﬁc challenges must be

taken into account, including: the need to develop ap-

plication code using low-level languages, often inter-

twined with system level, platform-speciﬁc code; the

need to efﬁciently debug and validate WSN solutions

in large-scale simulations, before deploying massive

(and expensive) ﬁeld tests; the need to coequally exe-

cute an algorithm on heterogeneous WSN platforms.

The aforementioned challenges, which make de-

veloping and testing WSN application tedious and

error-prone, directly imply the need for appropriate

design and development tools.

Co-design and development-support tools are al-

ready gradually responding to these growing needs.

For instance a solution to develop WSN applications

using a high-level,Stateﬂow-based approach has been

proposed in (Song et al., 2010). The HySim provides

code generation and Hardware-In-the-Loop(HIL) co-

simulation facilities in order to ease validation of so-

lutions and deployment across multiple WSN plat-

forms. However, HySim had a number of limitations,

including the need to embed the entire application

logic inside a single, large state-chart block; more-

over, HySim simulation capabilities were limited to

small-scale networks (up to some tenths of nodes).

This work introduces two major enhancements to

reinforce HySim in terms of scalability and modu-

larity, so as to make it more suitable for the design

of large-scale distributed WSN applications. Firstly,

it introduces a programming abstraction support-

ing more complex models, mixing object-oriented

and service-driven approaches; secondly, support for

large-scale simulation has been added, including the

possibility to interface development tools, large-scale

simulation environments and actual hardware.

To allow such abstraction, HySim block is intro-

duced as the self-contained building unit, which is

Yu Song Z., Lavagno L., Tomasi R. and A. Spirito M..

A SERVICE-DRIVEN DEVELOPMENT TOOL FOR WIRELESS SENSOR NETWORK.

DOI: 10.5220/0003818100870095

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 87-95

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

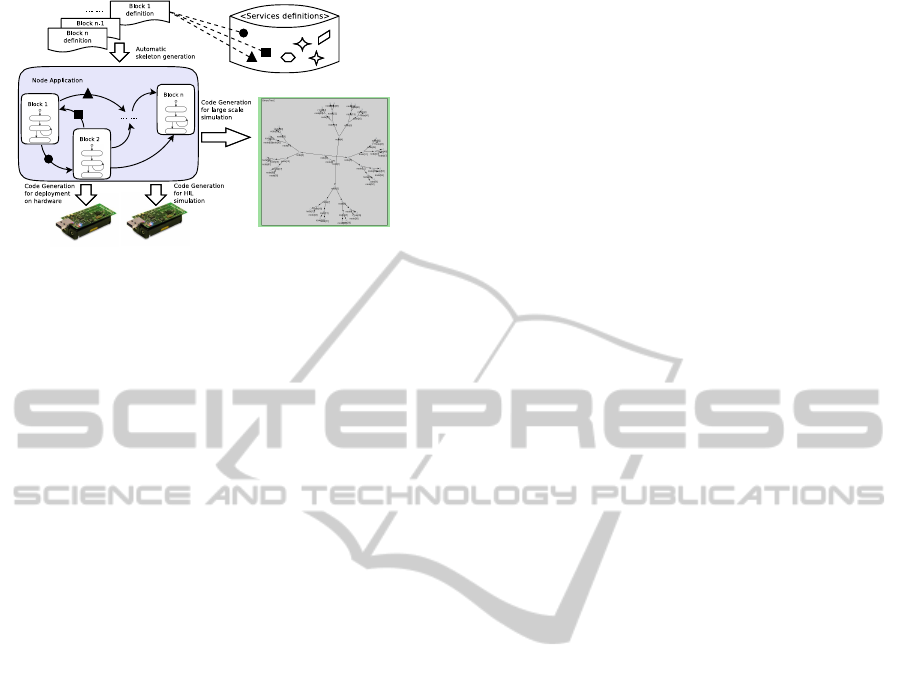

Figure 1: The proposed HySim extension.

externally characterized by the set of services it can

consume and expose. As shown in Fig. 1, the pro-

posed solution allows developers to graphically de-

sign and debug a WSN application as hierarchically

decomposed and loosely coupled “HySim blocks”.

The block skeleton templates are automatically gen-

erated by our tool from services deﬁnitions. After the

design phase, the tool provides the capability to vali-

date the design via functional small-scale simulation,

deploy the solution on different hardware platforms,

or verify its performance in large-scale simulation.

The proposed solution leverages a number of

widely used tools from the Mathworks



: Simulink



is used as a functional design and simulation envi-

ronment, providing functionalities to graphically de-

sign blocks at a high-level of abstraction and to sup-

port quick wiring and conﬁguration among them;

Stateﬂow



is used to model the internal behavior of

blocks; Stateﬂow Coder



, ﬁnally, is used for its code-

generation capabilities.

Concerning performance simulation of large-scale

networks, the proposed solution includes support

for generation of OMNeT++ (Varga, 2000) and

MiXiM (K¨opke et al., 2008) models.

Concerning deployment on actual hardware, the

previous approach has been mantained, support-

ing generation of code for actual WSN platforms

e.g. TinyOS (Levis et al., 2004).

The remaining of the paper is organized as fol-

lows: Sec. 1.1 describes relevant related work; Sec. 2

describes the proposed solution, introducing its un-

derlying model and reference work-ﬂow; Sec. 3

presents an example use-case; Sec. 4 draws conclu-

sions.

1.1 Related Work

A wide variety of tools to support WSN deploymentis

available, focusing on different aspects such as high-

level modelling, architectural design, detailed code

development, code generation, co-simulation, deploy-

ment, validation, debugging, performance monitoring

and evaluation (Marron et al., 2009).

Part of these works is focused on programming

abstractions suitable for WSN environments (Rubio

et al., 2007). WISE-NES and the WSN API (Kuo-

rilehto et al., 2008; Juntunen et al., 2006) provide

a uniﬁed framework to design, simulate, deploy and

use WSN solutions, leveraging the functionalities

provided by the Speciﬁcation and Description Lan-

guage (SDL). A similar approach has been adopted

to support the Insense programming language for

WSN (Dearle et al., 2008), which offers the pos-

sibility to deﬁne and describe a target application,

which can be subsequently compiled and mapped to a

lightweight process by a dedicated compiler (Dunkels

et al., 2004). Solutions such as Virtual Nodes (Ci-

ciriello et al., 2006) and ATaG (Bakshi et al., 2005),

supply various levels of programming abstractions to

relieve the programmers from addressing low-level

WSN mechanisms.

The COMDES framework (Angelov and Sier-

szecki, 2006; Angelov and Sierszecki, 2004) is a

UML-based solution targeting development of Dis-

tributed Control Systems (DCS), which are related

to WSNs. COMDES enables the deﬁnition of appli-

cations in terms of interacting subsystems (function

units), such as sensor, control unit, actuator, opera-

tor station, etc. These subsystems can be soft-wired

with one another in order to conﬁgure speciﬁc appli-

cations and their internal behavior can be speciﬁed

as an operational state machine. Within COMDES,

an application can be graphically composed using the

tool provided meta-models in the associated graphi-

cal Generic Modelling Environment (GME). A num-

ber of graphical programming environments are also

available for speciﬁc platforms (Ghercioiu, 2005;

Quantum Leaps, 2011).

The appearance of light-weigth Java virtual ma-

chines, like MiniMV (Cota et al., 2010) and Squawk

(Shaylor et al., 2003), allows the designers to de-

velop WSN applications using a high level program-

ming language, thus with slightly reduced applica-

tion code performance due to the the extra resources

consumed by the virtual machine. Other techniques

based on virtual machines are also available to re-

lieve the designers from concerns due to the low level

logic, such as UML technique based virtual machine

Matilda (Wada et al., 2007).

Solutions such as Cougar (Bonnet et al., 2001),

TinyDB (Madden et al., 2005) and Spine (Gravina

et al., 2008) employ a different approach. They lever-

age distributed database techniques and extensible

processing and query mechanisms to abstract the un-

derlying network as an entity. Within these solutions,

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

a task is described in high-level languages, injected

in the network and transformed into low-level pro-

cedures running on individual nodes. However, they

partially reduce the possibility to obtain a ﬁne-grained

control over application logic due to the limited ex-

pressiveness of high-level task description languages.

Simulation is widely employed in the ﬁrst phase

of WSN application development, to allow fast and

unexpensive veriﬁcation. For this reason, much ef-

fort has been devoted to providing rapid prototyping

and graphical debugging capability both for generic

(Breslau et al., 2000; Varga, 1999), and specialized

simulators (K¨opke et al., 2008; Levis et al., 2003;

Osterlind et al., 2006). Thanks to these efforts, net-

work protocols and algorithms can be conveniently

and repeatedly evaluated and analysed in a scalable

manner through virtual deployments. In addition, to

increase the realism, simulation techniques can be en-

riched with Hardware-In-the-Loop(HIL) capabilities,

resulting in co-simulative approaches.

In summary, a number of solutions can be em-

ployed to ease development of WSN applications

(e.g. virtual machines, programming abstractions,

code-generation, graphical composition of function-

alities, co-simulation, etc).

Nevertheless, a single comprehensive approach

has not yet emerged.

Moreover, application scenarios are quickly grow-

ing in complexity and scale (Marron et al., 2009), in-

creasing the need to distribute intelligence and sup-

port more complex in-network operations, though

maintaining reliability and trustworthiness.

As a result, current WSN development tools must

evolve to better support composable functionalities

and complex distributed scenarios; service-driven

models can play a key role in this evolution.

2 THE PROPOSED

FRAMEWORK

The proposed framework attempts to combine two

different models for structure and behaviour, respec-

tively blocks and hierarchical Finite State Machines

(FSMs).

Leveraging the structural model, WSN applica-

tions running on the nodes are modelled as a set of

interconnected blocks. On the other hand, an event-

driven state-chart model is used to represent the inter-

nal behaviour of each block.

In order to exploit these abstractions, described in

Sec. 2.1, to effectively support WSN development, a

set of tools and a reference work-ﬂow are discussed

in Sec. 2.2.

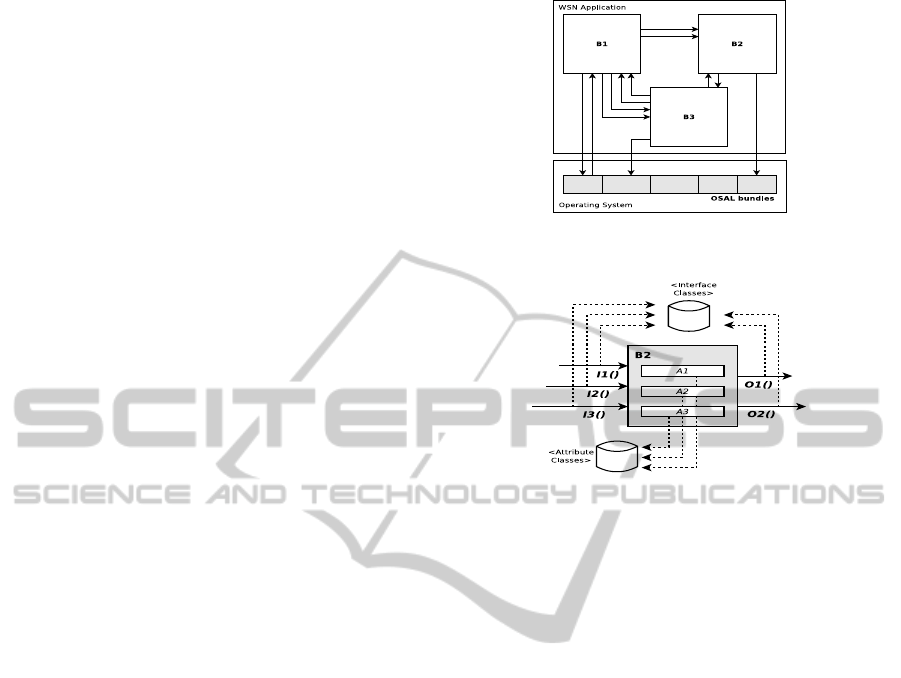

Figure 2: Node abstraction.

Figure 3: Block abstraction: black-box view.

2.1 Model

Blocks are self-consistent units which are perceived

by other blocks as “black-boxes”, only exposing ex-

ternally a set of known services. Therefore, internal

details of blocks do not depend on external entities

and thus they can be “wired” with each other in a

loosely-coupled fashion.

As described in Fig. 2, the required functionalities

of any user-deﬁned WSN application are delivered

collectively by a set of blocks (B

, B

, ..., B

). All

the relevant components and APIs of the host WSN

operating system are also exposed as blocks e.g. as a

set of OSAL (Operating System Abstraction Layer)

blocks. OSAL blocks are platform-dependent, and

must thus be provided in the DDK (Device Develop-

ment Kit) associated with the speciﬁc platform.

As described in Fig. 3, a block only exposes a vari-

able number of static attributes (A

, A

, . .., A

) and a

set of in-bound and out-bound interfaces (respectively

, I

, .. ., I

and O

, O

, .. ., O

). Attributes are

static and allow tuning of relevant parameters within

each block. Interfaces reﬂect services deﬁnitions, and

can thus belong to different service classes, each with

a different set of arguments. They are similar to uni-

directional function calls and can be used to trans-

mit service-speciﬁc events from one block to another,

without exposing implementation details.

Within the model, all interfaces and attributes are

typed as classes, which are deﬁned during design

A SERVICE-DRIVEN DEVELOPMENT TOOL FOR WIRELESS SENSOR NETWORK

Figure 4: Block abstraction: internal view.

phase. Basic types can support standard numeric ar-

guments (e.g. uint16

t, double, char, ... ), while com-

plex types can be derived by composing basic and

complex types.

Any out-bound interface of a block can be wired

to any in-bound interface of another, as long as they

share the same interface type. Events emitted from

disconnected out-bound interfaces are simply dis-

carded, while no event can be received from discon-

nected in-bound interfaces.

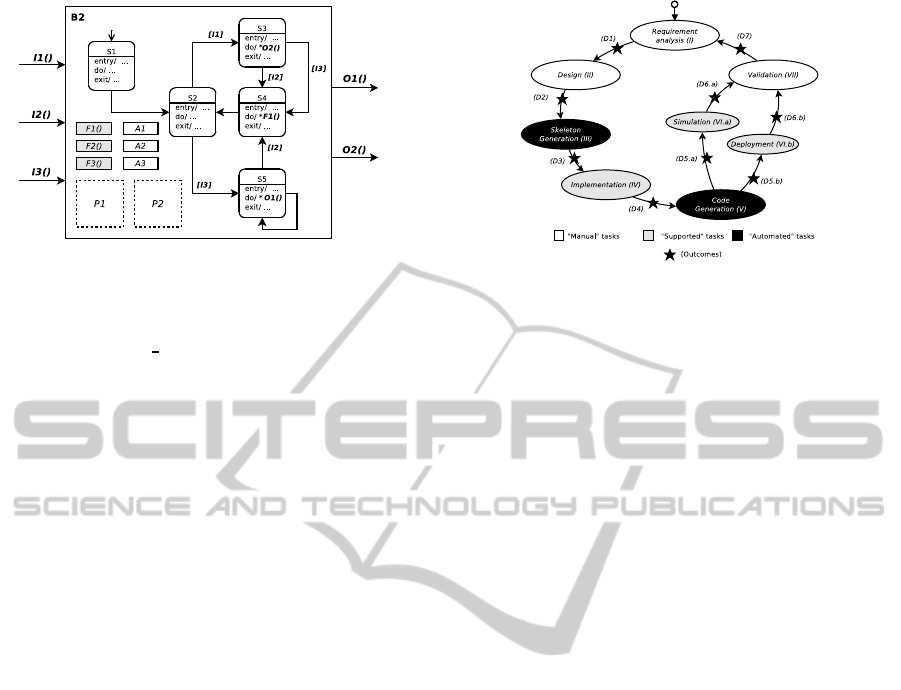

The behaviour of each block can be internally

modelled as an event-driven hierarchical FSM model

(more precisely, a State-chart), as described in Fig. 4.

Each FSM has a set of states (S

, S

, .. ., S

), one of

which (S

) is the initial state. The logic ﬂow (i.e. the

switch from the current active state to the next) can

be controlled either by internal default transitions or

external events incoming from other blocks (I

, I

..., I

). User-deﬁned operations can be implemented

inside each state: they will be executed upon entry,

permanence or exit phases within each state. Such

user-deﬁned operations can execute user-deﬁned lo-

cal functions (F

, F

, ... , F

) to implement compu-

tational tasks, as well as generate out-going events

, O

, ..., O

). Besides the externally-tunable at-

tributes, additional local variables can be freely de-

ﬁned within each block. In case a single FSM is not

sufﬁcient to model the desired functionalities, a single

block can host one or more sub-charts which can be

integrated with the main FSM either in sequential or

parallel execution order, sharing the set of incoming

and outgoing signals, attributes and local variables.

2.2 Work-ﬂow and Tools

The reference work-ﬂow for the proposed solution in-

volves three types of development activities or “tasks”

(numbered from I to VII).

Manual tasks are not directly supported by the

proposed solution: they must be manually performed

by designers e.g. using other development tools. Sup-

Figure 5: Reference work-ﬂow.

ported tasks also imply some activity by designers:

however, a number of speciﬁc tools are provided to

support them. Automated tasks are instead fully per-

formed by the proposed solution.

As shown in Fig. 5, each task delivers partial out-

comes (D1 .. .D7), which feed into subsequent tasks.

The considered development work-ﬂow (which

can also be viewed as an iterated execution of the clas-

sical V-shaped development ﬂow) starts with an anal-

ysis of the requirements from the application scenario

(Task I). The expected outcome of Task I is a list of

requirements mapped to functionalities (D1).

Outcome D1 can be used to drive the design phase

(Task II). Within this phase the developerdecomposes

the global WSN functionality as a network of inter-

connected blocks (similar to Fig. 2), whose internal

behaviour is not yet precisely deﬁned.

The resulting design speciﬁes the functionalities

assigned to each block, their main attributes as well as

the interfaces which are used to “wire” them together.

Interfaces and attributes can be deﬁned from

scratch or taken from a library of pre-existing inter-

faces and attribute types, deﬁned in previous projects.

Since blocks are identiﬁed by their “borders”, D2 is a

collection of block deﬁnitions sharing common types

for attributes and interfaces, plus wiring information.

Block interfaces and attributes can be speciﬁed

using the WSN Block Deﬁnition Language (WSN-

BDL). WSN-BDL ﬁles are XML ﬁles divided in two

parts: the ﬁrst part speciﬁes all the attribute and inter-

face types (AClasses and IClasses), and can be shared

among multiple WSN-BDL ﬁles; the second part lists

all the actual attributes and interfaces exposed by a

block; for interfaces, also the direction (dir) is speci-

ﬁed (incoming or outbound). Currently, wiring infor-

mation is not speciﬁed in WSN-BDL, since wiring is

performed manually in further steps.

As depicted in Fig. 6, both classes and instances

of interfaces and attributes are deﬁned as XML el-

ements. Fig. 6, provides a possible WSN-BDL de-

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

<?xml version="1.0" encoding="UTF -8"?>

</AClass>

</AClass>

</IClass>

</IClass>

</IClass>

</Block>

Figure 6: WSN-BDL example.

scription for the designs described in Fig.3 and Fig. 4.

The “Class Deﬁnition” segment include two attribute

classes (MYATT1 and MYATT2) and three interface

classes (MYCL1, MYCL2 and MYCL3). This section

deﬁnes the types of attributes and interfaces; for in-

stance the MYATT1 attribute must be composed of

a 10-element array of unsigned 8-bits words, named

myarray. It is also possible to model interfaces with-

out arguments, e.g. MYCL3, which is useful to model

events which do not carry any numeric value.

The “Instances” segment speciﬁes the actual at-

tributes (A1,A2,A3) and interfaces (I1,I2,I3,O1,O2)

included in the BlockExample block, each with its ref-

erence to a speciﬁc class; for instance in-bound inter-

face I1 belongs to class MYCL1, and thus will support

incoming events transporting two arguments: an un-

signed 8-bit word (myval1) and a signed 16-bits inte-

ger (myval2).

D2 (a collection of WSN-BDL ﬁles) can be fed

into the FSM Skeleton Generator Tool (FSM-SG) to

accomplish the Skeleton Generation phase (Task III).

The FSM-SG is used to parse the WSN-BDL and gen-

erate a block template.

The FSM-SG tool has been implemented based on

Mathworks



products, namely Matlab



, Simulink



and Stateﬂow



. The block template generated by the

FSM-SG tool (D3) is a Simulink



block, providing

a bus plug for each external interface and containing

a Stateﬂow



FSM skeleton, which can be used as a

starting point for the implementation phase (Task IV).

The block template provided by the FSM-SG tool

contains a “Main” FSM already populated with some

example states (e.g. INIT, START, etc.), whose tran-

sitions are controlled by incoming events. It also con-

tains examples of calls to outbound interfaces.

The implementation task includes a “local” ver-

sion of the implement/simulate/debug cycle, per-

formed using the Simulink



and Stateﬂow



tools.

This simulation can include the interaction of a small

set of blocks (modelinga single or a few WSN nodes).

The provided template includes Stateﬂow



speciﬁc input and output drivers, which hide the com-

plexity of handling low-level Simulink



signals. As

a result, the internal block implementation can be de-

ﬁned just in terms of high-level events, commands

and attributes deﬁned in the initial WSN-BDL ﬁle.

Once implementation and debugging have been

completed, the resulting block prototypes (D4) are

ready to be deployed.

In order to provide support for multiple deploy-

ment platforms (e.g. simulators or node software

platforms), block implementations are processed by

the FSM Code Generator tool (FSM-CG, Task V).

The FSM-CG tool is able to generate platform spe-

ciﬁc code for either large-scale simulators such as

MiXiM (D5.a) or actual WSN platforms (D5.b) such

as TinyOS. Outcome D5.a can be used within simula-

tors such as MiXiM (K¨opke et al., 2008) to simulate a

large number of WSN nodes (while Simulink



-based

simulation within Task IV could be used only for a

limited number of blocks). Outcome D5.b can instead

be used, after platform-speciﬁc compilation, to test

the developed application on the actual hardware.

In MiXiM a block is mapped to a simple module

described by a NED ﬁle, while the generated internal

implementation is a set of C++ classes, and interfaces

are modelled by MiXiM buses transporting messages

with the appropriate interface type.

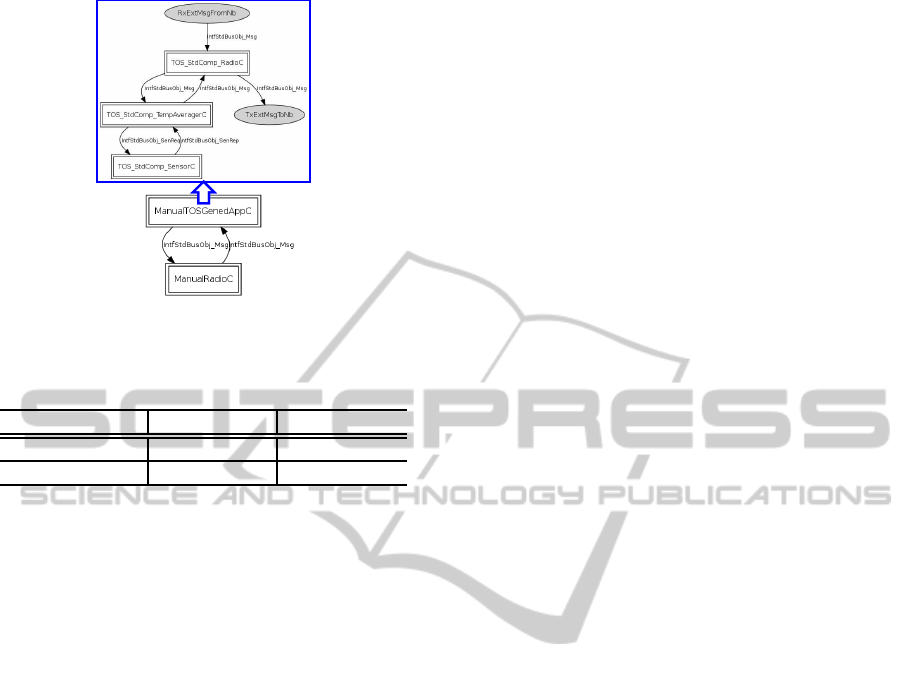

In TinyOS, blocks are mapped to NesC modules

connected through TinyOS interfaces, while match-

ing C structures are provided to support interface se-

rialization i.e. the operation of converting a function

call representing an event into a format which can be

stored or transmitted across a communication link.

After this stage, blocks must be manually wired

together, based on information provided in (D2).

Both simulation and deployment (Tasks VI.a and

VI.b), can provide experimental results (D6.a and

D6.b) for a ﬁnal validation phase (Task VII).

The resulting validation results (D7) can be used

to verify requirements and subsequently improve the

design, feeding a new loop of the iterative work-ﬂow.

It is important to observe that the service-driven

model employed in blocks deﬁnition is primal to draw

a common line which remains consistent across all

design, development and deployment phases. While

the model remains the same, the internal application

A SERVICE-DRIVEN DEVELOPMENT TOOL FOR WIRELESS SENSOR NETWORK

logic can take different forms: for instance, a block

can be initially developed as a “Simulink Model”,

then translated to a “MiXiM Module” in a simulation

phase, then converted to a “NesC Model” in the de-

ployment stage and ﬁnally be compiled as a binary

image. Conversion between different forms is auto-

mated by the HySim tools.

3 EXAMPLE

For validation purposes, the proposed solution has

been tested on a number of actual use cases. While

the proposed solution is suitable for development of

complex application models, this paper uses a very

simple example to explain the main features of the

tools and the work-ﬂow. The described use case is

a simple application where nodes perform collection

and distributed processing of data from a temperature

sensor.

In this example, each WSN node:

1. samples temperature values;

2. collaboratively averages the monitored values

with those from its one-hop neighbours within a

sliding time window;

3. broadcasts its latest calculated average tempera-

ture value back to its neighbours.

The following parameters have been identiﬁed as

potential tunable attributes of each node:

1. its own node identiﬁer (NodeId);

2. the sampling period of the temperature sensor

(SamplingPeriod);

3. the size of the time window to compute averages

(AvgWinSize);

Based on the above requirement analysis (task I),

a sketch design is modelled (task II). The resulting de-

sign divides the application into three blocks: a Sen-

sor block, a Radio block, and a data processing block

(TempAverager). The Sensor block deals with sam-

pling and pre-processingof temperaturedata. The Ra-

dio block provides support to interface with the radio

protocol used to communicate with neighbours. The

TempAverager block contains all the data processing

capabilities. Both the Sensor and the Radio block are

connected to the TempAverager block.

This preliminary design allows one to concentrate

only on the “borders” of the TempAverager block, as

all the interfaces of other blocks will be shared with

it. The resulting WSN-BDL ﬁle is reported in Fig. 7.

According to the deﬁnition, the TempAverager

block can request a temperature reading through

the SenseReq interface, which will cause an asyn-

chronous call to the inbound SenseRep when a valid

<?xml version="1.0 " encoding="UTF-8"?>

</AClass>

</AClass>

</AClass>

</IClass>

</IClass>

</IClass>

</Block>

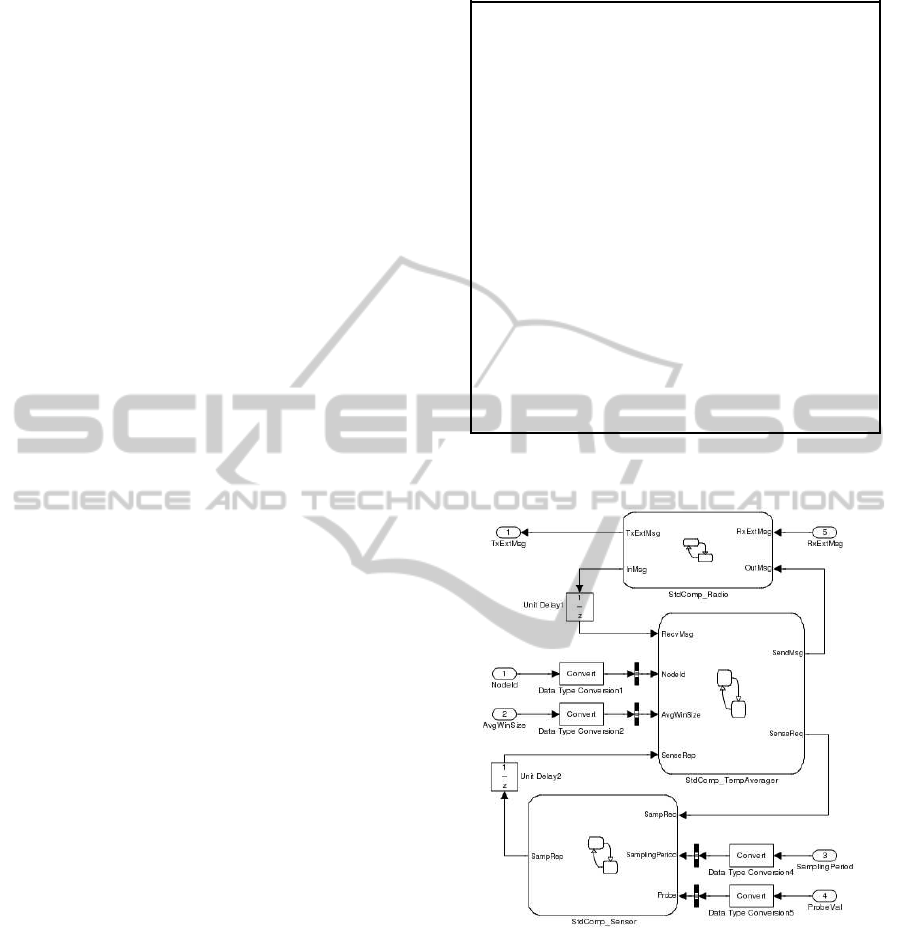

Figure 7: WSN-BDL of the TempAverager block.

Figure 8: Node applications composed of linked blocks.

value is ready. When a processing phase is complete,

the TempAverager block can request a data broadcast

to the radio through the SendMsg command, which

will cause a RecvMsg event in the 1-hop neighbours.

When these deﬁnition ﬁles are fed to the FSM-SG,

the corresponding Simulink block templates are au-

tomatically generated (task III) and can be manually

wired as described in Fig. 8.

Within the Simulink



, in-bound and out-bound

interfaces are mapped to input and output ports re-

spectively, to exchange service-speciﬁc events with

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

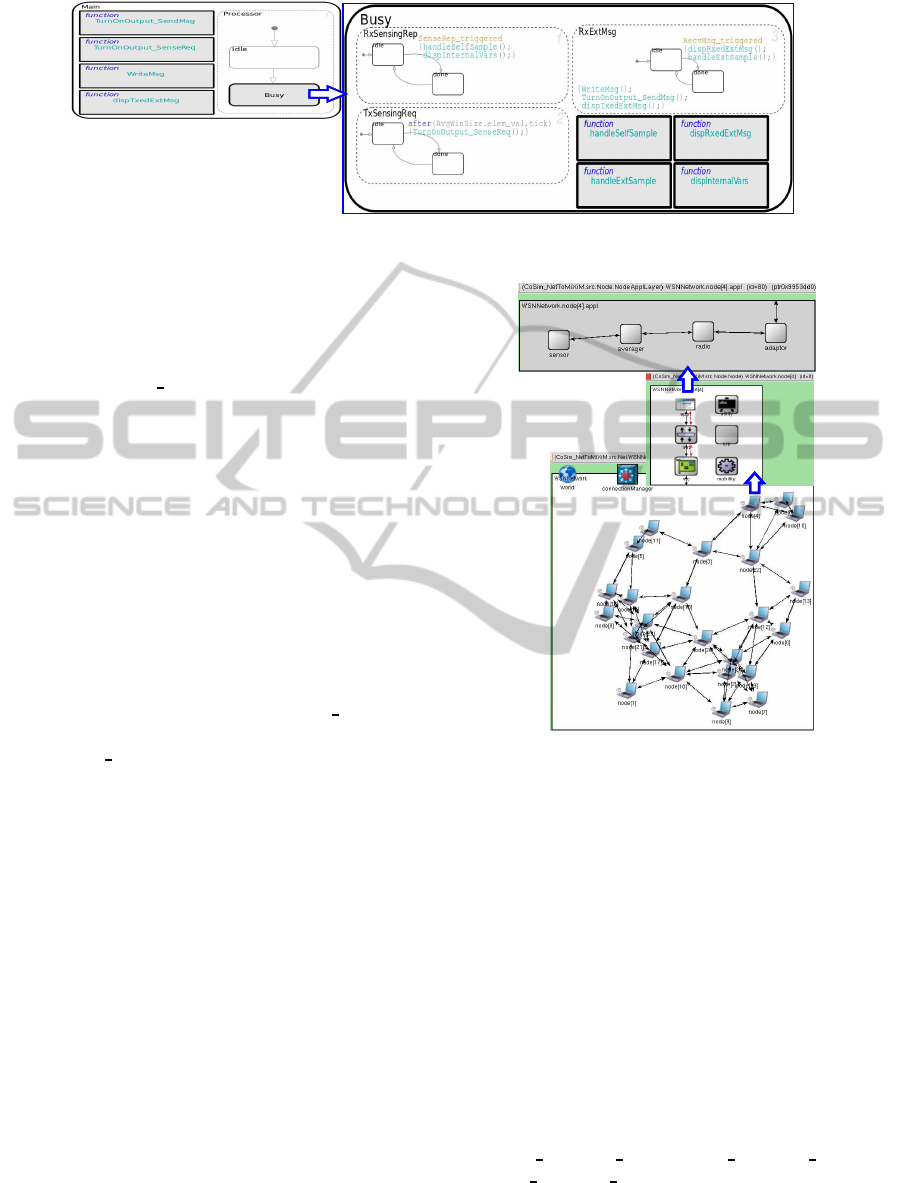

Figure 9: Implementation of TempAverager block.

other blocks, such as RecvMsg, SendMsg, SenseRep

and SenseReq in Fig. 8. The attribute instances are

mapped to input ports in order to import the tunable

parameter values into the block, i.e. NodeId and Avg-

WinSize for StdComp TempAverager.

As shown in Fig. 9, the internal logic of the

TempAverager block is implemented using an event-

driven FSM paradigm, supported by APIs available

inside the template and reﬂecting external interfaces

and attributes.

In the example, a two-state (Idle/Busy) implemen-

tation is proposed in the Main portion. Inside the Busy

state, three parallel state machines (RxSensingRep,

TxSensingReq and RxExtMsg) are in charge of receiv-

ing sensing samples from the SenseRep port, sending

sensing request to the SenseReq port and processing

the received external message from the RecvMsg port

respectively. The developer can rely on both APIs to

model incoming events, e.g. the RecvMsg

triggered

event, and also to model outgoing commands e.g.

TurnOnOutput

SendMsg. As previously mentioned,

except for the APIs that are exposed in the template,

the internal behaviour in Fig. 9 is independent from

the external context shown in Fig. 8.

To verify this part of the design in isolation, the

Radio and the Sensor have been modelled as sim-

ple trafﬁc generators and the whole system has been

graphically debugged as a normal Simulink model.

Afterwards, the developed Simulink blocks have

been fed into FSM-CG (task V) for large-scale simu-

lation (task VI.a) and real deployment (task VI.b).

In the MiXiM simulation domain, those functional

blocks are transformed to “Simple modules” (Sensor,

Radio, TempAverager) as displayed in Fig. 10, and

manually interconnected and conﬁgured in the initial-

ization ﬁle (e.g. to assign to each node a NodeId,

AvgWinSize and SamplingPeriod values). In the ex-

ample, an “adaptor” object, provided with the DDK,

is used as an adaptation layer simply to accommodate

the messages to send and receive through the standard

ports between the Appl layer and the NIC layer.

Similar to the network in Fig. 10, any application

Figure 10: Simulation in MiXiM.

logic can be easily constructed with the obtained com-

pound node module (the automatically transformed

modules can be connected and placed in the Appl

layer of the MiXiM node stack) so as to evaluate the

performance of the algorithm in a large-scale simu-

lation, while the conﬁgurations like size of the play-

ground, sensitivity of transceivers, initial position and

mobility of each node can be simply set in the initial-

ization ﬁle and managed by MiXiM.

To validate the deployment capabilities, a simple

test-bed has been set up using a set of Memsic Telos

rev. B nodes running TinyOS.

In this case the FSM-CG tool transforms blocks

in the form of NesC modules. For ease of in-

tegration, the automatically generated NesC mod-

ules (TOS

StdComp RadioC, TOS StdComp SensorC

and TOS StdComp TempAveragerC) are ﬁrstly con-

ﬁgured, interconnected and encapsulated into a NesC

module, ManualTOSGenedAppC.

The generated blocks are consequently manually

A SERVICE-DRIVEN DEVELOPMENT TOOL FOR WIRELESS SENSOR NETWORK

Figure 11: Deployment in TinyOS.

Table 1: Code size and the memory usage for the example

application.

ROM (bytes) RAM (bytes)

Hand-written 17220 492

Auto-generated 20562 526

wired in TinyOS to adapt the existing radio commu-

nication services as presented in Fig. 11. Finally, the

resulting project has been compiled and downloaded

into real nodes. Code size and memory usage have

been compared for both the binary version generated

with the proposed solution and the same application

logic implemented manually. As shown in Table 1, in

the described example the proposed solution does not

introduce signiﬁcant overhead.

4 CONCLUSIONS AND FUTURE

WORKS

In this paper, we presented an object-oriented and

service-oriented application development tool for

WSNs, which decomposes an application into a set

of blocks that can be graphically developed and eas-

ily debugged separately or integrated in a network

setup. In order to relieve the developersfrom the cum-

bersome and error-prone re-implementations task, the

blocks can be seamlessly ported to different plat-

forms, with minor wiring and adaptation for simula-

tion and deployment.

The presented use-case provides a demonstration

about how in-network processing capabilities can be

developed with the proposed solution. The use-case

can be easily extended to more complex applications

e.g. by connecting with more functional blocks or

adding more parallel operational FSMs.

Short-term future directions include the extension

of the FSM-CG tool to support more actual platforms

(e.g. through the Contiki O.S. (Dunkels et al., 2004))

and validation of the proposed solution on more real-

istic usage scenarios.

Longer-term future works will investigate how to

ease discovery and distribution of intelligence to sup-

port composition of WSN applications over multiple

nodes. These works will leverage the ability of the

proposed solution to turn a WSN application into a set

of composable blocks exposing services, which can

be eventually be discovered and executed remotely.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge partial funding of

this work by the regional project “Piattaforma Tecno-

logica Innovativa per l’Internet of Things”.

REFERENCES

Angelov, C. and Sierszecki, K. (2004). A Software Frame-

work for Component-Based Embedded Applications.

11th Asia-Paciﬁc Software Engineering Conference,

pages 655–662.

Angelov, C. and Sierszecki, K. (2006). A Component-

Based Framework for Distributed Control Systems.

32nd EUROMICRO Conference on Software En-

gineering and Advanced Applications (EUROMI-

CRO’06), pages 20–27.

Bakshi, A., Prasanna, V. K., Reich, J., and Larner, D.

(2005). The abstract task graph: a methodology for

architecture-independent programming of networked

sensor systems. In Proceedings of the 2005 workshop

on End-to-end, sense-and-respond systems, applica-

tions and services, EESR ’05, pages 19–24, Berkeley,

CA, USA. USENIX Association.

Bonnet, P., Gehrke, J., and Seshadri, P. (2001). Towards

sensor database systems. In Proceedings of the Second

International Conference on Mobile Data Manage-

ment, MDM’01, pages 3–14, London, UK. Springer-

Verlag.

Breslau, L., Estrin, D., Fall, K., Floyd, S., Heidemann, J.,

Helmy, A., Huang, P., McCanne, S., Varadhan, K.,

Xu, Y., and Yu, H. (2000). Advances in network sim-

ulation. Computer, 33(5):59–67.

Ciciriello, P., Mottola, L., and Picco, G. P. (2006). Build-

ing virtual sensors and actuators over logical neigh-

borhoods. In Proceedings of the international work-

shop on Middleware for sensor networks, MidSens

’06, pages 19–24, New York, NY, USA. ACM.

Cota, C., Aguilar, L., and Licea, G. (2010). A java

compatible virtual machine as an embedded mid-

dleware for wireless sensor networks. In Electron-

ics, Robotics and Automotive Mechanics Conference

(CERMA), 2010, pages 265 –270.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

Dearle, A., Balasubramaniam, D., Lewis, J., and Morri-

son, R. (2008). A component-based model and lan-

guage for wireless sensor network applications. In

Proceedings of the 2008 32nd Annual IEEE Interna-

tional Computer Software and Applications Confer-

ence, pages 1303–1308, Washington, DC, USA. IEEE

Computer Society.

Dunkels, A., Gr¨onvall, B., and Voigt, T. (2004). Contiki

- a lightweight and ﬂexible operating system for tiny

networked sensors. In Workshop on Embedded Net-

worked Sensors, Tampa, Florida, USA.

Ghercioiu, M. (2005). A graphical programming approach

to wireless sensor network nodes. In Sensors for In-

dustry Conference, 2005, pages 118 –121.

Gravina, R., Guerrieri, A., Fortino, G., Bellifemine, F., Gi-

annantonio, R., and Sgroi, M. (2008). Development of

body sensor network applications using spine. In Sys-

tems, Man and Cybernetics, 2008. SMC 2008. IEEE

International Conference on, pages 2810 –2815.

Juntunen, J., Kuorilehto, M., Kohvakka, M., Kaseva, V.,

Hannikainen, M., and Hamalainen, T. (2006). Wsn

api: Application programming interface for wireless

sensor networks. In Personal, Indoor and Mobile Ra-

dio Communications, 2006 IEEE 17th International

Symposium on, pages 1–5.

K¨opke, A., Swigulski, M., Wessel, K., Willkomm, D., Han-

eveld, P. T. K., Parker, T. E. V., Visser, O. W., Lichte,

H. S., and Valentin, S. (2008). Simulating wire-

less and mobile networks in omnet++ the mixim vi-

sion. In Proceedings of the 1st international confer-

ence on Simulation tools and techniques for commu-

nications, networks and systems&workshops, Simu-

tools’08, pages 71:1–71:8, ICST, Brussels, Belgium,

Belgium.

Kuorilehto, M., H¨annik¨ainen, M., and H¨am¨al¨ainen, T. D.

(2008). Rapid design and evaluation framework for

wireless sensor networks. Ad Hoc Netw., 6(6):909–

935.

Levis, P., Lee, N., Welsh, M., and Culler, D. (2003). Tossim:

accurate and scalable simulation of entire tinyos appli-

cations. In Proceedings of the 1st international con-

ference on Embedded networked sensor systems, Sen-

Sys’03, pages 126–137, New York, NY, USA. ACM.

Levis, P., Madden, S., and Gay, D. (2004). TinyOS: An

Operating System for Sensor Networks. Ambient In-

telligence edited by W. Weber, J.Rabaey, and E. Aarts.

Madden, S. R., Franklin, M. J., Hellerstein, J. M., and

Hong, W. (2005). Tinydb: an acquisitional query

processing system for sensor networks. ACM Trans.

Database Syst., 30:122–173.

Marron, P. J., Karnouskos, S., Minder, D., and the

CONET consortium (2009). Roadmap on Cooperat-

ing Objects. Kluwer Academic Publishers, Luxem-

bourg, EU.

Osterlind, F., Dunkels, A., Eriksson, J., Finne, N., and

Voigt, T. (2006). Cross-level sensor network simu-

lation with cooja. In Local Computer Networks, Pro-

ceedings 2006 31st IEEE Conference on, pages 641–

648.

Quantum Leaps (2011). The qp framework.

http://www.state-machine.com/.

Rubio, B., Diaz, M., and Troya, J. (2007). Programming

approaches and challenges for wireless sensor net-

works. In Systems and Networks Communications,

2007. ICSNC 2007. Second International Conference

on, page 36.

Shaylor, N., Simon, D. N., and Bush, W. R. (2003). A java

virtual machine architecture for very small devices.

SIGPLAN Not., 38:34–41.

Song, Z. Y., Mostaﬁzur, M., Mozumdar, R., Tranchero,

M., Lavagno, L., Tomasi, R., and Olivieri, S. (2010).

Hy-sim: model based hybrid simulation framework

for wsn application development. In Proceedings of

the 3rd International ICST Conference on Simulation

Tools and Techniques, SIMUTools ’10, pages 87:1–

87:8, ICST, Brussels, Belgium, Belgium.

Varga, A. (1999). Using the omnet++ discrete event simu-

lation system in education. In IEEE Transactions on

Education, volume 42, page 11 pp.

Varga, A. (2000). The OMNET ++ Discrete Event Simula-

tion Event. Proceedings of the European Simulation

Multiconference (ESM’2001).

Wada, H., Boonma, P., Suzuki, J., and Oba, K. (2007).

Modeling and executing adaptive sensor network ap-

plications with the matilda uml virtual machine. In

Proceedings of the 11th IASTED International Con-

ference on Software Engineering and Applications,

pages 216–225, Anaheim, CA, USA. ACTA Press.

A SERVICE-DRIVEN DEVELOPMENT TOOL FOR WIRELESS SENSOR NETWORK
