AUTOMATIC OBJECTS DETECTION FOR MODELING INDOOR

ENVIRONMENTS

Marion Decrouez

1,2

, Romain Dupont

, Franc¸ois Gaspard

and James L. Crowley

CEA, LIST, Content Engineering and Vision Lab., Point Courrier 94, F-91191 Gif-sur-Yvette, France

Keywords:

Visual SLAM, Bag of Words, Place Recognition, Objects Detection.

Abstract:

In this paper we describe a new solution for constructing a model of a scene and its objects using various

explorations of a single camera in an unknown environment. Object motion presents a difﬁcult challenge

to scene modeling. The proposed method combines metric localization and place recognition to detect and

model objects without a priori knowledge and to incrementally extend a scene model by adding new places

and objects. We demonstrate the quality of our approach with results from image sequences taken from two

different scenes.

1 INTRODUCTION

Live processing of a video sequence taken from a sin-

gle camera enables to model an a priori unknown 3D

scene. Metrical SLAM (Simultaneous Localization

and Mapping) algorithms track the camera pose while

reconstructing a sparse map of the visual features of

the 3D environment. Such approaches provide the ge-

ometrical foundation for many augmented reality ap-

plications (Mouragnon et al., 2006) in which informa-

tions and virtual objects are superimposed on live im-

ages captured by a camera. Improving such systems

will enable in the future precise industrial applications

such as guided-maintenance or guided-assembly in

wide installations. A problem with current methods is

the assumption that the environment is static. Indoor

environments such as supermarket ailes and factory

ﬂoors may contain numerous objects that are likely

to be moved, disrupting a localization and mapping

system. In this article, we explore a method for au-

tomatic detection and modeling of such objects. We

deﬁne the scene as a static structure that may contain

moving objects. Without any a priori knowledge, we

deﬁne an object as a set of visual features that share

a common motion compared to the static structure,

as illustrated ﬁgure 1. We analyse multiple explo-

rations of a camera in the same environment to ex-

tract as many informations as possible on the scene

and its temporal evolution. The system presented in

this article enables us to reconstruct an unknown envi-

ronment in 3D, to locate the observing camera within

the scene, to recognize previously visited areas and to

model new objects. We start with a review of the cur-

rent state of the art for localization and mapping sec-

tion 2. We then describe a new technique for localiza-

tion and mapping in section 3, followed by a descrip-

tion of methods for automatic detection of mobile ob-

jects in section 4. Results from experiments with this

method are presented in section 5.

Object position

in the first

exploration

Object position in the

second exploration

1st exploration

2nd exploration

Static Structure

Object added

to the

database

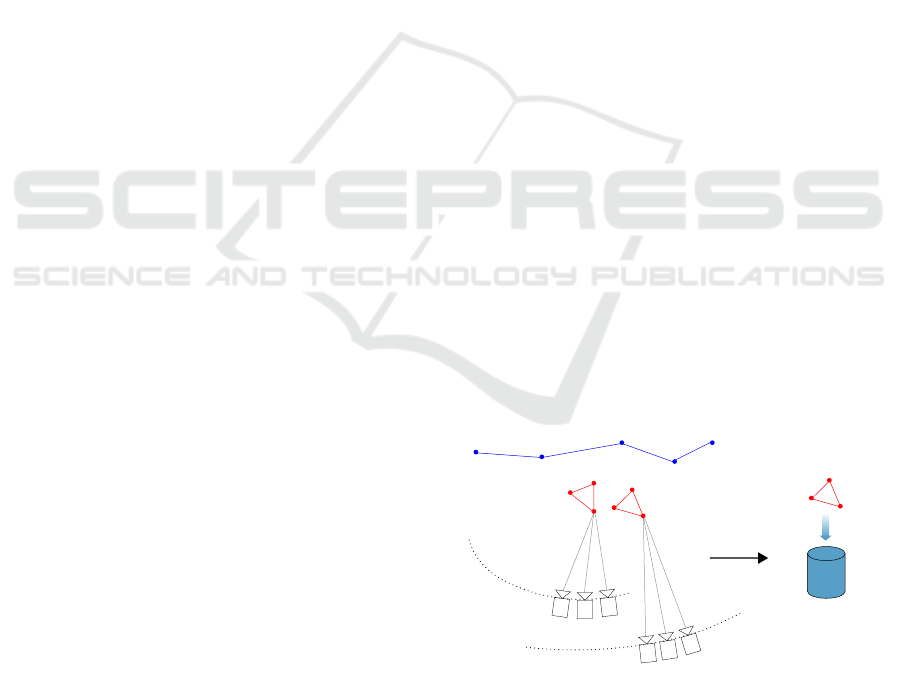

Figure 1: Automatic object detection. Comparing two video

sequences of the same scene taken at different times high-

light moved objects.

2 RELATED WORK

Vision-based methods for localization and mapping

can be classiﬁed as metric or topological. Metric

SLAM algorithms enable a visual sensor to explore an

a priori unknown environment performing live map-

ping while simultaneously using the map to estimate

the position and orientation of the camera. However,

existing solutions (Mouragnon et al., 2006) are prone

573

Decrouez M., Dupont R., Gaspard F. and L. Crowley J..

AUTOMATIC OBJECTS DETECTION FOR MODELING INDOOR ENVIRONMENTS.

DOI: 10.5220/0003818205730578

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 573-578

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

to accumulation of numerical errors. In such a case, it

becomes difﬁcult to detect that a camera has returned

to a previously visited position and such algorithms

do not provide the capability to relocate the cam-

era within the map in cases where the camera pose

is lost. Several topological or appearance-based ap-

proaches have been described to address such chal-

lenges. Cummins and Newman (Cummins and New-

man, 2009) deﬁne a probalistic model over the bag-

of-words representation (Sivic and Zisserman, 2003).

They determine when the camera is revisiting a pre-

viously mapped area on the basis of image similarity

and do not require metric estimations. Their method

has been found to be robust to perceptual aliasing (the

fact that different places have similar appearances)

by taking into account the co-occurence of the visual

words in the appearance likelihood estimation. Unfor-

tunately, it does not allow real-time processing and it

has proven its effectiveness on panoramic images and

we want to use medium-sized images of indoor envi-

ronments. Recent efforts have been made to combine

both approaches, in order to deal with longer trajecto-

ries while maintaining the 3D point map required for

augmented reality applications. Castle et al. (Castle

et al., 2008) propose an approach that works with sev-

eral 3D maps. The system automatically switches be-

tween maps by relocalizing the current image relative

to previously visited area. Other recent approaches

attempt to extract additional 3D information from the

video stream to extend the scene understanding and

improve the SLAM results. Angeli et al. (Angeli and

Davison, 2010) suggest grouping feature points into

3D clusters using similar appearance and 3D prox-

imity information. Lastly, Kim et al. (Kim et al.,

2010) describe a solution for modeling and tracking

multiple 3D objects in unknown environments. An

object database is built ofﬂine and the user can add a

new object by selecting a region of the image. To our

knowledge, there is no solution to automatically en-

rich the objects database using multiple explorations

of the same environment with a mobile camera. This

paper proposes a method to analyse and compare dif-

ferent explorations of the same indoor environment in

order to detect displaced objects and add them to an

object database. Our method is illustrated in the ﬁgure

2. We use a keyframe-based SLAM algoritm. Every

new keyframe, we update the 3D map and search for

the closest previous frame to compare the 3D recon-

struction. The scene model and the object detection

are described in the following sections.

Features Extraction

New Keyframe

3D Map Update

Localization

and 3D mapping

Searching for

past similar

keyframes

3D Geometric

Validation

Objects

segmentation

using motion

Automatic objects detection

3D Points Cloud

Place recognition

Objects

database

Camera Pose

Estimation

Object added to

the database

New image

Figure 2: Proposed method: 3D reconstruction and auto-

matic objects detection.

3 MODELING THE SCENE

This section presents our proposed algorithms for

metric SLAM and appearance-based place recogni-

tion. These two methods are combined in the 3D ge-

ometrical validation solution described section 3.3.

3.1 3D Reconstruction

We use the method described by Mouragnon et al.

(Mouragnon et al., 2006) to estimate the points po-

sitions and the camera pose. Live processing of the

video stream enables to build a sparse map of 3D

points. The system detects Harris-Stephen points in

the current image and extracts SURF descriptors (Bay

et al., 2006). These interest points are matched with

the projection of 3D points seen in the previous frame

to compute the camera pose. Some keyframes are se-

lected to compute the 3D coordinates of the observed

points with the new camera pose. Thus, the map is

updated and the system optimizes the scene using lo-

cal bundle adjustment. This method constructs the 3D

environment in real-time but it is prone to errors in the

camera pose and scale drift. Such errors can disrupt

detection of loop closure. To avoid such problems,

we use a place recognition algorithm based on appear-

ance to ﬁrst check whether the current image comes

from a previously visited location 3.2 and then detect

displaced objects 4.

3.2 Place Recognition

We use a place recognition algorithm based on the

bag-of-words image representation (Sivic and Zisser-

man, 2003) to detect previously visited areas. This

method shows outstanding retrieval results on large-

scale image databases. Local features are detected in

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

574

the image and quantized in visual words with respect

to a vocabulary. The vocabulary is learned beforehand

by clustering all feature vectors from a set of train-

ing data (3000 random Flickr images) using k-means

clustering and contains 10000 visual words. Each

keyframe selected by the SLAM method is registered

in the image database and is represented as a vector of

visual words. We take advantage of the inverted index

to ﬁnd the most likely past keyframe that matchs the

current keyframe. Each time a word is found, we up-

date the similarity scores of the past images retrieved

from the index by adding the term frequency - in-

verted document frequency (tf - idf) weighting term as

in (Sivic and Zisserman, 2003). Thus, we measure the

similarity between a pair of images and then assume

that two images with high similarity score are taken

from the same location. However, the current obser-

vation may come from a previously unknown place.

A geometric post-veriﬁcation stage, which tests the

geometric consistency of the matched images, is re-

quired.

3.3 Merging Both Approaches with a

3D/2D Geometric Validation

We conﬁrm the place recognition hypothesis with a

3D validation. Features extracted in the database im-

age are matched to the projection of 3D points seen in

the current image. We estimate the relative pose be-

tween these two similar images. We retain the match

if there are enough points verifying the geometric

constraint. Thus, we reject all errors due to percep-

tual aliasing. Besides, this method makes it possible

to determine the static structure of the scene and to

identify a set of inconsistent points. In the case where

a scene is composed of multiple rigid objects moving

relative to each other, we can detect possible objects

as nearby sets of points that share similar movement.

We present an overview of the state of the art for two-

view multiple motion estimation in the section 4.1 and

our method for object detection in section 4.2.

4 AUTOMATIC OBJECTS

DETECTION

Comparing two views of the same 3D scene taken at

different times highlights 3D points inconsistent with

the static structure. We want to infer the presence

of moved objects by clustering points according with

their motion. The setting is the following: given the

set of corresponding points in two similar images, we

have to estimate the movement of the camera and the

movement of an unknown number of moving objects.

In this section we ﬁrst review alternative methods for

two-view multibody estimation and then describe our

approach.

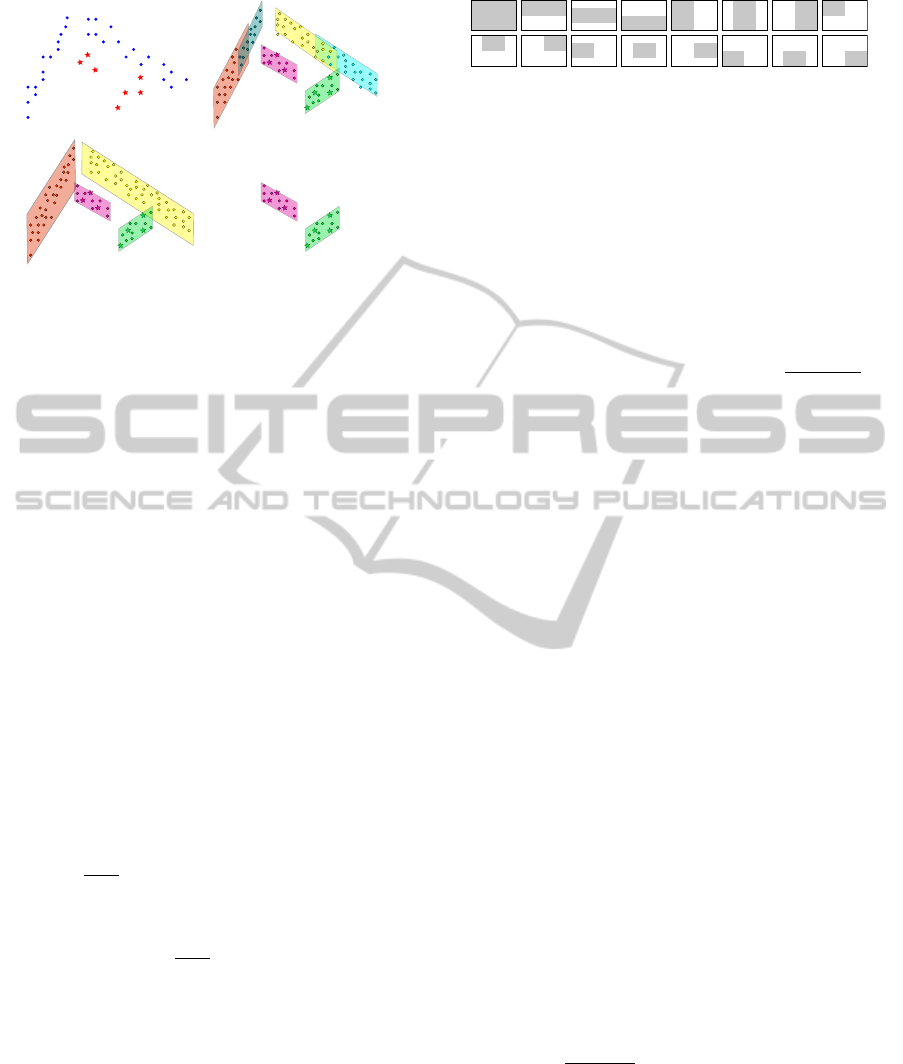

4.1 Two-view Multiple Structures

Estimation

To simplify the problem, we consider only planar ob-

jects. We need to detect multiple planar homogra-

phies in image pairs. Zuliani et al. (Zuliani et al.,

2005) describe the multiRANSAC algorithm but this

method requires prior speciﬁcation of the number of

model. Toldo and Fusiello (Toldo and Fusiello, 2008)

present a simple method for the robust detection of

multiple structures in pairs of images. They generate

multiple instances of a model from random sample

sets of correspondences and then merge group points

belonging to the same model using a agglomerative

clustering method called J-Linkage. Our method is

based in part on this algorithm. We combine planar

detection with 3D reconstruction to detect only mov-

ing objects.

4.2 Identiﬁcation of the Moving Objects

in the 3D Scene

Our metrical SLAM algorithm constructs a sparse

map of the environment. Inconsistent points retrieved

at the 3D validation step aren’t enough to estimate a

model and deﬁne an object. To tackle this problem,

we extract a large number of features in each image,

match them and generate many local hypotheses of

homographies. We then merge sets of points belong-

ing to the same motion using a technique explained

below and ﬁnally keep those with points associated

with 3D inconsistent points. We use SURF features

to describe interest points. Each feature is matched

with its nearest neighbor in the similar image. Figure

3 illustrates our method.

4.2.1 Preliminaries and Notation

Points in the 2D image plane of a camera are repre-

sented by homogeneous vectors p. p

and p

are two

corresponding points detected in pair of similar im-

ages. These points are the projection of the same 3D

points in different camera views. We have to detect

perspective transformations (homographies) that map

planar surfaces from one image to the other. To do so,

we ﬁnd the set of correspondences ﬁtting the same

homography H:

∼ H p

. (1)

AUTOMATIC OBJECTS DETECTION FOR MODELING INDOOR ENVIRONMENTS

575

(a) (b)

Figure 3: Object segmentation. (a) Estimation of the rela-

tive pose between pair of similar images highlights points

of the static structure (blue circles) and inconsistents points

(red stars). (b) Multiple planes detection: best homogra-

phies in each subregions of the image planes. (c) Sets of

points belonging to the same model are merged. (d) Moved

objects are detected as the sets of points containing incon-

sistents 3D points.

H is a (3 x 3) matrix, with eight degrees of freedom.

This matrix can be determined from four correspon-

dences. In our case, the system is overdetermined as

we have to estimate H by taking into account all the

correspondences that may verify the relation 1. Since

the image point measurements are corrupted by noise,

a correspondance will not lie exactly on the homogra-

phy, but will differ from it by a residual e. To quantify

the residual, we use the approximation of the geomet-

ric error called Sampson-distance (Hartley and Zisser-

man, 2000). Relation 1 can be reordered as an equa-

tion system Ah = 0, such as h contains the nine un-

known entries of H. Sampson-distance with respect

to a homography is thus given by

Sampson

= h





−1

Ah, (2)

where J =

∂(Ah)

∂( ˜p)

is the Jacobian of the linear equa-

tion system. We consider that a correspondance is

inlier if its residual is below a threshold ε (we take

ε = 1.5). Using the form given in (Hartley and Zis-

serman, 2000) : ε =

√

5.99 ∗σ. σ is the scale of the

noise of the data measurements, here σ = 0.6.

4.2.2 Iterative Ransac Procedure

We want to use a simple method to ﬁnd the best ho-

mographies between a pair of images. We use a se-

quential RANSAC procedure: we sequentially apply

RANSAC and remove the inliers from the data set as

each model instance is detected. At each iteration, the

model that ﬁts the larger number of points is the best

model. The procedure is repeated if the number of

remaining points is sufﬁcient.

Figure 4: Local sampling used to generate RANSAC hy-

pothesis. Samples are drawn in subregions of the image

plane.

4.2.3 Local Sampling

The scene may contain multiple plans and the data

is corrupted by noise and matching errors. Under

these conditions, only a small fraction of all corre-

spondences belongs to each model. The problem

may become intractable: using the standard formula

for RANSAC and considering that an object covers

10 percent of the entire image we need

log(1−0.99)

log(1−0.1

)

≈

46000 iterations. To overcome this problem, we ex-

ploit the spatial coherence of points belonging to the

same object (clustered in a region of the image) and

generate RANSAC hypotheses using a local sampling

like Schindler et al. (Schindler and Suter, 2006). The

image plane is subdivided into three overlapping rows

and three overlapping columns and the samples are

drawn from the entire image, each column, each row,

and each of the nine regions deﬁned by a row-column

intersection 4. This heuristic takes advantage of the

spatial coherence and reduces the required RANSAC

sample number. We assume that an object covers at

least 50 percent of one region, we also need to gener-

ate ≈ 100 samples per regions.

4.2.4 Merging

Our algorithm generates groups of points X

, ..., X

belonging to planar regions. Since the initial hypothe-

ses are generated with local sampling, a large planar

surface in the scene may result in several planes (ﬁg-

ure 3(b)). We need to merge these groups of points.

We ﬁrst merge groups with more than 80 percent of

points in common. Then, then for each pair of sets X

and X

we estimate a homography

H with the group

∪X

using least-square minimisation estimation.

and X

are merged if the mean of the error for the

new model is below ε:

∪X

∑

c∈X

∪X

4.2.5 Objects Detection

The steps of the algorithm described above provide

sets of points from planar regions in the scene (ﬁg-

ure 3(c)). To detect an object, we must detect planar

regions with motion that is different from the rest of

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

576

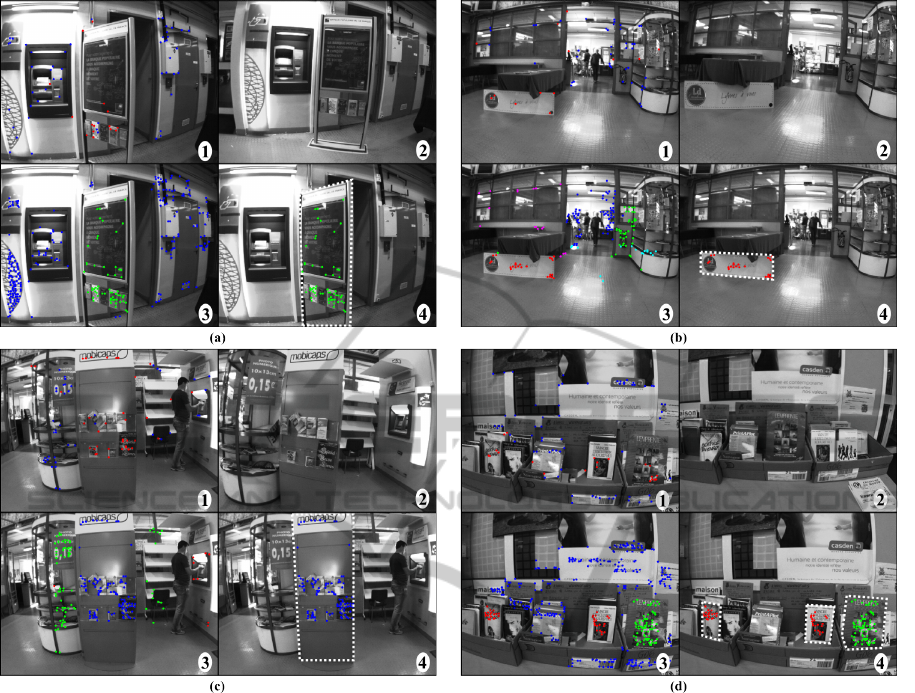

Figure 5: Objects detection on four place recognition cases. 1 : Current keyframe, blue circles denotes points of the static

structure, red circles are inconsistent points. 2 : Similar database image. 3 : Homographies detected in image pairs. 4 : Edges

of actually being moved objects are dashed, set of circles of different colors denotes the objects detected by our algorithm.

the scene. We use information from 3D reconstruc-

tion and geometric validation: moving objects are sets

of points containing inconsistents 3D points (ﬁgure

3(d)).

5 EXPERIMENTAL RESULTS

AND DISCUSSIONS

5.1 Experimental Validation

We have validated our algorithm on real data. We use

a sequence of 2035 frames taken inside a building.

Figure 5 presents our results for the object detection

on four cases of place recognition. The ﬁrst and sec-

ond views are two images taken from the same lo-

cation. The second view shows the projection of 3D

points on the image plane: blue points are from the

static structure and red stars are inconsistent points.

The third view presents planar surfaces of the scene

and the fourth view shows objects that have been actu-

ally moved (dashed) and points belonging to the same

objet (circles of the same color). In ﬁgures 7(a), 7(b),

7(c) the moved objects are correctly detected. The

disappearance of the person in ﬁgure 7(c) does not

disrupt the recognition and the pose estimation. In-

deed, the person occupy a small part of the image

plane and the points detected on the person are not

matched in the similar image. In ﬁgure 7(d), three

objects have actually moved. Only two of them are

detected by our algorithm as the two books in the left

have a very similar motion.

5.2 Objects Detection Improvements

Figure 6 illustrates our results for the ﬁrst sequence:

3D reconstruction, place recognition and object de-

tection. Six moving objects were detected. In practice

AUTOMATIC OBJECTS DETECTION FOR MODELING INDOOR ENVIRONMENTS

577

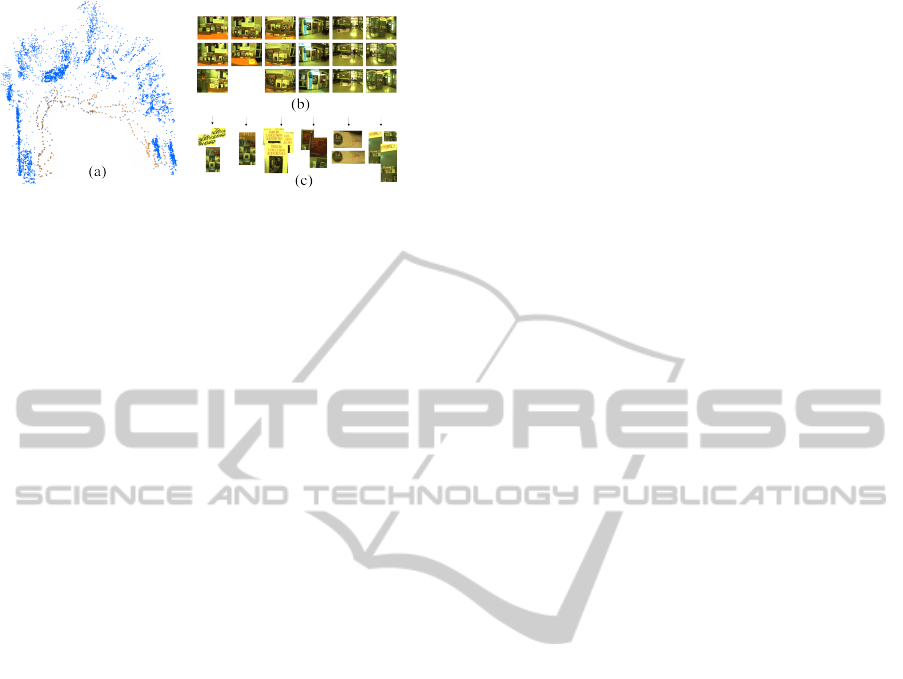

Figure 6: (a) 3D reconstruction of an indoor scene, (b)

Matching images, (c) Objects detected in the scene.

we observe two limitations:

• outliers that do not belong to the object,

• falses object detection.

5.2.1 Outliers Management

Sets of points may contain outliers that do not be-

long to the object. We ﬁlter these outliers as fol-

lows: for each set of points associated with an ob-

ject, we estimate the mean and standard deviation

of the spatial coordinates and reject points outside

¯x + 2σ

] ∩[ ¯y −2σ

, ¯y + 2σ

]. σ

et σ

are the abscissa

and ordinate standard deviations estimated with the

Median Absolut Deviation estimator. ¯x et ¯y are the

abscissa and ordinate medians.

5.2.2 Falses Detections

Our algorithm produces sets of points associated with

objects in the scene. Nevertheless, we may observe

falses positives in the detection (sets of static points

considered as moved objets). There are a number of

cases where the static structure of the scene is difﬁcult

to determine. For example, this can occur when much

of the scene has moved between two explorations

or when the moved object covers most of the image

plane. For the ﬁrst sequence, we count 10 falses pos-

itives on 70 detections. We ﬁlter these errors keeping

only objects detected more than three times. In the

future, we plan to avoid falses positives using a pri-

ori information from the analysis of previous frames,

which can be used to precisely determine the static

structure.

6 CONCLUSIONS

We have presented a scheme to automatically detect

objects. Using several explorations of a camera in the

same scene, we detect and model moved objects while

reconstructing the environment. Experiments high-

lignt the performance of the method in a real case of

localization in an unknown indoor environment. Our

intention is to model a large environment subject to

many changes, such as workshop factory or a shop-

ping area, and to maintain a map of locations and fre-

quently seen objects. Use cases for this work include

providing context aware information for a user of a

mobile device by providing location based informa-

tion on the environment context and detecting objects

of interest. We plan to improve the place recognition

and metric localization results by taking into account

non static hypothesis. Moreover, object and motion

detection is useful for augmented reality applications.

REFERENCES

Angeli, A. and Davison, A. (2010). Live feature cluster-

ing in video using appearance and 3D geometry. In

BMVC.

Bay, H., Tuytelaars, T., and Gool, L. V. (2006). SURF :

Speeded Up Robust Features. ECCV.

Castle, R. O., Klein, G., and Murray, D. W. (2008). Video-

rate localization in multiple maps for wearable aug-

mented reality. In SWC.

Cummins, M. and Newman, P. (2009). Highly scalable

appearance-only SLAM : Fab-map 2.0. In RSS.

Hartley, R. I. and Zisserman, A. (2000). Multiple View Ge-

ometry in Computer Vision. Cambridge University

Press.

Kim, K., Lepetit, V., and Woo, W. (2010). Keyframe-based

Modeling and Tracking of Multiple 3D Objects. IS-

MAR.

Mouragnon, E., Lhuillier, M., Dhome, M., Dekeyser, F., and

Sayd, P. (2006). Monocular Vision Based SLAM for

Mobile Robots. ICPR.

Schindler, K. and Suter, S. (2006). Two-view multibody

structure-and-motion with outliers through model se-

lection. PAMI.

Sivic, J. and Zisserman, A. (2003). Video Google: a text

retrieval approach to object matching in videos. ICCV.

Toldo, R. and Fusiello, A. (2008). Robust multiple struc-

tures estimation with j-linkage. In ECCV.

Zuliani, M., Kenney, C. S., and Manjunath, B. S. (2005).

The multiransac algorithm and its application to detect

planar homographies. In ICIP (3).

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

578
