SYNCROD: AN ENERGY-MINIMIZATION METHOD
FOR DISTRIBUTED FILE SYNCHRONIZATION ALGORITHMS
ON MOBILE DEVICES
Zach Rattner
1
, Hamilton Turner
1
, Danny Guymon
1
, Brian Dougherty
1
, Jules White
1
and Sean Eade
2
1
Department of Electrical and Computer Engineering, Virginia Tech, Blacksburg, Virginia, U.S.A.
2
Siemens Corporate Research, Princeton, New Jersey, U.S.A.
Keywords:
Energy Optimization, File Synchronization, Mobile, Wireless Networking.
Abstract:
As mobile computing platforms become ubiquitous, the need to keep data synchronized between multiple
devices becomes increasingly common. However, mobile devices have limited battery capacity, and file syn-
chronization requires extensive use of power-hungry network interfaces. This paper introduces Syncrod, an
approach for optimizing file synchronization algorithm parameters in order to minimize total energy consump-
tion. This paper presents a formal model for describing mobile file synchronization energy consumption, and
an example of fitting a general file synchronization algorithm to the provided model. Empirical results of
running an energy optimization on a general le synchronization algorithm are shown to provide rapid file
transfer while using near 0.003% of a standard smartphone battery energy per MB. The provided approach
can be used to find the the most energy-efficient parameters for any file synchronization algorithm that can be
fit into the provided formal model.
1 INTRODUCTION
Gartner research shows that smartphone sales have
increased 96% from 2009 to 2010(Gartner, 2010).
As smartphones continue to grow in popularity, con-
sumers are creating, editing, and sharing data from
many computing devices, such as cellular devices,
laptop computers, and tablets. This surge in the view-
ing and editing of content from both mobile devices
and home computers has increased the need for dis-
tributed file synchronization software. As files are
edited on a mobile device or home computer, dis-
tributed file synchronization software automatically
transfers the changes between devices so that all com-
puters have an up-to-date copy of the data.
Distributed file synchronization approaches trans-
fer data using the wireless network interfaces, such as
Wi-Fi and 3G on a mobile device, which consumes a
significant amount of energy (Lagerspetz et al., 2010;
Mummert et al., 1999). Energy consumption is a criti-
cal concern on mobile devices due to their limited bat-
tery capacity (Agarral et al., 2002; Balasubramanian
et al., 2009; Mudge, 2001; Shye et al., 2010). Prior
work on distributed file synchronization has focused
on optimizing synchronization quality of service
(QoS) properties, such as end-to-end synchronization
time.
Open Problem Determining how to Mini-
mize Power Consumption of Distributed File Syn-
chronization Algorithms for Mobile Devices.
Due to the high importance of energy consump-
tion on mobile devices, there is a need for approaches
to aid in optimizing distributed file synchronization
algorithms to consume less energy on mobile devices.
Distributed file synchronization algorithms rely on a
number of configurable parameters, such as the block
and hash size used to track and transfer changes,
which have a direct impact on power consumption.
Moreover, depending on the context of a device (e.g.,
on a 3G or Wi-Fi network), the optimal values for
these parameters vary.
Solution Approach A Modeling and Opti-
mization Approach for Deriving Distributed File
Synchronization Parameter Values to Minimize
Energy Consumption.
In order to address the challenges of deriv-
ing algorithm parameters that result in lowest over-
all energy usage, this paper presents Syncrod i.e.
synchronization daemon. Syncrod is a formal model
for estimating the energy consumption of a distributed
135
Rattner Z., Turner H., Guymon D., Dougherty B., White J. and Eade S..
SYNCROD: AN ENERGY-MINIMIZATION METHOD FOR DISTRIBUTED FILE SYNCHRONIZATION ALGORITHMS ON MOBILE DEVICES.
DOI: 10.5220/0003822601350141
In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 135-141
ISBN: 978-989-8565-00-6
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
file synchronization algorithm with varying block,
hash size, compression ratio, and other algorithmic
parameters. Syncrod also provides an optimiza-
tion method that can be used to automatically se-
lect file synchronization algorithm parameters, such
as file compression ratio, in order to assist distributed
file synchronization algorithm developers in creating
energy-efficient file synchronization algorithms. Syn-
crod uses a formal model of data synchronization out-
lined in Section 3.
This paper provides the following contributions
to the study of distributed file synchronization algo-
rithms optimized for mobile applications:
This paper presents a formal model, built from
empirical data, for estimating the energy con-
sumption of distributed file synchronization algo-
rithms.
This paper describes Syncrod, a method for de-
riving the algorithm parameters values for a dis-
tributed file synchronization algorithm to mini-
mize energy consumption.
This paper presents an example of using the
Syncrod optimization method to locate the most
energy-efficient algorithm parameters for a spe-
cific distributed file synchronization algorithm.
The remainder of this paper is organized as fol-
lows: Section 2 describes the challenges that make
it difficult to derive the distributed file synchroniza-
tion algorithm parameters that result in minimal total
energy usage; Section 3 formally defines the energy
used during the file synchronization process; Sec-
tion 4 empirically evaluates the impact of Syncrod on
execution time and energy consumption; Section 5
presents related work; and Section 6 presents con-
cluding remarks and lessons learned.
2 CHALLENGES OF
DETERMINING
ENERGY-EFFICIENT
PARAMETER COMBINATIONS
FOR FILE SYNCHRONIZATION
ALGORITHMS
Determining the most energy-efficientcombination of
algorithm parameters for a distributed file synchro-
nization algorithm is challenging due to the difficulty
of understanding how algorithm software parameter
values impact power consumption. Algorithm param-
eters values have complex compounding effects upon
lower software layers, such as the operating system,
network stack, and device drivers. Moreover, dy-
namically changing mobile environment properties,
such as available signal strength or network types,
can cause significant changes in synchronization al-
gorithm operation, thereby changing the parameter
values that will result in minimal power consumption.
The remainder of this section describes, in detail, the
challenges of identifying the file synchronization al-
gorithm parameter values that will result in minimal
energy consumption for various environments.
2.1 Challenge 1: Determining the
Impact of File Synchronization
Parameters on Energy
Consumption is Difficult due to
Software Abstraction
In a distributed file synchronization algorithm for mo-
bile devices, the algorithm’s input parameters are the
primary method of impacting total energy consump-
tion. For example, increasing the amount of com-
pression applied before transmitting the file across a
network interface may increase the total CPU time
while decreasing the total transmission time. Both
CPU time and wireless data transfer impact power
consumption, and thus precisely quantifying the im-
pact of these types of trade-offs on energy consump-
tion is hard.
Similarly, there are many layers of software
abstraction between developer-written software and
energy-consuming hardware, and there are often no
built-in methodsfor tracking the energy used by a spe-
cific piece of software. Additionally, run-time events,
such as a user choosing to synchronize a large au-
dio file, can result in different software branch exe-
cutions with different energy consumption character-
istics. This hidden complexity between algorithm pa-
rameters and power consumption, coupled with the
possibility of run-time events, makes it difficult to de-
termine what algorithm parameter values will result
in minimal total energy usage. Section 3.3 identifies
multiple input parameters that can be used to modify
the behavior and energy consumption of a distributed
file synchronization algorithm, and Section 3.2 de-
rives general equations useful for measuring energy
consumption of each stage of a distributed file syn-
chronization algorithm.
PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems
136
2.2 Challenge 2: Discerning the Most
Energy-efficient Network for a
Specific Context is Difficult
Mobile devices transmit and receive data over a vari-
ety of wireless network types, such as Wi-Fi, 3G, and
Bluetooth. A key complexity for choosing parameter
values to minimize energy consumption is that each
type of network has a different energy consumption
profile that is most power efficient for a specific type
of data transfer.
For example, if a large file is being synchro-
nized for the first time, an energy consuming high-
bandwidth network interface, such as Wi-Fi, may ac-
tually require less overall energy consumption than a
lower-bandwidth and less energy consuming alterna-
tive, such as 3G. Energy consumption is calculated as
the instantaneous energy consumption of the network
interface multiplied by the amount of time taken to
transfer the data. For large files, the increase in trans-
fer time of the lower-bandwidth 3G interface can end
up in a higher total energy consumption versus Wi-Fi.
Conversely, if a small amount of changed data is be-
ing transmitted, then a low-power low-speed network
may be appropriate.
3 FORMAL DEFINITION OF
ENERGY CONSUMPTION IN
DATA SYNCHRONIZATION
ALGORITHMS
To address the challenges described in Section 2,
we developed a formal method for estimating energy
consumption of distributed file synchronization algo-
rithms. This model allows our optimization method
to be easily applied to other work in the field of
distributed file synchronization. The overall energy
equations presented here be used as the objective
functions in Section 4 to derive parameter values that
minimize energy consumption.
3.1 Syncrod & Power Optimization
Overview
Creating a method of deriving the most power-
efficient parameters for a distributed file synchroniza-
tion algorithm requires an in-depth understanding of
how file synchronization components impact power
consumption on a mobile device. This understand-
ing is hard to attain, due to the vast amount of com-
plexity encapsulated between application-level soft-
ware and power-consuming hardware. This signifi-
cant complexity prompted the use of a formal model
that would provide an objective function capable of
being optimized. Section 1 presents a formal model
for distributed file synchronization energy consump-
tion. The completed formal model of the distributed
file synchronization algorithm described in Section
3.2 is empirically evaluated in Section 4 to deter-
mine the algorithm parameters that resulted in the
least overall energy usage. The algorithm parameters
derived show that the algorithm presented in 3.2 is
able to transfer a 1MB file using less than 0.003% of
a standard smartphone battery capacity. The formal
model presented can be directly used with other dis-
tributed file synchronization algorithms and use the
optimization methods presented in Section 4 to derive
energy-efficient values for their algorithm’s parame-
ters.
3.2 Formal Definition of Data
Synchronization Process

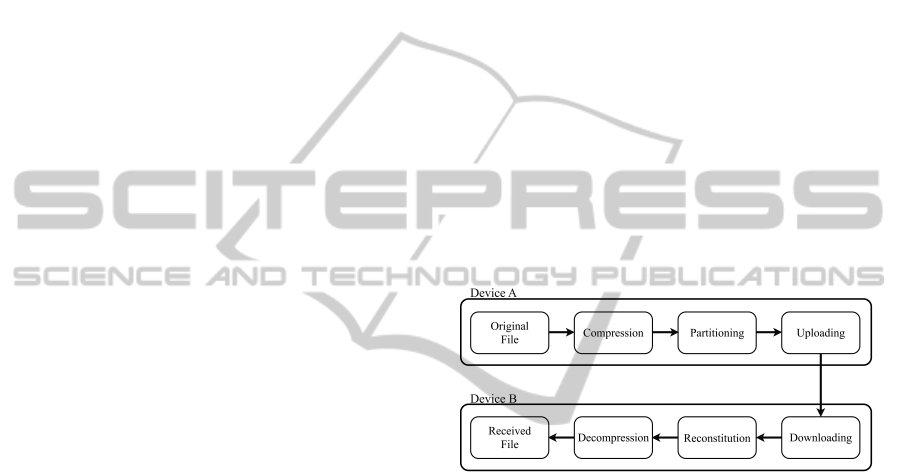

Figure 1: Overview of upload procedure on mobile device.
An example distributed file synchronization algo-
rithm is presented here for motivation. This algorithm
is outlined in Figure 1. The algorithm operates by first
compressing large files, and then breaking these com-
pressed files into blocks during the partitioning stage.
In the initial synchronization, all of these blocks are
sent across the network to the remote device. In sub-
sequent synchronizations, only the blocks that have
modifications must be sent across the network. The
receiving device can ‘stitch’ the received block into
its existing set of blocks to reconstitute the entire file
and then decompress the completed set of blocks to
form the original file. We use the following subscripts
to refer to specific steps in the synchronization algo-
rithm:
com, compression stage,
part, partitioning stage,
up, upload stage,
down, download stage,
rec, reconstitution stage,
SYNCROD: AN ENERGY-MINIMIZATION METHOD FOR DISTRIBUTED FILE SYNCHRONIZATION
ALGORITHMS ON MOBILE DEVICES
137
dec, decompression stage.
3.2.1 Total Energy Usage
The total energy usage e can be defined as the sum of
the energies used at each step of the algorithm, e.g.
the energy used during compression e
com
, the energy
used during partitioning e
part
, etc. The equation for
total energy is defined as follows:
e(F, C, B, H, N) = (1)
e
com
(F, C) + e
part
(C, B) + e
up
(F, B, H, N)+
e
down
(F, B, H, N) + e
rec
(F, C) + e
dec
(F, C)
3.2.2 Total Energy Represented as Power over
Time
It makes sense to represent the total energy usage
in terms of power draw, by integrating power in
each stage of the synchronization algorithm over the
amount of time spent in that stage, as shown in Equa-
tion 2.
e(F, C, B, H, N) = (2)
Z
t
com
(F,C)
0
P
com
(t)dt +
Z
t
part
(C,B)
0
P
part
(t)dt+
Z
t
up
(F,B,H,N)
0
P
up
dt +
Z
t
down
(F,B,H,N)
0
P
down
dt+
Z
t
rec
(F,C)
0
P
rec
(t)dt +
Z
t
dec
(F,C)
0
P
dec
(t)dt
If we can derive the specific power equations and
time values for a distributed file synchronization algo-
rithm, then this high-level energy function is usable as
the objective function for minimization optimization.
3.2.3 Execution Time
The overall time taken by the synchronization algo-
rithm is the sum of the time taken by each stage of
the algorithm. For simplification, we assume that the
uploading and downloading (t
up
and t
down
) are com-
pletely separate stages and do not occur simultane-
ously. More complex equations that model simultane-
ous upload/download can be defined in future works.
t(F, C, B, H, N) = (3)
t
com
(F, C) + t
part
(C, B) + t
up
(F, B, H, N)+
t
down
(F, B, H, N) +t
rec
(F, C) + t
dec
(F, C).
3.3 Distributed File Synchronization
Design Decisions that Impact
Energy Consumption on Mobile
Devices
The purpose of our optimization approach was to find
values for the following algorithm parameters that
resulted in minimal energy consumption due to dis-
tributed file synchronization:
B - The size of each data block size, in bytes. Be-
cause only complete blocks are sent across the
network, overly large values for B will result in
extraneous network traffic when only a few bits
of a file are changed, and the extra network traffic
will result in increased energy consumption. Con-
versely, overly small values of B will result in a
need to transfer many hash values across the net-
work, again resulted in extraneous network traffic.
H - The size of each data block hash, in bytes.
Overly small values for H will increase the prob-
ability of a hash collision, which would fool the
synchronization algorithm into believing a file has
not been changed when in fact is has. Overly large
values for H result in increased network traffic
and increased CPU load, both of which increase
energy consumption.
C - Represents the amount of time and processing
power that will be used in attempting to compress
the file. Overly large values for C will increase
CPU load when compressing and decompressing
files, while values of C that are too small will re-
sult in increased network traffic. Both of these
error types can increase energy consumption.
N - The network type to use to transmit the data.
The chosen network has a significant effect on
both data transfer speed and energy used to trans-
mit the files.
Additionally, F represents the file size, in bytes,
of the file to be synchronized. This parameter is not
a design variable, since the algorithm has no choice
over the file that will be synchronized. However, a
value for F is required to calculating the values of the
objective function e.g. Equation 2.
PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems
138
4 USING Syncrod TO LOCATE
DISTRIBUTED FILE
SYNCHRONIZATION
ALGORITHM PARAMETERS
THAT RESULT IN MINIMAL
ENERGY USAGE ON MOBILE
DEVICES
We attempted to minimize the time spent in each of
the six sections of the distributed file synchronization
algorithm. Since energy consumption is the result of
power usage over time, we reasoned that minimizing
the time taken would result in lower energy usage.
4.1 Experimental Platform
The platform used to execute these experiments was a
Dell Inspiron 530 with Intel Core 2 Duo E7200 exe-
cuting at 2.53GHz, with 1 GB of memory and 32 GB
of available disk space.
4.2 Derivation of Algorithm-specific
Optimization Functions
In order to leverage the Syncrod formal model for
estimating energy consumption, a developer must fit
specific power and time equations into the objective
function in Equation 2. Due to space constraints we
cannot outline all of our synchronization algorithm-
specific functions, but we emperically measured our
algorithms time and power consumption for each
stage of synchronization across a range of file types
and sizes.
4.3 Experiment 1: Execution Time
Minimization with Syncrod
As file synchronization involves both uploading and
downloading files, it is important to not bias the opti-
mization in favor of one phase over the other. Equa-
tion 3 corresponds to uploading a file using the syn-
chronization algorithm, and later downloading the
same file back to the same device under the same net-
work conditions. This procedure is illustrated in Fig-
ure 2. In this test, a filesize of F = 1 MB was chosen.
The result of a distributed file synchronization al-
gorithm minimization is a set of configuration param-
eters for that algorithm. In our chosen algorithm e.g.
Syncrod, the parameters are B, H, C, and N (see Sec-
tion 3.3 for explanations). C and N have a fairly lim-
ited set size (10 and 2 respectively), and multiple time
equations (t
com
, t
rec
, and t
dec
) depend solely upon C,
Figure 2: Overview of test procedure used to measure en-
ergy usage.
N, or the derived parameter R(C). Therefore, we de-
cided to enumerate all possible input parameter com-
binations of C and N and generate solutions for t
com
,
t
rec
, and t
dec
. The results are shown in Table 1.
Table 1: Empirical values determined for t
com
, t
rec
, and t
dec
for varying levels of compression C and N.
C N t
com
t
rec
t
dec
0 Wi-Fi 0.000000 0.068900 0.000000
0 3G 0.000000 0.068900 0.000000
1 Wi-Fi 0.219298 0.068350 0.111936
1 3G 0.219298 0.068350 0.111936
2 Wi-Fi 0.175132 0.068343 0.103453
2 3G 0.175132 0.068343 0.103453
3 Wi-Fi 0.179364 0.068336 0.105835
3 Wi-Fi 0.179364 0.068336 0.105835
4 3G 0.200769 0.068334 0.104855
4 Wi-Fi 0.200769 0.068334 0.104855
5 3G 0.201235 0.068327 0.114478
5 Wi-Fi 0.201235 0.068327 0.114478
6 3G 0.210243 0.068324 0.113710
6 Wi-Fi 0.210243 0.068324 0.113710
7 3G 0.214303 0.068322 0.122977
7 Wi-Fi 0.214303 0.068322 0.122977
8 3G 0.207665 0.068321 0.120345
8 Wi-Fi 0.207665 0.068321 0.120345
9 3G 0.200630 0.068321 0.123269
9 Wi-Fi 0.200630 0.068321 0.123269
Given that we enumerated all possible combina-
tions of C and N, each of the rows in Table 1 pro-
vides a partial solution to the optimization. However,
for each partial solution, the remaining parameters
B and H must also be determined. Each solution is
an instance of the objective Equation 1, which con-
sists of a constrained nonlinear multivariable func-
tion. Matlab’s
fmincon
program was used to min-
imize the value of the objective function across the
range of possible values for B and H.
SYNCROD: AN ENERGY-MINIMIZATION METHOD FOR DISTRIBUTED FILE SYNCHRONIZATION
ALGORITHMS ON MOBILE DEVICES
139
5 RELATED WORK
File synchronization, file compression and mobile
computing are prevalent areas of research that are in-
creasingly overlapping in problem domain space be-
cause smartphones, with limited storage capacity, are
being used as data storage for documents, songs and
other file types. We categorize the related work of
this problem domain into two types: (1) distributed
file systems, and (2) file synchronization algorithms.
Distributed File Systems. Cloud distributed
file systems offer an alternative to peer-to-peer net-
works (Aymerich et al., 2008; Popovic and Hocen-
ski, 2010; Uppoor et al., 2010). Recent research on
the Cloud and smartphones show that file updating
for software-as-a-service applications is an efficient
way to synchronize software on all devices that house
the program (Cusumano, 2010). Our work is com-
plementary to this approach, in that our approach can
be used to optimize the parameters of distributed file
system synchronization algorithms that can be fit into
our formal model in Equation 2.
Data Synchronization Algorithms. As smart-
phones move in location, the devices will experience
fluctuations in network signal strength (Fukushima
et al., 2005). Fukushima et al. discuss an algorithm
for scheduling automatic file synchronization based
upon the received signal strength indication of the net-
work. Specifically, smaller files synchronize in areas
of lower bandwidth and vice versa for larger files. Our
approach is complementary to this work in that it pro-
vides an alternate method of minimizing energy con-
sumption. We also compare total energy consumption
over Wi-Fi and 3G, with results found in Section 4.
Yan et al. present a low-latency algorithm that first
compartmentalizes files into fixed-byte blocks, then
hashes each block for fast equality comparison when
synchronization is done (Yan et al., 2008). The low-
latency algorithm is very similar to our approach, ex-
cept for the fact that Yan et al. focused on minimiz-
ing network traffic while we worked to reduce energy
consumption.
6 CONCLUSIONS
As mobile devices have increased in popularity, it is
relatively common for users to have multiple comput-
ing devices, such as a desktop computer, a laptop, and
a smartphone, creating the need for distributed file
synchronization. The existing approaches for build-
ing distributed file synchronization algorithms were
developed for desktop platforms, where battery ca-
pacity is not a concern. Due to the high importance
of energy consumption on mobile devices, there is a
need for file synchronization algorithms that attempt
to minimize total energy consumption.
This paper presented a method of deriving the
distributed file synchronization algorithm parameters
that would result in the lowest overall energy usage.
In order to do this, Section 3 derived a formal model
for energy usage of a distributed file synchronization
algorithm. This formal model was then used in Sec-
tion 4 to derive the most energy-efficient distributed
file synchronization algorithm parameter values. The
approaches presented in this paper can easily be ex-
tended to cover other specific distributed file synchro-
nization algorithms.
From our research on this topic, we learned the
following important lessons:
1. Network Choice is the Single Most Important
Decision to when Attempting to Minimize En-
ergy Usage. Using a 3G network results in a 10x
increase in both time and energy over a Wi-Fi net-
work.
2. Ratio of File Compression is the Second-
most Important Design Consideration when
Attempting to Minimize Energy Usage. It is
clearly worth examining file extensions to see if
the files are likely to experience no benefits from
being minimally compressed (such as synchro-
nization of files already stored in a compressed
format) and avoiding compression for those files.
3. Dynamic Block Sizing Should be Investigated.
The optimum block size is different for 3G and
Wi-Fi. This encourages research into storing mul-
tiple versions of the block-hash table and using
the version most appropriate for the context of the
mobile device. As mobile storage increases, this
approach of sacrificing data to gain energy could
provide a notable improvement over the current
traditional methodology of consistently using one
block size.
REFERENCES
Agarral, S., Starobinski, D., and Trachtenberg, A. (2002).
On the scalability of data synchronization protocols
for pdas and mobile devices. IEEE Network, pages
22–28.
Aymerich, F., Fenu, G., and Surcis, S. (2008). An ap-
proach to a cloud computing network. In Applica-
tions of Digital Information and Web Technologies,
2008. ICADIWT 2008. First International Conference
on the, pages 113 –118.
Balasubramanian, N., Balasubramanian, A., and Venkatara-
mani, A. (2009). Energy Consumption in Mobile
PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems
140
Phones: A Measurement Study and Implications for
Network Applications. In ICM ’09. ACM.
Cusumano, M. (2010). Cloud computing and saas as new
computing platforms. Commun. ACM, 53:27–29.
Fukushima, T., Takahashi, E., Narazaki, H., and Tamura, N.
(2005). A wireless agent for autonomous file synchro-
nization in a mobile environment.
Gartner (2010). Gartner says worldwide mobile
phone sales grew 35 percent in third quarter
2010; smartphone sales increased 96 percent.
http://www.gartner.com/it/page.jsp?id=1466313.
Lagerspetz, E., Tarkoma, S., and Lindholm, T. (2010).
Dessy: Search and synchronization on the move. Mo-
bile Data Management, pages 215–217.
Mudge, T. (2001). Power: A first-class architectural design
constraint. Computer, 34(4):52–58.
Mummert, L. B., Ebling, M. R., and Satyanarayanan, M.
(1999). Exploiting weak connectivity for mobile file
access. Mobility, pages 306–321.
Popovic, K. and Hocenski, Z. (2010). Cloud computing
security issues and challenges. In MIPRO, 2010 Pro-
ceedings of the 33rd International Convention, pages
344 –349.
Shye, A., Scholbrock, B., Memik, G., and Dinda, P. (2010).
Characterizing and modeling user activity on smart-
phones: summary. Proceedings of the ACM SIGMET-
RICS conference on Measurement and Modeling of
Computer Systems.
Uppoor, S., Flouris, M. D., and Bilas, A. (2010). Cloud-
based Synchronization of Distributed File System Hi-
erarchies.
Yan, H., Irmak, U., and Suel, T. (2008). Algorithms for
Low-Latency Remote File Synchronization. In IEEE
INFOCOM 2008. IEEE.
SYNCROD: AN ENERGY-MINIMIZATION METHOD FOR DISTRIBUTED FILE SYNCHRONIZATION
ALGORITHMS ON MOBILE DEVICES
141
