CONTINUOUS REGION-BASED PROCESSING

OF SPATIOTEMPORAL SALIENCY

Jan T

unnermann and B

arbel Mertsching

GET Lab, University of Paderborn, Pohlweg 47-49, 33098 Paderborn, Germany

Keywords:

Spatiotemporal Saliency, Motion Saliency, Visual Attention.

Abstract:

This paper describes a region-based attention approach on motion saliency, which is important for systems that

perceive and interact with dynamic environments. Frames are collected to create volumes, which are sliced

into stacks of spatiotemporal images. Color segmentation is applied to these images. The orientations of the

resulting regions are used to calculate their prominence in a spatiotemporal context. Saliency is projected back

into image space. Tests with different inputs produced results comparable with other state-of-the-art methods.

We also demonstrate how top-down inﬂuence can affect the processing in order to attend objects that move in

a particular direction. The model constitutes a framework for later integration of spatiotemporal and spatial

saliency as independent streams, which respect different requirements in resolution and timing.

1 INTRODUCTION

The biologically inspired concept of visual attention

is used in artiﬁcial vision to ﬁlter relevant from irrel-

evant information at early stages of processing. As

in biological systems, only parts of the scene that

are in the focus of attention (FOA) are forwarded to

higher processing levels, such as object recognition or

scene learning. Classic computational models create

saliency maps from local contrasts in the input im-

age regarding different feature dimensions, including

color, intensity and orientation (see (Itti et al., 1998),

for example). Additionally, besides this bottom-up

process, top-down processes have been identiﬁed in

biological attention which inﬂuence the FOA with

respect to the current task. Recent technical mod-

els have incorporated such inﬂuences; (Wischnewski

et al., 2010), for example, propose a method based

on a psychological model. In mobile robotics and

other systems that perceive — and possibly act in —

dynamic environments it is not sufﬁcient to process

static saliency. Often robots observe a great deal of

motion due to self motion and events in the environ-

ment. Local contrasts in direction or speed usually re-

late to something interesting, such as another moving

entity that should be avoided (or approached, depend-

ing on the task). Salient motion is also a strong fea-

ture in biological attention (Mahapatra et al., 2008)

and computational models are being updated to re-

spect motion cues. Obtaining motion information

from successive frames constitutes a coherence prob-

lem, the problem of describing the displacement of

image parts from one frame to the next. This implies

that raw image data must be grouped and described to

match occurrences in subsequent frames. These are

computationally expensive processes, which require

solving high level problems such as object recogni-

tion and representation. Attention was considered to

speed them up at an early stage, but extracting motion

information in that manner requires these high level

problems to be solved before the attentional stages.

To resolve this chicken-egg situation, the coherence

problem can be bypassed by creating spatiotemporal

slices from the input. Successive X − Y frames are

collected for a certain duration of time and then con-

verted into stacks of spatiotemporal X − T and Y − T

slices. The incremental displacements in the X − Y

frames result in ’traces’ or motion signatures in some

of the slices, and their angles are related to the mo-

tions. Figure 1 illustrates this relation: The horizontal

motion of the person produces a tilted region in the

X − T slice. If the person would be standing still,

the trace would be parallel to the temporal axis. In

the case where horizontal as well as vertical motion is

present, tilted motion signatures would exist in X − T

and Y − T slices. In short, the orientation of a motion

signature describes the motion of the corresponding

object, a fact that can be exploited to process motion

saliency.

Spatial orientation is a classic feature of at-

230

Tünnermann J. and Mertsching B..

CONTINUOUS REGION-BASED PROCESSING OF SPATIOTEMPORAL SALIENCY.

DOI: 10.5220/0003823402300239

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 230-239

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

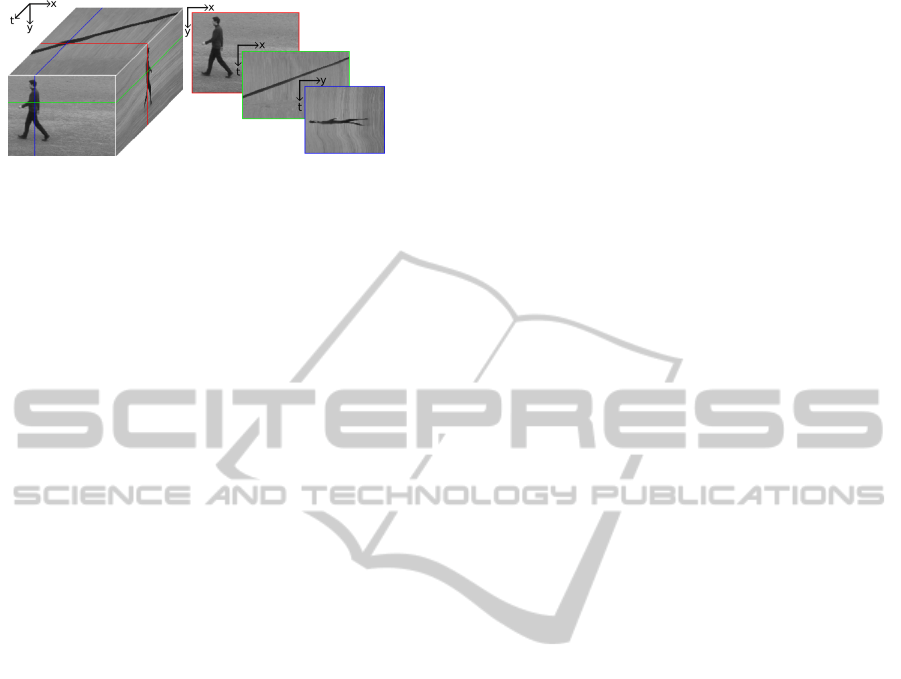

Figure 1: X − Y − T volume visualization of a clip from

(Sch

uldt et al., 2004). The images on the faces of the cuboid

show slices from the inside. The same are shown separately

without perspective distortion. The marker frames indicate

where the slices are located in the volume.

tention models, so existing methods for calculating

spatial orientation saliency may be used to calcu-

late motion saliency on spatiotemporal slices. Pixel-

based models emulate receptive ﬁelds and center-

surround mechanisms (Itti et al., 1998); these have

also been applied in the spatiotemporal domain (Be-

lardinelli et al., 2008). An approach that constructs

spatial saliency from singularities in frequency do-

main, Spectral Residual (Hou and Zhang, 2007) can

be applied to spatiotemporal slices (Cui et al., 2009).

A region-based approach on spatial attention is de-

scribed in (Aziz and Mertsching, 2008a) where a

color-segmentation is performed as an initial step.

This model is capable of including top-down in-

ﬂuences utilizing templates (Aziz and Mertsching,

2008b) which is more speciﬁc than tuning weights

when combining different feature saliencies, a com-

mon method in classic models. First tests to ex-

pand this idea to the spatiotemporal domain have been

conducted in (T

unnermann, 2010) where the same

method was used for obtaining spatial and spatiotem-

poral orientations. Due to resulting constraints re-

garding the temporal range of the collected volume

(it must be long), this system is incapable of process-

ing continuous streams of visual data in (near) real-

time, undoubtedly an important ability for the use in

robotics. In this paper, we use a method for calcu-

lating region-based spatiotemporal saliency that is not

subject to these restrictions but still preserves the abil-

ity of template-based top-down interfacing.

The following section discusses related work,

while section 3 describes the proposed method. Eval-

uation of the results is shown in section 4. Section

5 discusses the proposed architecture with an eye on

future work.

2 RELATED WORK

In the previous section we discussed different ap-

proaches that make use of spatiotemporal slices to de-

tect motion saliency and we suggested a region-based

method realizing this concept. However, other recent

work approaches the problem in different ways. (Seo

and Milanfar, 2009) and (Mahadevan and Vasconce-

los, 2010), for example, apply center-surround win-

dows and image statistical descriptions of the stim-

uli. (Mahadevan and Vasconcelos, 2010) apply their

algorithm in a foreground-background-classiﬁcation

scenario and report robust results, even when a com-

plicated dynamic background is present. In (K. Ra-

pantzikos S. Kollias, 2009) a method is proposed

that processes spatiotemporal volumes to make use

of saliency information for video classiﬁcation. The

classic center-surround mechanism is applied in 3D

to differently scaled sub-volumes. (Guo et al., 2008)

extend the concept of the Spectral Residual. In con-

trast to (Cui et al., 2009), who applied it to spatiotem-

poral slices, they use a Quaternion Fourier Transfor-

mation that allows coding color, intensity and spa-

tiotemporal change to obtain saliency by analyzing

the phase spectrum. The mentioned models do not

provide mechanisms to integrate top-down motion in-

formation. This is not only important when knowl-

edge should inﬂuence the FOA, but also to retain the

focus in consecutive frames. In other situations, re-

focusing must be suppressed, for example, when the

object has been analyzed sufﬁciently (inhibition of re-

turn). These models also calculate spatiotemporal and

spatial saliency in one common process. In contrast,

separate pathways allow adjustments to different re-

quirements. The processing of motion information

must be fast but might not require resolutions as high

as for spatial information. In human perception, mag-

nocellular and parvocellular pathways transport vi-

sual information with large, fast low-resolution cells

and slower high-resolution cells, respectively. The

magnocellular pathway mainly contributes to motion

and depth perception, while the parvocellular is in-

volved with color and form (Livingstone and Hubel,

1987; Goodale and Milner, 1992). The information is

combined at later stages to generate a coherent, con-

scious percept. Information from the pathways can be

accessed before combination happens. We automati-

cally dodge an object thrown at us even without see-

ing how it looks. This concept should be transferred

to artiﬁcial systems. When something of possible in-

terest quickly passes through a robot’s vision and it is

too fast to retrieve detailed information it may be use-

ful to turn the camera in attempt to follow the object

(or dodge, if it moves towards the robot). The method

we suggest separates spatiotemporal from spatial in-

formation by processing spatiotemporal slices inde-

pendently from the spatial frames. The region-based

approach allows the use of top-down templates, which

CONTINUOUS REGION-BASED PROCESSING OF SPATIOTEMPORAL SALIENCY

231

in future work can be used to establish feedback-loops

for saliency-based tracking and basic attentional con-

trols, as inhibition of return. The initial color segmen-

tation of each slice results in a list of regions for which

basic features are calculated. By a voting mechanism

regions collect saliency based on how different they

are from their neighbors. Additional to this bottom-

up path, top-down templates can be used to assign

saliency with regard to similarity of each region to a

template. All mentioned operations as well as the ﬁ-

nal combination of the different saliency channels can

be done efﬁciently by looping through the region lists.

Pixel-based saliency maps (usually only required for

visualization) can be generated by information from

the region lists and a label image which is created dur-

ing the segmentation process and which maps pixel

positions to the regions. In addition to spatiotemporal

saliency processing with a good interface to top-down

information that is separated from — and can be later

integrated with — spatial attention, we see the need

for a system that allows continuous processing of a

visual input stream. Most of the other models work

on closed volumes or ﬁnite numbers of frames and

only some are stated to be able to process input in (or

near) real time. To our knowledge there is no system

for which it has been demonstrated how processing

volumes are collected online from continuous input,

say a camera, and calculate the FOA based on spa-

tiotemporal saliency.

3 PROPOSED METHOD

The concept of region-based processing of spatiotem-

poral slices to obtain motion saliency can be illus-

trated as a ﬂow of processing volumes (containing re-

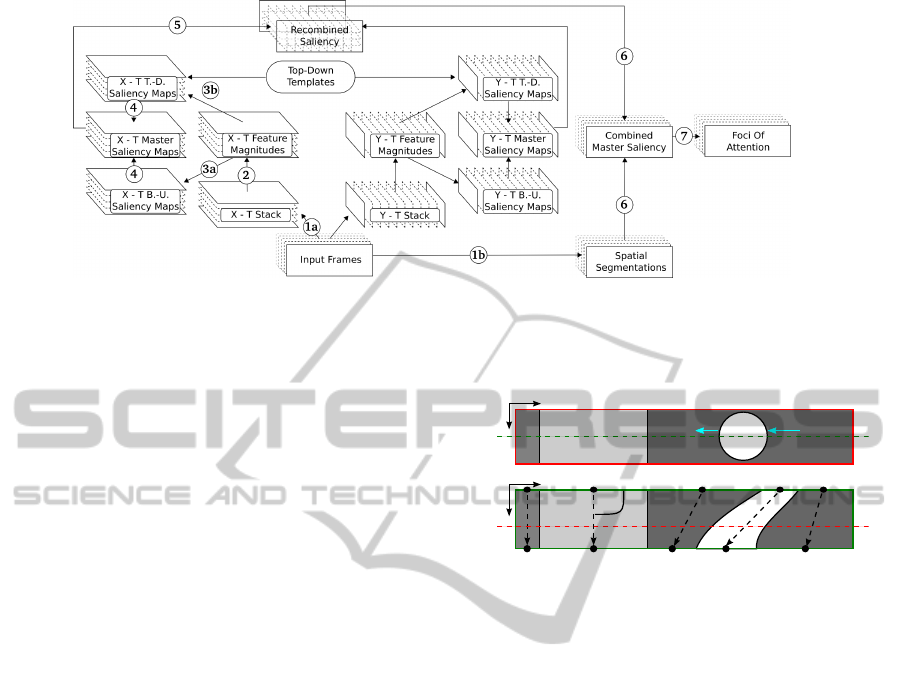

gion lists for each slice). In ﬁgure 2 an overview of

the processing done for each volume (initially a stack

of input frames) is depicted. In the following expla-

nations, numbers in round brackets refer to the cir-

cled numbers in the ﬁgure. Processing volumes are

stacks of frames which can be collected from contin-

uous input (see section 4.2). The volume is sliced

into stacks of X − T and Y − T slices (1a). To en-

able a re-transformation to the spatial domain later,

spatial color segmentation (see section 3.1) is per-

formed for each frame (1b). For the spatiotemporal

slices feature magnitudes are determined (2). This

is done by performing color segmentation on each

slice and then calculating the spatiotemporal angle

(section 3.2). This information is then forwarded

to the bottom-up module (3a) where spatiotempo-

ral saliency is computed as described in section 3.3.

With consideration of top-down inﬂuences, top-down

saliency is processed, also based on the feature mag-

nitudes (3b), as described in section 3.4. The result-

ing bottom-up and top-down feature maps are com-

bined to form spatiotemporal master saliency maps

(4). This combination is done by forming weighted

averages of bottom-up and top-down saliency, where

the weights should depend on the task. They can be

used to completely switch off one of the pathways.

This was done for the experiments reported in section

4 to evaluate bottom-up and top-down attention sepa-

rately. The spatiotemporal master saliency maps from

the X − T and Y − T pathways are now combined to

produce a volume of spatiotemporal saliency which is

then sliced back into common X −Y orientation (5).

This crucial step makes the spatiotemporal saliency

accessible from the spatial context and is described in

section 3.5. The results of this step are pixel-based

intensity maps. The coherence problem which was

bypassed by working on spatiotemporal slices must

now be solved in a different form: Spatiotemporal

saliency, projected back into the spatial domain, must

now be assigned to the entities that were responsible

for the motion. This is done by adding the values from

the pixel-based intensity maps to corresponding re-

gions from the spatial segmentation (1b) and normal-

izing them by the region size (section 3.5). Once this

is done, the FOA is determined by selecting the re-

gion with the most projected spatiotemporal saliency

for each X −Y frame.

3.1 Segmentation of Spatial Frames and

Spatiotemporal Slices

Initially, spatial as well as spatiotemporal images

must be segmented. Please note that the used color

segmentation cannot be described in detail in the

scope of this paper. Conceptually, any method can

be used that turns pixel images into coherent regions.

The algorithm we used in our implementation is ba-

sically the same as described by (Aziz, 2009). Seed

pixels are selected and regions are grown iteratively.

Six thresholds decide whether a pixel is added to a

region or not. Thresholds Γ

, Γ

and Γ

denote how

much the pixels may vary in hue, intensity and satu-

ration regarding the region’s seed pixel. Thresholds

, τ

denote the tolerance of variance between the

neighboring pixels (all in range [0..255]). In contrast

to (Aziz, 2009) we use the same thresholds for the

complete hue range. For gray-scale input we consider

intensity only. The minimum region size µ (in pix-

els) is used to ﬁlter out all regions smaller in size. It

is crucial because on short spatiotemporal slices mo-

tion signatures will be small but must be kept while

on spatial slices small regions can appear due to noise

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

232

Figure 2: Architecture overview of the proposed method. This ﬁgure depicts the ﬂow of information for one processing

volume. The circled numbers relate to the order of steps performed and refer to explanations in the text. Please note that only

the X −T pathway and the shared path is numbered and explained, whereas the Y −T processing is done in an analog manner.

and may be dropped. The existence of these parame-

ters does not imply that the model needs a great deal

of supervision to adjust them for different images.

Quite the opposite is the case; a set of parameters is

sufﬁcient for various kinds of input scenes. All clips

in our evaluation were processed with the same pa-

rameter set (see section 4 for concrete parametriza-

tion).

3.2 Feature Magnitudes of

Spatiotemporal Orientation

The proposed model is based on the fact that the angle

of motion signatures on spatiotemporal slices (spa-

tiotemporal orientation) is related to the motion of

the object that produced the signature. Assuming no

other transformations, such as scaling or rotating, a

motion signature is a spatiotemporal area deﬁned by a

parallelogram. Non-moving background objects, as-

suming that they are not disturbed by moving objects,

produce rectangular signatures. The sides that are in

parallel to the time axis indicate that the object did not

move during the time represented by the slice. When

an object starts to move, the signature shears and the

sides that were parallel to the time axis have a speciﬁc

angle. In general, the orientation of edges produced

by a moving object in spatiotemporal slices is related

to the object’s velocity u with

u = −



tanϕ



(1)

where ϕ

is the angle between the temporal axis and

the edge on the X − T slice and ϕ

the corresponding

edge’s angle on the Y − T slice.

A common method to obtain a region’s orienta-

tion is to use second order central moments. How-

ever, this results in special requirements for the pro-

(a) (b)

Figure 3: (a) A white disk moving in front of gray rectan-

gles. The horizontal dashed line marks the Y level of the

X − T slice shown in (b). The X −T slice shows spatiotem-

poral signatures of background and disk. Dashed vectors

illustrate how spatiotemporal orientation φ

is determined

(the angle is marked explicitly for region R

, only).

cessing volume dimensions. A rather short volume

can cause false spatiotemporal orientations. This can

be seen considering region two in ﬁgure 3 (b). As the

angle produced by that approach is relative to the ma-

jor axis of the region, it would describe a region par-

allel to the spatial axis. The region was produced by

a non-moving background object so its spatiotempo-

ral orientation should be 90

◦

to the spatial axis. The

major axis would in fact be 90

◦

to the spatial axis,

if more frames would have been recorded (elongat-

ing the slice temporally) or if the input image resolu-

tion would have been smaller (compressing the slice

spatially). Both options have drawbacks. Decreas-

ing resolution means loosing detail and increasing the

frame number leads to requiring more time to collect

the frames, delaying the result.

As we are interested in the “tiltiness” of a region

rather than the orientation of its major axis, we use

a simple method to obtain spatiotemporal orientation

in this sense. For each region R

on a spatiotemporal

slice, we determine the ﬁrst row L

f irst

and the last row

last

of pixels that belong to the region with

CONTINUOUS REGION-BASED PROCESSING OF SPATIOTEMPORAL SALIENCY

233

f irst

= {p

| t ≤ a ∧ p

, p

∈ R

} (2)

last

= {p

| t ≥ a ∧ p

, p

∈ R

} (3)

The region membership of pixels p

is obtained from

the label image, which was produced in the segmen-

tation step. The centers of these rows (corresponding

to the black dots in ﬁgure 3) are determined as

f irst

∑

∈L

f irst

x (4)

last

∑

∈L

last

x (5)

and the spatiotemporal orientation φ

is obtained by

= atan2(h, c

f irst

− c

last

) (6)

where atan2(t, x) calculates arctan (tx

−1

) and adjusts

the angles to give the angle between (x, t) and the

positive x axis. The φ

correspond to the angles of

the vectors drawn in ﬁgure 3. An angle of 90

◦

re-

lates to the motion signature of a static object. Mo-

tion towards the left in image space produces angles

between 90

◦

and 0

◦

, while motion towards the right

results in values between 90

◦

and 180

◦

. We can use

short processing volumes, so an object in motion will

usually be present in a number of them and have

straight ﬁrst and last rows of pixels. Region four in

ﬁgure 3 is not a perfect parallelogram. It rather has

a bent edge and the last row is larger than the ﬁrst

row. This means there was some acceleration and also

the object (or its projection) was scaled. Given the

processing volume is short and such changes not to

heavy, the vector is a good approximation of the mo-

tion. Similarly, regions three and ﬁve are motion sig-

natures that are not rectangular and have spatiotem-

poral angles different from zero, even though they

represent a static background. These errors are pro-

duced by the moving object passing in front of the

background. In theory these are not errors, as there

is spatiotemporal change. However, we do not want

to highlight non-moving objects and luckily these sig-

natures usually do not carry much weight. Their spa-

tiotemporal angles are often still different from the

moving objects, so they contribute to its saliency but

won’t acquire as much as the moving object does.

3.3 Bottom-up Saliency of

Spatiotemporal Orientation

With spatiotemporal orientation angles φ

being de-

termined for each region of a slice, the bottom-up

saliency ↑ S

with values between 0 and 1 is com-

puted straight forward by summing up the normalized

difference of the angles (180

◦

is the maximum differ-

ence between two regions’ angles).

↑ S

|R|

∑

j=1

|φ

− φ

180

◦

∆

i j

(7)

where w

∆

i j

with values between 0 and 1 denotes a

weight that depends on the distance between the cen-

ters of R

and R

. Due to the fact that slices are usually

short in the temporal dimension, the distance weight

can be approximated by taking the difference of the

x-components and normalizing it by the slice width.

3.4 Top-down Saliency of

Spatiotemporal Orientation

The top-down saliency ↓ S

is obtained with regard

to the spatiotemporal orientation φ

of a template re-

gion. Spatiotemporal top-down saliency ↓ S

(rang-

ing from 0 to 1) is then determined by the similarity

between each region and the template.

↓ S

= 1 −

|φ

− φ

180

◦

(8)

Here, we only make use of what spatiotemporal ori-

entation contributes to saliency. However, a seg-

mented motion signature carries more information.

Color, size or other features from region-based spatial

saliency computation can be used to create more spe-

ciﬁc top-down templates. The mechanisms can easily

be transfered from the spatial context, in which they

are used in (Aziz and Mertsching, 2008b). In this con-

text we restrict the template mechanism to spatiotem-

poral orientation as it is directly induced by motion.

3.5 Transforming Saliency from

Spatiotemporal to Spatial Domain

The purpose of saliency processing is to obtain a FOA

of attention, which is a region in image space that is

important in the current situation. The previous steps

described how to calculate the saliency of motion sig-

natures on spatiotemporal slices. These saliency val-

ues must be transformed back into image space and

integrated with the spatial segmentation to make them

accessible for FOA selection.

For each slice of the X − T and Y − T stack

pixel-based master saliency maps are produced as a

weighted combination of top-down and bottom-up

saliency. The pixel activity for a X − T slice can be

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

234

described as

|R|

∑

i=1

(↑ S

+ ↓ S

)

+ w

(9)

where

(

1 if (x, t) belongs to region R

0 otherwise

(10)

which is determined by a look-up in the label image

that has been created when the slices of spatiotempo-

ral stacks were segmented before the calculation of

the feature magnitudes. Weights w

and w

can be

used to control the ratio of bottom-up and top-down

inﬂuence. With a

we denote the pixel activities a

on slice y of the X − T -stack and with a

activities

on slice x of the Y − T -stack, a

is deﬁned analo-

gous to a

. A saliency volume A

xyt

is constructed by

blending the pixel activities from both stacks.

xyt

= (a

+ a

)

+ w

(11)

X − Y slices extracted from A

xyt

already constitute

pixel-based saliency maps, which are the ﬁnal results

of many models. To obtain a more differentiated fo-

cus that is a region (or a proto-object), the pixel ac-

tivities are grouped with regard to the spatial regions

of frame t, which have been created initially in

the spatial segmentation step (1b, in ﬁgure 2). So the

ﬁnal motion saliency map M

for frame t in spatial

domain is constructed by iterating over the image (of

size X × Y ), summing and averaging the intensities

that belong to each region.

∑

x=1

∑

y=1

xyt

t,i

(12)

with ρ

t,i

indicating the region membership check and

yielding 1 if the pixel at (x, y) is a member of region

and 0 else. Region size in pixels is denoted as |Q

For the experiments in the scope of this paper, for

each frame t the region Q

with the highest corre-

sponding motion saliency M

is selected to constitute

the FOA. As Q

represents region lists of the same

kind as in (Aziz and Mertsching, 2008a), the spatial

saliency processing there can be performed on them

and the saliencies of spatial and spatiotemporal pro-

cessing can easily be merged.

4 EXPERIMENTS

4.1 Saliency Results

It is virtually impossible to obtain objective mea-

sures for correctness of the output of attention models.

Ground truth from human subjects, obtained by eye-

tracking or manual marking of salient spots, is heavily

inﬂuenced by top-down processes, which cannot be

fully modeled with today’s technical systems. Covert

attention shifts are not accounted for in eye-tracking

experiments and manual marking relies on introspec-

tion. Observers report full objects even if only some

salient part of it drew their attention. Despite these

difﬁculties, ground truth obtained in such ways has

been used to evaluate the output of attention mod-

els. (Mahadevan and Vasconcelos, 2010) use man-

ually created masks that isolate moving foreground

objects and evaluate their model in a foreground-

background-classiﬁcation task. They use receiver op-

erator characteristics (ROC) curves to quantify the

models’ classiﬁcation success. A similar ROC-based

analysis based on eye-tracking results, originally from

(Itti and Baldi, 2006), was done by (Seo and Milan-

far, 2009) for their model. These techniques cannot

be used to evaluate our model. One reason is that,

due to its region-based nature, the output consists of

maps of salient regions which are not necessarily full

objects. The inner regions of a moving object may not

be salient, because their neighbors show the same mo-

tion. In an ROC analysis based on object masks this is

reﬂected in a high false negative rate. Similarly, ﬁx-

ations from eye-tracker data will often hit non-salient

regions of a moving object. Additionally, the test se-

quences and eye-tracker results from (Itti and Baldi,

2006) are not useful to evaluate a purely spatiotempo-

ral model, as under the free-viewing conditions, spa-

tial conspicuities (and top-down inﬂuences) are also

likely to inﬂuence the gaze.

To enable quantitative evaluation, at least to some

degree, we report simple hit-counts for the clips pro-

cessed. We award one hit for each frame, where the

FOA was assigned to a location displaying target mo-

tion. Fixations were also counted as hits when an

element adjacent to the object in motion was high-

lighted because it was disturbed by the moving ob-

jects. These ﬁxations are still very close to the moving

target. However, as this is a region-based approach, it

is our aspiration to highlight regions that belong to the

target. Strict hit rates, where only such hits are con-

sidered, are given in round brackets behind the lenient

values (see table 1).

To enable a qualitative visual comparison, we vi-

sualize our model output for sequences that have been

used for the evaluation of other state-of-the-art mod-

els. The clips that we processed are from (Belar-

dinelli et al., 2008), the KTH data set (Sch

uldt et al.,

2004), the Weizmann data set (Gorelick et al., 2007),

(Mahadevan and Vasconcelos, 2010) and our own se-

quences (GET). The preﬁxes of the clip names in ta-

CONTINUOUS REGION-BASED PROCESSING OF SPATIOTEMPORAL SALIENCY

235

Table 1: Clip properties and bottom-up hit rates (and strict

hit rates) for all evaluated clips.

Clip name Frames Hits in %

(evaluated) (strict %)

BELA DOTS 40 (40) 75 (75)

BELA WALK 40 (40) 77.5 (60)

BELA SHAKE 30 (30) 96.7 (90) todo

BELA FLICKR1 30 (30) 96.7 (53.3)

KTH P01 WALKING 80 (70) 95.7 (94.3)

KTH P02 BOXING 100 (100) 95 (90)

KTH P03 HANDCLAP 100 (100) 71 (69)

KTH P04 JOGGING 50 (44) 86.7 (81.8)

KTH P05 RUNNING 30 (25) 88 (88)

KTH P06 HANDWAVE 100 (100) 99 (85)

WEIZ DARIA JUMP 60 (60) 100 (91.7)

WEIZ DENIS SIDE 50 (50) 98 (98)

WEIZ ELI BEND 60 (60) 71.7 (45)

WEIZ IDO SKIP 30 (30) 83.3 (76.7)

WEIZ IRA JACK 70 (70) 95.7 (81.4)

WEIZ LENA PJUMP 40 (40) 95 (90)

MAHA SKIING 110 (110) 47.3 (47.3)

MAHA TRAFFIC 190 (190) 98.9 (98.9)

MAHA LAND 50 (50) 0 (0)

GET LTR1 20 (20) 95 (95)

GET LTR2 20 (20) 100 (100)

GET LTR3 20 (10) 100 (100)

GET RTL1 20 (20) 95 (95)

GET RTL2 20 (20) 100 (100)

GET RTL3 20 (20) 100 (100)

GET EGO MOTION 80 (80) 88.8 (78.8)

GET TD 30 (30) 100 (96.7)

ble 1 refer to the source. Input frames were scaled to

240 × 180, except clip BELA DOTS, which was pro-

cessed at its original resolution of 256 × 256 to avoid

that the artiﬁcial stimuli (dots) become too small for

the parameter set. Segmentation parameters Γ

, Γ

, τ

and τ

were all set to 8. Minimum region

size for spatial frames is µ

= 20 and for spatiotempo-

ral slices µ

= 10 (see section 3.1). Except for our

GET clips all input was processed in gray-scale as

they were processed by the respective models.

Results of our system processing clips from (Be-

lardinelli et al., 2008) are depicted in ﬁgure 4. Their

approach is also based on spatiotemporal slices but

is pixel-based. Clip BELA DOTS shows circulating

dots, with one dot being faster than the rest (only the

motion of the target is indicated in the ﬁgure). Our

model was able to select the correct dot in almost

all frames (see table 1 for hit rates) and its spiral-

ing trace can be seen in the saliency volume visual-

ization. BELA SHAKE shows a surveillance scenario

(originally from (CAVIAR, 2001)), where two peo-

ple approach each other and shake hands. Saliency

peaks can be seen where the motion is taking place.

The remaining two clips shown in the ﬁgure have also

reasonable hit rates (the focus is on a plausible tar-

get the most time) but show a lot of activity in the

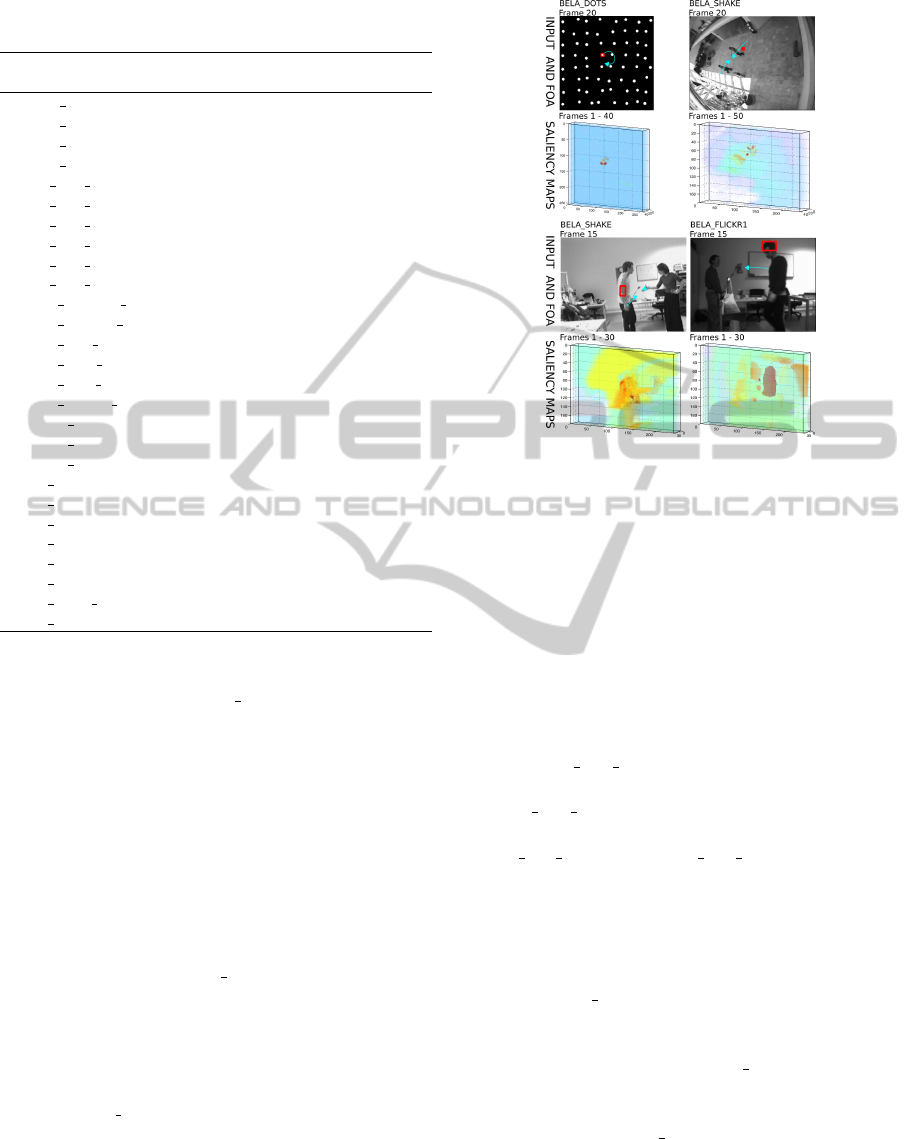

Figure 4: Results for clips from (Belardinelli et al., 2008).

Exemplary frames with FOA (red rectangle). Manually

added arrows indicate motion. Volumes show saliency maps

over time.

background, too. A medium amount of saliency is as-

signed to background regions when they are crossed

by the moving persons.

Figure 5 shows results from our model for clips

of people performing different actions. They were

also processed and depicted by (Seo and Milanfar,

2009). As the arrows in the ﬁgure indicate, dif-

ferent kinds of motion are contained. Some clips,

such as KTH P01 WALKING feature persons moving

through the complete image space, while others such

as KTH P02 BOXING show motion only in some part

of the person. The exemplary frames depicted for

WEIZ ELI BEND and WEIZ IRA JACK are examples

for relaxed hits as they strictly do not hit the moving

person, but they are clearly induced by the motion.

Next we look at ﬁgure 6, which shows our results

for scenes that also have been processed — and their

results depicted — by (Mahadevan and Vasconcelos,

2010). MAHA SKIING is heavily affected by noise

induced by snow and poor sight. This is reﬂected to

some degree by the hit rates. Overall, the saliency dis-

tribution looks reasonable. MAHA TRAFFIC shows a

trafﬁc surveillance scene, of rather low contrast. Our

system performs good hitting targets in almost ev-

ery frame. For MAHA LAND we show a very poor

performance, the target is never hit. The scene con-

tains slight relative motion and ego motion as the

camera follows the target. Theoretically, the region-

based spatiotemporal approach can deal with this sort

of scenes, as moving background objects and a target

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

236

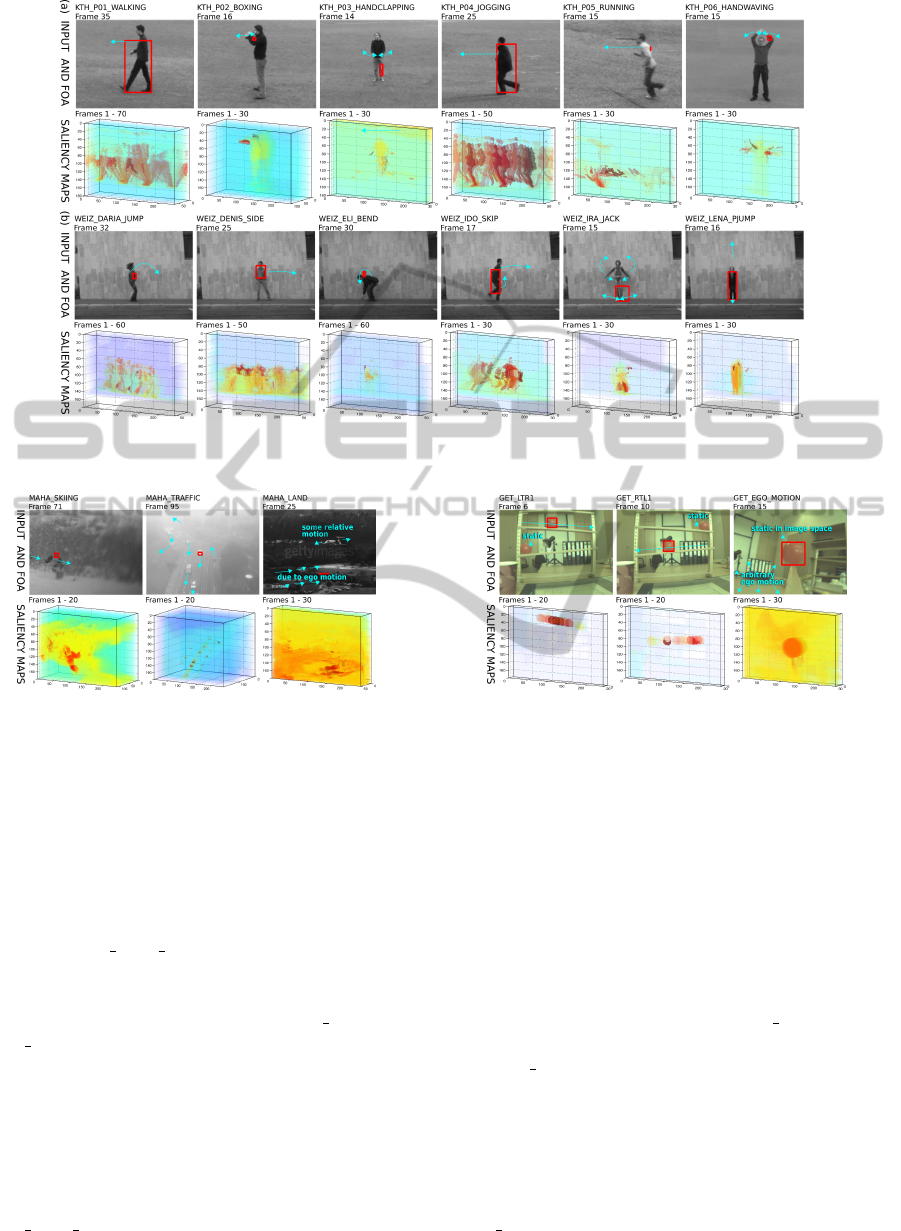

Figure 5: (a) Results for the KTH set; (b) the Weizmann set. Both data sets were also used by (Seo and Milanfar, 2009).

Figure 6: Results for clips from (Mahadevan and Vasconce-

los, 2010).

(almost) static in image space should produce motion

signatures that contrast in orientation. However, in

this scene the background has a low contrast and so

orientation in spatiotemporal slices is more likely to

differ over time due to changes in the segmentations.

That the model is not principally unable to deal with

ego motion is demonstrated in the following, when

looking at GET EGO MOTION.

We now turn to results obtained from experiments

with our own stimulus material. Figure 7 shows clips

with a red ball in motion. Clips GET LTR1 and

GET RTL1 are exemplary for a series of three clips

each, where the red ball is rolling on tracks from left

to right (LTR) and right to left (RTL), respectively.

This simple motion is reliably highlighted (see Ta-

ble 1). The scenes also feature an identical but static

red ball, as a control, which demonstrates that mo-

tion and not a static attribute is the relevant feature.

The control ball is never selected by the model. In

GET EGO MOTION the ball was connected to the

camera to stay in a position which is static in image

Figure 7: Results of bottom-up processing with our own

stimulus material.

space, while the camera was panned and tilted ran-

domly. The model can handle this kind of ego motion

quite well. The saliency volume visualization shows

relatively high saliency values in the environment, but

highest saliency is still assigned to the target.

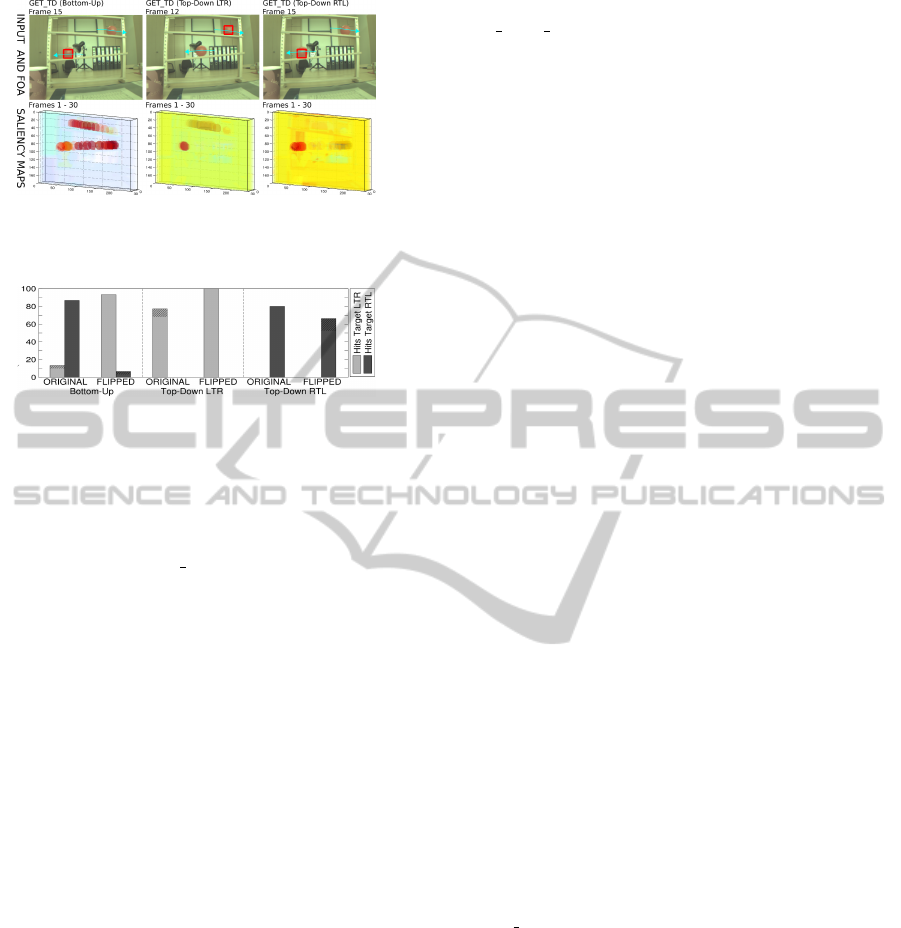

In ﬁgure 8 we show results of a top-down exper-

iment. The input clip contains a scene with two red

balls on tracks rolling in opposite directions. Ad-

ditionally, a horizontally ﬂipped version of this clip

was used. A bottom-up processing of the clip (a

control) is shown in the ﬁgure as GET TD (Bottom-

Up), where high saliency values occur for both balls.

For GET TD (Top-Down LTR), a template was used

to bias the model to prefer the left-to-right moving

ball by the top-down mechanism described in section

3.4. The template with φ

= 172

◦

and φ

= 160

◦

was obtained experimentally by roughly observing

the angles of motion signatures that led to the selec-

tion of the ball during bottom-up processing of clip

GET LTR1. The saliency volume visualization shows

the trace of the upper ball (it is only slightly visible

CONTINUOUS REGION-BASED PROCESSING OF SPATIOTEMPORAL SALIENCY

237

Figure 8: Results of our top-down experiments. The left

row shows a bottom-up processing as a control.

Figure 9: Hit rates from the top-down experiment. Hatched

tips indicate hits that did not comply with the strict hit cri-

terion.

as it is occluded by the later frames). Additionally,

a saliency peak of the other ball (the prominent red

dot) can be seen in GET TD (Top-Down LTR), which

occurs due to the fact that the ball bounces off the bar-

rier, changing its direction to target direction towards

the end of the clip. To create the RTL template, the

previous template is horizontally ﬂipped (subtracted

from 180

◦

), φ

= 8

◦

while the Y -component is kept

as is. Results of the bottom-up control as well as pro-

cessing with templates for each direction are shown

in ﬁgure 9. All top-down processings eliminated

selections of the ball moving in the opposite direc-

tion and selected the target ball in a large portion of

frames. Due to perspective and physically different

balls, the projected motion differs in all variations.

Interestingly, the best result was observed for the ex-

perimentally determined template used on the ﬂipped

clip. This shows that template creation (which in fu-

ture work will be done automatically by learning or

feedback-loops) is crucial. The selection frequency

can also be optimized by incorporating further fea-

tures, which is discussed in section 3.4.

4.2 Performance and Continuous

Processing

The system was implemented as nodes for ROS,

Robot Operating System (Quigley et al., 2009), which

run in parallel (or interleaved, depending on the

machine). In most of our tests, input data was

streamed in from image sequences and the system

produced output on the ﬂy. Alternatively, it can

be connected to a camera, which was done for clip

GET EGO MOTION. The system was divided into

two main nodes that run in parallel. One continuously

collects frames to form processing volumes and sends

them to the second node, where all other processing is

done. This division allows the frame collector to con-

tinue during the saliency processing and avoids gaps

in the output. The input frame rate is adjusted so that

a new volume is prepared when the saliency process-

ing of previous one completed. With the conﬁgura-

tion used in the previously described experiments the

system was in a balanced state at approximately ten

frames per second.

As volumes must be collected ﬁrst, a certain lag

between the input and output is unavoidable. Vol-

umes of ten frames each were used in our experi-

ments, so at ten frames per second, the oldest frame is

about a second old when the volume enters process-

ing. Additional to this conceptual lag (reducible when

higher frame rates become possible) the processing it-

self adds to the delay. Depending on the complexity

of the scene, it adds up to one or two seconds. A

camera processing lagged behind even more (up to 5

seconds), as the camera driver and image downscaling

produced additional load. These tests were performed

on a dual core system (2.4 GHz) without explicit op-

timization. There is some margin, as X −T and Y −T

stacks are processed sequentially now. Their process-

ing, as well as the initial segmentation, could be sepa-

rate parallel processes to better exploit multi-core ma-

chines.

We made the interesting observation that ignor-

ing the Y − T stack, which reduces processing time

to the half, has only little effect on the output quality

for most natural scenes. For some scenes, we col-

lected hit rates (relaxed and strict) for such a “half

processing”. Table 2 contains hit rate differences

to the full processing. Most of the scenes contain

mainly horizontal motion (as natural scenes usually

do) and it is no surprise that they were little affected.

MAHA TRAFFIC, however, has mainly vertical mo-

tion and still only ﬁve out of the 190 frames were

missed due to the reduction.

5 CONCLUSIONS

We demonstrated that motion saliency can be pro-

cessed in a region-based way. The results are brought

back into a spatial image space segmentation, which

consists of region-lists of the same form as used by

(Aziz and Mertsching, 2008a), so integration with

spatial saliency is possible and subject of future work.

The proposed method processes spatiotemporal and

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

238

Table 2: Differences between a full processing and process-

ing only X −T . Strict values are given in round brackets.

Clip name Hit diff. Hit rate diff.

(frames) (Percentage Points)

BELA WALK 3 (1) 7.5 (2.5)

KTH P06 HANDWAVE 4 (4) 4 (4)

DARIA JUMP 0 (6) 0 (10)

MAHA TRAFFIC 5 (6) 2.6 (3.2)

GET LTR1 0 (0) 0 (0)

GET RTL1 -1 (-1) -5 (-5)

GET TD 2 (2) 6.7 (6.7)

spatial saliency independently, which enables differ-

ent spatial and temporal resolutions for this integra-

tion. The visualized output from the experiments

shows reasonable saliency deployment and the hit

counts reﬂect good results for most of the test clips

from a heterogeneous set. Top-down experiments

were conducted to show how the model can be in-

ﬂuenced to prefer a direction of motion, the mecha-

nism can be extended to include further features. Our

system is able to perform online on continuous in-

put. The result lags behind up to a few seconds which

is due to the concept (collecting a volume ﬁrst) and

computation time. We demonstrated that by using

only X − T slices, the lag can be reduced with only

little inﬂuence on the quality of the outcome. In fu-

ture work we will integrate spatiotemporal with spa-

tial saliency processing and focus on grouping the re-

gions to from “real” objects based on the attentional

results to enable a quantitative comparison with man-

ually marked test clips or eye-tracker data.

ACKNOWLEDGEMENTS

This work was supported by the German Re-

search Foundation (DFG) under grant Me 1289/12-

1(AVRAM). The authors also wish to thank Kon-

stantin Werkner for improvements suggested for the

algorithms and Dr. Zaheer Aziz for his useful com-

ments on the manuscript.

REFERENCES

Aziz, M. Z. (2009). Behavior adaptive and real-time model

of integrated bottom-up and top-down visual atten-

tion. Dissertation, Universit

at Paderborn.

Aziz, M. Z. and Mertsching, B. (2008a). Fast and robust

generation of feature maps for region-based visual at-

tention. In IEEE Transactions on Image Processing,

volume 17, pages 633–644.

Aziz, M. Z. and Mertsching, B. (2008b). Visual search in

static and dynamic scenes using ﬁne-grain top-down

visual attention. In ICVS, volume 5008, pages 3–12.

Belardinelli, A., Pirri, F., and Carbone, A. (2008). Mo-

tion saliency maps from spatiotemporal ﬁltering. In

WAPCV, pages 112–123.

CAVIAR (2001). EC funded caviar project/IST 2001

37540; http://groups.inf.ed.ac.uk/vision/CAVIAR/

CAVIARDATA1/. [Online; accessed 5-September-

2011].

Cui, X., Liu, Q., and Metaxas, D. (2009). Temporal spec-

tral residual: Fast motion saliency detection. In Proc.

ACM Multimedia, pages 617–620. ACM.

Goodale, M. A. and Milner, A. D. (1992). Separate visual

pathways for perception and action. Trends in Neuro-

sciences, 15(1):20–25.

Gorelick, L., Blank, M., Shechtman, E., Irani, M., and

Basri, R. (2007). Actions as space-time shapes. In

IEEE PAMI, volume 29, pages 2247–2253.

Guo, C., Ma, Q., and Zhang, L. (2008). Spatio-temporal

saliency detection using phase spectrum of quaternion

fourier transform. In IEEE CVPR, pages 1–8.

Hou, X. and Zhang, L. (2007). Saliency detection: A spec-

tral residual approach. In IEEE CVPR, pages 1–8.

Itti, L. and Baldi, P. F. (2006). Bayesian surprise attracts

human attention. In NIPS, pages 547–554.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. In IEEE PAMI, volume 20, pages 1254–1259.

K. Rapantzikos S. Kollias, T. A. (2009). Spatiotemporal

saliency for video classiﬁcation. Signal Processing:

Image Communication, 24:557–571.

Livingstone, M. and Hubel, D. (1987). Psychophysical evi-

dence for separate channels for the perception of form,

color, movement, and depth. The Journal of Neuro-

science, 7(11):3416–3468.

Mahadevan, V. and Vasconcelos, N. (2010). Spatiotempo-

ral saliency in dynamic scenes. In IEEE PAMI, vol-

ume 32, pages 171–177.

Mahapatra, D., Winkler, S., and Yen, S.-C. (2008). Mo-

tion saliency outweighs other low-level features while

watching videos. In SPIE, volume 6806.

Quigley, M., Conley, K., Gerkey, B. P., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). ROS: An

open-source robot operating system. In ICRA Work-

shop on Open Source Software.

Sch

uldt, C., Laptev, I., and Caputo, B. (2004). Recognizing

human actions: A local svm approach. In ICPR, pages

32–36.

Seo, H. J. and Milanfar, P. (2009). Static and space-time

visual saliency detection by self-resemblance. Journal

of Vision, 9(12).

unnermann, J. (2010). Biologically inspired spatiotem-

poral saliency processing to enhance a computational

attention model. Master’s thesis, Universit

at Pader-

born.

Wischnewski, M., Belardinelli, A., Schneider, W. X., and

Steil, J. J. (2010). Where to look next? Combin-

ing static and dynamic proto-objects in a TVA-based

model of visual attention. Cognitive Computation,

2(4):326–343.

CONTINUOUS REGION-BASED PROCESSING OF SPATIOTEMPORAL SALIENCY

239
