NON-PARAMETRIC ACQUISITION OF NEAR-DIRAC PIXEL

CORRESPONDENCES

Bradley Atcheson and Wolfgang Heidrich

Department of Computer Science, The University of British Columbia, Vancouver, Canada

Keywords:

Pixel Correspondences, Bloom Filter, Environment Matting, Structured Light.

Abstract:

Many computer vision and graphics applications require the acquisition of correspondences between the pixels

of a 2D illumination pattern and those of captured 2D photographs. Trivial cases with only one-to-one cor-

respondences require only a few measurements. In more general scenes containing complex inter-reﬂections,

capturing the full reﬂectance ﬁeld requires more extensive sampling and complex processing schemes. We

present a method that addresses the middle-ground: scenes where each pixel maps to a small, compact set

of pixels that cannot easily be modeled parametrically. The coding method is based on optically-constructed

Bloom ﬁlters and frequency coding. It is non-adaptive, allowing fast acquisition, robust to measurement noise,

and can be decoded with only moderate computational power. It requires fewer measurements and scales up

to higher resolutions more efﬁciently than previous methods.

1 INTRODUCTION

Many problems in computer vision require the estab-

lishment of correspondences between camera pixels

and either a single or multiple points on scene ob-

jects or illuminants. For example, in 3D scanning it is

common to project a sequence of light stripes or en-

coded patterns onto an object in order to reconstruct

the geometry via the observed displacement of pro-

jector pixels. In these settings, each camera pixel re-

ceives only contributions from a single point on the

illuminant, i.e. the point spread function (PSF) is a

Dirac peak. Binary encodings such a Gray codes (Bit-

ner et al., 1976) can solve this pixel correspondence

problem. In practice however, they suffer from errors

since the PSFs are rarely perfectly Dirac, and such

binary codes do not readily admit subpixel-accurate

correspondences. At the other extreme, various sim-

pliﬁcations of the full 8D reﬂectance ﬁeld (Debevec

et al., 2000) can be employed to obtain the low fre-

quencies.

In our work, we focus on the intermediate problem

of small, near-Dirac point spread functions which

must be captured with high subpixel precision. For

such applications it is not only necessary to estimate

small but ﬁnite-sized PSFs, but we must do so ro-

bustly, and with high accuracy. Due to their high-

frequency anisotropic nature, a non-parametric de-

scription of the PSFs is preferable to the axis-aligned

box (Zongker et al., 1999) or oriented Gaussian mod-

els (Chuang et al., 2000) used in environment matting.

Bloom ﬁlters are extremely space-efﬁcient data

structures for probabilistic set membership test-

ing (Bloom, 1970). We show how such structures

can be optically constructed in the context of the

pixel correspondence problem, and then inverted us-

ing heuristics and compressive sensing algorithms. To

this we add a frequency-based environment matting

scheme (Zhu and Yang, 2004), but modiﬁed to in-

crease efﬁciency. It naturally handles one-to-many

pixel correspondences in a non-parametric fashion.

The result is a combined binary/frequency-based non-

adaptive coding scheme that requires a comparatively

small number of input images while being robust un-

der noise. Processing time is on the order of minutes

on a desktop machine, which is signiﬁcantly faster

than the general light transport acquisition methods

based on compressed sensing.

2 RELATED WORK

Structured Light Scanning applications typically

employ efﬁcient encodings such as Gray codes (Bit-

ner et al., 1976) that require only a small num-

ber of images. For scanning moving objects,

other codes have been developed which allow track-

247

Atcheson B. and Heidrich W..

NON-PARAMETRIC ACQUISITION OF NEAR-DIRAC PIXEL CORRESPONDENCES.

DOI: 10.5220/0003825002470254

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 247-254

ISBN: 978-989-8565-04-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

ing over time (Hall-Holt and Rusinkiewicz, 2001;

Rusinkiewicz et al., 2002). These stripe encodings

are efﬁcient for the purpose of structured light scan-

ning, but have shortcomings. They can only deter-

mine one-to-one pixel mappings. While acceptable

for many 3D scanning purposes, the inability to deal

with mixtures of pixels can result in artifacts.

Scharstein and Szeliski (2003) projected both

Gray-coded stripes and sine waves of different spatial

frequencies. They note that binary codes can be dif-

ﬁcult to measure in the presence of low scene albedo

or low signal-to-noise ratio and overcame this by pro-

jecting both the binary code and its inverse. In gen-

eral though, binary codes are very robust. Methods

based on absolute amplitude measurements are highly

dependent upon accurate radiometric calibration and

consistent scene albedo.

Environment Matting estimates the occlusion-free

light transport matrix between a 2D background and

camera image. Zongker et al. (1999) used binary

stripe patterns both horizontally and vertically to ob-

tain correspondences in the form of rectangular axis-

aligned regions on the background for each camera

pixel. This method suffers from ambiguities in cases

where two disjoint regions on the background map to

a single camera pixel Chuang et al. (2000) proposed a

number of improvements to this algorithm, including

one that generalizes the axis-aligned boxes to oriented

Gaussian regions of inﬂuence, and one that resolves

the bimodal distribution ambiguity via additional (po-

tentially redundant) diagonal sweeps.

For specular correspondences with small spatial

support, it is possible to derive algorithms that require

signiﬁcantly fewer images by employing learning ap-

proaches (Wexler et al., 2002) or even single images

by optical ﬂow (Atcheson et al., 2008).

Peers and Dutr

e (2003) proposed the use of

wavelets as illumination patterns for environment

matting. Their initial algorithm was adaptive, i.e. it

required processing the results of captured images to

decide which patterns to project next, drastically in-

creasing the acquisition time. This disadvantage was

remedied in a later work (Peers and Dutr

e, 2005), in

which the authors use sparsity priors to project re-

sults obtained with a ﬁxed set of illumination patterns

into a new wavelet representation. While this method

produces excellent results for wide point spread func-

tions, it is less applicable to sharp PSFs.

Zhu and Yang (2004) have proposed a temporal

frequency-based coding scheme whereby the inten-

sity of each pixel is set according to a 1D signal (a

sinusoid). Our intra-tile coding scheme is based on

this method but employs a second carrier, ninety de-

grees out of phase of the primary sinusoid, to double

the information density at no extra cost. The use of

only integral frequencies satisﬁes the Nyquist ISI cri-

terion and allows for very fast, easy and robust DFT-

based decoding. We choose to uniquely code individ-

ual pixels (within each tile) rather than coding whole

rows and columns of the illuminant. This allows

our method to scale up to higher illuminant resolu-

tions, and to naturally handle PSFs of arbitrary (small)

shape, rather than assuming a parametric form.

Light Transport Matrix. Recent papers have fo-

cused on the general problem of estimating the light

transport matrix between illuminant and camera pix-

els. Most employ strategies similar to those used

in environment matting. Sen et al. (2005) propose

a hierarchical decomposition into non-interfering re-

gions. The adaptive approach requires many images

to resolve PSFs overlapping multiple regions.

Garg et al. (2006) note that the light transport ma-

trix is often data-sparse. They exploit this, along with

its symmetry due to Helmholtz reciprocity, in their

adaptive acquisition algorithm that divides the matrix

into blocks and approximates each with a rank-1 fac-

torization. Wang et al. (2009) similarly seek a low-

rank approximation to the full matrix. However, they

do so by densely sampling rows and columns of the

matrix (which requires a complex acquisition setup)

and then using a kernel Nystr

om method to recon-

struct the full matrix. These methods assume the ma-

trix to be data-sparse (compressible).

Methods based on compressed sensing are begin-

ning to appear. Sen and Darabi (2009) and Peers et al.

(2009) both describe promising, non-adaptive, meth-

ods that transform the light transport into a wavelet

domain in which it is more sparse. While these meth-

ods allow for capturing very complex light trans-

port, they still require on the order of hundreds to

thousands of images at typical resolutions, and many

hours of decoding time to obtain results.

Our method combines advantages of many of the

aforementioned works in that it is both scalable and

robust, while being conceptually simple and easy to

implement. For typical conﬁgurations we require on

the order of a few hundred images that can be ac-

quired non-adaptively in seconds and then processed

in minutes on a standard desktop computer. Unlike

more advanced light transport acquisition methods,

we cannot acquire large, diffuse PSFs (one-to-many

correspondences). But for the case of small, ﬁnite

PSFs, those methods require many images to resolve

high frequency detail. In contrast, our method efﬁ-

ciently captures accurate data at much lower cost in

terms of acquisition and processing time.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

248

3 ALGORITHM

We propose a combined binary/frequency-coded

structured light pattern for estimating pixel corre-

spondences. Appropriate acquisition setups are sim-

ple and inexpensive. All that is required is a spatially-

addressable background illuminant (projector or LCD

monitor), a camera and a reﬂective or refractive scene.

Projected patterns are acquired by a synchronized

camera and then decoded ofﬂine.

The detection algorithm is divided into two

phases. First, the background is partitioned into small

rectangular tiles (we use 8 ×8 pixels). Each tile is as-

signed a unique temporal binary code. A sequence of

images is acquired where the tiles ﬂash white or black

according to their bit pattern. Since each camera pixel

maps to a small area of the background, the measured

signal consists of the superposition of these bit pat-

terns. The task is then to determine which codes are

present in the observed signal. We use sparsity and

spatial coherence heuristics to solve it.

In the second phase we obtain per-pixel weights

corresponding to the PSF. Each pixel within a tile is

assigned a unique integral frequency and phase com-

bination. We then acquire a sequence of patterns in

which each pixel’s intensity varies according to the

amplitude of its corresponding sinusoidal waveform.

The ﬁrst phase (inter-tile coding) may optionally

use a frequency encoding similar to that of the sec-

ond phase, but at higher resolution. We describe this

method ﬁrst in Section 3.1 and note that it performs

very well in simulation. However, with real data that

may not be subject to our simulated assumptions of

additive white noise, we turn instead to the Bloom

ﬁlter-based method described in Section 3.2. The sec-

ond phase (intra-tile) is then described in Section 3.3.

3.1 Inter-tile Frequency Coding

As previously mentioned, we assign each tile a unique

code. By enumerating tiles this way in 2D, we avoid

the ambiguity suffered by methods that partition the

background into rows and columns (Zongker et al.,

1999; Chuang et al., 2000). In those schemes, a

pixel containing contributions from rows x

6= x

and

columns y

6= y

has four possible intersection points.

The actual beam may have struck two, three or four

of these points, and the natural way to eliminate the

phantom points is to perform an additional scan pass

using a different orientation (e.g. diagonal lines).

However, for the unambiguous beams this pass is re-

dundant and reduces efﬁciency.

The disadvantage of using 2D enumeration is that

there are usually far more tiles requiring unique iden-

normalized frequency (f)

2π

phase oﬀset (φ)

0.5

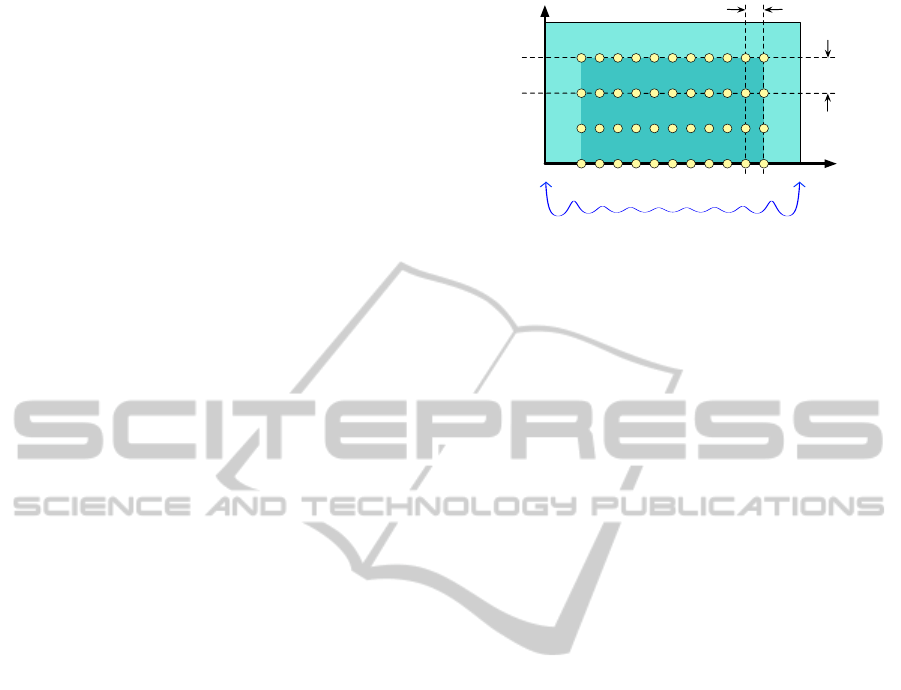

Figure 1: Sample points in frequency/phase space. δ

and

may be arbitrarily small. The graph below represents the

Cram

er-Rao Bound for the variance on frequency estimates.

Note that accuracy degrades signiﬁcantly near the 0 and 0.5

cycles/sample limits.

tiﬁers than either rows or columns. For example, a

1600 ×1200 monitor could be partitioned into 30,000

tiles of size 8 × 8. Were we to directly employ

frequency-based environment matting (Zhu and Yang,

2004) on these, we would have a maximum frequency

of 30kHz and thus require more than 60,000 cap-

tured images. Even the improvement we describe

in Section 3.3 only halves this. But this does as-

sume only integral frequencies and only two phases.

We are in fact free to choose any appropriate fre-

quency/phase sampling resolution. Figure 1 shows an

example sampling lattice in frequency/phase parame-

ter space. In the diagram a regular grid is used, with

buffer regions in the very low and very high frequen-

cies. Frequency estimation accuracy in these bound-

ary regions is degraded, as predicted via the Cram

er-

Rao Bound (CRB), which places a lower bound on the

variance of an unbiased estimator (Kay, 1993). While

the CRB suggests that an optimal lattice would be

nonuniformly spaced with frequency sampling den-

sity varying according to f , in practice the oscillations

are small and we prefer a regular grid for simplicity.

However, frequencies near 0 Hz and the Nyquist limit

should nevertheless be avoided.

This very dense sampling requires a signal param-

eter estimation algorithm that can very accurately de-

tect the frequencies. Periodograms, as used in the

intra-tile coding step, are most useful when only inte-

gral frequencies are present. Otherwise, spectral leak-

age interferes. In higher resolution scenarios, better

accuracy can be obtained via subspace methods such

as ESPRIT (Roy and Kailath, 1989). Based on eigen-

decomposition of the signal covariance matrix, it is

particularly well suited to the case of sinusoidal pa-

rameter estimation in a signal corrupted by additive

white Gaussian noise.

Despite their great accuracy, subspace methods

can fail when signals contain multiple components

of very similar frequency. This is likely to occur if

NON-PARAMETRIC ACQUISITION OF NEAR-DIRAC PIXEL CORRESPONDENCES

249

we number the tiles in row- or column-wise order

and map these directly to consecutive points in fre-

quency/phase space, because many beams will strike

near the tile boundaries and receive contributions

from adjacent tiles. To ensure that spatial neigh-

bors are not also frequency/phase-space neighbors it

is necessary to label them according to a random, or

low discrepancy sequence.

Our simulations in Section 4 indicate that 225,000

unique codes can be represented in 64 images. Unfor-

tunately, real-world experiments could not reproduce

these synthetic results. One possible explanation is

that Gaussian noise is a poor model of the actual mea-

surement noise and response-curve linearization error

in our acquisition setup. While we believe that high

resolution spectral methods show promise for pixel

coding, our experiments suggest that too many im-

ages need be captured in order to obtain accurate es-

timates. For this reason we also developed the better-

performing binary coding scheme described next.

3.2 Inter-tile Binary Coding

A set of N distinct tiles can easily by coded as consec-

utive natural numbers, whose binary representations

require the acquisition of only log

N images. This

scheme suffers from reliability problems, in that a sin-

gle incorrectly-read bit can drastically alter the num-

ber. Gray codes ameliorate this problem by ordering

the binary codes such that successive codes differ in

only a single bit (Bitner et al., 1976; Scharstein and

Szeliski, 2003). This ensures that adjacent tiles have

bit patterns that differ in only one position. Camera

beams that strike a boundary between two tiles will

measure the superposition of two very similar codes,

and the most likely error to occur (in the bit position

that differs between the two tiles) will result in a lo-

calization error of at most one tile. In general though,

the superposition of binary codes separated by large

Hamming distances leads to measurements that are

difﬁcult to interpret and that lack a reliability metric.

The Bloom ﬁlter is an extremely space-efﬁcient

data structure for probabilistic set membership test-

ing (Bloom, 1970). It is represented as a vector of

m bits, all initialized to 0. To insert an object, one

computes k independent hash values, all in the range

[1,m] and sets the corresponding bits to 1. To query

whether an object is in the set, one computes its hash

values and checks whether those bits are all on (an

O(1) operation). False negatives are impossible (as-

suming no error in reading the bit values), although

there is a probability of approximately

f =

1 −



1 −



(1)

of returning a false positive, when the set contains n

elements. This probability is minimized by choosing

k = b(m/n)ln 2c to arrive at a false positive rate of

approximately f = (0.6185)

m/n

(Kirsch and Mitzen-

macher, 2006).

In the context of our pixel (tile) correspondences,

the Bloom ﬁlter is constructed optically. We decide

beforehand on an acceptable error rate f or else a

ﬁxed image acquisition budget m, and compute the

optimal k value. Each tile is then assigned a binary

code based on those k uniformly-distributed hash val-

ues. Because the number of tiles is smaller than the

universe of





keys, it is feasible to explicitly enu-

merate them all as the columns of a “code matrix” C,

as depicted in Figure 2.

The camera acquires a sequence of images, which

are then thresholded to binary values. Each pixel

therefore records a signal vector y that corresponds

to a Bloom ﬁlter containing the hash codes of all the

tiles struck by that camera beam. By our assump-

tion of near-Dirac PSFs, there is an upper bound of

4 on the number of elements in the set (n). With 64

images, this gives a false probability rate of approx-

imately 0.05%. Since they are sparsely distributed,

these errors can be detected via a spatial median ﬁlter.

Decoding the measured signals y

is a matter of

inverting the Bloom ﬁlter. Since we have the matrix

C, this can be done by solving the equation

= (Cx > 0). (2)

The underdetermined system can only be solved by

assuming that x is sparse, which is the case for near-

Dirac PSFs. This is similar to the standard basis pur-

suit problem

min

||x||

subject to y

= Cx (3)

encountered in compressed sensing problems. Having

chosen the columns of C independently to be sparse

binary vectors, they are incoherent (mutually orthogo-

nal), satisfying the restricted isometry property (Can-

des and Tao, 2005). The primary difference between

Equation 2 and basis pursuit is that we cannot mea-

sure Cx directly and must make do with only its spar-

sity pattern. In practice, solutions can be found with

the aid of heuristics. To solve the equation we ﬁrst

compute

= C

. (4)

Since the matrices are sparse and binary, this can be

done for each pixel y

reasonably efﬁciently. The re-

sult is an integer-valued vector v

. The indices of

entries of v

equal to k correspond to a superset of

codes that make up the solution. Extracting only those

columns of C to form C

allows us to instead solve the

much smaller problem

= C

x > 0. (5)

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

250

001000101 1

�

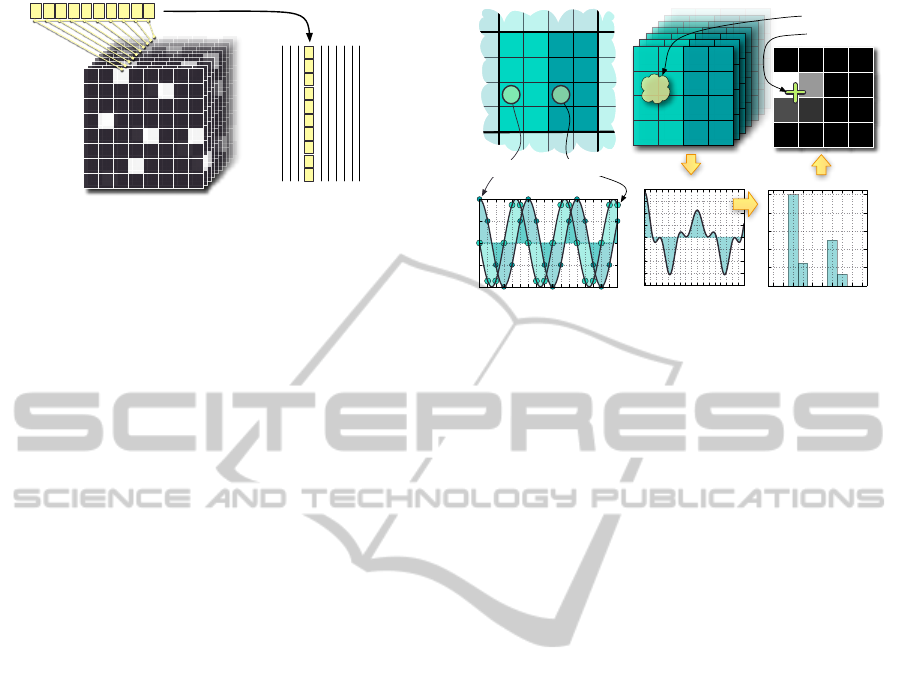

Figure 2: Binary temporal codes. Each tile is assigned a

unique binary code across the projected image sequence.

The codes form the columns of the code matrix.

Due to partial overlap it is possible for codes to be er-

roneously included in C

. For example, given binary

codes U = (0,1,1), V = (1,1, 0) and W = (1,0, 1)

then a ray striking tiles coded by U and V will produce

the measurement X = (1, 1,1). W will then be in-

cluded in C

since W ·X = 2 = k. Our objective there-

fore is to ﬁnd a minimal subset of the active codes that

adequately explain the measurement.

Any algorithm for solving the basis pursuit prob-

lem will give us an estimate of the solution. We ad-

ditionally impose the constraint that 0 ≤ x ≤ 1. Un-

fortunately, since overlapping nonzeros in the codes

produce values that exceed the range of y

, an exact

solution is unlikely and we must instead threshold the

resultant x at an empirically-determined value (0.1 in

our experiments).

Another heuristic is to enforce spatial coherence,

which will be satisﬁed by all near-Dirac beams. The

tile coordinates corresponding to the codes in C

are

clustered according to a Chebychev distance thresh-

old of 1. This gives us separate islands of tiles, each

of which is checked to see if its constituent tile codes

can account for all the observed “on” pixels. If so,

then that one island is a solution to Equation 5.

During processing, any pixels that cannot be de-

coded are recorded for further examination during

the postprocessing phase. At that time, the neigh-

bors have been determined, so any tile islands that lie

sufﬁently close to any of the neighbors are considered

to be valid solutions, even if a few code bits do not

match (the result of thresholding errors during acqui-

sition).

3.3 Intra-tile Coding

When a camera beam neither splits into multiple

paths, nor spreads out over a large area, we expect

a small PSF lying either entirely within one tile, or

across the boundaries of two, three or four neighbor-

ing tiles. Because the pixels struck by a beam within

a tile are somewhat analogous to the tiles struck on

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

5 51 51 1

8 84 84 4

cos(3 × 2πt)

−sin(3 ×2πt)

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

1 5 1 5

2 6 2 6

3 7 3 7

4 8 4 8

Beam footprint

0 2 4 6 8 10 12 14 16

−1.0

−0.5

0.0

0.5

1.0

Orthogonal 3Hz signals

0 2 4 6 8 10 12 13 16

−2.0

−1.5

−1.0

−0.5

0.0

0.5

1.0

1.5

2.0

Temporal superposition

0 1 2 3 4 5 6 7 8 9

0.0

0.2

0.4

0.6

0.8

1.0

Amplitude spectrum (real)

0 2 4 6 8 10 12 13 16

−2.0

−1.5

−1.0

−0.5

0.0

0.5

1.0

1.5

2.0

Temporal superposition

0 1 2 3 4 5 6 7 8 9

0.0

0.2

0.4

0.6

0.8

1.0

Amplitude spectrum (real)

FFT

Subpixel peak

Figure 3: Left: Sample 4x4 tile. In this case, f

max

= 8Hz.

The phase is 0 in the left half of the tile and π/2 in the right.

Right: Temporal superposition of signals under the beam

footprint.

the background, we could use the same strategy for

detecting them: uniquely coding each pixel within a

tile. There are however, two key differences here that

call for a different method. First, a greater proportion

of the pixels within a tile will be struck than the pro-

portion of tiles struck within the background. Both

inter-tile coding methods break down when too many

codes are superimposed. Second, there are relatively

few pixels in total within each tile, making a more

direct, non-parametric method feasible.

In particular, we use the frequency coding method

described by Zhu and Yang (2004), but modify it to

require only half as many images. Figure 3 shows an

example of a tile surrounded by segments of its eight

neighbors. The N ×N tile is split vertically in half,

and each side is enumerated as indicated. The label of

the k’th pixel corresponds directly to its temporal fre-

quency f

. The spatial location is encoded by setting

the frequency and phase of a complex exponential

s(t) = Ae

i(2π f t+φ)

, t ∈ [0,1) (6)

and modulating the intensity s of each background

pixel over time as

(t) = b0.8D/2cs(t) + D/2 (7)

in order to take the effective dynamic range D of the

display into account (D = 256 for an 8-bit LCD). The

factor 0.8 is chosen empirically to avoid the extremes

of the display’s intensity range, where clipping can

occur. The pixel’s location is hence transmitted as a

sampled waveform. The maximum frequency f

max

/2Hz and so we set F

= 2( f

max

+ 1) to satisfy the

Nyquist rate, and the sampling rate to T

= 1/F

. The

projected frames then correspond to discrete times

n ∈ {0,T

,2T

,. .. ,1 −T

}. If the phase were unre-

stricted we could generate a discrete sequence of pixel

intensities for the k’th pixel as

NON-PARAMETRIC ACQUISITION OF NEAR-DIRAC PIXEL CORRESPONDENCES

251

[n] = s

[n]) = s



i(2π f

t+φ

)



. (8)

But we can ease the spectral estimation by allowing

only two phases spaced exactly one quarter-period

apart, chosen for convenience to be 0 and π/2. Hence

we assign the following signals within a tile:

[n] =



cos(2π f

n), left half,

−sin(2π f

n), right half.

(9)

The encoder assigns to all signals a unit magnitude

(A = 1) so that we can easily recover relative contri-

butions from multiple frequencies when camera rays

strike multiple pixels. The receiver measures a su-

perposition of signals from the p pixels struck by the

beam, corrupted by what we model as additive white

Gaussian noise w:

x[n] =

∑

l=1

i(2π f

n+φ

)

+ w[n] (10)

Our goal is to estimate the parameters f

and φ

which together encode the position of each compo-

nent pixel, and A

which will represent the relative

amount of light arriving at the sensor from it. To

estimate these spectral parameters we use the pe-

riodogram, which represents the magnitude-squared

Fourier transform of the signal, divided by the number

of time samples (Kay, 1993). After performing a per-

pixel FFT, we scale by T

and discard the redundant

copy of the spectrum. The real component (in-phase

channel) then directly corresponds to the relative con-

tribution A

towards the PSF from pixels in the left

half and the imaginary component (quadrature chan-

nel) likewise corresponds to contributions from the

right. The PSF can be directly visualized by plotting

these results as an NxN intensity plot, as in Figure 3

(right, top). It is thus described non-parametrically,

and a subpixel-accurate location of the peak may be

interpolated and added to the tile’s global coordinates.

An approximate interpolant may be obtained via the

amplitude spectrum’s centroid, or a local 3 ×3 Gaus-

sian ﬁt (Thomas et al., 2005).

A complication arises if the beam crosses a tile

boundary. Previous methods for handling boundary

overlaps in tile-based schemes have involved scan-

ning additional passes with translationally offset tile

grids (Sen et al., 2005) and considering only one of

these passes: that which ﬁnds the PSF fully enclosed

by a single tile. Our method requires only a single

pass, as long as the PSF is smaller than a single tile.

We locate the maximum value in the magnitude spec-

trum and circularly shift this to the centre of the tile,

recording the shift vector so that we can subtract it and

still obtain an absolute position in global coordinates.

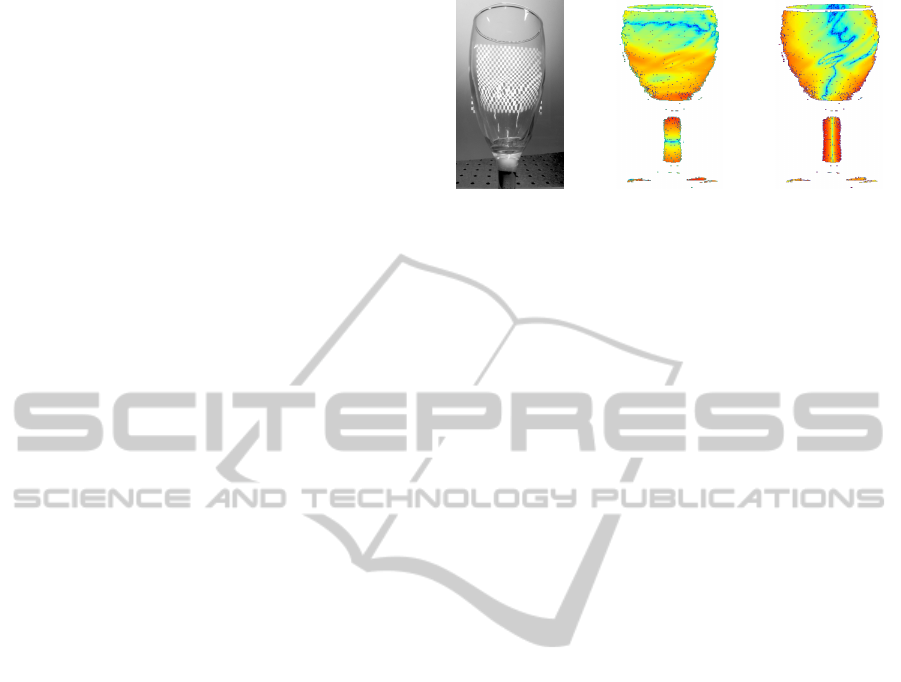

Figure 4: Background distortion through a poorly-

manufactured wineglass. The rightmost images show log

magnitude of vertical and horizontal apparent displacement

of background pixels when viewed through the glass. The

scale is 0.01 to 250 pixels.

4 RESULTS

We ﬁrst demonstrate successful capture of simple en-

vironment mattes using the binary/frequency coding

method, then present simulations indicating the ex-

pected performance of a method based on high reso-

lution spectral estimation. We include them since they

suggest a way to increase the information throughput

for a given image aquisition budget, but note that a

more accurate measurement setup would be necessary

to achieve such results in practice.

To test the algorithm we computed optical ﬂow by

comparing the correspondences before and after plac-

ing a refracting object in front of the camera. Figure 4

shows the displacement vectors and a sample photo-

graph of the scene (from a different viewpoint). The

Bloom ﬁlter parameters for this dataset were m = 60

and k = 4. Aside from missing data in regions of total

internal reﬂection, the errors are few and easily ﬁl-

tered out.

In some cases we require a single corresponding

point on the background for each camera pixel, in

others we require the whole PSF. Figure 5(a) shows

how our method can provide both an accurate non-

parametric PSF, as well as a reasonably accurate point

correspondence. Since the precise location of non-

Dirac PSFs is undeﬁned, we choose it to be the cen-

troid of the neighborhood around the brightest pixel.

In a moving scene one may compute the optical ﬂow

between PSFs from one time step to the next, without

needing to know their precise location. Figure 5(a)

also shows a near-failure case where too few binary

code images were captured (m = 40, k = 4), resulting

in many undetectable pixels.

Unlike Gray codes, our method is capable of de-

tecting PSFs composed of multiple near-Dirac com-

ponents. Figure 5(b) shows an example where a

beamsplitter (mounted inside the occluding housing)

and mirror combination are used to direct camera

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

252

(a) (b)

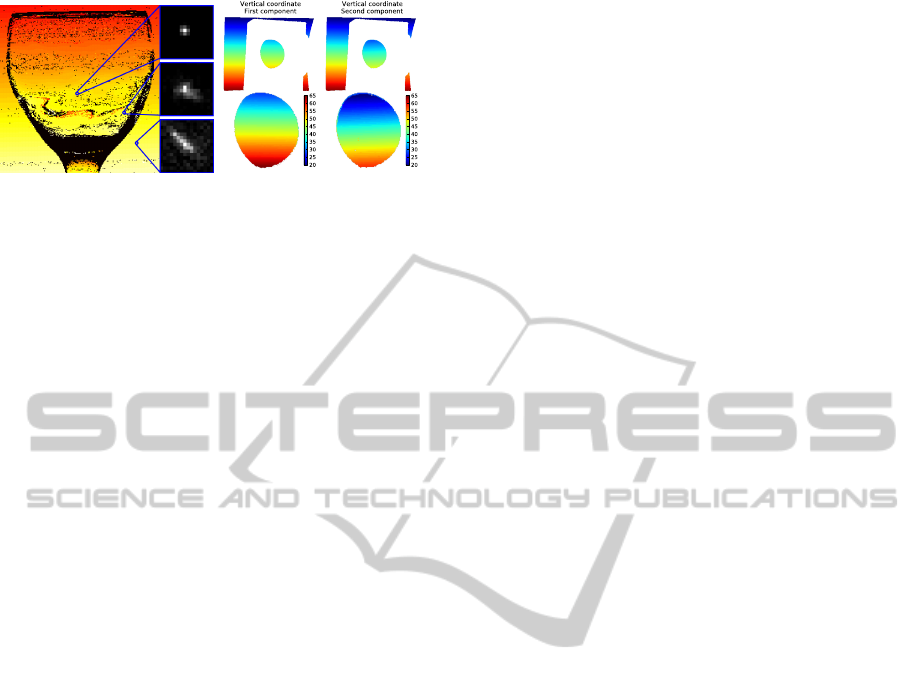

Figure 5: (a) Examples of spread-out, bimodal and point-

like point spread functions. The color gradient indicates the

vertical component of the detected background pixels’ co-

ordinates. (b) Multipath correspondences. A beamsplitter

inside the occluder reﬂects some light onto a mirror that di-

rects it to another point on the illuminant. The bottom row

of images show a closeup of the central region (the beam-

splitter) on a different color scale.

rays to two distinct points on the illuminant. This

example shows only the inter-tile binary coding re-

sult, since frequency-based intra-tile coding would

require larger tiles when acquiring larger, or multi-

component, PSFs. In this case, we eliminate the tiles

and apply binary coding to each pixel. The result is

that fewer images need be captured, at the cost of los-

ing subpixel precision.

Capture paramaters were m = 112 and k = 10. We

assumed that at most 8 tile codes would be present

in any one Bloom ﬁlter to accommodate the worst

case of both beams striking at the intersection of four

neighboring tiles. The false positive probability in

this case is 0.098%.

To verify the accuracy of our frequency estima-

tions and to determine appropriate parameter values,

we conducted simulations under expected conditions.

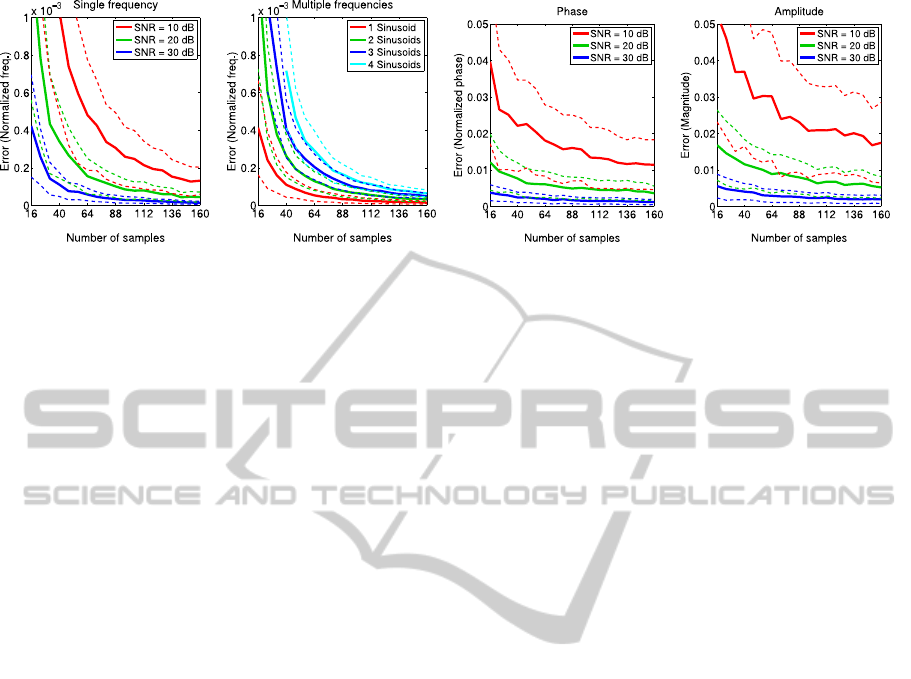

Figure 6 shows the results. In the leftmost graph,

we analyzed the impact of measurement noise for

the case where only a single frequency is embed-

ded in the signal. The graphs show median abso-

lute error, relative to the Nyquist frequency, so an up-

per error value of 0.5 ×10

−3

indicates that we could

choose a sampling lattice spacing of double this, i.e.

= 0.001 ×N/2 Hz. Error values asymptotically

approach a lower bound as the number of captured

images increases, but going beyond 100 images leads

to diminishing returns. Too few images however, lead

to very high error, indicating that ESPRIT would not

be suitable for detecting frequencies within a tile.

Next, we investigated how superposition of sig-

nals degrades performance. The second graph shows

cases with up to four simultaneous frequencies, cho-

sen randomly, but spaced far enough apart so as not

to be strongly correlated. The amplitudes were all set

to 1.0 and the simulation was run at an SNR of 30dB.

Accuracy does degrade as more signals are added, but

the effect becomes relatively small as N increases.

The third graph shows that we are unable to de-

tect phase as accurately as frequency. For this reason,

the sampling interval δ

depicted in Figure 1 must be

much larger than δ

. The vertical axis in this graph is

relative to π rad/sample.

The ﬁnal graph shows amplitude accuracy, at

which we obtain similar performance to phase (as is

to be expected, since both values result from the so-

lution of the same linear system). The vertical axis is

relative to the unit input signal amplitude.

Given these results, we can determine the number

of tiles than can adequately be coded given a ﬁxed im-

age acquisition budget. For a typical case of N = 64

images taken at an SNR of 30dB, when four sinu-

soids are present, frequency can reliably be detected

to within 0.0004 ×N/2 = 0.0128Hz, and the phase

is accurate to within 0.005 ×π rad/sample. Avoid-

ing the lower 5% and upper 5% of frequencies, and

covering this space with a lattice of points spaced

= 2 ×0.0128 Hz and δ

= 2 ×0.005π rad/sample

apart gives us 225k sample points, i.e. 64 images is

enough to support 225k tiles, so long as no more than

four of them are superimposed at one pixel.

5 CONCLUSIONS

Most prior methods for establishing pixel correspon-

dences are based on matching spatio-temporal inten-

sity patterns. These produce qualitatively good vi-

sual results, but lack guarantees on correctness. We

have proposed instead to assign unique codes on the

tile level and then demultiplex them after transmis-

sion through the optical projector-camera multiplexer.

This opens up the possibility of using tools from dig-

ital signal processing to ensure that each code is ac-

curately read. One possible direction for future work

would be to insert error detection and correction codes

into the signals.

Our current binary signal decoding scheme em-

ploys compressed sensing and spatial heuristics to de-

multiplex signals. We have introduced the Bloom

ﬁlter as an optical computing tool for determining

one-to-few pixel correspondences. However, without

more advanced DSP techniques, we cannot accom-

modate one-to-many correspondences. To circumvent

this problem, we group pixels into tiles, and apply a

separate frequency-based coding scheme to map the

pixels within each tile. To this end, we have improved

upon existing methods by halving the required num-

ber of images, eliminating redundant sweep scans,

and allowing for subpixel precision with nonparamet-

ric point-spread functions.

NON-PARAMETRIC ACQUISITION OF NEAR-DIRAC PIXEL CORRESPONDENCES

253

Figure 6: Synthetic experiment results. Solid lines show the median absolute error, while dashed lines indicate the median

absolute deviation. 500 trials were performed for each tested sample size.

REFERENCES

Atcheson, B., Ihrke, I., Heidrich, W., Tevs, A., Bradley, D.,

Magnor, M., and Seidel, H.-P. (2008). Time-resolved

3D capture of non-stationary gas ﬂows. ACM Trans.

Graphics, 27:132.

Bitner, J., Ehrlich, G., Reingold, E., and 1976 (1976). Ef-

ﬁcient generation of the binary reﬂected Gray code

and its applications. Communications of the ACM,

19:517–521.

Bloom, B. H. (1970). Space/time trade-offs in hash coding

with allowable errors. Communications of the ACM,

13:422–426.

Candes, E. J. and Tao, T. (2005). Decoding by linear pro-

gramming. IEEE Transactions on Information The-

ory, 51:4203–4215.

Chuang, Y.-Y., Zongker, D. E., Hindorff, J., Curless, B.,

Salesin, D. H., and Szeliski, R. (2000). Environ-

ment matting extensions: Towards higher accuracy

and real-time capture. In Intl Conf. on Computer

Graphics and Interactive Techniques, pages 121–130.

Debevec, P., Hawkins, T., Tchou, C., Duiker, H.-P., Sarokin,

W., and Sagar, M. (2000). Acquiring the reﬂectance

ﬁeld of a human face. In SIGGRAPH ’00, pages 145–

156.

Hall-Holt, O. and Rusinkiewicz, S. (2001). Stripe boundary

codes for real-time structured-light range scanning of

moving objects. In Proc. ICCV, volume 2, pages 359–

366.

Kay, S. M. (1993). Fundamentals of statistical signal pro-

cessing, Volume I: Estimation theory. Prentice Hall

PTR.

Kirsch, A. and Mitzenmacher, M. (2006). Less hashing,

same performance: Building a better bloom ﬁlter. In

Algorithms - ESA 2006, volume 4168, pages 456–467.

Springer.

Peers, P. and Dutr

e, P. (2005). Inferring reﬂectance func-

tions from wavelet noise. In Bala, K. and Dutr

e, P.,

editors, Proc. EGSR, page 173182.

Roy, R. and Kailath, T. (1989). ESPRIT-estimation of sig-

nal parameters via rotational invariance techniques.

IEEE Trans. Acoustics, Speech, and Signal Process-

ing, 37:984–995.

Rusinkiewicz, S., Hall-Holt, O., and Levoy, M. (2002).

Real-time 3D model acquisition. ACM Trans. Graph-

ics, 21:438–446.

Scharstein, D. and Szeliski, R. (2003). High-accuracy

stereo depth maps using structured light. In Proc.

CVPR, volume 1, pages I–195—-I–202.

Sen, P., Chen, B., Garg, G., Marschner, S. R., Horowitz,

M., Levoy, M., and Lensch, H. P. A. (2005). Dual

photography. ACM Trans. Graphics, 24:745–755.

Thomas, M., Misra, S., Kambhamettu, C., and Kirby, J.

(2005). A robust motion estimation algorithm for piv.

Measurement Science and Technology, 16:865–877.

Wexler, Y., Fitzgibbon, A., and Zisserman, A. (2002).

Image-based environment matting. In Proc. 13th Eu-

rographics Workshop on Rendering, pages 279–290.

Zhu, J. and Yang, Y.-H. (2004). Frequency-based environ-

ment matting. In Proc. Paciﬁc Graphics, pages 402–

410.

Zongker, D. E., Werner, D. M., Curless, B., and Salesin,

D. H. (1999). Environment matting and compositing.

In Intl Conf. Computer Graphics and Interactive Tech-

niques, pages 205–214.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

254
