COMAV - A COMPONENT APPLICATION VISUALIZATION TOOL

Use of Reverse Engineering and Interactivity in Visualization

for Component Software Comprehension

Jaroslav

Snajberk and P

remek Brada

Department of Computer Science and Engineering, Faculty of Applied Sciences,

University of West Bohemia, Pilsen, Czech Republic

Keywords:

Component, Visualization, Interactivity, Reverse Engineering.

Abstract:

Visualization of software applications plays an important part in the process of comprehending new software

systems and is even more important due to its increasing complexity. Component-based development works

with complex structure of black-box units and paradoxically there is not much choice in terms of both notation

and tooling when one needs to visualize structure of these component-based applications. Reverse engineering

is available for only a few component models and the state of the practice in visualization is the simple

and static component diagram introduced in UML 2.0. In this paper we present a tool that is generic and

it is therefore usable for any component-based application. This tool works with an advanced meta-model

(ENT) as an intermediate data model to store all the reverse-engineered information about these applications.

This information is then available for further visualization. A new notation based on this meta-model is also

suggested in this paper which uses several interactive techniques to enhance the comprehension process.

1 INTRODUCTION

Both visualization and reverse engineering of

component-based applications are a problematic

tasks, because of differences between component

models. There are dozens of component models in

Java only like OSGi

, EJB

, SOFA 2

, COSi

and

others. The main problem lies in the absence of

united representation of components that would pro-

vide some details about them; there are also no re-

lated methods to reverse-engineer the structure of

component-based applications. A united representa-

tion ensures the readability of diagrams across differ-

ent component models. When one needs to visual-

ize the structure of reverse-engineered application it

would also be highly appropriate to provide him with

more information than just component boxes and re-

lations between them.

There are of course tools that are able to recon-

struct the structure of component-based software, but

they are closely bound to speciﬁc component mod-

www.osgi.org

www.oracle.com/technetwork/java/javaee/ejb/index.ht

http://sofa.ow2.org/

www.assembla.com/wiki/show/cosi

els in both the visualization and reverse-engineering

abilities. For example: SOftware MOdel eXtractor

(SoMoX), (Becker et al., 2010) visualizes only Palla-

dio component model (Becker et al., 2009), SaveIDE

(Sentilles et al., 2009) visualizes only SaveCCM

(Hansson et al., 2004) and Plug-in Dependency Vi-

sualization

visualizes Eclipse plug-ins (OSGi).

1.1 Related Work

Telea’s work on interactive visualization of

component-based software (Telea and Voinea,

2004) is generic and mostly similar to our work, but

it does not provide much details about component

themselves. Wettel’s visualization of software as

cities (Wettel and Lanza, 2007) could be easily used

on component software, but again it does not provide

details needed to get a full structure comprehension.

Interactivity should help in the ﬁrst place with

the creation of a mental model, so that one will be

able to make decisions. It is important to lighten the

cognitive load, namely hide unnecessary details, as

Ric Holt highlighted with several examples in (Holt,

www.eclipse.org/pde/incubator/dependency/visualizati

on/

755

Šnajberk J. and Brada P..

COMAV - A COMPONENT APPLICATION VISUALIZATION TOOL - Use of Reverse Engineering and Interactivity in Visualization for Component

Software Comprehension.

DOI: 10.5220/0003827707550758

In Proceedings of the International Conference on Computer Graphics Theory and Applications (IVAPP-2012), pages 755-758

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

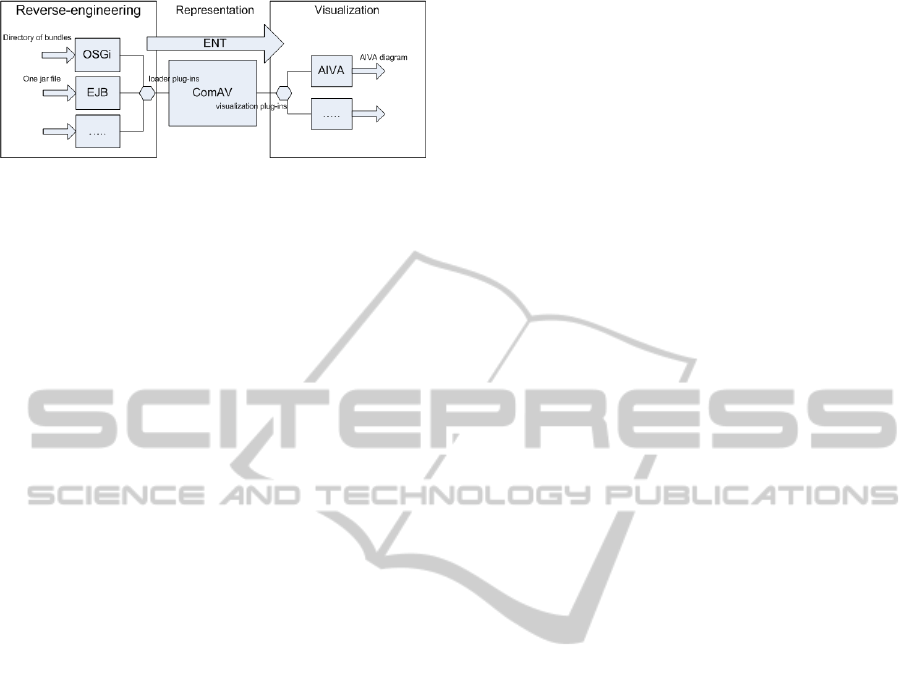

Figure 1: The structure of ComAV.

2002). The importance of interactivity for the ability

to make decisions over mental model is mentioned in

several studies, one of them is by Meyer et al. (Meyer

et al., 2010). He goes even further and deﬁnes new

science of visually enabled reasoning, implying that

interactivity is its key enabler.

1.2 Goal and Structure of This Paper

In this paper we present the ComAV (Component Ap-

plication Visualizer) tool and its AIVA (Advanced

Interactive Visualization Approach) plug-in as im-

plementation of our approach to the visualization of

structure of component-based applications. ComAV

is a platform for visualization and reverse-engineering

of component-based software, which provides simple

extension mechanism, so new component models can

be added easily and new visualization styles can be

used independently on the component models. AIVA,

implemented as ComAV plug-in, aims to improve ori-

entation in visualized software by adopting several in-

teractive techniques – mostly details on demand and

tracking features.

The structure and theory behind this generic plat-

form will be described in Section 2, while AIVA will

be described in detail in Section 3. Finally the con-

tribution of these two products will be discussed in

Section 4.

2 COMPONENT APPLICATION

VISUALIZER: COMAV

The purpose of ComAV is to create a generic

workspace for visualization and management of

component-based applications. ComAV can reverse-

engineer a component application written in any com-

ponent model, but it doesn’t support any component

model directly. Instead, it uses a uniform data struc-

ture as an exchange format, that is able to hold all

the information about both the component model and

the application. This exchange format is produced

by reverse-engineering plug-ins as an output, which

is saved by ComAV and which visualization plug-ins

can later use it as an input (see Figure 1). ComAV

user interface provides a project view where analyzed

applications are made available; a console, to keep the

track of what ComAV is doing; an editor view, where

visualization plug-ins provide its visual output; and

a menu, where reverse-engineering plug-ins can add

new component models.

The exchange data structure must be, in the

ﬁrst place, component model independent and have

the ability to describe component in desired de-

tail. We chose the ENT meta-model (Snajberk and

Brada, 2011a) for this purpose, which is a generic

meta-model developed directly for the description of

component-based applications. Its most important

features are: faceted classiﬁcation used to charac-

terize component’s elements; ability to describe any

component with required details; and coverage of

both component model and component-based appli-

cation structures. The advantage of faceted classiﬁca-

tion is that visualization can make use of these charac-

teristics to improve layout or representation of com-

ponents.

Currently ComAV supports reverse-engineering

of OSGi, EJB or SOFA 2 component models. XML

is used to store the data. The workspace is an

RCP (Rich Client Platform) application based on the

Eclipse IDE, thus it is written in Java and it’s archi-

tecture is plug-in based. Development of new plug-ins

that would introduce support for any other component

model is therefore very simple. It is important to note

that these new plug-ins can be made without changing

anything in the existing implementation.

3 ADVANCED INTERACTIVE

VISUALIZATION APPROACH:

AIVA

AIVA uses oriented graph to visualize components

and their relations. Its notation is similar to the UML

component diagram, but unlike complete UML it is

focused only on component-based software to provide

more precise information. Moreover, it adopts inter-

active techniques to improve the process of software

comprehension. The principles of this approach are

described in (Snajberk and Brada, 2011b) and AIVA

is an implementation of these principles.

Its easy to understand visual notation is uniﬁed for

all component models – any component will look the

same, it will only vary in the inner elements of the

component. The differences and similarities can be

observed by comparing OSGi and EJB components in

Figure 2. To simplify the visual representation it uses

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

756

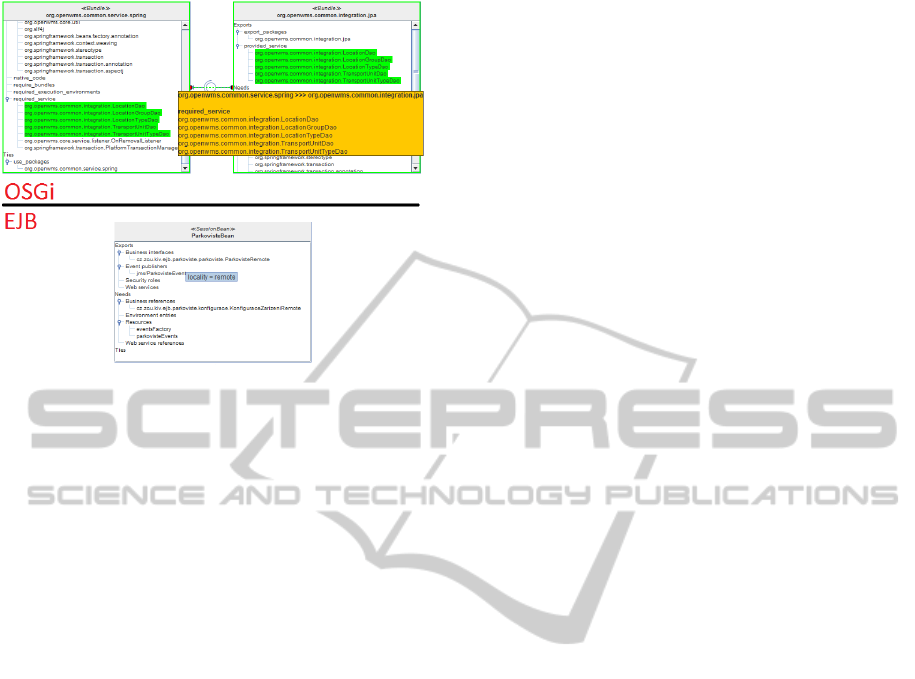

Figure 2: Detailed representation of components in OSGi

(top) and EJB (bottom).

a lot of information hiding and details-on-demand

features. For example, additional information about

component elements is provided as tooltips (Figure

2 EJB) or all relations between two components are

represented as only one line and additional details are

provided on demand (Figure 2 OSGi).

Grouping and Filtering of elements of the com-

ponent is possible thanks to the ENT meta-model,

which has a feature called CategorySet based on

ENT’s faceted classiﬁcation used on elements. Cat-

egorySet can deﬁne several categories as sets of rules

that have to be satisﬁed in order to include an element

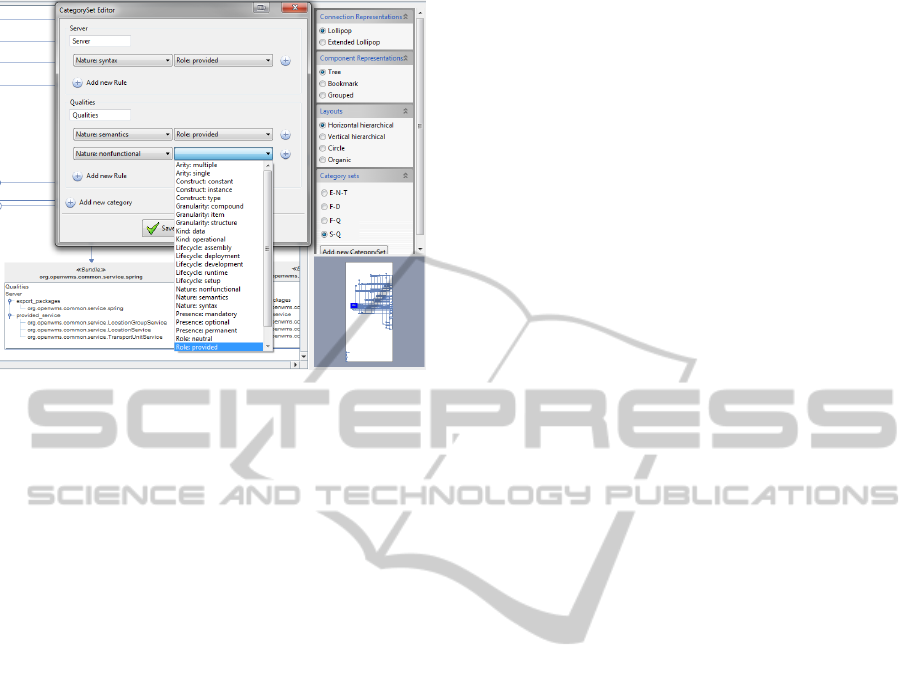

in the given category. Figure 3 shows a CategorySet

editor which is used for designing new sets of con-

ditions. The bodies of components are ﬁltered using

the selected CategorySet. For example, compare the

panel in the bottom-left corner with Figure 2 OSGi

part where a different CategorySet was applied.

Conditional Formatting is yet another powerful

feature possible due the ENT meta-model. AIVA

is able to create conditional formatting based on

the name of component or its elements, but what

is more important, it can work with any other de-

tail about component or its elements hold by the

ENT meta-model like full name, version, required

environment, etc. For example: In OSGi all event

handling must go through provided service called

org.osgi.service.event.EventHandler, events

are then routed by setting the event topic inside the

service ﬁlter. AIVA can take in count the value of

this ﬁlter and visually highlight only those elements

or whole components that listen on certain topic.

Navigation/Explore interactive techniques are

represented by scrolling, zooming, panning, outline

view and quick search (move the view on component

in diagram, when selected in project overview). These

techniques should provide quick navigation through

the diagram for either looking up some component or

plain browsing of relations. The zoom function has

a special meaning in AIVA, because it does not pro-

vide the simple zoom in and out but also hides all de-

tails about the component itself, to provide cleaner

overview of the whole structure. These details are

shown again when one zooms in on 100%.

Selecting is more important in AIVA, because it

helps reveal and eye track more information. By se-

lecting a component, element or connection line one

can get more information about it. Selection stays ac-

tive even after reconﬁguration (e.g layout changes).

Selected connection line also highlights connected

components even in diagram outline, so it is easier

to ﬁnd them and their related components.

Reconﬁguration, change of representation of

components, connection lines or layout of a diagram

is useful when a different point of view on a complex

software sytem is needed. AIVA supports several lay-

outs which can be switched on the ﬂy – a standard fea-

ture displayed on the right side of Figure 3. However

it is also able to change the representation of the com-

ponents – while someone might ﬁnd useful our pre-

sented tree representation of elements, others might

prefer classic UML representation. AIVA offers three

completely different representations of components

right now.

What is even more important, AIVA is able to

change the proposed collapsed representation of con-

nection lines to a more service-oriented representa-

tion, known from the UML – component has a lol-

lipop symbol attached to the outer edge, representing

one provided element (interface, package or anything

else, the representation is still the same) and other

components connect directly to it. In contrast with

UML, AIVA is able to track and highlight all the con-

nection lines and connected components, by clicking

on the lollipop symbol. This provides an immediate

overview of connected components and the location

where to ﬁnd them in the diagram.

3.1 Summary

These techniques, features and described visual nota-

tion are not novel by their own. The innovative aspect

is their combined use, to bring quite new experience

to the analysis of the structure of component-based

applications.

AIVA is implemented as ComAV’s visualization

plug-in and JgraphX is used for diagram rendering

which is highly customizable and extendable library.

COMAV - A COMPONENT APPLICATION VISUALIZATION TOOL - Use of Reverse Engineering and Interactivity in

Visualization for Component Software Comprehension

757

Figure 3: CategorySet editor with different distribution of

elements on background.

4 CONCLUSIONS

We see the main contribution of our work in providing

a novel visualization approach for component-based

software that is supported by an extendable reverse-

engineering mechanism. It is directed mainly at soft-

ware architects and developers.

Its implementation called ComAV is a universal

platform that can be used for visualization of any

component-based application and thanks to its use of

the ENT meta-model, the variety of visualization ap-

proaches can reach from simple diagramming to deep

analytic visualization, similar to (Wettel and Lanza,

2007) or (Telea and Voinea, 2004). ComAV thus of-

fers rich experience from absolutely different visual-

ization approaches applied over the same data.

The AIVA module then aims to offer quality visu-

alization of complex application structures. Its contri-

bution is in combining proven visual notation with in-

teractive techniques to accelerate the process of com-

prehension and to facilitate orientation in complex di-

agrams.

Both ComAV and AIVA are still under develop-

ment, thus neither of them is thoroughly evaluated.

They have however been successfully used to display

models of applications composed from about 60 com-

ponent. Scientiﬁc evaluation of the whole approach

will be provided as we will continue in our research.

ACKNOWLEDGEMENTS

The work was supported by the UWB grant SGS-

2010-028 Advanced Computer and Information Sys-

tems.

REFERENCES

Becker, S., Hauck, M., Trifu, M., Krogmann, K., and

Kofron, J. (2010). Reverse Engineering Component

Models for Quality Predictions. In Proceedings of the

14th European Conference on Software Maintenance

and Reengineering, European Projects Track, pages

199–202. IEEE.

Becker, S., Koziolek, H., and Reussner, R. (2009). The pal-

ladio component model for model-driven performance

prediction. Journal of Systems and Software, 82(1):3

– 22. Special Issue: Software Performance - Modeling

and Analysis.

Hansson, H., Akerholm, M., Crnkovic, I., and Tarngren, M.

(2004). SaveCCM - A Component Model for Safety-

Critical Real-Time Systems. In EUROMICRO, pages

627–635. IEEE Computer Society.

Holt, R. (2002). Software Architecture as a Shared Mental

Model.

Meyer, J., Thomas, J., Diehl, S., Fisher, B., and Keim, D. A.

(2010). From Visualization to Visually Enabled Rea-

soning. In Hagen, H., editor, Scientiﬁc Visualization:

Advanced Concepts, volume 1 of Dagstuhl Follow-

Ups, pages 227–245. Schloss Dagstuhl–Leibniz-

Zentrum fuer Informatik, Dagstuhl, Germany.

Sentilles, S., Pettersson, A., Nystrom, D., Nolte, T., Petters-

son, P., and Crnkovic, I. (2009). Save-ide - a tool for

design, analysis and implementation of component-

based embedded systems. In Proceedings of the 31st

International Conference on Software Engineering,

ICSE ’09, pages 607–610, Washington, DC, USA.

IEEE Computer Society.

Snajberk, J. and Brada, P. (2011a). ENT: A Generic Meta-

Model for the Description of Component-Based Ap-

plications. Electronic Notes in Theoretical Computer

Science, 279(2):59 – 73. Proceedings of the 8th

International Workshop on Formal Engineering ap-

proaches to Software Components and Architectures

(FESCA).

Snajberk, J. and Brada, P. (2011b). Interactive Component

Visualization. In Proceedings of International Confer-

ence on Evaluation of Novel Approaches to Software

Engineering, pages 218–225. SciTePress.

Telea, A. and Voinea, L. (2004). A Framework for Inter-

active Visualization of Component-Based Software.

In Proceedings of the 30th EUROMICRO Conference,

pages 567–574, Washington, DC, USA. IEEE Com-

puter Society.

Wettel, R. and Lanza, M. (2007). Visualizing software sys-

tems as cities. In In Proc. of the 4th IEEE Interna-

tional Workshop on Visualizing Software for Under-

standing and Analysis, pages 92–99. Society Press.

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

758
