AUGMENTED REALITY WITH AUTOSTEREOSCOPIC

VISUALIZATION

A Comparative Study using an Autostereoscopic Display versus a Common Display

Juan-J. Arino

, M.-Carmen Juan

, Santiago González-Gancedo

, Ignacio Seguí

and Roberto Vivó

Instituto Universitario de Automática e Informática Industrial (ai2), Universitat Politècnica de València,

C/ Camino de Vera, s/n Valencia, Spain

AIJU, Ibi, Alicante, Spain

Keywords: Augmented Reality, Autostereoscopy.

Abstract: In this paper, we present a system that combines Augmented Reality and autostereoscopic visualization. We

also report a study for comparing different aspects using an autostereoscopic display and a common display,

in which 44 children aged from 8 to 10 years old have participated. From our study, statistically significant

differences were found between both displays for the depth perception and for the sense of presence.

Several correlations have also been found when children used the autostereoscopic display. In our study, the

sense of presence is closely related with the depth perception; and the overall score of the game was also

closely related with the depth perception and the sense of presence.

1 INTRODUCTION

Augmented Reality (AR) refers to the introduction

of virtual content into the real world, that is, the user

is seeing an image composed of a real image and

virtual elements superimposed over it. The term

stereopsis was coined by Wheatstone in 1838

(Wheatstone, 1838). From this date onwards, a

stereoscopic system is one that shows a different

image in each eye. In his work about the binocular

vision, he built a stereoscope and presented the first

stereoscopic drawings. Autostereoscopic displays

provide stereo perception without users having to

wear special glasses. Nowadays, all autostereoscopic

displays are multiview. They work with several

images (usually from 5 to 9) that are visible from

different angles. Therefore, the 3D view can be

observed from different positions. In this work, we

experimented how the augmented image may seem

more real for end users by combining AR and

autostereoscopy. Several studies have compared the

use of autostereoscopic displays with other kind of

3D displays, such as 3D glasses or polarized

stereoscopic projection. However, to our knowledge,

this is the first work that combines autoestereoscopic

displays with AR, and compare its benefits with

common displays.

Nowadays, the images shown in autostereoscopic

displays tend to have less quality because of the

optic needed to create the 3D effect. In this work, we

have tried to determine if users prefer the 3D effect

versus quality for interacting with a virtual object.

2 BACKGROUND

A 3D display is a video display capable of

transmitting a three-dimensional image to the

viewer. Many solutions have been proposed to

achieve it. There are several 3D display systems

(Holliman, 2006), including volumetric,

holographic, stereoscopic and autostereoscopic 3D

displays.

Autostereoscopic displays are very attractive, as

they do not require any eyewear. According to Urey

(2011), there are many possibilities, including: two-

view (parallax barrier or a lenticular screen),

multiview, head tracked (with active optics), and

super multiview, which potentially can solve the

accommodation-convergence mismatch problem.

Previous studies for Virtual Reality visualization

techniques focused on comparing common desktop

monitors, Head Mounted Displays and optical see-

through displays. Sousa-Santos et al. (2008) found

that Head Mounted Displays provide an intuitive and

natural interaction with the virtual objects. However,

419

Arino J., Juan M., González-Gancedo S., Seguí I. and Vivó R..

AUGMENTED REALITY WITH AUTOSTEREOSCOPIC VISUALIZATION - A Comparative Study using an Autostereoscopic Display versus a Common

Display.

DOI: 10.5220/0003828204190425

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2012), pages 419-425

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

in their tests, they found that the tasks were

performed more efficiently with common desktop

monitors. Froner et al. (2008) compared depth

perception on several 3D displays. They concluded

that the selection of 3D display has to be done

carefully for tasks that rely on human depth

judgment.

On the other hand, several studies have been

carried out to evaluate the use of autostereoscopic

displays to interact with 3D objects. Alpaslan et al.

(2006) compared 2D CRT, shutter glasses and

autostereoscopic displays measuring user preference.

Their results indicated that glasses were preferred to

autostereoscopic displays in a task that involved

only stereoscopic depth. Jin et al. (2007) evaluated

the usability of an autostereoscopic display in a

Virtual Reality scenario. One of the conclusions of

their study was that it was difficult to interact with

an autostereoscopic display with common devices

such as the mouse.

The use of autostereoscopic displays for

educational Virtual Reality applications have

recently been evaluated (Petrov, 2010). Petrov found

that with this kind of applications, the students could

perceive the objects being studied in a more natural

way than using a stereoscopic Head Mounted

Display.

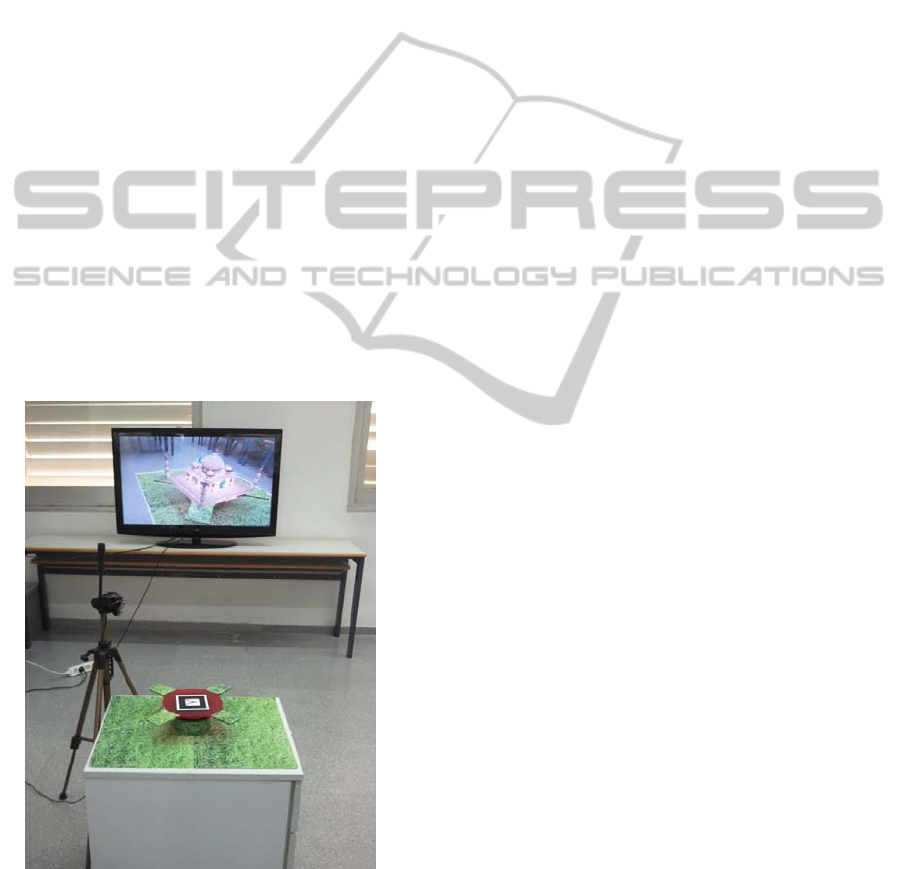

Figure 1: Table with the marker on the rotator support,

camera and autostereoscopic display.

Nowadays, autostereoscopic displays are being

greatly improved. One of the problems preventing

widespread use is that the optical grid needed to

generate the 3D view reduces the quality of the

image when it is used for 2D. However, several

solutions have been proposed to fix this problem

(Montgomery et al. 2001).

3 TECHNICAL

CHARACTERISTICS

As most AR systems, our AR system is based on

markers. A marker is a white square with a black

border inside that contains symbols or letters. The

system detects the marker and registers the virtual

object on it, scaling and orientating it correctly.

To better integrate the marker with the scene and

to make the manipulation of the marker easier, we

created a rotating support where the marker is

placed. The support and the table were decorated

according to the scene that was going to be shown

on top of the marker (Figure 1).

3.1 Hardware

A Logitech camera was used to capture the real

world scene, model C905, with the following

configuration: captured image size - 800 x600 at 30

fps; focal length - 3.7 mm., and automatic focus

adjustment.

An autostereoscopic XYZ display was used for

the visualization. The model used was

XYZ3D8V46, with a resolution of 1920x1080 pixels

(Full HD) and a size of 46”. This model could

generate 8 views. The technology used by this

screen to generate the views is known as

LCD/lenticular (Omura, 1998). The maximum pop-

out 3D effect was around 90 cm. and the range

where the 3D effect was correctly viewed was from

1.5 m. to 9 m.

3.2 Software

The osgART library was used to develop the game.

OsgART was developed by HITLab NZ

(www.artoolworks.com/community/osgart). It is a

C++ library that allowed us to build AR applications

using the rendering capabilities of Open Scene

Graph (OSG) and the tracking and registration

algorithms of ARToolKit. OSG is a set of open

source libraries that primarily provided scene

management and graphics rendering optimization

functionality to applications. ARToolKit is an open

source vision tracking library. We used OSG version

2.8 and osgART version 2.0. We used the Mirage

SDK (www.mirage-tech.com) for the

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

420

autostereoscopic visualization. This SDK calculated

an autostereoscopic view for the OSG scenes.

To generate the scene for the autostereoscopic

display, it was required to generate 8 different

views. To accomplish this goal, we added a new

layer to osgART, integrating the Mirage SDK with

osgART. An OSG scene is defined by a graph

composed by a hierarchy of nodes. The nodes can be

cameras, scenes, groups of models, transformation

matrix, etc. In our case, we created a graph to

integrate the real video with the virtual objects using

the transformation matrix provided by the marker

detection library (osgART), and the transformations

required to create the autostereoscopic image with

the use of a shader. We used the transformation

matrix calculated by osgART to place and scale the

virtual objects on the real scene. The scene models,

scene light and scene transformations depended on

the osgART AR transform. Therefore, all the virtual

objects composing the scene were translated and

scaled according to the marker. But, instead of using

osgART for rendering the scene, we built an OSG

graph where the scene was rendered for 8 virtual

cameras, and mixed into a 3D autostereoscopic view

with the help of the Mirage SDK.

The captured video was rendered as a

background video at the furthest position. Therefore,

the video had no 3D effect. This background is the

same for the 8 views. On top of the video and at the

marker position, the system rendered the virtual

object. Eight different views from 8 different virtual

cameras were calculated to achieve the 3D effect for

the virtual object. The virtual cameras were located

around the real camera position. Finally, the 8 views

were mixed into one interlaced image. Figure 2

depicts an example in which the Taj Mahal was

shown on a common monitor. The 8 views of the Taj

Mahal were interlaced and it was not possible to see

it properly.

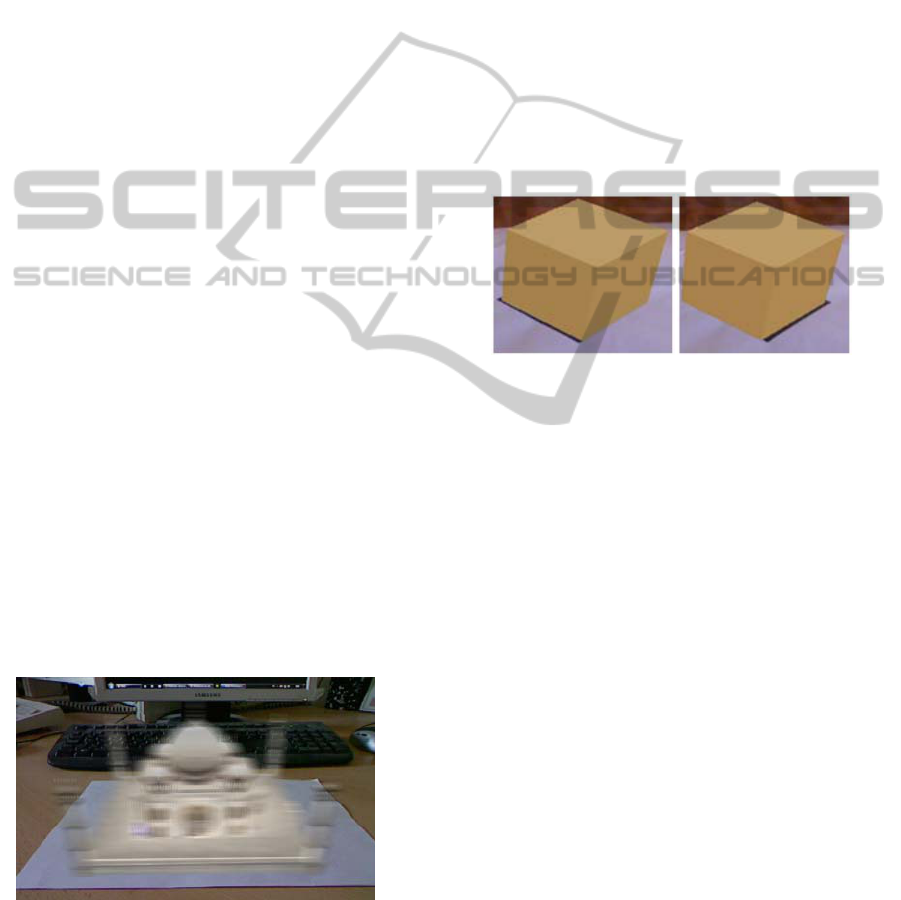

Figure 2: Visualization of a stereoscopic scene on a

common display.

With this technique, we got the effect of having

the virtual object floating “outside the TV” in front

of the viewer and at the marker position while the

captured video stream was displayed at the

background without 3D effect. As a consequence of

this technique and the characteristics of the

autostereoscopic display, if the user moved her head

slightly from left to right, or closed alternatively one

of her eyes, she could see how the virtual object

changed its position over the background video.

Figure 3 shows two of the eight views of a

virtual cube on the marker. The object was slightly

displaced on the marker from one view to another.

One drawback of this type of displays is that the

quality of the image is not as good as in 2D view.

We had to adjust the fusion distance parameter to

define how much the virtual object popped out of the

display. We tried to adjust the fusion distance

parameter to get a good and noticeable 3D effect,

but without too much loss of quality.

Figure 3: Details of two of the eight autostereoscopic

views.

4 STUDY

The aim of the study is to test if the use of

autostereoscopic displays in an AR application

improves the perception of reality and usability. For

this purpose, the same application was tested with

and without autostereoscopic view by two groups of

children. The AR application was a simple game

where a scene was displayed over a marker. The

children had to move the marker to find specific

objects within the scene. We chose a model of the

Taj Mahal in which we added some objects that had

to be found. The counting objects were placed so

that the user had to rotate the base in which the

marker was placed to have a complete view of the

scene.

4.1 Participants

A total of 44 children from 8 to 10 years old took

part in the study. They were attending the Summer

School of the Technical University of Valencia

(UPV).

AUGMENTED REALITY WITH AUTOSTEREOSCOPIC VISUALIZATION - A Comparative Study using an

Autostereoscopic Display versus a Common Display

421

4.2 Procedure

Participants entered in the activity room one by one

to avoid that a child's opinion could affect others.

Participants were divided in two groups of twenty-

two children depending on what they played first,

the AR application having the 3D view enabled, or

with the 3D view disabled.

Table 1: Initial questionnaire.

Did you have fun?

Did you like to see the Taj Mahal appearing on

the black square?

Did you find the game easy to play?

Would you like to use the rotatory control in

more games?

Would you like to use this TV in more games?

Rate from 1 to 7 the feeling of viewing the Taj

Mahal out of the screen.

Did you have the feeling of being able to touch

the Taj Mahal?

Evaluate the feeling of being in front of the Taj

Mahal.

Please rate the game from 1 to 10, where 10 is

the highest score.

Table 2: Second questionnaire.

Did you have fun?

Did you find the game easy to play?

Rate from 1 to 7 the feeling of viewing the Taj

Mahal out of the screen.

Did you have the feeling of being able to touch

the Taj Mahal?

Evaluate the feeling of being in front of the Taj

Mahal.

Please rate the game from 1 to 10.

Which game did you like the most? The options

were the game with the 3D view and the game

without the 3D view.

Why? Participant had to explain the reason for

choosing one game over the other.

What did you like the most of all the

experience? The goal of this question was to

know the overall impression.

The protocol is implemented as follows:

1) The participant came into the room where the

study took place. We started the application

with 3D or 2D view depending on the group,

and we let the child play for some seconds to

get used to the controller and to get a correct 3D

view angle (in case of 3D).

2) We let her know what she had to find and that

she had to count several objects in the scene.

After that, the time started to count.

3) If the answer given by the child was not correct,

she had to look for the objects and count again

until she was right.

4) The time used to complete the task was

recorded. After finishing the task, if the child

was interested, the person in charge let her to

play more.

5) The participant was asked to fill out a

questionnaire. The questionnaire had nine

questions (Table 1). Q1-Q5 used a 5-point likert

scale. Q6-Q8 used a 7-point scale. Q9 ranged

from 1 to 10. Highest score represented the

highest value.

6) The test was repeated, but, now switching 3D

on, if it was off before, or vice versa.

7) The participant was asked to fill out another

questionnaire for the second test (Table 2). This

test had nine questions. Questions from one to

six were questions that were already presented

in the previous test. Questions seven to nine

were new questions to get overall impression.

5 RESULTS

Table 3 shows the means and standard deviations

when comparing the results for the first test of the

participants that played first 3D or 2D game. All the

participants were considered. We performed all t-

tests assuming equality variances. The significance

level was set to 0.05 in all tests. From Table 3, with

regard to the experienced fun (Q1), no statistically

significant differences were found. However, the

mean score was higher for the use of 3D. In both

cases they liked to see the virtual object on the

marker (Q2) with very similar scores. For the

difficulty (Q3), it was as easy to play with 3D as

without 3D. Therefore, it seemed that the complexity

of the game was not increased with the 3D

autostereoscopic view. Q4 is related to the game

controller used to make easier to move the marker,

the participants seemed to like that kind of

controller, and there were no statistically significant

differences when it was used in 3D or 2D. Since it

was a big display, participants were enthusiast and

declared that they wanted to use that display with

more games similarly in both 3D and 2D (Q5).

However, the score was higher for the participants

that played with the 3D view enabled. When we

asked about the feeling of having the virtual object

out of the screen (Q6), there were statistically

significant differences between 2D and 3D view.

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

422

Table 3: Means and standard deviations for independent groups that played first 3D or 2D game, and t-tests assuming equal

variances.

Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q9

4.82 ±

0.15

4.72 ± 0.30 4.5 ± 0.54 4.63 ± 0.33 4.81 ± 0.15 6.36 ± 0.71 5.3 ± 4.32

5.76 ±

1.99

9.27 ±

0.96

4.45 ±

0.64

4.81 ± 0.15 4.59 ± 0.53 4.63 ± 0.62 4.54 ± 0.35 4.72 ± 4.39 3.5 ± 3.94 5 ± 3.1

8.95 ±

1.66

t 1.91 -0.63 -0.40 0 1.79 3.39* 2.79* 1.54 0.91

p 0.062 0.53 0.684 1 0.08 0.001* 0.008* 0.129 0.36

* Significant differences.

This indicated that participants did not have any

problems to see the autostereoscopic image.

Regarding to the feeling of being able to touch the

virtual object (Q7), again, there was a statistically

significant difference. Users had a better sense of

realism with the 3D autostereoscopic view. In both

cases participants had the feeling of being in front of

the virtual object (Q8). Although the mean is higher

for the 3D view, the difference is not statistically

significant. Users rated higher the 3D game (Q9).

However, there was not a statistically significant

difference, probably because participants also liked

very much the 2D game and both scores were

around 9 out of 10.

For the time that the participants used to

complete the game, there have not been significant

differences between 2D and 3D with a mean of 41

seconds in 3D mode and 43 seconds in 2D mode.

We also calculated the means and standard

deviations according to the order of exposure for

participants that played with the 3D view enabled

first, and later played without the 3D enabled. Paired

t-tests were applied to the scores given to all of the

questions. Participants that played first with the 3D

game enabled, rated much lower the 2D game than

participants that played in first instance the 2D

game. It seemed that after playing the 3D version,

they were more critical with the 2D integration of

the virtual object with the real world. They found

easier to play with the 2D game (Q3/Q2, 4.81 ± 0.15

versus 4.5 ± 0.54), but since that was the second

time they played, it was expected. Therefore, it was

not possible to determine if this was due to the use

of the autostereoscopic view. Again, as expected,

they rated very high the feeling of viewing the

virtual object out of the display with the 3D view

enabled (Q6/Q3, 6.36 ± 0.71). There were

statistically significant differences for the questions

Q7/Q4 and Q8/Q5, according to the scores, they had

stronger feeling of being in front of the virtual object

and being able to touch it with the 3D

autostereoscopic view. There was also a statistically

significant difference about the rate they gave to the

game. In both cases the score was good, but it was

better 3D (9.27 ± 0.96 versus 8.68 ± 1.6).

We also analysed the results according to the

order of exposure: participants that played with the

2D view first and later played with the 3D enabled.

Paired t-tests were applied to the scores given to all

of the questions. From the results in which

participants played with the 2D view enabled first,

we could conclude that regardless the order of the

tests, the results were very similar. There were also

statistically significant differences for the questions

about the depth perception (Q6/Q3), sense of

presence (Q7/Q4) and overall impression (Q9/Q4).

For the sense of presence the questions were based

on the Slater et al. questionnaire (Slater et al., 1994).

For the question which game did you like the

most?, 84% declared their preference for the

autostereoscopic version. The main reasons were

that it seemed that you could touch the virtual object

(52); it was like having the virtual object very close

to you (27%); it was more real (21%). For the

participants that liked the 2D game more, the main

reasons were concerning to the quality of the image.

For the question, what do you like the most of all

the experience?, 33% of the participants gave

responses related to the 3D experience, 32% liked

the way of interacting with the virtual object, 30%

liked the game, and 5% gave other answers.

The correlation analysis for the responses given

by the participants that played the 3D game first

reported some interesting results. We found several

correlations between the questions. The results

indicated that viewing the object out of the screen

increased the feeling of being in front of the virtual

object and being able to touch it. We also found that

having the feeling of being able to touch the object

contributed to consider the game easier to play. The

global score is conditioned by the feeling of being in

front of the virtual object and to view it out of the

screen. We can conclude that the sense of presence

is closely related with the 3D autostereoscopic view.

We found very different correlations for the

answers given by the participants that played the 2D

AUGMENTED REALITY WITH AUTOSTEREOSCOPIC VISUALIZATION - A Comparative Study using an

Autostereoscopic Display versus a Common Display

423

game first. In this case, the global score for the game

depended on the experienced fun and if participants

liked to see the virtual object on the marker.

During the test, we found some curious behavior

of the participants when playing with the 3D

version. Some of them tried to touch the 3D object

extending their hand or moving it over the marker,

others walked around trying to watch the scene from

different perspectives.

6 CONCLUSIONS

We have combined AR and autostereoscopic

visualization, with the integration of osgART with

the Mirage SDK. We have also presented a study for

comparing different aspects using an

autostereoscopic display and a common display.

Forty-four children participated in this study. Our

initial goal was to develop the software for

developing an AR application with an

autostereoscopic display and to test it to evaluate if

this technology improved the AR experience. From

the results, we concluded that the participants

preferred the autostereoscopic view to a typical 2D

display view. The objective of our AR application

was to get a good integration between the real world

and the virtual objects. The autostereoscopic display

contributed to this integration. The user manipulated

the real objects touching them, and, although she

could not touch the virtual object, the 3D view

increased the realism and gave the user a perception

of being able to touch it. Several correlations were

found when children used the autostereoscopic

display. For the autostereoscopic visualization, the

sense of presence was closely related with the depth

perception. The overall score was also closely

related with the depth perception and the sense of

presence.

However, future studies should test if with

another type of AR applications the use of AR with

autostereoscopic displays still improves the AR

experience. A possible improvement could be to

display also the video in 3D using several cameras.

Some of the problems found by the participants

on the study were about the quality of the image on

the autostereoscopic display. Improvements on the

quality of autostereoscopic displays would

contribute to improve the AR experience.

Considering the good acceptance of the system

and all the possibilities, we believe that it could be a

good tool for different fields.

ACKNOWLEDGEMENTS

This work was funded by the Spanish APRENDRA

project (TIN2009-14319-C02).

For their contributions, we would like to thank

the following:

• The ALF3D project (TIN2009-14103-03) for

the autostereoscopic display.

• Rafa Gaitán, Severino González, M. José

Vicent, Juan Cano, Javier Irimia, Tamara

Aguilar, Noemí Rando, Juan Fernando Martín

for their help.

• The Summer School of the UPV.

• The children who participated in this study.

• The ETSInf for letting us use its facilities during

the testing phase.

REFERENCES

Alpaslan, Z. Y., Yeh, S., Rizzo III, A. A., Sawchuk, A. A.,

2006. Effects of gender, application, experience, and

constraints on interaction performance using

autostereoscopic displays. In Stereoscopic Displays

and Applications XVII Proceedings of SPIE, Vol.

6055, pp. 116-127.

Froner B., Holliman, N. S, Liversedge, S. P., 2008. A

comparative study of fine depth perception on two-

view 3D displays. In Displays, 29,440-450.

Holliman, N. S., 2006. Three-dimensional display

systems. In Handbook of Optoelectronics, Vol II.

Edited by Dakin JP, Brown RGW. Taylor and Francis.

Jin, Z X., Zhang, Y J., Wang, X., Plocher, T., 2007.

Evaluating the usability of an auto-stereoscopic

display. In Lecture Notes in Computer Science, Vol.

4551/2007, pp. 605-614.

Montgomery, D. J., Woodgate, G. J., Jacobs, A., Harrold,

J., Ezra, D., 2001, Analysis of performance of a flat

panel display system convertible between 2D and

autostereoscopic 3D modes. In Stereoscopic Displays

and Virtual Reality Systems VIII, Proceedings of SPIE,

Vol. 4297, pp. 148-159.

Omura, K., 1998, Lenticular Autostereoscopic Display

System: Multiple Images for Multiple Viewers”. In

Journal of the SID, Vol. 4/6, pp. 313-324.

Slater, M. Usoh, M., Steed, A., 1994. Depth of presence in

virtual environments. Presence: Teleoperators and

Virtual Environments, Vol. 3, pp. 130-144.

Petrov, E G. 2010, Educational Virtual Reality through a

Multiview Autostereoscopic 3D Display. In

Innovations in Computing Sciences and Software

Engineering, pp. 505-508.

Sousa-Santos, B., Dias, P., Pimentel, A., Baggerman, J.

W., Ferreira, C., Silva, S., Madeira, J., 2008. Head

Mounted Display versus desktop for 3D Navigation.

In Virtual Reality: A User Study, Multimedia Tools

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

424

and Applications, Vol. 41, Number 1, pp. 161-181.

Urey, H., Chellappan, K. V., Erden, E., Surman, P., 2011.

State of the Art in Stereoscopic and Autostereoscopic

Displays. In Proceedings of the IEEE, Vol. 99,

Number 4, pp. 540 – 555.

Wheatstone, C. Contributions to the physiology of vision.

-Part the first. On some remarkable, and hitherto

unobserved, phenomena of binocular vision, 1838.

Philosophical Transactions. Ed. the Royal Society of

London, Vol. 128, pp. 371–394.

AUGMENTED REALITY WITH AUTOSTEREOSCOPIC VISUALIZATION - A Comparative Study using an

Autostereoscopic Display versus a Common Display

425
