LEARNING OBJECT SEGMENTATION USING A MULTI

NETWORK SEGMENT CLASSIFICATION APPROACH

S. Albertini, I. Gallo, M. Vanetti and A. Nodari

Dipartimento di Informatica e Comunicazione, University of Insubria, Varese, Italy

Keywords:

Object Segmentation, Multi-net System, GrabCut.

Abstract:

In this study we propose a new strategy to perform an object segmentation using a multi neural network

approach. We started extending our previously presented object detection method applying a new segment

based classiﬁcation strategy. The result obtained is a segmentation map post processed by a phase that exploits

the GrabCut algorithm to obtain a fairly precise and sharp edges of the object of interest in a full automatic

way. We tested the new strategy on a clothing commercial dataset obtaining a substantial improvement on the

quality of the segmentation results compared with our previous method. The segment classiﬁcation approach

we propose achieves the same improvement on a subset of the Pascal VOC 2011 dataset which is a recent

standard segmentation dataset, obtaining a result which is inline with the state of the art.

1 INTRODUCTION

Object segmentation is an important task in computer

vision whereas it is a critical part in many applications

such as content based image retrieval, understanding

of a scene, automatic annotations, etc. However it

is still an open problem due to the heterogeneity of

some classes of objects and the complexity of differ-

ent backgrounds.

Usually an object of interest of an image is de-

tected through the bounding box which surrounds it.

The strength of this work consist in the detection of

the object in a cognitive manner, locating the object

through the use of a segmentation process. A typical

segmented object produced by our system is shown in

Figure 1. Usually, the images fetched from the web

have low quality due to the low resolution, compres-

sion artifacts and sometimes they are revised in order

to ﬁt some particular need. In this circumstance, ob-

ject segmentation is not so simple as we would expect;

with our work we want to face the problem and ﬁnd a

solution to the object segmentation in the web images

environment.

The model proposed in this study, like other works

which propose biologically inspired systems (Riesen-

huber and Poggio, 1999; Serre et al., 2005), is par-

tially inspired by the human visual perception system.

In fact, analyzing how the visual system works, a neu-

ron n of the visual cortex receives a bottom-up signal

X from the retina (lower-level-input) and a signal M

(a) (b) (c)

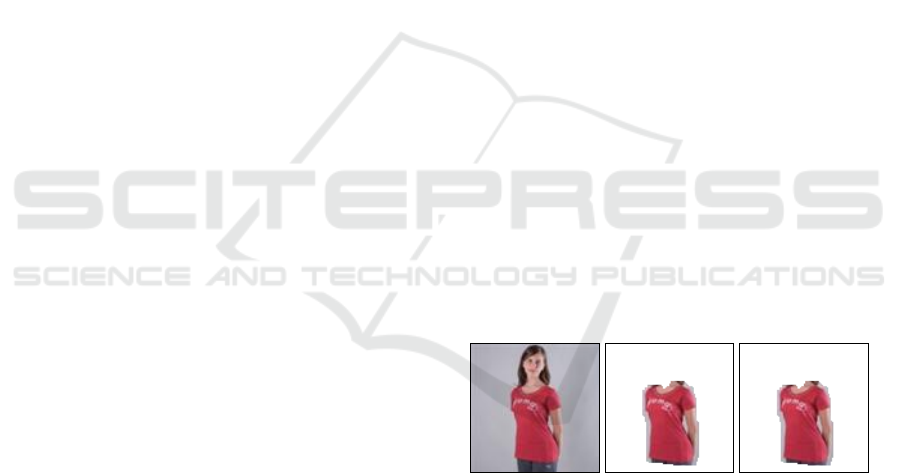

Figure 1: (a) Typical low resolution web image (100× 100)

of a commercial product; (b) Automatic segmentation of

the shirt using our model; (c) Reﬁnment of the segmented

object with GrabCut.

from an object-model-concept m (top-down priming

signal). The neuron n is activated if both signals are

strong enough. The visual perception uses many lev-

els in the transition from the retina to the object per-

ception. By analogy, we propose a Multi-net system

(Sharkey, 1999) based on a tree-structure where leaf

nodes represent the bottom-up signal extracted from

the input image. The intermediate levels nodes repre-

sent the knowledge of the previous experience, going

in the direction of the root node.

The choice of a tree-based learning architecture is

further supported by the recent interest in deep learn-

ing models and the conviction that a shallow architec-

ture can’t learn very complex problems, such as visual

object detection and segmentation (Bengio, 2009). In

particular, a function represented compactly by a spe-

ciﬁc architecture, may require an exponentially grea-

521

Albertini S., Gallo I., Vanetti M. and Nodari A..

LEARNING OBJECT SEGMENTATION USING A MULTI NETWORK SEGMENT CLASSIFICATION APPROACH.

DOI: 10.5220/0003833705210530

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 521-530

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

ter number of computational elements to be repre-

sented by an architecture with a smaller depth of even

a few levels. Since the number of training exam-

ples required to generalize the problem grows with the

number of computational elements constituting the ar-

chitecture, successfully training a model with an in-

sufﬁcient depth may require too much examples and

then becomes very hard in practice.

In this paper we show the improved results of the

object segmentation produced by our previous algo-

rithm called MNOD (Gallo and Nodari, 2011).

In particular that model uses the concept of sliding

window to segment objects of interest in a given im-

age. In order to improve the response of the algorithm

on the boundary of the object of interest, avoiding par-

ticularly fuzzy segmentations, we have adopted a new

approach based on regions of pixels instead of sliding

windows. This new proposed strategy is inspired by a

recent work (Li et al., 2010) and in this study we have

analyzed its integration in the tree-based learning ar-

chitecture previously proposed.

Once determined the object segmentation mask,

we improved the result setting up a post processing

phase based on the GrabCut (Rother et al., 2004) al-

gorithm. There are other works in literature that make

use of the GrabCut algorithm as a reﬁnement phase.

For example, in (Hernandez et al., 2010) it is em-

ployed in video segmentation after a detection phase

to separate human shapes from the environment. In

order to properly fragment a human target, in (Wang

et al., 2010) the GrabCut is initialized with multiple

rectangle areas, obtained from a mean shift detection,

that enclose different part of the bodies. In contexts

where we need to fully exploit the information ex-

tracted from a particular object, especially when the

images have low resolution, a near perfect segmenta-

tion is crucial if we want to extract the visual charac-

teristics of an object. The model we propose exploits

the output segmentation mask as initialization for the

GrabCut algorithm in order to enhance the quality of

the ﬁnal segmentation.

2 THE EXISTING MODEL

The Multi-Net for Object Detection (MNOD) (Gallo

and Nodari, 2011) is a Multi-Net System (Sharkey,

1999) which consists of a tree of neural networks, as

shown in Figure 2. Each node n, properly conﬁgured

with its own parameters P, acts like an independent

module C

and it can be replaced by any node of the

same type in the tree.

Leaf nodes F

apply operators and ﬁlters on the in-

put images in order to generate feature-images that

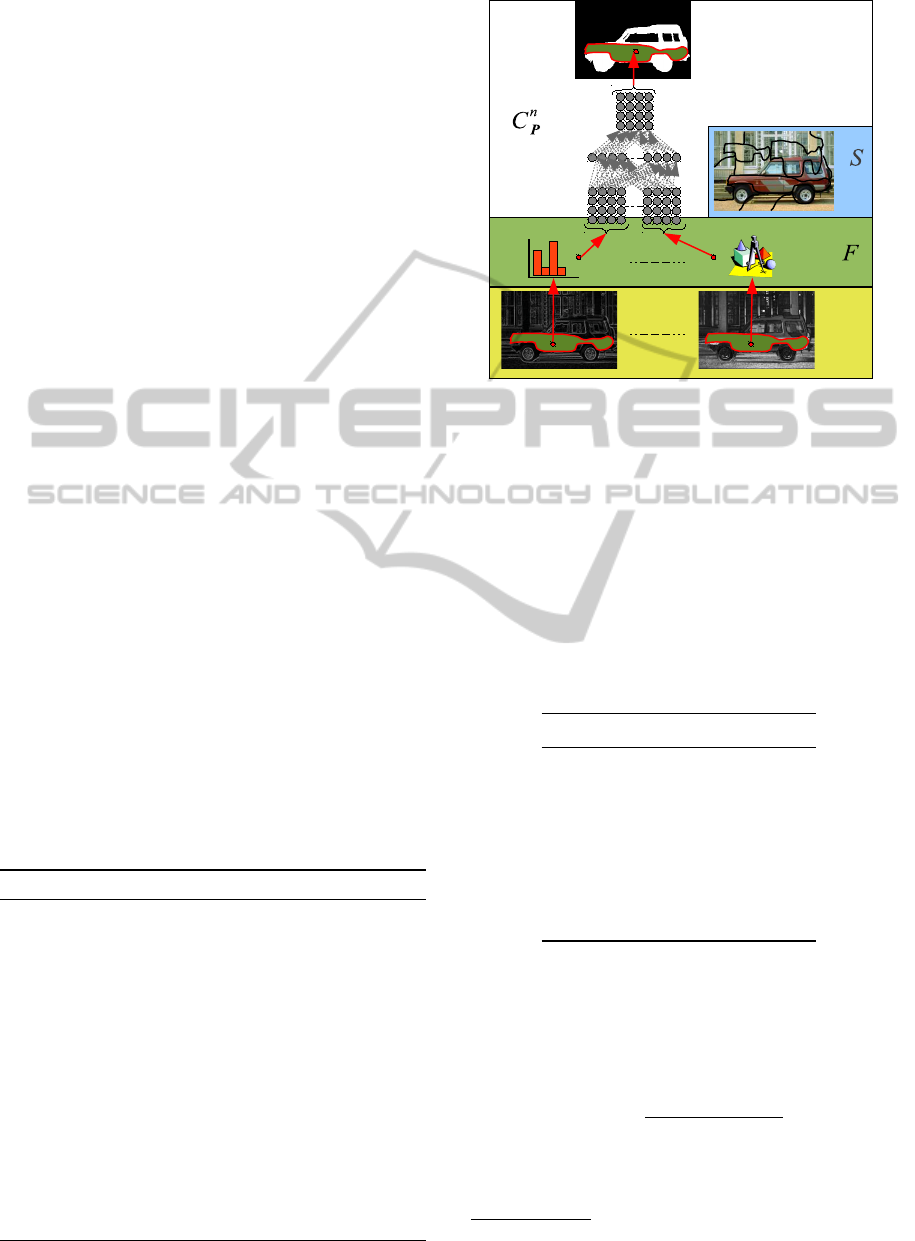

Figure 2: Generic structure of the proposed MNOS model

and the existing MNOD. The nodes C

represent the super-

vised neural models which receive their input directly from

leaf nodes F

and/or other internal nodes C

. In the MNOS

model a node C

may use either the sliding window or seg-

ments as contextual information to be classiﬁed.

sharpen the input data peculiarities. The internal

nodes aggregates and takes in input the output im-

ages produced by their child nodes. Each internal

node reads the input images using a sliding window

and generates the pattern vectors for the neural net-

work simply relying on the intensity pixel values that

fall in the window and gives a map image in output

where each pixel has got an intensity value propor-

tional to the probability it belongs to the object. The

particular distinction of this model lies in the connec-

tion between nodes, which means that the output of a

node becomes the input of a parent node. The links

between the nodes in the tree structure deﬁne the ﬂow

of image segmentation process that cross the whole

structure from the leaves to the root.

That structure allows to diversify a node C

just

adjusting the parameters P, but it was shown that it

is sufﬁcient to tune the input image scale and sliding

window dimension in order to obtain conﬁgurations

leading to good results (Gallo and Nodari, 2011).

Then, we can refer to P

= {I

} as the conﬁgu-

ration for the node n, given I

and W

respectively

image size and sliding window size. Using different

combination of these two parameters, we are able to

construct models specialized to recognize speciﬁc ob-

jects of different class.

The segmentation map produced by the MNOD is

the root node output image. This map can be consid-

ered as a soft segmentation map and it is used to gen-

erate the detection bounding box. The main disadvan-

tage of this kind of soft map relies in a very fuzzy re-

sult over the boundaries of the object of interest. The

main goal of the present work consists in improving

the MNOD algorithm in order to obtain output maps

with crisper borders to delimit precisely the object of

interests.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

522

3 THE PROPOSED METHOD

In this paper we propose a variant of MNOD, called

Multi-Net for Object Segmentation (MNOS). The

idea is to change the algorithm’s image aggregation

method from a sliding window to a segment-based ap-

proach.

The new solution generates a partition image com-

posed of segments which are used as primitive ele-

ments for the prediction. A segment is deﬁned as

a set of pixels that share properties of homogeneity

based on the point position and color channels val-

ues. Formally, let I be an image, the application of

the algorithm to extract segments should produces a

set S = {S

,· ·· , S

} such that ∀i 6= j with 1 ≤ i, j ≤ N,

then S

∩ S

= ∅ and

i=1

= I.

For each segment that composes the image, the

neural network estimates the probability a segment

represents a component that belongs to the object of

interest. That task is performed by training the neural

network with the images and their respective ground

truth masks. Given S

, a segment calculated from the

image I and M

as its ground truth mask, the proba-

bility is calculated by |M

∩ S

|/|S

|, where | · | is the

number of pixels with nonzero value. The input pat-

terns for the neural network are generated extracting

features from the region of the image represented by

the segments.

The algorithm used to calculate the partition im-

age is a K-means clustering (Hartigan and Wang,

1979) where each image point is represented by a

pattern whose dimensionality depends on the MNOS

node in question: patterns are placed in a space with a

number of dimensions that depends from the number

of node’s children elements. Speciﬁcally, three values

are about the three color channels, two values about

the (x, y) point position on the image canvas, the rest

are the intensity values resulting from each child node

segmentation map for that pixel. So, in order to im-

prove the overall segmentation result, we need also to

enhance the segmentation quality. By employing a K-

means, like the previously described, we exploit the

segmentation results from the child nodes obtaining

segments that are increasingly similar to the object of

interest as you move up in the MNOS structure to-

wards the root node.

The features extracted from each segment are of

two types: based on the input image or based on the

segment geometry. Features that fall in the ﬁrst cate-

gory are the gray level quantized histogram calculated

on the pixel inside the segment, an histogram gener-

ated from the pixels that lay in a region around the

segment and the seven Hu moments (Hu, 1962). In

the second category we have features based on geo-

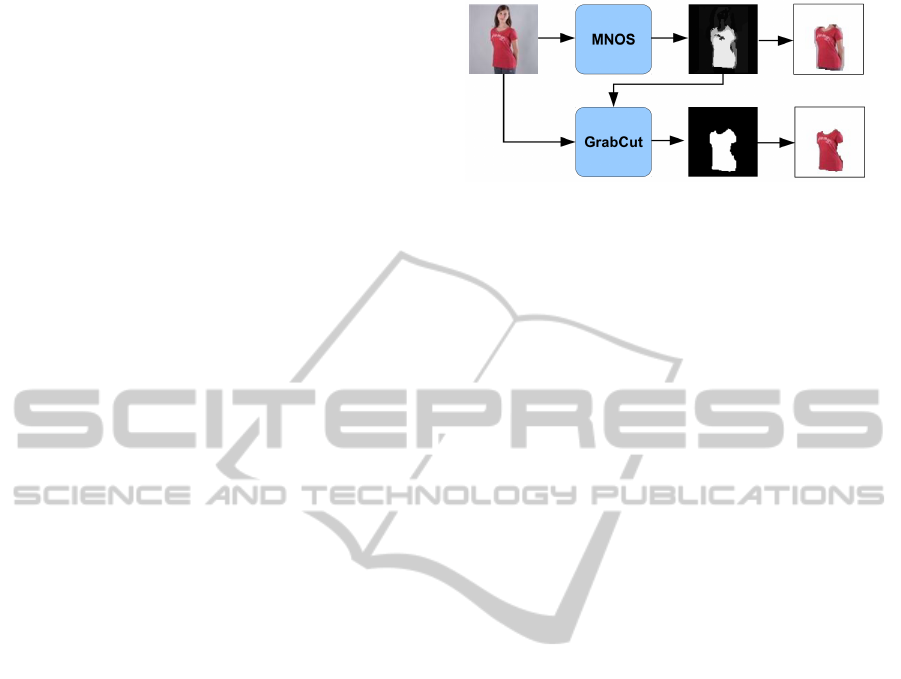

Figure 3: A simple ﬂowchart representing the reﬁnement

process which tries to improve the MNOS’s output by ap-

plying the GrabCut algorithm as a post processing phase.

The GrabCut segmentation map is an optimization of the

MNOS mask.

metrical properties of the segment, like area, perime-

ter and bounding box center and location.

The algorithm 1 shows how the patterns for the

segment-based nodes are generated starting from the

set of input images and the ground truth mask. We

remark that the input images could be either feature-

images or output maps generated from child nodes.

The algorithm 2 describes how a sub-tree starting

from a node is recursively trained. Assuming C

the root node, that algorithm corresponds to the train-

ing of a MNOS model. Algorithm 3 shows the seg-

mentation task carried out by a generic node from a

MNOS model.

A MNOS node can be used together with standard

sliding window nodes because they expose the same

functionalities: they take a set of images as input and

returns the predicted segmentation map that can be-

come the input for a node in the next layer. The output

image of a node is generated from the neural network

prediction, assigning an activation value to each pixel

of the segments that is the one predicted by the net-

work.

We used a model based on the idea that the MNOS

performs an implicit aggregation process while the in-

formation ﬂows though the structure, from the leaf

nodes to the root node, in a bottom-up process.

Using the sliding window nodes on the ﬁrst levels,

followed by nodes that aggregate their results using

segments, makes the proposed approach biologically

plausible. In fact the ﬁrst levels perform a prediction

at a pixel level, while the next layers aggregate the

image points in regions and then fulﬁll their predic-

tion considering not raw intensity values but features

extracted from the segments, assigning a probability

value to a whole region and ﬁnally producing crisp

and homogeneous boundaries along estimated object

masks.

LEARNING OBJECT SEGMENTATION USING A MULTI NETWORK SEGMENT CLASSIFICATION APPROACH

523

3.1 Post Processing with GrabCut

In order to improve the quality of the mask pro-

duced by the proposed method, we analyzed a solu-

tion which takes advantage from the great detection

ability of the MNOS. In this section we explain the

integration of the the GrabCut algorithm described in

(Rother et al., 2004) as a post processing phase for

the MNOS result. The GrabCut is the state of the

art in the interactive segmentation algorithms: a su-

pervisor must specify a bounding box (or a lasso) on

the image which encloses the desired object to seg-

ment. Then the algorithm calculates the parameters

for background and foreground initialization, starting

from a Gaussian Mixture Models parameterized with

the color distribution of the two mutual exclusive re-

gions deﬁned. In the ﬁnal step an iterative graph cut

of the ﬁnal segmentation is performed.

In the early experiments we used the detection

bounding box calculated from the MNOS’s output to

Algorithm 1: Creation of the neural network patterns for

MNOS nodes.

Require: Set of input images I = {I

,. .. ,I

ground truth output image O, set of segments from

partition image S = {S

,. .. ,S

};

= {F

,. .. ,F

} set of features on images;

= {F

,. .. ,F

} set of features on segment ge-

ometry.

Ensure: A set of patters P, where |P.in| = |S| are the

input patterns, |P.out| = |S| are the truth output pat-

terns.

P ← ∅

for all S

∈ S do

p ← ∅

for all I

∈ I do

for all F

∈ F

f ← F

∩ S

)

Concatenate f to p

end for

for all F

∈ F

f ← F

)

Concatenate f to p

end for

P.in ← P.in ∪ p

if (training the node) then

h ← S

∩ O

o ← |h|/|S

P.out ← P.out ∪ o

end if

end for

return P

automatically initialize the GrabCut. The main prob-

lem using the bounding box is its inefﬁciency in spec-

ifying the samples used by the algorithm to generate

the initialization parameters. The area of a bound-

ing box is always greater than the area of an object

of interest. There are borderline cases in which long

and narrow objects lead to the generation of very large

bounding box.

We can remark that the GrabCut interactive phase

can be viewed as a labelling process. We want to as-

sign to each pixel a priori information whether it more

probably belongs to background or foreground, con-

sidering four labels:

• Deﬁnitely background.

• Probably background.

• Probably foreground.

• Deﬁnitely background.

In order to overcome the limitations resulting from the

use of the bounding box in the GrabCut initialization

process, we propose a method of initialization based

on the MNOS output, whose area of initialization is

Algorithm 2: Training of a MNOS node C

Require: D = {< I

out

>,. .. ,< I

out

>} the

set of images with their gound truth segmentation

mask.

for i = 1 to N do

for all node C ∈ C

.children do

C.Train(D)

end for

inList ← ∅

outList ← ∅

maskList ← ∅

for all < I

out

>∈ D do

childSeg ← ∅

for all node C ∈ C

.children do

s ← C prediction on I

Resized s to I

∈ P

childSeg ← childSeg ∪s

end for

o ← Resize I

out

to I

∈ P

m ← generate partition mask with K-means

from I

inList ← inList ∪ childSeg

outList ← outList ∪o

maskList ← maskList ∪m

end for

Train the MLP network with <inList, outList,

maskList> generating the patterns as described by

algorithm 1

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

524

more related to the boundary of the object of inter-

est. The whole process, including the post processing

phase with GrabCut, is graphically represented by the

ﬂowchart shown in Figure 3. We can observe how the

GrabCut, to segment the object of interest contained

in the input image is initialized with the segmenta-

tion map produced by MNOS. That solution produces

good experimental results in controlled domais where

the MNOS model yield very good output maps as

proven in section 4.1.

In order to apply the algorithm to the MNOS seg-

mentation mask, we deﬁne three regions on the im-

ages and assign the labels to fulﬁll the GrabCut inter-

active phase. We binarize the MNOS mask and erode

the mask ﬁrst, then we dilate it, so cleaning it from the

eventual noise generated by the MNOS. The resulting

activated pixels are labeled as “probably foreground”.

Next, we calculate a region surrounding the “proba-

bly foreground” region and assign to these pixels the

label “probably background”. Finally, the remaining

region is labeled as “deﬁnitely background”, so it will

never be included in the GrabCut object segmentation

mask.

The GrabCut version we employ doesn’t make use

of a border matting phase described in (Rother et al.,

2004), so we generate hard masks.

4 EXPERIMENTS

To test the performance of the algorithm proposed in

this study and to analyze the results in a real appli-

cation, we created a dataset from the fashion domain

called Drezzy Dataset. It consists of 2068 images of

200 × 200 and 100 × 100 pixels in the VOC2011 for-

mat (Everingham et al., 2011) whose cardinality is de-

Algorithm 3: MNOS prediction from a node C

Require: Image I.

Ensure: Segmentation image map S

childSeg ← ∅

for all node C ∈ C

.children do

s ← C prediction on I

Resized s to I

∈ P

childSeg ← childSeg ∪s

end for

m ← generate partition mask with K-means from I

Use the neural model to predict the activation level

for each segment in m

Compose the output image S

assigning to the pixel

of each segment the respective activation value

return S

Figure 4: Generic structure of a MNOS node C

. It generate

the set of segments S = {S

,... , S

} on the original scaled

image. Then, for each input image from child nodes and

for each segment it calculate the features F = F

∪ F

and

compose the patterns for the neural network. Finally, the

neural model prediction values are used to shape the output

image of the node C

scribed in Table 1. In order to make our results avail-

able to performance comparisons, we have uploaded

it at this URL

Table 1: Description of the Drezzy dataset cardinality for

each class.

Class Name # Images

Bags 285

Shoes 400

Hats 158

Ties 203

Man clothing 150

Man underwear 278

Woman clothing 355

Woman underwear 239

For each experiment we used the segmentation ac-

curacy showed in (1) proposed by the contest “The

PASCAL Visual Object Classes Challenge” (Evering-

ham et al., 2011) and usually called Jaccard index

(Jaccard, 1912).

Acc =

TP + FP + FN

(1)

The values under consideration are calculated pixel-

by-pixel: TP are the True Positives, FP the False Pos-

itives and FN the False Negatives. We consider the

http://www.dicom.uninsubria.it/arteLab

LEARNING OBJECT SEGMENTATION USING A MULTI NETWORK SEGMENT CLASSIFICATION APPROACH

525

Bag Shoes Hat Tie

Man Clothes Man Underwear Woman Clothes Woman Underwear

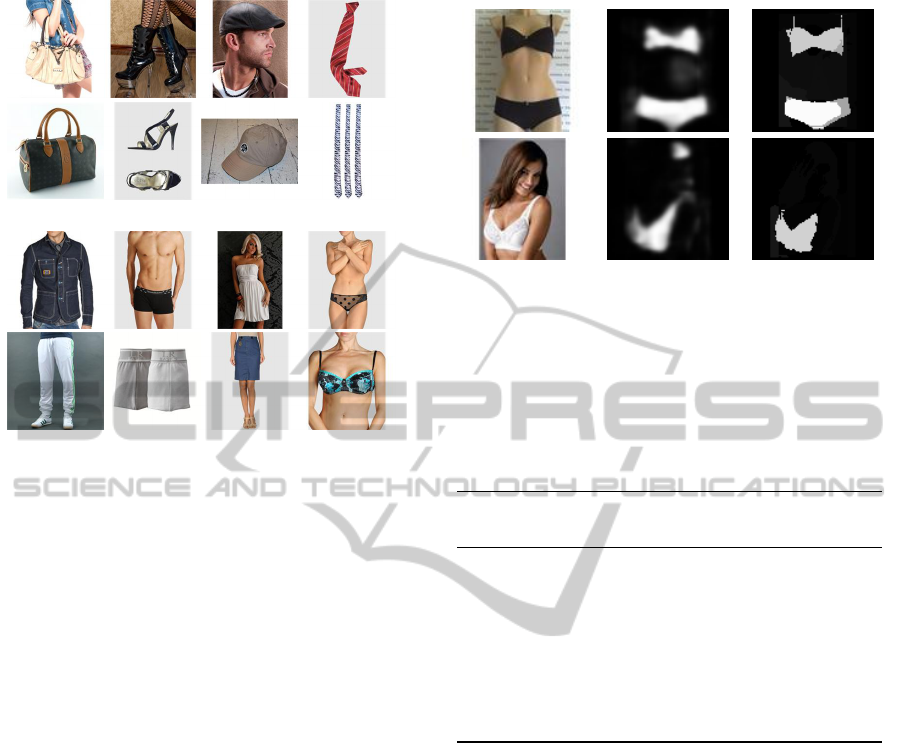

Figure 5: Some examples from the Drezzy dataset grouped

by class.

problem of segmentation as a classiﬁcation problem

formalized as a function that takes a pixel and returns

1 if the pixel belongs to the foreground or 0 if it be-

longs to the background.

Initially we set up the MNOS with all nodes based

on segments, but the results of such conﬁguration did

not lead to any improvement compared to the MNOD

model. We created a hybrid model, so in the follow-

ing experiment we tested the introduction of the nodes

with sliding windows in the MNOS model. In partic-

ular, we introduced the nodes with the sliding win-

dow in the ﬁrst levels of MNOS. Table 2 shows how

the use of the above mentioned model brings a sub-

stantial improvement comparing the object of interest

segmentation accuracy.

We suppose that the information carried by the

nodes in the ﬁrst levels that beneﬁts from the slid-

ing window, gives an overview of the image to the

next levels by passing a revised image information

while reducing the problem of segmentation com-

plexity. We can see it as an implicit aggregation

process: low levels, which use the standard MNOD

nodes based on sliding window, read the image at a

pixel level and perform their predictions based on raw

intensity values of image pixels. The higher levels,

with nodes based on segments, perform their predic-

tions from the output images of the sliding window

layers: they calculate segments and generate features

from that region of pixel. We remark that segments

used by a node C

are generated with a clustering in

a space that is also based on the predictions from its

Original Image MNOD MNOS

Figure 6: Some examples from the Drezzy dataset of

the MNOS’s segmentation results using only Sliding Win-

dows (MNOD) and using Sliding Windows and Segments

(MNOS).

Table 2: Comparison between accuracy values (%) of the

MNOD with sliding window (SL) and the proposed MNOS

method, which uses the segments (S) in the last layers and

sliding windows in the ﬁrst layers.

Acc Train Acc Test

Dataset SL S SL S

Bags 90,54 92,20 79,68 79,00

Shoes 92,40 91,14 83,61 88,39

Hats 75,25 87,32 61,32 62,55

Ties 98,88 96,81 77,57 81,52

Man clothing 83,11 84,61 69,00 73,40

Man underwear 64,40 77,20 54,77 65,25

W. clothing 59,07 65,33 59,11 62,64

W. underwear 57,90 69,47 54,94 66,68

child nodes. Then, the prediction result is referred to

a set of points rather than a single point. Anyway,

each point was previously evaluated by sliding win-

dow nodes, so they are just aggregating them and esti-

mating a general and homogeneous probability value

for that set of pixels. So, one of the main advantage

about using the nodes based on the segments in the

last levels of the MNOS tree is to produce masks with

sharp edges around the activated areas of the map, not

blurred like what happened with the original MNOD

algorithm, as shown in Figure 6. This type of oper-

ation reminds the same mechanism of human visual

cortex, where different level types process informa-

tion and pass the results to the next levels for further

enhancements.

4.1 Results Applying GrabCut

We described in section 3.1 how we conceived the

use of the GrabCut algorithm in order to further in-

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

526

crease the segmentation mask quality. The most nat-

ural way to integrate the MNOS with the GrabCut

is to calculate the detection bounding box, in order

to fulﬁll the interactive initialization needed by the

GrabCut. Anyway, that solution is intuitively inef-

ﬁcient, because the bounding box is a coarse solu-

tion as it should discard much information from the

MNOS result. As previously discussed, a clever idea

is to initialize the GrabCut with a region mask that

would preserve the segmentation information given

by the MNOS. Figure 8 shows the differences us-

ing the two solutions on examples taken from each

dataset. The ﬁrst column shows what happens when

we initialize the GrabCut with a bounding box cal-

culated from the MNOS mask, while the second one

shows the region mask approach: the deep blue pix-

els (in the proposed method strategy column) are la-

beled as “probably foreground”, while the cyan pixels

are labeled as “probably foreground”. All the others

are “deﬁnitely background”. These approaches were

both tested on the MNOS segmentation maps and the

results are showed in table 3. We had better accuracy

results, as expected, using the region mask approach.

There are basically two reasons why the Grab-

Cut may worsen the segmentation performed by the

MNOS:

• Flawed MNOD mask, because it could lead to a

wrong GrabCut initialization.

• Inability of the GrabCut, when the contrast and

the color distribution is not well distributed, for

example with camouﬂage, between the back-

ground and foreground samples.

Comparing the MNOS segmentation accuracies with-

out and with the GrabCut post processing phase, em-

ploying the region mask initalization showed in table

4, we see a general improvement but for the woman

underwear dataset. In general, the GrabCut works

well if the initalization information is clean, so it

makes sense to work on MNOS improvements be-

cause the GrabCut don’t ﬂatten the ﬁnal accuracy re-

sults independently from the quality of the MNOS

segmentation map. Otherwise, it could lead to un-

pleasant results that can also worsen the MNOS seg-

mentation mask.

4.2 Experiment with a Standard

Dataset

In order to evaluate the proposed method and have the

opportunity to compare it with other objects segmen-

tation methods, we made a simple experiment with

some classes of the standard datasets VOC2011 (Ev-

eringham et al., 2011). This dataset consists of 20

Table 3: Results comparison between the GrabCut initial-

ized with bounding box (BB) and region mask (RM) ap-

plyed to the MNOS segmentation maps.

Dataset BB RM Diff

Bags 89,33 89,29 -0,04

Shoes 93,23 93,49 +0,26

Hats 80,45 82,19 +1,74

Ties 92,43 92,39 -0,04

Man clothing 78,51 81,50 +2,99

Man underwear 69,25 80,10 +10,85

Woman clothing 65,54 68,08 +2,54

Woman underwear 54,76 61,22 +6,46

Table 4: Results comparison between the MNOS segmen-

tation accuracy and the accuracies obtained after the appli-

cation of the GrubCut as a post processing phase. The last

column Diff resume the performance gain between the two

methods.

Dataset MNOS GrabCut Diff

Bags 79,00 89,29 +10,29

Shoes 88,39 93,49 +5,10

Hats 62,55 82,19 +19,64

Ties 81,52 92,39 +10,87

Man cloathing 73,40 81,50 +8,10

Man underwear 65,25 80,10 +14,85

Woman clothing 62,64 68,08 +5,44

Woman underwear 66,68 61,22 -5,46

classes of objects and 5.034 segmentations divided

into train and validation sets. In this experiment we

chose to work only on a subset of eight classes of ob-

jects for simplicity and in order to use a simpliﬁed

conﬁguration compatible with the chosen classes.

The main goal of this experiment is to demon-

strate the MNOS gives better accuracy results com-

pared with the existing MNOD, using a setting of sim-

ple conﬁgurations. In other words, in this experiment

our objective isn’t to push the speciﬁc conﬁgurations

to achieve the best results.

For the conﬁguration of the two models we ﬁxed

the parameters and type of leaves for each level and

the number of levels, as summarized in Table 5. We

set the number of levels to 4 for both MNOD and

MNOS models. For the MNOS model we have con-

ﬁgured the ﬁrst two layers with the sliding window

and the last two with segments. For the ﬁrst three lay-

ers we chose a maximum of 4 nodes looking for the

best conﬁguration with parameters W

, I

and Leaves

selected from the collections described in Table 5. For

the last layer we only need to conﬁgure the best root

node, using the constraints showed in table 5.

LEARNING OBJECT SEGMENTATION USING A MULTI NETWORK SEGMENT CLASSIFICATION APPROACH

527

Table 5: Parameters range ﬁxed in order to compare the

two models MNOD and MNOS when trained with the

VOC2011 dataset. For each layer L the maxmum number

of node was ﬁxed to N. For each node one of the ﬁxed W

sizes and eventually a set of leaf nodes were used.

L N W

Leaves

1 4 3x3 50, 90 brightness,rgb

2 4 3x3,5x5 10, 50, 90 brightness,rgb

3 4 3x3,7x7 10, 50, 90 brightness,rgb

4 1 5x5,7x7 10, 50, 90 brightness,rgb

Table 6 summarizes the segmentation accuracies

when the new MNOS model is compared with the

existing MNOD. The ﬁrst columns list the accuracy

results obtained in eight classes with MNOS and

MNOD model. We can notice an overall increase

comparing the results without the GrabCut post pro-

cessing. In fact, the GrabCut algorithm don’t always

improve the MNOS results. In the last column of table

6 we highlight the only three classes where the post

process actually brings an improvement in accuracy

results. It is possible to conclude the reason why the

GrabCut cannot give a good contribute lies in the fact

that the MNOS masks lack of accuracy, so the region

mask we use to initialize the GrabCut is inaccurate

and then the post processing could lead to worsen the

MNOS mask accuracy, amplifying errors.

On the other hand, when the MNOS mask is good,

the GrabCut actually leads to an improvement in the

ﬁnal segmentation. Let’s look at the image in ﬁgure

7(a), taken from the VOC2011 dataset for the class

“train”. We calculate the MNOS mask, which pro-

duces the segmentation in ﬁgure 7(b). It is a fairly

good result, because it is a simple image. It almost

segmented the object, except for some details. So,

we can generate a good initialization map for the post

processing, and the GrabCut is able to perfect the re-

sult, as we can see in 7(c). Obviously, that’s an opti-

mal situation.

5 CONCLUSIONS

In this paper we described an object segmentation al-

gorithm based on a multi network system and inspired

from a previously presented object detection algo-

rithm, the MNOD. It is composed by a set of neural

networks combined together to provide a single out-

put result. The model results highlight the beneﬁts of

our solution. The proposed algorithm can be con-

ﬁgured for different classes of objects and its nodes

may be of different types using sliding windows or

segments to read their input. We presented a model

Table 6: Results comparison between the existing MNOS

segmentation accuracy (%) and the new MNOS algorithm

on the VOC2011 dataset. The column Diff resumes the per-

formance gain between the two methods. The last column

GC shows the post processing accuracy results when ap-

plied to the MNOS ouput maps.

Class MNOD MNOS Diff GC

boat 23,51 28,87 +5,36 26,43

dog 23,68 29,23 +5,55 24,20

horse 29,39 35,14 +5,75 32,41

motorbike 45,37 47,13 +1,76 50,02

pottedplant 12,45 14,73 +2,28 21,03

sheep 28,26 30,22 +1,96 31,75

train 38,73 46,80 +8,07 41,37

tvmonitor 16,62 19,52 +2,9 15,86

(a) (b) (c)

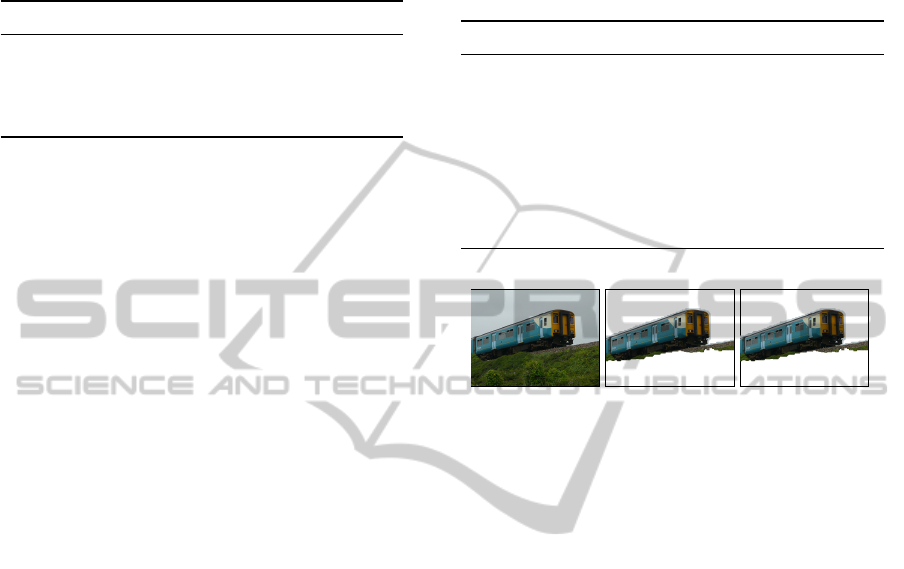

Figure 7: (a) Typical image of the VOC2011 dataset with

an object that belongs to the “train” class; (b) Automatic

segmentation of the train using our MNOS model; (c) Re-

ﬁnment of the segmented object with GrabCut.

that use the sliding window in the ﬁrst layers of the

tree, and segments in the subsequent layers. Then, we

studied a post processing phase using the GrabCut al-

gorithm. We fulﬁlled its interactive initialization by

exploiting the MNOS output segmentation map.

We tested the proposed model on different

datasets composed by images representing commer-

cial products from the web. The MNOS algorithm

was pushed in order to achieve better accuracy results

than the MNOD model. We also obtained good re-

sults on some classes of the VOC2011 dataset. More-

over, the results show that our algorithm is robust to

the change of perspective for the same object and at

the same time, it is robust for objects of the same type

but different shapes in different poses or even articu-

lated and slightly occluded.

The GrabCut post processing phase led to very

good results when the segmentation map is accurate

and clean. Anyway, with very difﬁcult images, like

the ones in the VOC2011 dataset, the MNOS algo-

rithm often produces segmentation masks that aren’t

accurate enough to provide a good initialization for

the GrabCut, so it often worsens the MNOS result.

The most important extension we plan to realize

is to make our model works with multiple classes in-

stead as a single class segmentation algorithm. More-

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

528

Bounding Box Method Proposed Method

Original Image Strategy Post Proc. Results Strategy Post Proc. Results

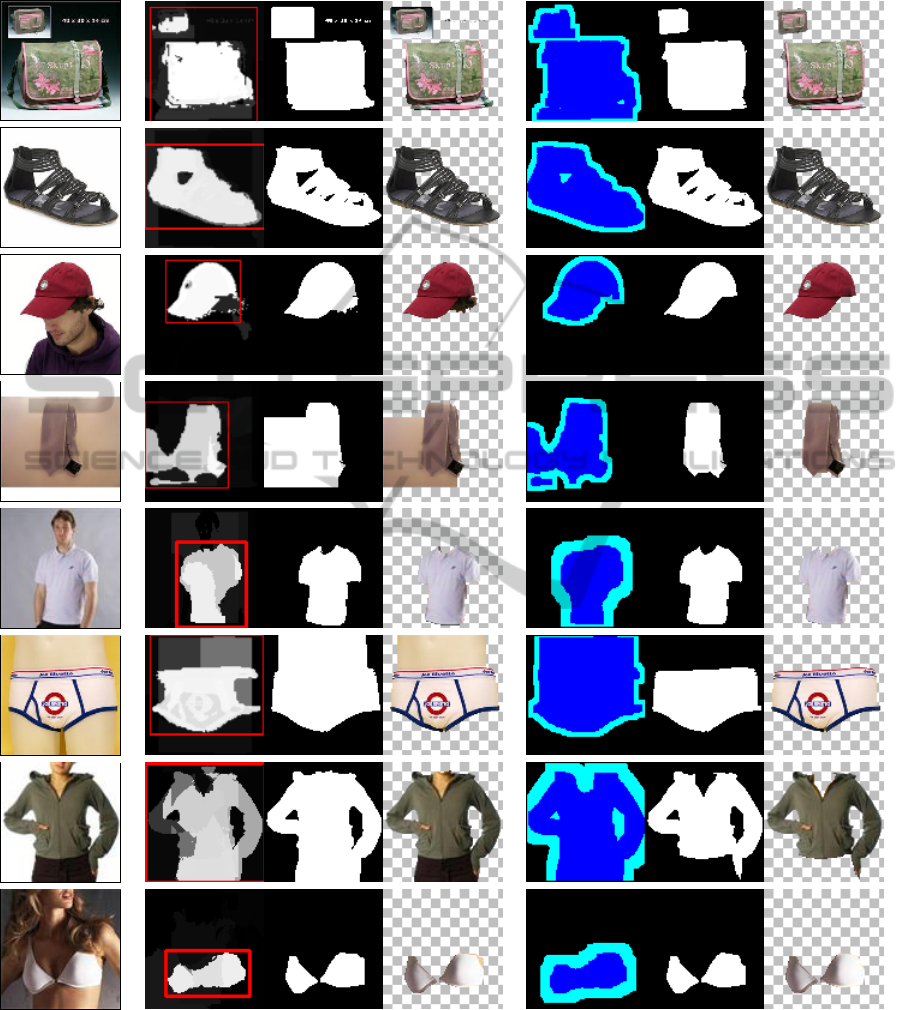

Figure 8: An example for each class of the Drezzy Dataset using the GrabCut as a post processing phase with a MNOS

conﬁgured by sliding window and segment layers. The original image is reported in the ﬁrst column. For each GrabCut

conﬁguration method (bounding Box and Proposed Method) we divided it in three columns: Strategy which summarize

the conﬁguration input; Post Processing which reports the Grab cut result on the MNOS segmentation mask and the result

calculated as the AND between the original image and the segmentation mask after the post processing phase.

over, it is possible to use different conﬁguration re-

garding the set of features and the segment extraction

technique.

LEARNING OBJECT SEGMENTATION USING A MULTI NETWORK SEGMENT CLASSIFICATION APPROACH

529

REFERENCES

Bengio, Y. (2009). Learning deep architectures for AI.

Foundations and Trends in Machine Learning, 2(1):1–

127.

Everingham, M., Van Gool, L., Williams, C. K. I.,

Winn, J., and Zisserman, A. (2011). The

PASCAL Visual Object Classes Challenge

2011 (VOC2011) Results. http://www.pascal-

network.org/challenges/VOC/voc2011/workshop/.

Gallo, I. and Nodari, A. (2011). Learning object detection

using multiple neural netwoks. In VISAP 2011. IN-

STICC Press.

Hartigan, J. and Wang, M. (1979). A k-means clustering

algorithm. Applied Statistics, 28:100–108.

Hernandez, A., Reyes, M., Escalera, S., and Radeva, P.

(2010). Spatio-temporal grabcut human segmentation

for face and pose recovery. In AMFG10, pages 33–40.

Hu, M.-K. (1962). Visual pattern recognition by moment

invariants. Information Theory, IRE Transactions on,

8(2):179–187.

Jaccard, P. (1912). The distribution of the ﬂora in the alpine

zone. New Phytologist, 11(2):37–50.

Li, F., Carreira, J., and Sminchisescu, C. (2010). Object

recognition as ranking holistic ﬁgure-ground hypothe-

ses. In CVPR, pages 1712–1719. IEEE.

Riesenhuber, M. and Poggio, T. (1999). Hierarchical mod-

els of object recognition in cortex. Nature Neuro-

science, 2(11):1019–1025.

Rother, C., Kolmogorov, V., and Blake, A. (2004). Grabcut:

Interactive foreground extraction using iterated graph

cuts. ACM Transactions on Graphics, 23:309–314.

Serre, T., Wolf, L., and Poggio, T. (2005). Object recog-

nition with features inspired by visual cortex. In

Proceedings of the Conference on Computer Vision

and Pattern Recognition, CVPR ’05, pages 994–1000,

Washington, DC, USA. IEEE Computer Society.

Sharkey, A. J. (1999). Combining Artiﬁcial Neural Nets:

Ensemble and Modular Multi-Net Systems, chapter

Multi-Net Systems. Springer.

Wang, F., Yu, S., and Yang, J. (2010). Robust and efﬁ-

cient fragments-based tracking using mean shift. AEU

- International Journal of Electronics and Communi-

cations, 64(7):614 – 623.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

530
