SCAFFOLD HUNTER

Visual Analysis of Chemical Compound Databases

Karsten Klein, Nils Kriege and Petra Mutzel

Department of Computer Science, Technische Universit

at Dortmund, Dortmund, Germany

Keywords:

Scaffold Tree, Chemical Space, Chemical Compound Data, Integrative Visualization, Interactive Exploration.

Abstract:

We describe Scaffold Hunter, an interactive software tool for the exploration and analysis of chemical com-

pound databases. Scaffold Hunter allows to explore the chemical space spanned by a compound database,

fosters intuitive recognition of complex structural and bioactivity relationships, and helps to identify inter-

esting compound classes with a desired bioactivity. Thus, the tool supports chemists during the complex

and time-consuming drug discovery process to gain additional knowledge and to focus on regions of interest,

facilitating the search for promising drug candidates.

1 INTRODUCTION

The search for a potential new drug is often com-

pared to “searching a needle in a haystack”. This

refers to the fact that within the huge chemical space

of synthesizable small organic compounds (approxi-

mately 10

molecules), there is only a small fraction

of potentially active compounds of interest for fur-

ther investigation. Due to the cost and effort involved

in synthesis and experimental evaluation of potential

drugs, efﬁcient identiﬁcation of promising test com-

pounds is of utmost importance. However, orienta-

tion within chemical space is difﬁcult, as on the one

hand there is only partial knowledge about molecule

properties, and on the other hand a large number of

potentially relevant annotations exist, as physical and

chemical properties, target information, side effects,

patent status, and many more. Some of these an-

notations also may be either predicted with a cer-

tain conﬁdence or result from experiments, with un-

certainty and sometimes even contradicting informa-

tion. Nonetheless, there are some approaches to clas-

sify and cluster compounds for navigation. A number

of properties might be good indicators for drug-like

molecule characteristics, as, e.g., biological activity,

and there are several physico-chemical properties that

allow to discard molecules, as, e.g., stability and syn-

thesizability.

The classical drug discovery pipeline, which aims

at detecting small molecules that bind to biological

target molecules involved in a disease process (e.g.,

proteins), does not only require a large amount of ti-

me, money, and other resources, but also suffers from

a small and even decreasing success rate. Since the

behavior and impact of a chemical compound often

cannot be easily predicted or derived from simple

molecular properties, the drug discovery pipeline in-

volves high throughput screenings of large substance

libraries with millions of compounds in the early

stages to identify potentially active molecules. The

results of a screening only give an incomplete pic-

ture on a restricted area of the possible solution space,

and hence need to be analyzed to detect potential lead

structures that can be used as the starting point of the

further drug development.

As a result, the drug discovery process involves

decisions based on expertise and intuition of the expe-

rienced chemist that cannot be replaced by automatic

processes. Nonetheless this process can be greatly

supported by computational analysis methods, an in-

tuitive representation of the available data, and by

navigation approaches that allow for organized ex-

ploration of chemical space. The chemist’s workﬂow

therefore can be supported by automatic identiﬁcation

of regions within the chemical space that may contain

good candidates with high probability and by enrich-

ing the navigation with pointers to these region within

a visual exploration and analysis process.

Even though the use of automated high throughput

methods for screening and synthesis led to large com-

pound libraries and a huge amount of corresponding

data in pharmaceutical companies and academic insti-

tutions, this did not lead to a signiﬁcant increase in the

success rate. Sharing data among these actors might

626

Klein K., Kriege N. and Mutzel P..

SCAFFOLD HUNTER - Visual Analysis of Chemical Compound Databases.

DOI: 10.5220/0003836806260635

In Proceedings of the International Conference on Computer Graphics Theory and Applications (IVAPP-2012), pages 626-635

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

help to improve the understanding and therefore also

the discovery process. Consequently, more and more

data is made publicly available over a large number of

online databases, and computational methods to ana-

lyze the data are used to an increasing extent. How-

ever, without adequate methods to integrate and ex-

plore the data, this wealth of possibly relevant infor-

mation may even complicate the drug discovery pro-

cess. In addition, information is spread across many

resources, having different access interfaces, and even

the unambiguous identiﬁcation of compounds can be

non-trivial. Integration of these data resources in a vi-

sual analysis tool with an intuitive navigation concept

facilitates drug discovery processes to a large extent.

Scaffold Hunter is a software tool for the explo-

ration and analysis of chemical compound databases

that supports the chemist in the search for drug can-

didates out of the structural space spanned by a pos-

sibly large pool of compounds. It allows navigation

in this chemical space with the help of a hierarchi-

cal classiﬁcation based on compound structure, and

integrates a variety of views with appropriate analy-

sis methods. The views provide innovative graphical

visualizations as well as established representations

for data and analysis results. Combined with suit-

able interaction techniques, these components allow

to assess the chemical data with respect to the various

aspects of multidimensional data annotations in an in-

tegrated fashion. In addition, Scaffold Hunter allows

to integrate data from multiple resources and formats

over a ﬂexible import plugin interface.

Scaffold Hunter was implemented as a prototype

application in 2007, being the ﬁrst tool that allows

to navigate in the hierarchical chemical space de-

ﬁned by the scaffold tree (Schuffenhauer et al., 2007).

The Scaffold Hunter prototype was successfully used

in an experimental study that focused on the chem-

ical aspects of using brachiation along scaffold tree

branches, proving the effectiveness of the approach

and the usefulness of our implementation (Wetzel

et al., 2009). Here, we focus on the visualization and

analysis techniques used, including new views and a

data integration concept, and on their interplay.

1.1 Related Work

Compared to other application areas, especially biol-

ogy, the support of the analysis workﬂow in chem-

istry by integrated tools that combine both advanced

interactive visualization as well as analysis methods

is rather weak even though the need for such tools has

been formulated quite often (IMI, 2009; Irwin, 2009).

On the one hand tools based on a data pipelining con-

cept like KNIME (Berthold et al., 2007), which feat-

ures several cheminformatics extensions, or the com-

mercial product Accelrys Pipeline Pilot are applied.

Although these approaches are more intuitive to use

than cheminformatics software libraries, they nev-

ertheless require a fair amount of expert knowl-

edge in cheminformatics and lack integrated visual

analysis concepts. On the other hand general pur-

pose visualization tools like TIBCO Spotﬁre are

used. Spotﬁre can be extended by a structure depic-

tion plugin, but lacks sophisticated domain speciﬁc

analysis methods. Concepts to classify molecules,

e.g. based on clustering by common substructures,

have ﬁrst been proposed several years ago (Schuf-

fenhauer and Varin, 2011), but are often not sup-

ported in interactive visualization software. Re-

cently there have been attempts to create software

to remedy the situation: The server-based tool Mol-

wind (Herhaus et al., 2009) has been developed by re-

searchers at Merck-Serono and was inspired by Scaf-

fold Hunter. While also based on the scaffold tree

concept, Molwind uses NASA’s World Wind engine

to map scaffolds to geospatial layers. The applica-

tion SARANEA (Lounkine et al., 2010) focuses on

the visualization of structure-activity and structure-

selectivity relationships by means of “network-like

similarity graphs”, but misses a structural classiﬁca-

tion scheme which is advisable for large data sets.

Compared to these approaches, the web based tool

iPHACE (Garcia-Serna et al., 2010) introduces basic

additional features for visual analysis, namely inter-

action heat maps, to focus on the drug-target interac-

tions. Another recent approach to support the analysis

of chemical data sets is Scaffold Explorer (Agraﬁotis

and Wiener, 2010), which allows the user to deﬁne the

scaffolds with respect to his task-speciﬁc needs, but is

targeted more towards the analysis of small data sets.

Although these ﬁrst approaches received a pos-

itive feedback from the pharmaceutical community,

they are more or less in a prototypical stage with

a small user base. The most likely explanation is

that chemists ﬁrst need to familiarize with such ap-

proaches, as there have not been established ways for

the integrated visual analysis of chemical data so far.

1.2 Goals and Challenges

Our main goal in the development of Scaffold Hunter

was to facilitate the interactive exploration of chem-

ical space in an intuitive way also suitable for non-

experts in cheminformatics. We wanted to develop a

software tool that integrates drug discovery data and

allows to browse through the structures and data in an

interactive visual analysis approach.

Several goals guided the design and implementa-

SCAFFOLD HUNTER - Visual Analysis of Chemical Compound Databases

627

tion of Scaffold Hunter:

• The user should be able to integrate data from

public resources and from his own compound

databases.

• Views that represent a space of chemical com-

pounds in an intuitive fashion for chemists should

be automatically created.

• Interaction with the views should be possible to

adapt them to the needs of a speciﬁc task, and to

allow an analysis of the underlying data.

• Guided navigation within the compound space

should be possible, to focus on regions of interest

and to drill down to promising drug candidates.

When these goals are satisﬁed, the tool enables

a visual analysis workﬂow that supports the efﬁcient

identiﬁcation of drug candidates based on the com-

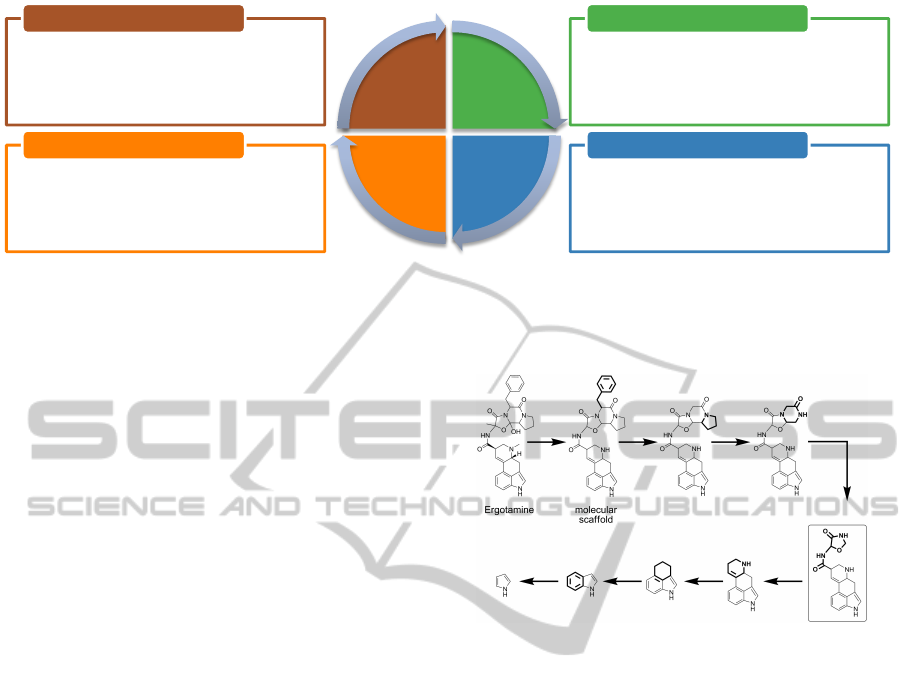

bined information available. See Figure 1 for a model

of this workﬂow.

Several challenges make a straightforward realiza-

tion of these goals difﬁcult:

• The set of chemical compounds under investiga-

tion may contain several million compounds, rais-

ing both efﬁciency and visualization problems.

• There is a large number of potentially interesting

data annotations per compound, but the knowl-

edge on them is incomplete, and the relation be-

tween molecular properties and the biological ef-

fects are complex and difﬁcult to characterize.

• In order to take advantage of publicly available

information, including large online databases as

PubChem, Zinc, or ChEMBL, quite diverse data

resources must be integrated.

• Most chemists are not used to advanced visual

analysis concepts and only have moderate conﬁ-

dence in on-screen analysis so far. Visual repre-

sentations like heat maps and dendrograms are al-

ready used and intuitively understood, but combi-

nation in an integrated interactive environment is

not yet widespread. New interaction and analy-

sis concepts for the exploration of large chemical

databases need to be developed that are suitable

for chemists without expert knowledge in chem-

informatics and statistics.

2 SCAFFOLD HUNTER

Scaffold Hunter addresses the above mentioned chal-

lenges by means of a ﬂexible framework for the in-

tegration of data sources and several interconnected

visual analysis components described in Sec. 2.1.

There are several workﬂows along the drug dis-

covery process that are related, but require slightly

different views on the data. Often, an overview on

the database contents is needed, both for evaluation

and for comparison. Applications include visualiza-

tion of several data sets at the same time, for instance

comparison of results from several assays, or data sets

stemming from multiple databases to rate their over-

lap or coverage of chemical space. An internal and

a commercial database could be compared to gauge

to what extent purchasing would increase the cover-

age of promising regions of chemical space, or where

patent issues might be relevant. It should be noted

that the visualization of this space is not restricted

to show what is contained in the database, but also

indicates gaps in the structural coverage, which give

hints on structurally simpler but still biologically ac-

tive molecules for synthesis or purchase.

A further task is the search for biologically ac-

tive molecules that may be promising for synthesis

to check suitability as potential drugs. Here, spots of

large potential biological activity have to be identi-

ﬁed. Note that biological activity for the largest part

of the chemical space is not known, as the molecules

are not tested or not even synthesized, but can only

be derived indirectly, e.g., from the values of simi-

lar molecules with known activity. In addition, there

are also many other required or desired properties, as

for example synthesizability or bio-availability, which

need to be estimated, and are often approximated best

by experienced chemists with the help of computa-

tional analysis methods. Hence, the dynamic gener-

ation of new hypotheses and the integration of addi-

tional experimental data during the discovery process

requires a complex interplay between interactive vi-

sualization, analytical reasoning, computational anal-

ysis, and experimental evaluation and validation as il-

lustrated in Figure 1. A recent work-ﬂow based on

the scaffold tree classiﬁcation combines scaffolds that

are not annotated with bioactivity with scaffolds of re-

lated small molecules with known bioactivity and tar-

gets (Wetzel et al., 2010). The merging of the corre-

sponding trees allows to prospectively assign bioac-

tivity and to identify possible target candidates for

non-annotated molecules.

Most of the use-cases include exploration of the

chemical space, and therefore the core concept of

Scaffold Hunter builds upon a corresponding navi-

gation paradigm for orientation as described in Sec-

tion 2.1.1. As many use-cases also rely on the import

of data from heterogenous sources, Scaffold Hunter

provides a ﬂexible data integration concept, which is

described in Sec. 2.3.

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

628

• The drug discovery process is a task that is not

suitable for a fully automatic process.

• The knowledge discovery process essentially

depends on the expertise of domain specialists, but

can greatly benefit from computational methods.

Analytical Reasoning

• In order to take advantage of publicly available

information quite diverse data resources must be

integrated.

• Experimentally obtained data can be investigated

to test hypotheses.

Data Integration

• Visualization of raw data as well as analysis results

requires different views that must be well

coordinated and linked in an intuitive manner.

• Views should be customizable to adapt to the

user’s needs and foster interactive exploration.

Interactive Visualization

• Statistical methods like clustering and classification

reveal relationships and patterns within the data.

• Approaches to organize chemical space should

take structural relations of compounds into account

to support revealing structure-activity relationships.

Automated Analysis

Analytical

Reasoning

Data

Integration

Automated

Analysis

Interactive

Visualization

Figure 1: Interactive visual analysis of the correlation between chemical structure and biological activity. The knowledge

discovery process is a cyclic procedure: Analyzing known data may allow to generate new hypotheses which lead to further

experiments. Results obtained here are again integrated into the tool for further investigation.

2.1 Visual Analysis Components

Since the search for drug candidates involves a com-

plex knowledge discovery process there is no single

best technique that reveals all relations and informa-

tion that might be of interest to the chemists. Scaf-

fold Hunter combines different approaches to catego-

rize and organize the chemical space occupied by the

molecules of a given compound set allowing the user

to view the data from different perspectives. Two im-

portant aspects here are structural features and prop-

erties of compounds. Relating structural character-

istics to properties like a speciﬁc biological activ-

ity is an important step in the drug discovery pro-

cess. Therefore, Scaffold Hunter supports to analyze

high-dimensional molecular properties by means of a

molecular spreadsheet and a scatter plot module. De-

veloping meaningful structural classiﬁcation concepts

is a highly challenging task and still subject of recent

research. Two orthogonal concepts have emerged:

Approaches based on unsupervised machine learn-

ing and rule-based classiﬁcation techniques, which

both have their speciﬁc advantages (Schuffenhauer

and Varin, 2011). Therefore, Scaffold Hunter sup-

ports cluster analysis using structure-based similar-

ity measures, a typical machine learning based tech-

nique, as well as a rule-based approach based on scaf-

fold trees. Comprehensive linkage techniques foster

the interactive study of different perspectives of a data

set providing additional value compared to isolated

individual views.

2.1.1 Scaffold Tree

In order to organize chemical space and to reduce

the number of objects that have to be visualized, we

use the scaffold tree approach (Schuffenhauer et al.,

2007). This approach computes an abstraction of the

molecule structures that allows to represent sets of

Figure 2: Creation of a branch in the scaffold tree.

molecules by single representatives, so-called scaf-

folds, for navigation. A scaffold is obtained from a

molecule by pruning all terminal side chains. The

scaffold tree algorithm generates a unique tree hierar-

chy of scaffolds: In a step-by-step process, each scaf-

fold is reduced up to a single ring by cutting off parts

that are considered less important for biological ac-

tivity, see Figure 2. In each step a less characteristic

ring is selected for removal by a set of deterministic

rules, such that the residual structure, which becomes

the parent scaffold, remains connected. By this means

the decomposition process determines a hierarchy of

scaffolds. As, depending on the task at hand, differing

aspects may be crucial to deﬁne relevant relations be-

tween scaffolds, the user can customize the rules for

scaffold tree generation. The resulting set of trees is

combined at a virtual root to a single tree which can

be visualized using graph layout techniques.

Each scaffold represents a set of molecules that

are similar in the sense that they share a common

molecular framework. Experimental results show

that these molecules also share common biologi-

cal properties, making the classiﬁcation suitable for

the identiﬁcation of previously unknown bioactive

molecules (Schuffenhauer et al., 2007). Furthermore

SCAFFOLD HUNTER - Visual Analysis of Chemical Compound Databases

629

the edges of the scaffold tree provide meaningful

chemical relations along which such properties are

preserved up to a certain extent and are therefore ap-

propriate for navigation (Bon and Waldmann, 2010).

Compounds in a chemical database will not com-

pletely cover the chemical space spanned by the cre-

ated scaffolds. Scaffolds that are not a representative

of molecules, but solely created during the scaffold

tree reduction step, are nonetheless inserted into the

tree. These virtual scaffolds represent ‘holes’ in the

database and may be of particular interest as a starting

point for subsequent synthesis. They represent pre-

viously unexamined molecules that may for example

exhibit higher potency.

Since the generation of a scaffold tree for a large

data set is a time consuming task, Scaffold Hunter al-

lows to compute and permanently store scaffold trees

using the default rule set proposed in (Schuffenhauer

et al., 2007) or a customized rule set which can be

compiled by means of a graphical editor.

Scaffold Tree View. Based on the scaffold classi-

ﬁcation concept, Scaffold Hunter’s main view repre-

sents the scaffold tree. The implementation is based

on the toolkit Piccolo (Bederson et al., 2004) and sup-

ports to freely navigate in the scaffold tree view, as the

user interface allows grab-and-drag operations and

zooming. Zooming can be done either manually in

direction of the mouse cursor, or automatically when

the user switches between selected regions of interest.

The system then moves the viewport in an animation

to the new focus region, ﬁrst zooming out automati-

cally to allow the user to gain orientation. At the new

focus region, the system zooms in again. For realiza-

tion of the Overview-plus-Detail concept, we imple-

mented a minimap. The minimap shows the whole

scaffold tree and the position of the viewport and al-

lows to keep orientation even at large zoom scales, see

Figure 3. Both the main view and the minimap allow

Pan-and-Zoom operations.

On startup, a user-deﬁned number of levels is

shown, and an expand-and-collapse mechanism al-

lows the user to either remove unwanted subtrees

from the view or to explore deeper into subtrees of

interest. By default, the scaffold tree is laid out us-

ing a radial style and is always centered at the vir-

tual root. We decided not to allow the selection of a

new root for the following reason: As drug candidates

need to meet certain requirements regarding their bi-

ological activity and bio-availability, it will rarely be

necessary to explore trees over more than a few levels

(typically < 8). The molecules on deeper levels will

be too large and have too many rings to be relevant

for further consideration. However, in the case that

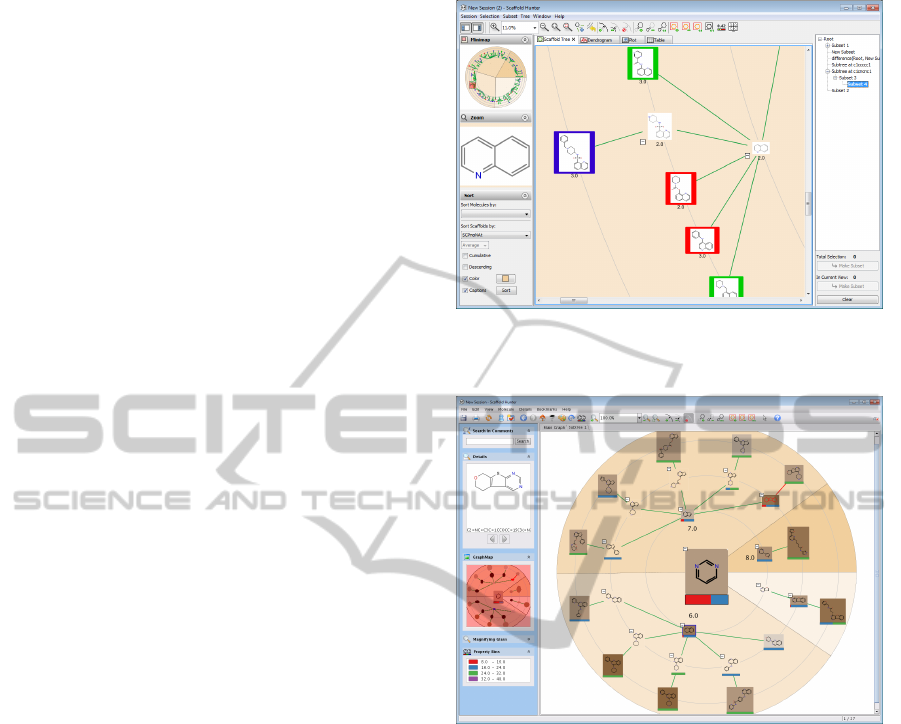

Figure 3: Close-up view of a scaffold tree, where properties

are represented by colored borders and text labels.

Figure 4: Layout of a subtree rooted at a scaffold of inter-

est with sorting and color shading. A sorting with respect

to a scaffold property can be applied to deﬁne the clock-

wise order of a scaffold tree, a background color shading of

segments reveals scaffolds with the same property value.

all molecules of the visualized subset share a com-

mon scaffold, the tree is centered on this scaffold and

the virtual root is hidden, as shown in Figure 4. Such

views allow to explore individual branches in detail.

In order to guide the chemist in his search for

a new drug candidate, scaffolds can be annotated

with property values derived from the associated

molecules, e.g. the average biological activity, or val-

ues directly related to the structure of the scaffold, e.g.

the number of aromatic rings. These properties can be

represented by several graphical features: The scaf-

fold and canvas background can be conﬁgured to in-

dicate associated categorical values by different col-

ors as well as continuous values by color intensity,

see Figures 3, 4. Edges can be conﬁgured to repre-

sent changes in property value by color gradient. Fur-

thermore, values can be mapped onto the size of a

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

630

scaffold representation. Mapping property values to

graphical attributes allows both to get an overview on

the distribution of annotation values and to focus on

regions with speciﬁc values of interest. To show the

distribution of a selected molecule property for each

scaffold, property bins can be deﬁned. A bar under

the respective scaffold image reﬂects the proportion

of molecules associated with the scaffold, that is as-

signed to a speciﬁed bin, see Figure 4. Property bins

may optionally indicate the values of the molecule

subset represented by a scaffold, or give the cumula-

tive values of the subtree rooted at the scaffold. This

information can help to select interesting subtrees for

deeper exploration.

The scaffold tree view provides a semantic zoom

that increases the level of graphical data annotations

with increasing zoom level, see Figure 5. Scaffolds

are represented using a 2D structure visualization,

which is sufﬁcient for a good estimation of the chem-

ical behavior for the purpose of classiﬁcation and the

investigation of potential drugs in an early stage. Dur-

ing navigation in zoom out mode, structure informa-

tion on scaffolds in the mouse pointer region is dis-

played in a magnifying glass window that can option-

ally be opened in the left side pane.

There are several requirements for layout meth-

ods within Scaffold Hunter which result from the

goals we deﬁned for the application and also the ap-

proach taken. The layouts should represent the scaf-

fold tree hierarchy well, i.e., allow to easily follow the

bottom-up direction for navigation, to detect the scaf-

fold level, and to visually separate subtrees. In addi-

tion, the layout has to reﬂect a (circular) sorting of the

subtrees based on the user’s choice of a sorting scaf-

fold property. Also typical aesthetic criteria like edge

crossings and vertex-edge or vertex overlaps should

be taken into account. Several layout methods are im-

plemented, including radial, balloon, and tree layout.

All of them easily allow to satisfy our edge order, dis-

tance, crossing restriction, and vertex size constraints,

see Figures 4, 6. We give visual cues for the level afﬁl-

iation of a scaffold by visualizing the radial circles as

thin background lines. In addition, we use a dynamic

distance between layers which is adapted according

to the zoom level. This allows to achieve good sepa-

ration of hierarchy levels and a clear depiction of the

tree structure in lower zoom levels, whereas in close-

up zooms scaffolds can still be represented together

with at least one child level.

2.1.2 Cluster Analysis

In cheminformatics cluster analysis based on molec-

ular similarity is widely applied since the 1980s

and can now be considered a well-established tech-

nique (Downs and Barnard, 2003) compared to the

novel scaffold tree concept. However, computing

an appropriate similarity coefﬁcient of molecules is

far from trivial and many similarity measures have

been proposed (Maggiora and Shanmugasundaram,

2011). Common techniques to compare the struc-

ture of chemical compounds include their representa-

tion by bit vectors, so-called molecular ﬁngerprints,

which encode the presence or absence of certain sub-

structures, and allow the application of well known

(dis)similarity measures like Euclidean distance or

Tanimoto coefﬁcient. The choice of an adequate sim-

ilarity coefﬁcient may depend on the speciﬁc task per-

formed or the characteristics of the molecules which

are subject to the analysis. To cope with the need for

various molecular descriptors Scaffold Hunter sup-

ports their computation by plugins.

We implemented a ﬂexible clustering framework

including a generic interface which allows the user to

select arbitrary numerical properties of molecules and

to choose from a list of similarity coefﬁcients. Fur-

thermore speciﬁc properties and similarity measures

for ﬁngerprints and feature vectors are supported.

Scaffold Hunter includes a hierarchical clustering al-

gorithm and supports various methods to compute

inter-cluster similarities, so-called linkage strategies.

Dendrogram View. The process of hierarchical

clustering can be visualized by means of a dendro-

gram, a tree diagram representing the relation of

clusters. The dendrogram is presented as another

view and is supplemented by a modiﬁed spread-

sheet which can be faded in on-demand below the

dendrogram panel, see Figure 6. The spreadsheet

is tightly-coupled with the dendrogram: The order

of the molecules corresponds to the ordering of the

leaves of the dendrogram and an additional column

is added representing the cluster each molecule be-

longs to by its color. Scaffold Hunter fosters an in-

teractive reﬁnement of clusters by means of a hori-

zontal bar which can be dragged to an arbitrary posi-

tion within the dendrogram. Each subtree below the

bar becomes a separate cluster. The spreadsheet dy-

namically adapts to the new partition deﬁned by the

position of the bar.

When clustering large data sets dendrograms tend

to have a large horizontal expansion compared to the

vertical expansion. To take this into account we im-

plemented a zooming strategy that allows to scale

both dimensions independently giving the user the

possibility to focus on the area of interest. At higher

zoom levels the leaves of the dendrogram are depicted

by the structural formula of the molecules they repre-

sent. The sidebar contains a zoom widget that dis-

SCAFFOLD HUNTER - Visual Analysis of Chemical Compound Databases

631

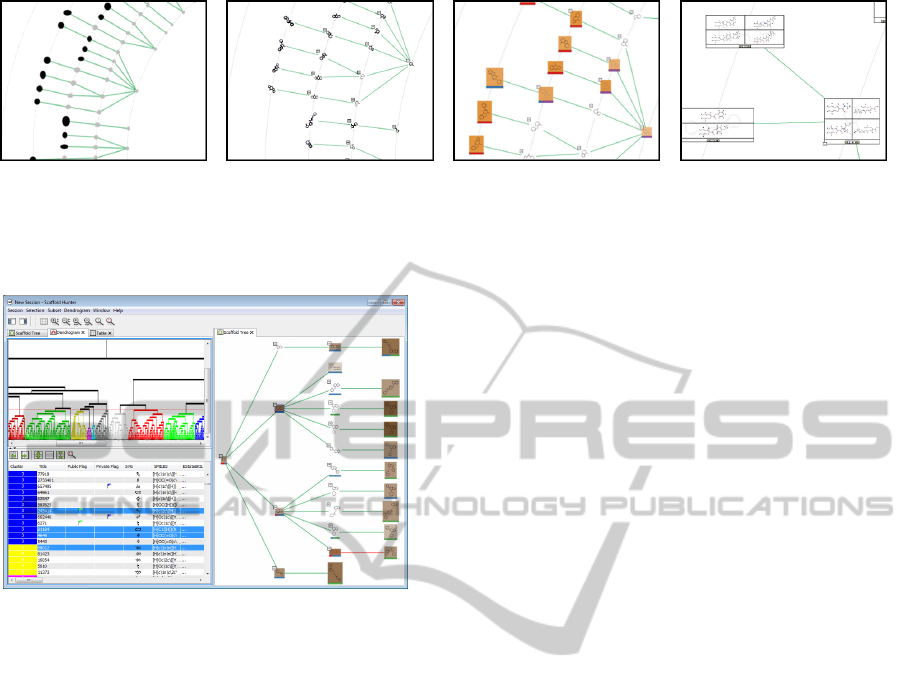

(a) Abstraction. (b) Structural formulas. (c) Full annotations. (d) Associated molecules.

Figure 5: Increasing level of detail with semantic zoom. Simpliﬁed representative shapes (a) are ﬁrst replaced by structure

images (b), and ﬁnally the full set of currently selected data annotations is shown (c). Molecules associated with scaffolds (d)

can be displayed at lower zoom levels.

Figure 6: Split view showing a dendrogram combined with

a molecular spreadsheet (left) and a scaffold tree (right).

plays the molecule belonging to the leaf at the hori-

zontal position of the mouse pointer and is constantly

updated when the mouse pointer moves within the

dendrogram view. This allows the user to retain ori-

entation at lower zoom levels.

2.1.3 Molecular Spreadsheet

A molecular spreadsheet depicts a set of compounds

in table form, see Figure 6. Each row represents a

molecule and each column a molecular property. Our

implementation features an additional column show-

ing the structural formula of each molecule. The rows

of the table can be reordered according to the values

of a speciﬁed column, which allows the user, for ex-

ample, to sort the rows according to the biological ac-

tivity of the molecules and to inspect the molecules

successively, selecting or marking molecules of inter-

est. Deciding if a molecule is of interest for a spe-

ciﬁc task may, of course, depend on the expert knowl-

edge of the user who also wants to take different prop-

erties of the molecules into account. Therefore the

spreadsheet allows to freely reorder the columns and

to make the leftmost columns sticky. Sticky columns

always remain visible when scrolling in horizontal di-

rection, but are still affected by vertical scrolling. The

width and height of columns and rows, respectively,

is adjustable. Just like the scaffold tree view the side-

bar of the spreadsheet view features an overview map

and a detail zoom, showing the cell under the mouse

pointer in more detail. This is especially useful to in-

spect structural formulas that where scaled down to

ﬁt into a cell or to completely view long texts that

were truncated to ﬁt. The spreadsheet module is eas-

ily customizable and is reused as an enhancement of

the dendrogram view to which it can be linked.

2.1.4 Scatter Plot

Scaffold Hunter includes a scatter plot view that al-

lows for the analysis of multidimensional data. The

user can freely map numerical properties to the axes

of the plot and to various graphical attributes. At

least two properties must be mapped to the x- and

y-axis, respectively, but the user may optionally also

map a property to the z-axis turning the 2D plot into

a freely-rotatable 3D plot. In addition properties can

be mapped to the dot size or be represented by the

dot color, see Figure 8. This allows the user to visu-

ally explore the relationship of different properties, to

identify correlations, trends or patters as well as clus-

ters and outliers.

The sidebar contains several widgets showing ad-

ditional information or provide tools to interactively

manipulate the visualization of the data. When the

user hovers the mouse cursor over a data point, the

corresponding structural formula is shown in a de-

tail widget. The visible data points can be ﬁltered

dynamically using range sliders and jitter can be in-

troduced to detect overlapping points. Selected or

marked molecules can be highlighted in the scatter

plot and single data points as well as regions can be

added to the selection.

2.2 Coordination and Linkage of Views

When multiple views of the data are provided, intu-

itive linking is of utmost importance for acceptance

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

632

by chemists. Brushing and switching of views, e.g.,

from classiﬁcation representations like dendrograms

to spreadsheets, are intuitive actions in the chemist’s

knowledge discovery process, and need to be sup-

ported in a way that allows to keep the orientation.

Scaffold Hunter incorporates several techniques af-

fecting all views in a similar manner.

Selection Concept. There is a global selection

mechanism for molecules, i.e. if a molecule is se-

lected in the spreadsheet view, for example, the same

molecule is also selected in all other views (Brush-

ing and Linking). All views support to select single

molecules or multiple at once by dragging the mouse

while holding the shift key. Since scaffolds represent

a set of molecules, not all of which must be selected

simultaneously, the coloring of scaffolds indicates if

all, none or only a subset is selected. If a scaffold

is selected, all associated molecules are added to the

selection. At a lower zoom level it is also possible

to select individual molecules, see Figure 5(d). Both,

the scaffold tree view and dendrogram view, are based

on a tree-like hierarchical classiﬁcation. These views

also allow to select sets of related molecules belong-

ing to a speciﬁed subtree.

Subset Management and Filtering. In practice it

is not sufﬁcient to just manage a single set of selected

scaffolds of interest. Therefore, Scaffold Hunter al-

lows to create and manage arbitrary subsets of the ini-

tial data set. The user can create a new subset contain-

ing all the molecules that are currently selected to per-

manently store the selection for later use. Of course,

it is possible to reset the selection to the molecules

of a stored subset. However, the subset concept is

much more powerful than suggested by this simple

use-case. Subsets can be created by means of a ﬂexi-

ble ﬁlter mechanism based on rules regarding scaffold

and molecule properties deposited in the database, see

Figure 7. Filter rules can be stored and reapplied to

other molecule sets. A frequent task during the anal-

ysis of chemical compounds is the search for struc-

turally similar compounds and to ﬁlter large com-

pound databases by means of substructure search, i.e.

to create a subset consisting only of molecules that

contain a user-speciﬁed substructure. We have im-

plemented a fast graph-based substructure search ap-

proach (Klein et al., 2011) and integrated a structure

editor allowing to create search patterns graphically.

The result of a ﬁltering can be highlighted in the cur-

rent view by setting the selection to the new subset.

All subsets created are presented at the right side-

bar in a tree-like fashion that reﬂects the relation of

subsets, see Figure 3. The user may perform the ba-

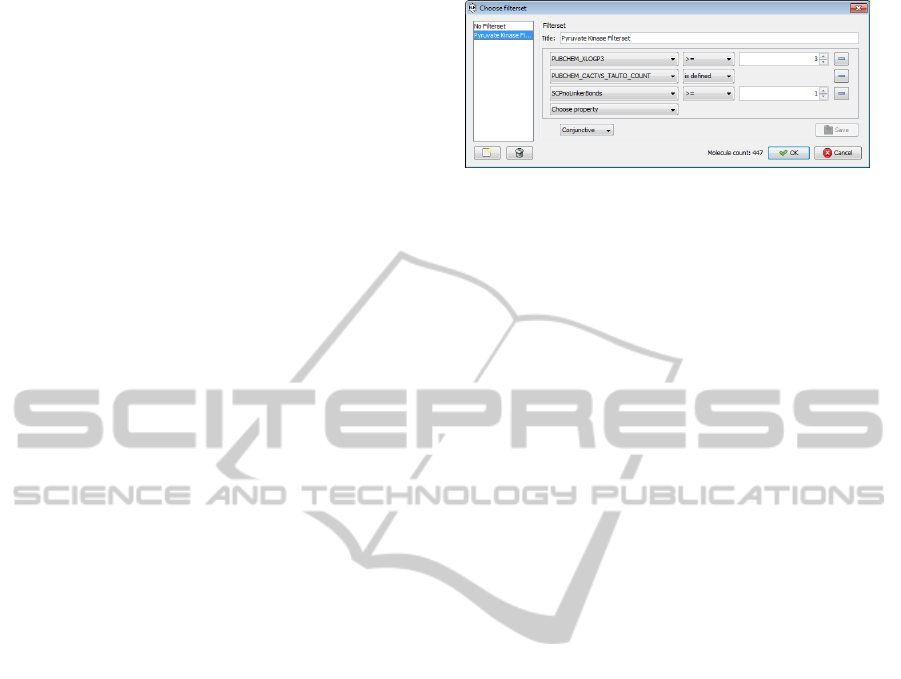

Figure 7: Filter dialog to deﬁne constraints.

sic set operations union, intersection and difference

on two or more sets leading to a new subset contain-

ing the result. Scaffold Hunter allows to create new

views showing only the molecules contained in the

selected subset. Furthermore the underlying subset of

the current view can be changed to a different subset

preserving the active mapping of properties to graph-

ical attributes.

The subset concept is suitable for the typical drill-

down approach in a chemical workﬂow, where the set

of considered molecules is reduced step by step. The

subset tree provides links back to upper levels of the

drill-down process to get back from dead ends and

fathomed areas of the chemical space under investiga-

tion. Restricting to subsets of medium-size helps the

user to preserve orientation and at the same time al-

lows for an efﬁcient analysis and visualization. Even

though chemical databases may contain millions of

compounds, the interface capabilities are designed

and restricted to the visualization of dozens to only

several thousand compounds. However, the visual-

ization of all database entries as distinct entities at the

same time is hardly ever of interest for chemists.

Multiple Views and Connecting Elements. Scaf-

fold Hunter allows to inspect sets of molecules with

different views. Furthermore, it is possible to create

several views of the same type based on different sub-

sets. This is a prerequisite for the visual comparison

of different subsets, but requires techniques to help

the user to preserve orientation.

Scaffold Hunter supports labeling views to be able

to identify their source and how they were created,

e.g. by highlighting the underlying data set in the sub-

set tree. Each view comes with a speciﬁc toolbar and

sidebar (cf. Figure 3) and the GUI is adjusted when-

ever another view becomes active. However, for sev-

eral views the sidebar contains elements with a similar

intended purpose, but implemented in a view speciﬁc

manner. For example, all views offer a detail widget,

that works as a magnifying glass in the scaffold tree

view, as a zoom to the leaf node of the dendrogram,

shows a complete cell of a spreadsheet or details of

a dot in the scatter plot, respectively. A tooltip con-

SCAFFOLD HUNTER - Visual Analysis of Chemical Compound Databases

633

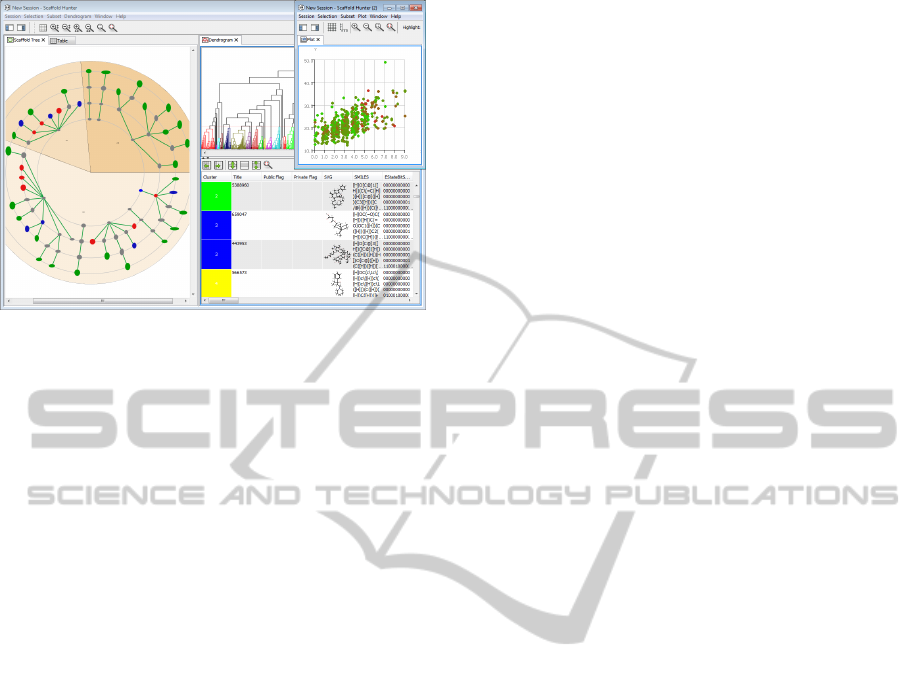

Figure 8: Several views showing data and statistical analy-

sis results complementary to the scaffold tree navigation.

taining a user-deﬁned list of properties of a molecule

or scaffold as well as comments is consistently pre-

sented in several views. It is possible to annotate

speciﬁc molecules or scaffolds of interest and persis-

tently store comments, which can then also be viewed

by other users, if desired, to support joint work on a

project. In addition visual features like setting ﬂags

to support orientation when moving back and forth

through several views are supported. Especially when

working with large molecule sets, it can be hard to re-

locate selected molecules in a different view. There-

fore all views support to focus the current selection,

e.g. by automated panning and zooming such that all

selected molecules are contained in the viewport.

Scaffold Hunter arranges multiple views by means

of a tabbed document interface, which most users are

familiar with and which allows to quickly switch be-

tween different views. To fully exploit the additional

beneﬁt of different visual analysis components it is

important to consider multiple views at the same time.

Therefore, the tab pane can be split horizontally or

vertically and views can be moved from one tab pane

to the other, see Figure 6. Furthermore it is possible

to open additional main windows (cf. Figure 8) to

support work on multiple monitors.

Since the creation of subsets and the customiza-

tion of views is an important step in the knowledge

discovery process that should be preserved, the cur-

rent subset tree as well as the state of each view is

stored as a session and can be resumed later.

2.3 Data Integration

Chemical data on compounds is collected in different

databases that are accessible over web or program-

matical interfaces. The information stored as well as

the interfaces to retrieve them are highly heteroge-

neous. However, there are various standardized ﬁle

formats like structure data (SD) ﬁles which are com-

monly used and store sets of molecules with infor-

mation on their structure and their properties. Most

public databases support to export their content or

subsets, e.g. all compounds that where investigated

in the same bioassay, as SD ﬁle. Due to the sheer

amount of information and the need to prepare the

data to be accessible to our analysis techniques, we

rely on a data warehouse concept, i.e. compound

data can be extracted from different data sources, is

transformed, if necessary, and then loaded into a cen-

tral database once in a preprocessing step. Scaffold

Hunter only operates on this database. Compared to

a virtual database, where a uniﬁed view on different

databases is established by an on-line transformation

of queries and results, the data warehouse approach

allows to efﬁciently access data and to precompute

additional information, which is essential to facilitate

interactive analysis and navigation within the data.

Scaffold Hunter currently supports to integrate SD

ﬁles, CSV ﬁles and databases via customized SQL

queries. Since each data format is implemented as

a plugin, it is easily possible to add support for ad-

ditional data sources. The import framework allows

to deﬁne several import jobs that are processed subse-

quently. Since each imported data source may have a

different set of properties, deﬁning an import job in-

cludes specifying a mapping to internal properties and

a merging strategy to cope with possible conﬂicts. It

is also possible to specify a transformation function

that can, e.g., be used to adjust the order of magni-

tude of the imported property values to the scale ex-

pected for the internal property. After an initial data

set has been stored, it is still possible to add additional

properties for each molecule. This allows to integrate

new experimental data at a later stage in the knowl-

edge discovery process, cf. Figure 1. In addition, it

is possible to calculate further properties that can be

derived from the structure of each molecule.

3 CONCLUSIONS & OUTLOOK

We presented Scaffold Hunter, a tool for the anal-

ysis of chemical space. There is already an active

user community that provides valuable feedback, and

the main concept of bioactivity guided navigation of

chemical space seems to be promising, which is also

backed by recent results (Bon and Waldmann, 2010).

Nonetheless the software could be extended by

features to address a broader community, with a

smooth integration into additional chemical work-

ﬂows. Support for additional views and further analy-

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

634

sis capabilities could help to boost the use of Scaffold

Hunter. The development and integration of addi-

tional functionality is encouraged by a modular soft-

ware architecture designed to be easily extendable

and by providing the software as open source.

A promising direction to enhance the currently

supported classiﬁcation concepts based on tree-like

hierarchies is to support network-like structures. Re-

cently an extension of the scaffold tree approach was

proposed taking all possible parent scaffolds into ac-

count (Varin et al., 2011). This creates so-called scaf-

fold networks, which were shown to reveal additional

scaffolds having a desired biological property. Fur-

thermore networks can be used to represent struc-

tural similarities, e.g. derived from maximum com-

mon substructures, and might prove to be more ﬂexi-

ble when ring-free molecules are considered or func-

tional side-chains should be taken into account. How-

ever, visualizing networks instead of tree-like hierar-

chies without compromising the orientation is chal-

lenging. New navigation concepts have to be devel-

oped and graph layout techniques must be customized

to the speciﬁc characteristics of such networks. We

plan to make use of the Open Graph Drawing Frame-

work (OGDF, 2011) for that purpose.

Due to the dynamic nature and the growing extent

of publicly available chemical data it might be help-

ful to also allow direct access to public resources from

within the GUI, e.g., by providing direct links to Pub-

Chem web pages for database compounds.

Scaffold Hunter is implemented in Java and freely

available under the terms of the GNU GPL v3 at

http://scaffoldhunter.sourceforge.net/.

ACKNOWLEDGEMENTS

We would like to thank the participants of student

project group PG552, the group of Prof. Waldmann,

in particular Claude Ostermann and Bj

orn Over, Ste-

fan Mundt, Stefan Wetzel, and Steffen Renner for

their valuable suggestions and their contributions to

the project.

REFERENCES

Agraﬁotis, D. K. and Wiener, J. J. M. (2010). Scaffold ex-

plorer: An interactive tool for organizing and mining

structure-activity data spanning multiple chemotypes.

Journal of Medicinal Chemistry, 53(13):5002–5011.

Bederson, B. B., Grosjean, J., and Meyer, J. (2004). Toolkit

design for interactive structured graphics. IEEE Trans.

Softw. Eng., 30(8):535–546.

Berthold, M. R., Cebron, N., Dill, F., Gabriel, T. R.,

otter, T., Meinl, T., Ohl, P., Sieb, C., Thiel, K., and

Wiswedel, B. (2007). KNIME: The Konstanz Infor-

mation Miner. In Studies in Classiﬁcation, Data Anal-

ysis, and Knowledge Organization (GfKL 2007).

Bon, R. and Waldmann, H. (2010). Bioactivity-guided

navigation of chemical space. Acc Chem Res.,

43(8):1103–14.

Downs, G. M. and Barnard, J. M. (2003). Clustering

Methods and Their Uses in Computational Chemistry,

pages 1–40. John Wiley & Sons, Inc.

Garcia-Serna, R., Ursu, O., Oprea, T. I., and Mestres, J.

(2010). iPHACE: integrative navigation in pharmaco-

logical space. Bioinformatics, 26(7):985–986.

Herhaus, C., Karch, O., Bremm, S., and Rippmann, F.

(2009). MolWind - mapping molecule spaces to

geospatial worlds. Chemistry Central Journal, 3:32.

IMI (2009). Innovative medicines initiative 2nd call, knowl-

edge management – open pharmacological space.

Irwin, J. J. (2009). Staring off into chemical space. Nat

Chem Biol, 5:536–537.

Klein, K., Kriege, N., and Mutzel, P. (2011). CT-Index:

Fingerprint-based graph indexing combining cycles

and trees. In IEEE 27th International Conference on

Data Engineering (ICDE), pages 1115 –1126.

Lounkine, E., Wawer, M., Wassermann, A. M., and

Bajorath, J. (2010). SARANEA: A freely avail-

able program to mine structure-activity and structure-

selectivity relationship information in compound data

sets. J. Chem. Inf. Model., 50(1):68–78.

Maggiora, G. M. and Shanmugasundaram, V. (2011).

Molecular similarity measures. Methods in Molecu-

lar Biology, 672:39–100.

OGDF (2011). The Open Graph Drawing Framework.

http://www.ogdf.net.

Schuffenhauer, A., Ertl, P., Roggo, S., Wetzel, S., Koch,

M. A., and Waldmann, H. (2007). The scaffold tree

- visualization of the scaffold universe by hierarchical

scaffold classiﬁcation. J. Chem. Inf. Model., 47(1):47–

58.

Schuffenhauer, A. and Varin, T. (2011). Rule-based classi-

ﬁcation of chemical structures by scaffold. Molecular

Informatics, 30(8):646–664.

Varin, T., Schuffenhauer, A., Ertl, P., and Renner, S. (2011).

Mining for bioactive scaffolds with scaffold networks

- improved compound set enrichment from primary

screening data. J. Chem. Inf. Model.

Wetzel, S., Klein, K., Renner, S., Rauh, D., Oprea, T. I.,

Mutzel, P., and Waldmann, H. (2009). Interactive ex-

ploration of chemical space with scaffold hunter. Nat

Chem Biol, 5(8):581–583.

Wetzel, S., Wilk, W., Chammaa, S., Sperl, B., Roth, A. G.,

Yektaoglu, A., Renner, S., Berg, T., Arenz, C., Gian-

nis, A., Oprea, T. I., Rauh, D., Kaiser, M., and Wald-

mann, H. (2010). A scaffold-tree-merging strategy

for prospective bioactivity annotation of γ-pyrones.

Angew. Chem. Int. Ed., 49(21):3666–3670.

SCAFFOLD HUNTER - Visual Analysis of Chemical Compound Databases

635
