ORIENTATION-BASED SEGMENTATION OF TEXTURED IMAGES

BY ENERGY MINIMIZATION

Maria Sagrebin-Mitzel and Til Aach

Institute of Imaging and Computer Vision, RWTH Aachen University, 52056 Aachen, Germany

Keywords:

Orientation-based Segmentation, Textured Images, Superimposed Oriented Patterns, Orientation Tensor,

Energy Minimization, Graph Cut.

Abstract:

We consider textured images, where the textures are composed of different numbers of additively superim-

posed oriented patterns. Our aim is to develop an energy minimization approach to segment these images

into regions according to the number of patterns superimposed. The number of superimposed patterns can

be inferred by testing orientation tensors for rank deﬁciency. In particular, the hypothesis that a local image

patch exhibits a given number of superimposed oriented patterns holds if the corresponding orientation tensor

is rank deﬁcient by one. The tests can be carried out based on quantities computed from the eigenvalues of the

orientation tensors, or equivalently from invariants such as determinant, minors and trace. Direct thresholding

of these quantities leads, however, to non-robust segmentation results. We therefore develop energy functions

which consist of a data term evaluating tensor rank, and a smoothness term which assesses smoothness of the

segmentation results. As the orientation tensors and thus the data term depend on the number of orientations

tested for, we derive a hierarchical algorithm for approximate energy minimization using graph cuts. We show

the robustness of the approach using both synthetic and real image data.

1 INTRODUCTION

Various problems in the analysis of digital images re-

quire the analysis of textured image contents, such as

segmentation or classiﬁcation (Jain and Farrokhnia,

1991; Randen and Husoy, 1999a; Randen and Husoy,

1999b; Liu and Wang, 2003; Lazebnik et al., 2005;

Lategahn et al., 2010). Basically texture classiﬁca-

tion and segmentation deal with the discrimination of

regions which contain textures which are distinct ac-

cording to some criterion, while each region corre-

sponds to a homogeneous texture.

We consider here textures, which are composed

of different numbers of additively superimposed ori-

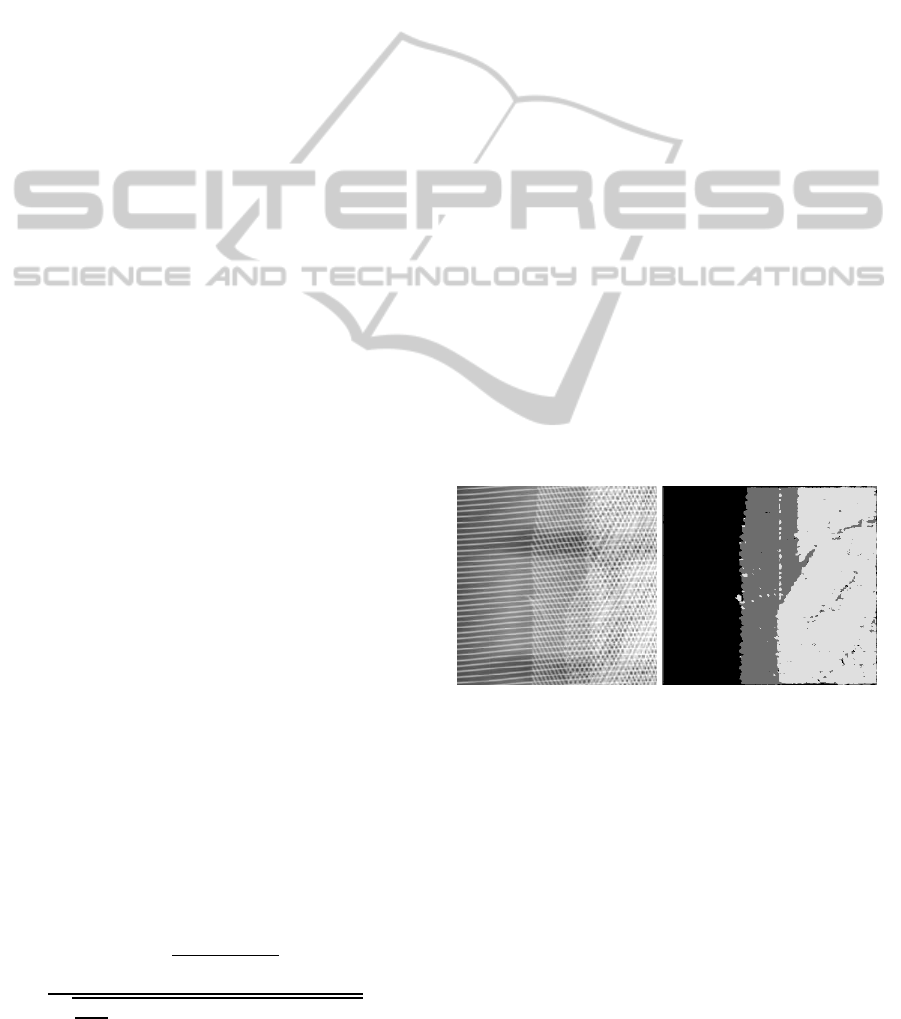

ented patterns. Such textures occur,forinstance, in X-

ray images of car tires, which contain different num-

bers of metal gratings superimposing each other (Fig.

1). Our goal is to segment these images into regions

according to the number of superimposed patterns.

The analysis of orientations is often based on orien-

tation tensors computed from image gradients, such

as in (Big¨un and Granlund, 1987; Kass and Witkin,

1987; Zenzo, 1986) for single oriented patterns, and

in (Aach et al., 2006; M¨uhlich and Aach, 2009) for

multiple orientations. The number of oriented patter-

ns superimposed across a local image patch can then

be determined by the rank of these tensors, speciﬁ-

cally by testing orientation tensors for rank deﬁciency.

In particular, the assumption that a local image patch

exhibits a given number of oriented patterns holds if

the corresponding orientation tensor is rank-deﬁcient

by one. The tests can thus be performed based on

criteria computed from the eigenvalues of the orien-

tations tensors, or from other invariants such as de-

terminants, minors and trace. One approach, taken

in (Aach et al., 2006; M¨uhlich and Aach, 2009) is to

sequentially test for one, two and more orientations

by hierarchical thresholding of these criteria. Such

purely data-driven thresholding, however, is prone to

generate isolated decision errors, in particular in more

noisy image data. To achieve robust segmentation re-

sults, we follow here the approach of deriving energy

functions consisting of a data term evaluating ten-

sor rank, and a smoothness term which assesses the

smoothness of the image regions. Similarly as above

for the thresholding approach, the data term depends

on the number of orientations tested for. We therefore

develop here a hierarchical algorithm to minimize the

energy using graph cuts (Boykov et al., 2001).

In the following, we ﬁrst review the tensor-based

249

Sagrebin-Mitzel M. and Aach T..

ORIENTATION-BASED SEGMENTATION OF TEXTURED IMAGES BY ENERGY MINIMIZATION.

DOI: 10.5220/0003839602490258

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 249-258

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

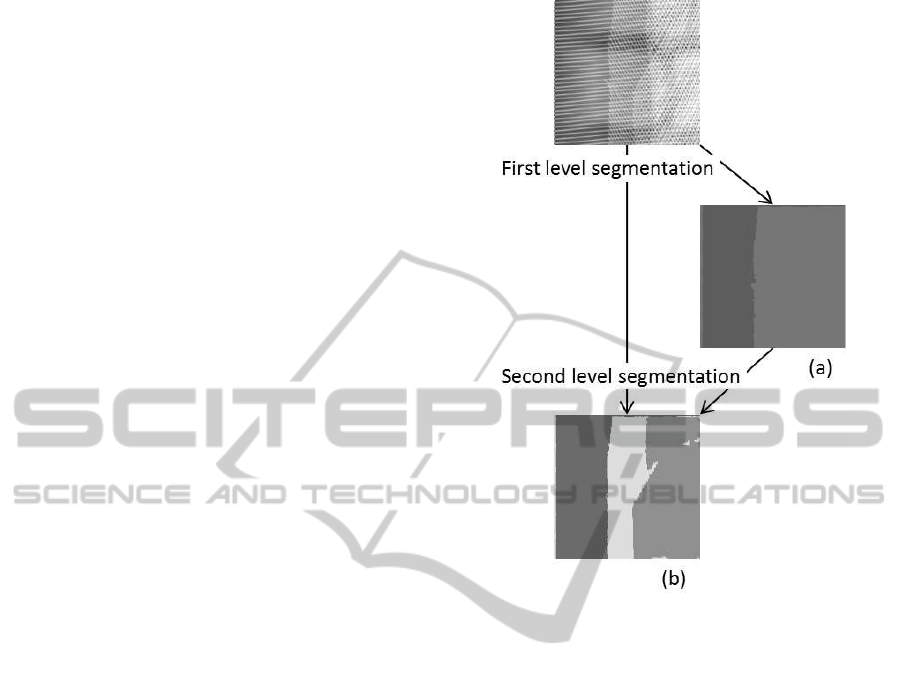

analysis of single and multiple orientations. We then

illustrate the hierarchical structure of our general ap-

proach. This is followed by a derivation of the data

energy terms. On each level of the hierarchy, the cor-

responding data term is complemented by a smooth-

ness term, speciﬁcally the Potts model, to assess re-

gion smoothness. The total energy is then approxi-

mately minimized by a graph cut algorithm. We eval-

uate the algorithm qualitatively and quantitatively us-

ing both synthetically generated and real image data.

2 ANALYSIS OF SINGLE AND

MULTIPLE ORIENTATIONS

Since orientation estimation plays an important role

in wide areas like texture analysis, adaptive ﬁltering

and image enhancement, a number of different ap-

proaches have been proposed. These include among

others quadrature ﬁlter based methods (Knutsson and

Granlund, 1983; Granlund and Knutsson, 1995; Aach

et al., 1995), the structure tensor (F¨orstner, 1986;

Zenzo, 1986; Big¨un and Granlund, 1987; Kass and

Witkin, 1987; Big¨un et al., 1991) and its extensions to

orientation tensors for multi-oriented patterns (Aach

et al., 2006; M¨uhlich and Aach, 2009), the energy

tensor (Felsberg and Granlund, 2004) or the bound-

ary tensor (K¨othe, 2003). Yet another alternative, par-

ticularly for orientation-adaptive ﬁltering and feature

detection by matched ﬁltering, are single-steerable

(Freeman and Adelson, 1991; Jacob and Unser, 2004)

and multi-steerable ﬁlters (M¨uhlich et al., 2012).

In the following, we summarize the orientation-

tensor based approach to orientation analysis, and a

hierarchical, purely data-driven procedure for esti-

mating the number of superimposed oriented patterns.

2.1 Single Orientation

The bivariate gray-level image f (x) is said to be ori-

ented in a local region Ω if and only if

f (x) = f (x+ kv) ∀k ∈ ℜ and ∀x,x+ kv ∈ Ω (1)

where the case of f (x) being constant over Ω is ex-

cluded. The unit vector v = (cosθ,sinθ)

= v(θ) de-

scribes the orientation of f (x) in terms of the angle

θ.

Eq. 1 states that a given image is locally con-

stant with respect to v if its directional derivative

∂f

∂v

= h∇f,vi, i.e., the scalar product between the im-

age gradient ∇ f and v, is zero for all gradients com-

puted in the neighborhood Ω.

Because of noise in real image data and to allow for

slight model violations, one seeks to ﬁnd the solution

of the following equation

θ = arg min

−π/2<φ≤π/2

Ω



(θ)∇f (x)



dΩ (2)

which leads to the so-called structure tensor approach

for orientation estimation found in the pioneering

work of (Big¨un and Granlund, 1987), (Zenzo, 1986),

(Kass and Witkin, 1987) and others.

Using the image gradient ∇ f = ( f

, f

)

, we de-

ﬁne the structure tensor T

(1)

: ℜ

→ ℜ

N×N

(where

N = 2 for bivariate images) as a local integration over

the outer product of the gradient

(1)

Ω

(∇f)(∇f)

dΩ =

Ω





dΩ

(3)

If the image signal is perfectly oriented according to

(1) over Ω, the structure tensor T

(1)

has one zero

eigenvalue and rank(T

(1)

) = 1. In the presence of

more than one orientation, both eigenvalues have a

high value and rank(T

(1)

) = 2. Only in the case of

f (x) being perfectly constant over Ω, both eigenval-

ues vanish and rank(T

(1)

) = 0.

2.2 Higher-order Orientations

As shown in (Aach et al., 2006) and (M¨uhlich and

Aach, 2009) the detection of higher-order oriented

structure can be treated in a similar manner. Let the

image f (x) be composed from several single oriented

signals f

(x), i ∈ [1,2,...,M] within a local region Ω:

f (x) =

∑

i=1

(x) ∀x ∈ Ω (4)

where the α

denote weighting constants.

For M = 2, the composite image f (x) then satis-

ﬁes:

∂

f (x)

∂u∂v

= 0 ∀x ∈ Ω (5)

where the unit vectors u = (cosθ,sinθ)

= (u

)

and v = (cosγ, sinγ)

= (v

) denote the orienta-

tions of f

(x) and f

(x), respectively. In the same

way, (5) holds if the oriented patterns occur in mutu-

ally exclusive subregions Ω

and Ω

of Ω at a region

boundary according to

f (x) = f

(x) ∀x ∈ Ω

(6)

where

Ω

= Ω and

Ω

Constraint (5) can be rewritten as the inner prod-

uct a

(2)

(x) = 0 ∀x ∈ Ω, where a is a three-

dimensionalvector encoding the orientations given by

= (u

+ u

)

= (cosθcosγ,sin(θ+ γ), sinθsinγ)

(7)

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

250

and where g

(2)

can be viewed as a higher-order gradi-

ent given by

(2)

= ( f

, f

)

(8)

The components of a represent the mixed orientation

parameters, which, if needed, can be decomposed into

the sought orientation angles θ and γ as shown in

(M¨uhlich and Aach, 2009).

Constraint (5) can now be rewritten to

Q(a) =

Ω



(2)



dΩ = 0, a

a > 0. (9)

Minimizing this expression subject to the constraint

a > 0 leads again to an eigensystem analysis, this

time of the orientation tensor T

(2)

deﬁned as follows:

(2)

Ω



(2)



(2)



dΩ

Ω









dΩ

(10)

Conﬁdence in the double orientation hypothesis is

high if one eigenvalue is small and the other two

are large. Moreover, if the image f (x) exhibits two

ideal orientations in Ω, one eigenvalue is zero and

rank(T

(2)

) = 2.

In the case of three orientations, M = 3 and g

(3)

has the form

(3)

= ( f

xxx

, f

xxy

, f

xyy

, f

yyy

)

(11)

which leads to the 4 × 4 orientation tensor T

(3)

de-

ﬁned as

(3)

Ω



(3)



(3)



dΩ (12)

Again the presence of three different orientations in

the image region Ω can be tested for by an eigensys-

tem analysis of the above orientation tensor.

2.3 Hierarchical Orientation Estimation

Following the above discussion, the estimation of a

number of superimposed oriented patterns in a sin-

gle image patch can be achieved by testing the rank

of the orientation tensors, which was based above

on an eigensystem analysis. For M ≥ 2, calculat-

ing eigenvectors and eigenvalues of a tensor may re-

quire iterative numerical methods. To avoid this step,

(M¨uhlich and Aach, 2009) derived a hierarchical al-

gorithm where rank testing employs tensor invariants

such as determinant and trace.

The hierarchical testing of the algorithm was

achieved by comparing the ratios

M+1

(M)

·· · λ

(M)

M+1

∑

M+1

i=1

(M)

·· · λ

i−1

(M)

i+1

·· · λ

M+1

(13)

against predeﬁned thresholds ε

. λ

(M)

denotes the i-

th eigenvalue of the orientation tensor T

(M)

. Note that

both numerator and denominator can be computed

without an eigensystem analysis from quantities such

as trace, determinant and minors of the corresponding

tensor T

(M)

. Both the numerator and denominator of

can be interpreted as mean eigenvalues, with the

numerator being the geometric mean of all eigenval-

ues. The upper bound for s

is one, which is reached

when all eigenvalues are equal. The lower bound is

zero, which is obtained when at least one eigenvalue

vanishes.

The procedure for the hierarchical decision mak-

ing is as follows: Starting with M = 1, compute the

orientation tensor T

(M)

and the value of s

. If s

is smaller than the predeﬁned threshold ε

, mark the

region as M-oriented. Otherwise increment M by one

and go to the next decision level by computing T

(M+1)

and the corresponding value s

M+1

Applying this procedurewith M

max

= 3 results in a

segmentation of the image into areas with one, two or

three orientations, plus a region with more than three

orientations. Fig. 1 (a) shows a part of a X-ray image

of a tire, revealing its internal metal grating structure.

Fig. 1 (b) shows the corresponding region map ob-

tained for ε

= 0.5, ε

= 0.6 and ε

= 0.7, where the

area in dark gray represents single orientations, the

area in medium gray double orientations and the area

in light gray three orientations.

(a) X-ray image of a tire. (b) Segmentation results.

Figure 1: Segmentation results based on the segmentation

procedure, proposed by (M¨uhlich and Aach, 2009).

While the overall estimated region structure cor-

responds well to the original image, the segmented

regions itself are corrupted by small isolated decision

errors. On these image parts, a different number of su-

perimposed oriented patterns have been assigned than

in the surrounding area.

This behavior is predominantly caused by the fact

that each decision considers only local information

from the data inside the small image patch Ω. This

purely data-driven approach thus ignores region as-

ORIENTATION-BASED SEGMENTATION OF TEXTURED IMAGES BY ENERGY MINIMIZATION

251

signments of neighboring image patches. In other

words, when making a decision at a speciﬁed im-

age patch, no context from decisions for neighboring

patches is taken into account (cf. (Besag, 1974; Har-

alick, 1983; Derin and Cole, 1986; Besag, 1986)).

However, in most applications the assumption of

real object being represented through coherent and

continuous regions in an image is valid. To incor-

porate this knowledge into the segmentation proce-

dure, we develop in the following an algorithm which

additionally to the data term also uses a regulariza-

tion term. This additional regularization term im-

poses further constraints concerning the sought seg-

mentation. It favors segmentation results with coher-

ent larger regions with smooth boundaries rather than

small, ragged regions.

The newly developed segmentation algorithm

consists of a hierarchy of energy functions, each con-

taining a data and a smoothness term. The deﬁnitions

of the data terms are based on the ratios deﬁned in

(13). The smoothness term is the same in each func-

tion.

The hierarchical structure of the proposed ap-

proach is described in the next section.

3 APPROACH OVERVIEW

The hierarchical principle of the proposed approach

is motivated by the structure of the orientation esti-

mation algorithm discussed in the previous section.

On the ﬁrst level of the hierarchy the image is seg-

mented into two regions corresponding to single and

higher order oriented image parts. Further segmen-

tation steps for the second and higher levels of the

hierarchy consider only image regions which did not

pass the test for a single orientation. Fig. 2 illustrates

this procedure exemplarily.

Figs. 2 (a) and (b) show the results of the ﬁrst and

second level segmentation, respectively. In the ﬁrst

step the image is segmented into two regions, where

the darker area corresponds to the image region with

a single orientation and the brighter area to the im-

age region containing a structure with more than one

orientation pattern.

On the second level of the hierarchy, only the im-

age part exhibiting more than one orientation is con-

sidered. This region is again divided into two regions,

one containing double orientations and the other one

containing more than two orientations. The image

part with a single oriented structure is disregarded

from this step onwards. Following this procedure

the segmentation step on the third level of the hier-

archy would divide the previously determined higher

Figure 2: Overview of the approach.

order oriented image part again into two regions cor-

responding to image areas with three orientations and

those with more than three superimposed patterns.

On every level of the hierarchy, the segmentation

is based on a minimization of a level dependent en-

ergy function. The data term of these functions in-

corporates the ratio s

deﬁned in (13), where M cor-

responds to the level of the hierarchy. The regular-

ization term is the same in all functions and imposes

smoothness constraints on the segmentation results.

To not disturb the neighborhood relationships be-

tween adjacent regions, all energy functions of the de-

veloped approach are deﬁned over P, which is the set

of all image pixels. When testing for a speciﬁed num-

ber of orientations at the corresponding level of the

hierarchy, all regions with a lower number of orienta-

tions should be left unchanged. This is achieved by an

appropriate deﬁnition of the energy function at each

level of the hierarchy.

4 ENERGY FUNCTIONS

The segmentation on each level of the hierarchy is

based on a minimization of an energy function via

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

252

graph cuts. The basic idea behind this technique is

the construction of a graph such that the minimum

cut on the graph also minimizes the corresponding en-

ergy function (Boykov et al., 2001). Here, the optimal

segmentation of the underlying image is computed by

using the expansion algorithm, developed by (Boykov

et al., 2001). The energy functions they consider in

their work have the form

E (l) = E

data

(l) + E

smooth

(l) (14)

where l denotes the labeling of the observed data. For

image segmentation, l is a function which assigns to

each pixel p ∈ P the corresponding label l

∈ L. The

form of E

data

(l) is given by

data

(l) =

∑

p∈P

) (15)

where D

measures how well label l

ﬁts the pixel

p. E

smooth

(l) is the smoothness term of the energy

function and measures the extent to which the labeling

function l is not piecewise smooth. E

smooth

(l) has the

form

smooth

(l) =

∑

{p,q}∈N

p,q

) (16)

where N is the set of adjacent pairs of pixels and

p,q

) denotes the penalty for pixels p and q hav-

ing different labels.

The expansion algorithm seeks to ﬁnd an optimal

labeling l

∗

such that the energy function given in (14)

is minimized. It starts with an initial labeling and

moves in every step toward the labeling with a lower

energy until it reaches its minimum. In this context

a new labeling l

new

is said to lie within a single α-

expansion move of l if only a ﬁnite set of pixels have

changed their labels to α, where α ∈ L. For more de-

tails on this approach, see (Boykov et al., 2001).

The main task is now the deﬁnition of appropriate

functions E

(l) , h ∈ [1, ··· ,h

max

] where h denotes the

segmentation level.

As already stated above, all energy functions

in our approach have the same smoothness term

smooth

(l). Here we have used the Potts model (Potts,

1952) as a discontinuity preserving function:

V (α,β) = K · T (α 6= β) (17)

where T (·) is 1 if its argument is true and otherwise 0.

This model encourages partitions consisting of larger,

smoothly shaped regions.

The deﬁnition of the corresponding data terms

data

(l) is given in the next sections.

4.1 First-order Data Term

As stated above, the data term E

data

(l) of an energy

function measures how well the given labeling l ﬁts

the underlying image data. To obtain such an ini-

tial labeling, from which the necessary parameters

can be estimated as well as to derive an appropriate

data term, we applied the fuzzy c-means algorithm

(Bezdek, 1981) to the ratios s

M=1

(p) , p ∈ P deﬁned

in (13), where p denotes the center of the image re-

gion Ω.

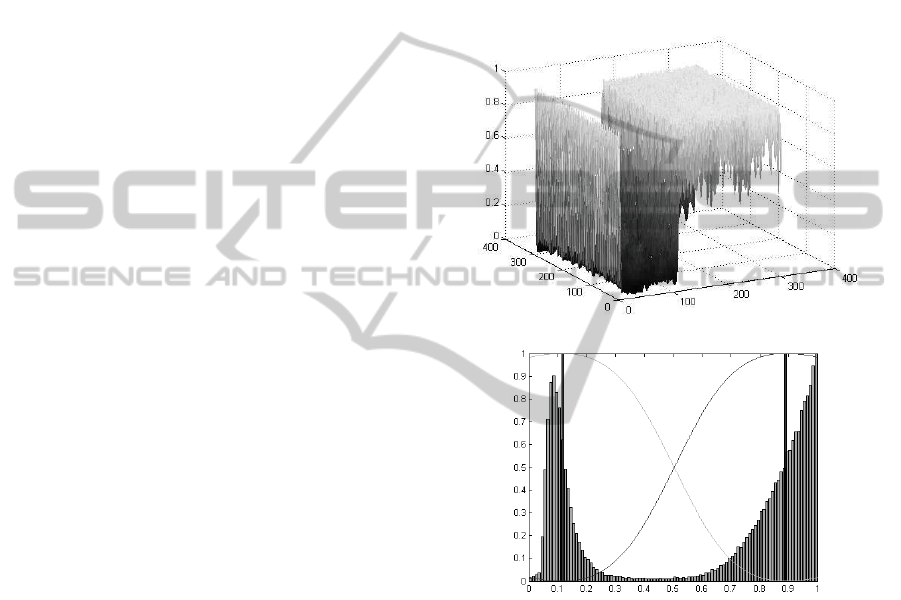

Fig. 3 shows the spatial distribution and the corre-

sponding histogram of the s

M=1

(p) values computed

from the original image shown in Fig. 1 (a).

(a) s

M=1

(p).

(b) Histogram.

Figure 3: Spatial distribution of the ratios s

M=1

(p) , p ∈ P

and the corresponding histogram with cluster centers and

membership functions.

Evidently, large values of s

M=1

(p) indicate a mul-

tiple oriented structure in an image, whereas small

values correspond to image areas with a single ori-

entation. The histogram in Fig. 3(b) reﬂects this situ-

ation by two clearly separable clusters.

Since in this context the order of the labeling set is

|L| = 2, we apply the fuzzy c-means algorithm to sep-

arate the values into two clusters, which correspond to

the labels l

single

and l

multi

, respectively. The results of

this clustering procedure are also shown in Fig. 3(b).

The two black bars correspond to the positions of the

computed centers, while the curves depict the mem-

bership functions µ

single

and µ

multi

of the respective

ORIENTATION-BASED SEGMENTATION OF TEXTURED IMAGES BY ENERGY MINIMIZATION

253

cluster:

single

M=1

(p)) : P → [0,1]

multi

M=1

(p)) : P → [0,1]

(18)

The results of a membership function are numerical

values in [0,1] that correspond to the degrees to which

the pixel p ∈ P belongs to one or the other cluster. A

large value complies with a high degree of afﬁliation

to the corresponding cluster.

We can now deﬁne the data term E

data

(l) of the ﬁrst

energy function to

data

(l) =

∑

p∈P

(1− µ

M=1

(p))) (19)

where

) = (1− µ

M=1

(p))) (20)

measures how well the label l

ﬁts the pixel p. Since

we seek to minimize the overall energy function, a

good ﬁt is represented by a small value.

4.2 Second-order Data Term

The data term E

data

(l) of the second level energy

function is obtained similarly, with the fuzzy c-

means algorithm now being applied to the values

M=2

(p) , p ∈ P, where again p denotes the cen-

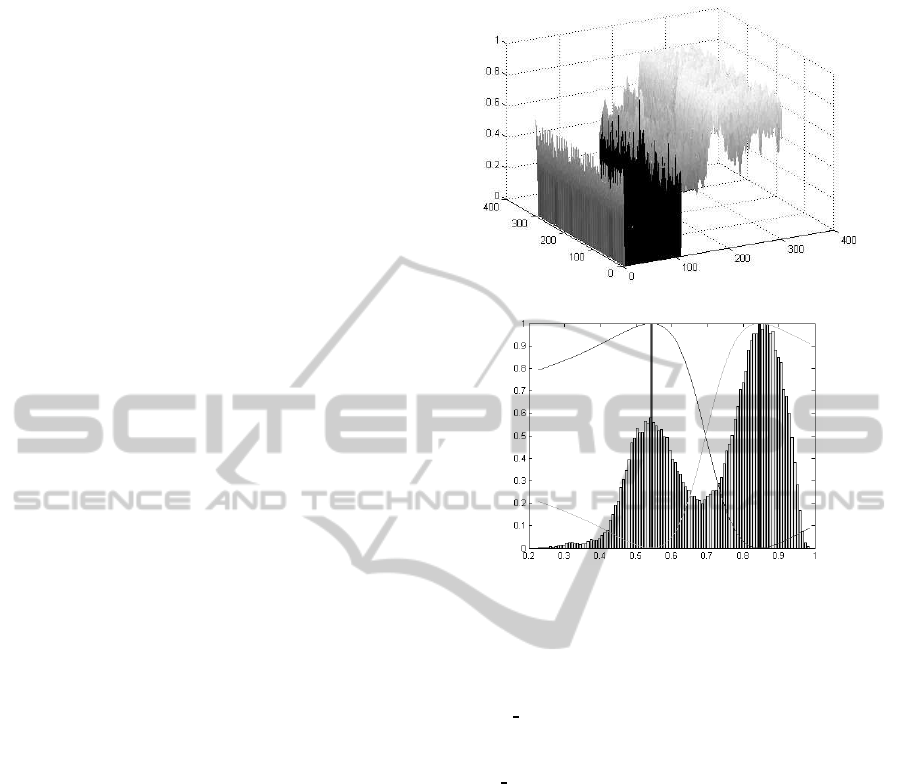

ter of the image region Ω. Fig. 4 shows the spatial

distribution and the corresponding histogram of the

M=2

(p) values computed from the original image

shown in Fig. 1 (a). As one can see, the s

M=2

(p) val-

ues have been computed only for pixels which have

been marked as belonging to the image area of multi-

ple orientations, p ∈ Ω

multi

⊂ P. Pixels of the single

oriented image part, p ∈ Ω

single

⊂ P, have been dis-

regarded in this step. The corresponding histogram

shows that in contrast to the s

M=1

histogram, the two

main clusters are here much closer to each other, hav-

ing their centers around 0.53 and 0.85, respectively.

Application of the fuzzy c-means to these values

results in two clusters and two membership functions

double

and µ

multi

, which in this case correspond to the

labels l

double

and l

multi

, respectively.

To take into acount the neighborhood relation-

ships between the two regions Ω

multi

and Ω

single

, the

energy function E

h=2

(l) is deﬁned over the entire

pixel set P. To leaveΩ

single

unchanged during this and

the following segmentation steps, this region is con-

sidered as being labeled by a ﬁxed label l


, where

the corresponding membership function is deﬁned as:


(p) =



1, p ∈ Ω

single

0, p ∈ Ω

multi



(21)

Additionally, the two membership functions

double

and µ

multi

are modiﬁed according to

(a) s

M=2

(p).

(b) Histogram.

Figure 4: Spatial distribution of the values s

M=2

(p) and the

corresponding histogram with cluster centers and member-

ship functions.

double

mod

(p) =



0 , p ∈ Ω

single

double

M=2

(p)) , p ∈ Ω

multi



multi

mod

(p) =



0 , p ∈ Ω

single

multi

M=2

(p)) , p ∈ Ω

multi



(22)

With these membership functions, the data term

data

(l) of the second level energy function can be

deﬁned similarly to that of the ﬁrst level energy func-

tion. Adding the third ﬁxed label with the above

deﬁned membership function (21) ensures that the

expansion algorithm does not relabel the single ori-

ented region and treats the neighborhood relation-

ships of the two regions Ω

single

and Ω

multi

in the same

manner as inside these regions.

4.3 Higher-order Data Terms

The data term of the higher-order energy function

(l) , h ∈ [3,·· · , h

max

] is deﬁned in analogy to

that of the second order data term. After comput-

ing the membership functions of the two labels

and l

multi

, the support of the ﬁxed label l


extended to cover all regions with an already detected

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

254

number of orientations, with membership function


(p) =



1, p ∈ Ω

h−1

0, p ∈ Ω

multi



where in the case of h = 3 the image region Ω

h−1

a union of the two image regions Ω

single

and Ω

double

Here, Ω

double

denotes the image region which was la-

beled as being double oriented in the previous hierar-

chy level.

The two membership functions µ

and µ

multi

are

also modiﬁed in analogy to (22):

mod

(p) =



0 , p ∈ Ω

h−1

M=h

(p)) , p ∈ Ω

multi



multi

mod

(p) =



0 , p ∈ Ω

h−1

multi

M=h

(p)) , p ∈ Ω

multi



As one can see the ratios s

are also computed de-

pending on the hierarchy level.

5 EXPERIMENTS AND RESULTS

To test the performance and robustness of the de-

scribed algorithm quantitatively and qualitatively, we

applied it to both synthetic and real image data to de-

tect up to three orientations. The regularization pa-

rameter K in (17) was set to K = 1 in all cases. Fig. 5

b) shows the segmentation result for the synthetically

generated image shown in Fig. 5 a).

This synthetic image contains several parts, each

with a different number of superimposed oriented pat-

terns. The structure consists of two additive orien-

tations in each of the two larger rectangles, whereas

in the two smaller rectangles the number of superim-

posed oriented patterns is three. The background of

the image is single-oriented.

Evidently, the algorithm segments the image well

into three different types of regions. The black area

represents the single-oriented image part. The area

in dark gray represents image regions where two dif-

ferent orientations have been detected, and the area

in medium gray corresponds to image regions con-

taining structures with three different orientations.

At the boundary between the double-oriented regions

and the single-oriented background, the algorithm

detects three occludingly superimposed orientations,

also represented by medium gray.

This segmentation result was obtained on the im-

age to which no noise was added. Decreasing the

signal-to-noise ratio (SNR) leads ﬁrst to segmentation

results where the mentioned border region around the

double-oriented image parts starts to vanish. The uni-

formity of the regions is disturbed only when the SNR

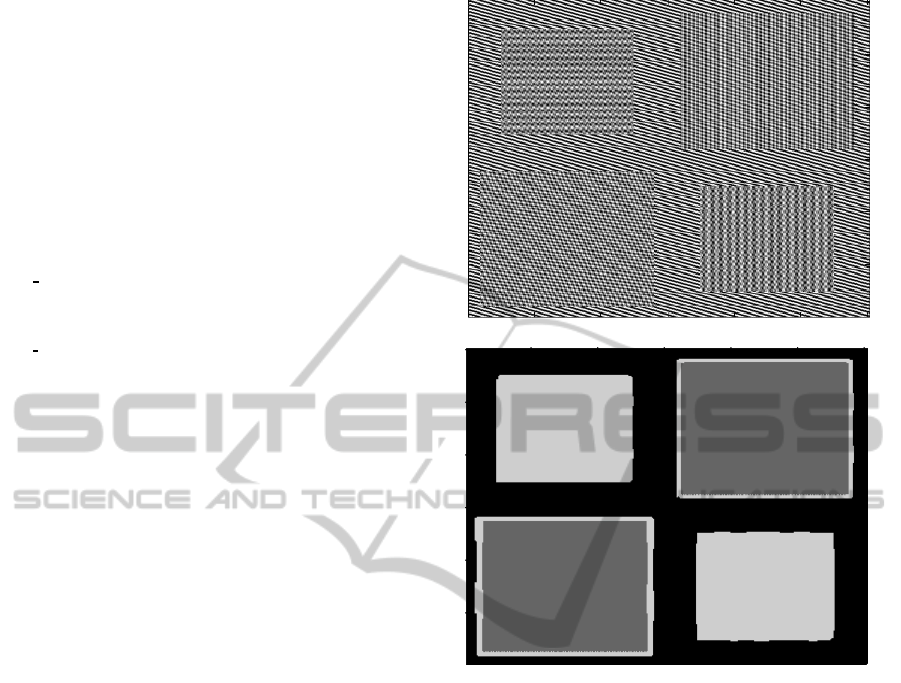

(a) Synthetic image.

(b) Segmentation results.

Figure 5: Segmentation result for the synthetic image with

several multi-oriented regions. No noise was added to the

image.

is as low as SNR = 3dB. Fig. 6 shows the segmen-

tation results obtained by three different approaches

including the one presented in this work.

Evidently, the described approach produces more sta-

ble results than the segmentation procedure based

solely on the comparison of the ratios in (13) with

the predeﬁned thresholds, as a comparison between

Figs. 6 (a) and (b) shows. In Fig. 6 (b), only image

parts with three different orientations were segmented

properly. The rest of the image contains many mis-

classiﬁed regions. The subsequent application of the

expansion algorithm to these data, shown in Fig. 6

(c), could not reach the performance of our approach.

The initial labeling for the expansion algorithm was

in this case obtained by the hierarchical thresholding

algorithm developed in (M¨uhlich and Aach, 2009).

Additionally, Fig. 7 shows the development of

the F-score values (Frakes, 1992) computed from the

segmentation results while decreasing the SNR value

of the original image shown in Fig. 5 (a). The F-

ORIENTATION-BASED SEGMENTATION OF TEXTURED IMAGES BY ENERGY MINIMIZATION

255

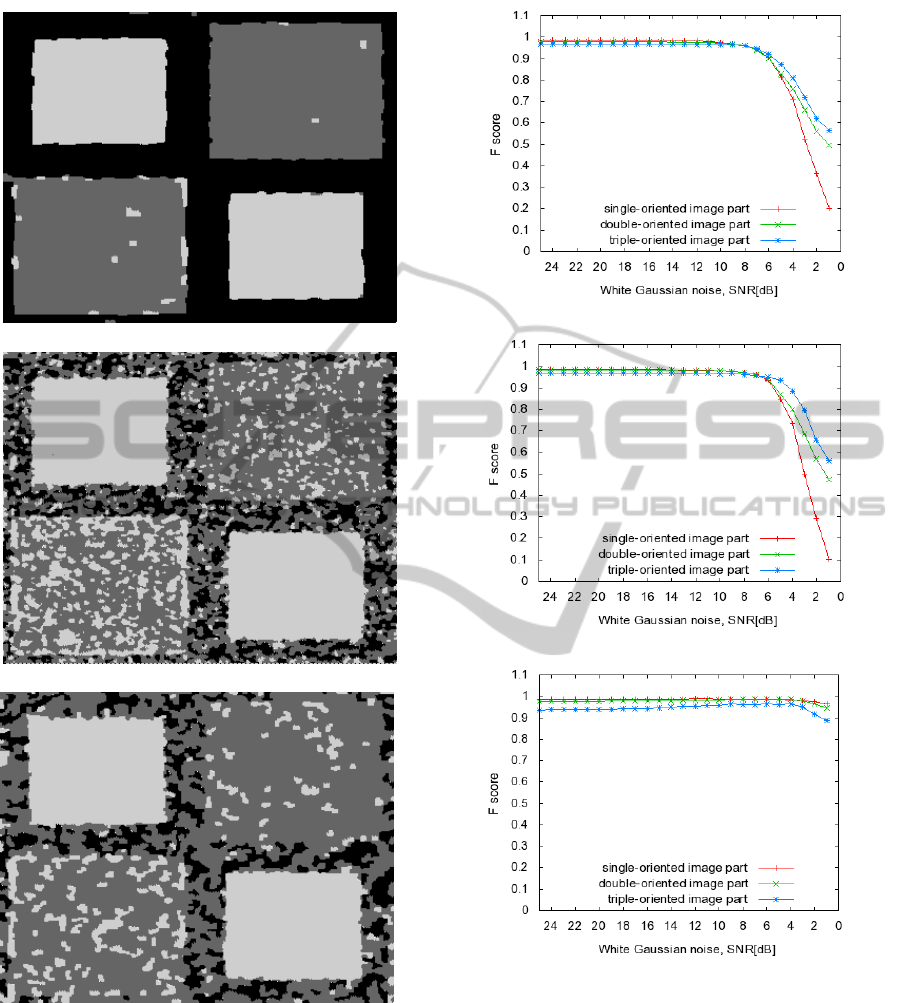

(a) Proposed approach.

(b) (M¨uhlich and Aach, 2009).

Figure 6: Segmentation results for the synthetic image with

added noise (SNR = 3dB).

score is a measure of the segmentation accuracy. It

is computed from precision p and recall r via F =

2 · (pr)/(p + r). Each one of the three plots in Fig.

7 shows three different F-curves corresponding to

the segmentation accuracy of the single-, double- and

triple-oriented image parts, respectively.

(a) (M¨uhlich and Aach, 2009).

(b) (M¨uhlich and Aach, 2009) + GraphCut.

Figure 7: F-score computed from the segmentation results

while decreasing the SNR value of the original image.

Obviously, SNR-values lower than 8 dB result in

a very poor segmentation when using the threshold-

ing procedure in (M¨uhlich and Aach, 2009). Subse-

quent application of a graph cut optimization tech-

nique could not improve these results substantially.

However, the F-score values shown in the third plot

testify that the segmentation results obtained with the

algorithm developed in this paper are signiﬁcantly

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

256

better. Another interesting point is the behavior of

the different F-curves relative to each other. In the

ﬁrst two plots the F-curves corresponding to the sin-

gle oriented image parts decline faster than the other

two curves of the same plot. However, in the third plot

the F-curve correspondingto the triple oriented image

part declines faster, meaning that the segmentation ac-

curacy of the corresponding image regions is getting

worse. The following two facts are responsible for

this behavior. Adding Gaussian noise to the image

tends to lead to higher values of the ratio deﬁned in

(13). Thresholding these values by the same thresh-

old leads therefore to a segmentation with more image

regions which have been assigned a double-oriented

structure. Since we used in our approach an adaptive

fuzzy c-means algorithm for the initial cluster label-

ing, no declining of the red F-curve can be observed

in the third plot. Still, experiments have shown that

the distance between the two clusters varies strongly

depending on which hierarchy level the segmentation

is performed. On the ﬁrst level the distance is rel-

atively large, meaning that the centers lie in [0,0.5]

and [0.5,1] interval, respectively. On the second level,

both cluster centers were in [0.5, 1] interval, which

is the main reason for the poor segmentation of the

higher-order oriented image structures.

We tested our algorithm also on texture images. In

Fig. 8, the original image is composed of three differ-

ent textures. Both the background texture and the tex-

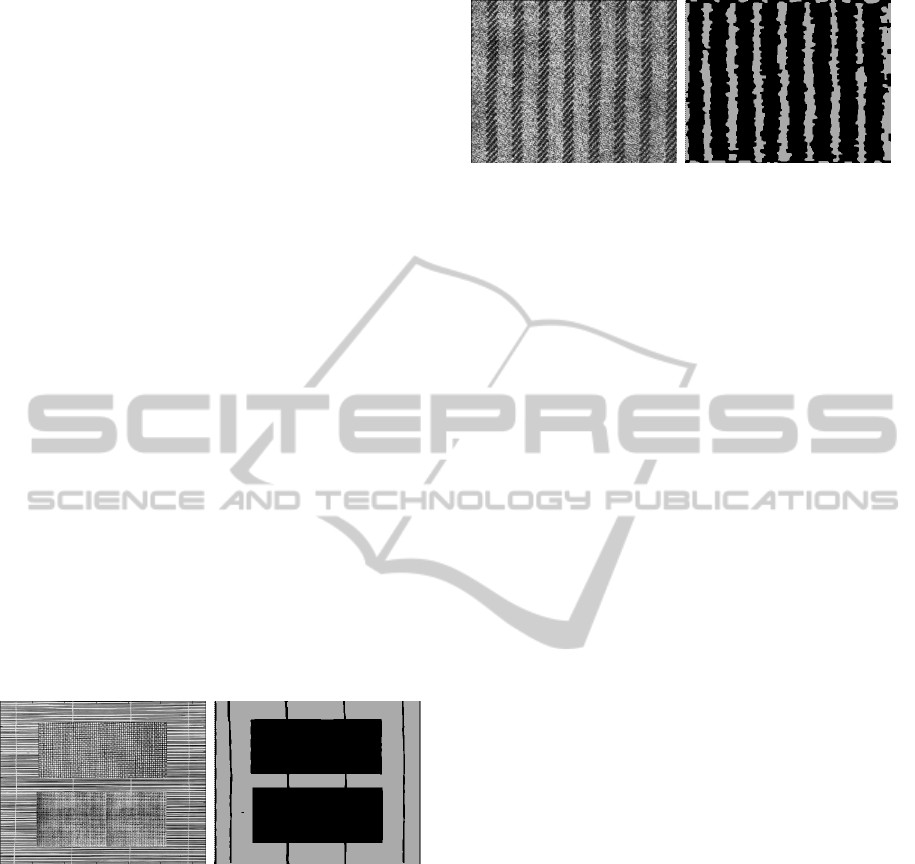

(a) Textured image. (b) Segmentation results.

Figure 8: Segmentation results of the textured image with

several multi-oriented regions.

ture on the lower part of the image were taken from

the Brodatz database. The resulting segmentation is

shown in Fig. 8 (b). It consists of two classes corre-

sponding to single- and multi-oriented image regions,

respectively.

Further results are provided in Fig. 9, where the pro-

posed segmentation approach could robustly separate

single- and multi-oriented regions.

(a) Textured image. (b) Segmentation results.

Figure 9: Segmentation results of the textured image taken

from the Brodatz database.

6 CONCLUSIONS

We have developed a hierarchical segmentation algo-

rithm, which separates an image into different regions

based on the number of superimposed oriented pat-

terns within each region. The algorithm combines

the tensor-based analysis of multiple oriented pat-

terns in (Aach et al., 2006; M¨uhlich and Aach, 2009)

with a Potts region model (Potts, 1952) and energy

minimization via graph cuts (Boykov et al., 2001).

On every level of the hierarchy, the segmentation is

thus achieved through a minimization of the corre-

sponding energy function. The data term of the en-

ergy function evaluates the hypothesis that a given

image part exhibits a particular number of superim-

posed orientations, and employs criteria testing the

rank of the corresponding orientation tensor. The

data term is complemented by a smoothness term de-

rived from the Potts model, which serves as a reg-

ularization term. The smoothness energy acts as a

discontinuity preserving term, encouraging labellings

where adjacent pixels exhibit identical labels except

across region boundaries. The energy functions were

minimized via graph cuts. The algorithm was evalu-

ated quantitatively and qualitatively on both synthetic

and real image data. The quantitative evaluation ver-

iﬁed the robustness of the algorithm against image

noise in signal-to-noise ratios as low as 3dB. Simi-

larly, a strong performance of the algorithm was ob-

served in real image data, such as textures and tex-

ture mosaics from the Brodatz database. In partic-

ular, the occurrence of isolated segmentation errors

could be signiﬁcantly reduced in comparison to the

non-regularized thresholding approaches in (M¨uhlich

and Aach, 2009).

We concentrated here on the segmentation of

single- and multi-oriented textures according to the

number of oriented patterns present in a region. We

therefore did intentionally not consider the orienta-

tions themselves, which are encoded in the eigen-

vectors (particularly in the eigenvector correspond-

ORIENTATION-BASED SEGMENTATION OF TEXTURED IMAGES BY ENERGY MINIMIZATION

257

ing to the lowest eigenvalue of an orientation tensor)

rather than the eigenvalues. Future work is directed

at including explicit orientation information into the

framework, thus allowing to divide a region with a

given number of orientations further according to the

orientation estimates.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge funding of

this work by the Deutsche Forschungsgemeinschaft

(DFG, AA5/3-1).

REFERENCES

Aach, T., Kaup, A., and Mester, R. (1995). On texture anal-

ysis: Local energy transforms versus quadrature ﬁl-

ters. Signal Process, 45:173–181.

Aach, T., Mota, C., Stuke, I., M¨uhlich, M., and Barth,

E. (2006). Analysis of superimposed oriented pat-

terns. IEEE Transactions on Image Processing,

15(12):3690–3700.

Besag, J. (1974). Spatial interaction and the statistical anal-

ysis of lattice systems. Journal Royal Statistical Soci-

ety B, 36(2):192–236.

Besag, J. (1986). On the statistical analysis of dirty pictures.

Journal Royal Statistical Society B, 48(3):259–302.

Bezdek, J. C. (1981). Pattern Recognition with Fuzzy Ob-

jective Function Algorithms (Modern Perspectives in

Energy). Springer Verlag.

Big¨un, J. and Granlund, G. H. (1987). Optimal orientation

detection of linear symmetry. In ICCV87, pages 433

–438.

Big¨un, J., Granlund, G. H., and J.Wiklund (1991). Mul-

tidimensional orientation estimation with applications

to texture analysis and optical ﬂow. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

13(8):775–790.

Boykov, Y., Veksler, O., and Zabih, R. (2001). Fast ap-

proximate energy minimization via graph cuts. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 23(11):1222 – 1239.

Derin, H. and Cole, W. S. (1986). Segmentation of textured

images using Gibbs random ﬁelds. Computer Vision,

Graphics, and Image Processing, 35:72–98.

Felsberg, M. and Granlund, G. H. (2004). Poi detection

using channel clustering and the 2d energy tensor. In

DAGM, pages 103–110. Springer Verlag.

Frakes, W. (1992). Information Retrieval Data Structure &

Algorithms. Prentice-Hall, Inc.

Freeman, W. and Adelson, E. (1991). The design and use of

steerable ﬁlters. IEEE Trans. PAMI, 13(9):891–906.

F¨orstner, W. (1986). A feature based corresponding algo-

rithm for image matching. Intl. Arch. of Photogram-

metry and Remote Sensing, 26:150–166.

Granlund, G. H. and Knutsson, H. (1995). Signal Pro-

cessing for Computer Vision. Dordrecht, The Nether-

lands:Kluwer.

Haralick, R. M. (1983). Decision making in context. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 5(4):417–429.

Jacob, M. and Unser, M. (2004). Design of steerable ﬁlters

for feature detection using Canny-like criteria. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 26(8):1007–1019.

Jain, A. K. and Farrokhnia, F. (1991). Unsupervised tex-

ture segmentation using Gabor ﬁlters. Pattern Recog-

nition, 24(12):1167–1186.

Kass, M. and Witkin, A. (1987). Analyzing oriented pat-

terns. Comput. Vis., Graph., Image Process., 37:362–

385.

Knutsson, H. and Granlund, G. H. (1983). Texture analy-

sis using two-dimensional quadrature ﬁlters. In IEEE

Workshop on Computer Architecure for Pattern Analy-

sis and Image Data Base Management, Pasadena, CA.

K¨othe, U. (2003). Integrated edge and junction detection

with the boundary tensor. In ICCV, volume 1, pages

424–431.

Lategahn, H., Groß, S., Stehle, T., and Aach, T. (2010).

Texture classiﬁcation by modeling joint distributions

of local patterns with gaussian mixtures. IEEE Trans-

actions on Image Processing, 19(6):1548–1557.

Lazebnik, S., Schmid, C., and Ponce, J. (2005). A sparse

texture representation using local afﬁne regions. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 27:1265–1278.

Liu, X. and Wang, D. (2003). Texture classiﬁcation us-

ing spectral histograms. IEEE Transactions on Image

Processing, 12(6):661–670.

M¨uhlich, M. and Aach, T. (2009). Analysis of multiple ori-

entations. IEEE Transactions on Image Processing,

18(7):1424–1437.

M¨uhlich, M., Friedrich, D., and Aach, T. (2012). Design

and implementation of multi-steerable matched ﬁlters.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 34(2):279–291.

Potts, R. (1952). Some generalized order-disorder transfor-

mation. Proc. Cambridge Philosophical Soc., 48:106–

109.

Randen, T. and Husoy, J. H. (1999a). Filtering for texture

classiﬁcation: A comparative study. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

21(4):291–309.

Randen, T. and Husoy, J. H. (1999b). Texture segmentation

using ﬁlters with optimized energy separation. IEEE

Transactions on Image Processing, 8(4):571–582.

Zenzo, S. D. (1986). A note on the gradient of a

multi-image. Comput. Vis., Graph., Image Process.,

33:116–125.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

258
