A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM

Arne Petersen and Reinhard Koch

Multimedia Information Processing, Christian-Albrechts-University, Hermann-Rodewald-Str. 3, D-24118 Kiel, Germany

Keywords:

SLAM, SfM, Stereo, Linear Estimation.

Abstract:

This paper proposes a novel parametrization for probabilistic stereo SLAM algorithms. It is optimized to

fulﬁll the assumption of Gaussian probability distributions for system errors. Moreover it makes full use of the

contraints induced by stereo vision and provides a close to linear observation model. Therefore the position

and orientation are estimated incremetally. The parametrization of landmarks is chosen as the landmarks

projection in the master camera and its disparity to the projection in the slave camera. This way a minimal

parametrization is given, that is predestinated for linear probabilistic estimators.

1 INTRODUCTION

The task of visual Simultaneous Localization And

Mapping (SLAM) is to keep track of the position and

orientation, pose for short, and the environment map

of a vision system. The environment map mostly con-

sists of so called landmarks that represent parts of

the map that can be observed using cameras. Mod-

els for the observations of the environment and for

most SLAM methods the systems motion are used to

estimate this parameters.

After the ﬁrst SLAM systems have been devel-

oped in the mid 1980’s, see (Brooks, 1985) and

(Crowley, 1989), algorithms for SLAM have been

studied intensely, e.g. see (Leonard and Durrant-

Whyte, 1992), (Dissanayake et al., 2001), (Paz et al.,

2008), (

Imre and Berger, 2009). This is due to

its applicability to autonomous navigation and auto-

matic environment ﬁeld mapping. These tasks be-

come increasingly important as automatization using

autonomous vehicles is applied to more and more

areas. This includes airborne and ground (Lemaire

et al., 2007) as well as underwater (Hildebrandt and

Kirchner, 2010) vehicles.

Many solutions to the SLAM problem use the

Kalman Filter (KF) introduced by Kalman in 1960

(Kalman, 1960). This estimator is used due to its low

computational costs despite its drawback in estimat-

ing non linear processes. Thus, the choice of state

parametrization is crucial to keep the ﬁlter state and

reliability (covariance matrix) estimation consistent.

It has to be chosen in a way that allows for close to

linear system models (prediction and observation) and

meets the Gaussian noise assumption made by the KF.

Therefore a new parametrization for the parameters to

be observed by a stereo vision system is introduced,

that uses the stereo correspondences for the respec-

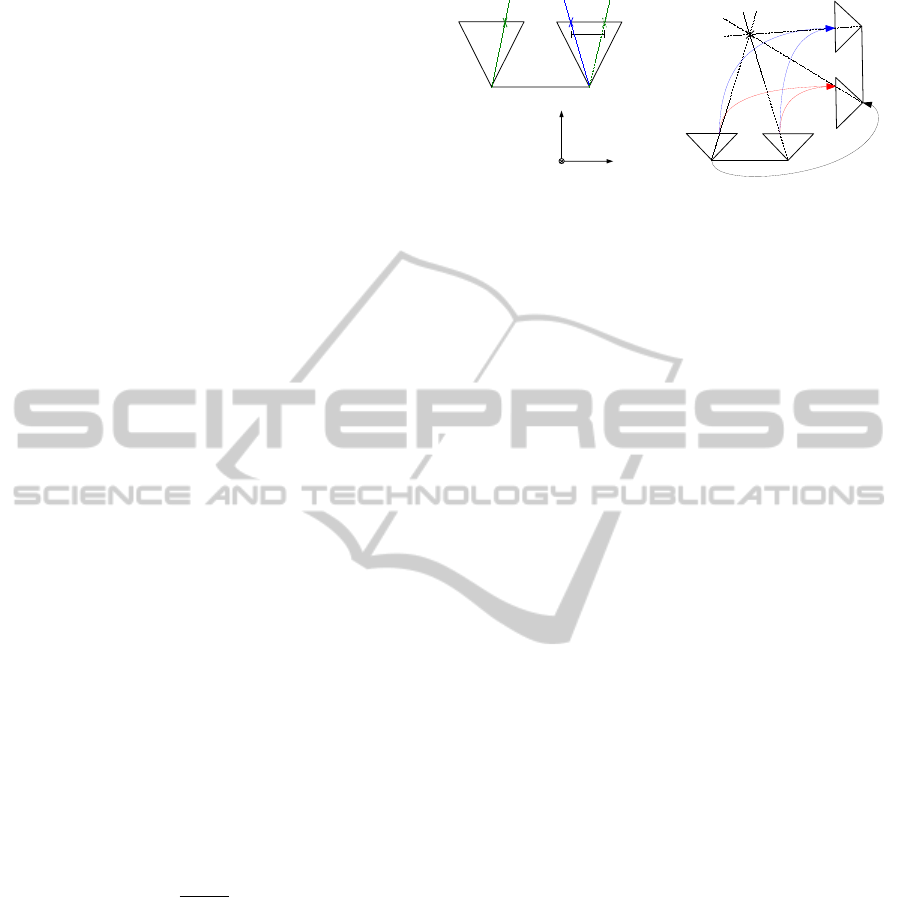

tive landmarks and a local navigation frame. The pro-

jection of the landmark into the left (master) stereo

camera and its disparity to the right (slave) camera

represent its position in 3D space. By this means the

landmarks are described relative to the actual system

pose. For this representation the assumption of zero

mean Gaussian noise for its errors is met. The model

proposed in this article enables linear least squares es-

timators like KFs to determine consistent state and re-

liability information.

Even though stereo camera systems are limited by

the stereo baseline in direct depth measurements, their

use is helpful for many reasons. The limitation due to

the baseline can be reduced by increasing image res-

olution and using models relating stereo images over

time (see sec. 3.2). Moreover monocular reconstruc-

tions have the drawback of a global scale ambiguity,

see (Hartley and Zisserman, 2003). This ambiguity

also causes a drift in the scale due to error accumula-

tion. Since the reconstruction using stereo is metric,

sensors like accelerometers can be incorporated with-

out estimating the reconstruction scale.

Beside synthetic test experiments are made us-

ing a dataset provided by the Rawseeds Project

(www.rawseeds.org, see (Ceriani et al., 2009) and

(Bonarini et al., 2006)). It delivers the sensor data

(stereo camera images and IMU data) from a wheel

driven robot system navigating in a plane. Moreover

ground truth information is available for the whole

144

Petersen A. and Koch R..

A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM.

DOI: 10.5220/0003844601440153

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 144-153

ISBN: 978-989-8565-04-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

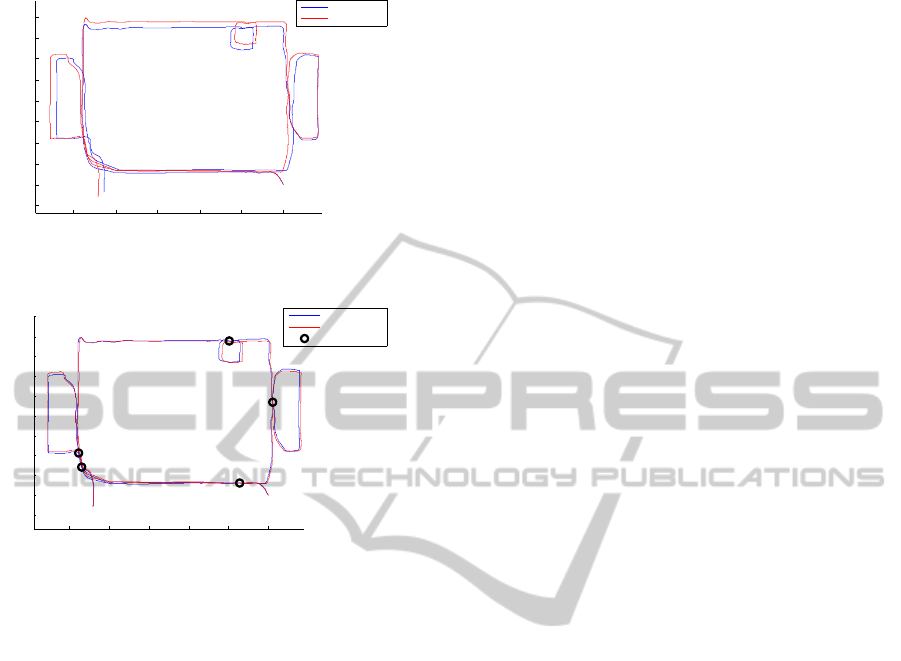

covered trajectory. This way the pose estimation

along with its consistency to the estimated covari-

ance can be veriﬁed. As will be shown, the proposed

method is able to reliably estimate both entities con-

sistently even for large datasets.

Following this introduction previous work in the

ﬁeld visual SLAM is presented and some prerequi-

sites are given. After the description of the used mod-

els an comparison with state of the art methods is

done and some experiments are discussed.

2 PREVIOUS WORK

Various kinds of estimators have been designed to

solve the task of SLAM. These range from direct esti-

mation of quadrifocal tensors (Hildebrandt and Kirch-

ner, 2010) and particle ﬁlters (

Imre and Berger, 2009)

to extended Kalman Filters (Schleicher et al., 2007).

Nevertheless the most commonly used estimators are

based on the famous KF. This is due to the fact that

SLAM usually requires real time performance and the

simple integration of multiple sensors, allowing for

compensating the errors induced by the different sen-

sors types. The ability to not only estimate the system

state but also information on the estimations reliabil-

ity is another reason for its popularity.

As stated the KF is error-prone when non linear

models are used. Because of this the use of more ad-

vanced versions of the KF have been studied. The

advantages and drawbacks of these ﬁlters have been

analyzed in (Lefebvre et al., 2004). Their applica-

tions to SLAM include beside others the unscented

Kalman Filter (S

underhauf et al., 2007) as well as it-

erated sigma point Kalman Filters (Song et al., 2011).

Such approaches try to overcome the drawbacks of

non linear models by using estimators more robust in

such cases. Thus the non linearities themselves are

not eliminated but more complex algorithms are used.

This results in increased computational costs and thus

less applicability to real time demands.

Apart from the used estimators the solutions to the

SLAM problem differ in the representation of land-

marks. For visual SLAM the so called Inverse Depth

(ID) representation is used mostly, e.g. see (Civera

et al., 2008),(S

underhauf et al., 2007). There a land-

mark is represented by the position of the camera

from where the point was observed ﬁrst, the direction

to the 3D point and its inverse distance to the cam-

era center. A drawback of this parametrization is, that

is uses a 6 dimensional representation. Since a land-

mark (point in 3D-space) only has 3 degrees of free-

dom (DOF), it is over parametrized. Thus, ambigui-

ties in the estimation can arise, since points initialized

from the same camera end up with different camera

positions. (Civera et al., 2008) have shown, that in ID

the error propagation for depth is linear under certain

assumptions. Nevertheless the models include inverse

tangent and normalization functions resulting in non

linearities not analyzed by Civera et al..

Since the ID parametrization for landmarks suf-

fers from inconsistent covariance estimation for short

distances, (Paz et al., 2008) discuss a combination

of representations. For their stereo SLAM system

they partition landmarks in far away and nearby

landmarks. For far points ID is used, and the 3D

Euclidean Space (ES) for nearby points. This im-

proves the estimation of landmarks and the system

pose, but as can be seen in their evaluation, the

parametrization still has problems covering the true

error distribution for reconstructed 3D points.

Due to the above mentioned beneﬁts provided by

stereo camera systems, many stereo SLAM systems

have been developed, see (Paz et al., 2008), (Hilde-

brandt and Kirchner, 2010), (Schleicher et al., 2007).

The latter propose a system solely based on wide an-

gle stereo cameras and a two stage algorithm. They

create small local maps and detect close loops us-

ing SIFT-ﬁngerprints. In (Hildebrandt and Kirchner,

2010) a system is discussed, that uses an IMU aided

estimation of the quadrifocal tensor.

In (Sol

a et al., 2007) the authors claim, that us-

ing two independent cameras outperforms stereo rigs.

In fact, they propose a combination of monocular and

stereo vision resulting in improved estimation. Since

this is a combination of both models, this approach

can be used to fuse most monocular and stereo mod-

els. In (Herath et al., 2006) a representation similar to

the one presented here, has been proposed for obser-

vation models. In contrast to our work they do not use

this for modeling landmarks in the SLAM system. It

was shown, that such observation models undergo a

Gaussian noise assumption.

Our Contribution. The main contribution of this

paper is to introduce a novel parametrization for land-

marks optimized for stereo SLAM algorithms using

image Points and Disparities (PD). This parametriza-

tion allows a minimal representation of a 3D land-

mark, that is, 3 parameters are used for the 3 DOF.

On the one hand this parametrization outperforms the

one in Euclidean 3-space by matching the Gaussian

noise distribution much better. On the other hand

compared to inverse depth it reduces the number of

variables to be estimated from 6 to 3 per landmark.

Moreover the resulting observation model is kept sim-

ple and the landmarks can be initialized accurately in

position and uncertainty.

A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM

145

Because of the reduced parameter size and the sim-

ple observation model compared to inverse depth the

computational costs are decreased for SLAM sys-

tems. Thanks to the new model the equations used

for estimation can be accurately linearized using their

analytical derivatives. This again reduces the com-

putational effort. As will be shown, the proposed

parametrization is capable of improving the estimated

poses covariance matrix. Thus, in contrast to ID

parametrization the computed global position and ori-

entation are consistent with the estimated variances.

Hence, the proposed parametrization outperforms the

ID by improving consistency and computational ef-

fort.

3 PREREQUISITES

In this section the notation used throughout this paper

is introduced and some prerequisites needed for the

proposed algorithms are given.

3.1 Iterated Kalman Filters

The description of the iterated extended KF (IEKF)

used in this paper is based on the EKF in (Welch and

Bishop, 2006). Since a detailed description of the KF

is out of the scope of this paper we refer to them. For

simplicity the notation introduced there will be used

to augment the proposed extended KF by iterative lin-

earization. Since the prediction is done as in the EKF

only the update step is described here.

An additional index is introduced to the Jacobian

of the used measurement models, denoted as h.

(ν)

refers to the ν

iteration step and the respective

state estimation p

(ν)

, that is:

(ν)

∂h(p)

∂p



p=p

(ν)

(1)

Let l

the observation for the k

time step and P

its

covariance matrix. Using the state prior as iteration

start p

(0)

and the respective covariance matrix P

−

the

iteration is deﬁned by:

(ν)

= p

(0)

+ K

(ν−1)

·z

(ν−1)

(2)

(ν)

= P

−

(ν)



(ν)

−

(ν)

+ P



−1

(3)

(ν)

= l

− h



(ν)



− H

(ν)



(0)

− p

(ν)



(4)

The iteration process is continued until ν reaches

a certain maximum or



(ν)

−p

(ν−1)



falls beneath a

R,t

T(m,s,s')

T(m,s,m')

Figure 1: Hardware setup: master and slave camera (m, s)

and transformed system (m

, s

). TFT T and transformation

R,t.

given threshold. The covariance matrix P

for the

ﬁnally estimated state is afterwards computed by:



I − K

(ν)



−

(5)

This equation can be derived directly using the deriva-

tion for the Gauß-Markov-Models and the Kalman

Filter in (McGlone et al., 2004), chapter 2.2.4. Using

this update equations the error incorporated by non

linear observation models can be minimized. How-

ever, this applies only to models where all non lin-

earities of the system are observed at the same time.

In this case the IEKF outperforms even the unscented

or sigma point Kalman Filters (see (Lefebvre et al.,

2004) for details).

3.2 Stereo Vision and Trifocal Tensor

The stereo camera system is made up of 2 cameras,

the master camera m and the slave camera s, differing

only in a translation t

= (

b 0 0

)

with baseline b.

Projecting a 3D point X into both cameras, 2 points

in the respective image planes result x

and x

. Using

x(i) to refer to the i

component of x the disparity is

d = x

(1)−x

(1). Since b > 0 and all observed points

are in front of the cameras, d > 0 holds for perfect

correspondences x

and x

. In projective geometry

d = 0 holds for points at inﬁnity. These entities and

the used coordinate system are visualized in ﬁgure 1.

Let P

, P

and P

the projections for 3 different

cameras. Projecting a 3D-point X into the image

planes of the 3 cameras results in corresponding 2D-

points x

, x

and x

. The TriFocal Tensor (TFT, see

(Hartley and Zisserman, 2003)) T can be used to map

2 corresponding points to the third in the respective

camera, that is:

T (P

, P

, x

) = x

(6)

for all permutations of i, j, k, see ﬁgure 1. This is es-

pecially useful when dealing with stereo camera sys-

tems. It can be used for estimation of transformations

between stereo rigs without triangulation of X . When

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

146

the system m,s is transformed to m

the two TFTs

can be computed. Since the transformations m → s

and m

→ s

are known, only one transformation con-

strained by both TFTs has to be estimated.

4 SLAM USING PD

Since the task of SLAM integrates map building, the

landmarks have to be modeled as parameters for es-

timation. As stated in section 2 mainly two repre-

sentations of 3-space points are used. The most sim-

ple uses the 3 parameters of Euclidean 3-space (ES)

and the other one is ID, having 6 DOF. The former

uses a minimal set of parameters but hardly fulﬁlls

the assumption of Gaussian noise. The latter is over

parametrized but has proven to ﬁt a normal distribu-

tion for its depth errors under certain assumptions. A

drawback for ID is the non linearity caused by using

spherical coordinates for ray parametrization.

4.1 PD Parametrization

The landmark parametrization proposed in this paper

uses a minimal set of parameters, relates the image

measurements to the system state nearly linear and

undergoes a Gaussian error distribution.

The state to be estimated includes the systems

pose as well as its landmarks. Therefore a represen-

tation for landmarks and poses has to be used, well

suited to the needs of linear estimators.

The PD (point-disparity) representation proposed

in this article codes a position in 3-space as its projec-

tion to the stereo system. Since the stereo calibration

is assumed to be known, the projection to the mas-

ter camera x

and its 1-dimensional displacement d

to the projection to the slave camera (see ﬁgure 1) is

sufﬁcient. This results in a representation



m,k



(7)

using 3 DOF, which is minimal for a point in 3-space.

Here the index k is needed since the representation is

relative to the actual pose and thus, dependent on the

time step k.

The parametrization used for estimation of the

pose π

consists of the 3-space position increment

of the master camera and the orientation incre-

ment ∆φ

in Euler angles relative to the last estimated

pose. Thus, the pose describes the transformation be-

tween the past and actual pose in the global coordi-

nate frame. For the ES and ID estimation the pose

is given relative to the global coordinate system de-

ﬁned by the initial camera pose. Thus, for N land-

marks X

, . . . , X

in the respective representation ES,

ID and PD the parameter vector to be estimated is:













(8)

For the representation in ES both parts are inde-

pendently represented in the same global reference

system. By this, the observation model relates the ob-

servations to the landmarks and the actual global pose

directly. For the ID the poses of past time-steps are

used to represent landmarks. Thus, the observations

relate to landmarks, the actual and the past poses. The

PD representation relates the observations to the dif-

ference of the actual and the past pose as well as the

landmarks. Comparing this relations, the estimation

using ES and PD representations includes parameters

of actual poses only, leaving the estimation steps in-

dependent over time. For the ID representation actual

and past poses are estimated. Moreover, in PD each

estimation step relates only the actual and last pose.

That is, it is incremental and correlations in time (i.e.

drift) don’t contradict the unbiasedness of KF models.

4.2 Observation Model

In the following the time index k is omitted for better

readability. For observing the PD landmarks, stereo

correspondences are used. That is a landmark X

mapped to 2 image points y

in the master camera and

in the slave camera respectively. The landmark de-

scribes the respective stereo correspondence relative

to the previously estimated pose. Using the trifocal

tensor, y

and y

can be predicted using the initial es-

timate p

, possibly including a guess for the systems

movement as in KF prediction. This is implemented

in the measurement models h

and h

. Thus, the ob-

servations and the measurement model are:

l =





and h (p) =





π, X





π, X





(9)

Let R the rotation matrix for the differential orien-

tation ∆φ. Further let R

be the rotation matrix cor-

responding to the global orientation (integrated over

all preceding R) for the initial parameters guess p

Using this notation the landmarks projection can be

predicted in homogeneous coordinates via the TFT,

see (Hartley and Zisserman, 2003):

= R





− d



(10)

for the master camera. The disparity is predicted us-

ing b·d



(3)



−1

. Thus, the prediction for the cor-

A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM

147

respondence i ends up with:

(p) =

(3)



(1)

(2)



(11)

and

(p) =

(3)



(1) − b·d

(2)



(12)

Note that this model and the landmark

parametrization allow disparities of 0. This way, the

proposed models can be easily extended to include

points at inﬁnity to improve orientation estimation.

The simplicity of this observation model enables

the determination of its analytical derivatives. Thus,

a precise linearization can be done and there is no

need for a time consuming numerical computation

of the Jacobians required for linear estimation.

Compared to the models used for projecting points

represented in ID (see (Civera et al., 2008)) this is an

advancement. For them the computation of the view

ray b (

(1) x

(2) 1

)

is replaced by a conversion from

spherical to Euclidean coordinates.

4.3 Initialization and Estimation

When a landmark is observed ﬁrst as y

and y

, it has

to be incorporated into the system state. For the PD

representation this can be achieved by:

(1) = y

(1) d = y

(1) − y

(1)

(2) =

(2) + y

(2))

In contrast to the initialization of ID-landmarks (con-

version from Euclidean to spherical coordinates and

depth determination by vector norm) this is strictly

linear, so that the assumed measurement noise can

be directly propagated to the landmarks covariance.

As for most pose estimators the systems initial posi-

tion and orientation are used as the world coordinate

frame.

To estimate the pose for time k the IEKF from sec-

tion 3.1 is applied using the given observation model.

After the actual pose has been estimated, the pose and

landmarks have to be transferred to the new camera

body frame. Therefore the landmarks are mapped to

the new camera view using the same model as for

the observation. That is, the projections to the new

master camera and the respective disparities are pre-

dicted. Afterwards the position and orientation incre-

ments are added to the global pose and set to 0. Ac-

cording to this, the parameters covariance matrix is

computed using linear error propagation.

The global poses are computed by integrating the

position and orientation increments estimated over

time. This also applies to the estimated covariances.

This way the estimated entities correspond to a ran-

dom walk process. By this, the standard deviation

bounds the global poses even though a drift is incor-

porated. Another advantage of this incremental esti-

mation is, that loop closes, applied to sub tracks of the

estimated trajectory, directly effect new poses. Build-

ing the integral over the state sequence also updates

subsequent poses. Thus, partial adjustments improve

the complete trajectory estimation.

The global landmarks are computed using their lo-

cal representation and the global poses. For each view

a 3-space point is created and these are averaged over

all views. Since their representation is as seen from

the respective pose, this can be done incrementally.

This way the information on this landmark from all

views is exploited. For advanced landmark model-

ing particle casts can be performed to create empirical

probability distributions for all landmarks and views.

Therefore the estimated covariance matrices for the

landmarks and poses can be used to generate the re-

spective particle cloud.

5 PERFORMANCE ANALYSIS

In this section analysis and comparison of the pro-

posed and state of the art methods are carried out.

Therefore the landmarks parametrizations for ES, ID

and PD and the estimations qualities are compared.

For the evaluation of landmark initialization two

different tests have been performed. At ﬁrst the land-

marks represented in ES, ID and PD respectively are

generated using a particle cast from stereo correspon-

dences. Therefore, the ground truth correspondences

are disturbed by Gaussian noise. The resulting pa-

rameter clouds represent the parametrizations empir-

ical probability distributions, when initialized using

stereo features. Thereby the assumption of Gaussian

noise for the respective representation can be vali-

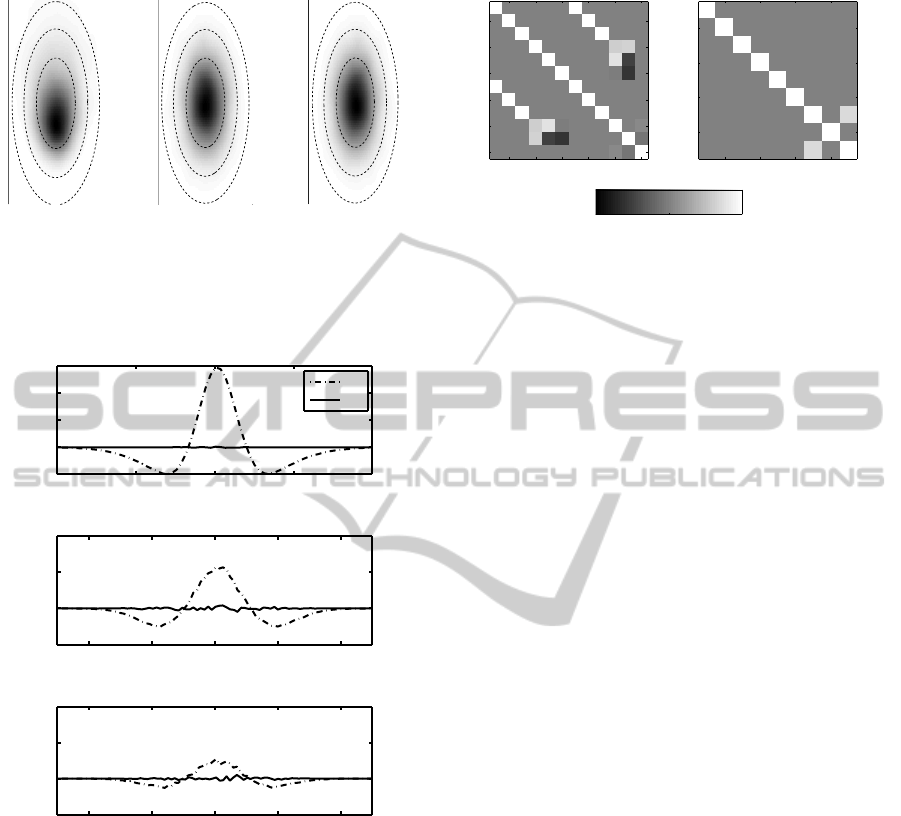

dated when used for stereo vision systems. In ﬁg-

ure 2 the accordant distributions are visualized. As

can be seen, the ID and PD undergo a Gaussian error

distribution. In contrast, ES obviously violates this

assumption for large distances. For close landmarks

all three parametrizations ﬁt the Gaussian noise quite

well.

For the second test of initialization an ID and a PD

landmark are generated from a perfect stereo corre-

spondence using the given initialization methods. Af-

terwards noise with covariance C

is added to the

stereo correspondences and a 3-space cloud is gen-

erated via particle cast. Following this, covariances

and C

are computed from C

using the Ja-

cobians of the initialization functions. Normal dis-

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

148

−0.5 0 0.5

ES YZ

−0.01 0 0.01

0.005

0.01

0.015

0.02

0.025

ID: β/ID

−0.01 0 0.01

0.01

0.02

0.03

0.04

0.05

PD Y/Disp

Figure 2: Empirical probability distributions and propa-

gated covariance ellipses in parameter space. Units, ES:

baselines ID: radiants,fractions of baselines PD: normalized

pixels.

−0.02 −0.01 0 0.01 0.02

−5

x 10

−3

distance 100 baselines

−0.02 −0.01 0 0.01 0.02

−5

x 10

−3

distance 5 baselines

−0.04 −0.02 0 0.02 0.04

−0.02

0.02

0.04

0.06

distance 1 baseline

Figure 3: Difference between empirical and ground truth

probability distributions for reprojection with different

point-camera distances. X-axis marks normalized pixel co-

ordinates and y-axis the error of probability ε

tributed noise is added to the ground truth landmarks

in ID/PD domain according to C

and C

. Finally

the 3-space, ID-space and PD-space clouds are re-

projected into the image and their distributions are

compared. As in the former evaluation the distribu-

tion generated by stereo correspondences is used as

ground truth for validation. As can be seen in ﬁgure

3, the deviation between the true error distribution and

the one for ID is much higher compared to the one

of PD, which is negligible. Moreover, it increases

strongly with decreasing point-camera distance. A

Correlation matrix ID

2 4 6 8 10 12

Correlation matrix PD

2 4 6 8

−1 0 1

Figure 4: Initial ID/PD correlation matrices for pose and a

single landmark. Left ID: component 1-6 pose, 7-12 land-

mark (7-9 pos., 10-12 ray/idepth). Right PD: 1-6 pose, 7-9

landmark (7,8 master pixel, 9 disparity).

similar effect was observed by (Paz et al., 2008) for

the reconstruction of 3-space points from ID. This is

due to the violation of the assumption made in (Civera

et al., 2008), that the view angle between the ﬁrst ob-

servations (i.e. initial and second) of the ID feature

have to be small. From this it can be concluded, that

the measurement model for PD yields a more consis-

tent update prediction, i.e. in case of close features.

A drawback of the ID parametrization is that the

poses position is used as the landmarks reference po-

sition. This way a correlation equaling 1 is intro-

duced (see ﬁgure 4, components 1-3 and 7-9 respec-

tively). Because of this the systems covariance ma-

trix is singular after initialization. This remains when

no prediction noise is added for subsequent estima-

tions. Moreover the covariance will be closer to sin-

gular the less noise is added. On the one hand, this

leaves the ID unapplicable for general least squares

estimators and according statistical analysis, as are

described in (Petersen and Koch, 2010). On the other

hand, the matrix might loose positive semideﬁnite-

ness (required for covariance matrices) due to numer-

ical issues. Because the PD landmarks initialization

is uncorrelated with the system pose, no 1 : 1 correla-

tions occur.

To verify the consistency and quality of pose esti-

mation, different trajectories have been estimated us-

ing synthetical data. Therefore position and orien-

tation increments are generated and summed up to

global poses. For every trajectory step an estimation

was performed. For the pose prediction the ground

truth increments were used disturbed with Gaussian

noise according to the assumed prediction uncertainty

(prediction of P

−

in equation 5). When initializ-

ing landmarks from stereo correspondences dispari-

ties/depths smaller zero might occur (points behind

camera). This can be circumvented by omiting points

with disparity smaller three times the observations

A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM

149

Table 1: RMS, absolute error (baselines/deg.) and [1, 2, 3] σ inliers in %. Averaged over 100 randomly generated trajectories

with 1000 estimations each. Avg. landmarks 35, translation 3.5 baselines, orientation change 14.5 degrees per time step.

Stdev prediction noise 0.7 baselines, 3 degrees. Stdev observation noise 0.005 normalized pixels (∼ 3 px for 500

px images).

position orientation

RMSE mean 1σ [%] 2σ [%] 3σ [%] RMSE mean 1σ [%] 2σ [%] 3σ [%]

x 1.49 1.18 4.8 8.5 12 1.6 1.26 6.25 11.5 16.6

ES y 1.28 1.02 5.7 10.6 14.8 1.64 1.29 6.17 11.4 16.4

z 1.54 1.23 5.1 9.1 12.7 1.6 1.24 6.93 12.6 18

x 0.88 0.71 37.2 65.3 82.9 0.9 0.72 23.6 43.6 58.8

ID y 0.9 0.72 37.2 65.5 82 0.93 0.74 22.1 41.4 56.8

z 0.94 0.76 39.2 66.2 82.3 0.93 0.75 19.3 36.2 49.7

x 1.13 0.9 62.4 88.9 97 1.2 0.94 83.5 99.3 ∼100

PD y 1.06 0.84 65.2 91.2 98.1 1.25 0.99 82.1 99.3 ∼100

z 1.27 1.02 58.7 86.8 96.1 1.2 0.94 85.6 99.5 ∼100

pixel noise. This is done to keep the analysis compa-

rable for all systems. For error evaluation, the results

have been averaged over 100 test runs.

As can be seen in table 1 the root mean

square (RMSE) and mean absolute error for PD is

slightly increased compared to ID. In contrast, the

ES parametrization obviously suffers from imprecise

landmark estimation for long term applications. An-

other advantage of ID and PD estimation compared to

ES is, that they are much less biased. This was con-

cluded from the fact, that estimating a trajectory par-

allel to a planar point cloud results in a strong bias

along the direction to the cloud for ES. The same

results apply for the RMSE and mean error of land-

marks after the ﬁnal estimation. As stated in section

4.3, the PD landmarks estimation is thought to be av-

eraged over time using particle casts. In this case the

error can be reduced by 66% compared to ID at the

cost of increased computational effort.

In table 1 the inliers for the 1,2 and 3 σ-conﬁdence

interval are listed. An inlier is deﬁned by being inside

a given conﬁdence interval. That is, for the 1σ, 2σ and

3σ conﬁdence area the expected percentage of inliers

is 69%, 95% and >99% respectively. As can be seen,

the ES and ID estimation are inconsistent. In con-

trast to this, the PD estimation stays consistent for the

orientation even for long term runs, in this case 1000

estimations. The PDs position variance is improved

considerably but still shows small inconsistencies of

a few percent. This is due to the time correlations

of position increments being much higher compared

to orientation. To compensate this, the consistency

method for joint covariances discussed in (Uhlmann,

2003) can be applied by multiplying the cumulative

covariance sum for positions with a factor of 2. This

improves the result as shown in table 2. Note that this

method is applied to the incremental sum of global

positions covariances only and does not effect the es-

Table 2: [1, 2, 3] σ inliers in % for PD position estima-

tion, with (wJC) and without (woJC) joint covariance con-

sistency.

1σ [%] 2σ [%] 3σ [%]

woJC wJC woJC wJC woJC wJC

62.4 77.8 88.9 96.3 97 99.2

65.2 77.6 91.2 95.7 98.1 98.6

58.7 78.4 86.8 96.4 96.1 99.2

timation process in any way.

In ﬁgure 5 the estimation errors and the estimated

uncertainty regions for an exemplary trajectory are vi-

sualized. The uncertainty regions are deﬁned by the

95% conﬁdence interval. As can be seen the error for

the estimated position using PD bounds the true tra-

jectory error. In contrast the ID becomes inconsistent

with increasing time. The ES estimation is highly in-

consistent, even after a few estimations.

Using an average of 35 landmarks the average run-

time is 53.8[ms], 87.5[ms] and 69.8[ms] per estima-

tion for ES, ID and PD respectively. The tests were

carried out on a desktop pc (Intel(R) Core(TM) i7

@ 2.67GHz) using a interpreter simulation software

(MathWorks MatLab(R)) without exploiting sparse

matrix structures. That is, the computational effort

for all estimators can be reduced signiﬁcantly by us-

ing efﬁcient programming and sparse matrices.

6 EXPERIMENTS

In this section some experiments performed on the

dataset provided by the Rawseeds Project (see sec. 1)

are presented. The complete dataset includes 26000

images. For this evaluation only a subset is used con-

taining 14200 images and a traveled distance of 376

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

150

200 400 600 800 1000

estimation step

[bl]

200 400 600 800 1000

estimation step

[bl]

200 400 600 800 1000

estimation step

[bl]

ES pos. error

ES 2σ bound

ID pos. error

ID 2σ bound

PD pos. error

PD 2σ bound

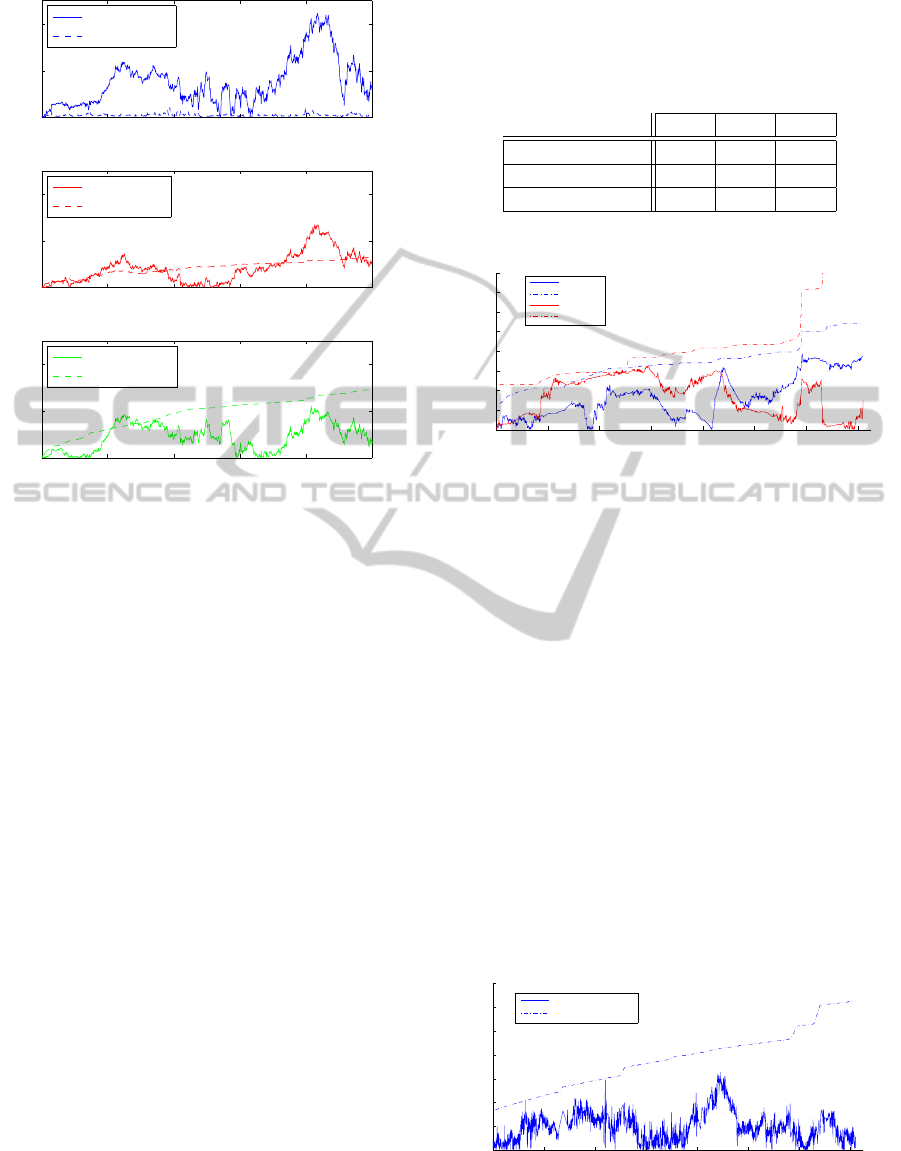

Figure 5: Estimation error ε

for x-position in baselines and

2σ bounds for ES, ID and PD respectively.

meters. Ground truth information is available only for

the movement in the X/Z-plane and the systems head-

ing. Thus, only a 3 DOF pose is estimated here. In

addition to the pose parameters the systems velocity

is included in the estimation to model system motion.

Data provided by a low cost IMU is used for predict-

ing the velocity and orientation.

In contrast to section 5 only points with dispari-

ties ≤ 0 are rejected. If such disparities occur during

state updates, the respective point is excluded from

the state and the iteration process is continued. This

has proven to be a feasible exception handling and

during all tests the estimators convergence was not ef-

fected. Moreover, because the uncertainty of dispar-

ities rapidly decreases due to camera translation and

stereo constraints this has to be applied very seldom

(about 30 times for 14200 estimation steps).

For the global poses standard deviations the

square root of summed variances of the incremental

poses are used (see sec. 4.3). The absolute trajectory

errors and their estimated standard deviations are vi-

sualized in ﬁgures 6 and 7 respectively. Table 3 lists

the standard deviations and means of these errors. In

addition the tables ﬁrst row shows the means of the

standard deviations estimated by the KF.

As can be seen the position and orientation esti-

mates are consistent with the estimated covariance.

Moreover the estimation is informative, that is, the

standard deviations are not estimated as too large.

Table 3: First and second row: means of standard devia-

tions for trajectory error in x- and z-position ε

,ε

in [m] and

heading ε

in [deg], estimated using our method and com-

puted empirically from trajectory error. Third row: mean of

absolute errors.

kε

k kε

estimated std. 0.56 0.75 1.65

empirical std. 0.52 0.48 0.74

mean abs. error 0.79 0.81 1.26

0 2000 4000 6000 8000 10000 12000 14000

0.5

1.5

2.5

3.5

abs. position error

frame number

meters

error X

3σ range

error Z

3σ range

Figure 6: Absolute position error and 3σ range without ad-

justment.

The trajectory starts with a heading of 0 (z-axis di-

rection) and no movement for some frames. Thus,

the uncertainty of the velocity only effects the posi-

tions z-component so its variance is higher than in

x-direction. The same effect can be observed at im-

age index 12000. Here the system stops in front of

a white wall, thus, no visual features are present for

some frames.

The global trajectory estimate is visualized in ﬁg-

ure 8. The trajectory estimate shows the reliabil-

ity of pose estimation even without adjustment. This

proves, that an automatic detection of closed loops

could be applied by matching key frames for close-

by positions estimates. In ﬁgure 9 an adjusted esti-

mation is shown, using hand selected key points and

a constraint to poses only. That is, no bundle adjust-

ment was performed, but the poses increments inside

a loop are constrained to sum up to 0. Because the

0 2000 4000 6000 8000 10000 12000 14000

degrees

image number

abs. heading error

3σ range

Figure 7: Absolute heading error and 3σ range without ad-

justment.

A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM

151

−50 −40 −30 −20 −10 0

−5

position [m] before adjustment

estimated

ground truth

Figure 8: Estimated trajectory in [m] without adjustment.

−50 −40 −30 −20 −10 0

−5

position [m] after adjustment

estimated

ground truth

keyframe

Figure 9: Estimated trajectory in [m] after adjustment.

Black circles mark loop close positions.

velocity in the systems body frame was constraint to

be consistent with the position increment, the velocity

and heading were also improved.

For the used dataset the system performs at about

6-7 fps using a desktop PC with an average of 16.5

landmarks. Since the software is programmed using a

rapid prototyping framework including visualization

of landmarks and without optimizations this can be

improved. A great deal of time (about 30%) is spent

with the generation of KLT-features because a simple

CPU implementation is used. Moreover taking ad-

vantage of the sparse Jacobian matrices would speed

up the system. Keeping this in mind we are conﬁdent

that a frame rate of 20 to 30 fps can be achieved.

The system models are applicable to full 6 DOF

pose estimation also, as introduced in chapter 4. Ex-

periments on the same dataset apparently yield good

results. Especially the height (Y-axis) was estimated

reliably. The ﬁnal deviation for the complete trajec-

tory was about 2 to 3 meters (close to 1% of trajectory

length), assuming start and end point have the same

height. This is notable, since IMUs are known to be

highly unstable predicting the height (parallel to grav-

ity acceleration). Since ground truth information is

given for 3 DOF only, these results are not discussed

further here.

7 CONCLUSIONS

We have introduced a novel parametrization for stereo

SLAM systems. Because of optimal exploitation of

stereo constraints the observation models are nearly

linear and the parametrization is minimal. Moreover

it meets the assumption of Gaussian noise, such that

it is predestinated for application in linear estimators

like kalman ﬁlters.

It was proven in synthetical tests and real-world

experiments, that the estimation is precise and con-

sistent even for long term estimation. The synthetical

tests showed that for stereo systems the PD outper-

forms the ID in terms of computational effort and co-

variance estimation, i.e. the consistency is preserved.

Consistent variance estimation is a major advance-

ment for navigation, since it improves long term sta-

bility, reliability information and the quality of global

adjustments. Moreover, due to the reduction in com-

putational costs for PD, much more landmarks can be

used to improve the estimations accuracy. The exper-

iments using the RawSeed data showed the applica-

bility of the proposed methods to actual SLAM prob-

lems.

For future work it is planed to introduce points at

inﬁnity as was done for ID. These are characterized by

a disparity equal to 0. Thus, they can be modeled us-

ing the same observation model (see equation 10) and

parametrization, by omitting the disparity component

(ﬁxed to 0). This way the points, rejected due to pos-

sibly negative disparities, can be exploited to improve

orientation estimation. Another task is to generalize

the modeling to monocular SLAM systems, for exam-

ple by using epipolar lines for offset (disparity) repre-

sentation.

REFERENCES

Bonarini, A., Burgard, W., Fontana, G., Matteucci, M., Sor-

renti, D. G., and Tardos, J. D. (2006). Rawseeds:

Robotics advancement through web-publishing of

sensorial and elaborated extensive data sets. In pro-

ceedings of IROS’06 Workshop on Benchmarks in

Robotics Research.

Brooks, R. (1985). Visual map making for a mobile

robot. In Proceedings IEEE International Conference

on Robotics and Automation 1985, volume 2, pages

824 – 829.

Ceriani, S., Fontana, G., Giusti, A., Marzorati, D., Mat-

teucci, M., Migliore, D., Rizzi, D., Sorrenti, D. G.,

and Taddei, P. (2009). Rawseeds ground truth collec-

tion systems for indoor self-localization and mapping.

Autonomous Robots, 27(4):353–371.

Civera, J., Davison, A. J., and Montiel, J. M. M. (2008). In-

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

152

verse depth parametrization for monocular slam. Au-

tonomous Robots, 24(5):932–945.

Crowley, J. L. (1989). World modeling and position esti-

mation for a mobile robot using ultrasonic ranging. In

IEEE Conference on Robotics and Automation, pages

1574–1579.

Dissanayake, M. W. M. G., Newman, P., Clark, S., Durrant-

Whyte, H. F., and Csorba, M. (2001). A solution to

the simultaneous localization and map building (slam)

problem. Transactions on Robotics and Automation,

17(3):229–241.

Hartley, R. and Zisserman, A. (2003). Multiple View Geom-

etry. Cambirdge University Press, 2 edition.

Herath, D. C., Kodagoda, K. R. S., and Dissanayake, G.

(2006). Modeling errors in small baseline stereo for

slam. Technical report, ARC Centre of Excellence in

Autonomous Systems (CAS).

Hildebrandt, M. and Kirchner, F. (2010). Imu-aided stereo

visual odometry for ground-tracking auv applications.

Technical report, Underwater Robotics Department,

DFKI RIC Bremen.

Imre, E. and Berger, M.-O. (2009). A 3-component inverse

depth parameterization for particle ﬁlter slam. In Lec-

ture Notes in Computer Science, volume 5748/2009,

pages 1–10. Springer.

Kalman, R. E. (1960). A new approach to linear ﬁltering

and prediction problems. Journal of Basic Engineer-

ing, 82.

Lefebvre, T., Bruyninckx, H., and De Schutter, J. (2004).

Kalman ﬁlters for non-linear systems: a comparison

of performance. International Journal of Control,

77(7).

Lemaire, T., Berger, C., Jung, I.-K., and Lacroix, S. (2007).

Vision-based slam: Stereo and monocular approaches.

International Journal of Computer Vision, 73(3):343–

364.

Leonard, J. and Durrant-Whyte, H. (1992). Directed Sonar

Sensing for Mobile Robot Navigation. Springer.

McGlone, J. C., F

orstner, W., and Wrobel, B. (2004). Man-

ual of Photogrammetry, chapter 2 Mathematical Con-

cepts in Photogrammetry. asprs.

Paz, L. M., Pini

es, P., Tard

os, J. D., and Neira, J. (2008).

Large-scale 6-dof slam with stereo-in-hand. Transac-

tions on Robotics, 24(5).

Petersen, A. and Koch, R. (2010). Statistical analysis of

kalman ﬁlters by conversion to gauss-helmert models

with applications to process-noise estimation. In Pro-

ceedings of ICPR2010, Istanbul, Turkey.

Schleicher, D., Bergasa, L. M., Barea, R., L

opez, E., Ocana,

M., Nuevo, J., and Fern

andez, P. (2007). Real-time

stereo visual slam in large-scale environments based

on sift ﬁngerprints. Technical report, Department of

Electronics, University of Alcal

Sol

a, J., Monin, A., and Devy, M. (2007). Bicamslam: Two

times mono is more than stereo. In Proceedings of

IEEE International Conference on Robotics and Au-

tomation, pages 4795–4800, Rome, Italy.

Song, Y., Song, Y., and Li, Q. (2011). Robust iterated sigma

point fastslam algorithm for mobile robot simultane-

ous localization and mapping. Chinese Journal of Me-

chanical Engineering, 24.

underhauf, N., Lange, S., and Protzel, P. (2007). Using

the unscented kalman ﬁlter in mono-slam with inverse

depth parametrization for autonomous airship control.

In Proceedings of IEEE International Workshop on

Safety Security and Rescue Robotics.

Uhlmann, J. K. (2003). Covariance consistency methods

for fault-tolerant distributed data fusion. Information

Fusion, 4(3):201 – 215.

Welch, G. and Bishop, G. (2006). An introduction to the

kalman ﬁlter. Technical report, University of North

Carolina at Chapel Hill, Chapel Hill, NC, USA.

A NOVEL STATE PARAMETRIZATION FOR STEREO-SLAM

153
