ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED

GRIDS CONTAINING PENTAHEDRAL ELEMENTS

Akshay Narayan

, Jaya Sreevalsan-Nair

, Kelly Gaither

and Bernd Hamann

International Institute of Information Technology - Bangalore, 26/C, Electronics City

Hosur Road, Bangalore 560100, India

Texas Advanced Computing Center, University of Texas at Austin, 10100 Burnet Road, Austin, TX 78758, U.S.A.

Institute for Data Analysis and Visualization, Department of Computer Science, University of California

Davis, One Shields Avenue, Davis, CA95616, U.S.A.

Keywords:

Volume Visualization, Isosurface Extraction, Hybrid Meshes, Marching Methods.

Abstract:

Grid-based computational simulations often use hybrid unstructured grids consisting of various types of ele-

ments. Most commonly used elements are tetrahedral, pentahedral (namely, square pyramids and right triangu-

lar prisms) and hexahedral elements. Extracting isosurfaces of scalar ﬁelds deﬁned on such hybrid unstructured

grids is often done using indirect methods, such as, (a) subdividing all non-tetrahedral cells into tetrahedra and

computing the triangulated isosurfaces using the marching tetrahedra algorithm, or (b) triangulating intersec-

tion points of edges of cells and computing the isosurface using a standard triangulation algorithm. Using

the basic ideas underlying the well-established marching cubes and marching tetrahedra algorithms, which

are applied to hexahedral and tetrahedral elements, respectively, we generate look-up tables for extracting

isosurfaces directly from pentahedral elements. By using appropriate look-up tables, it is possible to process

nearly all types of hybrid unstructured grids used in practical applications without the need for indirect meth-

ods. We construct look-up tables for square pyramidal and triangular prismatic cells with accurate topological

considerations.

1 INTRODUCTION

Computer simulations of physical phenomena often

use hybrid unstructured grids with complex geomet-

rical structure. For example, these grids are routinely

used in computational ﬂuid dynamics (CFD) and ﬁ-

nite element analysis (FEA). Performing correct di-

rect interpolation on such hybrid grids, e.g., in the

context of direct volume visualization or isosurface

extraction, is central to its analysis. The complex ge-

ometry and topology, i.e. element connectivity, of

such grids makes its analysis more challenging.

A great deal of progress has been made in re-

cent years in the ﬁeld of volume rendering using

ray-casting. However, research related to isosurface

extraction from hybrid grids has not been fully ad-

dressed for the entire spectrum of element types,

which are commonly used, apart from hexahedra and

tetrahedra. Some of the commonly used elements,

which we will be focussing on in this work, are shown

in Figure 1(A). We have used the following interpola-

tion models with three linearly independent variables

for these elements:

• Tetrahedron: Linear interpolation, often using

barycentric coordinates, α, β, γ, and δ, is used,

where the following rule applies: α + β + γ + δ =

• Square Pyramid (Pentahedron): Bilinear inter-

polation is used for the base quadrilateral com-

bined with linear interpolation from the base

quadrilateral to the apex, i.e. the opposing single

vertex. (s,t) are used for bilinear interpolation,

and u is the parameter used for linear interpola-

tion along axis.

• Right Triangular Prism (Pentahedron): Linear

interpolation, often performed using barycentric

coordinates, is applied to the two opposite trian-

gular faces (bases) combined with linear interpo-

lation along the axis of the prism, i.e., in the di-

rection from one triangular base to the other. u is

the parameter used for linear interpolation along

the axis and (α,β, γ) are used as barycentric coor-

dinates for the interpolation within the triangular

660

Narayan A., Sreevalsan-Nair J., Gaither K. and Hamann B..

ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED GRIDS CONTAINING PENTAHEDRAL ELEMENTS.

DOI: 10.5220/0003852506600669

In Proceedings of the International Conference on Computer Graphics Theory and Applications (IVAPP-2012), pages 660-669

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

P0010

P000

P101

P100

P110

P111

P010

P011

(a) (b)

P1001

P0101

P0011

P0100

P0010

P1000

P0001

P0100

P1000 P100

P110

P010

P001

(Value=5) (Value=2)

(Value=2) (Value=3)

(Value=3.5)

(a) (b) (c)

P01 P11

P00 P10

(a) (b)

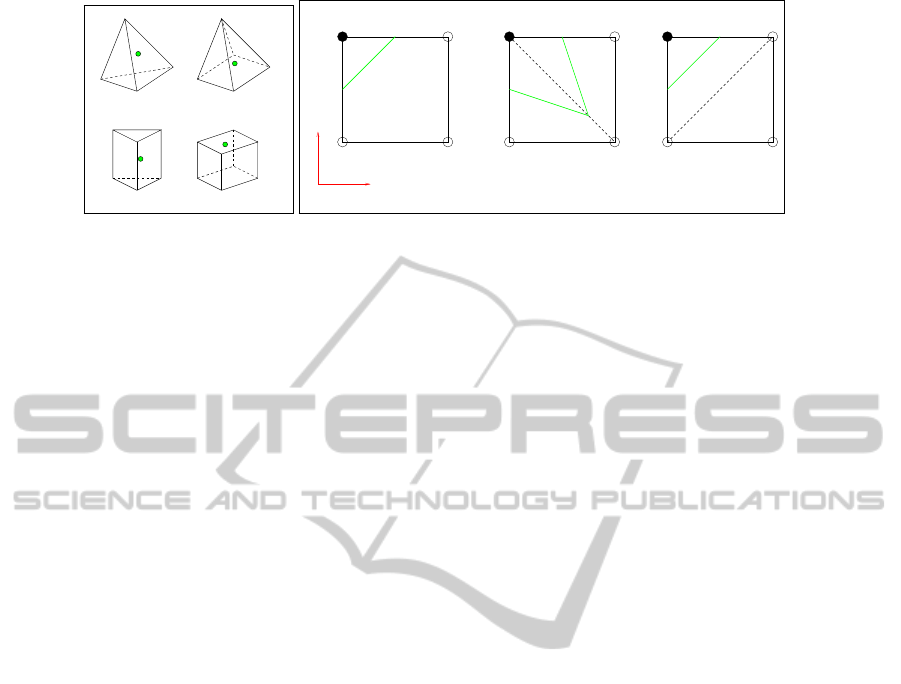

Figure 1: (a) Different element/cell types: (a) Tetrahedron, (b) Pentahedron - Square Pyramid, (c) Pentahedron - Right

Triangular Prism, and (d) Hexahedron. Using parametric representation based on the interpolation models, a point P in space

with respect to each cell is represented as (a) P(α, β,γ, δ), (b) P(s,t,u), (c) P(α, β,γ, u), (d) P(s,t,u). (b) Difference of isolines

without and with triangulation: For extracting isoline for function value 3.5, (a) shows the approximation of isoline using

bilinear interpolation-based contouring, (s,t) being the parametric representation; (b) and (c) show the two different isolines

obtained when considering different triangulations of the quadrilateral. Note that the isolines in (b) and (c) are still topological

homotopes.

bases. The barycentric coordinates follow the fol-

lowing condition: α+ β + γ = 1.

• Hexahedron: Trilinear interpolation is used, with

parametric representation s,t,u, which represent

x-, y-, and z-coordinates respectively.

All parameters of points interior to the cell satisfy the

property of being in the real interval [0, 1]. The mod-

els are popularly used owing to their lower computa-

tional complexity. In addition to these cell types, there

exist several other types of ﬁnite elements all having

their own associated interpolation functions. Never-

theless, those other types do not occur in our speciﬁc

applications.

The primary reason for lack of efforts has been

that hybrid grids consist of elements or cells whose

basis functions are no longer purely linear or trilin-

ear. This leads to more complex interpolating func-

tions which are more challenging to analyze. How-

ever, recent increase in the availability and accessibil-

ity of powerful computational resources has increased

use of hybrid grids for several CFD and ﬁnite element

method (FEM) applications, thus demanding more in-

depth analysis of such grids.

Existing isosurface extraction methods, such as

the commonly used marching cubes or marching

tetrahedra algorithms work well on hybrid grids, sub-

ject to converting a given hybrid grid ﬁrst to a purely

hexahedral grid or a purely tetrahedral grid, respec-

tively. Converting the hybrid grid, either by resam-

pling the grid to a rectilinear grid, or decompos-

ing the grid elements into tetrahedral elements, in-

troduces additional approximation errors and is not

a unique solution. Additionally, the conversion ap-

proaches scale linearly with problem size, which may

slow down performance for larger datasets.

We attempted to use open source visualization

tools like ParaView (Moreland, 2011), and GMV (Or-

tega, 2011), on a large hybrid grid dataset, whose size

is of the order of 1 GB. However, loading such a large

dataset into the system memory and generating iso-

surfaces required approximately 10 minutes in the se-

rial implementation of ParaView. ParaView’s parallel

implementation showed slightly better performance

than the serial version. It was not possible to obtain

isosurfaces in real time for our speciﬁc dataset, which

motivated our research to perform direct extraction of

isosurfaces from hybrid grids. Though our results do

not show any signiﬁcant improvement in performance

in the case of the large dataset, our work conclusively

analyzes the various topological orientations of the

pentahedral cells so that we obtain a unique isosur-

face for any given value.

The key contribution of our work is to provide

look-up tables to extract isosurfaces directly from

ﬁve-node (square pyramidal) and six-node (right tri-

angular prismatic) pentahedral elements, which in-

cludes all topological conﬁgurations, and the compu-

tations involved in determining body saddle points for

speciﬁcally, the triangular prismatic element. These

look-up tables enable us to obtain a unique solution

for isosurface for a given function value. Addition-

ally, we have used a combination of look-up tables

from the traditional marching tetrahedra and extended

marching cubes, and our proposed tables for pentahe-

dral cells, to use the native elements directly to com-

pute isosurfaces.

2 RELATED WORK

The foundation of our work has been the marching

ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED GRIDS CONTAINING PENTAHEDRAL

ELEMENTS

661

cubes algorithm, which has been extensively re-

searched in the scientiﬁc visualization community,

for which (Lorensen and Cline, 1987), (Nielson and

Hamann, 1991), (Nielson, 2003), (Lopes and Brodlie,

2003) are some of the representative papers, (New-

man and Yi, 2006) is a comprehensive survey of

the variants of the algorithm. Additionally, a great

deal of work has been done for both software- and

hardware-based approaches in volume rendering, for

example, (Williams et al., 1998), (Muigg et al., 2007),

etc.

(Gallagher and Nagtegaal, 1989) extended the

marching cubes algorithm to hybrid grids con-

taining tetrahedral, prismatic and hexahedral ele-

ments. (Takahashi et al., 2004) elaborated the look-up

table approach for octahedral elements.

In the visualization software GMV, isosurface ex-

traction from hybrid grids is implemented by deter-

mining intersection points of isosurfaces on edges

of cells and triangulating these points to generate a

2-manifold surface (Ortega, 2008). However, this

method discards the information provided by the grid

during the triangulation stage, which can lead to a dif-

ferent solution from the one obtained when using an

interpolation function for each cell.

(Bhaniramka et al., 2004) presented an algorithm

for automatically generating case tables for isosur-

faces in cells containing hypercubes, cells with 2

ver-

tices in k-dimensional space. Their algorithm creates

look-up tables similar to that of (Montani et al., 1994).

This algorithm can be extended to pentahedral cells,

as it is applicable to all topological homotopes of hy-

percubes in the k-dimensional space.

(Weber et al., 2003) described a crack-free isosur-

face extraction algorithm using “stitch cells”, speciﬁ-

cally for grids subjected to adaptive mesh reﬁnement

(AMR). These stitch cells could be tetrahedra, penta-

hedra, or hexahedra. We have used the interpolation

functions that (Weber et al., 2001) use.

While methods by (Gallagher and Nagtegaal,

1989), (Weber et al., 2003) and (Bhaniramka et al.,

2004) work for our application, we are going a step

further towards resolving the topological conﬁgura-

tions for pentahedral cells by using similar patterns

that are found in hexahedra. We follow the index-

ing for the conﬁgurations used by (Nielson, 2003)

for hexahedra. In relation to our argument against

subdivision of elements, (Carr et al., 2006) have dis-

cussed various artifacts that can be introduced while

performing simplicial subdivision of a hexahedral el-

ement.

3 DISADVANTAGES OF

APPROACHES BASED ON

TETRAHEDRALIZATION OF

HYBRID GRIDS

The marching tetrahedra algorithm is one of the most

convenient isosurface extraction algorithms, devoid

of the ambiguous cases which occur in the case of

the marching cubes algorithm. In the case of hy-

brid unstructured grids, extracting isosurfaces using

the marching tetrahedra algorithm requires an extra

processing step of subdividing the non-tetrahedral el-

ements into tetrahedral ones ensuring continuity of

isosurface across faces. Since tetrahedra are basic

building blocks, and all complex geometric shapes

can be broken down into tetrahedra, it is one of most

commonly used ﬁnite elements. However, one has to

be aware of the differences in interpolants that occur

when decomposing a hybrid grid to a tetrahedral grid.

A straightforward tetrahedralization can be done

without inserting new vertices in the grid. However,

this is not possible in certain cases. The ﬁrst step

in tetrahedralization of cells is the subdivision of its

polygonal faces to triangles. In a standard Lagrange

ﬁnite element, a bilinear interpolation function is used

in the quadrilateral face. Considering the parametric

representation of a function F on a bilinear surface, at

any point P(x,y,z), we get, F(x,y,z) = f (s,t) =

(1 − s)(1 −t)F

+ s(1 − t)F

+ stF

+ (1 − s)tF

where (s,t) is the parametric representation of the

point P(x, y,z) in the quadrilateral P

, as

shown in Figure 1(B)(a); and F

i j

is the function value

at vertex P

i j

for {i, j} = {0,1}. On the diagonals

(where s = t or s + t = 1), the interpolating function

is quadratic in either s or t, different from the linear

interpolation function used on triangulating the face.

The different interpolation models used for comput-

ing and visualizing the solution can lead to artifacts

in the isosurface as shown in (Carr et al., 2006).

Subdividing a quadrilateral face can lead to two

solutions as either of its two diagonals can be used to

triangulate the surface. Thus, different possible tetra-

hedralizations can lead to different results for isosur-

faces. There will be differences in the isolines gener-

ated for a quadrilateral face, depending on the choice

of triangulation, as shown in Figure 1(B).

Additionally, in the case of large datasets, the

computational and storage overhead induced by gen-

erating and using the additional elements may cancel

the gain of eliminating ambiguities and using linear

elements. Minimally, a pyramid can be decomposed

to two tetrahedra, a prism to three and a hexahedron to

ﬁve. For example, in the missile dataset we have used,

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

662

for each time-step we have around 24,800,000 tetra-

hedra, 17,700 pyramids and 4,207,000 prisms; which

on tetrahedralization would result in 37,456,400 tetra-

hedra, a 30% increase in the number of cells. These

additional tetrahedra also introduce additional mem-

ory overhead which can slow down performance to a

certain extent.

(Carr et al., 2006) discussed on how minimal sub-

division of hexahedral cells causes cracks in the iso-

surface and hence using a parity rule while subdivid-

ing is essential for a crack-free isosurface. The par-

ity rule ensures that a quadrilateral face shared be-

tween two cells uses the same diagonal for triangula-

tion to ensure C

continuity of the isosurface across

the face. In (Lasser, 1985), continuity conditions for

Bernstein-B

ezier functions deﬁned over the types of

volumetric grid elements, which we are concerned

with here, were used for construction of gradient-

continuous spline approximations.

4 PENTAHEDRAL CELLS

Pentahedral cells are frequently used in conformal

grids for “stitching” pure tetrahedral and/or pure hex-

ahedral grids. The ﬁve-node (square pyramidal) and

the six-node (right triangular prismatic) pentahedral

cells are very commonly used as “stitch cells” or ﬁller

cells in hybrid unstructured grids.

4.1 Interpolating Functions

The interpolation functions for a square pyramid and

right triangular prism depend on their respective ori-

entation. For sake of simplicity, we assume that the

axis of the cell is along z-axis in its local coordinates.

This section shows that the interpolation functions in

the case of the pentahedral cells are not symmetric

with respect to the basis vectors, as are the cases with

the tetrahedron and the hexahedron. The interpolation

functions that we use for the pentahedral cells, reduce

to a linear function at the edges and triangular faces,

and to a bilinear function at the quadrilateral faces.

Thus, our interpolation models ensure that the result-

ing isosurface is C

-continuous across elements.

4.1.1 Square Pyramids

The interpolation function for a square pyramid is

given by the following algebraic expression with real

coefﬁcients:

F(x,y, z) = C

x +C

y +C

xy +C

The simplest parametric representation of a point in

the cell using three linearly independent variables is

by using: (a) parameter u representing position in the

z direction, and (b) (s,t) for the parametric represen-

tation of the point on a bilinearly interpolated surface

in a quadrilateral slice containing the point as shown

in Figure 2(A). (u = 0) and (u = 1) represent the

quadrilateral base and the apex, respectively; (s = 0),

(s = 1), (t = 0), and (t = 1) represent the four trian-

gular faces of the pyramid, respectively.

Let the cell be deﬁned with vertices P

001

at the

apex and P

000

, P

100

, P

110

, and P

010

at the base. The

function value at P

stu

is given by F

stu

and coordinates

are given by (x

stu

). Every point P(x,y, z) in

space can be represented as p(s,t, u) with respect to

this cell, and the function value at P, F(x,y, z) is in-

terpolated using: F(x, y,z) = f (s,t, u) = uF

001

+ (1 −

u)F

001

where, F

001

= (1 − s)(1 − t)F

000

+ s(1 − t)F

100

stF

110

+ (1 − s)tF

010

For any point in the interior or on the boundary of

the cell, 0.0 ≤ s,t, u ≤ 1.0.

Any permissible value of u deﬁnes a quadrilateral

slice formed by vertices at a ratio of u : (1 − u) along

the edges from apex to base. To determine (s,t, u)

for a given point, P(x, y,z), we perform the following

steps:

1. For a planar base, we use the following values to

determine u:

(a) For the base P

000

100

110

010

, the normal vec-

P(x,y,z)

P001

P000 P100

P010 P110

P100’

P110’P010’

P000’

P(x,y,z)

P0100’

P1000

P0100P0010

P0010’

P1000’

P1001

P0101P0011

(a) (b)

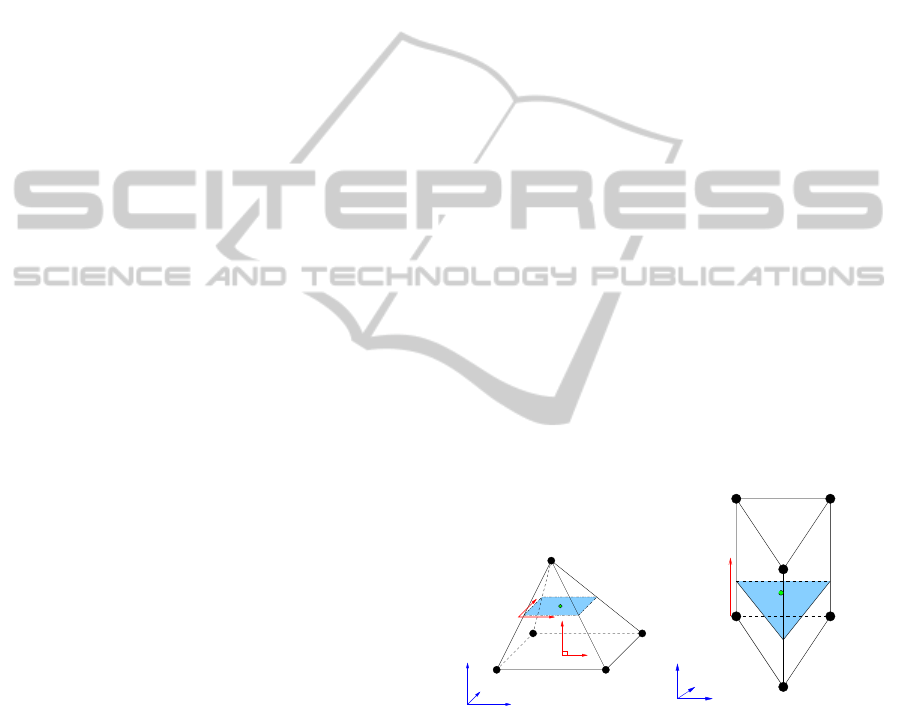

Figure 2: Determining parametric representation of an in-

terior point P(x,y,z) in: (a) a square pyramid: (s,t,u) three-

tuple parametric representation is used for points. With re-

spect to the quadrilateral slice P

000

100

110

010

containing

P being parallel to base face P

000

100

110

010

, u is the pa-

rameter in the z direction; (s,t) is the two-tuple paramet-

ric representation of the point in the slice, which degen-

erates to a single point at the apex P

001

. (b) a right tri-

angular prism: (α, β, γ,u) four-tuple parametric representa-

tion is used for points. With respect to the triangular slice,

1000

0100

0010

, containing P and the axial edges, namely,

1000

1001

, P

0100

0101

, and P

0010

0011

, u is the linear pa-

rameter along one of the three axial edges; (α, β, γ) gives

the barycentric coordinates of P in the slice.

ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED GRIDS CONTAINING PENTAHEDRAL

ELEMENTS

663

tor ˆn and its plane equation, Ax + By + Cz +

= 0, where ˆn = {A, B,C}

(b) At the apex P

001

= −(Ax

+ By

+Cz

Ax+By+Cz+D

−D

2. Using u, we determine the quadrilateral slice

000

100

110

010

containing P, and represent P

using bilinear interpolation on the slice using two-

tuple (s,t), determined using the three equations

implied by the three coordinates of a point, i.e.,

P = (1 − s)(1 − t)P

000

s(1 − t)P

100

+ stP

110

+ (1 − s)tP

010

4.1.2 Right Triangular Prisms

The interpolation function for a triangular prism is

given by the following algebraic expression with real

coefﬁcients:

F(x,y, z) = C

x +C

y +C

z +C

xz +C

Any point in the cell can be represented paramet-

rically by using four parameters: (a) a parameter u

representing the position of a triangular slice contain-

ing the point, with respect to any of the three edges

not belonging to the triangular bases (referred to as

axial edges), and (b) three barycentric coordinates,

(α,β,γ), of the point in the triangular slice, as shown

in Figure 2(B). (u = 0) and (u = 1) represent the two

triangular bases, respectively, and the three quadrilat-

eral faces are represented by (α = 1), (β = 1), and

(γ = 1), respectively.

Let the cell contain vertices, P

1000

, P

0100

, P

0010

on one triangular face and P

1001

, P

0101

, P

0011

at the

other end. The function values at P

αβγu

, are given

by F

αβγu

and coordinates are (x

αβγu

). Ev-

ery point P(x, y, z) in space can be represented as

p(α,β, γ, u) with respect to the cell. Suppose the tri-

angular slice P

1000

0100

0010

containing P has its ver-

tices with parametric representation u with respect to

the axial edges. The function value at P, F(x, y, z) is

interpolated using the formula:

F(x,y, z) = f (α, β,γ, u)

=(1 − u)(F

1000

α + F

0100

β + F

0010

γ)

+ u(F

1001

α + F

0101

β + F

0011

γ)

(1)

For any point in the interior to or on the boundary

of the cell, 0.0 ≤ u,α, β,γ ≤ 1.0 and α + β + γ = 1.

Due to linear dependence of α, β, and γ, we can re-

duce the parametric representation to a three-tuple,

(α,β, u) to represent the set of linearly independent

variables. However, to maintain the ease of represen-

tation, we continue to refer to the four-tuple paramet-

ric representation (α, β,γ, u), in the interpolation func-

tion.

To determine (α, β, γ,u) for a given point P(x, y, z),

we perform the following steps:

1. The parameter u deﬁnes the triangular slice

1000

0100

0010

) containing P.

1000

= P

1000

+ u(P

1001

− P

1000

)

0100

= P

0100

+ u(P

0101

− P

0100

)

0010

= P

0010

+ u(P

0011

− P

0010

)

If the two triangular bases are parallel, we obtain

u the same way as in the case of square pyramids.

We determine the following:

(a) For the base P

1000

0100

0010

, the normal vector

ˆn and its plane equation, Ax+By+Cz+D

= 0,

where ˆn = {A, B,C}

(b) For the opposite triangular face

1001

0101

0011

, the corresponding value

of D

using one of the three vertices in the face

as (x,y, z): D

= −(Ax + By +Cz).

u(x,y, z) = −

Ax+By+Cz+D

−D

However, more generally, the value for u is the so-

lution of the cubic equation in u given by:

1000

− P) · ((P

0100

− P) × (P

0010

− P)) = 0.

In the case of a right triangular prism, we get a

unique real value for u, which satisﬁes the condi-

tion 0.0 ≤ u ≤ 1.0.

2. Using u, we determine the triangular slice

1000

0100

0010

) containing P, and determine the

barycentric coordinates (α, β, γ) of the point in the

triangle.

4.2 Look-up Tables

Just as in the marching cubes algorithm, we repre-

sent the cases of pentahedral cells using a bit-string

C0 C1

C2 C3

C4 C5

C0 C1

C2 C3

C4 C5

C6 C7

(a) (b)

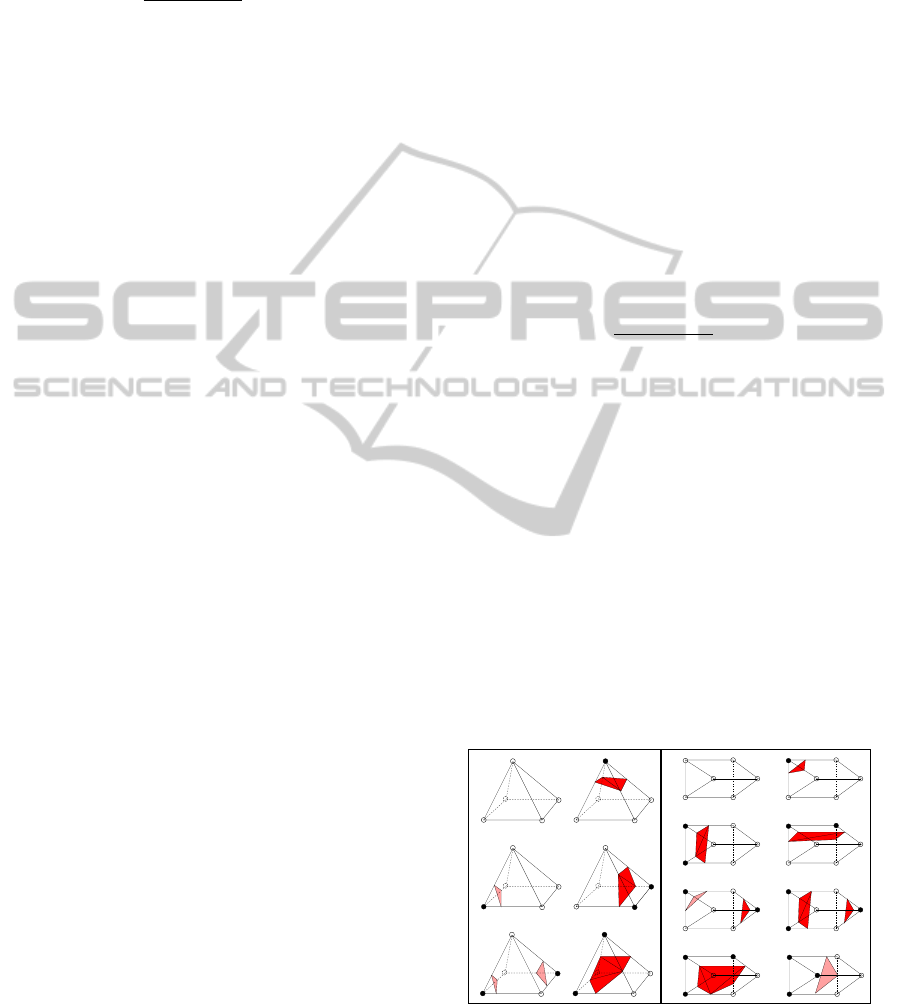

Figure 3: Base conﬁgurations of a pentahedral element: (a)

Six of a square pyramid; (b) eight of a right triangular prism.

Black points and circles indicate vertices whose function

values are larger or smaller than the isosurface value, re-

spectively.

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

664

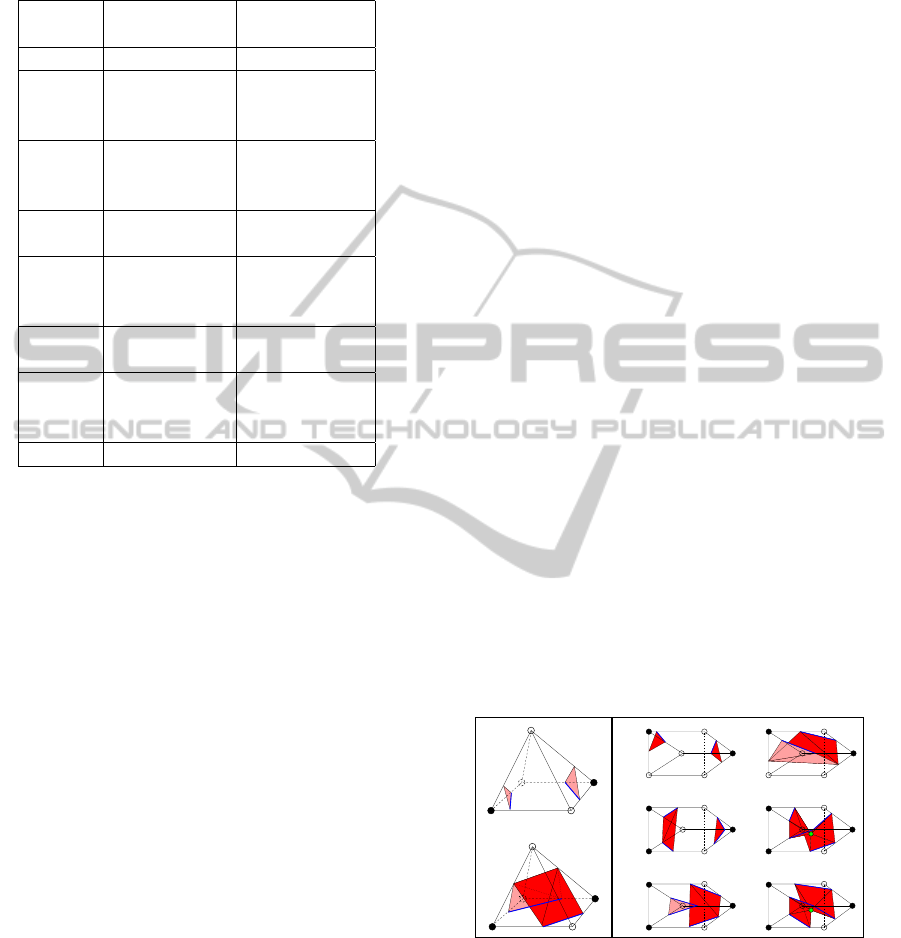

Table 1: Classiﬁcation of all cases into base conﬁgurations

of a pentahedral element: six for square pyramid and eight

for triangular prism cells.

Conﬁg- Pyramid Prism

uration Cases Cases

0 0, 31 0, 63

1 1, 30 1, 2, 4, 8,

16, 31, 32, 47,

55, 59, 61, 62

2 2, 4, 8, 15, 3, 5, 6, 15,

16, 23, 27, 29 23, 24, 39, 40,

48, 57, 58, 60

3 6, 7, 12, 13, 9, 18, 27,

18, 19, 24, 25 36, 45, 54

4 10, 11, 20, 21 10, 12, 17, 20,

29, 30, 33, 34,

43, 46, 51, 53

5 3, 5, 9, 14, 14, 21, 28,

17, 22, 26, 28 35, 42, 49

6 - 11, 13, 19, 22,

25, 26, 37, 38,

41, 44, 50, 52

7 - 7, 56

where each bit corresponds to a speciﬁc vertex of the

cell. For a k-node cell, thus, there can be 2

cases.

However, these cases can be reduced to unique base

conﬁgurations using mapping based on mirroring, ro-

tation and complementation. Thus, 32 cases of square

pyramid reduce to six unique conﬁgurations; and 64

cases of right triangular prisms reduce to eight. Fig-

ure 3 shows the unique base conﬁgurations of both

cell types; and Table 1 classiﬁes all cases according

to their respective base conﬁgurations.

4.2.1 Resolving Ambiguities

Quadrilateral faces in the pentahedral cells can lead to

ambiguities which are resolved using the asymptotic

decider (Nielson and Hamann, 1991), as done in the

marching cubes algorithm. As shown in Figure 4(A),

conﬁguration 4 of the square pyramidal cell contains a

single ambiguous face, ABCD. Subconﬁgurations 4.0

and 4.1 occur when ABCD is “separated” and “con-

nected”, respectively. As shown in Figure 4(B), con-

ﬁgurations 4 and 5 of the right triangular prismatic

cell have been resolved. Conﬁguration 4 contains a

single ambiguous face, ABDC; while conﬁguration 5

contains two, namely, ABDC and CDFE. Subconﬁg-

urations 4.0 and 4.1 occur when ABDC is separated

and connected, respectively. Subconﬁgurations of 5

occur with possibilities of ABDC and CDFE being

separated and connected. Thus, we have subconﬁg-

urations 5.0 and 5.3 with both faces being separated

and connected, respectively. 5.1 and 5.2 are comple-

mentary: in 5.1, ABDC is separated and CDFE is con-

nected; and in 5.2, vice versa.

In the prismatic cell, the conﬁgurations 5.1 and

5.2 require tangent points to obtain accurate topolog-

ical representation of the isosurface, as the isosurface

assumes the behavior of topological type A.2 (Lopes

and Brodlie, 2003). Generally, for conﬁguration 5,

the tangent at the body saddle point of the isosur-

face will be parallel to the single non-ambiguous face,

hence, the tangent point coincides with the body sad-

dle point. The computation of body saddle points for

right triangular prisms is discussed in the Appendix.

The surfaces computed from our interpolation

models for all the conﬁgurations for both cell types

are shown in Figure 5.

5 DIRECT ISOSURFACE

EXTRACTION FROM HYBRID

MESHES

As explained in Section 3, for direct isosurface extrac-

tion from hybrid grids, we use the respective look-up

tables for each element type.

5.1 Gradient Approximation

Gradient interpolation is required for computing nor-

mal vectors which are used for lighting purposes dur-

ing rendering the isosurface. We implemented per-

C4.1

A B

C4.0

C5.0 C5.1

C4.1

C5.2C5.3

(a) (b)

Figure 4: Subconﬁgurations of pentahedral cells resolv-

ing ambiguities: Blue lines help to show if the ambigu-

ous face is connected or separated. (a) Square pyramidal

cells: In 4.0 and 4.1, ABCD is separated and connected,

respectively. (b) Right triangular prismatic cells: In 4.0

and 4.1, ABDC is separated and connected, respectively.

In 5.0 and 5.3, ABDC and CDFE are both separated and

connected, respectively; in 5.1 and 5.2, which are comple-

mentary, the isosurfaces require additional vertices, namely

the body saddle points, indicated by green vertices.

ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED GRIDS CONTAINING PENTAHEDRAL

ELEMENTS

665

vertex gradient approximation using a preprocessing

step. We use a least squares procedure (Anderson and

Bonhaus, 1994), which computes unweighted gradi-

ents in two-dimensional space by solving an over-

determined system of equation, which we extended to

the three-dimensional case using the equation: f

+ f

− x

) + f

− y

) + f

− z

), where f

and f

are the values of the function f at points P

and

, and P

, for i = 1, 2,.. ., N have edges with P

. The

gradient at N

= ( f

, f

). This leads to an

N × 3 system of equations:







∆x

∆y

∆z

∆x

∆y

∆z

∆x

∆y

∆z

























− f







(a)

(b)

Figure 5: Isosurfaces, with topological considerations for:

(a) all seven conﬁgurations of the square pyramidal cells;

(b) all twelve conﬁgurations of the right triangular prismatic

cells.

For solving this over-determined system of equations,

we computed

∑

i=1

− a

)(b

− b

), where a, b ∈ {x, y,z}

























− x

− y

− z





We solved for the weights W

, W

and W

using

Cramer’s rule, and approximated the gradient using:

∑

i=1

( f

− f

), where a ∈ {x, y,z}.

6 RESULTS

We implemented our algorithm on a visualization

cluster, Colt, at TACC, with the following speciﬁca-

tions: 2 Intel Xeon quad core E5440 processors (8

cores total), 16 GB of RAM, nVidia Quadro FX5800

graphics card with 4 GB memory.

We tested our method for a synthetic dataset con-

sisting of 1,331 nodes, containing all prisms; and de-

composed it to a purely tetrahedral grid. We extracted

isosurfaces from the original prism and the tetrahe-

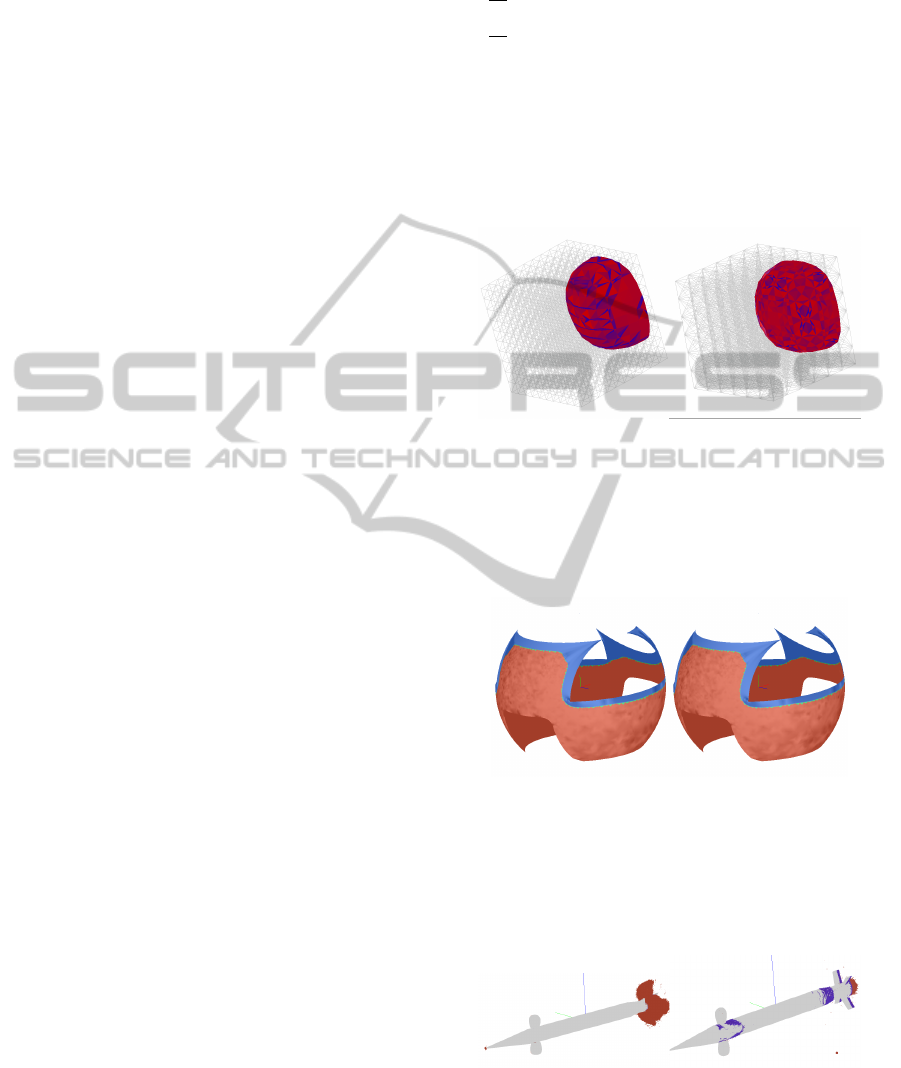

dralized grids, as shown in Figure 6. We used a blue-

to-red colormap to map the quality measure of the tri-

angles from 0 to 1, for which we used the incircle

to circumcircle radius ratio (P

ebay and Baker, 2003).

The time taken to render the isosurfaces in the prism

grid and tetrahedral grid are 0.01 and 0.03 seconds,

respectively, for the value 0.305.

We applied our method to hybrid grids deﬁning

(a) a wind-tunnel model from NASA, shown in Fig-

ure 7, with 442,368 hexahedral, 721,413 tetrahedral,

and 13,824 pyramidal elements; (b) a missile, shown

in Figure 8, with 6,378,506 nodes, 2,479,668 tetra-

hedra, 17,691 pyramids and 4,207,433 prisms. The

results of our direct isosurface extraction method are

tabulated in Table 2. Our timing measurements for

reading the ﬁle and preprocessing gradients did not

show any improvement compared to our experiments

using ParaView, and hence, we have not included

them here.

7 CONCLUSIONS

Figures 6, 7 and 8 show that our method generated re-

sults comparable to those from standard methods. As

expected, our method generated fewer triangles com-

pared to applying the marching tetrahedra algorithm

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

666

Table 2: Results of our isosurface extraction algorithm: #Tri-tetra represents the number of triangles rendered using look-

up table for tetrahedra, #Tri-pyram that for square pyramids, #Tri-prism that for triangular prisms, and #Tri-hexa that for

hexahedra.

Dataset Isosurface Extraction #Tri-tetra #Tri-pyram #Tri-prism #Tri-hexa

value time (in s)

Wind-tunnel 13.0464 0.95 29,241 586 0 30,226

dataset 12.1772 0.77 25,117 390 0 5,198

Missile 1.167 180.26 1,446,544 4,316 352,177 0

dataset 0.62 93.6 236,384 4,570 700,971 0

on a tetrahedralized grid owing to the lower number

of elements. However, our method being a marching

method does not always produce good quality trian-

gles in the mesh, as can be seen in Figure 6. Owing

to lower triangle count, our method performs better

in regions with lower surface curvature and worse in

regions with higher surface curvature, in comparison

to the marching tetrahedra method on the tetrahedral-

ized grid. Our method is comparably computationally

efﬁcient, especially for larger datasets. The gradient

computation requires O(n) time for n being the num-

ber of nodes in the dataset. The gradient estimation

step needs to be performed just once as a preprocess-

ing step, which makes real-time generation of smooth

isosurfaces efﬁcient. However, in case of the missile

dataset, we did not see a signiﬁcant improvement in

performance owing to the fact that dataset consists of

85% tetrahedra.

Furthermore, we have covered all the ambiguous

conﬁgurations possible that can occur for pentahedral

elements, i.e., our look-up tables are complete. We

have found that computation of body saddle points in

a triangular prismatic element is similar to that of the

hexahedron.

Our method can be further enhanced with the op-

timization strategies which are used in the marching

cubes method.

ACKNOWLEDGEMENTS

We are grateful to: (a) Dr. David Marcum of Missis-

sippi State University, and to Dr. Benjamin Kirk of

NASA/JSC for sharing the missile and wind-tunnel

datasets, respectively; (b) Dr. John W. Peterson of

TACC for helping with using GMV and for providing

experimental FEM datasets; (c) TeraGrid Resource

Provider Grant as well as IIIT-Bangalore for support;

(d) members of the Visualization Group in TACC and

IIIT-Bangalore, especially, Prof. K. V. Dinesha, and

Mr. Pratap J. Rao.

REFERENCES

Anderson, W. K. and Bonhaus, D. L. (1994). An Implicit

Upwind Algorithm for Computing Turbulent Flows

on Unstructured Grids. Comput. Fluids, 23:1–21.

Bhaniramka, P., Wenger, R., and Crawﬁs, R. (2004). Iso-

surface Construction in Any Dimension Using Con-

vex Hulls. IEEE Transactions on Visualization and

Computer Graphics, 10:130–141.

Carr, H., Moller, T., and Snoeyink, J. (2006). Artifacts

Caused by Simplicial Subdivision. IEEE Transactions

on Visualization and Computer Graphics, 12:231–

242.

Gallagher, R. S. and Nagtegaal, J. C. (1989). An Efﬁcient

3-D Visualization Technique for Finite Element Mod-

els and Other Coarse Volumes. SIGGRAPH Comput.

Graph., 23:185–194.

Lasser, D. (1985). Bernstein-B

ezier Representation of

Volumes. Computer Aided Geometric Design, 2(1-

3):145–149.

Lopes, A. and Brodlie, K. (2003). Improving the Robust-

ness and Accuracy of the Marching Cubes Algorithm

for Isosurfacing. IEEE Transactions on Visualization

and Computer Graphics, 9:16–29.

Lorensen, W. E. and Cline, H. E. (1987). Marching

Cubes: A High Resolution 3D Surface Construction

Algorithm. In Proceedings of ACM conference on

Computer graphics and interactive techniques - SIG-

GRAPH 1987, pages 163–169. ACM Press.

Montani, C., Scateni, R., and Scopigno, R. (1994). A Mod-

iﬁed Look-up Table for Implicit Disambiguation of

Marching Cubes. The Visual Computer, 10(6):353–

355.

Moreland, K. (2011). ParaView User’s Guide v3.12.

Kitware Inc., Sandia National Laboratory, CSimSoft,

http://www.itk.org/Wiki/ParaView/Users Guide/Table

Of Contents.

Muigg, P., Hadwiger, M., Doleisch, H., and Hauser, H.

(2007). Scalable Hybrid Unstructured and Structured

Grid Raycasting. IEEE Transactions on Visualization

and Computer Graphics, 13(6):1592–1599.

Newman, T. S. and Yi, H. (2006). A Survey of the Marching

Cubes Algorithm. Computers & Graphics, 30(5):854–

879.

Nielson, G. M. (2003). On Marching Cubes. IEEE

Transactions on Visualization and Computer Graph-

ics, 9(3):283–297.

ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED GRIDS CONTAINING PENTAHEDRAL

ELEMENTS

667

Nielson, G. M. and Hamann, B. (1991). The Asymp-

totic Decider: Resolving the Ambiguity in Marching

Cubes. In Nielson, G. M. and Rosenblum, L. J., ed-

itors, Proceedings of IEEE Visualization 1991, pages

83–91. IEEE Computer Society Press.

Ortega, F. A. (2008). Personal correspondence via e-

mail with chief developer of GMV. http://www-

xdiv.lanl.gov/XCM/gmv/GMVHome.html.

Ortega, F. A. (2011). GMV 4.5 General Mesh Viewer User’s

Guide. Los Alamos National Laboratory, CPFD Soft-

ware, http://www.generalmeshviewer.com/.

ebay, P. P. and Baker, T. J. (2003). Analysis of Trian-

gle Quality Measures. Mathematics of Computation,

72:1817–1839.

Takahashi, T., Mekada, Y., Murase, H., and Yonekura, T.

(2004). High Quality Isosurface Generation from

Volumetric Data and Its Application to Visualization

of Medical CT Data. In Proceedings of the Pat-

tern Recognition, 17th International Conference on

(ICPR’04) Volume 3 - Volume 03, ICPR ’04, pages

734–737, Washington, DC, USA. IEEE Computer So-

ciety.

Weber, G. H., Kreylos, O., Ligocki, T. J., Shalf, J., Hagen,

H., Hamann, B., Joy, K. I., and Ma, K.-L. (2001).

High-quality Volume Rendering of Adaptive Mesh

Reﬁnement Data. In Proceedings of the Vision Mod-

eling and Visualization Conference 2001, VMV ’01,

pages 121–128. Aka GmbH.

Weber, G. H., Kreylos, O., Ligocki, T. J., Shalf, J. M., Ha-

gen, H., Hamann, B., and Joy, K. (2003). Extraction

of Crack-Free Isosurfaces from Adaptive Mesh Reﬁne-

ment Data, pages 19–40. Springer-Verlag, Heidel-

berg, Germany.

Williams, P. L., Max, N. L., and Stein, C. M. (1998). A

High Accuracy Volume Renderer For Unstructured

Data. IEEE Transactions on Visualization and Com-

puter Graphics, 4:37–54.

APPENDIX

Computation of Body Saddle Points in

Triangular Prisms for Conﬁgurations 5

As explained in Section 4.1.2, the combined inter-

polation model uses three linearly independent vari-

ables, (α, β, u). The quadrilateral faces of the

prism can be represented as either (α = 1), (β = 1),

or (γ = 1), respectively. In Figure 2(B), the face

0100

0101

0011

0010

, corresponds to (α = 1). Here,

we describe the computations for the case where (α =

1) is the non-ambiguous face, which can be appropri-

ately extended to the cases when (β = 1) or (γ = 1) is

the non-ambiguous case. The body saddle point oc-

curs at a point where, for an isosurface of value I, the

following conditions are satisﬁed:

1. F = F(x, y,z) − I = f (α

,β

,γ

) − I = 0

∂F

∂u

= F

= 0

∂F

∂α

= F

= 0

We use the following notations for simplifying alge-

braic expressions:

(α,0)

= F

1000

− F

0010

(α,1)

= F

1001

− F

0011

;

= D

(α,0)

− D

(α,1)

We use similar notations in the case of β: D

(β,0)

(a) (b)

Figure 6: Isosurface for same value extracted from a grid

consisting of 1331 nodes, with: (a) 2000 triangular pris-

matic elements; and (b) 5220 tetrahedral cells. The isosur-

face consists of: (a) 478 triangles, and (b) 888 triangles.

The color of triangles shows its quality mapped from worse

to better, corresponding to blue-to-red colormap.

(a) (b)

Figure 7: Isosurfaces of function ln(c k~x − ~x

), for con-

stants c and ~x

, in hybrid grid of a wind-tunnel model for

values: (a) 13.0464 and (b) 12.1772. The red surface is

generated by using look-up table for tetrahedra, the blue

surface by that for hexahedra and green surface by that for

pyramids.

(a) (b)

Figure 8: Isosurface from the missile dataset for density in

compressible ﬂow for values (a) 1.167 and (b) 0.62. The

blue surface is generated using our new look-up tables for

prisms and pyramids, and the red one is generated by that

for tetrahedra.

IVAPP 2012 - International Conference on Information Visualization Theory and Applications

668

(β,1)

, and D

Differentiating F with respect to α,

= (1 − u

(α,0)

+ u

(α,1)

(2)

After applying the condition F

= 0 in Equation 2 and

simplifying, one obtains:

1 − u

(α,1)

(α,0)

⇒ u

(α,0)

(3)

On substituting for γ

= (1 − α

− β

) and u

from

Equation 3, in Equation 1, the coefﬁcient of α reduces

to 0. Hence, on applying the condition F = 0, one

obtains:

· I + F

1001

· F

0010

− F

1000

· F

0011

)

(α,0)

· D

(β,1)

− D

(α,1)

· D

(β,0)

)

(4)

Differentiating F with respect to u,

= − (F

1000

+ F

0100

+ F

0010

)

+ (F

1001

+ F

0101

+ F

0011

)

(5)

After applying the condition F

= 0 in Equation 5 and

= (1 − α

− β

); and simplifying using β

from

Equation 4, one obtains:

0011

− F

0010

)

−

· β

(6)

Using the interpolation model from Equation 1, the

values for parameters from Equations 3, 4, and 6, and

substituting γ

= (1 − α

− β

), the tangent point is

computed as:

(x,y,z) = p(α

,β

,γ

)

=(1 − u

)(α

1000

+ β

0100

+ γ

0010

)

+ u

(α

1001

+ β

0101

+ γ

0011

)

ISOSURFACE EXTRACTION FROM HYBRID UNSTRUCTURED GRIDS CONTAINING PENTAHEDRAL

ELEMENTS

669
