NEURAL BASED ROTATION AND SCALE INDEPENDENT

DETECTION OF TARGETS IN A HYPERSPECTRAL

WATERWAY MONITORING SYSTEM

Blanca Priego, Richard J. Duro, Francisco Bellas and Daniel Souto

Integrated Group for Engineering Research, Universidade da Coruña, A. Coruña, Galicia, Spain

Keywords: Hyperspectral images, Rotation and scale detection, Neural classifiers, Autonomous surveillance.

Abstract: This paper is devoted to the presentation of the orientation and scale invariant detection subsystem within

the current development of Hywacoss (Hyperspectral waterway control and security system). A neural

network ensemble based identification and rotation detection module is considered in order to be able to

detect and classify objects in waterways from hyperspectral image cubes in a fast and efficient manner. The

neural approach followed is inspired by the orientation detection structures in the visual processing cortex.

The system is tested over two different hyperspectral image cubes extracted from simulated waterways to

verify its adequate operation.

1 INTRODUCTION

The objective of the Hywacoss project is to produce

a real time small, light and easy to transport visible

and near infrared hyperspectral detection and

recognition system that autonomously monitors

waterways, especially port and bay areas, and

detects and classifies all the traffic, producing alerts

when previously unknown objects or behavior

patterns arise. Hywacoss is a part of a multisensory

intelligent monitoring and protection system for

ports and waterways called Watchman that is aimed

at capturing real time information on what is going

on in the area being monitored from multiple

sensorial sources, both static and moving, and fusing

this information to provide a coherent view of all the

activities that are taking place within the designated

area, identifying, tracking and profiling all targets

found. It comprises dedicated hardware and software

modules, some of them neural based. Here we will

provide a global description of the whole system and

a detailed analysis of the neural based modules

related to rotation and scale independent overhead

target detection from hyperspectral images.

A hyperspectrometer obtains images in which the

spectral information of every pixel is collected in

hundreds of contiguous discrete spectral bands.

Thus, each hyperspectral image contains a large

amount of information that can be perceived as a

cube with two spatial and one spectral dimension.

The availability of such detailed spectral information

for each pixel allows the classification of different

materials or targets with an accuracy and

discriminative power that are much better than in the

case of lower dimensional color representations,

such as RGB.

Hyperspectrometers were originally designed as

remote sensing instruments operated from highflying

planes (Glackin, 1999) and, therefore, presented the

handicap of a low spatial resolution. Consequently,

analysis methods were developed to provide the

segmentation of the images in terms of the ratio of

endmembers present in every pixel so as to improve

the spatial discrimination of these systems when

analyzing different types of covers. Currently, due to

improvements in the spatial resolution of the

systems and to the new requirements that have come

about due to the expansion of the applications for

which these systems are used, an increasing demand

for spatial-spectral processing techniques has been

observed. This is especially patent in ground-based

applications (Pan, 2003) (de Juan, 2004), where

images are taken close to the subject producing a

relatively detailed view. Thus, the emphasis in

hyperspectral image processing is no longer placed

only on extracting subpixel information, but also on

detection and classification of elements within these

images based on multiple pixel combinations taking

419

Priego B., J. Duro R., Bellas F. and Souto D..

NEURAL BASED ROTATION AND SCALE INDEPENDENT DETECTION OF TARGETS IN A HYPERSPECTRAL WATERWAY MONITORING SYSTEM.

DOI: 10.5220/0003858204190425

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods (PRARSHIA-2012), pages 419-425

ISBN: 978-989-8425-98-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

into account their geometric layout (Li, 2010), that

is, their spatial-spectral signatures.

This is the case in this work. The objective of the

Hywacoss system is to detect and classify maritime

traffic within its assigned monitoring area in real

time in order to discriminate between normal traffic

and possible intruders. Consequently it must be able

to obtain hyperspectral images and from them

quickly detect and classify whatever objects (ships

or others) are present independently from scale or

orientation. In addition it must be able to provide a

value for the orientation of the object if it is

classified as a ship. As hyperspectral images involve

hundreds of values per pixel within the image and as

we want to detect and classify objects independently

from scale and orientation in a timely fashion, in this

paper we have considered a system that uses a neural

network trained to extract the abundance of a target

and a second neural architecture, loosely based on

the visual orientation processing structures of certain

animals, to perform the detection and orientation

determination.

Neurons in the visual cortex display orientation

selectivity, which basically leads to the detection of

local bars and edges in the visual images and the

subsequent encoding of their orientations (Hubel,

1962) (Hubel, 1974). In fact, neighboring neurons in

the visual cortex have similar orientation tunings,

producing orientation columns or iso-orientation

domains (Hubel, 1974). The mechanism through

which precise orientation detection is achieved is

rather complex, but it can be summarized by saying

that each neuron is tuned to a given orientation for

which it provides the maximum response. It is

through the integration of the responses of the

different sets of neurons with different orientation

tunings that a decision can be made on the precise

orientation of a feature of the image. Some authors

have based their approximations for orientation

detection on these types of models of the visual

cortex over 1 channel or three channel (RGB)

images. A clear example of this is (Han 2010),

where the authors implement a detailed model using

spiking neurons in order to detect the orientation of

cars. However, in the field of high dimensional or

multichannel imaging orientation detection has

mostly been carried out using traditional

deterministic or statistical approaches and not brain

inspired or neural techniques (Plaza, 2009).

The paper is organized as follows. In the

following section we provide a general description

of the hyperspectral system that was developed for

the Hywacoss system. Section 3 will be devoted to

the presentation of the neural processing system. In

section 4 we discuss the results of the application of

the system in the simulated environments used for

its validation and, finally, section 5 provides the

main conclusions of this work.

2 HYPERSPECTROMETER

In terms of the sensing element and associated

hardware, we have designed and constructed a small,

light and easy to transport push-broom type

spectrometer. It is shown in Figure 1. It consists of a

moving mirror that captures light that is focalized on

a 10 mm long, 10 μm wide slit which selects a single

line from the image each instant of time. The light

corresponding to this pixel line is passed through a

diffraction grid and its image is focalized on the

sensing element of a front-illuminated interline CCD

camera. This arrangement produces the images we

are using that have a size of 1392x1392 pixels,

where each pixel is represented using 1040 spectral

bands in the 400-1000 nm wavelength interval

(visible to near-infrared). The information obtained

is directly sent to a processing computer for image

processing and the other tasks required by the

Hywacoss system.

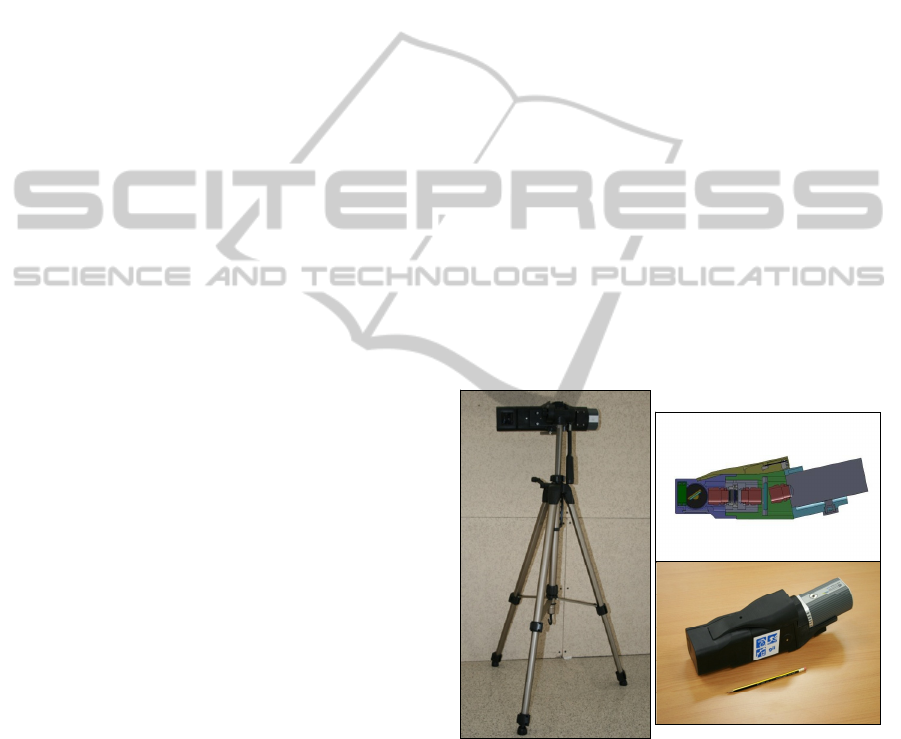

Figure 1: Hyperspectrometer designed and built for this

project.

3 NEURAL PROCESSING

SYSTEM

The basic elements of the neural processing system

that is going to be used for processing the images

obtained from the hyperspectrometer are represented

in the block diagram of Figure 2. The system is

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

420

made up of two main elements: a target abundance

extraction artificial neural network (ANN) and a

rotation and target identification ANN.

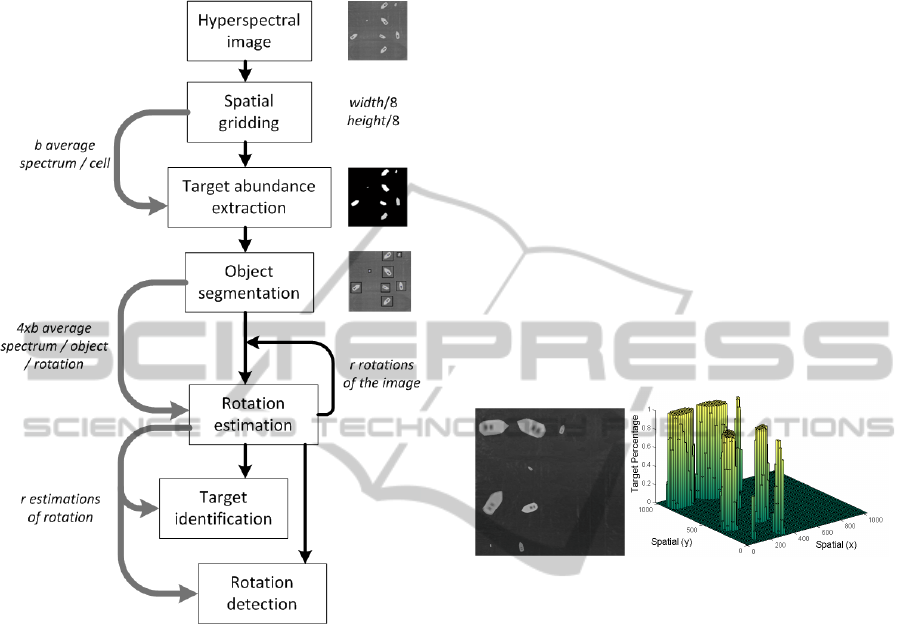

Figure 2: Block diagram representing the basic elements

that make up the neuronal processing system and their

relations.

Initially, a spatial gridding is performed over the

whole image and the proportion of a target present

within each grid cell is estimated by the target

abundance ANN. The segmented objects are

checked by a rotation detection and target

identification ANN ensemble. They are able to

decide if a particular target is present in a

hyperspectral image and to detect its rotation.

Obviously, this ensemble is particular to each target.

The main two elements of this system will be

described with more detail in the following

subsections.

3.1 Object Segmentation

Starting from a hyperspectral image of dimensions

wxhxb (width w, height h and b number of spectral

bands), the first stage of the system is a target

abundance extraction step. The hyperspectral image

is spatially downresampled, by means of a grid of

w/8 x h/8 cells. Then, an ANN is in charge of

deriving the percentage of target present in every

cell. Basically this ANN has b inputs corresponding

to the average spectrum of the points for the b

spectral bands considered. The output of this ANN is

the target percentage, a value between 0 and 1. As

the target may be present within a very small part of

the cell, this is basically an endmember extraction

ANN tuned to the particular average spectral

features of the target.

The image areas with a percentage higher than 0

are segmented. For each area, the center of mass and

the surface are calculated (weighted by the

percentage values provided by the ANN). Figure 3

displays an example of this segmentation process.

The left image shows an input image with 8 targets

(grey areas) and the right image shows the ANN

output corresponding to the areas that will be

segmented.

Figure 3: Input image (left) and a 3D representation of the

target percentage provided by the ANN (right).

3.2 Rotation Estimation and

Identification

Whenever an object has been segmented in the

previous step, it is necessary to check if the target

can be identified independently of rotation. In order

to do this, first of all, a rectangle area that surrounds

the segmented object is estimated. The left image of

Figure 4 represents this process. The region

determined by this rectangle is subdivided into four

areas (right image of Figure 4) and the average

spectrum is calculated for each area. These 4xb

values are run through the ANN based identification

and rotation detection ensemble. Figure 5 depicts the

structure of this ensemble. It draws inspiration from

the orientation columns within the visual cortex and

it is implemented as a set of orientation detectors for

the target. Each of these detectors has been trained

using the curve displayed in Figure 6 with the peak

centered on the angle for which the detector is

trained.

NEURAL BASED ROTATION AND SCALE INDEPENDENT DETECTION OF TARGETS IN A HYPERSPECTRAL

WATERWAY MONITORING SYSTEM

421

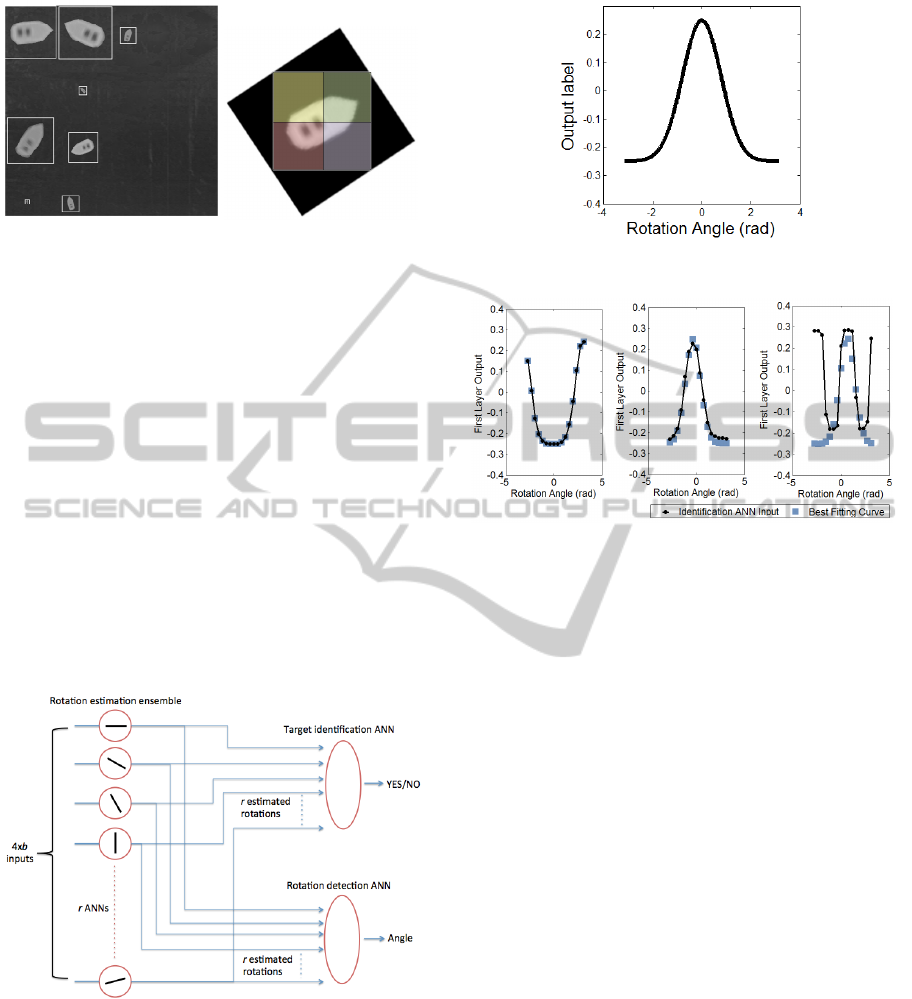

Figure 4: Rectangle areas surrounding the segmented

objects are estimated (left) and divided into four parts

where the average spectrum is calculated (right).

The outputs of the ANNs in the first layer of the

ensemble are used as inputs to a second layer that

contains two ANNs, one that decides if the target is

correctly identified and another one that provides the

rotation angle of the target. Basically, if the target is

present at the scale under analysis, the ANNs in the

first layer should provide outputs that look very

much like those in Figure 7, where the left and

central graphs correspond to two positive

identifications at different angles and the graph on

the right to a negative identification. The second

layer ANNs, which have as many inputs as ANNs

there are in the first layer, are in charge of both,

deciding on the angle depending on the values of the

first layer and deciding on whether the identification

is positive.

Figure 5: Representation of the ANN based

identification and rotation detection ensemble.

4 EXPERIMENTAL RESULTS

To clarify the operation of the system and to show

the capabilities of Hywacoss, two different scenarios

have been selected. Both of them consist in the top-

view of a simulated waterway, which contains

Figure 6: Curve used to train the rotation detection ANNs.

Figure 7: Points obtained by the different ANNs in the

first layer of the ensemble (black) and theoretical points

for that angle (grey). Two positive identifications (left and

center) and a negative one (right) are shown.

different possible targets that must be found:

different ships, a person in the sea and a buoy.

In the first scenario, we intend to identify a

person in the water that can be confused with other

objects present in water, like a buoy. In this case, the

estimation of the rotation angle of the target is not

relevant, but low error identification is crucial. The

second scenario shows two very similar ships and

the objective is to identify one of them and to

estimate its rotation angle. An image containing only

the 588 nm band of the hyperspectral cube of this

scenario is shown in Figure 8 (left) while the right

image displays the details of the hyperspectral cube

(from 493nm band to 1000nm band) of the two

ships.

In the following subsections we discuss the

specific processing parameters that have been used,

the ANN architectures and we detail the training of

each phase of the neural system. We also show the

results after applying the whole algorithm to the

hyperspectral captures.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

422

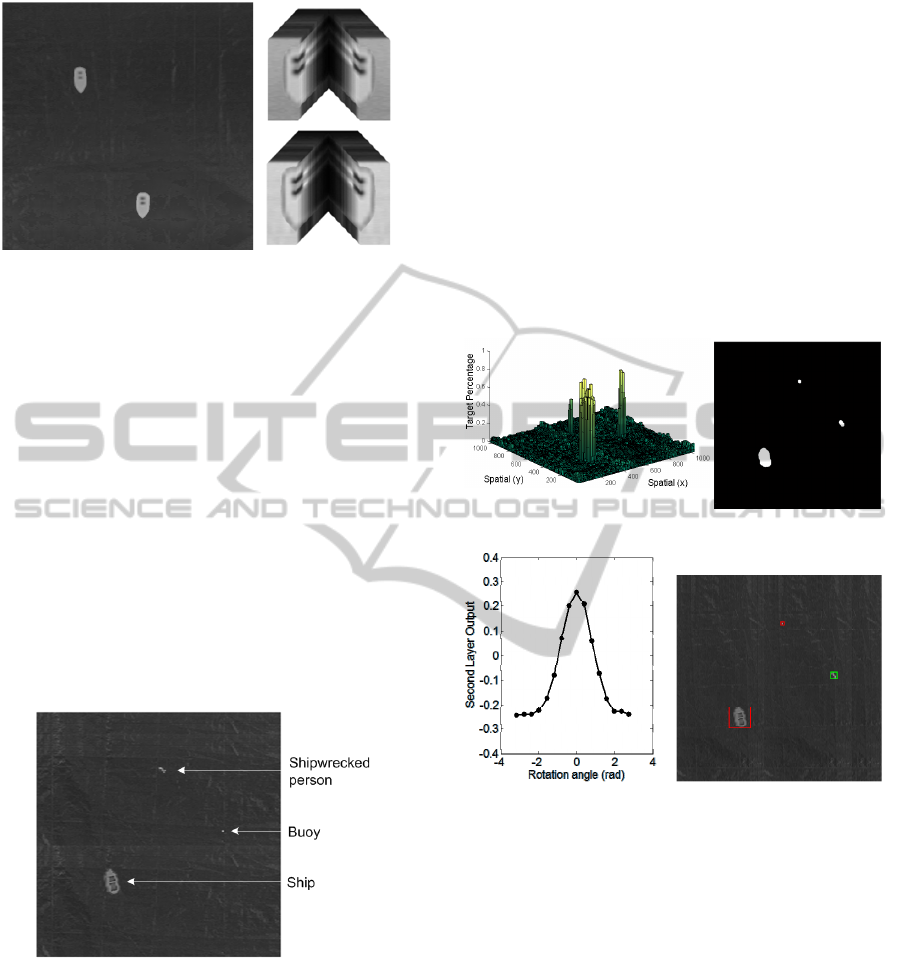

Figure 8: Left: 588nm band of the hyperspectral capture.

Right: Interior detail of the hyperspectral cube (bands

from 493nm to 1000nm).

4.1 Identification of a Person in the

Water

In the first detection problem we try to identify a

shipwrecked person with the presence of a buoy and

a small ship within the image capture (Figure 9).

The hyperspectral image has been spectrally reduced

to 64 bands through binning of the 1040 initial bands

since we have checked that 64 bands are sufficient to

achieve good ANN training results, and increasing

the number of inputs to the neural system

complicates and slows down the detection. In this

case, we have used a feed-forward ANN for the

Target abundance extraction, Rotation estimation,

Target identification and Rotation detection stages.

Figure 9: 588nm band of the hyperspectral capture of the

first scenario.

The Target abundance extraction ANN has to

detect, for any region of the image, what percentage

of the shipwrecked person is present. This ANN has

64 inputs that correspond to the average spectrum of

every band of all the pixels of the region that is

being analyzed and an output that oscillates between

0 and 1 (percentage). The training of the detection

ANN was carried out by selecting rectangles of

different sizes that could contain or not the target

(shipwrecked person) from different hyperspectral

captures. The number of samples we used for the

training was around 500.

The Rotation detection ensemble is devoted to

returning a specific value depending on the rotation

angle of the target as explained in section 3. As

commented above, in order to obtain the inputs of

this ANN, the region under analysis is divided into

four sub-regions (see Figure 4 right) and for each of

them the average spectrum is calculated.

Consequently, the system will have as inputs the 256

(64x4) values of these four average spectra. The

training was performed as described in the previous

section.

(i) (ii)

(iii) (iv)

Figure 10: Application steps of the whole system to the

hyperspectral image of scenario 1.

In the case of the ANNs in the second layer of the

ensemble, that is, the Target identification and

Rotation detection stages, a feed-forward ANN was

selected. The structure of all the networks of the

neural system and the training and validation mean

squared errors (MSE) are shown in Table 1. As we

can see from the last two columns, the detection

errors are very low and the ANNs perform their task

in a very successful way.

The whole neural system was applied to the

image displayed in Figure 9. Image (i) of Figure 10

shows the output provided by the target abundance

extraction ANN and image (ii) the corresponding

segmented objects. Next, image (iii) displays the

output provided by the rotation estimation ANN that

corresponds to the person in the water. Finally,

NEURAL BASED ROTATION AND SCALE INDEPENDENT DETECTION OF TARGETS IN A HYPERSPECTRAL

WATERWAY MONITORING SYSTEM

423

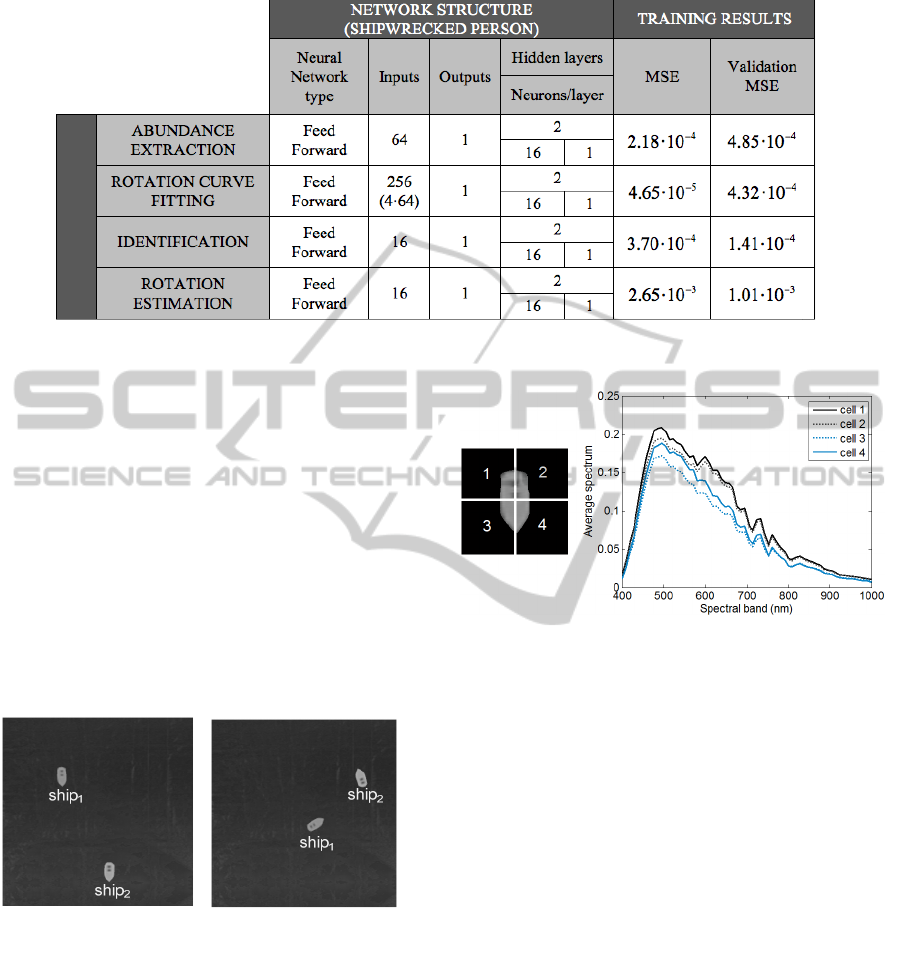

Table 1: Network structure and training results of the neural system in scenario 1.

image (iv) represents the positive detection (green

square) and the two negative detections (red squares)

obtained in this case by the target identification and

rotation detection ANNs.

4.2 Ship Discrimination and Rotation

Detection

For the second scenario, we have arranged copies of

two very similar ships, that, even though they

present some different materials, they display the

same apparent colour and shape. We have named the

target ship as ship

, and the other ship as ship

. Two

different captures of this scenario are displayed in

Figure 11.

Figure 11: 588nm band of two hyperspectral capture of the

second scenario.

The ANNs employed in this case are the same used

in the previous example, also they use the same

number of hidden layers and neurons. Table 2

contains the network details and the mean squared

error levels achieved in training and validation.

Figure 12 left shows in detail the division into four

sub-regions of the original region carried out for the

training and execution of the Rotation detection

ANN and the average spectra of each of the sub-

regions that are used as inputs to this ANN in this

case (right image).

Figure 12: Four sub-regions of the original image used for

the ANN training (left) and detail of the inputs for the

rotation curve fitting ANN (right).

Again, we have applied the neural system to a set

of three hyperspectral images corresponding to

scenario 2, and the results obtained are shown in

Figure 13. Left images correspond to the 588 band

image in the three different cases. Middle images

show the segmented objects and right images display

the final result with the identification results. The

mean squared error in the angle estimation was 1.22º

for these test images. As shown, in all the images the

target ship has been properly detected (green

window).

5 CONCLUSIONS

In this paper we have presented an orientation and

scale independent ANN ensemble based target

identification and orientation determination system

for targets within hyperspectral images. The system

is inspired by the way orientation is processed in the

visual cortex and provides a fast and efficient way to

address the problem of finding objectives

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

424

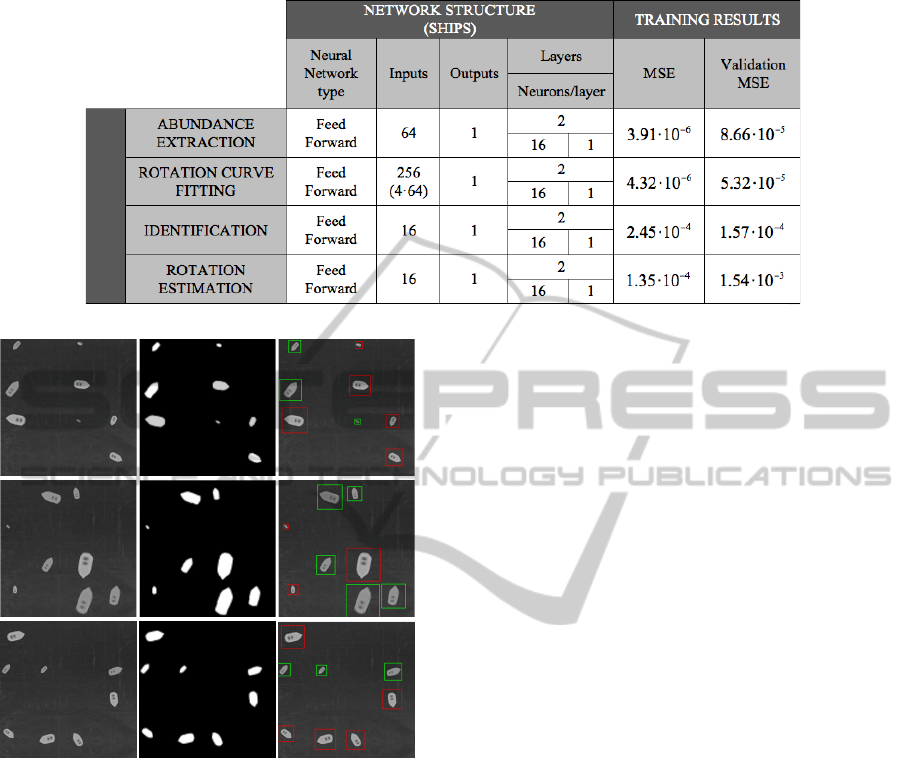

Table 2: Network structure and training results of the neural system in scenario 2.

Figure 13: Application of the whole algorithm to

hyperspectral images of scenario 2.

independently from scale and rotations and, at the

same time provide an accurate estimation of the

object’s orientation. It has been tested with different

hyperspectral images and has been shown to

appropriately detect targets as well as differentiate

between targets and non-targets that were very

similar (similar ships). We are now in the process of

implementing these algorithms and their extensions

over GPUs in order to be able to run them in real

time.

ACKNOWLEDGEMENTS

This work was partially funded by the Xunta de

Galicia and European Regional Development Funds

through projects 09DPI012166PR and 10DPI005CT

as well as the MCYT of Spain under project

TIN2011-28753-C02-01.

REFERENCES

Glackin D. L. and Peltzer G. R., 1999, Civil, Commercial,

and International Remote Sensing Systems and

Geoprocessing, Aerospace Press, American Institute

of Aeronautics and Astronautics.

Pan, Z., Healey, G. E., Prasad, M., Tromberg, B. J., 2003,

Hyperspectral face recognition for homeland security.

Infrared Technology and Applications XXIX. Edited by

Andresen, B. F.; Fulop, G. F. Proceedings SPIE, V

5074: 767-776.

de Juan, A., Tauler, R., Dyson, R., Marcolli, C., Rault, M.,

Maeder, M., 2004, Spectroscopic imaging and

chemometrics: a powerful combination for global and

local sample analysis, Trends in Analytical chemistry,

23: 70-79.

Li, J., Bioucas-Dias, J. M., Plaza, A., 2010,

Semisupervised Hyperspectral Image Segmentation

Using Multinomial Logistic Regression with Active

Learning, IEEE Transactions on Geoscience and

Remote Sensing, V. 48, N.11, pp. 4085-4097.

Hubel, D. H., T. N. Wiesel, 1962, Receptive Fields,

Binocular Interaction And Functional Architecture In

The Cat's Visual Cortex, Journal of Physiology, v.

160, pp. 106-154.

Hubel, D. H., Wiesel, T. N., 1974, Sequence regularity

and geometry of orientation columns in the monkey

striate cortex, J Comp Neurol, Dec 1;158 (3): 267-93.

Han, W. J., Kim, S. D., Han, I. S., 2010, Bio-inspired

visual information processing – the neuromorphic

approach Wseas Transactions on Circuits and

Systems, Issue 7, Volume 9, pp. 441-452.

Plaza, A., Benediktsson, J. A., Boardma, J. W., Brazile, J.,

Bruzzone, L, Camps-Valls, G., Chanussot, J., Fauvel,

M., Gamba, P., Gualtieri, A., Marconcini, M., Tilton,

J. C., Trianni, G., 2009, Recent advances in techniques

for hyperspectral image processing, Remote Sensing of

Environment 113, S110–S122.

NEURAL BASED ROTATION AND SCALE INDEPENDENT DETECTION OF TARGETS IN A HYPERSPECTRAL

WATERWAY MONITORING SYSTEM

425
