REAL-TIME POSE ESTIMATION USING TREE STRUCTURES

BUILT FROM SKELETONISED VOLUME SEQUENCES

Rune Havnung Bakken

and Adrian Hilton

Faculty of Informatics and e-Learning, Sør-Trøndelag University College, Trondheim, Norway

Centre for Vision, Speech and Signal Processing, University of Surrey, Guildford, U.K.

Keywords:

Human Motion, Pose Estimation, Real-time.

Abstract:

Pose estimation in the context of human motion analysis is the process of approximating the body conﬁguration

in each frame of a motion sequence. We propose a novel pose estimation method based on constructing

tree structures from skeletonised visual hulls reconstructed from multi-view video. The pose is estimated

independently in each frame, so the method can recover from errors in previous frames, which overcomes the

problems of tracking. Publically available datasets were used to evaluate the method. On real data the method

performs at a framerate of 15–64 fps depending on the resolution of the volume. Using synthetic data the

positions of the extremities were determined with a mean error of 47–53 mm depending on the resolution.

1 INTRODUCTION

Capturing the motion of a person is a difﬁcult task

with a number of useful applications. Motion capture

is used to identify people by their gait, for interact-

ing with computers using gestures, for improving the

performance of athletes, for diagnosis of orthopedic

patients, and for creating virtual characters with more

natural looking motions in movies and games. These

are but a few of the possible applications of human

motion capture.

In some of the application areas mentioned above

it is important that the data aquisition is unconstrained

by the markers or wearable sensors tradionally used

in commercial motion capture systems. Furthermore,

there is a need for low latency and real-time perfor-

mance in some applications, for instance in perceptive

user interfaces and gait recognition.

Computer vision based motion capture has been

a highly active ﬁeld of research in the last couple

of decades, as surveys by for instance (Moeslund

et al., 2006) and (Poppe, 2007) show. A popular ap-

proach for multi-camera setups has been the shape-

from-silhouette method, which consists of doing 3D

reconstruction from silhouette images that results in

an over-estimate of the volume occupied by the sub-

ject called a visual hull.

Human motion is governed by an underlying artic-

ulated skeletal structure and (Moeslund et al., 2006)

deﬁne pose estimation as the process of ﬁnding an

approximate conﬁguration of this structure in one or

more frames. In a tracking framework the temporal

relations between body parts during the motion se-

quence are ascertained. Many tracking based algo-

rithms suffer from increasing errors over time, and re-

covering from situations where the track is lost can be

problematic.

Goal. The overall goal of the research presented in

this paper is to develop a robust, real-time pose esti-

mation method.

Contribution. We present a pose estimation

method based on constructing a tree structure from

a skeletonised visual hull. The conﬁguration of the

skeletal structure is independently estimated in each

frame, which overcomes limitations of tracking,

and facilitates automatic initialisation and recovery

from erroneous estimates. The method achieves

real-time performance on a variety of different

motion sequences.

This paper is organised as follows: in section 2

relevant work by other researchers is examined. The

proposed pose estimation method is detailed in sec-

tion 3. Results of experiments with the proposed

method are presented in section 4, and the strengths

and limitations of the approach are discussed in sec-

tion 5. Section 6 concludes the paper.

181

Havnung Bakken R. and Hilton A..

REAL-TIME POSE ESTIMATION USING TREE STRUCTURES BUILT FROM SKELETONISED VOLUME SEQUENCES.

DOI: 10.5220/0003858501810190

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 181-190

ISBN: 978-989-8565-04-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

The motion of the human body is governed by the

skeleton, a rigid, articulated structure. Recovering

this structure from image evidence is a common

approach in computer vision based motion capture.

Representing 3D objects by a skeletal approxima-

tion has many different applications. An overview of

the properties, applications and algorithms for ﬁnding

skeletal representations of 3D objects was given by

(Cornea et al., 2007). There are several ways to de-

ﬁne the skeletal representation of an object. The well-

known medial axis transform (Blum, 1967) is used to

thin objects in 2D, but when generalised to 3D it re-

sults in a medial surface. The skeleton of an object is

deﬁned as the locus of centre points of maximal in-

scribed balls. The medial axis and the skeleton are

closely related, but not exactly the same. The curve-

skeleton (Svensson et al., 2002) is an alternate repre-

sentation without a rigorous deﬁnition, but generally

it can be said to be a line-like 1D structure consisting

of curves that match the topology of the 3D object.

There exists a plethora of algorithms for ﬁnding

the curve-skeleton of an object, but (Cornea et al.,

2007) divides them into four broad categories: thin-

ning, geometrical, distance ﬁeld, and potential ﬁeld.

A thorough discussion of the strengths and weak-

nesses of each type of approach is beyond the scope

of this paper, but thinning offers a good compromise

between accuracy and computational cost. A subset

of the thinning category consists of fully parallel al-

gorithms. These procedures evaluate each voxel of

the 3D object independently, making them very well

suited for implementation on modern graphics hard-

ware.

Both (Brostow et al., 2004) and (Theobalt et al.,

2004) sought to ﬁnd the skeletal articulation of arbi-

trary moving subjects. Both approaches enforce tem-

poral consistency for the entire structure during the

motion sequence. Neither focused on human pose es-

timation speciﬁcally, however, and no inferences were

made about which part of the extracted skeletons cor-

respond to limbs in a human skeletal structure.

A method for automatic initialisation based on

homeomorphic alignment of a data skeleton with a

weighted model tree was presented by (Raynal et al.,

2010). The alignment was done by minimising the

edit distance between the data and model trees. The

method was intended to be used as an initialisation

step for a pose estimation or tracking framework.

In the model-free motion capture method pro-

posed by (Chu et al., 2003) volume sequences are

transformed into a pose-invariant intrinsic space, re-

moving pose-dependent nonlinearities. Principal cu-

rves in the intrinsic space are then projected back

into Euclidean space to form a skeleton representation

of the subject. This approach requires three passes

through a pre-recorded volume sequence, hence it was

not suited for real-time applications.

Fitting a kinematic model to the skeletal data is

an approach taken by several researchers. The pose

estimation framework described by (Moschini and

Fusiello, 2009) used the hierarchical iterative closest

point algorithm to ﬁt a stick ﬁgure model to a set of

data points on the skeleton curve. The method can

recover from errors in matching, but requires man-

ual initialisation. The approach presented by (Me-

nier et al., 2006) uses Delauney triangulation to ex-

tract a set of skeleton points from a closed surface vi-

sual hull representation. A generative skeletal model

is ﬁtted to the data skeleton points using maximum

a posteriori estimation. The method is fairly robust,

even for sequences with fast motion. A tracking and

pose estimation framework where Laplacian Eigen-

maps were used to segment voxel data and extract a

skeletal structure consisting of spline curves was pre-

sented by (Sundaresan and Chellappa, 2008). Com-

mon for the three aforementioned approaches is that

they do not achieve real-time performance.

A comparison of real-time pose estimation meth-

ods was presented by (Michoud et al., 2007). Their

ﬁndings were that real-time initialisation was a fea-

ture lacking from other approaches. Michoud et al.’s

own approach has automatic initialisation and esti-

mates pose with a framerate of around 30 fps. It does,

however, rely on ﬁnding skin-coloured blobs in the vi-

sual hull to identify the face and hands, and this places

restrictions on the clothing of the subject and the start

pose, as well as requiring the camera system to be

colour calibrated.

The real-time tracking framework presented by

(Caillette et al., 2008) used variable length Markov

models. Basic motion patterns were extracted from

training sequences and used to train the classiﬁer. The

method includes automatic initialisation and some de-

gree of recovery from errors, but as with all training

based approaches it is sensitive to over-ﬁtting to the

training data, and recognition is limitied by the types

of motion that was used during the training phase.

3 APPROACH

In this section, we will detail the steps in the proposed

pose estimation method, starting with the input data,

and ending up with a set of labelled trees representing

the subject’s pose during the motion sequence.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

182

Table 1: Ratios of limb lengths in relation to the longest

path in the skeleton from one hand to one foot.

Bone Ratio Bone Ratio

Head 0.042 Upper spine 0.050

Upper neck 0.042 Lower spine 0.050

Lower neck 0.042 Hip 0.061

Shoulder 0.085 Thigh 0.172

Upper arm 0.124 Lower leg 0.184

Lower arm 0.121 Foot 0.050

Hand 0.029 Toe 0.025

Thorax 0.050

3.1 Anthropometric Measurements

In a fashion similar to (Chen and Chai, 2009) we build

a model of the human skeleton by parsing the data in

the CMU motion capture database (mocap.cs.cmu.

edu). The CMU database contains 2605 motion cap-

ture sequences of 144 subjects. For each sequence

the performer is described by an Acclaim skeleton ﬁle

that contains estimated bone lengths for 30 bones. We

parse all the skeleton ﬁles in the database and calcu-

late the mean bone lengths for a subset of the bones.

The stature was used as the reference length

when calculating anthromopometric ratios by (Mi-

choud et al., 2007), but as we wish to use these ra-

tios before the tree is labelled it is unknown which

parts of the tree constitute the stature. Hence, we need

an alternative reference length. We observe that the

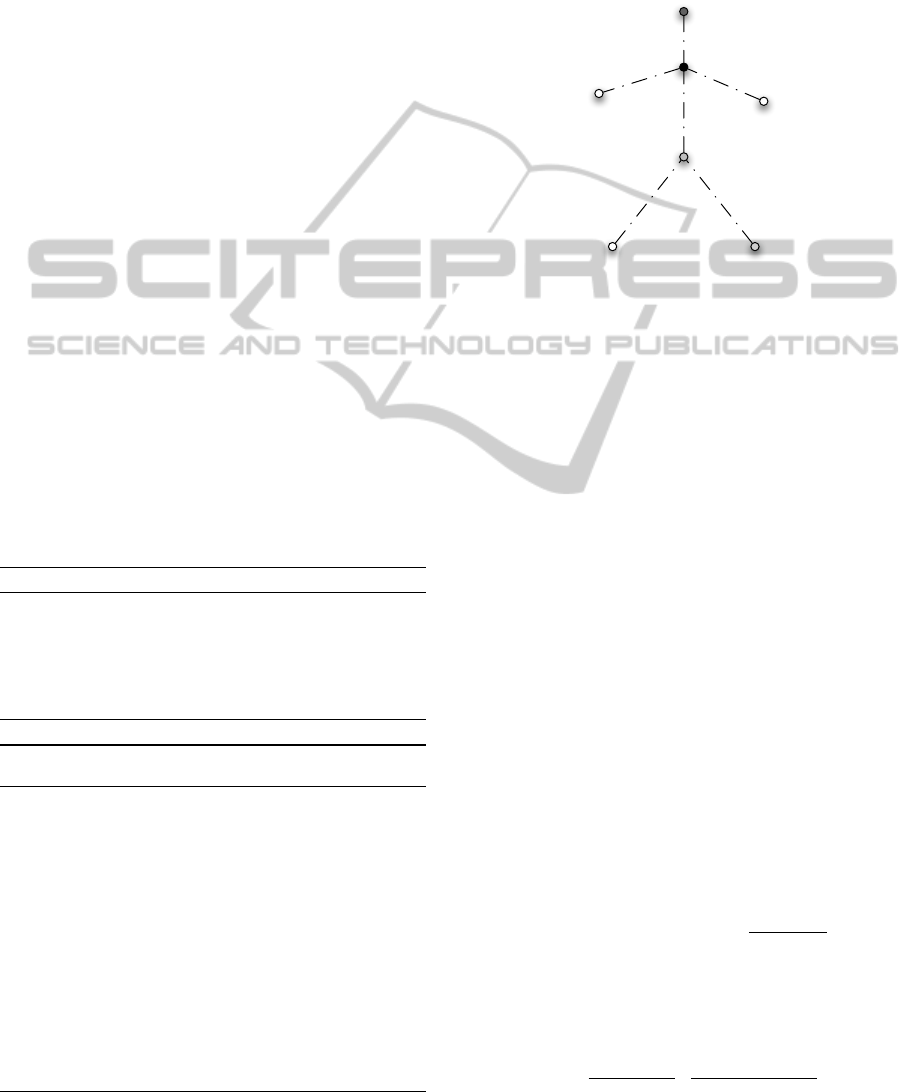

longest path in the ideal tree structure in ﬁgure 1 is

from one hand to one foot (since the tree is symmetric

it does not matter which we choose). Consequently,

we use the longest path in the tree as the reference

length and it corresponds to the sum of the lengths of

the hand, lower and upper arm, thorax, lower and up-

per spine, hip, thigh, lower leg, foot, and toe. We cal-

culate the ratios for all limbs in relation to this longest

path. The limb length ratios are shown in table 1.

3.2 3D Reconstruction and

Skeletonisation

The ﬁrst step in a shape-from-silhouette based ap-

proach is to separate foreground (subject) from back-

ground (everything else) in the image data. Both

the real and synthetic data used in this paper comes

with silhouette images already provided, so this step

is not included in the method, nor in the processing

times presented in section 4. There are, however, real-

time background subtraction algorithms available that

could be used. Any of the three methods examined by

(Fauske et al., 2009) achieve real-time performance

with reasonable segmentation results.

We assume that the camera system used is cali-

brated and synchronised. Experiments with multi-

camera systems by (Starck et al., 2009) demonstrated

that using eight or more cameras ensures good results

from the 3D reconstruction phase.

Once the silhouettes have been extracted the cali-

bration information from the cameras can be used to

perform a 3D reconstruction. The silhouette images

are cross sections of generalised cones with apexes in

the focal points of the cameras. The visual hull (Lau-

rentini, 1994) is created by intersecting the silhouette

cones. Visual hulls can be represented by surfaces

or volumes. We employ a simple algorithm that pro-

duces a volumetric visual hull. For all voxels in a

regular grid we project that voxel’s centre into each

image plane and check if the projected point is in-

side or outside the silhouette. Voxels that have pro-

jected points inside all the silhouettes are kept and the

rest are discarded. This procedure lacks the robust-

ness associated with more advanced techniques, but

its simplicity makes it attractive for implementation

on graphics hardware.

A parallel thinning technique (Bertrand and Cou-

prie, 2006) is used to skeletonise the visual hull. The

algorithm is implemented on graphics hardware to

achieve high throughput.

3.3 Pose Tree Construction

It is natural to represent the human body using a tree

structure. The head, torso and limbs form a tree-like

hierarchy. If the nodes in the tree are given positions

in Euclidean space the tree describes a unique pose.

3.3.1 Main Algorithm

An overview of the method can be seen in algo-

rithm 1. The ﬁrst step is to create a tree structure

from the skeleleton voxels. A node is created for each

voxel, and neighbouring nodes are connected with

edges. Next, the extremities (hands, feet, and head)

are identiﬁed in the tree by ﬁrst pruning away erro-

neous branches, and then examining branch lengths.

The third step consists of using the identiﬁed extrem-

ity nodes to segment the tree into body parts (arms,

legs, torso, and neck). Finally, a vector pointing for-

ward is estimated and used to label the hands and feet

as left or right. Further details about each step of the

method are given in the following sections.

3.3.2 Building the Tree

The skeleton voxel data is traversed in a breadth-ﬁrst

manner to build the pose tree. We place the root of

the tree in the top-most voxel. The nodes are placed

REAL-TIME POSE ESTIMATION USING TREE STRUCTURES BUILT FROM SKELETONISED VOLUME

SEQUENCES

183

in a queue as they are created. When the ﬁrst node in

the queue is removed the neighours of that node’s cor-

responding voxel is checked and new child nodes are

added to the tree if those neighbours have not been

visited before. This is repeated until the queue is

empty. At this point all voxels connected to the top-

most voxel will have been processed and given corre-

sponding nodes in the tree.

3.3.3 Finding Extremities

The next step is to identify the extremities among the

leaf nodes in the tree. The input skeleton voxels typ-

ically contain some noise which in turn leads to spu-

rious branches in the tree. Hence, we need to prune

the tree to reduce the number of leaf nodes. This is

done in two steps. First, a recursive procedure that

removes branches shorter than a threshold based on

the anthropometric ratios is employed. Calculating

the length of an arm with the anthropometric ratios

from section 3.1 and using that as the threshold has

been found to produce good results. Of the remain-

ing leaf nodes the feet should be at the end of the two

longest branches, and the hands should be at the end

of the next two. Hence, the list of leaf nodes is sorted

by branch length and all but the longest four are re-

moved. In order to keep all information in the origi-

nal tree intact the two pruning steps are performed on

a copy.

The procedure outlined above is robust as long as

Algorithm 1: Main pose estimation algorithm

1: Build the pose tree from skeleton voxels.

2: Find the extremities (feet, hands, head).

3: Segment the tree into body parts.

4: Find a vector pointing forward, and identify left

and right limbs.

Algorithm 2: A breadth-ﬁrst pose tree construction algo-

rithm.

1: Create a node for the top-most voxel and add it to

the node queue.

2: while node queue is not empty do

3: N ← ﬁrst node in queue.

4: V ← voxel corresponding to N.

5: for all neighbours of V do

6: if neighbour has not been visited then

7: Create a new child node of N and add it to

the queue.

8: Label neighbour as visited.

9: end if

10: end for

11: end while

the top-most voxel is at the location of the head. The

head branch is shorter than the length of an arm and

if one of the other limbs is higher than the head, the

head branch is likely to be removed during pruning.

We solve this problem by ﬁnding what we deﬁne as

the origin node.

Figure 1: An ideal pose tree. The black node is the origin

with degree four, the dark grey node is the root, the light

grey node is the internal node of degree three, and the white

nodes are leaf nodes. All other nodes are internal nodes of

degree two.

Let us consider an ideal pose tree. An ideal pose

tree consists of a root node, four leaf nodes, one inter-

nal node of degree three, one internal node of degree

four, and a number of internal nodes of degree two as

shown in ﬁgure 1. We deﬁne the origin node as the

node of degree four where the arms, torso, and neck

are joined.

All nodes in the pruned tree of degree higher than

two are candidates for the origin node. In order to

choose the best candidate we create copies of the

pruned tree and move the root to each of the candidate

locations. A rank is calculated for each of the candi-

date trees, and the root of the highest ranked tree is

chosen as the origin node.

The leaf nodes in the candidate tree are sorted by

distance to the root. The furthest two are used as feet,

the next two as hands, and the last as head. Ideal

lengths for the legs, arms, neck, and torso (I

)

are estimated using the anthropometric ratios and the

longest path in the tree. We calculate the rank of a

candidate using the following formula:

r = r

·r

·e

−

(deg(root)−4)

(1)

The last term is used to penalise candidate nodes

with degree 6= 4. The ranks for each limb is given by

the following formulae:

min(I

)

max(I

)

min(I

−d

)

max(I

−d

)

(2)

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

184

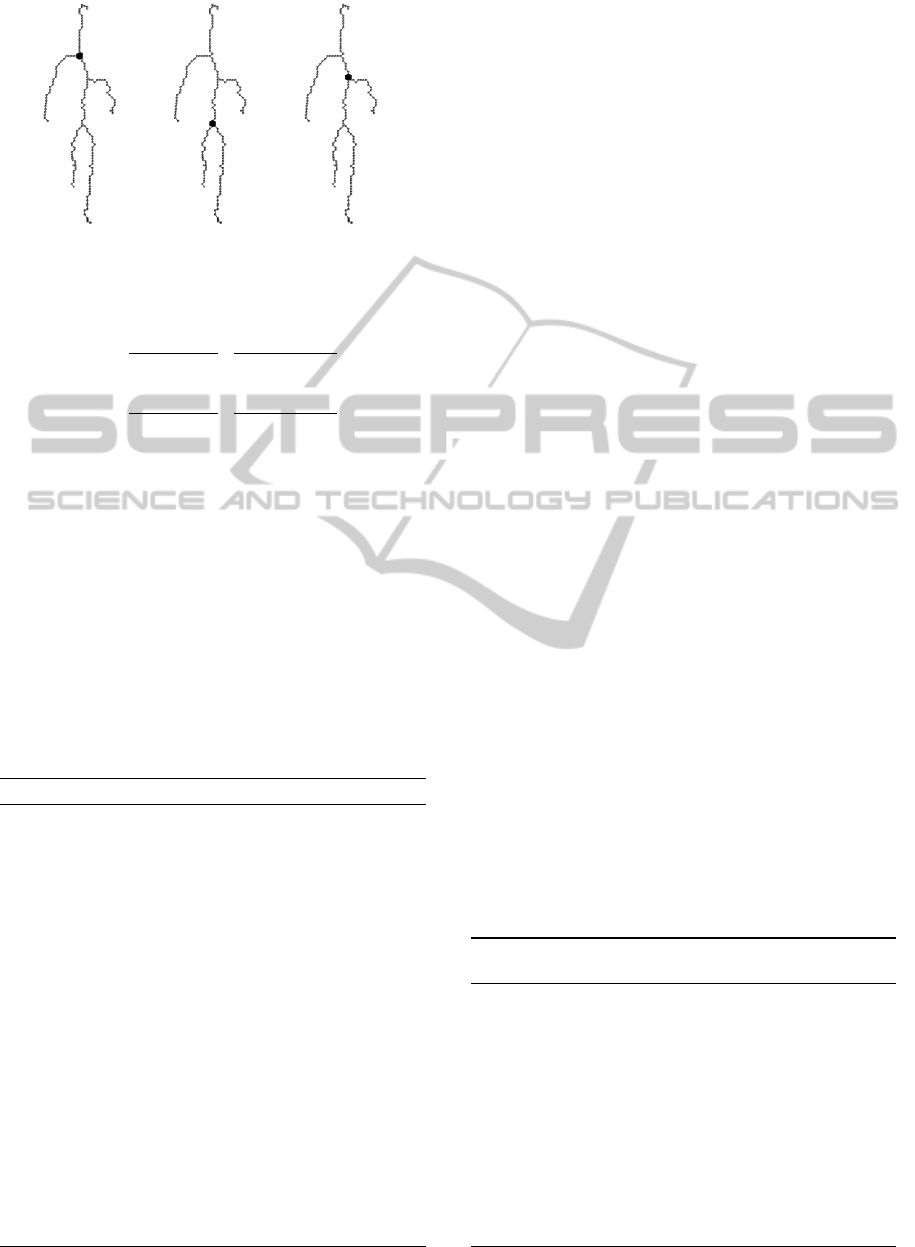

Figure 2: Three candidates for the origin node of a tree

sorted by rank from left to right. Their ranks are 8.85 ×

−4

, 1.45 ×10

−4

, and 3.40 ×10

−5

, respectively.

min(I

)

max(I

)

1 + (d

−d

)

(3)

min(I

)

max(I

)

1 + (d

−d

)

(4)

where d

is the distance from the leaf node under con-

sideration to the root of the candidate tree, and d

the distance from the leaf node to the closest branch-

ing point. The second terms of equations 3 and 4 are

used to penalise candidates where one arm has been

shortened. An example of three candidate trees and

their ranks can be seen in ﬁgure 2.

The root of the pruned copy of the pose tree is

moved to the location of the highest ranked origin

candidate. If this is the ﬁrst frame or no valid la-

belling is available from the previous frame, the leaf

nodes are sorted by the distance to the root. Finally,

the nodes in the original pose tree corresponding to

Algorithm 3: Finding extremities in the pose tree.

1: Create a copy of the tree.

2: Prune the copy by recursively removing branches

that are shorter than an arm.

3: Examine the remaining leaf nodes, and remove

all but the four belonging the longest branches

(feet and hands).

4: Create copies of the pruned tree with candidates

for the origin node position.

5: Rank the candidate trees and move the root of the

pruned copy to the location of the root of the can-

didate tree with the highest rank.

6: if no valid labelling from previous frame then

7: Sort leaf nodes by distance to root.

8: Label the furthest two as feet, the next two as

hands, and the ﬁnal as head.

9: else

10: Label the leaf nodes by ﬁnding the nearest cor-

respondences from the previous frame.

11: end if

the remaining leaf nodes in the copy are labelled as

extremities. The two furthest from the root are la-

belled as feet, the next two as hands, and the last one

as the head.

If a valid labelling from the previous frame exists,

we use temporal correspondences to label the extrem-

ities instead. For each of the labelled extremities in

the previous frame, the Euclidean distance to each of

the remaining candidates in the current frame is calcu-

lated and the one with the shortest distance is chosen.

The chosen candidate is labelled correspondingly and

removed from the list of candidates.

If the head node is not the root of the tree, the root

is moved to that node. A lower limit on the origin

node rank is used to determine the validity of the la-

belling. This threshold is set empirically, and if none

of the candidate trees has a rank above the threshold

the labelling is not considered valid, and will not be

used for ﬁnding temporal correspondences in the next

frame.

3.3.4 Segmentation into Body Parts

Next, we segment the tree into body parts. The iden-

tiﬁed extremities are used as starting points for the

segmentation. Starting in the ﬁrst hand node, the tree

is labelled as Arm1 upwards until the root is reached.

This is repeated for the other hand, and the tree is la-

belled as Arm2 upwards until the ﬁrst node labelled

Arm1 is encountered. Labelling continues upwards,

and all nodes are labelled as Neck until the root is

reached. A similar approach is used for the lower

body. Starting in the ﬁrst foot, the nodes are labelled

as Leg1 upwards in the tree until the label Neck is

reached. From the second foot, the nodes are labelled

as Leg2 upwards in the tree until the label Leg1 is en-

countered. Finally, continuing upwards, all nodes are

labelled as Torso until the label Neck is encountered.

If no nodes are labelled as Torso, the tree is marked as

invalid. This procedure is formalised in algorithm 4.

Algorithm 4: Tree segmentation (arms only; the legs, neck,

and torso are identiﬁed in a similar manner).

1: N ← the leaf node labelled Hand1.

2: while N is not the root do

3: Label N as Arm1.

4: N ← N’s parent.

5: end while

6: N ← the leaf node labelled Hand2.

7: while N is not labelled Arm1 do

8: Label N as Arm2.

9: N ← N’s parent.

10: end while

11: {Repeat for legs, neck and torso.}

REAL-TIME POSE ESTIMATION USING TREE STRUCTURES BUILT FROM SKELETONISED VOLUME

SEQUENCES

185

3.3.5 Identifying Left and Right

The ﬁnal step of the proposed method is to ﬁnd the

left and right sides of the body. We use the labelled

extremities as the starting point. Using the anthropo-

metric ratios from section 3.1 the algorithm creates

sets of nodes corresponding to the feet, lower legs,

thighs, and torso by traversing the tree upwards from

the labelled leaf nodes. Total least squares line ﬁt-

ting is used to ﬁnd vectors representing the node sets,

while making sure all vectors point upwards in the

tree.

Taking the cross products of the vectors, normal

vectors for the ankle and joints are calculated. In ﬁg-

ure 3(a) we observe that the angles α and β can never

exceed 180

◦

, so ordering the vectors in the cross-

product consistently ensures that the normals will be

oriented towards the left. For each leg the two joint

normals are combined to form a normal for the leg,

and a forward pointing vector for each leg is created

by taking the cross product of the normals and the

torso vector. The two forward vectors are combined

to form a single vector pointing forward in the torso’s

frame of reference. This procedure is formalised in

algorithm 5. Because of noise in the data it is possi-

ble that the foot can degenerate during the skeletoni-

sation and tree construction phases. In order to avoid

problems with the node sets used for the curve ﬁtting,

a threshold is set on the difference in length between

the legs. If one leg is shorter by more than two times

the length of a foot, the foot vector and consequently

the ankle joint is disregarded in the calculation of the

normals.

To label the hands as left and right, total least

squares line ﬁtting is used to ﬁnd vectors representing

the shoulders, both pointing away from the torso. A

vector pointing left is calculated using the cross prod-

uct of the torso vector with the forward vector. The

angles between the shoulder vectors and the left vec-

tor is calculated, and the hand corresponding to the

smallest angle is labelled as left. If both shoulder vec-

tors are pointing in the same or opposite direction of

the left vector, the largest and smallest angle with the

forward vector, respectively, are used to label the left

hand. The procedure is repeated for the feet using

vectors representing the hips. The left-right labelling

is formalised in algorithm 6.

4 RESULTS

A number of experiments have been conducted using

the proposed method. Both real and synthetic data

were used, and reconstructions were done at resolu-

tions of 64 ×64×64 and 128 ×128×128 voxels. The

sizes of a voxel were 31.3 mm at 64 ×64 ×64, and

15.6 mm at 128 ×128 ×128. All experiments were

conducted on a computer with a 2.67 GHz Intel i7

Algorithm 5: Finding forward vector.

1: Using anthropometric ratios, create sets of nodes

corresponding to the foot, lower leg, thigh, and

torso.

2: Using orthogonal distance regression, ﬁt lines to

the sets of nodes, and make sure the resulting vec-

tors ~v

f oot

,~v

lleg

,~v

thigh

,~v

torso

point upwards in the

tree.

3: if angle(~v

f oot

,~v

lleg

) > threshold then

4: Construct a normal for the ankle joint

ankle

=~v

f oot

×~v

lleg

5: end if

6: if angle(~v

lleg

,~v

thigh

) > threshold then

7: Construct a normal for the knee joint

knee

=~v

lleg

×−~v

thigh

8: end if

9: Combine the joint normals ~n

ankle

+~n

knee

|~n

ankle

+~n

knee

10: Repeat step 3 to 9 for the other leg, to get a second

normal n

11: Construct two forward vectors using the normals

=~n

×~v

torso

12: Combine the two forward vectors

f =

Algorithm 6: Identifying left and right limbs.

1: For each arm, create a set of n nodes representing

the shoulder.

2: Construct a vector pointing left ~v

le f t

=~v

torso

3: Using orthogonal distance regression, ﬁt lines to

the sets of nodes, and make sure the resulting vec-

tors ~v

and ~v

point away from the torso.

4: if ~v

le f t

·~v

> 0 and ~v

le f t

·~v

> 0 then

5: le f t = argmax(angle(

f ,~v

),angle(

f ,~v

))

6: right = argmin(angle(

f ,~v

),angle(

f ,~v

))

7: else if ~v

le f t

·~v

< 0 and ~v

le f t

·~v

< 0 then

8: le f t = argmin(angle(

f ,~v

),angle(

f ,~v

))

9: right = argmax(angle(

f ,~v

),angle(

f ,~v

))

10: else

11: le f t = argmin(angle(~v

le f t

,~v

angle(~v

le f t

,~v

))

12: right = argmax(angle(~v

le f t

,~v

angle(~v

le f t

,~v

))

13: end if

14: For each leg, create a set of n nodes representing

the hip, and repeat steps 3 to 12.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

186



↵

foot

⇥~v

lleg

thigh

lleg

⇥~v

thigh

torso

(a) Joint angles and nor-

mals.

(b) Example using

real data.

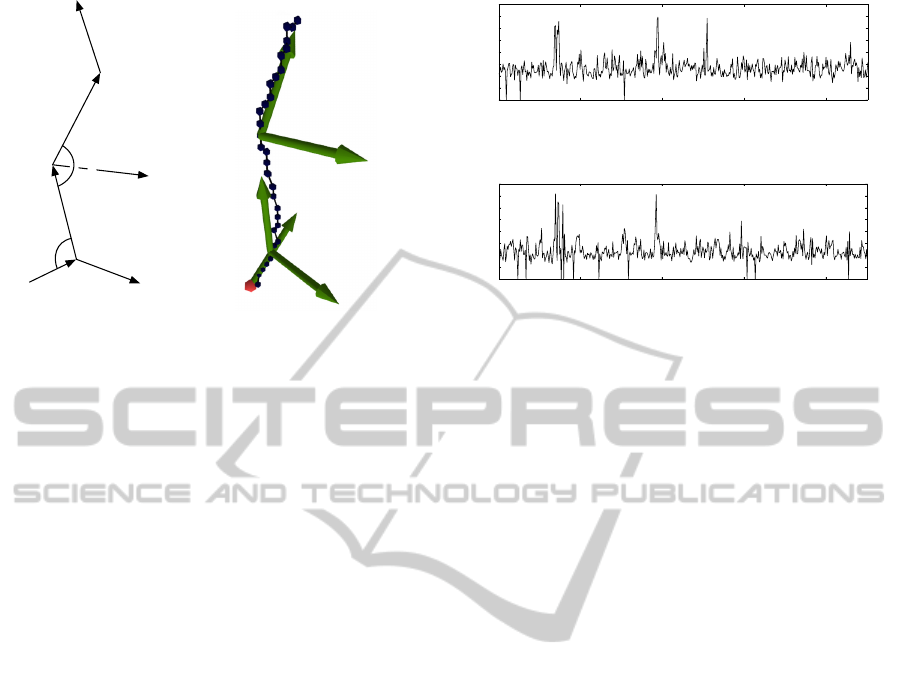

Figure 3: Vectors used for left-right labelling.

processor, 12 GB RAM, and two graphics cards: one

Nvidia GeForce GTX 295 and one Nvidia GeForce

GTX 560 Ti. The GTX 295 was used for visual hull

construction and the GTX 560 for skeletonisation.

The accuracy of the method at different volume

resolutions was evaluated using synthetic data. An

avatar was animated using motion capture data from

the CMU dataset. Silhouette images of the sequence

were rendered with eight virtual cameras at a reso-

lution of 800 ×600, seven placed around the avatar

and one in the ceiling pointing down. The sequence

that was used was a whirling dance motion (subject

55, trial 1). The known joint locations from the mo-

tion capture data were used as a basis for compari-

son. The results of using the proposed pose estimation

method on the synthetic data can be seen in ﬁgure 4.

The mean positional error of the hands and feet for

the entire sequence was 46.8 mm (standard deviation

16.6 mm) and 53.2 mm (standard deviation 15.9 mm)

for 128 ×128 ×128 and 64 ×64 ×64 volume resolu-

tions, respectively. There is a noticeable increase in

accuracy with a higher resolution, but not by a huge

margin. An interesting observation is that the number

of frames where the method fails (curve reaches 0) in-

creases with higher resolution. The sequence consists

of 451 frames, and 97.6% and 95.8% are labelled cor-

rectly at 64×64×64 and 128×128×128 resolutions,

respectively.

The robustness and computational cost of the

method was evaluated using real data drawn from the

i3DPost dataset (Gkalelis et al., 2009). This is a pub-

lically available multi-view video dataset of a range

of different motions captured in a studio environment.

The volume resolution greatly inﬂuences the process-

ing time of the method. Three sequences of varying

complexity were tested at both 64×64×64 and 128×

100 200 300 400

Mean pos. error (mm)

Frame

120

160

(a) Volume resolution 64 ×64 ×64.

120

160

100 200 300 400

Frame

Mean pos. error (mm)

(b) Volume resolution 128 ×128 ×128.

Figure 4: Comparison of mean errors of estimated posi-

tions of the hands and feet for a synthetic dance sequence.

Frames where the algorithm has failed gracefully have been

omitted.

128 ×128 resolutions, and the results can be seen in

table 2. The method achieves near real-time perfor-

mance of ∼ 15 fps at the highest resolution, but by

halving the dimensions of the volume the framerate is

almost tripled. A framerate of ∼64 fps should be suf-

ﬁcient for most real-time applications. In both cases

the tree construction is highly efﬁcient, < 1.5 ms for

64 ×64 ×64 and < 4 ms for 128 ×128 ×128. At

the higher resolution the skeletonisation is the main

computational bottleneck. The reason for the small

difference in processing time for the visual hull con-

struction is that the images from the i3DPost dataset

have a resolution of 1920×1080 and copying the data

between main memory and the GPU is the bottleneck.

Figure 5 shows four frames from the three sequences

at both resolutions.

Sequences with challenging motions were used to

test the robustness. Poses where the subject’s limbs

are close to the body typically result in a visual hull

that is a poorer approximation of the actual volume.

A sequence where the subject is crouching during the

motion illustrates this. As can be seen in ﬁgure 6 the

method fails gracefully when the subject is crouching,

but recovers once the limbs are spread out once more.

A pirouette is a challenging motion, because of the

rapid movement of the extremities. Figure 7 shows

that the temporal correspondence labelling can fail in

such cases, but the identiﬁcation of the left and right

limbs is still robust.

For the real data, the walk (57 frames) and

walk-spin (46 frames) sequences are labelled 100%

correctly. Only 42.6% of the run-crouch-jump (108

frames) sequence is labelled correctly, but the subject

is crouching during half the sequence. The sequences

REAL-TIME POSE ESTIMATION USING TREE STRUCTURES BUILT FROM SKELETONISED VOLUME

SEQUENCES

187

Table 2: Comparison of mean processing times for three sequences from the i3DPost dataset, using different resolutions. All

times are in milliseconds, with standard deviations in parentheses.

(a) Volume resolution 64 ×64 ×64.

Visual hull Skeletonisation Build tree Sum Framerate

Walk, sequence 013 9.61 (0.26) 4.37 (0.28) 1.44 (0.25) 15.41 (0.47) 64.88

Walk-spin, sequence 015 9.63 (0.26) 4.42 (0.32) 1.41 (0.30) 15.46 (0.54) 64.67

Run-crouch-jump, sequence 017 9.69 (0.26) 4.82 (0.59) 1.07 (0.27) 15.58 (0.61) 64.18

(b) Volume resolution 128 ×128 ×128.

Visual hull Skeletonisation Build tree Sum Framerate

Walk, sequence 013 12.25 (0.34) 49.37 (2.63) 3.09 (0.33) 64.71 (2.61) 15.45

Walk-spin, sequence 015 12.28 (0.30) 52.06 (4.14) 3.13 (0.46) 67.46 (4.03) 14.82

Run-crouch-jump, sequence 017 11.94 (0.16) 51.43 (3.73) 3.51 (0.58) 66.88 (3.89) 14.95

(a) Walk, sequence 013.

(b) Walk-spin, sequence 015.

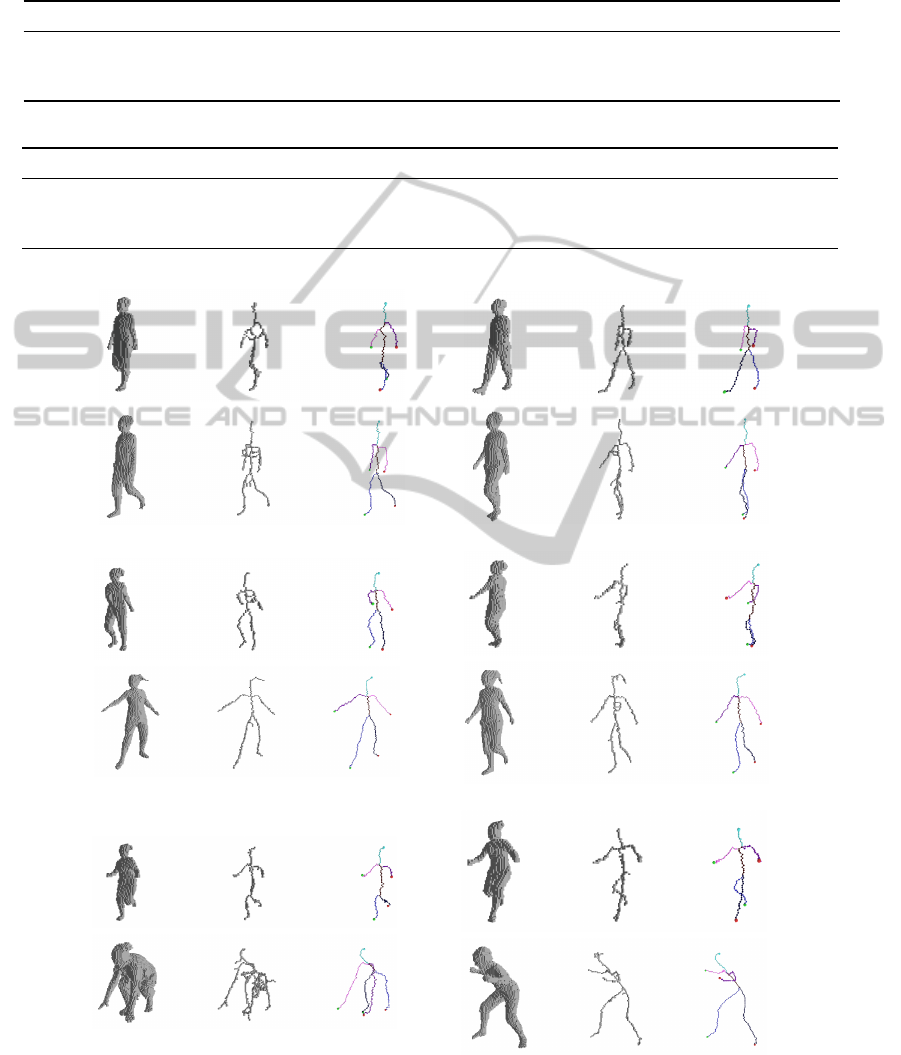

Figure 5: Four frames from each of three sequences, showing the visual hulls, skeletons and pose trees. The top rows have a

volume resolution of 64 ×64 ×64, and 128 ×128 ×128 in the bottom rows.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

188

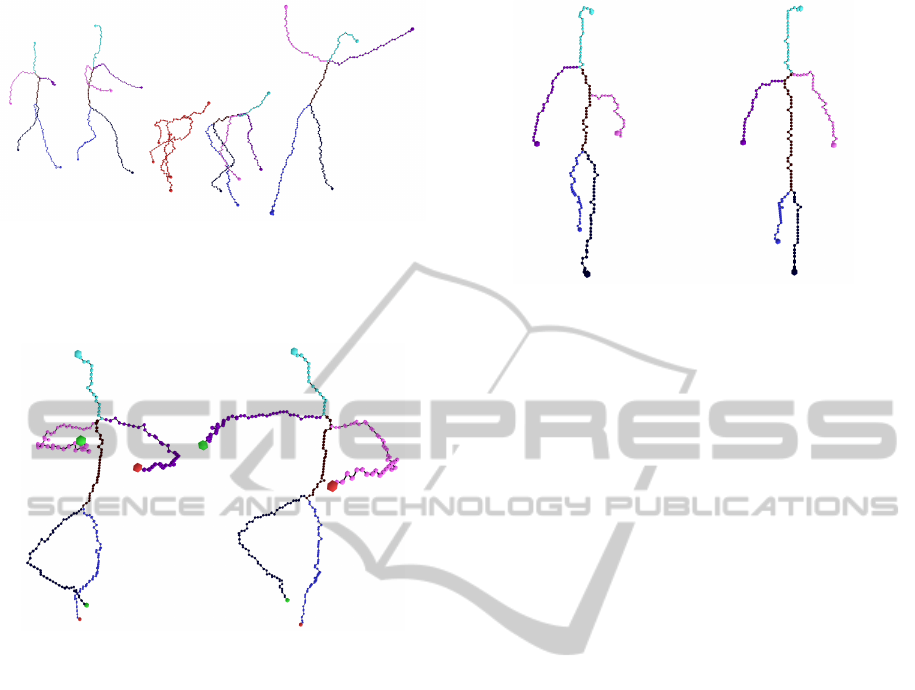

Figure 6: Five frames from the run-crouch-jump sequence

(017 from the i3DPost dataset) illustrating the problems that

occur when the subject is crouching and no reliable skeleton

can be extracted, but also that the algorithm recovers when

the arms and legs become distinguishable again.

Figure 7: Two consecutive frames of a ballet sequence (023

of the i3DPost dataset) where the correspondence labelling

has failed and the arm colours have switched sides. The

left-right labelling, however, is still correct as illustrated by

the red and green extremities.

were truncated to keep the subject completely inside

the viewing volume. The ballet sequence consists

of 150 frames and 87.3% of them were labelled cor-

rectly.

5 DISCUSSION AND FUTURE

WORK

In the previous section we demonstrated the proposed

method on several sequences where it robustly recov-

ers a segmented skeletal structure. There are, how-

ever, some limitations to using a skeletonisation based

approach, and we will discuss them here, and how

these issues can be resolved in the future.

Cases can be found that are likely to be problem-

atic for a skeletonisation based method. The extracted

skeleton is unreliable in frames where the limbs are

not clearly separated from the rest of the body. How-

ever, it is possible to detect these cases and give

an indication that the pose estimate for that partic-

Figure 8: Two frames of a walk sequence (013 from the

i3DPost dataset) demonstrating the possible displacement

of the shoulders and the pelvis. The proposed method com-

pensates for this, and the limbs are still labeled correctly.

ular frame is not trustworthy. A signiﬁcant advan-

tage of the proposed approach is that the skeleton in

each frame can be labelled independently of previ-

ous frames. As was demonstrated in section 4 this

allows the approach to recover from errors in previ-

ous frames where the skeletal reconstruction may be

degenerate.

In ﬁgure 8 we see a common problem with us-

ing the curve-skeleton. In frames where the arms are

close to the torso or the legs are too close to each

other, the shoulders and pelvis tend to be displaced

downwards. This is not a major issue for the proposed

algorithm, but it is important to keep in mind if more

joint locations should be extracted in the future.

The lower limit on the rank of candidate trees we

use to determine a labelling’s validity is heuristic, and

a better alternative should be found. Though the em-

pirically set threshold works for the sequences we

have tested with, there are no guarantees that it will

do so for other data.

Currently, only the locations of the hands, feet,

and the head are estimated. We intend to extend the

method with estimates for the positions of internal

joints as well. Creating a kinematic model using the

limb length ratios in section 3.1 and ﬁtting that to the

skeleton data is an approach that will be examined fur-

ther.

In order to better compare the proposed approach

to other methods that attempt to solve the pose esti-

mation problem, the method should be tested on more

publically available datasets, for instance HumanEVA

or INRIA IXMAS.

REAL-TIME POSE ESTIMATION USING TREE STRUCTURES BUILT FROM SKELETONISED VOLUME

SEQUENCES

189

6 CONCLUDING REMARKS

We have presented a novel pose estimation method

based on constructing tree structures from skele-

tonised sequences of visual hulls. The trees are

pruned, segmented into body parts, and the extrem-

ities are identiﬁed. This is intended to be a real-

time approach for pose estimation, the results for

the pose tree computation back this up and demon-

strate good labellings across multiple sequences with

complex motion. The approach can recover from er-

rors or degeneracies in the initial volume/skeletal re-

construction which overcomes inherent limitatons of

many tracking approaches which cannot re-initialise.

Ground-truth evaluation on synthetic data indicates

correct extremity labelling in ∼ 95% of frames with

rms errors < 5 cm.

ACKNOWLEDGEMENTS

The authors wish to thank Lars M. Eliassen for help-

ing with the implementation of the skeletonisation

algorithm, and Odd Erik Gundersen for his helpful

comments during the writing of the paper. Some of

the data used in this project was obtained from mo-

cap.cs.cmu.edu. The CMU database was created with

funding from NSF EIA-0196217.

REFERENCES

Bertrand, G. and Couprie, M. (2006). A New 3D Parallel

Thinning Scheme Based on Critical Kernels. Discrete

Geometry for Computer Imagery (LNCS), 4245:580–

591.

Blum, H. (1967). A transformation for extracting new de-

scriptors of shape. Models for the perception of speech

and visual form, 19(5):362–380.

Brostow, G. J., Essa, I., Steedly, D., and Kwatra, V. (2004).

Novel skeletal representation for articulated creatures.

Computer Vision - ECCV (LNCS), 3023:66–78.

Caillette, F., Galata, A., and Howard, T. (2008). Real-time

3-D human body tracking using learnt models of be-

haviour. Computer Vision and Image Understanding,

109(2):112–125.

Chen, Y.-l. and Chai, J. (2009). 3D Reconstruction

of Human Motion and Skeleton from Uncalibrated

Monocular Video. Computer Vision - ACCV (LNCS),

5994:71–82.

Chu, C.-W., Jenkins, O. C., and Mataric, M. J. (2003).

Markerless Kinematic Model and Motion Capture

from Volume Sequences. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 475–482.

Cornea, N. D., Silver, D., and Min, P. (2007). Curve-

Skeleton Properties, Applications, and Algorithms.

IEEE Transactions on Visualization and Computer

Graphics, 13(3):530–548.

Fauske, E., Eliassen, L. M., and Bakken, R. H. (2009).

A Comparison of Learning Based Background Sub-

traction Techniques Implemented in CUDA. In Pro-

ceedings of the First Norwegian Artiﬁcial Intelligence

Symposium, pages 181–192.

Gkalelis, N., Kim, H., Hilton, A., Nikolaidis, N., and Pitas,

I. (2009). The i3DPost multi-view and 3D human ac-

tion/interaction database. In Proceedings of the Con-

ference for Visual Media Production, pages 159–168.

Laurentini, A. (1994). The Visual Hull Concept for

Silhouette-Based Image Understanding. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

16(2):150–162.

Menier, C., Boyer, E., and Rafﬁn, B. (2006). 3D Skeleton-

Based Body Pose Recovery. In Proceedings of the

Third International Symposium on 3D Data Process-

ing, Visualization, and Transmission, pages 389–396.

Michoud, B., Guillou, E., and Bouakaz, S. (2007). Real-

time and markerless 3D human motion capture us-

ing multiple views. Human Motion - Understanding,

Modeling, Capture and Animation (LNCS), 4814:88–

103.

Moeslund, T. B., Hilton, A., and Krüger, V. (2006). A sur-

vey of advances in vision-based human motion cap-

ture and analysis. Computer Vision and Image Under-

standing, 104:90–126.

Moschini, D. and Fusiello, A. (2009). Tracking Human

Motion with Multiple Cameras Using an Articulated

Model. Computer Vision/Computer Graphics Collab-

oration Techniques (LNCS), 5496:1–12.

Poppe, R. (2007). Vision-based human motion analysis: An

overview. Computer Vision and Image Understand-

ing, 108(1-2):4–18.

Raynal, B., Couprie, M., and Nozick, V. (2010). Generic

Initialization for Motion Capture from 3D Shape. Im-

age Analysis and Recognition (LNCS), 6111:306–315.

Starck, J., Maki, A., Nobuhara, S., Hilton, A., and Mat-

suyama, T. (2009). The Multiple-Camera 3-D Pro-

duction Studio. IEEE Transactions on Circuits and

Systems for Video Technology, 19(6):856–869.

Sundaresan, A. and Chellappa, R. (2008). Model-driven

segmentation of articulating humans in Laplacian

Eigenspace. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 30(10):1771–1785.

Svensson, S., Nyström, I., and Sanniti di Baja, G. (2002).

Curve skeletonization of surface-like objects in 3D

images guided by voxel classiﬁcation. Pattern Recog-

nition Letters, 23:1419–1426.

Theobalt, C., de Aguiar, E., Magnor, M. A., Theisel, H., and

Seidel, H.-P. (2004). Marker-free kinematic skeleton

estimation from sequences of volume data. Proceed-

ings of the ACM symposium on Virtual reality software

and technology - VRST ’04, D:57.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

190
