A NEW DESCRIPTOR BASED ON 2D DCT

FOR IMAGE RETRIEVAL

Cong Bai, Kidiyo Kpalma and Joseph Ronsin

Université Européenne de Bretagne, Rennes, France

INSA de Rennes, IETR, UMR 6164, F-35708, Rennes, France

Keywords: CBIR, DCT, Face Recognition, Texture Retrieval.

Abstract: Content-based image retrieval relies on feature comparison between images. So the selection of feature

vector is important. As many images are compressed by transforms, constructing the feature vector directly

in transform domain is a very popular topic. We propose a new feature vector in DCT domain. Our method

selects part of DCT coefficients inside each block to construct AC-Pattern and use DC coefficients between

neighboring blocks to construct DC-Pattern. Two histograms are formed and parts of them are used to build

a descriptor vector integrating features to do image retrieval. Experiments are done both on face image

databases and texture image database. Compared to other methods, results show that we can get better

performance on both face and texture database by using the proposed method.

1 INTRODUCTION

The rapid increase in the digital image collections

gives more and more information. However,

difficulty for an efficient use of this information is

growing, unless we can browse, search and retrieve

it easily. Content-based image retrieval (CBIR) has

been an active research field in pattern recognition

and computer vision for decades. As much of images

are stored in compressed format with different kinds

of transforms, image retrieval in transform domain

have been widely developed in many researches.

Discrete Cosine Transform (DCT) is used in

JPEG compression standard. In another aspect, DCT

is also used as a efficient tool to extract features in

image retrieval. Consequently in last decades,

several researches appeared in DCT-based image

retrieval. Composing coefficients for a feature vector

that represents the image leads to different solutions.

In (Tsai et al., 2006), the upper left DCT coefficients

are categorized into four groups, one is DC

coefficients and other three includes the coefficients

which have vertical, horizontal and diagonal

information. And these four groups compose the

feature vectors. In (Zhong and Defée, 2005), 2 DCT

patterns are generated from the DCT blocks and then

their histograms are constructed and combined to do

retrieval. In (Bai et al., 2011), an improved

histogram descriptor is obtained by using zig-zag

scan and observing adjacent patterns on coefficients.

The wide use of DCT in image compression and

image retrieval comes from its capability to compact

the energy. It means that much of the energy lies in

low frequency coefficients, so that high frequency

can be discarded without visible distortion. In other

words, only a reduced part of DCT coefficients can

efficiently represent the image contents. In

comparison to the use of all of the coefficients, this

reduces the complexities and redundancies of the

features vectors applied for image retrieval. Our

method proposed in this paper is inspired from this

consideration and previous works (Tsai et al., 2006)

(Zhong and Defée, 2005) (Bai et al., 2011).

In this paper, we present a simple but effective

approach to construct a descriptor from DCT

coefficients for image retrieval. Experimental results

show that our method can apply both on face

database and texture database, corresponding to

different structure of image contents and moreover

can achieve better performance than many classical

methods and state-of-art approach.

The rest of the paper is organized as follows.

Constructing patterns and descriptor vectors are

described in section 2. Section 3 presents the

analysis of experimental results both on face and

texture databases and finally a conclusion is given in

section 4.

714

Bai C., Kpalma K. and Ronsin J..

A NEW DESCRIPTOR BASED ON 2D DCT FOR IMAGE RETRIEVAL.

DOI: 10.5220/0003858907140717

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 714-717

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 DESCRIPTION OF METHOD

2.1 General Description

In this study, we use 44× block DCT transform. So

we get 1 DC coefficient and 15 AC coefficients for

each block. For each block, we select 9 AC

coefficients to construct AC-Pattern, and use DC

coefficients of the block itself and DC coefficients

of its 8 neighboring blocks to build DC-Pattern. We

generate the histogram of pattern as number of

appearance of patterns in the image. Finally, we use

the concatenation of AC-Pattern histogram and DC-

Pattern histogram as the descriptor of the image to

do retrieval.

2.2 Pre-Processing

We adopt the luminance normalization method

presented in (Zhong and Defée, 2005) as pre-

processing steps to eliminate the effect of luminance

variations. From these pre-processed coefficients,

histograms will be observed considering the

occurrence of their contents.

2.3 AC-Pattern and Its Histogram

As mentioned before, subsets of coefficients can

represent the image content. So we will select at

most 9 coefficients in each block to construct the

AC-Pattern. This selection gathers these 9

coefficients into 3 groups: horizontal, vertical and

diagonal, as shown in Fig.1.

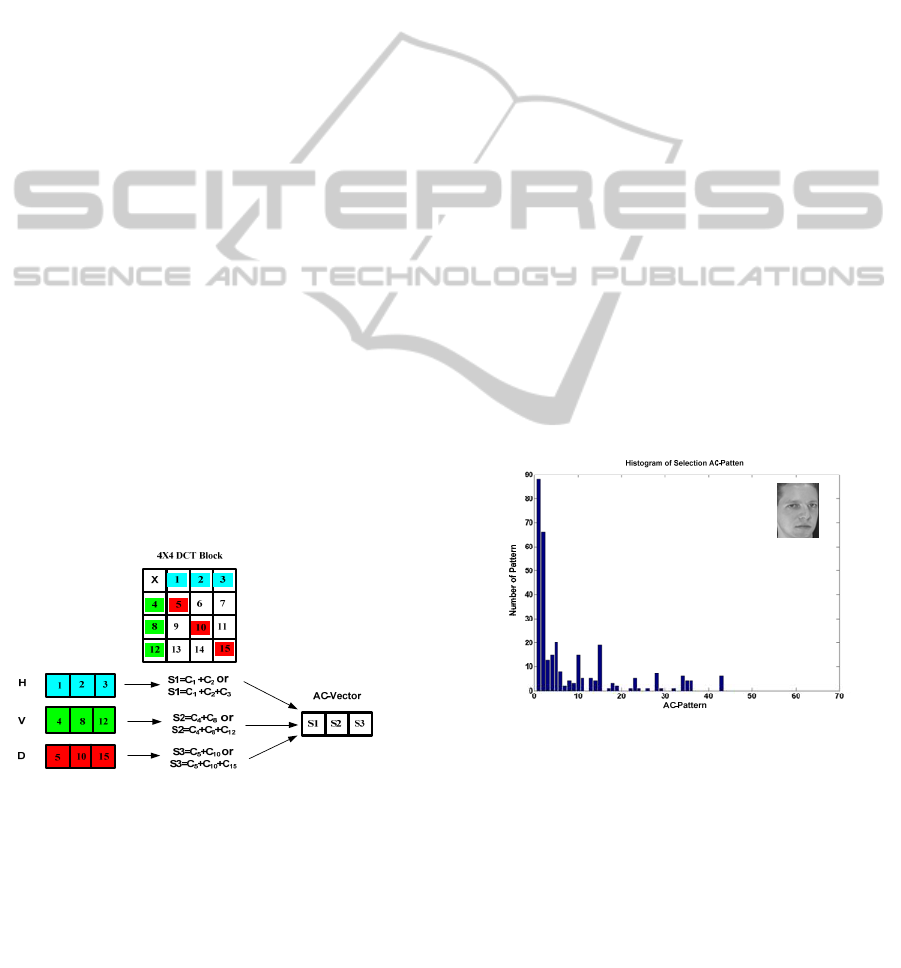

Figure 1: AC-Pattern.

This selection is retained because of its ability

represent local structure of content block. For

efficiency we calculate the sum of 2 or 3 coefficients

in each group and use these respective 3 summations

to form the AC-Pattern. We use parameter Nc to

represent the number of coefficients that we used in

each group, thus Nc=2 or Nc=3. According to our

experimental results, we use Nc=2. Thus we use

only 6 coefficients to construct the AC-Pattern, and

the dimension of this AC feature vector is 3.

Compared with the method presented in (Zhong and

Defée, 2005) (Bai et al., 2011), this selection can

reduce the complexities of the feature vector

obviously.

From the original histogram of AC-Pattern, we

can make two observations: the first is that there is

only part of AC-Patterns that appears in large

quantities and a large number of AC-Patterns that

appear rarely (Zhong and Defée, 2005). So in

consideration of time-consuming and efficiency, we

just select some of AC-Patterns which have higher

frequency to construct the histogram. We use

parameter ACbins to represent the number of AC-

Patterns that are selected. For constructing the AC-

Pattern histogram of an image, we just calculate the

number of appearance of these AC-Patterns in this

image, and then we get the AC-Pattern

histogram

H . The second observation is that the

first AC-Pattern inside the histogram is very

dominant. This AC-Pattern mainly corresponds to

blocks of image background and we will not

consider this pattern in the AC-Pattern histogram by

eliminating it.

So from these two observations the histogram of

AC-Patterns that we will use for retrieval is as

shown in Fig.2. In this histogram, we select first 70

(ACbins) high frequencies AC-Patterns.

Figure 2: Histogram of selected AC-Pattern.

2.4 DC-Pattern and Its Histogram

In complement to previous features that describes

the local structures inside each block, we will

observe, for each block and its neighbours, more

global structures features by using gradients between

blocks. To do so, DC-DirecVec (Zhong and Defée,

2005) is defined and used as feature for DC-Patterns.

Like the same observations can be done in AC-

Pattern histogram, we select those dominant DC-

A NEW DESCRIPTOR BASED ON 2D DCT FOR IMAGE RETRIEVAL

715

Patterns to construct DC-Pattern histogram.

2.5 Feature Vector Descriptor and

Similarity Measurement

We use the concatenation of AC-Pattern and DC-

Pattern histogram to do image retrieval. In this

context, the descriptors are defined as follows:

],)1[(

DCAC

HHD ××−=

(1)

is a weight parameter that controls the impact

of AC-Patterns and DC-Patterns histogram.

To measure the similarity between two

descriptors we use the Manhattan distance:

∑

−=

jiji

kDkDDis

)()(

(2)

where

k demonstrates the components of the

descriptor and

ji,

demonstrate the different

descriptors,

m indicates the total number of

components in the descriptor, the dimension of

descriptor, for example.

3 EXPERIMENTAL RESULTS

We perform retrieval experiments on ORL face

database (AT&T Laboratories Cambridge) and also

on VisTex texture database (Media Laboratory

MIT).

3.1 Experiments on Face Database

The ORL database includes 10 different images of

40 peoples. For tests, we use first 6 images as image

database and remaining 4 images as test images for

retrieval. Therefore, the total number of images in

the database is 240 and that of query images is 160.

For evaluating the performance we use Equal

Error Rate (EER) (Bolle et al., 2000). If a value is

used to express the similarity between query images

and images in the database, so given a certain

threshold, an input image of certain class A, may be

recognized falsely as class B. Then the ratio of how

many images of class A have been recognized as

other class is called FRR (False Rejected Rate),

while the ratio of how many images of other classes

have been recognized into class A is call FAR (False

Accept Rate). When both rates take equal values, an

equal error rate (EER) is got. The lower the EER is,

the better is the system’s performance, as the total

error rate is the sum of FAR and FRR.

We show the result of the experiment in which

we use the concatenation of histogram of AC-Pattern

and histogram of DC-Pattern to do image retrieval.

In all the experiments, the histogram of DC-Pattern

is the same, but the approach to construct AC-

Pattern is different. We name the method presented

in (Zhong and Defée, 2005) as ‘linear scan’, the

method presented in (Bai et al., 2011) as ‘Adjacent

zig-zag’. For both methods, we tested different sets

of parameters to find the one that can assure the best

performance. For our proposal, we use Nc=2,

ACbins=70 and QPAC=30. And we adjust the

weight parameter

to see the global comparison of

the performance. The curves of the performance are

as follows:

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

0.04

0.05

0.06

0.07

0.08

0.09

0.1

0.11

0.12

0.13

EER

←

0.0864

0.05

→

0.0439

→

Linear scan

Adjacent zig-zag

Our Proposal

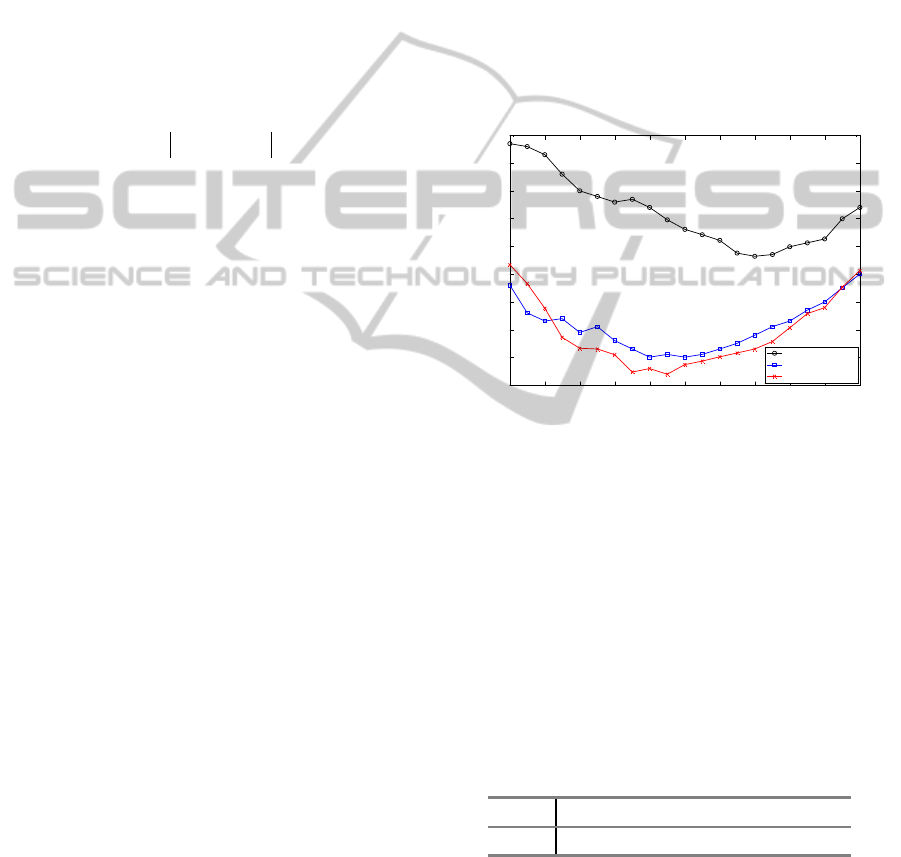

Figure 3: Performance of different method.

It can be observed that the performance of

retrieval can be improved by using the proposed

approach to construct the descriptor.

We further compare the performance of the

proposed method with those of other methods:

Principal Component Analysis (Naz et al., 2006), 2D

Principal Component Analysis (Xu et al., 2009) and

Linear discriminate analysis (Goudelis et al., 2007).

Table 1 shows the lowest EER reported in these

methods and the lowest EER of our method. So we

can conclude that our proposal outperforms all the

other referenced methods.

Table 1: Comparison of EER with other methods.

Method PCA 2D PCA LDA Proposal

EER 0.095 0.165 0.11 0.0439

3.2 Experiments on Texture Database

As we want to extend our solution to a wider

application field, we work with a selection of images

from the popular MIT Vision Texture Database

(VisTex), consisting of 40 textures which have

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

716

already been extensively used in texture image

retrieval literature (Do et al., 2002) (Kokare, 2005)

(Huajing et al., 2008) (Kwitt et al., 2010). The

512x512 pixels colour versions of the textures are

divided into 16 nonoverlapping subimages (128x128

pixels) and converted to gray scale images, thus

creating a database of 640 images belonging to 40

class textures, each class with 16 different samples.

In retrieval experiments, a query image is each

one of 640 images in our database. The relevant

images for each query are all the subimages from the

same original texture. We use the average retrieval

rate (ARR) to evaluate the performance. For a given

query image, the retrieval rate is defined as the

percentage of the number of correct texture images

retrieved in the same class as the query texture

observed in the total number of retrieved images.

For comparison purpose, we retrieve 16 images for

each query. We use every subimage in the database

as query to do retrieval and get the average retrieval

rate finally.

Table 2 provides a quantized comparison. RCWF

indicates Rotated Complex Wavelet Filters method

proposed in (Kokare, 2005). CWT represents the

Complex Wavelet Transform method presented in

(Kingsbury et al., 1999). CWT+RCWF is also

presented in (Kokare, 2005). PTR (Kwitt, 2010) is a

probabilistic texture retrieval method based on dual-

tree complex wavelet transform. It can be observed

that our proposal outperforms other methods.

Table 2: Comparison of ARR with other methods.

Method RCWF CWT PTR CWT+RCWF Proposal

ARR(%) 75.78 80.78 81.73 82.34 83.64

4 CONCLUSIONS

In this paper we have presented a simple and

effective approach for constructing descriptor using

2D DCT coefficients intended to image retrieval.

Unlike other CBIR methods that usually focus on

one kind of image database, our approach is suitable

for different kind of image database. We evaluate

our method both in widely used face database and

texture database. From the point of view of

recognition rate or average retrieval rate, the

experimental results show higher performance

compared to classical and state-of-art methods.

REFERENCES

AT&T Laboratories Cambridge, ORL Database. http://

www.cl.cam.ac.uk/research/dtg/attarchive/facedatabas

e.html.

Bai Cong, Kpalma Kidiyo and Ronsin Joseph, 2011.

Analysis of histogram descriptor for image retrieval in

DCT domain. Proceeding of the 4

International

Conference on Intelligent Interactive Multimedia

Systems and Services, Vol. 11, 227-235.

Bolle R. M.,Pankanti S. and Ratha N. K., 2000. Evaluation

techniques for biometrics-based authentication

systems (FRR). Proc. International Conf. on Pattern

Recognition, Vol. 2, 831-837.

Do M. N. and Vetterli M., 2002. Wavelet-based texture

retrieval using generalized Guassian density and

Kullback-leibler distance. IEEE Trans. Image Process,

Vol. 11, No. 2, 146–158.

Goudelis, G., Zafeiriou, S. and Tefas, A.,Pitas, I., 2007.

Class-Specific Kernel-Discriminant Analysis for Face

Verification. IEEE Transactions on Information

Forensics and Security, Volume 2, 570 – 587.

Kim Yong-Ho, Lee Seok-Han and Lee Sangkeun, Kim

Tae-Eun, Choi Jong-Soo, 2010. A Novel Image

Retrieval Scheme Using DCT Filter-Bank of

Weighted Color Components. 2010 International

Conference on Information Science and Applications,

1-8.

Kokare M., Biswas P. K. and Chatterji, B. N., 2005.

Texture image retrieval using new rotated complex

wavelet filters. IEEE Transactions on Systems, Man,

and Cybernetics, Part B: Cybernetics, Vol. 35, Issue:

6, 1168 - 1178.

Kwitt, R.; Uhl, A., 2010. Lightweight Probabilistic

Texture Retrieval. IEEE Transactions on Image

Processing, Vol.19, Issue: 1, 241 – 253.

Media Laboratory, MIT. VisTex Database of textures.

http://vismod.media.mit.edu/vismod/imagery/VisionT

exture/

Naz, E., Farooq, U., and Naz, T., 2006. Analysis of

Principal Component Analysis-Based and Fisher

Discriminant Analysis-Based Face Recognition

Algorithms. 2006 International Conference on

Emerging Technologies, 121 – 127.

Tsai Tienwei, Huang Yo-Ping, and Chiang Tei-Wei, 2006.

Image Retrieval Based on Dominant Texture Features.

2006 IEEE International Symposium on Industrial

Electronics, 441-446.

Xu Zhijie, Zhang Jianqin, and Dai Xiwu, 2009. Boosting

for Learning a Similarity Measure in 2DPCA Based

Face Recognition. 2009 World Congress on Computer

Science and Information Engineering, Vol. 7, 130 –

134.

Zhong D., Defée I. 2005. DCT histogram optimization for

image database retrieval. Pattern Recognition Letters,

Vol. 26, 2272-2281.

A NEW DESCRIPTOR BASED ON 2D DCT FOR IMAGE RETRIEVAL

717
