A NONLINEAR FEATURE FUSION BY VARIADIC NEURAL

NETWORK IN SALIENCY-BASED VISUAL ATTENTION

Zahra Kouchaki

and Ali Motie Nasrabadi

Department of Biomedical Engineering, Science and Research Branch, Islamic Azad University, Tehran, Iran

Department of Biomedical Engineering, Shahed University, Tehran, Iran

Keywords: Saliency Map, Visual Attention, Nonlinear Fusion, Neural Network, Object Detection.

Abstract: This study presents a novel combinational visual attention system which applies both bottom-up and top-

down information. This can be employed in further processing such as object detection and recognition

purpose. This biologically-plausible model uses nonlinear fusion of feature maps instead of simple

superposition by employing a specific Artificial Neural Network (ANN) as combination operator. After

extracting 42 feature maps by Itti’s model, they are weighed purposefully through several training images

with their corresponding target masks to highlight the target in the final saliency map. In fact, the weights of

42 feature maps are proportional to their influence on finding target in the final saliency map. The lack of

bottom-up information is compensated by applying top-down information with available target masks. Our

model could automatically detect the conceptual features of desired object only by considering the target

information. We have tried to model the process of combining 42 feature maps to form saliency map by

applying the neural network which resembles biological neural network. The Experimental results and

comparing our model with the basic saliency model using 32 images of test dataset indicate a noticeable

improvement in finding target in the first hit.

1 INTRODUCTION

AND RELATED WORKS

One of the effective abilities of the human is visual

attention system which directs the human vision to

the most intersecting parts of a scene. These parts

are called salient regions and their saliencies are

corresponding to how much attention can focus on

them. When we don’t have special goal, the low-

level visual features could attract our attention which

then will be sent in higher cognitive areas for further

processing such as object recognition. However,

attention is also dependent on top-down features

such as prior knowledge which is extracted from

higher brain areas. Both bottom-up and top-down

cues contribute in directing attention toward the

most salient points. Selective visual attention has so

many applications in computer vision such as

automatic target detection, navigational aids and

robotic control (Itti and Koch, 2001). Till now, many

computational models of visual attention are

proposed which simulate human visual attention

based on bottom-up information. In terms of

psychology, Treisman and Gelade (1980) proposed

the theory of feature integration in visual attention

which is the basic theory for the most bottom-up

models such as (Itti, Koch, and Niebur, 1998 ),

(Koch and Ulman, 1985), (Sun and Fisher, 2003). In

all these models, bottom-up low-level cues such as

color, intensity and orientation could detect salient

points by their contrast. As it is proved

psychologically, top-down information is also

effective in directing low-level visual cues toward

salient regions (Wolfe, 1994). Some scientist has

studied on top-down visual attention recently

(Wolfe, 1994), (Navalpakam, Rebesco and Itti,

2005), (Frintrop, 2006). All of the mentioned models

of bottom-up and top-down visual attention have

applied linear fusion of feature maps which does not

seem plausible biologically. Although some

scientists have studied in the way of combining

feature maps (Itti and Koch, 2001), (Walter, Itti,

Riesenhuber, Poggio and koch, 2002), most of them

have employed linear fusion of feature maps. In (Itti

and Koch, 2001), four different approaches of fusion

of feature maps were presented. Among the four

strategies, the approach of linear combination with

learned weights had the best performance in finding

the target. However, it is still a linear fusion and also

457

Kouchaki Z. and Motie Nasrabadi A..

A NONLINEAR FEATURE FUSION BY VARIADIC NEURAL NETWORK IN SALIENCY-BASED VISUAL ATTENTION.

DOI: 10.5220/0003859204570461

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 457-461

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

all the features obtain positive weights even if they

may erode visual attention. As we have shown in our

previous work, nonlinear fusion of feature maps

sounds more reasonable biologically. In (Kouchaki,

Nasrabadi and Maghooli, 2011), we proposed a

novel nonlinear feature fusion strategy to fuse three

conspicuity maps through Fuzzy Interface System

which had better results in comparison with the

basic saliency model in detecting desired object.

However, it combines three conspicuity maps rather

than 42 feature maps that could be more effective.

Moreover, in (Bahmani, Nasrabadi, Hashemi

Golpayegani, 2008), a combinational approach of

multiplicative weighted feature maps was proposed

which multiply 42 feature maps after weighing them

purposefully as in (Itti and Koch, 2001). Although a

remarkable improvement was achieved, the simplest

nonlinear function was employed. Unquestionably,

the real biological system of visual attention is more

complicated than a simple multiplication. In this

study, we have tried to indicate the biological

process of consisting saliency map through 42

feature maps. In order to select a nonlinear function,

which could show the details of creating saliency

map from 42 feature maps more reasonably, we

thought of Artificial Neural Network (ANN) as it

considerably resembles the biological neural

network.

After extracting 42 feature maps by Itti’s model

(Itti et al, 1998), we applied them as the inputs of the

network. The 42 feature maps were weighed

automatically through training process by

considering target masks as the desired output of the

network. In fact, we compensated the lack of

bottom-up information with considering target

information as top-down cues to adjust desired

weights.

The rest of this paper is as follows. In section 2,

we discuss about the basic bottom-up model of

visual attention. Then we present our methodology

in section 3. The details of the Variadic Neural

Network structure will be discussed in section 4.

Section 5 presents the details of our proposed model.

Experimental results are discussed in section 6.

Finally, section 7 concludes the paper.

2 THE BASIC BOTTOM-UP

MODEL

This part discuss about the details of computing the

bottom-up saliency map which proposed by Itti et al

(1998). Whereas an image is placed at the input of

the Itti’s model, it is filtered by a low-pass filter.

After low pass filtering, different spatial scales are

generated in three different channels of colour,

intensity and orientation by Dyadic Gaussian

Pyramids. These Gaussian Pyramids subsample the

input colour image in different scales. After that, the

feature maps are constructed in three different

channels of colour, intensity and orientation with

“centre-surround “operation. Subtraction between

fine and coarse scales images, which is a point-by-

point subtraction, yields 42 feature maps that consist

of 12 colors, 6 intensities and 24 orientation maps.

All the feature maps in each channel are linearly

fused into a conspicuity map which finally leads to

three conspicuity maps. Each conspicuity map is an

indication for one of the three features. After linear

combination of three conspicuity maps, the final

saliency map is formed which is based on the

bottom-up cues.

3 METHODOLOGY

In this study we want to promote some of the

computational weaknesses of the bottom-up visual

attention models for the object detection purpose. In

this study, we thought of designing a nonlinear

fusion kernel for combining 42 feature maps which

can indicate the biological details of forming

saliency map. Furthermore, the feature maps should

be weighed purposefully to be fit for object

detection purpose (Walther, 2006). As a result, we

assumed that Artificial Neural Network could be a

good choice for nonlinear fusion of 42 feature maps

as it resembles biological neural network. However,

in the beginning, combination of 42 images with the

big size through neural network seemed impossible

due to having 42 huge sized images as the inputs to

the network. But, finally, we found the Variadic

Neural Network (McGregor, 2007

), as a suitable

network which could meet our needs in this respect

due to accepting n-dimensional vectors as its inputs.

The top-down information could be considered in

the model by training the network using available

target masks. The supervised neural network could

be trained using the target information to weigh the

42 feature maps purposefully. As we know,

searching the desired object which is known

previously for the viewer is easier and faster than

searching it without prior knowledge. As we know,

one of the important factors for modelling the

human visual attention is considering the learning

ability. We have considered this matter with training

the network. The proposed visual attention structure

is illustrated in Figure 1. As shown, after deriving 42

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

458

feature maps by Itti’s model (Itti et al, 1998), they

are considered as the inputs of the network and the

output of the network is the final saliency map.

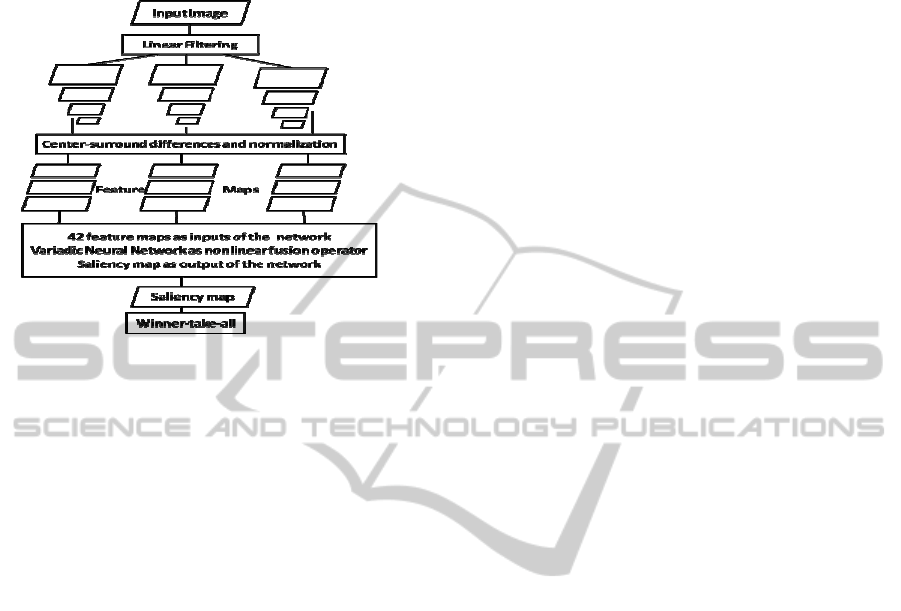

Figure 1: The proposed visual attention structure using

Variadic Neural Network (Itti et al, 1998).

4 VARIADIC NEURAL

NETWORK STRUCTURE

Variadic Neural Network (VNN) structure which is

extracted from multi-layer perceptron architecture

was suggested by McGregor in 2007

. The inputs of

the network are vectors of the same length with

arbitrary dimension. The number of parameters in

the network and its architecture do not vary by

changing the dimension of the input’s vectors. There

are variadic links which connect two variadic

neurons. The inputs and outputs of a link are vectors

which their sizes are optional. There are two link

parameters. The multiplicative weight parameter (w)

is the same as the weight parameter in the traditional

feed-forward network. But there is also an

interaction-weight parameter (θ) which causes the

interaction between different elements of an input

vector. In the Variadic Neural Network (VNN)

structure, the inputs to the neuron are the vectors of

real numbers instead of real scalar in the traditional

network. The variadic neuron sums the variadic

inputs to generate vector activation. After adding the

bias to the vector activation and passing through the

hyperbolic tangent functions, the variadic output of

the neuron will be obtained. More details could be

seen in (McGregor, 2007

5 MODEL

As it is illustrated in Figure 1, in the first stage of

our proposed model, 42 feature maps are extracted

using Itti’s model (Itti et al, 1998). Since the inputs

of the network in the Variadic Neural Network are

n-dimensional vectors, we should change the

training images to the training vectors. So, after

extracting 42 feature maps with the size of (30×40)

pixels from each 32 training images, we should

change them to 32 vectors of 1200-dimentional. In

addition, 32 target masks with the size of (640×480)

pixels corresponding to the training dataset should

be resized to (30×40) pixels and then to the vectors

of 1200-dimentional to be acceptable for placing as

desired output of the network. The same process

should be done for the test dataset except for the

target masks. The test process does not need the

target mask. As illustrated in Figure 1, two stage

process of generating saliency map incorporates to

one-stage nonlinear combination process by

applying the neural network. Three parameters of

(w, θ, B) were weighed after training the network.

The weights of the network parameters are in

direction of highlighting the target in the final

saliency map. We can use these obtained weights for

the application of object detection in cluttered

scenes. These weights effectively indicate the

influence of each feature map to find our target in

the final saliency maps. The trained network is

capable of finding the target (emergency triangle) in

the test images containing the emergency triangle

with arbitrary background. After entering a test

image to our proposed model, first, the bottom-up

cues are derived and then will be sent to the

network. Here, the network acts such as higher brain

area which compensate the lack of information about

the target.

6 EXPERIMENTAL RESULTS

6.1 Database and Parameters

Image datasets are from Itti’s lab at USC. This

dataset consists of 64 images of emergency triangle

with natural environment background. The 32

images with available target masks are applied as

training dataset. Another 32 images of emergency

triangle without target mask are utilized as the

testing dataset.

The results presented here are based on the batch

mode training using the RPROP algorithm

(Riedmiller and Braun, 1992), which is a fast

second-order gradient method. The RPROP

algorithm parameters were as follows: η0 = 0.0001,

η− = 0.5, η+ =1.2, ∆

min

= 10−8, ∆

max

= 50. We

A NONLINEAR FEATURE FUSION BY VARIADIC NEURAL NETWORK IN SALIENCY-BASED VISUAL

ATTENTION

459

initialized bias, weight and interaction-weight

parameters with a normal distribution with zero

mean and the variance was inversely proportional to

the node fan-in. It should be noted that the

multiplicative weight parameter w, is multiplied with

each image. But there is also an interaction-weight

parameter θ which allows the interaction between

different pixels of a feature map. The network was

selected with 42 inputs of 1200-dimentional, a

hidden layer with 6 nodes and one output of 1200-

dimentional in the output layer. We trained the

network for 4000 epochs when the error did not

change any more. After training, (42×6) weights (w)

and (42×6) interaction-weights (θ) parameters were

obtained which connect the 42 inputs to the 6

neurons of hidden layer. In addition, (6×1) weights

(w) and (6×1) interaction-weights parameters were

generated which connect the 6 neurons of hidden

layer to the one neuron of the output layer. The

value of these parameters can represent the influence

of each feature map on the final saliency map.

6.2 The Results of Implementing

the Algorithm

As could be observed in the Figure 2, two samples

of 32 images of test dataset are illustrated on the left

side and their corresponding saliency map is shown

on the right side. In our strategy, each saliency map

is generated as the output of the network after

nonlinear fusion of 42 feature maps by the trained

network. As shown in Figure 2 for two images, our

model founded emergency triangle in the first hit in

the 28 images of the 32 test images which is a

remarkable result. The model could not find the

target in the first hit just in four images that are

shown in Figure 3. As shown in Figure 3, the target

is detected in the fifth, second, third and sixth hit in

the Figures.3.a, b, c, and d, respectively.

Figure 2: Left: Two samples of test images; Right:

saliency maps corresponding to the left column images

using our proposed method.

6.3 Comparison of Two Models

We have proved the effectiveness of our model with

comparing our nonlinear fusion approach using

neural network with the simple superposition in the

basic saliency-based visual attention model with the

same test dataset. As could be seen in Table 1, we

defined four parameters of No of FHD, No of UST,

Mean and Standard Deviation (STD) for comparing

the two mentioned models. The number of first hit

detection (No of FHD) demonstrates the number of

trials in which the model could detect the target in

the first hit without any mistakes. The number of

unsuccessful trials (No of UST) is the number of

trials which the model could not detect the target

before five hit .After distinguishing the first point,

the next salient point are detected by Inhibition of

Return (IOR) process. As illustrated in Table 1, our

method detects the target in 28 images of 32 test

images. Our model could not detect the target before

five executions just in one image which is shown in

Figure 3.d. So, we had one unsuccessful trail (UST)

based on our parameter definition. However, in Itti’s

model we found five unsuccessful (UST) trails.

Moreover, two parameters of Mean and STD were

employed to compare two models. These parameters

demonstrate the average mean and standard

deviation of false detections before finding the target

in 32 images of test dataset. It is completely evident

that our nonlinear fusion method has remarkable

improvement in comparison with the basic saliency

model. On top of that, the value of weights after

training could be employed for the detection and

recognition of emergency triangle in every arbitrary

image. Another point is that, the network could be

trained for any arbitrary dataset. When our images

are more complicated than this database, we may

need more number of training images to train the

network. Although the training process is

complicated and time consuming, after training and

obtaining the efficient weights, these weights can be

utilized to obtain the target. Furthermore, for other

training patterns and other target, the training

parameters and the number of neurons in hidden

layer could be changed.

Table 1: Comparison of two models.

Fusion methods

No. of

FHD

No. of

UST

Mean STD

Simple superposition 9 5 2.18 2.32

neural network 28 1 0.34 1.09

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

460

c d

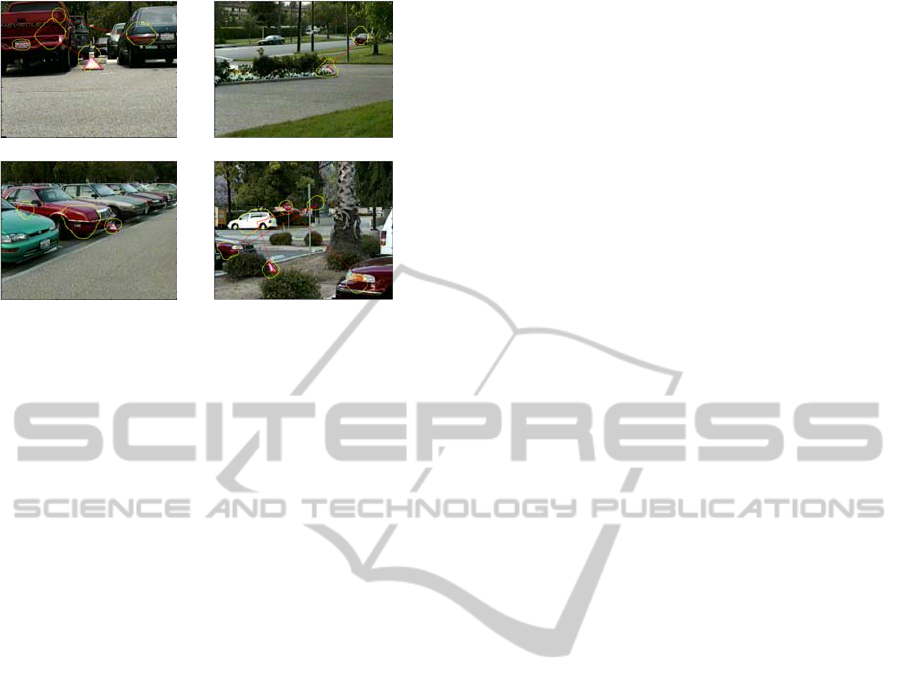

Figure 3: The images in which the model could not find

the target in the first hit.

7 CONCLUSIONS

The proposed combinational structure applies both

bottom-up and top-down information to detect the

pre-learned objects. After extracting bottom-up

features by Itti’s model, they then will be sent to the

variadic neural network as its input. The supervised

variadic network was trained through several

training images with their corresponding target

masks and suitable parameters are weighed

purposefully to highlight the target. The amounts of

parameters indicate the influence of each feature

map in finding the target on the final saliency map.

Hence, the neural network can simultaneously weigh

the feature maps and fuse them nonlinearly which is

more convincing biologically. The noticeable

improvement in first hit detection was achieved

which is desirable for object detection purpose. As a

future work, we wish to implement our model with

other database and also propose a model for multiple

object detection.

REFERENCES

Bahmani, H., Nasrabadi, A. M., and Hashemi

Gholpayegani, M. R. (2008). Nonlinear data fusion in

saliency-based visual attention, 4

International IEEE

Conference in Intelligent System.

Frintrop, S. (2006). VOCUS: A Visual Attention System

for Object Detection and Goal-directed Search, LNAI,

3899, Springer Berlin/Heidelberg. ISBN: 3-540-

32759-2.

Itti, L. and Koch, C. (2001). Computational modeling of

visual attention, Nature Reviews Neuroscience, 2(3),

194–203.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene

analysis, IEEE Trans PAMI, 20(11), 1254–1259.

Itti, L., and Koch, C. (2001). Feature combination

strategies for saliency-based visual attention systems,

Journal of Electronic Imaging, 10(1), 161–169.

Kouchaki, Z., Nasrabadi, A. M., Maghooli, K. (2011). An

improved model of saliency-based visual attention

using fuzzy interface system, The 6

International

conference on computer science and convergence

information technology, 204-207.

McGregor, S. (2007). Neural network processing for multi

set data”. In Proc. Artificial neural networks —

ICANN2007, 17th international conference, 4668,

460–470.

Navalpakam, V., Rebesco, J. and Itti, L. (2005). Modeling

the influence of task on attention, Vision Research,

45(2), 205–231.

Riedmiller M. and Braun, H. (1992). RPROP — A fast

adaptive learning algorithm, technical report,

Universitat Karlsruhe.

Sun, Y. and Fisher, R. (2003). Object-based visual

attention for computer vision, Artificial Intelligence,

146(1), 77–123.

Treisman, A. M. and Gelade, G. A. (1980). A feature

integration theory of attention, Cognitive Psychology,

12, 97–136.

Wolfe, J. (1994). A revised model of visual search,

Psyconomic Bulletin Review, 1(2), 202–238.

Walter, D. Itti, L., Riesenhuber, M., Poggio T., and koch,

C. (2002). Attentional selection for object recognition-

A gentle way, LNCS, 25, 472–279

Walther, D. (2006). Interactions of visual attention and

object recognition, PhD Thesis, California Institute of

Technology.

A NONLINEAR FEATURE FUSION BY VARIADIC NEURAL NETWORK IN SALIENCY-BASED VISUAL

ATTENTION

461
