ON-LINE ACTION RECOGNITION FROM SPARSE FEATURE

FLOW

Hildegard Kuehne

, Dirk Gehrig

, Tanja Schultz

and Rainer Stiefelhagen

Computer Vision for Human-Computer Interaction Lab, Institute for Anthropomatics, Karlsruhe Institute of Technology

(KIT), Karlsruhe, Germany

Cognitive Systems Lab, Institute for Anthropomatics, Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany

Keywords:

Action Recognition, Motion Analysis, Sequence Analysis, Human Computer Interaction.

Abstract:

The fast and robust recognition of human actions is an important aspect for many video-based applications

in the ﬁeld of human computer interaction and surveillance. Although current recognition algorithms provide

more and more advanced results, their usability for on-line applications is still limited. To bridge this gap a on-

line video-based action recognition system is presented that combines histograms of sparse feature point ﬂow

with an HMM-based action recognition. The usage of feature point motion is computational more efﬁcient

than the more common histograms of optical ﬂow (HoF) by reaching a similar recognition accuracy. For

recognition we use low-level action units that are modeled by Hidden-Markov-Models (HMM). They are

assembled by a context free grammar to recognize complex activities. The concatenation of small action

units to higher level tasks allows the robust recognition of action sequences as well as a continuous on-line

evaluation of the ongoing activity. The average runtime is around 34 ms for processing one frame and around

20 ms for calculating one hypothesis for the current action. Assuming that one hypothesis per second is

needed, the system can provide a mean capacity of 25 fps. The systems accuracy is compared with state of the

art recognition results on a common benchmark dataset as well as with a marker-based recognition system,

showing similar results for the given evaluation scenario. The presented approach can be seen as a step towards

the on-line evaluation and recognition of human motion directly from video data.

1 INTRODUCTION

The recognition of human action is a growing ﬁeld,

perhaps even one of the key topics for human com-

puter interaction and surveillance applications. It can

be applied in the context of simple communicative

interaction like waving or pointing, but also help to

understand complex tasks and enable reasonable ser-

vice, e.g. in the context of service or industry robots.

One of the main goals in this ﬁeld is the understanding

of what the current behavior aims at and the context

in which this happens. This would allow a forward-

looking and anticipatory behavior and enable the sup-

port of the current task execution and the adaption to

the users needs.

The following paper presents a system for the

video-based recognition of complex tasks in order to

allow a recognition of basic actions and to understand

the intention behind. It works on-line and is able to

recognize the ongoing action. The system combines

three components: ﬁrst, the video images are conver-

ted into global histograms of sparse feature ﬂow. This

can be seen as a valuable alternative to histograms of

oriented ﬂow (HOF), as feature based histograms can

reach a similar recognition performance while being

more efﬁcient allowing on-line application as they are

needed in the ﬁeld of human computer interaction.

The second component is the HMM-based recogni-

tion of small action units based on the feature ﬂow

histogram input. In a third step, the action units are

combined by a higher level grammar that guides the

concatenation of small action units into a meaningful

sequence and so, the recognition of the overall task.

The here presented scenario takes place in the

household domain considering typical kitchen tasks

like cutting fruits or pouring a glass of water. Exam-

ples for such a setting can be seen in Figure 1. Each

complex task is decomposed into action units, and a

grammar has been set up that allows the combination

of the action units to continuous action sequences.

We show that the recognition performance with

the histograms of sparse feature ﬂow is comparable to

634

Kuehne H., Gehrig D., Schultz T. and Stiefelhagen R..

ON-LINE ACTION RECOGNITION FROM SPARSE FEATURE FLOW.

DOI: 10.5220/0003861506340639

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 634-639

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

(a)

(b)

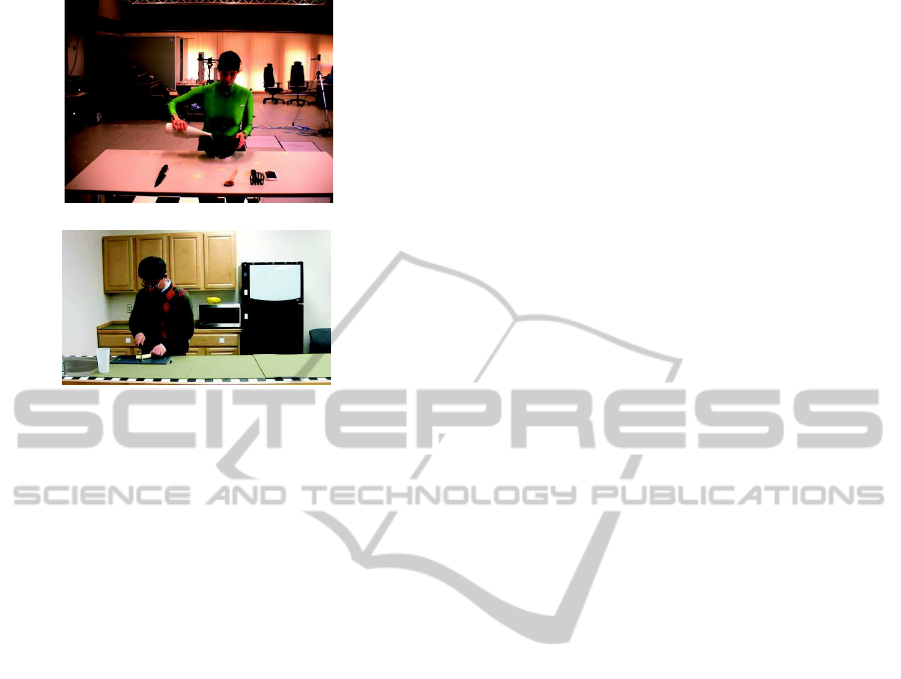

Figure 1: Example for action sequences in a kitchen sce-

nario: a) ’Basic Kitchen Tasks’ dataset: pouring water into

a bowl (Gehrig et al., 2009), b) ’Activities of Daily Living’

dataset: chopping a banana (Messing et al., 2009).

the one with optical ﬂow histograms as well as with

state of the art systems and that both approaches have

similar recognition rates as the marker based system

in the given scenario. To be able to compare the

recognition performance of motion histograms with

the one of marker based recognition systems, half

of the performed tasks of the here presented ’Basic

Kitchen Tasks’ dataset were captured with video as

well as with a commercial marker based motion cap-

ture system from Vicon. Additionally, we evaluated

the runtime of the optical ﬂow as well as of the fea-

ture based approach, showing that the feature based

approach is fast enough to allow a on-line recognition

during execution.

2 RELATED WORK

The use of global and local histograms has become

a more and more important technique in the context

of action recognition for a lot of different applica-

tion scenarios, e.g. presented by Efros et al. (Efros

et al., 2003) in the context of sports, by Marszalek

et al. (Marszalek et al., 2009) for video and movie

databases or by Danafar and Gheissari (Danafar and

Gheissari, 2007) for surveillance applications.

Many approaches use local accumulated optical

ﬂow histograms, i.e. Lucena et al. (Lucena et al.,

2009). The ﬂow histograms are computed from a

number of tiles in the region of interest. The input

vector is a concatenation of the aggregated his-

tograms. A closely related approach that is also build

on tiled optical ﬂow histograms but that focuses on

the modeling of HMMs for recognition is presented

by Mendoza et al. (Mendoza et al., 2009). They split

the region of interest into 8 tiles and calculate optical

ﬂow histograms with 4 bins for magnitude and 8 bins

for orientation for each tile. After a PCA this 256D

feature vector reduces to a 32D vector which is used

for recognition. For the modeling of actions they pro-

pose products of HMMs (PoHMM).

More abstract approaches are dealing with the

syntactic structure of actions and tasks. The decom-

position and concatenation of complex tasks has e.g.,

been described by Ivanovand Bobick (Ivanovand Bo-

bick, 2000). The approach proposes the decompo-

sition of complex action into smaller tasks and their

reassembling by a higher level grammar. Following

this idea, the task of action recognition is also split up

into two steps. First small action units had to be rec-

ognized, e.g. by simple HMMs, then the result of this

low level recognition is processed by a higher level

stochastic action grammar.

3 FEATURE FLOW

HISTOGRAMS

Motion information can be gained from dense op-

tical ﬂow ﬁelds or from tracking of feature points

only. The feature tracking used in this paper is based

on the Lucas-Kanade method described in (Lucas

and Kanade, 1981) and (Tomasi and Kanade, 1991).

The initialization and tracking of features follows the

pyramidal KLT feature tracking implementation by

(Koehler and Woerner, 2008). The initialization of

new features is done for every frame following the al-

gorithms of Shi and Tomasi (Shi and Tomasi, 1994).

Every frame of the video sequence is represented by a

global histogram of its overall motion directions with-

out any further local information. The weighted his-

togram for frame t is calculated from the motion vec-

tor of the feature points of images I at time indext and

t + 1 (I

, I

t+1

). The motion vector (u(δt), v(δt)) of the

feature is used to calculate the resulting motion direc-

tion θ, indicated by an angle value from [−π, π] and

γ deﬁning the motion intensity. The feature motion

directions are weighted with their norm values. The

elements for one bin of the histogram are calculated

based on the motion angle θ. As the motion angle

ranges from [−π, π], the vector of elements for the k-

th bin h(k) of a histogram with n bins can be deﬁned

as:

ON-LINE ACTION RECOGNITION FROM SPARSE FEATURE FLOW

635

220 230 240 250 260 270 280 290 300 310

270

280

290

300

310

320

330

340

350

360

370

1a)

230 240 250 260 270 280 290 300 310

270

280

290

300

310

320

330

340

350

360

370

1b)

−pi −pi/2 0 pi/2 pi −pi −pi/2 0 pi/2

100

150

200

250

300

350

Motion vector angle, range −π ≤ Θ ≤ π

Weigthed vector occurence

Feature motion histogram

2a)

−pi −pi/2 0 pi/2 pi −pi −pi/2 0 pi/2

0.5

1.5

2.5

3.5

x 10

Motion vector angle, range −π ≤ Θ ≤ π

Weigthed vector occurence

Optical Flow histogram

2b)

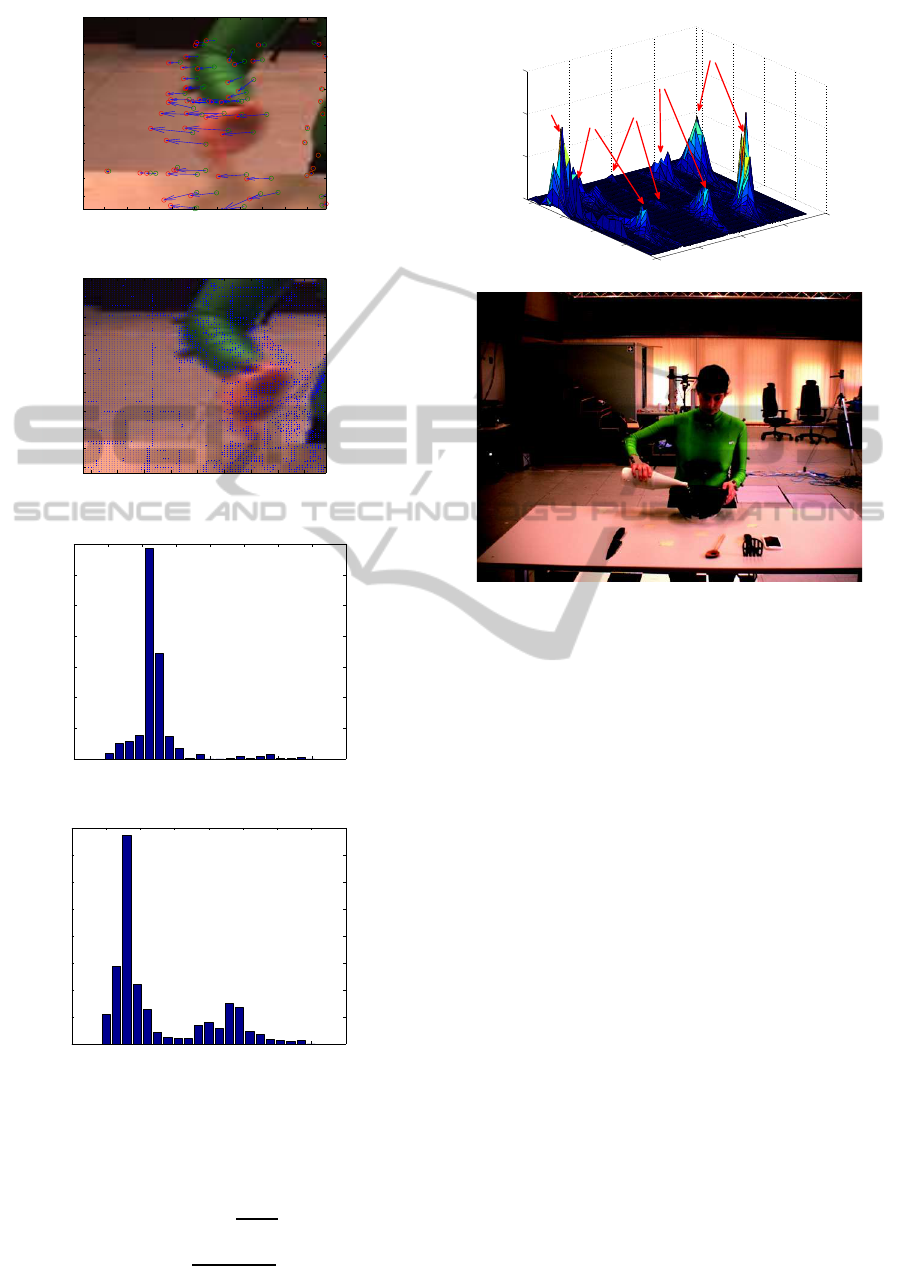

Figure 2: Comparison of feature motion (a) and optical ﬂow

(b) histogram: 1) example for vector plot, 2) bar plot of

weighted motion histograms.

h(k) = {(u, v)|θ(u, v) ≥

(k2π)

− π ∩

θ(u, v) <

((k+ 1)2π)

− π} .

(1)

100

200

300

400

−pi

−pi/2

pi/2

500

1000

1500

Frames

Feature motion histogram − full sequence (Pour)

Motion vector angle

Weigthed vector occurence

Take bowl

Take bottle

Pouring

Put bowl back

Put bottle back

Figure 3: Example for feature motion histogram distribu-

tion for action sequence ‘Pouring’.

The number of elements in h(k) is indicated by

N(h(k)), and the elements represent the motion vec-

tors (u, v) of the related feature points. The k-th bin

for the weighted histogram is calculated from the in-

tensity of all elements in the vector as shown in

H(k) =

N(h(k))

∑

i=1

γ(h(k

)). (2)

Examples for the feature ﬂow motion compared to the

optical ﬂow motion as well as the resulting histograms

can be seen in Figure 2. The histograms are sampled

over time resulting in a 30-dimensional input vector

for the HMMs. An example for the histogram distri-

bution over a complete action sequence can be seen in

Figure 3.

4 ACTION UNITS AND

GRAMMAR

Complex tasks, in this case in the household domain,

usually consist of concatenated action units. If some-

one wants to cut vegetables, one usually has to take

it, get a knife, start cutting, put the knife back etc.

Action units in this context refer to a motion that is

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

636

performed continuously and without interruption. So,

action units are the smallest entity, which order can be

changed during the execution, for example is it pos-

sible to ﬁrst take the knife then the vegetables, but it

could also be done the other way around. Addition-

ally all tasks, as long as they have a meaningful aim,

have to be executed in a certain order. It would not

make sense to start cutting vegetables without hold-

ing a knife or without the vegetables in front. As the

order in which the different tasks are executed is not

random, it is possible to formulate a grammar, which

has to be followed. This action grammar deﬁnes the

action sequences, which are a concatenation of action

units that result in a meaningful task. A example for

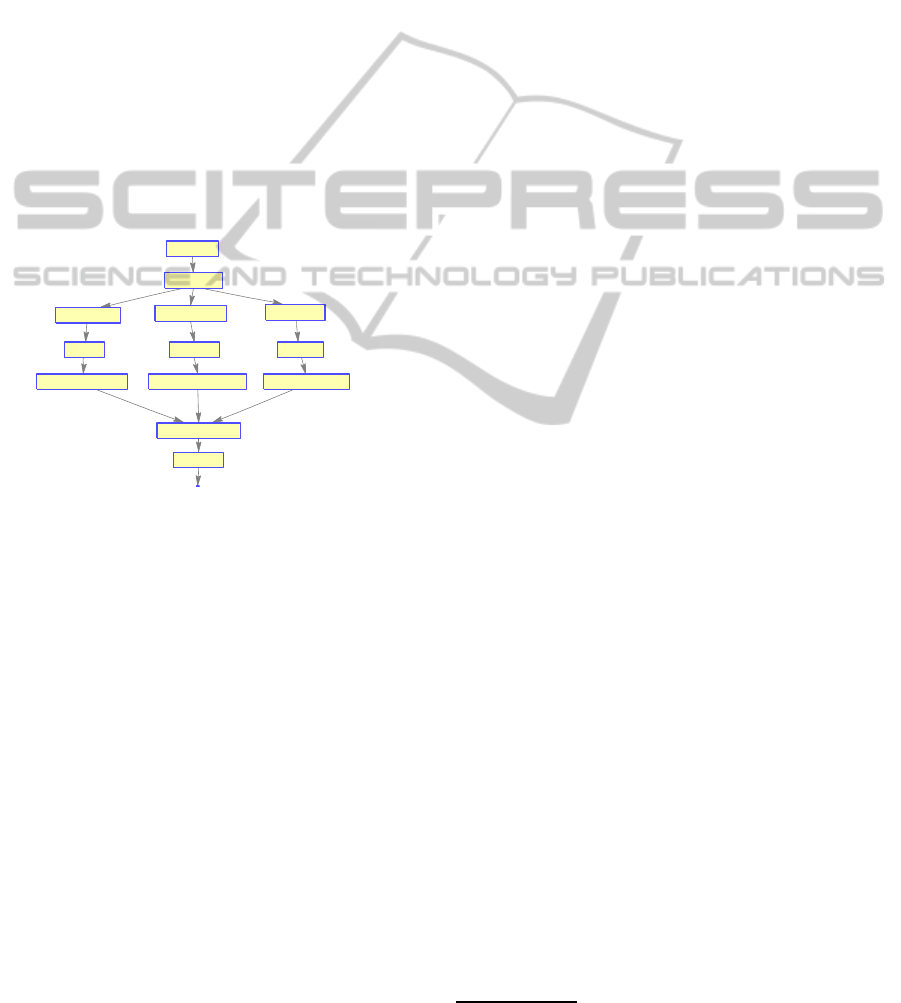

a simpliﬁed grammar can be seen in Figure 4. This

grammar describes the three idealized actions stirring,

mashing and pouring in case they were always exe-

cuted this way. The action that will be recognized

depends on the path through the graph. The here pre-

idle_start

pick_bowl

pick_spoon

stirring

put_away_spoon

put_away_bowl

idle_end

pick_masher

mashing

put_away_masher

pick_bottle

pouring

put_away_bottle

Figure 4: Sample grammar for three tasks: stirring, mashing

and pouring.

sented tasks take place in the kitchen domain. They

comprise taking kitchen utensils from a table, work-

ing with them and putting them back to their places. If

a cyclic action unit like stirring or grating is involved,

this action unit can be individually repeated. The ac-

tion sequences and action units had been deﬁned be-

forehand.

5 ACTION RECOGNITION

SYSTEM

The action recognition system is made up of two com-

ponents. First, a low level modeling is done on the

level of action units using HMMs. Second, for the

recognition of action sequences, the low level HMMs

are combined with a stochastic context free grammar,

which controls the longer sequences of action units

and also allows to solve disambiguaties at the level of

action units. During the recognition of the sequences,

an implicit automatic segmentation of the action se-

quences into action units is performed.

Our action recognition system features the one

pass IBIS decoder (Soltau et al., 2001), which is part

of the Janus Recognition Toolkit JRTk (Finke et al.,

1997). We use this toolkit to recognize actions based

on Hidden Markov Models (HMMs).

Each action unit is statistically modeled with a 4-

state left-to-right HMM. Each state of the left-to-right

HMM has two equally likely transitions, one to the

current state, and one to the next state. The emis-

sion probabilities of the HMM states are modeled by

Gaussian mixtures. The number of Gaussians per

mixture is taken from cross-validation experiments.

An action sequence is modeled as a sequential con-

catenation of action unit models.

Initialization and Training. To initialize the HMM

models of the action units, we manually segmented

the data into the action units. As action units are

modeled by a 4-state HMM, the manually segmented

data are equally divided into four sections, and a

Neural Gas algorithm (Martinetz and Schulten, 1991)

is applied to initialize the corresponding HMM-state

and its emission probabilities. HMM training was

performed featuring the Viterbi EM algorithm based

on forced alignment on the unsegmented action se-

quences.

On-line Recognition. The on-line decoding of the

systems is carried out as a time-synchronous beam

search. Large beams are applied to avoid pruning er-

rors, using a context free grammar to guide the recog-

nition process. The context free grammar consists of

10 start symbols, one for each sequence type, leading

to a sequence of terminals representing the sequence

of actions units of the speciﬁc activity. The idle po-

sitions are optional and the number of repetitions for

the cyclic action units is arbitrary, but at least one.

6 EVALUATION

We evaluate the recognition performance of the pro-

posed system by applying it to two different datasets.

The ﬁrst dataset is the Basic Kitchen Tasks dataset

consisting of 10 action sequences with a total of 48

action units. Each action sequence has been recorded

20-30 times resulting in an overall of 250 action se-

quences samples and over 6000 action unit samples.

The video data is captured with 30fps and a resolu-

tion of 640x480 px with a Prosilica GE680C camera.

http://www.sfb588.uni-karlsruhe.de/bkt-dataset/

ON-LINE ACTION RECOGNITION FROM SPARSE FEATURE FLOW

637

Table 1: Comparison of optical ﬂow (HoOF) and feature

ﬂow (HoFF) on the Basic Kitchen Tasks (BKT) dataset(10

sequences / 48 action units) and the ADL dataset(10 se-

quences / 53 action units).

BKT dataset I HoOF HoFF

Sequence recog. 100.0 % 100.0 %

Unit recog. 96.7% 96.6%

ADL dataset HoOF HoFF

Sequence recog. 82.0% 71.3%

Unit recog. 63.5% 55.0%

Parallel to the video data acquisition, ﬁve of the per-

formed action sequences are recorded with a marker

based motion capture system (Vicon). Each sequence

has been repeated 20 times. Overall 100 samples

with over 2400 action units were recorded. Reﬂective

markers were attached to the test persons upper body

and mapped onto a kinematic model to calculated the

related joint angle trajectories of the test persons mo-

tions. The system outputs a feature vector of the 24

joint angles, describing the actual pose of an upper

body model. For the recognition deltas of joint angles

are calculated as the input vectors. The second dataset

is the University of Rochester Activities of Daily Liv-

ing dataset

. This set also comprises 10 different

tasks, which have been manually segmented using a

total of 53 action units. The input feature vectors of

all systems are normalized by mean subtraction and

by normalizing the standard deviation to 1.

6.1 Feature Flow Recognition

To compare the recognition performance of the fea-

ture based approach with the optical ﬂow based ap-

proach, we compute the histograms of oriented fea-

ture ﬂow (HoFF) as well as the histograms of oriented

optical ﬂow (HoOF) for all video sequences. Both

histograms consist of 30 bins corresponding to a 30

dimensional input vector for the HMMs.

For HMM action unit model training and evalua-

tion we use a 10-fold (Basic Kitchen Tasks dataset I)

/ 3-fold (ADL dataset) cross-validation over all action

sequences. To initialize the HMMs, hand-segmented

action units of the training data are used. For training

we use the training data without segmentation infor-

mation. The test set is also used without any segmen-

tation information. The givenrecognition results refer

to the mean recognition rates over all test runs.

Both datasets were evaluated according to the

recognition performance of optical ﬂow and feature

ﬂow. For the ﬁrst dataset, the sequence recognition

http://www.cs.rochester.edu/ rmessing/uradl/

Table 2: Comparison with marker based system for 5 se-

quences.

Marker

based

HoOF HoFF

Input vector dim. 24 30 30

Gaussians per state 16 16 16

States per unit 4 4 4

Sequence recog. 100.0% 100.0 % 100.0%

Unit recog. 98.3% 96.9 % 97.5%

rate is optimal for both approaches and the mean unit

recognition rates rank at 96.7% for optical ﬂow and at

96.6% for the feature ﬂow based approach (Table 1).

For the second dataset the overall recognition rate is

82.0% for optical ﬂow and 71.3% for sparse feature

ﬂow (Table 1). Comparing those results to the recog-

nition performance published for this dataset so far

(Messing et al., 2009), it outperforms motion-based

approaches without local information, which is what

we need to allow ﬂexible settings and environments.

6.2 Comparison with a Marker based

System

Five of the performed actions of the Basic Kitchen

Tasks dataset were simultaneously recorded with a

marker based motion capture system (Vicon). To en-

sure comparability, the recognition differs only in the

type of input vector, while all other system compo-

nents are the same for both systems.

The recognition performance while using a con-

text free grammar is for all systems optimal. The

action unit recognition rate (see Table 2), describing

how many actions units were correctly recognized,

is best for the marker based systems, while the op-

tical ﬂow based system is the worst. The problems in

recognition result mainly from the mistakes in count-

ing of cyclic motions. Action units can be overlooked,

because they only consist of a few frames. Regarding

the good performanceof the video based systems, one

has to remark that the recorded setting was optimal for

vision systems, with a camera standing in front of the

test person, whereas the marker based system is view

point independent.

6.3 Runtime Performance

The runtime is evaluated for feature ﬂow histograms,

optical ﬂow histograms and a CUDA-based Java

implementation of feature ﬂow histograms on a

2.83GHz Intel Core2Quad processor with 8GB RAM.

For the evaluation the processing time per frame for

each sequence is analyzed. It can be shown that the

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

638

100

200

300

400

500

600

700

800

Mean runtime per frame for all tasks

ms/frame

Roll

Pour

Slice

Grind

Sweep

Grate

Stir

Saw

Cut

Mash

OpenCV HoOF

JavaCU HoFF

OpenCV HoFF

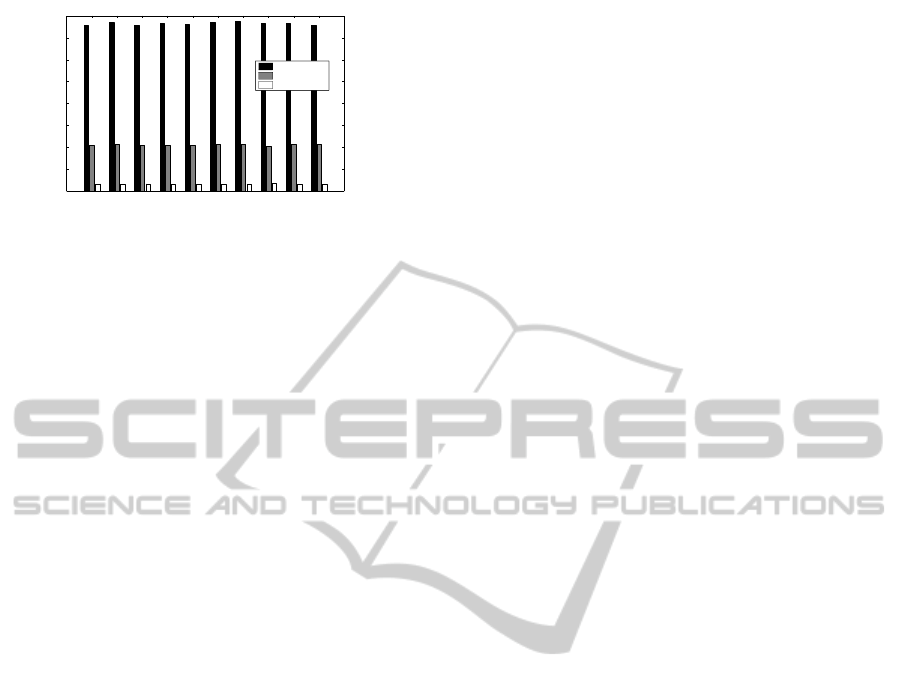

Figure 5: Runtime for optical ﬂow compared to feature

based system.

optical ﬂow histogram calculation takes around 764

ms and the openCV based implementation of feature

ﬂow histograms needs 34 ms. It is constant for any

type of sequence as can be seen in Figure 5. The run-

time for the decoding ranges between 20 and 35 ms. It

is done by beam search over all possible action units

giving a hypothesis of the current action unit as well

as the history of action units and type of sequence that

has been performed. This leads to an over all process-

ing time of the system of 25fps, which can be seen as

acceptable for on-line recognition.

7 CONCLUSIONS

In this paper a system for the on-line recognition of

human actions is presented. The video based action

recognition techniques are qualiﬁed for the recogni-

tion of sequences of action units and complex activi-

ties. The combination of feature ﬂow histograms and

HMMs enables an on-line action recognition system

to recognize human activities during their execution

in a natural, unrestricted scenario. We see this as a

valuable step towards an on-line action recognition

that allows to adapt to the user and its needs while

still being robust and scalable enough to work in a

real live environment.

ACKNOWLEDGEMENTS

We thank the Insitute for Sports and Sport Science,

Karlsruhe Institute of Technology (KIT), Germany

for recording the marker data used in this work. This

work was partially supported by the German Research

Foundation (DFG) within the Collaborative Research

Center SFB 588 on Humanoid Robots - Learning

and Cooperating Multimodal Robots and by OSEO,

French State agency for innovation, as part of the

Quaero Programme.

REFERENCES

Danafar, S. and Gheissari, N. (2007). Action recognition for

surveillance applications using optic ﬂow and svm. In

ACCV, volume 2, pages 457–466.

Efros, A. A., Berg, A. C., Mori, G., and Malik, J. (2003).

Recognizing action at a distance. In IEEE Interna-

tional Conference on Computer Vision, pages 726–

733, Nice, France.

Finke, M., Geutner, P., Hild, H., Kemp, T., Ries, K., and

Westphal, M. (1997). The karlsruhe-verbmobil speech

recognition engine. ICASSP-97., 1:83–86.

Gehrig, D., Khne, H., Wrner, A., and Schultz, T. (2009).

Hmm-based human motion recognition with optical

ﬂow data. In 9th IEEE-RAS International Confer-

ence on Humanoid Robots, Humanoids 2009, Paris,

France.

Ivanov, Y. A. and Bobick, A. F. (2000). Recognition of

visual activities and interactions by stochastic parsing.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 22:852–872.

Koehler, H. and Woerner, A. (2008). Motion-based feature

tracking for articulated motion analysis. In Workshop

on Multimodal Interactions Analysis of Users a Con-

trolled Environment, IEEE Int. Conf. on Multimodal

Interfaces (ICMI 2008), Chania, Greece.

Lucas, B. D. and Kanade, T. (1981). An iterative image

registration technique with an application to stereo vi-

sion.

Lucena, M. J., de la Blanca, N. P., Fuertes, J. M., and Mar´ın-

Jim´enez, M. J. (2009). Human action recognition

using optical ﬂow accumulated local histograms. In

Iberian Conf. on Pattern Recognition and Image Anal-

ysis, IbPRIA, pages 32–39.

Marszalek, M., Laptev, I., and Schmid, C. (2009). Actions

in context. Computer Vision and Pattern Recognition,

IEEE Computer Society Conference on, 0:2929–2936.

Martinetz, T. and Schulten, K. (1991). A ”neural-gas” net-

work learns topologies. Artiﬁcial Neural Networks,

1:397–402.

Mendoza, M. A., P´erez De La Blanca, N., and Mar´ın-

Jim´enez, M. J. (2009). Fitting product of hmm to hu-

man motions. In Proc. of the 13th Int. Conf. on Com-

puter Analysis of Images and Patterns, CAIP, pages

824–831, Berlin, Heidelberg. Springer-Verlag.

Messing, R., Pal, C., and Kautz, H. (2009). Activity

recognition using the velocity histories of tracked key-

points. In ICCV, Washington, DC, USA. IEEE Com-

puter Society.

Shi, J. and Tomasi, C. (1994). Good features to track. Pro-

ceedings of the Conference on Computer Vision and

Pattern Recognition, pages 593–600.

Soltau, H., Metze, F., F¨ugen, C., and Waibel, A. (2001).

A one-pass decoder based on polymorphic linguistic

context assignment. ASRU, pages 214–217.

Tomasi, C. and Kanade, T. (1991). Detection and tracking

of point features. Technical report, International Jour-

nal of Computer Vision.

ON-LINE ACTION RECOGNITION FROM SPARSE FEATURE FLOW

639
