ROBUST ONLINE SEGMENTATION OF UNKNOWN OBJECTS FOR

MOBILE ROBOTS

Xin Wang, Maja Rudinac and Pieter P. Jonker

Delft Biorobotics Lab, Delft University of Technology, Delft, The Netherlands

Keywords:

Unknown Environment, Saliency Detection, Tracking, Online Object Segmentation, Mobile Robots, Conver-

gent Vision System.

Abstract:

In this paper we present a novel vision system for object-driven and online learning based segmentation of

unknown objects in a scene. The main application of this system is for mobile robots exploring unknown

environments, where unknown objects need to be inspected and segmented from multiple viewpoints. In an

initial step, objects are detected using a bottom-up segmentation method based on salient information. The

cluster with the most salient points is assumed to be the most dominant object in the scene and serves as an

initial model for online segmentation. Then the dominant object is tracked by a Lucas-Kanade tracker and the

object model is constantly updated and learned online based on Random Forests classiﬁer. To reﬁne the model

a two-step object segmentation using Gaussian Mixture Models and graph cuts is applied. As a result, the

detailed contour information of the dominant unknown object is obtained and can further be used for object

grasping and recognition. We tested our system in very challenging conditions with multiple identical objects,

severe occlusions, illumination changes and cluttered background and acquired very promising results. In

comparison with other methods, our system works online and requires no input from users.

1 INTRODUCTION

One of the most challenging problems in robotics is

the exploration of unknown environments. Robots

need to be able to navigate in the environments, ex-

plore present objects and learn them online. The ﬁrst

problem that needs to be solved is how to efﬁciently

localize the unknown objects in the environment and

obtain their detailed information such as shape. This

is necessary for tasks such as grasping, recognition or

learning of unknown objects.

For the localization of unknown objects in a scene,

no top-down knowledge can be used. Object detec-

tion methods based on point clouds calculated from

stereo images (Bj

orkman and Kragic, 2010) provide

good results in the case of the textured objects. How-

ever, they fail in the case of objects with uniform

color which are widely present in environments. As

a solution to this challenging problem, we therefore

consider bottom-up visual-attention methods. The

saliency method presented in (Itti et al., 1998) was

used, for instance, in (Rasolzadeh et al., 2010) to

guide the attention of a robot. An attention method

based on local symmetry in the image was proposed

in (Kootstra et al., 2010) to ﬁxate on objects in the

scene. Finally, the method (Rudinac and Jonker,

2010) provides fast segmentation of objects based on

their saliency. Since it assumes no prior information

about the scene and only requires input from a single

camera, we will further exploit it in the initial step.

Once, the initial position of object is calculated,

the robots should be able to navigate around the

objects to inspect them from multiple viewpoints.

Therefore, very fast and robust object detection meth-

ods must be applied. There are various challenges the

object detection method needs to cope with: scale

changes, viewpoint changes, variable illuminations,

occlusion and background clutter. Many object de-

tection methods have been proposed and studied. The

most popular ones are motion based tracking, back-

ground subtraction, feature based detection, color

based detection and contour based detection. In the

state of the art, the Adaptive Boosting Classiﬁcation

(Kalal et al., 2009) and sparse coding (Mairal et al.,

2010) are extensively used in online active vision ap-

proaches. They use the initial model to generate train-

ing models to confront viewpoint changes as well as

the occlusion. However, they need input from users

and do not provide detailed information about the

contour and the shape of the object.

In our application, we are interested in a mo-

bile robot system that can autonomously explore un-

365

Wang X., Rudinac M. and P. Jonker P..

ROBUST ONLINE SEGMENTATION OF UNKNOWN OBJECTS FOR MOBILE ROBOTS.

DOI: 10.5220/0003866803650374

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 365-374

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

known environments. Therefore, an online detec-

tion method that allows automatic segmentation of

unknown objects is indispensable. Most of the state

of the art methods require user deﬁned object model,

which is unusable in our case. The robot has the

task to navigate around the unknown objects to in-

spect them from different viewpoints. For this on-

line segmentation task, existing background subtrac-

tion methods (Zivkovic, 2004) will fail because of a

constant change of the background. Motion based

online segmentation (Mooser et al., 2007) is not an

option since the objects in the environment are static

without any motion information. Thus a model based

tracker which can update online is needed. How-

ever histogram based online segmentation such as

Camshift (Bradski, 1998) can not handle textured ob-

jects. Therefore we require an object-driven segmen-

tation method which is able to work in case of com-

plex scenes and objects.

In this paper, we present a novel system for ro-

bust online segmentation of unknown objects which

can overcome all above mentioned difﬁculties. The

main contributions are as follows. Firstly, we im-

plement a vision system that can autonomously per-

ceive objects in unknown environments without any

prior knowledge. Secondly, we propose a robust on-

line segmentation method by utilizing different ob-

ject detection methods in order to achieve a good

performance in spite of viewpoint changes, illumi-

nation changes, background clutter as well as occlu-

sion. Our method also provides reﬁned information

about the objects such as shapes and contours instead

of only locations. Thirdly, in our setup the camera

moves around the static objects, which is in contrast

to most active vision applications where static cam-

eras track or segment the moving objects. Further-

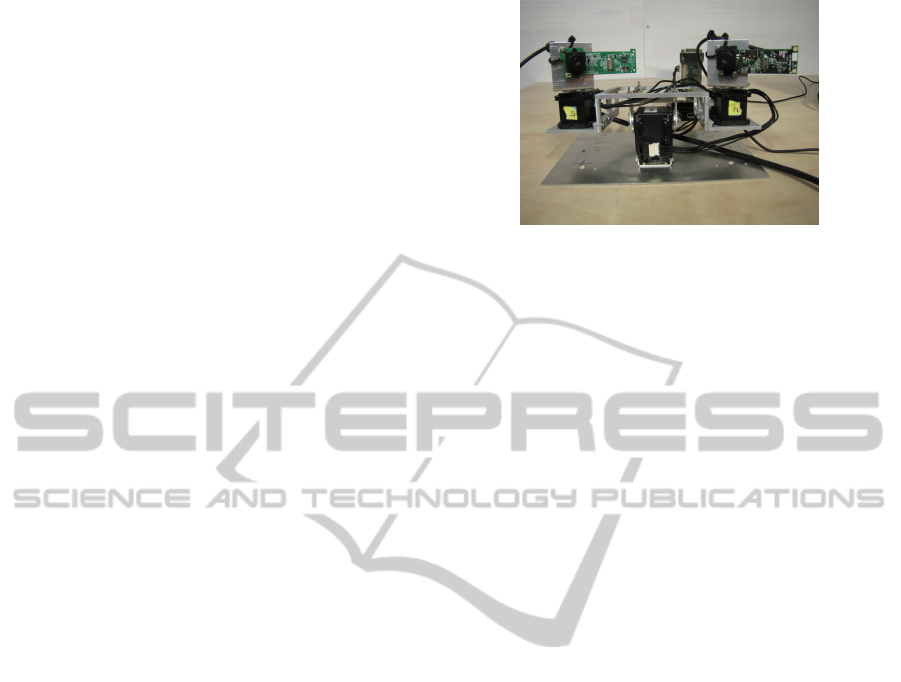

more, we tested the system on foveated vision setup

and achieved very promising results.

This paper is organized as follows. In Sec. 2 we

provide a general outline of the proposed system; in

Sec. 3 we explain the algorithms in detail; in Sec. 4

we show system evaluation and results analysis.

2 GENERAL FRAMEWORK

In this section we present a general framework of the

system, depicted in Figure 1. We propose several

steps: detection of a dominant unknown object, initial

model generation, tracking to update the object model

and detailed object segmentation. We assume that no

initial knowledge on a scene or objects is given.

In the initial step it is necessary to detect the ap-

proximate positions of unknown objects. For ini-

tial segmentation, we propose a bottom-up segmen-

tation based on the salient information in the static

scene. After the saliency map of the scene is cal-

culated, saliency points in the map are detected and

clustered into salient regions, where every region rep-

resents a potential unknown object. A cluster with the

most salient points is assumed to be the most dom-

inant object in the scene and its initial model is ex-

tracted to be used for later segmentation. Details can

be found in Sec. 3.1 A camera is then maneuvered

around the dominant object to explore it from differ-

ent viewpoints. In each frame, the dominant object

is tracked by motion based tracker, and the model

of the object is rebuilt and constantly updated using

Random Forests based classiﬁcation. By combining

the detection results of the motion tracking and the

model tracking the location of the object in the new

frame is derived. More detailed information is given

in Sec. 3.2.1 In the ﬁnal step, for every viewpoint

and updated object model we do reﬁned object seg-

mentation. The Gaussian Mixture Models(GMMs) is

used to create the object model and the background

model. Finally the graph cuts is used to obtain the op-

timal segmentation as is described in Sec. 3.2.2. As

a result, detailed contour information of the dominant

object is extracted.

3 APPROACH AND

IMPLEMENTATION

3.1 Salient Object Detection

In order to be able to learn novel objects in un-

structured environments, an initial step is to correctly

segment the objects without any prior knowledge

about the objects or their background. In our pre-

vious research (Rudinac and Jonker, 2010), we pro-

posed a method for fast object segmentation based

on the salient information in the scene. In the orig-

inal method (Hou and Zhang, 2007), saliency was de-

tected using a spectral residual approach on three dif-

ferent color channels, red-green, yellow-blue, and the

illumination channel. The saliency map was further

calculated as the inverse Fourier transform of each

spectral residual, and the results were combined to

obtain a more robust saliency map. The bright spots

in the saliency map represent points of interest. In or-

der to detect those peaks, we applied the MSER blob

detector (Matas et al., 2004) directly on the saliency

map. Once the interesting points were detected, close

points were clustered together using Parzen window

estimation, leading to the segmentation of objects in

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

366

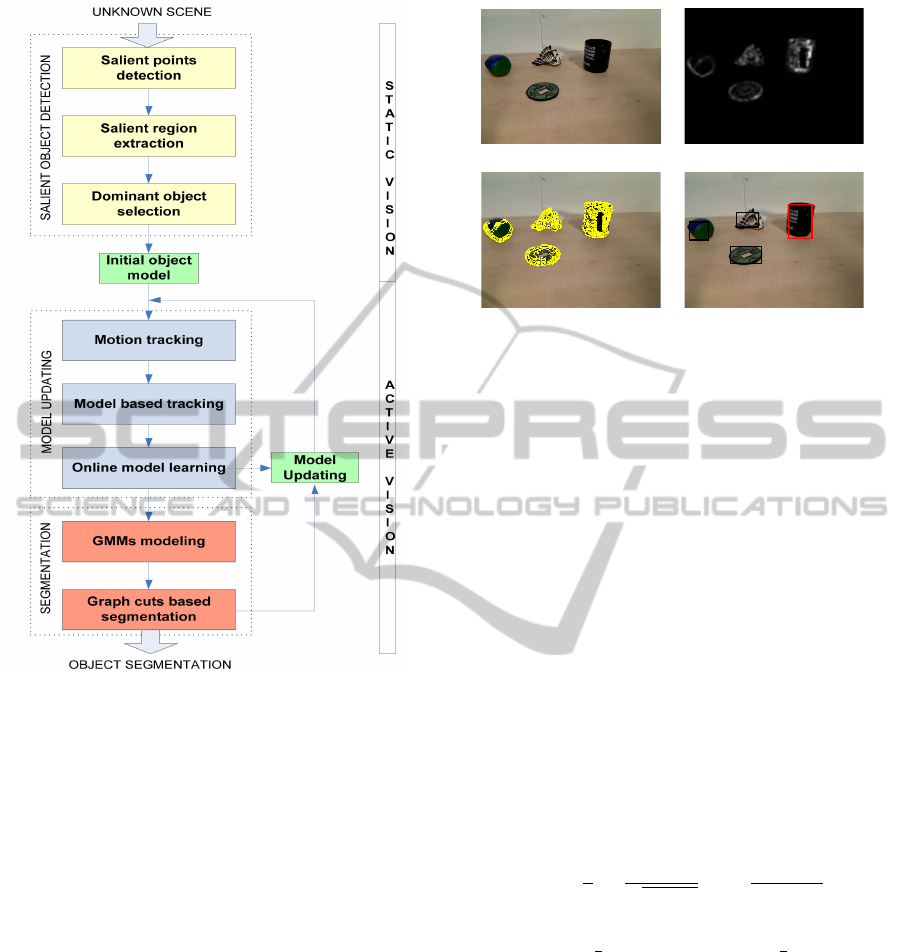

Figure 1: General outline of the system.

the scene.

The described method was designed for still im-

ages and here we propose an extension to process

video. Given that the spectral residual process rep-

resents the difference between the original scene in

Figure 2(a) and the scene average, acquiring informa-

tion about the scene average from successive frames

will improve the saliency map. The saliency map is

displayed in Figure 2(b). Therefore, for each frame

we detect MSER points on the saliency map in the

standard way and merge the result with those from

previous frames to obtain more stable salient points.

In our setup we used 5 successive frames. The num-

ber of merging frames must be carefully chosen, since

too many frames could lead to the segmentation larger

than the object. To solve this problem, we use an

active segmentation method in addition to the initial

segmentation.

Once we obtained stable salient points from suc-

cessive frames, for each detected point the contour de-

scribing the MSER region is calculated (Matas et al.,

2004). The resulting contours can be seen as yel-

low points in Figure 2(c). These contours are then

(a) original image (b) the saliency map

Figure 2: Initial localization of objects using saliency.

clustered leading to the segmentation of objects in

the scene. For clustering, we use an adapted Parzen

window estimation (Tax, 2001), which automatically

ﬁts a probability density function to the contour cen-

ters. For each point we calculate the probability P(x)

deﬁned by Equation 1 where x

and σ represent the

Gaussian kernel center and the kernel size, while S is

the number of contour centers and m = 2, since ev-

ery contour center has a two-dimensional coordinate.

Subsequently, outlier points that have low probability

values and belong to isolated clusters are removed,

as deﬁned in Equation 2. Finally, the positions of

the contour centers and their probability values are

clustered using the Mean-shift method (Comaniciu

et al., 2002). As a result, we ﬁnd the regions of inter-

est around each object in the scene, see Figure 2(d).

The cluster with the most salient points represents the

dominant region in the scene, the red bounded object

in Figure 2(d) which will further be segmented.

P(x) =

∑

i=1

√

2π

exp−

x −x

2σ

(1)

log(P(x)) < log(

∑

i=1

P(x

)) −3var(log(

∑

i=1

P(x

))

(2)

3.2 Online Object Segmentation

In the Sec. 3.1, we proposed a method which seg-

ments the unknown objects in the scenes and selects

the most dominant one that will further be inspected

by a robot from multiple viewpoints. Based on the lo-

cation of the initial model, the robot should develop a

self-learning system by observing objects from differ-

ent perspectives and perceive its environment without

any prior knowledge. One of the necessary steps to-

wards such a system is an object-driven and on-line

ROBUST ONLINE SEGMENTATION OF UNKNOWN OBJECTS FOR MOBILE ROBOTS

367

learning segmentation method. In our application, ob-

jects are static while the robot navigates around ob-

jects to explore them from different viewpoints. Pure

motion based and background modeling based online

segmentation methods will fail in this situation. In

this paper, we propose a robust online object segmen-

tation method to cope with this situation. From the

initial position located by saliency, we build up the

object model using texture features and update the

model frame by frame to efﬁciently track the object.

Then we segment the interested object inferred from

the model using GMMs and graph cuts. We will now

explain the two steps for tracking and segmentation.

3.2.1 Build and Update the Object Model

With respect to the task of observing objects from dif-

ferent viewpoints, we need to online build up a train-

ing data set to model the object from initial object in-

formation and update the model so that it can adapt

to the constant change in object appearance. Both

methods (Kalal et al., 2010) and (Lepetit and Fua,

2006) for adaptive online tracking use Local Binary

Pattern (LBP) variants to represent the texture of the

object. The LBP features are randomly distributed on

an image patch, thus the spatial information among

the features is kept. Then the image patches are

used to train a Random Forests classiﬁer (Breiman,

2001). Therefore the object tracking problem turns

into a foreground and background classiﬁcation prob-

lem. The drawback of (Lepetit and Fua, 2006) lies in

that it needs to ofﬂine generate an afﬁne transforma-

tion training data set from the original image to build

up the tracking model. (Kalal et al., 2010) goes a step

further and just requires a user deﬁned bounding box

around the object and further updates the model on-

line. However, they do not provide any detail on the

object shape. In our system we propose a fully auto-

matic system which also provides shape information.

Assuming that we have an object model

M that contains a variety of model elements

, m

, . . . , m

), each m

uses a group of features

( f

, f

, . . . , f

) to encode the different appearance

of the object. The combination of model elements

can provide a more comprehensive and robust de-

scription of the object than a single model element.

Using probability theory we deduce the probability

of features based on a given object model element

P( f

, . . . , f

), i = 0, 1, . . . , N.

Given a potential candidate C, we use

P(C) =

∏

P(c

, . . . , f

) (3)

to denote the classiﬁcation of C based on features.

According to the Bayes Theorem

P(c

, . . . , f

) =

P( f

,..., f

)P(c

)

P( f

,..., f

)

(4)

We assume the uniform prior P(c

) and the de-

nominator to be the normalized constant to ensure that

the sum of probabilities is one.

Then Equation 3 transforms into

P(C) ∝

∏

P( f

, . . . , f

) (5)

Since we have the criterion to denote the object

P(O) =

∏

P( f

, . . . , f

) (6)

We can assign C to the classiﬁcation of object or

background. Random Forests have the structure of

fast and generalized classiﬁcation, thus we use it to

build and update the model. Here, the model elements

are represented by trees and the features are nodes of

the trees.

First we cover the input salient region with an im-

age patch x

∈ X, where X = {x

,t = 0, 1, . . . , T } de-

picts the trajectory of the object, in which t is the

frame number increased by time. We use LBP as

local texture feature descriptor and randomly gener-

ate the features on the image patch to maintain the

spatial information, therefore we have the ﬁrst object

model and features distribution P( f

, . . . , f

), i =

0, 1, . . . , N. We can then construct the Random Forests

which has N trees. By using the Lucas-Kanade

tracker, the new location of the image patch and scale

of the object in the new frame are known. Every new

frame is scanned using an image patch. Within every

image patch we use the generated features to com-

pare with the model. From the viewpoint of Random

Forests, the search is carried out for each tree and if

the search reaches the leaf the image patch is con-

sidered to be a potential object according to the given

model element. Finally we use majority votes from all

the trees to decide if it is a conﬁdent object. Among

all conﬁdent objects in the frame, we select the most

conﬁdent ones and cluster them by distance measure-

ment using normalized cross-correlation. Then by

combining the image patch location and scale ob-

tained by Lucas-Kanade tracking and the image patch

location obtained by detector we derive the image

patch of object x

in the new frame.

Updating the model is an online learning proce-

dure to cope with viewpoint changes. If the image

patches detected by the detector are close to the ob-

ject, they are considered to be a positive data set and

add to the branch of the trees, otherwise they will

be treated as a negative data set and pruned from the

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

368

trees. In this way, a robust and “memorized” model is

updated.

3.2.2 Reﬁning of the Object Model by

Segmentation

Although the position of the object is known, the in-

formation about its contour, edge or shape is still un-

known. In our application, the object segmentation

will be a cue for further tasks such as the object recog-

nition, scene understanding, object grasping as well

as convergent vision, and therefore a detailed contour

of the object is necessary. For these reasons we need

to further reﬁne the object model and perform detailed

segmentation. With respect to existing segmentation

methods in which most of them need interaction from

users (Rother et al., 2004) and (Vezhnevets, 2005).

In order to automatize the process we use the object

model from previous part and to decrease the compu-

tation time the segmentation is not carried out frame

by frame. Object segmentation is performed only in

key frames while for other frames, we use the con-

ﬁdent segmentation from previous frame. The key

frame is determined by comparison of the current im-

age patch x

with the previous image patch x

t−1

. If the

displacement and the scale difference are larger than

a speciﬁed threshold, the frame t is considered to be a

key frame.

We opt for a use of RGB color images and in the

object modeling part, we combine both texture infor-

mation of an intensity image and color information .

We ﬁrst apply the hard constraints to label the image

and then use soft constraints to optimize the segmen-

tation.

The task of the hard segmentation is to split the

scene into an object and a background and we adopt

the GMMs for a construction of the object and back-

ground models. The GMMs is a linear combination

of Gaussians that gives complex densities and better

characterization than histogram based methods, thus

it provides good performance even when the object

has complicated texture and color. For a known im-

age patch x

calculated by previous steps, we assume

that within the image patch the properties of the ob-

ject are preserved, while all pixels outside the patch

have the attributes of background. Based on this, we

derive the object GMMs and background GMMs in a

following way.

With regards to a pixel x

, p = 1, 2, . . . , P, the

GMMs are deﬁned as

P(x

) =

∑

k=1

N(x

|µ

, Σ

) (7)

where Gaussian density N(x|µ

, Σ

) is called one

component with mean vector u

and covariance ma-

trix Σ

. π

is the weight. Here the mean vector u

composed of three values R, G and B while K is the

number of components. K needs to be adapted to the

scene, and more textured scenes require higher values

of K. Typically K = 5.

Since we have the initial model, we can assign

each pixel to each component in object GMMs and

background GMMs. Therefore we have the label for

all the pixels in the image.

After hard segmentation, we use energy mini-

mization to optimize the segmentation. The energy

minimization equation is

E(L) = λR(L) + B(L)

= λ

∑

p∈P

) +

∑

(p,q)∈N

(p,q)

·δ(l

, l

) (8)

where L = (l

, . . . , l

) is the label set for

each pixel. l

= 1 represents that p is assigned to ob-

ject and l

= 0 represents that p is assigned to the

background. q is one of neighboring elements of p

and δ(l

, l

) is deﬁned as

δ(l

, l

) =



1 if l

6= l

0 otherwise

(9)

where

) = −log P(x

) (10)

describes the region property based on GMMs

models.

(p,q)

= exp(−β||I

−I

) (11)

describes the coherence of similarity within a

region according to a distance between two pixel.

Where I

is the RGB value for a given pixel. λ is a pa-

rameter that relatively balance region property based

on GMMs versus region property based on similarity.

Segmentation can be now estimated as a global

minimization using graph cuts (Boykov and Jolly,

2001)

c = arg min

E(L) (12)

Then we have the foreground object and back-

ground. It is worth noting that the computation cost

of segmentation using graph cuts will be a challenge

for online applications. In our case, we conﬁne back-

ground to be a region surrounding the image patch

instead of using the region of the whole image. By

doing this, we lower down the computation cost. We

also use the output of the segmentation result as a re-

ﬁned input of the online model for more precise track-

ing.

ROBUST ONLINE SEGMENTATION OF UNKNOWN OBJECTS FOR MOBILE ROBOTS

369

4 TESTING AND RESULTS

4.1 Experimental Setup

In order to test the whole system, we used ground

truth data obtained from 4400 image frames in 4 dif-

ferent test scenarios. They are following: a single

object placed in the scene with uniform background,

multiple objects placed in the scene with uniform

background, a single object placed in the scene with

textured background and multiple objects placed in

the scene with texture background. We used differ-

ent objects which varied in shape (simple vs complex)

and in appearance (uniform color vs textured). It is

also worth noticing that all of the experiments were

carried out in different illumination conditions with

natural light as well as artiﬁcial light. Moreover, we

tested our system in difﬁcult cases such as the objects

with occlusion, as well as similar objects appearing in

the same scene.

Here we also need to emphasize that in most state

of the art online segmentation methods, the cameras

are ﬁxed to capture the motion of the objects in the

scene. On the contrary, in our experiments the objects

are static and the camera moves around the object,

which is a more challenging case. There are two types

of such active vision setups, one where the camera

moves around the objects to “see” them from differ-

ent viewpoints, and the other where the camera moves

to keep the objects in the center of the view, so called

foveated vision system. We performed experiment us-

ing both setups.

In both experimental setups, we used a Logitech

Quickcam Pro 9000 with a resolution of 320∗240 and

image capture rate 25 frames per second on x86 CPU

at 2.8 GHz. We carried out two types of experiments,

one with single camera moving around the objects and

one with the camera ﬁxed on top of motors in order

to track the objects in the center of the view. For the

latter, we adopted two Dynamixel RX-28 motors. In

total the robot vision system has two degrees of free-

dom that can move the camera up and down, left and

right. Figure 3 shows the setup of the whole system.

As can be seen from the ﬁgure, in total there are two

cameras and three motors since our future research is

on convergent vision systems. For our experiment, we

just used one camera controlled by two motors.

The input from saliency detection will inﬂuence

how the object model is built up and updated and on

the other, the input from the object model will affect

the GMMs and further the graph-cut based segmenta-

tion performance. The three parts are strongly inter-

related, and for that reason we present total segmen-

tation results.

Figure 3: Convergent vision setup.

4.2 Saliency Detection and Online

Segmentation Results

For testing we randomly picked up 50 objects with

different color, texture and shape and put them in 88

different scenes with in total 4400 frames. Saliency

detection selected 30 dominant objects from these dif-

ferent scenes. Since saliency provides segmentation

of all objects in the scene, other objects could be in-

spected as well. Because the properties of the objects

have inﬂuence on the segmentation results, we cate-

gorized the objects into 4 different types: objects with

uniform color and simple shape, objects with uniform

color and complex shape, objects with texture and

simple shape, objects with texture and complex shape.

Afterwards we used them in 4 different test scenarios

as mentioned before.

In order to clearly demonstrate the performed

tests, with regard to the types of objects and scenes,

and to show the saliency detection and segmentation

results, we show a number of ﬁgures with both single

and multiple objects in the scenes. In each ﬁgure, we

show the original image, the image after saliency de-

tection, the image after object segmentation and one

more example of the object segmentation from a dif-

ferent viewpoint. Figure 4 shows a single object with

uniform color and simple shape in textureless scene,

while Figure 5 depicts a single object with uniform

color and complex shape in textured scene.

For the same reason, we also showed a number

of ﬁgures of the multiple objects scenes. Figure 6

shows the textureless scene with multiple objects and

the dominant object with texture and complex shape,

while Figure 7 shows the textured scene with multiple

objects and the dominant object with uniform color

and complex shape.

Table 1 presents the segmentation performance of

a single object placed in an textureless or textured

background. The rows represent the different types

of objects and the columns the types of scenes. Ta-

ble 2 shows the segmentation performance of multi-

ple objects placed in textureless and texture environ-

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

370

(original scene) (saliency)

(segmentation1) (segmentation2)

Figure 4: A single object with uniform color and simple

shape in textureless scene.

(original scene) (saliency)

(segmentation1) (segmentation2)

Figure 5: A single object with uniform color and complex

shape in textured scene.

(original scene) (saliency)

(segmentation1) (segmentation2)

Figure 6: Textureless scene with multiple objects and the

dominant object with texture and complex shape.

ment. Rows and columns are deﬁned in a same man-

ner as in Table.1. Both tables give the overall per-

(original scene) (saliency)

(segmentation1) (segmentation2)

Figure 7: Textured scene with multiple objects and the dom-

inant object with uniform color and complex shape.

formance from all test frames. As can be seen from

very high precision rates above 90%, the proposed al-

gorithm gives a very robust segmentation of various

types of objects in different scenes. We also come to

the conclusion that in most cases, it is easier to seg-

ment the objects from textureless than from textured

scenes and it is easier to segment the dominant object

within single object background than multiple objects

background. We can also notice that the multiple ob-

ject cases show only a slight drop in precision rates.

From the perspective of different types of objects,

the uniform and simple shape objects make the task

of saliency detection nontrivial. On the other hand,

the objects with uniform color and complex shape in-

crease the segmentation difﬁculty. Regarding very

textured objects, saliency detection provides good re-

sults but in modeling an over-segmentation can oc-

cur, since the number of GMMs components might

be low. The case of multiple objects with textured

and complex shape is the most difﬁcult one. How-

ever, our method gives a very good performance in all

aforementioned situations, and even in case of large

viewpoint changes.

Besides testing the active vision of moving the

camera around the objects, we also tested the foveated

vision setup. We carried out experiments in 8 differ-

ent scenes with various objects and in total 400 im-

ages. The test results show an overall precision rate

of 95.5%, which proves effectiveness of the method

on foveated active vision setup as well. One example

is shown in Figure 8.

To test robustness of segmentation in more chal-

lenging conditions, we performed tests on similar ob-

jects appearing in the same scene, occluded objects as

well as the motion of objects themselves. The testing

result of perceiving objects from different viewpoints

is shown in Figure 9. As we can see from this ﬁgure,

ROBUST ONLINE SEGMENTATION OF UNKNOWN OBJECTS FOR MOBILE ROBOTS

371

Table 1: Segmentation results of a single object placed in

the textureless and textured scene.

objects vs scene textureless % textured %

uniform color and

simple shape

98 96

uniform color and

complex shape

98.4 93.6

texture and simple

shape

98.4 96.4

texture and complex

shape

98 92.8

total 98.2 94.7

Table 2: Segmentation results of multiple objects placed in

the textureless and textured scene.

object vs scene textureless % textured %

uniform color and

simple shape

94 97

uniform color and

complex shape

98.3 93

texture and simple

shape

95.6 90.4

texture and complex

shape

90.8 86.4

total 94.68 91.7

(origin) (saliency)

(segmentation) (foveation)

Figure 8: Online segmentation results on foveated vision

setup.

the algorithm has good segmentation performance de-

spite the viewpoint changes. In Figure 10, regardless

of occlusion, the algorithm can correctly extract the

dominant object. Even with similar object occluded

in front of the dominant object which is shown in Fig-

ure 11, the segmentation result is still good. And Fig-

ure 12 proves that the motion of the dominant object

does not affect the performance.

During testing, we observed different situations

that were difﬁcult to cope with and those reduced the

overall performance rate. We noticed that the seg-

mentation results depend on the property of the object

we choose. The transparent and reﬂective object nor-

mally give bad performance, as shown in Figure 13(a)

and 13(b). The saliency detection will also affect the

online segmentation results if the selected salient re-

gion only detects a part of the object, which could

happen in the case of multiple object scenarios con-

taining both uniform color and textured objects or if

the objects are too close to each other. Another prob-

lem that rises, is in the case of very textured objects,

the selected number of GMMs components might not

be sufﬁcient to efﬁciently segment the object. The

failed case is shown in Figure 13(c). One way to

solve this problem is to introduce the measure of the

textureness of the object, since the more salient points

detected usually means the more texture of the object.

Then we can adaptively select the number of GMMs

components according to this measure. We will in-

vestigate this solution in our future work. Finally, if

the color or texture of the object is very similar to the

background, it is difﬁcult for the algorithm to extract

it. Such example is shown in Figure 13(d). Also,

sometimes the shadow might become a part of the ob-

ject.

To conclude, the proposed method is very robust

with very high performance rates above 90% in both

textureless and textured scenes, and it can efﬁciently

segment both simple and complex shapes as well as

objects with uniform color or texture. Additionally,

it can cope with viewpoint changes, similar objects

appearing in the same scene, occlusion as well as the

motion of object. Finally the system provides good

results in both movable camera and foveated vision

setups.

5 CONCLUSIONS

In this paper, we propose a novel vision system for

robust online segmentation of unknown objects. Our

system automatically detects unknown objects in the

scene based on the saliency information, selects the

most salient object, builds up and updates the ob-

ject model online with movable camera, and ﬁnally

reﬁnes object model using GMMs and graph cuts.

The obtained outputs are the contours of the domi-

nant object in different viewpoints. We tested our sys-

tem in challenging conditions and the test results with

the total segmentation precision above 90% show that

our method performs well in spite of large viewpoint

changes, illumination changes, occlusion as well as

the case of similar object appearing in the same scene.

The promising results inspire us to apply our system

on mobile robots to autonomously explore, track and

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

372

Figure 9: Online segmentation results with viewpoint changes.

Figure 10: Online segmentation results under occlusion.

Figure 11: Online segmentation results with similar objects appearing in the same scene and occlusion.

Figure 12: Online segmentation results with the motion of the dominant object.

(a) (b) (c) (d)

Figure 13: Failed cases.

segment unknown objects in unknown environments.

The output of our system also provides a strong cue

for further tasks such as object recognition, manipula-

tion and learning. The test results on foveated vision

setup also cast insight into convergent vision systems.

ACKNOWLEDGEMENTS

This research was sponsored by the Dutch govern-

ment through the Point One project PNE09003 (Bob-

bie)

ROBUST ONLINE SEGMENTATION OF UNKNOWN OBJECTS FOR MOBILE ROBOTS

373

REFERENCES

orkman, M. and Kragic, D. (2010). Active 3D scene seg-

mentation and detection of unknown objects. In ICRA,

pages 3114–3120.

Boykov, Y. and Jolly, M.-P. (2001). Interactive graph cuts

for optimal boundary and region segmentation of ob-

jects in N-D images. In Computer Vision, 2001. ICCV

2001. Proceedings. Eighth IEEE International Con-

ference on, volume 1, pages 105 –112 vol.1.

Bradski, G. R. (1998). Computer Vision Face Tracking For

Use in a Perceptual User Interface. Intel Technology

Journal, (Q2).

Breiman, L. (2001). Random Forests. Machine Learning,

45:5–32.

Comaniciu, D., Meer, P., and Member, S. (2002). Mean

shift: A robust approach toward feature space analy-

sis. IEEE Transactions on Pattern Analysis and Ma-

chine Intelligence, 24:603–619.

Hou, X. and Zhang, L. (2007). Saliency detection: A

spectral residual approach. In IEEE Conference on

Computer Vision and Pattern Recognition (CVPR07).

IEEE Computer Society, pages 1–8.

Itti, L., Koch, C., and Niebur, E. (1998). A Model

of Saliency-Based Visual Attention for Rapid Scene

Analysis. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 20(11):1254–1259.

Kalal, Z., Matas, J., and Mikolajczyk, K. (2009). On-

line learning of robust object detectors during unstable

tracking. In Computer Vision Workshops (ICCV Work-

shops), 2009 IEEE 12th International Conference on,

pages 1417 –1424.

Kalal, Z., Matas, J., and Mikolajczyk, K. (2010). P-N

learning: Bootstrapping binary classiﬁers by struc-

tural constraints. Computer Vision and Pattern Recog-

nition, IEEE Computer Society Conference on, 0:49–

56.

Kootstra, G., Bergstr

om, N., and Kragic, D. (2010). Using

symmetry to select ﬁxation points for segmentation.

In Proceedings of the 20th International Conference

on Pattern Recognition, Istanbul, Turkey, 23-26 Au-

gust 2010, pages 3894–3897.

Lepetit, V. and Fua, P. (2006). Keypoint Recognition Us-

ing Randomized Trees. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 28:1465–1479.

Mairal, J., Bach, F., Ponce, J., and Sapiro, G. (2010). Online

Learning for Matrix Factorization and Sparse Coding.

J. Mach. Learn. Res., 11:19–60.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2004). Ro-

bust wide-baseline stereo from maximally stable ex-

tremal regions. Image Vision Comput., 22(10):761–

767.

Mooser, J., You, S., and Neumann, U. (2007). Real-Time

Object Tracking for Augmented Reality Combining

Graph Cuts and Optical Flow. In Mixed and Aug-

mented Reality, pages 145 –152.

Rasolzadeh, B., Bj

orkman, M., Huebner, K., and Kragic, D.

(2010). An active vision system for detecting, ﬁxating

and manipulating objects in the real world. The Inter-

national Journal of Robotics Research, 29(2-3):133–

154.

Rother, C., Kolmogorov, V., and Blake, A. (2004). ”Grab-

Cut”: interactive foreground extraction using iterated

graph cuts. In ACM SIGGRAPH 2004 Papers, SIG-

GRAPH ’04, pages 309–314, New York, NY, USA.

ACM.

Rudinac, M. and Jonker, P. P. (2010). Saliency detection

and object localization in indoor environments. In

Proceedings of the 20th International Conference on

Pattern Recognition, Istanbul, Turkey, 23-26 August

2010, pages 404–407.

Tax, D. (2001). One-class classiﬁcation. phd, Delft Univer-

sity of Technology, Delft.

Vezhnevets, A. V. (2005). ”GrowCut”-Interactive Multi-

Label N-D Image Segmentation By Cellular.

Zivkovic, Z. (2004). Improved adaptive Gaussian mixture

model for background subtraction. In Pattern Recog-

nition, 2004. Proceedings of the 17th International

Conference on, volume 2, pages 28 – 31 Vol.2.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

374
