UTILIZATION AND PERFORMANCE CONSIDERATIONS

IN RESOURCE OPTIMIZED STEREO MATCHING

FOR REAL-TIME RECONFIGURABLE HARDWARE

Fredrik Ekstrand, Carl Ahlberg, Mikael Ekstr¨om, Lars Asplund and Giacomo Spampinato

School of Innovation, Design and Technology, M¨alardalen University, Eskilstuna, Sweden

Keywords:

FPGA, Stereo-vision, Resource Utilization, Real-time.

Abstract:

This paper presents a quantitative evaluation of a set of approaches for increasing the accuracy of an area-based

stereo matching method. It is targeting real-time FPGA systems focused on low resource usage and maximized

improvement per cost unit to enable concurrent processing. The approaches areapplied to a resource optimized

correspondence implementation and the individual and cumulative costs and improvements are assessed. A

combination of the implemented approaches perform close to other area-matching implementations, but at

substantially lower resource usage. Additionally, the limitation in image size associated with standard methods

is removed. As fully piped complete on-chip solutions, all improvements are highly suitable for real-time

stereo-vision systems.

1 INTRODUCTION

The extraction of depth data through the localiza-

tion of the same point in two images is not trivial.

Stereo matching of an entire scene 30 times per sec-

ond (real-time) is computationally demanding, and

require high-performing hardware. Hardware imple-

mentations range from regular computers, to special-

ized hardware such as GPUs and FPGAs. Lazaros et

al. (Lazaros et al., 2008) make a thorough presenta-

tion of various implementations.

FPGAs, often referred to as reconﬁgurable paral-

lel hardware, are utilized in mobile applications us-

ing vision, as they outperform other approaches in

terms of speed, size, and power requirements. The

major obstacle is the limited resources, which re-

stricts which algorithms are possible to implement.

In general, approaches for stereo matching are di-

vided into global and local methods, with the lat-

ter being the preferred real-time stereo matching ap-

proach for a long time due to ease of implementation

and speed (Lazaros et al., 2008).

A complete vision system residing in an FPGA re-

quires several processing components just for prepro-

cessing the image, such as, image rectiﬁcation, mo-

tion compensation, and depth estimation. Addition-

ally, higher-leveltasks, such as tracking, object recog-

nition, or navigation, should also be encompassed in

the FPGA.

In this paper we examine the impact of heavily re-

ducing the resource usage of a stereo matching ap-

proach. The goal is to achieve high throughput at

minimal system cost. This work is part of the Two

Camera-project at M¨alardalen University. The aim is

to construct a compact, vision-based autonomous sys-

tem encompassing both sequential and parallel pro-

cessing units (Ahlberg et al., 2011). Previous work

in the project include the construction of the FPGA-

based stereo platform (Lidholm et al., 2008), and an

implemented resource optimized basic stereo match-

ing algorithm (Ekstrand et al., 2011). The code com-

posing the components in this project will be made

available as open source to promote FPGA-based im-

age processing on our publicly available vision sys-

tem.

Matching is evaluated using stereo images with

ground truth, as shown in ﬁgure 1, and the online tool

provided by the vision department at MiddleburyUni-

versity (Evaluation, 2011).

2 BACKGROUND

For all approaches, we assume rectiﬁed and parallel

images with a uniﬁed baseline, in order to reduce the

correspondence problem to a 1-dimensional search

415

Ekstrand F., Ahlberg C., Ekström M., Asplund L. and Spampinato G..

UTILIZATION AND PERFORMANCE CONSIDERATIONS IN RESOURCE OPTIMIZED STEREO MATCHING FOR REAL-TIME RECONFIGURABLE

HARDWARE.

DOI: 10.5220/0003867404150418

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 415-418

ISBN: 978-989-8565-04-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

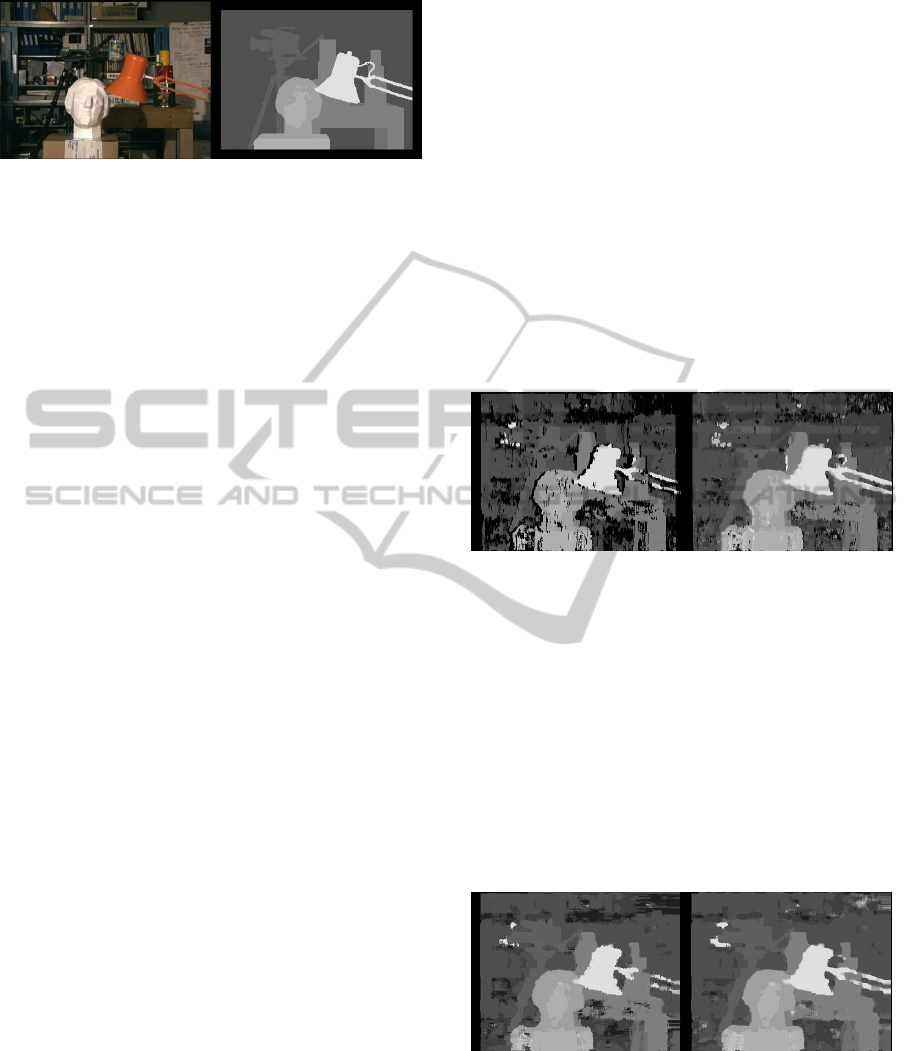

Figure 1: The Middlebury test image Tsukuba with the as-

sociated ground truth.

(Scharstein and Szeliski, 2002).

In (Ekstrand et al., 2011), we use SAD (Sum of

Absolute Differences) for a resource optimized corre-

spondence implementation for real-time systems. The

support window is reduced to a single row, thus pro-

ducing a disparity map with preserved salient details

but with increased noise, as can be expected when

compared to the standard 2D implementation. The

noise is primarily located in low-texture areas with

low signal-to-noise ratio. In fact, the approach out-

performs the 2D version around discontinuities due to

reduced foreground fattening. The major advantages

of the 1D approach are the substantial reduction in re-

source usage and the removalof the need for complete

scan-line retention. The question is by how much can

the matching quality can be improved, and at what

cost?

3 RELATED WORK

An FPGA consists of different elements that can be

conﬁgured in a multitude of ways. Resource uti-

lization is normally expressed in slices and LUTs

(LookUp-Tables which realize boolean operations).

The 1D implementation from (Ekstrand et al., 2011)

produced the disparity maps in this paper from 1.2K

slices when implemented in a Spartan-3 FPGA. This

is just above 4% of the available slices in the chip.

Several other stereo matching approaches with

low resource usage exists, such as the one proposed

by Arias-Estrada et al. (Arias-Estrada and Xicoten-

catl, 2001). The utilization is only 4.2K slices on

a Virtex-II, but the disparity map is only fair. The

implementation is capable of 71 fps with images of

320x240 pixels. Lee et al. (Sunghwan et al., 2005)

present an implementation below 10K slices in re-

source usage. The resulting disparity map is moderate

with extensive blurring of edges and noise.

4 IMPROVEMENTS

Noise in stereo matching is evident as false matches.

False matches occur from the fundamentals of match-

ing two images from different viewpoints because of

projective distortion, Kanade and Okutomi (Kanade

and Okutomi, 1994). Fusing two views together

will leave areas where depth estimation is impossi-

ble as they are occluded in one of the views. This

affects all area-based approaches, but is even more

evident for smaller support windows as they have

lower signal-to-noise ratio. Post-processing of the es-

timated disparity map is usually adopted to remove

false matches, and established methods include left-

right consistency check (LRC) (Fua, 2004), propaga-

tion, and median ﬁltering.

Figure 2: Impact of applying LRC (left), or not (right). Both

images have been median ﬁltered as the last stage.

4.1 Consistency Check

The left-right consistency check veriﬁes that only

disparity values with mutual correspondence are

accepted as matches, as detailed by Fusiello et

al. (Fusiello et al., 1997). Our implementation prac-

tically doubles the resource usage for the matching

process (1.2K vs 2.4K slices), but no external mem-

ory nor any reduction in system performance need to

result from it.

Figure 3: The median ﬁlter preceding the propagation (left)

does not perform as well as the reverse (right). LRC-check

was performed initially on both images.

The effect of the consistency check can be ob-

served in ﬁgure 2. The images are with and without

consistency check, but both have median ﬁltering per-

formed subsequently, to minimize the empty regions.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

416

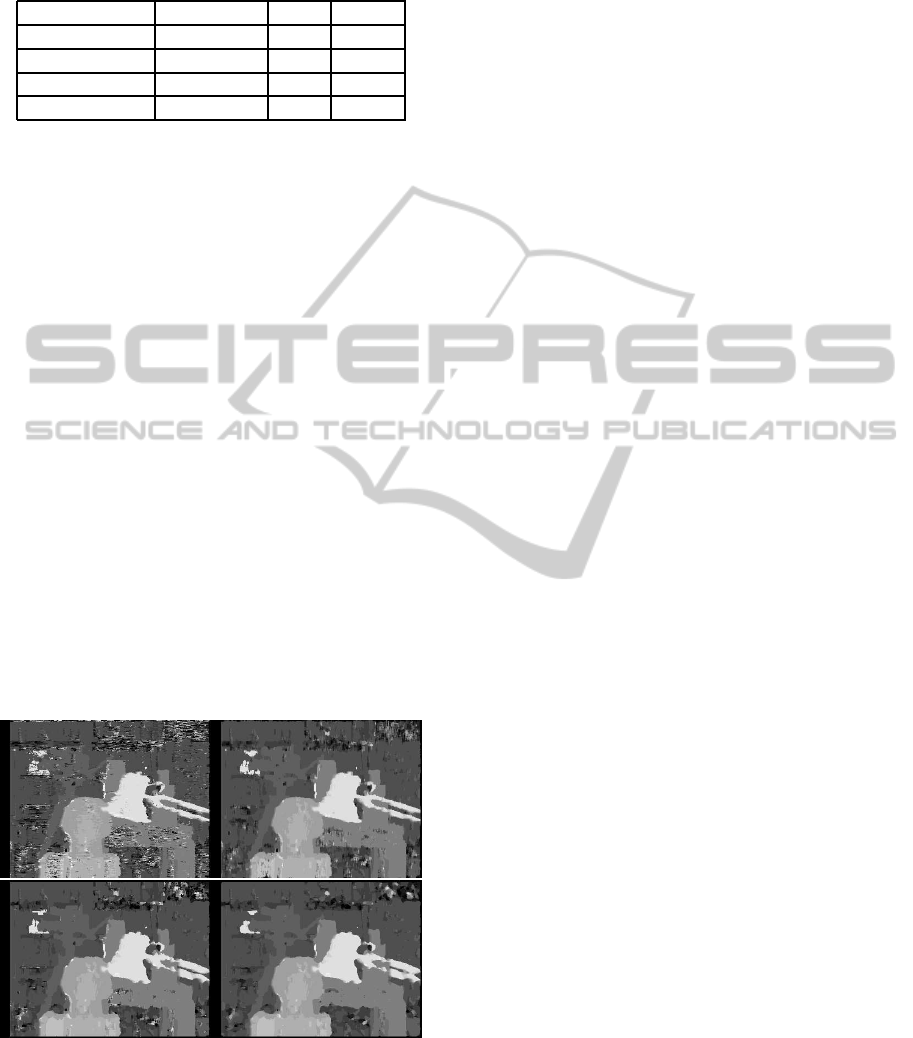

Table 1: Performance and cost for median ﬁltering. The %

is the errors in the image compared to the ground truth for

Non-occluded, All, and regions near Discontinuities.

Approach Non-Occ % All % Disc %

SAD 7x1 29.1 30.7 27.4

SAD-MED 7x1 22.2 23.9 24.3

SAD 7x7 22.7 24.4 28.6

SAD-MED 7x7 21.9 23.6 28.1

The consistency check identiﬁes almost all of the oc-

cluded areas. However, it also removes pixels that

are not occluded but still differ due to poor correla-

tion data. Noteworthy is the deterioration of the lamp

arm, partly due to the check but also due to the ﬁlter.

The removal of data in the disparity map reduces the

quality, and it is evident that the median ﬁlter (here a

7x1) is not ﬁlling the empty areas. For this to happen

we need to propagate.

4.2 Propagation

With propagation, the underlying data is important.

A logic assumption is that it is important to remove

as much noise as possible before performing propa-

gation, to avoid propagating false matches. As can

be seen in ﬁgure 3, there is a difference between per-

forming median ﬁltration before or after the propaga-

tion. Propagation directly after the consistency check

followed by a median ﬁlter produces a disparity map

of the highest accuracy. However, some areas dete-

riorate, such as the lamp arm, when compared to a

non-consistency checked image.

Figure 4: The median ﬁlter (right column) signiﬁcantly re-

duces the noise for the 1D (top) but not the 2D (bottom)

approach.

4.3 Filtering

Median ﬁltering is a well-known approach to re-

move sporadic noise and is frequently used in post-

processing to improve disparity maps (Muhlmann

et al., 2002). Realization of a median ﬁlter is a search

and rank problem with large ﬁlters being difﬁcult to

implement for real-time (Vega-Rodrguezet al., 2007).

We have implemented the median ﬁlter as a classic

systolic array, according to (Vega-Rodrguez et al.,

2007), for sorting 9 elements. This translates to a 9x1

median ﬁlter for 1D and a 3x3 ﬁlter for 2D.

The improvement with a median ﬁlter are quite

signiﬁcant for the 1D approach, but not so much for

the 2D, as can be seen in ﬁgure 4 and in table 1. The

ﬁlter removes noise and the 2D implementation is al-

ready noise reduced by design. It is obvious that the

noise in the 1D approach ﬁts the characteristics of a

median ﬁlter. Noteworthy is the fact that the 1D ap-

proach outperforms the standard 2D in regions of dis-

continuities, due to the lack of vertical summing. This

is the case already with the basic 1D, but is even more

improved with the added ﬁlter. The cost of the ﬁlter

is very low, only 247 slices, an increase of 20%. As

a conclusion, median ﬁltering closes the gap between

1D and 2D implementations.

5 RESULT SUMMARY

Table 2 shows the improvement for the stereo match-

ing component with the implemented approaches,

both individually and combined. The improvements

are evaluated with the Middlebury stereo evaluation

tool (Evaluation, 2011) which show the error percent-

age in the disparity image. Three different parameters

are presented: Non-occluded pixels which are visi-

ble in both images; Pixel at or around discontinuities

in the image; All image pixels. From observing the

matching scores in table 2, it can be noted that the in-

dividual order of tools is important when combining

for improvement.

6 CONCLUSIONS

Utilizing an inexpensive median ﬁlter effectively

closes the gap between the 1D and the 2D approaches.

From a cost/performance perspective, only using a

median ﬁlter with the 1D is the best approach. How-

ever, there is only so much a 1D median ﬁlter can

do with noisy data. For further improvement, noise

reduction is a must. A function removing, or never

allowing, false matches in the initial disparity map,

UTILIZATION AND PERFORMANCE CONSIDERATIONS IN RESOURCE OPTIMIZED STEREO MATCHING FOR

REAL-TIME RECONFIGURABLE HARDWARE

417

Table 2: Impact of improvements; individually and combined. All values are for a 7x1 implementation.

Approach Non-Occ % All % Disc % Slices LUTs

SAD 29.1 30.7 27.4 1,221 6,086

LRC 40.5 41.9 40.1 2,399 7,689

Median 22.2 23.9 24.3 1,468 6,371

LRC-Med 38.6 39.9 39.5 3,135 8,204

LRC-Prop 27.2 28.4 24.9 3,174 8,237

LRC-Med-Prop 31.1 32.0 28.8 3,986 8,844

LRC-Prop-Med 20.4 21.8 21.7 3,986 8,844

Available 33,280 33,280

through conﬁdence assessment, could render a sub-

stantial improvement together with a competent prop-

agation method. Implementing a small conﬁdence

measurement would be a good continuance of this

work.

It is further evident that it is possible to achieve

acceptable disparity maps without extensive mem-

ory usage and without a limitation on image size.

Megapixel images will not affect the throughput or

the resource utilization of the suggested approach as

image data is only stored in a shift register approach

without the need for multi-scanline retention. Fur-

thermore, the 1D implementation is resource reduced,

and can be ﬁtted to practically any FPGA. It has been

implemented with a maximum disparity range of 64

for images of 1024x1024 pixels.

The implementations run at 125 MHz, the system

clock of the FPGA-board (Lidholm et al., 2008). As

the implementations are fully piped, the frame rate is

dependent on the speed of the cameras and the size of

the frame. Theoretically, it is capable of processing

over 100 frames per second for Megapixel images.

ACKNOWLEDGEMENTS

The authors would like to acknowledge Xilinx for

their kind donation of our FPGA’s and design soft-

ware tools, Hectronic for the design and manufactur-

ing of our FPGA boards, and The Knowledge Foun-

dation for providing funding for the project.

REFERENCES

Ahlberg, C., Spampinato, G., Lidholm, J., Ekstrand, F., Ek-

str¨om, M., and Asplund, L. (2011). Gimme - a gen-

eral image multiview manipulation engine. Technical

paper, School of Innovation Design and Engineering,

M¨alardalen University.

Arias-Estrada, M. and Xicotencatl, J. (2001). Mul-

tiple stereo matching using an extended architec-

ture. In Brebner, G. and Woods, R., editors, Field-

Programmable Logic and Applications, volume 2147

of Lecture Notes in Computer Science, pages 203–

212. Springer Berlin / Heidelberg.

Ekstrand, F., Ahlberg, C., Ekstr¨om, M., Asplund, L., and

Spampinato, G. (2011). Resource limited hardware-

based stereo matching for high-speed vision sys-

tem. In 5th International Conference on Automation

Robotics and Applications, 2011. (ICARA 2011).

Evaluation, M. U. O. S. (2011). http://vision.middlebury.ed

u/stereo.

Fua, P. (2004). A parallel stereo algorithm that produces

dense depth maps and preserves image features * ii id

ii ii / i i 111 ? 1 1 1 1. Machine Vision and Applica-

tions, 6(1993):35–49.

Fusiello, A., Roberto, V., and Trucco, E. (1997). Experi-

ments with a new area-based stereo algorithm.

Kanade, T. and Okutomi, M. (1994). A stereo matching

algorithm with an adaptive window: theory and ex-

periment. Pattern Analysis and Machine Intelligence,

IEEE Transactions on, 16(9):920 –932.

Lazaros, N., Sirakoulis, G. C., and Gasteratos, A. (2008).

Review of stereo vision algorithms: From software to

hardware. International Journal of Optomechatronics,

2(4):435–462.

Lidholm, J., Ekstrand, F., and Asplund, L. (2008). Two

camera system for robot applications; navigation. In

13th IEEE International Conference on Emerging

Technologies and Factory Automation, 2008. (ETFA

2008), pages 345–352. IEEE.

Muhlmann, K., Maier, D., Hesser, J., and Manner, R.

(2002). Calculating dense disparity maps from color

stereo images, an efﬁcient implementation. Interna-

tional Journal of Computer Vision, 47(1):30–36.

Scharstein, D. and Szeliski, R. (2002). A taxonomy and

evaluation of dense two-frame stereo correspondence

algorithms. International Journal of Computer Vision,

47:7–42.

Sunghwan, L., Jongsu, Y., and Junseong, K. (2005). Real-

time stereo vision on a reconﬁgurable system. Lecture

Notes in Computer Science, 3553:299–307.

Vega-Rodrguez, M. A., Snchez-Prez, J. M., and Gmez-

Pulido, J. A. (2007). An fpga-based implementation

for median ﬁlter meeting the real-time requirements

of automated visual inspection systems. In Proceed-

ings of the 10th IEEE Mediterranean Conference on

Control and Automation MED 02. Citeseer.

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

418
