EXPERIMENTS ON FACIAL CLASSIFICATION IN LOW LIGHT

CONDITIONS

Peter Paul

and Yuheng Wang

Xerox Research Center Webster, Xerox Corporation, 800 Phillips Road, MS147-57B, Webster, NY, U.S.A.

Golisano College of Computing and Information Sciences, Rochester Institute of Technology, Rochester, NY, U.S.A.

Keywords: Face Detection, SMQT, SNoW, Vehicle Occupancy Detection, Design of Experiments, DOE.

Abstract: Robustness of SNoW based face detection using local SMQT features to low light conditions is examined

through experimental investigation. Low light conditions are emulated by varying camera aperture and

camera exposure time to a xenon flash device in night time conditions. For face detection in the context of

vehicle occupancy detection, it was found that reducing the illumination to 25% of that required for a

properly exposed image to a human observer resulted in a reduction in face classification score that did not

significantly reduce classification performance.

1 INTRODUCTION

Face detection has been studied by many researchers

in the past with two popular algorithms being

AdaBoost and related methods (Viola, 2004), and

the Sparse Network of Winnows (SNoW) method

(Yang, 2002); and (Nilsson, 2007). By using local

Sequential Mean Quantization Transform (SMQT)

based features, the SNoW method proposed in

(Nilsson, 2007) possesses some robustness to

illumination variation. This paper examines the

extent of its robustness to low illumination

conditions.

One application where low illumination is

common is in face detection for vehicle occupancy

detection. Vehicle occupancy detection using image

analysis has been widely studied in the context of

automated high occupancy lane enforcement

approaches (Billheimer, 1990); (Wood, 2003);

(Birch, 2004); (Hao, 2010). In this application

artificial illumination is required for night time use.

However, visible light illumination at night time is

not desirable due to driver distraction. Near infrared

illumination (NIR) is used to avoid driver

distraction. However, cameras based on silicon

image sensors rapidly fall off in sensitivity in the

NIR spectral range, leading to low light image

capture conditions. Further, if xenon flash

illumination is used, low illumination is desired to

insure an adequate bulb life, to provide the quick

recharge time required for highway operation, for

lower power consumption, and for lower cost. Thus

it is important to understand the robustness of face

detection in low light conditions.

This paper is organized as follows: Section 2

contains the theory, Section 3 describes the

experimental setup, Section 4 describes the results,

and Section 5 contains the conclusions.

2 THEORY

The face detection method chosen in this work is the

SNoW method using local SMQT features as

described in (Nilsson, 2007). This method will be

briefly reviewed, emphasizing the aspects that result

in robustness to illumination variation.

For the face detection method described in

(Nilsson, 2007) a simple SMQT1 transformation is

performed on a local 3x3 pixel region surrounding a

pixel of interest. The level 1 SMQT procedure,

referred to as SMQT1, is simply as follows: (1)

Calculate the mean of the pixels in the local region,

(2) Set those pixels whose grey values are above the

mean to 1, (3) Set all other pixels to 0, (4) this

defines a 9 bit binary value (one bit per pixel in the

3x3 local region) which defines 1 of 512 possible

patterns associated with the pixel of interest. This 9-

bit pattern becomes the feature associated with the

pixel of interest. This process is performed for all

738

Paul P. and Wang Y..

EXPERIMENTS ON FACIAL CLASSIFICATION IN LOW LIGHT CONDITIONS.

DOI: 10.5220/0003871207380741

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2012), pages 738-741

ISBN: 978-989-8565-03-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

pixels in a frame, where a frame is 32 pixels by 32

pixels area where face detection is to be performed.

SNoW is simply a linear classifier on this large

feature space using the winnow update rule to

update the linear classifier’s weights. This is

described in detail in (Yang, 2000); and (Nilsson,

2007). The 32x32 pixel frame is then slid around the

image to detect faces. The image is also rescaled to

detect faces at different scales.

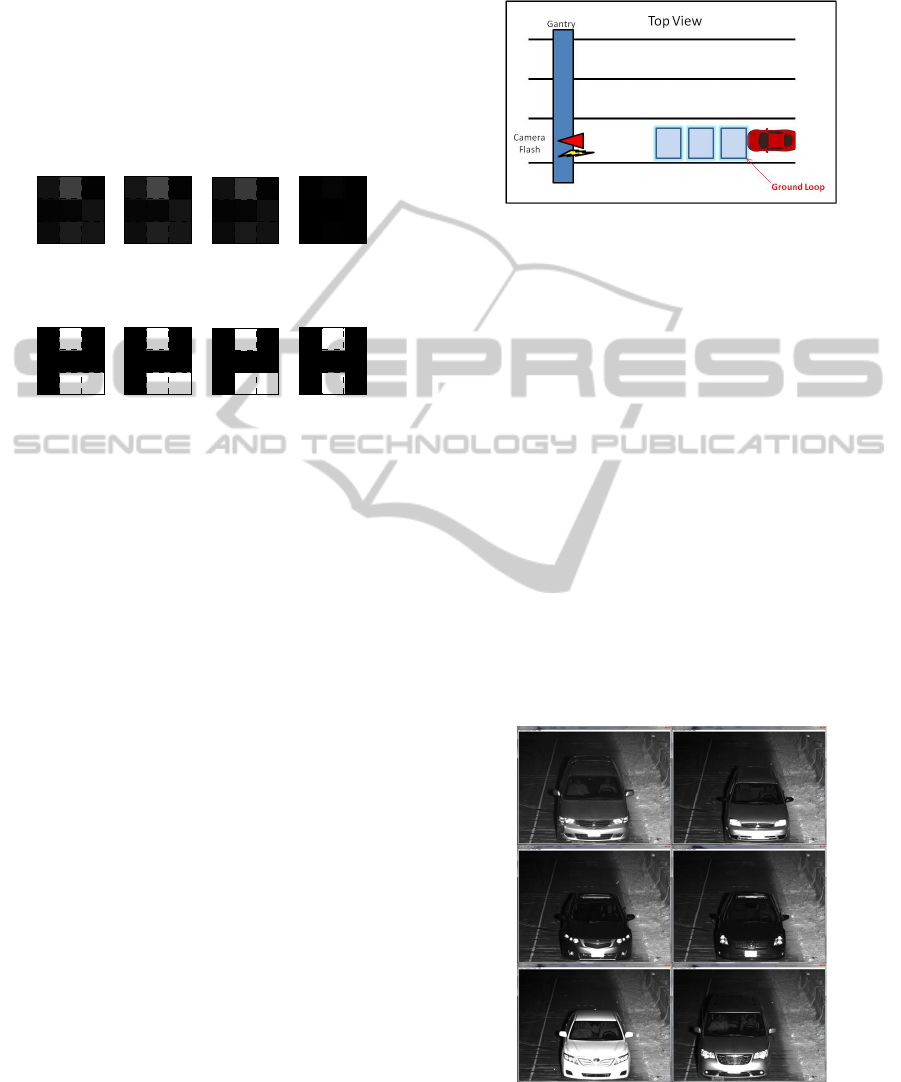

Figure 1: SMQT1 on 3x3 pixel local regions.

Figure 1 depicts the local SMQT1 features on

3x3 local image regions. The upper left 3x3 region

depicts the original 8-bit grey scale values. The 3x3

binary region directly below describes the 3x3

SMQT1 feature used for classification associated

with the center pixel. The upper two center 3x3

region depicts the original image subject to a 10%

gain and loss in grey value, respectively. This may

occur in a real image due to variations in ambient

lighting conditions, for example, or may be due to

variations in vehicle windshield transmission. In any

event, the SMQT1 process recovers the local pattern

independent of the gain on the grey values. This

shows why the SNoW face detector using local

SMQT features may be a good choice when lighting

variations are present. However, in the upper right

image, when imaging in very low light conditions,

information may be lost due to low light saturation

that is not recovered in the SMQT1 process,

depicted directly below. This is simply due to

quantization effects. A similar analysis can be made

for local pixel grey level offset (as well as was

shown, above, for gain), as shown in (Nilsson,

2007). Low level illumination may often present

itself as a combination of gain and offset variation,

so local SMQT features may have robustness to this

variation, and thus to low illumination levels.

However, at some point information is lost, and any

processing gain applied to the tone level will only

increase noise.

This analysis motivates the experimental

determination of the low light level that causes the

SNoW face detector based on local SMQT features

to show face classification performance degradation.

Figure 2: Top view of the experimental testbed.

3 EXPERIMENTAL SETUP

A race track was outfitted with an overhead highway

gantry system. The camera used in these

experiments was mounted on the overhead gantry.

The gantry based set up is depicted in Figure 2. The

camera was triggered from a ground induction loop

buried underneath the surface of the roadway. When

the vehicle drives on top of the ground loop, a

trigger signal is issued and the flash is fired and the

camera captures an image.

The camera consisted of a silicon CMOS sensor

based machine vision camera. The flash unit was a

photographic studio flash unit utilizing xenon flash

tube technology. Filters were used on both the

camera and the flash unit to limit the spectral

sensitivity of the camera and the spectral content of

the light to the NIR range.

Figure 3: The six vehicles used in the study.

Six vehicles were driven past the camera system.

They are depicted in Figure 3. Three vehicles had a

Original

SMQT1 of Above

Original x 1.1

SMQT1 of Above

Original x 0.9

SMQT1 of Above

Original x 0.1

SMQT1 of Above

EXPERIMENTS ON FACIAL CLASSIFICATION IN LOW LIGHT CONDITIONS

739

sole driver and three vehicles had a driver plus a

front seat passenger. The vehicles ranged from

sedans to minivans encompassing various makes and

models of vehicles. The vehicles were driven at a

relatively constant speed of approximately 72.4

km/h (45 mph) as maintained either by the driver or

by the vehicle’s cruise control.

3.1 Experimental Design

To investigate the effect of low lighting conditions

on face detection performance a Design of

Experiments (DOE) procedure was performed. The

design was a 2 factor multi level full factorial design

with 6 replicates. The 6 replicates were the 6

vehicles used in the experiment. The first factor was

Aperture Size as percent of nominal with 4 values

(1.0, 0.25, 0.1340, 0.0625), while the second factor

was Exposure Time in milliseconds with 3 values

(0.5, 1.0, 2.0). The full factorial design had 12 runs

for each of the 6 vehicles.

4 RESULTS AND ANALYSIS

For each of the 12 runs, six vehicle images were

captured and face detection was performed using

SMQT features and SNoW. Following (Nilsson,

2007), a classifier was constructed and trained using

approximately 2000 face samples and non-face

samples taken with Aperture at 1.0 and Exposure at

0.5.

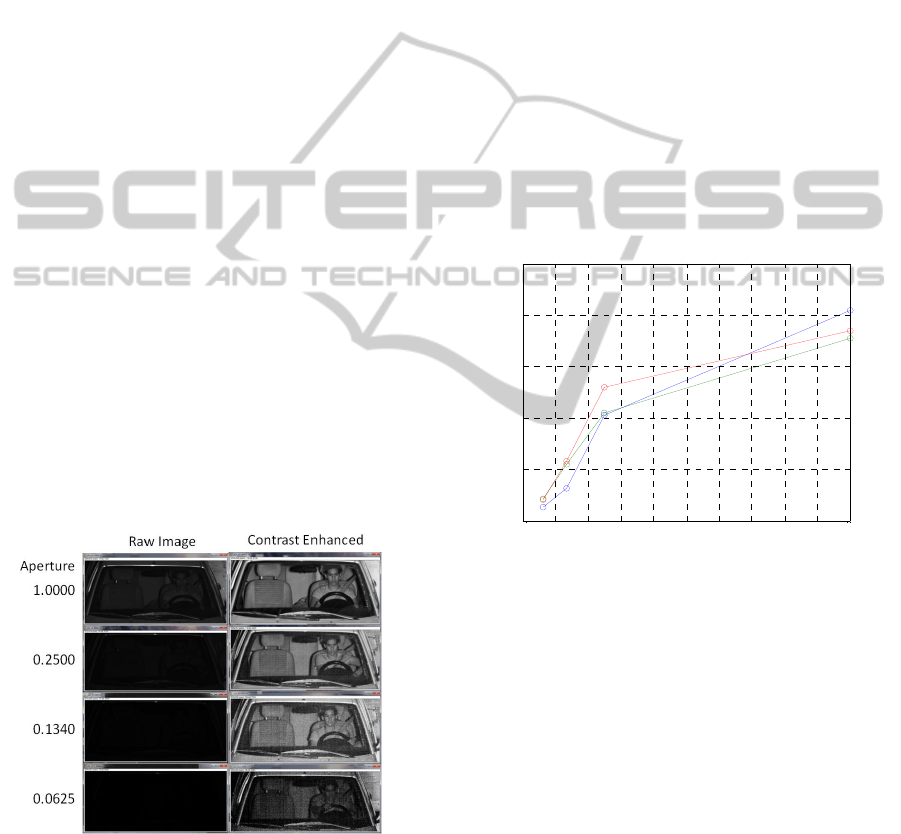

Figure 4: Vehicle images at various aperture settings. Raw

images and contrast enhanced.

The raw images for one of the vehicles, as the

camera aperture is varied, is shown on the left side

of Figure 4. As the aperture is decreased, the images

get quite dark. The right side of Figure 4 depicts the

images using histogram equalization for human

viewing only, it is not used in the face detection

algorithm. For the low light conditions, significant

noise appears in addition to the face patterns. Also

note that a human observer can easily discern the

number of human occupants in the contrast

enhanced version of even the lowest light image.

The SNoW classifier using SMQT local features

operates on the images to the left of Figure 5 in

attempting to classify the faces – contrast

enhancement is not used.

Figure 5 depicts the mean face classification

score versus camera aperture for the three exposure

durations used in the experiment. The classification

score is simply the sum of the active weights for an

image under test, which is the value compared to a

threshold to determine if the image is a face, see

(Nilsson, 2007) for more details. The mean is taken

over the six vehicles used for each case. Note that

changes in the camera aperture are roughly

equivalent to illumination changes.

Figure 5: Face classification score versus camera aperture

for three exposure durations.

The blue graph is Figure 5 depicts the 0.5 msec

exposure duration cases, the green graph depicts the

1 msec exposure duration cases, and the red graph

depicts the 2 msec exposure duration cases.

Face classification performs well at the nominal

aperture setting. The face classifier tends to drive

non-faces to classification scores less than zero. A

face classification score above 50 would lead to just

adequate classification performance, relative to false

alarms, for this application. Thus the aperture setting

equivalent to 0.25 of the nominal aperture would

give good face classification performance, while that

of 0.1340 would be marginal. An aperture of 0.0625

of the nominal would not give adequate

performance.

Figure 6 depicts the mean face classification

scores versus camera exposure duration, where the

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

100

150

200

250

Aperture (% of Nominal)

Face Classification Score

Face Classification Score versus Camera Aperture

VISAPP 2012 - International Conference on Computer Vision Theory and Applications

740

mean is taken over the six vehicles used in each

case. The blue graph represented the nominal

camera aperture, the green curve represented a

camera aperture at 0.25 of the nominal setting, the

red curve represented a camera aperture at 0.1340 of

the nominal setting, and the cyan curve represents a

camera aperture at 0.0625 of the nominal setting. As

seen in the flatness of the curves in the figure, the

face classification score only weakly depended on

exposure duration in this experiment.

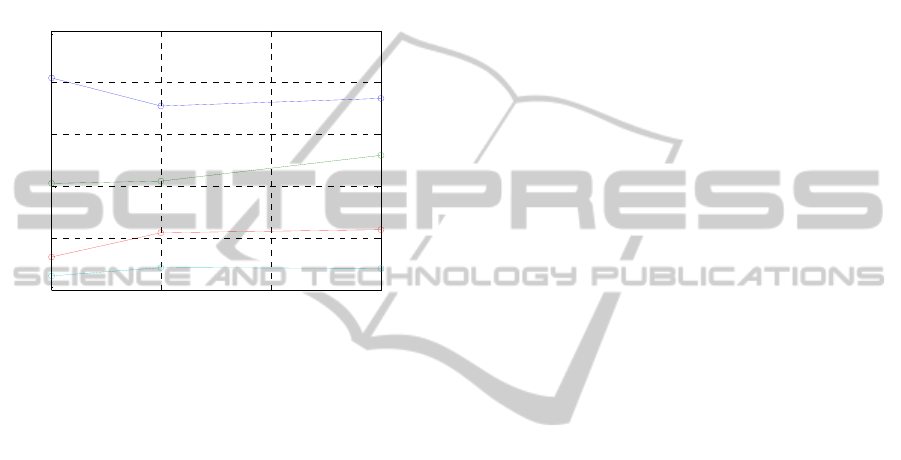

Figure 6: Face classification score versus camera exposure

duration for four aperture value.

This is at least partly due to xenon flash

illuminators having very short illumination duration.

Most of the flash tube illumination energy is

produced during the first 0.5 msec. Thus holding the

camera exposure open for longer than this duration

may not yield much more light energy, and may

increase the noise.

5 CONCLUSIONS

An experiment to investigate the illumination

variation robustness properties of a face

classification method was performed. Camera

parameters of aperture and exposure were varied to

examine the low light performance of the face

classification method. It was found that camera

aperture was a significant factor in accounting for

the variation in face classification score during the

experiment, while exposure duration while using a

xenon flash illuminator was found to be not

statistically significant in explaining variations in

face classification score. A reduction in illumination

to 25% of that used to generate a properly exposed

image to a human observer was found to produce

adequate face classification scores. A further

reduction to 13% may or may not be usable,

depending on the application. Further, it was found

that in this experiment, when using a xenon flash

illuminator and training on a single exposure

duration, increased exposure duration did not make

up for lost illumination due to camera aperture, or

equivalently, the due to a smaller illuminator.

REFERENCES

Birch, P. M., Young, R. C. D., Claret-Tournier, F.,

Chatwin, C. R., 2004. Automated vehicle occupancy

monitoring. Optical Engineering 43(8), pp. 1828-

1832.

Billheimer, J., Kaylor, K., Shade, C., 1990. Use of

videotape in HOV lane surveillance and enforcement.

Technical Report, U.S. Department of Transportation.

Hao, X., Chen, H., Yao, C., Yang, N., Bi, H., Wang, C.,

2010. A near-infrared imaging method for capturing

the interior of a vehicle through windshield. IEEE

SSIAI 2010, pp. 109-112.

Nilsson, M., Nordberg, J., Claesson, I., 2007. Face

Detection using local SMQT Features and Split Up

SNoW Classifier, IEEE Int. Conference on Acoustics,

Speech, and Signal Processing, Vol. 2, pp. 589-592.

Viola, P., Jones, M. J., 2004. Robust Real-Time Face

Detection. Int. Journal of Computer Vision 57(2), pp

137-154.

Wood, J. W., Gimmestad, G. G., Roberts, D. W., 2003.

Covert Camera for Screening of Vehicle Interiors and

HOV Enforcement. Proc. SPIE – The International

Society for Optical Engineering, vol. 5071, pp. 411-

420.

Yang, M.-H., Roth, D., Ahuja, 2000, N., A. SNoW-Based

Face Detector. Advances in Neural Information

Processing Systems 12, S. A. Solla, T. K. Leen, and

K.-R. Muller, eds., pp. 855-861. MIT Press.

0.5 1 1.5 2

100

150

200

250

Exposure Duration (msec)

Face Classification Score

Face Classification Score versus Camera Exposure Duration

EXPERIMENTS ON FACIAL CLASSIFICATION IN LOW LIGHT CONDITIONS

741
