Cluster Analysis and Artificial Neural Network on the

Superovulatory Response Prediction in Mice

Gabriela Berni Brianezi, Fernando Frei, José Celso Rocha and

Marcelo Fábio Gouveia Nogueira

Department of Biological Sciences, College of Sciences and Letters

São Paulo State University (UNESP), Campus Assis,

Av Dom Antonio 2100, Vila Tenis Clube, CEP 19806900, Assis, São Paulo, Brazil

Abstract. Complex biological systems require sophisticated approach for

analysis, once there are variables with distinct measure levels to be analyzed at

the same time in them. The mouse assisted reproduction, e.g. superovulation

and viable embryos production, demand a multidisciplinary control of the

environment, endocrinologic and physiologic status of the animals, of the

stressing factors and the conditions which are favorable to their copulation and

subsequently oocyte fertilization. In the past, analyses with a simplified

approach of these variables were not well succeeded to predict the situations

that viable embryos were obtained in mice. Thereby, we suggest a more

complex approach with association of the Cluster Analysis and the Artificial

Neural Network to predict embryo production in superovulated mice. A robust

prediction could avoid the useless death of animals and would allow an ethic

management of them in experiments requiring mouse embryo.

1 Superovulation and Embryonic Production

The mice superovulation (SOV) is a pharmacological treatment aiming the

supernumerary induction of ovulation, by administration of eCG and hCG hormones.

They have the bioactivity of FSH and LH hormones, responsible for the growth of

antral follicles and the induction of ovulation. After the SOV, it could be expected a

higher amount of oocytes to be delivered, captured by infundibulum and transported

to the oviduct ampoule, where the fertilization will occur. The final objective of the

SOV would be to produce a higher number of viable embryos compared to the

physiologic pattern of the specie.

In mouse (Mus musculus) a mucous plug is formed in the vulva after copula, by

seminal plasma components of the semen, therefore it is an indicative of the copula

occurrence. Concomitantly to the SOV, aspects of the environment and manipulation

of the animals may interfere with the viable embryo production. Temperature and

humidity variations may lead to changes in blood circulation and in airways leading

animals to a more infection susceptibility condition. The lack of cages cleaning

increases ammonia concentration in the air and the probability of the animals to suffer

cutaneous and pulmonary irritations. The environmental light intensity is one of the

most important variables, since it stimulates (by optical nerve) the pituitary to secrete

Berni Brianezi G., Frei F., Rocha J. and Fábio Gouveia Nogueira M..

Cluster Analysis and Artiﬁcial Neural Network on the Superovulatory Response Prediction in Mice.

DOI: 10.5220/0003876600790084

In Proceedings of the International Workshop on Veterinary Biosignals and Biodevices (VBB-2012), pages 79-84

ISBN: 978-989-8425-94-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

sexual hormones. The physiological activities occur in a circadian rhythm and,

therefore it is important that the light of the animal facility mimics the natural phases

of light and dark, keeping the physiological pattern of the specie. The feeding of

animals must be appropriate to specie and age, being the excess of energy (mainly fat)

inductor of low fertility. All the variables mentioned above, resemble in a factor: they

generate, directly or indirectly, stress to the animals. Furthermore, other changes in

their environment, like intense odors and noise, are known stressors. Once stressed,

the males tend to lose the libido and the females do not allow the copulation due to a

change at their sexual receptivity. Beyond the environmental factors, the wrong

administration of hormones (e.g. the reflux of the drug) interferes with SOV yield.

There are not reliable and accurate methods for the embryonic prediction after

mice SOV. The plug is the only biological marker to copula occurrence not being

enough to predict if there was fertilization and if zygotes developed to viable

embryos. Currently, the predictive analysis for this purpose is subjective and

unreliable. The absence of accurate methods, which could predict the viable embryos

occurrence after mouse superovulation, induces to death several animals that do not

produce any viable embryo. Ethically this is not accepted and the 3R principles

(reduce, replace and refine) should be searched. In this way, the proposed approach

could avoid or minimize unnecessary deaths.

Few articles tried a similar approach (but not making use of Cluster Analysis and

ANN) to predict biological complex systems as mice SOV and embryonic production.

Stevens [11] reports the use of Cluster Analysis to classify the embryonic

development of Blue King crab Paralithodes platypus, with similar results to the

image analysis. Nevertheless, Faeder [5] proposed that complex biological systems -

e.g. interaction among molecules, cells and environment - should be analyzed by the

development of multiscale and multilevel biological models.

2 Cluster Analysis

Cluster Analysis is a generic name assigned to several statistics methods which try to

elaborate judgments to group objects. These are multivariate statistics techniques,

with exploratory connotation. In this way, a given sample with several objects

(animals for instance) which was measured by several variables, seeks a classification

scheme to cluster the animals on similar groups. Nowadays, Cluster Analysis is

applied in many areas. The set of results from those techniques could contribute to the

definition of a formal classification scheme; it also may suggest a set of rules to

classify new objects in new classes intending some diagnostics; it presents statistics

models suggestions to describe populations, find objects which might represents

groups or classes and obtain population subgroups, following certain study features.

Thereby, the Cluster Analysis results may help the multidimensional space patterns

discovery.

2.1 Similarity Measures and Group Algorithm

Similarity

coefficients quantify how similar the objects are inside the analyzed meas-

ures, and their choice is very important for Cluster Analysis. For this purpose, the

variable measurements should be observed, in other words, if they are qualitative,

quantitative, or a mixture of these measurements, as in the proposed study. To

measure the similarity among the studied objects it is used the Gower’s index (S

ikh

which defines similarity coefficients in the interval from 0 to 1 between i and k units

to each h variable from a total of any p variables type. The measure of these

similarities results in Gower’s coefficient.

ikh ikh

ikj

∑

(1)

In which t

ikh

and u

ikh

are assigned according with the h variable type.

(a) If the h variable is binary and

ikh

and u

ikh

present in 2 units 1 1

absent in 2 units 0 0

the units do not match 0 1

(b) If the h variable is qualitative multistate, t

ikh

= 1 if the units i, k match with h

variable, and t

ikh

= 0 if they do not. Both cases u

ikh

= 1.

, u

ikh

= 1.

(2)

is the result of h variable, i unit.

There are several algorithms and methods to perform clustering of animals after the

similarity measurement. In this work we will use algorithms from Agglomerative

Hierarchical Method, which has shown to be a useful tool on discovery of inherent

substructures to a certain data group. The Agglomerative Hierarchical algorithms

searches the objects which have the lower distance each other, inside the similarity

matrix, and group them. Once grouped, those animals remain in these groups

throughout the successive clustering stages. The main difficulty of Cluster Analysis is

to set the quantity of groups. Furthermore, different groups come out when used

different algorithms. Thereby, one of the recommendations is to use several

algorithms. If the results presents similar substructures a natural partition was

obtained, otherwise it is unlikely that the data represents natural distinct groups.

Algorithms to be used: Complete Linkage, Average Linkage and Ward Method.

By Cluster Analysis it is expected to be found natural groups which may indicate

patterns (on the animals or environment) to maximize the number of viable embryos.

In this way, these patterns could be implemented in researches involving embryonic

production in mice.

) min (max

khih

ikh

−

−=

3 Artificial Neural Networks – ANN

The Artificial Neural Network is a modern math technique which intends to mimic the

biological neurons functioning through computational models, in other words it is an

attempt of reproduce the human brain computationally, in order to resolve high

complexity problems.

An important feature of ANN is the ability of learning from real known cases,

which provides its performance improvement. The learning is made by an iterative

process and happens when the ANN reaches a general solution of problems

previously presented to it [1].

In this sense the ANN application to find solutions to complex problems, as the

superovulation and embryonic production presented in this work, should lead the

ANN to predict viable embryo production from superovulated mouse.

3.1 ANN Training Algorithm

To this work the ANN to be used is named multilayer and uses the Backpropagation

training algorithm, which has supervisionated learning and was chosen by presenting

more efficiency in this type of work. The multilayer networks have their name

because they present more than one neuron interconnected layer.

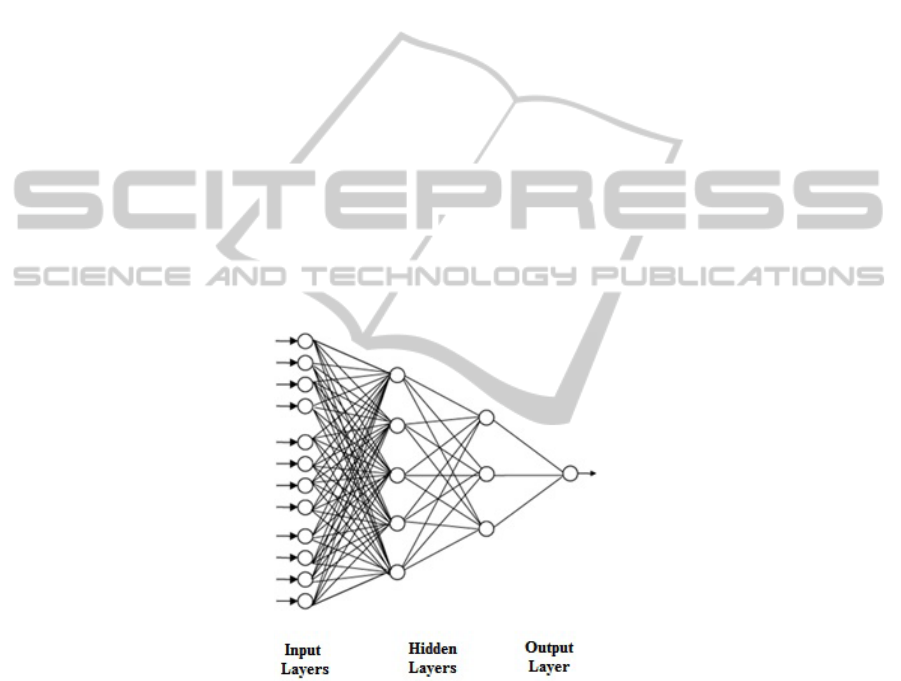

We could schematize a multilayer ANN as follow in the Figure 1.

Fig. 1. An ANN multilayer scheme.

The input layer corresponds to the chosen variables as parameters for the ANN

training. The hidden layers are intermediary layers and may lead the network to an

easier understanding of the process of learning. The output layer is the one which

gives the ANN answer and it is compared to the results we intend to obtain from the

ANN. The Backpropagation algorithm is characterized by two stages. At the first one,

named feedforward, the variables are processed and the ANN response is compared

with the experimentally results obtained. If the difference between the responses is

greater than the pre-established determined error, the network starts the feedbackward

stage, which recalculates the internal parameters. The stages are repeated until the

final result to be inside previously established error [9]. After training, the ANN will

be able to predict the occurrence of viable embryos from superovulated mouse.

4 Hypothesis and Variables to Be Analyzed

Due the complexity of the variables that influence the superovulatory response which

involves the animal, the environment and its manipulation, an objective analysis

would be potentially more effective than the current subjective one. The work

hypothesis of our group is to test the Cluster Analysis or Artificial Neural Network for

this prediction and to compare the obtained results to the current ones (subjectively

inferred). The following variables will be use to the Cluster Analysis and the Artificial

Neural Network, and produced data – prediction of variables which might be

indicatives of viable embryo production – will be compared to the data of the embryo

yielded by animals. The variables to be analyzed are:

1) female weight (g) at the embryo recovery day;

2) male weight (g) at the embryo recovery day;

3) copulatory plug presence or absence;

4) presence or absence of reflux from hormones administration;

5) female age (days) at the embryo recovery day;

6) male age (days) at the embryo recovery day;

7) animal lineage (Swiss Webster or C57BL/6);

8) animal facility location (A or B);

9) origin of the female (in-house or obtained out of university Campus);

10) origin of male (in-house or obtained out of university Campus);

11) amount of viable embryos yielded in the recovery day (0, 1, 2, 3, etc);

12) season at the embryo recovery day;

13) light intensity (lux) into copulation cage;

14) temperature (ºC) into copulation cage.

References

1. Braga, A. P.; Ludemir, T. B. Redes Neurais Artificiais – Teoria e Aplicações (2nd ed.). Rio

de Janeiro: LTC (2007).

2. Bryson, A. E.; Ho, Y-C. Applied optimal control: optimization, estimation and control.

Blaisdell Publishing Company (1969).

3. Damy, S. B. et al. Aspectos fundamentais da experimentação animal – aplicações em

cirurgia experimental. Rev Assoc Med Bras, (2010) 56(1): 103-11.

4. Everitt, B. S. (1993). Cluster Analysis (3rd. ed.). New York: John Wiley & Son.

5. Faeder, R. J. Toward a comprehensive language for biological systems. BMC Biology,

(2011) 9:68. doi:10.1186/1741-7007-9-68.

6. Frei, F. Introdução à Análise de Agrupamentos: Teoria e Prática. Sao Paulo State: Editora

fundação UNESP (2006).

7. Haykin, S. Neural Networks. New York: MacMillan College Publishing Company (1994).

8. Kaufman, L.; Rousseeuw P. J. Finding groups in data: An introduction to cluster analysis.

New York: John Wiley & Sons (1990).

9. Kovács, Z. L. Redes neurais artificiais: Fundamentos e Aplicações (3rd ed.). São Paulo:

Livraria da Física Editora (2002).

10 Rosenblatt, F. The Perceptron: A probabilistic model for information storage and

organization in the brain. Psychol. Rev, (1958) 65: 386–408.

11 Stevens, B. G. Embryo Development and Morphometry in the The Blue King Crab

Paralithodes Platypus Studied by Using Image and Cluster Analysis. Journal of Shellfish

Research, (2006) 25(2), 569-576.
