Spoken Communication with CAMBADA@Home

Service Robot

Ciro Martins

1,2

, António Teixeira

, Eurico Pedrosa

and Nuno Almeida

Department Electronics, Telecommunications & Informatics/IEETA

Aveiro University, Aveiro, Portugal

School of Technology and Management

Aveiro University, Águeda, Portugal

Abstract. Spoken language is a natural way to control the human-robot interac-

tion, especially for mobile service robots. It has some important advantages

over other communication approaches: eyes and hands free, communication

from a distance, even without being in line of sight and no need for additional

learning for humans. In this paper, we present the spoken dialog framework in-

tegrated in our mobile service robot CAMBADA@Home, a robotic platform

aimed at move into a living space and interact with users of that space. The

proposed framework comprises three major spoken and natural language

processing components: an Automatic Speech Recognition component to

process the human requests, a Text-to-Speech component to generate more nat-

ural responses from the robot side, and a dialog manager to control how these

two components work together.

1 Introduction

Service robots have the potential to enhance the quality of life for a broad range of

users. In fact, developing different types of robotic systems that can be able to interact

with the human world [1] is one major challenge for the 21st century in the robotics

area. It is expected that Robotics play a key role when targeting social challenges

such as the household tasks, the ageing population, the care of individuals with phys-

ical impairments and those in rehabilitation therapy [2]. It is very important for these

systems to have good human-robot interaction (HRI) interfaces, allowing them to be

easily accepted, usable and controllable by humans. In this field, various and different

HRI issues arise such as making user interfaces that reduce the cognitive load of the

robot interlocutor and allowing him to interact naturally and efficiently with it. Both

verbal and non-verbal communications are necessary to establish an engaging interac-

tion. The robot should be able to communicate with the user through both verbal and

non-verbal channels, which requires technologies capable of being commanded

through natural communication (e.g., speech and natural language, hand gestures,

facial expressions), of fetching items, and of assisting with daily activities (e.g.,

dressing, feeding, moving independently).

In this paper, we present the research and development that are being done in the

Martins C., Teixeira A., Pedrosa E. and Almeida N..

Spoken Communication with CAMBADA@Home Service Robot.

DOI: 10.5220/0003878900270036

In Proceedings of the 2nd International Living Usability Lab Workshop on AAL Latest Solutions, Trends and Applications (AAL-2012), pages 27-36

ISBN: 978-989-8425-93-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

area of service robots by the CAMBADA@Home team, a research group from the

Aveiro University and comprising students from the Department of Electronics, Tele-

communications and Informatics and researchers from the Institute of Electronics and

Telematics Engineering of Aveiro (IEETA).

In the scope of IEETA Transverse Activity on Intelligent Robotics, the project

CAMBADA

@Home was created in January 2011 following the team past research

done in the CARL

[3] project

and the experience in the CAMBADA [4] robotic

soccer team. The objective of CARL project was to study the interrelations and inte-

gration of various dimensions of the problem of building an intelligent robot: human-

robot interaction, sensory-motor skills and perception, decision-making capabilities

and learning. The development of the CAMBADA soccer team started in 2003 and

has participated in several national and international competitions, including Robo-

Cup world championships (1st in 2008, 3rd in 2009, 2010 and 2011).

The CAMBADA@Home project aims to address the special issues that arise

when one needs to develop services and assistive robot technology with high relev-

ance for personal domestic applications in daily life [5]. The development of such a

robotic platform for elderly care is part of a broader project named Living Usability

Lab for Next Generation Networks

, a collaborative effort between the industry and

the academy that aims to develop and test technologies and services that give elderly

people a quality lifestyle in their own homes while remaining active and independent.

According to these research lines, the team is working to participate in the Robo-

Cup@Home competition [6], whose aim is to enhance the development of fully auto-

nomous robots capable of assisting humans in everyday life (e.g. personal robot assis-

tant, guide robot for the blind, robot care for elderly people). In terms of HRI an aim

of the competition is to foster natural interaction with the robot using speech and

gesture commands since it cannot be touched during the competition. Hence, a robust

speech recognition interface with an easy usable dialog system is strictly necessary

and long-term goal.

The proposed spoken dialog system, as well as the implemented speech

processing components and their integration within the CAMBADA robotic platform,

are presented in this paper. In the next section, we give an overview of the main chal-

lenges and objectives that spoken interaction interfaces have to overcome on service

robotic platforms. The robot prototype that currently has our spoken dialog system

running is briefly introduced in section 3, being our approach to implement a dynamic

dialog system explained in section 4. Furthermore, in section 5 we present some ap-

plication scenarios defined for RoboCup@Home competition, drawing some conclu-

sions and future work guidelines in section 6.

CAMBADA is an acronym of Cooperative Autonomous Mobile roBots with Advanced Distributed Archi-

tecture.

CARL is an acronym of Communication, Action, Reasoning and Learning in Robotics.

http://www.ieeta.pt/carl/

http://www.livinglab.pt/

2 Challenges

As motivated in the introduction, a mobile service robot should be enabled to interact

with humans in home environments in a natural way, and speech is one of the most

intuitively ways for HRI. Moreover, if speech is used for interaction, it should be as

simple and effective as natural communication between humans. This means that a

spoken dialog interface should be able to deal with complex and rich information

exchange scenarios. As such, natural language interaction is a challenging problem,

not only because it requires sophisticated natural speech processing units (speech

recognition, speech synthesis and language understanding/generation), but also be-

cause it raises issues such as robustness, mixed-initiative dialog, multimodal interac-

tion, and cognitive modeling [7].

A dialog system has to be easily usable by humans that do not know the robot and

has to prevent deadlocks in situations where the robot does not understand the human.

Therefore, a spoken dialog between a human and a robot has to be managed some-

how. The responsible component for that control is called a dialog manager. Building

a dialog manager however is a challenging issue. There are principles for standard

dialog handling [8], which have to be kept according to the target application. Some

of these principles include features such as error handling, timing and turn taking,

mixed-initiative interaction, confirmation of irreversible actions, emergency exit,

alternatives processing, helping system, dialog flow transparency, etc.

One of the most important and persistent problems in the development of HRI in-

terfaces is their lack of environmental robustness when confronted with understand-

ing errors. Most of these errors stem from limitations in speech recognition technolo-

gy [8]. In the context of spoken language interfaces, the accuracy is mainly affected

by the amount and type of environmental noise, acoustic echo, variations in speaking

styles (e.g. accents, native and non-native speakers), and various spontaneous speech

phenomena such as disfluencies, hesitations, filled pauses, and so on.

In general, two different approaches can be choosen to increase the overall ro-

bustness of spoken dialog interfaces. One approach is to increase the accuracy of the

speech recognition process. The other is to assume those errors and create the me-

chanisms for recovering from them through conversation, i.e. improving the dialog

management process. This last approach is mainly followed when using generic and

already implemented speech recognition systems (e.g. commercial systems), being

necessary to rely on robust dialog managers.

3 Robotic Platform

The CAMBADA@Home robotic platform (see figure 1) is based on the CAMBADA

robotic soccer platform [4]. The platform has a conical base with radius of 24 cm and

height of 80 cm. The physical structure is built on a modular approach with three

main layers. The top layer has the robot vision system that uses a low-cost sensor, the

Microsoft Kinnect depth camera, and the speech input system, the Microsoft Kinnect

microphone array. The middle layer houses the processing units, which collects data

from the sensors and computes the commands to the actuators. Finally, the lowest

layer is composed of the robot motion system. Since the project is still in its infancy,

the platform does not include a robotic arm for the moment. The software architecture

follows a distributed approach, with five control processes being executed concur-

rently by the robot's processing unit in Linux.

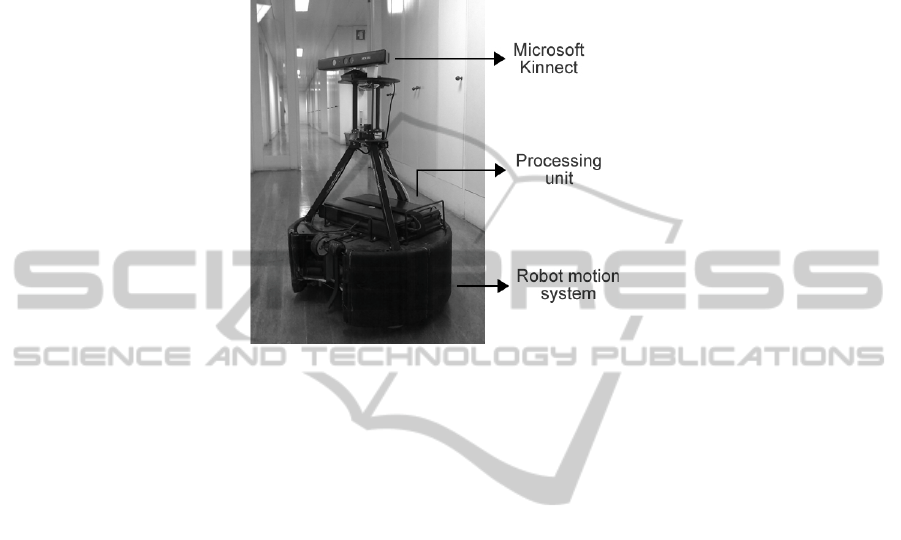

Fig. 1. CAMBADA@Home robotic platform.

An overview of the technical details can be found in [5]. As the natural interaction

feature is the main topic of this paper, we will continue with a detailed description of

the spoken dialog framework proposed.

4 A Spoken Dialog Framework for CAMBADA@Home

We have integrated some interaction facilities in our mobile service robot by means

of a spoken dialog framework. The requirements for this speech-base interaction

system resulted from the rulebook of the RoboCup@Home competition. According to

its stated use-cases, we defined the following requirements:

 the speech recognition component should be speaker independent, have a small

vocabulary and be robust against stationary and non-stationary environmental noise;

 the speech output should be intelligible and sound natural (at a distance of about 2

meters);

 the dialog manager system should be mixed-initiative, allowing both robot and

user to start the action, provide or ask for help if no input is received or incorrect

action is recognized (error handling), and ask for confirmation in case of irreversible

actions.

Based on these requirements, we created the CAMBADA@Home spoken dialog

system, whose architecture is shown in figure 2.

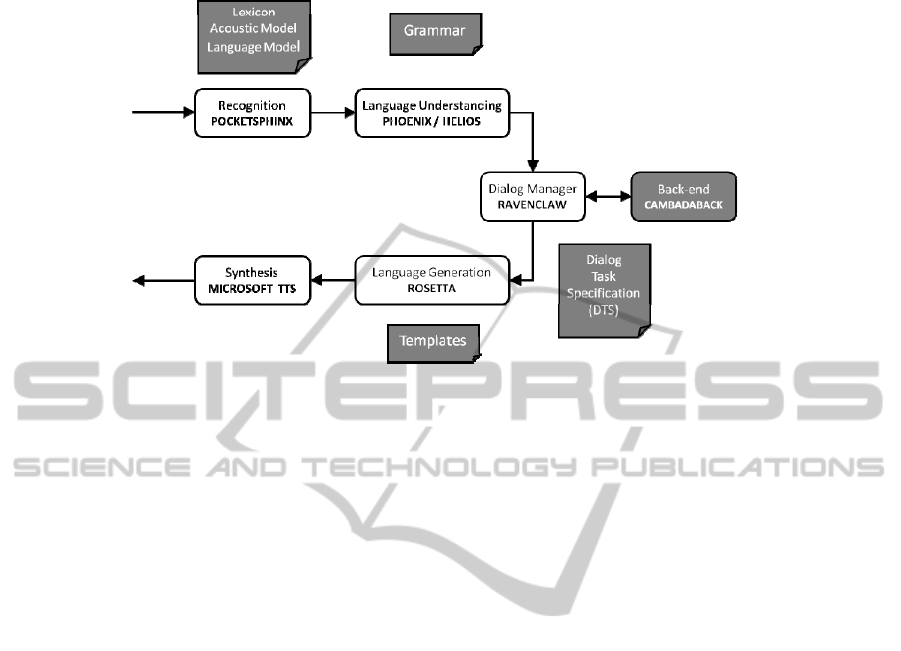

Fig. 2. CAMBADA@Home spoken dialog framework using RavenClaw/Olympus architecture.

Our system was built using RavenClaw/Olympus [9], an open-source framework

that facilitates research and developments in task oriented conversational spoken

language interfaces. Olympus [10] is an architecture for spoken dialog systems

created at Carnegie Mellon University (CMU) and consisting of various components

for recognition, natural language understanding, dialog management, natural lan-

guage generation, speech synthesis, etc., and the corresponding communication infra-

structure. In this framework, the RavenClaw, a task-independent dialogue engine,

handles the dialogue management. Olympus has been used to develop various other

systems that span different domains [11]; [12]; [13].

The clear separation between the domain independent components (dealing with

conversational skills such as misunderstandings, the accuracy, repeats, focus shifts,

etc.) versus the domain dependent components (such as the lexicon, the acoustic and

the language models, the grammars for natural language understanding/generation

and, mainly, the dialog task specifications (DTS)), is one of the main characteristics

of RavenClaw/Olympus framework. That characteristic was one of the reasons why

we chose this framework, since it allowed us, in a first approach, to focus our re-

search effort on the development of the domain dependent resources of our system.

Another reason that contributed to our decision of using Olympus architecture was

the fact that being an open source framework, it assembles and provides all the neces-

sary components for a quick development of a spoken dialog system, allowing us to

easily plugging in our own modules into the architecture at any moment.

At the moment of writing, the main components implemented in our spoken di-

alog framework (fig. 2) include: a speech recognizer from CMU (PocketSphinx), a

semantic parser (Phoenix), a dialog manager (RavenClaw), a natural language genera-

tor (Rosetta), a speech synthesis system (from Microsoft) and a back-end module

(CAMBADABACK) to process the intercommunication between the framework and

the robot processing unit. On the following sections, we briefly describe these com-

ponents and their corresponding resources (the task-dependent components).

4.1 Speech Recognizer

In terms of hardware, two types of robot-mounted input systems are being tested: a

directional microphone and a Microsoft Kinnect microphone array with noise reduc-

tion and echo cancellation. To deal with the high amount of non-stationary back-

ground noise and background speech, a close-speech detection framework - an ener-

gy/power based voice activation detection (VAD) is applied in parallel to noise robust

speech recognition techniques.

At the time of writing, speech recognition is accomplished with Pocketsphinx, an

open source decoding engine [14] using generic acoustic models. The recognition

engine uses a class-based trigram and a lexicon of 499 words (containing some of the

most task-independent frequent words and the task-dependent words gathered from

tasks presented at previous RoboCup@Home competitions and including names,

items and locations. The pronunciations for those words were generated using CMU

dictionary [15]. Additionally, we are testing speech recognition results obtained by

using the Microsoft Speech Platform [16]. For this propose both speaker dependent

and speaker independent profiles are being tested.

4.2 Natural Language Understanding

In this first approach, our system is using Phoenix [17], the default semantic parser in

RavenClaw/Olympus framework, to extract concepts from the recognition results.

Phoenix uses a semantic grammar assembled by concatenating a set of pre-defined

domain-independent rules with a set of domain-specific rules authored by us and

according to the tasks defined for our dialog system.

The set of parsed hypotheses is then passed to Helios [18], a confidence annota-

tion component that uses features from different knowledge sources (e.g., recogni-

tion, understanding, dialog) to compute a confidence score, forwarding the hypo-

thesis with the highest score to RavenClaw, the dialog manager.

4.3 Natural Language Generation

The semantic output of the dialog manager is sent to Rosetta [19], a template-based

language generation component. Like the Phoenix grammar, the Rosetta templates are

assembled by concatenating a set of pre-defined templates, with a set of templates

manually authored by us taking into account the specific tasks of our system.

4.4 Speech Synthesis

For robot “speak back” interaction and user feedback, external speakers mounted on

the robot platform are used. The speech synthesis component is implemented by

means of a concatenative system for speech output. For that propose, we are using

Microsoft Speech SDK and a Cepstral Text-To-Speech synthetic

masculine voice

(David voice). Cepstral voices have a native audio format of 16kHz, 16bit, PCM,

mono, and support SSML, VoiceXML tags, and Microsoft(R) SAPI standards, which

allows voice customization compatible with Olympus framework. Moreover, we are

testing some adaptation features such as using information on the distance from robot

to user to dynamically change the output volume and the TTS rate from normal to

slower according to the user’s age.

4.5 Dialog Manager

As already said, our dialog system has been built using RavenClaw, a plan-based and

task-independent dialog management framework [9]. As the perception of the envi-

ronment is uncertain and human users may not always react, or react unexpectedly,

there are some important conversational skills being automatically supported and

enforced by the RavenClaw dialog engine (error handling, timing and turn taking,

help, repeat, cancel, quit, start-over, etc.).

Our dialog system covers a restricted domain only, which is speciﬁc for the tasks

the robot needs to perform. In RavenClaw architecture, the domain-specific aspects

are captured by the dialog task specification (DTS), a plan-based description for the

expected interaction tasks. Each DTS consists of a tree of dialog agencies, dialog

agents and concepts. Dialog agents are located at the terminal positions in the tree,

and implement a dialog action according to their type (Inform, Expect, Request or

Execute action). Dialog agencies are located at non-terminal positions, and their pur-

pose is to control the execution of sub nodes. And concepts representing entity values

are used to store results. For dialog task specification, RavenClaw provides a proper

language, the RavenClaw Task Specification Language (RCTSL). In our spoken

dialog framework, we are defining a specific DTS for each one of the Robo-

Cup@Home competition use-cases. In section 5 we give a brief overview of the first

DTS implemented in our system and corresponding to some of the application scena-

rios defined for RoboCup’12.

Finally, to integrate the spoken dialog framework here created with

CAMBADA@Home robotic platform, a back-end component (CAMBADABACK)

has been developed. This component rules the communication between the Raven-

Claw dialog manager and the software layer controlling the physical structure. The

communication callbacks between both are triggered by asynchronous messages

whose syntax is represented by a set of predefined XML grammar rules.

5 Examples from RoboCup@Home Scenarios

As stated before, the development of CAMBADA@Home robotic platform is being

done to cope with the tasks defined for the RoboCup@Home competition. As such,

and in a first approach, we started by implementing two of those tasks: the “Robot

Inspection” and the “Follow Me” tasks.

In the “Robot Inspection” task, whose focus is articulation and speech synthesis,

the robot has to autonomously approach a table with some persons behind it, intro-

duce himself and leave the room nextafterwards. In figure 3, we present a portion of

the dialog task tree for the “Robot Inspection” task. It comprises two dialog agencies

(“cambada”, the root node, and “move”, the agency controlling the moving action

nodes), four dialog agents, the ones controlling dialog actions, and one concept

(“move”) capturing the expected input for this task (an order from someone asking

the robot to move or leave room). The dialog starts when CAMBADABACK receives

a signal from the robot processing unit. At that moment, the inform agent “Presenta-

tion” is activated, and an introduction message is synthesized and send to the output.

Then a request message is sent to the output by the request agent “AskMove”, and the

dialog system waits until the “move” concept is filled with an order from the operator

telling the robot to leave or move. Received that message, the execution agent “Or-

derMove” sends an order to the robot processing unit through CAMBADABACK.

Finally, the “Exit” agent sends a leaving message to the output and the dialog task

ends.

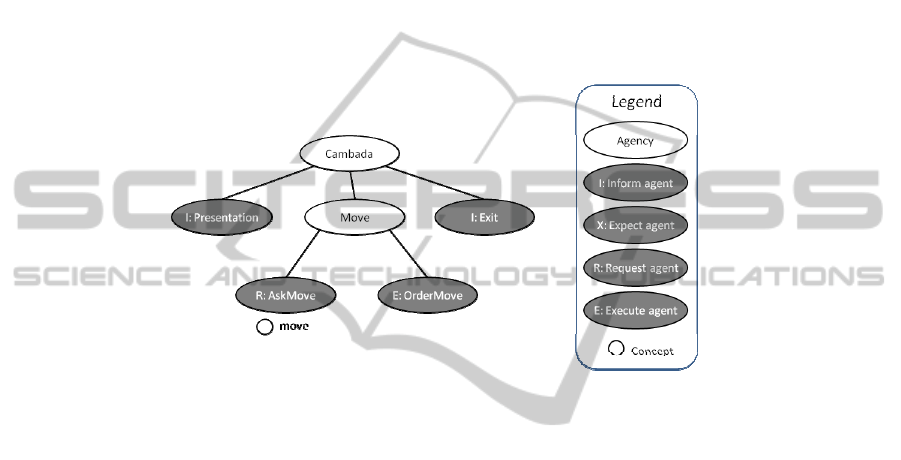

Fig. 3. A portion of the dialog task tree for the “Robot Inspection” task.

The “Follow Me” focuses on tracking and recognition of an unknown person. In

this task, an operator goes to the robot and tells it to follow him. The robot starts a

calibration process (to identify the operator), during which it gives the operator some

instructions. After that, it announces the calibration is done and starts following him.

Then the operator tells the robot to stop. The robot waits for 10 seconds and then start

following him again. The operator orders the robot to stop again. After some time the

operator and another unknown person walk towards the robot, and the operator asks

the robot to go to him (go to owner). After recognizing the operator, the robot goes

towards him. At the end of the task, if the operator congratulates the Robot, it thanks

him and the task is considered finished. For this task, another DTS has been devel-

oped and integrated in our framework.

6 Conclusions and Outlook

In this paper, we presented a spoken dialog framework that dynamically processes

speech dialogs for human-robot interaction in intelligent home environments. The

created framework was integrated on the mobile service robot CAMBADA@Home.

This robotic platform is being used to implement and test several household related

scenarios as specified by the RoboCup@Home competition that aims to develop

service and assistive robot technology with high relevance for future domestic appli-

cations.

At the time of writing, the core components of our spoken dialog framework were

integrated, allowing us to run and test some of the RoboCup@Home tasks. As addi-

tional features become available on the CAMBADA@Home robotic platform, more

home-centered tasks foreseen in RoboCup@Home rulebook are planned to be added

to its speech interface repository. This includes tasks related to object detec-

tion/recognition/manipulation, human detection/recognition, and other tasks with

increased complexity in terms of speech recognition and dialog management, and

where actions have to be carried out without predefined order.

As future work, we intend to investigate further more the issues related to the

overall system accuracy and robustness, especially the ones related to the speech

recognition component. Using Microsoft Kinnect microphone array as an input unit,

we are exploring its audio features and processing tools to better integrate them in our

spoken dialog framework. Still related to the speech recognition component, we are

investigating various approaches by combining different types of acoustic and lan-

guage models for restricted domains. Moreover, due to the multimodal communica-

tion features present in the robotic framework, we will pursuit research efforts to

improve the overall dialog system performance by taking advantage of information

from other system components such as localization and vision. The

CAMBADA@Home team plans to build on these results in order to participate in the

RoboCup@Home challenges at the RoboCup'2012.

Acknowledgements

We would like to thank people from the Olympus framework developer’s team for

providing it, and for helping and answering our technical questions. This work is part

of the Living Usability Lab for Next Generation Networks (www.livinglab.pt)

project, a QREN project, co-funded by COMPETE and FEDER.

References

1. EUROP Executive Board Committee: Robotic Visions (To 2020 and Beyond). The Strateg-

ic Research Agenda for Robotics in Europe, July 2009

2. Tapus, A., Mataric, M. and Scassellati, B.: The grand challenges in socially assistive robot-

ics. IEEE Robotics and Automation Magazine, vol. 14, no. 1, March 2007

3. Lopes, L.: Carl: from Situated Activity to Language Level Interaction and Learning, Proc.

IEEE Int'l Conf. on Intelligent Robots and Systems (IROS), Lausanne, Switzerland, p. 890-

896, 2002

4. Neves, A., Azevedo, J., Cunha, B., Lau, N., Silva, J., Santos, F., Corrente, G., Martins, D.,

Figueiredo, N., Pereira, A., Almeida, L., Lopes, L., Pinho, A., Rodrigues, J. and Pedreiras,

P.: CAMBADA soccer team - from robot architecture to multiagent coordination. In Robot

Soccer. INTECH, January 2010

5. Cunha, J., Neves, A., Azevedo, J., Cunha, B., Lau, N. and Pereira, A.: A Mobile Robotic

Platform for Elderly Care. AAL Workshop, BIOSTEC 2011, Rome, Italy, 2011

6. RoboCup@Home League main page [Online] [Visited on 15 Oct. 2011]. Available at

http://www.robocupathome.org/

7. Goodrich, M. and Schultz, A.: Human–Robot Interaction - A Survey. Foundations and

Trends R in Human–Computer Interaction, vol. 1, no. 3 (2007) 203–275

8. Breuer, T.: Advanced Speech-based HRI for a Mobile Manipulator. B-IT Master Studies

Autonomous Systems, Bonn-Rhein-Sieg University of Applied Sciences, September 2008

9. Bohus, D. and Rudnicky, A.: The RavenClaw dialog management framework - Architec-

ture and systems". Computer Speech and Language 23 (2009) 332-361

10. Bohus, D., Raux, A. Harris, T., Eskenazi, M. and Rudnicky, A.: Olympus - an open-source

framework for conversational spoken language interface research. Bridging the Gap: Aca-

demic and Industrial Research in Dialog Technology Workshop at HLT/NAACL, 2007

11. Bohus, D., Grau, S., Huggins-Danes, D., Keri, V., Krishna, G., Kumar, R., Raux, A. and

Tomko, A.: Conquest - an Open-Source Dialog System for Conferences. HLT-NAACL,

2007

12. Stenchikova, S., Mucha, B., Hoffman, S. and Stent, A.: RavenCalendar - A Multimodal

Dialog System for Managing a Personal Calendar. HLT-NAACL, 2007

13. Harris, T., Banerjee, S., Rudnicky, A., Sison, J., Bodine, K., and Black, A.: A Research

Platform for Multi-Agent Dialogue Dynamics. Proceedings of the IEEE International

Workshop on Robotics and Human Interactive Communications, (2004) 497-502

14. Huang, X., Alleva, F., Hon, H.-W., Hwang, M.-Y., Lee, K.-F., Rosenfeld, R.: The

SPHINX-II speech recognition system: an overview. Computer Speech and Language 7

(1992) 137–148

15. The CMU Pronouncing Dictionary [Online] [Visited on 15 Oct. 2011]. Available at

http://www.speech.cs.cmu.edu/cgi-bin/cmudict

16. Microsoft Speech Platform [Online] [Visited on 15 Oct. 2011]. Available at

http://msdn.microsoft.com/en-us/library/hh361572.aspx

17. Ward, W. and Issar, S.: Recent improvements in the CMU spoken language understanding

system, in Proc. of the ARPA Human Language Technology Workshop, pages 213–216,

Plainsboro, NJ, 1994

18. Bohus, D. and Rudnicky, A.: Integrating multiple knowlege sources for utterance-level

confidence annotation in the CMU Communicator spoken dialog system. (Tech. Rep. No.

CMU-CS-02-190). Pittsburgh, Pennsylvania: School of Computer Science, Carnegie Mel-

lon University, 2002

19. Oh, A. H. and Rudnicky, A.: Stocastic language generation for spoken dialogue systems.

Proceedings of the ANLP/NAACL workshop on conversational systems, (2000) 27-32
