MINIMALISTIC VISION-BASED COGNITIVE SLAM

M´ario Saleiro, J. M. F. Rodrigues and J. M. H. du Buf

Vision Laboratory, LARSyS, University of the Algarve (ISE and FCT), Campus de Gambelas, 8005-139 Faro, Portugal

Keywords:

Robotics, SLAM, Navigation, Memory.

Abstract:

The interest in cognitive robotics is still increasing, a major goal being to create a system which can adapt

to dynamic environments and which can learn from its own experiences. We present a new cognitive SLAM

architecture, but one which is minimalistic in terms of sensors and memory. It employs only one camera with

pan and tilt control and three memories, without additional sensors nor any odometry. Short-term memory is

an egocentric map which holds information at close range at the actual robot position. Long-term memory is

used for mapping the environment and registration of encountered objects. Object memory holds features of

learned objects which are used as navigation landmarks and task targets. Saliency maps are used to sequen-

tially focus important areas for object and obstacle detection, but also for selecting directions of movements.

Reinforcement learning is used to consolidate or enfeeble environmental information in long-term memory.

The system is able to achieve complex tasks by executing sequences of visuomotor actions, decisions being

taken by goal-detection and goal-completion tasks. Experimental results show that the system is capable of

executing tasks like localizing speciﬁc objects while building a map, after which it manages to return to the

start position even when new obstacles have appeared.

1 INTRODUCTION

Autonomous mobile robots must be able to learn and

interact with dynamic environments in which they

navigate. Many explored approaches are based on tra-

ditional algorithms from artiﬁcial intelligence. They

employ perceptions of the surrounding environment

which are based on precise data from distance sensors

(infrared, ultrasonic, laser) in combination with pre-

cise odometry for navigation. They may allow robots

to perform simple tasks in controlled environments,

but are less appropriate for highly dynamic and com-

plex environments (Ratanaswasd et al., 2005). The

latter require ﬂexible and adaptive systems, i.e., cog-

nitive ones like our brain. However, also many lower

animals like mice and crows are experts in mastering

complex tasks in dynamic environments.

Egocentric navigation using a predeﬁned map but

without precise metrics can be achieved by a cogni-

tive robot (Kawamura et al., 2002). This robot fea-

tured a memory system split into short- and long-term

ones, and it employed a simple vision system to detect

colored tags which are used as references. However,

it was not used for SLAM (simultaneous localization

and mapping) because the map was predeﬁned. An-

other robot (Meger et al., 2008) employed a more so-

phisticated vision system, combining saliency, object

recognition and stereo vision along with a laser sen-

sor for navigation and mapping. RatSLAM (Milford

and Wyeth, 2010) is a navigation and mapping sys-

tem which relies on goal-oriented navigation and on

biologically inspired SLAM. Another biologically in-

spired navigation system consists of an implementa-

tion of a particular path-integration model, i.e., mod-

iﬁed continuous-time recurrent neural networks (Pa-

pauschek and Zillich, 2010). A cognitive architecture

can also be based on biologically inspired multiple

memory systems, involving episodic, semantic, pro-

cedural and working memory units (Kleinmann and

Mertsching, 2011).

In this paper we present a cognitive framework for

robots composed of four interactive systems: vision,

memory, SLAM and task management. The major

contributions are: (a) the implemented SLAM system

is directly integrated with the short- and long-term

memories and affected by time, allowing the robot

to adapt to dynamic environments by means of re-

inforcement learning, (b) the implemented task man-

agement and task building system is based on a hierar-

chy of only three basic actions, (c) only one camera is

employed for vision and no other sensors nor odom-

etry is used, and (d) vision is steered by saliency for

Focus-of-Attention and object recognition.

The rest of this paper is organised as follows. In

614

Saleiro M., M. F. Rodrigues J. and M. H. du Buf J..

MINIMALISTIC VISION-BASED COGNITIVE SLAM.

DOI: 10.5220/0003881306140623

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (SSIR-2012), pages 614-623

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Section 2 we present the cognitive robot framework,

including the vision, task manager and localisation

and mapping modules. In Section 3 we present re-

sults, and in Section 4 a ﬁnal discussion.

2 COGNITIVE ROBOT

FRAMEWORK

Cognition generally refers to the faculty of mental ac-

tivities of humans and certain animals dealing with

abstractions of information from the real world, their

representations in memory, as well as automatic re-

call (Patnaik, 2007). Cognition may provide a solu-

tion to overcome the limitations of AI, allowing us

to create cognitive robots that can execute new tasks

by combining knowledge gathered in previous expe-

riences and emotions (Ratanaswasd et al., 2005).

Through cognition, the human brain is able to ac-

quire and process perceptionsof the surroundingenvi-

ronment in a very fast and efﬁcient way. Such percep-

tions consist of complex information captured using

our sensory systems, notably our visual system which

collects the most important information for naviga-

tion. In contrast to precise sensor systems in tradi-

tional robotics, our visual system allows us to recog-

nize objects and to know whether they are near or far,

but it does not provide us with very precise distances.

Another important feature of the human brain is

the close connection between sensory systems and

memory. This close connection also works as a ﬁlter:

some of the information acquired remains in memory

for a long time, whereas other information may be

instantly discarded or kept for a brief time. This dual-

ity in information storage has been studied in cogni-

tive psychology for many decades, which resulted in

the assumption of two major types of memory: short-

term memory (STM) and long-term memory (LTM)

(Patnaik, 2007). In this memory structure, only the

most important information ﬂows from STM to LTM,

the importance of the information being affected by

attention and concentration. Although most informa-

tion may be discarded, the human brain can store a

higher level of detail if necessory (Brady et al., 2008).

In the same way that the brain can select which in-

formation should be stored, the visual system can se-

lect which areas of the surrounding environment de-

serve most attention based on the saliency of those

areas (Itti et al., 1998). This information-ﬁltering

process is also very important because otherwise the

brain would always be busy processing all the in-

formation gathered by our senses (Rensink, 2000).

After selecting which areas deserve most attention,

the brain processes those areas for object recognition,

comparing the objects seen with normalized tem-

plates previously stored in memory (Rodrigues and

du Buf, 2009).

Another feature of human cognition is to plan

and execute sequences of actions for accomplishing

a goal, even sequences which have never been done

before. This property is closely related to learning,

because we can deduce new sequences by combining

actions which we have done or seen before (Meinert,

2008).

The implementation of a cognitive system may

lead to a new generation of robots which can adapt to

dynamic environments and can interact with humans.

There have already been some developments. The

most relevant ones use vision as the main source of

information, a memory system composed of STM and

LTM, and an egocentric navigation system (Kawa-

mura et al., 2002). Stereo vision is also possible

(Meger et al., 2008). In addition to memory and vi-

sual systems which differ from those used in tradi-

tional robotics, a cognitive robot also needs SLAM

capability, but one which, unlike traditional SLAM,

is not based on large amounts of data from precise

range sensors and precise odometry systems (Monte-

merlo et al., 2002).

In the following sections we describe an architec-

ture for a cognitive robot comprising a complex vi-

sual system, with Focus-of-Attention (FoA) and ob-

ject recognition, a memory system with STM and

LTM, and a task management system. This architec-

ture is closely integrated with the SLAM system.

2.1 Robotic Platform

The cognitive system was implemented and tested us-

ing a small Surveyor SRV-1 robot with an SVS stereo

vision system mounted on a pan and tilt structure, but

only one camera was used (Fig. 1 top-left). The robot

also features differential steering and a Wi-Fi connec-

tion. The robot’s command protocol allows to receive

camera images on a remote computer for processing

them, and to send back commands to move the robot

and the robot’s head.

Since the robot does not have any odometry sys-

tem, it is impossible to get precise travel distances and

rotation angles. All movements are controlled by tim-

ing, e.g., move forward during 1 second. This only

yields approximate distance and rotation values. Al-

though it makes navigation and mapping more difﬁ-

cult, it actually serves our goal because we want to

make a cognitive system which does not require pre-

cise distances for navigation and mapping.

Regarding the movement of the head, we only

used two tilt positions T1 and T2 (Fig. 1 top-center

MINIMALISTIC VISION-BASED COGNITIVE SLAM

615

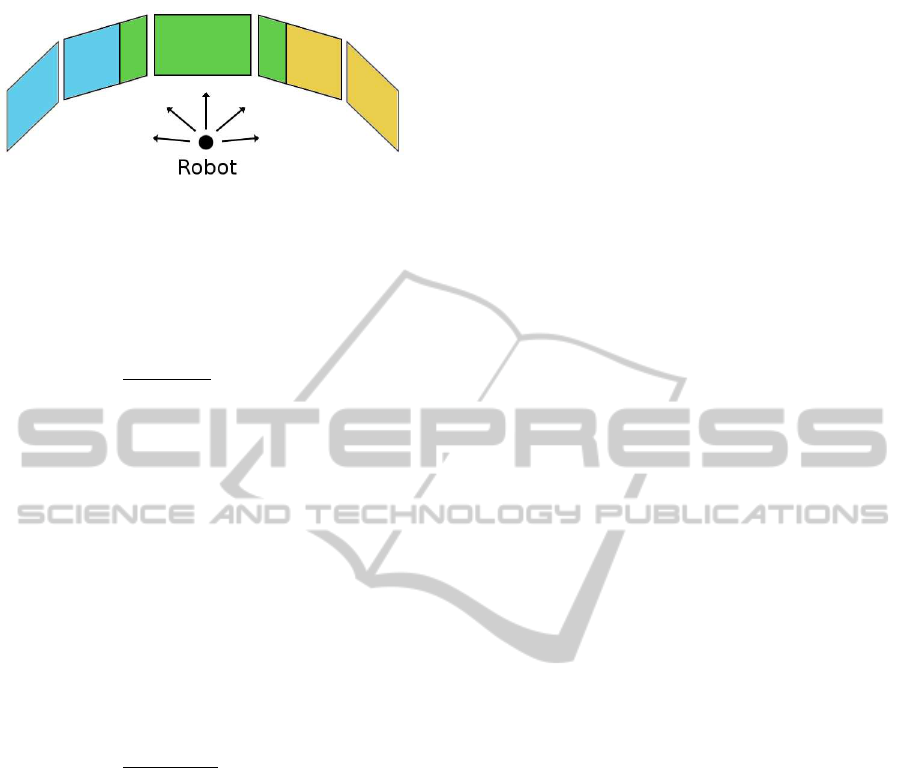

and top-right) and ﬁve pan positions: two to the left,

one in front, and two to the right (Fig. 5). T1 is used

to inspect the near surrounding whereas T2 serves to

visualize the more distant environment. The devel-

oped software architecture is modular, each module

corresponding to one component of the robot’s sys-

tem, although they are all interdependent. We also

used two open source libraries: OpenSURF (Evans,

2009) for object recognition, and NMPT (Nick’s Ma-

chine Perception Toolbox) (Butko et al., 2008) to gen-

erate saliency maps.

Figure 1 (bottom) shows the main modules. (a)

The hardware abstraction layer consists of a library of

functions to initialize and close the connection to the

robot, to realize motor actions, to request images and

to change the conﬁguration of the robot. (b) Manip-

ulation of Image Files contains functions to perform

basic operations of opening and saving image ﬁles.

for the detection and recognition operations. (d) Task

Management consists of a central agent which sched-

ules and plans tasks to be accomplished. (e) Mapping

contains all functions for robot localization and for

mapping the environment.

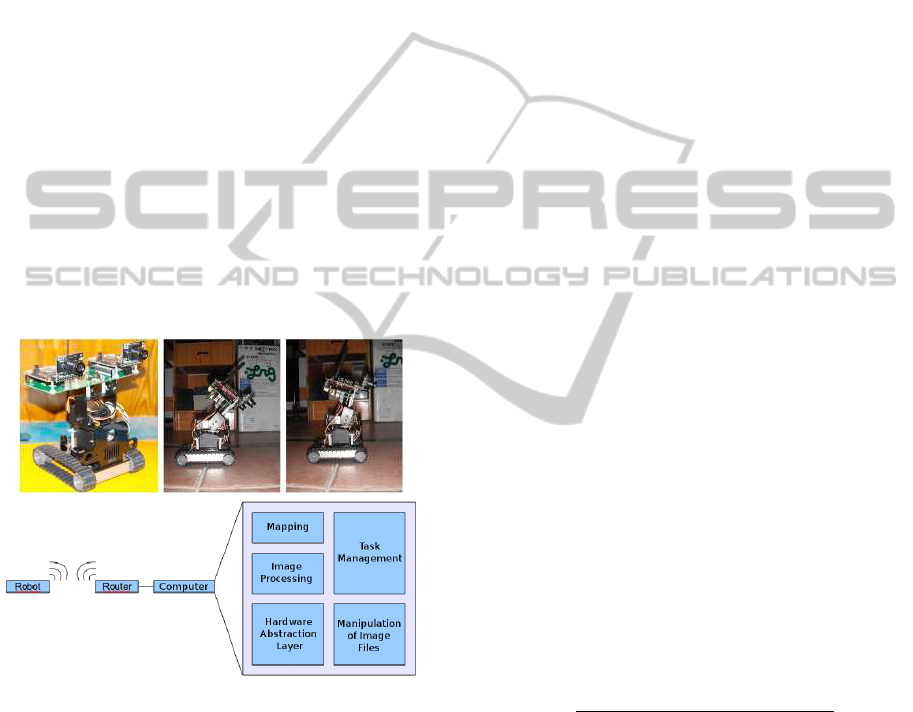

Figure 1: Top, from left: SRV-1 robot with head tilts T1 and

T2. Bottom: software layers.

Because of the robot’s small size, it was tested in a

specially preparedsandbox of 3×3.5 m. The sandbox

is delimited by green tape on the ﬂoor, and objects

like tool boxes were placed on or just beyond the tape

at various positions. The green delimiting tape can

easily be replaced by an algorithm for navigating in

corridors (Jos´e et al., 2010).

2.2 Saliency and Active Vision

The system was conﬁgured such that captured frames

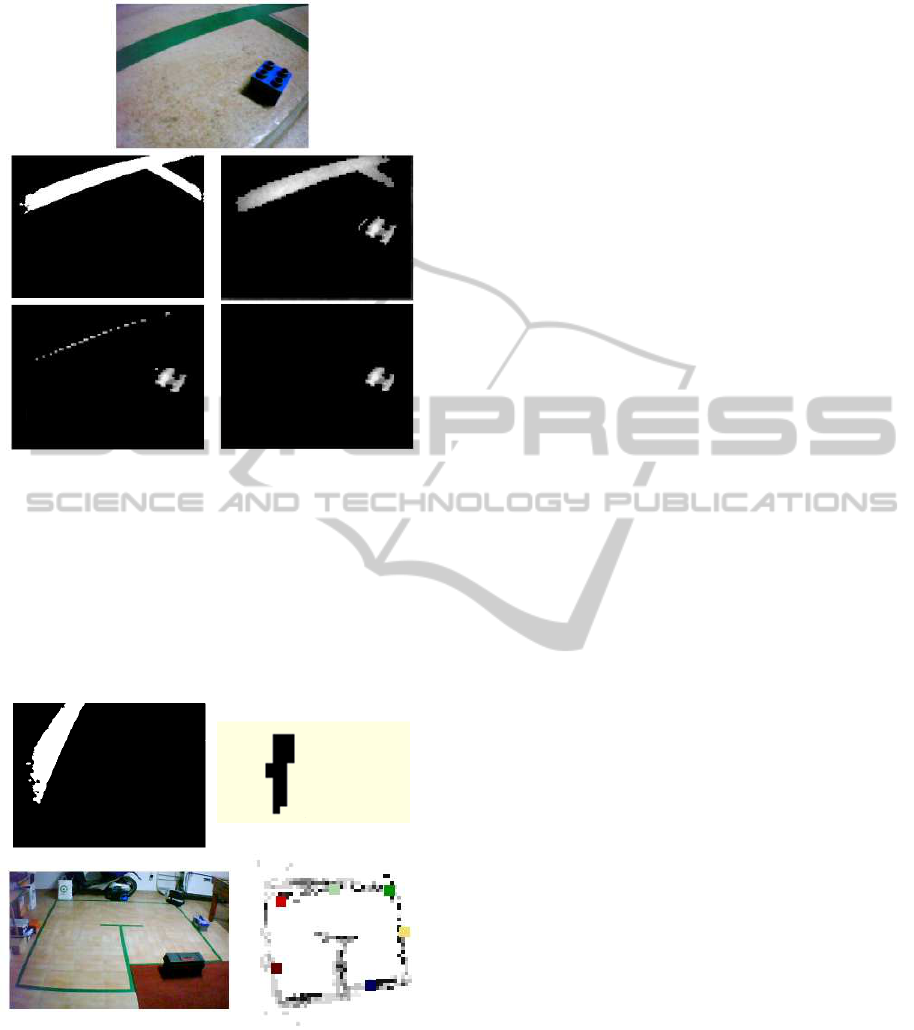

I(x,y) havea size of M×N = 320×240 pixels with R,

G and B components. Instead of processing the entire

images, we applied a saliency algorithm to select the

image regions which may contain the most important

information. Each selected region is then processed

for obstacle and object recognition. To this purpose

the regions are delimited and sorted in decreasing

order of saliency, which mimics sequential process-

ing by Focus-of-Attention (FoA) with Inhibition-of-

Return (IoR) to already analyzed regions. This pro-

cess consists of the following three steps:

(1) We apply the Fast Saliency algorithm (Butko

et al., 2008) to create a saliencymap I

(x,y); see Fig. 2

(top-right). Fast Saliency applies a spatial Difference-

of-Gaussian ﬁlter to the intensity component(R+G+

B)/3, but its temporal ﬁlter is not used because we

have “still” images.

(2) The saliency map is analyzed for the detection

and selection of the regions, discarding regions which

are too small to contain useful information. The map

(x,y) is divided into non-overlapping regions of size

4× 4, and in each region we count the number of pix-

els N

with a saliency value bigger than Θ

, where Θ

is 50% of the maximum saliency value in I

. If N

smaller than a threshold value Θ

, where Θ

is 60% of

the number of pixels in the region (10 in case 4× 4),

the region is discarded and blackened in I

Figure 2 (2nd row left) shows the processed I

Because of the 4 × 4 blocks the resulting image is

reduced to M/4 × N/4 pixels, which speeds up sub-

sequent processing. Then, to delimit each region, we

apply a fast blob detection algorithm (Saleiro et al.,

2009). The blobs are expanded to their bounding

rectangle, and all rectangles with a size smaller than

= 300 pixels are discarded. This results in image

as shown on the 2nd row, at right, in Fig. 2.

regions of size p × q are characterized and sorted in

descending order by using their average saliency,

∑

k∈[0,p−1],l∈[0,q−1]

(x+ k, y+ l)

p× q

, (1)

see Fig. 2 (3rd row), for processing them for obsta-

cle detection and object recognition using Inhibition-

of-Return (IoR). Figure 2 (bottom) illustrates this se-

quential process, the arrows showing the processing

order. The above process mimics human Focus-of-

Attention (FoA), and it is only applied to images cap-

tured using camera tilt T2, when the robot can see

farther away. The use of saliency, when integrated

with motor actions, results in active vision: naviga-

tion decisions and head movements are completely

controlled by sequential FoA with IoR in combina-

tion with recognized objects.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

616

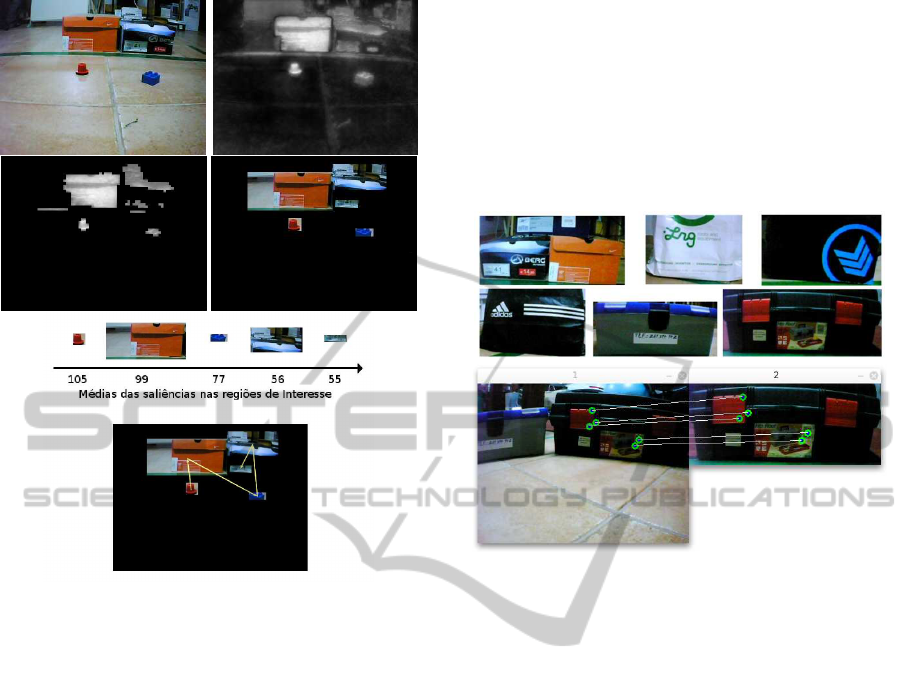

Figure 2: Top: captured image and its saliency map. Second

row: saliency map after ﬁltering and rectangular regions of

interest. Third row: the regions sorted by saliency. Bottom:

sequential order of FoA.

2.3 Object Recognition

As mentioned before, we use the OpenSURF library

(Evans, 2009) to recognize objects. Like we, humans,

store normalized images of many objects in memory

(Rodrigues and du Buf, 2009), the robot also needs to

memorize one or more views (templates) of the ob-

jects which will serve as navigation landmarks and

task targets. The top two rows in Fig. 3 show exam-

ples. All images stored in memory were taken with

an object distance of about 45 cm. This allows, after

object recognition, the robot to estimate its distance

to the object by comparing the dimensions of the rec-

ognized object in the captured image with those of the

stored template.

Before the robot starts navigating, all stored tem-

plates are processed by SURF’s keypoint algorithm

for creating the keypoint arrays for a fast object

matching during a task’s execution. These keypoint

arrays are similar to the spatial keypoint maps which

we ourselves store in memory (Rodrigues and du Buf,

2009). During navigation, when a region with high

saliency must be analyzed, the region’s keypoint ar-

ray is determined by SURF. This array is matched

against all stored object arrays, and if there are at

least three matching keypoints an object is recog-

nized. This process employs some relaxation of

the distances between keypoints in order to obtain

viewpoint-invariance – a similar process called dy-

namic routing may occur in our brain (Rodrigues and

du Buf, 2009). The bottom row in Fig. 3 illustrates

object recognition with illumination- and viewpoint-

invariance.

Figure 3: Top two rows: examples of learned objects. Bot-

tom: example of object recognition with 5 matching key-

points.

2.4 Task Management

The task managementsystem allows the robot to build

and execute complex tasks from simpler ones. A

central agent is responsible for building and organiz-

ing the tasks in order to accomplish a requested goal

(Ratanaswasd et al., 2005; Alami et al., 2006). Only

two levels of tasks exist. Micro-tasks are atomic ac-

tions like “go forward” and “turn right.” Macro-tasks

are more complex. They are built from the aggrega-

tion of micro-tasks and simple macro-tasks. The sim-

ple macro-tasks are pre-programmed, but always as-

sociated with simple actions like “search” and “return

home.” When the robot is given more than one gen-

eral (top) task, it places them in a task buffer for their

sequential – but also concurrent – execution.

Each macro-task consists of three blocks: (a) a vi-

suomotor action cycle consists of movements to be

made according to newly captured visual information;

(b) the objective detection function serves to detect

the actual, requested goal; and (c) the condition for

task conclusion function tracks whether a task has

been completed or not.

The block structure is hierarchical: the three

above blocks can each be split into sub-blocks, using

the same block structure. This hierarchical and dy-

MINIMALISTIC VISION-BASED COGNITIVE SLAM

617

namic structure enables concurrent execution of mul-

tiple tasks. However, since there is always one main

task, only one visuomotor cycle can be active at any

time, during which all other visuomotor cycles remain

inactive. Nevertheless, while one visuomotor cycle

(a) is being executed, the two detection functions (b)

and (c) related to other tasks are still evaluated. When

a task is completed, its blocks are deactivated and

the next task’s visuomotor cycle is activated. This

process is repeated until all pending tasks are com-

pleted. Concurrent task processing is implemented by

using three separate block buffers: one for visuomotor

blocks, one for objective detection blocks, and one for

objective conclusion condition blocks. The blocks in

the last two buffers are executed sequentially within

each visuomotor block which controls the robot. The

visuomotor blocks are always the most complex ones,

since the other two types only consist of simple detec-

tion functions. Figure 4 illustrates the task building

process.

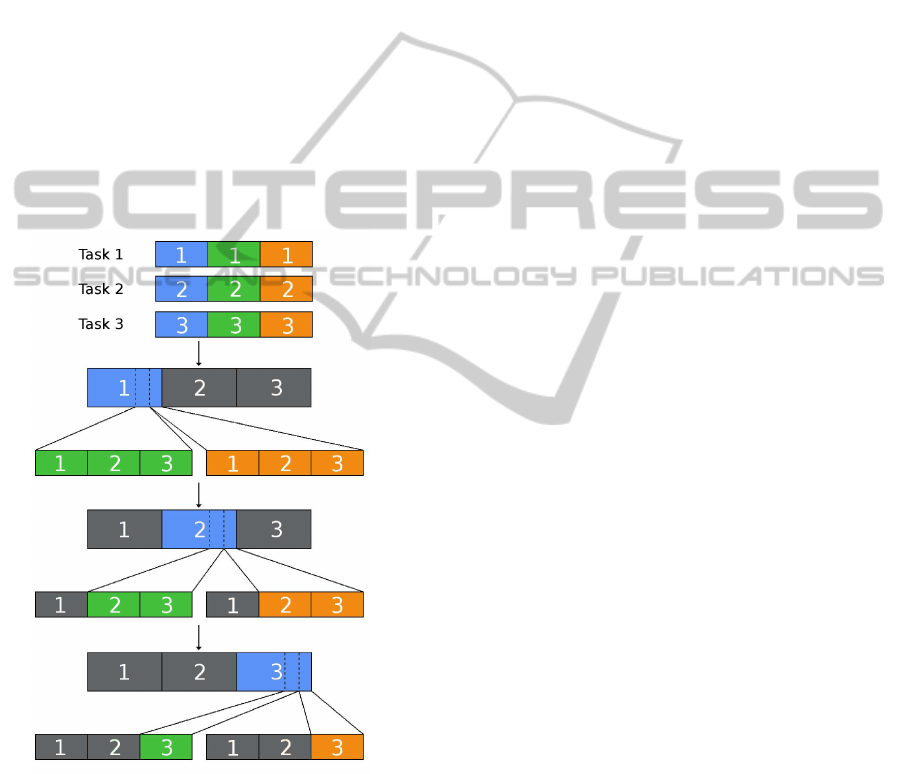

Figure 4: Three macro-tasks are concurrently executed by

sequences of simple macro-tasks and micro-tasks. Blue: vi-

suomotor blocks. Green: objective detection blocks. Or-

ange: objective conclusion condition blocks. The grey

blocks are inactive.

For the robot’s navigation, we considered only

two fundamental modes: (a) the exploration mode is

used to navigate in an unknown environment, and (b)

in the excursion mode the robot uses gathered infor-

mation to move itself in a more efﬁcient way. These

modes are detailed below.

2.4.1 Exploration Mode

In this navigation mode the robot takes decisions ac-

cording to saliency. It simply moves towards regions

where the probability of ﬁnding important informa-

tion is higher. Below, all newly acquired images are

processed, using saliency-based regions and SURF

for object and obstacle detection as explained in Sec-

tions 2.2 and 2.3. The robot then takes decisions, also

on the basis of saliency but of bigger image regions,

to look more to the left or more to the right. We ﬁrst

explain head (pan) control for looking left and right,

and then wheel control for actually moving the robot.

For head (pan) control, the robot initially looks

ahead with tilt position T2, and captures one (frontal)

image. It splits this into equally-sized regions: left,

center and right. It calculates the average saliency

values in the left and right regions. If one value, for

example that of the left region, is higher than a thresh-

old value T

, with T

equal to 15% of the maximum

saliency S

max

in the entire (frontal) image, the robot

will change the pan angle and capture an image which

is left to the frontal one. If both values are higher than

the threshold, it will capture two images, one to the

left and one to the right of the frontal one, but it will

look ﬁrst to the side with the higher average saliency

value.

If the robot decided to look to the left, the average

saliency of the left third of the new image is com-

puted. If the value is higher than 15% of the maxi-

mum value in the entire image, it will decide to look

even more to the left and capture a new image with

a more oblique pan angle. This image is processed

again for object recognition, but not further split be-

cause the maximum pan angle has been reached. If

the robot decided to (also) look to the right, the pro-

cedure is the same, but the right third of the captured

image right to the frontal one is used for deciding to

turn the pan angle even more to the right. Hence, the

robot may capture only the frontal image, plus one or

two to the left, plus one or two to the right, so it may

capture at most ﬁve images (Fig. 5), but the above

procedure is only applied for controlling the head’s

pan angles and object recognition at the robot’s actual

position.

The next step concerns wheel control: to decide

to move left, straight ahead, or right. This is also con-

trolled by average saliency values of parts of the cap-

tured images, but only of three big parts as shown by

the differently shaded regions in Fig. 5. If some of the

at most ﬁve images were not captured, for example

when the robot decided to look only in front and a bit

to the right (2 images), the missing images (5−2 = 3)

are assumed to have zero saliency. The average sali-

ICAART 2012 - International Conference on Agents and Artificial Intelligence

618

Figure 5: For head (pan) control, the robot will capture at

least the frontal (center) image, but it can capture at most

ﬁve images. For wheel control, average saliency in the three

shaded regions is used to move left, straight ahead, or right.

ency values of the three regions, left (s

), front (s

)

and right(s

) are computed, and then their relative val-

ues

+ s

, x ∈ {l, f,r}. (2)

However, instead of only using max(s

) as a decision

criterion, the distance to its previous positions and to

already detected reference objects are also important,

so that the robot does not return to already explored

regions. If a reference object has already been found,

the robot calculates the approximate distances, d

, d

and d

, between that object and each of the three po-

sitions were the robot may move next: e.g. 25 cm to

the left of the actual position if it moves to the left,

but also 25 cm forward and to the right. In case no

reference object has been found, it calculates the dis-

tance to the third last position where it has been. Once

having the distances, the relative distances are deter-

mined by

+ d

, x ∈ {l, f,r} (3)

and the probabilities of moving left, forward and

right are obtained by combining relative distances and

saliencies

= (1 − k)d

+ ks

, x ∈ {l,r} (4)

= w{ (1 − k)d

+ ks

}, (5)

and maxP

, x ∈ {l, f,r} is selected. Parameter k ∈

[0,1] is used to balance or emphasize saliency and dis-

tance. In Eq. 5 the w parameter allows to bias forward

movements or left/right ones. Optimal parameters,

empirically determined, are k = 0.25 and w = 1.65.

After selecting the direction, the robot checks for an

obstacle there. If there is none, it moves in that direc-

tion. Otherwise, it will check in the direction with the

next lower probability and may move there, etc.

2.4.2 Excursion Mode

This navigation mode is much simpler than the explo-

ration mode, because the robot can rely on its map

constructed in exploration mode, it already knows lo-

cations of some reference objects, and it has its past

experiences in memory. The latter means that it keeps

a buffer with its last 10 positions in the map, and

also one with the sequential order in which objects

were recognized. These experiencies allow the robot

to follow the inverse path established in exploration

mode. If it encounters any new obstacle on the path,

it checks both sides for open space and it turns to the

side which has the smallest distance to the ﬁnal desti-

nation. When there are no more obstacles, it resumes

the original (inverse) path.

2.5 Detection of Obstacles and Limits

As mentioned before, we only use one of the robot’s

cameras and two tilt positions T1 and T2: T2 is used

for global navigation and object recognition, whereas

T1 serves detection of obstacles and sandbox lim-

its at close range. After detection, the robot esti-

mates approximate distances by using an interpola-

tion function, which relates each line of the image to

a distance. Some simple geometry also allows to ap-

proximate relative angles. This information is used

to place detected obstacles and sandbox limits in the

maps. Only two maps are used: (a) a small but high-

precision map (STM) and (b) a big but low-precision

map (LTM). The ﬁrst one is used for immediate deci-

sions; the second for global navigation and more com-

plex tasks.

To detect the green tape that delimits the sandbox,

the RGB image is converted to HSV color space and a

simple color segmentation is applied. To detect obsta-

cles we use the I

maps and suppress regions which

correspond to the green tape, such that only salient

objects remain. Figure 6 illustrates obstacle detec-

tion. The top shows the captured image I with green

tape and an obstacle. The 2nd row shows the seg-

mented green tape I

f f

at left, and the saliency map I

at right. The 3rd row shows the saliency map with the

green tape suppressed (I

at left) and after ﬁltering to

remove small regions (I

at right).

2.6 Memory and Mapping

Building a map of the environment is fundamental

for navigation and localization. As mentioned be-

fore, we use two types of memory: STM and LTM.

STM consists of a small map in which information at

close range like delimiting tape and obstacles is regis-

tered. Therefore, this map is used in conjunction with

head tilt position T1. The STM map is egocentric and

only used at an actual position of the robot. Whenever

non-black pixels are found in images I

f f

and I

, T1-

MINIMALISTIC VISION-BASED COGNITIVE SLAM

619

Figure 6: Obstacle detection process. See text.

calibrated image line-distance interpolation functions

are used to estimate the pixels’ positions relative to

the robot. These positions are stored in STM together

with object types like green tape. The size of STM is

the same as that of I

. Figure 7 (top-right) shows an

example of STM in the case of green tape, i.e., in the

horizontal plane after perspective-view correction of

the segmented image to the left.

Figure 7: Examples of memory maps. Top-left: binary im-

age (tilt T1) with segmented green tape. Top-right: resulting

(x,y) Cartesian STM map when looking forward. Bottom:

picture of the robot’s sandbox and a built LTM map after

completing a SLAM task. Reference objects are marked by

colored squares.

LTM is a bigger map, with lower resolution, for

global navigation. Unlike STM, LTM is not a binary

map because object labels must be stored at certain

positions. LTM is built with positive and negative re-

inforcements: (a) if an object is repeatedly detected

at the same position, it is positively reinforced with

a value P

= 40, until a maximum value M

= 200

is reached; (b) if a previously detected object is not

found at the same position, it is negatively reinforced

with N

= −40. (c) there is also a negative rein-

forcement over time. Objects which have reached

= 200 are assumed to be ﬁxed and stable, but all

other ones are “feebled” by N

= −20 after every time

interval of 300 s. The latter process allowsthe robot to

“forget” inconsistent information. In Figs 7 (bottom-

right) and 8 (right column) the actual values – after

completing a task – are coded by the level of gray,

black corresponding to M

= 200.

Reinforcement serves to annotate objects in LTM

with a degree of certainty, i.e., whether detected ob-

jects were registered more times at the same position.

Since images captured with tilt T1 have a higher pre-

cision than those with T2, reinforcement values in

case of T1 are 3 times bigger than those in case of T2

(the latter are ±40 as mentioned above). The moment

when a pixel of the STM map is updated is registered

by assigning it a time stamp. The same applies to spa-

tial information in LTM, but not to registered objects.

Besides storing information about obstacles and

sandbox limits, the robot also keeps a list of refer-

ence objects it encountered along its path. These ob-

jects must be part of the known object library. Every

time the robot detects a known object (with tilt T2),

it calculates its approximate distance, comparing the

diagonal of the bounding box with that of the learned

object (learning was done at a distance of 45 cm). The

approximate distance but also the angle (object posi-

tion in the T2 image and pan angle of the head) are

used to store the object’s label in LTM relative to the

robot’s actual position and heading direction. After

detecting and storing an object for the ﬁrst time, from

then on that object will be used to re-calibrate the

robot’s position when it is detected again. In order

to re-calibrate the robot’s heading direction, at least

two known objects must be visible in one or more of

the images as indicated in Fig. 5. The re-calibration

of position and heading direction is necessary to cor-

rect accumulated errors during navigation, a more fre-

quent recognition of known objects leading to a better

precision.

3 RESULTS

The performance of the system was assessed with ﬁve

tests with a different purpose and complexity: (1) lo-

cate an object in an unknown environment; (2) as (1)

ICAART 2012 - International Conference on Agents and Artificial Intelligence

620

but with different start and object positions; (3) lo-

cate an object in an unknown environment and return

to the start position; (4) as (3) but with a new obsta-

cle while returning; and (5) locate an object in an un-

known environment, count 4 objects and return to the

start position. All remote processing was done in real-

time, using a laptop with an Intel Core2 Duo 1.3GHz

processor and 4GB of DDR3 memory.

The goal of the ﬁrst task was to test SLAM in ex-

ploration mode. The robot had to ﬁnd a grey-blue

toolbox. The robot started at the position marked by

the yellow dot in Fig. 8 (top-left), where the orange

dot marks the position of the toolbox. Task comple-

tion took 9 minutes and 21 seconds, during which the

robot built the map shown in Fig. 8 (top-right). Each

colored square in the map is a recognized object. Al-

though the goal was accomplished, the robot recog-

nized the toolbox only the third time it was encoun-

tered. This is due to the OpenSURF algorithm, which

does not work very well for untextured objects. How-

ever, all other objects were detected and recognized

several times. We may therefore conclude that SLAM

in exploration mode worked well.

The second task equalled the ﬁrst one, but with

a different target object and a different start position;

see the second line in Fig. 8. The task was accom-

plished in 10 minutes and 19 seconds, but again with

some difﬁculties in recognizing untextured objects.

With the third task we wanted to also test naviga-

tion in an already known environment, by ﬁrst build-

ing a map while localizing a target object and then re-

questing the robot to return to the start position. This

task was executed signiﬁcantly faster, in only 4 min-

utes and 8 seconds, because of the shorter path. As

in the previous tasks, the robot started by building the

map while searching for the object. Once found, it

searched for the objects it had already encountered

and returned, from object to object, until it reached the

start position. As shown in Fig. 8 (3rd row), the return

path is parallel to the forward path, which means that

the established map, saliency-based FoA and position

re-calibration are very reliable.

The fourth task was equal to the third one, but

with an unexpected obstacle on the return path; see

Fig. 8 (4th row). Task completion took a bit longer,

5 minutes and 2 seconds, because of the obstacle. In

contrast to the return path which was parallel to the

forward path in the third task, now the return path was

not parallel. The reason is that both the object marked

by the bright red square and the obstacle cause regions

with a high saliency, and the robot decided to move in

the direction of the obstacle. At close range it decided

to go between the object and the obstacle, avoiding

both.

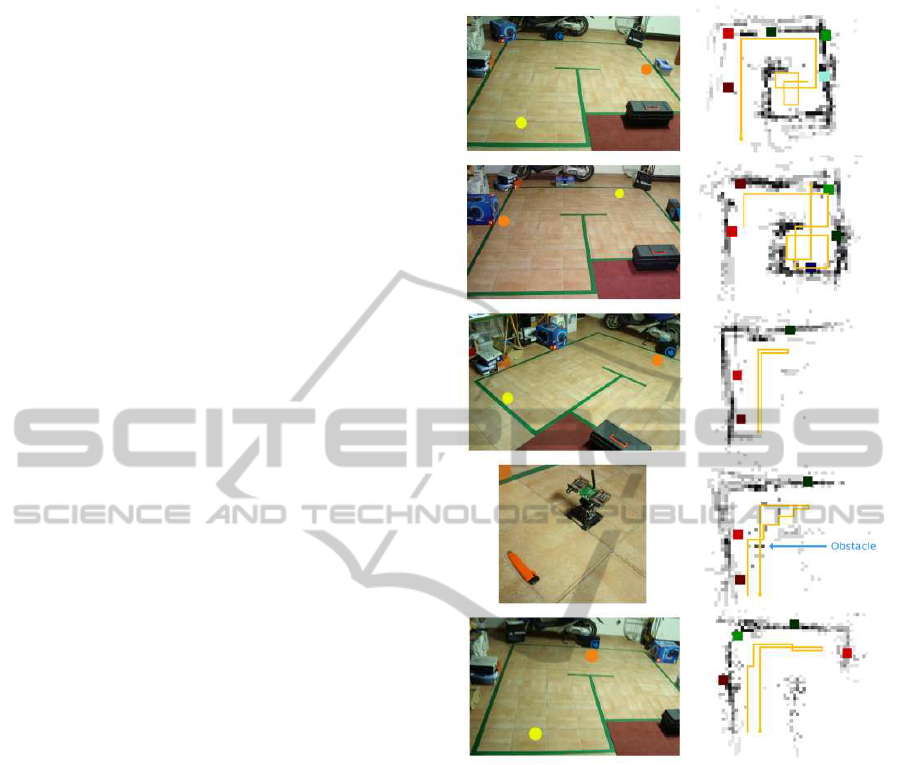

Figure 8: Top to bottom: results of tests 1 to 5. The yellow

dots in the pictures are starting points, the orange dots are

target objects. The robot’s trajectory is shown by orange

lines in the maps.

In the ﬁnal task we wanted to test the task man-

agement system. The robot was given three tasks: (a)

ﬁnd an object, (b) count four objects, and (c) return to

the starting point. Each task has its own visuomotor

block, and only one of these is executed at any time,

but during each visuomotor block the detection and

veriﬁcation functions of all three tasks are evaluated.

This last test was also successfully accomplished. The

robot started by trying to ﬁnd the requested object,

and everytime it found an object it incremented the

object counter. After ﬁnding the requested object it

still had to ﬁnd a fourth one, so it continued by going

forward. After ﬁnding the fourth object, it returned to

the starting point, “visiting” the known objects in re-

versed order. The created map is shown at the bottom

of Fig. 8.

MINIMALISTIC VISION-BASED COGNITIVE SLAM

621

4 CONCLUSIONS

We presented a cognitive robot architecture for

SLAM which integrates active vision, dual memory

and hierarchical task management. The main contri-

butions are: (a) visual saliency is used for FoA and

object recognition; (b) SLAM is directly integrated

with short- and long-term memory and affected by

time, allowing the robot to ﬁlter important informa-

tion and adapt to changes in the environment; and (c)

the task management system can build complex tasks

from simpler ones.

Regarding vision, we veriﬁed that the use of

saliency and object recognition yields a more robust

exploration, navigation also being more robust. How-

ever, monocular vision with simple solutions for dis-

tance estimation is not very precise. Therefore, a bi-

ological model for stereo disparity (Farrajota et al.,

2011) is being integrated. In addition, since object

recognition using OpenSURF is not very robust in

case of untextured objects, OpenSURF is being sub-

stituted by a biological model for multi-scale keypoint

extraction (Rodrigues and du Buf, 2006), and supple-

mented by a biological model for multi-scale line and

edge extraction (Rodrigues and du Buf, 2009). The

biological keypoint model can also supplement Fast

Saliency (Butko et al., 2008), because it adds local

image complexity to color contrast, for obtaining a

better model for FoA (Rodrigues and du Buf, 2006).

The addition of such biological models leads to a vi-

sion model which resembles the human visual system.

The system was successfully tested by using a

rather small environment, i.e., a sandbox of 3× 3.5 m,

with objects on the ﬂoor, mainly because of the

small robot platform with limited battery capacity and

speed, and a footprint of 11 × 13 cm. For testing the

system in real environments like corridors and lab-

oratory spaces, it is being mounted on a faster plat-

form with a larger battery capacity and a bigger foot-

print, but still only using a stereo camera without any

other sensors nor odometry, the camera head being

mounted on a rod with a height of about 80 cm. These

modiﬁcations allow us to test the system with also ob-

jects attached to walls and on tables, but this also re-

quires implementing and dealing with 3D egocentric

and environment maps.

ACKNOWLEDGEMENTS

This work was partially supported by the Portuguese

Foundation for Science and Technology (FCT)

project PEst-OE/EEI/LA0009/2011, EC project Neu-

ralDynamics (NeFP7-ICT-2009-6 PN: 270247), FCT

project Blavigator (RIPD/ADA/109690/2009) and by

PhD FCT grant SFRH/BD/71831/2010.

REFERENCES

Alami, R., Clodic, A., Montreuil, V., Sisbot, E. A., and

Chatila, R. (2006). Toward human-aware robot task

planning. Association for the Advancement of Artiﬁ-

cial Intelligence Spring Symposia, AAAI, page 8pp.

Brady, T., Konkle, T., Alvarez, G., and Oliva, A. (2008).

Visual long-term memory has a massive storage ca-

pacity for object details. Proc. Nat. Acad. Scie.,

105(38):14325–14329.

Butko, N., Zhang, L., Cottrell, G., and Movellan, J. (2008).

Visual salience model for robot cameras. Proc. 2008

IEEE. Int. Conf. on Rob. and Automation, pages 2398–

2403.

Evans, C. (2009). Notes on the OpenSURF Library.

Tech. Rep. CSTR-09-001. University of Bristol. URL

http://www.chrisevansdev.com.

Farrajota, M., Martins, J., Rodrigues, J., and du Buf, J.

(2011). Disparity energy model with keypoint dispar-

ity validation. Accepted for 17th Portuguese Conf. on

Pattern Recognition, Porto, Portugal.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. IEEE Trans. on Patt. Recog. and Mach. Intell.,

20(11):1254–1259.

Jos´e, J., Farrajota, M., Rodrigues, J., and du Buf, J. (2010).

A vision system for detecting paths and moving osta-

cles for the blind. Proc. Int. Conf. on Software De-

velopment for Enhancing Accessibility and Fighting

Info-exclusion, pages 175–182.

Kawamura, K., Koku, A., Wilkes, D., Peters II, R., and Sek-

men, A. (2002). Toward egocentric navigation. Int. J.

Robotics and Automation, 17(4):135–145.

Kleinmann, L. and Mertsching, B. (2011). Learning to

adapt: Cognitive architecture based on biologically

inspired memory. In Industrial Electronics and Appli-

cations (ICIEA), 2011 6th IEEE Conference on, pages

936 –941.

Meger, D., Forss´en, P., Lai, K., Helmer, S., McCann, S.,

Southey, T., Baumann, M., Little, J. J., and Lowe,

D. G. (2008). Curious George: An attentive seman-

tic robot. Rob. Aut. Sys., 56(6):503–511.

Meinert, P. (2008). The impact of previous life experience

on cognitive structure changes and knowledge acqui-

sition of nursing theory and clinical skills in nontradi-

tional nursing students. PhD Thesis, Kent State Univ.,

College of Education, Health and Human Services,

USA, page 173.

Milford, M. and Wyeth, G. (2010). Persistent navigation

and mapping using a biologically inspired slam sys-

tem. Int. J. Robotics Res., 29(9):1131–1153.

Montemerlo, M., Thrun, S., Koller, D., and Wegbreit, B.

(2002). Fastslam: A factored solution to the simulta-

neous localization and mapping problem. Proc. AAAI.

Nat. Conf. Art. Int., pages 593–598.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

622

Papauschek, C. and Zillich, M. (2010). Biologically in-

spired navigation on a mobile robot. In IEEE Int.

Conf. Robotics and Biomimetics, pages 519 –524.

Patnaik, S. (2007). Robot Cognition and Navigation: An

Experiment with Mobile Robots. Springer, 1st edition.

Ratanaswasd, P., Gordon, S., and Dodd, W. (2005). Cogni-

tive control for robot task execution. Proc. IEEE Int.

Work. Rob. Hum. Int. Com., (5):440–445.

Rensink, R. (2000). The dynamic representation of scenes.

Visual Cogn., 7(1-3):17–42.

Rodrigues, J. and du Buf, J. (2006). Multi-scale keypoints

in V1 and beyond: object segregation, scale selection,

saliency maps and face detection. BioSystems, pages

75–90.

Rodrigues, J. and du Buf, J. M. H. (2009). Multi-scale

lines and edges in V1 and beyond: Brightness, ob-

ject categorization and recognition, and conscious-

ness. Biosystems, 95(3):206–226.

Saleiro, M., Rodrigues, J., and du Buf, J. (2009). Auto-

matic hand or head gesture interface for individuals

with motor impairments, senior citizens and young

children. Proc. Int. Conf. Soft. Dev. for Enhancing

Accessibility and Fighting Info-Exclusion, pages 165–

171.

MINIMALISTIC VISION-BASED COGNITIVE SLAM

623
