POSSESSED ROBOT: HOW TO FIND ORIGINAL

NONVERBAL COMMUNICATION STYLE

IN HUMAN-ROBOT INTERACTION

Hirotaka Osawa

1,2

and Michita Imai

Faculty of Science and Technology, Keio University, 3-14-1, Hiyoshi, Kohoku-ku, Yokohama, Japan

PRESTO, Japan Science and Technology Agency, Chiyodaku, Tokyo, Japan

Keywords: Design methodology, Human Robot Interaction, Human Interface.

Abstract: We propose an alternative approach called the Possessed Robot method to find each robot's unique

communication strategies. In this approach, the human manipulator behaves as if she/he possesses the robot

and finds the optimal communication strategies based on each robot's shape and modalities. We implement

the Possessed Robot system (PoRoS) including a reconfigurable body robot, an easier manipulation system,

and a recording system to evaluate the validity of our method. We evaluate a block-assembling task by

PoRoS by turning on and off the modality of the robot's head. Subsequently, the robot's motion during

player's motion significantly increases whereas the ratio of confirmatory behaviour significantly decreases

in the head-fixed design. Based on the results, we find an example case for the optimal communication

strategy in the head-fixed design. In this case, the robot leads the users and the user follows the robot as in

the turn-taking communication style of the humanlike condition. This result shows the feasibility of the

Possessed Robot method to make appropriate strategy adjustments based on the robot design.

1 INTRODUCTION

Nowadays, robots having various kinds of shapes

and modalities can support our lives in many ways.

In this paper, we define shape as the appearance of

the robot and modality as the possible observation

and behaviour of the robot. There are still questions

about what kind of interaction is required for each

robot shape and modality (del Pobil et al., 2010)

(Blow, 2006).

Previous studies have designed and implemented

the shape and modalities of robots according to

human-human interaction. There are many studies

that referred to humanlike modalities in robots, such

as gesture (Kanda et al., 2007), manner (Lee et al.,

2010), timing (Shiwa et al., 2009), and bipedal

walking (Hirai et al., 1998). This process is

conducted as shown in the two figures on the left

side of Fig. 1. First, the researchers extract a

psychological finding from human-human

interaction and create an interaction model from it.

Second, they implement the model to a humanlike

robot. Third, they conduct an interaction between a

human and a humanlike robot and confirm that the

robot can interact as the proposed model. Such a

design method is widely used in human-robot

interaction (HRI) studies because of the following

reasons. First, the researchers can base the study on

psychological findings that have been already

investigated. Next, it is easy to compare the results

and the goals. The above-mentioned reasons and

method allow the researchers to incorporate the

contributions of previous studies.

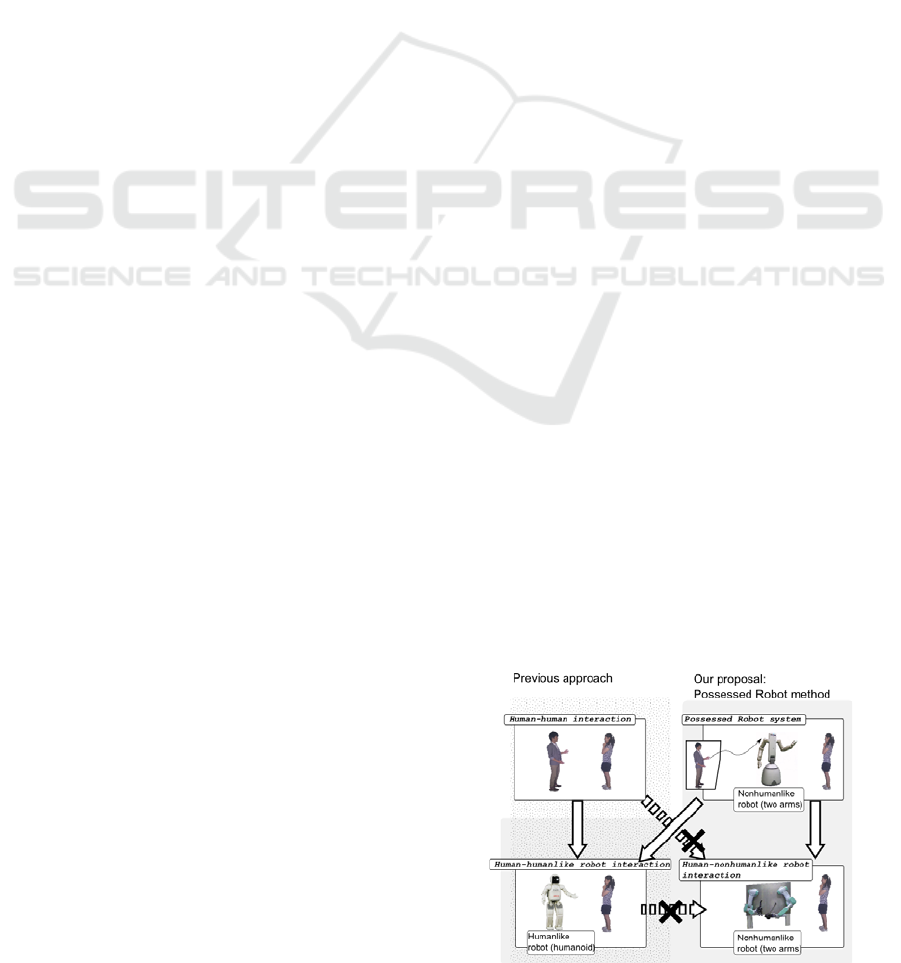

Figure 1: Difference between the previous HRI approach

and our proposal.

632

Osawa H. and Imai M..

POSSESSED ROBOT: HOW TO FIND ORIGINAL NONVERBAL COMMUNICATION STYLE IN HUMAN-ROBOT INTERACTION.

DOI: 10.5220/0003882906320641

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (SSIR-2012), pages 632-641

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

However, we cannot find the specific behaviors

of a robot that are not related to human shape and

modalities by referring to existing findings in

human-human interaction. With the above process,

we may miss the most appropriate communication

strategies for the robot if the robot and the human

modalities are not the same. We call this kind of

robot a "nonhumanlike" robot. In this paper, we use

the word "nonhumanlikeness" to describe the lack of

humanlike social appearance, such as humanlike

head and arms. Detailed examples are shown in Fig.

2 (Kanda et al., 2007) (Hirai et al., 1998) (Li et al.,

2004) (Matsukuma et al., 2004). Several HRI studies

about less humanlike robots suggest that imitating

humans is not the only approach to designing a robot.

Sometimes, we use different communication

strategies for nonhumanlike agents. One of the best

examples is the human-pet interaction. Our

interaction style with pets is different from our style

in human-human interaction and human-tool

interaction. Robots have both aspect of tools and

pets. They generate different types of interaction to

users using different shapes and modalities from that

of humans, even if the shapes and modalities are

nonhumanlike. For example, Mu, eMuu, and Social

Trash Box extracted the essence of human

interaction and created an abstracted relationship to

humans different from human-human interaction

(Matsumoto et al., 2005) (Bartneck, 2002) (Yamaji

et al., 2010). Animal robots like Paro and AIBO

result in specific interaction experiences by merging

animal-like features with the original robot's

modalities (Shibata et al., 2002) (Fujita et al., 2010).

Training with additional humanlike features of an

object allows us to use a communication strategy by

merging the original features of the object and

humanlike features (Osawa et al., 2009) (Osawa et

al., 2010). However, there is no design method to

find original communication strategies for robots

except the analogical method (i.e., deriving

metaphors and abstractions from existing design).

This shortcoming of the previous approaches

prevents us from building a robot design on human-

nonhumanlike robot interaction (right bottom area

on Fig. 1) because we cannot directly apply human-

human interaction findings to nonhumanlike robots.

We propose the Possessed Robot method to find

a specific communication strategy for a robot that

can consider its own shape and modalities. In this

approach, one person "possesses a robot,” and

behaves as if she/he is the robot while interacting

with another person. This trial-and-error interaction

process between two persons reveals original

communication strategies that are reasonable and

specific to each robot's shape and modalities. Our

approach is applicable to both humanlike and

nonhumanlike robots, shown in Fig. 1. If the

Possessed Robot method is applied to a two-arm and

headless robot, the results are also applicable to

another robot that has the same design (shown in the

right side of Fig. 1).

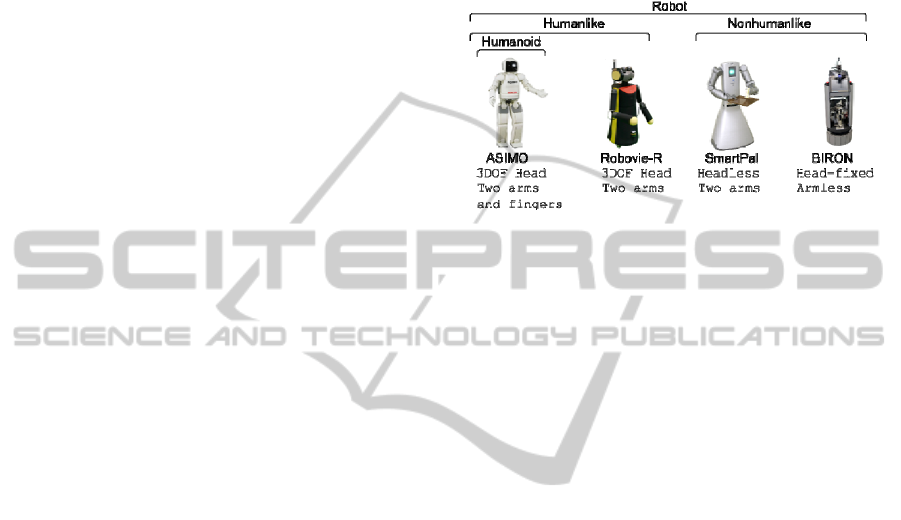

Figure 2: Different styles of robots: their shapes and

modalities.

In this paper, we implemented the Possessed

Robot demonstrative System (PoRoS) to validate

our approach. PoRoS allows the user to possess the

robot by converting the user's behavior to the robot's

output and by converting the robot's input to the

user's input. We evaluated our proposal with

demonstrative tasks to instruct a user on how to

assemble a building from wooden blocks using a

robot by changing the robot head modality. A

humanlike robot with head modality resembles

human modalities and allows us to use conventional

communication strategies, such as nodding and

shaking motions. However, a humanlike robot

without head modality requires different

communication strategies that cannot be achieved

with the existing human communication theory.

Headless or head-fixed robots, such as BIRON and

SmartPal, are also popular (Li et al., 2004)

(Matsukuma et al., 2004). The demonstrative task

also answers what kind of communication strategies

are more appropriate to the commonly used headless

robots.

The following sections are organized as follows.

Section 2 explains the differences between related

methods and studies (Wizard of Oz, teleoperation

robot, and marionette system) and the Possessed

Robot method. Section 3 explains the design process

of the Possessed Robot method, and section 4

explains in detail the implementation of PoRoS

(Possessed Robot System) for realizing the

Possessed Robot method. In section 5, we explain

the evaluation of PoRoS and the results are

presented in section 6. In sections 7 and 8, we

discuss the results and the conclusions, respectively.

POSSESSED ROBOT: HOW TO FIND ORIGINAL NONVERBAL COMMUNICATION STYLE IN HUMAN-ROBOT

INTERACTION

633

2 RELATED STUDIES

In spite of differences in policy, there are several

similarities between previous approaches and ours.

In this section, we compare our work to related

studies and clarify our contribution.

2.1 Wizard of Oz

The Wizard of Oz (WoZ) method is widely used in

evaluating computer interfaces (Kelley et al., 1984).

This method uses human manipulator as sensors to

avoid unessential errors from the evaluation. The

WoZ experiment method is also widely used in the

field of HRI. Steinfeld et al. inferred several

consequential evaluation methods (called Oz of

Wizard) from WoZ for evaluating robots behavior

(Steinfeld et al., 2009).

WoZ uses a human manipulator as part of the

experimental system instead of being autonomous.

The manipulator behaves as the decision maker in

the system and selects the system behaviour from a

determined list. Consequently, the role of the human

manipulator in WoZ is restricted to replace sensor

actions. The manipulator cannot select behaviours

that are not known in advance. In contrast, a human

manipulator plays a more important role in the

Possessed Robot method because its goal is to find

optimal communication strategies and robot designs.

The entire robot input and output are directly

connected to the manipulator, and the manipulator

behaves as an intelligent computer in finding the

most optimal communication strategies for each task

using the specific robot shape and modalities.

2.2 Teleoperation Robot

Teleoperation robot studies also use manipulated

robots. The robot design is sometimes verified and

analyzed by recorded results. Kuzuoka et al.

discussed the optimal instructions in teleoperation

(Kuzuoka et al., 2000). However, teleoperation

studies themselves are not designed to find the

optimal communication strategies in autonomous

robotic systems. If the system behaves

autonomously, it is not teleoperation anymore.

Several research groups proposed to use

teleoperation to complement an autonomous robot.

Glas et al. proposed to use a human manipulator to

guide the robot (Glas et al., 2008). In their approach,

the robot behaviour is replaced by the human

manipulator if the task is hard for the robot to solve.

Thus, a human manipulator can temporarily possess

the robot. However, their study only focused on

improving the task performance in a real world

human-robot interaction. This approach did not

focus on feedback to optimize communication

strategies. They also hypothesized that the robot

might use humanlike modalities in the future. Other

robot possibilities are also not well discussed in their

paper.

2.3 Marionette and Digital Puppetry

Marionette is a well-known art for making puppets

behave lifelike (they are sometimes humanlike and

sometimes nonhumanlike). Currently, the possibility

of interactive marionettes is accelerated by

technology. They are called Digital Puppetries. This

kind of system allows us to control humanlike and

nonhumanlike robots (Lee et al., 2009). Turtle Talk

with Crush is the most successful marionette in the

commercial field (Disney, 2004). It is a screen agent

that interactively changes its face and behaviour

according to people's responses.

However, these studies are specialized to each

robot's shape and modalities. Manipulation requires

not a small amount of training time although

interface is supported by today's technologies. This

marionette system is not appropriate for the trial-

and-error approach that required in our method.

3 DESIGNING THE POSSESSED

ROBOT METHOD

Possessed Robot method is a design method

conducted by two participants. One participant

possesses a robot and behaves as if she/he is the

robot. Another participant interacting with robot.

Based on the differences to previous studies

mentioned in above section, we estimate that the

following three sub goals are required to perform the

Possessed Robot method. First, the Possessed Robot

method requires a reconfigurable robot body to

examine all kinds of robot shapes and modalities.

Second, the manipulation method must be easy for

the human manipulator to allow frequent trial-and-

error efforts. Third, the system requires recording

the interaction between the robot and the human for

later analysis.

The entire design process is described below:

 Select the robot input and output, and

configure the robot shape and modalities.

 Assign two persons as the manipulator (who

possesses the robot) and the player (who

follows the robot).

ICAART 2012 - International Conference on Agents and Artificial Intelligence

634

 Connect the robot input and output to the

manipulator. All connections are required to

be understood and controlled by humans.

 Two persons interact via the robot and

conduct a task cooperatively. They repeatedly

try to interact and gradually find the most

optimal communication strategies for the task.

The system records the entire interaction.

 The evaluators analyze the result of the

interaction and the kind of modalities, which

are the most and least required. We also

compare the results with the human-human

interaction findings, which is the original

interaction setup for the robot.

This process brushes up the robot design. If we

require a more detailed analysis, we can also select

more optimal shapes and modalities with the results

from process 5, and repeat the entire process.

4 DESIGNING POROS FOR

POSSESSED ROBOT METHOD

We implemented PoRoS (Possessed Robot

demonstrative System) to estimate the validity of our

process. We used a reconfigurable robot, a

monitoring device to capture movement, and a

recording system to solve the sub goals mentioned in

the previous section.

4.1 A Reconfigurable Robot that

Allows us to Use Variable Shape

and Modalities

In the Possessed Robot method, we can evaluate not

only the humanlike robot shape and modalities but

also any kind of shapes and modalities. For

evaluating the Possessed Robot method clearly and

rapidly, we created a robot kit that has separate body

parts and allows variable shapes and modalities. The

kit includes three axis heads and two four-axis arms.

Each head has three motors. Each arm has two

motors on the root of the device to achieve

movements toward the pitch and yaw directions of

the arm. It has also two motors on the tip to achieve

movement toward the pitch and roll directions of the

hand.

These devices are attachable and detachable by

Velcro tapes. Each head and arm are wired and

connected to a microcomputer, and can be separately

turned on and off. The total axes of the kit are

sufficient to reproduce normal humanlike robots. If

you want to turn off the modality of the head of the

robot, just turn off the switch and the robot stops

controlling the head. If you want a different

humanlike robot shape, you can detach each part and

attach it on a different position. In the experiment,

we assigned each part as in Fig. 3 left and compared

the communication strategies of the humanlike robot

by turning on and off the head of the robot.

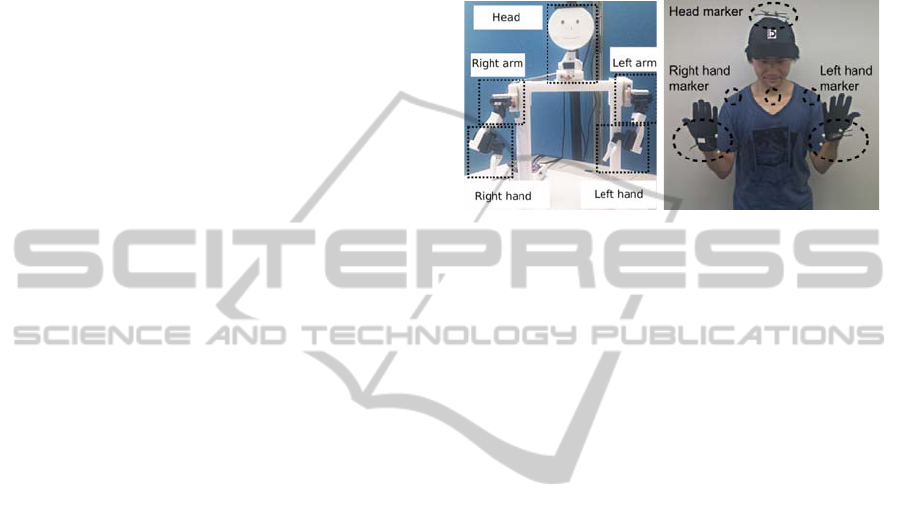

Figure 3: Implemented reconfigurable robot on PoRoS

system and motion capture markers on a participant.

4.2 Monitoring Device using the

Motion Capture System

To use a human as the controller of the robot, we

need to monitor the behaviour of the human

manipulator and feedback the robot with it. We used

a motion-capturing system for feedback from the

human manipulator because it is easy to understand

how to move a robot. In this system, we used seven

motion-capturing cameras (OptiTrack s250e

(Natural Point, 2010)) for tracing the human head

and hands. Each human body part is captured and

converted to robot body movement as described

below:

 Head: The system extracts three angles (yaw,

pitch, and roll) of the head and assigns them to

the robot's head movement.

 Arm: The system calculated the robot's arm

angles (yaw and pitch) by a vector from the

head position to the hand position.

 Hand: The system calculates the robot's hand

angles (pitch and roll) by directions of the

user's head.

Each marker is attached to the human body as in

Fig. 3 right. Head markers are attached on the top of

the manipulator's head. Hand markers are attached

on the back of the manipulator's hands.

All origins are calculated as in Fig. 4. First, the

system calculates the centre of the human body

using the top of the head. The average position of

the centre of the body is 300 mm below the head top.

Second, the system calculates the origins of the right

and left arm from the centre of the body. Each origin

is on average 200 mm from the centre of the body.

POSSESSED ROBOT: HOW TO FIND ORIGINAL NONVERBAL COMMUNICATION STYLE IN HUMAN-ROBOT

INTERACTION

635

We can estimate that the origins of the arms are

stable because the manipulator stands in front of the

video and does not change her/his shoulder angle.

Third, we calculate the arms' vectors from each

angle and arm's length (average 500 mm). Last, we

assign the hands' directions toward the pitch and roll

axis of the robot's hands.

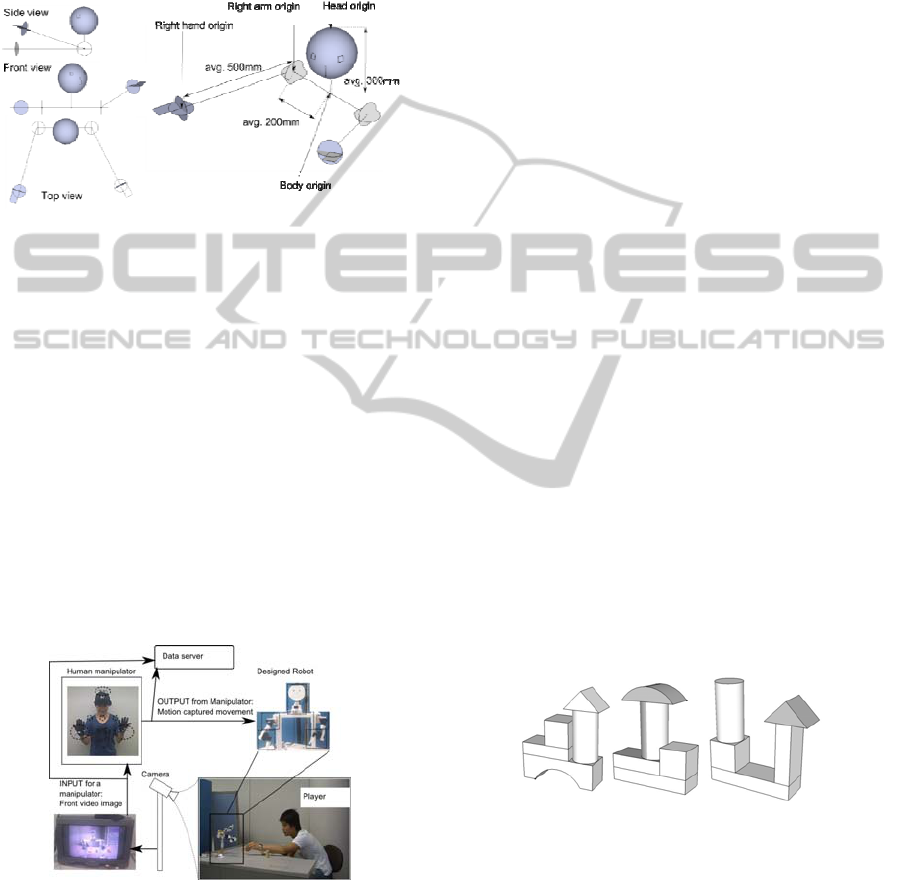

Figure 4: Calculation method for the position of each part.

4.3 System Connections

All modules are connected as in Fig. 5. In PoRoS,

the input data to the human manipulator is the video

image and the output data from the human

manipulator are the motion-capturing data and

angles of each motor. The latency from the robot to

the user is below 200 ms and this delay does not

cause any critical communication problems. All

input (video) and output (motor angles) data are

stored to the data server for later analysis.

Note that this PoRoS system is just one example

of realizing the Possessed Robot method and we can

select other inputs (motion-captured data by the

player) and output method (joystick) for other

implementations.

Figure 5: System implementation.

5 EXPERIMENT TO EVALUIATE

THE POSSESSED ROBOT

METHOD USING POROS

To research how our method evaluates the design

and modalities of a nonhumanlike robot, we

compared human-humanlike robot and human-

nonhumanlike robot interaction using the PoRoS

robot. In nonhumanlike robot interaction, we fixed

the head of the robot to decrease the modalities for

confirmation. We also prohibited verbal

communication during interaction to emphasize the

role of the head.

As a demonstrative task, we also setup the

assembly of wooden blocks to evaluate our method.

5.1 Pre-evaluation for Creating

Evaluation Method

Humans nod for confirmation. Nodding is conducted

by the human head. Head nodding has a regulatory

role in turn-taking in human-human communication

and human-computer interaction (Sacks et al., 1974)

(Cassell et al., 1999).

At first, we examined what kind of procedures

humans apply to make buildings by observing

human-human interaction. We gathered six

participants for this evaluation and assembled three

sets of pairs from them. One of the members of a

pair took the role of the manipulator. Another

member took the role of a player. The manipulator

instructed the player to build three kinds of buildings

as shown in Fig. 6. All examples in Fig. 6 consisted

of five kinds of blocks. First, the manipulator

watches the buildings in Fig. 6. Second, she/he sat

down in front of the player. Last, she/he instructed

the player how to construct the buildings. All

manipulators were prohibited to directly touch the

blocks. The number of instructions during the

evaluation is between five and eight and the

construction time is between 30 s and 60 s.

Figure 6: Example buildings.

The result confirmed that human-human

interaction is based on turn-taking strategies. Each

pair's turn-taking happened according to each user's

nodding and shaking motion.

In detail, the processes are as follows. In the first

turn, the player pointed out one of the blocks. If the

block was the right one, the manipulator nodded and

communication continued to the next turn. If the

block was wrong, the manipulator shook her/his

head and the player repeated the first turn. In the

ICAART 2012 - International Conference on Agents and Artificial Intelligence

636

second turn, the player brought the block to the

manipulator and the manipulator directed the player

to rotate the block. Then, the player put the block on

the building. If the placed position and direction was

right, the manipulator nodded and communication

returned to the first turn until they completed the

building. If the position or direction was wrong, the

manipulator shook her/his head. Then, the player

placed the block on the desk and repeated the second

turn.

5.2 Evaluation Method and Hypothesis

Based on the findings from the previous sections, we

compared the humanlike group and head-fixed

group for validating the proposed method. In the

humanlike group, the manipulator could handle the

PoRoS robot without any restrictions. However, in

the head-fixed group, the neck motor switches were

turned off by the system and the manipulator could

not control them.

This restriction forced both manipulator and

player to use other confirmatory behaviours for turn-

taking or it forced both persons to use different

communication strategies. When they selected

communication strategies other than the turn-taking

method, the confirmatory behaviour decreased in the

head-fixed group.

5.3 Environment for the Experiment

The experimental setup is shown in Fig. 7. The

manipulator and the player are in separate rooms.

The robot is fixed on a desk and placed in front of

the player. There are eight blocks on the desk

between the player and the robot. The viewpoints of

the camera and the robot are located in the same

direction. The manipulator can confirm the face of

the player. All input and output data are recorded

and stored in the data server for later analysis.

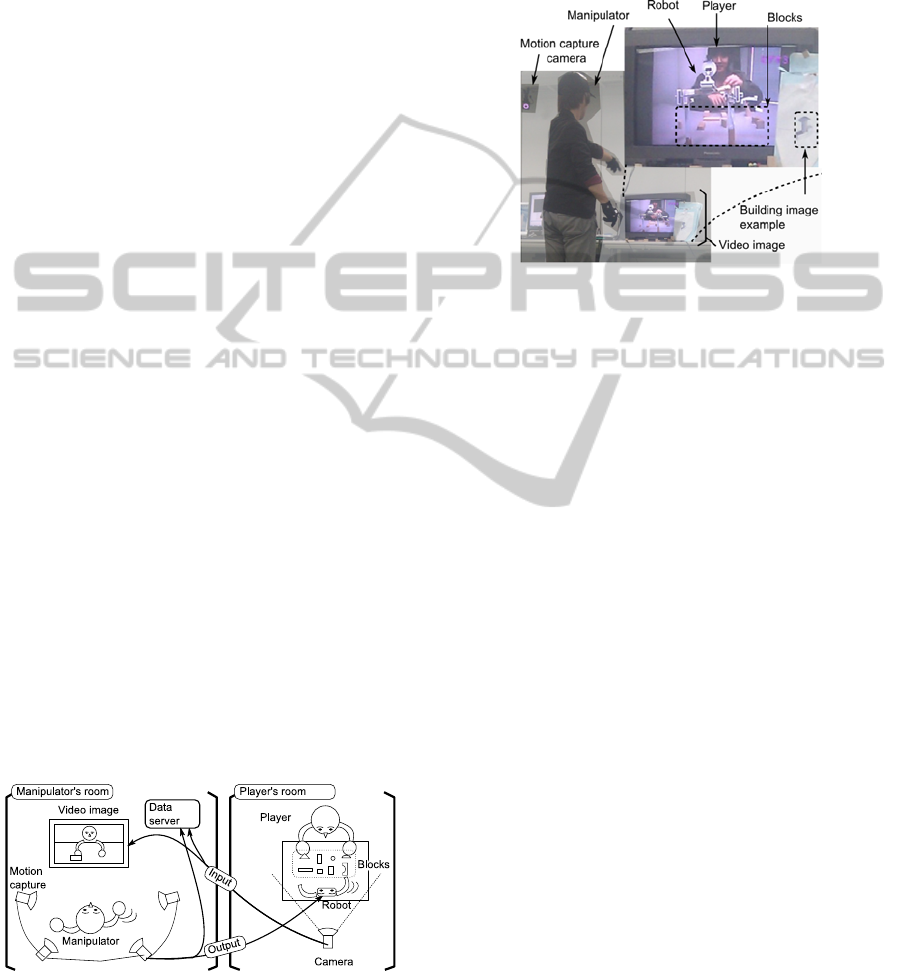

Figure 7: Experimental setup.

We show the scene of manipulation in Fig. 8.

The manipulator is standing on the left side of Fig.

8. Motion-capturing cameras surround him. The

video screen is in front of the manipulator and the

screen shows the robot, the blocks, and the player as

shown in the right top part of Fig. 8. An image of the

building is pasted on the right side of the screen, and

the manipulator instructs the player how to assemble

the blocks via the robot.

Figure 8: Experimental scene.

5.4 Participant and Experimental Flow

Thirty-six participants participated in the

experiment. There were 34 males and 2 females. We

assigned 18 participants (including one female) to

the humanlike group and the remaining 18

participants to the head-fixed group. Eighteen

participants on each group were paired (a

manipulator and a player). Each group had nine

pairs.

The experiment was divided into the testing

phase and the recording phase. Before the

experiment, we instructed the participants as

follows: "In this experiment, you need to create

general communication strategies for the robot with

the assembling task. Do not use any kind of code

that is incomprehensible to other person." This

instruction served the purpose to keep the designed

communication strategies general.

At first, each manipulator calibrated the robot

parameters to the scale of his/her body. Then, the

pairs started the testing phase. During this phase,

each manipulator gave instructions for any kind of

buildings she/he could imagine. The members in

each pair made trial-and-errors efforts and improved

their communication strategies.

When the pair determined that they could not

improve their manipulation time anymore, the

experiment moved to the recording phase. We

assigned the manipulator one of the three examples

in Fig. 6 and recorded the interaction. The pair

required to assemble the building within 300 s.

When the recording finished, each participant

answered the questionnaire and the experiment was

POSSESSED ROBOT: HOW TO FIND ORIGINAL NONVERBAL COMMUNICATION STYLE IN HUMAN-ROBOT

INTERACTION

637

terminated.

5.5 Prediction: Overlapped Time Ratio

and Confirmation Ratio

Pre-evaluation confirmed that turn-taking behaviour

was used in human-human interaction with

instructions on how to assemble the blocks. The

evaluation also revealed that head movement played

a key role on regulating turn taking. However, turn

taking itself is difficult to evaluate by video

recording data, especially when this evaluation lacks

verbal cues.

We used the overlap time ratio as an indicator of

turn-taking behaviour between each manipulator and

player. A previous HRI study using humanoids

showed that the increase in overlapped verbal cues

of both persons suggests failure of turn taking (Chao

et al., 2010). We extended this idea to nonverbal

situations. If turn taking took place without any

problems, the behaviour of the robot and the human

did not overlap. In contrast, if turn taking did not

succeed, the overlapped time ratio increased. In this

paper, we defined overlapped time ratio as robot's

moving time during user's lifting per user's lifting

time. Note that the failure of turn taking does not

directly mean failure of communication. If the task

is successfully completed, this increased overlapped

time suggests different communication strategies

between the manipulator and the player.

We used the player's lifting block time to

monitor the player's behavioural time. We counted

the behavioural time from the input video-recorded

data. We used the robot's moving time to monitor

the manipulator behavioural time. When the motor

moves more than ten angles in 1 s, we counted this

as the behavioural time of the manipulator. The

behavioural time of the player did not include the

suspending time in air. However, if there was a

difference in the overlapped time between the

humanlike and the head-fixed group, this difference

suggested that the two groups used different turn-

taking methods.

Our predictions for the head-fixed group in

comparison with the humanlike group are the

following:

 Prediction 1: The overlapped time ratio will

increase depending on the failure of the turn-

taking behaviour.

 Prediction 2: The ratio of confirmatory

behaviours will decrease.

In the head-fixed group, we asked the

manipulator questions such as "Did you use

confirmatory behaviour? If so, what kind of

confirmation did you use?".

6 RESULTS

One male pair in the humanlike group and two male

pairs in the head-fixed group could not finish

assembling the blocks. Other pairs succeeded in this

task.

The average overlapped time ratio in the

humanlike group is .608 (SD = .062). The average

overlapped time ratio in the head-fixed group is .761

(SD = .125). We applied the Welch t-test to both

groups and the p-value is .0043 < .05. This statistical

result shows that the overlapped time ratio in both

groups is significantly different. This result supports

the first prediction. The overlapped time ratio is

shown in Fig. 9. When we removed the failed pairs,

the average overlapped time ratio in the humanlike

group is .792 (SD = .132) and the overlapped time

ratio in the head-fixed group is .132 (SD = .151).

The p-value from the Welch's t-test is .01 < .05,

which also suggests significant difference.

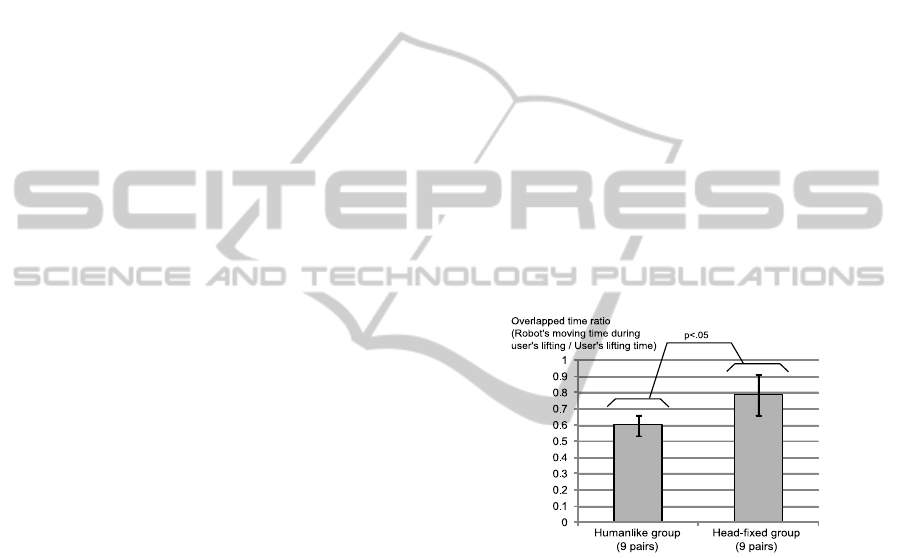

Figure 9: Overlapped time during humanoid and hand

robot.

The questionnaires after the experiment showed

that all manipulators in the humanlike group used

head nodding and shaking for confirmation. In

contrast, nine manipulators in the head-fixed group

raised their hand for confirmation and shook their

hand for denying. Two manipulators in the head-

fixed group answered that they did not use

confirmation in their communication. Based on this

result, we counted the raising and shaking hands as

confirmation in the head-fixed group.

The players use two kinds of confirmations

before and after lifting the blocks. Confirmation

before lifting the blocks (before-confirmation) was

used to point which block is right or wrong.

Confirmation after lifting the blocks (after-

confirmation) was used to point which location and

direction is right or wrong. We counted both

ICAART 2012 - International Conference on Agents and Artificial Intelligence

638

confirmations.

The average before-confirmation ratio is .63 (SD

= .22) in the humanlike group and .09 (SD = .19) in

the head-fixed group. We applied Welch's t-test to

both groups and the results showed p-values

of .00003, which is less than .0001. When we

removed the failed pairs, the average before-

confirmation ratio is .62 (SD = .22) in the humanlike

group and .11 (SD = .20) in the head-fixed group.

The p-value of the Welch's t-test is .0006, which is

less than .001 and suggests significant difference.

The average after-confirmation ratio is .78 (SD

= .21) in the humanlike group and .30 (SD = .24) in

the head-fixed group. We applied Welch's t-test to

both groups and the result showed p-values of .0005,

clearly smaller than .001. When we removed the

failed pairs, the average before-confirmation ratio

is .78 (SD = .23) in the humanlike group and .28

(SD =.25) in the head-fixed group. The p-value of

the Welch's t-test is .001 < .005, suggesting

significant difference.

We also counted the manipulation time including

the before- and after-confirmation of the robot and

the lifting time of the player. The average time is 7.7

s (SD = 2.4 s) in the humanlike group and 12.8 s

(SD = 5.0 s) in the head-fixed group. We applied

Welch's t-test and found significant difference (p

= .017 < .05). When we removed the failed pairs, the

average time is 7.1 s (SD = 1.8 s) in the humanlike

group and 13.3 s (SD = 5.4 s) in the head-fixed

group. The p-value of the Welch's t-test is .02 < .05,

suggesting significant difference.

In contrast, the average lifting action is 10.9 (SD

= 6.0 s) in the humanlike group and 13.2 (SD = 10.8

s) in the head-fixed group. We applied Welch's t-test

and found no significant difference (p = .58 > .05).

When we removed the failed pairs, the average

lifting numbers were 9.1 (SD = 3.0 s) in the

humanlike group and 8.4 (SD = 2.9 s) in the head-

fixed group. The p-value of the Welch's t-test is .65

> .10, which suggests no significant difference.

7 DISCUSSION

7.1 Predictions

We found significant differences in the overlapped

time ratio and confirmation ratio with and without

the failed pairs. These results support our

predictions.

Pairs in the humanlike group follow the player-

first protocol. After the lifting motion, the player

sometimes skipped to check the movement of the

robot when they rotated a block and placed it.

Confirmation by the robot is sent after the placement

in this case. The manipulator usually confirmed

every movement of the player. In eight pairs of the

humanlike group, the manipulator first pointed the

target, the player subsequently pointed the same

target, and then the robot confirmed. The failed pair

skipped first pointing and it caused more misses.

They spent their entire 300 s and the task failed. The

recorded video also shows that almost player used

turn-taking style strategies because the player

watched the robot periodically.

In contrast, the pairs in the head-fixed group

follow the robot-first protocol. The manipulator in

the head-fixed group sometimes omitted the before-

confirmation. In this case, when the robot pointed to

a block and the player took it, the player moved the

block while observing and following the movement

of the robot's arms without any confirmation. The

manipulator also omitted the after-confirmation and

moved on to the next block. However, omission is

happened more in before-confirmation than in after-

confirmation. The recorded video also supports that

they used following the robot strategy because the

player carefully watched the robot during the lifting

time.

The manipulation time including lifting time

significantly increased in the head-fixed group more

than the humanlike group. Based on the video

recording, this result suggests that each manipulation

time increased in the head-fixed group because they

watched the robot motion and followed it. The

insignificant difference on the lifting action suggests

that the assembling order process is not influenced

by the change of modalities. These two results

suggest that the change in the head modality did not

drastically change the entire communication strategy

only the manipulation strategy from the turn-taking

style to following the robot style.

These findings support our hypothesis that the

turn-taking strategy changed in the head-fixed

group. In the head-fixed group, they used robot-

leading strategies. We estimate that the limited

confirmation modalities forced the pairs to use

robot-leading interaction.

7.2 Discussion about the Design

Process

The entire design process discussed in Section 3

supports the fact that we can have an alternative

communication strategy for nonhumanlike robots

using the Possessed Robot method.

The Possessed Robot method shows the potential

POSSESSED ROBOT: HOW TO FIND ORIGINAL NONVERBAL COMMUNICATION STYLE IN HUMAN-ROBOT

INTERACTION

639

power of the human computation in robot design.

The human brain is the most intelligent computer we

can access. It has the most flexible learning and

most sophisticated communication algorithms. It can

provide the most appropriate response to

unpredicted situations. For example, we estimated

that the manipulator needed a lot of calibration time

even for the motion-capturing system. However, the

manipulator quickly customized to the robot body

and could behave as if she/he was robot.

We also made variations of design process by

different usage of human resources. Participants'

free-writings in the questionnaire suggests that

swapping the manipulator and the player during the

design process will reduce the thinking time. The

questionnaire from the manipulator also suggests

that usage of a third person who does not know the

purpose will increase the generality of the strategy.

7.3 Limitations and Future Work

The purpose of this paper is to evaluate the validity

of our method by assembling a block task. Our

results show one example of the head-fixed design

with no verbal cues leading the robot-first

instructions. From the experimental conditions, we

infer that this change in the communication

strategies is caused by the lack of confirmatory

modalities in the head-fixed robot. Our experiment

only uses nonverbal communication. Our findings

may be useful if the field where verbal interaction

costs lead to high cognitive load (like rescue and

guiding robots). However, the result cannot be

directly applied to human-robot interaction studies if

verbal cues are used.

Our findings from the experiment may need

further research to show their general applicability,

however, our method validates the usefulness of the

Possessed Robot method in HRI studies because it

can find different communication strategies in

human-nonhumanlike robot interaction. Such

different strategies are hard to find in the previous

approaches that designed and implemented robot

shapes and modalities according to human-human

interaction. Our results suggest that the robot-

leading design may be optimal in the case of

headless or head-fixed design robots, such as

SmartPal and BIRON (Li et al., 2004) (Matsukuma

et al., 2004). It is also possible to assemble

guidelines (what design is reasonable and what

design is unpredictable) using Possessed Robot

method. These guidelines reduces useless

investment for development of robot's interface.

In future, we also need to discuss how to find

optimal ways to connect the robot I/O to human I/O.

In this experiment, we started our simplified

demonstration from the viewpoint of decreased

human design. Even if the human is a powerful

problem solver, we estimate that it is still difficult to

handle additional input and output that do not come

to humans natively. We predict that studies about

prosthesis and augmented human technologies will

expand the possibility of human scale.

8 CONCLUSIONS

We proposed an alternative approach called the

Possessed Robot method to find a robot's unique

communication strategy. Previous robot shapes and

modalities are designed by imitating human-human

interaction. This approach has restricted robot design

and behaviour within the limitations of the possible

human modalities. In our approach, the human

manipulator behaves as if she/he possesses the robot

and finds the optimal communication strategies

based on the shape and modalities of the robot.

We implemented the Possessed Robot system

(PoRoS) including a reconfigurable body robot, an

easier manipulation system, and a recording system

to evaluate the validity of our method. We evaluated

the block-assembling task by PoRoS with turning on

and off the modality of the robot head.

Synchronized motion significantly increased in

the head-fixed design, and the ratio of confirmatory

behaviour significantly decreased. Based on the

results, we find an example case for the optimal

communication strategy in the head-fixed design. In

this case, the robot leads the users and the user

follows the robot compared with the turn-taking

communication style in the humanoid condition.

This result shows the feasibility of the Possessed

Robot method in finding the appropriate strategy

according to each robot design.

ACKNOWLEDGEMENTS

This work was supported by the JST PRESTO

program.

REFERENCES

del Pobil, A. P., and Sudar, S. 2010. Lecture Notes of the

Workshop on the Interaction Science Perspective on

HRI: Designing Robot Morphology, at ACM/IEEE

Human Robot Interaction http://www.robot.uji.es/

ICAART 2012 - International Conference on Agents and Artificial Intelligence

640

research/events/hri2010

Blow, M., Dautenhahn, K., Appleby, A., Nehaniv, C., and

Lee, D. 2006. Perception of Robot Smiles and

Dimensions for Human-Robot Interaction Design, In

Proceedings of the 15th IEEE Int Symposium on Robot

and Human Interactive Communication, IEEE,

469-474.

Kanda, T., Kamasima, M., Imai, M., Ono, T., Sakamoto,

D., Ishiguro, H., and Anzai, Y. 2007. A humanoid

robot that pretends to listen to route guidance from a

human. Autonomous Robots, 22, 1, 87–100.

Lee, M. K., Kiesler, S., Forlizzi, J., Srinivasa, S., and

Rybski, P. 2010. Gracefully mitigating breakdowns in

robotic services. In Proceedings of Human Robot

Interaction, 203-210.

Shiwa, T., Kanda, T., Imai, M., Ishiguro, H., and Hagita,

N., 2009. How Quickly Should a Communication

Robot Respond? Delaying Strategies and Habituation

Effects. International Journal of Social Robotics, 1, 2,

141-155.

Hirai, K., Hirose, M., Haikawa, Y., and Takenaka, T.,

1998, The development of honda humanoid robot, In

proceedings of the IEEE Intl. Conf. on Robotics and

Automation (ICRA), 1321–1326.

Li, S., Kleinehagenbrock, M. Fritsch, J. Wrede, B. and

Sagerer, G., 2004. "BIRON, let me show you

something": evaluating the interaction with a robot

companion, In proceedings of the IEEE International

Conference on Systems, Man and Cybernetics, 3,

2827- 2834.

Matsukuma, K., Handa, H., and Yokoyama, K., Vision-

based manipulation system for autonomous mobile

robot ‘SmartPal’, 2004. In Proceedings of Japan

Robot Association Conference. 3D28.

Matsumoto, N., Fujii, H., Goan, M., and Okada. M., 2005.

Minimal communication design of embodied interface.

In proceedings of the International Conference on

Active Media Technology (AMT), pp.225-230 (2005).

Bartneck, C. 2002, eMuu – An InterFace for the

HomeLab, In Poster at the Philips User Interface

Conference (UI2002)

Yamaji, Y., Miyake, T., Yoshiike, Y., De Silva, P. R. S.,

and Okada. M., 2010. STB: human-dependent sociable

trash box. In Proceedings of Human Robot

Interaction. 197-198.

Shibata T., Mitsui, T., Wada, K., and Tanie, K., 2002.

Subjective Evaluation of Seal Robot: Paro –

Tabulation and Analysis of Questionnaire Results -,

Journal of Robotics and Mechatronics, 14, 1, 13-19.

Fujita, M. and Kitano, H. 1998. Development of an

Autonomous Quadruped Robot for Robot

Entertainment, Autonomous Robots, 5, 7-18.

Osawa, H., Ohmura, R., Imai, M., 2009. Using Attachable

Humanoid Parts for Realizing Imaginary Intention and

Body Image, International Journal of Social Robotics,

1, 1 , 109-123.

Osawa, H., Orszulak, J., Godfrey, K. M., Coughlin, J.,

2010. Maintaining Learning Motivation of Older

People by Combining Household Appliance with a

Communication Robot, In Proceedings of the

IEEE/RSJ International Conference on Intelligent

Robots and Systems (IROS), 5310-5316.

Kelley, J. F., 1984. An iterative design methodology for

user-friendly natural language office information

applications. ACM Transactions on Office Information

Systems, 2, 1, 26–41.

Steinfeld, A., Jenkins, O. C., and Scassellati, B., 2009. The

oz of wizard: simulating the human for interaction

research. In Proceedings of the 4th ACM/IEEE

international conference on Human robot interaction

(HRI '09). ACM, 101-108.

Kuzuoka, H., Oyama, S., Yamazaki, K., Suzuki, K., and

Mitsuishi, M., 2000. GestureMan: A Mobile Robot

that Embodies a Remote Instructor's Actions, In

Proceedings of Computer Supported Cooperative

Work, 155-162.

Glas, D. F., Kanda, T., Ishiguro, H., and Hagita, N., 2008.

Simultaneous Teleoperation of Multiple Social

Robots, In Proceedings of Human-Robot Interaction,

311-318.

Lee, J. K., Stiehl, W. D., Toscano, R. L., and Breazeal, C.

2009. Semi-Autonomous Robot Avatar as a Medium

for Family Communication and Education. In

Proceedings of Advanced Robotics. 1925-1949.

Disney, 2004. Turtle Talk with Crush, http://disneyland.

disney.go.com/disneys-california-adventure/turtle-talk

-with-crush/?name=TurtleTalkEntertainmentPage

NaturalPoint, OptiTrack s250e, 2010, http://www.natural

point.com/optitrack/products/s250e

Sacks, H., Schegloff, E. A., and Jefferson, G. 1974. A

simplest systematics for the organization of turn-

taking for conversation. Language, 50, 696-735.

Cassell, J. and Thórisson, K. R. 1999. The Power of a Nod

and a Glance: Envelope vs. Emotional Feedback in

Animated Conversational Agents. Applied Artificial

Intelligence, 13, 519-538.

Chao, C., and Thomaz, A. L., 2010. Turn Taking for

Human-Robot Interaction, In Proceedings of AAAI

Fall Symposium (Applied Artificial Intelligence)

POSSESSED ROBOT: HOW TO FIND ORIGINAL NONVERBAL COMMUNICATION STYLE IN HUMAN-ROBOT

INTERACTION

641
