REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN

Roadmap Planning Meets Reinforcement Learning

Mikhail Frank, Alexander F

orster and J

urgen Schmidhuber

Dalle Molle Institute for Artiﬁcial Intelligence (IDSIA), CH-6928 Manno-Lugano, Switzerland

Facolt

a di Scienze Informatiche, Universit

a della Svizzera Italiana, CH-6904 Lugano, Switzerland

Dipartimento Tecnologie Innovative, Scuola Universitaria Professionale della Svizzera Italiana

CH-6928 Manno-Lugano, Switzerland

Keywords:

Roadmap planning, Reinforcement learning, Collision avoidance, Robotics framework.

Abstract:

Prevalent approaches to motion synthesis for complex robots offer either the ability to build up knowledge

of feasible actions through exploration, or the ability to react to a changing environment, but not both. This

work proposes a simple integration of roadmap planning with reﬂexive collision response, which allows the

roadmap representation to be transformed into a Markov Decision Process. Consequently, roadmap planning

is extended to changing environments, and the adaptation of the map can be phrased as a reinforcement learn-

ing problem. An implementation of the reﬂexive collision response is provided, such that the reinforcement

learning problem can be studied in an applied setting. The feasibility of the software is analyzed in terms of

runtime performance, and its functionality is demonstrated on the iCub humanoid robot.

1 INTRODUCTION

Currently available industrial robots are employed to

do repetitive work in structured environments, and

their highly specialized nature is therefore unprob-

lematic, or even desirable. However the next gener-

ation of robot helpers is expected to tackle a much

wider variety of applications, working alongside peo-

ple in homes, schools, hospitals, and ofﬁces. The

hardware exists already. State-of-the-art humanoid

robots such as the NASA/GM Robonaut 2 (Diftler

et al., 2011), the Willow Garage Personal Robot 2

(http://www.willowgarage.com), the iCub from the

Italian Institute of Technology (IIT) (Metta et al.,

2008), and Toyota’s Partner Robots (Takagi, 2006;

Kusuda, 2008) are impressive machines with many

degrees of freedom (DOFs). Physically speaking,

they should be capable of doing a much wider va-

riety of jobs than their industrial ancestors. Behav-

iors however are still programmed manually by ex-

perts and the resulting programs are generally engi-

neered to solve a particular instance (or at best a set of

related instances) of a task. Consequently, these ad-

vanced robots are endowed with relatively few, highly

specialized control programs, and their versatility re-

mains quite limited.

In order to realize the potential of modern hu-

manoid robots, especially with respect to service in

unstructured, dynamic environments, we must ﬁnd

a way to improve their adaptiveness and exploit the

versatility of modern hardware. This will undoubt-

edly require a broad spectrum of behaviors that are

applicable under a variety of environmental con-

straints/conﬁgurations. At the highest level, the ver-

satile agent/controller must solve a variety of differ-

ent problems by identifying relevant constraints and

developing or invoking appropriate behaviors. How-

ever we, as engineers and programmers, are not likely

to be able to explicitly and accurately predict the

wide range of constraints and operating conditions

that will be encountered in homes, schools, hospi-

tals, and ofﬁces, where the next generation of robots

should serve. This is one motivation for the develop-

mental approach to robotics, which focuses on sys-

tems that adaptively and incrementally build a reper-

toire of actions and/or behaviors from experience.

To effectively learn from experience, an

agent/controller must explore. However given

the fragility of robotic hardware, exploratory be-

havior can be quite hazardous. Self-collision and

collision with ﬁxed objects in the environment

usually lead to calibration problems and/or broken

components, both of which require time-consuming

maintenance efforts that interrupt experimentation.

For these reasons, implementing exploratory be-

havior in simulation is an appealing alternative to

the real world. In fact this is the approach favored

in most of the path planning literature, which fo-

642

Frank M., Förster A. and Schmidhuber J..

REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN - Roadmap Planning Meets Reinforcement Learning.

DOI: 10.5220/0003883206420651

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (SSIR-2012), pages 642-651

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

cuses primarily on off-line search for feasible mo-

tions that interpolate a starting conﬁguration and a

goal conﬁguration. Many such planning algorithms

offer desirable theoretical properties, such as proba-

bilistic completeness. However, the conﬁguration of

the workspace/environment must not change between

the simulated synthesis and validation of a motion

and the execution of the motion by hardware. Since

the static environment assumption does not usually

hold in the real world, the practical applicability of

most path planning algorithms outside the laboratory

is quite limited.

Exploratory behavior can of course be imple-

mented on hardware, provided that there exists an on-

line monitoring mechanism to prevent harmful col-

lisions. Such a system must identify infeasible mo-

tions and revise them in real-time. Run-time perfor-

mance is clearly of primary concern, and most on-line

collision avoidance approaches therefore revise mo-

tions according to some heuristics that are computed

locally, in the neighborhood of impending collisions.

Fast though it is, re-planning motions according to lo-

cal constraints only is indeed short-sighted, and on-

line collision avoidance systems therefore make rela-

tively poor path planners.

We propose that an embodied, intelligent agent,

capable of adapting to a changing real world envi-

ronment, requires both the ability to plan with re-

spect to global task constraints and the ability to re-

act to changes in its environment. Furthermore, it is

our intuition that the planner should learn from the

reactions to its plans, which requires a tightly inte-

grated approach to planning and control. In this work

we consider the theoretical implications of coupling

a roadmap planner to a controller that provides re-

ﬂexive reaction to collisions. Furthermore, we intro-

duce Virtual Skin, our open-source framework, which

monitors the state of a physical robot in real-time,

facilitating applied research on tightly coupled plan-

ner/controler systems.

The remainder of the paper proceeds as follows:

In section 2, the motion planning problem is deﬁned.

Prevalent approaches to motion planning and reactive

collision avoidance are discussed in sections 3 and 4,

respectively. In section 5 we describe our assump-

tions concerning the motion planning problem for

non-static environments, and we propose the integra-

tion of reactive collision response into the roadmap

planning approach. The tight coupling of planning

and control offers the considerable beneﬁts that:

1. Roadmap planning is extended to non-static envi-

ronments by transforming the roadmap graph into

a Markov Decision Process (MDP).

2. Adaptation of the map to changes in the environ-

ment is phrased as a reinforcement learning (RL)

problem.

3. Topological changes to the roadmap can be han-

dled within the MDP framework.

In section 6, we introduce our open source soft-

ware framework, which implements the tight cou-

pling of planning and reactive control modules. In

section 7, we conduct a brief feasibility study on the

implemented software, which was developed in col-

laboration with the EU project IM-CLeVeR. Finally,

in section 8 we discuss outstanding issues and future

work .

2 THE MOTION PLANNING

PROBLEM

For an arm (or a humanoid upper body) working in

3D space, the motion planning problem is formalized

as follows: The workspace,

W = R

(1)

contains a robot composed of n links:

A(q) =

[

i=1

(q) ⊂ W (2)

Each link, A

, is represented by a semi-algebraic

model. The vector of joint positions

q ∈ C = R

(3)

denotes the conﬁguration of the robot A, and kine-

matic constraints yield a proper functional mapping

q → A(q). Furthermore, there exists an obstacle re-

gion composed of m obstacles:

O =

[

i=1

⊂ W (4)

Each obstacle, O

, is also expressed as a semi-

algebraic model.

To ﬁnd feasible motions, we must disambiguate

the feasible region of the conﬁguration space, C

f ree

⊂

C, from the infeasible region:

in f easible

= C

∪C

sel f

⊂ C (5)

denotes the set of conﬁgurations q for which A(q)

intersects O:

= {q ∈ C | A(q) ∩O 6= ∅} ⊂ C (6)

In equation 5 C

sel f

denotes the set of conﬁgurations q

for which A(q) is self-intersecting. To handle this, let

P denote a set of pairs of indices ( j, k) ∈ P such that

REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN - Roadmap Planning Meets Reinforcement Learning

643

j 6= k and j, k ∈ {1, 2, ...n}, which correspond to the

poses of two links A

and A

that are not allowed to

collide. As a matter of convenience, indices of links

that share a common joint are typically excluded from

P. The set of self colliding poses can then be ex-

pressed:

sel f

[

[ j,k]∈P

{q ∈ C | A

(q) ∩ A

(q) 6= ∅} ⊂ C (7)

The motion planning problem is essentially to ﬁnd

a trajectory T (q

initial

, q

goal

) ⊂ C

f ree

that interpolates

initial and goal conﬁgurations while not intersecting

in f easible

3 PLANNING ALGORITHMS

One approach to solving the above problem is to plan

ahead of time. Algorithms that take this approach

are generally called “Path Planning” or “Motion Plan-

ning” algorithms, as they plan and validate feasible

motions, which can later be passed to the robot as ref-

erence trajectories. There exists a vast literature on

this topic, and we refer the interested reader to the ex-

cellent, recent text book by Stephen LaValle (LaValle,

2006). Here we focus on the only class of motion

planning algorithms that scale to the high dimensional

conﬁguration spaces of humanoid robots.

Sampling based motion planning algorithms

probe the conﬁguration space with some sampling

scheme. The samples q are mapped to poses A(q),

which are in turn used to do collision detection

computations, revealing whether q ∈ C

f ree

or q ∈

in f easible

. In this way, feasible motions are con-

structed piece-by-piece. This can either be done on

an as-needed basis (single query planning) (LaValle,

1998; Perez et al., 2011), or the results of queries can

be aggregated and stored such that future queries can

be fulﬁlled faster (multiple query planning) (Latombe

et al., 1996; Li and Shie, 2007). Following, we con-

sider in broad terms the beneﬁts and drawbacks of

these two approaches.

The strength of single query planning algorithms

is that they directly and effectively implement explo-

ration by searching for feasible motions through trial

and error. Some algorithms, such as RRT (LaValle,

1998), and its many descendants, even offer proba-

bilistic completeness, guaranteeing a solution in the

limit of a dense sampling sequence, if one exists.

Moreover, since these algorithms answer each query

by starting a search from scratch, they can readily

adapt to different C

f ree

and C

in f easible

from one call

to the next. It is however noteworthy that C

f ree

and

in f easible

must remain constant during the course of

planning. The primary drawback of single query al-

gorithms is their high complexity, which is O(m

where m is linear sampling density and n is the dimen-

sionality of the conﬁguration space. A recent state-

of-the-art algorithm, BT-RRT (Perez et al., 2011), re-

quires 10 seconds to ﬁnd a feasible solution to a rel-

atively easy planning problem, wherein two arms (12

DOF) must circumvent the edge of a table. Moreover,

the initial solution, the result of stochastic search, is

quite circuitous, and BT-RRT requires an additional

125 seconds to smooth the motion by minimizing a

cost function in the style of optimal control.

Practically speaking, a latency of tens to hun-

dreds of seconds with respect to a robot’s response

to commands is often unacceptable. This is the

primary motivation for multiple query planning al-

gorithms, which typically utilize a “roadmap” data

structure in the form of a graph G(V, E), where V =

, v

, ...v

} ∈ C

f ree

and E is a set of pairs of indices

( j, k) ∈ V such that j 6= k and j, k ∈ {1, 2, ...n}. With

each member of E is associated a veriﬁed collision

free trajectory T (E

) ⊂ C

f ree

. The roadmap approach

reduces each query from a search in R

to graph

search, which can be carried out by Dijkstra’s shortest

path algorithm in O(|V | · log(|V |)) time. Importantly,

the roadmap graph represents a natural crossroads be-

tween motion planning as an engineering discipline

and the ﬁeld of artiﬁcial intelligence, as it is a spe-

cial case of an MDP, where “states” are conﬁgurations

q ∈ C

f ree

, “actions” are trajectories q(t) ⊂ C

f ree

, and

all state transition probabilities are equal to one.

Early versions of the roadmap approach, such as

PRM (Latombe et al., 1996), ﬁrst constructed the map

ofﬂine, then queried it to move the robot (Latombe

et al., 1996). Whereas more recent versions can

build the map incrementally on an as-needed basis by

extending the current map toward unreachable goal

conﬁgurations using single query algorithms (Li and

Shie, 2007). The ability of roadmap planners to

quickly satisfy queries, even for complex robots with

many DOFs, makes them an appealing choice for

practical application in experimental robotics. More-

over, when roadmaps are constructed incrementally

by single query algorithms, the resulting system is

one that builds knowledge from experience gained

through exploratory behavior. As the roadmap grows

over time, it becomes more competent, particularly

with respect to navigating the regions of the conﬁgu-

ration space in which the planner has operated in the

past.

Although the incrementally learned roadmap (Li

and Shie, 2007) makes signiﬁcant steps toward the

autonomous development/acquisition of reusable be-

ICAART 2012 - International Conference on Agents and Artificial Intelligence

644

haviors, it is plagued by one very unrealistic assump-

tion, namely that T (E

) ⊂ C

f ree

for all time. In other

words, neither the obstacle region O nor the robot it-

self A can change in a way that might have unpre-

dictable consequences with respect to the roadmap

G(V, E). Therefore, the roadmap approach implic-

itly prohibits the robot from grasping objects, which

would change A, and even if objects could be moved

without grasping, that is anyway prohibited also, as it

would change O.

With respect to the goal of adaptively building

knowledge of feasible actions from exploratory be-

havior, we summarize the beneﬁts and drawbacks of

single query vs. multiple query motion planning al-

gorithms as follows. Single query planning algo-

rithms such as RRT effectively implement exploration

and can readily adapt to changes in the environment

from one query to the next, however they produce cir-

cuitous motions that require smoothing, and they are

not fast enough to be applied online in practice. Mul-

tiple query roadmap based algorithms are quite fast,

as they reduce the planning query to graph search,

and when the map is constructed incrementally by

single query algorithms, the resulting system clearly

aggregates knowledge from experience through ex-

ploration. The drawback of the incrementally con-

structed roadmap is that it requires a static environ-

ment, which is not practical in the unstructured envi-

ronments of interest discussed in section 1.

4 REACTIVE COLLISION

AVOIDANCE

An alternative to planning feasible actions preemp-

tively is to react to impending collisions as they are

detected. This approach was pioneered by Oussama

Khatib (Khatib, 1986), under the moniker “real time

obstacle avoidance”. However, it has become widely

known as the “potential ﬁeld” approach, and is for-

mulated as follows for non-redundant manipulators in

terms of the notation from section 2 above: Consider

a point x ∈ A

(q) ⊂ W , and let

(x) =

∑

i=1

(x) (8)

be a potential ﬁeld function, which represents the in-

ﬂuence of m obstacles in the workspace on x. Let

each U

be a continuous, differentiable function, de-

ﬁned with respect to an obstacle region O

⊂ W , such

that U

is at a maximum in the neighborhood of the

boundary of O

and goes to zero far from O

. Khatib

suggests:

(x) =



η(

ρ(x)

−

)

: ρ(x) ≤ ρ

0 : ρ(x) > ρ

(9)

where ρ is the shortest distance from x to O

, and ρ

controls the range of the potential ﬁeld’s inﬂuence.

The deﬁning characteristic of the potential ﬁeld ap-

proach is that the robot is controlled such that x de-

scends the gradient of the potential ﬁeld, U

. The

control input is computed as follows: The inﬂuence

of the potential ﬁeld U

on the robot is ﬁrst computed

as a force f that acts on the robot at x:

f = −

∂U

∂x

= −

∑

i=1

∂U

∂x

(10)

The force f is then transformed via the Jacobian

matrix to yield joint torques τ.

τ(x) = J

(q)Λ(x) f (x) (11)

Here, Λ(x) is a quadratic form, a “kinetic energy ma-

trix” that captures the inertial properties of the end

effector.

In a similar fashion, another potential ﬁeld U

can

be deﬁned to attract the end effector to the goal posi-

tion, and a third can be deﬁned directly in the conﬁg-

uration space to push q away from joint limits.

Khatib’s approach is very effective with respect to

quickly generating evasive motions to keep the ma-

nipulator away from obstacles, however it offers a

very brittle solution to the motion planning problem

presented in section 2. It is often the case that the su-

perposition of potential functions creates local min-

ima, attractors in which the controller gets stuck.

Subsequent work has reformulated the above to

improve the robustness of the implied global plan. For

example, (Kim and Khosla, 1992) uses harmonic po-

tential functions, which guarantee that no local mini-

mum exists other than the global minimum, or alter-

natively, that point x above, if treated as a point robot,

will always be pushed to the goal from any initial con-

dition. Still though there may exist structural local

minima, conﬁgurations where non-point robots will

not be able to proceed although they are being forced

by the potential gradient.

Another reformulation is known as “attractor dy-

namics” (Schoner and Dose, 1992), wherein the robot

does not descend the gradient of the potential func-

tion, but rather moves with constant velocity, adjust-

ing its heading according to a dynamical system that

steers toward the goal, but away from obstacles that

lie in the robot’s path. The method was developed

for mobile robotics, however it has also been ap-

plied to manipulators in a manner similar to the above

(Iossiﬁdis and Schoner, 2004; Iossiﬁdis and Schoner,

2006). And again, although “attractor dynamics” im-

proves robustness over the original “potential ﬁeld”

REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN - Roadmap Planning Meets Reinforcement Learning

645

approach, this time by keeping the state of the robot

in the neighborhood of a stable attractor, it is still a

heuristic planner that bases decisions on local infor-

mation only, and it can therefore get stuck.

A third reformulation called “Elastic Strips”

(Brock and Khatib, 2000) combines the local reac-

tivity of the potential ﬁeld approach with the more

global framework of a roadmap planner. The edges

of the roadmap graph are trajectories that are param-

eterized in such a way as to be deformable under the

inﬂuence of a potential ﬁeld. Again, this approach

does improve robustness with respect to global plan-

ning, however it still suffers from structural local min-

ima, and the elastic graph edges may not be able to

circumvent certain obstacles. Failure to circumvent

an obstacle while traversing an elastic edge causes

the roadmap planner to fail exactly as its non-elastic

counterpart would. Since re-planning is limited to lo-

cal deformation of the current trajectory, the approach

cannot cope with topological changes in the roadmap.

Worse yet, after failure, the conﬁguration of the robot

does not lie on any of the nodes of the roadmap graph,

nor on its undeformed edges. Therefore, a single

query planner must be invoked to ﬁnd a feasible path

back to a node of the roadmap graph, and this could

be problematic in a dynamic environment.

All approaches based on the potential ﬁeld idea

use local information from the workspace, and trans-

form it into motor commands according to some

heuristics. It is therefore not surprising that these

approaches excel at fast, reactive obstacle avoidance

while they have trouble with global planning tasks.

Accordingly, potential ﬁeld approaches have become

popular in the context of safety and human-robot in-

teraction (De Santis et al., 2007; Dietrich et al., 2011;

Stasse et al., 2008; Sugiura et al., 2007). In these ap-

plications a potential ﬁled U

, to attract the robot to

the goal, is not deﬁned. Instead, in the absence of

inﬂuence from obstacles and joint limits, some other

planner/controller system is allowed to operate freely.

Once again, to relate this discussion back to the

topic of adaptively building knowledge of feasible ac-

tions from exploratory behavior, we make the follow-

ing observation: Reactive collision avoidance is by

deﬁnition quite contrary to exploration, however it is

nonetheless a highly desirable, even necessary com-

ponent of any learning system that hopes to differ-

entiate feasible sequences of actions from infeasible

ones in a changing environment.

5 APPROACH

The motion planning literature provides many algo-

rithms that perform well in static environments. On

the other hand, the control literature provides meth-

ods for quickly reacting to avoid collisions in dynamic

environments. However, surprisingly little attention

has been paid to environments that change sporadi-

cally, but drastically. We propose that a tightly cou-

pled system of planner and controller is in principal

well suited to this kind of environment. As plans are

executed optimistically, the intervention of the reac-

tive controller can be treated as feedback to improve

planner.

Consider for a moment a roadmap, G(V, E) that

covers the conﬁguration space of a humanoid upper-

body reasonably well. Such a graph will undoubt-

edly allow us to move the robot around while avoid-

ing self-collision, and that will remain true regard-

less of how the environment changes. Therefore, if

we were to say, put a table in front of the robot,

it seems likely that we would prefer to adapt G to

the new constraints, rather than throw it away and

start from scratch. The addition of the table how-

ever, has certainly invalidated many edges in G, as

T (E

) 6⊂C

f ree

∀i ∈ {a, b, c, ...}, drastically changing its

topology.

Before the addition of the table, G had been a valid

MDP, with states V and actions E, and all state tran-

sition probabilities equal to one. After the addition of

the table, the MDP became invalid. The probability

of transitioning from V

to V

along T (E

) had been

equal to one, now it is equal to zero. Therefore, the

state transition probabilities no longer sum to one for

the actions E

in states V

. In order to repair the MDP,

we require an alternative state transition, in fact one

that can actually be implemented for a real physical

robot.

We propose the simplest possible solution, should

the transition from V

to V

along T(E

) fail, retreat to

. Now, every state/action combination in G has two

possible state transitions associated with it: V

→ V

and V

→ V

. And the state transition probabilities

can be maintained such that they always sum to one.

With the validity of the MDP restored, we can treat

discovery and avoidance of the table as a RL problem.

This simple behavior, which is inspired by the re-

ﬂexive response to surprise that is easy to observe in

humans, when coupled to the roadmap planner, has

the following important consequences:

1. We are able to generalize roadmap planning to

non-static environments, which is accomplished

by adopting probabilistic state transitions and

casting the roadmap graph into an MDP.

2. Within the MDP, the discovery and avoidance of

novel objects/obstacles can be phrased as a rein-

forcement learning problem.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

646

3. In contrast (Brock and Khatib, 2000), which also

generalizes roadmap planning to non-static envi-

ronments, our method is able to cope with changes

to the topology of the roadmap. This is also a con-

sequence of adopting the probabilistic framework.

4. Provided that unexpected contact with obstacles

can be detected physically, the response behavior

need not be generated by a computational model

of the robot. This is to say that the only informa-

tion required to facilitate the collision response is

the history of the trajectory T (E

6 IMPLEMENTATION

We have implemented the reﬂexive collision response

behavior described in section 5 within a software

framework that we call Virtual Skin. The source code

is available through the software repository of the EU

project IM-CLeVeR. In this section we will describe

the software at a high level, then discuss design deci-

sions and implementation issues.

Virtual Skin is a module for YARP. A popular open

source “robotics platform”, YARP is essentially mid-

dleware that allows roboticists to create distributed

systems of loosely coupled modules, without having

to worry about the details of network protocols and

operating systems. As a YARP module, Virtual Skin

can easily be used with any robot for which YARP

drivers have been implemented. The software is pri-

marily intended to facilitate research on the RL prob-

lem formulated in section 5, in an applied setting. We

have tried in our implementation to maximize its gen-

erality by focusing on transparency and modularity.

The software consists of three primary components:

1. A kinematic model of the robot/workspace sys-

tem that is dynamically updated in real-time by

sensory/state information from the hardware.

2. A port ﬁlter that allows Virtual Skin to act as a

proxy between an arbitrary planning/control mod-

ule and the robot.

3. A collision response behavior.

The trio of components works as follows: The

planner/controller, which can be any program ca-

pable of controlling the robot, connects to Virtual

Skin’s proxy versions of the robot’s motor control

ports. The proxy is completely transparent, in fact

the planner/controller does not even know that it is

not connected to the real robot. The robot responds

to control commands passed through the proxy, and

asynchronous messages are streamed back across the

network, communicating the state of the hardware.

Stochastic

Controller

iCub Control Board Interface

(YARP Ports)

FILTERED

iCub Control Board Interface

(YARP Ports)

Collision Data

(YARP Ports)

Encoder

Positions

Motor

Control

Port Filter

Collision-Recovery

Controller

Skin

Signal

Robot Model

VirtualSkin

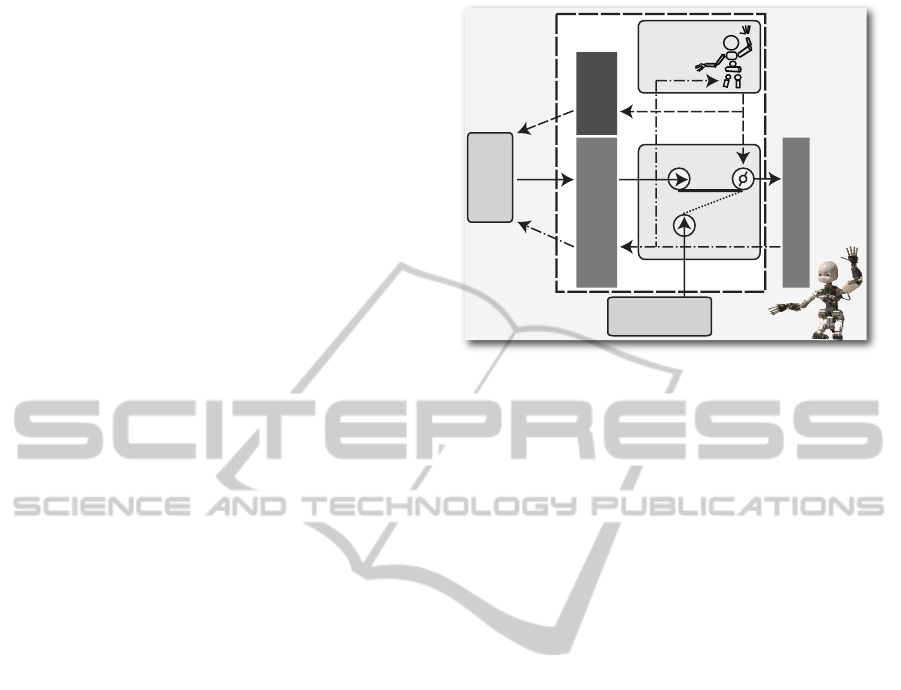

Figure 1: Simpliﬁed Architecture - Virtual Skin wraps the

iCub robot’s motor control interface (right). A stochastic,

exploratory control program is connected to a proxy mo-

tor control interface (left). A port ﬁlter connects the motor

control interface to its twin (middle). The kinematic robot

model (top), driven by streams of motor encoder positions

from the robot, does collision detection and regulates the

state of the port ﬁlter. When the model detects collision, the

port ﬁlter cuts off the stochastic controller and invokes an

alternative user-deﬁned controller (bottom) to recover from

the dangerous conﬁguration.

These messages are received by Virtual Skin, and they

are used to update the kinematic model. Collision de-

tection computations are done on the model in real-

time, and when an unwanted collision is detected,

the port ﬁlter cuts off the controlling program from

the robot. The robot is then stopped, and the colli-

sion response behavior is executed. When the behav-

ior ﬁnishes executing, control is restored to the plan-

ner/controller. The architecture of the implementation

is shown graphically in ﬁgure 1.

It is important to mention that Virtual Skin is not

intended to be used as a foolproof safety mechanism

in the sense that it does not provide guarantees that

collisions will be prevented regardless of the robot’s

inertial state. Instead it is intended to simulate full

body tactile feedback (hence the name Virtual Skin)

to facilitate research on embodied AI. We therefore

encourage careful exploratory behavior. That is to

say that obstacles should be modeled with generous

bounding volumes, and motor velocities should se-

lected in accordance with the safety margin afforded

by nearby bounding volumes.

6.1 Kinematic Model

Although the reﬂexive behavior discussed above,

which motivates the implementation of Virtual Skin,

does not require a model of the robot to compute the

REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN - Roadmap Planning Meets Reinforcement Learning

647

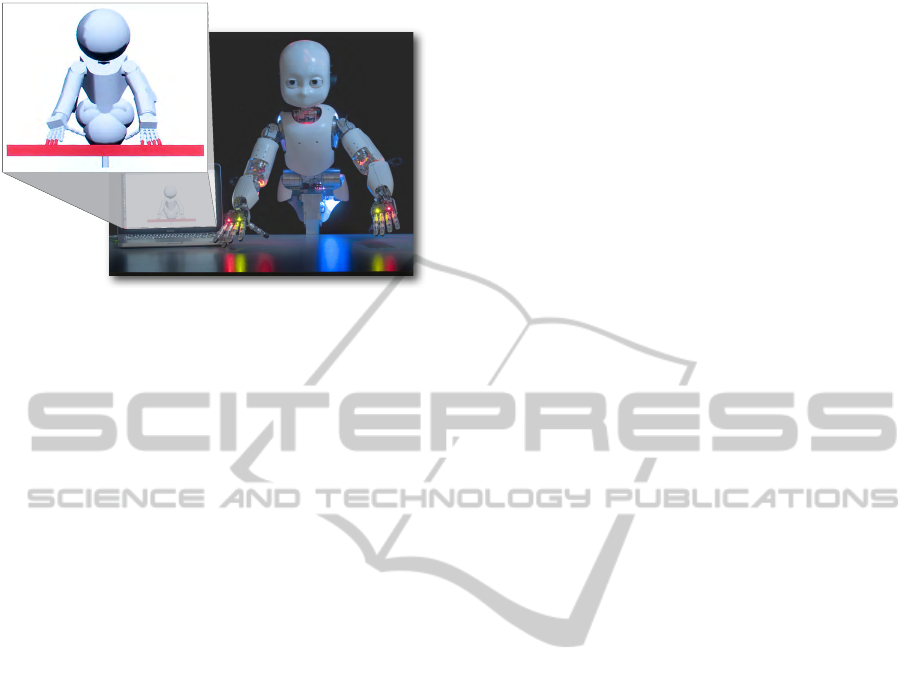

Figure 2: Virtual Skin detects impending collision between

the iCub humanoid robot and a table. Darkened (red) ge-

ometries in the model (left) are colliding.

collision response trajectory, we do need a way to de-

tect impending collisions. Since the iCub is not com-

pletely wrapped in skin-like tactile sensors (nor any

other available robot we know of), a computational

model is required to represent the robot/environment

system.

As Virtual Skin is to operate online in realtime,

we designed it around a kinematic robot model, the

conﬁguration of which is supplied by streams of mo-

tor encoder positions from hardware. To minimize

the computational burden, we model geometries as

unions of geometric primitives, currently supported

are spheres, cylinders, and boxes. This has the added

beneﬁt that we can easily model non-convex objects.

The model also records its history in a large circu-

lar buffer that can be annotated in realtime by send-

ing messages to a particular RPC port, and queried as

necessary.

The robot model is speciﬁed via an XML conﬁg-

uration ﬁle. The kinematic constraints are expressed

using “Zero Position Displacement Notation” (Gupta,

1986), which is signiﬁcantly less complex and more

intuitive than the popular Denavit-Hartenburg con-

vention. And geometries can be attached to the model

by specifying them directly in the XML hierarchy.

The conﬁguration of objects in the world can be

speciﬁed similarly by another XML conﬁguration ﬁle.

This is the method used to specify the table in section

7.2. Alternatively, objects in the robot’s environment

can be added, transformed, and destroyed dynami-

cally at any time via a remote procedure call (RPC)

interface. This allows the model to be maintained in

real time by a computer vision or other sensory mod-

ule if one is available.

Collision detection in Virtual Skin is handled

by the Software Library for Interference Detection

(SOLID) (van den Bergen, 2004), which is highly

optimized and supports primitives, Minkowski sums,

and polyhedra. To keep the collision detection com-

putations as efﬁcient as possible, we employ hierar-

chical pruning to reduce the number of pairs of ge-

ometries to be tested within the kinematic tree. More-

over, objects in the robot’s environment are not tested

against each other, so the approximate complexity of

collision detection computations is O(n

· m) where n

is the number of objects in the robot model and m is

the number of objects in the environment.

The model is implemented as a static library that

can be compiled separately, independent of YARP.

Thus in addition to being an integral part of Vir-

tual Skin, the kinematic model is a stand-alone plan-

ning environment that can be reused easily in other

projects/modules.

6.2 Port Filter

In order to enforce modularity and allow Virtual Skin

to function with the widest possible range of plan-

ners/controllers, we have embedded it in a port ﬁlter

that acts as a proxy. The port ﬁlter is written entirely

in the YARP API, and it ﬁlters a “ControlBoardInter-

face” object which consists of several YARP ports

(see YARP documentation). The most important con-

sequence of this design is that the workings of Virtual

Skin are completely transparent to the client program,

meaning that any program that can connect to a robot

and control it can also do so through Virtual Skin.

6.3 Reﬂex Behavior

When the reﬂex behavior is triggered, the conﬁgu-

ration history of the robot is ﬁrst queried from the

robot model. Then, the poses from the history q

∈

, q

t−1

, q

t−2

, ...q

t−n

} are sent to the robot as sequen-

tial position move commands, causing the robot to re-

trace its steps.

The model continues doing collision detection and

adding to the history. When the reﬂex behavior starts,

the poses being logged are colliding. In order to avoid

that colliding poses remain in the buffer, as soon as

the model is no longer colliding, the pose buffer is

reinitialized with the non-colliding pose.

Recall that the history can be annotated via an

RPC port. If we desire that the reﬂexive retreat

should stop at a particular conﬁguration, as described

in section 5, then the planner/controller must annotate

“waypoints” in the history, which correspond, for ex-

ample, to vertices in a roadmap graph. The reﬂexive

behavior provided in the Virtual Skin distribution, re-

traces the history until either an annotated waypoint

or the end of the buffer is encountered.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

648

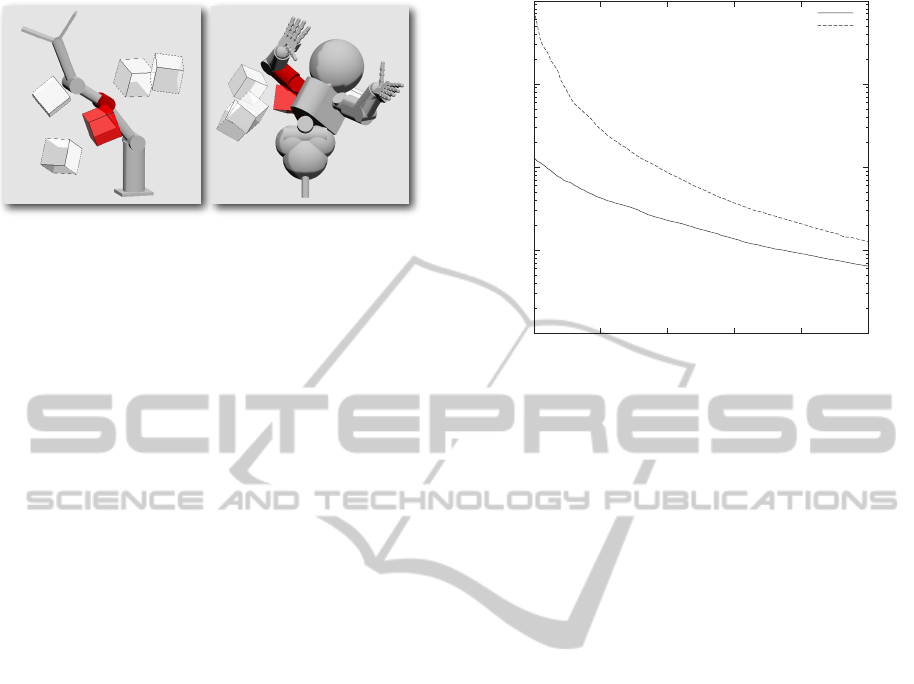

Figure 3: Kinematic Robot Models - The Katana arm

(left) and the iCub humanoid (right) collide with random

obstacles. Darkened (red) geometries are colliding.

Lastly, the reader should be aware that the mod-

ular nature of the Virtual Skin implementation makes

this collision response behavior easy to replace with

arbitrary code.

7 FEASIBILITY STUDY

In this section, we discuss the results of two experi-

ments running Virtual Skin. The ﬁrst experiment ana-

lyzes the scalability of the software with respect to the

complexity of robot models and environments. The

second, veriﬁes that Virtual Skin adequately protects

the iCub humanoid from harm while under the con-

trol of a purely random exploratory control policy,

which amounts to motor babbling using all DOFs of

the iCub’s upper-body.

7.1 Runtime Performance - Scalability

This experiment analyzes the performance of the

kinematic model within Virtual Skin, as the number

of modeled objects in the robot’s environment grows.

The chosen experimental setup is a path planning sce-

nario, wherein the kinematic/geometric model (ﬁgure

1 - top) is run ofﬂine without a port ﬁlter (ﬁgure 1

- middle) or a physical robot (or simulator) to sup-

ply streams of conﬁgurations. Instead, each joint is

driven through its entire range of motion in a series of

discrete steps by a simple oscillator. The motion con-

tinues uninterrupted (collision events to not stop the

model or alter the behavior of the oscillators) for sev-

eral minutes as obstacles are randomly added to the

robot’s workspace. The obstacles chosen for this ex-

periment are boxes, as they are the most computation-

ally expensive of the currently supported primitives.

The experiment was run on a dual-core 2.4GHz

laptop with 4GB of memory, and two different robot

models were used; a 6 DOF Katana arm (9 primi-

tives), and the 41 DOF upper-body of an iCub hu-

100

1000

10000

100000

0 200 400 600 800 1000

Number of Obstacles

iCub

Katana

Figure 4: Scalability of Virtual Skin - A simple robot

model (Katana - 9 primitives) is compared with a complex

one (iCub - 129 primitives). The curves show the number

of times collision detection can be computed per second (y-

axis) given a particular number of obstacles modeled in the

robot’s environment (x-axis).

manoid robot (129 primitives). Figure 3 shows snap-

shots from the early stages of the running experi-

ments, and the results are plotted in ﬁgure 4. Based on

this experiment, we make the following two claims:

1. For simple arms in simple environments, Virtual

Skin can keep pace with even the fastest control

frequencies encountered in industrial practice.

2. Virtual Skin can compute hundreds of poses per

second for a humanoid with hundreds of obstacles

in the environment, which is adequate for most

applications in developmental robotics.

7.2 Motor Babbling on The iCub

Humanoid Robot

The software architecture employed in this experi-

ment is shown in ﬁgure 1. The stochastic control

policy is simply randomly generated conﬁgurations

sent to the robot through Virtual Skin as position move

commands. All joints on the iCub upper-body except

those in the hands are controlled. When invoked, the

collision recovery controller, tracks a trajectory com-

prised of the previous n states in the robot’s history,

returning control as soon as the robot model is in a

non-colliding conﬁguration. The modeled environ-

ment consists of a table, as pictured in ﬁgures 2 and 5.

The experiment has been run for approximately two

hours over several trials of 5 to 20 minutes each with

joint velocity limited to a moderate 20% of maximum.

Video excerpts of some of these trials are available as

supplemental material on the authors’ web sites.

REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN - Roadmap Planning Meets Reinforcement Learning

649

As expected, the stochastic controller quickly pro-

duced many motions, which uninterrupted would

have resulted in destructive collisions. However Vir-

tual Skin effectively prevented all of them. Included

were several commonly occurring self collisions,

such as elbow vs. hip, and upper-arm vs. chest, as

well as many collisions between the hands/forearms

and the table.

The experiment demonstrates that the Virtual Skin

framework is a feasible tool to facilitate study of the

RL problem formulated in section 5 in an applied set-

ting on a real humanoid robot.

8 DISCUSSION

We motivated the work presented here around the

need for modern, advanced robots such as humanoids

to serve in challenging, unstructured environments

such as homes, schools, hospitals, and ofﬁces. Since

engineers and programmers are not likely to be able

to adequately describe the wide range of constraints

and operating conditions that will be encountered in

such surroundings, we argued in favor of systems that

adaptively and incrementally build a repertoire of ac-

tions and/or behaviors from experience.

Incrementally learned roadmap planners (Li and

Shie, 2007) are an appealing approach to the problem,

as they build up knowledge of feasible actions from

exploratory behavior, and they also scale to the large

conﬁguration spaces of humanoid robots. However,

they require us to assume a static environment, which

is unrealistic.

We proposed a novel yet simple integration of

roadmap planning with reﬂexive collision response,

allowing the roadmap representation to be trans-

formed into a Markov Decision Process. Roadmap

planning is thereby extended to changing environ-

ments, and the adaptation of the map can be phrased

as a reinforcement learning problem.

We implemented the proposed reﬂexive collision

response, and discussed its design. The feasibility of

the software was also veriﬁed in experiments with the

Katana Manipulator and the iCub humanoid upper-

body.

Still to do is to analyze the robustness of our re-

ﬂexive response behavior in dynamic environments,

and to study the proposed RL problem as it applies to

the iCub humanoid using the Virtual Skin framework.

ACKNOWLEDGEMENTS

This research was supported by the EU Project IM-

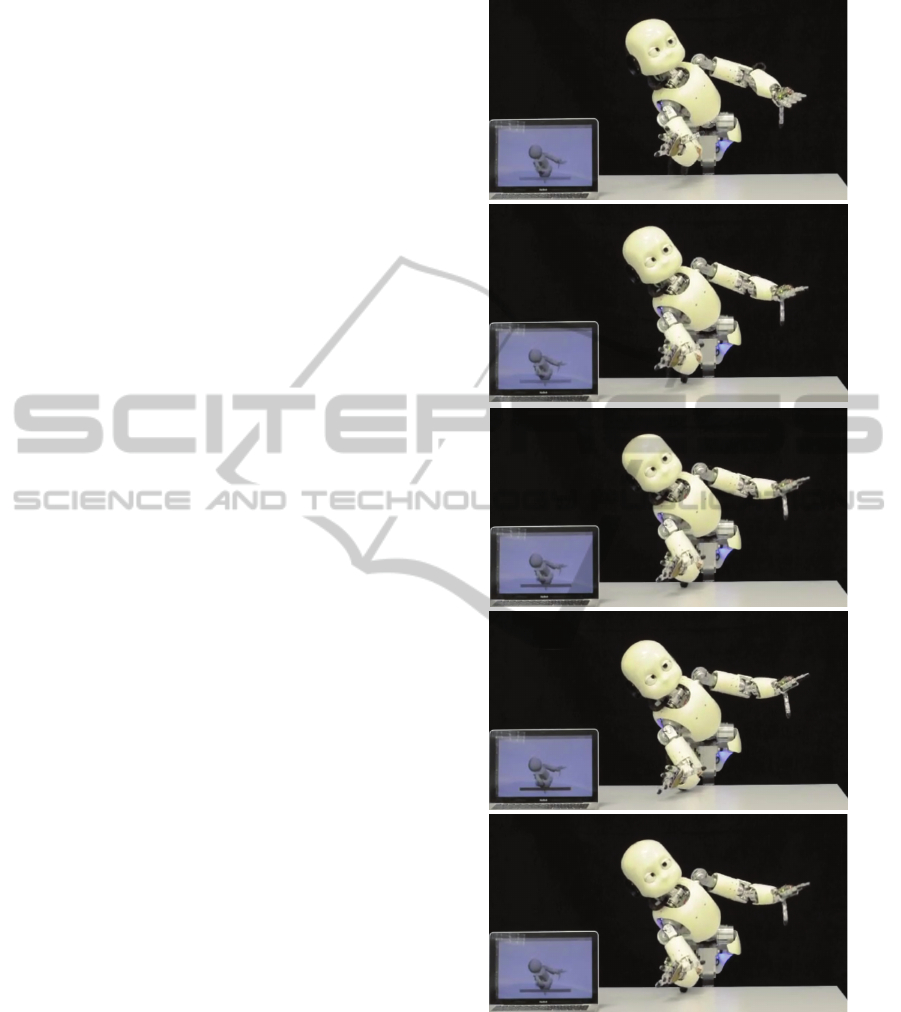

Figure 5: Time lapse images of Virtual Skin detecting im-

pending collision with the table and invoking reﬂexive re-

sponse. Collision is detected in frame 4, and response be-

gins in frame 5.

CLeVeR, contract no. FP7-IST-IP-231722. The au-

thors would also like to thank Gregor Kaufmann and

Tobias Glasmachers for their valuable contributions

to the code-base.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

650

REFERENCES

Brock, O. and Khatib, O. (2000). Real-time re-planning

in high-dimensional conﬁguration spaces using sets of

homotopic paths. In Robotics and Automation, 2000.

Proceedings. ICRA’00. IEEE International Confer-

ence on, volume 1, pages 550–555. IEEE.

De Santis, A., Albu-Schaffer, A., Ott, C., Siciliano, B., and

Hirzinger, G. (2007). The skeleton algorithm for self-

collision avoidance of a humanoid manipulator. In

Advanced intelligent mechatronics, 2007 IEEE/ASME

international conference on, pages 1–6. IEEE.

Dietrich, A., Wimbock, T., Taubig, H., Albu-Schaffer, A.,

and Hirzinger, G. (2011). Extensions to reactive self-

collision avoidance for torque and position controlled

humanoids. In Robotics and Automation (ICRA), 2011

IEEE International Conference on, pages 3455–3462.

IEEE.

Diftler, M., Mehling, J., Abdallah, M., Radford, N.,

Bridgwater, L., Sanders, A., Askew, S., Linn, D.,

Yamokoski, J., Permenter, F., Hargrave, B., Platt, R.,

Savely, R., and Ambrose, R. (2011). Robonaut 2: The

ﬁrst humanoid robot in space. In Proceedings of IEEE

International Conference on Robotics and Automation

(ICRA).

Gupta, K. (1986). Kinematic analysis of manipulators using

the zero reference position description. The Interna-

tional Journal of Robotics Research, 5(2):5.

Iossiﬁdis, I. and Schoner, G. (2004). Autonomous reaching

and obstacle avoidance with the anthropomorphic arm

of a robotic assistant using the attractor dynamics ap-

proach. In Robotics and Automation, 2004. Proceed-

ings. ICRA’04. 2004 IEEE International Conference

on, volume 5, pages 4295–4300. IEEE.

Iossiﬁdis, I. and Schoner, G. (2006). Reaching with a redun-

dant anthropomorphic robot arm using attractor dy-

namics. VDI BERICHTE, 1956:45.

Khatib, O. (1986). Real-time obstacle avoidance for manip-

ulators and mobile robots. The international journal

of robotics research, 5(1):90.

Kim, J. and Khosla, P. (1992). Real-time obstacle avoidance

using harmonic potential functions. Robotics and Au-

tomation, IEEE Transactions on, 8(3):338–349.

Kusuda, Y. (2008). Toyota’s violin-playing robot. Industrial

Robot: An International Journal, 35(6):504–506.

Latombe, J., Kavraki, L., Svestka, P., and Overmars, M.

(1996). Probabilistic roadmaps for path planning in

high-dimensional conﬁguration spaces. IEEE Trans-

actions on Robotics and Automation, 12(4):566–580.

LaValle, S. (1998). Rapidly-exploring random trees: A new

tool for path planning. Technical report, Computer

Science Dept., Iowa State University.

LaValle, S. (2006). Planning algorithms. Cambridge Univ

Pr.

Li, T. and Shie, Y. (2007). An incremental learning ap-

proach to motion planning with roadmap manage-

ment. Journal of Information Science and Engineer-

ing, 23(2):525–538.

Metta, G., Sandini, G., Vernon, D., Natale, L., and Nori, F.

(2008). The icub humanoid robot: an open platform

for research in embodied cognition. In Proceedings of

the 8th Workshop on Performance Metrics for Intelli-

gent Systems, pages 50–56. ACM.

Perez, A., Karaman, S., Shkolnik, A., Frazzoli, E., Teller,

S., and Walter, M. (2011). Asymptotically-optimal

path planning for manipulation using incremental

sampling-based algorithms. In Intelligent Robots and

Systems (IROS), 2011 IEEE/RSJ International Con-

ference on, pages 4307–4313. IEEE.

Schoner, G. and Dose, M. (1992). A dynamical systems

approach to task-level system integration used to plan

and control autonomous vehicle motion. Robotics and

Autonomous Systems, 10(4):253–267.

Stasse, O., Escande, A., Mansard, N., Miossec, S., Evrard,

P., and Kheddar, A. (2008). Real-time (self)-collision

avoidance task on a hrp-2 humanoid robot. In Robotics

and Automation, 2008. ICRA 2008. IEEE Interna-

tional Conference on, pages 3200–3205. IEEE.

Sugiura, H., Gienger, M., Janssen, H., and Goerick, C.

(2007). Real-time collision avoidance with whole

body motion control for humanoid robots. In In-

telligent Robots and Systems, 2007. IROS 2007.

IEEE/RSJ International Conference on, pages 2053–

2058. IEEE.

Takagi, S. (2006). Toyota partner robots. Journal of the

Robotics Society of Japan, 24(2):62.

van den Bergen, G. (2004). Collision detection in interac-

tive 3D environments. Morgan Kaufmann.

REFLEXIVE COLLISION RESPONSE WITH VIRTUAL SKIN - Roadmap Planning Meets Reinforcement Learning

651
