CLOUD DATA PATTERNS FOR CONFIDENTIALITY

Steve Strauch

, Uwe Breitenbuecher

, Oliver Kopp

, Frank Leymann

and Tobias Unger

1,2

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

GRIDSOLUT GmbH + Co. KG, Stuttgart, Germany

Keywords:

Patterns, Conﬁdentiality, Database Layer, Migration, Distributed Application Architecture, Cloud Data Store.

Abstract:

Cloud computing enables cost-effective, self-service, and elastic hosting of applications in the Cloud. Appli-

cations may be partially or completely moved to the Cloud. When hosting or moving the database layer to

the Cloud, challenges such as avoidance of disclosure of critical data have to be faced. The main challenges

are handling different levels of conﬁdentiality and satisfying security and privacy requirements. We provide

reusable solutions in the form of patterns.

1 INTRODUCTION

Cloud computing has started to be applied in industry

due to the advantage of reducing capital expenditure

and transforming it into operational costs (Armbrust

et al., 2009). Therefore, applications are directly built

using Cloud service technology or existing applica-

tions are migrated to the Cloud.

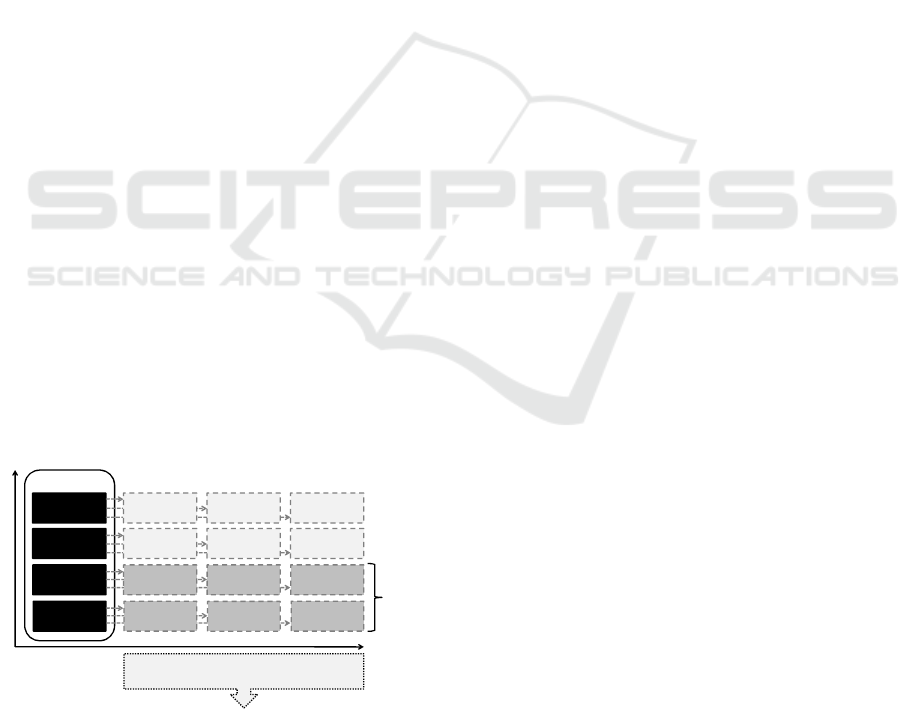

Overview of Cloud Application HostingTopologies

Traditional

Application Layers

Presentation

Layer

Application

Business

Layer

DataAccess

Layer

Database

Layer

Presentation

Layer

Business

Layer

DataAccess

Layer

Database

Layer

Private

Cloud

Community

Cloud

Deployment

Models

HybridCloud

Public

Cloud

Presentation

Layer

Presentation

Layer

Business

Layer

Business

Layer

DataAccess

Layer

DataAccess

Layer

Database

Layer

Database

Layer

Data

Layer

Figure 1: Overview of Cloud Deployment Models and Ap-

plication Layers.

Applications are typically built using a three layer

architecture model consisting of a presentation layer,

a business logic layer, and a data layer (Dunkel et al.,

2008). The data layer is responsible for data stor-

age and is in turn subdivided into data access layer

(DAL) and database layer (DBL). The DAL is an ab-

straction layer encapsulating the data access function-

ality. The DBL is responsible for data persistence and

data manipulation. The subdivision of the data layer

ﬁnally leads to a four layer application architecture

(Figure 1). To take advantage of Cloud computing, an

application may be moved to the Cloud or designed

from the beginning to use Cloud technologies. Fig-

ure 1 shows all potential possibilities for the distribu-

tion of an application consisting of four layers. The

traditional application not using any Cloud technol-

ogy is shown on the left. Each layer can be hosted

using different Cloud deployment models. Available

Cloud deployment models are: Private Cloud, Public

Cloud, Community Cloud, and Hybrid Cloud (Mell

and Grance, 2009). In this context, “on-premise” de-

notes that the Cloud infrastructure is hosted inside the

company and “off-premise” denotes that it is hosted

outside the company. Figure 1 will be reused for pro-

viding a sketch for each Cloud Data Pattern, illustrat-

ing the solution.

This paper deals with hosting or moving the data-

base layer to the Cloud and the related challenges re-

garding data conﬁdentiality to be faced. The contribu-

tion of the paper is the identiﬁcation of these challen-

ges and the description of Cloud Data Patterns to face

these challenges. A Cloud Data Pattern describes a

reusable and implementation technology-independent

solution for a challenge related to the data layer of an

application in the Cloud for a speciﬁc context. Cloud

Data Patterns address both the migration of a data

layer hosted traditionally to the Cloud as well as en-

abling access to the data layer in the Cloud. “Tra-

ditionally” denotes not using any Cloud technology.

Conﬁdentiality Patterns provide solutions for avoid-

ing disclosure of conﬁdential data. Conﬁdentiality in-

cludes security and privacy. In the context of conﬁ-

dentiality we consider the data to be kept private and

387

Strauch S., Breitenbuecher U., Kopp O., Leymann F. and Unger T..

CLOUD DATA PATTERNS FOR CONFIDENTIALITY.

DOI: 10.5220/0003893903870394

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 387-394

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

secure as “critical data”. For instance, critical data

are business secrets of companies, personal data, and

health care data. Critical data can be categorized into

different conﬁdentiality levels such as “NATO Secret”

or “NATO Conﬁdential” as described in the security

classiﬁcation in the security regulations of the North

Atlantic Treaty Organization (NATO) (Department of

Defense Security Institute, 1993).

To provide a set of Cloud Data Patterns as refer-

ence work, the description of each pattern has to be

self-contained. Thus, the concrete characteristics of

the patterns presented in Section 2 overlap. Section 3

presents related work in the ﬁeld of patterns. Finally,

Section 4 concludes and presents an outlook on future

work.

2 CONFIDENTIALITY

PATTERNS

This section introduces ﬁve new Cloud Data Patterns

for conﬁdentiality. As the data is not always catego-

rized or might be categorized using different conﬁ-

dentiality categorizations we present two patterns for

handling these challenges: The Conﬁdentiality Level

Data Aggregator (Section 2.1) provides one conﬁden-

tiality level for data from different sources with po-

tentially different conﬁdential categorizations on dif-

ferent scales. The Conﬁdentiality Level Data Splitter

(Section 2.2) provides different conﬁdentiality levels

for data originally categorized into one conﬁdential-

ity level. Both the aggregation and splitting have to

be conﬁgured, e. g., using parameterization or conﬁg-

uration ﬁles.

To protect the conﬁdential data on the one hand

and to beneﬁt from Cloud computing on the other

hand, we introduce three different patterns: ﬁlter-

ing, pseudonymization, and anonymization. The Fil-

ter of Critical Data (Section 2.3) ensures that no

conﬁdential data is disclosed to the public. The

Pseudonymizer of Critical Data (Section 2.4) im-

plements pseudonymization. Pseudonymization is a

technique to provide a masked version of the data

to the public while keeping the relation to the non-

masked data (Federal Ministry of Justice, 1990). That

enables processing of non-masked data in the private

environment. The Anonymizer of Critical Data (Sec-

tion 2.5) implements anonymization. Anonymization

is a technique to provide a reduced version of the crit-

ical data to the public while it is impossible to relate

the reduced version to the critical data. A discussion

on the composition of Conﬁdentiality Patterns is pro-

vided in Section 2.6.

2.1 Conﬁdentiality Level Data

Aggregator

Context. The data formerly stored

in one traditionally hosted data store

is separated according to the different

conﬁdentiality levels and stored in dif-

ferent locations. The business layer is

separated into the traditionally hosted part processing

the critical data and the business layer hosted in the

public Cloud processing the non-critical data. As the

application accesses data from several data sources,

the different conﬁdentiality levels of the data items

have to be aggregated to one common conﬁdentiality

level. This builds the basis for avoiding disclosure of

critical data by passing it to the public Cloud.

Challenge. How can data of different conﬁden-

tiality levels from different data sources be aggregated

to one common conﬁdentiality level?

Forces. The data might be categorized into conﬁ-

dentiality levels from different scales. Thus, aggrega-

tion by normalizing scales is not always possible.

Solution. An aggregator is placed within the

Cloud infrastructure of the Cloud data storage with

the highest conﬁdentiality level. The aggregator re-

trieves data from all Cloud data stores. Thus, it es-

pecially processes data with the highest conﬁdential-

ity level, which may not be placed where data with

a lower level resides. As a consequence, it has to be

placed in a location where the demands of the highest

conﬁdentiality level are fulﬁlled.

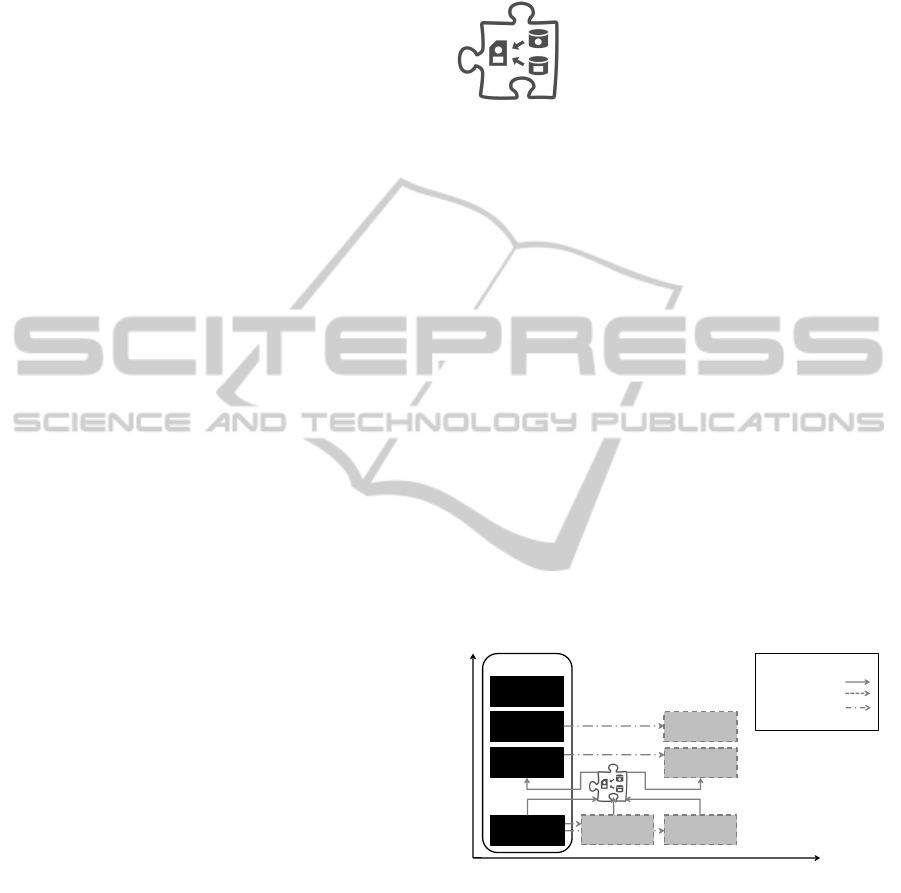

Sketch Privacy and Security Data Level Aggregator

Traditional

Presentation

Layer

Application

Business

Layer*

Data Access

Layer*

Private

Cloud

Community

Cloud

Deployment

Models

Public

Cloud

Database

Layer

Business

Layer*

Data Access

Layer*

Database

Layer

Database

Layer

Legend

Dataflow

Migration

Partial Migration

Modified Component

Application Layers

Figure 2: Sketch of Conﬁdentiality Level Data Aggregator.

Sidebars. The data stored in the different data

stores might be conﬁgured with different security lev-

els from different security domains. The aggregator

outputs data from one security domain only. The ag-

gregator has to be conﬁgured accordingly and a map-

ping between different conﬁdentiality levels from po-

tentially different security or privacy domains has to

be provided. Finally, a procedure for determining the

ﬁnal output level of the data combined by the aggre-

gation has to be given. Usually, it is the highest con-

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

388

ﬁdentiality level. Both parts of the data access layer

hosted traditionally and in the public Cloud have to be

reconﬁgured to access the database layer only through

the conﬁdentiality level data aggregator. It is assumed

that the data stores themselves have appropriate ac-

cess right conﬁgurations.

Results. For each request, several data stores are

queried. The data is routed through the aggregator,

which annotates the data with the appropriate conﬁ-

dentiality level valid for the aggregated data set.

Example. The database layer of an application

built on Oracle Corporation MySQL (Oracle Corpo-

ration, 2011), version 5.1 is split into an Amazon

Virtual Private Cloud (Amazon VPC (Amazon.com,

Inc., 2011b)) data store hosting an AMI and Amazon

Relational Database Service (Amazon RDS (Ama-

zon.com, Inc., 2011a)). The AMI runs MySQL 5.1

relational database on OpenSolaris. Regarding Ama-

zon RDS, a MySQL DB instance is chosen. Thus,

the database functionality remains the same. The data

stored in the Amazon VPC is annotated with “NATO

Conﬁdential” and the data stored in the Amazon RDS

is annotated with “NATO Restricted” (Department of

Defense Security Institute, 1993). The logic imple-

mented in the business layer is split into the one pro-

cessing critical and the one processing non-critical

data. The data access layer is also split and conﬁgured

to operate on the conﬁdentiality level data aggregator.

The aggregator is fetching the data from the two dif-

ferent data sources. In case data is returned from the

Amazon VPC, the result set is annotated with “NATO

Conﬁdential”, otherwise “NATO Restricted” is used.

On its own, this annotation does not prevent the dis-

closure of data. For instance, the disclosure itself may

be prevented in combination with the ﬁlter of critical

data pattern.

Next. In case the stored data should be updated,

the Conﬁdentiality Level Data Splitter has to be con-

sidered.

2.2 Conﬁdentiality Level Data Splitter

Context. The data formerly stored in

one traditionally hosted data store is

separated according to data stores with

different conﬁdentiality levels. As the

application writes data to several data

stores, the data has to be categorized and split accord-

ing to the different conﬁdentiality levels. This builds

the basis for avoiding disclosure of critical data when

storing it in the public Cloud.

Challenge. How can data of one common conﬁ-

dentiality level be categorized and split into separate

data parts belonging to different conﬁdentiality lev-

els?

Forces. The data has to be annotated and split

manually, in case the conﬁdentiality level data splitter

is not used.

Solution. A splitter is placed within the Cloud

infrastructure of the data access layer. Thus, addi-

tional data movement, network trafﬁc, and load can be

minimized. The splitter writes data to all Cloud data

stores. As the splitter processes data with the highest

conﬁdentiality level, it has to be placed in a location

where the demands of the highest conﬁdentiality level

are fulﬁlled.

Sketch Privacy and Security Data Level Splitter

Traditional

Presentation

Layer

Application

Business

Layer

Data Access

Layer*

Private

Cloud

Community

Cloud

Deployment

Models

Public

Cloud

Database

Layer

Database

Layer

Database

Layer

Legend

Dataflow

Migration

Partial Migration

Modified Component

Application Layers

Figure 3: Sketch of Conﬁdentiality Level Data Splitter.

Sidebars. The data to be stored in the different

data stores might have to be separated and catego-

rized into different conﬁdentiality levels from one se-

curity or privacy domain. The splitter gets input data

of a common security or privacy domain and outputs

a separation of this data according to the particular

security or privacy levels. The splitter has to be con-

ﬁgured for the mapping from one common conﬁden-

tiality level to different conﬁdentiality levels from the

same security or privacy domain. The conﬁguration

also includes a determination of the data store for each

level. It is assumed that the data stores themselves

have appropriate access right conﬁgurations. The data

access layer has to be conﬁgured to write data exclu-

sively through the Conﬁdentiality Level Data Splitter

to the database layer. In order to avoid disclosure of

critical data, the data access layer has to be placed in a

location where the demands of highest conﬁdentiality

level are fulﬁlled. Usually, this is the private Cloud.

Results. For each data write, several data stores

are used. The data is routed through the splitter, which

categorizes and separates the data of one common

conﬁdentiality level into disjoint data sets of differ-

ent conﬁdentiality levels. The data sets are stored in

the appropriate data store based on the corresponding

security level of each data set.

Example. The database layer of an application

used by the NATO for management of data of differ-

ent security levels consists of three data stores hosted

CLOUDDATAPATTERNSFORCONFIDENTIALITY

389

using different deployment models. The data store

hosted traditionally is built on Oracle Corporation

MySQL, version 5.1. The second and third parts us-

ing Amazon VPC Cloud data store hosting an AMI

and Amazon RDS. The AMI runs MySQL 5.1 rela-

tional database on OpenSolaris. Regarding Amazon

RDS, a MySQL DB instance is chosen. Thus, the

database functionality remains the same. Now sev-

eral tera bytes of new data sets have to be imported

sequentially in the data management system. This

data is neither categorized nor annotated regarding the

classiﬁcation levels deﬁned by the NATO. Therefore,

the splitter is used and conﬁgured as follows: All per-

sonal information has to be categorized as “NATO Se-

cret” and stored in the Amazon VPC Cloud data store.

All ﬁnancial information have to be annotated with

“NATO Conﬁdential” and stored in the traditionally

hosted part of the database layer. All other data is cat-

egorizes as “NATO Restricted” and stored in Amazon

RDS.

Next. In case the stored data should be retrieved,

the Conﬁdentiality Data Level Aggregator has to be

considered.

2.3 Filter of Critical Data

Context. The private Cloud data store

contains critical and non-critical data.

To prevent disclosure of the critical

data it has to be enforced that the crit-

ical data does not leave the private

Cloud. The logic implemented in the business layer

is split into the one processing critical and the one

processing non-critical data. The party implementing

or hosting the processing of the non-critical data may

not be trusted.

Challenge. How can data-access rights be kept

when moving the database layer into the private Cloud

and a part of the business layer as well as a part of the

data access layer into the public Cloud?

Forces. As the business layer in the public Cloud

needs to have access to the non-critical data, it is

no option to completely forbid access to the data-

base from the public Cloud. As the business layer

hosted traditionally might need to have access to the

complete data, the distribution of critical and non-

critical data into different databases would require ad-

justments of the corresponding business logic and the

data access layer hosted traditionally.

Solution. A Filter of Critical Data is placed

within the Cloud infrastructure of the private Cloud

data store. All requests to the private Cloud data store

have to be directed to the ﬁlter. The private Cloud data

store is only reachable by the ﬁlter of critical data.

Requests for critical data originating off-premise are

denied by the ﬁlter.

Sketch Filter for Critical Data

Traditional

Presentation

Layer

Application

Business

Layer*

Data Access

Layer*

Private

Cloud

Community

Cloud

Deployment

Models

Public

Cloud

Database

Layer

Database

Layer

Business

Layer*

Data Access

Layer*

Legend

Dataflow

Migration

Partial Migration

Modified Component

Application Layers

Figure 4: Sketch of Filter of Critical Data.

Sidebars. The data contained in the private Cloud

data store has to be categorized into critical and non-

critical data, e. g., by applying the security classiﬁca-

tion of the NATO (Department of Defense Security

Institute, 1993) and annotating the data accordingly.

Both parts of the data access layer hosted tradi-

tionally and in the public Cloud have to be reconﬁg-

ured to access the database layer only through the ﬁl-

ter of critical data. We denote the required reconﬁg-

urations as “Data Access Layer*” in Figure 4. More-

over, the business layer hosted in the public Cloud

has to be enabled to deal with errors occurring when

data access to critical data is not granted, denoted by

“Business Layer*” in Figure 4.

The method for ﬁltering, the respective granular-

ity, and the information to be ﬁltered have to be con-

ﬁgured, e. g., by parameterization.

The application in the public Cloud has to be

aware that the data returned might be incomplete.

Thus, the application design has to consider different

availability of data. For instance, a function “write

letters to all costumers” cannot be put in the public

Cloud if the customer data must not be disclosed.

As the data access exclusively happens through

the Filter of Critical Data this pattern decreases per-

formance. Therefore, it is not applicable for dis-

tributed applications with high data trafﬁc. Besides, it

has to be avoided that the implementation of the ﬁlter

becomes a single point of failure. To overcome that

limitation, it could be horizontally scaled on demand,

for instance.

Results. Assuming the data transfer from and

to the private database layer happens exclusively

through the Filter of Critical Data, only non-critical

data is passed to the public Cloud and critical data re-

mains private.

Example. The database layer of a task man-

agement application of a car manufacturing company

built on Oracle Corporation MySQL (Oracle Corpo-

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

390

ration, 2011), version 5.1 is moved to Amazon Vir-

tual Private Cloud (Amazon VPC (Amazon.com, Inc.,

2011b)) choosing an Amazon Machine Image (AMI)

running MySQL 5.1 relational database on OpenSo-

laris. Thus, the database functionality remains the

same. The database contains (among others) tasks

directly related to company internal research. These

tasks are only allowed to be executed if the employee

requesting the task details is currently located within

the research technology center (cf. “Location Depen-

dent Task Visibility and Access” (Unger and Bauer,

2008)). In case the request for such a task originates

from outside the research technology center the ac-

cess is denied by providing an error message. The

location-based data ﬁltering is IP-based and the inter-

nal IPs assigned to VPN connections are considered

external.

Next. In case denying of access to critical data

is not acceptable, the Anonymizer of Critical Data

or Pseudonymizer of Critical Data have to be consid-

ered.

2.4 Pseudonymizer of Critical Data

Context. The private Cloud data store

contains critical and non-critical data.

The business layer is partially moved

to the public Cloud and needs access

to data. The logic implemented in the

business layer is split into one requiring critical data

and one, where critical data in pseudonymized form

is sufﬁcient for processing. This modiﬁcation of

the original business layer is denoted by “Business

Layer*” in Figure 5. The party hosting the process-

ing for which critical data in pseudonymized form is

sufﬁcient may not be trusted. Furthermore, passing

critical data may be restricted by compliance regula-

tions. It is required to relate the pseudonymized pro-

cessing results from the public business layer to the

critical data.

Challenge. How can a private Cloud data store

ensure passing critical data in pseudonymized form

to the public Cloud?

Forces. It has to be ensured that all data clas-

siﬁed as critical is pseudonymized in the data set

passed to the public Cloud in order to prevent that

the pseudonymization can be broken, e. g., by using

tools for data analysis and data mining. The relation

between the pseudonymized data and the critical data

has to be stored in the private Cloud and prevented to

be passed to the public Cloud. This will enable the re-

lation of the pseudonymized processing results from

the public business layer to the critical data.

Solution. A pseudonymizer of critical data is

placed within the Cloud infrastructure of the private

Cloud data storage. All requests to the private Cloud

data storage have to be directed to the pseudonymizer.

The private Cloud data storage is only reachable by

the pseudonymizer of critical data. Results of re-

quests for critical data originating off-premise are

pseudonymized.

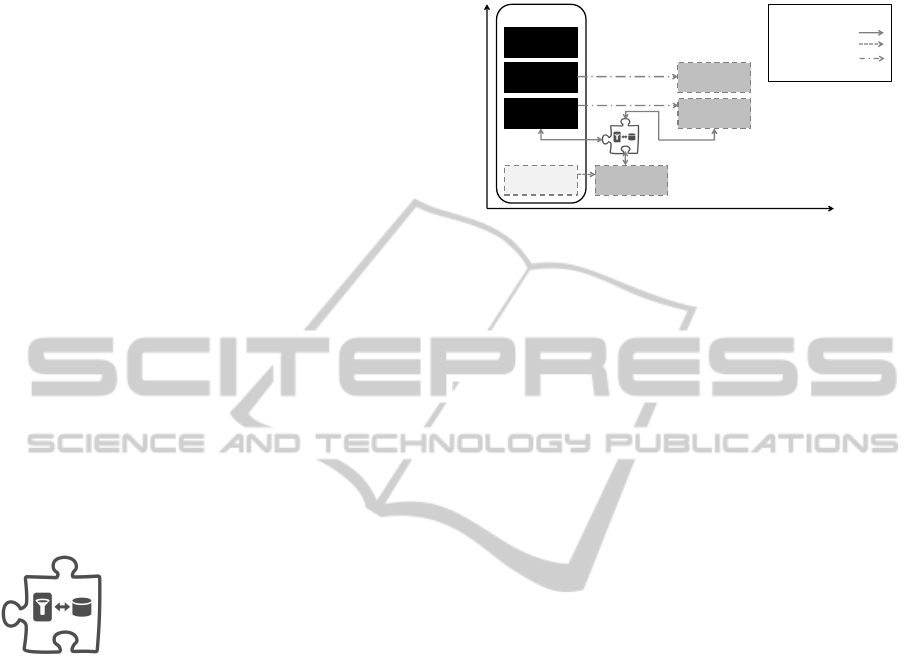

Sketch Pseudonymizer for Personal Data

Traditional

Presentation

Layer

Application

Business

Layer*

Data Access

Layer*

Private

Cloud

Community

Cloud

Deployment

Models

Public

Cloud

Database

Layer

Database

Layer

Business

Layer*

Data Access

Layer*

Legend

Dataflow

Migration

Partial Migration

Modified Component

Application Layers

Figure 5: Sketch of Pseudonymizer of Critical Data.

Sidebars. The data contained in the private Cloud

data store has to be categorized into critical and non-

critical data, e. g., by applying the security classiﬁca-

tion described in the security regulations of the NATO

and annotating the data accordingly. Both parts of the

data access layer hosted traditionally and in the pub-

lic Cloud have to be reconﬁgured to access the data-

base layer only through the Pseudonymizer of Criti-

cal Data. We denote the required reconﬁgurations as

“Data Access Layer*” in Figure 5.

The method for pseudonymization has to be con-

ﬁgured and the relation has to be stored in the private

Cloud data store.

Results. Assuming the data transfer from and

to the private database layer happens exclusively

through the Pseudonymizer of Critical Data, only

non-critical data and pseudonymized data is passed

to the public Cloud.

Example. A company started an initiative to im-

prove there image with respect to Green computing.

An external partner has been contracted to continu-

ously monitor the relevant data and to report monthly

on energy savings and energy saving potentials. As

a result the external company gets access to the data.

As the company does not want to reveal its internal

secrets the data is pseudonymized.

Next. In case passing (and thus disclosing)

pseudonymized critical data is not applicable, the Fil-

ter of Critical Data or the Anonymizer for Critical

Data have to be considered.

CLOUDDATAPATTERNSFORCONFIDENTIALITY

391

Sketch Anonymizer for Personal Data

Traditional

Presentation

Layer

Application

Business

Layer*

Data Access

Layer*

Private

Cloud

Community

Cloud

Deployment

Models

Public

Cloud

Database

Layer

Database

Layer

Business

Layer*

Data Access

Layer*

Legend

Dataflow

Migration

Partial Migration

Modified Component

Application Layers

Figure 6: Sketch of Anonymizer of Critical Data.

2.5 Anonymizer of Critical Data

Context. The private Cloud data store

contains critical and non-critical data.

The business layer is partially moved

to the public Cloud and needs access to

data. To prevent disclosure and misuse

the critical data is anonymized before being passed to

the public Cloud. The logic implemented in the busi-

ness layer is split into one requiring critical data and

one, where critical data in anonymized form is sufﬁ-

cient for processing. This modiﬁcation of the origi-

nal business layer is denoted by “Business Layer*” in

Figure 6. The party implementing or hosting the pro-

cessing for which critical data in anonymized form is

sufﬁcient may not be trusted. It is not required to re-

late the anonymized processing results from the pub-

lic business layer to the critical data.

Challenge. How can a private Cloud data store

ensure passing critical data in anonymized form to the

public Cloud?

Forces. It has to be ensured, that all data classiﬁed

as critical is sufﬁciently anonymized in the data set

passed to the public Cloud in order to prevent that the

anonymization can be broken, e. g., by using tools for

data analysis and data mining.

Solution. An Anonymizer of Critical Data is

placed within the Cloud infrastructure of the private

Cloud data store. All requests to the private Cloud

data store have to be directed to the anonymizer.

The private Cloud data store is only reachable by the

Anonymizer of Critical Data. Results of requests for

critical data originating off-premise are anonymized.

Sidebars. The data contained in the private Cloud

data store has to be categorized into critical and non-

critical data, e. g., by applying the security classiﬁca-

tion described in the security regulations of the NATO

and annotating the data accordingly. Both parts of the

data access layer hosted traditionally and in the public

Cloud have to be reconﬁgured to access the database

layer only through the Anonymizer of Critical Data.

We denote the required reconﬁgurations as “Data Ac-

cess Layer*” in Figure 6.

The method for anonymization and the respective

granularity have to be conﬁgured. For instance, an

off-premise application may retrieve anonymized data

for each person and another may only use data aggre-

gated for groups of 1 000 persons.

Results. Assuming the data transfer from and

to the private database layer happens exclusively

through the Anonymizer of Critical Data, only non-

critical data and anonymized data is passed to the pub-

lic Cloud.

Example. The database layer of an application for

managing the customers of a health insurance built on

Oracle Corporation MySQL, version 5.1 is moved to

Amazon VPC choosing an AMI running MySQL 5.1

relational database on OpenSolaris. Thus, the data-

base functionality remains the same. The database

contains the personal information as well as the med-

ical history of the customers. The business logic cal-

culating general statistics is outsourced to the public

Cloud. As there is no personal information of the cus-

tomers required to calculate the general statistics such

as how many people were suffering from a particular

illness in the last year, only anonymized data is passed

by the Anonymizer of Critical Data to the business

layer in the public Cloud.

Next. In case passing (and thus disclosing) anony-

mized critical data is not applicable, the Filter of Crit-

ical Data has to be considered.

2.6 Composition of Cloud Data Patterns

Patterns of a pattern language are re-

lated to each other, they have to be con-

sidered as a whole and to be compos-

able (Hohpe and Woolf, 2003). Thus,

we have chosen the form of a piece

of a puzzle for the pattern icons. We

do not claim that all Cloud Data Pat-

terns are composable with each other.

Whether two or more Cloud Data Patterns are com-

posable depends on the semantic and functionality

of each of the patterns. Moreover, the speciﬁc re-

quirements and context of the needed solution effect

whether a composition of patterns is required. A com-

position of the Conﬁdentiality Level Data Aggregator

and the Anonymizer of Critical Data allows for the

off-premise application part to access the private data

stored in different data stores in anonymized form.

The detailed investigation of compositions of Cloud

Data Patterns is out of scope of this paper.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

392

3 RELATED WORK

Pattern languages to deﬁne reusable solutions for re-

curring challenges have been ﬁrst proposed in archi-

tecture by Christopher Alexander et al. (1977, 1979).

Various publications on patterns exist in computer sci-

ence that describe recommendations on how to face

recurring challenges in different domains. In the fol-

lowing selection we focus on enterprise integration,

application architecture, Cloud computing, data, se-

curity, and privacy in the order they are mentioned.

Hohpe and Woolf (2003) investigate problems de-

velopers have to solve when building and deploy-

ing messaging solutions for enterprise integration.

We reuse the pattern form introduced by Hohpe and

Woolf for describing the Cloud Data Patterns.

Fowler et al. (2002) provide forty reusable solu-

tions for developing enterprise applications. In con-

trast to our work, database hosting in the Cloud is

not considered. Similar to Fowler et al. our patterns

are independent from the concrete Cloud technology

used.

ARISTA Networks, Inc. (2009) provides seven

patterns for Cloud computing. The only pattern deal-

ing with data in the Cloud is the Cloud Storage Pat-

tern. Fehling et al. (2011) provide architectural pat-

terns to design, build, and manage applications using

Cloud services. They focus on the general architec-

ture. Solutions for moving or building the database

layer in the Cloud are not provided. Nock (2008) pro-

vides 25 patterns for data access in enterprise appli-

cations. Nock does not treat Cloud data stores as we

do.

Schumacher et al. (2006) present reusable solu-

tions for securing applications and to integrate se-

curity design in the broader engineering process,

but do not deal with data pseudonymization, data

anonymization, and data ﬁltering. Haﬁz (2006)

presents a privacy design pattern catalog. Haﬁz

achieves anonymity by mixing data with data

from other sources instead of providing a general

pseudonymization, anonymization, or ﬁltering pat-

tern.

The handling of personal data in the Cloud in Ger-

many is regulated by §11 of the German Federal Data

Protection Law (Federal Ministry of Justice, 1990).

The law distinguishes between pseudonymization and

anonymization, which we reuse in our conﬁdentiality

patterns. To the best of our knowledge, the patterns

presented in this paper have not been outlined by other

authors.

4 CONCLUSIONS

This work presented ﬁve reusable solutions to face

challenges of avoiding disclosure of conﬁdential data

when moving the database layer to the Cloud or de-

signing an application using a database layer in the

Cloud. The list of the patterns has been harvested

during our work with industry partners and research

projects. We do not claim that the list of patterns is

complete.

The presentation of the patterns did not go into

technical details. For instance, scalability and single

point of failure has not been treated. A possible scal-

ability mechanism and a counter-measure is to imple-

ment each pattern using a hotpool in the Cloud. A

hotpool consists of multiple instances of the compo-

nent and a watchdog.

Our next step is a description of the general com-

position method and an evaluation using existing ap-

plications to be migrated to the Cloud.

ACKNOWLEDGEMENTS

This work has been funded by the EU (4CaaSt,

FP7/258862) and the BMWi (CloudCycle,

01MD11023). We thank Vasilios Andrikopoulos

(IAAS), Gerd Breiter (IBM), and Olaf Zimmermann

(IBM) for their valuable input.

REFERENCES

Alexander, C. (1979). The Timeless Way of Building. Ox-

ford University Press.

Alexander, C. et al. (1977). A Pattern Language. Towns,

Buildings, Construction. Oxford University Press.

Amazon.com, Inc. (2011a). Amazon Relational Database

Service.

Amazon.com, Inc. (2011b). Amazon Virtual Private Cloud.

ARISTA Networks, Inc. (2009). Cloud Networking: Design

Patterns for Cloud-Centric Application Environments.

Armbrust, M. et al. (2009). Above the Clouds: A Berke-

ley View of Cloud Computing. Technical Report

UCB/EECS-2009-28, EECS Department, University

of California, Berkeley.

Department of Defense Security Institute (1993). Inter-

national Programs Security Handbook, Chapter 10:

NATO Security Procedures.

Dunkel, J. et al. (2008). Systemarchitekturen fuer Verteilte

Anwendungen. Hanser Verlag.

Federal Ministry of Justice (1990). German Federal Data

Protection Law.

Fehling, C. et al. (2011). An Architectural Pattern Language

of Cloud-based Applications. PLoP’11. ACM.

CLOUDDATAPATTERNSFORCONFIDENTIALITY

393

Fowler, M. et al. (2002). Patterns of Enterprise Application

Architecture. Addison-Wesley Professional.

Haﬁz, M. (2006). A Collection of Privacy Design Patterns.

PLoP’06.

Hohpe, G. and Woolf, B. (2003). Enterprise Integration

Patterns: Designing, Building, and Deploying Mes-

saging Solutions. Addison-Wesley.

Mell, P. and Grance, T. (2009). Cloud Computing Deﬁni-

tion. National Institute of Standards and Technology.

Nock, C. (2008). Data Access Patterns: Database Interac-

tions in Object Oriented Applications. Prentice Hall

PTR.

Oracle Corporation (2011). MySQL.

Schumacher, M. et al. (2006). Security Patterns: Integrat-

ing Security and Systems Engineering. Wiley.

Unger, T. and Bauer, T. (2008). Towards a Standardized

Task Management. MKWI’08. GITO-Verlag, Berlin.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

394
