PRO-INOVA

Virtual Platform for Innovation Management in Doctoral Schools

Gheorghe Sebestyen

, Marius Bulgaru

and Laura Grindei

Department of Computers, Technical University of Cluj-Napoca, G. Baritiu 26, Cluj-Napoca, Romania

Department of Manufacture Engineering,

Technical University of Cluj-Napoca, G. Baritiu 26, Cluj-Napoca, Romania

Department of Electrotechnics and Measurements, Technical University of Cluj-Napoca, B. Munci, Cluj-Napoca, Romania

Keywords: eLearning, Digital Library, Innovation Management, Document Search, Information Retrieval, Patents.

Abstract: Innovation is an important goal in any doctoral study program. In order to offer support for research and

innovative developments we implemented a platform that manages information contained in patent

repositories. The platform assures functionalities for information retrieval, content harvesting, patent

repository administration and domain specific ontology management. The platform has also an eLearning

component that teaches the students the steps of patenting an innovative idea. The platform offers support

for gathering and preserving experience for research teams. This experience is benefic mainly for new

researchers and PhD students.

1 INTRODUCTION

Education in PhD schools is mainly based on

research and innovation activities. In the initial

stage, PhD students must upgrade their knowledge

with the latest scientific and technical achievements

obtained worldwide on their field of interest.

As the information quantity is growing every

year at an exponential rate, it is difficult for the

students to retrieve relevant and quality information

and knowledge that is needed in their research. In

traditional PhD education, the PhD coordinator has a

major role in offering the starting documentation

necessary for a given research.

However, this documenting process is not

formalized and there are few tools that may be used

in order to transfer knowledge and experience from

a PhD coordinator or research team to a newcomer

(Leonard, 1998). Our goal was to develop such a

tool that can store the accumulated knowledge of a

research team on a given domain of interest.

As shown in the next chapters, knowledge is

stored in different forms, from domain ontology

(concepts, associations and classifications) toward

collections of documents gathered in time by a

research team.

In order to promote innovation in technical fields

we used as information source international patent

repositories (e.g. USPTO, EPO, etc.). The arguments

behind this decision were that patented ideas usually

have an economic potential and the information

inside the patents is highly formalized, enabling

computerized information search, extraction and

data mining (Heusch, 2006). Digital libraries with

scientific articles and eBooks (e.g. IEEE Digital

Library) are also important sources for

documentation, but usually these repositories have

different and restricted access policies (e.g. access or

download fee is needed) and they do not offer

automated services for information extraction and

document downloads.

Our project’s main objective is to provide

computational means for a new educational program

in the field of innovation management. This program

is mainly for the PhD schools, but it can be used in

any research and development activity where

patenting new ideas is an important goal.

The proposed solution is a virtual platform

named Pro-Inova with three components:

 Plat-inova - a digital library application

designed for managing information contained in

patent repositories.

 e-Inova - an eLearning tool dedicated for

teaching innovation and patenting procedures in the

frame of an online course entitled “Innovation

Management”.

 Demo-inova – a video tutorial and a user’s

manual for the Pro-Inova platform.

112

Sebestyen G., Bulgaru M. and Grindei L..

PRO-INOVA - Virtual Platform for Innovation Management in Doctoral Schools.

DOI: 10.5220/0003898801120117

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 112-117

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

We decided to develop a dedicated eLearning

tool instead of using a better knowned one (e.g.

Moodle, Dotlrn) because in this way we had the

opportunity to adapt the on-line teaching sevices to

the specific needs of a doctoral school. We also had

the possibility to develop interfaces on Romanian

language.

2 INFORMATION RETRIEVAL

AND KNOWLEDGE

REPRESENTATION

In the last years, significant research effort was

focused in order to find more efficient methods for

information search, retrieval and automated

document classification (Grossman 2004). Classic

keyword-based document search methods used by

most of today’s Internet search engines have limited

capabilities in expressing the search intention of the

users. It is difficult to formulate in a few keywords a

given interest in a scientific domain. The semantic

content of the search is also affected by synonym

and homonym words.

The research in this field is focused in the

following directions:

 to find new methods for semantic representation

and storage of information (Messerly, 2000)

 to implement efficient algorithms for information

retrieval, data mining, and content classification

(Fuhr, 1992); (Salton, 1975)

 to develop tools for knowledge management

(Fensel, 2002)

In the Plat-Inova component, we tried to

integrate some of these research results in a digital

library type application. For instance, in order to

handle the knowledge related to a given research

domain we developed tools for defining thesauri of

concepts, relations and associations between

concepts. These elements of a domain ontology

enable semantic search and classification of patents

and information contained in them.

A typical scenario is the case when a research

group led by a PhD coordinator expresses its

knowledge and experience related to a domain in the

form of a particular ontology. Than the concepts and

relations in the ontology are used in the search and

classification phases in order to enhance these

procedures with semantic content. For instance if a

user formulates a search expression with a number

of keywords, than similar concepts or other more

general or more particular terms may be optionally

included in the expression. Navigation (browsing)

between documents is possible using the association

relations between concepts.

We also used the ontological references in order

to guide the classification of documents (e.g.

patents) based on predefined sets of concepts

(thesauri specialized for narrow domains of interest).

We implemented procedures that can compute the

similarity ratio between a patent and other patents in

the repository, or the similarity with a given

thesaurus. In this way, the search intention of a user

may be expressed through a patent given as an

example and not just as a limited number of

keywords.

Another form of recording experience and

knowledge is through collections. The application

has functions for defining collections (individual or

collective ones) and associating patents to

collections. A given group or individual researcher

may define its own collection of patents that reflects

a given research interest. A newcomer in the group

may start his/her documentation by evaluating the

patents in the group’s collections or in individual

collections of more experienced group members.

Collections may be organized on different criteria

(e.g. content type, ownership, destination, etc.). The

same patent preserved in a single location may be

part in a number of collections.

For the same purpose of recording experience,

the application stores search queries and

expressions. These search strategies can be reused

later in time when it is supposed that new patents are

released in a direction of interest. PhD students can

obtain valuable updated information by reusing

search strategies defined by more experienced

members of the group.

3 PLAT-INOVA – A TOOL FOR

INFORMATION RETRIEVAL

Our solution is based on some of the latest results in

the field of digital libraries, information retrieval,

content management and semantic classification of

information. As information source, we considered

patent repositories because of their public availability

and because the information contained in patents has

a standard format, enabling automated content

processing.

In our vision, a research for a PhD thesis, in most

cases, is not an individual activity. The PhD student

is part of a research group coordinated by a PhD

conductor; a number of such groups are organized in

a doctoral school and they cover some research

domains. The application models this kind of

PRO-INOVA-VirtualPlatformforInnovationManagementinDoctoralSchools

113

organization, offering specific services for PhD

students, coordinators and simple visitors in order to

handle information and knowledge in a number of

research directions. Every user has access rights and

responsibilities in accordance with their status,

experience and interest.

The goal of our platform is twofold: to provide

assistance for PhD students involved in research

activities and stimulate the innovation process by

offering quality information about their domain of

interest and to teach basic concept and procedures

used in the process of patenting.

The patent harvesting module (presented in

Figure 1) is responsible for downloading patents

from different sources available on the Internet,

based on a given search strategy defined by a user.

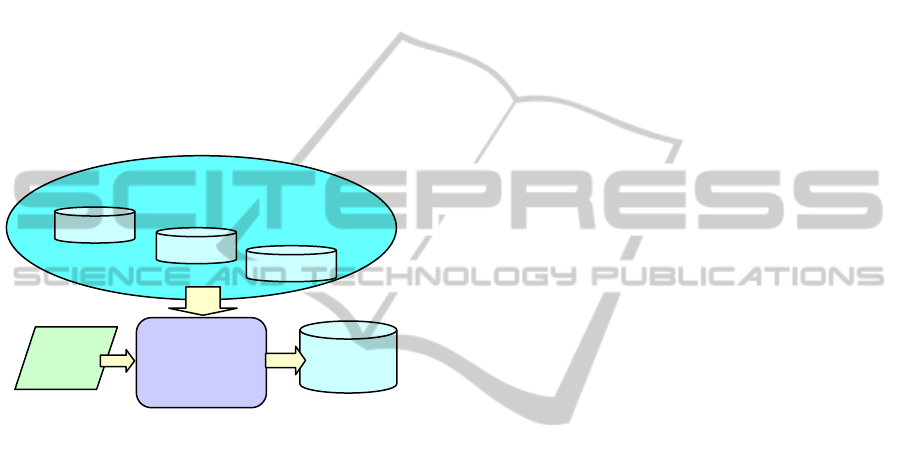

Figure 1: The harvesting module.

This service allows a research group to build its

own local repository of patents. The service has a

search part, which tries to find patents that fit into the

harvesting strategy and a download part that handles

the transfer of information and files associated with a

patent. As patent sources, the application is using

some very known patent repositories such as EPO –

European Patent Office, USPTO – United States

Patent Office or WIPO World Intellectual Property

Organization.

In the case of EPO, the download procedure is

made through a web service offered by this

repository for automated search and download. In the

case of other repositories (e.g. USPTO and WIPO)

such a web service is not available and therefore the

download is made by simulating an access through

the user interface of theses sites. This approach is

less reliable because any change in the interface of

these sites imposes changes in the download service

of the application.

The automated patent downloading is

implemented with the OPS v2 Web services that

establish a connection with the EPO online patent

database. The specifications provided in the

harvesting policy are translated into the Common

Query Language (CQL) supported by the OPS

services and a search query is created. The

application sends a SOAP message request

containing this query, invoking the bibliographic

search service of the OPS.

Since the method presented above only

guarantees the download of textual information, we

have also integrated an alternative tool for automated

patent downloading, using a full-document patent

downloader component. This component connects to

the European publication server (EPS) via the Web

service described in (EPS-WS) and provides the

same facilities as the online interface offered by the

EPO site.

The request message sent to the EPS server

contains the metadata of a patent and a specification

regarding the preferred format of the resulting patent.

The available choices are PDF files or XML files,

with the option of requesting the drawings belonging

to the patent, as well.

The PDF format is a scanned version of the

patent. Users prefer this format in case of visual

inspection of a patent. However, for automated

information search and retrieval, this format is

useless, because text parsing and search procedures

cannot be performed efficiently on scanned

documents. For such purposes, the application stores

the textual (XML) version of the patent. In such a file

tags indicate the different sections of a patent. Using

these tags, the search procedure can be directed only

to some specific parts of the patent (e.g. abstract,

description, claims, etc.).

The EPS Web service (EPS-WS) used for

downloading the PDF version offers a limited

number of facilities. The EPS-WS only provides

patents available in the European publication server

(having the “EP” index), similarly to the online

interface, which considerably reduces the number of

downloadable patents (unlike the OPS services). In

order to request a patent through this service, the

identification information (namely the patent

publication number) must be known prior to defining

the request.

Since the EPS-WS does not offer the means to

obtain the required information, this component is

used in combination with the OPS services that

include the bibliographic search service. The list of

identification information obtained through the OPS

services are used in requests for both types of

services (OPS and EPS-WS), obtaining copies of the

same “EP”-type patent in text and PDF format.

Publicl

available

atent re

ositories

Patent

harvesting

procedures

Local

repository

EPO

USPTO

WIPO

Internet

strategy

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

114

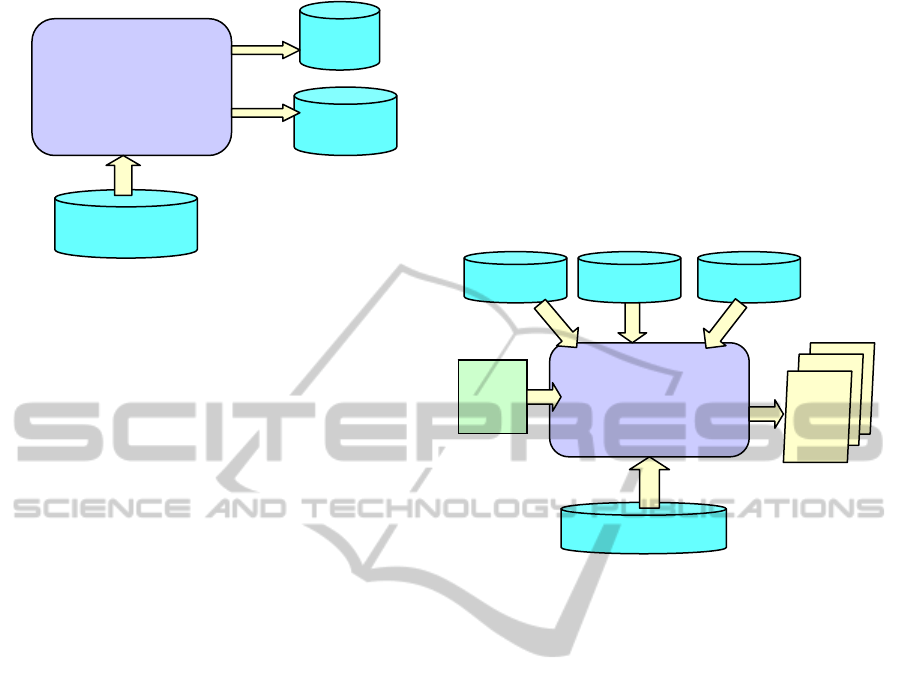

Figure 2: The patent processing module.

The Patent Processing Module. The patents

downloaded through the patent harvesting process

are used in the next step as the input data for the

patent processing module. The patent processing

procedures are using only the textual content of a

patent.

The patent processing module is composed of

several procedures, shown in Figure 2, each

responsible for implementing a given functionality.

In the first stage of the processing, patents are parsed

in order to extract relevant keywords and to eliminate

stop-words (words that have only a syntactic role and

no relevance for the content). We also disregard

words that appear in all documents or in a single

document since they provide no semantically useful

information for the search process.

The patent indexing procedure was built on the

Apache Lucene (Lucene) text search engine library.

The goal is to generate an index reference file over

the local patent repository in order to increase the

speed of the search. Each section of a patent is

indexed separately allowing keyword search on

different sections of a patent. In this way, we can

implement advanced search procedures similar to

those present in international patent repositories

through combination of conditions on different

sections. An extra facility, not present in other patent

management applications, is the search in the

description and in the claim section of the patent.

The indexing results play an important role in

computing the “relevance” score of a patent in a

search result list. The score indicates how similar a

given patent is with the search expression. The

resulting list of patents is ordered based on the

relevance score. Again, the Lucene library offers

some useful routines for the score computation.

For semantic processing of patents’ content, we

implemented the semantic analysis module that

works according with the Latent semantic indexing

(Deerwester, 1988) algorithm.

The search module contains a number of services

(Figure 3) that rely on the data structures created and

managed by the processing module.

The searching module is designed to support

index or keyword based searches, semantic searches

and it is planned to be extended with a full-

document searching facility. The semantic search is

using the information contained in the thesauri of a

domain. The user can determine the similarity of a

patent with a given thesaurus or with other patents.

Figure 3: The searching module.

A query may be formulated in terms of a

keywords expression that applies to different

sections of patents. It may also contain restrictions

that apply to the metadata associated with the patent

(e.g. period of publication, source of the patent, IPC

code, etc.). As a response to a user query, this

module returns a list of relevant patents ordered with

their relevance score.

The report generation module is responsible for

extracting relevant information from a set of

predefined patents in order to generate a synthetic

search report. The user can specify a report template

that indicates which sections and what type of patent

information should be compiled into the resulting

report.

The report generation module is using the XML

format of a patent in order to access directly the

different sections of a patent, which will be included

in the report.

The collection administration module

implements services needed for the creation, editing

and storing of patent collections. The user can select

patents from a search result list, which patents to be

included into a personal or collective collection.

From an implementation point of view, collections

are lists of links to patent objects.

Patent processin

- Indexing

- Keyword extraction

- Semantic analysis

- Classification

Index

Patent

catalogue

Local patents

Search services:

- Indexed-based search

- Semantic search

- full document search

Patent repository

Index DB Catalogue Thesauri

List of

patents

User

Query

PRO-INOVA-VirtualPlatformforInnovationManagementinDoctoralSchools

115

4 e-INOVA – eLEARNING

PLATFORM

e-Inova is the second important component of the

ProInova platform, and its main objective is to

ensure a specific eLearning environment for the PhD

students who wish to learn on-line in the field of

Innovation Management.

This eLearning platform consists of several

components:

 eLearning Content Module designed to offer

on line modules of the Innovation Management

course including a glossary of terms and a wizard for

obtaining a patent in four national and international

patent offices;

 Collaboration Module with forum and

messenger;

 Content Management Module for on-line

editing and administration of the entire eLearning

course, administration of the glossary, creation of

the evaluation tests, administration of students

marks, etc.;

 Evaluation Management Module consists in

components for PhD students‘ auto-evaluation and

final evaluation for obtaining a certificate in the field

of Innovation Management that is offered on

request.

Figure 4: Innovation Management course home page.

e-Inova was implemented in PHP language using

web services for integration with Pro-Inova and Plat-

Inova.

The eLearning Content Module (figure 4) offers

several options for content navigation, links to

chapters, modules objectives, glossary, wizard for

patents, FAQ, etc.

The Innovation Management eLearning course is

divided in modules and each module consists in

several chapters and sub-chapters. The text of the

chapters includes links to the glossary of terms, and

each chapter is concluded with references, links to

useful web sites.

The whole course includes also links to the other

components of Pro-Inova platform , such as Plat-

Inova and Demo-Inova. The content of the course

includes the following nine modules:

 Creativity in the technical domain

 Intelectual property

 How to innovate?

 Software for innovation

 Applications, patents in processing of gearing

 Applications, patents in splinting material

machining

 Applications, patents in Rapid Prototyping

 Applications, patents in quality engineering

 The history of Romanian creativity

The chapters can be selected using links and the

navigation through the entire course site is simple

and presented explicitly.

The auto-evaluation tests conclude each module

and consist in a set of very simple questions with

true/false answers and suggestions regarding the

correct answers.

The certification tests are available only for those

PhD students who register themselves for this test

and wish to obtain a certificate for the course. These

tests are more complex, and consist in a theoretical

test that can be generated by tutor selecting

questions from a database and assigning them to

each student.

The new terms in the innovation domain can be

added in the glossary of terms and can be accessed

directly from the content by links or in the glossary

by term, definition or both.

The collaboration module includes two

components:

 the forum component that allow users to post

public messages and

 the message component for the exchange of

private messages.

The Content management module consists in

several components designed for adding, editing and

erasing each unit of course content, glossary

administration (add, edit, erase terms), management

of students’ evaluation , etc.

All these facilities are available for the tutor and

administrator of the course. The content management

module was implemented as a database using

MySQL and PHP.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

116

The content adding/editing interface integrates a

WYSIWYG application that allow tutor to format

and align the text (type of fonts, italics, underlined,

bold, bullets, numbering, etc), to include images,

hyperlinks, to insert date and time, etc directly in the

content .

Tutors can change background and fonts colours

as well. Modules, chapters and subchapters can be

renamed, modified or deleted.

The evaluation management module allows

tutor to configure auto-evaluation and certification

tests . The theoretical component of the certification

tests can be generated by the tutor selecting the

questions that are already added in the database

giving the opportunity to create new tests for new

PhD students very easily.The practical test consists in

filling the forms for obtaining a patent from one of

the four national or international organizations

(OSIM, EPO, WIPO, USPTO)

5 CONCLUSIONS

In order to teach and guide PhD students in their

research and innovation activity we developed a

computer-based platform that offers the means for

information retrieval, knowledge and experience

storage and training on patenting procedures.

The platform includes a Plat-Inova application

that handles information contained in patents. The

application offers services for patent harvesting from

different international repositories, for processing of

patent content and for efficient retrieval of

information. An important goal was to develop some

functions that facilitate the preservation of

experience and knowledge inside of a research

group. Thesauri definitions, selective patent

downloading and storage, collections and query

expressions administration are some examples of

tools used for this purpose.

The E-Inova component of the Pro-Inova

platform is an eLearning tool destined for training

PhD student in the field of patenting and innovation.

The application provides useful information

regarding the process of innovation and the formal

steps necessary to protect the intellectual rights. It

contains a set of interactive tests that allow

certification of students in this area.

ACKNOWLEDGEMENTS

This work was supported by the European Social

Fund through Sectorial Operational Program for the

Developemnt of Human Resources, grant code

POSDRU/21/1.5/G/24239.

REFERENCES

Fensel, D., (2002) Ontology-based knowledge

management, Computers, vol. 35, Issue 11, IEEE

Computer Society

Grossman, D. A. and Frieder, O., (2004) Information

Retrieval: Algorithms and Heuristics, The Information

Retrieval Series, Retrieved from:

http://www.amazon.com/David-A.-

Grossman/e/B001KHBSIU

Salton, G., Wong, A. and Yang, C. S., (1975). A vector

space model for automatic indexing, Communications

of the ACM Vol. 18 issue 11

Fuhr, N., (1992) Probabilistic Models in Information

Retrieval. The Computer Journal, number 3 Issue 35

Deerwester, S., Dumais, S., and al., (1988) Computer

information retrieval using latent semantic structure“,

US Patent 4,839,853.

Heusch, Ch., (2006) Contributions regarding the

processing of the structure and content of patents and

development of special system and program, with

application for gears, PhD thesis.

Leonard, D. and Sensiper, S., (1998) Divergence and

convergence in thinking - "The Role of Tacit

Knowledge in Group Innovation", California

Management Review, Volume 40 issue 3

Messerly, J. Heidorn, G. and Dolan, W., (2000)

Information retrieval using semantic representation of

text, US patent 6076051, USPTO

PRO-INOVA-VirtualPlatformforInnovationManagementinDoctoralSchools

117
