DEVELOPING A CROSS-PLATFORM MOBILE SMART METER

APPLICATION USING HTML5, JQUERY MOBILE

AND PHONEGAP

Alexander Zibula

and Tim A. Majchrzak

Best Practice Consulting AG (bpc), M

unster, Germany

Department of Information Systems, University of M

unster, M

unster, Germany

Keywords:

App, Mobile Application, Cross-platform, iOS, Android, HTML5, PhoneGap, jQuery Mobile, Smart Meter,

iPhone, Apache Cordova, Apache Callback.

Abstract:

Mobile computing devices are becoming more prevalent. Mobile applications extend their scope and utility.

Developing such apps introduces a problem: developers are being forced to develop their applications to target

each mobile platform from scratch or to rely on Web-based solutions that do not provide a “native” look and

feel. In order to investigate novel methods of multi-platform app development and to review HTML5, we built

an app using several cutting-edge development frameworks. Our scenario—a smart meter tool—is an active

area of research in itself. We present approaches in the ﬁeld of multi-platform app development and illustrate

the technological background. We provide an overview of our development process. Finally, we evaluate our

app and discuss our ﬁndings in order to provide generalizable results.

1 INTRODUCTION

Since the advent of the Internet as a universal technol-

ogy, mobile computing has continuously increased in

importance. Beginning with smartphones, in partic-

ular the iPhone in 2007 (Macedonia, 2007), mobile

Internet usage has greatly increased. For example, in

Germany it rose from 9 % to 16 % from 2009 to 2010

(Mobile Internetnutzung, 2012). At the same time,

mobile devices—i.e. mobile phones, smartphones,

and tablet computers (pads)—have been equipped

with increasing amounts of memory and computa-

tional power. Consequently, there is a demand for

software that makes the most of these devices.

Mobile applications already generate signiﬁcant

revenue—USD 5.2 billion in 2010 according to Gart-

ner (Gartner, 2012). These so called apps have

become commonplace, even though technologically

they are “ordinary” computer programs. In the sim-

plest form, a Web site optimized for mobile devices

(Webapp) is already considered an app. In a more

dedicated form, Web-based content is rendered by a

mobile device’s internal browser but displayed within

an app installed on it. This can offer access to de-

vice features but might not provide much more than

an icon on the device’s home screen, changing the us-

ers’ perception. The third category are native apps

that have been written for a speciﬁc platform—either

a virtual machine or a mobile (device) operating sys-

tem.

Developing apps is far from hassle-free. Due to

rapid progress in hardware development, software de-

velopment has not kept up the pace (as illustrated in

Section 2).

To some extent it is unclear whether clas-

sical software development methods can be applied to

mobile devices. Even worse, there are a number of in-

compatible platforms. Development of PC programs

for multiple platforms is much more convenient than

it used to be. A Java program runs on any system that

can host an adequate virtual machine. Even programs

natively developed for one platform can usually be

cross-compiled for other platforms (e.g. in C++ via

Gtk+ (Logan, 2001)) if they do not heavily make use

of platform-dependent functionality. Traditional de-

velopment for mobile apps means writing programs

for each platform from scratch. Only few approaches

existed to circumvent this problem.

To investigate possibilities of cross-platform de-

velopment, we designed an app using HTML5

(HTML5, 2012), PhoneGap (PhoneGap, 2012), and

This surprisingly aligns with what is known as the soft-

ware crisis (Dijkstra, 1972) for stationary computers.

Zibula A. and A. Majchrzak T..

DEVELOPING A CROSS-PLATFORM MOBILE SMART METER APPLICATION USING HTML5, JQUERY MOBILE AND PHONEGAP.

DOI: 10.5220/0003900100130023

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 13-23

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

jQuery Mobile (jQuery Mobile, 2012). Our aims were

to understand how they are used, how development

differs from classical applications, and how well the

apps perform. To add rigor while working on a highly

relevant topic, and to broaden the scope of our re-

search, we selected smart metering (Popa et al., 2010)

as our scenario. We thereby developed a new kind of

app that is demanding w.r.t. mobile device resource

utilization.

Smart grids have been proposed as an energy grid

upgrade (Javadi and Javadi, 2010) in order to more ef-

ﬁciently distribute and use energy, particularly in light

of regenerative sources (Knab et al., 2010). Despite

the need for cautions (Meehan, 2010) their emergence

can be taken for granted. Smart meters are part of

smart grids. They measure energy throughput and of-

fer the possibility to better control consumption (Lee

et al., 2011). For example, energy-pricing through-

out a day can be adjusted by demand. An analysis

of beneﬁts from smart metering has been described

by Gnilka, Meyer-Spasche & Folta (Gnilka et al.,

2009). The architecture of smart meters and smart

grids is complex because it involves various commu-

nication partners, communication channels, and inter-

mediaries.

Our work makes several contributions. Firstly,

it presents a novel approach for developing mobile

applications against multiple platforms with a sin-

gle code-base. Secondly, it introduces an innovative

smart meter application. Thirdly, it discusses the ﬁnd-

ings in the light of future development projects. And

fourthly, it brieﬂy compares current approaches for

cross-platform app development.

This paper is structured as follows. Section 2 out-

lines related work and alternative approaches. Our

work’s technological background is sketched in Sec-

tion 3. Section 4 explains the app development. Eval-

uation and discussion are given in Section 5. Sec-

tion 6 draws a conclusion.

2 RELATED WORK AND

ALTERNATIVE APPROACHES

Related work can be discussed from various per-

spectives. Firstly, other approaches for developing

mobile applications for multiple platforms are high-

lighted. Secondly, papers on HTML5 are assessed.

Finally, smart meter apps are reviewed. With re-

gard to approaches for multi-platform development,

we leave out Webapps and apps that can be installed

natively but only use the internal browser to render

HTML 4.01 or XHTML 1.1. Even if Web pages

are optimized for mobile devices, they cannot be ex-

pected to have a “native” look and feel and they are

unable to use device-speciﬁc functionality.

The following ﬁve multi-platform development

approaches will likely become important in the near

future. Firstly, HTML5 (HTML5, 2012) promises to

combine the convenience of developing Web user in-

terfaces (UI) with the ability to use a device’s speciﬁc

functionality. It is introduced in Section 3. Secondly,

hybrid apps combine the features of HTML with na-

tive code that is provided by specialized frameworks

(Barney, 2009). In general, programmers do not re-

quire detailed knowledge of the target platform but

only of Web technologies. An example is Phone-

Gap (PhoneGap, 2012). Thirdly, interpreted apps

can be used. Instead of writing platform-dependent

code, scripting languages that are interpreted on the

target platform are used. An example is Appceler-

ator Titanium (Appcelerator, 2012). Fourthly, with

cross-compilers code is written once and compiled to

platform-dependent apps. An example is XMLVM

(XMLVM, 2012). Fifthly, model-driven software de-

velopment (MDSD) can be applied. The idea is to de-

scribe an app in an abstract notation (the model) that

is transformed and compiled to platform-dependent

apps. An example is applause (Applause, 2012),

which is based on a domain-speciﬁc language (DSL).

Neither of the approaches can yet be seen as a deﬁ-

nite solution. Further frameworks exist that fall in be-

tween the above sketched categories. Cross-platform

app development not only is a topic of academic re-

search but also for practitioners (Allen et al., 2010).

Although HTML5 is still considered a “working

draft” (HTML5, 2012), standardization is at an ad-

vanced stage. This is also reﬂected by the appear-

ance of practitioners’ textbooks such as that by PIL-

GRIM (Pilgrim, 2010). Even Webapp development for

Android and iOS using HTML is covered (Oehlman

and Blanc, 2011; Layon, 2010). Most scientiﬁc arti-

cles that have been published in this ﬁeld do not di-

rectly relate to our work. They cover issues such as

Web3D (Di Cerbo et al., 2010), accessibility (Pfeif-

fer and Parker, 2009), mashups (Aghaee and Pau-

tasso, 2010), and HTML5 usage in general (Harjono

et al., 2010). We did not identify scientiﬁc papers

on HTML5 in the context of app development be-

sides a paper by MELAMED & CLAYTON (Melamed

and Clayton, 2009). The authors compare HTML5 to

J2ME and native app development in the context of

pervasive media applications. They ﬁnd that HTML

is a “good solution” for “creating and distributing

most pervasive media applications” (Melamed and

Clayton, 2009). Only few non-scientiﬁc sources ex-

ist that develop proof-of-concept apps (Rogers, 2010;

Suhonos, 2010).

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

It is not feasible to review papers on smart grids

or on smart meter devices. A myriad of articles ex-

ist but they are beyond the scope of this work since

all facets of smart metering are addressed. From

the relevant papers, some address distinctive imple-

mentation issues (e.g. (Song et al., 2011; McLaugh-

lin et al., 2010)) or software that concerns its em-

bedding into infrastructures (for instance (Capodieci

et al., 2011)). However, these approaches have little

in common with our app.

The work presented by WEISS, MATTERN,

GRAML, STAAKE, & FLEISCH (Weiss et al., 2009)

is similar to ours. They propose a Web-based API

to access smart meters and visualize data on mobile

phones. The device used appears to be an iPhone;

however, WEISS et al. focus on smart metering as-

pects rather than on the app itself. Therefore, their

work and ours are complementary. WASSERMAN

(Wasserman, 2010) compiled a short article on “soft-

ware engineering issues” for app development. He

thereby predicts some of our ﬁndings.

Many smart meter apps can be identiﬁed that have

not been developed with scientiﬁc progress in mind.

We expect that several proof-of-concept apps exist

that are not publicly described. Two free examples are

Google PowerMeter (Google PowerMeter, 2012) and

Vattenfall Smart Meter App (Vattenfall Smart Meter

App, 2012). They are depicted in Figure 1. Google

PowerMeter is a Webapp that allows users to view

energy consumption by day, week, or month. It also

provides some predictive analysis. The app is based

on Web technology. It offers a lot of functionality,

is well-documented, and has an open API. Unfortu-

nately, it has been discontinued. The Vattenfall solu-

tion is a native app for iOS. Both apps are similar in

concept to our work although not using any advanced

technology for cross-platform development.

3 TECHNOLOGICAL

BACKGROUND

HTML5 is expected to change the Web’s techno-

logical landscape (Vaughan-Nichols, 2010). The

term HTML5 is usually understood in a broad sense

that covers the core markup speciﬁcation as well as

other Web standards, technologies, and APIs (Lub-

bers et al., 2010). This deﬁnition is also assumed in

this paper even though some aspects are actually pub-

lished in separate speciﬁcations

Differences between HTML4 and HTML5 have

been compiled into a concise document (HTML5 dif-

ferences, 2012). HTML5 features a new short doc-

ument type deﬁnition to trigger standard rendering

Figure 1: Google PowerMeter (Google PowerMeter, 2012)

and Vattenfall Smart Meter App (Vattenfall Smart Meter

App, 2012).

mode as well as a shorter charset deﬁnition as shown

in Listing 1. It adds, changes, and removes sev-

eral elements and attributes, including new seman-

tic sectioning elements such as <header>, <footer>,

<section>, <article>, <nav>, and <figure> as

well as custom data (data-*) attributes. Further-

more, it speciﬁes advanced forms with form vali-

dation and several new input types including tel,

search, url, email, number, range, color, date

and time (HTML5 differences, 2012).

<!DOCTYPE h tml>

<html>

<head>

Listing 1: Document type and charset deﬁnition (HTML5

differences, 2012).

Classic Web applications lacked persistent, client

side storage with sufﬁcient size. Cookies and pro-

prietary solutions like IE UserData or Adobe Flash

Local Shared Objects have severe limitations. With

HTML5, there are ﬁve speciﬁcations for new storage

APIs: Web Storage, Indexed Database API, File API,

Web SQL Database, and Ofﬂine Web applications.

HTML5 also allows device access e.g. through the

Geolocation API and provides further new functions

(Device APIs WG, 2012).

Additional new technologies (Lubbers et al.,

2010; Pilgrim, 2010) include WebSockets, which

bring high performing, bi-directional, full-duplex

Please note that we name several APIs that HTML5 re-

lies on. We do not cite their speciﬁcation since there are

links in the HTML5 speciﬁcation (HTML5, 2012) and de-

tailed coverage is outside the scope of this work.

DEVELOPINGACROSS-PLATFORMMOBILESMARTMETERAPPLICATIONUSINGHTML5,JQUERY

MOBILEANDPHONEGAP

TCP connections; Cross Document Messaging,

which enables secure cross-origin communication;

and asynchronous JavaScript, which becomes possi-

ble through the Web Workers API. A highly discussed

part of HTML5 concerns multimedia and graphics

with the HTML5 tags canvas, video, audio, and

the integration of SVG into HTML documents. A se-

ries of new CSS3 module speciﬁcations deﬁne new

styling features such as media queries, selectors,

backgrounds and borders, as well as transformations.

Browser support for HTML5 is becoming more

prevalent but is still far from complete (HTML5 Test

Suite, 2012; The HTML5 test, 2012). The recom-

mended way for ﬁnding out if a certain HTML5 fea-

ture can be used is testing every needed feature in-

stead of general user agent (browser) detection. De-

tails are given by PILGRIM (Pilgrim, 2010). There is

also a JavaScript library called Modernizr that is use-

ful for this task (Lubbers et al., 2010).

JavaScript is an object-oriented, interpreted,

and weakly-typed programming language (Crock-

ford, 2008). It has become speciﬁcally important due

to the proliferation of Ajax (Asynchronous JavaScript

and XML). Framework support greatly improves de-

velopment. For example, jQuery is a concise, open

source, cross-browser JavaScript framework that sim-

pliﬁes development (Steyer, 2010). Its current use is

predominant: more than 54 % of the 10.000 most vis-

ited websites (jQuery Usage Trends, 2012) employ

it. The corresponding mobile-optimized plug-in is

jQuery Mobile (Reid, 2011; Firtman, 2011).

JSON (JavaScript Object Notation) is a simple,

text-based, human-readable data-interchange format.

It is language independent but based on a subset of

JavaScript (Crockford, 2008). JSON is used as a

lightweight alternative to XML, e.g. in conjunction

with Ajax or RESTful Web services (Richardson and

Ruby, 2007; Webber et al., 2010).

Android is an open operating system and mo-

bile device platform based on a modiﬁed Linux ker-

nel. The main development language is Java (Able-

son et al., 2009). Apps can not only be loaded from

the Android Market but also from others sources.

iOS is Apple’s system for its mobile devices. It

has a layered system architecture; programming is

done in Objective-C (Neuburg, 2011). For practical

development and testing, there is no alternative to a

Mac running Xcode and iOS SDK. Current releases

of Android and iOS support HTML5 based on the

WebKit (WebKit, 2012) layout engine.

User

External

user

Smart meter

customer

extension points

own usage data

Access usage

<<extend>>

Access news

Access own

usage

Logout

<<include>>

Smart meter app

Figure 2: Use case diagram for our prototype.

4 DEVELOPMENT OF THE APP

In the following sections, we describe the develop-

ment of the prototype by sketching the requirements,

explaining the speciﬁcation, and highlighting some

implementation details.

4.1 Requirements Analysis

The basic idea for the project originates from an en-

ergy provider’s request to best practice consulting AG

(bpc). However, requirements for our prototype were

developed independently. The targeted case is the ﬁc-

tive energy providing company EnergyXY that has a

substantial smart meter installation base and already

runs a customer self-service smart meter Web portal.

This portal is integrated with a comprehensive func-

tional backend, such as SAP for Utilities (IS-U) (Fred-

erick and Zierau, 2011).

The primary objective of the app is to enable cus-

tomers to access their utility consumption and thereby

provide cost and usage beneﬁts, insights on consump-

tion, environmental protection, and energy efﬁciency.

Further goals concern cross-platform support, usabil-

ity, and technology evaluation. Platforms that have to

be supported are Android and iOS. However, easy ex-

tension to other mobile platforms such as Blackberry

or Windows Phone should be possible.

In terms of usability, the app has to address spe-

ciﬁc mobile challenges such as users’ attention span,

smaller displays of various sizes and resolutions, and

distinctive user interfaces (e.g. touchscreens) (Bieh,

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

Header: Title

Content

Footer: Navigation

Main Menu

Smart Meter

Demo

News

Contact Privacy Config Info

Dashboard

Controls

Figure 3: GUI illustrations.

2008). One important requirement is to sensibly sup-

port device orientation changes. Furthermore, the app

should comply with standard UI guidelines for the

target platforms such as the “iOS Human Interface

Guidelines” (iOS Human Interface Guidelines, 2012)

and “Android Design” (Android Design, 2012). Ful-

ﬁlling these requirements covers a majority of mobile

usability issues. However, these guidelines focus na-

tive apps for the speciﬁc platform and partly contra-

dict each other, e.g. considering the usage of top and

bottom bars.

The identiﬁed use cases for the app are summa-

rized in Figure 2. The app should enable access to

consumption data and news provided by EnergyXY.

It should also provide a demo mode with random (but

plausible) data. According to the use cases, a data

model and a ﬁrst GUI sketch were created. The latter

is shown in Figure 3.

4.2 Design

The high-level sketch of the application architecture is

shown in Figure 4. There is no direct connection be-

tween the smartphone and the smart meter assumed.

Please note that there actually may be multiple (inter-

mediary) information systems on the right hand side.

The internal architecture of the app follows the hybrid

approach, falling in between a native app and a We-

bapp. Native apps offer amenities in terms of device

feature access, performance, marketing, and sales ad-

vantages through app stores. Webapps are beneﬁcial

in terms of portability, development costs, asset speci-

ﬁcity, and development cycle and update cycle time

(Stark, 2010; Barney, 2009).

Two trends decrease the differences between the

two alternatives and make it possible to combine ad-

vantages of both. Firstly, new Web technologies such

as HTML5 provide features that enable ofﬂine appli-

cations, increase performance, enable device access,

and provide user interfaces (UI) that come close to

those of native apps. Secondly, it is possible to em-

bed a Web application into a native application, thus

forming a hybrid application. These are also known as

embedded apps, which internally use the browser to

render Web content but provide access to device fea-

tures (Barney, 2009). We chose a hybrid approach as

it combines the advantages and balances the features

of both alternatives. Such apps can be distributed via

online market stores and are portable in nature.

The development of hybrid applications can

be dramatically simpliﬁed with the use of frame-

works such as PhoneGap (PhoneGap, 2012), Rhodes

(Rhodes, 2012), or Appcelerator Titanium (Appcel-

erator, 2012). All of these are free and support at

least Android and iOS. They require knowledge of

HTML, JavaScript, and CSS (as well as Ruby in case

of Rhodes); knowledge of native device programming

is not necessary. PhoneGap was chosen due to hav-

ing greater platform support (including iOS, Android,

Blackberry, WebOS, Windows Phone, Symbian, and

Bada) (PhoneGap Supported Features, 2012), an ac-

tive development community, a comprehensive API

of exposed native features, and good documentation

(cf. (Stark, 2010; PhoneGap, 2012)). PhoneGap is

gaining attention with dedicated books appearing in

late 2011 and early 2012 (Ghatol and Patel, 2012;

Lunny, 2011; Myer, 2011). It has recently been con-

tributed as an Apache project under the name Apache

Cordova (Apache Cordova, 2012) (originally Apache

Callback).

The design of the UI was mainly inﬂuenced by

choosing a framework that supports interfaces for mo-

bile Webapps and hybrid apps. We compared jQuery

Mobile (jQuery Mobile, 2012) and Sencha Touch

(Sencha Touch, 2012). jQuery Mobile is a jQuery

plug-in and focuses Web UI programming through se-

mantic markup (HTML) for a wide range of platforms

(iOS, Android, Windows Phone, WebOS, Blackberry,

Meego, and Symbian (Mobile Graded Browser Sup-

port, 2012). In contrast, UI deﬁnition in Sencha

Touch is soley done in JavaScript, without a single

manually written HTML element within the docu-

ment body. Platform support is limited to iOS, An-

droid and Blackberry. We chose jQuery Mobile be-

cause it is lightweight, allows basic Web frontend

programming, and supports more platforms. It of-

fers several UI components that are optimized for

touch interaction on a multitude of screens and de-

vices. Examples include toolbars at the top or bottom

of a page, various buttons and other form elements,

and list views. Moreover, it provides a comprehensive

page, dialog, and navigation model as well as various

animations.

In Figure 5, screen sketches of the application are

depicted. They include the main menu and the dash-

board with a yearly and a monthly chart. In the two

dashboard views, different options for the selection

DEVELOPINGACROSS-PLATFORMMOBILESMARTMETERAPPLICATIONUSINGHTML5,JQUERY

MOBILEANDPHONEGAP

Smartphone

Smart

Meter

App

Smart Meter

Provider’s

Information

System

Internet

No direct

connection

Processed Smart Meter

Data

Smart Meter Data

Figure 4: Simple smart meter architecture.

Figure 5: Screen sketches.

of the time interval were compared. The second so-

lution with the navigation bar at the bottom was fa-

vored because of its visual consistency with the main

menu. Possible navigation paths are visualized in a

click graph (Figure 6).

For the generation of charts, we compared three

different JavaScript charting libraries: jqPlot (jq-

Plot, 2012), Highcharts (Highcharts JS, 2012), and

gRapha

el (gRapha

el, 2012). Highcharts was chosen

because is provides highly interactive charts includ-

ing animation during chart construction, click event

handling, zooming, and mouseover events (e.g. for

tooltips). It offers various chart types, a comprehen-

sive API, good documentation and easily integrates

with jQuery (Highcharts JS, 2012).

To improve accessibility, the app uses progressive

enhancement, which is also employed in jQuery Mo-

bile (Parker, 2010). This approach starts with a basic

version with simple markup that provides a functional

experience that is compatible with most browsers,

platforms, and devices. Then, layers that enhance the

functional experience are progressively added. The

advantages of progressive enhancement are universal

access, cleaner and more modular code, a single code

base, and compatibility (Parker, 2010).

In order to realize loosely coupled, interoperable,

and reusable communication between the smart me-

ter app and the backend, Web services are generally

suitable. However, rather than SOAP-based services,

our app uses REST HTTP services (Fielding, 2000;

Webber et al., 2010; Richardson and Ruby, 2007) that

limit the available operations to the HTTP protocol.

They offer advantages in terms of performance and

simplicity. JSON as the data format offers similar ad-

vantages over XML. It considerably eases parsing to

JavaScript objects and has minimal overhead. Both

decisions are well suited to the small scale of the de-

veloped app. JSON Schema (JSON Schema, 2012)

was used to deﬁne the interface. Instead of using

an annotation-based approach found in JAX-RS im-

plementations (Java API for RESTful Web Services

(Burke, 2010)) and Spring MVC 3 (Walls, 2011), a

simple Java backend application using hand-written

servlets is sufﬁcient. It provides services for login as

well as retrieval of smart meter data and news.

Smart meter data is stored on the device. Out

of the ﬁve possibilities introduced in Section 3,

Web SQL is discontinued (Web SQL Database, 2012)

and Indexed Database API is not yet supported on iOS

and Android. We selected Web storage in the form of

local storage, which is a simple key value store in the

browser with a typical maximum size of 5 MB (in-

creasable upon request) (Pilgrim, 2010). It is suitable

for JSON formatted data conforming to the deﬁned

JSON schema.

4.3 Implementation

For the ﬁrst prototype Android and iOS were selected

as target platforms. Regarding the environment a

Mac with Xcode and iOS SDK was used for iOS; for

Android, the Android SDK was utilized along with

the Android Developer Tools and Eclipse. In List-

ing 2, loading of the front page of the app is deﬁned.

In non-PhoneGap Android applications, the activity

would simply inherit from the Activity class. In

case of a PhoneGap app, it inherits from the Phone-

Gap provided class DroidGap. Invoking onCreate()

loads the entry page of the Webapp. This is the only

native Java Code that needs to be changed for running

a PhoneGap application on Android. The remainder

of the logic of PhoneGap—in particular the interfaces

and implementations for providing device features—

is bundled with the Java archive phonegap.jar and

the JavaScript source phonegap.0.9.5.js. Fur-

thermore, some changes will need to be applied

to AndroidManifest.xml, concerning metadata and

permissions. For the iOS application, the only change

necessary was the deﬁnition of the supported interface

orientations.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

Home

News List

Contact

Privacy Config

Info (Test)

Contract

Selection

News

Content

Dashboard

News

Smart

Meter

Demo

Figure 6: Click graph for our prototype.

p u b l i c c l a s s S m a r t M e t e r A c t i v i t y e x t e n d s Droi dGap {

/ / C a l l e d when t h e a c t i v i t y i s f i r s t c r e a t e d .

@Over ride

p u b l i c vo i d o n C r e a t e ( Bundle s a v e d I n s t a n c e S t a t e ) {

super . o n C r e a t e ( s a v e d I n s t a n c e S t a t e ) ;

super . l o a d U r l ( ” f i l e : / / / / www/ i n d e x . h tm l ” ) ;

}

Listing 2: Loading of the front page of the Android app

(PhoneGap Get Started Guide, 2012).

The Webapp is independent of the platform; the

same code was used for Android and iOS. It uses a

single HTML ﬁle with multiple internal pages that are

part of jQuery Mobile’s page model. jQuery Mobile

handles dynamic show and hide of multiple pages via

JavaScript and CSS. Pages requested via Ajax are in-

stantly available. The markup for an internal page are

nested <div> tags with data-role attributes page,

header, content and footer.

The implemented internal pages correspond to the

GUI Model and are connected as shown in Figure 6.

jQuery Mobile uses various other custom data at-

tributes for deﬁning the user interface, such as di-

alogs, links, transitions, list views, and navigation

bars. The JavaScript code has to wait for Phone-

Gap to complete loading before making API calls

to it. The respective event is called deviceready.

Afterwards, native features can be accessed via the

PhoneGap API (PhoneGap API Reference, 2012).

An example of using vibration is given in Listing 3.

The click event on the button with the identiﬁer

btnVibrate is caught and the PhoneGap function

navigator.notification.vibrate is called. The

parameter deﬁnes the vibration length in millisec-

onds.

$ ( ’ # b t n V i b r a t e ’ ) . c l i c k ( f u n c t i o n ( ) {

n a v i g a t o r . n o t i f i c a t i o n . v i b r a t e ( 1 0 0 0 ) ;

}) ;

Listing 3: Example for using vibration.

jQuery Mobile detects device orientation changes

and redraws the page using the orientationchange

event. The earlier deﬁnitions of supported screen

sizes for Android and iOS merely enabled the possi-

bility of orientation changes but not the correct adap-

tion of the content.

In order to load and display smart meter data,

a SmartMeterDataService generates a statistical

distribution of smart meter readings, aggregates

them to the requested time scale, converts to the

requested type and unit (e.g. consumption in

kWh or CO

pollution in kg) and ﬁnally returns

a JSON String to the responsible servlet. The

mobile application requests this data through the

jQuery Ajax function $.ajax(...), stores it via

window.localStorage.setItem(...), and parses

it to a JavaScript object via $.parseJSON(...) so

that Highcharts is able to process and draw it.

5 EVALUATION AND

DISCUSSION

To reﬂect our work, we discuss our ﬁndings, their im-

plications, and current limitations.

5.1 Considering the App

The home screen of the app is used as the start-

ing point for navigation (see Figure 6). jQuery Mo-

bile’s dialogs were used for notiﬁcation in case of

errors, for example due to a missing network con-

nection during login, contract selection, or loading of

new data. All other operations are available ofﬂine.

The login screen uses an HTML5 email form ﬁeld

for which iOS provides an adapted conveniently us-

able on-screen keyboard with direct availability of

the @ and the dot key. On the news screen, current

news are displayed in a scrollable list view.

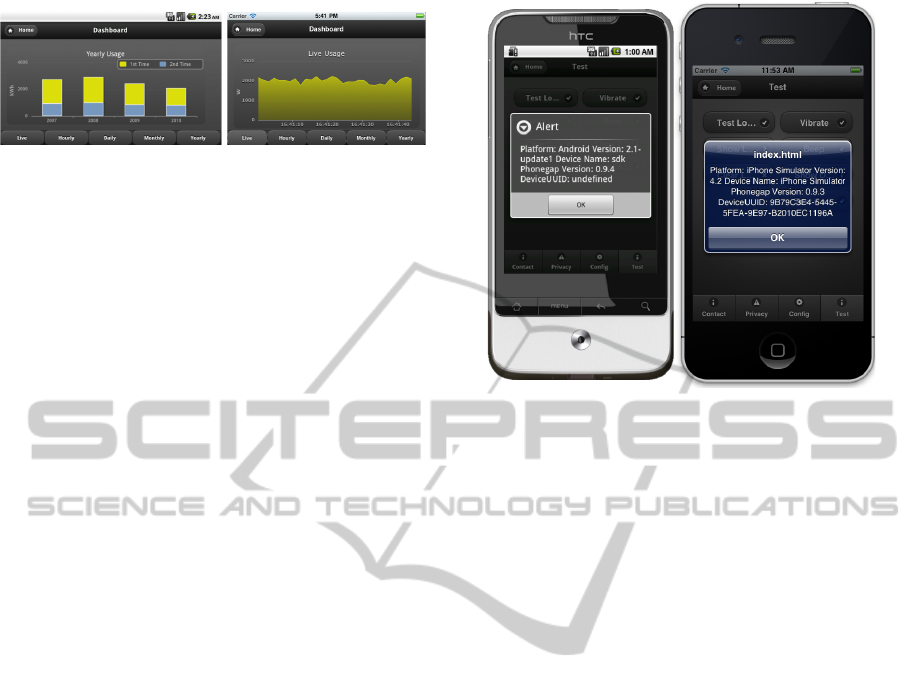

Figure 7 shows the dashboard of the app in land-

scape mode on the Android emulator (left) and the

iPhone 4 simulator (right). Android shows data aggre-

gated to years, differentiated between daytime (yel-

low) and nighttime (blue). Clicking columns yields

a detailed time scale. Tooltips appear if a touch and

hold gesture is performed on a column. The legend

allows click events to show or hide a time zone using

an animation. The iPhone shows a live view, which

updates every two seconds. For a live view in a pro-

ductive app, direct connection to the meter would be

required; we thus used simulated data (cf. Figure 4).

The app satisﬁes the main aim of giving customers

feedback on consumption. It runs cross-platform on

Android and iOS. Extension to other platforms is

DEVELOPINGACROSS-PLATFORMMOBILESMARTMETERAPPLICATIONUSINGHTML5,JQUERY

MOBILEANDPHONEGAP

Figure 7: Comparing the Android and iOS interfaces.

possible due to the compatibility of PhoneGap and

jQuery Mobile. Usability requirements were largely

met. The app adapts to different screen sizes and reso-

lutions regarding e.g. button sizes, device orientation,

and animations. Moreover, it effectively utilizes the

touchscreen.

The cross-platform development has highlighted

the relevance of continuous testing against all plat-

forms for several reasons: having a single code base

for the embedded Webapp, the fact that bugs might

be present or reproducible on only one platform, the

observation that (framework) patches lead to ambigu-

ous effects, and the low maturity of jQuery Mobile

at the beginning of development (versions Alpha 2

to Alpha 4.1). Manual testing was performed on

the Android emulator (versions 2.1 to 2.3.3 with var-

ious screen resolutions), two physical Android de-

vices (HTC Desire HD running Android 2.2, HTC

Legend running Android 2.1), the iOS simulator 4.2,

an iPhone 4 running iOS 4.2.1, and various desktop

browsers on Windows XP and Mac OS X 10.6. In ad-

dition to manual testing, Selenium (Selenium, 2012)

was used for automated frontend testing. Debugging

was done using Android Dalvik Debug Monitor Ser-

vice (DDMS), Xcode Instruments, Firebug (Firebug,

2012), Chrome and Safari built-in developer tools,

and the iPhone simulator Web debugging console.

These tools were very useful to us; however, an elab-

orate discussion is outside the scope of this work.

Problems encountered during development con-

cerned stability, performance, and UI differences. A

special problem was the ﬁxed positioning of the lower

navigation bar, which is a prominent feature for native

(looking) apps, especially on iOS. The jQuery Mobile

implementation had severe bugs, which were mostly

ﬁxed in subsequent versions. The navigation bar was

either shown multiple times, displaced, or did not stay

at a ﬁxed position while scrolling. Main performance

issues were memory usage and processing speed of

animations. Extensive memory usage of Highcharts

could partly be countered against by manual freeing

operations. It seems that Highcharts’ resource con-

sumption is designed primarily for PCs. Performance

on the Android emulator was unsatisfactory. This

did not vary noticeably with the SDK version or as-

Figure 8: Android and iOS native popup windows.

signed main memory size of the emulator. The perfor-

mance test on the HTC Legend was acceptable; per-

formance on the HTC Desire HD was considerably

better. Updates of jQuery Mobile up to version Al-

pha 4.1 showed noticeable improvements in all con-

ﬁgurations (not limited to Android).

In the iOS implementation, the device orientation

change is shown with a smoother transition than on

Android. In fact, the iPhone 4 had a general perfor-

mance advantage, even comparing it to the faster An-

droid device. Performance was even better in the iOS

simulator, which does not emulate the iPhone hard-

ware. As expected, best results were seen on desktop

browsers. However, these were not a development tar-

get and were only tested for the sake of comparison.

5.2 Evaluation of the Design

The decision for a hybrid application was made for

reasons including (1) device access, (2) evaluation of

new technologies, (3) portability, (4) ofﬂine availabil-

ity, and (5) access to online market stores. During the

design phase of the app it turned out that only few

device features (1) were actually necessary. Both ver-

sions use device orientation change, retrieve device

information, and show native notiﬁcations. The latter

are either audible (beeps), tactile (vibrations), or vi-

sual (popup windows). However, they were only used

for testing and demonstration. An example is the vi-

sual native notiﬁcation of device information loaded

by a call to the PhoneGap API (Figure 8).

Use of new technologies (2) and portability (3)

are achievable without PhoneGap, solely by means of

HTML5 and jQuery Mobile. Ofﬂine availability (4)

would also be possible with HTML5 although slightly

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

more complex. The majority of the features of Phone-

Gap were not used because they were not required by

the app. This means that a mobile Webapp using the

HTML5 ofﬂine cache may have also sufﬁced.

An important remaining question is to weigh the

advantages of the marketing and distribution oppor-

tunities of the app stores (5) against the disadvan-

tages of additional development complexity and the

time and costs of registration as well as review pro-

cesses. For a non-free application, the decision is

simple: a hybrid app would be preferable because

setting up a payment system that is accepted by a

considerable number of customers is difﬁcult. At the

moment, smart meter applications are usually offered

for free (cf. Section 2). They are ﬁnanced through

earnings from the smart metering product. There-

fore, currently a Webapp is sufﬁcient. However, an

extension of scope to advanced topics such as smart

homes, smart grids, e-mobility, or even augmented

reality could proﬁt from using additional device fea-

tures such as cameras or other additional sensors.

One aim of HTML5 and Webapps is to make de-

vice features available and reduce the need for native

apps. Consequently, frameworks such as PhoneGap

are transitional technologies but likely to ultimately

become obsolete. To a high extent, HTML5 is already

usable. Many functions are stable. Local storage, cus-

tom data attributes, new form elements, and canvas

(through Highcharts) were used in the implementa-

tion. However, due to incomplete universal support

for many features, it is not seen as a general solution,

yet (Mobile Web Metrics Report H2/2011, 2011).

Native apps will always perform better in com-

parison to Webapps. However, it is unclear whether

these differences will continue to be relevant for the

majority of apps. For performance intensive appli-

cations such as 3D games, there will likely continue

to be certain performance considerations. Most oth-

ers will be realizable using Webapps. POGUE (Pogue,

2007) argues that mobile Webapps are only a bridge

technology, i.e. to bridge the gap after the release of

the iPhone until the opening of Apple’s app store. He

predicted that they would vanish again (Pogue, 2007).

We do not share this estimation. Strong evidence for

the success of standards can be seen in the success of

Web applications on non-mobile devices.

5.3 Discussion of Frameworks Decisions

The decisions for PhoneGap and jQuery Mobile

proved to be reasonable except for some stability is-

sues due to limited maturity (especially for the latter).

By now, PhoneGap 1.4.1 and jQuery Mobile 1.0.1 are

available, offering stability and performance improve-

ments, new features, and expanded platform support.

jQuery was mainly used for event handling and

Ajax communication, where it performed well. How-

ever, the release of jQuery 1.5 with a rewritten Ajax

implementation broke jQuery Mobile’s Ajax navi-

gation when combined with PhoneGap. This was

rapidly ﬁxed with version 1.5.1. A problem with

Highcharts on Android (SVG compatibility) could be

solved by falling back to an older release (High-

charts 1), which uses HTML5 canvas.

5.4 Limitations

Due to the novelty of our research and the use of many

technologies that have not yet been assessed in a sci-

entiﬁc context, our work has limitations. The backend

did not yet use real data from an IS-U system but used

simulated data. Connecting with an IS-U backend or a

third party meter data system using e.g. Web services

is a feasible task, though. More detailed and rigorous

evaluation of the usability and the efﬁciency of the ap-

plication is required. A comparative implementation

with Sencha Touch or in pure HTML5 without any

framework usage would be insightful. Nevertheless,

neither of the limitations detracts the signiﬁcance of

our ﬁndings and the recommendations made.

6 CONCLUSIONS AND FUTURE

WORK

We presented work on an app that was developed for

multiple platforms. While many new technologies

have emerged and several ways of developing hybrid

apps have been proposed, there is no universal solu-

tion, yet. Consequently, we did not identify a large

body of work that was directly related to our sce-

nario, a smart meter app. Development of our pro-

totype using PhoneGap, jQuery Mobile, and HTML5

has been described in detail. We presented notable

insights about this way of building hybrid apps. In

conclusion, our choice of technology is viable and

advisable for similar projects. However, we expect

rapid progress and predict that many of the current ap-

proaches will be succeeded by standardized technol-

ogy. At the same time, new frameworks might enable

hybrid apps in currently unsupported ﬁelds.

The novelty of the used technologies underlines a

need for future work. We need to keep track of the de-

velopment and keep pace with emerging mobile Web

technologies. Future questions do not only concern

the technical dimension. Usability and value for users

also need to be assessed. It needs to be investigated

DEVELOPINGACROSS-PLATFORMMOBILESMARTMETERAPPLICATIONUSINGHTML5,JQUERY

MOBILEANDPHONEGAP

how apps will be used in the future, and how the busi-

ness plans for app development could look like.

Future work could comprise extension to more

platforms, inclusion of additional features, and more

detailed evaluations. Eventually, testing should be ex-

ecuted by actual users. Despite being only an exam-

ple in this work, research on smart metering is a very

interesting area, and yet demanding. Our work will

include the evaluation of other frameworks and ap-

proaches for hybrid development. We intend to be-

come able to provide project-speciﬁc advice on tech-

nology and framework selection.

ACKNOWLEDGEMENTS

We would like to thank Marc Fischer and Florian

Blenkle from best practice consulting AG for inspir-

ing this paper’s topic, for professional support, and

for helpful discussions. Furthermore, we are grate-

ful for stylistic suggestions made by Tim Kane and

Veronika Hassel.

REFERENCES

Ableson, F., Collins, C., and Sen, R. (2009). Unlocking

Android. Manning, Greenwich, CT, USA.

Aghaee, S. and Pautasso, C. (2010). Mashup development

with HTML5. In Proc. Mashups ’09/’10, pages 10:1–

10:8, New York, NY, USA. ACM.

Allen, S., Graupera, V., and Lundrigan, L. (2010). Pro

Smartphone Cross-Platform Development: iPhone,

Blackberry, Windows Mobile and Android Develop-

ment and Distribution. Apress.

Android Design (2012). “Android Design”.

Apache Cordova (2012). Apache Cordova.

Appcelerator (2012). Appcelerator.

Applause (2012). applause.

Barney, L. S. (2009). Developing Hybrid Applications for

the iPhone. Addison-Wesley.

Bieh, M. (2008). Mobiles Webdesign. Galileo Press.

Burke, B. (2010). RESTful Java with JAX-RS. O’Reilly.

Capodieci, N., Pagani, G. A., Cabri, G., and Aiello, M.

(2011). Smart meter aware domestic energy trading

agents. In Proc. IEEMC ’11, pages 1–10, New York,

NY, USA. ACM.

Crockford, D. (2008). JavaScript: The Good Parts.

O’Reilly.

Device APIs WG (2012). “Device APIs Working Group”.

Di Cerbo, F., Dodero, G., and Papaleo, L. (2010). Integrat-

ing a Web3D interface into an e-learning platform. In

Proc. Web3D ’10, pages 83–92, New York, NY, USA.

ACM.

Dijkstra, E. W. (1972). The Humble Programmer. Commu-

nications of the ACM, 15:859–866.

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. PhD thesis,

University of California, Irvine.

Firebug (2012). Firebug.

Firtman, M. (2011). jQuery Mobile: Up and Running.

O’Reilly.

Frederick, J. and Zierau, T. (2011). SAP for Utilities. SAP

Press, Bonn.

Gartner (2012). “Gartner Says Worldwide Mobile Applica-

tion Store Revenue Forecast to Surpass $15 Billion in

2011”.

Ghatol, R. and Patel, Y. (2012). Beginning PhoneGap:

Mobile Web Framework for JavaScript and HTML5.

Apress.

Gnilka, A., Meyer-Spasche, J., and Folta, N. (2009). Smart

Metering. LBD-Beratungsgesellschaft.

Google PowerMeter (2012). “Google PowerMeter’s ﬁrst

device partner”.

gRapha

el (2012). gRapha

el.

Harjono, J., Ng, G., Kong, D., and Lo, J. (2010). Build-

ing smarter web applications with HTML5. In Proc.

CASCON ’10, pages 402–403, New York, NY, USA.

ACM.

Highcharts JS (2012). Highcharts JS.

HTML5 (2012). HTML5.

HTML5 differences (2012). “HTML5 differences from

HTML4”.

HTML5 Test Suite (2012). “HTML5 Test Suite Confor-

mance Results”.

iOS Human Interface Guidelines (2012). “iOS Human In-

terface Guidelines”.

Javadi, S. and Javadi, S. (2010). Steps to smart grid realiza-

tion. In Proc. CEA’10, pages 223–228, Stevens Point,

Wisconsin, USA. WSEAS.

jqPlot (2012). jqPlot.

jQuery Mobile (2012). jQuery Mobile.

jQuery Usage Trends (2012). “jQuery Usage Trends”.

JSON Schema (2012). JSON Schema.

Knab, S., Strunz, K., and Lehmann, H. (2010). Smart grid.

TU Berlin.

Layon, K. (2010). The Web Designer’s Guide to iOS Apps.

New Riders Pub., Thousand Oaks, CA, USA.

Lee, J., Park, G.-L., Kim, S.-W., Kim, H.-J., and Sung,

C. O. (2011). Power consumption scheduling for peak

load reduction in smart grid homes. In Proc. SAC ’11,

pages 584–588, New York, NY, USA. ACM.

Logan, S. (2001). Gtk+ Programming in C. Prentice Hall,

Upper Saddle River, NJ, USA.

Lubbers, P., Albers, B., Smith, R., and Salim, F. (2010). Pro

HTML5 Programming. Apress.

Lunny, A. (2011). PhoneGap Beginner’s Guide. Packt Pub.

Macedonia, M. (2007). iPhones Target the Tech Elite. Com-

puter, 40:94–95.

McLaughlin, S., Podkuiko, D., Delozier, A., Mi-

adzvezhanka, S., and McDaniel, P. (2010). Embedded

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

ﬁrmware diversity for smart electric meters. In Proc.

HotSec’10, pages 1–8, Berkeley, CA, USA. USENIX

Association.

Meehan, E. (2010). The smart grid: the smart choice? In

Proc. InfoSecCD ’10, pages 173–176, New York, NY,

USA. ACM.

Melamed, T. and Clayton, B. J. C. (2009). A Comparative

Evaluation of HTML5 as a Pervasive Media Platform.

In Proc. 1st Int. ICST Conf. MobiCASE, pages 307–

325. Springer.

Mobile Graded Browser Support (2012). “Mobile Graded

Browser Support”.

Mobile Internetnutzung (2012). “Mobile Internetnutzung

uber das Handy 2010 stark gestiegen”.

Mobile Web Metrics Report H2/2011 (2011). “mobile web

metrics report h2/2011”.

Myer, T. (2011). Beginning PhoneGap. Wrox.

Neuburg, M. (2011). Programming iOS 4. O’Reilly.

Oehlman, D. and Blanc, S. (2011). Pro Android Web

Apps: Develop for Android using HTML5, CSS3 &

JavaScript. Apress.

Parker, T. (2010). Designing with Progressive Enhance-

ment. New Riders.

Pfeiffer, S. and Parker, C. (2009). Accessibility for the

HTML5 <video> element. In Proc. W4A ’09, pages

98–100, New York, NY, USA. ACM.

PhoneGap (2012). PhoneGap.

PhoneGap API Reference (2012). “PhoneGap API Refer-

ence”.

PhoneGap Get Started Guide (2012). “PhoneGap Get

Started Guide”.

PhoneGap Supported Features (2012). “PhoneGap Sup-

ported Features”.

Pilgrim, M. (2010). HTML5: Up and Running. O’Reilly.

Pogue, D. (2007). iPhone: the Missing Manual. O’Reilly.

Popa, M., Ciocarlie, H., Popa, A. S., and Racz, M. B.

(2010). Smart metering for monitoring domestic util-

ities. In Proc. INES’10, pages 43–48. IEEE Press.

Reid, J. (2011). jQuery Mobile. O’Reilly.

Rhodes (2012). Rhodes.

Richardson, L. and Ruby, S. (2007). Restful Web Services.

O’Reilly.

Rogers, R. (2010). Developing portable mobile web appli-

cations. Linux J., 2010.

Selenium (2012). Selenium.

Sencha Touch (2012). Sencha Touch.

Song, K., Seo, D., Park, H., Lee, H., and Perrig, A. (2011).

OMAP: One-Way Memory Attestation Protocol for

Smart Meters. In Proc. ISPAW ’11, pages 111–118,

Washington, DC, USA. IEEE CS.

Stark, J. (2010). Building Android Apps with HTML, CSS,

and JavaScript. O’Reilly.

Steyer, R. (2010). jQuery. Addison-Wesley.

Suhonos, M. J. (2010). Building a Location-aware Mo-

bile Search Application with Z39.50 and HTML5.

Code4Lib.

The HTML5 test (2012). “The HTML5 test”.

Vattenfall Smart Meter App (2012). “Vattenfall Smart Me-

ter App”.

Vaughan-Nichols, S. J. (2010). Will HTML 5 Restandardize

the Web? Computer, 43(4):13–15.

Walls, C. (2011). Spring in Action. Manning.

Wasserman, A. I. (2010). Software engineering issues for

mobile application development. In Proc. FoSER ’10,

pages 397–400, New York, NY, USA. ACM.

Web SQL Database (2012). Web SQL Database.

Webber, J., Parastatidis, S., and Robinson, I. (2010). REST

in Practice. O’Reilly.

WebKit (2012). WebKit.

Weiss, M., Mattern, F., Graml, T., Staake, T., and Fleisch,

E. (2009). Handy feedback: connecting smart meters

with mobile phones. In Proc. MUM ’09, pages 1–4,

New York, NY, USA. ACM.

XMLVM (2012). XMLVM.

DEVELOPINGACROSS-PLATFORMMOBILESMARTMETERAPPLICATIONUSINGHTML5,JQUERY

MOBILEANDPHONEGAP
