CROSS LAYER DATA ASSESSMENT IN WIRELESS SENSOR

NETWORKS

Alberto Coen Porisini and Sabrina Sicari

Dipartimento di Scienze Biologiche, Informatiche e della Comunicazione, Università degli Studi dell’Insubria,

via Mazzini 5, Varese 21100, Italy

Keywords: WSN, Privacy, Secure Localization, Data Quality.

Abstract: Wireless sensor networks (WSN) are the target of different kinds of security attacks. The network nodes,

which sense, aggregate, encrypt and transmit data, play a key role for assuring data quality. In this paper we

present a way in which the network sink can evaluate the nodes reputation in order to determine whether

one or more nodes are behaving maliciously. The approach combines different techniques such secure

localization and privacy aware transmission in order to assess both nodes reputation and data quality.

1 INTRODUCTION

Wireless Sensor Networks (WSN) technologies

support data collection and distributed data

processing by means of very small sensing devices

(Akyildiz et al., 2007), with limited computation and

energy capabilities.

In many applications contexts it is necessary to

know the location information of sensor nodes

(Akyildiz et al., 2007) and thus, location-aware

sensor devices are becoming the de facto standard in

all domains requiring location-based service.

Equipping each sensor with a GPS receiver is not a

feasible solution from both an economic and

technical perspective since sensors are often

deployed in very large numbers and require manual

configuration. Thus, position is usually computed by

means of nodes cooperation before being

transmitted. The main drawback is that several

security attacks, such as node displacement, distance

enlargement (by introducing fake nodes),

dissemination of false position and distance

information (by compromising nodes) can take

place.

Privacy is another crucial issue for many WSN

applications such as localization and telemedicine.

However, wireless communications and the

deployment in uncontrolled environments raise

several issues since malicious tampering of sensors

and/or traffic may jeopardize the confidentiality, the

integrity, and the availability of data.

Traditional approaches to security and privacy,

which can be found in literature, are based on access

control and strong authentication. However, both

techniques are not suitable to WSN because of the

limited resources and short battery life. Moreover,

approaches based on pre-shared encryption keys are

prone to physical attacks since sensor devices and

their keys can be easily cloned.

This paper tackles both secure localization and

privacy issues following the modeling approach

proposed in (Coen-Porisini et al., 2007), (Coen-

Porisini et al., 2010) and (Coen-Porisini et al., 2010)

in order to define an integrated solution that

considers a sound privacy management policy

coupled with a secure localization protocol. The

presented approach is based on the assessment of

data quality, that is we evaluate to which extent the

information to be processed by applications is

reliable and trustworthy. Our approach combines

together several cheap protection techniques to

evaluate the overall data quality. Although none of

the used techniques guarantees reliability and

trustworthy by itself, we exploit consistency across

them to evaluate data reliability. As a result we

introduce a protocol, named Cross-Layer Protocol

(CLP), that defines the fundamental steps for

assessing data quality. We use privacy compliance

and a secure localization protocol to gather

information about the data generated by the sensors

to assess the overall quality of the data collected by

the sink node.

203

Coen Porisini A. and Sicari S..

CROSS LAYER DATA ASSESSMENT IN WIRELESS SENSOR NETWORKS.

DOI: 10.5220/0003901102030208

In Proceedings of the 1st International Conference on Sensor Networks (SENSORNETS-2012), pages 203-208

ISBN: 978-989-8565-01-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 FOUNDATIONS

2.1 Privacy Model

A privacy policy defines the way in which data

referring to individuals can be collected, processed,

and diffused according to the rights that individuals

are entitled to (Directive 95/46/EC). In the

following, a short overview of the conceptual model

for privacy policies is illustrated. The structural

aspects are defined using UML classes and their

relationships. A WSN Privacy Policy is characterized

by three types of classes: Node, Data, and Action.

Node represents a member of the network and it

is characterized by a function and a role. The former

describes the task performed by the node within the

network in which it operates (e.g., data sensing,

message transmission, etc.), while the latter

describes the role played by the node with respect to

privacy. Three distinct classes represent the different

roles: Subject, which is a node that senses the data;

Processor, which is a node that processes data by

performing some kind of action on them (e.g.,

transmission, forwarding, etc.); Controller, which is

a node that verifies the actions executed by

processor nodes.

Data represents the information handled by

processors and is extended by Identifiable data and

Sensed data. The former represents the information

that can be used to uniquely identify nodes, while

the latter represents the information that is sensed by

the nodes of the network. Moreover, Sensed data is

further extended by means of Sensitive data, which

represents the information that deserves particular

care and that should not be freely accessible (e.g.,

health related data). Data is a complex structure

composed of basic information units, named Fields,

each of which represents a partial information

related to the whole data structure. Moreover, data

are aggregated among them to compose Messages,

which represents the basic communication unit

exchanged by the nodes of the network.

Action represents any operation performed by

Node and is extended by Obligation, Processing,

and Purpose. Moreover, each action can be

recursively composed of other actions. Since in a

privacy aware scenario a processing is executed

under a purpose and an obligation, Processing

specifies an aggregation relationship with Purpose

and Obligation. Notice that in the context of WSN

each function usually corresponds to one action. In

order to guarantee the confidentiality and integrity of

data as well as to assure that only authorized nodes

are allowed to access such data and execute actions

encryption mechanisms are used. More specifically,

two classes representing encryption keys, named

DataKey and FunctionRoleKey, are introduced. The

former key is used to protect sensed data; while the

latter is used to ensure that message communication

and data handling are executed only by authorized

nodes.

2.2 The Network

We consider a dense network composed of N nodes

uniquely identified by means of a label n and that

can exchange messages so that all sensed data are

directed to the sink. Each node directly

communicates with its closer neighbors (at one hop

distance) and thus, a sensed data before reaching the

sink passes through different nodes of the network

by means of different messages. Messages represent

a single transmission hop between adjacent nodes

and contain data that may be classified as

identifiable and sensed. A message is denoted by

msg

n,q

, where n identifies the node that generated

and transmitted the message and q identifies the

message among those generated by node n.

In order to guarantee the integrity and

confidentiality of the end-to-end communication, we

use a message structure that keeps track of the last

two hops of the transmission. Therefore, a message

msg

n,q

, is a tuple

msg

n,q

=<curr, prv, sub, sensId, errId, errFl, data, idL>

− curr: is the couple <n, q>, which unambiguously

identifies the current message among those

transmitted by node n.

− prv: is a couple <n

, q

>, where n

, is the

identifier of the node that operated the last

forwarding of the sensed data contained in the

current message, and q

is the identifier used by

to identify such a message.

− sub: is a couple <n

, q

> where n

is the identifier

of the node that originally sensed the data, and q

is the message identifier used by such a node for

the message that started the communication of the

sensed data towards the sink. Notice that in case

of error notification this field identifies the node

that found the error.

− sensId: is a couple <n

, q

> that in case of error

notification contains the identifier of the node that

sensed the correct data and the identifier of the

message transmitted by such a node.

− errId: is a tuple <n

, q

>, which contains the

identifier of the node that generated the error and

the identifier of the message containing the error

transmitted by such a node.

SENSORNETS 2012 - International Conference on Sensor Networks

204

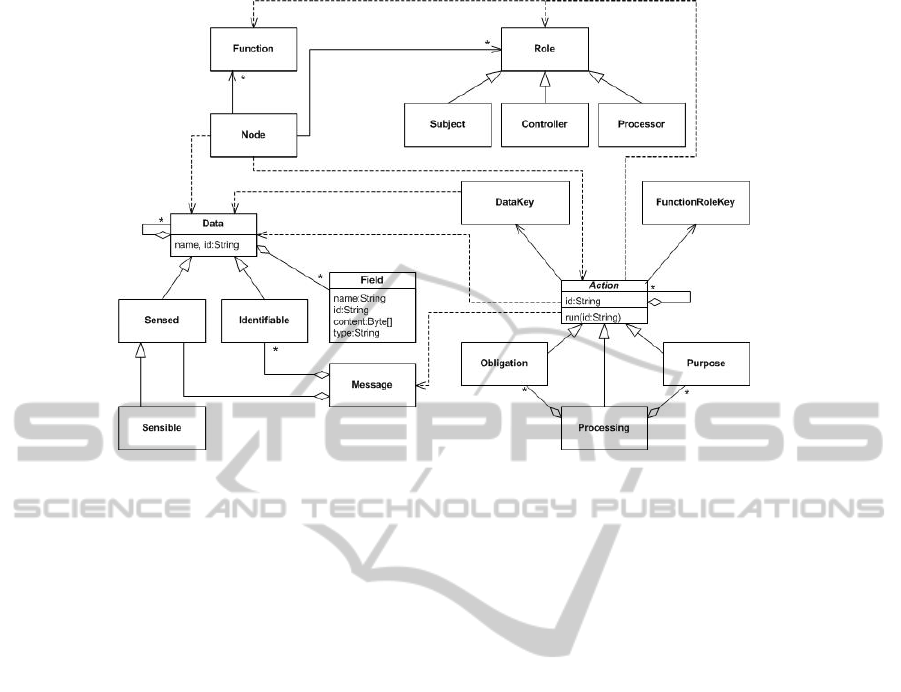

Figure 1: UML Model.

− errFl: represents an error code reporting whether

an anomaly was identified in the message content.

− data: includes the ciphered data sensed by the

subject node.

− idL: is a list containing the identifiers of the

nodes that already processed the data content of

the message.

Notice that fields sensId and errId are used only

when errFl equals 1, that is the message reports an

error notification.

In order to guarantee the confidentiality of

messages content every field but errFl is ciphered.

Notice that a node may play different functions and

roles and therefore it may own multiple function-

role keys (one for each pair of function-role). More

specifically the following function-role pairs are

defined: Sensing-Subject (SS), Authenticator-

Processor (AP), Transmitter-Processor (TP) and

Notifier-Controller (NC). Keys are denoted by k(n,

fr), where n is the node label and fr is the function-

role played by node n (The SS key is equivalent to

the DataKey of the conceptual model). We assume

that keys are pre-shared in the nodes and that each

node contains a table in which it stores the last sent

messages.

At sink level, nodes are classified, as far as

localization is concerned, in Verifier and Unknown

nodes. The former are nodes whose position is

known, while the latter are those whose position is

unknown. Notice that Verifier nodes are able to

cooperate among them to verify the position of an

unknown node.

3 PROTOCOLS

This section presents the protocols introduced in

order to guarantee secure localization and privacy

requirements. More specifically the protocols

introduced the following:

− Sensing, which defines the actions that a node

carries out to communicate sensed data;

− Message Reception and Integrity Verification,

which defines the actions that a node carries out

when receiving a message from other nodes;

− Secure localization, which defines the action that

a node carries out to localize in secure manner;

− Cross-layer node evaluation, which defines the

actions performed by the sink in order to evaluate

nodes reputation using the information gathered

from the localization phase and by evaluating

privacy policies compliance.

3.1 The Sensing Protocol

Let n be a node sensing a data d from the

environment. Hence the node acts as a Sensing-

Subject (SS) and therefore d is encrypted using key

k(n, SS). Moreover, let q denote the number of

messages that n already transmitted over the

network. Thus, message m

n,q+1

is prepared according

to the previously discussed structure. Notice that,

when preparing the message the node acts as a

Transmitter-Processor (TP) and therefore every

ciphered field but data is encrypted using k(n, TP).

CROSS LAYER DATA ASSESSMENT IN WIRELESS SENSOR NETWORKS

205

Thus the non-empty fields of m

n,q+1

are:

curr = sub =<Enc(n,k(n,TP)), Enc(q+1,k(n,TP))>;

data = Enc(d, k(n, SS)); idL = {Enc(n, k(n,TP))};

errFl = 0.

Once prepared part of the message (fields data

and sub) is stored in the local table before being put

in the transmission queue.

3.2 Message Reception and Integrity

Verification Protocol

Let n be a node receiving a message m

j,h

, and let q be

the number of messages already transmitted by n

over the network. The message is analyzed to find

out whether it was originally transmitted by the node

itself. This can be done searching the local table

using the content of field prv as hash key. If the

search fails n has to re-transmit the message over the

network, that is n acts as a Transmitter-Processor

(TP). Thus a new message msg

n,q+1

is prepared and

then it is stored in the local table before being put in

transmission queue.

curr = <Enc(n,k(n,TP)), Enc(q+1,k(n,TP))>;

prv = m

j,h

.curr;

sub = m

j,h

.sub; sendId = m

j,h

.sendId; errFl = 0;

data = m

j,h

.data; idL = m

j,h

.idL

∪

{Enc(n, k(n,TP))}.

Instead if the search succeeds, then m

j,h

was

transmitted by n and therefore the integrity of the

received message is verified, that is n acts as a

Notifier-Controller (NC). Hence, the node compares

the content of field data of the received message

with the information retrieved from its table. If the

information matches, this means that the node from

which it received the message preserved the integrity

of the content. In this case, no additional action is

performed by the node.

If the content of field data is different from the

one extracted from the local table or no data entry

corresponds to the search key, this means that

something wrong happened. In this case, the node

generates a new message msg

n,q+1

in order to notify

the sink that a corrupted message is spreading

through the network.

curr = sub =<Enc(n,k(n,TP)), Enc(q+1,k(n,TP))>;

sendId = retrieved.sub; errId = m

j,h

.curr. errFl = 1;

data = Enc(retrieved.data, k(n,NC));

idL = m

j,h

.idL

∪

{Enc(n, k(n,TP))}.

Notice that errFl is set to 1 to indicate that the

current message is an error message; field prv is

empty to avoid message loops with the malicious

node and the spreading of error messages; both

fields sub and curr are set to n to specify which node

found the error; sendId equals field sub of the

message stored in the local table, to report which

node has sensed the original data; errId equals field

curr of the received message to report which node

made the mistake. Finally, field data is set by

encrypting with the Notifier-Controller key the

homonymous field retrieved from the local table.

Once generated the message is stored in the local

table before being put in the transmission queue.

3.3 Secure Localization

Node positions are evaluated using a multilateration

technique, which determines the node coordinates by

exploiting a set of landmark nodes, called anchor

nodes, whose positions are known. The position of

an unknown node u is computed using an estimation

of the distances between the anchor nodes and u.

Notice that such distances are computed by

measuring the time needed to get a reply to a beacon

message sent to u. This is done under the assumption

that the speed of the signal in the medium in which

the transmission occurs is known.

In case node u behaves maliciously, the only way

in which it may pretend to be in a location different

to the actual one is by delaying the reply to the

beacon message. However, under some conditions, it

is possible to detect such malicious behaviors by

using the Verifiable Multilateration (VM) technique

(Capkun and Hubaux, 2006), which uses three or

more anchor nodes (verifiers) to detect misbehaving

nodes.

Once computed by the verifiers, the estimated

position of u undergoes two different tests before

being considered as reliable. The first test, known as

-test, aims at verifying whether the estimated

position is compatible with the distance bounds

previously computed, while the second test, known

as point-in-the-triangle-test, aims at verifying

whether the estimated position of u lies inside the

triangle formed by the three verifiers.

More specifically, if the

-test fails then the

estimation is considered to be affected by malicious

tampering and thus node u is marked as Malicious.

If the

-test is passed node u is marked as Robust or

Unknown depending on whether u lies inside the

triangle formed by the three verifiers.

3.4 Cross-layer Node Evaluation

The sink evaluates the trustworthiness of the nodes

of the network by using both looking at the

messages it receives and the information gathered

during the localization phase. Notice that the sink

uses a node reputation table to store information

SENSORNETS 2012 - International Conference on Sensor Networks

206

about nodes trustworthiness. Such a table reports for

each node two different values, the first of which

provides information about node localization (i.e.,

Robust, Malicious or Unknown), while the second

one provides information about privacy compliance

(i.e., PrivacyCompliant or PrivacyViolation). Notice

that initially, anchor nodes (i.e., verifiers) are

considered to be Robust, while the remaining nodes

are classified as Unknown. Moreover, initially all

nodes are considered to be PrivacyCompliant.

Each time the sink receives a message it carries

out the evaluation by checking whether field errFl is

set to 1 or not. If it is, this means that the received

message is an error notification message. As a

consequence, the reputation of the node whose

identifier is reported by field idErr (i.e., the node

that made the mistakes reported by the message) is

updated by assigning the value PrivacyViolation.

Notice that, in such a case the field data of the

message contains the correct message, which can be

further processed by the sink.

Otherwise, if field errFl equals 0 then the

received message contains sensed data and therefore

the sink before processing data evaluates the

trustworthiness of all the nodes that handled the

sensed data (i.e., the nodes whose identifiers are

stored in fields sub, idL and curr) by means of the

reputation table.

If the reputation is Robust and PrivacyCompliant

the sink considers the data as reliable; otherwise if

the reputation is Malicious or PrivacyViolation the

data are discarded; finally if the reputation is

Unknown and PrivacyCompliant the data may be

processed or discarded depending on the sink policy.

Finally, it must be noticed that a malicious node may

decide not to lie on its position, still providing fake

information in term of sensed data. In order to

uncover this kind of malicious behaviors other

consistency properties can be exploited.

Notice that even if fake data may be produced by

a node that provided authentic localization

information, knowing the real position of the

malicious node may help the sink to take appropriate

counter-measures. In conclusion, cross-layer

analysis enables a more careful assessment of the

overall quality of the received data, thus avoiding

malicious poisoning.

4 RELATED WORKS

Designing secure WSN is a very mature research

field (an exhaustive and very comprehensive view of

this topic can be found in (Chan and Perrig, 2003)).

Nevertheless, to the best of our knowledge, no

solution is able to take into account privacy, data

integrity and secure localization issues at the same

time using end-to-end encryption techniques.

As far as privacy is concerned, the available

solutions may be classified into two main groups:

anonymity mechanisms based on data cloaking

(Gruteser et al., 2003) and privacy policy based

approaches (Snekkenes, 2001).

For instance, (Gruteser et al., 2003) proposes a

solution that guarantees the anonymous usage of

location based information, focusing on localization

services and therefore, constrains the middleware

architecture required to support the proposed

algorithm.

Other approaches belonging to the former

solution are K-Anonymity (Samarati and Sweeney,

1998); Decentralize Sensible Data, in which sensed

location data is distributed through a spanning tree,

so that no single node holds the complete view of

the original data; Secure Communication Channel,

in which the use of a secure communication

protocols, such as SPINS (Perrig et al., 2002),

reduces the eavesdropping and active attack risk by

means of encryption techniques; Change Data

Traffic, in which the traffic pattern is altered with

some bogus data that obfuscate the real position of

the nodes; Node Mobility, in which the sensor nodes

are moved in order to change dynamically the

localization information, making it difficult to

identify the node.

et al., 2010), (Gruteser and Grunwald, 2003),

(Snekkenes, 2001), (Molnar and Wagner, 2004) state

who can use individuals data, which data can be

collected, for what purpose the data can be used, and

how they can be distributed. A common policy

based approach addresses privacy concerns at

database layer after data have been collected

(Snekkenes, 2001). Other works (Molnar and

Wagner, 2004) address the access control and

authentication issues, for instance Duri et al.(Duri et

al., 2000) propose a policy based framework for

protecting sensor information.

As far as data integrity is concerned, most of the

proposed solutions are based on the adoption of

encryption techniques, ad-hoc key distribution

schemes (Eschenauer and Gligor, 2002), (Pietro et

al., 2003), (Pietro et al., 2009), authentication,

access control solutions.

5 CONCLUSIONS

Data quality is a fundamental requirement in any

CROSS LAYER DATA ASSESSMENT IN WIRELESS SENSOR NETWORKS

207

WSN scenario. Our approach allows the sink to

analyze data trustworthiness by exploiting

consistency on cross-layer information, i.e., node

localization and privacy violations.

More specifically, the trustworthiness about the

node position information and the privacy

compliance are used for evaluating data

trustworthiness. In fact node position, being target of

different kind of attacks (e.g., malicious node

displacement, distance enlargement) can be used to

identify malicious behaviour.

Our approach is largely independent from the

adopted routing protocols, the verification

localization algorithm and the used encryption

technique. Besides assessing data trustworthiness we

provide an integrated framework for facing privacy

and secure localization issues at the same time. CLP

definition is supported by means of a UML

conceptual model that defines privacy policies in the

context of WSN. The model provides the basic

concepts involved when dealing with privacy-related

information. At the moment we are carrying out

simulations in order to evaluate the CLP

performance in real settings.

REFERENCES

I. F. Akyildiz, T. Melodia, and K. Chowdhury, “A survey

on wireless multimedia sensor networks,” Elsevier

Computer Networks Journal, March 2007.

A. Coen-Porisini, P. Colombo, S. Sicari, and A.

Trombetta, “A conceptual model for privacy policies,”

in Proc. of SEA 2007, Cambridge (MS), USA.

A. Coen-Porisini, P. Colombo, and S. Sicari, “Dealing

with anonymity in wireless sensor networks,” in In

Proceedings of 25th annual ACM symposium on

Applied Computing (ACM SAC), Sierre, Switzerland,

2010.

A. Coen-Porisini, P. Colombo, and S. Sicari, “Privacy

aware systems: from models to patterns” in Software

Engineering for Secure Systems: Industrial and

Research Perspectives, IGI Global, editor Dr. H.

Mouratidis, 2010

Unified Modeling Language: Infrastructure, Ver. 2.1.2,

OMG, November 2007, formal/2007-11-02.

Unified Modeling Language: Superstructure, Ver. 2.1.2,

OMG, November 2007, formal/2007-11-02.

Directive 95/46/EC of the European Parliament. Official

Journal of the European Communities of 23 November

1995 No L. 281 p. 31.

Q. Ni, A. Trombetta, E. Bertino, and J. Lobo, “Privacy-

aware role based access control,” in Proceedings of

the 12th ACM symposium on Access control models

and technologies, 2007.

H. Zhanga, A. Arorab, Y. Choic, and M. Goudac,

“Reliable bursty convergecast in wireless sensor

networks,” Elsevier Computer Communications, vol.

30, no. 13, pp. 2560–2576, 2007.

OMNeT++ Discrete Event Simulation System. http://www

.omnetpp.org/doc/manual/usman.html, 2005.

M. Gruteser, G. Schelle, A. Jain, R. Han, and D.

Grunwald, “Privacy-aware location sensor networks,”

in In Proceedings of the 9th USENIX Workshop on

Hot Topics in Operating Systems (HotOS IX), 2003.

H. Chan and A. Perrig, “Security and privacy in sensor

networks,” IEEE Computer Magazine, pp. 103–105,

March 2003.

M. G. S. Duri, P. M. X. Liu, R. Perez, M. Singh, and J.

Tang, “Framework for security and privacy in

automotive telematics,” in In Proceedings of 2nd ACM

International Worksphop on Mobile Commerce, 2000.

P. Samarati and L. Sweeney, “Protecting privacy when

disclosing information: k-anonymity and its

enforcement through generalization and suppression,”

Technical Report SRI-CSL-98-04, Computer Science

Laboratory, SRI International, 1998.

M. Gruteser and D. Grunwald, “A methodological

assessment of location privacy risks in wireless

hotspot networks,” in Proceedings of the first

International Conference on Security in Pervasive

Computing, 2003.

A. Perrig, R. Szewczyk, J. D. Tygar, V. Wen, and D. E.

Culler, “Spins: security protocols for sensor

networks,” Wireless Networking, vol. 8, no. 5, pp.

521–534, 2002.

E. Snekkenes, “Concepts for personal location privacy

policies,” in In Proceedings of 3rd ACM Conf. on

Electronic Commerce, 2001.

D. Molnar and D. Wagner, “Privacy and security in library

rfid: Issues, practices, and architectures,” in In

Proceedings of ACM CCS, 2004.

L. Eschenauer and V. D. Gligor, “A key-management

scheme for distributed sensor networks.” in

Proceedings of 9th ACM Conference on Computer and

Communications Security, 2002.

R. D. Pietro, A. Mei, and L. V. Mancini, “Random key

assignment for secure wireless sensor networks,” in

Proceedings of ACM Workshop on Security of Ad Hoc

and Sensor Networks (SASN), Fairfax-VA, USA,

2003.

R. D. Pietro, C. Soriente, A. Spognardi, and G. Tsudik,

“Collaborative authentication in unattended wsns,” in

Proceedings of 2nd ACM Conference on Wireless

Network Security (WiSec), Zurich, Switzerland, 2009.

S. Capkun and J. Hubaux, “Secure positioning in wireless

networks,” in IEEE Journal on Selected Areas in

Communications, vol. 24, no. 2, pp. 221–232, Feb.

2006.

S. Brands and D. Chaum, “Distance-bounding protocols,”

in Proceedings of Workshop on the Theory and

Application of Cryptographic Techniques, 1994.

SENSORNETS 2012 - International Conference on Sensor Networks

208
