DESIGN, IMPLEMENTATION, AND OPERATION OF IPv6-ONLY

IaaS SYSTEM WITH IPv4-IPv6 TRANSLATOR FOR TRANSITION

TOWARD THE FUTURE INTERNET DATACENTER

Keiichi Shima

, Wataru Ishida

and Yuji Sekiya

IIJ Innovation Institute, 1-105 Kanda-jinbocho, Chiyoda-ku, Tokyo, Japan

The University of Tokyo, 3-8-1 Komaba, Meguro-ku, Tokyo, Japan

The University of Tokyo, 2-11-16 Yayoi, Bunkyo-ku, Tokyo, Japan

Keywords:

Cloud Middleware Frameworks, IaaS, Scalability, Redundancy, Cost Reduction, IPv6, IPv4 Compatibility.

Abstract:

Internet operation is migrating from IPv4-only operation to IPv4/IPv6 dual-stack operation. From the view-

point of the operation cost, it is best if the operation can be done only with a single protocol, either IPv4 or

IPv6. However, it is mandatory for service providers to accept all three types of users, 1) IPv4-only users who

will remain in the Internet for long time, 2) IPv4/IPv6 dual-stack users who will be a dominant users in near

future, and 3) IPv6-only users who will appear in the future as IPv6 deployment progresses. In this paper, we

propose a recommended operation model designed for the IaaS system operated with IPv6-only network with

a wide area L2 network and IPv4-IPv6 translation software for backward compatibility. With our proposal,

we can reduce the use of IPv4 addresses in the cloud backend network, and provide high-performance, scal-

able, and redundant address translation software suitable for the IPv6-only IaaS system that can be one of the

reference operation models of future datacenters.

1 INTRODUCTION

The computing power of computers is growing ev-

ery year. However, many studies show that there is

an obvious limitation of computing power if we stick

one single processor system. Because of this reason,

cloud computing technologies are getting attention of

many people. Researchers are now investigating its

usage, application model, and operation techniques

to utilize the limited resources more effectively. At

the same time, virtualization technologies that enable

us to slice one physical computer into several vir-

tual computer resources to suppress idle resources as

much as possible. With the virtualization technolo-

gies, it is expected that we will have a huge com-

puter network that includes far larger number of vir-

tual computers than the physical computers.

The network protocol used to interconnect com-

puters has been the IPv4 protocol for long time. How-

ever, because of recent depletion of IPv4 addresses,

the successor protocol, IPv6, is now being deployed.

Since we can still use IPv4 addresses and its network

even though we do not have new IPv4 addresses, the

future network will be a mixed network of IPv4 and

IPv6 for many years until IPv4 disappears completely.

Service providers must support both IPv4 and

IPv6, because service users will be mixed users

of IPv4-only users, IPv4/IPv6 dual-stack users, and

IPv6-only users in the future. Although IPv4 and IPv6

are technically quite similar except the size of their

address space, however, these protocols do not have

interoperability because their protocol header formats

are completely different. The operators have to man-

age two similar networks. That is a duplicated effort.

If we can manage and operate a single stack net-

work for the service backend nodes and place dual-

stack nodes only as the entry points to the services,

then we can reduce the operation cost to manage two

duplicated networks. We can also quickly follow the

technology advance of the network by focusing on

only one single protocol stack. In this paper, we fo-

cus on a virtual computer resource management envi-

ronment (IaaS, Infrastructure As A Service) and pro-

pose a system whose backend network is operated by

IPv6-only with dual-stack public nodes as service en-

try points using IPv4-IPv6 protocol translator soft-

ware. This kind of IPv4-IPv6 protocol translator is

not a new technology. It was proposed almost as same

306

Shima K., Ishida W. and Sekiya Y..

DESIGN, IMPLEMENTATION, AND OPERATION OF IPv6-ONLY IaaS SYSTEM WITH IPv4-IPv6 TRANSLATOR FOR TRANSITION TOWARD THE

FUTURE INTERNET DATACENTER.

DOI: 10.5220/0003901203060314

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 306-314

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

time as IPv6 was proposed. However, such a trans-

lator is basically assuming to map one IPv4 address

to multiple IPv6 addresses, because its main usage

is to provide IPv4 connectivity to IPv6 only nodes

originally. This means the software tends to become

complicated because it has to keep track on the ad-

dress mapping status and session status among mul-

tiple IPv6 addresses. It also has a scalability and re-

dundancy problem because it needs to manage many

mapping information and session status and this status

information is hard to share and synchronize among

multiple translator nodes. Our proposed system par-

ticularly insists on one-to-one address mapping which

doesn’t have problems addressed above, with the as-

sumption that the translator is used as a part of an IaaS

system. With this compromise, we can design a real-

istic IaaS system without having problems of existing

IPv4-IPv6 translation system as described before and

realize IPv6-only backend service operation.

2 RELATED WORKS

2.1 IaaS Model

Needless to say, most of the current service providers

are using IPv4 as their base IP protocol to build ser-

vices. As IPv6 is getting popular, some of them are

now considering to supporting dual-stack service us-

ing translators. Although there are several transition

scenarios to move from IPv4 to IPv6 (Mackay et al.,

2003), they basically use IPv4 for server nodes and

provide IPv6 connectivity to IPv6 clients using trans-

lator technology. This is the biggest difference from

our approach. We use IPv6 addresses for server nodes

and provide dual stack connectivity to client nodes.

Considering that the IPv6 clients are going to grow in

the future, focusing on IPv6 and providing IPv4 as an

additional service seems the right choice.

The traditional translation operation is shown in

section 2.1 of Chen’s paper (Chen, 2011). We think

that the model has several drawbacks. First, since it

uses IPv4 for their backend service networks, it may

face the IPv4 depletion problem. Second, if they use

private IPv4 address space to avoid the IPv4 depletion

issue, they may face IPv4 NAT traversal issues for

servers they are operating in their private networks.

Third, if they use NAT for their servers, they have to

operate two NAT services, one for IPv4 private ad-

dresses, and the other for IPv6-IPv4 addresses. In our

proposed model, IPv6 services are provided natively,

and IPv4 services are provided using translation. De-

tailed discussion is provided in section 3.1.

2.2 Translators

Discussion to develop technologies to bridge IPv4

and IPv6 was started as early as when IPv6 protocol

designers decided not to provide IPv4 backward com-

patibility in IPv6. Waddington and Chang summa-

rized IPv4-IPv6 transition mechanisms in their paper

(Waddington and Chang, 2002). From the viewpoint

of translation mechanisms, we can classify these tran-

sition technologies into three approaches. The ﬁrst

approach is providing interoperability in the applica-

tion layer, the second approach is relaying data in the

transport layer, and the last is converting an IP header

in the IP layer.

The ﬁrst approach, the application layer approach

is performed by proxy server software designed for

each application protocol that needs interoperability

between IPv4 and IPv6. The proxy server will be

located at the boundary of IPv4 and IPv6 networks

and accept speciﬁc application requests (e.g. web re-

quests) from client nodes. The proxy server inter-

prets the request contents, build a new request for

the destination server, and send it using a proper IP

protocol. The response from the server node is inter-

cepted and resent by the proxy server as well. Since

the proxy server understands the application protocol

completely, this approach can be most ﬂexible com-

pared to the other approaches. On the other hand, de-

velopment per application protocol is required which

will increase development and operation cost. This

approach is mostly used when we only need com-

plex context processing in between IPv4 and IPv6 net-

works, since many services can be interoperable using

the rest of the approaches.

In the second approach, the transport layer ap-

proach, the relay server located in between the IPv4

and IPv6 networks terminates incoming connections

from clients at the socket level, and starts new trans-

port connections to the destination server on the other

side of the network. The well-known mechanisms

of this approach are, for example, SOCKS64 (Ki-

tamura, 1999; Kitamura, 2001) and Transport Re-

lay Translator (itojun Hagino and Yamamoto, 2001).

In SOCKS64, the client side SOCKS64 library re-

places the DNS name resolution and socket I/O func-

tions to intercept all the client trafﬁc and forward to a

SOCKS64 server. This mechanism requires client ap-

plications to be updated to use the SOCKS64 library,

however, once the library is replaced, applications do

not need to pay any attention to IPv4-IPv6 translation

issues. The Transport Relay Translator does not re-

quire any update to client applications. Instead, the

mechanism assumes that clients use specially crafted

IPv6 addresses in which IPv4 address of the server is

DESIGN,IMPLEMENTATION,ANDOPERATIONOFIPv6-ONLYIaaSSYSTEMWITHIPv4-IPv6TRANSLATOR

FORTRANSITIONTOWARDTHEFUTUREINTERNETDATACENTER

307

embedded, when IPv6 clients are going to connect to

IPv4 servers. The relay server terminates the incom-

ing IPv6 connections from client nodes and starts new

connections to the destination servers using the server

address extracted from the special IPv6 address. Such

special IPv6 addresses are usually provided by the site

level special DNS server in the client site that supports

DNS64 (Bagnulo et al., 2011b).

The third approach, the IP layer header transla-

tion is similar to the NAT technology used in IPv4.

Examples of this approach are NAT-PT (Tsirtsis and

Srisuresh, 2000) and NAT64 (Bagnulo et al., 2011a).

In this approach, the translation server does not need

to terminate connections between clients and servers.

The address ﬁelds and other header ﬁelds of pack-

ets reached to the translator node will be translated

based on the predeﬁned header transformation rules

between IPv4 and IPv6.

These related technologies were originally de-

signed for the situation that there are IPv4 server

nodes in the Internet, and IPv6 client nodes are going

to connect to those IPv4 servers. In a real operation,

it is assumed that one or a few IPv4 addresses are al-

located to the translation server, and many IPv6 client

nodes share the IPv4 addresses. However, the system

discussed in this paper assumes the opposite case, that

is, there are IPv6 server nodes in a cloud system, and

existing IPv4 or IPv6 client nodes are going to con-

nect to the IPv6 servers. In this case, we cannot share

IPv4 addresses between many IPv6 servers without

any modiﬁcation to the IPv4 client side. Because of

this nature, we have to map one IPv4 address to one

IPv6 server eventually. Of course, the previous works

and proposed mechanisms can do the same scenario

in theory, however, there are few implementations that

can support the case we are assuming.

There are some evaluation studies in these trans-

lation technologies (Mackay and Edwards, 2006;

Skoberne and Ciglari

c, 2011). However, since the

performance of the mechanisms highly depends on

how the mechanisms are implemented, we need to

compare whenever we design a new translation soft-

ware.

There are several commercial devices providing

IPv4-IPv6 translation function. Most of them are tar-

geting a translation service of internal IPv6 client con-

nection requests generated inside the customer’s net-

work, to global IPv4 servers. Different from the exist-

ing translation products, our approach targets on ser-

vice provider side and provides a function for IPv4

legacy clients to connect servers running with IPv6

only.

Our approach runs without keeping any state in-

formation of connections, while most of translator

products are stateful. This is because existing transla-

tor products are for IPv6 client nodes, and shares one

IPv4 address among several IPv6 clients. Our pro-

posal assumes completely different operation, that is,

translation service for servers. Because of this dif-

ference, our approach is implemented as stateless ser-

vice. That makes it easier to place multiple transla-

tors at several network exit points and distribute trafﬁc

load.

In this paper, we propose a new IaaS system de-

sign and IPv4-IPv6 translator design and implemen-

tation that only use IPv6 as its service backend net-

work, providing dual-stack service to both IPv4 and

IPv6 clients. We also give the performance measure-

ment results of the system.

3 DESIGN AND

IMPLEMENTATION OF THE

IaaS SYSTEM AND THE

TRANSLATION SOFTWARE

In this section, we describe the overview of the pro-

posed IaaS system and design of the IPv4-IPv6 header

translation software.

3.1 Design and Implementation of the

IaaS System

The system we are targeting is an IaaS system that

provides virtual computers as a unit of resources us-

ing virtualization technology. Service integrators can

use virtual computers as their service components by

requesting the IaaS system to slice physical comput-

ers to make virtual computers whenever needed. The

actual conﬁguration of a service varies in each ser-

vice, however, one service usually composed of sev-

eral computers, such as a web frontend node, load bal-

ancers, a database node, and so on. Services such as a

distributed storage may need larger number of virtual

computers as a backend system. When we consider

providing a dual-stack service to users, one possible

implementation is building the IaaS system as a com-

plete dual-stack system. However, as we discussed in

section 1, we will have a duplicated effort to maintain

two different network stacks, which they have almost

same functions. Since the service users usually only

see the frontend nodes, it will be sufﬁcient if we can

make those frontend nodes dual-stack. The communi-

cation between the frontend nodes and backend nodes

do not necessarily be dual-stack. By focusing only

one protocol stack inside the IaaS system, the network

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

308

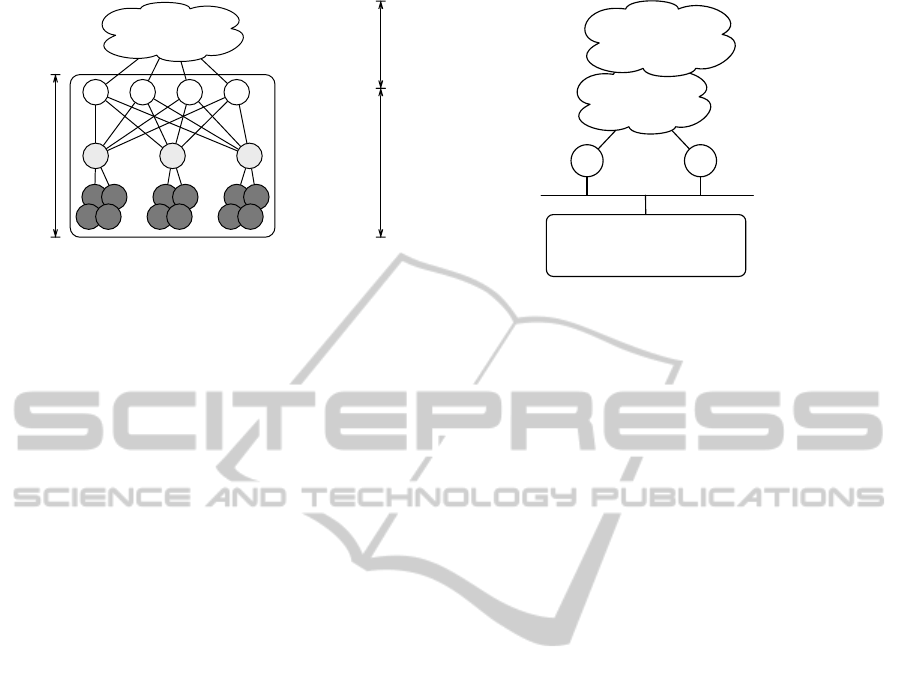

Figure 1: The overview of the proposed IaaS system.

design will be simpler that will beneﬁt the IaaS ser-

vice provider, and the service development cost and

test cost can also be reduced that will beneﬁt service

providers.

In this proposed system, we assume an IPv4 ad-

dress and an IPv6 address are mapped one to one. Be-

cause the proposed system discussed in this paper is

for IaaS providers providing server resources to their

users, who are PaaS providers, SaaS providers, and/or

ASPs, we cannot design the system to share one IPv4

address by several IPv6 server nodes. We also don’t

consider implementing this requirement using appli-

cation level proxy solution, since service providers

have different requirements for their services, we can-

not limit the communication layer function to appli-

cation layers. This may be a problem considering

that the IPv4 address is scarce resource. However, we

need to use IPv4 address anyway if we want to sup-

port IPv4 clients. And also we need to map addresses

one to one if we want to provide services without any

modiﬁcation on the client side. Our best effort to han-

dle this issue is that we do not allocate IPv4 addresses

to backend nodes to avoid non-necessary IPv4 use.

The version of an IP protocol used in the backend

network can be either IPv4 or IPv6. In the implemen-

tation shown in this paper, we use IPv6 as an inter-

nal protocol for the backend network considering the

trend of IPv6 transition of the whole Internet.

Figure 1 depicts the overview of the proposed sys-

tem. We said that the frontend nodes provide dual-

stack services to the client before, however precisely

speaking, these frontend nodes do not have any IPv4

addresses. The mapping information between IPv4

and IPv6 addresses are registered to each IPv4-IPv6

translator node and shared by all the translator nodes.

Since the mapping is done in the one to one manner,

no translator nodes need to keep session information

of ongoing communication. They can just translate

IP packets one by one. This makes it possible to place

multiple translator nodes easily to scale out the trans-

lation service when the amount of the trafﬁc grows.

WIDE

Figure 2: The actual network conﬁguration of the proposed

IaaS system implemented and operated in the WIDE project

operation network.

This feature also contributes robustness of the trans-

lation system. When one of the translator nodes fails,

we can just remove the failed node from the system.

Since there is no shared session information among

translator nodes, the service is kept by the rest of the

translator nodes without any recovery operation.

Figure 2 shows the overview of the actual system

we are operating. The virtual machine resource man-

agement system located at the bottom of the ﬁgure is

the WIDE Cloud Controller (WCC) (WIDE project,

2011) developed by the WIDE project. The two net-

work operation centers (NOC) located at Tokyo and

Osaka are connected by a wide area layer 2 network

technology. The layer 2 network is a 10Gbps ﬁber

line dedicated to the WIDE project network opera-

tion. There are two layer 3 networks in Tokyo and

Osaka NOC whose network address spaces are same.

These two layer 3 networks are connected by the layer

2 link using VLAN technology. The translator nodes

are placed at each location. The routing information

of the IPv4 addresses used to provide IPv4 connec-

tivity to IPv4 clients is managed using the OSPFv3

routing protocol in the WIDE project backbone net-

work. Since all the translator nodes advertise the same

IPv4 address information using the equal cost strat-

egy, incoming trafﬁc is distributed based on the entry

points of the incoming connections. The aggregated

IPv4 routing information is advertised to the Inter-

net using the BGP routing protocol. Any incoming

IPv4 connection requests from the Internet are routed

to the WIDE backbone based on the BGP informa-

tion, routed to one of the translator nodes based on

the OSPFv3 routing information, and ﬁnally routed

to the corresponding virtual machine based on the

static mapping table information stored in the trans-

lator nodes. The translation mechanism is described

in section 3.2. Failure of either Osaka or Tokyo NOC

will result in failure of the OSPFv3 routing infor-

DESIGN,IMPLEMENTATION,ANDOPERATIONOFIPv6-ONLYIaaSSYSTEMWITHIPv4-IPv6TRANSLATOR

FORTRANSITIONTOWARDTHEFUTUREINTERNETDATACENTER

309

: Client

IPv4

: Server

IPv4

: Server

IPv6

IPv4

<=>

IPv6

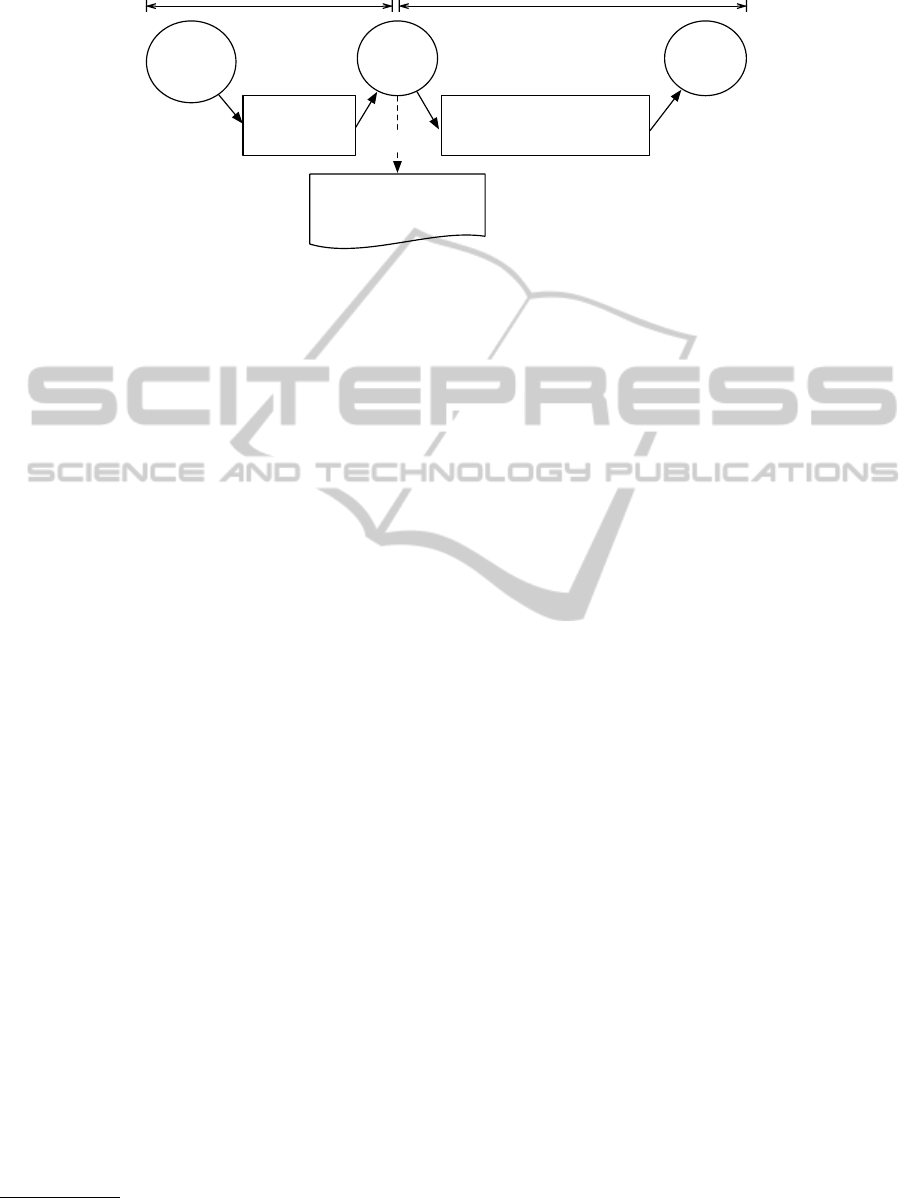

Figure 3: IPv4-IPv6 header translation procedure.

mation advertisement from the failed NOC, however,

thanks to the nature of a routing protocol, and one

to one stateless IPv4-IPv6 mapping mechanism, the

other NOC and translator will continue serving the

same address space to the Internet.

3.2 Design and Implementation of the

Translator Software

The server nodes in the IaaS backend system will see

all the communication from their clients as IPv6 con-

nections, since the backend system is operated in IPv6

only. All the IPv4 trafﬁc from clients are intercepted

by the translator nodes and converted to IPv6 trafﬁc.

Figure 3 shows the translation procedure used in the

translator software.

IPv4 address information bound to IPv6 addresses

of servers is stored in the mapping table. Based on the

table, the destination address of the IPv4 packet from

client nodes is converted to the proper IPv6 server ad-

dress. The source address of the IPv6 packet is con-

verted to a pseudo IPv6 address by embedding the

IPv4 address of the client node to the lower 32-bit of

the pseudo IPv6 address. The pseudo IPv6 address is

routed to the translator node inside the backend net-

work. The reply trafﬁc from the server side is also

converted with the similar but opposite procedures.

The mechanism has been implemented using the

tun pseudo network interface device that is now pro-

vided as a part of the basic function of Linux and BSD

operating systems, originally developed by Maxim

Krasnyansky

. The tun network interface can cap-

ture incoming IP packets and redirect them to a user

space program. The user space program can also send

IP packets directly to the network by writing the raw

data of the IP packets to the tun interface. The transla-

tor nodes advertise the routing information of the IPv4

http://vtun.sourceforge.net/tun/

addresses in the mapping table to receive all the trafﬁc

sent to those IPv4 addresses. The incoming packets

are received via the tun network interface and passed

to the user space translator application. The translator

performs the procedure described in ﬁgure 3 to trans-

late the IPv4 packet to IPv6 packet. The converted

IPv6 packet is sent back to the tun network interface

and forwarded to the real server that is running with

IPv6 address only.

For the reverse direction, the similar procedure

is applied. Since the translator nodes advertise the

routing information of the pseudo IPv6 address that

includes the IPv4 address of the client node is ad-

vertised to the IaaS backend network, the translator

nodes receive all the reverse trafﬁc. The nodes con-

vert those IPv6 packets into IPv4 packets using the

embedded IPv4 client address and mapping table in-

formation, and forward to the original IPv4 client.

This translator software is published as map646

open source software (Keiichi Shima and Wataru

Ishida, 2011), and anyone can use it freely.

4 SYSTEM EVALUATION

We implemented the proposed IaaS system as a part

of the WIDE project service network as shown in ﬁg-

ure 2. By focusing on IPv6-only operation, we could

be free from IPv4 network management.

For the redundancy, we located two translator

nodes in different locations of the WIDE project core

network. We sometimes stop one of them for mainte-

nance. In that case, the other running node is working

as a backup node. We conﬁrmed that the redundancy

mechanism is working automatically in a real opera-

tion.

The incoming trafﬁc to IPv4 addresses are load-

balanced based on the BGP and OSPFv3 informa-

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

310

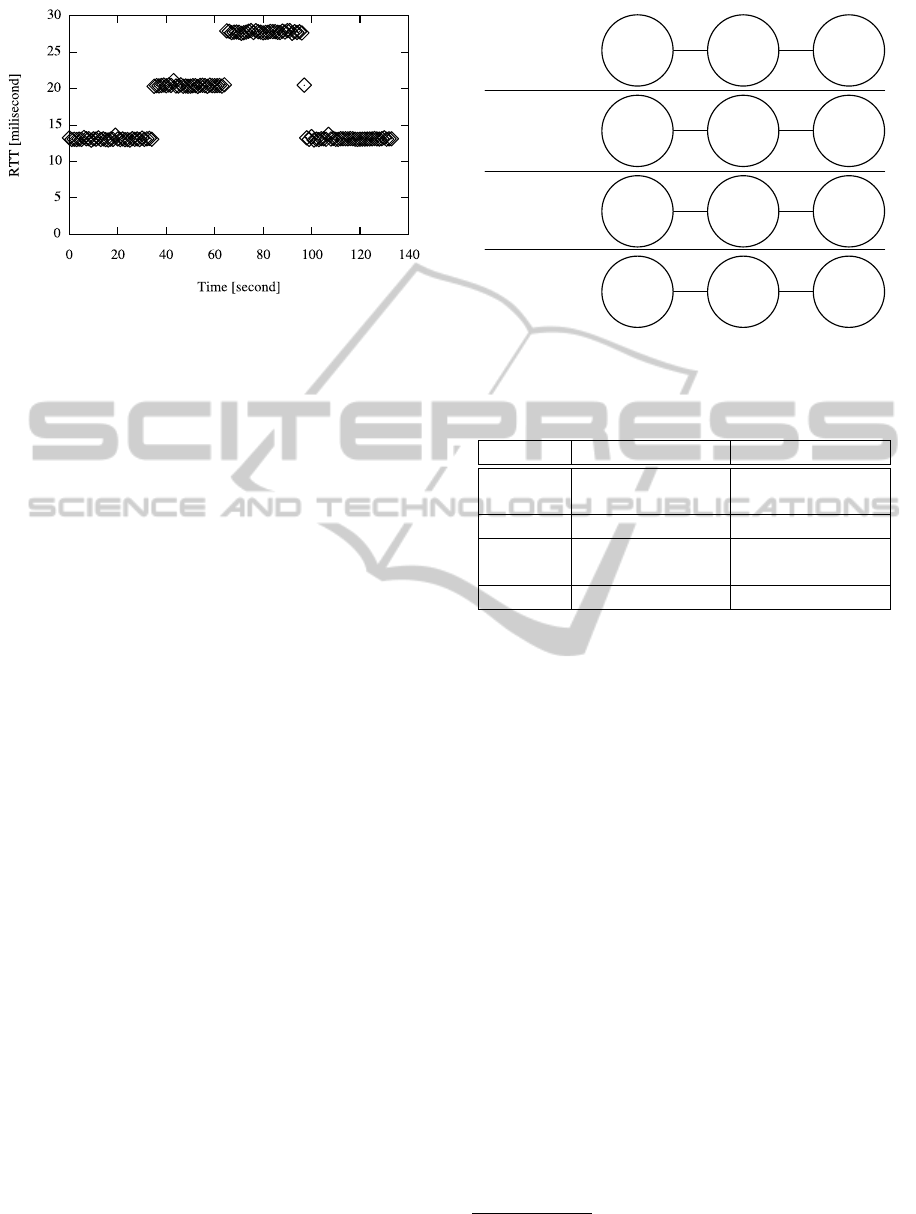

Figure 4: RTT measurement in case of failure of a transla-

tor.

tion. For the outgoing trafﬁc, currently a simple router

preference mechanism is used to choose an upstream

router from IPv6 servers. We are considering using

more advanced trafﬁc engineering methods, such as

destination preﬁx based routing in near future.

Figure 4 shows the RTT measurement result from

an IPv4 client to an IPv6 server. Initially, both trans-

lator nodes are running. At time 35, we stopped the

router advertisement function of translator in Tokyo.

The trafﬁc from outside to the cloud network still

goes to Tokyo node, but the returning trafﬁc will be

routed to Osaka. At around time 65, we stopped rout-

ing function of the Tokyo node. After this point,

all the trafﬁc goes to Osaka and returns from Os-

aka. We restarted the routing function of Tokyo node,

and restarted router advertisement at Tokyo node at

around time 90. Finally, all the trafﬁc came back to

go through Tokyo node.

5 PERFORMANCE EVALUATION

The obvious bottleneck of the system is the transla-

tor nodes where all the trafﬁc must go through with

them. This section shows the evaluation result of the

translation software.

5.1 Translation Performance

The performance evaluation is done with the four dif-

ferent conﬁgurations shown in ﬁgure 5. The conﬁgu-

ration 1 and 2 (C1 and C2) are the translation cases us-

ing our translator software. Conﬁguration 2 (C2) and

3 (C3) use normal IPv4 and IPv6 forwarding mecha-

nisms to compare the translation performance with no

translation cases.

Evaluation is done using two methods, one is the

ping program to measure RTT, and the other is the

IPv4

Client

Trans-

lator

IPv6

Server

IPv4

Client

IPv4

Router

IPv4

Server

IPv6

Client

IPv6

Router

IPv6

Server

IPv6

Client

Trans-

lator

IPv4

Server

Translation (4>6)

Translation (6>4)

IPv4 forwarding

IPv6 forwarding

IPv4

IPv6

IPv4 IPv4

IPv6

IPv4

IPv6 IPv6

Figure 5: The four conﬁgurations used in performance eval-

uation.

Table 1: Speciﬁcation of nodes.

Client/Server Translator/Router

CPU Core2 Duo

3.16GHz

Xeon L5630

2.13GHz × 2

Memory 4GB 24GB

OS Linux 3.0.0-12-

server

Linux 3.0.0-12-

server

NIC Intel 82573L Intel 82574L

iperf program to measure bandwidth. All the results

in this experiment show the average value of 5 mea-

surement tries

. The computer nodes used in this per-

formance test are shown in table 1, and all the tests

were performed locally by directly connecting 3 com-

puters as shown in ﬁgure 5.

Figure 6 shows the result of the ping test. The RTT

values were 0.45ms in C1, 0.43ms in C2, 0.36ms in

C3, and 0.36ms in C4.

Figure 7 shows the result of the TCP band-

width measurement test. The bandwidth values were

923.8Mbps in C1, 922.8Mbps in C2, 938.0Mbps in

C3, and 925.8Mbps in C4.

Figure 8 shows the result of the UDP bandwidth

measurement test. We changed the transmission rate

of the sender side from 100Mbps to 1000Mbps with

100Mbps step, and measured how much bandwidth

was achieved at the receiver side. The maximum

bandwidth values were 786.0Mbps in C1, 802.0Mbps

in C2, 802.0Mbps in C3, and 802.0Mbps in C4.

We didn’t record standard deviation of these tries, since

the results were stable.

DESIGN,IMPLEMENTATION,ANDOPERATIONOFIPv6-ONLYIaaSSYSTEMWITHIPv4-IPv6TRANSLATOR

FORTRANSITIONTOWARDTHEFUTUREINTERNETDATACENTER

311

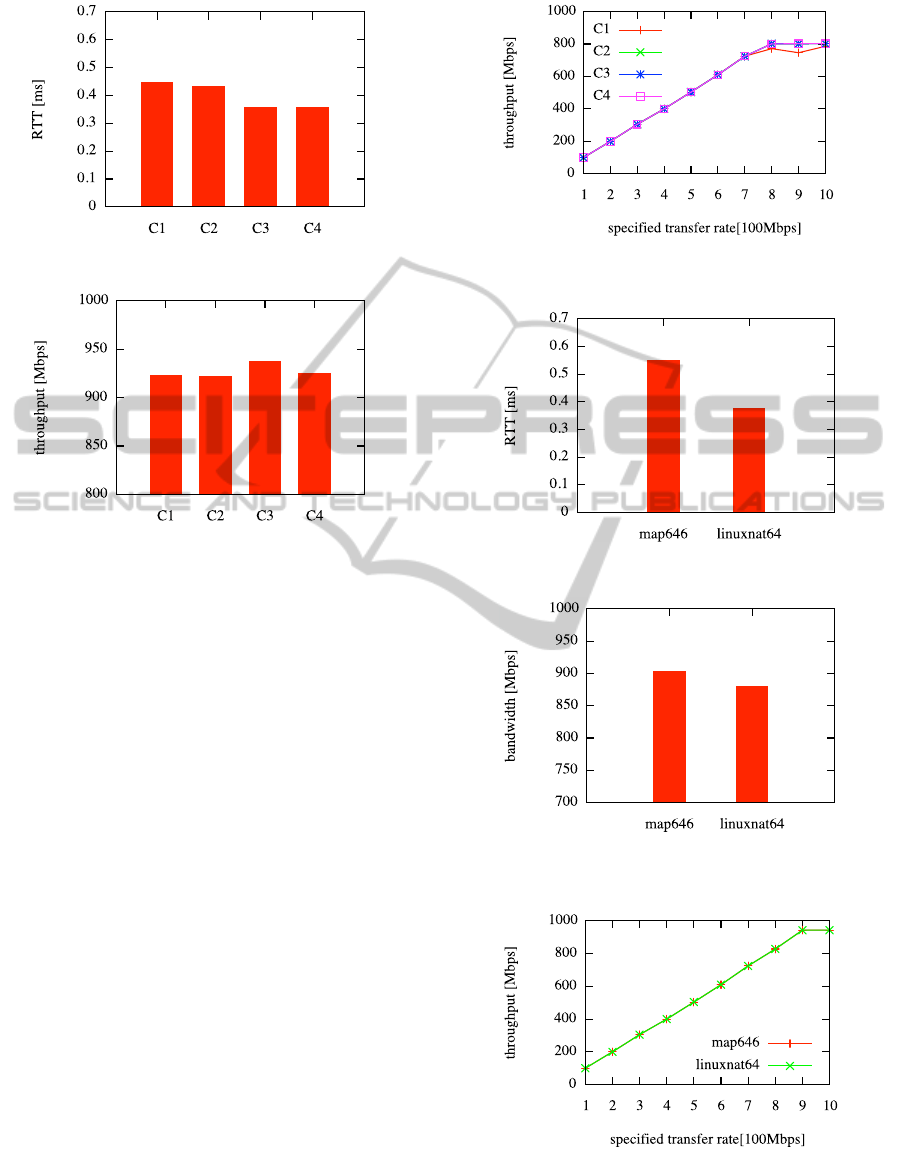

Figure 6: RTT measurement result using the ping program.

Figure 7: TCP bandwidth measurement using the iperf pro-

gram.

5.2 Comparison with Related Method

In this section, we compare the translation perfor-

mance of map646 to linuxnat64 (Julius Kriukas,

2012) which is one of the NAT64 implementations.

The main usage of NAT64 is to provide access to IPv4

servers from IPv6-only nodes. Because of the differ-

ence of the usage scenario, we located a server in the

IPv4 network side, and located a client in the IPv6

network side in this test (the C2 case). This is op-

posite to our proposed IaaS usage, however we think

the test can give us meaningful result in the sense of

performance comparison. In this test, we used Linux

2.6.32 instead of 3.0.0-12-server because linuxnat64

did not support Linux version 3 when we performed

this test. There is no big difference of IPv4/IPv6 for-

warding performance between Linux version 2 and 3.

We are planning to test again with a newer kernel once

linuxnat64 supports it.

Figure 9 shows the RTT measurement result. The

values are 0.55ms in the map646 case, and 0.39ms in

the linuxnat64 case.

Figure 10 shows the TCP bandwidth measurement

result. The bandwidth values were 903.2Mbps in

the map646 case, and 879.8Mbps in the linuxnat64

case. Figure 11 is the result of the UDP throughput

measurement. The maximum bandwidth values were

943.0Mbps in the map646 case, and 943.0Mbps in the

Figure 8: UDP bandwidth measurement using the iperf pro-

gram.

Figure 9: RTT comparison of map646 and linuxnat64.

Figure 10: TCP bandwidth comparison of map646 and lin-

uxnat64.

Figure 11: UDP bandwidth comparison of map646 and lin-

uxnat64.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

312

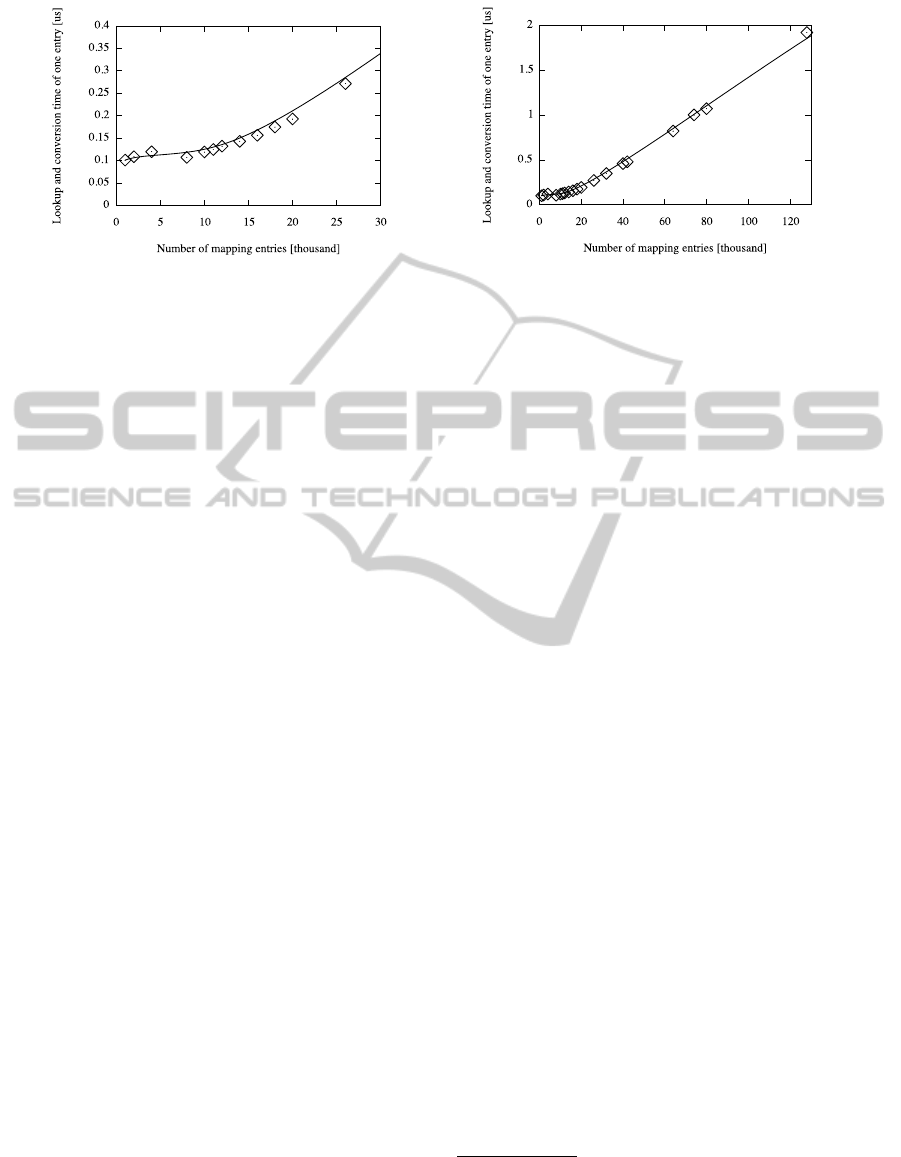

Figure 12: Simulated result of mapping table lookup and address conversion overhead (left ﬁgure: 1000 to 26000 entries,

right ﬁgure: 1000 to 128000 entries).

linuxnat64 case.

5.3 Consideration

Based on the observation in section 4, we could

consider the proposed IaaS system could reduce the

maintenance cost, achieve redundancy and scalabil-

ity.

For the performance, as shown in ﬁgure 6, the

RTT degradation is around 0.07ms to 0.09ms. This

is reasonable because map646 is implemented as a

user space program while IPv4 and IPv6 forwarding

are implemented inside kernel. The other potential

reason of the degradation is a mapping entry lookup

overhead. In this experiment, we only deﬁned two

mapping entries in map646. We have not measured

the overhead when there are a lot of mapping entries,

however we think it will not affect the total perfor-

mance because we are using a hash table for map-

ping information lookup. Figure 12 shows the sim-

ulated result of the lookup and address conversion

overhead for different number of mapping entries. In

our implementation, the size of the hash table is 1009.

From the left ﬁgure in ﬁgure 12, we can see the ta-

ble lookup and address conversion is done in almost

constant time when the size of the mapping entries is

less than 10000. When the size of the table grows,

the lookup and conversion time also grows linearly as

can see in the right ﬁgure in ﬁgure 12. The lookup and

conversion overhead of one entry is around 2 µs when

there are 128 thousands of mapping entries. This

value is enough small that can be ignored compared

to the RTT degradation value. However we agree that

the real measurement of the performance degradation

with many mapping entries is an important topic, and

it is one of our future works.

The forwarding performance of map646 is 1.5%

to 1.6% worse than the normal forwarding case in the

TCP case, and 2.0% in the UDP case. We actually did

not see a big degradation in both TCP and UDP cases.

This means that the translation itself is enough fast to

process all the incoming packets. We can conclude

that the performance of the map646 translator soft-

ware is acceptable for the real operation. One thing

we have to note is that the test is done using 1Gbps

network interfaces. Because of recent advance of pro-

cessor technology, 1Gbps is not too fast any more. We

will perform further measurement in faster environ-

ment such as 10Gbps network interfaces.

From ﬁgure 10 and 11, we can see almost no

degradation compared to linuxnat64 implementation.

Map646 achieved even better performance than lin-

uxnat64 in the TCP case. We expected a slight degra-

dation in the map646 case, since linuxnat64 is imple-

mented as a kernel module while map646 is a user

space program, but the result did not show any big

difference. This result shows that the performance

highly depends on how the software is implemented.

As similar as the previous result, we will perform the

same test using 10Gbps networks to verify the per-

formance of map646 in a broader bandwidth environ-

ment as follow-up works.

We are actually operating several web servers as

a part of our daily operation. The examples of those

servers are the WIDE project web server

, the web

server of the Graduate School of Information Science

and Technology at the University of Tokyo Japan

, the

DNS server for the wide.ad.jp domain, the web server

for the Internet Conference

, the KAME project web

server

, and so on. The real operation of these servers

also proves the system usability.

Finally we note some of the concerns of the pro-

posed system. This proposed system requires the

http://www.wide.ad.jp/

http://www.i.u-tokyo.ac.jp/

http://www.internetconference.org/

http://www.kame.net/

DESIGN,IMPLEMENTATION,ANDOPERATIONOFIPv6-ONLYIaaSSYSTEMWITHIPv4-IPv6TRANSLATOR

FORTRANSITIONTOWARDTHEFUTUREINTERNETDATACENTER

313

same number of IPv4 addresses as the frontend server

nodes. This is a trade-off between backward com-

patibility and IPv4 address usage efﬁciency. When

IPv4 becomes a minor protocol, then probably more

efﬁcient IPv4 address sharing mechanisms for server

nodes may be deployed. The other concern is that

since the proposed mechanism translates addresses,

server nodes may require additional security consid-

erations such as ﬁltering. When writing down ﬁlter

rules, the server operators need to pay attention to the

pseudo IPv6 address space that covers the entire IPv4

address space.

6 CONCLUSIONS

In this paper, we proposed a new operation model for

IaaS service providers to adapt the future IPv6 Inter-

net. In the proposed system, we suggest the IaaS ser-

vice providers should focus on a single stack opera-

tion as their backend network system. That will de-

crease the operation cost compared to the dual-stack

operation style. Considering recent trend of IP tech-

nology, we think IPv6 is a better choice for the back-

end network. We also designed a robust and scal-

able IPv4-IPv6 protocol translator software and im-

plemented it. The measurement result showed the

software has a slight degradation compared to the na-

tive forwarding cases, however, the performance was

acceptable. We deployed the idea in our real opera-

tion network. We are actually operating the IaaS sys-

tem and several real web servers as our daily service

infrastructure at this moment. With all these results

and observation, we conclude that the proposed IaaS

system is useful and feasible as one of the future IaaS

operation models.

REFERENCES

Bagnulo, M., Matthews, P., and van Beijnum, I. (2011a).

Stateful NAT64: Network Address and Protocol

Translation from IPv6 Clients to IPv4 Servers. IETF.

RFC6146.

Bagnulo, M., Sullivan, A., Matthews, P., and van Beijnum,

I. (2011b). DNS64: DNS Extensions for Network Ad-

dress Translation from IPv6 Clients to IPv4 Servers.

IETF. RFC6147.

Chen, G. (2011). NAT64 Operational Considerations.

IETF. draft-chen-v6ops-nat64-cpe-03.

Itojun Hagino, J. and Yamamoto, K. (2001). An IPv6-to-

IPv4 Transport Relay Translator. IETF. RFC3142.

Kriukas, J. (2012). Linux NAT64 implementation.

http://sourceforge.net/projects/linuxnat64/.

Shima, K. and Ishida, W. (2011). map646: Map-

ping between IPv6 and IPv4 and vice versa.

https://github.com/keiichishima/map646/.

Kitamura, H. (1999). Entering the IPv6 Communication

World by the SOCKS-Based IPv6/IPv4 Translator. In

INET99.

Kitamura, H. (2001). SOCKS-based IPv6/IPv4 Gateway

Mechanism. IETF. RFC3089.

Mackay, M. and Edwards, C. (2006). A Comparative Per-

formance Study of IPv6 Transitioning Mechanisms

NAT-PT vs. TRT vs. DSTM. In NETWORKING

2006. Networking Technologies, Services, and Proto-

cols; Performance of Computer and Communication

Networks; Mobile and Wireless Communications Sys-

tems, volume 3976 of Lecture Notes in Computer Sci-

ence, pages 1125–1131. Springer Berlin / Heidelberg.

Mackay, M., Edwards, C., and Dunmore, M. (2003).

A Scenario-Based Review of IPv6 Transition Tools.

IEEE Internet Computing, 7(3):27–35.

Tsirtsis, G. and Srisuresh, P. (2000). Network Address

Translation - Protocol Translation (NAT-PT). IETF.

RFC2766.

Skoberne, N. and Ciglari

c, M. (2011). Practical Evaluation

of Stateful NAT64/DNS64 Transition. Advances in

Electrical and Computer Engineering, 11(3):49–54.

Waddington, D. G. and Chang, F. (2002). Realizing the

transition to ipv6. IEEE Communications Magazine,

40(6):138–147.

WIDE Project (2011). WIDE Cloud Controller.

http://wcc.wide.ad.jp/.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

314
