DECOUPLING CLOUD APPLICATIONS FROM THE SOURCE

A Framework for Developing Cloud Agnostic Software

Joaquín Guillén

, Javier Miranda

and Juan Manuel Murillo

GloIn, Calle Azorín 2, Cáceres, Spain

Department of Information Technology and Telematic Systems Engineering, University of Extremadura, Cáceres, Spain

Keywords: Cloud Computing, Utility Computing, Cloud Lock-in, Framework, Decoupled Cloud Applications.

Abstract: Cloud computing and the utility computing model have aroused the interest of multiple vendors to provide

their own public cloud services. Each vendor provides different services and establishes a series of

restrictions for all of the applications deployed within its infrastructure, which results in cloud applications

being modeled and developed for specific cloud environments. This leads to a tight coupling of applications

to the cloud in which they are deployed, thus complicating their migration to other clouds. In this paper a

different approach for developing cloud applications is proposed, based on the separation of cloud related

metadata from the source code that comprises an application deployed in a cloud. Separating metadata

related to how services are provided by the application and how it consumes cloud specific and remote

services will allow developers to be oblivious as to which cloud the application is being developed for. This

approach may be used both for developing new cloud applications as well as for migrating legacy software

to the cloud.

1 INTRODUCTION

Cloud computing has evolved considerably during

the past years into an alternative for many

companies as a means of hosting and maintaining

their enterprise applications (Wang et al., 2010).

Most public cloud providers follow a utility

computing business model which allows cloud users

to use Infrastructure as a Service (IaaS), Platform as

a Service (PaaS) or Software as a Service (SaaS)

services that are provided on a pay-as-you-go basis

(Armbrust et al., 2009). The technical and financial

models adopted by cloud computing have awakened

the interest of many companies that have seen in

cloud computing an alternative to maintaining

private datacentres and a means of reducing costs.

Clouds allow companies to externalise their system

maintenance processes as well as providing them

with a scalable solution regarding the computing

resources they may require in any given moment and

the costs of using these resources.

An increasing demand for cloud services has

urged companies such as Amazon (Amazon, 2011),

Google (Google, 2011), Microsoft (Microsoft, 2011)

and IBM (IBM, 2011) to release their own public

clouds. The existent clouds allow their users to

deploy applications based on a series of services and

requirements that are independently defined by each

cloud provider (Maximilien et al., 2009). As a result

of this, applications developed for the cloud are

tightly coupled to the cloud infrastructure or

platform for which they have been developed (Tsai

et al., 2010).

Having to develop applications that are tightly

coupled to a particular cloud presents a problem for

companies. Lower service costs, better SLAs or even

customer demands may lead a company to consider

porting their cloud applications from one cloud to

another. In most cases this will require redesigning

and redeveloping the software in order to adjust it to

the targeted cloud’s requirements (Tsai et al., 2010).

Considering that the heterogeneous cloud model

provided by the industry is accompanied by the

previously mentioned restrictions, we feel that

additional tools are required for building cloud

applications.

This paper proposes an approach for building

applications that are loosely coupled to clouds. It

proposes a framework that allows software to be

developed without being conditioned by the inherent

requirements and limitations of the cloud in which

the application will be hosted. Information about

Guillén J., Miranda J. and Manuel Murillo J..

DECOUPLING CLOUD APPLICATIONS FROM THE SOURCE - A Framework for Developing Cloud Agnostic Software.

DOI: 10.5220/0003901700700075

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 70-75

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

how applications access both the cloud’s services as

well as services provided by external applications is

separated from the source code and managed by the

framework. The adoption of this software

development framework for cloud applications will

not only be intended for building new applications;

legacy software may also be migrated to the cloud

without having to redevelop most of its components.

The paper is organized as follows: Section 2

identifies several concerns that motivate our

proposal. Section 3 describes our proposal; in this

section we present a model containing cloud specific

metadata that must be managed separately from

cloud applications’ source code. Section 4 provides

information about the most relevant work related

with our proposal. Finally Section 5 gathers our

conclusions and the limitations that our work has,

this way presenting future work that will have to be

done.

2 MOTIVATION

Cloud computing service providers for IaaS and

PaaS type clouds declare a series of services and

restrictions aimed towards software developed for

their architecture. By providing developers with

tools and APIs that are integrated into each cloud’s

specific development process, cloud vendors

guarantee that software that is fully compliant with

their cloud’s requirements is built: Google App

Engine (Google, 2011), Amazon Web Services

(Amazon, 2011) and Microsoft Azure (Microsoft,

2011) are clear examples of this. They all provide

tools and SDKs for developers to be capable of

creating software for their clouds (Zhang, 2010). By

using these tools applications will be provided with

cloud specific libraries used for invoking cloud

specific services. This approach presents two main

inconveniences:

 Cloud specific service invocations will have

been hard coded into the software.

 Direct dependencies will be created between

the developed application’s classes and those

provided by the SDKs.

This creates a strong coupling between the software

and the underlying architecture which will prevent

applications from being migrated to different clouds.

Consequently a problem arises related to how

applications interact with their underlying

architecture as well as with remote clouds (Knorr et

al., 2008; Armbrust et al., 2009).

In most cases, cloud applications will have to

interact with other applications that may be hosted in

different clouds. In such cases the remote services

will be accessed in a different manner, depending on

the cloud in which they are hosted, i.e. resources

may be made available via SOAP, REST,

publish/subscribe messaging, etc. This type of

restriction introduces several problems in the

process of developing software for the cloud:

 Applications have to provide their services

based on the technological restraints of the

cloud environment in which they are hosted.

 Applications have to consciously publish their

services based on the technological restraints

of the cloud environment in which they are

hosted. For example, if the cloud only allows

SOAP services developers will have to code a

SOAP service.

 Applications have to consciously consume

services based on the technology in which

they are provided. For example, if the service

is provided as a SOAP service developers will

have to code a SOAP client.

 Applications will only be capable of

consuming services that comply with the set

of service types supported by the cloud in

which they reside.

Considering that companies may choose to

migrate their software from one cloud to another

based on customer demands, cost reduction purposes

and SLAs (Buyya et al., 2008), these limitations

must be treated cautiously. Under these

circumstances porting an application to a new cloud

will not only require redeveloping that application, it

may also require redeveloping all of its dependant

applications. This problem may be aggravated if the

application has to be divided into components that

are deployed in different cloud platforms. In this

case developers will have to integrate each

component into its correspondent cloud as well as to

redesign each individual component defining it as a

collection of service providers and consumers.

The motivations gathered in this section lead us

to consider that developing software for the cloud

must be complemented with a series of vendor

independent tools. These tools must allow

developers to decouple their software from specific

clouds, hence relieving the lock-in problem that

cloud users are exposed to (Chow et al., 2009).

3 APPROACH

As we mentioned previously, this paper proposes a

different approach for developing software for cloud

platforms aimed at decoupling the software from its

DECOUPLINGCLOUDAPPLICATIONSFROMTHESOURCE-AFrameworkforDevelopingCloudAgnostic

Software

underlying stack. A cloud development framework

is presented as a means of attaching cloud agnostic

applications to specific cloud platforms. The

framework has been conceived based on a series of

principles that are commonly used in software

engineering for developing quality software. These

principles are enumerated in the following points:

 Inversion of control (IoC): this architectural

principle is an inherent feature of most

software development frameworks. It provides

frameworks with a means of controlling the

behaviour of applications in order to deal with

specific issues (Fowler, 2004).

 Dependency injection (DI): dependency

injection is a specific form of IoC, in which

objects use other objects in the system without

being aware of how they were created. Used

together with polymorphism it allows an

object to be unaware of the exact behaviour of

the object it is using (Fowler, 2004).

 Obliviousness: the obliviousness principle is

a consequence of using the two previous

principles; it allows developers to build

applications without having to consider

concerns that are taken care of by the

framework. This principle was originally

introduced in the scope of Aspect Oriented

Programming (Filman and Friedman, 2000).

 Service adapters: service adapters introduce

an intermediate layer between a service

consumer and a service that may be used for

many purposes such as data transformation.

The main idea behind our proposal is to separate

all of the dependencies between the developed

application and the cloud from the source code by

using the principles that we have enumerated. To do

so we have defined a data structure that will contain

information related to how each application will

interact with its underlying architecture as well as

with external applications hosted by other clouds.

We have chosen to represent this data structure as a

XSD diagram because it offers a simple way of

representing data that is not associated to a specific

programming language.

In Figure 1 we appreciate how an application

developed for the cloud will be defined as a

combination of service providers (cloud-provider

elements) and service consumers (cloud-consumer

elements). The following subsections explain how

the principles that we previously mentioned are

combined with this data structure in order to

decouple applications from specific cloud platforms.

3.1 Oblivious Service Providers

A cloud-provider element will allow the

framework’s inversion of control mechanism to

publish a service without it being hard coded into the

source code.

For each cloud-provider element a service will

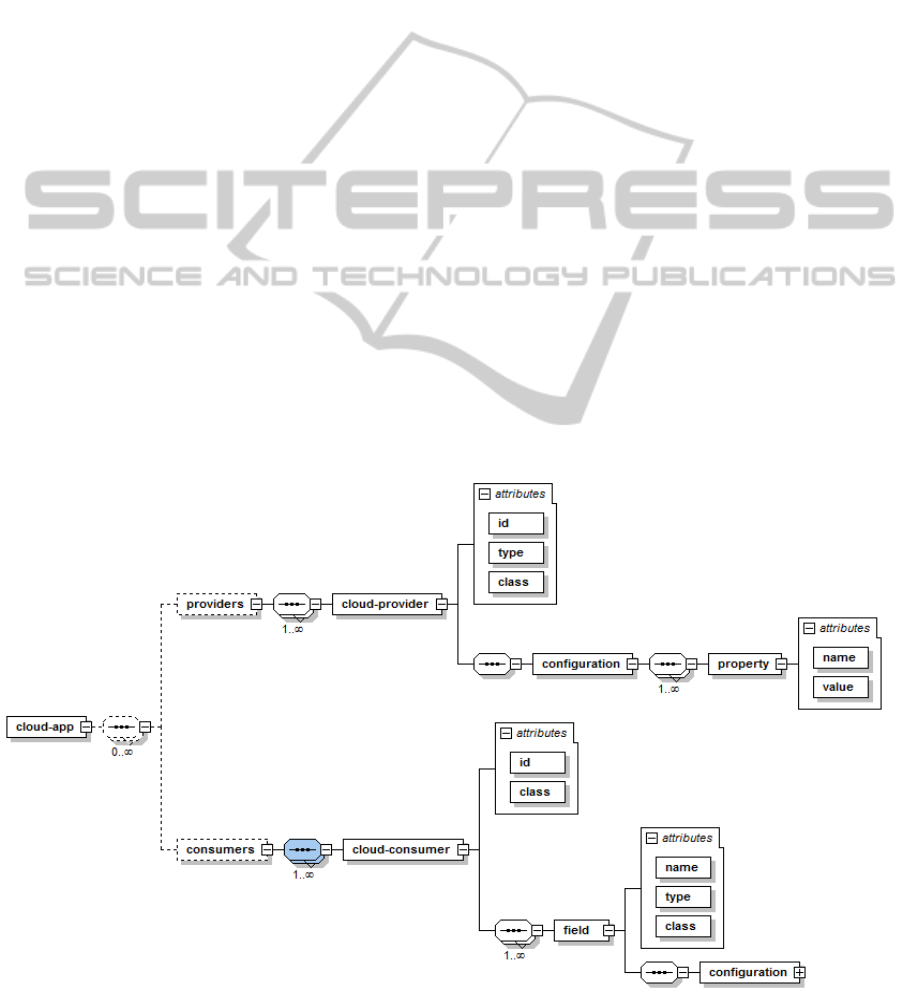

Figure 1: Data structure for cloud related metadata.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

be published based on the class identified by the

class attribute. The technology in which the service

is provided, which must be supported by the cloud,

will depend on the value of the type attribute.

Publishing each different type of service will require

a different set of configuration parameters. This is

why a generic name-value configuration structure

has been chosen to configure each service.

By following this approach services can be

published without having to implement them in the

application’s source code. As a result applications

are further decoupled from the cloud in which they

are hosted.

3.2 Oblivious Service Consumers

Cloud applications will behave as service consumers

for two types of services: remote services and local

services. The latter may be provided by the cloud

infrastructure or by other applications hosted by the

same cloud. In order to avoid coupling the

application to its dependencies the proposed

framework allows developers to consume services

by injecting dependencies into class fields.

A cloud-consumer element will be used as part

of the cloud application’s metadata to configure the

services used by any class. Each cloud-consumer

element will have an id attribute, which identifies

the consumer in the framework, as well as a class

attribute, which will be used to associate the

consumer to a specific class of the application.

Additionally a sequence of field elements will be

declared as part of the cloud consumer which will

define the service clients that will be injected into

different class fields. Each field element will have a

name attribute, containing the name of the field in

which a service client will be injected, a type

attribute, indicating the type of service that will be

consumed by the client, i.e. SOAP, REST, CORBA,

DDS, and a class attribute containing the class name

of the instance that is being injected into the field.

3.3 Service Adapters

Service adapters are proposed as an additional

means for decoupling the developed software from

the underlying architecture as well as from other

consumed services.

Considering that the services and APIs exposed

by different cloud providers can be grouped into

different categories, i.e. security, persistence,

traceability, etc. We propose to provide adapters for

these services that will behave as service clients

injected into class fields. These adapters will be

configured in the same way as we explained in the

previous section. They will provide a common

interface for connecting an application to the

underlying cloud, but will however have specific

implementations for each cloud.

This approach will also be used to adapt

applications to local and remote services in those

cases in which data transformations or service

mappings have to be applied.

3.4 Legacy Software

Companies may choose to migrate an existent

enterprise application to one or several clouds. The

following steps will have to be taken to migrate

legacy software to the cloud:

 Identify cloud applications: the architect will

have to decide how the application will be

migrated to the cloud. He may decide to use a

single cloud or to migrate each tier or logical

component to a different cloud.

 Create independent projects: the legacy

software will have to be divided into separate

software projects, in which each project will

be hosted by a different cloud environment.

 Identify services provided by the

framework for each project: some of the

services consumed by the legacy software

may already be provided by the framework

(persistence, security, logging, etc.). In such

cases cloud-consumer elements will have to

be setup in order for the application to inject

these dependencies into the legacy software. If

the services offered by the framework cannot

easily be integrated into the legacy software, a

service adapter may be implemented.

 Identify service providers for each project:

each new cloud application will have to

provide a series of services. These services

will have to be identified and included as part

of the cloud application’s metadata following

the process explained in section 3.1.

 Identify service consumers for each project:

each new cloud application will consume a

series of services. The service consumers will

have to be identified and included as part of

the cloud application’s metadata, following

the process explained in section 3.2.

As a result of following these steps legacy

software can be migrated to one or several different

clouds. Following this approach will be a lot less

intrusive in the resultant code, since no

dependencies will be created towards a specific

cloud.

DECOUPLINGCLOUDAPPLICATIONSFROMTHESOURCE-AFrameworkforDevelopingCloudAgnostic

Software

4 RELATED WORK

The lock-in problem that cloud developers are

exposed to when developing applications is a

recognised problem (Chow et al., 2009) that the

research community is trying to solve. The solutions

provided are commonly oriented towards modeling

applications for the cloud, or providing cloud

architectures that will allow applications to be

migrated between clouds. However, as far as we are

concerned, little work has been done to decouple the

final source code from the cloud’s infrastructure.

The work done in (Maximilien et al., 2009) is

probably the most related to our work. It proposes to

use a middleware that behaves as a cloud broker for

cloud clients. The middleware provides tools and

REST based APIs for deploying and consuming the

services exposed by each cloud; these are based on a

meta-model defined in the work as an abstract

representation of cloud functionalities. Applications

use the mechanisms provided by the middleware

APIs to invoke services that may be hosted in

different clouds. The goals of their work are similar

to ours, however the approach is different,

considering that intermediate management software

is placed between the applications and the clouds.

Additionally a tight dependency is created between

the applications and the middleware.

An approach for modeling cloud applications is

proposed by (Hamdaqa et al., 2011). In this work a

meta-model for cloud applications is defined which

is centralized in the definition of a cloud task as a

“composable unit, which consists of a set of actions

that utilize services to provide a specific

functionality”. The proposed meta-model is intended

to decouple the design process from specific cloud

platforms, however the approach does not cover

decoupling the source code from cloud platforms.

The proposal presented by (Frey et al., 2010) also

uses models; in this case the CloudMIG approach is

presented as a means of mapping models of existing

cloud environments to legacy software models and

transforming the result to cloud-specific code

through a series of iterations and result evaluations.

The source code generated by this proposal will be

tightly coupled to the cloud platform which it was

aimed at.

Another proposal that aims to allow clouds to

interact with each other is found in (Tsai et al.,

2010). In this case a Service Oriented Cloud

Architecture is proposed. The architecture

introduces an ontology mapping layer over the

services published by each individual cloud platform

as a means of masking the differences between each

individual cloud provider. Cloud brokers deploy

applications in one cloud or another depending on

the budget, SLAs and QoS requirements that are

negotiated with each provider. No restrictions are

made on how applications are developed; they may

still be tightly coupled to specific clouds and may be

developed with APIs provided by cloud providers.

All of these works allow developers to work

around the lock-in problem; they provide a series of

tools that make more flexible the process of

developing software for the cloud. However in all of

them developers continue to generate tightly coupled

software that cannot easily be migrated from one

platform to another or from cloud to non-cloud

environments.

5 CONCLUSION AND FUTURE

WORK

In this paper a cloud development framework has

been proposed that will allow developers to create

applications that are not tightly coupled to a specific

cloud. Cloud-related data about how the applications

use the SDKs and APIs provided by each vendor and

about how each application behaves as a service

provider and consumer, is separated from the source

code. As a result of this each application’s source

code is decoupled from its underlying architecture.

One of the main problems that companies have

to confront when it comes to deciding whether they

want to shift their business processes towards the

cloud is deciding whether the lock-in problem makes

it worth the while. Work is being carried out among

the research community to come up with solutions

for this problem; however the solutions provided

often propose changing the architectures used by

cloud providers or changing the software

development processes used by companies. These

types of solutions are not easily adopted by cloud

providers and users; in the first case because

providers are not interested in standardization, and

in the second case because users are not willing to

change their software development processes.

We believe that tools have to be provided in

order to make the cloud technology much more

accessible and flexible for providers and developers.

These tools should contribute to clarify the doubts

that many companies have regarding the cloud, and

allow them to rely on cloud computing as a viable

means of hosting their applications, thus allowing

cloud computing to exploit its full potential. This

was the idea that inspired us into writing this paper:

proposing a way of creating decoupled software for

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

the cloud without introducing any foreign elements

into the existent technology.

Future work involves extending the proposed

framework in order to manage QoS settings for each

cloud as well as enhancing the prototype of the

framework. Additionally we would like to

complement the framework with tools that will

allow developers to choose which cloud the software

will be deployed in and automatically generate a

cloud specific configuration, without having to

manually set the provider and consumer elements.

To do so we plan to use Model-Driven Software

Development to define a cloud meta-model that will

allow designers to model an application that will be

hosted in the cloud. The source code generated from

these models will contain a preconfigured cloud file

containing the application’s metadata. For those

cases in which applications are not created from

models, we plan to build a plugin for the Eclipse

IDE which will assist developers in the process of

configuring the application’s cloud-related metadata.

ACKNOWLEDGEMENTS

Spanish Ministry of Science and Innovation under

Project TIN2011-24278.

Junta de Extremadura, Fondos FEDER.

REFERENCES

Amazon (2011). Amazon Web Services, [Online],

Available: http://aws.amazon.com [14 Nov 2011].

Armbrust, M., Fox, A., Griffith, R., Joseph, A., Katz, R.,

Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., et al. (2009). Above the clouds: A berkeley

view of cloud computing. EECS Department, Univer-

sity of California, Berkeley, Tech. Rep. UCB/EECS-

2009-28.

Buyya, R., Yeo, C. S., Venugopal, S. (2008). Market-

Oriented Cloud Computing: Vision, Hype, and Reality

for Delivering IT Services as Computing Utilities.

2008 10th IEEE International Conference on High

Performance Computing and Communications, pages

5-13.

Chow, R., Golle, P., Jakobsson, M., Shi, Staddon, J.,

Masuoka, R., Molina, J. (2009). Controlling data in

the cloud: outsourcing computation without

outsourcing control. In Proceedings of the 2009 ACM

workshop on Cloud computing security, CCSW, pages

85-90.

Filman, R. E. & Friedman, D. P., 2000. Aspect-Oriented

Programming is Quantification and Obliviousness.

October, 2000(May), p.1-9.

Fowler, M., 2004. Inversion of Control Containers and the

Dependency Injection pattern. I Can, M(1), p.1-19.

Available: http://www.martinfowler.com/articles/injec

tion.html.

Frey, S., Hasselbring, W. (2010). Model-Based Migration

of Legacy Software Systems to Scalable and

Resource-Efﬁcient Cloud-Based Applications: The

CloudMIG Approach. In Cloud Computing 2010:

Proceedings of the 1st International Conference on

Cloud Computing, GRIDs, and Virtualization, pages

155-158.

Google (2011). Google App Engine, [Online], Available:

http://code.google.com/appengine/ [14 Nov 2011].

Hamdaqa, M., Livogiannis, T., Tahvildari, L. (2011). A

Reference Model for Developing Cloud Applications.

In Proceedings of the 1st International Conference on

Cloud Computing and Services Science, pages 98-103.

SciTePress.

IBM (2011). IBM Smart Cloud Foundation, [Online],

Available: http:// www.ibm.com/cloud-computing/ [14

Nov 2011].

Knorr, E., Grumman, G. (2008). What cloud computing

really means [Online]. Available: http://www.info

world.com/d/cloud-computing/what-cloud-computing-

really-means-031.

Maximilien, E. M., Ranabahu, A., Engehausen, R.,

Anderson, L. C. (2009). Toward cloud-agnostic

middlewares. In OOPSLA09: 14th conference

companion on Object Oriented Programming Systems

Languages and Applications, pages 619–626.

Microsoft (2011). Microsoft’s Windows Azure, [Online],

Available: http://www.microsoft.com/windowsazure/

[14 Nov 2011].

Tsai, W., Sun, X., Balasooriya, J. (2010). Service-Oriented

Cloud Computing Architecture. In ITNG10 7th

International Conference on Information Technology:

New Generations, pages 684-689.

Wang, L., Laszewski, G., Younge, A., He, X., Kunze, M.,

Tao, J., and Fu, C. (2010). Cloud Computing: a

Perspective Study. New Generation Computing, 28(2),

pages 137-146.

Zhang, Q., Cheng, L., Boutaba, R. (2010). Cloud

computing: state-of-the-art and research challenges.

Journal of Internet Services and Applications, 1(1),

pages 7-18.

DECOUPLINGCLOUDAPPLICATIONSFROMTHESOURCE-AFrameworkforDevelopingCloudAgnostic

Software
