VISoR

Virtual Machine Images Management Service for Cloud Infrastructures

Jo˜ao Pereira and Paula Prata

Instituto de Telecomunicac¸˜oes (IT)

Department of Informatics, University of Beira Interior, Covilh˜a, Portugal

Keywords:

Cloud Computing, Virtual Images, Storage Systems.

Abstract:

Virtual machine images represent one of the most valuable components in providing a cloud infrastructure, so

managing them becomes a key concern in such systems. Each one of the Infrastructure-as-a-Service (IaaS)

offers provides its own version of a local image repository. This fact raises problems when managing multiple

environments with different IaaS, or when migrating from one to another, because such images management

services are mainly designed to interact with its corresponding IaaS and its own storage system. This article

presents VISoR, a work-in-progress project, whose main goal is to achieve an agnostic service for managing

virtual machine images among different cloud offers.

1 INTRODUCTION

Cloud computing brought the capability to provide

access to a wide range of machines as virtual machine

(VM) instances, whose number varies depending on

the amount of required resources. Cloud computing

platforms are no longer conﬁned to local clusters of

machines, they are growing, and today they vary from

machines within a single data center to networks of

data centers spread all around the world. These facts

led to the expansion of VMs uses, as they are one

of the key features of the emerging Cloud Comput-

ing paradigm (Buyya et al., 2009). Managing large

amounts of virtual images being deployed over mul-

tiple distributed machines could become an exponen-

tial bottleneck, so the way to manage them is very im-

portant (Begnum, 2006). Providing the capability to

manage virtual images through an organized, reliable

and scalable service is very important, as the num-

ber of such systems continues to grow, it is necessary

to produce tools capable of simplifying the work of

those dealing with them.

Current cloud Infrastructure-as-a-Service (IaaS)

frameworks provide their own version of an image

repository, although they present limitations and in-

compatibilities between them, as they do not allow

storing images and the needed information about

them (metadata) in a compatible way between differ-

ent IaaS. Their implementation suffersfrom some nat-

ural limitations, such as the storage systems compati-

bility and its design that is tied to their own needs and

requirements. Facing the cloud computing paradigm,

sometimes there is the need to manage a couple of dif-

ferent IaaS in the same infrastructure, bringing hard

integration problems when managing available vir-

tual images. Users of such frameworks should not

be constrained in choosing the right tools for the

job and switch back and forth between them as they

need, maintaining a centralized agnostic image man-

agement service repository.

Having said that, our work differs from such ap-

proaches as we present VISoR (which stands for Vir-

tual Images Service Repository), a service providing

a generic purpose and multi-cloud repository, com-

pletely open-source and designed from bottom to top

not to ﬁt in a speciﬁc platform or purpose, but de-

signed to overreach sharing and interoperability lim-

itations among different IaaS and storage systems.

This provides the ability to enable the storing and

managing of virtual images among different clouds,

in the same generic repository. Also, placing the

cloud as ﬁrst target audience is not a limitation for

other use cases, given the agnostic design concerns,

the service can be successfully applied to a wide range

of image management environments.

The remainder of this paper is organized as fol-

lows. In Section 2 we discuss the background of IaaS

offers, its image management solutions and storage

systems. In section 3 we present the service features.

In section 4 we outline the security risks and the ap-

401

Pereira J. and Prata P..

VISoR - Virtual Machine Images Management Service for Cloud Infrastructures.

DOI: 10.5220/0003903104010406

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 401-406

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

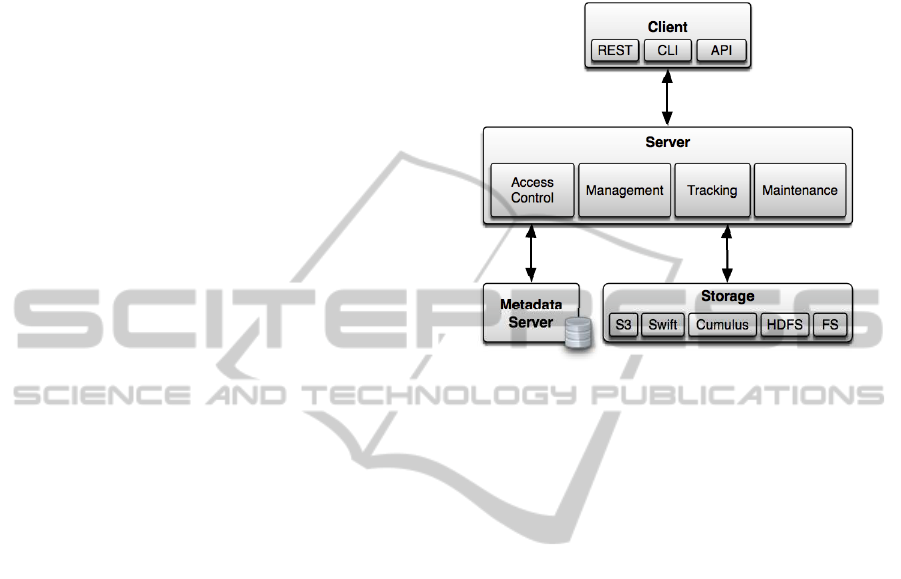

proach to contain them. The architecture of the sys-

tem, its components and its description is detailed in

Section 5. The status of the system implementation

and future work are described in Section 6 and ﬁnally,

in Section 7 we present the paper’s conclusions.

2 BACKGROUND

Currently there are many IaaS offers, among which

we highlight the Amazon Web Services (AWS), Eu-

calyptus, OpenStack, OpenNebula andNimbus, as the

primary IaaS targets for VISoR. Following we con-

duct an overview about these IaaS and their image

services and storage systems.

Amazon AWS (Amazon, 2006) is a commercial

platform that provides the capability to use the cloud

infrastructure through their web services. It provides

a wide set of public images shared by users and also

let them store their owns, in its storage system called

Simple Storage Service (S3) and in its Elastic Block

Storage (EBS).

Eucalyptus (Nurmi et al., 2009) (Eucalyptus,

2009) is a platform for building private and hybrid

clouds, with one open source version and another

enterprise edition. Eucalyptus provides it own dis-

tributed storage system, called Walrus, which is used

to store the images. It also implements an Amazon S3

compatible interface.

OpenStack (Rackspace, 2010) is an open source

project jointly launched by Rackspace and NASA,

providing software for building private and public

clouds. It integrates a distributed storage system, the

OpenStack Swift. It also provides its own image

repository service, called Glance, which integrates

with Swift and optionally with Amazon S3.

OpenNebula (NASA, 2008) (Sotomayor et al.,

2009) is an open source project for building private,

public and hybrid clouds. It also provides an image

repository. Its storage system relies on the POSIX

standard and supports the Network File System (NFS)

and Logical Volume Manager (LVM) too.

Nimbus (Chicago, 2009) is a platform that com-

bines a set of tools to provide clouds for scientiﬁc

use cases. It also uses its own storage system for the

cloud, called Cumulus (Bresnahan et al., 2011). Im-

ages are stored in Cumulus and Nimbus also provides

a compatible Amazon S3 interface.

Finally we would also like to mention the Future-

Grid platform (von Laszewski et al., 2011), an inter-

esting testbed for scientiﬁc projects installed across

multiple High-Performance Computing (HPC) re-

sources distributed across several USA states, which

also integrates an image service in its architecture for

the FutureGrid platform, towards its inside grids and

clouds management.

Unlike the solutions presented here, VISoR tar-

gets different requirements. Users can expect VI-

SoR to be a free, completely open-source tool. They

can download, customize and use it inside their own

environment (unlike solutions like FutureGrid tools,

which are integrated into the project and are intended

to operate inside it, through the on-line platform por-

tal). VISoR aims to tackle the heterogeneity of exist-

ing IaaS clouds and other use cases which need to rely

on an image repository service, making it possible to

sit it in the middle of these frameworks. Also, VISoR

is not intended to replace a VM instantiation tool or a

cloud management utility, like FutureGrid RAIN (von

Laszewski et al., 2011) and commercial services like

RightScale (RightScale, 2006). It is intended to be

a generic centralized image catalogue and repository,

that can be used to manage images and expose them

to the endpoint cloud hosts.

3 VISOR FEATURES

The VISoR service should be designed considering a

set of features, which we have deﬁned based on its

aims and purposes, leading to the following presented

set in which we rely for designing the system.

• Open Source. If anyone wants to contribute or just

learn how it works, it can be done freely. The de-

velopment process should be community-driven.

• Multi-Interface. The system should provide ac-

cess through more than one interface, being them

a Representational State Transfer (REST) inter-

face, an API and a command-line interface (CLI).

• Modular. It should be designed and implemented

in a modular way, so all subsystems are isolated

and can be easily customized and extended.

• Extensible. The service should provide a way to

add new extensions to it, or rely on it to build new

tools through the deﬁned set of interfaces.

• Flexible. It should be possible to install such a

service by requiring minimal setup operations and

strategically close to the needed resources.

• Scalable. The service should be designed with

scalability in mind, it must adapt to high load re-

quirements.

• Multi-Format. The service should provide com-

patibility with multiple virtual machine images

disk and container formats.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

402

• Cross-Infrastructure. The system must provide an

uniﬁed multi-infrastructure service repository, sit-

ting in the middle of different IaaS, including Eu-

calyptus, OpenStack, OpenNebula and Nimbus.

• Multi-Storage. It should provide compatibility

with popular cloud storage systems, by relying on

a seamless abstraction API layer.

4 SECURITY

Given the growth of cloud computing implementa-

tions, there are some risks and security issues that

arise (Heiser and Nicolett, 2008). These security is-

sues and concerns basically address the need to guar-

antee the initial image integrity and the need to pro-

vide a secure way to let users share their images and

retrieve them safely. Sharing virtual images implies

safety concerns, because many of these are made by

third party providers and users share them with many

other users. Existing approaches to cloud security fail

in assessing virtual images security (Wei et al., 2009),

as most of this techniques are not applicable to virtual

images in a dormant state.

It is necessary to take into account all the risks

involved in a VM image sharing activity, mainly ad-

dressing the needs of administrators, publishers and

retrievers of the virtual images present in the image

repository (Wei et al., 2009). For the administrator

it is a risk to have an infected image hosted in the

repository, because when it gets executed it can in-

fect other ﬁles. The biggest concern for the publisher

is to not publish images with personal data, like user

accounts and passwords that should not be made pub-

lic. This is common when users launch the virtual

image for some initialization conﬁgurations without

taking care to do not expose any sensitive informa-

tion. The biggest risk for the retriever is that he can

retrieve some maliciously crafted image, committed

to the repository by some publisher.

Also, it is extremely importantto consider security

threats related with the VM images life cycle, which

can compromise the overall cloud security. Vaquero

et al. exposes a detailed analysis of such threats (Va-

quero et al., 2011). From there, we want to address

the stages that VISoR should pay attention to, being

them the images transportation and storage. By tak-

ing into account these issues and the proposed secu-

rity approach by Wei in (Wei et al., 2009), we address

VISoR risk contention approach with three security

components, being them the Access Control, Track-

ing and Maintenance. We will describe each one of

these components in Section 5.

5 ARCHITECTURE

Based on the design features and security concerns,

we have deﬁned the VISoR architecture (Figure 1).

Client

REST CLI API

Metadata

Server

Storage

Swift CumulusS3 HDFS FS

Server

Access

Control

TrackingManagement Maintenance

Figure 1: The VISoR system architecture.

All the system stack is implemented in a modular

way, so given this isolation and separation of compo-

nents, the system becomes ﬂexible and builds a solid

foundation to provide a scalable service. The system

relies on a client-server architecture, with four main

components, being them the clients, the main server,

the metadata server and the storage layer.

5.1 Client

This component is responsible for providing access to

the service. We address the multi-interface feature by

implementing three different interfaces to the service,

exposing it to a variety of target communities, such as

administrators, developers and end users.

REST. Implementing the REST architecture (Field-

ing, 2000), the RESTful web services are the main

interface to the system. By relying in the HTTP pro-

tocol, we manage to expose the service in a way that

makes it possible to easily integrate it with other web-

based services.

CLI. We also provide a command-line interface,

which provides users with the capability to admin-

istrate and use the full system stack, being the most

important tool to interact with the system.

API. Finally, we provide the API exposed by the

clients class, which provides the capability to interact

with the system through programming.

By exposing these interfaces we are making the

service extensible, as new tools, clients and exten-

sions to the system are easy to develop and integrate.

VISoR-VirtualMachineImagesManagementServiceforCloudInfrastructures

403

5.2 Server

The Server is the core of the system, managing all the

processes and providing access to the resources, be-

ing them the images ﬁles and its metadata. It contains

four major components, being them the Access Con-

trol, Tracking, Management and Maintenance.

5.2.1 Access Control

This component is responsible for ensuring that pub-

lisher’s security risks are minimized, by providing a

framework capable of controlling the sharing of vir-

tual images, by leveraging in access permissions. At

storing time, virtual images may be set as public or

private, deﬁning whether they must be seen by every-

one or only by its owner or those with granted access

permissions to that image. The owner of the image

is responsible for granting and revoking access per-

missions to other users and groups, with two different

types of permissions, the checkout and commit per-

missions. A checkout permission means that users or

groups of users granted with this permission are al-

lowed to retrieve and use some image. A commit per-

mission implies the existence of a checkout permis-

sion and allows users or groups of users to commit

some modiﬁed existing virtual image.

5.2.2 Management

The management component integrates two main

management concerns, being them the users and im-

ages management. This is the main control actor over

users actions and images in the VISoR repository.

User Management. When interacting with the sys-

tem, users are managed by roles and group member-

ships, so the ﬁrst step from users is to authenticate

themselves providing valid credentials. The system

maintains basic information about each user. The ad-

ministration of user accounts is delegated to the ser-

vice administrator, using the provided CLI tools.

Image Management. This element consists in man-

aging associated metadata about a given image and

the physical image itself. When managing images

metadata, the server handles incoming requests from

clients and redirect them to the metadata server, han-

dling the response back again to clients. When han-

dling the images ﬁles upload and download, the server

is responsible for managing the images storage, mak-

ing all the process as transparent as possible for users.

5.2.3 Tracking

This component is responsible for minimizing admin-

istrator’s and retriever’s security risks. It keeps track-

ing and recording operations through the service API,

creating a full history of virtual images life cycle since

they were published in the repository. Also, this com-

ponent will provide statistical data, useful for tracking

the service usage, which can help automating com-

mon tasks, such as reports about images that are never

used and can be deleted. Having statistical data about

the repository usage and images life cycle can greatly

improve administrator’s capabilities.

5.2.4 Maintenance

The maintenance component is responsible for assur-

ing the safety and integrity of virtual images without

harming the system performance. It aims to provide

the capability to scan virtual images looking for mali-

cious software and similar threats, delegating this task

to a scanner through the repository service. This may

be invoked as the administrator prefers, automatically

running the scan based on some event or manually.

5.3 Storage

The storage component represents a multi-storage ab-

straction layer that provides seamless integration with

multiple storage systems. This will include integra-

tion with Amazon S3, OpenStack Swift, Cumulus, as

well as the local ﬁle system and the Apache Hadoop

Distributed File System (HDFS) (Foundation, 2007)

(Shvachko et al., 2010). Also, given the system mod-

ularity it is possible to easily extend it with other stor-

age systems compatibility.

The server is responsible for handling clients up-

load and download requests and then interacts with

the storage layer to accomplish that requests, acting

as a bridge between storage systems and endpoint ma-

chines. Users should describe through conﬁguration

options, were can VISoR ﬁnd a speciﬁc cloud storage,

this is, its address and listening port, or user creden-

tials if its an on-line service like Amazon S3. With an

uniﬁed interface to multiple storage systems it is sim-

pler to achieve a cross-infrastructure storage service,

abstracting the complexity of such heterogeneoussys-

tems.

5.4 Metadata Server

The metadata server handles all the information about

virtual images stored in the VISoR repository. The

metadata is stored in the database and then can be

retrieved from there, with support to all the CRUD

(Create, Read, Update and Delete) operations through

the REST interface deﬁned in Table 1. When issuing

GET requests, it is possible to provide query parame-

ters, ﬁltering and ordering returned results, which are

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

404

Table 1: The REST API exposed by the metadata server.

Method Path Operation

GET /images Return brief metadata of all public images.

GET /images/detail Return detailed metadata of all public images.

GET /images/(id) Return metadata of the given image.

PUT /images/(id) Update metadata of the given image.

POST /images Add metadata of a new image.

DELETE /images/(id) Remove metadata of the given image.

Table 2: Image’s metadata ﬁelds, data types, predeﬁned values and access permissions.

Field Type Predeﬁned Values Permission

id Integer Read-Only

uri String Read-Only

name String Read-Write

architecture String i386, x86 64 Read-Write

status String locked, uploading, error, available Read-Only

size String Read-Only

access String public, private Read-Write

uploaded at Date Read-Only

updated at Date Read-Only

accessed at Date Read-Only

access count Long Read-Only

owner String Read-Only

checksum String Read-Only

type String none, kernel, ramdisk, amazon, eucalyp-

tus, openstack, opennebula, nimbus

Read-Write

kernel Integer Read-Write

ramdisk Integer Read-Write

disk String none, iso, vhd, vdi, vmdk, ami, aki, ari Read-Write

store String s3, swift, cumulus, hdfs, fs Read-Write

others Key/Value Read-Write

passed through the response’s body. Also, when is-

suing PUT and POST requests, the metadata should

be provided through the body of the request in JSON

(Crockford, 2006) format key/value pairs. The meta-

data server describes images based on the recom-

mended ﬁelds listed in Table 2. To achieve multi-

format support, so we provide to users the ability

to use other image properties not listed in Table 2,

by providing additional key/value pairs attributes or

by ignoring some of the optional attributes if they

are not useful. When a new image is being regis-

tered, the service deﬁnes a unique identiﬁer, theid and

the uniform resource identiﬁer, the uri, for it. Users

should provide the name, the architecture of the oper-

ating system and the access permission. Optionally,

it is possible to provide the store, which indicates in

which service they want to store the image. The sta-

tus of the image is deﬁned by the system, where the

’locked’ state means that the image was already reg-

istered without an upload, the ’uploading’ status in-

forms that the image is being uploaded, the ’error’

status reports that there was an error on the image up-

load and ﬁnally, the ’available’ status deﬁnes that the

image is already available. Also deﬁned by the sys-

tem are the owner, which identiﬁes the image pub-

lisher, the image size, its checksum, as well as the

uploaded at and updated at timestamps. The sys-

tem also maintains other two tracking ﬁelds, being

them the accessed at timestamp and the access count

which counts the number of accesses. Optionally,

users can deﬁne other ﬁelds, which are the image disk

format, type, as well as if the image has some asso-

ciated kernel or ramdisk image already stored in the

repository, providing its id for these ﬁelds.

6 STATUS AND FUTURE WORK

Currently we have already implemented the metadata

server with a MongoDB and an MySQL database

backend. We decided to adopt a NoSQL system, be-

yond the classic SQL approach with MySQL, as these

VISoR-VirtualMachineImagesManagementServiceforCloudInfrastructures

405

modern tools target the use case where our service

ﬁts, providing good performance and scheme free ca-

pability (Cattell, 2011). Additionally we have imple-

mented the main server, following an event-drivenap-

proach, using a framework based on the Reactor Pat-

tern (Schmidt, 1995). We are currently working on

the storage options expansion, which already includes

the S3 and FS stores, and in the API security approach

implementation.

We expect to expose more insights on API inter-

nals and detail our main server implementation with

the described security approach in future work. Out-

side of the article scope are the technologies choices

and the analysis of the overall system structure and

performance, which we expect to conduct soon in fu-

ture work too. We also want to proceed with a more

in-depth analysis of the integration of VISoR with the

described target IaaS and custom modiﬁcation that

can surge from such analysis.

7 CONCLUSIONS

In this paper we have presented our work towards VI-

SoR, a virtual image service that is being developedto

address the need to keep a centralized generic reposi-

tory, while managing multiple environments with dif-

ferent IaaS. VISoR will support multiple IaaS and

storage systems and for its design we focused on se-

curity and performance towards an efﬁcient and scal-

able virtual images management service. Given this,

we expect it to be the agnostic service that will act

as a holder between multiple heterogeneous systems

that rely on virtual images management capabilities.

The source can be accessed, as documentation and

further information, through the project web page at

http://www.cvisor.org.

REFERENCES

Amazon. (2006), Amazon web services (aws) [online].

Available: http://aws.amazon.com/ [Accessed on Jan-

uary 2012].

Begnum, K. (2006). Managing large networks of virtual

machines. In Proceedings of the 20th Large Installa-

tion System Administration Conf., pages 205–214.

Bresnahan, J., LaBissoniere, D., Freeman, T., and Keahey,

K. (2011). Cumulus: an open source storage cloud for

science. In Proceedings of the 2nd int’l workshop on

Scientiﬁc cloud computing, pages 25–32. ACM.

Buyya, R., Yeo, C. S., Venugopal, S., Broberg, J., and

Brandic, I. (2009). Cloud computing and emerging

it platforms: Vision, hype, and reality for delivering

computing as the 5th utility. Future Gener. Comput.

Syst., 25:599–616.

Cattell, R. (2011). Scalable sql and nosql data stores. ACM

SIGMOD Record, 39(4):12–27.

Chicago, U. (2009), Nimbus, cloud computing for science

[online]. Available: http://nimbusproject.org [Ac-

cessed on January 2012].

Crockford, D. (2006), Rfc 4627, the application/json me-

dia type for javascript object notation (json) [online].

Available: http://www.ietf.org/rfc/rfc4627 [Accessed

on January 2012].

Eucalyptus. (2009), Eucalyptus infrastructure as a service

[online]. Available: http://eucalyptus.com [Accessed

on January 2012].

Fielding, R. T. (2000). Architectural styles and the design

of network-based software architectures. PhD thesis.

Foundation, A. S. (2007), Hadoop distributed ﬁle system

[online]. Available: http://hadoop.apache.org/hdfs/

[Accessed on January 2012].

Heiser, J. and Nicolett, M. (2008). Assessing the security

risks of cloud computing. Gartner Report.

NASA. (2008), Opennebula, the open source toolkit

for cloud computing [online]. Available:

http://opennebula.org [Accessed on January 2012].

Nurmi, D., Wolski, R., Grzegorczyk, C., Obertelli, G., So-

man, S., Youseff, L., and Zagorodnov, D. (2009). The

eucalyptus open-source cloud-computing system. In

Proceedings of the 9th IEEE/ACM International Sym-

posium on Cluster Computing and the Grid, pages

124–131, Washington, DC, USA. IEEE.

Rackspace, N. (2010), Openstack, open source software

for private and public clouds [online]. Available:

http://openstack.org [Accessed on January 2012].

RightScale, I. (2006), Cloud computing management plat-

form [online]. Available: http://www.rightscale.com

[Accessed on January 2012].

Schmidt, D. C. (1995). Reactor: an object behavioral

pattern for concurrent event demultiplexing and event

handler dispatching, pages 529–545. ACM, USA.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R.

(2010). The hadoop distributed ﬁle system. In 2010

IEEE 26th Symposium on Mass Storage Systems and

Technologies (MSST), pages 1–10. IEEE.

Sotomayor, B., Montero, R., Llorente, I., and Foster, I.

(2009). Virtual infrastructure management in pri-

vate and hybrid clouds. Internet Computing, IEEE,

13(5):14–22.

Vaquero, L. M., Rodero-Merino, L., and Mor´an, D. (2011).

Locking the sky: a survey on iaas cloud security. Com-

puting, 91:93–118.

von Laszewski, G., Diaz, J., Wang, F., Younge, A. J., Kul-

shrestha, A., and Fox, G. (2011). Towards generic

futuregrid image management. In Proceedings of the

2011 TeraGrid Conference: Extreme Digital Discov-

ery, pages 15:1–15:2, NY, USA. ACM.

Wei, J., Zhang, X., Ammons, G., Bala, V., and Ning, P.

(2009). Managing security of virtual machine images

in a cloud environment. In Proceedings of the ACM

workshop on Cloud computing security, CCSW ’09,

pages 91–96, NY, USA. ACM.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

406
