RANKING LOCATION-DEPENDENT KEYWORDS

FROM MICROBLOGS

Satoshi Ikeda, Nobuharu Kami and Takashi Yoshikawa

System Platforms Research Laboratories, NEC Corporation, 1753 Shimonumabe, Nakahara, Kawasaki, Kanagawa, Japan

Keywords:

TF-IDF, Context Awareness, Keyword Ranking.

Abstract:

The spread of microblogging services, such as Twitter, has made it possible to extract location-dependent

context such as keywords speciﬁc to a geographical region, with ﬁne granularity. The results of content

analysis of microblogging services are affected by users who post excessive messages. In addition, because

geographical granularity of users’ interests differs, it is preferable to support multiple levels of granularity for

usability. Thus, we propose a ranking method of location-dependent keywords based on a term frequency-

inverse document frequency method, which takes into account diversity of information sources and supports

multiple zoom levels of geographical areas by approximation. We evaluated our ranking method with a real

dataset from Twitter and showed its effectiveness. We also describe a prototype implementation of a system

using our ranking method.

1 INTRODUCTION

Microblogging services, such as Twitter, have been

spreading worldwide in recent years. A characteristic

of users frequently updating their status has made it

possible to obtain users’ context information with ﬁne

granularity in real time.

Accordingly, user content from microblogging

services has been widely leveraged as a research ob-

ject of user context (Tumasjan, Sprenger, Sandner

and Welpe, 2010; Chen, Nairn, Nelson, Bernstein

and Chi, 2010). In particular, context based on ge-

ographical location information, location-dependent

context, is notable since users’ activities are closely

related to their location. Moreover, the popularization

of smartphones equipped with GPS receivers has en-

couraged research on location-dependent context. In

fact, many studies analyzing content from microblog-

ging services based on geographical location infor-

mation have been conducted (Arakawa, Tagshira and

Fukuda, 2010; Sakaki, Okazaki and Matsuo, 2010).

One way to express location-dependent context

is to extract and rank location-dependent keywords,

which characterize a geographical region by analyz-

ing content from microblogging services. In content

analysis of microblogging services, the impact of ad-

vertisement messages must be taken into consider-

ation. Since microblogging services are also used

as advertisement tools, malicious users may try to

compromise the analysis result by posting a large

number of messages. Though spam ﬁltering with

a Bayesian ﬁlter (Sahami, Dumais, Heckerman and

Horvitz, 1998) would be considered effective to de-

termine whether a message is an advertisement or

not, it requires training using sample messages in ad-

vance. Moreover, it is difﬁcult to determine what

should be ﬁltered out as malicious since an adver-

tisement message may be useful if it contains con-

text related to its location. Hence, it is not adequate

to ﬁlter out all advertisement messages. Addition-

ally, the granularity of geographical areas with which

location-dependent context is analyzed is important.

For instance, an application that analyzes and visu-

alizes location-dependent keywords should use geo-

graphical areas with appropriate granularity based on

the zoom level of a map because sizes of geographical

areas in which users are interested may differ. There-

fore, it is preferable to support multiple levels of gran-

ularity with a method that can reduce computational

cost and database size, because a naive approach must

calculate and store ranking scores for all zoom levels.

We propose a ranking method of location-

dependent keywords, which enhances a term

frequency-invert document frequency (TF-IDF)

method (Salton and Buckley, 1988). Diversity of

information sources is taken into consideration with

our method. Speciﬁcally, by penalizing keywords

with low diversity of users, the impact of excessive

607

Ikeda S., Kami N. and Yoshikawa T..

RANKING LOCATION-DEPENDENT KEYWORDS FROM MICROBLOGS.

DOI: 10.5220/0003905206070615

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 607-615

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

repeating of messages by a few users is mitigated.

Additionally, our ranking method supports multiple

zoom levels of geographical areas by TF-IDF ap-

proximation. With this approximation, we need not

to calculate and store TF and DF values for all zoom

levels because values for only several zoom levels

are stored and TF-IDF values for the intermediate

zoom levels are interpolated. From evaluations

using an actual dataset from Twitter, we show the

effectiveness of user diversity and the accuracy of

TF-IDF approximation. We also introduce a proto-

type implementation of a system using our ranking

method.

The rest of this paper is organized as follows.

Section 2 introduces our ranking method of location-

dependent keywords. Section 3 describes the proto-

type implementation of a system using our ranking

method. Section 4 discusses the evaluation of the ef-

fect of user diversity and approximation used in our

ranking method. Related work is discussed in Section

5, and Section 6 gives the conclusions.

2 RANKING METHOD

In this section, we introduce our location-dependent

keyword ranking method that enhances a TF-IDF

method. In our method, diversity of information

sources is utilized to suppress the impact of loud

users. Moreover, our method supports multiple zoom

levels of geographical areas by TF-IDF approxima-

tion.

2.1 Application of TF-IDF

The basic idea for extracting location context is to ap-

ply a TF-IDF method to ranking location-dependent

keywords.

In contrast to original TF-IDF for determining

how important a word is to a document in a collec-

tion of documents, the purpose of our approach is to

determine how important a word is to a geographical

area. For this purpose, we regard a collection of mes-

sages posted in a geographical area as a document of

the TF-IDF method. A geographical point, latitude

and longitude, tagged in a message is converted into

a location label representing an area the point is lo-

cated in. An area represented by a location label is

one cell of a square grid on the Mercator projection

of the earth. The size of an area is determined by

zoom level. Speciﬁcally, a single cell covers almost

the whole earth at zoom level 0 and is divided into

four cells for each additional zoom level.

To label geographical points, we use tile coor-

dinates, which are used in the Google Maps API

(Google Inc., 2009) and reference a speciﬁc tile on

a map at a speciﬁc zoom level. The tile coordinates

(x,y) at zoom level z are determined from a geograph-

ical point with latitude ϕ and longitude λ as follows:

x =



π+ λ

2π



(−π ≤ λ < π)

y =



π− ln(tanϕ+ secϕ)

2π



(−ϕ

< ϕ ≤ ϕ

)

where ϕ

is latitude ϕ such that tanϕ+ secϕ = e

, that

is, approximately 1.484 rad (approx. 85.05 degrees).

For instance, tile coordinates (0,0) at zoom level 0

includes almost the whole earth.

We consider a TF-IDF-based keyword ranking

method for each area whose location is expressed in

the tile coordinate system. A TF-IDF value for a word

w in an area with a location label l of tile coordinates

(x,y) at a speciﬁc zoom level is calculated as follows:

tﬁdf

w,l

= tf

w,l

· idf

(1)

where tf

w,l

is the number of occurrences of w in l. The

inverse document frequency idf

is deﬁned as:

idf

= log

(2)

where n

is the number of areas where w occurs at

least once.

To accurately rank location-dependent keywords,

we need to pay attention to a deﬁnition of N, which is

simply the number of all areas in the case of the orig-

inal TF-IDF method. Some words are given an unex-

pectedly high ranking score especially when a zoom

level is high in which the minimum and maximum DF

values tend to be close if we simply select the num-

ber of all areas for N. If we instead take the num-

ber of “active” areas that accommodate at least one

word, this unexpected ranking problem is mitigated

since we can exaggerate the difference in the location-

dependence of words by enlarging the difference be-

tween the minimum and maximum DF values. Yet,

there is still room for improvement and we propose to

use max

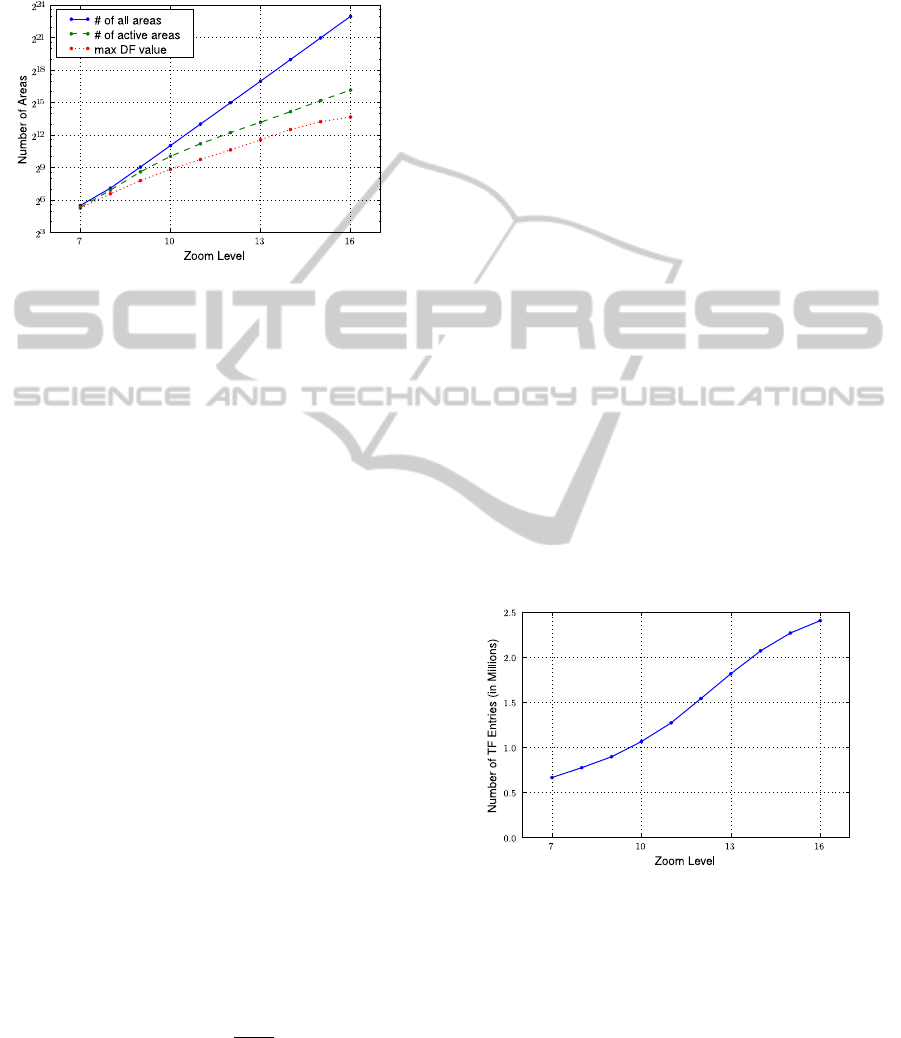

) instead of these selections of N. Fig-

ure 1 plots these selections of N against various zoom

levels for a dataset. If the number of all areas is se-

lected as N at zoom level 16, the IDF value of a word

with the maximum DF value is about 9.3 and the IDF

value of a word that occurs at a single area is about

23.0. This means that, for least and most location-

dependent keywords w

and w

, w

is ranked higher

than w

if w

occurs only thrice of w

. On the other

hand, if the number of active areas is selected as N,

the IDF values respectively change to 2.5 and 16.2.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

608

By adopting the maximum DF value as N, IDF values

for the least location-dependent keywords are zero.

Consequently, a least location-dependent keyword is

always ranked lowest.

Figure 1: Selection of N in TF-IDF.

2.2 User Diversity Weighting

Microblogging services are also leveraged for com-

mercial advertisements and announcements from

public institutions. For instance, some restaurants

provide time-limited coupons and some ﬁre depart-

ments announce information on responses to 911

calls.

In such cases, the frequency of posts from such

services is relatively high on a constant basis such as

tens of posts a day. Moreover, since these services

usually use message templates, the messages have a

strong tendency to include speciﬁc words related to

the services or the users. As a consequence, TF val-

ues of such user speciﬁc keywords tend to increase,

as well as TF-IDF values. This indicates that mali-

cious users can easily juggle keyword ranking sim-

ply by posting a large number of messages with target

keywords.

To prevent such user-speciﬁc keywords from be-

coming too inﬂuential, we introduce using a diversity

index of each keyword, which is a measure that rep-

resents how many users equally originate a keyword,

for penalizing the ranking scores of those keywords.

There are several diversity indices such as Shan-

non’s diversity index and Simpson’s diversity index.

We use Simpson’s due to its simple deﬁnition. The

user diversity index for a word w in an area l is de-

ﬁned as follows:

w,l

= 1−

∑

u∈U



w,l,u

w,l



where U is a set of users, n

w,l

is the number of occur-

rences of w in l, and the user term frequency n

w,l,u

the number of occurrences of w from a user u in l.

We use the user diversity index to lower the rank-

ing of keywords from malicious users. This index

ranges from zero to one and approaches one when a

word is uniformly posted by many users. Because of

these characteristics, the ranking of keywords from

malicious users is lowered simply by multiplying TF-

IDF values by the user diversity index. We deﬁne

diversity-weighted TF-IDF (DTF-IDF) as follows:

dtﬁdf

w,l

= D

w,l

· tﬁdf

w,l

2.3 Zoom Support

It is preferable to provide rankings for each zoom

level for usability since the granularity of interest may

differ among users. Because a change in zoom level

alters the geographical partitioning, the simplest solu-

tion is to calculate and store TF-IDF values for each

zoom level. However, this requires a huge database

whose size is approximately proportional to the num-

ber of TF entries. Moreover, the computational cost

is also roughly proportional to these entries. Figure 2

shows the number of TF entries for each zoom level

for a dataset of actual tweets collected from Twitter,

which is described in detail in Section 4. If we main-

tain TF tables at each zoom level from 7 to 16, we

need to keep about 15 million TF entries. Addition-

ally, calculation of the user diversityindex in real time

needs to maintain the number of occurrences of words

at all areas for each user. The total database size re-

quired for the dataset was about 1.3 GB.

Figure 2: Number of TF entries at each zoom level.

To reduce the database size, we introduce an ap-

proximation approach for calculating TF-IDF values.

Instead of maintaining calculated results for all zoom

levels, calculated results are stored for several zoom

levels to the database and TF-IDF values for the omit-

ted zoom levels are approximated from the stored

zoom levels. This approximation approach also has

another advantage in that it supports various sizes of

a target area. An approximated TF-IDF value for an

area consisting of 3 × 3 sub-areas, for example, can

RANKINGLOCATION-DEPENDENTKEYWORDSFROMMICROBLOGS

609

be calculated with this approximation approach even

if partitioning with 3× 3 sub-areas is not supported.

2.3.1 IDF Approximation

For approximating TF-IDF values, IDF values for the

omitted zoom levels must be estimated. This can be

accomplished by interpolating DF values.

In general, location dependency of keywords

varies according to the size of the target areas. For

instance, if the size is large enough, a name of a

nationwide chain store would have least location-

dependency (IDF value) since the name would be

posted in almost all areas. In contrast, in a small

area, the name would have a relatively high depen-

dency since it would be posted within a narrow range

near the stores. Hence, we cannot simply use an IDF

value for other zoom levels available in a database as

the value for the target zoom level. Therefore, appro-

priate DF values should be used for TF-IDF approxi-

mation.

While one might think variations in DF values for

all words have similar tendency to the number of ar-

eas, this is not the case. Figure 3 shows variations

in DF values of some words and the number of ac-

tive areas. The DF values monotonically increase as

the zoom level increases. The shapes of the curves,

however, differ from each other including “# of ac-

tive areas”. The DF value of “aid response” increases

quickly from zoom level 13 to 16. In contrast, the

DF value of “san francisco” increases gradually in this

range.

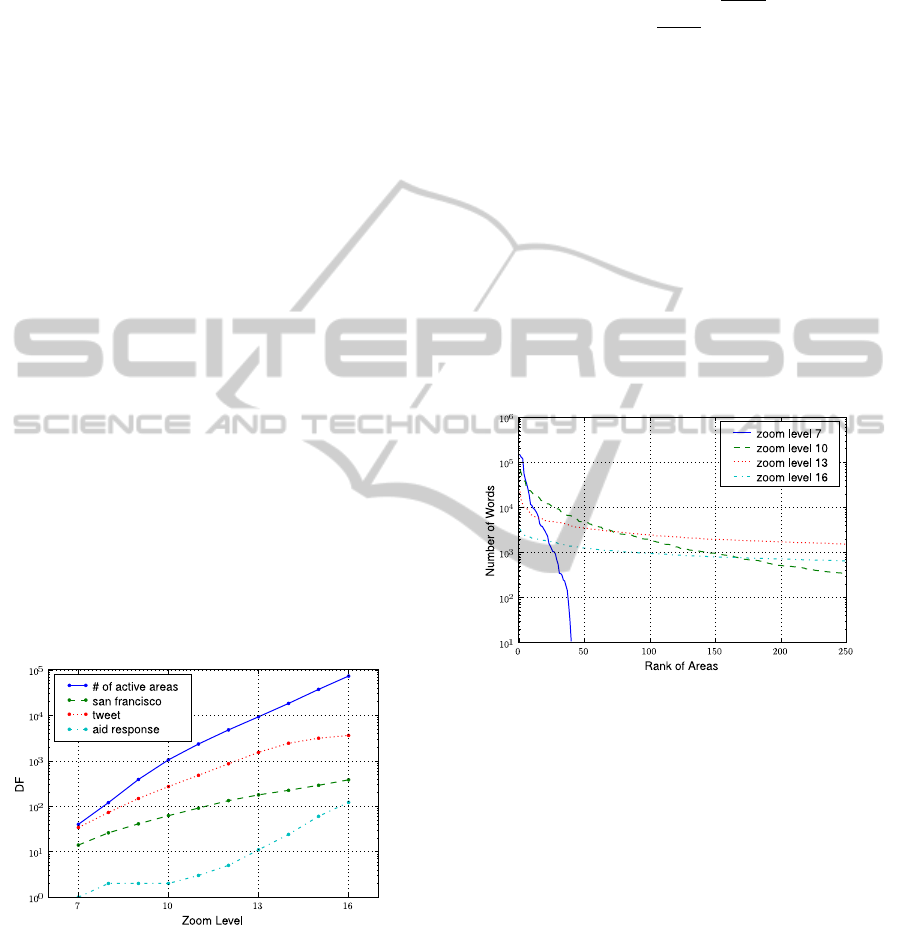

Figure 3: DF values for some words for each level. Line

with “# of active areas” is number of areas having at least

one word.

The tendency seen in Figure 3 is that the segments

that result from splitting the curves several ways

are roughly approximated by straight lines in linear-

log space. Hence, some interpolation approaches in

linear-log space are used to yield good approximation

results. With linear interpolation in linear-log space,

we store DF values for K zoom levels {ξ

,ξ

,...,ξ

}

with ξ

< ξ

i+1

. The DF value df

at zoom level

z ∈ (ξ

,ξ

i+1

) is interpolated by the following equa-

tion:

= df

i+1

z−ξ

i+1

−ξ

A maximum DF value used for calculating IDF values

is also approximated by this equation.

2.3.2 TF Approximation

Precise TF values are calculated from those at a larger

zoom level by just summing up TF values in all sub-

areas included in a target area for each word. The

user diversity indices are also calculated by aggregat-

ing user term frequencies in all sub-areas.

However, the computational cost of calculating

TF-IDF values from TF and DF tables is not negli-

gible since aggregation is required per query. Figure

4 shows the number of words in the top 250 areas in

decreasing order for zoom levels 7, 10, 13, and 16.

Figure 4: Number of words in top 250 areas in decreasing

order.

There were 144,251 words in the area with the

largest number of words at zoom level 7. If the naive

approach is taken, it requires aggregation for all the

words per query for accuracy. Because of this, it is

not realistic to calculate precise values for such areas

with a large amount of words.

Hence, approximation is taken for TF aggregation

to reduce the computational cost in areas with thou-

sands of words. Our approximation approach limits

the number of words taken from each sub-area, that

is, for some integer k, only the words with top k TF

values in each sub-area are taken for aggregation and

the others are ignored.

While this approximation may yield TF-IDF rank-

ings with less accuracy, the choice of k can improve

accuracy. Undoubtedly, a large enough k results in

precise TF values, while it increases the computa-

tional cost. The effect on rankings of this approxi-

mation is evaluated in Section 4.3.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

610

3 IMPLEMENTATION

With the ranking method described above, we imple-

mented a ranking system for location-dependent key-

words. In this section, we brieﬂy introduce our rank-

ing system.

3.1 Architecture

The system architecture is shown in Figure 5. Our

system collects geotagged tweets from Twitter using

the Streaming API (Twitter Inc., 2010), making it pos-

sible to collect tweets within a speciﬁc geographical

area in real time.

Twitter

Word

Tweet Table

Noun

Extraction

Term Freq.

Count

Doc Freq.

Count

TF Table DF Table

Location

Labeling

Tweet Table

User Interface

Score

Calculation

Figure 5: Architecture of our ranking system.

When the system receives a tweet via the Stream-

ing API, the geographical point (latitude, longitude)

of the tweet is converted to a location label (tile coor-

dinates) which represents a geographical area. Next,

nouns (or noun phrases) in the tweet are extracted as

candidate keywords. We use a part-of-speech (POS)

tagger for noun extraction. To show tweets that con-

tain such nouns, the mapping between a tweet and the

nouns are stored in a database. Then, the number of

occurrences of nouns are updated and stored into the

TF table. At the same time, user term frequencies are

also stored for calculating user diversity indices. If a

noun is found to be the ﬁrst occurrence in the area in

the TF counting process, the DF value of the noun is

also updated and stored in the DF table. Thus, the TF

and DF tables are kept updated in real time. A rank-

ing is generated per request by calculating DTF-IDF

scores using the approximation described in Section

On a machine with Intel Xeon 3.1 GHz and 4 GB

memory, the response time per request is shorter than

300 milliseconds even for areas with a large number

of words if the database is in memory. In contrast, it

is shorter than 100 milliseconds for rural areas with

not many words. The response time is considered to

be improved by caching generated rankings for areas

that requests concentrate on.

3.2 User Interface

Our system ranks keywords depending on a speciﬁed

geographical area by analyzing tweets with geograph-

ical information. Figure 6 shows a user interface of

the ranking system. When a user clicks at a point on

the map, a keyword ranking in an area that contains

the clicked point is displayed on the right side. While

only the top 13 keywords are shown in Figure 6, the

ranking area is scrollable and the top 100 rankings are

calculated by default. A user can look at tweets that

contain a keyword by selecting it if he or she wants

to know why the keyword is rated highly. The zoom

level of tile coordinates used to specify a target area is

basically one zoom level larger than that of the map.

In other words, the size of a target area varies by the

zoom level of the map. This makes it possible for

users to specify a target area with granularity of inter-

est.

Figure 6: User interface.

Although the prototype system simply provides a

keyword ranking, the ranking can be used also for

keyword recommendation or completion. When one

inputs a text with a smartphone out the door espe-

cially at a location that he or she visit for the ﬁrst

time, its content should relate closely his or her geo-

graphical context. By recommendation or completion

of location-dependent keywords, he or she would be

able to notice the excitement at the location which is

usually passed over unnoticed.

4 EVALUATION

We obtained 866,420 geotagged tweets via the Twit-

ter Streaming API from Sept. 3 to Sept. 16, 2011.

The geographical area covering the west coast of the

United States was speciﬁed as the query parameter.

RANKINGLOCATION-DEPENDENTKEYWORDSFROMMICROBLOGS

611

Table 1: Example results of user diversity weighting.

TF-IDF DTF-IDF

rank keyword diversity keyword diversity

1 arts festival 0.97 arts festival 0.97

2 seattle 0.99 seattle 0.99

3 bainbridge island 0.48 bumbershoot 0.97

4 aid response 0.00 space needle 0.96

5 bumbershoot 0.97 keyarena 0.93

6 space needle 0.96 golden gardens park 0.92

7 keyarena 0.93 ballard 0.95

8 golden gardens park 0.92 bainbridge island 0.48

9 new listing 0.00 alki beach 0.92

10 e 21 0.00 woodland park zoo 0.74

The south-west and north-east corners of the area

were respectively (32.0, -125.0) and (49.0, -114.0).

We evaluated the effect of the user diversity

weighting, errors in IDF approximation, and the ef-

fect of approximation on keyword rankings using this

dataset.

4.1 User Diversity Weighting

Table 1 lists the example results of the effect of user

diversity weighting. These are top ten rankings of

location-dependent keywords with and without user

diversity weighting in the area with tile coordinates

(163, 357), a section of Seattle, WA, at zoom level

10.

The TF-IDF ranking without user diversity

weighting contained keywords of ‘aid response’, ‘new

listing’ and ‘e 21’. Of these keywords, ‘aid response’

and ‘e 21’ were a part of announcements related to

911 calls posted by one user, and ‘new listing’ was

a part of advertisements from a real-estate agency.

Though they are indeed location-dependent in the

sense that they have large IDF values, the ranks are

considered to be overrated due to one user’s massive

tweets.

With user diversity weighting, the ranking is ad-

justed so that the impact of loud users are mitigated.

The keywords above were ﬁltered out by the user di-

versity index of 0.00. At the same time, keywords

posted by many users can maintain higher ranks. For

instance, the keyword ‘bumbershoot’, a name of a fes-

tival, which was posted by 40 users, had a user diver-

sity index of 0.97 and its rank rose from 5th to 3rd.

4.2 IDF Approximation

Cubic interpolation in linear-log space also promises

a better outcome than linear interpolation since it

yields smooth and continuous curves that linear inter-

polation can not yield. In this section, we compare the

linear interpolation of DF values described in Section

2.3.1 with cubic interpolation. The comparison re-

sults show that the two interpolations of DF values in

linear-log space did not show signiﬁcant differences

in errors of approximated IDF values.

There were 432,132 words in the dataset, and

374,992 words of them had the same DF values at

zoom levels 7 and 16. Since such words yield no er-

rors by the interpolations, these words were excluded

from the evaluation. We evaluated the error in IDF

values of the remaining 57,140 words. We used DF

values at zoom levels 7, 10, 13 and 16 and approxi-

mated IDF values at the six intermediate levels.

Errors of approximated IDF values are summa-

rized in Table 2. The errors are classiﬁed by the range

of precise IDF values (precise IDF). In both interpo-

lation methods, the errors tend to decrease as IDF

values decrease. The fact of low errors for words

with small IDF values indicates that approximation

can keep location-independent words as they are.

Another ﬁnding is that there is no signiﬁcant dif-

ference in both Rooted Mean Squared Errors (RM-

SEs) and Mean Absolute Errors (MAEs) between lin-

ear and cubic interpolations. In both methods, RMSE

and MAE were respectively about 0.24 and 0.19.

From the evaluation results, the approximation

by cubic interpolation had no signiﬁcant advantages

compared with linear interpolation. In contrast to lin-

ear interpolation requiring only two zoom levels, cu-

bic interpolation requires at least four zoom levels.

This would increase database access and computa-

tional cost. For this reason, we chose linear interpola-

tion for approximation.

4.3 Effect on Rankings

As mentioned above, for ranking location-dependent

keywords, it is not necessarily required to calculate

precise TF-IDF values for all candidate words. The

important thing is to provide precise ranking against

perfect ranking which is obtained from precise TF-

IDF calculations.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

612

Table 2: Comparison of approximation errors.

Linear Cubic

precise IDF RMSE MAE RMSE MAE rate (%)

< 2.0 0.082 0.065 0.090 0.071 1.3

< 4.0 0.150 0.122 0.154 0.123 8.9

< 6.0 0.235 0.185 0.225 0.178 19.3

< 8.0 0.257 0.182 0.270 0.196 24.9

8.0 ≤ 0.261 0.213 0.255 0.209 45.6

ALL 0.245 0.190 0.244 0.190

For evaluation of rankings by the approxima-

tion described in Section 2.3.2, we used the normal-

ized discounted cumulative gain nDCG

(J¨arvelin and

Kek¨al¨ainen, 2002). nDCG

for a top-k ranking is de-

ﬁned as:

nDCG

DCG

iDCG

where DCG

= R

∑

i=2

/log

i). R

is the rele-

vance value of a word at rank i, which takes a large

value if the word strongly depends on the location,

and iDCG

is DCG

for perfect ranking. From this

deﬁnition, nDCG

is such a value that the more simi-

lar a ranking is to an ideal one, the closer it is to one.

Thus, if nDCG

for an approximated ranking is close

to one, the approximation is considered to be highly

accurate. We use precise TF-IDF values of a word at

rank i as relevance R

since a word with a higher TF-

IDF value is considered to be strongly dependent on a

geographical area.

In the evaluation below, the results in Figures 7, 8

and 9 are the average nDCG

values of the top ten ar-

eas with a large number of words at a speciﬁed zoom

level.

Figure 7 shows the evaluation results for TF ap-

proximation at zoom level 8 using TF values at the

base zoom level of 10. The x-axis represents the

number of TF entries used in the approximation. If

it is 1,600, for instance, the top 100 TF entries for

each sub-area are collected since there are 16 sub-

areas to aggregate. In this evaluation, we used the

precise IDF values without approximation and ranked

by TF-IDF instead of DTF-IDF values, without user

diversity weighting, to evaluate the effect of TF ap-

proximation.

The number of entries per sub-area to achieve a

highly accurate ranking is not large. There were about

275,000 words on average in the top ten areas at zoom

level 8. For k = 10, 25, and 100, respectively, about

only 70, 140, and 310 TF entries per sub-area were

needed to achieve nDCG

over 0.99. Since the av-

erage number of words per area is less than that at

smaller zoom levels, TF entries required to achieve

this accuracy are considered to be less than these re-

sults for a zoom level larger than 8.

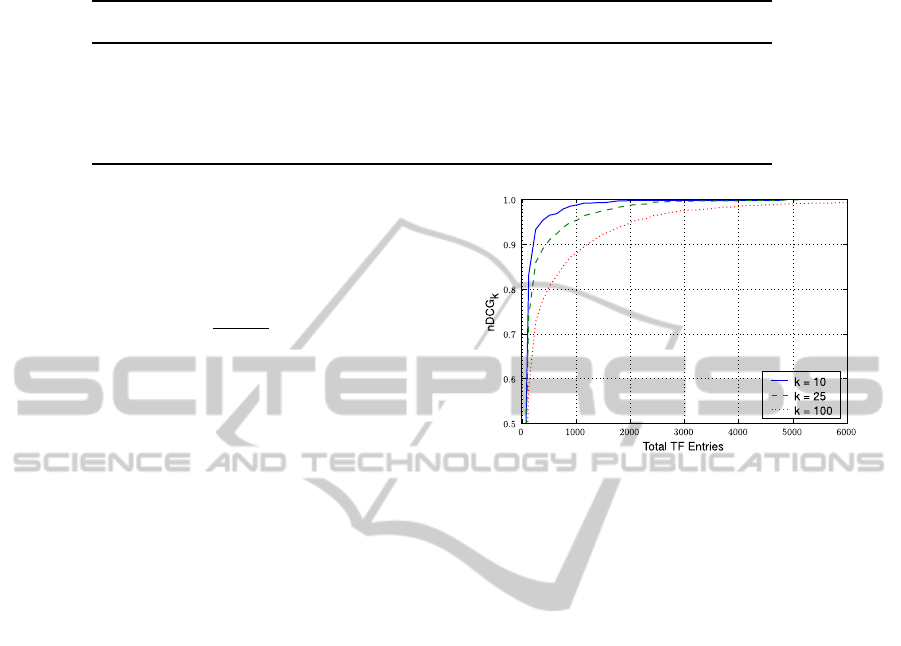

Figure 7: Evaluation of TF approximation at zoom level 8

by aggregating TF entries at base zoom level 10.

The differences among base zoom levels at which

TF values were used to approximate TF values at

zoom level 8 are shown in Figure 8. Similar to the

evaluation above, we used TF-IDF rankings with pre-

cise IDF values and the approximated TF values with-

out user diversity weighting. For z

= 8, approxima-

tion was performed simply by ignoring words with

low TF values. For base zoom levels z

= 9 and

= 10, there were respectively 2× 2 and 4× 4 sub-

areas to aggregate.

The results show that the total number of TF en-

tries required for equivalent accuracy is not propor-

tional to the number of sub-areas. For nDCG

100

≥

0.99, the required total entries doubled or tripled

when the base zoom level increases by one while the

number of sub-areas increases to four times.

In the next evaluation, the effect of IDF approx-

imation is taken into consideration. Figure 9 shows

nDCG

values with and without IDF approximation.

With IDF approximation, the nDCG

takes small

values compared to the case without approximation

regardless of k. This is because the errors in IDF ap-

proximation make perfect ranking impossible. To be

more precise, in a TF-IDF result ranking with IDF

approximation, since the approximated TF-IDF val-

ues are not necessarily the same as the precise ones,

it is impossible to generate a perfect ranking even if

all TF entries for each sub-area are aggregated. How-

ever, our approximation is considered to have good

RANKINGLOCATION-DEPENDENTKEYWORDSFROMMICROBLOGS

613

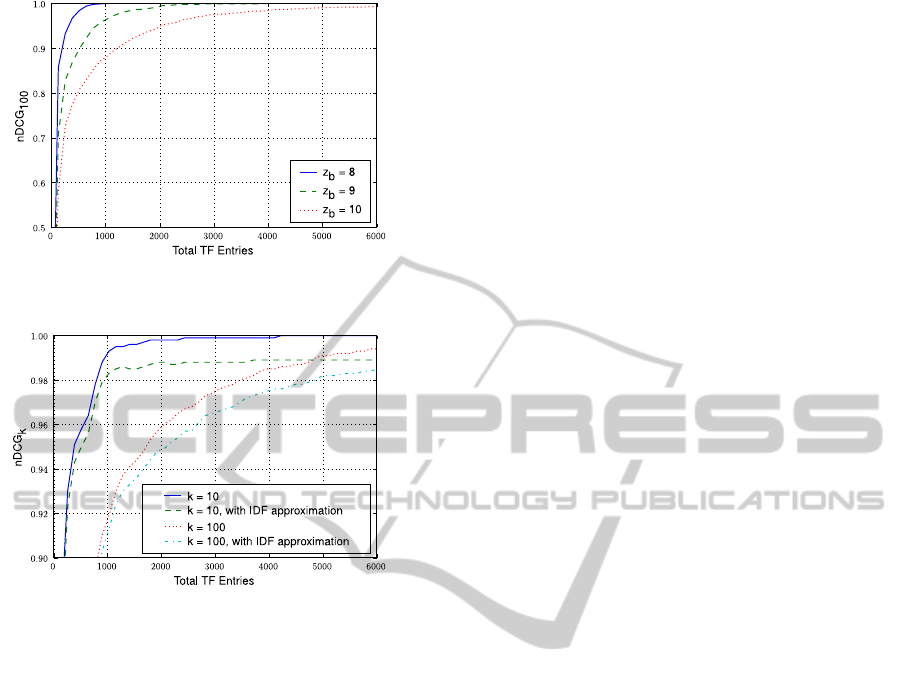

Figure 8: Evaluation of approximation for different base

zoom levels z

Figure 9: Effect of IDF approximation.

accuracy since the differences in nDCG

between the

cases with and without IDF approximation are less

than 0.02.

5 RELATED WORK

Many studies have been conducted for analyzing con-

tent in microblogging services and leveraged geo-

graphical location context. Arakawa et al. (2010) in-

troduced an extraction method of location-dependent

keywordsby extracting grids with high density of spe-

ciﬁc keywords using breadth-ﬁrst search. It needs

to specify a target keyword to calculate its depen-

dency and is suitable for detecting locations the key-

word depends on. On the other hand, it is not suit-

able for ranking keywords that depend on a speciﬁc

location. TwitterStands (Sankaranarayanan, Samet,

Teitler, Lieberman and Sperling, 2009) is a news pro-

cessing system that analyzes tweets and detects late

breaking news with a geographic focus. The geo-

graphic focus, which is determined from tweet text

and metadata by geotagging, is calculated by rank-

ing the geographic locations in a topic cluster. The

approach determines the geographic focus after topic

clustering. Therefore, the geographic focus might

concentrate in areas where many tweets are posted.

Sakaki et al. (2010) proposed an event detection

scheme using a Kalman ﬁlter in real time and esti-

mated earthquake epicenters and typhoon trajectories

from Twitter data. Tweets with pre-deﬁned keywords

are regarded as sensor data of a targetevent. Mei, Liu,

Su and Zhai (2006) proposed a probabilistic mixture

model and analyzed spatiotemporal theme patterns on

weblogs (not on microblogs) with the model. Since

the granularity of a location is not ﬂexible, parameter

estimation of the model must be reperformed when

the granularity is changed. Thus, support of multiple

levels of geographical granularity has not been dis-

cussed sufﬁciently.

TF-IDF methods are widely used in analysing

tweets. TwitterStands uses TF-IDF for weighting im-

portant words to cluster topics. Eddi (Bernstein et al.,

2010) assigns topics to a tweet using TF-IDF-style

key terms obtained from search results of nouns in the

tweet. Chen et al. (2010) studied URL recommenda-

tion on Twitter. In their approach, the recommenda-

tion is made based on a user proﬁle which is a TF-IDF

vector generated from his/her tweets. A set of tweets

from a user is regarded as a document; in contrast, a

set of tweets in an area is regarded as a document in

our approach. Our user diversity weighting is appli-

cable for recommendation to mitigate the impact of

malicious users.

Diversity of users in a geographical area is useful

also for purposes other than mitigating the impact of

loud users. Cranshaw, Toch, Hong, Kittur and Sadeh

(2010) examined connection between an online social

network and the location traces of its users. They

showed that users who visit a location with high di-

versity tend to have more connections in the social

network. Toch et al. (2010) showed that users appear

more comfortable sharing their presence at locations

with high diversity.

6 CONCLUSIONS

We proposed a location-dependent keyword ranking

method for microblogging services, which adopts a

TF-IDF method to geographical location context, and

described the prototype implementation of a keyword

ranking system. Our ranking method penalizes key-

words with low user diversity and supports multiple

zoom levels of geographical granularity by using TF-

IDF approximation. The evaluation results showed

that user diversity weighting is effective in mitigat-

ing the effect of excessive posts from a few users and

approximation can yield a highly accurate ranking in

terms of similarity to precise TF-IDF ranking with-

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

614

out approximation. We plan to extend our method for

spatiotemporal analysis so that it can track trends and

the spread of location-dependent keywords.

REFERENCES

Arakawa., Y., Tagashira., S., and Fukuda, A. (2010). Ex-

traction of Location Dependent Words from Twitter

Logs (in Japanese). IPSJ SIG Technical Reports,

2010-MBL-55(10):1–6.

Bernstein, M., Suh, B., Hong, L., Chen, J., Kairam, S., and

Chi, E. (2010). Eddi: Interactive Topic-based Brows-

ing of Social Status Streams. In UIST 2010: 23rd

Annual ACM Symposium on User Interface Software

and Technology, pages 303–312.

Chen, J., Nairn, R., Nelson, L., Bernstein, M., and Chi, E.

(2010). Short and Tweet: Experiments on Recom-

mending Content from Information Streams. In CHI

2010: 28th International Conference on Human Fac-

tors in Computing Systems, pages 1185–1194.

Cranshaw, J., Toch, E., Hong, J., Kittur, A., and Sadeh, N.

(2010). Bridging the Gap between Physical Location

and Online Social Networks. In UbiComp 2010: 12th

ACM International Conference on Ubiquitous Com-

puting, pages 119–128.

Google Inc. (2009). Google MAPs JavaScript API V3. Re-

trieved October, 2011, from http://code.google.com/

intl/en/apis/maps/documentation/javascript/.

J¨arvelin, K. and Kek¨al¨ainen, J. (2002). Cumulated Gain-

based Evaluation of IR Techniques. ACM Transac-

tions on Information Systems, 20(4):422–446.

Mei, Q., Liu, C., Su, H., and Zhai, C. (2006). A Probabilis-

tic Approach to Spatiotemporal Theme Pattern Min-

ing on Weblogs. In WWW 2006: 15th International

Conference on World Wide Web, pages 533–542.

Sahami, M., Dumais, S., Heckerman, D., and Horvitz, E.

(1998). A Bayesian Approach to Filtering Junk E-

mail. In AAAI-98 Workshop on Learning for Text Cat-

egorization.

Sakaki, T., Okazaki, M., and Matsuo, Y. (2010). Earthquake

Shakes Twitter Users: Real-time Event Detection by

Social Sensors. In WWW 2010: 19th International

Conference on World Wide Web, pages 851–860.

Salton, G. and Buckley, C. (1988). Term-Weighting Ap-

proaches in Automatic Text Retrieval. Information

Processing & Management, 24(5):513–523.

Sankaranarayanan, J., Samet, H., Teitler, B., Lieberman,

M., and Sperling, J. (2009). Twitterstand: News in

Tweets. In ACM SIGSPATIAL GIS 2009: 17th ACM

SIGSPATIAL International Conference on Advances

in Geographic Information Systems, pages 42–51.

Toch, E., Cranshaw, J., Drielsma, P., Tsai, J., Kelley, P.,

Springﬁeld, J., Cranor, L., Hong, J., and Sadeh, N.

(2010). Empirical Models of Privacy in Location

Sharing. In UbiComp 2010: 12th ACM International

Conference on Ubiquitous Computing, pages 129–

138.

Tumasjan, A., Sprenger, T., Sandner, P., and Welpe, I.

(2010). Predicting Elections with Twitter: What

140 Characters Reveal about Political Sentiment. In

ICWSM 2010: 4th International AAAI Conference on

Weblogs and Social Media, pages 178–185.

Twitter Inc. (2010). Streaming API

Twitter Developers.

Retrieved October, 2011, from https://dev.twitter.com/

docs/streaming-api.

RANKINGLOCATION-DEPENDENTKEYWORDSFROMMICROBLOGS

615
