SPATIAL ISOLATION ON REALTIME HYPERVISOR

USING CORE-LOCAL MEMORY

Daisuke Yamaguchi, Takumi Yajima, Chen-Yi Lee, Hiromasa Shimada, Yuki Kinebuchi

and Tatsuo Nakajima

Distributed and Ubiquitous Computing Laboratory, Waseda University, Tokyo, Japan

Keywords:

Operating Systems, Embedded Systems, Security, Hypervisor, Virtualization, Multicore Environment,

Core-local Memory.

Abstract:

Recently, the software of embedded systems grows increasingly complicated due to controversial needs of

both rich functionalities and strict interrupt responsiveness. In order to deal with it, realtime virtualization

technology for embedded systems is attracting interests. Virtualization allows multiple operating systems to

run concurrently with minimal modiﬁcations, thus reduce the engineering cost. However, as the security of

embedded systems getting more concerns in these days, current design of realtime hypervisor often makes

it difﬁcult to ensure the security without hardware virtualization support which is not widely available in the

world of embedded systems. In this paper, we introduce Secure Pager which utilizes a common hardware

design called core-local memory combined with check-sum based protections to enforce the spatial isolation

without speciﬁc hardware virtualization support.

1 INTRODUCTION

In recent years, virtualization technology has been

proved as an effective approach to improve the over-

all system performance and eliminate the manage-

ment cost. Besides, it is also an attractive approach

for the embedded system development. In order to

effectively virtualize the hardware resource, most of

previous works either rely on hardware virtualization

support, such as Intel VT and AMD-V, or require a

large amount of modiﬁcation to guest OSes. How-

ever, since only a limited number of embedded ar-

chitectures currently support virtualization, develop-

ers have to port the existing software to processors

with such features, which incurs non-trivial engineer-

ing cost as a result. One of our goals is to provide the

same functionality while keeping the amount of mod-

iﬁcation to guest OSes as small as possible. On the

other hand, high responsiveness is another aspect that

should be maintained. As a result, current hypervi-

sors with realtime responsiveness (so called realtime

hypervisor) often do not support MMU virtualization

and have only one privileged access level among all

guest OSes. Nevertheless, there is growing concerns

in security issues on embedded system nowadays. For

example, there is an increasing number of both secu-

rity holes in the Android system and the malware tar-

geted on it, which made it difﬁcult for realtime hy-

pervisors to ensure the security as the compromised

guest OS being able to attack the memory image of

other guest OSes.

In this paper, we propose the solution utiliz-

ing core-local memory for spatial isolation. Core-

local memory is an SRAM integrated in the pro-

cessor core which was originally designed for high-

speed data manipulation, such as multimedia encod-

ing/decoding. Moreover, multicore and many-core

processors in recent years are expected to utilized the

core-local memory in order to avoid bus contention.

Therefore we could conclude that core-local memory

is more common than hardware virtualization sup-

port. Several current architectures having core-local

memory are listed in Table 1.

There are four challenges in our approach:

• Require minimal modiﬁcation to the guest OS.

• Utilize commonly supported hardware rather than

any other special hardware support.

• Keep the interrupt latency as small as possible

thus to ensure the responsiveness.

• Keep the implementation simple and possible to

be applicable to other platforms.

415

Yamaguchi D., Yajima T., Lee C., Shimada H., Kinebuchi Y. and Nakajima T..

SPATIAL ISOLATION ON REALTIME HYPERVISOR USING CORE-LOCAL MEMORY.

DOI: 10.5220/0003906704150421

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 415-421

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Architectures with core-local memory.

Architecture Core-local memory

ARM11 4 to 256KB

MIPS32 4KE Family Up to 1MB

SuperH Instruction: 8KB Data: 16KB

2 BACKGROUND

2.1 SPUMONE: The Realtime

Hypervisor

SPUMONE (Kanda et al., 2008) is a lightweight real-

time virtualization layer for embedded systems. The

original goal of SPUMONE is to realize both the

realtime constraints and rich functionality through

combining RTOS (realtime OS) and GPOS (general-

purpose OS) running on the same system concur-

rently. In order to achieve this goal, SPUMONE

only virtualizes the processor state and has only one

privileged access levels. SPUMONE also keeps the

amount of modiﬁcation to guest OSes as small as

possible. In addition, SPUMONE has a simple de-

sign. The source code of SPUMONE is around 5K

LOC, which is far smaller than most of the modern

general-purpose hypervisors, such as Xen (Barham et

al., 2003), secure-oriented BitVisor (Shinagawa et al.,

2009) and SecVisor (Seshadri et al., 2007).

On the other hand, the simplicity of design cre-

ates some potential security holes. For example, a

fundamental problem is that there is no spatial isola-

tion among guest OSes and SPUMONE, which means

that all images are allocated in the shared main mem-

ory without any protection. While the guest OSes and

SPUMONE are running at the same privilege level as

mentioned above, once a guest OS get compromised,

it is able to attack the other guest OS and SPUMONE

directly through memory access.

In this paper, we enhance the security of such type

of realtime hypervisor through Secure Pager, which

ensures the spatial isolation of shared main memory.

The mechanism of Secure Pager is described in sec-

tion 4.

2.2 Related Work

Works on the memory protection in hypervisors has

been extensively carried out, often with speciﬁc hard-

ware support. SecVisor is a tiny hypervisor which en-

sures Linux’s kernel image integrity against code in-

jection attacks such as kernel rootkits. It protects the

kernel image by virtualizing the physical memory and

managing page tables. However, those protections

are established by CPU-based virtualization (AMD’s

Secure Virtual Machine technology (Advanced Micro

Devices, 2011)), which is hardly equipped in the em-

bedded systems. In addition, this mechanism is ca-

pable of protecting one single guest OS only which

means it is difﬁcult for SecVisor to meet the needs of

recent advanced embedded systems.

SafeG (Sangorrin et al., 2010) is a dual-OS mon-

itor which enables RTOS and GPOS to run concur-

rently on the same machine. Because SafeG aims on

embedded systems, the realtime constraints are guar-

anteed. It also protects RTOS memory and devices

from illegal attack of GPOS. However, the SafeG

architecture takes advantage of CPU-based virtual-

ization (ARM TrustZone (Alves and Felton, 2004)),

which could not be applicable to old hardware archi-

tectures. Furthermore, it hasn’t been ported to a mul-

ticore environment. Unfortunately, it causes the vul-

nerability of cache attacks. Because caches are not

separated between RTOS and GPOS, non-trust GPOS

can affect the performance of secured RTOS by ﬂush-

ing the cache.

On the other hand, the utilization of core-local

memory is getting more attention these days. There

is already a signiﬁcant amount of study on the bene-

ﬁts of using such kind of on-chip memory. (Banakar

et al., 2002) compared caches and on-chip memo-

ries from various aspects, with the results revealing

that the average area-time reduction was 46% when

caches are replaced by the on-chip memories, and the

average reduction of energy consumption was 40%.

Single-chip Cloud Computer (Held, 2010) in-

vented by Intel Labs also adopted software-managed

on-chip memories. Instead of using hardware-

managed caches, it enables application programmers

with ﬂexible management of on-chip data. The

reduced energy consumption of on-chip memory

also meets the the limited power budget on many-

core. The developers of Single-chip Cloud Com-

puter believes that “software managed coherency on

non-coherent many-core is the future trend” (Jim

Held, SCC Symposium Materials, 2010, Software-

Managed Coherency, §6).

Cell Broadband Engine(Cell/B.E.) (Shimizu et

al., 2007) is a microprocessor architecture which

has strong hardware-based security mechanisms.

Cell/B.E. is a multicore architecture with 9 cores on

each processor,while one of them is a general purpose

core called PowerPC Processor Element(PPE) which

controls the other cores, and the others are called Syn-

ergistic Processor Element(SPE) which plays the ma-

jor role in computation. Each SPE core has its own

local storage which is physically inaccessible from

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

416

other cores when they are in isolation mode. Because

of this absolute hardware-based isolation, even the

operating system can not access the data stored in the

locked local storage. In addition, before loading data

from main memory to local storage, authentication is

required to check whether the data has been modiﬁed

or not, by means of hardware key and a cryptographic

algorithm. However, establishing authentications by

hardware makes the system inﬂexible and hard to up-

date. By replacing the hardware-based authentication

mechanisms with minimal software, we believe that

more ﬂexible and deployable secure environment can

be established in various modern processors of em-

bedded systems.

3 ASSUMPTIONS

First, we assume that multiple guest OSes are run-

ning on top of the virtualization layer in a multicore

processor environment, with the guest OSes and vir-

tualization layer running at the same privileged level.

In this model, the security of guest OSes is not en-

sured and thus any of them may be compromised by

rootkits. Then the compromised guest OS can per-

form attacks on other guest OSes and even the virtual-

ization layer directly through normal memory access.

In this situation, any internal secure module of virtual-

ization layer which resides in main memory becomes

failed to protect guest OSes and virtualization layer

itself. For simplicity, because we only focus on the

runtime protection, we assume that the booting pro-

cess of whole system would not be compromised.

We created the isolated and secure space in such

environmentby utilizing the core-local memory, com-

bined with a checksum-based integrity management

scheme. It comes at the cost of not supporting MMU

virtualization, which indicates that our implementa-

tion can protect only an OS which is not utilizing

the address translation provided by MMU. (However,

many of embedded OSes do not utilize such feature.)

We implemented on TOPPERS (TOPPERS Project,

2004), which is a simple OS without virtual memory

management.

4 DESIGN

4.1 Core-local Memory based

Protection

As mentioned in section 1, we utilize the hardware

called core-local memory in a multicore processor to

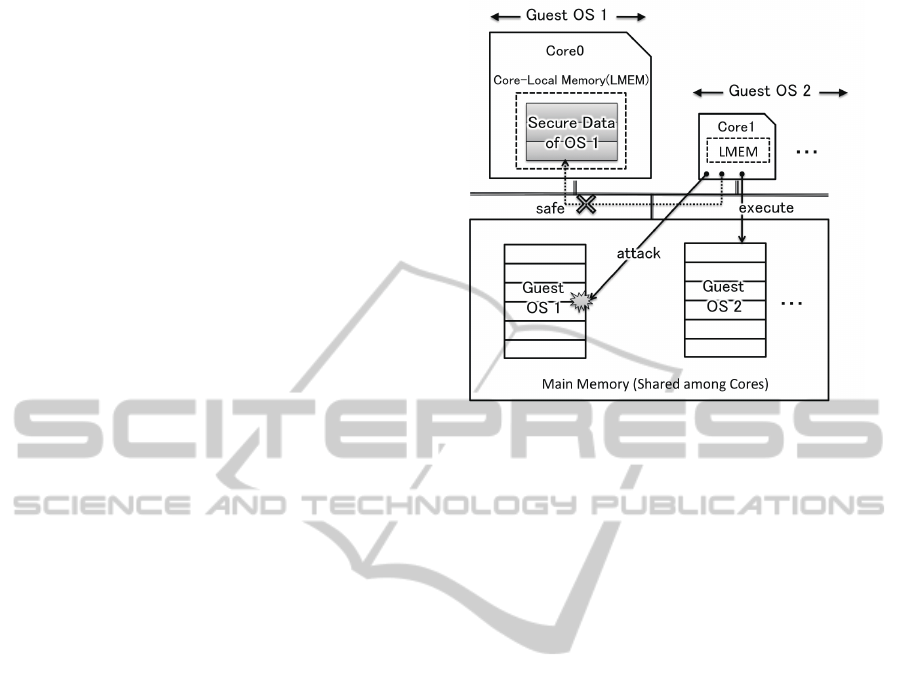

Figure 1: Behavior of core-local memory.

ensure the memory space isolation. The idea is ﬁrst

proposed by (Kinebuchi et al., 2010) to ensure the

security of hypervisors on general-purpose comput-

ers rather than embedded systems. Since the core-

local memory is inaccessible from the other cores, we

leverage on this characteristic to protect target guest

OS. Fig 1 shows the behavior of core-local memory.

In this situation, two guest OSes are running concur-

rently. Guest OS #1 is running on core 0 while guest

OS #2 is running on the other cores. The problem of

this situation is that guest OS #2 can attack the data

of guest OS #1 which is in the shared main memory if

guest OS #2 is running in the privileged mode. How-

ever, the data of guest OS #1 stored in the core-local

memory can not be accessed by anyone else.

The main challenge of core-local memory based

protection is to cope with the image size. Gener-

ally, the size of core-local memory is only a few hun-

dred kilobytes. Therefore, it is infeasible to execute

an entire modern OS and application on the core-

local memory directly. To solve this problem, we

implemented the checksum-based integrity manage-

ment which virtually extended the capacity of core-

local memory.

4.2 Checksum-based Integrity

Management

In this scheme, we assume that two OSes, TOPPERS

and Linux, are running on top of the virtualization

layer. The goal is to prevent the attack from Linux

to TOPPERS when Linux is compromised.

The kernel image of TOPPERS is allocated in

main memory which is shared by each core, butlinked

SPATIAL ISOLATION ON REALTIME HYPERVISOR USING CORE-LOCAL MEMORY

417

to the virtual address space. Thus, whenever the un-

mapped address space of TOPPERS being accessed,

the page fault events arise. Then the corresponding

space in main memory is loaded to the core-local

memory which is visible from the owner core only

through Secure Pager. Secure Pager is implemented

as a part of SPUMONE. Each time Secure Pager loads

the data into the local memory, it ﬁrst makes sure the

corresponding space is not compromised, then maps

virtual address to physical address within the local

memory. The whole process is depicted in Fig 2.

1) First, the boot loader relocates Secure Pager

into core-local memory, thus Secure Pager itself will

not be directly accessed by other guest OSes. Then

the boot loader relocates TOPPERS (running on core

0) and Linux (running on the other cores) into the

main memory. After loading of guest OSes, Secure

Pager calculates the hash values of TOPPERS per

page and save the results into a table before the boot-

ing process of Linux starts. This table is also located

in core-local memory, thus it can not be modiﬁed by

Linux. After then, the other cores are allowed to start

booting Linux.

2) Because TOPPERS are linked to the virtual ad-

dress space, if TLB

does not contain the correspond-

ing page table entry at the time when a page of TOP-

PERS is accessed, it will trigger the page fault to oc-

cur. Consequently, Secure Pager handles it as general

page fault handler. We can directly handle the TLB in

the case of MSRP1

(Ito et al., 2008) used in our im-

plementation. The table stored with TLB entries for

the mapping between virtual and physical addresses

of core-local memory must not be located in the main

memory.

3) During the handling of page fault, the corre-

sponding page is copied from the main memory into

core-local memory. This process is called “swap-in”.

Then Secure Pager calculates the hash value of a page

and compares it with the previous hash value stored

in the table. If the value matches, Secure Pager loads

the correspondingpage table entry into TLB and com-

pletes the page fault handling. On the other hand, if

the values mismatched, it indicates that certain mali-

cious modiﬁcation from Linux to the memory space

of TOPPERS has occurred.

4) When core-local memory is full, Secure Pager

selects a pages to be reclaimed by LRU algorithm.

During the reclaim, Secure Pager re-calculates the

hash value of this page and updates the table. The

TLB (Table Look-aside Buffer) is the cache containing

page table entries. It is designed for the CPU translating

from virtual address to physical address.

MSRP1 is the 4-core SH-4A multicore processor de-

veloped by Renesas Technology Corp. and Hitachi, Ltd.

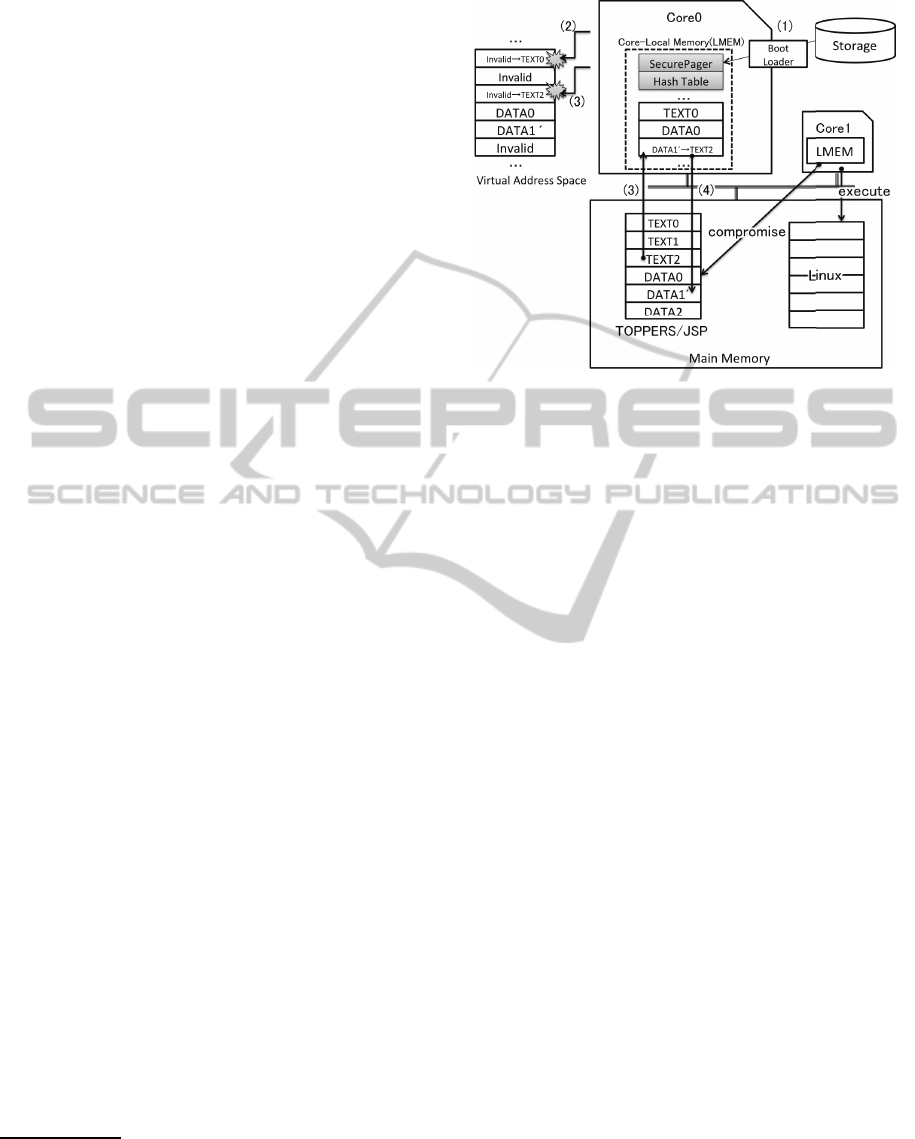

Figure 2: Checksum-based integrity management.

process is called “swap-out”. In case that the selected

page is not dirty, the page-copy and re-calculation

becomes unnecessary, thus Secure Pager only has to

overwrite it with a new page.

Putting it all together, Secure Pager can detect the

malicious modiﬁcation from Linux to the main mem-

ory space of TOPPERS by checking the hash value,

while all in-use pages loaded in core-local memory

can not be accessed by Linux running on the other

cores. As a result, the compromisation of memory

space from Linux to TOPPERS is rather avoided or

detected by the Secure Pager.

5 EVALUATION

This section presents the evaluation methodology and

the result of Secure Pager. Because the mechanism

of Secure Pager relies singularly on page fault events,

signiﬁcant overhead is imposed on the handling pro-

cedure of page faults and this overhead may be dis-

tributed over all aspects of system performance. Thus

we focus our evaluation on two microbenchmarks: (1)

page fault and (2) interrupt latency. We also observed

the performance overhead against the allowed swap

size.

Before going into details, we found two difﬁcul-

ties in our evaluation. First, we tried to ﬁnd sev-

eral benchmark suites on TOPPERS that can collec-

tively display many aspects of system performance,

because we can not predicate how would the over-

head of page fault handling be distributed. However,

we could not ﬁnd such a set of benchmarks. Only

few “small” benchmarks speciﬁc to certain aspects

have been found and tested. For example, Thread

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

418

Table 2: The detail of environment setup.

Architecture

ISA

SH-4A with

Multicore Extension

CPU Frequency 400MHz

Local Memory 128KB

Guest OS

Linux 2.6.16

TOPPERS/JSP

Figure 3: Conﬁguration of guest OSes.

Metric (Express Logic, Inc.) is a benchmark which

determines the realtime responsiveness by measuring

scheduling overhead. Even for this case, most of them

still face another problem: bad granularity for swap

size conﬁguration.

In order to observe the overhead imposed by

swapping, we must eliminate the size of swap space

to force the generation of swapping, even when the

image of benchmark program ﬁts into the local mem-

ory. However, most of the small benchmarks take no

more than dozens of kilobytes. In this case, it would

cause severe thrashing even with an one-page smaller

swap space, which is also a nonrealistic environment

for program execution. We address both of the dif-

ﬁculties by using a customized hackbench (Yanmin,

2008). Because the conﬁgured tasks are statically al-

located and linked in TOPPERS, we can easily adjust

the image size by changing the number of tasks in

hackbench. We can also view the increase in runtime

of hackbench as the overheadon overall performance.

5.1 Environment Setup

We took the evaluation on a multicore extension of

SH-4A platform which has 4 cores, with Linux as

the source of attack and TOPPERS as the protected

OS. The detail of our environment is listed in Table

2. Linux is running on the core 0-2, and TOPPERS

is running on the core 3. The conﬁguration of our

system is depicted in Fig 3. Despite the platform has

a 128KB-sized local memory, we decided to deﬁne

a certain area of main memory as the local memory

rather than to use the local memory directly, thus to

gain the conﬁgurability during our evaluation.

5.2 Paging Overhead

The histogram of paging overhead over 1000 sam-

ples is presented in Fig 4. This result can be roughly

100

1000

0 200 400 600 800 1000 1200 1400

Sample

Paging Overhead [us]

Figure 4: The result of paging overhead.

100

1000

0 200 400 600 800 1000 1200 1400

Sample

Interrupt Latency [us]

Figure 5: The result of interrupt latency.

separated into two groups, which is distinguished by

whether performing write-back of dirty pages or not.

Most of the cases take no more than 1ms, while rare

cases (<3%) take more than 1ms to complete the

swapping. The worst case does not exceed 1200µs.

Because the cost of searching a page for swap-out is

relatively trivial, this result do not change with the

swap size conﬁguration.

5.3 Interrupt Latency

The histogram of interrupt latency over 1000 samples

is presented in Fig 5. The worst case (<3%) around

1200 -1300µs matches the result of paging overhead.

Though it depends on the behavior of each interrupt

events, most of the cases take no more than 800µs

to perform interrupt handling. For the same reason,

this result generally do not change with the swap size,

except for extreme conditions when severe thrashing

happens.

5.4 Result of Hackbench

Table 3 shows the result of hackbench. In this

setup, when swap size is set to 45 pages or more,

SPATIAL ISOLATION ON REALTIME HYPERVISOR USING CORE-LOCAL MEMORY

419

Table 3: The result of Hackbench.

Swap Size Swap Size Execution Time

(in # of pages) (in percentage) (µs)

45 100.00% 1048

44 97.78% 1057

43 95.56% 2704

42 93.33% 5137

41 91.11% 5271

40 88.89% 6995

39 86.67% 8933

38 84.44% 27372

37 82.22% 30290

36 80.00% 56797

35 77.78% 82853

34 75.56% 160433

10x

100x

75%80%85%90%95%100%

Overhead

Swap Size

Figure 6: The result of Hackbench.

no page fault happens during the benchmark execu-

tion. Thus, the minimal required swap space with-

out Secure Pager is 45 pages, and is then referred as

100%. Apart from that, the memory footprint reaches

94 pages. Apparently the execution time increased

exponentially with smaller swap size. It is depicted in

Fig 6.

6 DISCUSSION

6.1 Portability

Since the design of Secure Pager relies solely on the

interception of page fault events, the implementation

is done in the realtime hypervisor and do not require

modiﬁcation to Guest OSes. The only effort in adap-

tation of Guest OSes is to change the working ad-

dress space to virtual address space, which is simply

done by changes to linker script. Thus we can expect

that only minimal efforts has to be done when porting

Guest OSes other than TOPPERS to Secure Pager.

6.2 Performance

The evaluation results in the previous section shows

the overhead is severely increased when decreasing

the swap size. From the result, we can tell that the re-

alistic ratio of swap space to minimal required space

without Secure Pager is above 85%. However, this

amount only accounts for 41% of the memory foot-

print. On the other hand, though it depends on the

behavior of the actual running program, we can opti-

mistically run a program on the local memory such

has a far smaller size compared to the binary size,

with the overhead lower than 10x. The rest of the

performance overhead could be overcome easily by

using processors with higher frequency. (This would

introduce the cost to replace old hardware, but the ef-

fort to port old software is still eliminated.)

In terms of interrupt latency, the worst case around

1200µs is small enough for general-purpose applica-

tions. Moreover, because our evaluation is done on

main memory, we can expect further speedup by run-

ning on the local memory directly, as a result of fewer

access cycles. This may eventually lead to a latency

around hundreds of microseconds, which should be

suited for most applications that require only weak

realtime responsiveness.

Throughout the results, the cost for swapping and

checksum calculation accounts for almost whole of

the performance overhead. Thus we could expect

by utilizing hardware support for hash calculation to

eliminate the cost. Further, local memory on real

CPUs often accompanied with a block transfer mode

which enables high-throughput page access between

local memory and main memory. This kind of fea-

tured was not used in our evaluation because our goal

was to determine the limitation by using minimal sup-

port from hardware. By utilizing this feature, we

should be able to eliminate the cost for swapping ef-

forts to smaller degrees, thus improve the overall per-

formance.

7 CONCLUSIONS

In this research, we introduced Secure Pager, which

has realized memory space isolation in realtime hy-

pervisor without hardware virtualization support. Se-

cure pager’s high portability enables old software to

utilize its feature with nearly no porting efforts. More-

over, it maintains the realtime responsiveness to a cer-

tain degree, which could be further improvedby faster

hardware. The simplicity of our approach also makes

it applicable to other realtime hypervisors.

Although many realtime hypervisors have been

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

420

proposed, currently there is no well-established sce-

nario for real applications using such kind of software

architecture. One application of Secure Pager is to

protect a monitoring service that detects rootkits for

Linux. By means of Secure Pager, it could avoid ma-

licious access from Linux to the memory image of the

monitoring service. In spite of the case, we are look-

ing forward to have more applications to exploit this

feature.

REFERENCES

Kanda, W., Yumura, Y., Kinebuchi, Y., Makijima, K. and

Nakajima, T.. (2008). SPUMONE: Lightweight CPU

Virtualization Layer for Embedded Systems. Em-

bedded and Ubiquitous Computing, 2008. EUC ’08.

IEEE/IFIP International Conference, vol. 1, pp. 144-

151.

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., Neugebauery, R., Pratt, I. and Warﬁeld, A.

(2003). Xen and the Art of Virtualization. SOSP.

Shinagawa, T., Eiraku, H., Tanimoto, K., Omote, K.,

Hasegawa, S., Horie, T., Hirano, M., Kourai, K.,

Oyama, Y., Kawai, E., Kono, K., Chiba, S., Shinjo,

Y., Kato, K. (2009). BitVisor: A Thin Hypervisor for

Enforcing I/O Device Security. VEE.

Seshadri, A., Luk, M. and Qu, N. and Perrig, A. (2007).

SecVisor: a tiny hypervisor to provide lifetime kernel

code integrity for commodity OSes. SIGOPS Oper.

Syst.

Advanced Micro Devices. (2011). AMD64 Architecture

Programmer’s Manual Volume 2: System Program-

ming, 3.19 edition.

Sangorrin, D., Honda, S. and Takada, H.. (2010). Dual Op-

erating System Architecture for Real-Time Embedded

Systems. OSPERT.

Alves, T. and Felton, D. ARM. (2004). TrustZone: Inte-

grated Hardware and Software Security. Information

Quarterly Volume 3.

Banakar, R., Steinke, S., Lee, B.-S., Balakrishnan, M. and

Marwedel, P. (2002) Scratchpad Memory : A Design

Alternative for Cache On-chip memory in Embedded

Systems. CODES.

Held, J. (2010) Single-chip Cloud Com-

puter: An experimental many-core pro-

cessor from Intel Labs. Retrieved from:

http://communities.intel.com/servlet/JiveServlet/dow

nloadBody/5074-102-1-8131/SCC

Sympossium Feb

212010

FINAL-A.pdf. Intel Labs Single-chip Cloud

Computer Symposium.

Shimizu, K., Hofstee, H. P. and Liberty, J. S. (2007). Cell

Broadband Engine processor vault security architec-

ture. IBM Journal of Research and Development, Vol-

ume 51 Issue 5, 521-528.

Kinebuchi, Y., Nakajima, T., Ganapathy, V. and Iftode,

L. (2010) Core-Local Memory Assisted Protection.

Paciﬁc Rim International Symposium on Dependable

Computing, IEEE, pp. 233-234.

TOPPRES Project. (2004). TOPPERS/JSP

Kernel USER’S MANUAL. Retrieved

from: http://www.ydktec.com/az/document/

AZ9360SDK

TOPPERS UM.pdf

Ito, M., Hattori, T., Yoshida, Y., Hayase, K., Hayashi,

T., Nishii, O., Yasu, Y., Hasegawa, A., Takada, M.,

Mizuno, H., Uchiyama, K., Odaka, T., Shirako, J.,

Mase, M., Kimura, K. and Kasahara, H. (2008). An

8640 MIPS SoC with Independent Power-Off Control

of 8 CPUs and 8 RAMs by An Automatic Paralleliz-

ing Compiler. Solid-State Circuits Conference, 2008.

ISSCC 2008. Digest of Technical Papers. IEEE Inter-

national, 90-598.

Express Logic, Inc. Thread-Metric Benchmark Suite. Re-

trieved from: http://rtos.com/PDFs/

MeasuringRTOSPerformance.pdf

Yanmin (2008). hackbench. Retrieved from: http://people.

redhat.com/mingo/cfs-scheduler/tools/hackbench.c

SPATIAL ISOLATION ON REALTIME HYPERVISOR USING CORE-LOCAL MEMORY

421
