AUTOMATIC GENERATION OF FPGA HARDWARE

ACCELERATORS FOR GRAPHICS APPLICATIONS

Alexandru Amaricai and Oana Boncalo

Department of Computer Engineering, University Politehnica of Timisoara, Timisoara, Romania

Keywords: FPGA Graphics, FPGA Acceleration, OpenGL.

Abstract: In recent years, FPGAs have been increasingly utilized in implementing graphic engines in application

fields such as automotive, avionics or military. However, due to their high flexibility, designs for FPGA

devices can target a very limited range of applications. In this paper, we discuss the opportunity of

developing automatic generation tools for customized graphics hardware. These tools should generate an

almost optimized RTL code only for the series of the required graphics operations of the specific

application.

1 INTRODUCTION

Due to advancements in both display technology and

computing capabilities, 2D and 3D graphics have

been included in wide range of applications, such as

mobile computing, automotive or avionics. Due to

extensive use of graphic applications, extensions of

standardized APIs for these types of applications

have been developed in recent years. Such

extensions include the OpenGL ES, the OpenGL

API dedicated for mobile embedded systems, or

OpenGL SC, the API targeting safety critical

applications. Providing adequate hardware support is

crucial in order to implement complex 2D/3D

applications. While in mobile computing, dedicate

graphic accelerator IPs are integrated in mobile

processors, in automotive or avionics the preferred

solution is represented by the FPGAs. The main

advantages of utilizing these devices are:

1. The display technologies and their corresponding

interfacing are changing frequently; therefore,

new IPs have to be developed for these displays

(Altera, 2009) (Xilinx, 2011)

2. The market in some applications is relatively

limited; thus, providing dedicated ASIC based

solution will result in high costs (Dutton, 2010)

3. FPGA can accommodate an entire system,

including base processor core, graphic hardware

acceleration and display interface (see Fig. 1)

(Altera, 2009) (Xilinx, 2011).

Furthermore, as explained in (Majer, 2008), future

graphic cards may contain reconfigurable fabrics,

offering the prospects of mechanisms for run-time

exchangeable hardware accelerators.

The main attribute of FPGA based solutions is

their high flexibility. Therefore, solutions for such

platforms can target a very narrow range of

applications, which for ASICs does not represent a

cost effective option. As presented in (Dinechin,

2011), dedicated hardware IPs represent the

objectives of FPGA based design, and not more

general solutions which are favoured for ASIC. In

order to aid the IP developers, automatic generators

of RTL code have been developed for specific

applications. These include floating point arithmetic

units (Dinechin, 2011), fast Fourier transforms

(Nordin, 2005) or FIR filters (Daitx, 2008).

In this paper, we discuss the opportunity of

providing automatic RTL code generators of graphic

hardware accelerators for reconfigurable platforms.

In the second section, we present the current

solutions of 2D/3D graphic engines implemented in

FPGAs. The third section represents an overview of

the main developments regarding automatic

hardware generators for FPGA.

2 FPGA IMPLEMENTATIONS

OF GRAPHIC ENGINES

Several implementations for FPGA based

acceleration of graphic engines have been developed

383

Amaricai A. and Boncalo O..

AUTOMATIC GENERATION OF FPGA HARDWARE ACCELERATORS FOR GRAPHICS APPLICATIONS.

DOI: 10.5220/0003906903830386

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 383-386

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

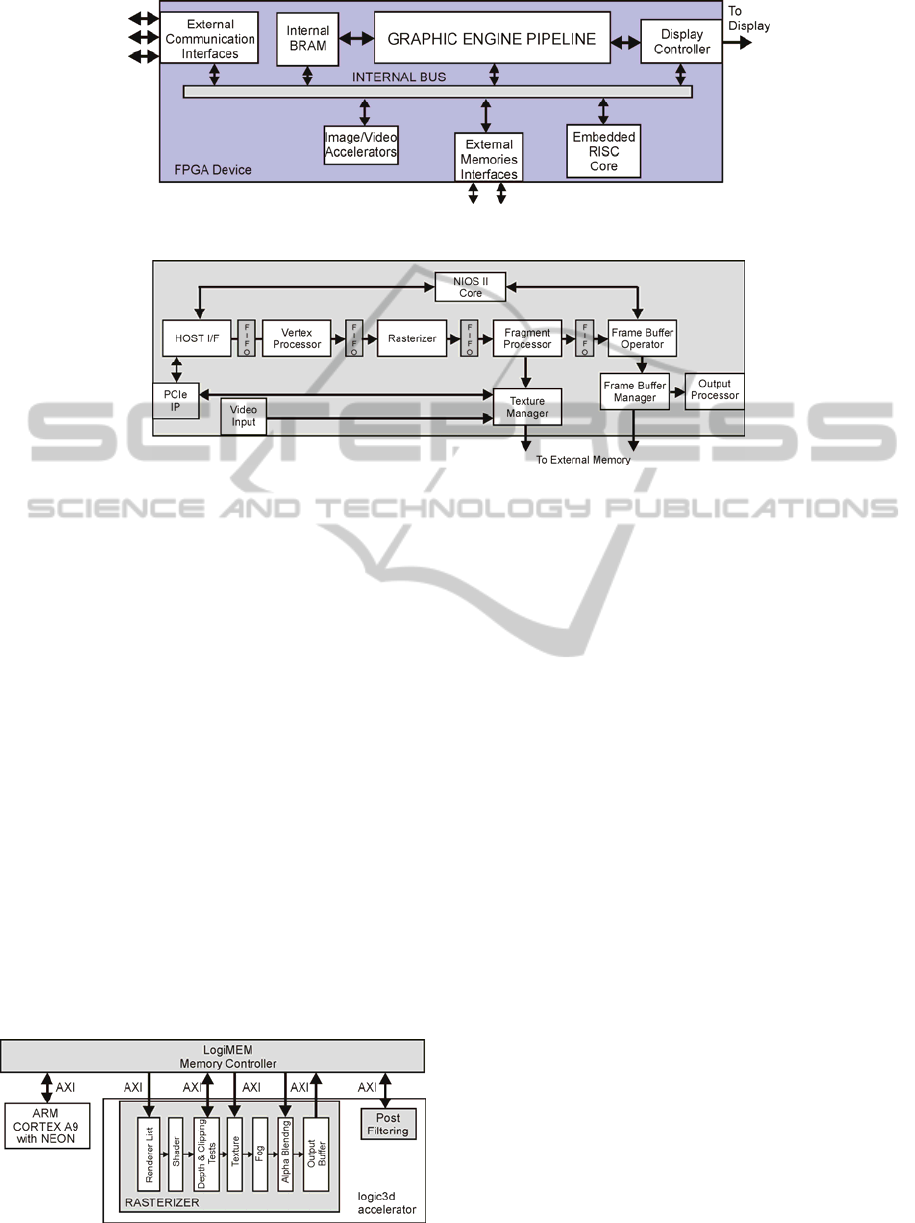

Figure 1: Graphic acceleration system on FPGA.

Figure 3: The (Dutton, 2010) graphic pipeline for avionics.

(Chen, 2011) (Mahdavikhah, 2010) (Majer, 2008).

Regarding commercial IPs, these include the

logicBricks 2D/3D graphics engines (logicBricks,

2011) and the D/AVE 3D graphic IP (TES, 2009).

Regarding academic design, these include the

rendering engine proposed within the Erlangen Slot

Machine (Majer, 2008) or the OpenGL compliant

graphic engine for avionics (Dutton, 2010).

The logicBricks 2D/3D (logicBricks, 2011)

engine has been developed specifically for the

automotive market. It targets Xilinx devices, and is

included in the Xilinx Zynq-7000 System-on Chip.

It incorporates a scalable 3D pipeline (Fig. 2), which

include a shader, clipping and depth tests, a texture

unit, a fog unit and an alpha blender. Furthermore, it

has a separate post-filtering unit, targeting especially

anti-aliasing. The proposed engine can connect via

the AXI bus to memory, processor core or other IPs.

The geometry operations are performed in software,

usually by the ARM Cortex-A9 core with Neon

coprocessor. D/AVE 3D graphics IP (TES, 2009) are

targeting Altera devices.

Figure 2: LogicBricks 3D graphic accelerator.

It includes a stream controller, a vertex processor, a

geometry setup processor and a pixel pipeline. Cache

strategies are used for textures (2 cache memories),

frame buffer and ZSA. It can interface to the rest of

the system either via an Altera Avalon bus, either via

AMBA AHB or APB bus. It provides support for

OpenGL ES 1.1, OpenGL VG 1.01 and EGL 1.3.

The rendering pipeline used in the Erlangen

Slot Machine (ESM) is compatible to both OpenGL

and Direct3D (Majer, 2008). It targets Xilinx FPGAs

and its architecture and communication policy

follows the structure of the ESM. The latter consists

of a high performance FPGA on which the graphic

pipeline is implemented and a lower performance

crossbar FPGA which connects the first with the

PowerPC processor and the rest of the system. As in

the case of the logicBricks IP, a hardware/software

partitioning is performed in order to cover the entire

OpenGL or Direct3D operations.

The graphics engine presented in (Dutton,

2010) matches the full OpenGL pipeline. It includes

a vertex processor, a rasterization pipeline, a

fragment processor and a frame buffer operator.

FIFO buffers are used between these stages.

External memories are used for texture and frame

buffer. It targets Altera devices and uses a Nios II

core as host processor. It connects to other modules

of the system via a PCIe bus. As this engine targets

avionics applications, all the IPs used have been

certified according to avionics standards.

The above engines make use of a relatively

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

384

“fixed” IP, similar to the one implemented in GPUs.

In many cases, using a hardware/software

partitioning, the presented graphic IPs can cover the

entire OpenGL API which has been destined.

However, FPGAs can be used for very specific

applications, a very specialized hardware accelerator

being suitable and desired (due to both cost and

performance advantages) for reconfigurable devices.

3 AUTOMATIC GENERATORS

FOR FPGA ACCELERATORS

A recent research direction that benefited from a lot

of attention is that of automatic generation of soft

cores for device specific applications. The wide

application area and versatility of FPGA devices

makes them attractive for a wide range of hardware

accelerators (Daitx, 2008). These software tools aim

at demolishing the myth of “one size fits all”, and to

offer the best trade-off within application

requirements (e.g. performance, area, power). The

generation process provides support for automatized

design space exploration by tuning micro-operation

concurrency degree (Milder, 2012) (Nordin, 2005),

operator size (Dinechin, 2011)(Daitx, 2008)(Liang,

2003), fused paths (Dinechin, 2011), sub-block

hardware reuse (Milder, 2012). These processes are

mainly fully automated (Daitx, 2008) (Liang, 2003)

(Milder, 2012), or as in the case of FloPoCo for

some aspects of the design the user is guided

throughout the process (i.e. pipeline construction).

FloPoCo (Dinechin, 2011) can be used to

generate complex floating point (FP) datapaths. It

provides a library of fixed and FP operators (e.g.

sqrt, exponential, multiply, divide, add/substract).

Furthermore, it can be used to generate

polynomial evaluators. Furthermore, it is intended as

a back-end for high-level synthesis tools. The

featured optimizations refer to redundant micro-

operation reduction and pipelining (requires user

intervention). A different FP generator with a

slightly more reduced scope is (Liang, 2003) for

operations such as multiply, add/subtract, and

divide. A particular optimization for this approach is

the selection of the FP algorithm in order to meet the

desired design parameters tradeoffs.

Firgen (Ruckdeschel, 2005) and (Daitx, 2008)

generate FIR hardware modules. The first uses

compiler techniques such as: hierarchical

partitioning, partial localization in order to generate

the design in a systematic manner. The main

ingredients are: automatic selection of pipeline

stages, selection of memory elements, and

concurrency through use of a processing elements

array. (Daitx, 2008) targets tradeoffs between HW

resources and performance for FIR. The required

tuning is done by means of the filter parameters

(coefficients, filter traps, type, input size). It starts

with off-line coefficient computation, and takes

advantage of the application particularities in order

to reduce design exploration to a problem of

multiple constant multiplications. Both approaches

require some sort of offline processing. Firegen

(Ruckdeschel, 2005) does offline characterization

through a number of runs for design building-blocks,

while (Daitx, 2008) performs offline coefficient

computation.

ft_gen (Milder, 2012) focuses on DFT soft core

generation. The work in (Nordin, 2005), also

exploits concurrency through micro-operation (i.e.

represented by a hardware algorithm basic block)

parallelization. However, its backbone is the Pease d

algorithm. Furthermore, the methodology may be

used for other linear DSP transforms. The steps of

the methodology may be used for other linear DSP

transforms.

Table 1: An overview of hardware generators for FPGA.

Tuning param Optimizations

FloPoCo

- frequency

- operand size

- micro-operation optimizations (redundant microoperations are removed – fuses

datapaths of different FP ops)

(Daitx, 2008) -filter parameters

-offline coefficient computation

- sub-block reuse for multiple constant multiplication

Firgen

-operand size

-latency &-throughput

-filter taps

- compiler techniques (hierarchical partitioning, partial localization)

-automatic selection of pipeline stages

-selection between shift-regs and FIFOs

(Liang, 2003)

- operand size

-throughput &-latency

-rounding mode

- automatic FP algorithm selection

-pipelining

(Milder, 2012)

- degree of concurrency

- storage structures

-mico-operation (basic block) parallelization

AUTOMATIC GENERATION OF FPGA HARDWARE ACCELERATORS FOR GRAPHICS APPLICATIONS

385

4 CONCLUSIONS

FPGAs have become one of the most important

platforms to implement dedicate 2D/3D graphic

accelerators. Due to their flexibility and their good

low-volume price, FPGA based solutions are

preferred in applications fields where the display

technology is changing frequently or the end market

does not support high volume sales. A wide range of

graphic IPs have been developed for reconfigurable

devices, both industrial and academic. These

approaches implement a more general rendering

pipeline, on which graphic operations are

“programmed”. Many of the graphic IPs can be used

for implementing the entire OpenGL set of

operations.

Automatic generation tools for hardware IPs for

FPGA have been developed for floating point units,

discrete Fourier transform or FIR filters. The goal of

these approaches is to optimize a specific set of

operations which can be used for a very narrow

range of applications. One project which exemplifies

this type of approach is represented by the FloPoCo

project, which aims at delivering hardware for any

given set of arithmetic operations. The optimizations

of such system result from the elimination of

redundant micro-operations, such as normalizations

or roundings.

This type of approach can also be used for

dedicated graphic pipelines. The generated hardware

will implement only the required sub-operations of

the graphic pipeline, with a lower hardware cost and

a possible performance improvement. This way, a

restricted set of OpenGL functions, which are

specific to a narrow range of applications, can be

used on the generated graphic engine. The approach

relies on the high flexibility offered by FPGAs, a

different type of graphic application requiring a

different accelerator IP.

ACKNOWLEDGEMENTS

This work was partially supported Romanian

National Authority for Research CNCS –

UEFISCDI project PN-II-RU-TE-2011-3-0186.

REFERENCES

Chen S. H., Lin. H. M., Wei H. W., Chen Y. H., Huang C.

T. Chung Y.C., 2011 Hardware/software co-designed

accelerator for vector graphics applications. In

Proceedings of 9

IEEE Symposium on Application

Specific Processors

Daitx, F. F.; osa, V. S.; Costa, E.; Flores, P.; Bampi, S.,

2008. VHDL generation of optimized FIR filters, In

Proceeding of 2

International Conference on

Signals, Circuits and Systems

Dinechin F., Pasca B. 2011, Designing Custom Arithmetic

Data Paths with FloPoCo, In IEEE Design & Test

Dutton, M. , Keezer, D., 2010 The Challenges of Graphics

Processing in the Avionics Industry. In Proceedings

of 29

Digital Avionics Systems Conference

Liang J., Tessier R., Mencer O., 2003, Floating Point Unit

Generation and Evaluation for FPGAs, In Proceedings

of 11

Annual IEEE Symposium on Field Custom

Computing Machines

Mahdavikhah B., Mafi R., Sirouspour S., Nicolici N.,

2010, Haptic Rendering of Deformable Objects using

a Multiple FPGA Parallel Computing Architecture, In

Proceedings of 18

ACM Symposium on Field

Programmable Gate Arrays

Majer M., Wildermann S., Angermeier J., Hanke S., Teich

J. , 2008 Co-Design Architecture and Implementation

for Point-Based Rendering on FPGAs. In Proceedings

IEEE/IFIP Symposium on Rapid System

Prototyping

Milder P., Franchetti F., Hoe J., Püschel M. 2012,

Computer Generation of Hardware for Linear Digital

Signal Processing Transforms, In ACM Trans. On

Design Automation of Embedded Systems

Nordin G., Milder P., Hoe J., Puschel M. 2005, Automatic

Generation of Customized Discrete Fourier Transform

IPs In Proceedings of 2005 Design Automation

Conference

Ruckdeschel H., Dutta H., Hannig F., Teich J., 2005,

Automatic FIR Filter Generation for FPGAs. In

Proceedings of 5

International Symposium of

Embedded Computer Systems: Architectures,

Modeling and Simulation

Altera, 2009, Using FPGAs to Render Graphics and Drive

LCD Interfaces, White Paper

logicBricks, 2011, logi3D Scalable 3D Graphic

Accelerator, Data Sheet

TES Electronic Solutions, 2009, D/AVE 3D Graphic

Accelerator, Data Sheet

Xilinx, 2011, Addressing the Graphics Revolution for

Automotive Instrumentation Design Using FPGAs,

White Paper

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

386
