SLA BASED SERVICE BROKERING IN INTERCLOUD

ENVIRONMENTS

Foued Jrad, Jie Tao and Achim Streit

Steinbuch Centre for Computing, Karlsruhe Institute of Technology, Karlsruhe, Germany

Keywords: Cloud Broker, Intercloud Computing, Cloud Interoperability, Service Level Agreement (SLA), OCCI.

Abstract: The fast emerging Cloud computing market over the last years resulted in a variety of heterogeneous and

less interoperable Cloud infrastructures. This leads to a challenging and urgent problem for Cloud users

when selecting their best fitting Cloud provider and hence it ties them to a particular provider. A new

growing research paradigm, which envisions a network of interconnected and interoperable Clouds through

the use of open standards, is Intercloud computing. This allows users to easily migrate their application

workloads across Clouds regardless of the underlying used Cloud provider platform. A very promising

future use case of Intercloud computing is Cloud services brokerage. In this paper, we propose a generic

architecture for a Cloud service broker operating in an Intercloud environment by using the latest Cloud

standards. The broker aims to find the most suitable Cloud provider while satisfying the users’ service

requirements in terms of functional and non-functional Service Level Agreement parameters. After

discussing the broker value-added services, we present in detail the broker design. We focus especially on

how the expected SLA management and resource interoperability functionalities are included in the broker.

Finally, we present a realistic simulation testbed to validate and evaluate the proposed architecture.

1 INTRODUCTION

Cloud computing has recently emerged as a new key

technology for outsourcing organizations’ IT

infrastructures on an economical basis. It allows a

dynamic provisioning of virtual hardware and

scalable applications according to their needs using a

transparent easy “pay as you go” pricing model.

Over the last years the number of Cloud service

providers has significantly increased. On the other

hand “vendor lock in” issues and the lack of

common Cloud standards hindered the

interoperability across these providers. Thus, today

the Cloud customer is facing a challenging problem

of selecting the appropriate Cloud offers that fits his

needs. Therefore, standardized interfaces and

intermediate services are needed to prevent

monopolies of single Cloud providers.

The introduced vision of global interconnected

Clouds called Intercloud (Bernstein et al., 2009),

much like the internet as network of networks,

addresses the above interoperability issues with the

large focus on open standardized interfaces. Hereby

Cloud consumers should be able to freely choose

and seamlessly switch between different Cloud

platforms while satisfying the demands for the

guaranteed quality of service (QoS).

The common future use cases and functional

requirements for Intercloud computing are defined

in (GICTF, 2010). One of these promising use cases

is market transactions via brokers. In such a use case

a broker entity acts as a mediator between the Cloud

consumer and multiple interoperable Cloud

providers. The broker supports the consumer by

selecting the provider that better meets his

requirements. L. Frank Kenney, former research

director at Gartner, claimed (Gartner, 2009) the need

for Cloud brokers: “The future of cloud computing

will be permeated with the notion of brokers

negotiating relationships between providers of cloud

services and the service customers”.

Motivated by the above considerations, we

present in this paper a generic architecture for a

Cloud service broker operating in an Intercloud

environment. Our proposed approach brings the

following three benefits: (1) It allows a seamless

access to Cloud resources through a standardized

abstraction layer between consumers and providers;

(2) It enables through a uniform interface the

monitoring and management of deployed Cloud

Jrad F., Tao J. and Streit A..

SLA BASED SERVICE BROKERING IN INTERCLOUD ENVIRONMENTS.

DOI: 10.5220/0003908000760081

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 76-81

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

services hosted on several Cloud providers by hiding

their underlying technical details; (3) It finds the

most suitable Cloud resources taking into account of

user requirements specified by SLA.

The rest of this paper is organized as follows: in

the next section we discuss prior works related to

Cloud service brokering. We also identify how our

work differs from related work. Section 3 presents

the generic architecture of the broker. In section 4

and section 5 we propose a simulation environment

for the broker and present first evaluation results.

Section 6 concludes the paper with a brief summary

and describes our future research directions.

2 RELATED WORK

The problem of multi domain service brokering in

Cloud has received a lot of attention in academia and

industry in the recent years.

(Buyya et al., 2010) presented the architecture of

a federated Cloud computing environment named

InterCloud to support the scaling of applications

across multiple vendor Clouds. The idea behind their

introduced federation concept is to enhance Cloud

providers provisioning capabilities in case of sudden

spikes in workload by leasing available

computational and storage capabilities from other

Cloud service providers. The main components of

the proposed architecture are a Cloud Broker, a

Cloud Exchange and a Cloud Coordinator. A client

initiates a Cloud broker in order to meet the

specified QoS targets, whereas Cloud Coordinators,

acting as gateway between their internal datacenters

and external Clouds, publish their services to the

federation. Cloud Exchange acts as a mediator

bringing together service providers and customers. It

aggregates infrastructure demands from the

application brokers and matches them against the

available resources published by the Cloud

Coordinators. The proposed architectural framework

is still a research vision and its development is

planned in context of the CLOUDBUS

project.

However, the simulation results showed that the

federation approach brings significant benefits to

user’s application performance.

(Theilmann et al., 2010) presented a flexible

framework for multi-level SLA management within

Clouds developed in context of the SLA@SOI

project. The core framework consists of a Business

Manager and an SLA Manager. The Business

Manager controls all the relations between

customers and providers, whereas the SLA Manager

deals with all the SLA related issues including

negotiation, provisioning and monitoring. Besides

the core framework, a domain-specific Service

Manager provides management functionalities for

the SLA Manager by interfacing the native

provisioning system. The main contribution of the

SLA@SOI framework is that the service quality can

be predicted and enforced at run-time through an

automated SLA management.

(Metsch et al., 2010) implemented a prototype

broker architecture based on a combination of the

core SLA@SOI framework and the RESERVOIR

framework. This latter allows an easy and on-

demand provisioning of virtualized infrastructure

resources within a federated Cloud platform. In their

presented architecture, the core SLA@SOI

framework acts as an SLA-based broker, whereas

the RESERVOIR sites act as SLA@SOI third party

providers and candidates for SLA provisioning. The

interoperability between the two Cloud frameworks

is achieved by implementing a standardized Service

Manager interface using the Open Cloud Computing

Interface API (OCCI, 2011).

(Kertesz et al., 2011) investigated the use of

autonomic computing principles for resource

management and SLA enforcement in Cloud

environments. They proposed an SLA-based Service

Virtualization (SSV) architecture, which is built on

three main components: a Meta-Negotiator

responsible for agreement negotiations, a Meta-

Broker for selecting the proper execution

environment and an Automatic Service Deployer for

service virtualization and on-demand deployment.

As the first industry driven project, the TM

Forum

Cloud Service Broker Catalyst explored the

role of a value-added service broker by

demonstrating a proof of concept for a trusted and

transparent Cloud management platform.

A market analysis of the current commercial

Cloud broker solutions shows that most products

concentrate on the aggregation and mediation of the

services deployed on well-known public Cloud

providers by providing integrated management and

monitoring interfaces. From the few products

offering additional brokering features, we refer to

SensibleCloud

and CloudSwitch

. While the former

offers an automated SLA based multi-Cloud

management, the latter allows customer to select the

________________

http://www.reservoir-fp7.eu//

http://www.sla-at-soi.eu/

http://www.tmforum.org

http://www.sensiblecloud.com/

http://www.cloudswitch.com

http://www.cloudbus.org

SLABASEDSERVICEBROKERINGININTERCLOUDENVIRONMENTS

best suitable Cloud service for their needs.

In summary, the work in (Buyya et al., 2010),

(Kertesz et al., 2011) and (Metsch et al., 2010) are

the most related works to this paper. The desired

broker architecture in this work acquired some ideas

from the previous designs. However, we have

designed a high-level generic architecture by

integrating several state of the art technologies and

standards. First, our solution combines all the

brokering features included in the previous works

like SLA management, service deployment and

monitoring and provider selection. Second, we

provide an abstraction layer to hide the technical

details of Cloud providers by using current

Intercloud standards. Moreover, our implemented

simulation environment prepares a realistic testbed

to validate and evaluate the proposed architecture.

3 CLOUD SERVICE BROKER

DESIGN

In this section we discuss the design of our proposed

Cloud service broker.

3.1 Overall Architecture

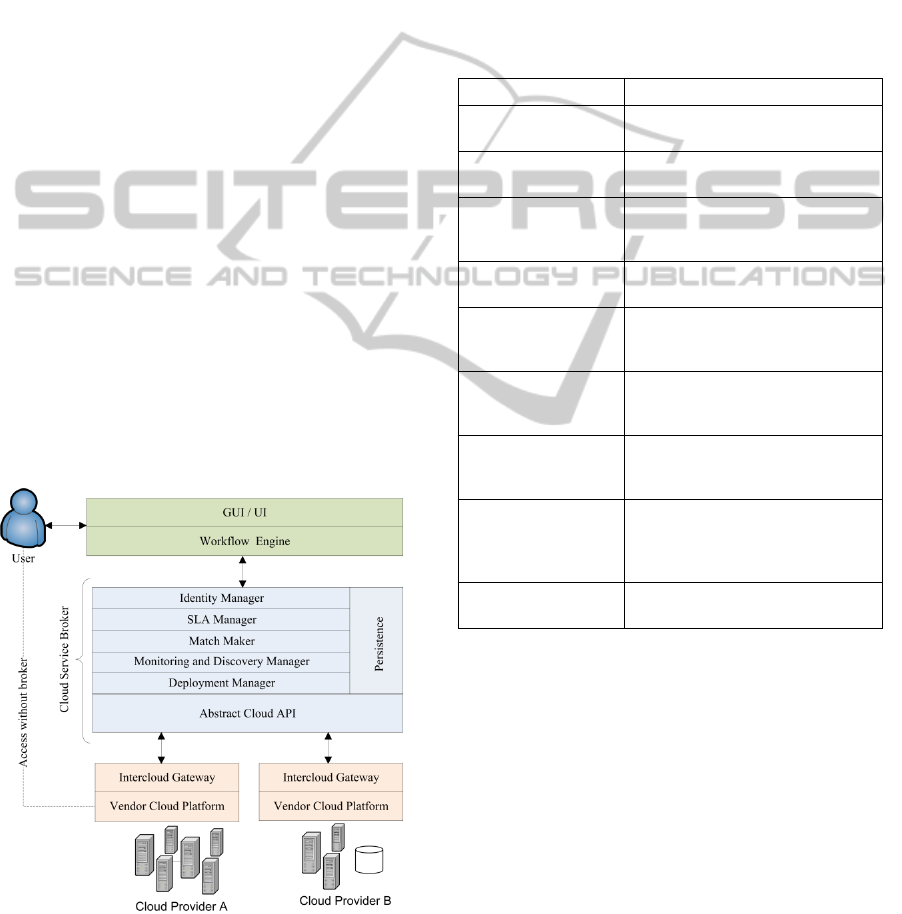

Figure 1 shows a generic architecture of the service

broker. The main components and their roles are

gathered in Table 1.

Figure 1: Cloud service broker architecture.

As depicted in Figure 1, the service broker acts

as a mediator between the Cloud user and multiple

Cloud providers by providing attractive value-added

services to users on top of heterogeneous Cloud

vendors. The main functions of the broker are

assisting the user in finding the best provider for his

service needs with respect to specified SLA and

providing him with a uniform interface to manage

and monitor the deployed services.

The needed interactions between the different

broker components during a service lifecycle and

therefor required interfaces to Cloud providers are

described in detail in the following sections.

Table 1: Components of Cloud service broker architecture.

Component Role

SLA Manager

It negotiates the SLA creation and

handles the SLA provisioning.

Monitoring and

Discovery Manager

It queries resource information and

monitors the SLA metrics.

Match Maker

It selects the best Cloud providers

for user requests using different

matching algorithms.

Deployment Manager

It deploys the service on the selected

provider.

Identity Manager

It handles the user authentication

and ensures IDs and roles

enforcements.

Persistence

It stores broker specific data (e.g.

monitoring, SLA templates and

resources data).

Abstract Cloud API

A standard abstract API used to

manage Cloud resources on different

Cloud providers.

Intercloud Gateway

It acts as service frontend for the

Cloud provider and interacts through

the standard Cloud API with the

broker.

Vendor Cloud

Platform

The native Cloud platform hosted by

the Cloud provider.

3.2 SLA Management

In (Linlin et al., 2010) an SLA is defined as a formal

contract between service providers and consumers to

guarantee that consumers’ service quality

expectation can be achieved. According to them, the

SLA lifecycle in utility computing systems has six

steps, which are ‘discover service providers’, ‘define

SLA’, ‘establish agreement’, ‘monitor SLA

violation’, ‘terminate SLA’ and ‘enforce penalties

for violation’.

In this work the broker acts on behalf of the

consumer to process all the SLA management tasks.

In the following subsections we discuss how SLA

management is handled in our proposed architecture

throughout the entire SLA lifecycle.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

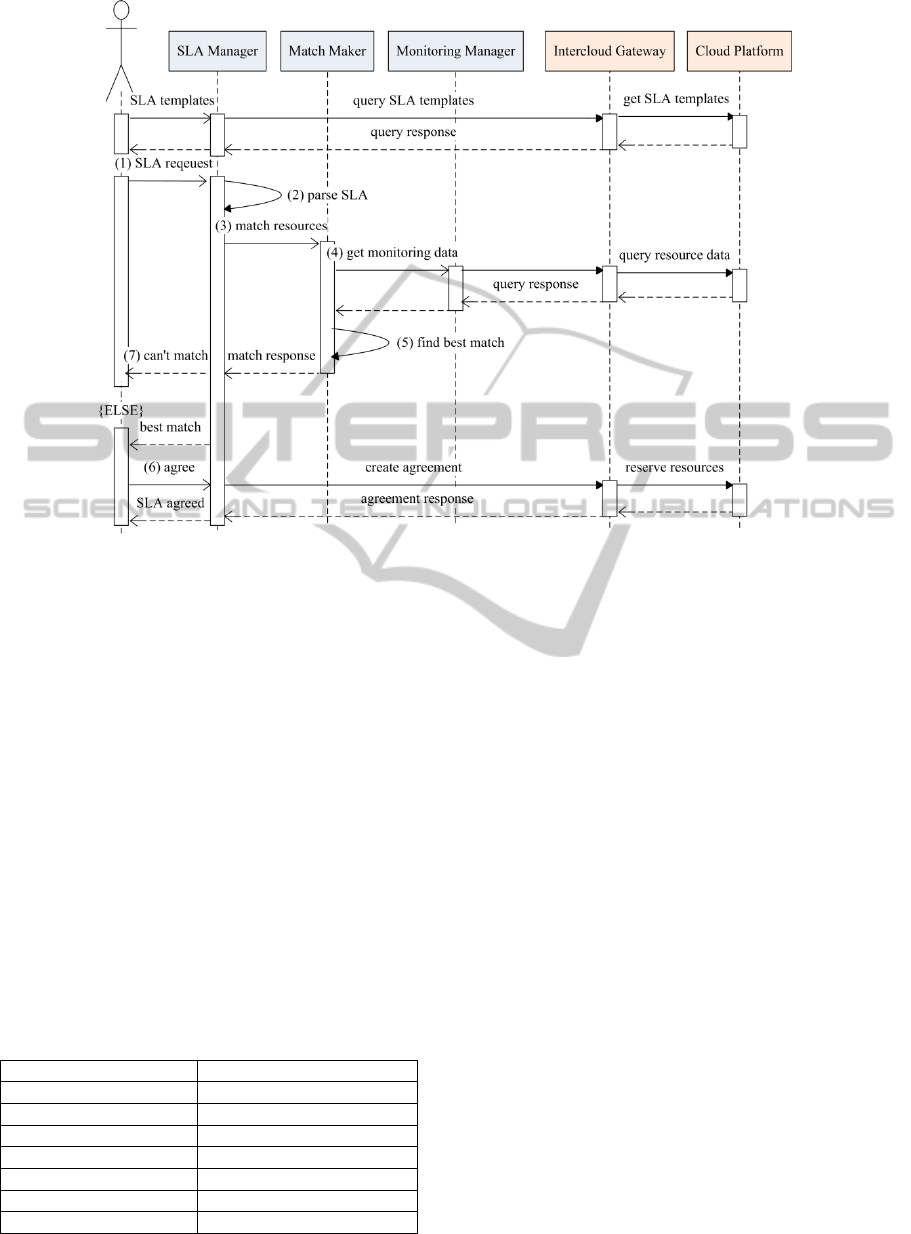

Figure 2: The SLA negotiation flow.

3.2.1 SLA Discovery and Definition

In order to discover the SLA features supported by

the different Cloud providers the user asks, with the

assistance of a user interface, the SLA Manager to

retrieve the provider SLA templates published

through the Intercloud Gateways. An SLA template

represents amongst others the QoS parameters and

the margin values that the provider can accept (e.g.

supported OS, gold or silver SLA level). In a next

step, the user can populate a suitable template with

required values or even define a new SLA from

scratch to describe the functional and non-functional

service requirements. Some typical SLA parameters

used in context with IaaS Cloud provisioning are

provided in Table 2. These parameters are important

for a provider matching by the broker and therefore

the user needs to give reasonable values for them.

Table 2: Sample SLA parameters for IaaS.

functional non-functional

CPU cores response time

memory size budget

CPU speed completion time

in/out bandwidth data transfer time

OS type availability

storage size persistence (Yes/No)

image URL reservation (Yes/No)

3.2.2 SLA Negotiation

In this step a negotiation process managed by the

broker is started in order to reach an SLA agreement

between the user and the appropriate Cloud

providers. The ideal SLA negotiation flow of an

incoming SLA user request to the service broker is

illustrated by the sequence diagram in Figure 2.

The SLA negotiation is done as follows: The

user submits a service request (1) with the previous

defined SLA to the SLA Manager. Then, the SLA

Manager, after parsing the SLA definition (2), asks

the Match Maker, if it could execute the service with

the specified requirements (3). In order to respond to

this request, the Match Maker starts a match making

process to find the best suitable provider (5) by

matching the gathered resource properties (e.g.

datacenter configuration and supported SLA

metrics) from the Monitoring Manager (4) with the

service requirements by applying predefined

matching algorithms. At the end, the user gets a

response to his request from the SLA Manager with

the respective matching results. Upon user

acceptance, an agreement can be established (6) with

the matched provider and the required resources

could be reserved. If none of the providers can be

matched, the aforementioned steps may be repeated

for renegotiation (7) until reaching an agreement.

SLABASEDSERVICEBROKERINGININTERCLOUDENVIRONMENTS

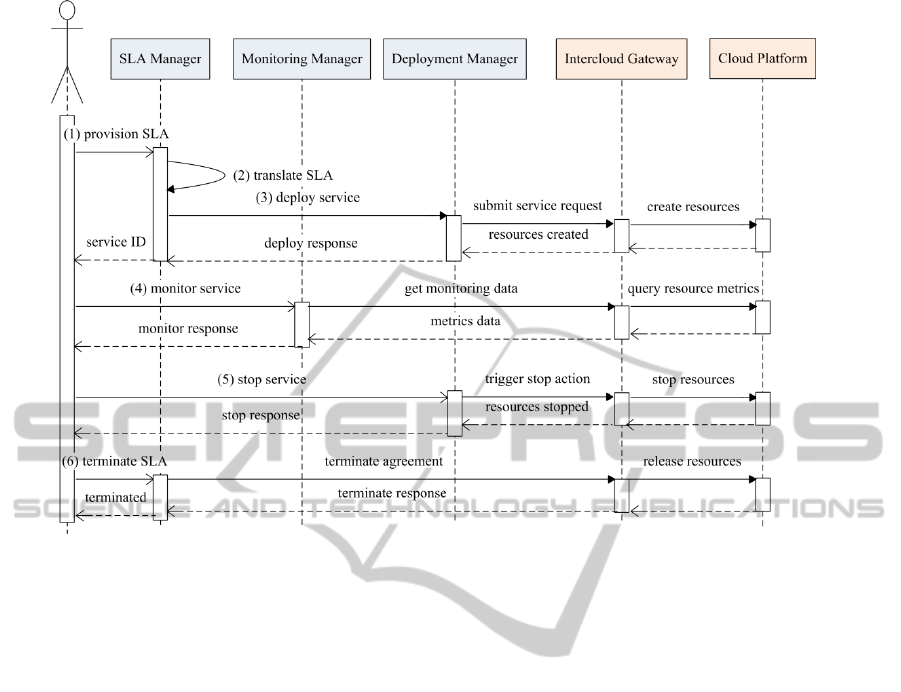

Figure 3: The SLA provisioning and monitoring flow.

3.2.3 SLA Provisioning and Monitoring

After establishing an agreement, a provision request

(1) is submitted by the user to the SLA Manager.

The interactions needed by the broker components to

handle the provision request are shown by the

sequence diagram in Figure 3.

The SLA provisioning is done as follows: After

receiving the provision request, the SLA Manager

translates (2) the associated SLA to a service request

and asks the Deployment Manager to deploy the

service (3). The Deployment Manager forwards the

request to the appropriate Intercloud Gateway to

create and start the requested resources. As response

a unique service ID, used to address the deployed

service, is returned. The user is then able to monitor

the service (4) by requesting the metric values of the

agreed QoS parameters from the Monitoring

Manager. The user is also able to perform actions on

the deployed resources (e.g. start and stop) (5). Once

an agreement is terminated (6), all the created

resources should be released by the Cloud platform.

3.3 Provider Intercloud Gateways

The entire communication between the broker and

Cloud providers is realized through Intercloud

Gateways. This key component runs on the provider

side by interfacing the vendor Cloud platform. It

provides management and monitoring interfaces

while hiding the internal provider policies. The

concept of Intercloud Gateways is similar to the

Cloud Coordinator in (Buyya et al., 2010), with the

difference in that, the former simply interacts only

with the broker, whereas the latter needs interaction

with both the Cloud Exchange and the Cloud broker.

While looking for an abstract Cloud API

compatible with our architecture, we found that the

Open Cloud Computing Interface specification

(OCCI, 2011) is the most applicable among existing

APIs. OCCI is an extensible specification for remote

management of Cloud infrastructures, allowing the

development of interoperable tasks. The current

OCCI specification focuses on IaaS offerings by

defining three abstract resource types, which are

compute, storage and network. All the operations for

creating, deleting, starting and stopping these

resources can be requested on a REST manner over

HTTP methods (GET, POST, PUT and DELETE).

By integrating OCCI in our architecture, the

Intercloud Gateway becomes an OCCI server,

whereas the abstract Cloud API is the OCCI Client.

In this way, the entire communication between the

broker and providers runs through standard OCCI

interfaces and no adapters are needed in the broker.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

4 SIMULATION TESTBED

We developed based on the CloudSim simulation

toolkit (CoudSim, 2011) a simulation environment

for the broker. This allows us to validate and

evaluate the proposed broker architecture without

the setup of a real testbed, which is extremely time

and cost consuming. CloudSim is a scalable open

source simulation tool offering features like support

for modeling and simulation of large scale Cloud

computing infrastructures including datacenters,

brokers, hosts and VMs on a single host.

We extended CloudSim with an Intercloud

Gateway package to simulate an OCCI-based

service frontend. For this, we used the open source

(OCCI4JAVA, 2011) OCCI implementation to

mediate the CloudSim DatacenterBroker class. In

contrast to the OCCI specification, we do not use a

REST based communication between the Cloud

service broker and the Intercloud Gateway, as the

CloudSim simulation runs on one host. In such way,

only minimal changes are needed in the broker to

use it with real OCCI enabled production Clouds.

Moreover, we implemented an OCCI monitoring

mixin to allow the Intercloud Gateway to query

resource properties and metrics from CloudSim.

5 EVALUATION RESULTS

In order to assess the scalability of our proposed

approach, an experiment has been conducted: We

continuously generate VM requests (at a rate of 1

req/min) and let the broker select a random provider

from 6 datacenters (each made up of 50 hosts with 2

CPUs) and then deploy the requested VM on it. The

VM can be one of the 4 Amazon EC2 instance types

(micro, small, large and high CPU). We measured

the percentage of successfully deployed VMs by

varying the request number from 50 to 2000. We

repeated the experiment with only one and then with

three datacenters (DC). The results presented in

Figure 4 show that our approach scales well with

increasing number of service requests and providers.

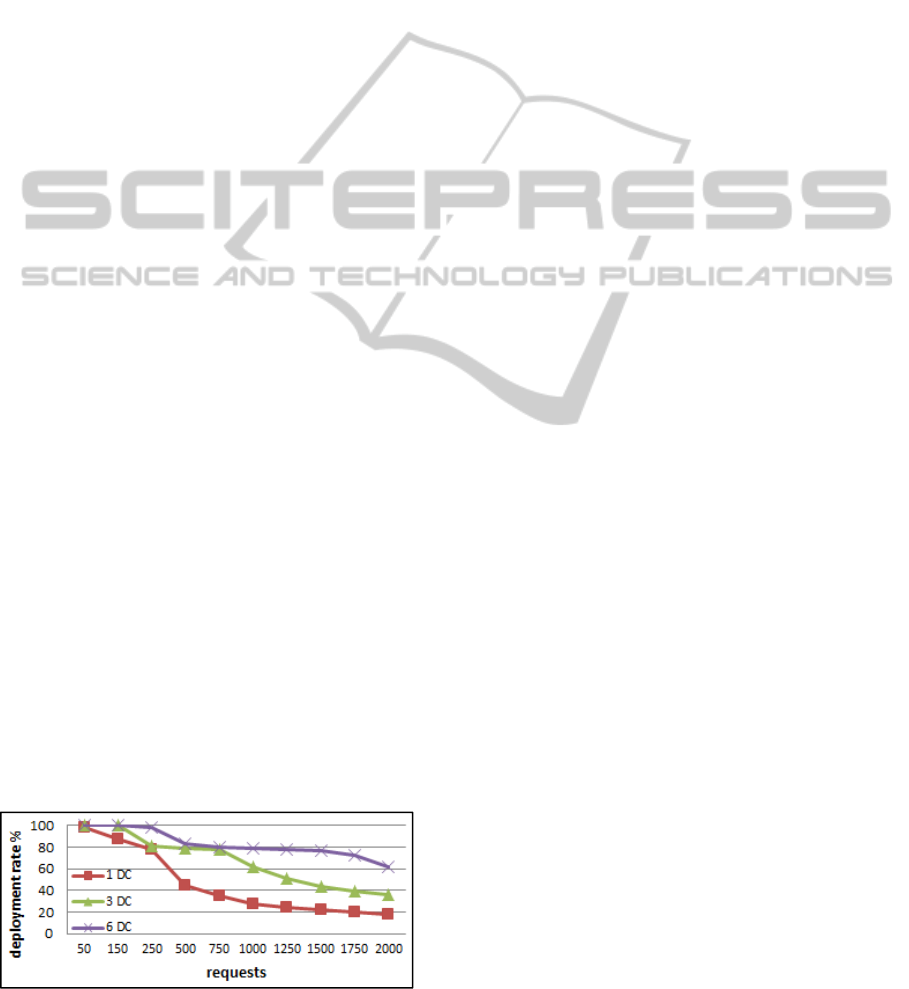

Figure 4: Cloud service broker deployment efficiency.

6 CONCLUSIONS

The lack of interoperability and the heterogeneity in

current public Cloud platforms justify the need for

intermediate broker services to assist the user in

finding the appropriate provider for his needs.

In this paper we described the architecture design

of a Cloud service broker and proposed a simulation

environment to test and evaluate the broker.

Especially, we focused on the SLA management and

interoperability features included in the broker.

In our future work, we will use simulation to

investigate and evaluate the performance and

efficiency of different SLA-aware match making

algorithms by supporting multiple SLA parameters.

Furthermore, we will investigate the execution of

workflows with the help of the Cloud service broker

and improve the automated SLA negotiation in the

broker by implementing a new OCCI SLA mixin.

REFERENCES

Bernstein. D. et al. (2009). Blueprint for the Intercloud:

Protocols and Formats for Cloud Computing

Interoperability. In ICIW2009, 4th International

Conference on Internet and Web Applications and

Services, pages 328-336.

Buyya R., Ranjan R. and Calheiro R. N. (2010).

InterCloud: Utility-Oriented Federation of Cloud

Computing Environments for Scaling of Application

Services. In ICA3PP2010, 10th International

Conference on Algorithms and Architectures for

Parallel Processing, pages 13–31.

CloudSim 2.1.1 (2011). CLOUDS Lab, Unversity of

Melbourne, http://www.cloudbus.org/cloudsim/.

Gartner (2009). Cloud Consumers Need Brokerages to

Unlock the Potential of Cloud Services. Press Release.

GICTF (2010). Use Cases and Functional Requirements

for Inter-Cloud Computing. White Paper 9-8-

2010.Kertesz A., Kecskemeti G. and Brandic I.

(2011). Autonomic SLA-aware Service Virtualization

for Distributed Systems. In PDP2011, 19th Euromicro

International Conference on Parallel, Distributed and

Network-based Processing, pages 503-510.

Linlin Wu and Buyya R. (2010). Service Level Agreement

(SLA) in Utility Computing Systems. Tech. Rep. 2010.

Metsch T., Edmonds A. and Bayon V. (2010). Using

Cloud Standards for Interoperability of Cloud

Frameworks. Tech. Rep. 2010.

OCCI v1.1 (2011). Open Cloud Computing Interface

specification. OCCI-WG, http://www.occi-wg.org.

OCCI4JAVA v0.2 (2011). https://github.com/occi4java.

Theilmann W., Happe J., Kotsokalis C., Edmonds A. and

Kearney K. (2010). A Reference Architecture for

Multi-Level SLA Management. In Journal of Internet

Engineering, Vol 4, No 1, December 2010.

SLABASEDSERVICEBROKERINGININTERCLOUDENVIRONMENTS
