QDSL - QUALITY DOMAIN SPECIFIC LANGUAGE FOR

CLOUD COMPOSITE APPLICATIONS

Short Research Paper

Ethan Hadar

, Irit Hadar

and Donald F. Ferguson

CA Technologies, Inc., Herzelia, Israel

Department of Management Information System, University of Haifa, Haifa, Israel

CA Technologies, Inc., New York, NY, U.S.A.

Keywords: Domain Specific Language, Quality Assessment, Service Level Agreements, Cloud Service Quality, Cloud

Modeling.

Abstract: Quality Domain Specific Language (QDSL) is a model-driven approach providing a taxonomy, model, and

visual editing tool for evaluating and benchmarking the quality of composite applications in cloud

environments. Our language and associated modeling tool provide visual and textual means for constructing

mathematical algorithms needed for computing aggregated quality assessment of cloud services. QDSL

enables the illustration and definition of metrics, measurements and indicators, relationships for

computation, and transformation functions that normalize the measurements into relative quality scoring. As

a result, QDSL provides a structure that guides overall quality assessments. The computation algorithm is

structured in a visual manner and associates the quality assessments graph with the structure of the cloud

composite application in a hybrid environment. QDSL supports transformation from physical measurements

into scoring comparative assessments of benchmarked provided IT solutions. This paper presents a basic

model for QDSL and examples of usage. A prototypical eclipse EMF modeling tool of QDSL is used for

communication, whereas commercial monitoring tools implement the instantiated models for evaluating

service qualities.

1INTRODUCTION

In the cloud domain, composite IT services and

composite applications may be implemented across

hybrid cloud environments (Ferguson and Hadar,

2010; 2011) with interchangeable alternatives,

differing in their quality levels (Adam and Doerr,

2007). The increasing number of offerings from

different vendors for the same conceptual cloud

service generates an economic attraction.

Specialization in these services presumably

increases the quality of the services (Donzelli and

Bresciani, 2004). Alternative services should be

evaluated systematically and concisely. Such

semantic definitions (Frank et al., 2009; Gruber,

1995; Franch and Carvallo, 2003) and computation

methods that can be understood by all stakeholders

(Kupfer and Hadar, 2008) are captured in this paper

as QDSL: Quality Domain Specific Language.

The need to provide a service as quickly as

possible drives service agility. Risk is associated

with evaluating the ability to perform a task, and

accordingly, all the associated Costs. Agility, Risk

and Cost are considerations for selecting a cloud

provider and service instead of constructing

solutions on-premise. The IT team evaluates service

alternatives, and selects the best cloud service

according to quality requirements. There are several

challenges in evaluating cloud services involving

different aspects (Franch and Carvallo, 2003). The

technical aspects require the ability to: (1) collect

metrics from the vendors’ cloud services; (2) convert

these metrics into a set of scores that enable rating;

(3) define methods of aggregation and the relative

contributions of each measurement, compound, or

derived metric; and, (4) compare these scores with

other similar services according to an agreed

standard, such as the Service Measurement Index

(SMI) (Zachos, 2011). Social aspects include the

ability to: (1) add social indicators of the perceived

quality of a cloud service or vendor as surveyed by

consumers; (2) increase the trust level of people

228

Hadar E., Hadar I. and F. Ferguson D..

QDSL - QUALITY DOMAIN SPECIFIC LANGUAGE FOR CLOUD COMPOSITE APPLICATIONS - Short Research Paper.

DOI: 10.5220/0003913102280233

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 228-233

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

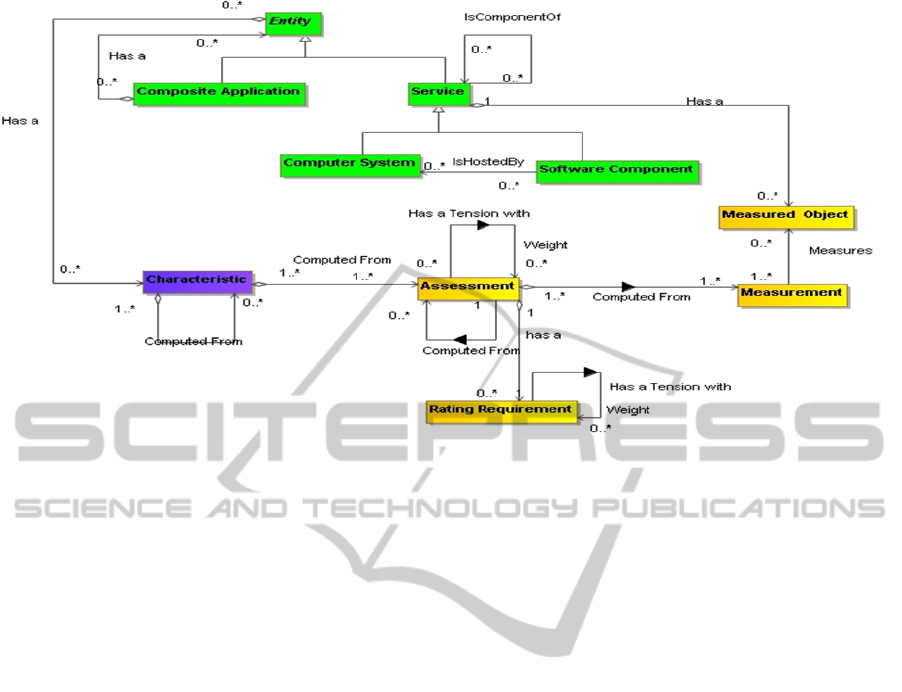

Figure 1: Simplified conceptual model of QDSL.

evaluating the services according to the integrity and

fidelity of the data presented; (3) control the level of

importance of each metric and the overall

contribution according to the individual

considerations of the evaluator.

Benchmarking cloud services is based on

comparing the scores of the functional and non-

functional characteristics of a service. Such

characteristics can be Quality, Agility, Risk,

Capability, Cost, and Security.

QDSL is a modeling language for describing the

computation structures for evaluating the

characteristics of cloud services and composite

applications. These evaluation ratings are computed

based on certain objective (metrics) and subjective

(indicators) measurements. The measurements are

extracted from monitored cloud services or their

composite IT system and application structures. The

measurements' assessments define the score of the

service or its ingredient characteristics, and

aggregate them according to the preferences of the

evaluator (consumer). Finally, the aggregated

characteristic of a service is evaluated against that of

other similar services. QDSL characteristics

prioritization is applied to measurements as part of

the mathematical score computation process, as well

as the importance of different characteristics. QDSL

enables one to define an algorithm for computing

characteristics. It is used when combining

measurements (monitored or derived metrics and

indicators) and weighting (prioritization) factors

according to the evaluator’s specific aggregation

considerations.

Using QDSL’s graphical editor enables the

modeler to capture, share, and reuse characteristics

structures as presented in Figure 3. These models

can be rapidly instantiated into run-time models and

machine-readable formats, executed on computation

engines that aggregate the metrics and produce

characteristics dashboards.

In the next sections a partial view of a

conceptual model is described to illustrate the

QDSL. Several examples are presented, and a brief

description of a prototypical tool is provided.

2 THE QDSL CONCEPTUAL

MODEL

The QDSL domain encompasses conceptual binding

cloud composite applications, measurements and

quality characteristics. A simplified view of QDSL

specifications is provided in Figure 1, while

subsequent sections present selected entities and

relationships. In QDSL, measurements are

monitored via a brokering service, using connectors

defined as Measured Objects. The monitored

Composite Application entities have associated

functional and/or non-functional characteristics.

The QDSL universe encompasses three main

domains:

1. Composite Application Domain, which

comprises the entities under evaluation:

Service, Software, Computer System, and

Composite Application.

QDSL-QUALITYDOMAINSPECIFICLANGUAGEFORCLOUDCOMPOSITEAPPLICATIONS-ShortResearch

Paper

229

2. Characteristics Domain, which defines the

criteria for evaluation, such as functional and

non-functional properties.

3. Measures Domain, which provides the

supporting data: Assessments, Rating

Requirements, Measurements, and Measured

Objects.

2.1 The Composite Application

Domain

The Composite Application Domain (Figure 2)

supports the constructing of logical software

components (including libraries, operation systems,

and applications) and services, and assigns them to

computing applications. Each characteristic should

be associated to each of these entities (Service,

Software, Composite Application, or Computer

System). A Measured Object (from the Measures

Domain) retrieves data from a measured entity

associated with a certain capability, such as the CPU

utilization, or fixed cost of a service per month.

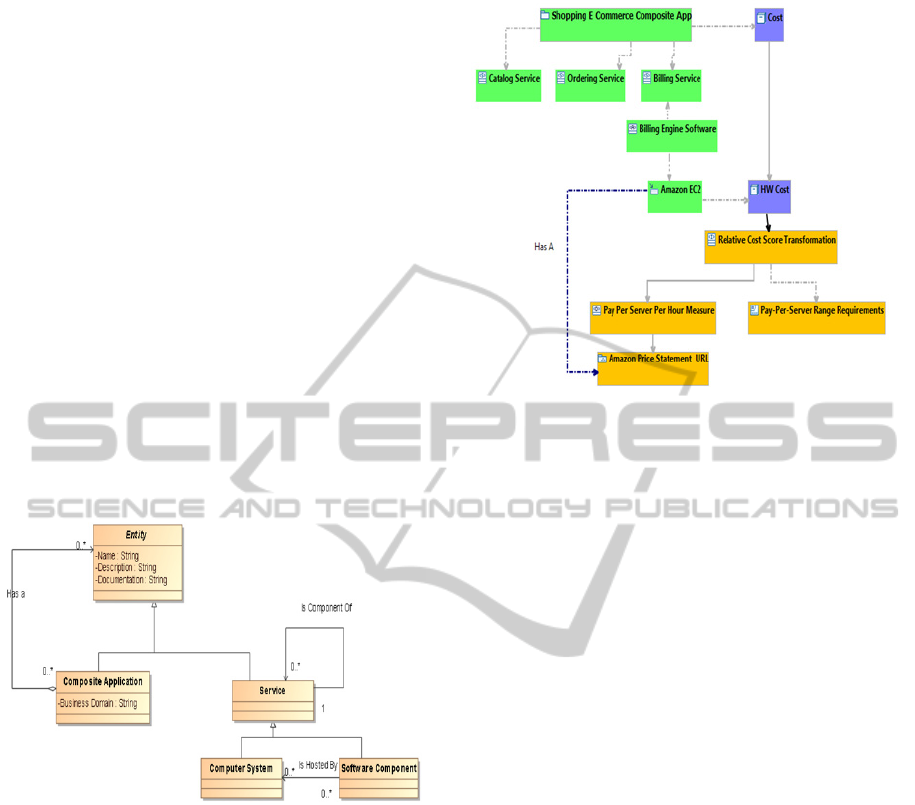

Figure 2: The Composite Application Domain.

Figure 3 depicts a QDSL model of a shopping

cart e-commerce composite application. The

Composite application sub-services (catalog,

ordering, and billing) and their associated costs are

modeled. In this example, the billing service is

provided by the billing engine software that runs on

Amazon EC2 infrastructure. The EC2 has a relative

hardware cost score that is derived from the Amazon

service. This Amazon service has a price statement

Measured Object, populating information into the

pay-per-server Measurement. This measurement is

transformed into the Assessment Score using the

pay-per-server Range Requirement. Accordingly,

the hardware cost of the Amazon infrastructure is

calculated, and contributes its portion to the overall

composite application cost.

Figure 3: Composite Application associated with the

Characteristics Domain.

2.1.1 Definitions

Entity is defined as a Base Configuration Item

entity, implemented and well known in the standard

IT configuration management database (CMDB)

systems. It is an abstract element, which is not

presented as a selectable modeling entity in the

QDSL visual editor.

Software Component is a logical software

entity that implements a functional behavior,

captured as a collection of installed files, and runs

on a Hardware Component. A Software component

exhibits the behavior of an IT Service.

Computer System entity represents a computer

system. The Type element classifies the computer

as a "Server," "Mainframe," "Personal Device," etc.

Its sub-elements define its hardware, IP networking,

proxy/management protocol, and computer-related

information.

A Composite Application entity is a common

term for the end-to-end IT solutions that implement

business services. IT implementations of business

services, or any cloud services for that matter, are

composites of hardware, software, applications, data,

network, etc., where the function needed for the

service is driven from several different sources,

regardless of ownership of these sub-modules. More

specifically, when examining the end-goal of an IT

service to cater for business (or other) cloud

services, the delivered application is the one that is

perceived as the service in question. Thus, the

resources comprising such a service (e.g., network

elements and servers) are a means to delivering the

service solution.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

230

2.2 The Characteristics Domain

An IT service or composite application is assessed

by monitored Measurement, representing a certain

Characteristic of a Service (Figure 4). A

characteristic can be computed either from other

sub-characteristics, or directly from an associated

Assessment.

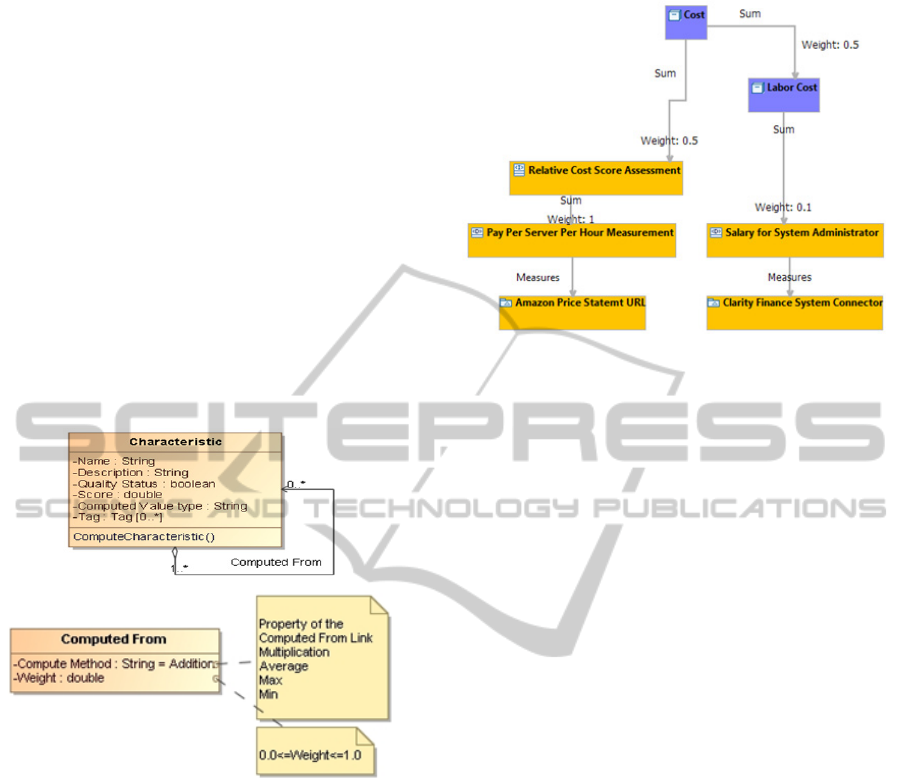

Figure 5 exemplifies a computation structure of a

cost Characteristic. In this example, the cost

Characteristic scoring is derived from the labor cost

Characteristic score, which is computed from the

salary measurement. The contribution considers only

10% of an employee’s monthly payment, according

to the financial system. The overall cost is equally

averaged with a computed cost extracted from a

relative cost assessment of an Amazon server,

according to an hourly rate.

Figure 4: The Characteristic Domain.

2.2.1 Definitions

Characteristics entity describes the quality

attributes of a service or a component or any Entity

type. Characteristic examples are security, usability,

testability, maintainability, extensibility, scalability,

portability, interoperability, and availability. As an

example, availability is defined as the ability of a

component (software, hardware, or any

Configuration Item) or IT Service to perform its

agreed function when required. Availability is

determined by Reliability, Maintainability,

Serviceability, Performance, and Security, and is

usually calculated as a percentage. This calculation

is often based on agreed service uptime and

downtime.

Computed From relationship is linking (1)

another Characteristic entity that provides weighted

Figure 5: Complex structure of characteristic and

assessments dependency.

aggregation of an existing Score, or (2) an

Assessment that is linked to Measurement (metric or

indicator), which provides the Score value by

calculating the Scores equation presented below.

The Compute Method of the Computed From

relationship enables aggregation according to several

possible mathematical functions. These functions

can be: a summation by adding or removing values,

Max, Min, Average, and weighted average. All

functions are multiplied by a Weight attribute that

reflects the level of importance of the targeted

element. When normalized, the sum of all targeted

Characteristic Weights should be 1.

The Score attribute is a percentage

representation. The calculation method of the Score

is defined in Equation 1 in the Measures Domain

section. It is important to note that in the case that a

Characteristic is computed from other sub-

Characteristics, it must be supported by an

Assessment entity to provide the initial Score value.

Computed Value type attribute describes the

type of the numerical value: percentage (default),

count, ratio, or Boolean. Scores that are not of the

same type cannot be jointly aggregated.

Quality Status attribute indicates whether or not

the requirements for all the underlying Assessments

and sub-Characteristics are met. True represents a

healthy system, and False represents that a Service

Level Agreement (SLA) or requirement is not

achieved. Another condition for a True value is that

all underlying scores are greater than 0.0.

Compute Characteristic () - enables

construction of a dedicated algorithm to calculate the

Score or computed values of the entity.

QDSL-QUALITYDOMAINSPECIFICLANGUAGEFORCLOUDCOMPOSITEAPPLICATIONS-ShortResearch

Paper

231

2.3 The Measures Domain

The Measures Domain (Figure 6) contains elements

that retrieve data based on metrics (machine or

automation driven) and indicators (people, statistics

driven) using Measurements. In turn, Measurements

access specific connectivity to the real world via

Measured Objects. Each Measured Object is

associated with an entity from the Composite

Application Domain (see Figure 1), and is

transformed into Characteristic’s Scores by the

Assessment entity according to an accepted range

levels. A single Assessment may have many Rating

Requirements, consequently catering for multiple

business goals and different stakeholders.

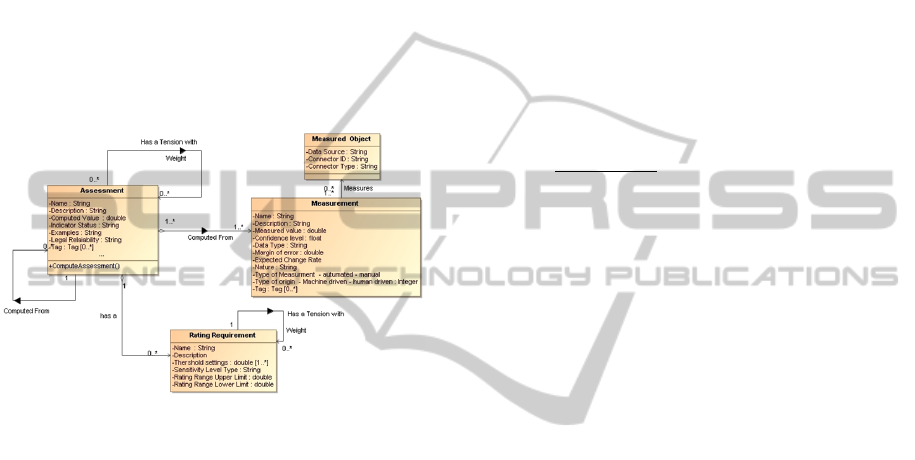

Figure 6: The Measures Domain.

2.3.1 Definitions

Measurement entity data contain the monitored

data of an Entity or configuration item, by producing

a metric. The resultant Measured Value attribute

must be nonnegative and additive, meaning that the

value of two non-overlapping Measurements equals

the sum of their individual Measure Values.

Assessment entity captures a method for

aggregating or converting Measurements into Scores

that are evaluated by the Characteristics entity

utilizing associated Rating Requirement’s Threshold

values. The assessment captures the level sets of a

Service/Operation Level Agreement (SLA/OLA).

The calculation of SLAs or Scores is triggered on-

demand by an external entity, using the

ComputeAssessment () method.

Rating Requirement entity defines the accepted

range of values that are used when the Measured

Value is assessed, computing the associated

Characteristics entity’s Score (percentage, distance,

or ratio). Many Characteristics exist for a single

Measurement, depending on the structure of the

Composite Application. Fundamental to cloud

environments, the evaluation structure reduces the

quantity of Measured Objects, improving

monitoring capacity. This many-to-many

relationship between Characteristics Assessment and

Measurement supports the scalability and multi-

tenancy of monitored cloud services, where a single

monitoring tool can support many observers, and

vice versa. Scores calculation is based on many

quality requirements of different stakeholders,

expressed as an acceptable Rating Range for a

quality attribute of a service. Accordingly, multi-

tenants can use the same QDSL system, and exhibit

different levels of satisfaction with the same

evaluated service, due to different Rating

Requirements.

Scores are thus computed in equation 1 as:

Score







100.0 if ACV≥RRU

(ACV-RRL

)

(

RRU

-RRL

)

if RRU

>ACV>RRL

0.0 if ACV≤RRL







(1)

where i indicates the relevant Rating Requirement,

ACV is the Assessment Computed Value, RRL

Rating Range Lower Limit of the i Rating

Requirement, and RRU

is Rating Range Upper Limit

of the i Rating Requirement. The Score is provided

to the relevant i Characteristic.

Has a Tension with relationship highlights that

deeper evaluation is needed when examining an

Assessment. The different values (tensions) are:

• Constructing: the contribution is sufficient to

construct another Assessment.

• Supporting: the contribution is needed but is not

sufficient to support another Assessment.

• Destructing: the contribution conflicts with

another Assessment and cannot co-exist.

• Degrading: the contribution diminishes the

affected Assessment outcomes, however, not

entirely.

Legal Reliability reflects the fidelity of the data

sources and their information reliability. True

represents reliable. For example, automated,

machine driven metrics have a higher reliability

level than human, manually generated information.

Threshold Settings is an array of acceptable

range. defines a Threshold as the value of a metric

(key performance indicator) that should generate an

alert or take a management action. For example:

"Priority1 incident not solved within 4 hours"; "more

than 5 soft-disk errors in an hour"; or, "more than 10

failed changes in a month".

Measured Object entity enables connection to

and monitoring of a Configuration Item (CI) and

provides the measured data. Agents, connectors,

adapters and other installed or remotely accessed

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

232

API are examples. In the cloud domain, due to

encapsulation and abstraction of the physical assets

by means of virtualizations, most of these measured

objects are connectors that abstract remote

monitoring calls.

3 QDSL IMPLEMENTATION

The QDSL prototypical visual modeling tool was

developed based on the Eclipse Modeling

Framework and ECORE models, including DSL

constraints language, such as Object Constraints

Language (OCL). The QDSL tool enables people to

interact with the design environment of IT quality

assessments using visual modeling editors.

The QDSL tool enables modelers to model

visually the algorithm for computing the quality

assessment and express how to capture basic

measurements. QDSL graphically associates the

needed transformation that captures measurements

into a comparable, normalized scoring system,

including methods for aggregation, average, or

accumulation of scores across composite application

characteristics. The tool exports the visual

represented models to machine-readable files

(XMLs) that can be interpreted by a run-time

computation engine, according to the defined visual

algorithm. The approach restricts the relations

between the computation elements by adhering to a

constrained environment (using OCL), prohibiting

human error.

The codified models can be transportable to real-

time monitoring and computation tools. One of these

tools, termed CA Business Insight, commercially

implements structured measurements, known as the

Service Measurement Index (SMI) (Zachos, 2011).

4 DISCUSSION AND

CONCLUSIONS

The Quality Domain Specific Language (QDSL) and

its associated modeling tool enable modelers to

capture quality assessment algorithms for evaluating

cloud services. Using QDSL graphical editors and

its underlying Domain Specific Model enables

modelers to capture cloud services’ qualities

accurately and concisely, share algorithms, and

reuse quality structures. By rapidly instantiating the

model into machine-readable format, QDSL models

can be executed on computation engines that

aggregate the metrics and produce benchmarking

and quality dashboards. The QDSL-based

conceptual model supports a multi-tenancy approach

for both reduction of monitored information and

tailored derived dashboards (personalization, role

based), functioning as a cloud service for evaluating

composite applications quality.

REFERENCES

Adam, S., Doerr, J., 2007. On the Notion of Determining

System Adequacy by Analyzing the Traceability of

Quality. Advanced Information System Donzelli, P.,

Bresciani, P., 2004. Improving Requirements

Engineering by Quality Modeling A Quality-based

Requirements Engineering Framework. Journal of

Research and Practice in Information Technology,

Vol. 36 Issue 4, pp. 277-294.

Ferguson, D.F., Hadar, E., 2010. Constructing and

evaluating supply-chain systems in cloud-connected

enterprise. In 5th international conference on software

and data technologies, ICSOFT 2010, Athens, Greece,

July 2010

Ferguson, D.F., Hadar, E., 2011. Optimizing the IT

business supply chain utilizing cloud computing. The

8th International Conference on Emerging

Technologies for a Smarter World (CEWIT2011),

Long Island, Hauppauge, New York, November 2-3,

2011.

Frank, U., Heise, D., Kattenstroth, H., Ferguson, D.F.,

Hadar, E., Waschke, M.G., 2009. ITML : A Domain-

Specific Modeling Language for Supporting Business

Driven IT Management. Proceedings of the 9th

OOPSLA workshop on domain-specific modeling

(DSM), OOPSLA 2009, Orlando, Florida, US,.

Gruber, T., 1995. Towards principles for the design of

ontologies used for knowledge sharing. International

Journal of Human-Computer Studies, 43(5/6), pp.

907-928.

Kupfer, M., Hadar, I., 2008. Understanding and

Representing Deployment Requirements for

Achieving Non-Functional System Properties. In

International Workshop on Non-functional System

Properties in Domain Specific Modeling Languages,

affiliated with MoDELS, Toulouse France, September

2008.

Zachos, K., Lockerbie, J., Hughes, B., Matthews, P., 2011.

Towards a framework for describing cloud service

characteristics for use by chief information officers. In

Requirements Engineering for Systems, Services and

Systems-of-Systems (RESS), pp: 16 – 23, Trento, Italy,

Aug 2011

Franch, X., Carvallo, J.P. 2003. Using quality models in

software package selection. IEEE Software, vol. 20(1),

pp.34–41

QDSL-QUALITYDOMAINSPECIFICLANGUAGEFORCLOUDCOMPOSITEAPPLICATIONS-ShortResearch

Paper

233
