IT-AS-A-SERVICE FOR BUILDING VIRTUAL RESEARCH

ENVIRONMENTS

Bastian Roth, Matthias Jahn and Stefan Jablonski

University of Bayreuth, Universitaetsstrasse 30, Bayreuth, Germany

Keywords: IT-as-a-Service, Virtual Research Environment, Resource Classification, Cloud Computing, Applied Meta

Modeling.

Abstract: Virtual research environments are IT systems which support scientists in their daily workflow. Since there is

a great number of different research domains, the quantity of utilized applications and hardware resources is

immense. In the following, we present a solution how potentially each kind of IT resource like computing

power, storage space, desktop applications and web applications can be integrated in form of services (IT-

as-a-Service). The composition of certain services defines a scientist’s personal virtual research

environment.

1 INTRODUCTION

Virtual collaboration is an important aspect for the

success of scientific projects, especially if

participating researchers are distributed over the

whole globe (Hey and Trefethen, 2002). A common

and widely-accepted solution is exchanging

documents by means of a file server or email

communication. Setting up and managing a file

server manually, for instance, is an error-prone and

time-consuming task, notably for IT laymen. So, an

automatic solution is required. Since data sharing is

just one part of a scientist’s daily workflow, further

challenges also need to be considered. Thus, we

interviewed scientists out of many different research

areas and discovered the need to have one integrated

platform which assists researchers in their daily

workflow. We identified the following three

challenges and simultaneously three corresponding

classes of IT resources to support (for more details,

see section 2):

• Easy access to services of domestic university

(mainly web applications): Especially when

scientists start to work at an academic institution

they often do not know which kinds of services

are offered to them by this institution. According

to our experience, in most cases, there is even no

single entry point to access all proffered services.

Consequently, with our solution we want to

provide such a single entry point.

• Further use of existing, in several cases domain-

specific applications (mainly desktop

applications): Since most researchers utilize

dedicated software products, it is important to

provide access to such kinds of applications as

well.

• Support of collaboration, in particular

comfortable exchange of files (e.g. using

network storage)

Since our university is a global player in African

studies, we also have to consider requirements

which stem from another use case. Thereby, African

scientists come to the university for a certain period

of time and they directly want to work within the

same environment like domestic researchers. This

yields the following two challenges:

• Easy usage of the existing infrastructure by

visiting scientists, i.e. access to already available

resources like group calendars, file servers etc.

As one can see, this challenge is quite similar to

the first and third one explicated before.

• Possibility to use the same applications like

domestic researchers, i.e. well-equipped

computers are required (virtual machines

together with certain software): Oftentimes,

visiting scientists even arrive without any laptop

such that they need to utilize local available

computers. Understandably, these computers are

not optimally equipped according to the visiting

234

Roth B., Jahn M. and Jablonski S..

IT-AS-A-SERVICE FOR BUILDING VIRTUAL RESEARCH ENVIRONMENTS.

DOI: 10.5220/0003913602340239

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 234-239

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

scientist’s requirements and sometimes also

include outdated hardware. Using virtualization

techniques could skirt this out-of-date issue

because computing power and storage space is

provided by a virtual machine which then is

accessed remotely.

These challenges are addressed by offering

particular services in a Virtual Research

Environment (VRE) as already explained in (Roth et

al., 2011). In that, a service encapsulates each above

mentioned IT resource (virtual machine, network

storage, desktop applications, and web applications)

which should be integrated and utilized within a

VRE. That is why one needs to ensure generic

applicability. Existing VRE solutions do not provide

that because they are restricted to certain research

domains (Carusi and Reimer, 2010).

In (Roth et al., 2011) a high level solution

proposal for a framework to build personal VREs

with generic applicability is given, too. Below, we

go into greater detail by focusing on Resource and

Service layer, and thereby we present how generic

applicability can be achieved. At first, IT resources

are classified according to particular characteristics

and after that we present a short overview of existing

solutions and their unsolved issues. In chapter 5, we

describe our solution in two steps: At first, we

present the similarities of resources and how they

can be classified. Afterwards, we show how

resources can be integrated by using services as

wrappers for them. Finally, we conclude our work

and take a short outlook of our future tasks.

2 RESOURCE CLASSIFICATION

According to the requirements mentioned in the

introduction, the resources have to be classified to

reduce integration effort. Generally, resources can

be categorized into software and hardware. In both

categories the resources can be further subdivided

into two classes according to the feasibility of access

using web technologies. That results in the following

classification. On the one hand, there are software

resources that can be divided into:

• Web applications which directly provide a web

interface that is typically accessible via HTTP,

and

• Desktop applications which do not provide a

direct way to access them via the web. This can

be solved by dint of separate tools that stream

those applications to the user (e.g. ssh -x, remote

desktop protocol). Operating systems are also

assigned to this class because they can be

accessed in the same way.

On the other hand, there are hardware resources

which we again separate into two classes:

• Virtual machines that encapsulate computing

power as well as storage space which both

cannot be used directly. Therefore, an operating

system has to be installed and the applications

have to be streamed as mentioned for desktop

applications. This class of resources gives a

possibility to provide a personal desktop for

visiting scientists on the basis of virtualization

techniques.

• Network storage which, theoretically, is also

viable using a virtual machine. However, this

would be a waste of computing power because it

is not needed at this point. Instead, lightweight

solutions for providing network storage (e.g.

provided by NetApp) are utilized that provide

typical web protocols (NFS, FTP, WebDAV etc.)

to directly offer the network storage to the user.

3 RELATED WORK

As shown in the previous section we discovered four

types of resources that have to be integrated into our

platform. For desktop applications, this can be done

by porting them to web applications using

JavaScript, HTML and other web technologies. This

approach is also followed, for instance, by Google

with Google Docs (Google Inc.) or by Microsoft

with Microsoft Office Web Apps (Microsoft

Corparation, 2010). Both provide office

functionality in the web. But these ports of desktop

applications involve great efforts because the whole

GUI or in the worst case the whole applications

needs to be re-implemented. Thus, it is only

applicable for resources that are utilized by many

users. For highly specialized resources as we often

meet in research environments, this approach is not

sufficient.

Another practice is to use Web Services (W3C)

to access resources in a well-defined way. Thereby,

messages and data are transported over an interface

(Stal, 2002). An example for using Web Services to

define services can be found in (Foster et al., 2002)

where GridServices are specified by a set of

interfaces as WSDL port types. Web Services

provide a way to make resources available via the

internet, but it is not suitable for our requirements

because they do not provide a GUI to access the

service. So, they are just a way to facilitate

IT-AS-A-SERVICEFORBUILDINGVIRTUALRESEARCHENVIRONMENTS

235

communication between computers. In (Turner et

al., 2003) they also pick up the Web Service idea to

make existing software available within the web, but

afresh only for computers and not for humans.

Once again, a similar approach is followed by

the popular cloud computing providers like Amazon

and Microsoft. Amazon Web Sevices (Amazon Web

Services LLC, 2010) provide a possibility for

implementing an application against a Web Service

interface and thus it supplies functionality that can

be used by software developers. Microsoft Windows

Azure (Chappell, 2009) also provides a Web Service

API for different concerns, similar to Amazon’s

offerings. Computation and storage can primarily be

rent by users. All in all, cloud providers support an

easy way to access web applications, virtual

machines and also storage, but they focused on

supporting developers, especially regarding the two

latter ones. However, our services are completely

directed to the end-user. That is why this approach is

not suitable for our above mentioned challenges.

Additionally, there are solutions to make desktop

applications and the desktop itself available via the

internet. They are able to stream GUIs of desktop

applications via a security socket. Popular examples

are ssh, Microsoft remote desktop protocol and

Oracle Secure Global Desktop. These approaches

do not support any possibility for integrating other

resources like web applications or virtual machines.

Table 1: Comparison of available approaches.

Web

Apps

Desktop

Apps

Storage

Virtual

Machines

Cloud

provider

+ - + +

Web Services

- - + +

Application

streaming

- + - -

In summary, all presented approaches are limited

to a certain kind of resource type they support (Table

1). Cloud providers principally fulfill a couple of our

requirements, but they do not allow for integrating

existing desktop applications in a rentable way for

highly specialized software. Moreover, the different

offerings are mainly targeted to developers and not

to common users which are mostly IT laymen. The

Web Service technology provides a possibility to

share data over several computers in a well-defined

way. Hence, they are a popular appliance to make

virtual machines or storage available (for other

computers) via the internet. But as mentioned above,

they do not provide a user-friendly GUI. Thus, IT

laymen are not able to access them in a convenient

way. Furthermore, streaming applications just

address desktop applications and do not provide

solutions for further resource types.

4 RESOURCE INTEGRATION

One of the main challenges for our framework to

solve is to provide an easy way to integrate existing

IT resources. Since existing resources generally

cannot be adapted, we need to see them as black

boxes. So, they have to be integrated by means of

corresponding wrappers which have to be specified,

implemented and added to our system. We call these

wrappers services because they provide functionality

of the IT resources in the VRE as a service (IT-as-a-

Service (Lin et al., 2009)). To define the structure of

such a service, we have to cover all classes of

resources that we presented in section 3.

4.1 Similarities between Resource

Classes

Our first step is to extract similarities of the four

different resource classes that must be handled by a

service. If one wants to utilize and accordingly

instantiate a resource, a well-defined set of

information (data) has to be specified before. This

can be realized by defining associated meta data for

the resource. Those meta data can be seen as a

template for the resources and thus we call it

resource template. Examples for resource templates

are setup bundles or web service interfaces which

are used, for example, to create virtual machines,

storage spaces or web application accounts.

Each resource must be set up before first usage

and therefore, a corresponding template must be

provided. After setup, most resources can be

modified according to evolved user requirements. If

resources are not needed any more they can be

"disposed". After setup and before disposing, a

resource may be started and stopped. This feature is

not necessarily supported by every resource.

Summing up, resources have a common lifecycle

which has to be handled by the corresponding

service. In addition, the lifecycle constitutes one of

three functional aspects when describing the

existence of a resource. It is called the state-based

aspect.

In some cases, resources need to interact with

other resources. These relationships can be divided

into two different types: Firstly, resources can

depend on other resources (dependency

relationship), i.e. one resource needs another

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

236

resource for successful installation or execution.

This kind of relationship affects a resource’s

lifecycle. With it, resources can build hierarchies,

for example Microsoft Office depends on Microsoft

Windows which again depends on a computer with

x86-architecture (e.g. represented by an according

virtual machine). Dependency relationships can also

be found in many web applications (project

management systems, wikis, groupware etc.) that

depend on a Lightweight Directory Access Protocol

(LDAP) (Koutsonikola and Vakali, 2004) and/or a

database. A second relationship between resources is

the usage relationship which represents loosely

coupling of resources. Thereby, one resource does

not necessarily need the other resource for execution

and hence, the lifecycle of both resources do not

affect each other. A common example for that

relationship is the integration of the EndNote

(Thomson Reuters) plugin into Microsoft Word.

Both applications work independently, but by means

of the plugin mechanism they can benefit from each

other.

For the first setup or if reconfiguration is

possible a resource contains a set of properties

which can be set or manipulated. Examples for

properties are installation directory, user credentials

for an initially required super user and particular

relationships to other resources. Properties and

relationships form the second functional aspect, the

data based aspect.

Each resource possesses certain functionality

which is provided via a well-defined interface, so

called operations. In some cases, operations need or

accept further data that mainly is delivered in form

of parameters. In particular, a couple of desktop

applications can handle parameters, e.g. Microsoft

Word can be invoked in combination with a

document filename. Hence, it is necessary to know

which kind of parameters a resource can handle to

check whether the parameter’s type is valid. A

special parameter type which must be considered

separately is an authentication token because with it,

single sign-on can be facilitated. This scenario is

especially useful when using web applications in

combination with our system. Then, users merely

have to login one time when accessing their personal

virtual research environments which results in

generating an authentication token. Afterwards, this

token can be used for further authentications at the

different utilized services, but without entering the

user credentials again. Operations are the building

blocks of the behavioral aspect which represents the

third and last functional aspect.

4.2 Services as Resource Wrappers

According to these circumstances given by the

resource layer, we now specify how a concrete

resource can be integrated in our system as a service

in a generic way. This takes place in the service

layer which is the next abstraction stage after the

resource layer. For more information about the

resource layer’s constitution see (Roth et al., 2011).

First of all, we give a definition of our service

comprehension: A service wraps an IT resource to

provide a standardized interface (used by our

system) which captures the aforementioned resource

similarities (IT-as-a-Service).

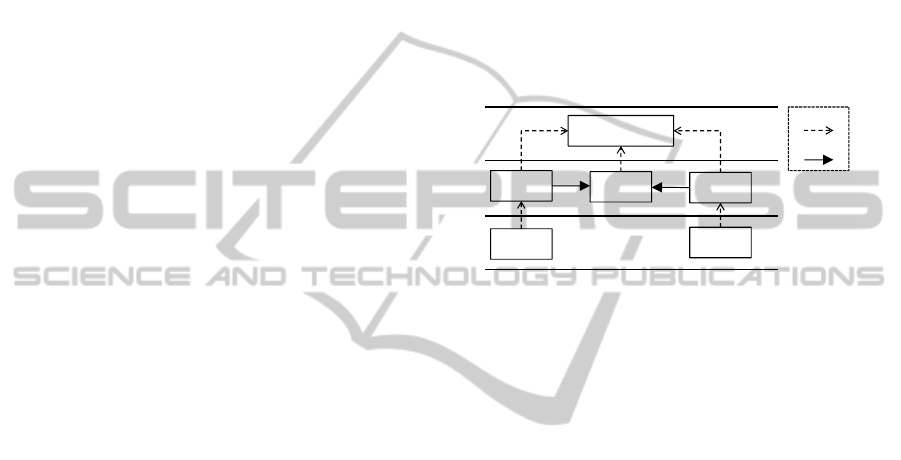

Figure 1: Abstract service description using meta

modeling.

To concretely describe our understanding of

services, we resort to meta modeling (Clark et al.,

2008) as a basic principle (Figure ) because a meta

model provides information about a designated set

of models which is also mentioned in the definition

of a meta model by Seidewitz: “A metamodel makes

statements about what can be expressed in the valid

models of a certain modeling language”. (Seidewitz,

2003) Due to the reason that each model can make

statements about other models, a model itself can be

seen as a meta model as well. We explicitly use this

fact to constitute the base of the service

specification: A Service is an abstract concept that

provides fundamental infrastructural functionality.

Specializations of a service may provide some

resource-specific structure and functionality that

concerns the similarities above. How these

similarities are captured is defined by the

ServiceType concept at M2 because concrete

services are instances of this concept. So, M2

represents the meta model for M1. This instanceOf

relationship between service and service type is

comparable to the relation between class and object

in object-oriented programming languages

(Armstrong, 2006). According to MOF (OMG,

2006), this is the only valid relationship for elements

at a certain meta level to elements at the next higher

level. An instance of a concrete service (like

ServiceA and ServiceB) supplies access to a concrete

ServiceType

Service

ServiceB

ServiceA

:ServiceA

:ServiceB

instanceOf

extends

IT-AS-A-SERVICEFORBUILDINGVIRTUALRESEARCHENVIRONMENTS

237

resource (installation, invocation of provided

operations, modification of properties,

reconfiguration etc.). Hence, M1 is the meta model

for M0 and therefore, attributes declared by concrete

services can be assigned by associated instances

within M0.

Based on this approach, in the following, we

detail the specification of the service interface more

precisely. Both, service and service instance contain

a unique name for identification purposes on

scientist’s site.

Furthermore, a service has to be configurable

and consequently needs to have properties. The

possibility to declare properties which can be

utilized by the framework is constituted by the

association between ServiceType and Property at

level M2. Thus, properties can be defined at M1 and

the corresponding assignment of values takes place

at M0. These values define the state of the Service.

Since they correspond to properties of the

underlying resource in some way, modifying these

values certainly influences the state of the

underlying resource, too.

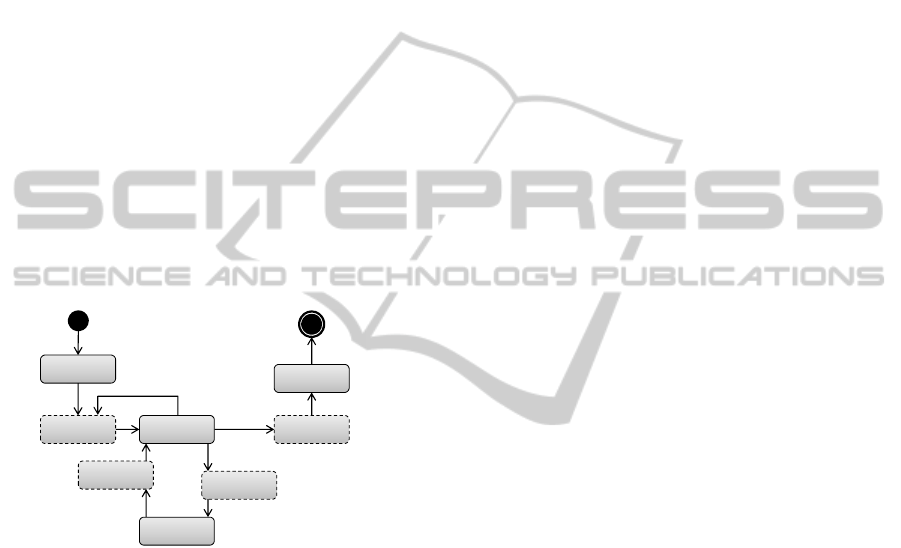

Figure 2: State diagram of service lifecycle.

Analog to the properties, a service must provide

an interface that can be used by the system to

address some of the resource’s functionalities in the

form of operations. They are also defined at M1 as

instances of Operation. Delegation of operation

invocations to the encapsulated resource accesses its

functionality. This must be specifically implemented

in the corresponding method by the developer who

integrates a certain resource into the VRE system.

However, with this concept, it is possible to define

system independent methods as well. Then, such

methods must not be instances of Operation.

However, some methods like the ones that

control the lifecycle (onPrepare(), onDispose() etc.),

have to be implemented by every service. The

generic service lifecycle is shown in Figure in form

of a state diagram. According to that, each service

starts with INITIAL state where the user has to

assign proper values to the required properties. After

that, she starts the PREPARING step which is

potentially intended to be a long running process. In

case of a wrapped desktop application, this

represents the installation. After successful

completion, the state automatically passes into its

successor state. That is true for all states with a

dotted border. If a service resides in PREPARED

state, it can get into PREPARING state again after

reconfiguration. Once more, in case of an underlying

desktop application, this mates with adding or

removing features by means of the setup program.

RUNNING state mainly is relevant when wrapping

virtual machines or desktop applications because it

tells whether a resource currently is executed or not.

Since starting and stopping of web applications often

is not necessary or even not allowed, for the

corresponding service this state is superfluous. If a

service is not needed any more, it can be released

and then it gets into DISPOSED state. In case of

encapsulated desktop applications, that forces an

attendant uninstallation. All state transitions must be

implemented accordingly by every concrete service.

5 CONCLUSIONS AND

OUTLOOK

In this article, we present a solution that allows for

the integration of arbitrary IT resources (primarily

web applications, desktop applications, virtual

machines and storage spaces) into a framework to

build virtual research environments. As mentioned

above, a scientist’s personal VRE is constituted by a

set of projects in which she participates with a

certain role (e.g. project leader). Each project, in

turn, consists of a number of service instances that

represent wrappers for concrete occurrences of IT

resources (e.g. an instance of a virtual machine or a

concretely installed office application). Due to the

generic applicability of our solution, the framework

handles resources as black boxes but with a well-

defined interface implemented by the corresponding

services.

A service’s interface can be classified into three

functional aspects of which the first one is

mandatory. It is the state based aspect that

encapsulates the lifecycle of the underlying resource.

The second one is called data based aspect and

contains all relevant data for performing certain state

transitions concerning the lifecycle (e.g. parameters

needed for installation like the target path). The

behavioral aspect is the last one; it comprises all

INITIAL

DISPOSED

RUNNING

prepare()

dispose()

start()

stop()

reconfigure()

PREPARING DISPOSING

STARTING

STOPPING

PREPARED

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

238

operations which a service provides. For specifying

the generic service interface, we use concepts

stemming from the meta modeling approach.

Thereby, we define the so called service type which

represents the meta class for each service. Again, a

service itself constitutes the meta class for

corresponding service instances.

Programmatically, we have implemented this

meta hierarchy by using annotations or alternatively

external configuration files. As an example, the

usage of XML files to describe interfaces is

explained in (Bramley et al., 2000). For a proof of

concept, we implemented a prototype of the

proposed VRE framework in context of the African

Studies use case. Therefore, we supply services for

several resources, i.e. concretely for virtual

machines using VMware vSphere, network storage

with NetApp, Microsoft Windows Server 7 and

Microsoft Office 2010.

Future steps concern the generic applicability

challenge again, i.e. integration of further resources

is the major task. This addresses widely-used

desktop applications (e.g. existent office tools) as

well as groupware solutions already provided by the

university.

ACKNOWLEDGEMENTS

The proposed framework is called ViATOR which is

also the name of a research project funded by the

Deutsche Forschungsgemeinschaft (INST 106535/2-

1). So, we thank this institution which has kindly

facilitated our work.

REFERENCES

AMAZON WEB SERVICES LLC. 2010. Overview of

Amazon Web Services. [Accessed 06.12.2011].

Armstrong, D. J. 2006. The quarks of object-oriented

development. Communications of the ACM, 49, 123-

128.

Bramley, R., Chiu, K., Diwan, S., Gannon, D.,

Govindaraju, M., Mukhi, N., Temko, B. & Yechuri,

M. A component based services architecture for

building distributed applications. In: 9th International

Symposium on High-Performance Distributed

Computing, 2000 Pittsburgh, USA. Published by the

IEEE Computer Society, 51.

Carusi, A. & Reimer, T. 2010. Virtual research

environment collaborative landscape study.

Chappell, D. 2009. Introducing the azure service platform.

Clark, T., Sammut, P. & Willans, J. 2008. Applied

metamodelling: a foundation for language driven

development. CETEVA.

Foster, I., Kesselman, C., Nick, J. M. & Tuecke, S. 2002.

The Physiology of the Grid An Open Grid Services

Architecture for Distributed Systems Integration.

Journal Computer, 35.

GOOGLE INC. Google Docs [Online]. Available: http://

docs.google.com/ [Accessed 06.12.2011].

Hey, T. & Trefethen, A. E. 2002. The UK e-science core

programme and the grid. Future Generation Computer

Systems, 18, 1017-1031.

Koutsonikola, V. & Vakali, A. 2004. LDAP: Framework,

practices, and trends. Internet Computing, IEEE, 8, 66-

72.

Lin, G., Fu, D., Zhu, J. & Dasmalchi, G. 2009. Cloud

computing: IT as a service. IT Professional, 11, 10-13.

MICROSOFT CORPARATION 2010. Microsoft Office

Web Apps Product Guide.

OMG 2006. Meta Object Facility (MOF) Core

Specification. Version 2.0.

Roth, B., Hecht, R., Volz, B. & Jablonski, S. 2011.

Towards a Generic Cloud-based Virtual Research

Environment. In: 2nd IEEE International Workshop

on Applied Cloud Computing, Munich.

Seidewitz, E. 2003. What models mean. Software, IEEE,

20, 26-32.

Stal, M. 2002. Web services: beyond component-based

computing. Communications of the ACM, 45, 71-76.

THOMSON REUTERS. EndNote - Bibliographies Made

Easy [Online]. Available: http://www.endnote.com/

[Accessed 06.12.2011].

Turner, M., Budgen, D. & Brereton, P. 2003. Turning

software into a service. Computer, 38-44.

W3C. Web Services @ W3C [Online]. Available: http://

www.w3.org/2002/ws/ [Accessed 06.12.2011].

IT-AS-A-SERVICEFORBUILDINGVIRTUALRESEARCHENVIRONMENTS

239
