transmitter to measure and a display panel
that supplies exact lectures in flow scale 3
to 38 LPM (FlowMeters.com LLC, 2003),
(Georg Fischer Signet LLC, 2011).
• The pressure sensor type Strain Gauge
(Figure 3c), based on the principle of wire
resistance change. It has the pressure
variation proportional to the elastic
deformation, traction or compression,
subjected to the wire. The sensor offers
digital display in 9 pressure units: psi,
mmHg, Pol Hg, ft H
2O, MPa, KPa, kgf/cm²
e Bar (Ashcroft, 2006), (Wilson, 2003).
a) b) c)

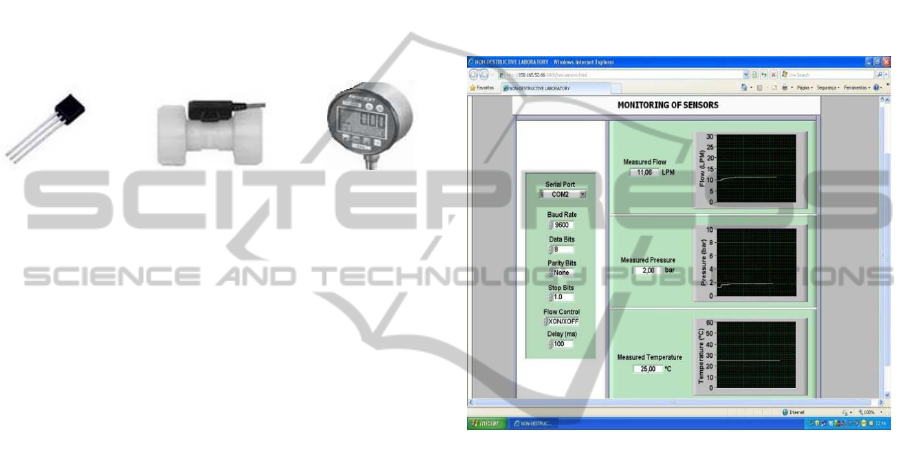

Figure 3: a) LM35 temperature sensor; b) Flow sensor
(Signet, model: 8550-1); c) Pressure sensor (Ashcroft,
model: 2274 XAO).

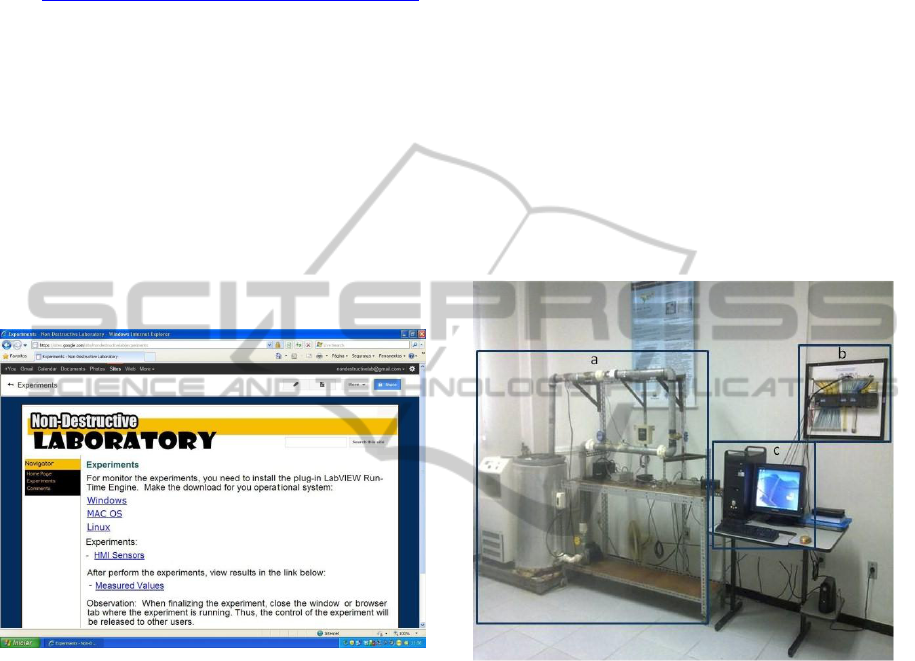

To execute the experiment, the student accesses
the Internet at the time scheduled with the teacher
and logs into his account in the Non-Destructive
Laboratory site. At LIEC, the experimental test
platform is turned on and the HMI developed in
LabVIEW 2009 is opened in the matrix computer by
the teacher.
During the execution of the experiment, the
student clicks at the link “HMI Sensors” present in
“Experiments” to display the HMI in the Web
Server. If the student does not have this graphical
software or this version used, it is necessary to
install the plug-in LabVIEW Run-Time Engine in
his computer in accordance with the operational
system used. The plug-in download can be done in
the “Experiments” page.
When the monitoring is finished, the student
closes the browser tab, so that the control of the page
will be released another student, and views the
measurements at the link “Measured Values”. If he
wants to share another links, files or doubts
associated to the subject of the realized experiment,
the student writes in the dialog box present at the
link “Comments”.
3 RESULTS AND DISCUSSIONS
The hypertext “Non-Destructive Laboratory” is still
in development phase. This page will be inserting in
the discipline of Electronic Instrumentation
Laboratory in the undergraduate degree in Electrical
Engineering from Federal University of Campina
Grande as e-learning. So that, the students learning
through contents is posed in the computer or Internet
and the teacher, use the Internet as means of
orientation, with intermediate classroom sessions.
The HMI presented in the site as shown in Figure
4 contains four frames: the frame at left hand side
refers to serial port configuration and the three
frames at the right hand side refer to the monitoring
of sensors, each one featuring a numeric indicator
associate the respective graphic.
Figure 4: The screen of the HMI developed at the link
“HMI Sensors”.
In addition, while the interface is running, it is
generated an n x 3 matrix, where the rows are the n
samples obtained and the 3 columns are the flow,
pressure and temperature measured, respectively.

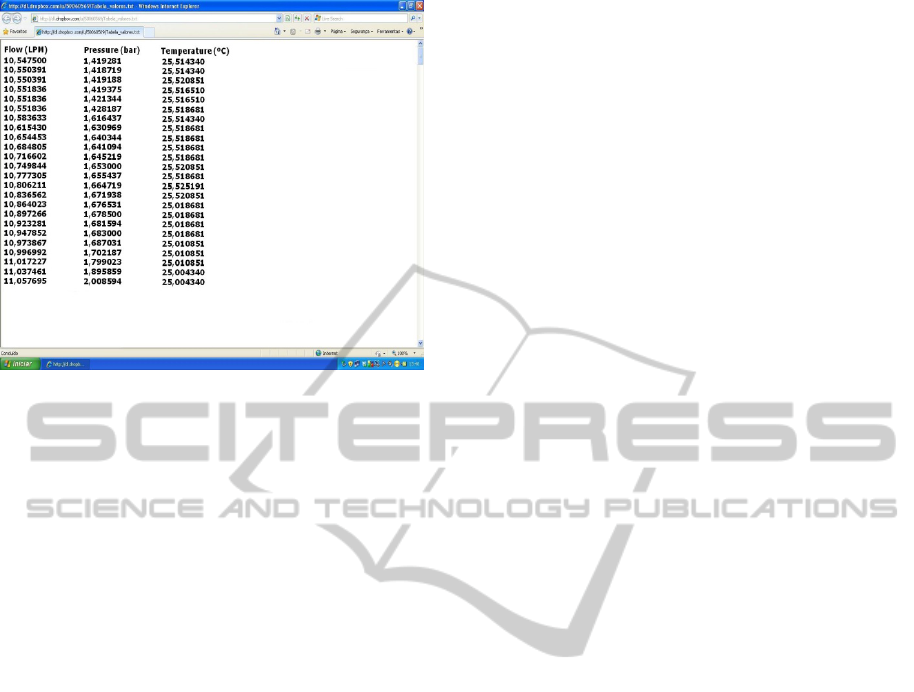

The measurements, viewed at the link “Measured
Values”, can be used by students to make a further
analysis about experiment realized as shown in
Figure 5.
There are many advantages of deploying a
remote engineering laboratory in an educational
environment. Such a strategy provides a way to
provide more hands-on time for engineering students
in an efficient, flexible and cost effective manner. In
other words, since equipment can be used more
efficiently with a remote access strategy, fewer
instruments are required to serve the same number
of students. This is especially true for electrical
engineering departments that may have limited
access to laboratories and higher cost test equipment
in particular (Popescu and Odbert, 2011).
