A NOVEL MULTI-TENANT ARCHITECTURE DESIGN

FOR SOFTWARE AS A SERVICE APPLICATIONS

Haitham Yaish, Madhu Goyal and George Feuerlicht

1,2

Faculty of Engineering and Information Technology, University of Technology, Sydney,

P.O. Box 123, NSW 2007, Broadway, Australia

Faculty of Information Technology, University of Economics, Prague, Czech Republic

Keywords: Software as a Service, Multi-tenancy, Database, User Interface, Access Control, Configurability, Metadata,

SaaS Architecture.

Abstract: Software as a Service (SaaS) is a web based delivery model which permits a third party provider offering

software services to unlimited number of tenants based on multi-tenant architecture design. Multi-tenancy is

the primary characteristic of SaaS, it allows SaaS vendors to run a single instance application which

supports multiple tenants on the same hardware and software infrastructure. This application should be

highly configurable to meet tenants’ expectations and business requirements. Nevertheless, configuring

multi-tenant application is hard and complex task to accomplish. This paper is generally focusing on SaaS

multi-tenancy in the context of providing a configurable architecture design to support multi-tenant

applications in designing and developing a configurable multi-tenant database schema, User Interface, and

access control. This novel configurable multi-tenant architecture design provides critical and fundamental

solution to the development of multi-tenant SaaS applications, once it is achieved it will be a vital

contribution to SaaS industry.

1 INTRODUCTION

Multi-tenancy is the primary characteristic of SaaS, it

allows SaaS vendors to run a single instance

application which supports multiple tenants on the

same hardware and software infrastructure. It can be

applied in four software layers: application,

middleware, virtual machine, and operating system

(Kwok et al. 2008). The application layer of SaaS has

a maturity model consists of four levels: (1) Ad

Hoc/Custom, (2) Configurable, (3) Configurable and

Multi-Tenant-Efficient, and (4) Scalable,

Configurable, and Multi-Tenant-Efficient (Frederick

and Carraro 2006; Hudli et al. 2009; Kwok et al.

2008). This paper will focus on the Configurable and

Multi-Tenant-Efficient Level. This maturity level

requires a multi-tenant aware design with single code

base and metadata service, which allows sharing of

resources across tenants and configuring how the

application appears and behaves, with the ability of

isolating and differentiating data, information,

configurations, and settings which belong to different

tenants. Multi-tenant aware application allows each

tenant to design different parts of application, and

automatically adjust its behaviour during runtime

without redeploy the application (Chong 2006).

Consequently, configuring multi-tenant aware

application is tenant self-service that typically

performs while the application in operation, to

minimize the system downtime, and allows tenant to

feel as if he/she is the only one using the application

(Mietzner et al. 2009).

Nevertheless, it is not always the case with SaaS

vendors to have a proper configuration capability in

multi-tenant SaaS applications. Therefore, it might

be ad-hoc and manual configuration practices (Kuo

et al. 2007) Moreover, developing SaaS multi-tenant

application is a complex process which requires

extra development work to satisfy each tenant

requirements and personalized needs (Yaish et al.

2011; Ying et al. 2010). Configuration is the most

challenging issue in multi-tenant architecture,

because it introduces significant complexities in

SaaS development, and involves longer development

lifecycle including implementation, testing, and

deployment (Chang et al. 2007; Wei et al. 2010; Wei

et al. 2008). Moreover, the current studies of SaaS

configurations are not sufficient in allowing SaaS

Yaish H., Goyal M. and Feuerlicht G..

A NOVEL MULTI-TENANT ARCHITECTURE DESIGN FOR SOFTWARE AS A SERVICE APPLICATIONS.

DOI: 10.5220/0003915800820088

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 82-88

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

vendors to create a multi-tenant application which

facilitates configuring SaaS tenants’ applications

(Hongbo et al. 2009; Kuo et al. 2007).

This paper proposes a novel multi-tenant SaaS

architecture design that in turn will provide a

programming model to simplify and speed up the

development of multi-tenant SaaS applications. This

architecture aims to provide: (1) a configurable

multi-tenant database schema design to enable SaaS

tenants create their own elastic database schema to

satisfy their business needs, (2) a method to solve

integrating shared tenant tables and virtual tenant

tables problem by making them work together to act

as one database, (3) a query optimizer method to

optimize the execution of virtual multi-tenant

database queries, (4) a configurable multi-tenant

user interface method for SaaS tenants to configure

their user interfaces according to their business

needs, (5) a user interface rendering method to

facilitates designing and developing run-time

execution solution that generates dynamic user

interface screens for particular tenant business

domain, and (6) an authentication and access control

method to authenticat the users of multi-tenant

application, as well as isolate and diffrentiate

accessing their user interfaces and databases.

The paper is structured as follows: Section 2

explores SaaS Multi-tenancy. Section 3 describes

our overview architecture. Section 4 describes our

conceptual architecture design. Section 5 is a

conclusion and discussion of future work.

2 MULTI-TENANCY

Multi-tenancy is the fundamental design approach

that improves the manageability of SaaS application

(Jansen et al. 2010), and allows its tenant to have his

user-experience as he/she is working on his own

system (Bezemer et al. 2010). It is an important

feature of SaaS application that can be used by

multiple tenants at the same time on a single

instance of software code (Menken & Blokdijk

2009; Samuel & Lopes 2009; Shao 2011).

2.1 SaaS Maturity Model

Multi-tenancy can be applied in four software layers:

application, middleware, virtual machine, and

operating system (Kwok et al. 2008). The

application layer has four levels of SaaS maturity

model. Level 1 - Ad Hoc/Custom: each tenant in this

level has a separate custom instance of SaaS

application which is hosted on the vendor servers,

the source code of this instance can be customized

according to a tenant needs. Level 2 - Configurable:

in this level the vendor hosts separate instances for

each tenant, each of these instances using the same

source of code. However, each instance may be

configured differently to meet tenant’s needs. Level

3 – Configurable and Multi-Tenant-Efficient: this

level allows the vendor to runs a single instance to

support multiple tenants, this single instance can be

configured differently by each single tenant and each

configuration will be designated for a tenant who

created it .Level 4 – Scalable, Configurable, and

Multi-Tenant-Efficient: in this level, the vendor

hosts multiple tenants with a high level of scalability

(Frederick and Carraro 2006; Hudli et al. 2009;

Kwok et al. 2008).

2.2 Multi-tenancy Architecture

Shao (2011) SaaS tenants usually share the same

software and in some cases the same database.

Accordingly, once multi-tenant vendors need to

increase multi-tenant architecture they should look

after Quality of Service (QoS) for one tenant from

being affected from the rest of the tenants. Shao’s

study describes multi-tenant architecture in four

aspects including: Resource isolation, Configuration,

Security, and Scalability. First aspect, resource

isolation is significant for multi-tenant application,

because tenants sharing the same infrastructure and

software code. Second aspect, ensuring multi-tenant

application is highly configurable. Third aspect,

security is an issue due to sharing software code and

data between tenants. Last aspect, as discussed in the

SaaS Maturity Model in section 2.1, in order to

make level 1 and level 2 a scalable levels, a

significant software design and implementation need

to be done. This is not the case for Level 3, since it

allows all SaaS tenants to use the same single

instance. Nevertheless, if this level doesn’t have an

infrastructure to dynamically create multiple copies

to provide multi-tenant service, then its scalability

will be limited. In our proposed multitenant

architecture design we are focusing on Level 3 and

covering the following aspects: resource isolation,

configuration, and security.

2.3 Multi-tenant Configuration

Configuration in multi-tenant applications allows

SaaS vendors to run a single instance to support

multiple tenants with configurable metadata, which

provides means of configuration for multi-tenant

application, to satisfy their business needs, and to

ANOVELMULTI-TENANTARCHITECTUREDESIGNFORSOFTWAREASASERVICEAPPLICATIONS

resolve the problem of different requirements for

several tenants who may use a particular business

domain application. This maturity level requires a

multi-tenant aware design with single code base and

metadata service, which allows sharing resources

across tenants, and configuring how multi-tenant

application appears and behaves with the ability of

isolating and differentiating data, information,

configurations, and settings which belong to

different tenants. Multi-tenant aware application

allows each tenant to design different parts of

application, and automatically adjust its behaviour

during run-time execution without redeploy the

application (Chong 2006).

3 OVERVIEW ARCHITECTURE

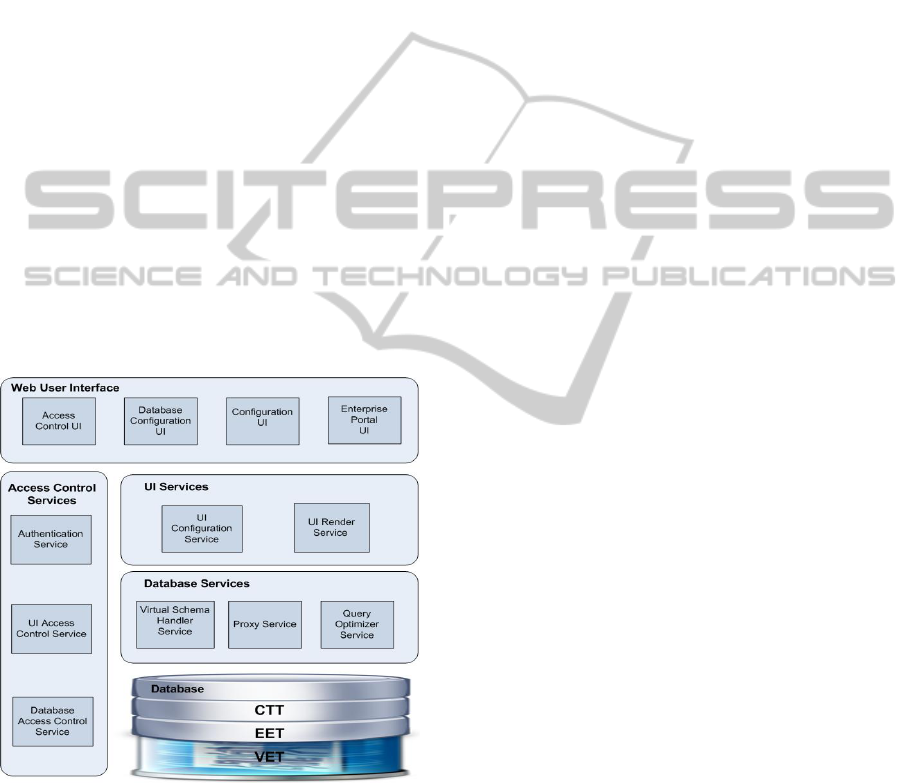

The overview architecture of the system proposed in

Figure 1 depicts the main five artifacts including:

web user interface, user interface services, database

services, access control services, and database. The

database comprises of three types of tables:

Common Tenant Tables (CTT), Elastic Extension

Tables (EET), and Virtual Extension Tables (VET).

Figure 1: Overview Architecture.

This architecture designed based on the three-tier

architecture design. The web user interface is the

presentation tier, the services are the application tier,

and the database is the data tier.

4 CONCEPTUAL

ARCHITECTURE DESIGN

In this section we are proposing a conceptual

architecture design which permits SaaS vendors to

implement a single instance application which

supports multiple tenants on the same hardware and

software infrastructure. This single instance

application has flexibility to configure three multi-

tenant application aspects: database model, user

interface, and access control. This architecture

design can be used to implement any business

domain in multi-tenant application like: Customer

Relationship Management (CRM), Supply Chain

Management (SCM), Human Resources (HR), or

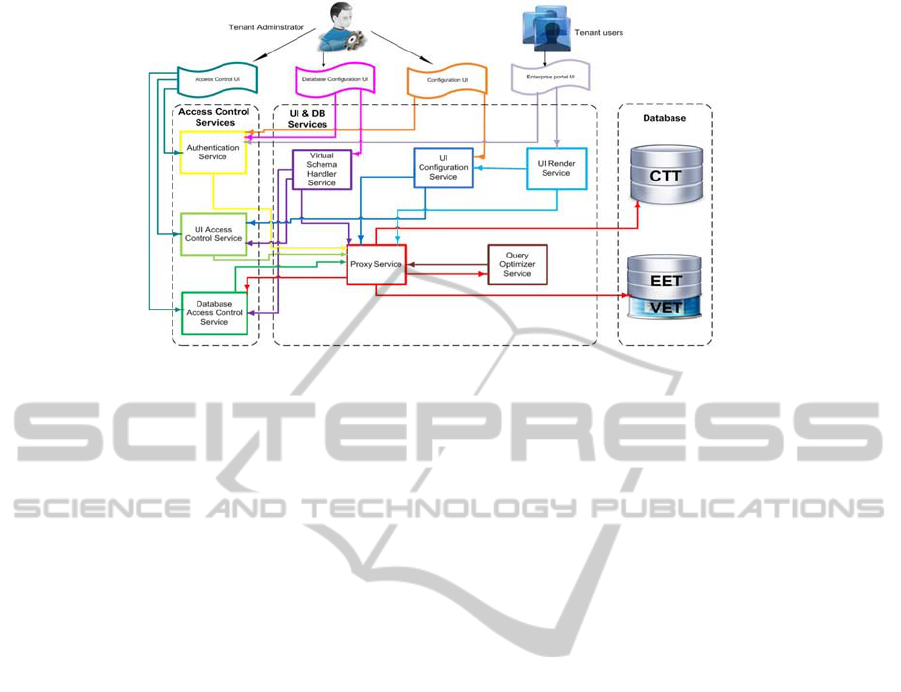

any other business domain. Figure 2 depicts the

essential elements of the conceptual architecture

design at a very high level.

4.1 Configuring Multi-tenant Database

In our conceptual architecture design we propose

EET technique, and three database services that we

will discuss in the following subsections.

4.1.1 Database Schema Design

Based on reviewing and understanding existing

multi-tenant database schema designs, and based on

our proposed novel multi-tenant database schema

mapping technique that we published in a previous

conference paper, we are proposing our multi-tenant

architecture design to enable SaaS tenants create

their own elastic database schema during multi-

tenant application run-time execution to satisfy their

business needs. Our schema mapping technique

comprises of three types of tables Elastic Extension

Tables (EET), Common Tenant Tables (CTT), and

Virtual Extension Tables (VET) (Yaish et al. 2011).

 Elastic Extension Tables (EET):

These tables propose a new way of designing

and creating an elastic tenant database which

consists of two types of tables, first type is

Common Tenant Tables (CTT), and second type

is Virtual Extension Tables (VET) which can be

used to satisfy each specific tenant need. For

example, let us assume that “tenant” table is one

of CTT which can be used and shared by all

tenants to store their information, and VET can

be an extension to the “tenant” table that may

include more columns which are not already

included in the “tenant” common table (Yaish et

al. 2011).

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

Figure 2: Conceptual Architecture Design.

 Common Tenant Tables (CTT):

These tables are shared between tenants who are

using a same single instance multi-tenant

application. These are physical tables which can

construct a base schema of a particular business

domain application. For example, a multi-tenant

application for sales business domain may have

a sales schema tables like: sales person,

customer, product, sales fact, and any other

sales tables. These tables have columns which

are used by most of tenants, therefore these

tables considered as CTT (Yaish et al. 2011).

Also, CTT contain two sets of tables: (1) user

interface tables to store different tenant’s user

interface settings, preferences, field’s

validations, and business rules. (2) Access

control tables to store different tenant’s access

control settings, preferences, for the data tier,

and the presentation tier.

 Virtual Extension Tables (VET):

These are virtual tables that can be created,

updated, or deleted by storing records in, or

removing records from, the EET to extend

tenants business domain CTT, or create non-

business domain related tables which satisfy

tenants business requirements.

The aim of these virtual tables is to be used like any

other physical tables by having virtual primary keys,

virtual relationships with VET or CTT, and virtual

indexes (Yaish et al. 2011).

4.1.2 Database Services

This step describes the database service designs that

will be used to allow tenants configuring and

managing their database. These services include:

Proxy Service, Query Optimizer Service, and Virtual

Schema Handler Service.

 Proxy Service:

After designing the novel EET multi-tenant

database mapping technique that enables tenants

to create their own elastic database schemas or

VET, we are proposing this service to generate

and execute tenants’ queries by using codebase,

CTT, and VET. This service has two objectives:

(1) enables multi-tenant application to retrieve

records from VET, or retrieves combined

records from two or more tables of CTT and/or

VET, by using fields’ values which are common

between these tables. (2) Enables the rest of

proposed services to invoke this service and

access database tables (CTT, EET, and VET)

through it. This service consumes different

services and database tables including: Query

Optimizer Service, Database Access Control

Service, CTT, EET, and VET.

Also, it is exposed to be used by services including:

Query Optimizer Service, Virtual Schema Handler

Service, User Interfaces Configuration Service, User

Interface Render Service, Authentication Service,

User Interfaces Access Control Service, and

Database Access Control Service.

 Query Optimizer Service:

A query optimizer service proposed in the

architecture design to optimize performance,

speed up query retrievals, and use the most

efficient way to execute a query by using virtual

primary keys, virtual relationships between CTT

and/or VET, virtual indexes, efficient executing

plans, efficient logic, and join algorithms. This

service consumes Proxy Service to access the

ANOVELMULTI-TENANTARCHITECTUREDESIGNFORSOFTWAREASASERVICEAPPLICATIONS

functionalities that it provides, and access

through these functionalities CTT, EET and

VET.

 Virtual Schema Handler Service:

This service configures tenant database tables,

by updating CTT, and on the other hand by

creating, updating, or deleting VET. It is a

service that exposed to be used by Database

Configuration User Interface screens, these

screens are used for configuring tenant database

CTT and VET. This service consumes other

services including: (1) User Interface Access

Control Service, to use user interfaces access

control settings and preferences to manage

accessing Database Configuration User

Interface screens, (2) Database Access Control

Service, to use database access control settings

and preferences to manage accessing Database

Configuration User Interface screens, and (3)

Proxy Service, to retrieve and modify tables

structures and fields details from one or more

tables of CTT and/or VET.

4.2 Configuring Multi-tenant User

Interface

Since there are complexities in developing an easy

to use multi-tenant user interface, a configurable

user interface proposed in our architecture design to

create an elastic user interface that can be associated

with CTT, EET, and VET. This user interface can be

configured by tenants’ administrator and rendered

for tenants’ users dynamically and instantly without

writing any code during runtime execution. This

user interface design comprises of two user interface

services: User Interface Configuration Service, and

User Interface Render Service.

 User Interface Configuration Service:

Several configuration user interface screens are

consuming this service to configure multi-tenant

application user interface by configuring its

business domain pages, menus, and fields. This

service is exposed to be used by Configuration

User Interface screens, and User Interface

Render Service. It is also consumes two other

services including: (1) User Interface Access

Control Service, to use user interface access

control settings and preferences for

Configuration User Interface screens, and (2)

Proxy Service, to retrieve tables structures and

fields details from one or more tables of CTT

and/or VET to use them in configuring user

interface screens and fields.

 User Interface Render Service:

This run-time execution service generates

Enterprise Portal User Interface screens by

using codebase and configuration data, these

screens will be rendered for a specific business

domain application which can be dynamically

created by tenants in order to be used for their

businesses. This service consumes other

services including: (1) User Interface

Configuration Service, to use settings and

preferences of configured user interface screens,

and (2) Proxy Service, to render combined

records from two or more tables of CTT and/or

VET into Enterprise Portal User Interface

screens.

4.3 Configuring Multi-tenant Access

Control

This section describes the Access Control design

that can be implemented by vendors and used by

tenants to set up accounts for their users who interact

with multi-tenant application. These accounts can be

authenticated by using authentication functionality.

Typically, multi-tenant applications accessing

resources and business functions by using roles that

map to specific functions or system features. Each

role can have one or more permission which may be

assigned to one or more tenant’s users to enable

them perform actions according to tenant’s business

rules. The access control design comprises of three

services: Authentication Service, User Interface

Access Control Service, and Database Access

Control Service.

 Authentication Service:

This service is exposed to be used by user

interface screens to authenticate tenants’

administrators and tenants’ users when they

interfaces screens include: Enterprise Portal

User Interface, Configuration User Interface,

Access Control User Interface, and Database

Configuration User Interface. This service only

consumes Proxy Service to access through it the

authentication CTT.

 User Interface Access Control Service:

This service is exposed to be used by Access

Control User Interface screens to allows

tenant’s administrator to create roles and

permissions and map them to tenant’s users.

Also, it is exposed to be used by two other

services including: User Interface

Customization Service, and Virtual Schema

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

Handler Service. This service only consumes

Proxy Service to access through it the user

interface access control CTT.

 Database Access Control Service:

This service is exposed to be used by Access

Control User Interface screens, these screens are

used to create roles and permissions and map

them to tenant’s users. Also, there are two

services consume this service including: Proxy

Service, and Virtual Schema Handler Service.

This service only consumes Proxy Service to

access through it the database access control

CTT.

4.4 User Interfaces

This section is divided into four sub sections:

Configuration User Interface, Enterprise Portal User

Interface, Database Configuration User Interface,

and Access Control User Interface.

 Configuration User Interface:

This is an administration user interface which

allows a tenant administrator to configure a

multi-tenant application user interface, by

configuring a business domain pages, menus,

and fields. Then, this user interface will be

rendered as an enterprise portal user interface.

This user interface consumes two services, the

first one is Authentication Service, to

authenticate tenant administrator when he/she

tries to login to this user interface. The second

one is User Interface Configuration Service that

discussed in section 4.2.

 Enterprise Portal User Interface:

This User Interface is a run-time execution

interface which is flexible and dynamic, and can

be rendered as per tenant configuration

discussed in section 4.2. This user interface

consumes two services, the first one is

Authentication Service, to authenticate tenant

administrator when he/she tries to login to this

user interface. The second one is User Interface

Render Service that discussed in section 4.2.

 Database Configuration User Interface:

This administration user interface allows a

tenant administrator to configure tenant

database tables, by updating CTT, and on the

other hand by creating, updating, or deleting

VET. This user interface consumes two

services, the first one is Authentication Service,

to authenticate tenant administrator when he/she

tries to login to this user interface. The second

one is Virtual Schema Handler Service that

discussed in section 4.1.2.

 Access Control User Interface:

This administration user interface allows a

tenant administrator to configure tenant’s users

and other administrators roles and permissions

which enable them accessing their database and

user interfaces. This user interface consumes

three services, the first one is Authentication

Service, to authenticate tenant administrator

when he/she tries to login to this user interface.

The second one is User Interface Access

Control Service that discussed in section 4.3.

The last one is Database Access Control Service

that discussed in section 4.3.

5 CONCLUSIONS AND FUTURE

WORK

Designing and developing a configurable multi-

tenant application is hard, complex, and it needs

extra work and time to be developed. The current

studies of SaaS configurations are not sufficient in

allowing SaaS vendors to create a multi-tenant

application, which facilitates for their tenants

configuring their application. Based on Level 3 of

SaaS Maturity Model, and based on EET and it’s

customizable database design technique, we

introduced in this paper a novel multi-tenant SaaS

architecture design that in turn will provide a

programming model to simplify and speed up the

development of multi-tenant SaaS application,

which can deal with challenges from both technical

and business perspectives by solving the issues of

configuring SaaS multi-tenant application. Our

proposed multi-tenant architecture design permits

SaaS vendors to implement a single instance

application which supports multiple tenants on the

same hardware and software infrastructure. This

single instance application, have flexibility to

configure three multi-tenant application aspects:

database model, user interface, and access control.

This architecture design will be beneficial for SaaS

vendors to implement any business domain in multi-

tenant application, in a short time and cost-effective

manner.

Our future work will focus on elaborating,

developing, and evaluating services and user

interfaces that proposed in our multi-tenant

architecture design in greater details.

ANOVELMULTI-TENANTARCHITECTUREDESIGNFORSOFTWAREASASERVICEAPPLICATIONS

REFERENCES

Bezemer, C. P., Zaidman, A., Platzbeecker, B., Hurkmans,

T. & t’ Hart, A. 2010, ‘Enabling multi-tenancy: An

industrial experience report’, Software Maintenance

(ICSM), 2010 IEEE International Conference on,

Timisoara, Romania, pp. 1-8.

Chang, J. G., Wei, S., Ying, H., Zhi, H. W., Bo, G. 2007, ‘A

Framework for Native Multi-Tenancy Application

Development and Management’, E-Commerce

Technology and the 4th IEEE International Conference

on Enterprise Computing, E-Commerce, and E-

Services, 2007. CEC/EEE 2007. The 9th IEEE

International Conference on, Beijing, China, pp. 551-8.

Chong, F. 2006, Multi-tenancy and Virtualization, Msdn,

viewed 10 February 2012, http://blogs.msdn.com/b/

fred_chong/archive/2006/10/23/multi-tenancy-and-

virtualization.aspx.

Frederick, C., Carraro, G. 2006, ‘Architecture Strategies

for Catching the Long Tail’, Msdn, viewed 10

February 2012,http://msdn.microsoft.com/en-

us/library/aa479069.aspx.

Hongbo, L., Yuliang, S., Qingzhong, L. 2009,’ A Multi-

granularity Customization Relationship Model for

SaaS’, Web Information Systems and Mining, 2009.

WISM 2009. International Conference on, Jinan,

China, pp. 611-5.

Hudli, A. V., Shivaradhya, B., Hudli, R. V. 2009, 'Level-4

SaaS Applications for Healthcare Industry',

Proceedings of the 2nd Bangalore Annual Compute,

Bangalore, India, p. 4.

Kuo, Z., Xin, Z., Wei, S., Haiqi, L., Ying, H., Liangzhao,

Z., Xuanzhe, L. 2007, ‘A Policy-Driven Approach for

Software-as-Services Customization’, E-Commerce

Technology and the 4th IEEE International

Conference on Enterprise Computing, E-Commerce,

and E-Services, 2007. CEC/EEE 2007. The 9th IEEE

International Conference on, Tokyo, Japan, pp. 123-8.

Kwok, T., Thao, N., Linh, L. 2008, ’A Software as a

Service with Multi-tenancy Support for an Electronic

Contract Management Application. Services

Computing’, 2008. SCC '08. IEEE International

Conference on, Hawaii, USA, pp. 179-8.

Menken, I., Blokdijk, G. 2009, Saas and Web Applications

Specialist Level Complete Certification Kit- Software

as a Service Study Guide Book and Online Course, 1st

edn, Emereo Pty Ltd, Australia.

Samuel, J., Lopes, N. 2009, ‘SaaS (software as a service) –

models and infra-structures’, thesis, Universidade

Tecnológica de Lisboa, Lisboa, Portugal.

Mietzner, R., Metzger, A., Leymann, F., Pohl, K. 2009,

‘Variability modeling to support customization and

deployment of multi-tenant-aware Software as a

Service applications’, Principles of Engineering

Service Oriented Systems, 2009. PESOS 2009,

Vancouver, Canada, pp. 18-8.

Shao, Q. 2011, Towards Effective and Intelligent Multi-

tenancy SaaS, thesis, Arizona state university,

Arizona, USA.

Wei, C., Beijun, S., Zhengwei, Q. 2010, ‘Template-based

business logic customization for SaaS applications’,

Progress in Informatics and Computing (PIC), 2010

IEEE International Conference on, Shanghai, China,

pp. 584-5.

Wei, S., Xin, Z., Chang, J. G., Pei, S., Hui, S. 2008,’

Software as a Service: Configuration and

Customization Perspectives’, Congress on Services

Part II, 2008. SERVICES-2. IEEE, Shanghai, China,

pp. 18-7.

Yaish, H., Goyal, M., Feuerlicht, G. 2011, 'An Elastic

Multi-tenant Database Schema for Software as a

Service',

Cloud and Green Computing CGC 2011,

Sydney, Australia, pp. 737-7.

Ying, L., Bin, Z., Guoqi, L., Deshuai, W., Yan, G. 2010,

‘Personalized Modeling for SaaS Based on Extended

WSCL’, 2010 the 2nd International Conference on

Advanced Computer Control (ICACC 2010), Liaoning,

China, pp. 298 -5.

Jansen, S., Houben, G., Brinkkemper, S. 2010,

‘Customization Realization in Multi-tenant Web

Applications: Case Studies from the Library Sector’,

10th International Conference on Web Engineering,

Vienna, Austria, pp. 445-5.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience
