A “PARTIALLY VIRTUAL” MICROCONTROLLER

LABORATORY

Shlomo Engelberg

and Cecile Yehezkel

Department of Electronics, Jerusalem College of Technology, Jerusalem, Israel

Bar-Ilan University, Ramat-Gan, Israel

Keywords: Computer-assisted Instruction, Distance Learning, Virtual Labs, Web Lectures and Notes.

Abstract: In this paper, we describe our experiences running a “partially virtual” microcontroller lab. We show that

though the virtual portion of the lab can contribute to the students’ understanding, there are also several

pitfalls that must be avoided or dealt with. We have found that our “virtual microcontroller” simulates a true

microcontroller to a reasonable extent, but there are cases in which the simulator does not properly simulate

the microcontroller. It is critical that students be taught to think of “virtual equipment” as something distinct

from the real equipment and as something with idiosyncrasies of its own.

1 INTRODUCTION

At Bar Ilan University, we have been running a

microcontroller lab for the last eight years. The lab

is a hardware lab – the students use the evaluation

kit for the Analog Devices ADuC841 to learn how a

microcontroller is used. Both in the labs and at

home, the students are expected to use Keil uVision4

integrated development environment (IDE) to write,

simulate, and download programs to the

microcontroller. The lab manual that the students

use (Engelberg, 2012) covers the theoretical material

needed throughout most of the course and describes

the laboratory exercises that enable the student

to learn, practice, and assimilate the theoretical

and practical material concerning the

microprocessor and its architecture.

When the students prepare for the lab at home,

they use the IDE to simulate the microcontroller – to

work on a “virtual” microcontroller. In the labs, they

continue simulating their system using the IDE, but

every project must be downloaded to and work on

the actual microcontroller. In this paper, we describe

what we have learned about using this combination

of real and virtual laboratories to help students

understand how an 8052-based microcontroller

operates.

2 SIMULATIONS AND VIRTUAL

WORLDS

The development and use of simulation are

evolving side by side with increases in

computing power and advances in multimedia

technology. Chaturvedi and Akan (2006) relate

that the maturation of computer software

technologies such as simulation and visualization

has made it possible for engineering designers to

analyze and evaluate “what if parametric

scenarios” that are intrinsic to the nature of

engineering analysis and design processes in the

virtual domain. This is creating a new type of

engineering – Virtual Engineering. This

evolution is influencing both the engineering

design process and engineering education. The

evolution of simulation and visualization

technologies enables implementation of

sophisticated features in simulators, such as 3D

imaging, "liveness" (dynamic immediate visual

feedback) (Hundhausen and Brown, 2005), and

history recording (Davidovitch et al.,2006).

Simulators are sometimes referred to as

visualizations to emphasize the aim of

illustrating conceptual models and underlying

processes that cannot be seen. Simulation is

essential both for researchers and instructors in

areas such as quantum computation where the

desired system has not yet been implemented

337

Engelberg S. and Yehezkel C..

A “PARTIALLY VIRTUAL” MICROCONTROLLER LABORATORY.

DOI: 10.5220/0003918303370342

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 337-342

ISBN: 978-989-8565-07-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

(Barbosa, Lula and Lima, 2007). In these cases,

simulation provides a visualization of a

theoretical model, and virtual worlds may be

created to enable the student to experience the

theoretical model. Professional tools for

simulation (MATLAB/SIMULINK, LabVIEW,

etc.) designed for "virtual engineering" are

frequently used by instructors to allow their

students to perform laboratory exercises and to

introduce them to professional simulation tools.

Occasionally educators opt to develop their own

simulators to fulfil their needs – needs dictated

by the curriculum, the student population, and

the constraints of distance learning.

The multitude of simulation and visualization

environments and the lack of an appropriate

framework to define their characteristics

motivated the construction of taxonomies for

simulation and visualization. A taxonomy was

developed in the domain of program

visualizations that emphasized didactic and

cognitive aspects based on a very broad

taxonomy of software visualization (Price,

Baecker and Small, 1998). The main categories

of the taxonomy were presentation methods,

activity styles, and content modeling. The

taxonomy provided a framework for examining

characteristics of tools. The designer may opt for

a model with high fidelity, a simplified model

reduced to the essential characteristics, or a

hypothetical model like that used in virtual

worlds. As related in (Yehezkel et al., 2007),

content modeling has an impact on students'

mental models.

Selecting and illustrating an appropriate

conceptual model for the simulator are essential

for ensuring a fruitful learning process. The

simulator must be part of a course covering the

comprehensive theoretical material on the

conceptual model, illustrating the material by

using the simulator and other activities that

enable the student to practice and assimilate the

new concepts.

3 INSTRUCTIONAL DESIGN

The design of new educational simulators should

be learner-centred and accompanied by

formative evaluation, and such designs require

developing methodologies to evaluate their

effectiveness (Donzellini and Ponta, 2007); (Ma

and Nickerson, 2006); effectively evaluating

simulator utilization in education is essential for

further improvements. Chaturvedi and Akan

(2006) claim that simulation and visualization

have great potential to enhance student learning

and the quality of engineering education. They

believe that the desired objective is for students

to achieve a deeper understanding of basic

principles. They define the characteristics

essential for effectiveness as interactivity

(between the student and the environment),

interconnectivity (between subject materials),

and hierarchy (gradual learning with succeeding

modules). In (Engelberg, 2012), we have been

careful to make sure that our labs are interactive,

connected, and proceed from simple labs to

acquaint the student with individual features of

our microcontroller to more complicated labs in

which the student must make use of several

features to accomplish the task which was set.

The learning process cannot be generated by

the simulator, the visualization, or the virtual

world. Simulation-based activities are required

to create a fruitful interaction between the

learner and the simulator. In (Veermans and de

Jong, 2000), the authors emphasize the

importance of both model progression and

gradually increasing the complexity of

assignments to guarantee the effectiveness of

simulation-based learning. A well-designed

educational environment based on a simulator

should support each component of this approach.

Simulation-based learning must be supported to

help the learner acquire skills and meta-skills

and to deepen his or her understanding of the

underlying processes illustrated by the simulator.

According to Feisel and Rosa (2005), the early

criticisms of simulations focused on the

rigidness of simulations, the lack of realism in

models, or on simulated results that did not

adequately represent real-world systems and

behavior, therefore causing the designer to tend

to emphasize the realistic aspects of simulation-

based learning activities. Recently, Ma and

Nickerson (2006) have made a comparative

review of the literature related to hands-on,

simulated, and remote laboratories in education.

They have observed that the boundaries among

the three types of environments are blurred in the

sense that most laboratories are mediated by

computers and that the psychology of presence

may be as important as the technology. They

conclude that with the proper mix of

technologies one can find solutions that meet the

economic constraints of laboratories by using

simulations and remote labs to reinforce

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

338

conceptual understanding while at the same time

providing enough open-ended interaction to

teach design. By making judicious use of the

IDE while requiring that every program run on

the evaluation kit, we believe that we have

achieved this goal.

In section 4 we present the features of the

IDE, and in section 5 we explain the motivation

for the use of virtual microcontrollers. In section

6, we describe the problems caused by the lack

of the fidelity of the model implemented by the

IDE, and in section 7, we summarize our

conclusions.

4 THE IDE AND THE ADUC

The IDE we use is the Keil uVision4 IDE. It is one of

the standard IDEs for microcontrollers from the 8051

family. The IDE provides many tools including a

simulator/debugger and a downloader that allows one

to download a program from the IDE to the

microcontroller.

The ADuC841 is a microcontroller whose

instruction set is based on that of the 8052. The

development kits sold by Analog Devices include

everything one needs to run a program. As a rule the

development kit is a pleasure to work with.

The simulator/debugger allows one to run a

program and examine the program as it executes. As

shown in Figure 1, one can simulate using most of the

ADuC841’s peripherals – though using some of the less

standard non-8052 peripherals can be something of a

challenge. (It can be difficult to simulate complex input

to the analog to digital converter, for example.)

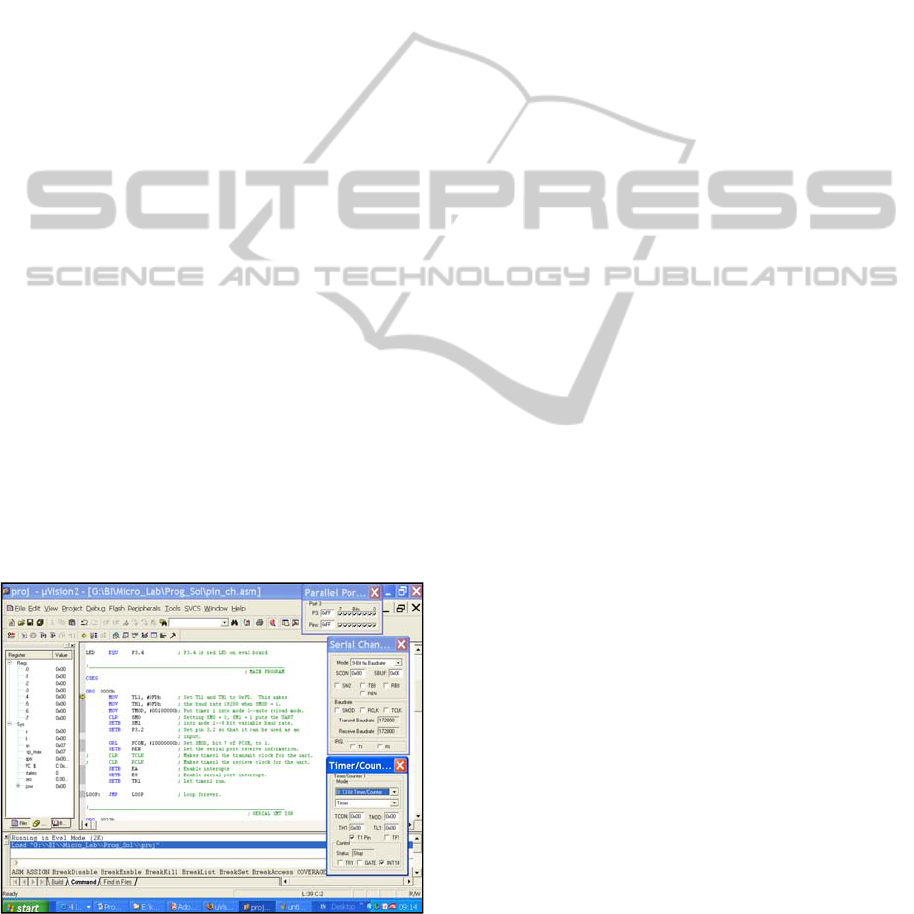

Figure 1: The IDE simulator / debugger.

5 WHY WE USE VIRTUAL

MICROCONTROLLERS

At present, approximately 100 students are required to

participate in the microcontroller laboratory every year.

It would probably be best to have students work alone

and to give each student a microcontroller to work

with. In practice, our students work in pairs, and while

they are in the lab they have access to one of the

approximately 25 development kits. (The lab is run in

several sections.) For a variety of reasons, the labs are

not freely accessible to the students outside of class

time, so students have access to actual development

kits for a period of about three hours each week.

Students work in pairs for a variety of reasons.

Working in this way teaches them how to work in a

team. It also keeps the cost of the course within

reasonable limits by requiring fewer instructors. (In

order to see to it that the students are learning proper

programming practices, all programs are checked and

corrected. By having the students work in pairs, fewer

instructors can take care of the grading.)

The demo version of the Keil uVision4 IDE is

freeware. It is given out with the ADuC841 evaluation

kits, and it is available on Keil's website

(https://www.keil.com/demo/eval/c51.htm). By using

virtual microcontrollers – by using the IDE’s simulator

and debugger – we are able to provide each student

with his or her own microcontroller. Students can work

on their virtual microcontroller when and where it suits

them. Because the program is free, every student can

have a “virtual microcontroller.”

A signal advantage of the IDE is that it gives the

user easy access to many things to which there would

otherwise be no (easy) access. If a student wants to

learn how an arithmetic command works, it is simple to

program the IDE to use the command. Because the IDE

allows the user to look at all of the microprocessor’s

registers, the user can quickly find out just how a

command affects the microprocessor. This is something

that is much more easily done with and IDE than with a

true microprocessor. Given all of its advantages, why

not make a course that only uses “virtual

microcontrollers?”

6 THE PROBLEMS WE HAVE

EXPERIENCED WITH THE

VIRTUAL

MICROCONTROLLERS

There are several problems with using a virtual

microcontroller. As with all virtual equipment, there is

a danger that the user will not understand which parts

A"PARTIALLYVIRTUAL"MICROCONTROLLERLABORATORY

339

of the equipment being used are real and which parts

are virtual. Additionally, there are often actual

problems with the virtual systems; there are places that

the virtual system does not faithfully mimic the

physical system.

6.1 Problems with any IDE

Years ago, when designing the lab, we had to decide

what environment to use when programming. Initially,

we had the students write program using a very simple

editor (either Notepad or Edit). We had the students

compile the program using a separate compiler, and we

had them download the programs using a separate

downloader provided by Analog Devices. We did this

to help the students understand what the role of each

component was.

Because professionals generally use IDEs, after a

year or two we changed the structure of the lab

somewhat. We started off using separate programs, but

after a few weeks we had the students use the IDE. In

this way the students got used to thinking about the

roles of each of the separate programs and were

exposed to a reasonably standard IDE.

Several years ago, we found that Windows would

not allow us to use the older style programs, and we

started using the IDE exclusively. The disadvantage of

the increased use of the IDE, of the virtual system, is

that some of the students have a hard time determining

which of their commands are going to control the

virtual system and which are commands that are,

fundamentally, commands to the microcontroller.

Additionally, using an IDE, with all its many menus,

can cause a student to assume that using a

microcontroller is much more complicated than is

actually the case. We spend quite a bit of time trying to

dispel this illusion. At the beginning of the course, we

make almost no use of the advanced features provided

by the IDE. After the students understand the

microcontroller, we give a fairly detailed description of

the IDE and its features. In this way, the students learn

to distinguish between the microcontroller and the

debugger provided by the IDE.

6.2 Problems with our Virtual

Microcontroller

There is a second problem with using the IDE, the

virtual microcontroller – it does not always simulate

the microcontroller 100% faithfully. This problem is

(predictably) most severe when one is using features

that are not used that often or when there is a somewhat

complicated interaction between the program one is

writing and the hardware that one is trying to control.

All of the examples here are from our experience using

uVision3 V3.33.

Users of the 8052 will be familiar with the “read-

modify-write” commands (MC51 user’ s guide). When

such commands are used to read and modify values of

pins of an I/O port, they read and write to the input

latch to the I/O port and they do not “look at” the

voltage currently “seen” by the port (shown in Fig. 1).

Most other commands look at the current voltage seen

by the port.

The command JBC PM.N, label, which causes

the microcontroller to examine the N

pin of the M

I/O port, jump if the bit is a one and clear the bit, and

continue if the bit is a logical zero, is a read-modify-

write command. This command ought to look at the

value of the latch connected to this pin’s input. (That is,

it ought to react to the last value written to PM.N.) On

the actual microcontroller, this is exactly what happens.

The IDE’s simulator is rather easy to use, and it is

possible to tell the simulator that a bit’s latch is set –

that the last input to the pin was a logical one – but the

voltage on the pin is actually 0V. If one does this, then

even when using the JBC command, which ought to

look at the value of the latch, the command looks at the

actual (simulated) voltage on the pin and behaves in a

fashion that is neither consistent with the commands

definition nor with what the microcontroller actually

does. A student using the IDE is likely to be very

confused by this. (It is worth noting that in later

versions of the IDE this problem was corrected.)

Another interesting problem of this sort is

encountered when one uses Timer3, a timer that was

added to the ADuC841 and that can be used as the

clock for the 8052-standard UART. One of the registers

that controls this timer is the T3FD register. From our

experience, it seems that the permitted values of this

shows the microcontroller working as “it ought to”

when the microprocessor actually works in a somewhat

different fashion.

A student who uses the IDE might confuse him or

herself by trying to watch how the ADuC841

physically transmits data by either using the parallel

port dialog box (shown in Fig. 1) to watch the pin on

which the data leaves the ADuC841 – which is

physically the same pin that is used by pin 1 of port 3,

P3.1 – or by using the simulated logic analyzer

provided by the IDE to watch P3.1. Unfortunately,

neither of these methods will actually allow the student

to see how the UART works. Though a ‘scope probe

held to P3.1 will show the student the relevant voltages,

the IDE does not consider the UART’s transmit pin and

P3.1 to be the same.

Years ago we used the ADuC812 in our lab. This

microprocessor is very similar to the ADuC841, but we

experienced an interesting anomaly with the ADuC812

that does not exist with the ADuC841. When a program

was run after being directly downloaded from the IDE

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

340

to the ADuC812, sometimes the program would run

when it should not have. This would happen because

the ADuC812 does not finish a download with all of its

registers reset to their default values (Analog Device

Technical notes). In particular, it leaves a timer running

that is turned off after a reset. Students would forget to

turn on the timer in their program, would find that their

program worked on the microconverter but not in

simulation, and would hand in the programs not

understanding what had happened. A somewhat

different problem with our IDE is how it simulates non-

ADuC devices. The IDE has the ability to simulate the

“other side” of a UART. One can ask the IDE to open a

window that behaves very much like the Windows

“HyperTerminal” program that allows one to

communicate using the (virtual) P.C.’s (virtual) serial

(COM) port. The problem with the window opened by

the IDE is that it automatically adjusts itself to

whatever baudrate the user has, in fact, selected. If the

user meant to select a baudrate of 19,200 symbols/sec

but in fact selected 1,200 symbols/sec, the

“HyperTerminal” window will show perfect

communications. When the user downloads the

program to the microcontroller, it may take a fair

amount of time for him/her to realize where the mistake

was. Here one cannot say the simulator did not work

correctly. It worked correctly but allowed the user to

fool him or herself.

7 LESSONS WE HAVE LEARNED

After working with various simulation tools, one

realizes that they have advantages and disadvantages.

The simulation tools may be more accessible than the

physical system being simulated is. The simulation

tools may allow one to observe things that would

otherwise be difficult or impossible to observe. The

tools may also be less expensive than the physical

system. For these reasons one uses the tools.

When one uses simulation tools intensively, one

realizes that they must be considered a separate type of

“equipment.” Just as standard physical systems have

their personalities, their quirks, so do simulators and

virtual equipment. During an engineer’s working

lifetime, the engineer will have to learn to work with

many types of equipment, and it will be necessary to

understand the idiosyncrasies of each piece of

equipment.

An experienced engineer should not have a problem

distinguishing between the properties of a simulator

and the properties of an actual piece of equipment.

When working with students, however, it is not as

certain that the students will manage to make the

distinction. For this reason great care must be exercised

when running a lab on equipment other than the actual

industry-standard equipment.

In our microcontroller lab, much effort is expended

in order to help the students understand what a “virtual

microcontroller” is and what a real microcontroller is.

As long as we succeed in making that distinction clear,

we are helping our budding engineers understand the

tools of the trade – both “virtual equipment” and “real”

equipment. That is, of course, our goal.

ACKNOWLEDGEMENTS

Many people have contributed to the microcontroller

lab over the years. We are particularly grateful to Prof.

Aryeh Weiss of Bar Ilan University who has supported

the lab from its outset and to the members of our team

– Messrs. Tamir Rozental, Shai Tamir, Amikam

Borkowski, Amihai Meiri, and Aviram Gur.

REFERENCES

Analog Devices, “MicroConverter Technical Note -

uC004 Understanding the Serial Download Protocol,”

Analog Devices, Inc., Norwood, MA, 2001.

Barbosa, A. Lula, B. and Lima, A. F., 2007. Symbolic and

numeric quantum circuit simulation, Proceedings of

the 1st International Conference on Quantum, Nano,

and Micro Technologies (ICQNM'07), pp. 6-10.

Chaturvedi, S. K. and Akan, O., 2006. Simulation and

Visualization Enhanced Engineering Education,

International Mechanical Engineering Education

Conference, Beijing, China.

Davidovitch, L. Parush, A. and Shtub, A., 2006.

Simulation-based Learning in Engineering Education:

Performance and Transfer in Learning Project, Journal

of Engineering, American Society for Engineering

Education, Oct., pp. 289-300.

Donzellini, G. and Ponta, D., 2007. A Simulation

Environment for e-Learning in Digital Design, IEEE

Transactions on Industrial Electronics, vol. 54, no. 6,

pp. 3078-3085.

Engelberg, S. 2012. ADuC841 Microcontroller Design Manual:

From Microcontroller Theory to Design Projects, Circuit

Cellar, Vernon, CT, to appear.

Feisel, L. D. and Rosa, A. J. 2005. The role of the

laboratory in undergraduate engineering education,

Journal of Engineering Education, vol. 94, no. 1, pp.

121–130.

Hundhausen, C. D. and Brown, J. L. , 2005. What you see

is what you code: a radically dynamic algorithm

visualization development model for novice learners,

Proceedings of the 2005 IEEE Symposium on Visual

Languages and Human-Centric Computing

(VL/HCC'05), pp. 163-170.

Ma, J. and. Nickerson, J. V., 2006. Hands-on, simulated,

and remote laboratories: A comparative literature

A"PARTIALLYVIRTUAL"MICROCONTROLLERLABORATORY

341

review, ACM Computer Survey, vol. 38, no. 3, pp. 1-

24.

MCS51 Microcontroller Family User’s Guide, Intel Corp., Mt.

Prospect, IL, 1994, p. 3-9.

Price, B. A. Baecker R. M. and Small, I. ,1998. An

introduction to software visualization. In J. Stasko, J.

Domingue, M. Brown & B. Price (Eds.), Software

Visualization, pp. 3-34, Cambridge, MA: MIT Press.

Swaak J. and de Jong, T., 2001. Discovery simulations and

the assessment of intuitive knowledge, Journal of

Computer Assisted Learning, vol. 17, no. 3, pp. 284-

294.

Veermans, K. H. de Jong, T. van Joolingen, W.R., 2000.

Promoting self directed learning in simulation based

discovery learning environments through intelligent

support. Interactive Learning Environments, no. 8, pp.

229-255.

Yehezkel, C. Ben-Ari, M. and Dreyfus, T., 2007. The

contribution of visualization to learning computer

architecture, CSE on Special Issue on Teaching

Hardware-software, vol. 2, no. 17, pp. 117-127.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

342
