A LIGHT-WEIGHT SEMANTIC INTERPRETATION

MECHANISM FOR A SKETCH-BASED LEARNING

ENVIRONMENT

Stefan Weinbrenner, Jan Engler, Pouyan Fotouhi-Tehrani and H. Ulrich Hoppe

University of Duisburg-Essen, Department of Computer Science and Applied Cognitive Science

Duisburg, Germany

Keywords: Sketch Interpretation, Architectures for Learning Environments, Intelligent Tutoring Systems.

Abstract: Free-hand drawing of diagrams or sketches is a natural form of expression that is very useful in learning

scenarios. It is easily supported by tablets or tablet PCs. Often such sketches are the basis of reasoning

processes, also in collaborative scenarios. They can also indicate misconceptions. Therefore it is desirable to

support a semantic interpretation of sketches in a way that could be easily combined with other parts of a

learning environment or with an ITS. Our solution introduces a multi-agent architecture based on the

blackboard paradigm. Inspired by the CogSketch system, it supports the introduction of user-defined

"glyphs" as external representations of concepts, it provides a set of basic geometrical/topological primitives

and allows for the addition of more domain-specific semantic relations.

1 INTRODUCTION

Visualization is an important means to aid the

learning process. Describing procedures, objects,

relations etc. can be done more easily and more

intuitively using visual aids. Research results

suggest that over 80% of information enters the

brain through the eyes (Petty, 2004). However, this

should not imply that words are less important. The

key point lies in combining words and pictures to

generate powerful messages (Lester, 2006).

To a large extent, efforts in the area of advanced

visualization techniques for learning address the

learner as a passive recipient. Sketching however

can be an active means of expression and

externalization in the hands of the learners

themselves. Sketching has some characteristics that

distinguish it from other visualization methods:

Everyone can sketch, i.e. there is no need for

preliminary skills. Sketching is natural, i.e. no need

for more than a (digital) pen, and sketching allows

for imperfection, i.e. additional communication can

fill lack of presented information.

An imperfect sketch, e.g. a bike with rectangle

tires, would still be understandable by the observer,

if it is explained so by the subject. However, this

natural vagueness and imprecision of sketches,

makes an automatic interpretation very hard. The

main challenges in such an algorithmic approach of

interpreting sketches would be to discover the

components that the sketch is composed of and what

these components of the sketch actually mean. In

other words, the interpretation can be separated into

segmentation and recognition.

Such an automatic interpretation can be used for

similar purposes that usually need a human beholder

that interprets the sketch. When drawing sketches in

school classes, the teacher often has to judge

whether a sketch is correct or shows some

misconceptions of the learner. In the latter case, a

teacher would give the learner hints, which concepts

were misunderstood. In this case, after the

interpretation the teacher assesses the sketch using

his or her knowledge about the corresponding

domain and gives feedback to the learner.

A system designed to interpret sketches and to

help the learner in a similar way has to encompass

automatic solutions to the tasks of segmentation,

recognition, assessment and feedback generation.

The work presented in this paper aims at

implementing supportive mechanisms capable of

interpreting learner sketches by examining spatial

relations between their components and giving

appropriate domain-dependent feedback.

Weinbrenner S., Engler J., Fotouhi-Tehrani P. and Hoppe H..

A LIGHT-WEIGHT SEMANTIC INTERPRETATION MECHANISM FOR A SKETCH-BASED LEARNING ENVIRONMENT.

DOI: 10.5220/0003919400420047

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 42-47

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

One can imagine scenarios, for which such a

system can be utilized: in all subjects, where abstract

or concrete concepts are thought using visual aids,

this tutor can be used. It allows individuals to

examine their acquired knowledge without directly

being relied on the teacher. It may be part of an

intelligent tutoring environment, which would

include additional learner and domain modeling.

Our work has been inspired by CogSketch

(Forbus et al., 2008), a sketching and sketch

interpretation environment that uses a large

universal ontology (OpenCyc) for semantic

interpretation. On the surface level, the user

introduces sketches called “glyphs”. These glyphs

are mapped to semantic concepts “by hand”. By

combining glyphs it is possible to visually represent

statements such as “the DNA (a glyph) is inside the

nucleus (another glyph)”. The derivation of such a

statement does not require the ontology but is based

on an analysis of geometrical relations of the sketch

elements. The ontology, in turn, is used to check the

semantic validity of such statements and to allow for

further inferences. CogSketch does not use pattern

recognition for identifying glyphs. They are only

interpreted in the way explicitly declared by the

user. In our work we have re-constructed the

CogSketch with a different focus.

Our system is not a monolithic architecture for

one standalone application, but we extended an

already existing, powerful collaborative modeling

environment and connected it to a loosely coupled

blackboard architecture that integrates the key

components as agents in a flexible and modular way.

The blackboard architecture also allows for sharing

glyphs among students and together with the

existing synchronization features of the modeling

environment additionally stresses the collaborative

approach of our work. Moreover, we do not use a

“heavy” external ontology that covers lots of

different domains, but use a “light-weight” approach

that is very specific for the domain. Currently we

also use an ontology for storing the domain-specific

knowledge, but due to its modularity an adaptation

of the system to interpret other representations (e.g.

simple csv files) would be very simple.

Be advised that papers in a technically unsuitable

form will be returned for retyping. After returned the

manuscript must be appropriately modified.

2 SCENARIO

Alice and Bob are students of a geography class that

deals with the problems of planning and designing

the layout of modern cities. After getting

familiarized with the fundamentals of Urban Design,

the students are asked to design a city on an island,

considering the following rules and constraints:

 The city is divided into three areas: at least one

industrial area that consists of factories, one

commercial area, where shops and business centers

are located, and a residential area, where the

inhabitants live.

 The city must have a waste treatment and

disposal facility on the island, which is not near

aforementioned areas.

 The island’s port has to be located on the western

coast of the island. To save costs for transportation,

the industrial area has to be situated in the vicinity of

the island’s port.

 The commercial area must be somewhere within

the residential area.

Figure 1: List of proposed concepts.

Other details are considered irrelevant and

students are allowed to add other components (such

as tourist attractions, infrastructural facilities etc.) as

long as aforementioned rules are not broken. In the

course of this exercise students are allowed to draw

in any arbitrary shape for the areas and facilities.

Moreover, there is no unique design for this city;

rather there are many different designs, which

conform to the rules and are all equally correct. To

fulfill the task, the students have tablet PCs that run

a sketching program.

Alice starts to draw the island and all required

areas and facilities with the sketching tool. For each

component of the sketching she uses a different

color and groups them by a grouping mechanism of

the sketching tool. When finishing the component,

the tool asks her for a name and presents a list of

proposed labels such as “Island”, “Port”,

“Residential Area”, etc. (c.f. Figure 1). After a

while, Alice’s sketch is finished and it looks like

Figure 2. She clicks on a button labeled “Check

Sketch” and after some seconds a dialog box pops

up in the sketching tools and shows the message

“Congratulations! Your sketch complies with the

constraint of the assignment.”

ALIGHT-WEIGHTSEMANTICINTERPRETATIONMECHANISMFORASKETCH-BASEDLEARNING

ENVIRONMENT

Bob also adds one component after the other to

his sketch and labels it according to the proposed

labels. However, when he hits the button “Check

Sketch”, the message tells him to check the location

of the industrial area. He reflects on his sketch and

reads the assignment again. After that, he notices

that the industrial area within his sketch is not near

the port, so he moves it closer to it. Then, he again

runs the check and now he also gets the message that

his sketch complies with the assignment.

Figure 2: Example sketch of an urban design.

3 APPROACH

As described in section 1, the overall process that is

supported by the sketch interpretation system can be

separated into the four tasks of segmentation,

recognition, assessment and feedback generation.

In the work presented here, the first two tasks are

in fact done by the learner, which has several

reasons. First, automatically discovering segments

and semantically analyzing them is difficult and

error-prone. Even a teacher sometimes misinterprets

the sketch of a learner and such an error results in

wrong assessment and feedback (both false-positive

and false-negative). The only person, who can define

segments and explain the semantics of a sketch for

sure, is the person that produced it. Additionally,

from a pedagogical perspective, this encourages the

learner to reflect on his sketch and its components.

In our case, the environment differentiated

between strokes and glyphs. As the most basic entity

in sketching, a stroke is an arbitrary number of

connected points that the user has drawn at once. In

most sketching environments a stroke also has a

width (in pixels) and a color, but these properties are

not relevant for the purpose of this work. A glyph is

a collection of strokes that also has a label attached

to it. In Figure 2 the different glyphs are all drawn in

different colors, but that is not necessarily the case

and was done here just for clarity reasons.

The recognition is done by labeling the glyphs.

The learner can enter arbitrary texts, but he is

encouraged to choose labels that are known to the

system by displaying a list of labels, that shows

already used ones in green (c.f. Figure 1).

The next part of the recognition comprises the

spatial relationship between the segments or glyphs,

because often it is not sufficient to just know what is

presented in a picture, but also where it is located.

This discovery of spatial relations is the first part,

that is done automatically by the system. Spatial

relations can be generally categorized in three of

topological, orientation (or directional), and metric

relations (Beaubouef and Petry, 2010):

 Topological are those relations which are

invariant under topological transformations, i.e.,

translation, scaling and rotation (Egenhofer, 1989),

e.g. disjoint, surrounded.

 Orientational are those relations which describe

the position of objects in relation to each other

(Hernández, 1994), e.g., left, under.

 Metrical are those relations, which are based

upon distance of two objects, e.g. near, far.

The deﬁnition of spatial relations, in spite of

seeming to be self-evident, presupposes some

clariﬁcation. (Freeman, 1975) pinpoints various

complexities in course of deﬁning spatial relations.

One problem, for example is to establish borders

implied by a given word: where does being left start

and where does it end. We calculate a value for each

glyph pair and for each supported relation and then a

threshold is introduced, which is used for decision

making procedures. The supported relations are

surrounded (topological), left, right, bottom, top

(orientational) and near (metrical).

As soon as the spatial relations are known and

the labels of the glyphs match pre-defined concepts,

the system has finished the recognition and will start

to assess the sketch. Since this process needs

domain-specific knowledge about sketches, the

necessary information is encoded in an ontology.

This holds all the labels and spatial relations of the

concepts of the given assignment. The ontology is

rather simple and consists of the two classes “Scene”

and “Spatial Entity” and supports all spatial relations

as object properties of “Spatial Entity”. A scene

represents the domain of an assignment and has

“belongsTo” relations to all spatial entities that

occur in this domain. A graphical example of an

ontology that expresses the knowledge about our

scenario assignment can be seen in Figure 3.

After comparing the relations among the

learner’s glyphs and the expected relations in the

ontology, the system can tell the learner exactly,

which glyph is missing and which pair of glyphs is

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

not located in the correct spatial relation. This is

displayed in the sketching environment so that the

learner can act accordingly and rethink his sketch.

Figure 3: Graphical representation of the scenario’s

ontology.

4 IMPLEMENTATION

Our sketching tool has been implemented as an

extension of the collaborative modeling environment

FreeStyler (Hoppe and Gassner, 2002). In order to

support the envisioned scenario, it was extended

such a way that multiple strokes could be labeled

and grouped to glyphs. Now, after clicking on the

“Start Glyph” button, the glyph mode is activated

and all following strokes are grouped. After clicking

again this button, the user is asked for the name of

the just finished glyph. The overall user interface

(i.e., FreeStyler using the glyph mode and our sketch

interpretation plug-in) can be seen in Figure 4.

The actual sketch interpretation has been

implemented as a separate component (or agent) of a

distributed system that uses the black board

approach (Erman et al., 1980). In this case a

FreeStyler plug-in has been developed that acts as

one client among several others. In a blackboard

architecture, all participating nodes only

communicate via the blackboard, which is a central

place for storing and reading information. The main

advantage of a blackboard system is its inherent

flexibility and robustness due to the loosely coupled

design. Since the components only have minimal

knowledge of the others a failure of one component

will not directly affect the functioning of another.

Such an architecture is naturally also more flexible,

because a new agent with new features can be easily

integrated, often without other agents being

modified.

To implement such a blackboard system, we

chose to use TupleSpaces (Gelernter, 1985). In a

TupleSpace system there is one central server and

several clients, that only send messages to the

server. These messages are in tuple structure, i.e.

they consist of lists of typed data. As an

implementation of the TupleSpaces idea we chose

the SQLSpaces (Weinbrenner et al., 2007), since

they offer a rich feature set and are multi-lingual and

can therefore be used as a language switchboard

(Bollen et al., 2008).

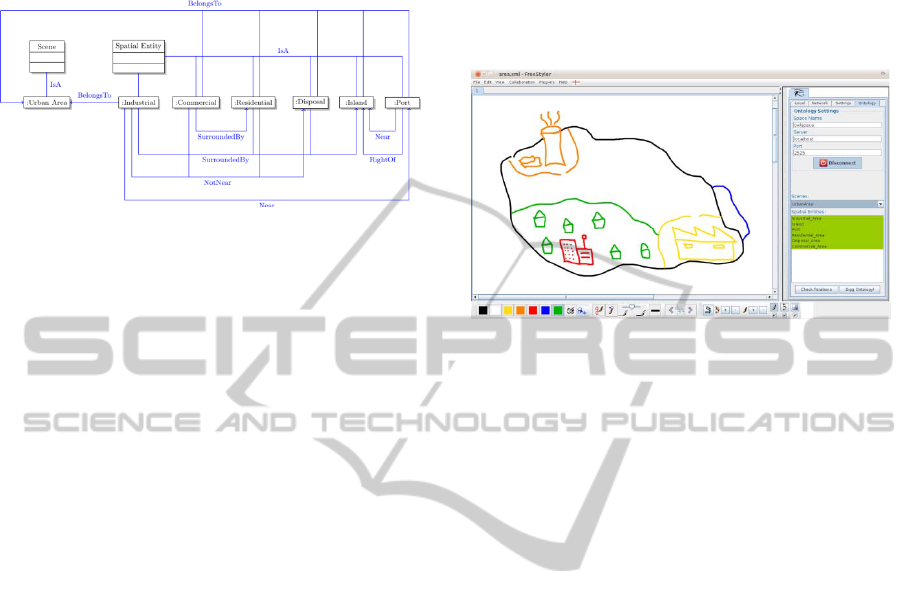

Figure 4: FreeStyler with the sketch interpretation plug-in.

The functionality of our semantic sketch

interpretation system is encapsulated in two agents

that are implemented in SWI Prolog and make use of

the tspl interface that allows accessing an

SQLSpaces server from Prolog clients. This is

particularly interesting for tasks that are more

naturally implemented using a specific programming

language. In our case it makes sense to implement

the relation checking and the ontology checking

facility in Prolog because of its backtracking and

logical problem-solving features in comparison to

object-oriented languages like Java.

All in all, there are three components in our

black board system, which communicate over two

different subspaces. The overall architecture can be

seen in Figure 5.

The first space Ψ contains all glyphs and is

therefore connected to the FreeStyler plug-in.

However, this plug-in does not only write glyphs

into the space, but is also able to import glyphs back

to the frontend. That way it is possible to exchange

glyphs among learners and therefore to work

collaboratively on assignments. The next agent that

uses the glyph data is the relation inspector that

works on the coordinates of the glyphs and adds the

inter-glyph relations to the space. To determine the

relations, the relation inspector uses algorithms for

each relation category (c.f. section 3) that all result

in a normalized value between 0 and 1.

Unfortunately, there are several intuitive

understandings of the “left-ness” or “surrounded-

ness” of two glyphs, but in the end our brief

definition is the following:

ALIGHT-WEIGHTSEMANTICINTERPRETATIONMECHANISMFORASKETCH-BASEDLEARNING

ENVIRONMENT

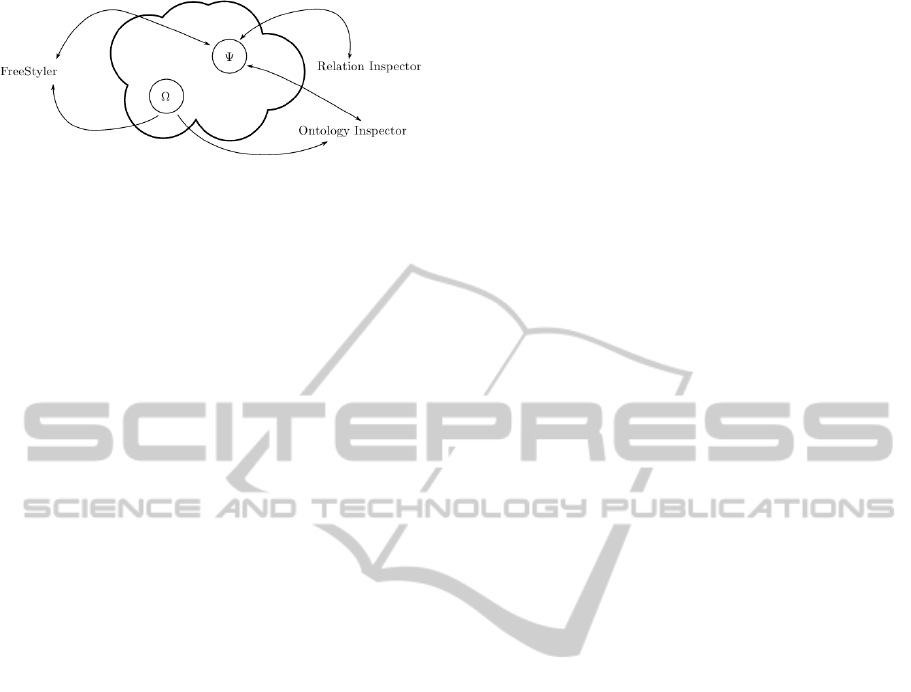

Figure 5: Overall interaction and data flow between the

components.

• To determine if glyph A is left of glyph B, the

ratio of ratio of points of glyph A that are left of the

left-most point of glyph B to the amount of points of

glyph B. Other orientational relations are calculated

accordingly.

• To determine the extent to which glyph A is

surrounded by glyph B, we calculate how many

circular rays (360 rays, each arc degree one ray)

from the centroid of A hit B. This is an adaptation of

the visual surroundedness by (Rosenfeld and Klette,

1985).

• The calculation of the nearness of glyph A to

glyph B is more complicated. If the minimal

distance between A and B minA,B is greater than

the diagonal dB of the bounding box of B, the

nearness is 0. Otherwise, the nearness is (dB-

minA,B)/dB.

The third and last component is the ontology

inspector that first retrieves the glyphs and their

relations and maps them to concepts from the

ontology. These concepts are stored in the space Ω

and are used to validate the glyph relations

according to the assignment. In the case that a

learner created a sketch that does not comply to the

constraints of the assignment, the ontology inspector

notifies the FreeStyler plug-in about the problems

and FreeStyler shows a dialog to inform the learner.

If the sketch does comply with all constraints, just a

confirmative message is displayed to the learner.

The ontology inspector also is the instance that

transfers the numerical results of the relation

inspector to the boolean world of the ontology. This

needs obviously to be done here, since the ontology

either contains a relation or not. This transfer is done

by applying a threshold to the numerical value.

Currently, a value above 0.8 is interpreted as a

confirmed relation, otherwise there is not enough

evidence for the relation.

Finally, FreeStyler also reads the concepts from

the space Ω in order to propose meaningful glyph

names as shown in Figure 1.

5 CONCLUSIONS AND FUTURE

WORK

This paper describes a semantic sketch interpretation

system. The implemented framework allows for

checking for accordance between a sketch and its

corresponding conceptual definition and to provide

feedback. The conceptual definition represents a

scene using spatial relations between spatial entities.

Various tools have been utilized to realize this work:

SQLSpaces is used as a middleware to connect the

different components of the system in a loosely

coupled way and to persist the sketches and their

corresponding conceptual definitions to allow

sharing of these artifacts. FreeStyler collects user

input as glyphs and serializes them in tuples in the

SQLSpaces server. Agents that have been realized in

Prolog are notified by signal tuples and are

responsible for a specific task. Two agents have

been implemented: The Relation Inspector, which

computes several spatial relations between spatial

entities (glyphs) of a sketched scene, and the

Ontology Inspector, which uses the outputs of the

Relation Inspector and the ontological scene

description to check a sketch against its

corresponding conceptual definition. The Ontology

Inspector also provides feedback if necessary.

The framework can be used in learning facilities,

from schools to universities, as an aid for teachers

and students. From the simplest subjects, such as

cardinal directions, to more complicated subjects,

such as anatomy of the human heart, this framework

can help individuals to strengthen their knowledge

and understanding. It can be utilized in teaching of

nearly all subjects, which are taught using visual

aids and sketches.

However, this system is still under development

and there are a great number of features and

functionalities, which can improve this framework.

One interesting extension of this work would be

to turn FreeStyler into an authoring environment,

which makes it possible for the user to directly

export the conceptual definition of his sketches to a

knowledge base (in this case an ontology). An

interesting starting point for this is a visualization

utility that was actually only implemented as a

debugging tool during the development. This tool

displays the results of the Relation Inspector agent,

i.e. for all relations between all glyph pairs it will

display a value between 0 % and 100 %. This

visualization can be seen in Figure 6 (here only the

surrounds relation is shown, otherwise the list would

be too long).

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

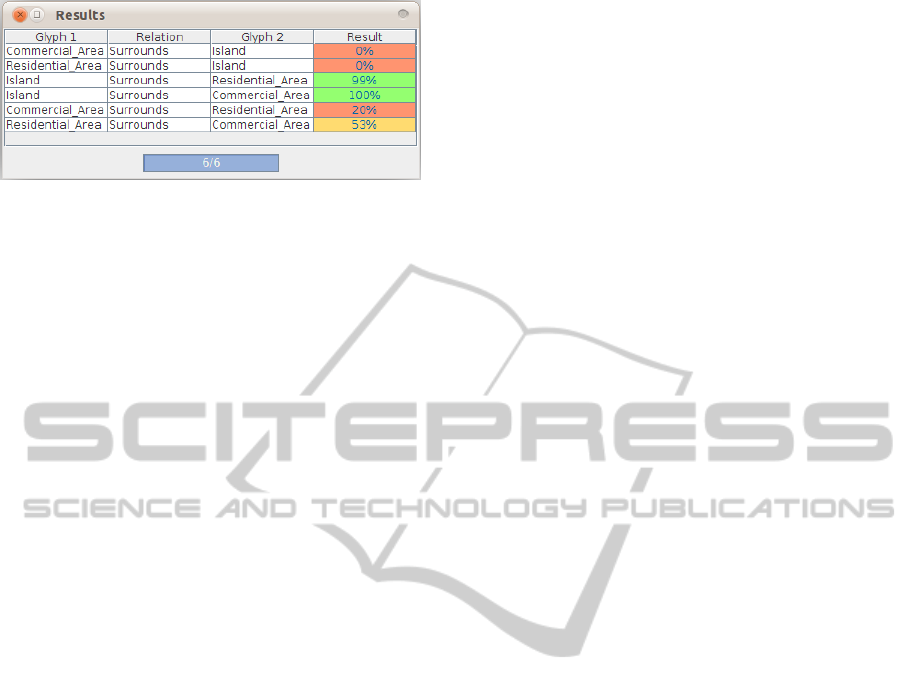

Figure 6: Visualization of the results of the Relation

Inspector.

A possible workflow for an assignment author

would be to draw a reference “expert sketch”

without any ontology or agent support. This set of

labeled glyphs could then first be inserted as

unconnected instances into the ontology. After that

the Relation Inspector agent could propose some

relations that are found between the given glyphs for

adding it to the ontology representation. However,

the author would presumably not transfer all these

relations to the ontology, since though many of them

are evident, only some are probably necessary for

the assignment. In the example of Figure 2 for

instance, it would not be necessary to have the waste

disposal facility in the north of the residential area.

After importing these relations, the FreeStyler plug-

in for students could immediately interpret this

newly defined assignment.

Such an authoring environment would be a

bridge from a static, predefined knowledge base to a

dynamic one. An authoring environment would also

allow the user to modify already existing

conceptualizations in the knowledge base. That

means, adding, removing or updating spatial entities

and spatial relations among them.

Beside these technical improvements a study

could be conducted to investigate on the effect that

this tutoring system has on the learning process of

users. This study could compare students’ solution

without the tutoring system and solutions that make

use of the system in order to find out whether the

usage of the system will lead to solutions that are

fulfilling more restrictions of the assignment. As the

system allows for sharing the glyphs between

different users, the study could also investigate on

advantages of a collaborative creation of glyphs.

Another interesting question is the comparison

between pen and paper based modeling and the

usage of the presented system on tablet computers

which could focus on usability issues of the system

when using tablet computers.

REFERENCES

Beaubouef, T. and Petry, F., (2010). Fuzzy and rough set

approaches for uncertainty in spatial data. In R.

Jeansoulin, O. Papini, H. Prade, and S. Schockaert,

(Ed.), Methods for Handling Imperfect Spatial

Information (Vol. 256 of Studies in Fuzziness and Soft

Computing, pp. 103-129). Berlin / Heidelberg:

Springer.

Bollen, L., Giemza, A. and Hoppe, H. U., (2008). Flexible

analysis of user actions in heterogeneous distributed

learning environments. In Proc. of the European

Conference on Technology Enhanced Learning 2008

(EC-TEL 2008), Maastrich, NL.

Egenhofer, M., (1989). A formal definition of binary

topological relationships. In W. Litwin and H.-J.

Schek, (Ed.), Foundations of Data Organization and

Algorithms (Vol. 367 of Lecture Notes in Computer

Science, pp. 457-472). Berlin / Heidelberg: Springer.

Erman, L. D., Hayes-Roth, F., Lesser, V. R. and Reddy, D.

R., (1980). The Hearsay-II speech understanding

system: integrating knowledge to resolve uncertainty.

In ACM Comput. Surv. (Vol. 12(2), pp. 213-253.)

Forbus, K., Usher, J., Lovett, A., Lockwood, K. and

Wetzel, J., (2008). CogSketch: Open-domain sketch

understanding for cognitive science research and for

education. In Eurographics Workshop on Sketch-

Based Interfaces and Modeling, Annecy, France.

Freeman, J., (1975). The modelling of spatial relations. In

Computer Graphics and Image Processing (Vol. 4(2):

pp. 156-171, ISSN 0146-664X. doi:10.1016/S0146-

664X(75)80007-4.)

Gelernter, D., (1985). Generative communication in linda.

In ACM Transactions on Programming Languages

and Systems (Vol. 7, pp. 80-112).

Hernández, D., (1994). Qualitative representation of

spatial knowledge. New York: Springer-Verlag.

Hoppe, H. U. and Gassner, K., (2002). Integrating

collaborative concept mapping tools with group

memory and retrieval functions. In Proc. of the Int.

Conference on Computer Supported Collaborative

Learning, Hillsdale (USA): Lawrence Erlbaum.

Lester, P., (2006). Visual communication: images with

messages. Thomson Wadsworth.

Petty, G., (2004). Teaching today: a practical guide.

Nelson Thornes.

Rosenfeld, A. and Klette R., (1985). Degree of adjacency

or surroundedness. In Pattern Recognition (Vol. 18(2),

pp. 169-177, ISSN 0031-3203. doi: doi:

10.1016/0031-3203(85)90041-X).

Weinbrenner, S., Giemza, A. and Hoppe, H. U., (2007).

Engineering heterogeneous distributed learning

environments using tuple spaces as an architectural

platform. In Proc. of the 7th IEEE Int.Conference on

Advanced Learning Technologies ICALT 2007 (pp.

434-436, doi: 10.1109/ICALT.2007.139).

ALIGHT-WEIGHTSEMANTICINTERPRETATIONMECHANISMFORASKETCH-BASEDLEARNING

ENVIRONMENT
