VISUALIZATION OF OBJECT-ORIENTED (JAVA) PROGRAMS

Cornelis Huizing

, Ruurd Kuiper

, Christian Luijten

and Vincent Vandalon

Eindhoven University of Technology, PO Box 513, Eindhoven, The Netherlands

e Research & Development, PO Box 101, Venlo, The Netherlands

Keywords:

Object-oriented Programming, Program Visualization.

Abstract:

We provide an explicit, consistent, execution model for OO programs, speciﬁcally Java, together with a tool

that visualizes the model This equips the student with a model to think and communicate about OO programs.

Especially for an e-learning situation this is signiﬁcant. Firstly, such a model supports the interaction with

teachers and provides a sound basis for the understanding of other e-learning material concerning program-

ming. Secondly, the tool supports acquiring proﬁciency with the model in an e-learning setting by giving

precise information to hone his/her conceptualization of program execution. The model is advanced in that

it accommodates multi-threading. The tool is ﬂexible in that it directly uses the Java Virtual Machine for the

visualization: extensions and adaptations can thus make use of the information the actual execution provides.

A case in point is modeling the execution of code involving user interaction through the Graphic User Interface

library. We consider several options here.

1 INTRODUCTION

Teaching programming has evolved substantially over

the past thirty years, along at least three axes. Firstly,

the languages have progressed from Pascal-like sim-

ple imperative languages that provide structuring

through procedural decomposition to languages that

are based on object-orientation (OO), which provide

powerful additional structuring through object de-

composition and inheritance between classes. Sec-

ondly, the use of library code has increased greatly;

this, for example, makes programming Graphical

User Interfaces (GUI’s) feasible. Thirdly, the role of

programming in the curriculum has changed from be-

ing a typical nuts-and-bolts Computer Science subject

to a more generally appreciated and applied skill that

has a place in the curriculum of many departments.

This calls for new ways of offering tutoring in pro-

gramming. Furthermore, to take advantage of what

OO offers, the demanding concepts of this paradigm

need to be well-understood.

From our experience in teaching programming

(moving from Pascal, via C and C++ to Java) at vary-

ing departments at the Eindhoven University of Tech-

nology (The Netherlands) as well as in industry, we

learned that an explicit conceptual execution model

is indispensable, both for teacher - student commu-

nication as well as for communication between stu-

dents. Indicative for the need for an execution model

is that the paradigm is called object-orientation rather

than class-orientation: thinking about the program is

in terms of the objects that occur during execution

rather than in terms of the classes that occur in the

static code.

Especially for an e-learning situation students

should have an explicit, consistent model to think and

communicate about OO programs. Firstly, such a

model supports the interaction with teachers and pro-

vides a sound basis for the understanding of other

e-learning material concerning programming. Sec-

ondly, the tool supports acquiring proﬁciency with the

model in an e-learning setting by giving precise infor-

mation to hone his/her conceptualization of program

execution.

In this paper we do not further argue the quite self-

evident need for and use of such a model and tooling

in e-learning, but concentrate on the model and vi-

sualization tool. We have implemented the ideas for

Java, in a tool we named CoffeeDregs (in line with

the Java/coffee association). Model and tool reﬂect

our experience over the years; the current version is

quite usable, but further evolution is envisaged. Cof-

feeDregs has a clear aim: it is a teaching tool that sup-

ports building a conceptual semantic model. It is not

a debugger, nor does it visualize data or control for

diagnostic purposes as do the tools for professional

Huizing C., Kuiper R., Luijten C. and Vandalon V..

VISUALIZATION OF OBJECT-ORIENTED (JAVA) PROGRAMS.

DOI: 10.5220/0003924000650072

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 65-72

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

programmers.

A key feature of the model is that it is detailed

enough to explain the semantics of the language at

statement level and abstract enough to enable think-

ing about the program at the level of objects. The dis-

tinction as well as the connection between dynamic

execution in objects and static class code is made ex-

plicit. The emphasis is on stepwise modeling the dy-

namics of OO execution, i.e., the objects. Class code

is merely present beside the visualization – model and

tool indicate when and how the class code is involved

in supplying information for the execution.

Another important feature is that execution of a

program on the Java Virtual Machine (JVM) drives

the visualization. This provides a close and direct

connection to the actual execution of the language,

enforcing the semantics to be realistic as well as fa-

cilitating extensions to the model and tool.

In this paper we give an overview of the model

and tool; more detail can be found in (Luijten, 2003)

and (Vandalon, 2010).

There are several approaches related to ours: Je-

liot (Levy et al., 2002), Greenfoot (K

olling, 2010),

BlueJ (K

olling et al., 2003), and JIVE (Gestwicki and

Jayaraman, 2004; Lessa et al., 2010; Lessa and Ja-

yaraman, 2012). Jeliot is more low-level than Cof-

feeDregs, for example showing in detail how expres-

sions are evaluated. This makes Jeliot very well

suited to the initial stages of programming educa-

tion while CoffeeDregs also seeks to support more

advanced concepts. Greenfoot and BlueJ enable to,

visually, interact with instances of classes, but do not

aim for modeling the detailed execution of a program

– Greenfoot is especially well-suited for an informal

explorative introduction. JIVE is most closely com-

parable to our approach. Also JIVE is much more

ambitious in scope and application than CoffeeDregs:

it is a dynamic analysis tool that aims to provide de-

bugging facilities as well as being usable as a teach-

ing tool. The lightweight approach in CoffeeDregs

that restricts itself to “visualizing what happens in-

side the computer”, extended to complex concepts

like user interaction through the Graphical User In-

terface. JIVE offers different, integrated views, for

example using sequence diagrams to capture interac-

tions over a longer time period. A technical differ-

ence is that JIVE is integrated with the IDE Eclipse,

whereas CoffeeDregs is more IDE-independent. Also

the use of Visual Operational Semantics ((Jayaraman

and Baltus, 1996)) and the Contour Model ((Johnston,

1971)) is subtly different. For a more detailed com-

parison and full treatment of the more subtle differ-

ences, see (Luijten, 2003).

We introduce our approach in section 2. In the

next two sections we argue how to visualize, and what

to show or hide. In section 5 we introduce the tool as

applied to single threaded programs. In section 6 we

brieﬂy discuss its implementation. In section 7 we

explain the extension to multi-threading. We consider

options to treat user interaction through the GUI in

section 8. This also provides an opportunity to explain

our didactic approach in some more depth and shows

the power of directly using information from the JVM

for visualization.

2 DIDACTIC APPROACH

We use the bottom-up approach in teaching OO pro-

gramming rather than the objects-ﬁrst approach. One

rationale is that we want to introduce the activity of

a computer as performing small steps, for which it

can be easily understood that they can be mechanized.

Another reason is that, as our experience shows, it is

advantageous to introduce objects not as given black

boxes, but as composite entities explained in terms

of already understood basic concepts. What we show

initially is very simple: one class, one method, with

basic statements. Then we incrementally add method

decomposition and the OO concepts: object struc-

tures (references between objects, interaction through

method calls), class structures (inheritance), library

use, multi-threading, GUI programming, etc. The

model shows progressively more of these concepts.

In our teaching we use lecture notes (we are aim-

ing for a book version) with small chapters, introduc-

ing one concept at a time, providing its semantics in

terms of the, visualized, execution model. This se-

mantics presents an abstract view of what happens in-

side the computer, e.g., variables and objects are visu-

alized, stack frames are not. Thus we neither rely on

machine notions for modeling nor do we make use of

metaphor.

With each concept we provide a small example,

the execution of which is visualized by the tool. The

students then program more examples themselves, vi-

sualizing the execution with CoffeeDregs. Explain-

ing the concepts in terms of the model together with

a dynamic visualization proves effective in establish-

ing a clear, concrete domain to think and communi-

cate about programs. Note that with new concepts,

new features are added to the model or already present

ones are used in new ways, but that there is no change

in the level of abstraction – only one model is built up

incrementally.

CoffeeDregs can be used stand-alone, but also as a

plug-in to an IDE - we use the latter version for teach-

ing, incorporated as a plug-in to NetBeans.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Choices about the model itself and how to visual-

ize it are so much intertwined that from now on we

will consider both under visualization.

3 HOW TO VISUALIZE

The concepts that CoffeeDregs seeks to elucidate are

the following.

1. Objects as container of data (variables) and cen-

ter of manipulation (methods - with expressions,

assignment); method and object recursion.

2. Scoping and life-time.

3. Object structures: references between objects and

interaction through method calls.

4. Difference between class and object.

5. Class structures: inheritance (notably overriding

of methods).

6. Use of libraries.

7. Multi-threading.

8. User interaction through GUI.

Essentially, the execution is visualized as a se-

ries of snapshots of the “inside of the computer” that

shows the OO structure as well as the changes during

execution. Guided by the above aims, the model has

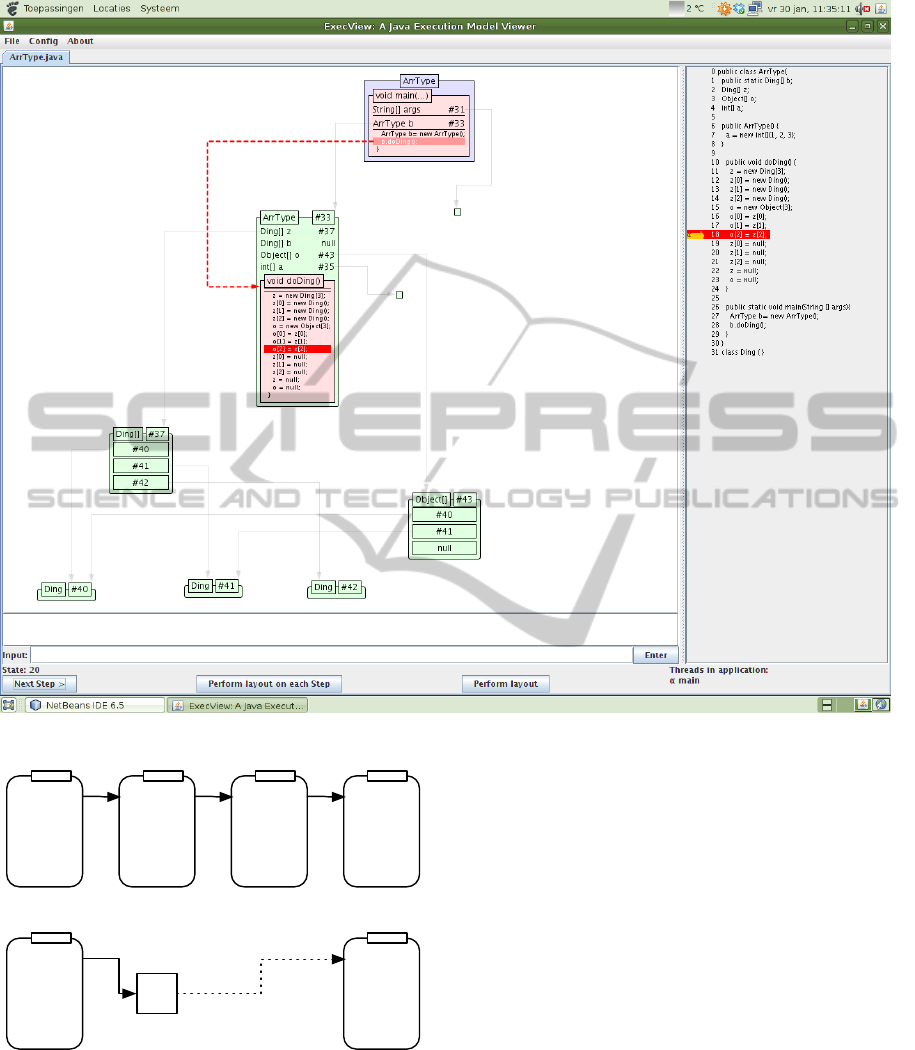

the following features (see Figure 1).

The guiding idea is to visualize the execution as

a series of snapshots of the “inside of the computer”

that shows the OO structure as well as the points of

activity and the changes caused by this activity dur-

ing execution. The lower limit level of abstraction is

variable values, the abstraction level of the dynam-

ics is stepwise statement execution. One snapshot at

the time is visible, the effect of a step is indicated by

the change in the snapshot, with additional clues like

highlighting the locus of change.

Expression evaluation occurs as one step if only

values or variables are involved. If a function is used

in an expression, its execution involves the steps con-

form the visualization of method execution. Including

detailed expression evaluation is one of the extensions

of the tool that is considered.

1. We use a modiﬁed version of the Visual Oper-

ational Semantics (VOS) for OO by Jayarman

and Baltus (Jayaraman and Baltus, 1996), which

in turn is based on the Countour Model (CM)

for scoping by Johnston (Johnston, 1971) (for

more detail about motivation and use, see (Lui-

jten, 2003)). We ﬁrst and foremost model the dy-

namics of the execution and therefore only use

contours, boxes, for objects and, inside these, for

variable values and methods (also inside methods

we use boxes to hold the values of local variables).

As we explain the semantics at statement level, in-

side the contours the corresponding program code

is present. Practicalities come to the fore here:

to make this ﬁt on the screen, rather than the full

code of the body body, only a window of three

lines of code (the active statement plus its im-

mediate surroundings) may be displayed at each

snapshot. A cursor indicates the place of control.

2. We use the contours to indicate scope, and also to

indicate life-time: objects are visualized on cre-

ation - automated garbage collection is modeled

in that objects that are out of scope are no longer

displayed. Method calls are visualized as the ap-

pearance of the called method; methods are only

displayed as long as they are active. Various sub-

tleties apply here: for example, a shaded cursor

at the place of a method call indicates that con-

trol (that moved to the executing method) will re-

turn there after the execution is ﬁnished. Note,

that method recursion is automatically taken care

of: each recursive call causes a new copy of the

method being added to the object.

3. Object structures: references between objects are

provided both as addresses (following the actual

language mechanism) and through visible point-

ers that make the structure easier to comprehend.

The visualization of method call and correspond-

ing active method shows the interaction between

objects, emphasizing that calls come from the out-

side, but that the activity itself is taking place in-

side the object.

4. The difference between class and object is made

clear by separately displaying the class code, as

code - not using contours. The objects are dis-

played in the main window on the screen, code is

displayed to the right in a separate window. We

indicate by a colored bar in the static code where

this code is used to update the dynamic part: for

example, when a new object is created or when a

method is called.

NB Static variables and methods, notably main are

incorporated in the model using a special class-

object. As the treatment is similar to the regular

objects, we do not further elaborate here.

5. Class structures: inheritance is modeled in the dy-

namic part by labeling objects with their dynamic

type. A colored bar in the static part shows the

method that is selected - the code is copied to the

dynamic part. In case of overriding, the appro-

priate method in the appropriate class is selected

VISUALIZATIONOFOBJECT-ORIENTED(JAVA)PROGRAMS

- directly: stepping through the inheritance hier-

archy is not visualized. This is another example

of the many subtle choices that have to be made:

Visualizing the stepping, for example by moving

the colored bar through the class code, could be a

viable alternative, but might also create confusion

about what a step in an execution means, and com-

promise the idea that class code is static. There-

fore, for now we have chosen to limit visualiz-

ing activity inside objects. Note that variables in

the object may come from different levels of the

inheritance hierarchy. For simplicity, we do not

consider variable shadowing, although the VCS

can support this.

6. Use of library code is in principle covered by the

model - to make the visualization feasible more

needs to be done: see section 4.

7. Multi-threading is in principle straightforward:

adding a thread identiﬁer to the control-cursor:

see section 7.

8. User-interaction through GUI is a challenging ex-

tension: see section 8.

Remark

CoffeeDregs only visualizes what happens inside the

computer during execution. Therefore, input and out-

put are not part of the visualization: the visualiza-

tion is driven by the actual execution of the program,

so input and output are no different from the case

where the program is executed without visualization.

In teaching this proves to be quite helpful in that the

students do not get confused about what belongs to

the visualization and what does not.

4 WHAT TO VISUALIZE

To make a visualization practicable requires careful

consideration of what to display and what not to dis-

play. When executing a Java program, many auxil-

iary objects are created, resulting in a very large and

incomprehensible visualization. Based on experience

with previous versions of the tool, we investigated in

detail how to decide which objects and methods to

show and how to responsibly hide the others.

4.1 Ordering to Visualization

Importance

We deﬁne a set of rules in terms of dynamic object

properties and previously assigned object order. The

rules are applied in order for each object. The ﬁrst-

matching rule decides the order of the object.

1. A method is currently executing in the object, as-

sign order method-executing.

2. A method is active in the object, assign order

methods-active.

3. the object is user-selected, assign order user-

selected.

4. The object has no active methods and the object is

referenced by at least 1 object of higher order than

methods- active, assign order object-referenced-

from-above.

5. The object is referenced by x other objects, assign

order object-often-referenced.

6. No rule matches, assign order bottom.

The result is that objects with active methods get a

high order, while inactive objects get lower orders. If

an inactive object is directly referenced by an active

object or if it is heavily referenced, it gets a slightly

higher order.

We distinguish three basic levels of visibility.

1. Expanded. These contours show the full infor-

mation, including values of instance variables and

methods that are currently active in the object.

2. Collapsed. These contours show only the type and

the reference of the object and no inner structure

or text.

3. Hidden. These objects are not visualized on the

screen.

The importance level is mapped to the visualiza-

tion level as follows.

• Objects of order methods-active and higher are

expanded.

• Objects of order between object-often-referenced

and object-referenced-from-above are collapsed.

• Objects of order bottom are hidden.

4.2 Tying Objects Back Together

All objects have an importance assigned to them and

as a result some of them now have become hidden.

Now other higher-importance objects might have be-

come dangling because they were only referenced

from currently hidden objects. We replace reference

connections through objects of lower importance with

transitive reference connections. They differ in ap-

pearance from the normal object references.

If there is a reference path from an expanded ob-

ject A (see Figure 2), via one collapsed object S and

then via one or more hidden objects to another ex-

panded object B, then there a transitive reference from

S to B is added. If there is a direct reference from a

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Figure 1: CoffeeDregs in action.

S BA T

A B

Figure 2: Using transitive links to reconnect expanded and

collapsed objects. The objects in the structure in the top

are ordered, which results in the image in the bottom: S is

collapsed and all objects between S and B (only T in this

case) are hidden. Object B is still expanded and to prevent

dangling objects, all paths to B from a collapsed object are

reconstructed by drawing transitive reference connections.

collapsed object S to an expanded object B (i.e. there

are zero hidden objects in between them), then there

is a normal reference from S to B.

4.3 Discussion

One could think of additional sublevels of expanded

objects, in which for instance private variables are

hidden if the object inherits from a non user-deﬁned

class. Beware that much of the functionality lies in

these private variables and that, for example, a stor-

age class can not show how the user-deﬁned objects

are stored within it if its private variables are hidden!

The hiding of private variables should therefore prob-

ably only occur for “leaves” in the object reference

graph.

Great care is therefore required not to confuse ac-

cessibility in OO with reachability (and thus visibil-

ity) in the model. The aim of the model is to visual-

ize the state of the program and not to visualize the

structures in the program code. As a result, private

VISUALIZATIONOFOBJECT-ORIENTED(JAVA)PROGRAMS

variables may be visible, even though they are inac-

cessible from the program code. They nevertheless

contribute to the execution model that is visualized

and are therefore required to be visible.

If it is really necessary to hide variables, a better

way probably is to merge them into a single ‘super-

variable’ private which holds all references and thus

the reference connections in the graph of the object

model.

5 CoffeeDregs

Visualization is covered for the ﬁrst six concepts de-

scribed in section 3, in the manner described in sec-

tion 4.

Programs are developed in an IDE, like the Net-

Beans we currently use. CoffeeDregs can be used

stand-alone, taking the class ﬁles as well as the com-

piled program as input. Alternatively, CoffeeDregs

can be used as a plug-in for NetBeans: CoffeeDregs is

started from the NetBeans menu by clicking the Cof-

feeDregs icon in the menu.

Stepping through the program is push-button.

It is possible to step in reverse direction, e.g., to

better understand what led to certain behavior. Cur-

rently there is no support for going back and chang-

ing the course of the execution by, e.g., providing dif-

ferent input or changing values of variables. From a

didactic point of view it is debatable whether it would

be desirable to have this option: on the one hand pur-

suing alternatives may help to understand the behav-

ior of a program, on the other hand it might introduce

confusion between interaction with a program and in-

teraction with its visualization. For a technical moti-

vation see section 6.

6 IMPLEMENTING THE

VISUALIZATION

The visualization and the program under study run

in different virtual machines (JVMs). Using the Java

Debug Interface, events are sent from the second JVM

to the ﬁrst when the program makes an execution step

and these are used to visualize the state and to pause

and resume execution of the second JVM. Reverse

stepping is implemented by caching previous states.

The state is visualized using the Visual Object and

Execution Model from the NetBeans Visual Library.

We lightly explore the software architecture. For

more information on this topic, see (Vandalon, 2009)

CoffeeDregs is made up of two main com-

ponents thereby partly following the Model-View-

Controller pattern: debugmodel and debugview. The

debugmodel handles the communication with the

Java debugger and keeps a consistent state model.

The debugview makes a drawing of the state model

and acts as a controller to debugmodel.

CoﬀeeDregs

debugview

debugmodelJava Debug Interface

NetBeans Visual API

Java Swing

Figure 3: High level architecture diagram.

When a program is loaded into CoffeeDregs, a

VM is started for the program. CoffeeDregs then con-

nects to the VM to subscribe to method entry and exit

events and to execution step events. These events are

reused as events within CoffeeDregs to notify the vi-

sualization of updates in the state.

When the visualization receives a notiﬁcation, it

updates its set of visualized objects. New objects in

the programmer’s program are added to the visual-

ization. Old objects that do not exist anymore in the

programmer’s program are also removed from the vi-

sualization.

After the set of visualized objects has been up-

dated, the objects in the set are updated to reﬂect

changed values. If a method is active in an object,

it is also added or its state is updated.

Following the update of the state is a reevaluation

of the objects’ properties and applying the rules as

described in section 4.

7 MULTI-THREADING IN

CoffeeDregs

Multi-threaded programs are covered as follows: for

each thread a separate control cursor is visualized, la-

beled with a number. This works well for the pro-

grams that occur in educational context, that typically

have only a limited number of threads. This is spe-

cially instructive for Swing (GUI) programs where the

Swing thread is visibly different from the main thread.

Whether thread objects are visualized is optional.

There is no control as yet over which thread to

advance.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Control moves from run to dispatchEvent to the matching handler of the eventListener.

class SwingThread {

EventQueue<AWT event> eventQueue; //ﬁlled by the system

AWTEvent e;

void run {

while (true) {

if (!eventQueue.isEmpty()) {

e = eventQueue.getNextEvent(); //take topmost event from eventQueue

e.getSource().dispatchEvent(e); //on component that is source, call dispatchEvent

}

Figure 4: Abstract event loop presented separately from CoffeeDregs.

For each source that is a (sub)class (of) JComponent, lists of references to listeners and a dispatchEvent method

are provided as follows.

class JComponent {

List<MouseListener> mouseListeners; //references to listeners registered on component,

...//one list for each listener type

void dispatchEvent(Event e) {

if (isMouseListenerEvent(e)) {//for e MouseListenerEvent,

for (MouseListener lis : mouseListeners) {//on each MouseListener registered on component

if (isMouseClickedEvent(e)) {//depending on type of e,

lis.mouseClicked(e);//call handler matching type of e

} else if (is MousePressedEvent(e)){

lis.mousePressedEvent(e);

} else if

...

} else if

...

}

Figure 5: Dispatch method in event source, presented separately from CoffeeDregs.

8 USER INTERACTION

THROUGH GUI

Modern languages like Java provide extensive support

for user interaction, by means of libraries and a so-

phisticated framework to process user events.

We have experienced that explicitly treating (an

abstract version of) the event loop is crucial in teach-

ing this framework and prevents or takes away many

misconceptions. For example, to explain the handling

of mouse events, we show code as presented in ﬁgures

4 and 5.

Since this abstract code is not part of a Java im-

plementation, CoffeeDregs can not visualize it. Cof-

feeDregs currently gives three options to visualize the

corresponding Swing implementation.

One option is to hide all objects and activities from

library code. This is the default. This gives the

simplest view, but completely hides the event loop.

The second option is to visualize a few selected

objects involved in the event loop in a collapsed view.

This way, one sees when control is at the objects im-

plementing the event loop, but the execution itself will

not be visible.

The third option is to expand the objects that im-

plement the event loop. CoffeeDregs will then give

a detailed view of the execution of the event loop.

This may be instructive, although its level of detail

and hairiness may be detrimental to the understand-

ing of many students.

The subject of current research is to see whether

these possibilities sufﬁce to support the explanation of

the event model or that is feasible to extend Coffee-

Dregs with the option to visualize the abstract event

loop.

VISUALIZATIONOFOBJECT-ORIENTED(JAVA)PROGRAMS

9 CONCLUSIONS AND FUTURE

WORK

We have presented a viable visualization tool, Coffee-

Dregs, for OO (Java) programs. In its present form,

the tool supports multi-threaded Java programs, with

standard input and output and GUI-programs to a lim-

ited extent.

At this stage of the development of the tool, it is

important to assess its educational effectiveness with

quantitative experiments. Some preliminary steps in

qualitative assessment have been reported on in (Lui-

jten, 2003)

A new direction of development would be to con-

nect the tool to a veriﬁcation tool. Programs then

carry annotations for veriﬁcation, and the veriﬁca-

tion tool veriﬁes whether or not the program satisﬁes

these annotation. Having the visualization available,

this would provide opportunities to better understand

where and why annotations might fail. Promising

candidate veriﬁcation tool are Dafny (Leino, 2010)

and Cocktail (Franssen, 2000).

ACKNOWLEDGEMENTS

We thank the referees for detailed and constructive

advice.

REFERENCES

Franssen, M. (2000). Cocktail: A tool for deriving correct

programs. PhD thesis, Eindhoven University of Tech-

nology.

Gestwicki, P. V. and Jayaraman, B. (2004). Jive: Java

interactive visualization environment. In OOPSLA

’04: Companion to the 19th annual ACM SIGPLAN

conference on Object-oriented programming systems,

languages, and applications, pages 226–228, New

York, NY, USA. ACM.

Jayaraman, B. and Baltus, C. M. (1996). Visualizing

program execution. In VL ’96: Proceedings of the

1996 IEEE Symposium on Visual Languages, page 30,

Washington, DC, USA. IEEE Computer Society.

Johnston, J. B. (1971). The contour model of block struc-

tured processes. SIGPLAN Not., 6(2):55–82.

olling, M. (2010). The Greenfoot Programming Envrion-

ment. ACM Transactions on Computing Education,

10(4).

olling, M., Quig, B., Patterson, A., and Rosenberg, J.

(2003). The BlueJ system and its pedagogy. Journal

of Computer Science Education, 13(4):249–268.

Leino, K. R. M. (2010). Dafny: An automatic program ver-

iﬁer for functional correctness. In LPAR-16, volume

6355 of LNCS, pages 348–370. Springer.

Lessa, D., Czyz, J. K., and Jayaraman, B. (2010). JIVE:

A pedagogic tool for visualizing the execution of Java

programs.

Lessa, D. and Jayaraman, B. (2012). Explaining the dy-

namic structure and behavior of java programs using

a visual debugger. In Proceedings of the 43rd ACM

Technical Symposium on Computer Science Educa-

tion (SIGCSE).

Levy, R. B.-B., Ben-Ari, M., and Uronen, P. A. (2002). The

Jeliot 2000 program animation system. Computers &

Education, 40(1):1–15.

Luijten, C. A. (2003). Interactive visualization of the ex-

ecution of object-oriented programs. Master’s thesis,

Eindhoven University of Technology.

Vandalon, V. (2009). Concepts and structure of Coffee-

dregs. Internship report, Eindhoven Univeristy of

Technology.

Vandalon, V. (2010). Coffeedregs tool: http://

www.win.tue.nl/∼keesh/ow/coffeedregs/.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
