PROGRAMMING EXERCISES EVALUATION SYSTEMS

An Interoperability Survey

Ricardo Queirós

and José Paulo Leal

CRACS & INESC-Porto LA & DI-ESEIG/IPP, Porto, Portugal

CRACS & INESC-Porto LA, Faculty of Sciences, University of Porto, Porto, Portugal

Keywords: Learning Objects, Standards, Interoperability, Programming Exercises Evaluation.

Abstract: Learning computer programming requires solving programming exercises. In computer programming

courses teachers need to assess and give feedback to a large number of exercises. These tasks are time

consuming and error-prone since there are many aspects relating to good programming that should be

considered. In this context automatic assessment tools can play an important role helping teachers in

grading tasks as well to assist students with automatic feedback. In spite of its usefulness, these tools lack

integration mechanisms with other eLearning systems such as Learning Management Systems, Learning

Objects Repositories or Integrated Development Environments. In this paper we provide a survey on

programming evaluation systems. The survey gathers information on interoperability features of these

systems, categorizing and comparing them regarding content and communication standardization. This work

may prove useful to instructors and computer science educators when they have to choose an assessment

system to be integrated in their e-Learning environment.

1 INTRODUCTION

One of the main goals in computer programming

courses is to develop students’ understanding of the

programming principles. The understanding of

programming concepts is closely related with the

practice on solving programming exercises. Due to

increasing class sizes, the practice of programming

exercises assessment leads to extensive workload to

instructors. Apart from being time-consuming,

manual assessment hinders the consistency and

accuracy of assessment results as well as it allows

“unintended biases and a diverse standard of

marking schemes” (Romli et al., 2010). Therefore,

automatic assessment of programming exercises has

become an important method for grading students'

programming exercises as well as giving feedback

on the quality of their solutions. In this paper we

survey Programming Evaluation Systems (PES)

focusing on their interoperability features.

Nowadays there are a large number of PES

referenced in several surveys (Romli et al., 2010)

found in literature. The majority of the surveys

enumerates and compares the same set of features

such as how the analysis of the code is made, how

the tests are defined or how grades are calculated.

These surveys seldom address the PES

interoperability features, although they generally

agree on the importance of the subject, due to the

comparatively small number of systems that

implement them. This lack of interoperability is felt

at content and communication levels. Both levels

rely on the existence of specifications that uniformly

describe the content of programming exercises and

the way they should be shared among the systems

that are typically coupled with PES. Examples of

these systems are Learning Management Systems

(LMS), Contest Management Systems (CMS),

Evaluation Engines (EE), Learning Objects

Repositories (LOR) and Integrated Development

Environments (IDE).

The main goal of this paper is to gather

information on the interoperability features of the

existent PES and to compare them regarding a set of

predefined criteria such as content specification and

standard interaction with other tools.

The intended benefit of this survey is twofold: 1)

to fill the gap on PES interoperability features found

in most surveys; 2) to help instructors, educational

practitioners and developers when they have to

choose a PES to integrate in their e-Learning

environments.

Queirós R. and Leal J..

PROGRAMMING EXERCISES EVALUATION SYSTEMS - An Interoperability Survey.

DOI: 10.5220/0003924900830090

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 83-90

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

The remainder of this paper is organized as

follows: Section 2 summarizes recent PES surveys.

The following section presents our survey focused

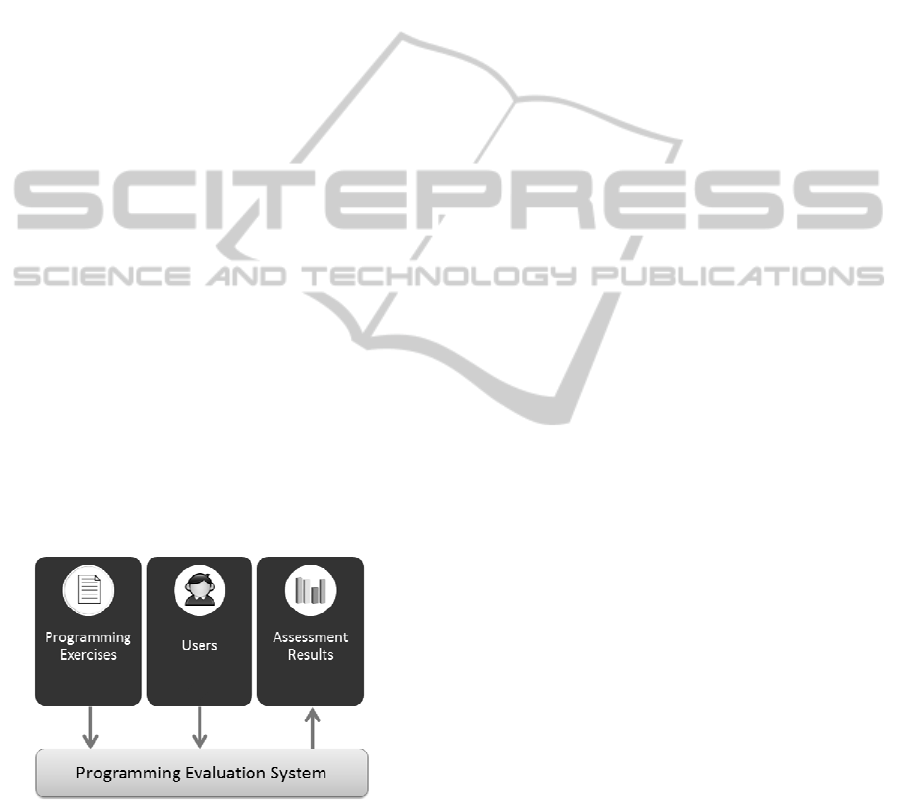

on interoperability, organized in three facets:

programming exercises, users and assignment

results. Then we discuss the survey results and

pointed some recommendations based on the result

data. Finally, we present our view on the future

trends on PES interoperability and open challenges

for research on this subject.

2 RELATED WORK

2.1 Evolution of Assessment Tools

In recent years, programming courses in secondary

schools and universities are characterized by

extensive curricula and large classes. In this context,

the assessment of programming assignments poses

significant demands on the instructor’s time and

other resources (Douce et al., 2005). This demand

stimulated the development of automated learning

and assessment systems in many universities (Ala-

Mutka, 2005). These systems assess programming

exercises and assignments submitted by students,

and provide evaluation data and feedback. They

present a wide variety of features, such as

programming language support, evaluation type,

feedback, interoperability, learning context, security

and plagiarism.

Early systems (Reek, 1989); (Jackson and Usher,

1997); (Mansouri et al., 1998) and (Saikkonnen et

al., 2001) assess exercises and assignments in a

single programming language respectively, Pascal,

ADA, Prolog and Scheme. With the advent of the

Internet and the increase of platforms heterogeneity,

web interfaces began to play an important role in the

dissemination of several systems (Pisan et al, 2003);

(Juedes, 2003); (Leal, 2003) and (Blumenstein et al,

2004). The last two were among the first PES to

support multiple programming languages, such as

Java, C++ and the C.

The standard way of evaluating a program is to

compile it and then execute it with a set of test cases

comprising input and output files. The submitted

program is accepted if compiles without errors and

the output of each execution is what is expected.

This evaluation strategy has been shown to bring

undesirable pedagogical issues such as student

frustration and confusion (Tang et al., 2009a, 2010).

Jackson and Usher (1997), Saikkonen et al (2001),

Pisan et al (2003), Juedes (2003), Blumenstein et al

(2004) and Mandal et al. (2006) test not only the

behaviour of single programs but also analyse the

structure of source code. This approach guarantees

that the program was written in a particular way,

following a particular algorithm or used certain data

structures. To assess the correctness of student

submissions Edwards (2006) use also unit tests

defined by teachers. Another important issue is the

non-determinism of the program outputs where

different correct (or acceptable) solutions to the

same programming exercise may not always

produce exactly the same output (Tang et al.,

2009b). Leal (2003) deals with non-determinism

using dynamic correctors invoked after each test

case execution. For instance, if the solution is a set

of values that can be presented in any order then a

dynamic corrector can be used to reduce the output

to a normal form.

Depending of the learning context (competitive

or curricular) the systems may provide feedback to

help students to solve a particular exercise. The

feedback generation relies on static and dynamic

program analyses (Ala-Mutka, 2005). The

development of PES with high quality feedback (e.g.

compilation errors, execution errors, execution tests)

show good results (Malmi et al., 2005); (Higgins et

al., 2005) and along with visual, incremental and

personalized feedback should shape the future

regarding this topic. (Striewe, 2010).

The PES interoperability is also an important

issue to address. An evaluator should be able to

participate in learning scenarios where teachers can

create exercises, store them in a repository and

reference them in a LMS and where students can

solve exercises and submit to PES who delivers an

evaluation report back to students. Luck and Joy

(1999), Benford et al (1993) were early systems that

try to address this issue allowing the integration with

course management systems. Nowadays with the

advent of Service Oriented Architectures (SOA) the

trend is service orientation rather than component-

based systems. An evaluator system as a service will

automate the existent business logic in distributed e-

Learning scenarios allowing more flexibility in the

comprised workflows and keeping the systems

simple and easy maintainable. Leal et al. (2010)

specified a service for programming exercises

evaluation in a well-known e-Learning framework

called the E-Framework. This work was used in

Edujudge project (Verdu et al., 2011) with

promising results.

Luck and Joy (1999) analysed security issues on

PES covering robust environments, privacy, and

data integrity. Security can be handled from ad-hoc

solutions to solutions based on Virtual Machines

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

(VM) in order to execute the programs on a safe and

controlled environment. Other concerning is the

increase of plagiarism (Engels, 2007) and (Cheang,

2003). Luck and Joy (1999) and Blumenstein et al

(2004) analyse the integration of plagiarism services

in the assessment workflow.

Regarding the learning context, PES can be used

in two contexts: curricular and competitive learning.

In the former, teachers use practical classes,

assignments and examinations to evaluate students’

evolution. The latter relies on the competitiveness of

students to increase their programming skills mostly

in computer programming contests. In this last

context, automated judge systems (or online judges)

are used to run programming contests and to practice

for such contests. These systems include automatic

evaluators and many of these systems organize their

own contests, such as, Mooshak (Leal, 2003), UVA-

OJ (University of Valladolid Online Judge), SPOJ

(Sphere Online Judge), DOMJudge and others.

2.2 Recent Surveys

In the last decade several surveys appeared reporting

PES features and trends.

Douce et al. (2005) review the history of the field

from 1960s characterized by a number of projects

that automatically assess student programming

exercises using a test-based approach. Three

generations of PES were identified: the first-

generation was represented by several initiatives to

automate testing, however their usability was

confined to their particular computing laboratories.

The second generation was characterized by

command-line-based PES. The third generation

made use of web-based technologies to leverage the

use of PES worldwide and provide additional

support for educators in the form of assessment

management and reporting facilities. The paper also

mentions four development directions in this field:

evaluation of GUI programs, meta-testing

(evaluation of the students’ tests), service orientation

adoption and use of interoperability standards.

Kirsti AlaMutka (2005) organizes PES features

according to whether they need execution of the

program (dynamic analysis) and/or can be evaluated

from the program code (static analysis). In one hand,

dynamic analysis is often used to assess

functionality, efficiency, and testing skills. In other

hand, static analysis is used to provide feedback

from style, programming errors and software

metrics. The authors conclude that automated

systems approach should always be pedagogically

justified and state that systems are in-house built and

no common standards or interfaces exist.

Liang et al. (2009) details dynamic and static

analysis methods of existing PES. The paper also

enumerates several unsolved issues in this area such

as security, algorithms for automatic generation of

test data in dynamic analysis and low accuracy and

precision of correctness in static analysis. Finally the

authors claim as new directions in the PES

development the content standardization.

Ihantola et al. (2010) gather information on PES

from 2006 to 2010 and discuss their major features

such as tests definition, resubmission policies and

security features. The author expects new research to

emerge from the following fields: integration of

automatic assessment on LMS and automatic

assessment of web applications.

Romli et al. (2010) enumerate approaches for

automatic programming assessment, test data

generation and integration of both. The authors

conclude that there is a lack of use of existing test

data generation techniques (commonly used to test

software) in the scope of automatic programming

assessment. The same survey made an exhaustive

study on 41 assessment tools that appeared in the

last 50 years focusing on the evaluation methods and

test data generation techniques used. Dynamic

analysis is the most used method to assess programs

with 74% of the tools studied using it. This is

explained since program correctness is the most

important quality factor while evaluating a program.

In dynamic analysis the test data assumes a relevant

role. The process of creating tests can be labour

demanding. Manual generation is time-consuming

and error-prone and seldom covers the potential

range of a program. In spite of these issues, the

study shows that the most used method for feed the

assessment systems with test data is through manual

data entry. This is due to the complexity inherent to

the automatic generation of test data.

Beyond these facets, all above surveys stated the

need for interoperability and security on PES. The

former can be achieved by the creation and adoption

of content and communication standards. The latter

is a well-know issue that should not be overlooked

and can be addressed by the use of secure

environments (sandbox) to execute untested code

and algorithms to filter out malicious code.

3 INTEROPERABILITY

ANALYSIS

Based on the previous section, we conclude that

interoperability is the main trend on PES. Moreover,

PROGRAMMINGEXERCISESEVALUATIONSYSTEMS-AnInteroperabilitySurvey

this topic was never analysed in the above surveys.

Thus, we decided to survey existing PES regarding

their interoperability features. Given the multiplicity

of systems found we apply a multi-criteria approach

for the selection of tools based on its effective use.

The tools should be flexible enough to allow the

configuration of exercises and the management of

users. The former covers not only the selection of

existing exercises on the evaluation tool but also the

support for adding new exercises. The latter refers to

the support of the tool for select users that will solve

the exercises.

With this multi-criteria approach we selected 15

tools. After the selection of the tools, we applied an

iterative process to identify which facets (current

subsections) will be used to verify the

interoperability maturity level of the selected tools.

We began with an initial set of facets based on the

issues and trends raised on the previous surveys in

conjunction with our background in working with

interoperability on automated assessment. Then, we

read the published papers of the tools and consult

their official websites and revised the facets. Figure

1 shows the selected facets.

These facets are also synchronized with the main

objective of a typical automatic evaluation system -

to evaluate a user’s attempt to solve a

programming exercise and produce an assessment

result. Each facet includes three interoperability

maturity levels:

Level 0 - manual configuration of data;

Level 1 - data import/export;

Level 2 - services invocation.

Figure 1: Interoperability facets of PES.

In order to belong to Level 0, the evaluation tool

must support the configuration of data by allowing

either the selection of existing data or the addition of

new data. In the Level 1, the evaluation tool must

also support the import/export of data from/to other

sources. In the last level, the evaluation tool should

also support the communication with other tools

through the invocation of web services.

In the next subsections we detail the three facets

and for each facet we present the respective

interoperability maturity levels of the selected PES.

3.1 Programming Exercises

Nowadays we can find a large number of

programming exercises. Despite their number, these

exercises exist only in PES silos and seldom include

mechanisms to share the exercises among

researchers and instructors in an effective manner.

Moreover, each of these systems dictates the

persistent format of an exercise that may not be

interoperable with other automatic evaluation

systems. This is a significant barrier in the creation

and sharing of programming exercises and can only

be addressed through the standardization of exercise

content and its storage on public repositories.

Based on these facts, we specialised the abstract

maturity levels with the following:

Level 0 - manual configuration of exercises;

Level 1 - import/export of exercises;

Level 2 - integration with repository services.

In the Level 0, the evaluation tool should support the

selection of exercises and the addition of new

exercises. In this level, the tool relies on ad-hoc or

internal formats to describe exercises data.

In the Level 1, the evaluation tool should also

provide mechanisms to import/export exercises

from/to other sources. In this level, the tool must

explicitly support an exercise format. There are few

exercise formats. Typically an exercise format can

be obtained by modelling a programming exercise

into a Learning Object (LO) definition. This

definition describes an exercise as a learning

package composed by a set of resources (e.g.

exercise descriptions, test cases, solution files) and a

manifest that describes the package and its resources

in terms of its contents, classifications, lifecycle and

several other relevant properties.

In the Level 2, the evaluation tool should also

support the communication with other tools,

typically LOR, through web services. A LOR is a

system used to store and share learning objects. The

repository should support simple and advanced

queries to retrieve LO and export them to other

systems through a set of web service flavours (e.g.

SOAP, REST). In this communication, a service

broker (e.g. exercise format conversion service) can

be used when the evaluator does not support the

format of the exercises stored in the repository.

Based on these levels we have prepared the

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

following table that enumerates for each tool the

maturity level regarding the management of

programming exercises.

Table 1: Programming exercise facet (P-partial and F-full).

Systems Level 0 Level 1 Level 2

AutoGrader F - -

BOSS2 F - -

CourseMaker F - -

CTPracticals F - -

DOMJudge F - -

EduComponents F - -

GAME F - -

HUSTOJ F P -

Moe F P -

Mooshak F F F

Peach3 F P -

Submit! F - -

USACO F - -

Verkkoke F F -

Web-CAT F F P

According to the Table 1, all systems support the

configuration of exercises. However, only six tools

provide a way to export exercises and only three

support bidirectional transfers with other sources.

These systems often use exercises formats. HUST

Online Judge uses FPS (FreeProblemSet) as an

XML format for transporting exercises information

between Online Judges. Peach3 system uses PEF

(Peach Exchange Format) as a programming task

package containing all task-related information and

serving as a unit for storage and communication.

Verkkoke system relies on SCORM packages to

wrap all the exercise data.

The second level of interoperability is only

achieved by Mooshak and partially by Web-CAT.

Mooshak is a system for managing programming

contests on the Web. The last version (1.6a2)

supports the communication with repositories

complying with the IMS DRI specification using a

broker service responsible for the conversion

between formats. Web-CAT is an automatic grading

system using student-written tests. This system can

communicate with other repositories, such as

CollabX, through specific plug-ins. Unlike

Mooshak, the interaction with repositories is not

standard-based.

Based on these facts we can conclude that most

systems use internal and proprietary formats. Those

who adhere to explicitly formats do not reach a

consensus to use a single format. This

noncompliance to a single format leads to the

standard fragmentation for describing exercise

content. One solution to address this issue is instead

of creating new formats we should start looking for

broker services responsible for the conversion

between formats.

Other issue is the relation with repositories of

learning objects. The majority of PES store the

exercises inside their systems hindering the

proliferation and sharing of exercises. In order to

communicate with repositories the evaluation

systems must follow communication standards (e.g.

IMS DRI) rather than ad-hoc implementations.

3.2 Users

In order to select and solve exercises users must be

authenticated in the evaluation system and have

authorization to submit their solutions. The users’

facet also specialises the abstract maturity levels

with the following:

Level 0 - manual configuration of users;

Level 1 - import/export of users;

Level 2 - integration with user directories

services to provide authentication and academic

management systems (AMS) to provide

authorization.

In the Level 0, the evaluation tool should support the

configuration of user’s data.

In the Level 1, the evaluation tool should also

provide mechanisms to import/export users from/to

other sources. In this level, the tool can export a list

of users based on standard formats. As far as we

know, there are few standards that formalize users’

data and how data is sent. Two know-standards are

the IMS Learner Information Services (IMS LIS)

and the IMS Learner Information (IMS LIP). The

former is the definition of how systems manage the

exchange of information that describes people,

groups, memberships, courses and outcomes within

the context of learning. The IMS LIS is focused on

the connection between an LMS and an AMS. The

latter addresses the interoperability of internet-based

learner information systems with LMSs. It describes

mainly the characteristics of a learner.

In the Level 2, the evaluation tool should also

support the communication with other tools to

provide authentication and authorization facilities.

User authentication is based on directory services

such as LDAP or Active Directory. User

authorization relies on AMS that manages academic

processes such as the enrolment of students in

courses, the management of grades or the payment

of fees. They are the best candidates to offer

authorization services since they store information

about courses and students enrolled in them. The

communication with AMS is not standardized. This

PROGRAMMINGEXERCISESEVALUATIONSYSTEMS-AnInteroperabilitySurvey

fact burdens the integration of AMS with evaluation

systems that must resort to ad- hoc solutions.

Table 2 shows the maturity level of automatic

evaluation tools regarding the users’ facet.

Table 2: Users facet (P-partial and F-full).

Systems Level 0 Level 1 Level 2

AutoGrader F F P

BOSS2 F - -

CourseMaker F

CTPracticals F F P

DOMJudge F F P

EduComponents F F P

GAME F - -

HUSTOJ F - -

Moe F - -

Mooshak F F P

Peach3 F - -

Submit! F - -

USACO F F -

Verkkoke F F -

Web-CAT F F -

According to the Table 2, all systems support the

manual configuration of users for a specific

assignment or course. More than a half of the

systems studied allow the import/export of users in

non-standard formats. However only five partially

support the communication with authentication

services (mostly with LDAP). We can conclude that

AMS are still immature in terms of standard

communication with other systems since we do not

found any system interacting with it. AutoGrader,

CTPraticals, EduComponents and Verkokke

beneficiate from the fact that they are integrated

with LMS thus taking advantage of its authorization

facilities.

3.3 Assessment Results

After the student’s submission the evaluation system

assesses the program and returns an evaluation

result. The assessment results facet also specialises

the abstract maturity levels with the following:

Level 0 - visualization of evaluation results;

Level 1 - export of assessment results;

Level 2 - integration with LMS.

In the Level 0, the evaluation tool should support the

visualization of the assessment results. The result

data is essential for the success of an assignment and

can include feedback and grades. This information

should be present to the user on the evaluation tool

graphical interface.

In the Level 1, the evaluation tool should also

export evaluation reports to other sources. As far as

we know, there are few standards that formalize

evaluation results. A formalization of an evaluation

report can be found in the Evaluation service (Leal

et al., 2010) - a contribution for the E-Framework.

An implementation of this service evaluates an

attempt to solve a programming exercise and

produces a detailed report. This evaluation report

includes information to support exercise assessment,

grading and/or ranking by client systems. The report

itself is not an assessment, does not include a grade

and does not compare students.

In the Level 2, the evaluation tool should also

communicate with other tools. A typical scenario is

the evaluation tool sends the grades to the LMS

grade book. A common interoperability standard that

is increasingly supported by major LMS vendors is

the IMS Learning Tools Interoperability (IMS LTI)

specification. It provides a uniform standards-based

extension point in LMS allowing remote tools and

content to be integrated into LMSs. Currently, only a

subset (IMS Basic LTI) of this specification is

implemented by the major LMS. This subset

exposes a unidirectional link between the LMS and

the application. For instance, there is no provision

for accessing run-time services in the LMS and only

one security policy is supported.

Table 3 shows the maturity level of PES

regarding the assessment results facet.

Table 3: Assessment results facet (P-partial and F-full).

Systems Level 0 Level 1 Level 2

AutoGrader F F P

BOSS2 F - -

CourseMaker F - -

CTPracticals F F P

DOMJudge F F -

EduComponents F F P

GAME F - -

HUSTOJ F - -

Moe F - -

Mooshak F F -

Peach3 F F -

Submit! F - -

USACO F - -

Verkkoke F F P

Web-CAT F F -

Table 3 shows that all systems present the

evaluation results to users and the majority allows its

exportation in non-standard formats. Regarding the

communication with other systems, four systems

support the communication with LMS by providing

the evaluation results on the LMS grade book.

AutoGrader, CTPraticals and EduComponents are

integrated with specific LMS, respectively,

CascadeLMS, Moodle and Plone. Verkkoke is the

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

only that do not depends on a specific LMS and can

be integrated on any LMS that supports the SCORM

specification.

4 SYNTHESIS & CONCLUSIONS

In this section we start by synthesizing the

interoperability facets of the PES included on the

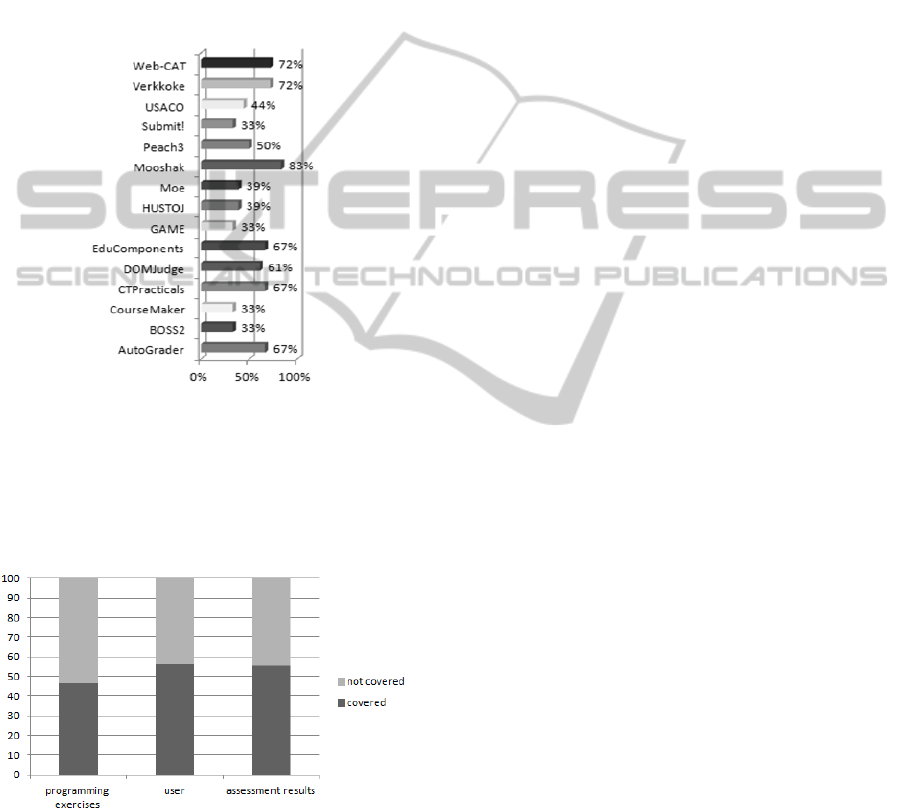

above survey. Figure 2 depicts the percentage of

interoperability maturity of each PES.

Figure 2: Interoperability maturity percentage level of

PES.

We can conclude that a half of the systems

studied did not reach 50% of the maturity rate. This

illustrates that there are a lot to do in this field

regarding the integration of PES with other systems.

Figure 3: Coverage of interoperability features.

Figure 3 depicts the coverage of interoperability

features of the PES studied organized by facet. The

major conclusion to take is that there is no specific

trend on interoperability facets since the distribution

of interoperability coverage is equitably distributed

among the three facets.

In this paper we present an interoperability

survey on PES. Based on a multi-criteria approach

we select 15 tools and organized the survey based on

three interoperability facets: programming exercises,

users and assessment results. For each facet we

characterised each PES based on its interoperability

level. Based on this study we detect two issues that

can hinder the proliferation of PES: the lack of

content standards for describing programming

exercises and to communicate with other e-Learning

systems.

This work fills the gap existent in most surveys

since all of them point to interoperability as an issue

for PES use and a trend for PES development but

never explained in detail what are the paths to follow

in order to achieve interoperability on this domain.

The results achieved on this survey may also prove

useful to instructors and computer science educators

when they have to choose an assessment system to

be integrated in their e-Learning environment.

REFERENCES

Ala-Mutka, K., 2005. A survey of automated assessment

approaches for programming assignments. Computer

Science Education, 15(2):83-102.

Blumenstein M., Green S., Nguyen A. and

Muthukkumarasamy V., 2004. An experimental

analysis of GAME: a generic automated marking

environment. In Proceedings of the 9th annual

SIGCSE conference on Innovation and technology in

computer science education, Leeds, United Kingdom,

pp 67-71

Cheang B., Kurnia A., Lim A. and Oon W. C., 2003. On

automated grading of programming assignments in an

academic institution. In Computer Education, vol. 41,

pp. 121–131.

Douce C., Livingstone D., Orwell J., 2005. Automatic

test-based assessment of programming: a review. In

JERIC - Journal of Educational Resources in

Computing, 5(3):4.

Edwards S. H. and Pugh W., 2006. Toward a common

automated grading platform. In SIGCSE ’06:

Proceedings of the 37th SIGCSE technical symposium

on Computer science education, (New York, NY,

USA), ACM.

Engels S., Lakshmanan V. and Craig M., 2007. Plagiarism

detection using featurebased neural networks. In

SIGCSE, pp. 34–38, 2007

Higgins, C. A., Gray, G., Symeonidis, P., Tsintsifas, A.,

2005. Automated assessment and experiences of

teaching programming. In Journal on Educational

Resources in Computing (JERIC), 5(3).

Ihantola, P., Ahoniemi, T., Karavirta, V. And Seppälä, O.,

2010. Review of recent systems for automatic

assessment of programming assignments. In Koli

PROGRAMMINGEXERCISESEVALUATIONSYSTEMS-AnInteroperabilitySurvey

Calling '10 Proceedings of the 10th Koli Calling

International Conference on Computing Education

Research. ACM.

Jackson, D. and Usher, M., 1997. Grading student

programming using ASSYST. In Proceedings of 28th

ACM SIGCSE Tech. Symposium on Computer Science

Education, San Jose, California, USA, pp 335-339.

Jena, S., 2008. Authoring and Sharing of Programming

Exercises. In Master's Projects. Paper 19.

http://scholarworks.sjsu.edu/etd_projects/19

Juedes, D. W., 2003. Experiences in Web-Based Grading.

In 33rd ASEE/IEEE Frontiers in Education

Conference November 5–8, 2003, Boulder, CO

Leal, J. P. and Silva F., 2003. Mooshak: a Web-based

multi-site programming contest system. In Software

Practice & Experience, Volume 33 , Issue 6. Pages:

567 - 581, 2003, ISSN:0038-0644

Leal, J. P., Queirós, R. and Ferreira D., 2010. Specifying a

programming exercises evaluation service on the e-

Framework. In Xiangfeng Luo, Marc Spaniol, Lizhe

Wang, Qing Li, Wolfgang Nejdl and Wu Zhang (Eds),

Advances in Web-Based Learning - ICWL 2010 - 9th

Internation Conference, Shanghai, China, December,

2010, LNCS 6483, pp. 141-150, ISBN 978-3-642-

17406-3

Liang, Y., Liu, Q., Xu, J. and Wang, D., 2009. The recent

development of automated programming assessment.

In CISE - Computational Intelligence and Software

Engineering, 1-5.

Luck M. and Joy M., 1999. A secure on-line submission

system. In Software - Practice and Experience, 29(8),

pp721--740

Malmi, L., Karavirta, V., Korhonen, A., Nikander, J.,

2005. Experiences on automatically assessed

algorithm simulation exercises with different

resubmission policies. In Journal on Educational

Resources in Computing (JERIC), 5(3).

Mandal C., Sinha, V. L. and Reade C. M. P., 2004. A

Web-Based Course Management Tool and Web

Services. In Electronic Journal of E-Learning, Vol

2(1) paper no. 19

Mandal A. K., Mandal C. and Reade C. M. P., 2006.

Architecture Of An Automatic Program Evaluation

System. In CSIE Proceedings

Mansouri, F., Cleveland, A. Gibbon, Colin, A.

Higgins. PRAM: prolog automatic marker. In

Proceedings of ITiCSE'1998. pp.166~170

Pisan Y., Richards D., Sloane A., Koncek H. and Mitchell

S., 2003. Submit! A Web-Based System for Automatic

Program Critiquing. In Proceedings of the Fifth

Australasian Computing Education Conference (ACE

2003), Adelaide, Australia, Australian Computer

Society, pp. 59-68.

Queirós R. and Leal J. P., 2011. A Survey on eLearning

Content Standardization. In 4th World Summit on the

Knowledge Society, Mykonos, Greece.

Reek, K. A., 1989.The TRY system or how to avoid

testing student programs. In Proceedings of SIGCSE,

pp 112-116.

Rehak, D. R., Mason, R., 2003. Keeping the learning in

learning objects. In Littlejohn, A. (Ed.) Reusing online

resources: a sustainable approach to e-Learning.

Kogan Page, London, 2003. (pp.22-30).

Romli, R., Sulaiman, S. and Zamli, K. Z., 2010.

Automatic programming assessment and test data

generation a review on its approaches. In Information

Technology (ITSim), 2010 International Symposium

in. DOI: 10.1109/ITSIM.2010.5561488

Saikkonen R., Malmi L., Korhonen A., 2001. Fully

automatic assessment of programming exercises. In

Proceedings of the 6th annual conference on

Innovation and Technology in Computer Science

Education (ITiCSE), pp. 133–136, 2001

Striewe M. and Goedicke M., 2010. Visualizing Data

Structures in an E-Learning System. In Proceedings of

the 2nd International Conference on Computer

Supported Education (CSEDU) 2010, Valencia, Spain,

volume 1, pages 172-179, 2010

Tang, C. M., Yu, Y. T., and Poon, C. K., 2009a.

Automated systems for testing student programs:

Practical issues and requirements. In Proceedings of

the International Workshop on Strategies for Practical

Integration of Emerging and Contemporary

Technologies in Assessment and Learning, pp.

132±136

Tang, C. M., Yu, Y. T., and Poon, C. K., 2009b. An

approach towards automatic testing of student

programs using token patterns. In Proceedings of the

17th International Conference on Computers in

Education (ICCE 2009), pp. 188±190

Tang C. M., Yu Y. T., Poon C. K., 2010. A Review of the

Strategies for Output Correctness Determination in

Automated Assessment of Student Programs. In

Proceedings of Global Chinese Conference on

Computers in Education.

Trætteberg H., Aalberg T., 2006. JExercise: A

specification-based and test-driven exercise support

plugin for Eclipse. In Proceedings of the 2006

OOPSLA Workshop on Eclipse Technology eXchange,

ETX 2006 (2006), 70-74.

Verdú E., Regueras L. M., Verdú M. J., Leal J. P., Castro

J. P. and Queirós R., 2011. A Distributed System for

Learning Programming On-line. In Computers &

Education Jornal, 2011, ISSN 0360-1315

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation
