AN INTELLIGENT CLOUD RESOURCE ALLOCATION SERVICE

Agent-based Automated Cloud Resource Allocation using Micro-agreement

Kassidy Clark, Martijn Warnier and Frances M. T. Brazier

Faculty of Technology, Policy and Management, Delft University of Technology, Jaffalaan 5, Delft, The Netherlands

Keywords:

Cloud Computing, Service Level Agreements, Agent Technology, Automated Negotiation, Micro-agreements.

Abstract:

The Cloud refers to hardware and software resources available across the Internet. The number of competing

Cloud Service Providers (CSP) continues to increase as companies outsource their computing infrastructure to

the Cloud. In this environment, consumers face several challenges, including ﬁnding the least expensive Cloud

service conﬁguration, migration between CSPs and dynamically changing resource offerings. To assist con-

sumers in this environment, this paper proposes an Intelligent Cloud Resource Allocation Service (ICRAS).

This service maintains an overview of current CSP resources offerings and evaluates them to ﬁnd the most

appropriate conﬁguration given a consumer’s preferences. The service then negotiates a short term micro ser-

vice agreement with the CSP and monitors the service for any violations. Finally, the service can assist in the

migration of the consumer’s data between CSPs.

1 INTRODUCTION

The Cloud refers to hardware and software resources

available across the Internet (Armbrust et al., 2010).

Companies that offer these resources are referred to

as Cloud Service Providers (CSP). Cloud services can

be roughly categorized as Infrastructure-as-a-Service

(IaaS), Platform-as-a-Service (PaaS) and Software-

as-a-Service (SaaS). This categorization is based on

the complexity of the service, from raw compute re-

sources, such as storage or processing power, to re-

ﬁned software services, such as databases or other ap-

plications. This paper focusses mainly on the ﬁrst of

these categories: IaaS.

The Cloud computing model allows end users

to rent computing infrastructure as needed, rather

than requiring them to purchase their own resources.

Moreover, consumers can increase or decrease the

size of their Cloud resources in a straightforward

and timely manner, depending on their computing re-

quirements. Consumers use these services following

a pay-as-you-go model, only paying for the speciﬁc

amount of time or level of service used.

Much research into efﬁcient use of Cloud re-

sources focusses on increasing utility of the CSP.

For instance, techniques have been proposed for

load-balancing techniques aimed at reducing energy

costs (Baliga et al., 2011) or dynamic pricing models

that maximize revenue (Pueschel et al., 2009). In con-

trast, this paper proposes a service to maximize utility

from the perspective of the consumer. With this ser-

vice, a consumer can ﬁnd the most appropriate bal-

ance between low cost and high quality.

The number of CSPs offering similar services on

the market continues to grow. This increased level

of providers allows consumers to pick and choose

between options, based on price, Quality of Service

(QoS), reputation and location. The values of some

selection options are also constantly changing. For

instance, in addition to set prices, some CSPs offer

dynamic pricing (e.g. Amazon Web Services spot

pricing). Dynamic pricing allows the price of cer-

tain resources to change to immediately reﬂect un-

derlying factors, such as Cloud utilization and con-

sumer demand (Pueschel et al., 2009, Anandasivam

and Premm, 2009).

In this environment, a consumer is faced with sev-

eral challenges. First, to obtain the desired initial con-

ﬁguration of Cloud resources, a consumer must eval-

uate prices of all available CSPs. The task of ﬁnd-

ing this conﬁguration is further complicated as more

CSPs implement dynamic pricing. When a consumer

chooses the conﬁguration that is currently the most

appropriate, a better conﬁguration may become avail-

able soon thereafter. Therefore, a consumer must

periodically reevaluate conﬁgurations at all available

CSPs. If a consumer chooses to move from his or her

current CSP to a different CSP with a more suitable

Clark K., Warnier M. and M. T. Brazier F..

AN INTELLIGENT CLOUD RESOURCE ALLOCATION SERVICE - Agent-based Automated Cloud Resource Allocation using Micro-agreement.

DOI: 10.5220/0003928300370045

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 37-45

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

conﬁguration, the consumer is then faced with the

challenge of migration. Due to inoperability of CSPs

and the tendency towards vendor lock-in, changing

CSPs is not a trivial task.

To assits a consumer with these challenges, this

paper introduces an Intelligent Cloud Resource Al-

location Service (ICRAS). ICRAS supports the con-

sumer with 1) discovering all available resource con-

ﬁgurations, 2) choosing the desired conﬁguration, 3)

negotiating a service agreement with the CSP, 4) mon-

itoring the service agreement for violations and 5) as-

sisting in the migration of services between CSPs.

ICRAS aggregates information describing the

available services from multiple CSPs, including cur-

rent price, availability, Quality of Service guarantees,

location and reputation. When a consumer requires

resources, it contacts ICRAS with a description of the

computing needs. ICRAS then matches the resource

request to the most appropriate conﬁguration of Cloud

resources from the CSPs. ICRAS facilitates the ne-

gotiation of the necessary Service Level Agreements

(SLA) with the CSPs on behalf of the consumer and

assists in the migration process.

ICRAS then monitors the services during the life-

time of the SLA to ensure that there are no agreement

violations. If violations are detected, corrective action

can be taken. Furthermore, ICRAS continues to eval-

uate the available CSP resources and their prices and

can recommend new conﬁgurations when they beneﬁt

the consumer. By negotiating micro-SLAs (e.g. one

hour), ICRAS is able to respond to newer, and hope-

fully better, conﬁgurations.

ICRAS can be used by a consumer for two dif-

ferent stages: initial migration to the Cloud and mi-

gration between CSPs. After negotiating the initial

service agreement, ICRAS constantly monitors for

newly available conﬁgurations. If a better one is

found, the consumer is notiﬁed and given the option

to migrate to the new CSP.

The rest of this paper is organized as follows. Sec-

tion 2 introduces the core concepts used in automated

negotiation. The ICRAS architecture is detailed in

Section 3. The ICRAS protocol is explained with a

use-case in Section 4. In Section 6, other automated

service negotiation architectures are compared. Fi-

nally, the implications of this research are discussed

in Section 8.

2 AUTOMATED NEGOTIATION

Negotiation is the process by which one or more par-

ties, with possibly conﬂicting goals, together search

for a mutually acceptable agreement (Jennings et al.,

2001). The negotiation process consists of propos-

als, counter-proposals, trade-offs and concessions, as

each party attempts to maximize its own goals. A

common utility function for consumers in the context

of Cloud computing is to reduce costs while achiev-

ing the desired resources and maintaining reasonable

Quality of Service (QoS)

Much research has been done in recent years on

the area of automating the negotiation process using

intelligent software agents (Koritarov, 2004, Jonker

and Treur, 2001, Jennings et al., 2001, Brazier et al.,

2002, Ouelhadj et al., 2005). In this paper, an agent

is be deﬁned as a piece of software that is capable of

autonomous action (Jennings and Wooldridge, 1998).

In the marketplace, agents represent the individual

parties of a negotiation. Given a user’s preferences

and a negotiation strategy, agents are able to com-

municate with other agents to autonomously negoti-

ate agreements. Furthermore, agents can learn from

past social interactions and improve their response

to changes in the environment or even take proactive

measures when opportunity arises. The agent model

supports message passing and autonomous decision

making useful for automated negotiation.

2.1 Service Level Agreements

The product of a successful negotiation session is

an agreement between the parties that stipulates the

terms and conditions of the service. This agreement

is referred to as Service Level Agreement (SLA).

An SLA contains the names of the parties involved,

the services to be provided and the QoS guaran-

tees that apply. Several standards have been pro-

posed for formalizing the negotiation and creation

of the SLA document, including the Web Service

Agreement (WSAG) (Andrieux et al., 2007) and Web

Service Agreement Negotiation (WSAN) (Waldrich

et al., 2011) speciﬁcations.

The WSAG speciﬁcation describes the steps taken

during SLA negotiation, as well as how SLAs are rep-

resented. The objects used in negotiation are 1) Tem-

plates, 2) (Counter-) offers and 3) Agreements. The

basic structure of these objects is shown in Figure 1.

Templates are used by service providers to describe

the services they offer, including speciﬁc conﬁgura-

tions of price, QoS guarantees and so forth. These

services are listed in the template with constraints

such as ExacltyOne and OneOrMore. Upon request,

a service provider sends his or her templates to a ser-

vice consumer. Based on the templates, the consumer

makes one or more Offers. An offer is an instanti-

ated template. This occurs when a consumer chooses

a speciﬁc conﬁguration of services from a template

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

C P

Templates

Offers

Counter-offers

Agreement

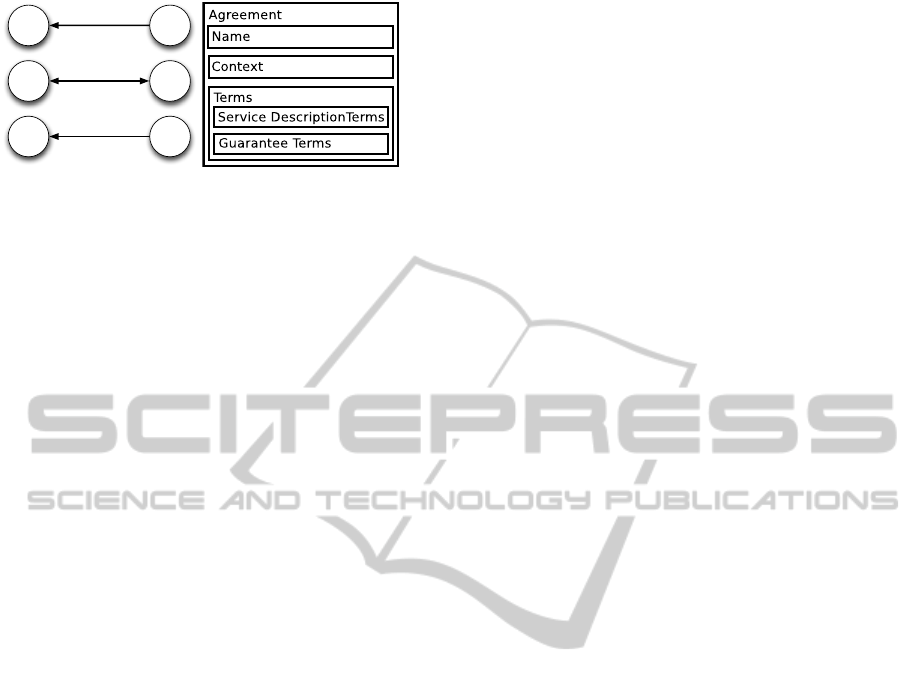

Figure 1: WSAN protocol and SLA speciﬁcation.

along with their associated guarantees. If both par-

ties accept and offer, an Agreement is created. The ﬁ-

nal agreement lists the parties involved, the exact ser-

vices being provisioned and the speciﬁc guarantees

(QoS) that apply. If the offer is not accepted, either

a counter-offer is created with a new conﬁguration or

the negotiation session is terminated.

2.2 Micro Agreements

Agreements specify the terms and conditions of a ser-

vice for a deﬁned period of time. For instance, home-

owners typically make a long-term agreement with

the power company for a period of one year or more.

The agreement typically stipulates that the home-

owner may not migrate to another energy provider

until the end of the period. This ﬁxed pricing period

beneﬁts the provider two fold. First, it provides a re-

liable income source for the period. Second, it im-

proves the accuracy of the usage prediction used for

buying or generating electricity. Energy providers can

make more accurate assumptions about energy con-

sumption if their customers cannot suddenly move to

a different provider.

The disadvantage of long-term agreements is that

the customer cannot react to changes in the market,

such as new providers or cheaper products. In prac-

tice, prices are constantly changing due to the con-

stant balance of supply and demand. However, these

changes are not immediately reﬂected in the price the

customer pays, due to long-term agreements. Further-

more, due to ﬁxed pricing, customers have no incen-

tive to shape their demand to conform to supply. This

results in lowered market efﬁciency.

An alternative to a long-term agreement is a

micro-agreement. A micro-agreement is a short-term

agreement with a period on the scale of seconds,

hours or days. By keeping the period of ﬁxed-pricing

short, consumers are able to beneﬁt from dynamic

pricing, also referred to as real-time pricing. Using

micro-agreements, consumers are able to shape their

demand on an hourly basis, in response to changes in

price. This approach increases market efﬁciency, low-

ers price and reduces the amount of unconsumed (e.g.

wasted) resources. Dynamic pricing has been inves-

tigated in the area of energy markets with promising

results (Borenstein, 2005).

3 ICRAS ARCHITECTURE

The Intelligent Cloud Resource Allocation Service

(ICRAS) requires an underlying architecture, consist-

ing of three major components: 1) a consumer, 2) a

CSP and 3) an ICRAS agent. These elements rep-

resent the three roles in the marketplace, which may

contain multiple instances of each. Furthermore, this

architecture provides the mechanisms and protocols

that enable these parties to communicate with one an-

other and autonomously negotiate micro-SLAs. SLAs

are negotiated and created following the WSAN spec-

iﬁcation. This architecture is illustrated in Figure 2.

3.1 Consumer

Each consumer interacts directly with an ICRAS

agent. A consumer speciﬁes his or her requirements

in an SLA offer. This document allows a consumer to

specify 1) hard and 2) soft requirements, 3) priorities,

4) ranges of options, and 5) dependencies between re-

quirements. For instance, a consumer requires 10 vir-

tual servers with a combined CPU power of 20 GHz

and a combined storage of 2 TB. Using the SLA nota-

tion, a consumer expresses that the CPU and storage

requirements are strict, however, for a reduced price,

the actual number or servers can change.

In addition to providing the initial resource re-

quirements, a consumer is also responsible for up-

dating these requirements. If resource requirements

change, a consumer must inform an ICRAS agent of

these changes. A change in requirements can occur

for several reasons. First, based on current events or

past experience, a consumer can predict increases or

decreases in computing needs. For instance, online

retailers receive more trafﬁc leading up to the holi-

days. Second, a change in business needs can prompt

an immediate reconﬁguration of the resource require-

ments. For instance, a company decides to remove

some legacy applications. Finally, a company’s re-

source requirements can change due to developments

in the market, such as increased competition or lower

consumer demand.

To enable such changes, a consumer monitors the

level of activity on his or her Cloud resources and in-

forms the ICRAS agent if a threshold is crossed and a

new conﬁguration is necessary.

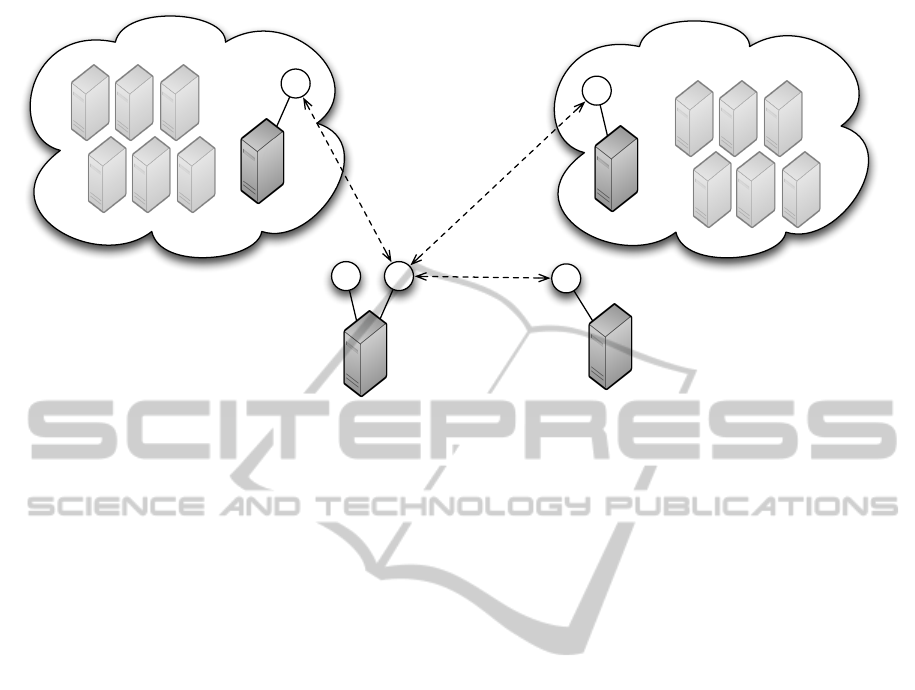

ANINTELLIGENTCLOUDRESOURCEALLOCATIONSERVICE-Agent-basedAutomatedCloudResource

AllocationusingMicro-agreement

AMS

Broker

Cloud Service Provider

concurrent negotiation with

multiple CSPs using

WSAG protocol

Consumer

interaction with Broker

for best price / QoS

for given requirements

Figure 2: ICRAS architecture with a consumer negotiating with two competing CSPs.

3.2 CSP

To enable participation in the ICRAS architecture, a

CSP must offer a compatible interface that is accessed

by the ICRAS agent. This interface must support two

main functions: negotiation and migration. For ne-

gotiation, a CSP must generate SLA templates. For

this, a CSP requires access to internal information of

its Cloud. This includes realtime pricing data, Cloud

utilization and system health (QoS) information, if

available. On the basis of this information a CSP

generates SLA templates describing the available re-

sources. Due to the dynamic nature of CSP resource

availability and pricing, these SLA templates are up-

dated regularly.

Upon request, the SLA templates are delivered to

the ICRAS agent. When the ICRAS agent makes an

offer, the CSP enters a negotiation session. The strat-

egy that drives this negotiation is determined by the

CSP negotiation policy. This policy includes func-

tions for evaluating an offer, threshold values for ac-

ceptance or rejection of an offer and rules governing

the creation of counter-offers.

To support data migration to and from its Cloud,

the CSP interface must support the import and ex-

port of virtual disk images. After creating an SLA

with a consumer, the CSP must support the upload-

ing and import of the consumer’s virtual disk images.

Likewise, these virtual disk images are exported and

downloaded upon request.

3.3 ICRAS Agent

This paper assumes that an ICRAS agent is main-

tained by an independent, trusted third party (TTP).

This service has no loyalty to any particular CSP and

therefore can operate fully on behalf of participating

consumers. The ICRAS agent has ﬁve major respon-

sibilities: 1) discover CSP resource offerings, 2) eval-

uate these offerings, 3) negotiate an SLA with a CSP

on behalf of a consumer, 4) monitor the provisioning

of the new Cloud resources to detect SLA violations

and 5) assist in migration to the new CSP.

Discovery: The process begins when an ICRAS agent

receives a resource request from a consumer. The

agent then queries all CSPs for one or more SLA tem-

plates describing their available resource offerings.

This process is repeated at a regular interval to dis-

cover more appropriate conﬁgurations even after an

SLA has been created. Depending on a consumer’s

preferences, he or she is notiﬁed if a new and better

suitable conﬁguration is discovered. The consumer is

then given the option to renegotiate a new SLA.

Evaluation: Once received, the agent compares the

CSP templates to the consumer’s request. If a CSP

cannot provide any of the requested resources, this

CSP is removed from consideration. The remaining

templates are then evaluated and ordered using the

preferences of the consumer. For instance, if a con-

sumer speciﬁes that price is the most important at-

tribute, the remaining templates are arranged by price.

Depending on a consumer’s requirements, templates

from multiple CSPs can be selected for separate re-

source requirements. For instance, a consumer may

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

allow processing and storage to be handled by two

separate CSPs, if this meets the price and QoS needs.

Negotiation: Once the best template has been se-

lected, the ICRAS agent contacts the responsible CSP

to begin negotiations. If multiple templates from

competing CSPs are considered to be acceptable,

these CSPs are contacted for simultaneous negotia-

tions. If a negotiation session results in an offer that is

acceptable by both a CSP and the ICRAS agent (ac-

cording to a consumer’s request), this is sent to the

consumer for ﬁnal approval. If acceptable, the con-

sumer contacts the CSP directly to create a micro-

SLA. A micro-SLA is used so that a consumer can

migrate to a new conﬁguration or renegotiate the cur-

rent conﬁguration if the opportunity arises.

Monitoring : The task of the ICRAS agent does not

stop after an SLA has been created and a service is be-

ing used. The ICRAS agent monitors system perfor-

mance and detects SLA violations. The ICRAS agent

uses a Monitor Service (MS) to monitor the SLA for

QoS violations, such as slow network response (Clark

et al., 2010). If a violation is detected, the consumer

is notiﬁed so they can take corrective action.

Migration: Once a consumer decides to migrate, the

consumer services are migrated to the new CSP. In the

most straightforward case, migration involves stop-

ping the cloud instances at the current CSP, convert-

ing these instances (e.g. disk images) to the format

used by the new CSP, transferring them to the new

CSP and starting them again. The conversion process

is not necessary if CSPs adopt the same industry stan-

dard, such as the Open Virtualization Format (Crosby

et al., 2010).

If services cannot be stopped during migration,

live migration is required. Live migration of cloud

instances can be possible if both CSPs are using the

same virtualization layer (Clark et al., 2005). How-

ever, the heterogeneity of current CSPs complicates

the migration process.

4 ICRAS PROTOCOL

This section gives an example scenario to demonstrate

the process of ICRAS mediated negotiation. This ex-

ample involves two competing CSPs, a single ICRAS

agent and a single consumer. Service requests, SLA

templates and offers are presented in generic format

rather than their ofﬁcial XML format.

Step 1: A consumer requires Cloud resources. A con-

sumer speciﬁes these needs using an SLA offer. This

request is summarized in Figure 3. In this request, a

consumer indicates that it needs 10 servers with CPU

power between 1.5. and 3.0 GHz, at least 2 TB of

storage and at least 1 GB of trafﬁc. Furthermore, the

consumer prefers the Windows OS, requires an avail-

ability of between 95 and 100 percent and a price be-

low 1000 Euro. This resource request is sent to the

CSP .

RESOURCE REQUEST

Num. of Servers = (10)

CPU GHz = (1.5 - 3.0) | CD:C1, VI:V1

Storage (GB) = (2000 - *) | CD:D100, VI:V1

Traffic (GB) = (1 - *) | CD:D1, VI:V1

Operating Sys. = <Windows, Linux> | PC:YES

Availability = [95 - 100) | CD:C2, VI:V1

Price (EUR) = [0 - 1000) | CD:D2, VI:V1

Figure 3: Consumer generated resource request.

Step 2: The ICRAS agent receives the request of the

consumer and queries all participating CSPs for their

SLA templates.

Step 3: Each CSP receives the query and responds

by sending SLA templates that describe the current

resource offering to the ICRAS agent. If the tem-

plates have not yet been generated or are outdated,

they are (re)generated at this point. The SLA template

is generated following the WSAG speciﬁcation. Ex-

ample templates from two competing CSPs are shown

in Figure 4. In these templates, each CSP displays the

current resource offering.

SLA TEMPLATE CSPx

Num. of Servers = 100

CPU GHz = 2.0

Storage (GB) = 8000

Traffic (GB) = 1000

Operating System = Linux

Availability (%) = 90

SLA TEMPLATE CSPy

Num. of Servers = 50

CPU GHz = 3.0

Storage (GB) = 4000

Traffic (GB) = 500

Operating System = {Windows OR Linux}

Availability (%) = 99

Figure 4: SLA template from two competing CSPs.

Step 4: Upon receiving the templates, the ICRAS

agent evaluates each template using the consumer’s

request. If a template cannot meet the requirements,

it is immediately removed from consideration. In Fig-

ure 4, the template from CSP

is removed because the

availability offering is outside of the range speciﬁed

ANINTELLIGENTCLOUDRESOURCEALLOCATIONSERVICE-Agent-basedAutomatedCloudResource

AllocationusingMicro-agreement

by the consumer. In the case that more than one tem-

plate remain after the ﬁrst selection, the ICRAS agent

evaluates them again to determine the most appropri-

ate option. This evaluation is done by comparing key

attributes, such as CPU or Availability.

Step 5: At this point, the ICRAS agent has selected

the best matching CSP. The ICRAS agent generates

an initial SLA offer, as shown in Figure 5. The

ICRAS agent then contacts the selected CSP to begin

negotiations. Following the WSAN speciﬁcation, the

negotiation consists of rounds of offers and counter-

offers. If no mutually acceptable offer can be found,

negotiation terminates and the ICRAS agent selects a

different CSP. However, in the event that a mutually

acceptable offer is found, this offer is sent on to the

consumer.

SLA OFFER

Num. of Servers = 10

CPU GHz = 3.0

Storage (GB) = 3000

Traffic (GB) = 10

Operating System = Windows

Availability (%) = 99

Price (EUR) = 500

Figure 5: ICRAS agent generated offer.

Step 6: Once the consumer receives the offer, it re-

evaluates the offering and, if acceptable, contacts the

CSP directly to create a micro-SLA. After the SLA

has been created, the service can be used.

Step 7: Upon successful creation of an SLA, the con-

sumer migrates his or her services to the new CSP.

This involves converting the virtual disk images to

the format used by the new CSP and then transferring

these images to the new CSP.

Step 8: Upon successful creation of an SLA, the

ICRAS agent takes on the new task of monitoring

the service on behalf of the consumer. Monitoring

is done by periodically measuring key service metrics

and storing the result. If a violation is detected (e.g.

Availability is less than promised.), the consumer is

notiﬁed and corrective action (e.g. ﬁnes, credits, and

so forth) is taken. In addition to SLA monitoring, the

ICRAS agent also periodically requests and evaluates

SLA templates from all CSPs. If a new offering is

more appropriate than the current one, the consumer

is notiﬁed and migration can take place.

5 PROTOTYPE

IMPLEMENTATION

The ICRAS architecture is implemented using

the AgentScape distributed middleware plat-

form (Overeinder and Brazier, 2005). Software

agents are used to represent all parties. The appli-

cation of this architecture is demonstrated with an

example execution.

5.1 Environmental Setup

The three major components: Consumer, ICRAS

agent and CSP are represented by (Java) soft-

ware agents running on the AgentScape middle-

ware. AgentScape is a distributed platform for mo-

bile agents designed to be open, scalable, secure and

fault-tolerant. This middleware provides mechanisms

for SLA negotiation, inter-agent communication and

migration.

Two CSPs are chosen that fullﬁl the minimum

standards of interoperability to support the example:

Amazon Web Services

and CloudSigma

. On each

of these CSPs a server instance is used to host a soft-

ware agent running on AgentScape. These software

agents represent their respective CSPs. Upon request,

each agent uses their respective APIs to query price

information and generate an SLA template describing

each CSP’s resource offerings. This template is then

sent to the inquiring ICRAS agent using the mecha-

nisms of AgentScape. If an SLA offer is received, the

agent evaluates it and counters with a SendOffers()

or accepts with a CreateAgreement().

An ICRAS agent runs on an instance of

AgentScape on a local server. This agent uses

the mechanisms of AgentScape to communicate

with the agents running at each CSP. Messages are

sent to the CSP agents to RequestTemplates(),

SendOffers() and CreateAgreement(). When

the ICRAS agent has found the most suitable con-

ﬁguration, this is sent to the consumer agent with

SendConfiguration(). If a new CSP is chosen by

the consumer, migration is assisted by the ICRAS

agent. Virtual disk images are downloaded from

the old CSP, converted to their target format using

QEMU (Fabrice, 2005) and then uploaded to the new

CSP.

A single consumer agent runs on a separate in-

stance of AgentScape on a separate local server. This

agent communicates with the ICRAS agent using the

mechanisms of AgentScape. Messages are sent to the

http://aws.amazon.com/

http://www.cloudsigma.com/

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

ICRAS agent to RequestConfiguration(). This

message contains the consumer’s resource needs and

preferences. When an acceptable SLA offer is re-

ceived from the ICRAS agent, the consumer responds

with CreateAgreement().

5.2 Example Execution

Step 1: The consumer agent currently uses CSP

host a single, Linux-based web server. The consumer

generates a resource request that indicates the need

for a single virtual machine with at least 10 GB of

disk space and 2 GB of memory. The lowest price is

the sole criterium. This request is sent to the ICRAS

agent.

Step 2: The ICRAS agent receives the request and

queries both CSPs for their SLA templates.

Step 3: The CSP agents respond by generating and

sending their SLA templates. CSP

can provide the

requested resources for $0.18 per hour. CSP

can pro-

vide the requested resources for $0.12 per hour.

Step 4: The ICRAS agent evaluates the two templates

based on price and chooses CSP

. An SLA offer is

sent to the agent of CSP

. The CSP accepts and re-

sponds with an SLA agreement. This SLA agreement

is forwarded to the consumer.

Step 5: The consumer accepts the agreement and re-

turns it to the ICRAS agent. In turn, the ICRAS agent

forwards this to CSP

. The consumer may now use

the service.

Step 6: The ICRAS agent now assists with migration

of the disk image. CSP

supports export of disk im-

ages in RAW format. This image is downloaded and

stored locally at the ICRAS agent. CSP

supports im-

port of disk images in VMDK format. QEMU is used

to convert from one format to the other. Once for-

mated, the disk image is uploaded to the CSP

. Once

uploaded, the virtual machine at CSP

is started. Fi-

nally, the virtual machine at CSP

is terminated and

the service is discontinued.

Note that due to lack of standardization, a separate

ad hoc solution for disk image migration is required

for each unique pair of CSPs.

6 RELATED WORKS

Agent technology is being applied to the task of au-

tomated resource negotiation in many areas, includ-

ing the area of Grid computing. Despite minor differ-

ences, Grid computing is an area that closely resem-

bles Cloud computing in that both provide a paradigm

of utility computing (Foster et al., 2008). Tianﬁeld

uses agents to automate the task of resource negoti-

ation in Grid computing (Tianﬁeld, 2005). As in the

ICRAS architecture, agents are used to represent re-

source providers and brokers in a market. Agents ap-

ply a set of strategies to negotiate an agreement for

resources. Agents are able to span multiple admin-

istrative domains to negotiate access to the necessary

resources for a speciﬁc job. As with ICRAS, this al-

lows for the possibility that a single SLA includes re-

sources from several different providers.

Sim proposes a similar architecture for automating

negotiation of SLAs for Cloud resources (Sim, 2010).

Similar to ICRAS, this architecture supports multi-

level, concurrent negotiation between multiple con-

sumers, brokers and providers. A major difference be-

tween these two architectures and the approach used

by ICRAS is the notion of time. These architectures

negotiate per job, rather than per unit of time. Once

an SLA is created, there is no way to dynamically re-

spond to changes in price, utilization, and so forth.

These architectures lack the beneﬁts of micro-SLAs.

There is also no impartial service to monitor the pro-

visioning of resources according to the agreement.

Instead of agents, intelligent mapping of SLA

templates is used in (Breskovic et al., 2011) to in-

crease the success rate of matching Cloud service

offerings to service requests. A set of public SLA

templates is used as the basis of matching providers

to consumers. Providers link their own template to

the public template that most closely matches. The

consumer then searches for a public template that

matches his or her needs and contacts the related

provider. To account for discrepancies between tem-

plates, users can add metadata that speciﬁes mappings

between their template and a public template. Fur-

thermore, public templates slowly evolve to match

market trends.

This approach aims to offer consumers an in-

creased chance of ﬁnding the most appropriate re-

source conﬁguration, but does not actively assist the

consumer. There is no party that works on behalf of

the consumer to navigate the large number of resource

offerings and dynamic prices to ﬁnd the most suitable

CSP and negotiate an SLA. Moreover, the service mi-

gration and SLA monitoring process are left entirely

to the consumer.

7 DISCUSSION

CSPs typically offer multiple interfaces to their Cloud

resources, including a web interface for human ac-

cess, as well as a scriptable, Application Program-

ANINTELLIGENTCLOUDRESOURCEALLOCATIONSERVICE-Agent-basedAutomatedCloudResource

AllocationusingMicro-agreement

ming Interface (API) for automated access. The API

allows the consumer to purchase, launch, control and

terminate Cloud resources. Furthermore, the API of-

ten gives the consumer access to pricing information.

There are efforts to standardize the Cloud interface.

Such efforts include the Eucalyptus (Nurmi et al.,

2009) and OpenStack (OpenStack, 2011) open source

APIs.

Another aspect that requires standardization is the

data format used by clouds. CSPs use virtual disk im-

ages to encapsulate a consumer’s data. These disk im-

ages use varying formats, including Amazon’s AMI,

Microsoft’s VHD and VMWare’s VMDK. If data is

stored in one of these formats, there is no straight-

forward process to migrated to a different CSP us-

ing a different format. Each image must ﬁrst be con-

verted, following a sometimes slow and complex con-

version process. While each format has its support-

ers, a standardized format can be used to increase the

level of interoperability. The Open Virtualization For-

mat (Crosby et al., 2010) has been suggested for this

purpose.

If widely adopted, these standards will make data

and service migration between CSPs more straightfor-

ward. However, the main obstacle to their adoption

is vendor lock-in (Weiss, 2007). CSPs have no in-

centive to make the process of service migration pos-

sible, let alone straightforward; therefore, migrating

away from a CSP remains a difﬁcult task. A con-

sumer does not always have the option to export or

download their virtual disk images from a CSP. This

means, once a consumer has migrated to a particular

CSP, the cost and hassle of leaving that CSP prohibits

them from doing so, even if a better conﬁguration is

found at a different CSP. Note that complete state-full

migration, i.e., where a snapshot of a running image

is migrated and the state of the newly migrated im-

age is updated, is still an open research question. The

discussed solution would only preserve the state until

the snapshot is made, so some state is lost (when the

image is migrating).

Finally, wider adoption of dynamic pricing in

Clouds is needed to allow users to react to changes in

real market forces, including Cloud utilization. Some

providers have begun offering dynamic pricing mod-

els to reﬂect the actual ﬂuctuation of resource supply

and demand. Dynamic pricing is beneﬁcial to both

consumers and providers of Cloud resources. Con-

sumers can shift demand to cheaper time slots, such

as evening or weekend processing, to save on costs.

CSPs can take advantage of demand shifting to lower

costs during peak periodes. For instance, a CSP can

reduce the cost of cooling a data center at noon on a

hot day by making it cheaper to use the data center at

night.

Cloud computing was originally envisioned as a

utility, similar to the electricity grid, where users can

simply plug in to their computing needs. To enable

this vision, more standardization and openness is re-

quired in the Cloud interface and data format.

8 CONCLUSIONS

As the Cloud continues to grow and attract users, the

numer of providers and Cloud resources increases.

Consumers need new mechanisms to make the pro-

cess of ﬁnding the most appropriate Cloud resource

conﬁguration as straightforward and automated as

possible. There are many attributes that must be com-

pared when choosing the right Cloud provider, includ-

ing QoS, reputation and price.

The Intelligent Cloud Resource Allocation Ser-

vice (ICRAS) gives Cloud consumers a straightfor-

ward interface to ﬁnding the most suitable Cloud re-

source conﬁguration. This service compares all avail-

able offers and monitors the current price informa-

tion. In addition, the service mediates the creation

of micro-SLAs. Using micro-SLAs allows consumers

to respond to changes in the market and renegotiated

their services for lower prices or different providers.

The ICRAS also monitors the service for any SLA vi-

olations.

ICRAS beneﬁts the consumer by relieving them

of the task of constantly checking all CSPs and ﬁnd-

ing the lowest price. CSPs also beneﬁt from ICRAS

by gaining more market visibility. For instance, by

participating with ICRAS, a small CSP can com-

pete directly with larger, established CSPs, as con-

sumers compare resource offerings independent of

name recognition.

Future work will investigate the creation of com-

plex SLAs. For instance, a consumer requires stor-

age and compute power. One CSP offers the lowest

price for storage, while another the lowest price for

compute power. In this case, two separate SLAs are

needed.

Additional CSP attributes will also be researched,

including reputation and location. The geographical

location of a CSP determines the laws that apply to

the data (Ruiter and Warnier, 2011).

ACKNOWLEDGEMENTS

This work is supported by the NLnet Foundation

(www.nlnet.nl).

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

REFERENCES

Anandasivam, A. and Premm, M. (2009). Bid price control

and dynamic pricing in clouds. In Proceedings of the

European Conference on Information Systems, pages

1–14.

Andrieux, A., Czajkowski, K., Dan, A., Keahey, K., Lud-

wig, H., Nakata, T., Pruyne, J., Rofrano, J., Tuecke,

S., and Xu, M. (2007). Web Services Agreement

Speciﬁcation (WS-Agreement) GFD-R-P.107. Tech-

nical report, Global Grid Forum, Grid Resource Allo-

cation Agreement Protocol (GRAAP) WG.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A., Katz, R.,

Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., et al. (2010). A view of cloud computing.

Communications of the ACM, 53(4):50–58.

Baliga, J., Ayre, R., Hinton, K., and Tucker, R. (2011).

Green cloud computing: Balancing energy in process-

ing, storage, and transport. Proceedings of the IEEE,

99(1):149–167.

Borenstein, S. (2005). The long-run efﬁciency of real-time

electricity pricing. Energy Journal, 26(3):93–116.

Brazier, F., Cornelissen, F., Gustavsson, R., Jonker, C., Lin-

deberg, O., Polak, B., and Treur, J. (2002). A multi-

agent system performing one-to-many negotiation for

load balancing of electricity use. Electronic Com-

merce Research and Applications, 1(2):208–224.

Breskovic, I., Maurer, M., Emeakaroha, V., Brandic, I., and

Altmann, J. (2011). Towards autonomic market man-

agement in cloud computing infrastructures. In In-

ternational Conference on Cloud Computing and Ser-

vices Science. CLOSER.

Clark, C., Fraser, K., Hand, S., Hansen, J. G., Jul, E.,

Limpach, C., Pratt, I., and Warﬁeld, A. (2005). Live

migration of virtual machines. In Proceedings of the

2nd conference on Symposium on Networked Systems

Design & Implementation - Volume 2, NSDI’05, pages

273–286, Berkeley, CA, USA. USENIX Association.

Clark, K. P., Warnier, M., Quillinan, T. B., and Brazier,

F. M. T. (2010). Secure monitoring of service level

agreements. In Proceedings of the Fifth International

Conference on Availability, Reliability and Security

(ARES 2010), pages 454–461. IEEE.

Crosby, S., Doyle, R., Gering, M., Gionfriddo, M., et al.

(2010). Open virtualization format speciﬁcation 1.1.0.

Technical report, Technical Report DSP0243, Dis-

tributed Management Task Force, Inc.

Fabrice, B. (2005). Qemu, a fast and portable dynamic

translator. In USENIX 2005 Annual Technical Con-

ference, FREENIX Track, pages 41–46.

Foster, I., Zhao, Y., Raicu, I., and Lu, S. (2008). Cloud

computing and grid computing 360-degree compared.

In Grid Computing Environments Workshop, 2008.

GCE’08, pages 1–10. Ieee.

Jennings, N., Faratin, P., Lomuscio, A., Parsons, S.,

Wooldridge, M., and Sierra, C. (2001). Automated ne-

gotiation: prospects, methods and challenges. Group

Decision and Negotiation, 10(2):199–215.

Jennings, N. and Wooldridge, M., editors (1998). Appli-

cations of Intelligent Agents, chapter 1, pages 3–28.

Agent Technology: Foundations, Applications, and

Markets. Springer.

Jonker, C. and Treur, J. (2001). An Agent Architec-

ture for Multi-Attribute Negotiation. In Interna-

tional Joint Conference on Artiﬁcial Intelligence, vol-

ume 17, pages 1195–1201. Lawrence Erlbaum Asso-

ciates LTD.

Koritarov, V. (2004). Real-world market representation with

agents. Power and Energy Magazine, IEEE, 2(4):39–

46.

Nurmi, D., Wolski, R., Grzegorczyk, C., Obertelli, G., So-

man, S., Youseff, L., and Zagorodnov, D. (2009). The

eucalyptus open-source cloud-computing system. In

Cluster Computing and the Grid, 2009. CCGRID’09.

9th IEEE/ACM International Symposium on, pages

124–131. IEEE.

OpenStack (2011). Openstack: Open source soft-

ware for building private and public clouds.

http://www.openstack.org.

Ouelhadj, D., Garibaldi, J., MacLaren, J., Sakellariou, R.,

and Krishnakumar, K. (2005). A multi-agent infras-

tructure and a service level agreement negotiation pro-

tocol for robust scheduling in grid computing. Ad-

vances in Grid Computing-EGC 2005, pages 651–

660.

Overeinder, B. and Brazier, F. (2005). Scalable Middleware

Environment for Agent-Based Internet Applications.

Lecture Notes in Computer Science, 3732:675.

Pueschel, T., Anandasivam, A., Buschek, S., and Neumann,

D. (2009). Making Money With Clouds: Revenue

Optimization Through Automated Policy Decisions.

In 17th European Conference on Information Systems

(ECIS 2009), Verona, Italy, pages 355–367.

Ruiter, J. and Warnier, M. (2011). Privacy Regulations for

Cloud Computing, Compliance and Implementation

in Theory and Practice, chapter 17, pages 293–314.

Springer.

Sim, K. (2010). Towards complex negotiation for cloud

economy. Advances in Grid and Pervasive Comput-

ing, pages 395–406.

Tianﬁeld, H. (2005). Towards agent based grid resource

management. In Cluster Computing and the Grid,

2005. CCGrid 2005. IEEE International Symposium

on, volume 1, pages 590–597. IEEE.

Waldrich, O., Battre, D., Brazier, F. M. T., Clark, K. P.,

Oey, M. A., Papaspyrou, A., Wieder, P., and Ziegler,

W. (2011). WS-Agreement Negotiation: Version 1.0

(GFD-R-P.193). Technical report, Open Grid Fo-

rum, Grid Resource Allocation Agreement Protocol

(GRAAP) WG.

Weiss, A. (2007). Computing in the clouds. netWorker,

11(4):16–25.

ANINTELLIGENTCLOUDRESOURCEALLOCATIONSERVICE-Agent-basedAutomatedCloudResource

AllocationusingMicro-agreement
