IMPROVING WEB SERVICES PERFORMANCE,

ONE STEP AT A TIME

Miguel L. Pardal, Joana Paulo Pardal and Jos

e Alves Marques

Department of Computer Science and Engineering, Instituto Superior T

ecnico, Technical University of Lisbon,

Lisbon, Portugal

Keywords:

Web Services, Performance, Measurement.

Abstract:

Web Services were designed for Enterprise systems. They are a ﬂexible but complex technology, with

numerous performance pitfalls for developers. They also have signiﬁcant overhead when compared with

platform-speciﬁc solutions (e.g. Java RMI). The end solutions have to combine (virtualized) platform, appli-

cation framework, and application-speciﬁc code. As a result of this complexity, the performance of the ﬁnal

application is often disappointing and requires improvement. This paper describes the implementation of

performance tools for an open-source application framework based on the Java platform and presents the ﬁnd-

ings of a detailed assessment of Web Services performance using the newly developed tools. The challenges,

techniques, and lessons learned are relevant beyond the scope of the used framework because widely used

open-source libraries were studied as well, namely: Hibernate, JAX-WS, and Log4J.

1 INTRODUCTION

Enterprise applications have many demanding

requirements (Fowler et al., 2002), and some of the

most important are related to performance such as

transaction response time and throughput. To verify if

an implementation is performing as expected, appro-

priate runtime data must be collected and analyzed to

compare design and conﬁguration alternatives.

Web Services (Alonso et al., 2004) are a middle-

ware technology based on eXtensible Markup Lan-

guage (XML) and common Web protocols such as

HyperText Transport Protocol (HTTP) that have great

interoperability capabilities that are very useful when

connecting heterogeneous information systems, de-

veloped in different (virtualized) platforms. However

Web Services have signiﬁcant overheads when com-

pared with platform-speciﬁc technologies such as

Java Remote Method Invocation (RMI). (Juric et al.,

2006) measured such overheads and reported that

a Web Service message is, on average, 4.3 times

larger than an RMI message, and that a Web Service

response time is, also on average, 9 times larger than

RMI. Performance is thus a critical concern in any

Web Services application framework.

The Simple, Extensible, and for Teaching Pur-

poses (STEP) Framework

is an open-source, multi-

layer, Java-based enterprise application framework

for developing Web Applications (Servlet/JSP) and

Web Services. Its source code is intended to be small

and simple enough to allow any developer to read and

understand it thoroughly, learning how the architec-

tural layers are implemented in practice. The frame-

work was used for 3 years in ‘Software Engineer-

ing’ and ‘Distributed Systems’ courses lectured at our

University by over 600 students, to teach Computer

Science and Engineering undergrads how to develop

Web Services (WS) with enterprise-like requirements.

Before the work described in this paper, the STEP

framework did not provide any means to collect run-

time data for later analysis. With this work the

framework was extended with monitoring and anal-

ysis tools that enable developers to collect actual per-

formance data and to use it to understand and compare

the actual cost of different solutions, leading to more

informed development and deployment decisions.

In the next section, a brief overview of the STEP

framework architecture is presented followed by the

introduction of the new tools. The results are pre-

sented and discussed in detail, and the paper ends with

the conclusions.

http://stepframework.sourceforge.net/

542

L. Pardal M., Paulo Pardal J. and Alves Marques J..

IMPROVING WEB SERVICES PERFORMANCE, ONE STEP AT A TIME.

DOI: 10.5220/0003929505420551

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 542-551

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 STEP FRAMEWORK

OVERVIEW

2.1 Architecture

The STEP Framework deﬁnes a typical layered archi-

tecture (Fowler et al., 2002), to separate the imple-

mentation of different concerns. The main layers are

Domain and Service. There are also Presentation and

View layers, as depicted in ﬁgure 1.

Figure 1: Architectural layers of a STEP application.

The Domain layer is where an object-oriented so-

lution for the application functional requirements are

described and implemented. Domain objects are per-

sisted to a database using object-relational mappings.

The Service layer provides access to the appli-

cation’s functionalities through service objects, that

control access to the domain objects, isolating them

from upper layers, and managing transactions in the

database to ensure atomic, consistent, isolated, and

durable (ACID) persistence.

The Presentation layer is responsible for user in-

teraction through a Web interface, implemented with

Servlets and Java Server Pages (JSP). There is also

a Web Services layer that provides remote access to

services using XML messages.

The View + Exception layer provides Data Trans-

fer Objects (DTO) that are used as input and output

(including exceptions) for service objects.

STEP relies on other open-source libraries to im-

plement some of its layers, namely: Hibernate

for

the Domain persistence, JAX-B

for the View

layer, JAX-WS

for the Web Services layer, and

Stripes

for the Web layer.

STEP also supports Extensions (Pardal et al.,

2008), a mechanism for intercepting the Service and

Web Service layers that eases the implementation of

cross-cutting concerns.

http://www.hibernate.org/

https://jaxb.dev.java.net/

https://jax-ws.dev.java.net/

http://www.stripesframework.org/

2.2 Request Processing

A request processing sequence for a STEP Web Ser-

vice is represented in ﬁgure 2.

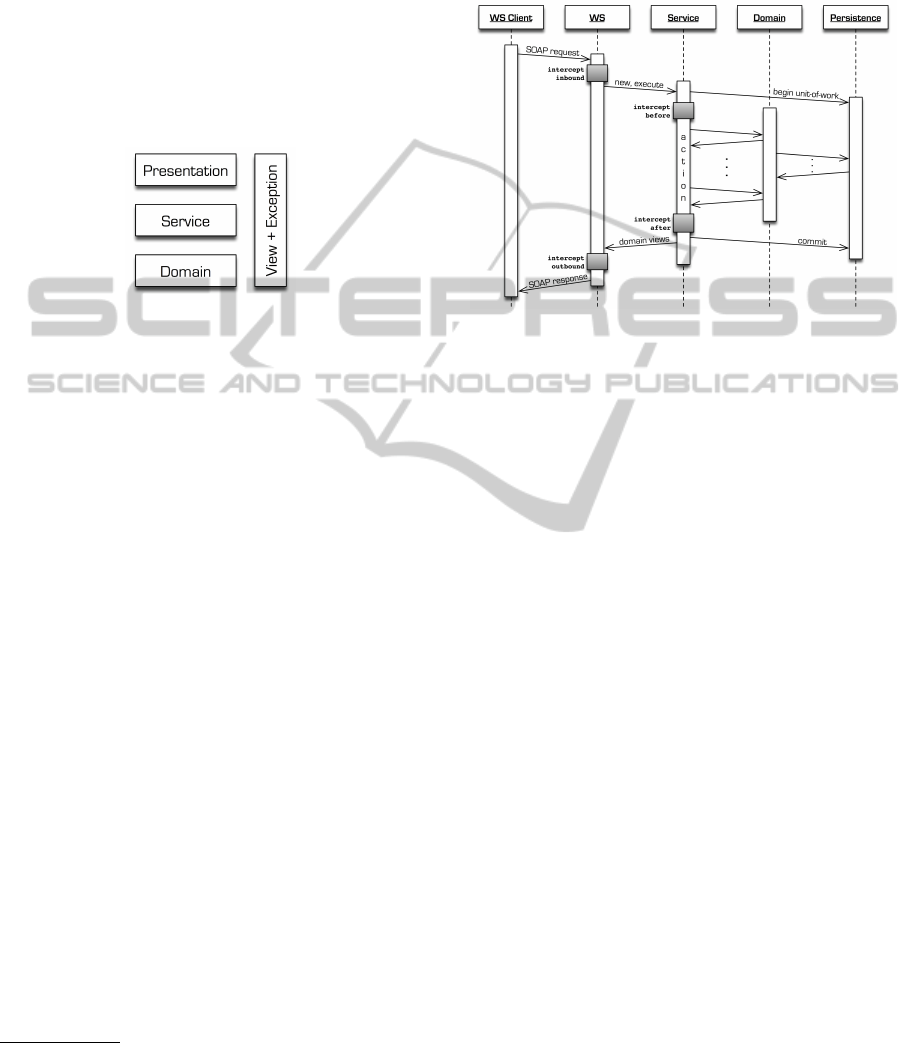

Figure 2: Sequence diagram of STEP web service.

A request begins in the client application that

sends a SOAP envelope in an HTTP request to the

server. The application container at the server assigns

a thread to execute the request from start to ﬁnish.

The HTTP request is interpreted and dispatched to an

instance of the JAX-WS servlet.

The Web Service layer parses the SOAP envelope.

The payload is deserialized from XML messages to

Java objects.

The Service layer receives the view objects, starts

an implicit database transaction, and invokes the

needed domain objects.

The Domain layer implements business logic

using entity and relationship objects. The data per-

sistence library maps entities and relationships to

database tables and vice-versa. The mappings are

speciﬁed using code annotations. SQL queries are

generated and executed automatically.

When the application-speciﬁc logic is complete,

if no error is reported, the Service layer commits the

database transaction. Otherwise, the transaction is

aborted and an error is returned.

The resulting views are created and returned to the

Web Service layer.

The response payload is serialized from Java

objects to XML. The JAX-WS servlet sends the

SOAP envelope back to the client in the HTTP

response.

The request thread is typically returned to a thread

pool, for later reuse. Several requests can be executed

in parallel.

IMPROVINGWEBSERVICESPERFORMANCE,ONESTEPATATIME

543

3 PERFORMANCE TOOLS

The goal of performance assessment tools is to iden-

tify parts of the application that can be improved. Per-

formance measurement tools can be broadly classiﬁed

as tracers and proﬁlers (Jain, 1991).

A tracer (Roza et al., 2009) is a component

that intercepts application code to record typed time-

stamped events. Examples of tracing tools include li-

braries like Perf4J

. A proﬁler (Shankar and Lysecky,

2009) is a program that monitors an application to de-

termine the frequency of execution in speciﬁc code

regions. A proﬁler can operate using sampling (appli-

cation is interrupted periodically and measurements

are taken), hardware counters (processor stores appli-

cation performance data), or instrumentation (appli-

cation source or binary code is augmented). Overall,

sampling is faster but less accurate. There are several

proﬁling tools available, like Eclipse TPTP

, JProbe

and YourKit

. A tracer is more lightweight than a

proﬁler because a proﬁler requires more complex in-

teractions with the application (Pearce et al., 2007).

A proﬁler is harder to use for server-side applications

that have to handle multiple concurrent requests.

3.1 Our Approach

The performance tools for the STEP Framework

follow the tracer approach. The goal was to collect

runtime data, to analyze it, and to test performance

improvement hypothesis. The main metric used to

measure performance was request processing time.

The performance of Java programs is affected by

application, input, virtual machine, garbage collec-

tor, heap size, and underlying operating system. All

these factors produce random errors in measurements

that are unpredictable, non-deterministic, and unbia-

sed (Georges et al., 2007).

To quantify the random errors in measurements,

the program runs had to be repeated several times.

The presented values are the mean of the samples with

a conﬁdence interval (margin of error) computed with

a conﬁdence level of 90%, 95%, or 99%. At least

30 runs were executed for each program variation,

so that the calculation of the conﬁdence level could

assume a normal distribution of the samples, accord-

ing to the Central Limit Theorem (Montgomery and

Runger, 2010). Only changes in values greater than

the error margin were considered statistically relevant

and not the effect of random errors.

http://perf4j.codehaus.org/

http://www.eclipse.org/tptp/

http://www.quest.com/jprobe/

http://www.yourkit.com/

The performance analysis process encompasses

all activities necessary to generate, collect, and ana-

lyze performance-related data. Figure 3 presents the

data-ﬂow diagram of our approach. Each activity is

performed by a speciﬁc tool: Domain Data Generator,

Load Generator, Load Executor, Monitor, Analyzer,

and Report Generator.

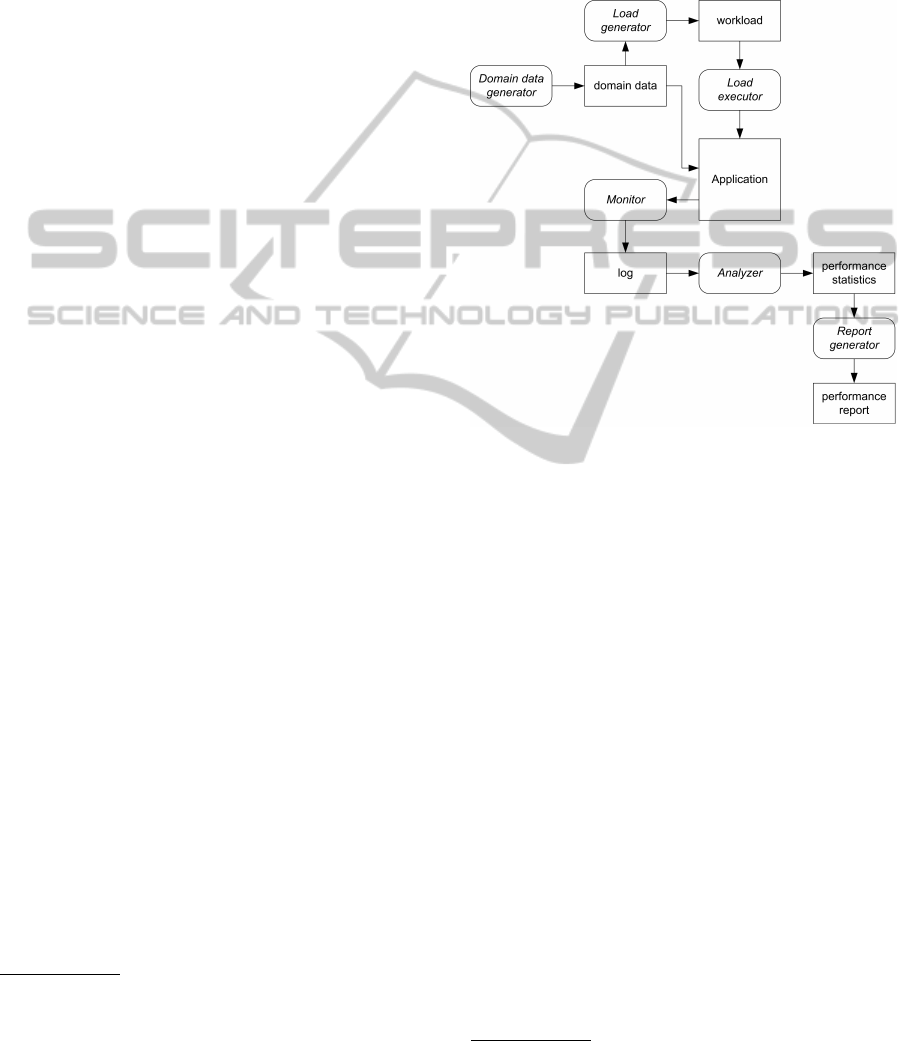

Figure 3: Performance tool chain data ﬂow diagram.

3.2 Domain Data Generator

The Domain Data Generator tool populates the Flight

WS database with realistic data, both in values and

in size. The data population was realized using

Groovy

scripts that parsed data ﬁles and accessed

the database. The ﬂights were generated by making

random picks (with uniform distribution), of airports

and airplanes. For each picked pair of origin and des-

tination, a set with a random number of ﬂights was

generated, so that search ﬂight requests would have

more than one result. The system was loaded with

2820 ﬂight records corresponding to 15 days worth of

ﬂights (assuming an 80% use rate in the aircraft ﬂeet).

The random numbers required for record diversity

were generated using the default Java pseudo-random

number generator and the MySQL rand() function.

The initial database population was kept the same for

the duration of the study. Whenever it was necessary

to revert the database back to the initial state, the

generation script was run again with the same input

data ﬁles and the same random number seeds.

http://groovy.codehaus.org/

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

544

3.3 Load Generator

The Load Generator tool produces ﬁles with seria-

lized request objects. The generated user sessions use

the following template:

1. Search ﬂights from random existing airports;

2. Randomize user ‘think’ time;

3. Randomize passenger group size;

• If size is 0, no reservation request is created;

• If it is 1, a single reservation request is created;

• If size is greater than 1, a multiple reservation

request is created.

The default workload “SizeMedium” uses the

following settings: 50 users sessions (pairs of search

and create reservation requests), maximum reserva-

tion group size of 100 persons, no user ‘think’ time,

and 12.5% chance of (simulated) input errors. These

values were selected ad hoc. The user think times are

random millisecond values, with an upper bound. The

decision of generating requests off-line was made be-

cause the queries to pick data for the requests from the

Flight WS database would contend with the service’s

queries.

3.4 Load Executor

The Load Executor tool was programmed to send

requests to Flight WS. The script opens an object

stream, reads request objects from it, and executes

the operations: ‘think’ (thread sleep), search ﬂights,

create single reservation, and create multiple reserva-

tions.

The requests are sent to the speciﬁed Web Service

endpoint. If an error is caught, the output message is

logged, and the processing continues.

The test run procedure is the following:

1. Drop database;

2. Create database (using hibernatetool);

3. Populate database;

4. Reset Tomcat server (remove applications and

delete temporary ﬁles);

5. Start Tomcat server;

6. Apply conﬁguration and source ﬁle changes;

7. Compile modiﬁed Flight WS application;

8. Deploy Flight WS in Tomcat server;

9. Start virtual user(s);

10. Stop Tomcat server;

11. Collect log ﬁles.

The procedure is fully automated, allowing

unattended execution of multiple test runs in se-

quence. The tool uses a thread pool of ﬁxed size

implemented using classes in the java.util.concurrent

package to run simultaneous virtual users. There is

one thread for each simulated user.

3.5 Monitor

The Monitor is the core component of performance

analysis. It is a new component of the STEP frame-

work that, when enabled, collects request processing

times for each architectural layer. Its two most impor-

tant features are the interception and the data logging.

3.5.1 Interception

The monitor intercepts request processing at interest-

ing points represented in Figure 2.

The JAX-WS servlet is intercepted using a Servlet

Filter component, conﬁgured in the web appli-

cation descriptor (web.xml) ﬁle. The inbound and

outbound SOAP messages are intercepted using a

JAX-WS Handler, conﬁgured in the JAX-WS code

generation conﬁguration ﬁle (jaxws-server-custom-

binding.xml). A similar interception is also achieved

using a STEP Web Service Interceptor, conﬁg-

ured in a STEP extension conﬁguration (exten-

sions.properties) ﬁle. The services (business logic

objects) are intercepted using a STEP Service Inter-

ceptor, also conﬁgured in the STEP extension conﬁg-

uration ﬁle. The persistence loads and stores, for each

object, are intercepted using an Hibernate Event Lis-

tener, conﬁgured in the persistence conﬁguration (hi-

bernate.cfg.xml) ﬁle. The persistence engine objects

- SessionFactory, Session, Transaction, Criteria - are

wrapped with performance monitoring objects imple-

menting the same interfaces.

The monitor interface records the timestamps

for entries and exits in each layer using the en-

ter(Object tag) and exit(Object tag) methods. Ad-

ditional data can be recorded as key-value pairs

using the context(Object tag, String key, String value)

method. When all the described interceptors are en-

abled, one Web Service request is intercepted once by

the Servlet Filter, JAX-WS Handler, and STEP Web

Service Interceptor, and multiple times by the STEP

Service Interceptor (once for each invoked service),

and Hibernate Event Listener and Wrappers (once for

each load or store access, and once for each engine

object method call). These multiple interceptions at

the same layer mean that the total time spent inside a

layer is the sum of all elapsed times between entries

and exits and that nesting must be tracked properly.

IMPROVINGWEBSERVICESPERFORMANCE,ONESTEPATATIME

545

thread[7] tag[filter] accTime[1558494253ns]

thread[7] tag[hibernate] accTime[294309343ns]

thread[7] tag[si] accTime[441975142ns]

thread[7] tag[soap] accTime[1506191620ns]

thread[7] tag[wsi] accTime[1504073613ns]

Figure 4: Monitor request record. Context key-value pairs

are omitted.

The elapsed time is computed by subtracting the

timestamp of the ﬁrst entry from the timestamp of the

last exit.

3.5.2 Data Logging

For each monitored request, a single request record

(shown in Figure 4) is logged. A record contains the

total time spent in each layer, but not the individual

entries and exits.

A request record contains one line for each used

layer. Each layer record contains the following ﬁelds:

“thread” to identify the thread, “tag” to identify the

layer, “accTime” with the accumulated time inside

the layer in a given time unit, and “context” with

key-value pairs, separated by commas. The request

record is ended by a blank line. The monitor stores

the performance data to a thread-speciﬁc log ﬁle to

avoid contention between threads. The request data is

logged after the ﬁnal timestamp is recorded. At the

end of the run, all related log ﬁles are merged and the

“thread” ﬁeld is added.

3.6 Analyzer

At this stage all samples of execution data, resulting

from multiple runs using the same settings, have been

collected and await processing. The Analyzer tool

applies a sequence of processing steps to the sample

data and outputs statistics. The statistics calculations

are done with the Apache Commons Math

library.

The ﬁrst processing step converts the request records

from monitor format (ﬁgure 4) to Comma-Separated

Values (CSV) format (ﬁgure 5), with one request per

line. All context key-value pairs are converted to

ﬁelds. All time units are normalized to milliseconds.

At this stage, the following conditions regarding time

values are veriﬁed:

web

> ws

∑

service

∑

hibernate

Next there is a ﬁlter that can be used to select a

subset of records satisfying a speciﬁc condition (e.g.

the request must be a ﬂight reservation). Then, the

sample statistics are computed. A complete records

ﬁle is summarized in a single row. For each numeric

ﬁeld, the mean, standard deviation, upper quartile,

http://commons.apache.org/math/

filter_t,soap_t,soap_name,soap_request_len,...

1558.493,1506.191,searchFlights,204,...

413.227,406.875,createReservations,2254,...

...

Figure 5: Two request records in CSV format. Only the ﬁrst

four columns are displayed.

median, and lower quartile are determined. Finally,

the overall statistics are computed. For each numeric

mean ﬁeld, the margin of error is calculated for conﬁ-

dence levels of 90%, 95%, and 99%. A similar proce-

dure is applied to the virtual user output logs to pro-

duce error statistics, from the WS client perspective.

3.7 Report Generator

The Report Generator uses the statistical data pro-

duced by the Analyzer and uses it to produce cus-

tom reports. The data required for a speciﬁc report is

fetched with a script, and then visualization tools are

used to produce graphical representations. The gnu-

plot (Janert, 2009) tool was used to produce the plots

like the ones presented in the next section.

4 EXPERIMENTS

After the performance analysis tool chain was assem-

bled, several experiments were conducted. The test

platform and the results are presented and discussed

in this section.

4.1 Hardware and Software Platform

The following machines and networks were used for

the test runs.

Machine A with a Quad-core

CPU running at

2.50 GHz, 3.25 GB of usable RAM, and 1 TiB

hard disk. It ran 32-bit Windows 7 (version

6.1.7600), MySQL 5.1.43, Java Developer Kit

1.6.0 18, Groovy 1.7.3, Apache Tomcat 6.0.14

and STEP 1.3.3 (includes Hibernate 3.3.2.GA,

JAX-B 2.1.10, JAX-WS 2.1.7, Stripes 1.5.1).

Machine B with a Dual-core

CPU running at 2.53

GHz, 3 GB of RAM, and 500 GiB of hard disk

storage. It ran the same software.

The machines were connected either by a 100

Megabit LAN or by a 10 Megabit LAN. The ma-

chines were conﬁgured to either disable or post-

pone all system maintenance activities (ﬁle system

Intel Core 2 Quad CPU Q8300.

Intel Core 2 Duo CPU P9500.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

546

indexing, software updates, screen savers, etc). The

SysInternals

tools AutoRuns and ProcMon were

used to disable and assert the deactivation, respec-

tively. Power management settings were set for max-

imum performance. The measurements were taken

for the application’s steady-state performance (and

not for start-up performance). Gargage collection and

object ﬁnalization were not forced for the test runs,

because they were considered as part of the steady-

state server workload (Boyer, 2008). Unless stated

otherwise, all presented results were produced by the

Web Service running in Machine A.

The analyzed system was the “Flight reservation

Web Service” (Flight WS) that is the example appli-

cation included in the STEP Framework source code.

The initial Flight WS had only one operation:

“create low price reservation”. Additional operations

were developed: “search ﬂights”, “create single reser-

vation”, and “create multiple reservations”. The rea-

son for adding new operations was to allow more di-

verse kinds of requests using all of the most common

data types (text, numeric, date, currency, and collec-

tions) and producing different message sizes.

With the new operations it became possible to

instantiate all the message archetypes deﬁned in the

IWS Web Service benchmark (Machado and Ferraz,

2006), making Flight WS a typical Web Service. All

operations were implemented following the guide-

lines in the STEP Framework “cookbook”, making

Flight WS a typical STEP Web Service. If both these

assumptions hold true, conclusions drawn for Flight

WS can be applied to similar Web Services.

4.2 Results

4.2.1 Request Time Breakdown

Table 1 presents the request processing time break-

down. Figure 6 represents the same data visually.

Table 1: Request processing time breakdown.

Slice Time (ms) Time %

Web 2.83 0.98

Web Service 14.33 4.94

Service 203.14 70.07

Hibernate Engine 40.97 14.13

Hibernate Writes 15.52 5.35

Hibernate Reads 13.10 4.52

http://technet.microsoft.com/en-

us/sysinternals/default.aspx

100

150

200

250

300

Average request processing time (ms)

Hibernate Reads

Hibernate Writes

Hibernate Engine

Service

Web Service

Web

Figure 6: Request processing time breakdown.

The largest time slice is Service (70%). This re-

sult makes sense not only because it encompasses all

the application-speciﬁc logic, but also because it is

the slice where the bulk of “other” processing time

is accounted for. The second largest slice is the sum

of Hibernates (24%). Hibernate manages the domain

objects in the database. The Hibernate engine slice is

signiﬁcant (14%) because it includes the transaction

commit when data is actually written to the database.

The absolute value of roughly 300 milliseconds

average processing time is only meaningful for com-

paring with other results obtained from the same ma-

chine.

4.2.2 Request Types

In this experiment request types are ﬁltered and analy-

zed separately. Table 2 (shown in the last page) and

Figure 7 present the results.

100

150

200

250

300

350

all searches reservations faults

Average request processing time (ms)

Hibernate Reads

Hibernate Writes

Hibernate Engine

Service

Web Service

Web

Figure 7: Request processing breakdown for different re-

quest types.

Searches are read-only, reservations are read-

write. Faults were mostly produced by invalid input,

so no data was written. Notice that the Hibernate

Writes slices are empty on searches and faults. The

framework handling of failed transactions is efﬁcient

because signiﬁcant time savings are achieved when

there are database rollbacks.

IMPROVINGWEBSERVICESPERFORMANCE,ONESTEPATATIME

547

Table 2: Request processing breakdown for different request types.

Request Web (%) WS (%) Service (%) Hib. Eng. (%) Hib. W (%) Hib. R (%)

All 0.98 4.94 70.07 14.13 5.35 4.52

Searches 1.25 8.75 74.15 11.31 0.00 4.55

Reservations 0.71 0.83 62.69 19.37 12.17 4.23

Faults 0.83 4.60 86.73 1.96 0.00 5.89

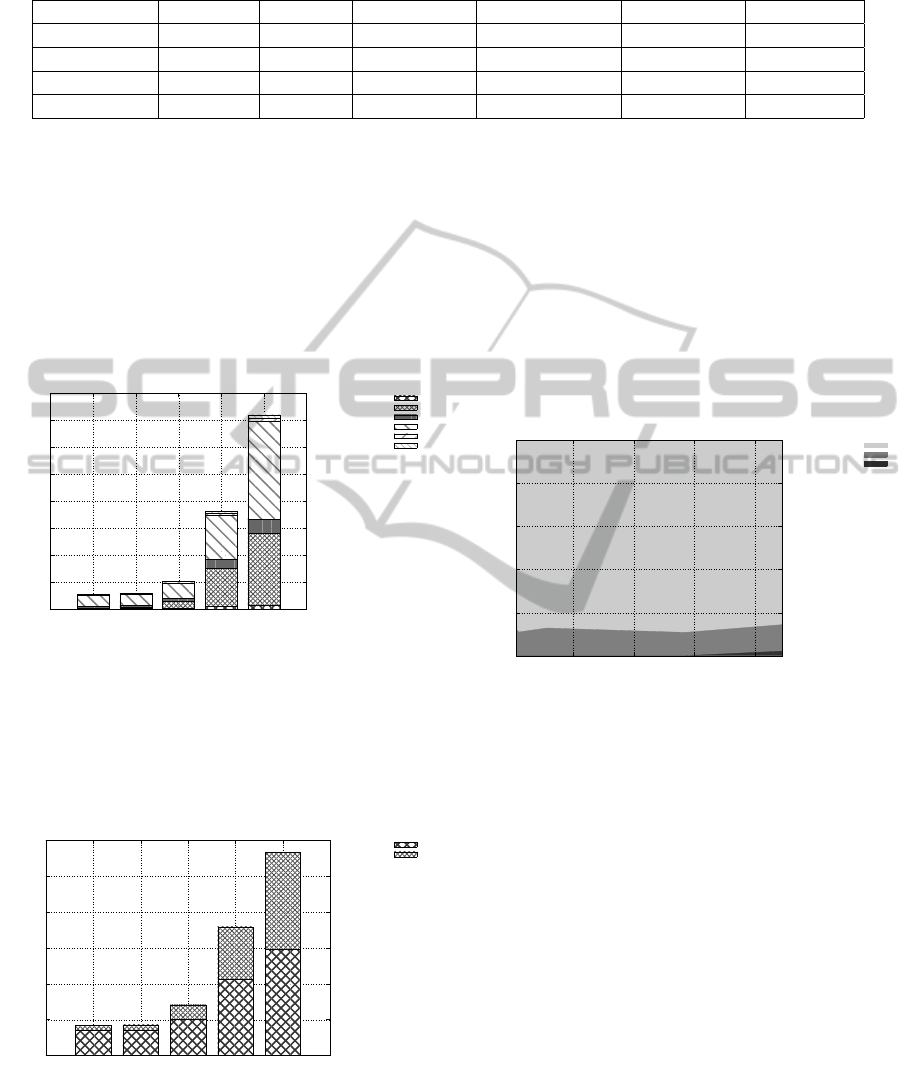

4.2.3 Web Service Message Size

In this experiment, the SOAP message size is in-

creased by making ﬂight reservation requests with

more passengers. Figure 8 and Table 3 present a

comparison of the different workloads with increas-

ing average XML length. XML logical length is mea-

sured in characters and is the sum of the length of all

tag names, attribute names, and text nodes.

500

1000

1500

2000

2500

3000

3500

4000

3215 5190 28348 142145 222281

Average request processing time (ms)

Average total XML logical length (characters)

Hibernate Reads

Hibernate Writes

Hibernate Engine

Service

Web Service

Web

Figure 8: Request processing breakdown for increasing

SOAP size.

The dominant slices are still Service and Hiber-

nate and the impact on request time is very signiﬁcant.

Figure 9 shows the detail only for the Web and SOAP

slices.

100

120

3215 5190 28348 142145 222281

Average request processing time (ms)

Average total XML logical length (characters)

Web Service

Web

Figure 9: Web and web service layers detail of request pro-

cessing breakdown with increasing SOAP size.

Increasing XML size has less impact than ex-

pected, providing evidence that XML parsers have

been greatly optimized since the early versions

where the performance degradation was more signif-

icant (Machado and Ferraz, 2006). However, there

are still practical limits for the message sizes. Figure

10 shows that for messages above 150 000 charac-

ters (roughly 150 KiB assuming UTF-8 encoding) the

server starts to fail with java.lang.OutOfMemoryError

due to lack of Java heap space. This explains why

the percentage of time spent in the service layer (see

‘Service’ column in Table 3) actually decreases with

increasing XML length.

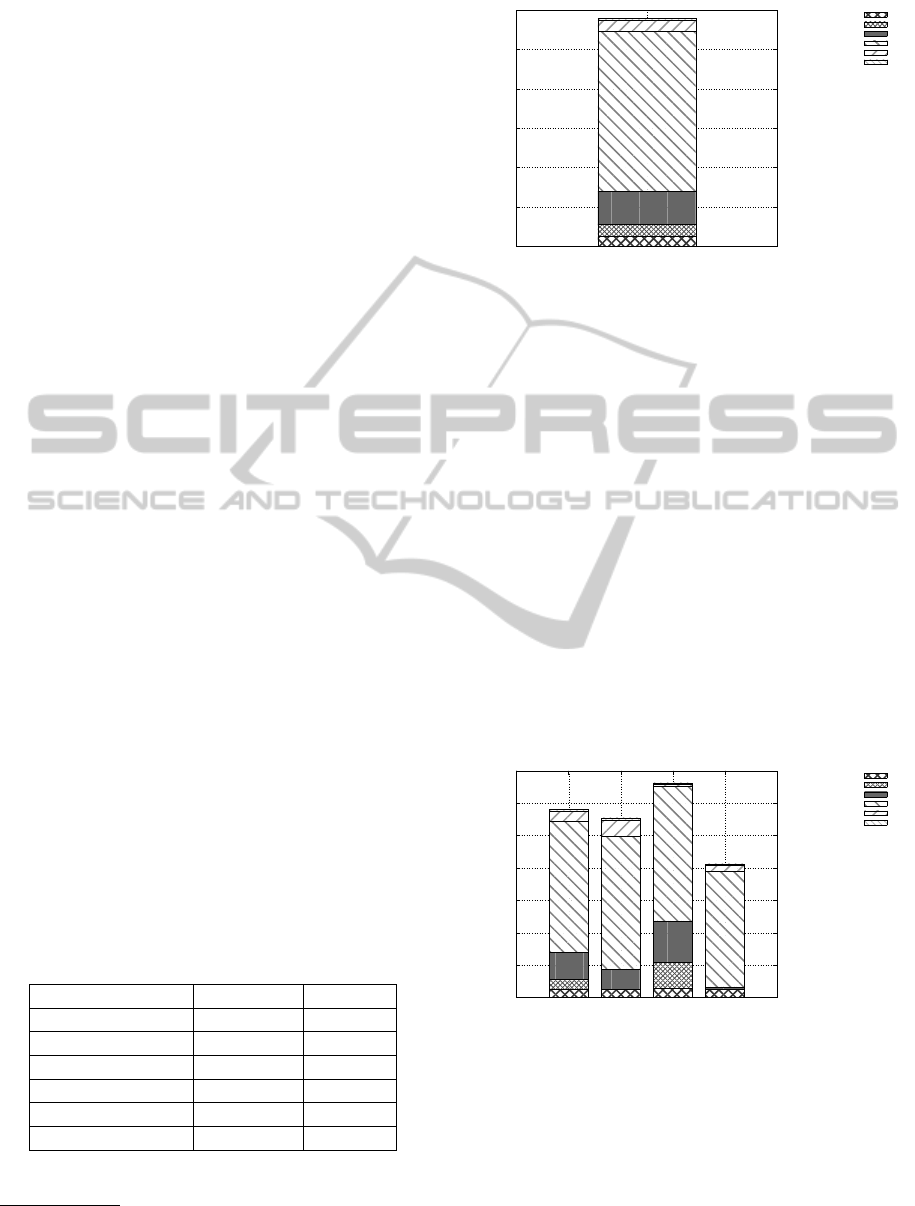

Percentage of requests %

Average total XML logical length (characters)

Successful

App. Exceptions

System Errors

100

50000 100000 150000 200000

Figure 10: Outcome of requests for with increasing SOAP

size.

4.2.4 Hibernate Second-level Cache

The goal of this experiment was to measure the im-

provement of performance by using the out-of-the-

box Hibernate second-level caching implementation

EHCache (Bauer and King, 2008).

The ﬁrst-level cache is turned on by default and is

managed at the Hibernate Session object. Since each

request has its own Session, the cache is not shared

between them. The second-level cache is mana-

ged at the Session Factory object and allows sharing

between sessions.

The results were disappointing for performance

enthusiasts (author included), as can be seen on Ta-

ble 4 and Figure 11.

When running Tomcat and MySQL in the same

machine, using the second level cache actually did not

improve performance (see ﬁrst 3 rows of Table 4 and

and ﬁrst 3 bars of Figure 11). The read-only cache

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

548

Table 3: Request processing breakdown for increasing SOAP size.

Avg. XML length Web (%) WS (%) Service (%) Hib. Eng. (%) Hib. W (%) Hib. R (%)

3215 0.96 5.26 73.93 14.33 0.80 4.73

5190 0.98 4.94 70.07 14.13 5.35 4.52

28348 1.53 3.93 55.69 11.78 23.57 3.51

142145 1.60 2.35 45.16 8.95 39.35 2.59

222281 1.50 1.64 50.62 7.28 36.88 2.08

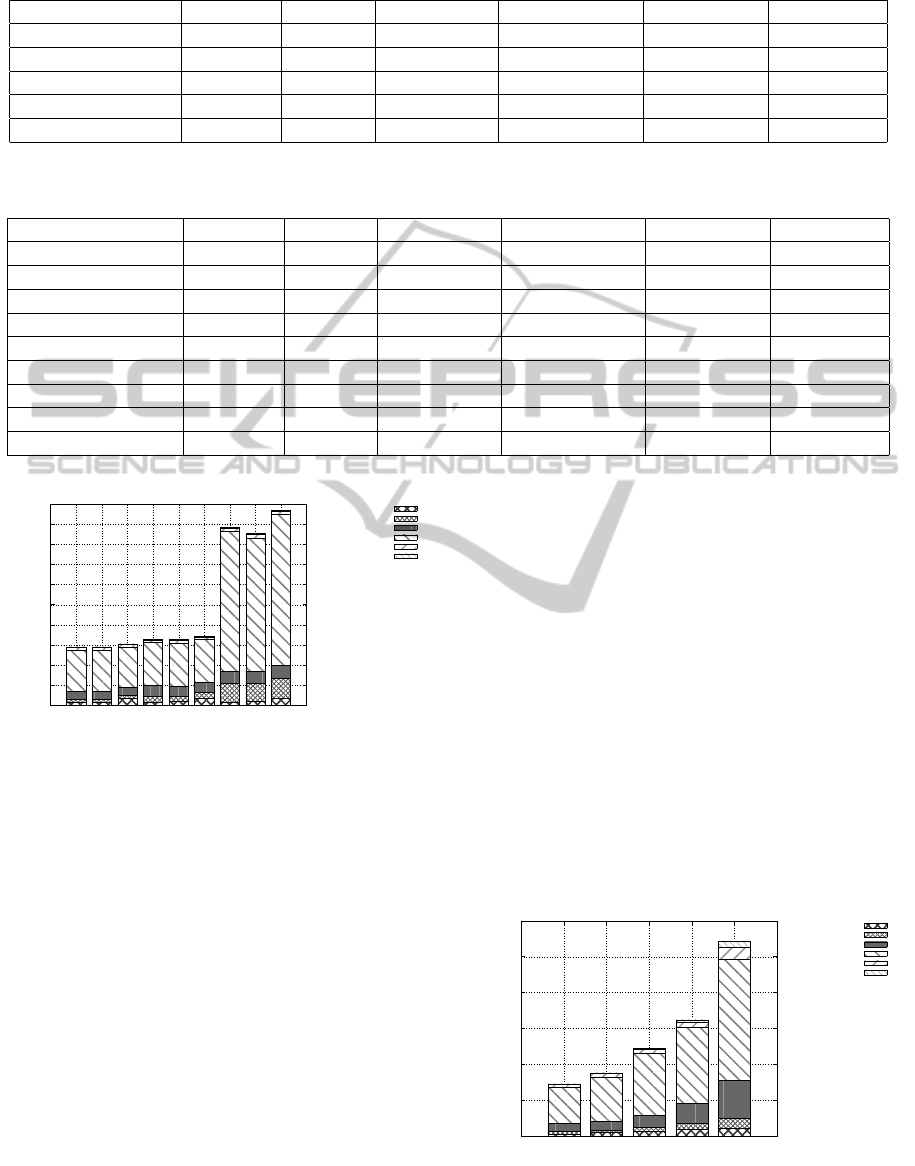

Table 4: Request processing breakdown for different cache settings.

Conﬁguration Web (%) WS (%) Service (%) Hib. Eng. (%) Hib. W (%) Hib. R (%)

Local DB 0.98 4.94 70.07 14.13 5.35 4.52

w r-only cache 0.95 5.28 70.46 13.63 4.81 4.88

w r-w cache 0.91 5.05 65.32 13.40 4.67 10.65

100 Mbit LAN DB 0.72 4.06 65.20 16.01 8.96 5.06

w r-only cache 0.75 4.42 65.74 14.93 8.61 5.54

w r-w cache 0.68 4.19 62.33 14.76 8.16 9.88

10 Mbit LAN DB 0.28 1.88 78.50 6.83 10.64 1.88

w r-only cache 0.32 2.53 77.66 6.55 10.86 2.08

w r-w cache 0.25 1.90 77.28 6.80 10.26 3.51

100

200

300

400

500

600

700

800

900

1000

Local DB

w/ r-only cache

w/ r-w cache

100 Mbit LAN DB

w/ r-only cache

w/ r-w cache

10 Mbit LAN DB

w/ r-only cache

w/ r-w cache

Average request processing time (ms)

Hibernate Reads

Hibernate Writes

Hibernate Engine

Service

Web Service

Web

Figure 11: Request processing breakdown for different

cache settings.

has negligible effect (see next 3 rows and 3 bars). The

read-write cache actually decreases performance (see

last 3 rows and 3 bars).

When running Tomcat in Machine A and MySQL

in Machine B, connected by a 100 Megabit LAN,

the results were only marginally worse, despite the

network trafﬁc. Only when running Tomcat in Ma-

chine A and MySQL in Machine B, connected by a

more constricted 10 Megabit LAN, did the read-only

cache prove beneﬁcial. However, the request process-

ing time for this conﬁguration was roughly 3 times

slower than the others.

The bandwidth of the LANs was measured to

verify claimed performance. The 100 Megabit had

an actual performance of 94.402 ± 0.157 Mbit/s and

the 10 Megabit had a performance of 7.312 ± 0.262

Mbit/s, both measured with 95% conﬁdence. These

measurements are close to the nominal values.

All things considered, the best solution for this

application is to leave the second-level cache turned

off. Most caching beneﬁts are achieved with the ﬁrst-

level cache. This conclusion might be different for

other applications with other data usage patterns.

4.2.5 Concurrent Users

The performance of an application in a production en-

vironment heavily depends on the number of users,

making it hard to properly test the implementation in

a development environment where only a single user

is available. In this experiment several virtual users

were running at the same time. Table 5 and Figure 12

present the results.

200

400

600

800

1000

1200

1 2 4 8 16

Average request processing time (ms)

Number of concurrent users

Hibernate Reads

Hibernate Writes

Hibernate Engine

Service

Web Service

Web

Figure 12: Request processing breakdown for increasing

concurrent users.

IMPROVINGWEBSERVICESPERFORMANCE,ONESTEPATATIME

549

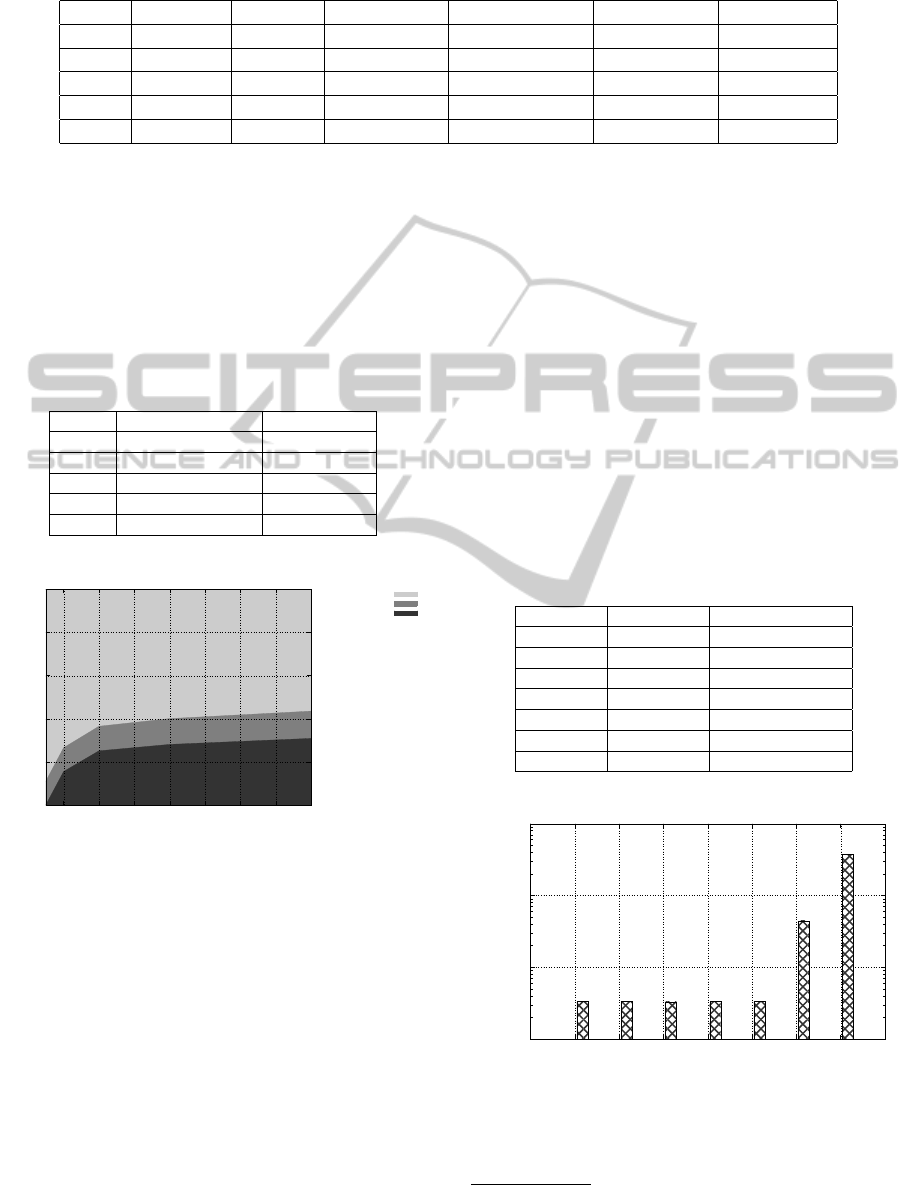

Table 5: Request processing breakdown for increasing concurrent users.

Users Web (%) WS (%) Service (%) Hib. Eng. (%) Hib. W (%) Hib. R (%)

1 0.98 4.94 70.07 14.13 5.35 4.52

2 1.10 4.89 70.06 14.08 4.08 5.80

4 1.21 4.04 71.09 13.58 3.97 6.11

8 2.04 4.62 65.06 17.07 5.47 5.74

16 2.75 6.07 62.55 19.56 4.80 4.26

The server scales fairly well for the tested num-

ber of users. The request processing time stays in

the same order of magnitude for a ten-fold increase in

load (when the number of users changes from 1 to 10,

the processing time stays below 1000 milliseconds).

However, there is a problem that is only evidenced by

Table 6 and Figure 13.

Table 6: Failed requests for increasing concurrent users.

Users Exceptions (%) Errors (%)

1 11.04 0.00

2 11.04 15.45

4 11.39 25.06

8 11.98 28.06

16 12.66 30.85

Percentage of requests %

Number of concurrent users

Successful

App. Exceptions

System Errors

100

2 4 6 8 10 12 14 16

Figure 13: Outcome of requests for increasing concurrent

users.

The number of Application Exceptions stays the

same (as expected in a simulated workload) but the

number of System Errors steadily increases, from 0%

for 1 user, to 30% for 16 users.

A thorough study shows that the prob-

lem is caused by Hibernate’s optimistic

cache (Bauer and King, 2008) approach that

throws org.hibernate.StaleObjectStateException

when it detects concurrent modiﬁcations of the

same objects. This happens not only for entity data

modiﬁcations, but also for relationship modiﬁcations.

The impact of this issue is magniﬁed because the

STEP Framework “cookbook” advocates the use of a

“Domain Root” object that connects to all the main

domain entities. This guideline has a measurable

impact on the scalability of STEP applications and

should be reconsidered in future versions.

4.2.6 Logging Cost

Log libraries are very important for server-side ap-

plications as a debug and diagnostic tool. The STEP

Framework and the libraries it uses rely on Apache

Log4J

to log program messages. In this experiment,

the functional log level was changed from no messa-

ges (”off”) up to the most detailed level (”trace”). Ta-

ble 7 presents the values along with Figure 14 in loga-

rithmic scale.

Table 7: Log level average processing time and average

functional log size.

Log level Time (ms) Log size (bytes)

Off 332.52 0

Fatal 332.10 0

Error 331.69 1792

Warn 333.70 1792

Info 332.91 13978

Debug 4431.41 296059571

Trace 37430.76 2029488189

100

1000

10000

100000

off fatal error warn info debug trace

Average request processing time (ms)

Logging level

Figure 14: Request processing times for log level settings.

The y axis is in logarithmic scale.

The cost of logging beyond “info” level makes the

http://logging.apache.org/log4j/

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

550

“debug” and “trace” levels impractical for production

environments.

5 CONCLUSIONS

This paper presented the performance tools developed

for the STEP Framework, a Java-based framework for

Web Services and applications, but most importantly,

it presented trade-off discussions and lessons learned

that can be applied to other Web Service frameworks

dealing with performance-related issues, especially

when using the Hibernate, JAX-WS, and Log4J li-

braries.

The performance assessment used a representative

Web Service to perform experiments on: time slice

breakdown, request types, SOAP size, caching, con-

current users, and logging. Assembling a tool chain

to collect, process, and visualize the data was an ex-

tensive work, but the beneﬁts of having it in place

are greatly valuable for developers in a learning en-

vironment and beyond. The detailed description of

the performance analysis process provides insight to

how similar techniques can be used. Some pitfalls

are stated and explained for others to avoid. With the

new framework capabilities, future work can compare

application implementation alternatives, but can also

compare diverse platforms, both physical and virtua-

lized, and providing means to compare performance

in different cloud providers. The developed perfor-

mance tool chain assists in ﬁnding solutions for per-

formance problems, one step at a time.

ACKNOWLEDGEMENTS

Miguel L. Pardal is supported by a PhD fellow-

ship from the Portuguese Foundation for Science and

Technology FCT (SFRH/BD/45289/2008).

REFERENCES

Alonso, G., Casati, F., Kuno, H., and Machiraju, V. (2004).

Web Services: Concepts, Architectures and Applica-

tions. Springer Verlag.

Bauer, C. and King, G. (2008). Java Persistence with Hi-

bernate. Manning.

Boyer, B. (2008). Robust Java benchmarking. IBM Devel-

oper Works.

Fowler, M., Rice, D., Foemmel, M., Hieatt, E., Mee, R.,

and Stafford, R. (2002). Patterns of Enterprise Appli-

cation Architecture. Addison Wesley.

Georges, A., Buytaert, D., and Eeckhout, L. (2007).

Statistically rigorous Java performance evaluation.

In 22nd annual ACM SIGPLAN conference on

Object-oriented programming systems and applica-

tions (OOPSLA), pages 57–76, New York, NY, USA.

ACM.

Jain, R. (1991). The Art of Computer Systems Performance

Analysis - Techniques for Experimental Design, Mea-

surement, Simulation, and Modeling. Wiley.

Janert, P. K. (2009). Gnuplot in Action - Understanding

Data with Graphs. Manning.

Juric, M. B., Rozman, I., Brumen, B., Colnaric, M., and

Hericko, M. (2006). Comparison of performance

of Web Services, WS-Security, RMI, and RMISSL.

Journal of Systems and Software, 79(5):689 – 700.

Machado, A. and Ferraz, C. (2006). JWSPerf: A perfor-

mance benchmarking utility with support to multiple

web services implementations. In International Con-

ference on Internet and Web Applications and Services

(ICIW), pages 159 – 159.

Montgomery, D. C. and Runger, G. C. (2010). Applied

Statistics and Probability for Engineers. Wiley.

Pardal, M., Fernandes, S., Martins, J., and Pardal, J. P.

(2008). Customizing web services with extensions in

the STEP Framework. International Journal of Web

Services Practices, 3. Issue 1.

Pearce, D. J., Webster, M., Berry, R., and Kelly, P. H. J.

(2007). Proﬁling with aspectj. Softw. Pract. Exper.,

37(7):747–777.

Roza, M., Schroders, M., and van de Wetering, H. (2009).

A high performance visual proﬁler for games. In ACM

SIGGRAPH Symposium on Video Games (Sandbox

’09), pages 103–110, New York, NY, USA. ACM.

Shankar, K. and Lysecky, R. (2009). Non-intrusive dynamic

application proﬁling for multitasked applications. In

46th Annual Design Automation Conference (DAC),

pages 130–135, New York, NY, USA. ACM.

IMPROVINGWEBSERVICESPERFORMANCE,ONESTEPATATIME

551
