THE IMPACT OF SOURCE CODE NORMALIZATION

ON MAIN CONTENT EXTRACTION

Hadi Mohammadzadeh

, Thomas Gottron

, Franz Schweiggert

and Gholamreza Nakhaeizadeh

Institute of Applied Information Processing, University of Ulm, D-89069 Ulm, Germany

Institute for Web Science and Technologies, Universit

at Koblenz-Landau, D-56070 Koblenz, Germany

Institute of Statistics, Econometrics and Mathematical Finance, University of Karlsruhe, D-76128 Karlsruhe, Germany

Keywords:

Main Content Extraction, Web Mining, HTML Web Pages, Normalization.

Abstract:

In this paper, we introduce AdDANAg, a language-independent approach to extract the main content of web

documents. The approach combines best-of-breed techniques from recent content extraction approaches to

yield better extraction results. This combination of techniques brings together two pre-processing steps, e.g. to

normalize the document presentation and reduce the impact of certain syntactical structures, and four phases

for the actual content extraction. We show that AdDANAg demonstrates a high performance in terms of

effectiveness and efﬁciency and outperforms previous approaches.

1 INTRODUCTION

Content Extraction (CE) is deﬁned as the task of de-

termining the main textual content of an HTML doc-

ument and/or removing the additional items, such

as navigation menus, copyright notices or advertise-

ments (Gottron, 2008).

In recent years, many algorithms and methods

have been introduced to provide solutions to this

task (Gottron, 2008; Mohammadzadeh et al., 2011a;

Moreno et al., 2009; Weninger and Hsu, 2008). How-

ever, none of these methods demonstrated perfect re-

sults on all types of web documents. A typical ﬂaw

is a poor extraction performance on highly structured

web documents or documents containing many hyper-

links. The structure of such documents contradicts the

typical hypothesis underlying CE methods: the main

content forms a rather long and uniformly formatted

region of text. Wiki documents are a typical exam-

ple contradicting this hypothesis. To analyse the be-

haviour of CE methods in these difﬁcult scenarios, CE

evaluation datasets typically also contain documents

from Wikipedia. Following this line of thought we

will use Wikipedia as a representative example to il-

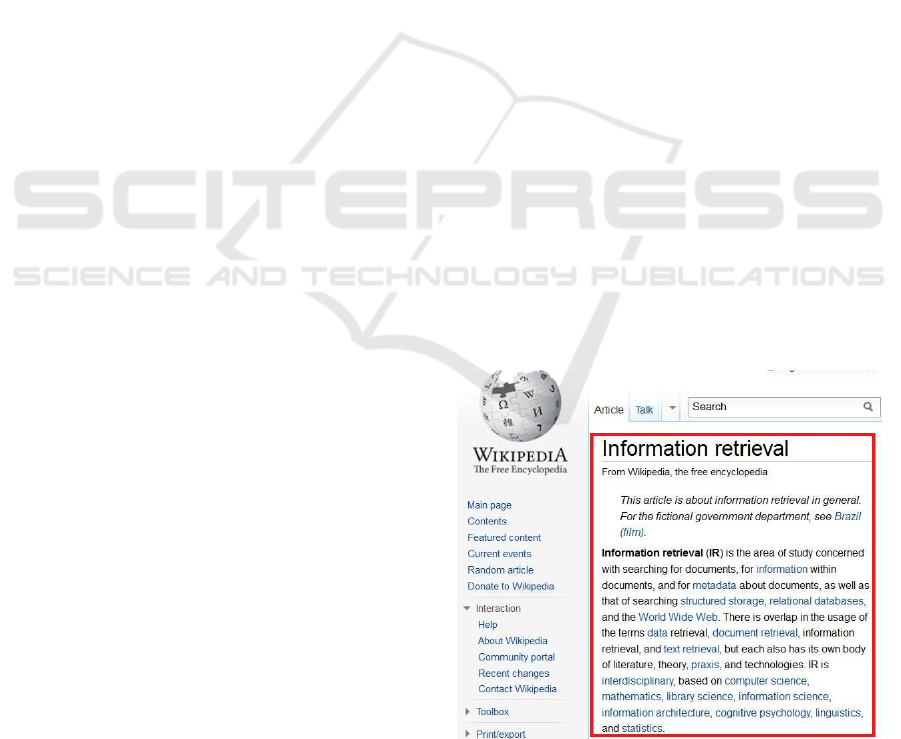

lustrate our approach throughout the paper. Figure 1

shows an example of a Wikipedia web page with a

highlighted main content.

The challenge posed by highly structured docu-

ments has been previously addressed by the ACCB

Figure 1: An example of a web document with a highlighted

main content.

algorithm (Gottron, 2008), which coped with the

problem by introducing a dedicated pre-processing

step. ACCB achieved more accurate results com-

pared to its baseline CCB. Motivated by this success,

we introduce in this paper the AdDANAg approach,

which incorporates a pre-processing step inspired by

ACCB with the current state-of-the-art CE algorithm

DANAg (Mohammadzadeh et al., 2011a). We apply

AdDANAg to an established collection of web doc-

677

Mohammadzadeh H., Gottron T., Schweiggert F. and Nakhaeizadeh G..

THE IMPACT OF SOURCE CODE NORMALIZATION ON MAIN CONTENT EXTRACTION.

DOI: 10.5220/0003931906770682

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 677-682

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

uments and demonstrate an overall improvement in

main content extraction performance on highly struc-

tured documents while in general maintaining its very

good performance on all other documents.

We proceed as follows: in Section 2, we brieﬂy

review related work in the ﬁeld of CE. Our novel Ad-

DANAg approach is introduced in Section 3. The data

sets and experiments are explained in Section 4. In

Section 5, we conclude the paper and outline sugges-

tions for future work.

2 RELATED WORK

Content extraction algorithms can be subdivided in

three families, based on the structures they analyse:

the HTML DOM tree, HTML source code elements

or the character encoding.

2.1 Methods based on DOM Tree

Analysis

In this section, we list three of most outstanding

methods operating on a DOM tree. These methods

were introduced by Gupta et al. (Gupta et al., 2003),

Mantratzis et al.(Mantratzis et al., 2005), and Debnath

et al. (Debnath et al., 2005) and are called, respec-

tively, Crunch framework, Link Quota Filter(LQF),

and ﬁnally the FeatureExtractor algorithm and its ex-

tension the K-FeatureExtractor. All of these methods

ﬁrst construct a DOM tree from an HTML web page

using an HTML parser.

The ﬁrst method navigates the DOM tree respec-

tively and utilizes a number of heuristic ﬁltering tech-

niques to extract the main content of an HTML web

page. The second method, LQF, determines the areas

with a high hyperlink density within a web document,

so these areas can be separated from the main con-

tent. In the last two methods, the ”primary content

blocks” are identiﬁed based on various features. In the

ﬁrst step, they segment the web pages into web page

blocks and, second, they separate the primary con-

tent blocks from the non-informative content blocks

based on their compliance with desired features, such

as dominance of text or images.

2.2 Methods based on the Analysis of

HTML Source Code Elements

Methods operating on source code elements, such as

tags and words represent are the most common and ef-

fective approach for CE. In this section we highlight

ﬁve of the most prominent approaches.

Finn et al. (Finn et al., 2001) proposed ”Body Text

Extraction” (BTE). BTE identiﬁes only a single con-

tinuous fragment of the HTML document containing

the main content. This method is based on tokeniz-

ing a web document into a binary vector of word and

tag elements. Afterwards, BTE chooses a fragment

containing a high percentage of text against low per-

centage of tags.

Pinto et al. (Pinto et al., 2002) extended this ap-

proach to the ”Document Slope Curves” algorithm

(DSC). The aim of this method is to overcome the

restriction of BTE to be capable to extract more than

one continuous block of text tokens. In doing this, in

an intermediary step, DSC generates a graph by plot-

ting the accumulated tag token count for each entry

in the vector. Then, the approach extracts long and

low sloping regions of this graph represent the main

content (text without HTML tags). By employing a

windowing technique, the approach can identify also

a main content which is fragmented into several parts

of an HTML document.

Gottron (Gottron, 2008) presented two new algo-

rithms: Content Code Blurring (CCB) and Adapted

Content Code Blurring (ACCB) are capable of work-

ing either on characters or tokens. CCB ﬁnds the re-

gions in an HTML document which contains mainly

content and little code. In order to do this, the algo-

rithm, determines a ratio of content to code for each

single element in the content code vector (CCV) by

using a Gaussian blurring ﬁlter, building a new vec-

tor, referred to as Content Code Ratio (CCR). Now a

region with high CCR values indicates the main con-

tent. In ACCB, all anchor-tags are ignored during the

creation of the CCV. Two parameters inﬂuence the be-

haviour of these two algorithms, so tuning these two

parameters is important in order to produce good re-

sults (Gottron, 2009).

Weninger et al. (Weninger and Hsu, 2008) intro-

duced CETR: CE via tag ratios. Their method com-

putes tag ratios on a line-by-line basis and, after-

wards, produces a histogram based on results. Finally,

by using the k-means clustering method, they group

the resulting histogram into the content and the non-

content area.

Finally, Moreno et al. (Moreno et al., 2009) pro-

posed Density. This approach has two phases. In the

ﬁrst step, they separate texts from the HTML tags by

using an HTML parser; afterwards, the extracted texts

are saved in an array of strings L. In the second step, a

region in the array L that has the highest density will

be determined as a main content.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

678

2.3 Methods based on Analysing

Character Encoding

The last category of CE methods operates on the char-

acter encoding of a document.

In the ﬁrst, simple algorithm, R2L, was proposed

by Mohammadzadeh et al. (Mohammadzadeh et al.,

2011c). R2L is independent from the DOM tree and

HTML tags and extracts the main content of special

language web pages, such as Arabic, Farsi, Urdu,

and Pashto, written from right to left. The proposed

method relies on the simple rule: the distinction be-

tween characters which are used in English characters

and right to left language characters. The shortcom-

ing of R2L is that it is language dependent. More-

over, it loses the Non-R2L characters, for example

English characters, of the main content because when

R2L separates characters, it categorizes all Non-R2L

characters incorrectly as the English characters while

some of these Non-R2L characters are members of

the main content.

The latter ﬂaw was overcome by DANA (Moham-

madzadeh et al., 2011b), an extended release of R2L

with considerable effectiveness. DANA like R2L ap-

proach is still language-dependent but it can cope with

Non-R2L characters in the main content.

Finally, Mohammadzadeh et al. (Moham-

madzadeh et al., 2011a) presented DANAg, a

language-independent version by incorporating an

HTML parser. DANAg shows high efﬁciency and a

very accurate extraction of the main content.

3 AdDANAg

AdDANAg is inspired by an adaptation of the pre-

processing step of ACCB (Gottron, 2008) and the

current state-of-the-art content extraction approach

DANAg (Mohammadzadeh et al., 2011a). The pro-

cess behind AdDANAg can be divided into a pre-

processing phase and a core extraction phase. While

the core extraction phase is taken from DANAg, the

pre-processing from ACCB has been adapted and en-

hanced. Our preprocessing normalizes imbalances

in the source code structure that hinder typical CE

approaches. The imbalances can be motivated due

to technical constraints or domain speciﬁc deviations

from the typical source code patterns. Important is

to note, that they do not imply a semantic change in

the main content speciﬁcations. Below we explain the

pre-processing step of AdDANAg in detail and recall

the core extraction phase for the sake of completeness

of the paper.

3.1 Pre-processing

A common problem of CE methods based on source

code analysis is, that on hyperlink rich web docu-

ments they cannot detect the main content accurately.

This can be explained with the code for hyperlinks

prevailing over the actual content items, which contra-

dicts typical assumptions made by the content extrac-

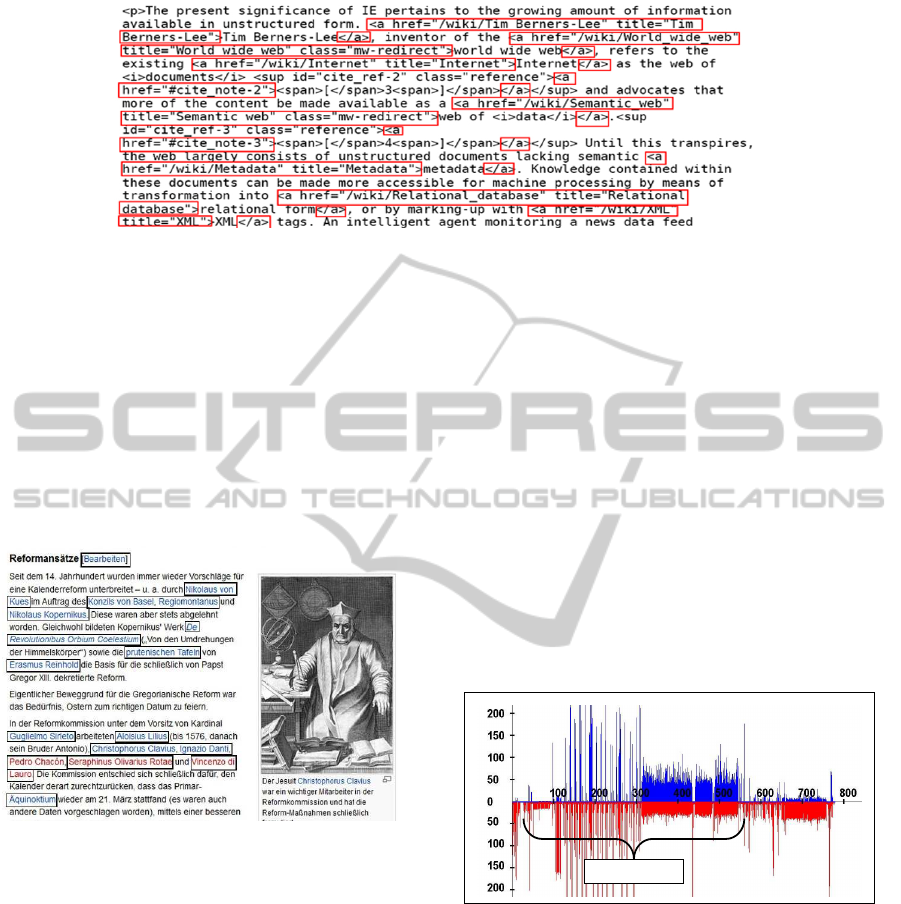

tion methods. Illustrative examples are given in Fig-

ure 2 showing some paragraphs of a normal HTML

ﬁle while Figure 3 represents some portions of source

code with many hyperlinks. In Figure 2, there is no

hyperlink, so approaches like DANAg or CCB have

no problems in extracting the main content accurately.

In comparison, in Figure 3, there are plenty of hy-

perlinks which introduces a strong bias towards code

structures.

Therefore, in the pre-processing step of Ad-

DANAg, we normalise all HTML hyperlinks using a

fast approach based on substitution rules. For better

understanding we explain the approach using a illus-

trative example. Suppose the following hyperlink to

be contained in an HTML ﬁle:

Here, there is only one attribute, which is

href="http://www.BBC.com/". Now, the length of

the anchor text (in this example: BBC Web Site) is

determined and we refer to this value by LT. Then, we

substitute the attribute part of the opening tag with a

placeholder text of length LT - 5, where the subtracted

5 comes from the length of <a></a>. So, using the

underscore sign as placeholder the new hyperlink

for our example should be as below:

The purpose of this rule is to normalise the ratio of

content and code characters representing hyperlinks.

This counterbalances inequalities originating from the

URLs in hyperlinks.

</div>

<p id="story_continues_2">"Especially the under-fives and the pregnant

women, they're suffering from malnutrition and communicable disease like the

measles, diarrhoea and pneumonia," he said.</p>

<p>Earlier this week Mark Bowden, the UN humanitarian affairs co-ordinator

for Somalia, told the BBC that the country was close to famine. </p>

<p>Last week Somalia's al-Shabab Islamist militia - which has been

fighting the Mogadishu government - said it was lifting its ban on foreign aid

agencies provided they did not show a "hidden agenda". </p>

<p>Some 3,000 people flee each day for neighbouring countries such as

Ethiopia and Kenya which are struggling to cope.</p>

</div>

Figure 2: Some paragraphs of regular HTML ﬁle.

3.2 The Core Extraction Phase

AdDANAg follows the common hypothesis, that the

main content is composed of a relatively homoge-

neous region of text. For the web document in Fig-

ure 4, this hypothesis holds true for the shown text

THEIMPACTOFSOURCECODENORMALIZATIONONMAINCONTENTEXTRACTION

679

Figure 3: Some portions of hyperlink rich HTML ﬁle.

fragment. The challenge is now to detect this rela-

tively homogeneous region of text in the source code.

The core extraction phase of AdDANAg in gen-

eral follows the process designed for DANAg (Mo-

hammadzadeh et al., 2011a). This incorporates two

additional pre-processing steps: ﬁrst, to remove all

JavaScript codes, CSS style codes, and comments

from the HTML ﬁle and retain only the HTML code

as the output, and second, to normalize the distribu-

tion of newline characters in the source code as it op-

erates on the level of lines.

Figure 4: An example of Wikipedia web pages.

The actual extraction phase of AdDANAg is di-

vided into four steps. In the ﬁrst step, AdDANAg

calculates the amount of content and code characters

in each line of an HTML ﬁle and stores these num-

bers in two one-dimensional arrays T and S, respec-

tively. For the web document shown in Figure 4 the

plot in Figure 5 visualizes these arrays as a plot of two

types of columns above and below the x-axis with the

length equal to the values of T and S, respectively.

The columns above the x-axis represent the amount

of content of each line in the source code, while the

columns below the x-axis represent the amount of

code characters. The normalisation of the hyperlinks

in the pre-processing phase of AdDANAg here takes

its effect, as for those lines with many hyperlinks it

equally modiﬁes the values in T and S; this is the key

point of AdDANAg.

AdDANAg algorithm’s hypothesis of the main

content being composed of a relatively homoge-

neous region of text corresponds to a dense region of

columns positioned above the x-axis. The normalisa-

tion avoids a strong fragmentation of these areas due

to extensive hyperlink markup. In Figure 5, the actual

main content area is located in the lines 15 to 540 and

the remaining part of diagram belongs to the extrane-

ous items such as menus and advertisements. Conse-

quently on hyperlink rich web pages, combining the

algorithm DANAg with our new pre-processing phase

result in a better retention of the columns located

above x-axis representing the main content. The aim

of AdDANAg is to recognize the main content area

based on this representation. This is implemented in

the following three steps.

Main Content Area

Figure 5: A plot of the amount of content and code charac-

ters per line in the source code of the web document shown

in Figure 4.

In the next step, AdDANAg computes diff

through Formula 1 for each line i of the HTML ﬁle,

and keeps these new numbers in a one-dimensional

array D, to produce a smoothed plot which can be

seen in Figure 6. The plot in Figure 6 draws a col-

umn above the x-axis if diff

> 0. Otherwise, a line

with length |diff

| is depicted below the x-axis. Look-

ing at Figure 6, the region of the main content is now

the only part of the plot with a dense part of the plot

above the x-axis. Thus, it becomes easier to recog-

nize the main content. Considering the positive val-

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

680

ues of D, AdDANAg identiﬁes all paragraphs of the

main content located above the x-axis and, for sim-

plicity, it deﬁnes a new set R = {r

, r

, ..., r

} of all

such paragraphs. Each element r

∈ R denotes only

one individual paragraph and n is the total number of

recognized paragraphs above the x-axis.

Main Content Area

Figure 6: A smoothed plot of Figure 5.

diff

= (T

− S

) + (T

i+1

− S

i+1

) + (T

i-1

− S

i-1)

(1)

In the third step, AdDANAg discovers all para-

graphs shaping the main content. We refer to the orig-

inal paper for the technical details (Mohammadzadeh

et al., 2011a).

Finally, AdDANAg feeds all these extracted para-

graphs to a parser (Gottron, 2008) to obtain the main

content tokens of the HTML ﬁle.

4 DATA SET AND RESULTS

For the purpose of evaluation we use the dataset in-

troduced in (Gottron, 2008) and (Mohammadzadeh

et al., 2011c), composed of 9,101 and 2,166, respec-

tively, web pages from different web sites for which

the main content is provided as a gold standard. The

composition and size of the evaluation data sets are

presented in Table 1 and Table 2, respectively.

The F1 scores regarding the accurate extraction of

the main content are presented in Table 3 and Table 4.

A ﬁrst observation is that in comparison to DANAg,

AdDANAg does not show drawbacks in general for

standard web documents. Further, AdDANAg and

DANAg for most documents deliver the best results.

When focussing on the set of Wikipedia web pages,

which have been observed to be extremely difﬁcult for

main content, we can observe that AdDANAg clearly

outperforms DANAg and all other approaches. The

overall average F1 score for both DANAg and Ad-

DANAg in Table 3 are 0.8099 and 0.8284, respec-

tively.

Table 1: Evaluation corpus of 9101 web pages.

Web site Source Size Languages

BBC www.bbc.co.uk 1000 English

Economist www.economist.com 250 English

Golem golem.de 1000 German

Heise www.heise.de 1000 German

Manual several 65 German, English

Repubblica www.repubblica.it 1000 Italian

Slashdot slashdot.org 364 English

Spiegel www.spiegel.de 1000 German

Telepolis www.telepolis.de 1000 German

Wiki fa.wikipedia.org 1000 English

Yahoo news.yahoo.com 1000 English

Zdf www.heute.de 422 German

Table 2: Evaluation corpus of 2166 web pages.

Web site Source Size Lang.

BBC www.bbc.co.uk/persian 598 Farsi

Hamshahri hamshahrionline.ir 375 Farsi

Jame Jam www.jamejamonline.ir 136 Farsi

Ahram www.jamejamonline.ir 188 Arabic

Reuters ara.reuters.com 116 Arabic

Embassy of www.teheran.diplo.de 31 Farsi

Germany Vertretung/teheran/fa

BBC www.bbc.co.uk/urdu 234 Urdu

BBC www.bbc.co.uk/pashto 203 Pashto

BBC www.bbc.co.uk/arabic 252 Arabic

Wiki fa.wikipedia.org 33 Farsi

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we proposed AdDANAg as a combina-

tion and variation of DANAg and the pre-processing

of ACCB, with considerable effectiveness. Results

show AdDANAg determines the main content with

high accuracy on many web documents. Especially,

also on the difﬁcult to handle hyperlink rich web

documents AdDANAg shows previously unseen good

performance. In future, we are going to extend Ad-

DANAg to propose parameter-free approach.

ACKNOWLEDGEMENTS

We would like to thank Mina Aramideh for editing

some parts of this paper.

The research leading to these results has received

funding from the European Community’s Seventh

Framework Programme (FP7/2007-2013) under grant

agreement no. 257859, ROBUST.

THEIMPACTOFSOURCECODENORMALIZATIONONMAINCONTENTEXTRACTION

681

Table 3: The Average F1 Scores of AdDANAg based on the corpus in Table 1.

BBC

Economist

Zdf

Golem

Heise

Repubblica

Spiegel

Telepolis

Yahoo

Wikipedia

Manual

Slashdot

Plain 0.595 0.613 0.514 0.502 0.575 0.704 0.549 0.906 0.582 0.823 0.371 0.106

LQF 0.826 0.720 0.578 0.806 0.787 0.816 0.775 0.910 0.670 0.752 0.381 0.127

Crunch 0.756 0.815 0.772 0.837 0.810 0.887 0.706 0.859 0.738 0.725 0.382 0.123

DSC 0.937 0.881 0.847 0.958 0.877 0.925 0.902 0.902 0.780 0.594 0.403 0.252

TCCB 0.914 0.903 0.745 0.947 0.821 0.918 0.910 0.913 0.758 0.660 0.404 0.269

CCB 0.923 0.914 0.929 0.935 0.841 0.964 0.858 0.908 0.742 0.403 0.420 0.160

ACCB 0.924 0.890 0.929 0.959 0.916 0.968 0.861 0.908 0.732 0.682 0.419 0.177

Density 0.575 0.874 0.708 0.873 0.906 0.344 0.761 0.804 0.886 0.708 0.354 0.362

DANAg 0.924 0.900 0.912 0.979 0.945 0.970 0.949 0.932 0.952 0.646 0.401 0.209

AdDANAg 0.922 0.900 0.911 0.994 0.931 0.970 0.951 0.932 0.950 0.840 0.404 0.236

Table 4: The Average F1 Scores of AdDANAg based on the corpus in Table 2.

Al Ahram

BBC Arabic

BBC Pashto

BBC Persian

BBC Urdu

Embassy

Hamshahri

Jame Jam

Reuters

Wikipedia

ACCB-40 0.871 0.826 0.859 0.892 0.948 0.784 0.842 0.840 0.900 0.736

BTE 0.853 0.496 0.854 0.589 0.961 0.810 0.480 0.791 0.889 0.817

DSC 0.871 0.885 0.840 0.950 0.896 0.824 0.948 0.914 0.851 0.747

FE 0.809 0.060 0.165 0.063 0.002 0.017 0.225 0.027 0.241 0.225

KFE 0.690 0.717 0.835 0.748 0.750 0.762 0.678 0.783 0.825 0.624

LQF-25 0.788 0.780 0.844 0.841 0.957 0.860 0.765 0.737 0.870 0.773

LQF-50 0.785 0.777 0.837 0.828 0.954 0.856 0.767 0.724 0.870 0.772

LQF-75 0.773 0.773 0.837 0.819 0.954 0.852 0.756 0.724 0.870 0.750

TCCB-18 0.886 0.826 0.912 0.925 0.990 0.887 0.871 0.929 0.959 0.814

TCCB-25 0.874 0.861 0.909 0.927 0.992 0.883 0.888 0.924 0.958 0.814

Density 0.879 0.202 0.908 0.741 0.958 0.882 0.920 0.907 0.934 0.665

DANAg 0.949 0.986 0.944 0.995 0.999 0.917 0.991 0.966 0.945 0.699

AdDANAg 0.949 0.985 0.944 0.996 0.999 0.917 0.991 0.973 0.945 0.852

REFERENCES

Debnath, S., Mitra, P., and Lee Giles, C. (2005). Identifying

content blocks from web documents. In Foundations

of Intelligent Systems, Lecture Notes in Computer Sci-

ence, pages 285–293.

Finn, A., Kushmerick, N., and Smyth, B. (2001). Fact or ﬁc-

tion: Content classiﬁcation for digital libraries. In DE-

LOS Workshop: Personalisation and Recommender

Systems in Digital Libraries.

Gottron, T. (2008). Content code blurring: A new approach

to content extraction. In DEXA ’08: 19th Interna-

tional Workshop on Database and Expert Systems Ap-

plications, pages 29 – 33. IEEE Computer Society.

Gottron, T. (2009). An evolutionary approach to automati-

cally optimise web content extraction. In IIS’09: Pro-

ceedings of the 17th International Conference Intelli-

gent Information Systems, pages 331–343.

Gupta, S., Kaiser, G., Neistadt, D., and Grimm, P. (2003).

DOM-based content extraction of HTML documents.

In WWW ’03: Proceedings of the 12th International

Conference on World Wide Web, pages 207–214, New

York, NY, USA. ACM Press.

Mantratzis, C., Orgun, M., and Cassidy, S. (2005). Sepa-

rating XHTML content from navigation clutter using

DOM-structure block analysis. In HYPERTEXT ’05:

Proceedings of the sixteenth ACM conference on Hy-

pertext and hypermedia, pages 145–147, New York,

NY, USA. ACM Press.

Mohammadzadeh, H., Gottron, T., Schweiggert, F., and

Nakhaeizadeh, G. (2011a). Extracting the main con-

tent of web documents based on a naive smooth-

ing method. In KDIR’11: International Conference

on Knowledge Discovery and Information Retrieval,

pages 470 – 475. SciTePress.

Mohammadzadeh, H., Gottron, T., Schweiggert, F., and

Nakhaeizadeh, G. (2011b). A fast and accurate ap-

proach for main content extraction based on character

encoding. In DEXA ’11: 22th International Workshop

on Database and Expert Systems Applications, pages

167 – 171. IEEE Computer Society.

Mohammadzadeh, H., Schweiggert, F., and Nakhaeizadeh,

G. (2011c). Using utf-8 to extract main content of

right to left language web pages. In ICSOFT 2011

- Proceedings of the 6th International Conference on

Software and Data Technologies, Volume 1, Seville,

Spain, 18-21 July, 2011, pages 243–249. SciTePress.

Moreno, J., Deschacht, K., and Moens, M. (2009). Lan-

guage independent content extraction from web pages.

In Proceeding of the 9th Dutch-Belgian Information

Retrieval Workshop, pages 50–55.

Pinto, D., Branstein, M., Coleman, R., Croft, W. B., King,

M., Li, W., and Wei, X. (2002). QuASM: a system

for question answering using semi-structured data. In

JCDL ’02: Proceedings of the 2nd ACM/IEEE-CS

joint conference on Digital libraries, pages 46–55,

New York, NY, USA. ACM Press.

Weninger, T. and Hsu, W. H. (2008). Text extraction from

the web via text-tag-ratio. In TIR ’08: Proceedings

of the 5th International Workshop on Text Information

Retrieval, pages 23 – 28. IEEE Computer Society.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

682
