TASK SCHEDULING IN A FEDERATED CLOUD

INFRASTRUCTURE FOR BIOINFORMATICS APPLICATIONS

C. A. L. Borges, H. V. Saldanha, E. Ribeiro, M. T. Holanda, A. P. F. Araujo and M. E. M. T. Walter

Department of Computer Science, University of Brasilia, Brasilia, Brazil

Keywords:

Federated Cloud Computing, Task Scheduling, Resource Allocation, Bioinformatics.

Abstract:

Task scheduling is difﬁcult in federated cloud environments, since there are many cloud providers with distinct

capabilities that should be addressed. In bioinformatics, many tools and databases requiring large resources

for processing and storing enourmous amounts of data are provided by physically separate institutions. This

article treats the problem of task scheduling in BioNimbus, a federated cloud infrastructure for bioinformatics

applications. We propose a scheduling algorithm based on the Analytic Hierarchy Process (AHP) to perform

an efﬁcient distribution for ﬁnding the best resources to execute each required task. We developed experiments

with real biological data executing on BioNimbus, formed by three cloud providers executing in Amazon

EC2. The obtained results show that DynamicAHP makes a signiﬁcant improvement in the makespan time of

bioinformatics applications executing in BioNimbus, when compared to the Round Robin algorithm.

1 INTRODUCTION

Cloud computing is a resource delivery and usage

model to get resources (hardware, software, appli-

cations) through on-demand and at scale network

as services in a shared, multi-tenant and elastic en-

vironment (Li and Guo, 2010; Buyya and et al.,

2009). Computational capabilities in clouds rely

in the concept of virtualization, which is based on

several virtual machines providing services to con-

sumers. Cloud computing aims to offer virtually un-

restricted pay-per-use computational resources and no

needs to manage the underlying infrastructure. Re-

cently, the model of federated cloud (inter-cloud or

cross-cloud) was proposed, being generally deﬁned as

a set of cloud providers, public and private, connected

through the Internet (Bernstein and et al., 2009; Ce-

lesti and et al., 2010; Marshall et al., 2010).

On the other hand, high performance genome se-

quencing technologies produce large amounts of bi-

ological data in hundreds of genome projects around

the world. A single genome project generates giga-

bytes of data, which have to be processed by large

and time consuming programs that also generate more

gigabytes of data, so requiring terabytes of storage

to store all these biological information. Genome

projects and related bioinformatics analyses are sup-

ported by workﬂows composed of tools and databases

that are usually stored in physically separate centers.

In this context, we previously proposed BioNim-

bus (Saldanha and et al., 2011), a cloud architecture

for bioinformatics applications, capable of transpar-

ently creating a computing environment that supports

dynamic expansion of resources (data storage, ser-

vices, virtual machines, CPUs) so that it can handle

variations in the service demands frequently found in

genome projects or in bioinformatics analyses.

Optimal use of computational resources should be

done according to a user demand, which is particu-

larly difﬁcult in federated clouds, since resources of

distinct clouds may frequently be included to or re-

moved from the environment. Then, task schedul-

ing in federated clouds is a big challenge, since many

environment variables should be considered to guar-

antee efﬁcient scheduling. Besides, the problem of

task scheduling on heterogeneous systems is NP-hard.

In this work, we study the problem of task schedul-

ing in federated clouds. The objective is to pro-

pose the dynamic resource allocation algorithm Dy-

namicAHP, based on the Analytic Hierarchy Process

(AHP) (Saaty, 1990), including it in BioNimbus.

This paper is organized as follows. Section 2 de-

scribes basic concepts of bioinformatics and federated

cloud computing, and presents BioNimbus. Section 3

proposes DynamicAHP. Following, Section 4 shows

how DynamicAHP was implemented in BioNimbus,

describes the experiments, presents the results, and

ﬁnally discusses related work. In Section 5, we con-

clude and suggest future work.

114

A. L. Borges C., V. Saldanha H., Ribeiro E., T. Holanda M., P. F. Araujo A. and E. M. T. Walter M..

TASK SCHEDULING IN A FEDERATED CLOUD INFRASTRUCTURE FOR BIOINFORMATICS APPLICATIONS.

DOI: 10.5220/0003932801140120

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 114-120

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 BACKGROUND

Sequencing a DNA is the task of obtaining the bases

(A, C, G and T) of the so-called short-read sequences

(SRS), which are fragments belonging to the chromo-

somes of one or more organisms in a genome project.

DNA sequencing was strongly improved by the new

technologies developed by automatic sequencers like

Illumina and 454 Roche, among others. These se-

quencers are capable to produce millions of SRS of

one or more genomes in only one sequencing round,

each one of the SRS with lengths from 30 to 1,000

bases, depending on the adopted technology.

To evaluate the volume of data to be analyzed in a

genome project, we present two examples. Filichkin

et al. (Filichkin and et al., 2010) worked with approxi-

mately 271 millions SRS sequenced by Illumina, each

fragment with 32 bases. These bases were mapped to

a relatively short genome of the Arabidopsis thaliana

plant (≈ 120 millions of bases), with the objective

of identifying alternative splicing. Other research

groups (Pan and et al., 2008; Sultan and et al., 2008)

had the objective of identifying alternative splicing of

about 15 millions SRS, mapping them to the human

genome of approximately 3 billions of bases.

In this scenario, many projects were developed

for using cloud computing in bioinformatics aplica-

tions (Schatz, 2009; Langmead et al., 2010; Wall and

et al., 2010; Angiuoli and et al., 2011; Pratt and et al.,

2011; Zhang and et al., 2011). However, working

with a single cloud environment can be restrictive,

mostly due to execution in private companies, absent

of mechanisms to treat failures, and the fact that cur-

rent clouds are not ﬂexible enough to allow unantici-

pated usages, which usually appear in bioinformatics.

Federation is a particular research area in cloud

computing. Celesti et al. (2010) note that middle-

ware implementations (OpenQRM, 2011; Bresnahan

and et al., 2011; Nurmi and et al., 2009) lack fed-

eration features, and explore general concepts about

cross-cloud federation. Cloud computing virtualiza-

tion allows increasing of computational resources and

reducing IT service costs by hiding the underlying in-

frastructure with a logical layer between the physi-

cal infrastructure and the computational processes. In

the cross-cloud federation, each cloud provider can

enlarge its virtualization resources demanding further

computing and storage capabilities to other clouds

transparent to users. Celesti et al. also point that the

implementation of a cross-cloud federation is not triv-

ial, although its clear advantages, since clouds are het-

erogeneous and dynamic, federation models are de-

signed for static environments and agreements among

the partners are required to create the federation.

In a previous work, we proposed BioNimbus (Sal-

danha and et al., 2011), a cloud computing infrastruc-

ture for managing bioinformatics tasks, designed to

be ﬂexible and fault tolerant. The objective was to of-

fer the illusion that computational resources would be

unrestricted or, in other words, computational or stor-

age space demands would be always provided to the

users. In order to reach these objectives, we improved

BioNimbus using the federated cloud model (Fig-

ure 1). The infrastructure allows to integrate phys-

ically separate platforms, each modelled as a cloud,

which means that independent, heterogenous, pri-

vate/public clouds providing bionformatics applica-

tions could be integrated into a single federated cloud.

In BioNimbus, the resources of each user can be max-

imally used, but if more are required, other clouds can

be requested to participate, in a transparent way, so

that BioNimbus virtual resources amount are enlarged

by computational and data storage capabilities of all

the clouds forming the federation. A plug-in maps the

communication between a cloud provider integrating

the federation and the management services, so pro-

viding a simple and efﬁcient way to include a new

cloud provider in BioNimbus.

Management services are implemented in the

BioNimbus core, which offers computational re-

sources such as virtual machines, data storage and

networks. A web interface was created to facilitate

the communication with users. Details of the BioN-

imbus core main services are:

• Discovery Service: identiﬁes service providers

and consolidates information about storage ca-

pacity, processing, network latency and resource

availability;

• Monitoring Service: veriﬁes if a requested service

is available in a cloud provider, searching for an-

other cloud in the federation if it is not; receives

the tasks to be executed from the job controller,

and sends them to the scheduling service to be

distributed, guaranteeing that all the tasks of a

process are really executed; informs the job con-

troller when a task successfully executes;

• Storage Service: coordinates the storage strategy

of the ﬁles consumed and produced by the exe-

cuted tasks, deciding about distribution, replica-

tion and ﬁle access control among the services;

• Security Service: guarantees integrity among the

distinct tasks executed in the federated clouds;

• Fault Tolerance Service: guarantees that all the

core services are always available. For this, mes-

sages for all the services are sent, and if some of

them do not react, initiates an election algorithm

to execute the service again in another machine;

TASKSCHEDULINGINAFEDERATEDCLOUDINFRASTRUCTUREFORBIOINFORMATICSAPPLICATIONS

115

Core

Monitoring

Service

Scheduling

Service

Storage

Service

Fault Tolerance

Service

Security

Service

Discovery

Service

Plug-in 1

Communication Interface (P2P)

MapReduce

Cloud

Providers

Plug-in 2

GridEngine

Plug-in n

Amazon EC2

Interpro

Bowtie

BLAST

Application

GUI – Graphical User Interface

Workflow Filtering Assembly Mapping Annotation

TopHat

Interpro

...

Figure 1: The BioNimbus federated cloud architecture.

• Scheduling Service: dynamically distributes tasks

among cloud providers. For this, it maintains

the register for the allocated tasks, controls each

cloud provider load, and redistributes the tasks

when the resources are overloaded.

Heterogeneity of the cloud providers is another

important aspect, which means that resources can

vary according to available services, storage capac-

ity and processing speed. Then, an efﬁcient scheduler

plays a fundamental role in the performance of appli-

cations executing in clouds (Ergu and et al., 2011).

This is the focus of this work, the proposal of an efﬁ-

cient dynamic task scheduler for federated clouds.

3 DynamicAHP

3.1 Analytic Hierarchycal Process

The Analytic Hierarchycal Process (AHP)

method (Saaty, 1990) aims at helping humans

to make decisions. Our algorithm is based on AHP,

since a decision making process, in many aspects,

resembles a scheduling algorithm. Saaty’s method

consideres human subjective factors, presenting

a fundamental scale to rank the importance of a

particular factor relative to another. This ranking

generates a matrix (Table 1) containing comparisons

among the factors.

Table 2 shows an example of how to use the funda-

mental scale matrix to create a comparison matrix. In

line A, the reciprocal values of object A relative to A,

Table 1: The fundamental scale proposed by Saaty (1990).

Intensity of Deﬁnition

importance

1 Equal importance

3 Weak importance of one

related to another

5 Essential or strong importance

7 Demonstrated importance

9 Absolute importance

2,4,6,8 Intermediate values between

the two adjacent judgments

Reciprocals If activity i has one of the above

of above non zero nonzero numbers assigned to it,

when compared to activity j,

then j has the reciprocal value

when compared to i.

B and C are 1, 3 and 2, respectively. Analogously, in

column A, the reciprocal values of object A relative to

A, B and C are 1, 1/3 and 1/2, respectively. Priority

column is computed as the sum of all the values of a

line divided by the sum of all the values of the matrix.

Then, Priority(A) = (1 + 3 + 2)/(1 + 3 + 2 + 1/3 +

1 + 1 + 1/2 + 2 + 1) = 0.507.

Table 2: A comparison matrix example.

A B C Priority

A 1 3 2 0.507

B 1/3 1 1 0.197

C 1/2 2 1 0.296

3.2 DynamicAHP Scheduler

DynamicAHP algorithm aims to minimize the

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

116

makespan of tasks running on a federated cloud plat-

form, and was designed to reach the following charac-

teristics: makes scheduling decisions at runtime so it

is dynamic; performs task scheduling without having

any prior knowledge about task characteristics; and

does load balancing even when new cloud providers

are integrated in the federation.

Our scheduler creates metrics based on Saaty’s

(1990) fundamental scale, but instead of limiting the

fundamental scale to natural numbers from 1 to 9 and

their inverses, we will consider real numbers from 0 to

∞ (represented in a computer by the maximum value

of a ﬂoat number). This scale states that a value v

much greater than a value w means that v presents a

higher priority when compared to w. In our algorithm,

the scheduling choice is based on ordering resources

considering their processing power, latency and re-

source reliability. These parameters were used to sim-

ulate the effect of executing a task as fast as possible

associated to a cost that should be as low as possible.

This strategy infers a “cost” to execute a task consid-

ering its size and the available resources provided by

each cloud provider. After evaluating these “costs”,

the tasks are descendingly sorted by their input sizes,

and the largest task is attributed to the best resource,

and so forth, until all tasks are scheduled.

In BioNimbus, the resources are highly unpre-

dictable. The computers are heterogenous, and the

workload is subject to constant changes. Besides, the

resources can be available or not at any moment, as

they belong to different cloud providers. The only

known information is the number of processors (vir-

tualized or not), the latency of the network, the maxi-

mum available disk size and the uptime (time that the

service is available in BioNimbus). BioNimbus can

execute many different bioinformatics applications,

such as Bowtie (Langmead and et al., 2009), a tool

that maps SRS to a reference genome.

In this scenario, the DynamicAHP scheduler

should ﬁrst consider if the service requested by a task

is available, seeking a list of available services of the

discovery service. If the requested service is in this

available service list, the corresponding task will be

included in a scheduling list speciﬁc for the requested

service. If it is not, this task can not be executed,

and it is removed from the list, not being considered

for the rest of the decision making. All these tasks

will be kept in a pending job list until one of the fed-

erated clouds provides the required application, or a

new cloud provider is integrated in the federation. So

far, each service has a list of available tasks and re-

sources.

The next step is to indicate the priority of each

task and the importance of each resource. The task

is measured by the size of its executable ﬁle. The

process of deﬁning the importance of each resource is

given by three factors: latency, uptime, total number

of available processors.

The DynamicAHP scheduler implemented in

BioNimbus analyzes the tasks to be executed, dynam-

ically allocates resources to execute them, and sends

a message to the monitoring service. The monitoring

service sends the job request to the plug-in service

and veriﬁes the state of each task in each resource,

keeping the scheduler service informed.

The previously mentioned three factors (latency,

uptime, number of available processor) are numer-

ically represented. Each factor receives a relative

value, obtained considering a Saaty’s adapted funda-

mental scale. In details, DynamicAHP compares each

pair V

and V

, composed of factors and resources,

and computes the value for the fundamental scale as:











1 V

= 0 and V

= 0,

MAX FLOAT V

= 0,

otherwise.

For example, consider three resources, A, B and C,

with three factors (latency, uptime, quantity of avail-

able processors) inﬂuencing the total execution time

(Table 3). These factors should be compared to de-

cide which one is the best resource.

Table 3: Values associated to resource factors.

Resource Latency Uptime Available/Busy/

# Processors

A 13.0 0 12/0/0.084

B 10.0 0 4/0/0.25

C 14.0 0 4/0/0.25

Tables 4 and 5 show the comparisons of latency

and number of processors. The uptime factor will

not be considered since its value is 0 for a cloud

provider entering in the federation. To avoid division

by zero when there are no busy processors, and tak-

ing resA.BP as the number of busy processors (BP)

and resA.T P as the total number of processors (TP)

of resource A (resA), and analogously for resource B,

the number of available processors are computed as:











A ←

1.0

resA.T P

and B ←

1.0

resB.T P

(resA.BP = 0) and

(resB.BP = 0),

A ←

resA.BP

resA.T P

and B ←

resB.BP

resB.T P

otherwise.

Lower latency reduces the data transmission time,

while a greater number of available processors indi-

cates higher available processing capacity. So, the

previous formulas can be used for latency. Similarly,

for the uptime factor, a higher value is advantageous,

TASKSCHEDULINGINAFEDERATEDCLOUDINFRASTRUCTUREFORBIOINFORMATICSAPPLICATIONS

117

Table 4: Comparison matrix for latency.

A B C Priority

A 1.000 0.770 1.076 0.310

B 1.300 1.000 1.400 0.403

C 0.928 0.714 1.000 0.287

Table 5: Comparison matrix for number of processors.

A B C Priority

A 1.000 3.000 3.000 0.600

B 0.334 1.000 1.000 0.200

C 0.334 1.000 1.000 0.200

since it indicates that the service is available for a long

time and seems to be more reliable.

Table 6 shows global values, each one computed

by multiplying each factor resource priority (shown

in Tables 4 and 5), and indicates the priority ordering

as A > B > C. Despite resource A is not the best in

terms of latency, it is much better in the number of

available processors. Both B and C have the same

number of available processors, but resource B has a

better latency. If global priority is equal for more than

one resource, a mechanism similar to Round Robin

algorithm is activated to choose less used resources.

Table 6: Priority global values.

Latency CPUs Total

A 0.310 0.600 0.186

B 0.403 0.200 0.080

C 0.287 0.200 0.057

4 DISCUSSION

4.1 Implementation Details

BioNimbus and the DynamicAHP scheduler were

both implemented in Java. As stated earlier, BioN-

imbus architecture is divided into services. To exe-

cute a job, BioNimbus sends a request that activates

the scheduling service, which schedules and executes

the job. The scheduling service is implemented as

a thread, which runs in intervals of 15 seconds and

updates the status of all the cloud resources (cloud

map). This service is activated by a new job request.

Each job is inserted in a pending jobs list used by

the scheduling policy to choose the cloud where the

job will be executed. The scheduling policy uses the

cloud map to get information like latency, uptime,

number of busy cores, number of total cores or any

other resource information. The policy is deﬁned in a

conﬁguration ﬁle. A schedule method receives a list

containing each job’s information, like input and out-

put ﬁles, services to run or other job information, and

chooses the cloud where this particular job will be

executed. In this work, the implemented scheduling

policies’s were DynamicAHP and Round Robin.

4.2 Experiments

4.2.1 Cloud Providers, Tools and Data

To simulate three cloud providers, Hadoop infrastruc-

tures, with 12, 8 and 4 processors each, were created

at the Amazon EC2 (LLC, 2011). These infrastruc-

tures had about 2.4 terabytes of storage, implemented

through the Apache Hadoop Distributed File System

(HDFS). BioNimbus plug-ins executed on a virtual

machine to control each Hadoop infrastructure. Be-

sides, BioNimbus management services executed on

the largest infrastructure (12 processors).

The experiments consisted in executing Bowtie.

We note that it is straightforward to include other

applications, since our algorithm does not consider

any characteristic particularly related to an applica-

tion available in the cloud. In BioNimbus, Bowtie

was available as a service on each infrastructure

node (cloud provider) through the plug-ins. SRS of

the NCBI Mycobacterium tuberculosis genome were

mapped to the same organism’s genome. SRS were

distributed in three different ﬁles, with approximately

100, 200 and 300 MB, which were used as input ﬁles

to the experiments. For each one of these three input

ﬁles, groups of 20 jobs were created to simulate jobs

with different sizes. These jobs were sent to BioN-

imbus in groups of 5 jobs, in intervals of 60 seconds

between successive groups of jobs. This time interval

was used to simulate requests normally sent by differ-

ent users. The ﬁrst job had an input of 300 MB, the

second 200 MB, the third 100 MB, and so forth.

4.2.2 Results

DynamicAHP presented a better makespan when

compared to Round Robin scheduler, as shown in Fig-

ure 2. Makespan was measured as the time the user

started the job until the time the job is ﬁnished. Fig-

ure 3 shows that DynamicAHP lowered the schedul-

ing time to execute the jobs, in almost all the cases,

when comparing to RoundRobin.

Round Robin overloaded the 4x cloud provider,

while DynamicAHP overloaded the 12x cloud

provider. Round Robin distributes its jobs evenly, so

that the 4x cloud provider becomes overloaded, al-

though the 12x cloud provider is capable of running

more jobs and ﬁnishes faster. In contrast, Dynam-

icAHP can check the resource status, and then can

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

118

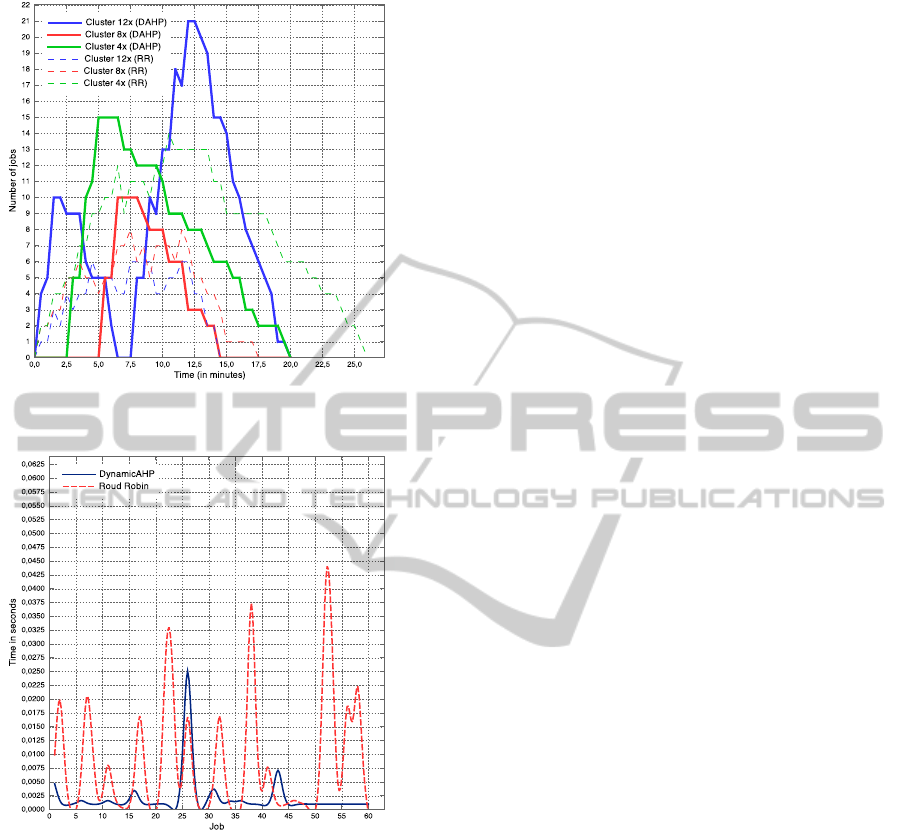

Figure 2: DynamicAHP and RoundRobin makespan and

load comparison.

Figure 3: Schedule time of DynamicAHP and RoundRobin.

run the job in the cloud provider with more available

processors, sending less jobs to the 4x cloud provider

and more jobs to the 12x cloud provider. This way,

DynamicAHP led to a more efﬁcient job execution,

having executed all the 60 jobs in 19min36sec, while

Round Robin executed in 25min37sec.

Tasks are distributed by DynamicAHP in pre-

deﬁned intervals, which includes new submitted

tasks. Besides, if new cloud providers enter in the

federation, integrated by BioNimbus, the scheduler

immediately consider them as new resources.

4.3 Related Work

Scheduling on cloud platforms has been extensively

studied. The well known Hadoop scheduler dis-

tributes scheduled tasks sequentially using FIFO. To

achieve data locality, for each idle server, the sched-

uler makes a greedy search for a data-local task in

the head-of-line job, allocating it to the server. This

work has one major drawback since it does not con-

sider resource heterogeneity, while the DynamicAHP

scheduler takes into account factors such as latency,

uptime and number of processors.

Henzinger et al. proposed a environment that ex-

ploits scalable static scheduling techniques to provide

a ﬂexible pricing model, i.e., a tradeoff among dif-

ferent degrees of execution speed and price at the

same time. The authors noted that large scheduling

latencies make static scheduling impractical for large

clouds (Henzinger and et al., 2011). In this work, we

discuss a dynamic scheduling algorithm.

Some scheduling algorithms are based on stochas-

tic integer programming. Li and Guo (2010) pro-

posed an optimization model based on stochastic

integer programming to address the SLA (Service

Level Agreement) aware resource composition prob-

lem. Chaisiri et al. applied stochastic integer pro-

gramming for a resource provision optimization prob-

lem (Chaisiri et al., 2009). Their algorithm minimizes

the total cost of resource provision in a cloud envi-

ronment. However, they do not consider the notion

of SLA, which is one of the most important business

notion in cloud computing. Both scheduling methods

consider a single cloud platform, while our scheduler

considers federated cloud plataform.

Mehdi et al. devised an algorithm for ﬁnding a

fast mapping using genetic algorithms with an “ex-

ist if satisfy” condition to speed up the mapping pro-

cess and to ensure that all the task deadlines are re-

garded (Mehdi and et al., 2011). In contrast, Dynam-

icAHP makes decisions considering each task, and

continuously monitores the federated cloud environ-

ment for future decisions.

5 CONCLUSIONS

In this work, we proposed DynamicAHP, a task

scheduling algorithm to federated clouds, using sim-

ple parameters simulating “costs” (number of proces-

sors, latency and uptime). We realized experiments

with real biological data in BioNimbus, a federated

cloud architecture to execute bioinformatics applica-

tions. Results showed that DynamicAHP made a sig-

niﬁcant improvement in makespan time without in-

creasing overload, when compared to Round Robin.

We plan to investigate how to include in Dynam-

icAHP more sophisticated methods to predict which

cloud provider would be better to execute a speciﬁc

TASKSCHEDULINGINAFEDERATEDCLOUDINFRASTRUCTUREFORBIOINFORMATICSAPPLICATIONS

119

task using a machine learning approach. Parameters

based on SLA associated to each task can also im-

prove our algorithm. A “cost” could be included as

one of the scheduling resources in DynamicAHP, as

well as weights for the factors (latency, uptime, avail-

able processors) that would dynamically change to

adapt to the cloud conditions. It is simple to include

in BioNimbus more cloud providers that will be au-

tomatically considered by our scheduler, and prelimi-

nary scalability analysis showed that our algorithm is

robust, but more conclusive tests should be done.

REFERENCES

Angiuoli, S. V. and et al. (2011). Resources and costs

for microbial sequence analysis evaluated using vir-

tual machines and cloud computing. PLoS ONE,

6(10):e26624.

Bernstein, D. and et al. (2009). Blueprint for the intercloud

- protocols and formats for cloud computing interop-

erability. Internet and Web Applications and Services,

International Conference on, 0:328–336.

Bresnahan, J. and et al. (2011). Cumulus: An open source

storage cloud for science. In 2nd Workshop on Scien-

tiﬁc Cloud Computing - ScienceCloud 2011, San Jose,

CA, United States. http://www.nimbusproject.org/.

Buyya, R. and et al. (2009). Cloud computing and emerg-

ing it platforms: Vision, hype, and reality for deliv-

ering computing as the 5th utility. Future Generation

Computer Systems, 25(6):599–616.

Celesti, A. and et al. (2010). How to enhance cloud ar-

chitectures to enable cross-federation. In IEEE 3rd

International Conference on Cloud Computing, pages

337–345. IEEE Computer Society.

Chaisiri, S., Lee, B.-S., and Niyato, D. (2009). Opti-

mal virtual machine placement across multiple cloud

providers. In APSCC 2009, Services Computing Con-

ference, pages 103–110. IEEE.

Ergu, D. and et al. (2011). The analytic hierarchy process:

task scheduling and resource allocation in cloud com-

puting environment. The Journal of Supercomputing,

pages 1–14. doi:10.1007/s11227-011-0625-1.

Filichkin, S. A. and et al. (2010). Genome-wide mapping of

alternative splicing in Arabidopsis thaliana. Genome

Research, 20(1):45–58.

Henzinger, T. A. and et al. (2011). Static scheduling in

clouds. In HotCloud 2011. USENIX Association.

Langmead, B. and et al. (2009). Ultrafast and memory-

efﬁcient alignment of short DNA sequences to the hu-

man genome. Genome Biology, 10(3):R25+.

Langmead, B., Hansen, K., and Leek, J. (2010). Cloud-

scale RNA-sequencing differential expression analy-

sis with Myrna. Genome Biology, 11(8):R83.

Li, Q. and Guo, Y. (2010). Optimization of resource

scheduling in cloud computing. In SYNASC’2010,

12th International Symposium on Symbolic and Nu-

meric Algorithms for Scientiﬁc Computing, pages

315–320. IEEE Computer Society.

LLC (2011). Amazon Elastic Compute Cloud EC2.

http://aws.amazon.com/ec2/. Accessed Nov 22, 2011.

Marshall, P., Keahey, K., and Freeman, T. (2010). Elastic

site: Using clouds to elastically extend site resources.

Cluster Computing and the Grid, IEEE International

Symposium on, 0:43–52.

Mehdi, N. A. and et al. (2011). Impatient task mapping

in elastic cloud using genetic algorithm. Journal of

Computer Science, 7:877–883.

Nurmi, D. and et al. (2009). The eucalyptus open-source

cloud-computing system. In 9th IEEE/ACM Interna-

tional Symposium on Cluster Computing and the Grid,

CCGRID’09, pages 124–131, Washington, DC, USA.

IEEE Computer Society.

OpenQRM (2011). the next generation, open-

source data-center management platform.

http://www.openqrm.com/.

Pan, Q. and et al. (2008). Deep surveying of alterna-

tive splicing complexity in the human transcriptome

by high-throughput sequencing. Nature Genetics,

40(12):1413–1415.

Pratt, B. and et al. (2011). MR-Tandem: Parallel X!Tandem

using Hadoop MapReduce on Amazon Web Services.

Bioinformatics, 8:1–12.

Saaty, T. L. (1990). How to make a decision: The analytic

hierarchy process. European Journal of Operational

Research, 48(1):9 – 26. Decision making by the ana-

lytic hierarchy process: Theory and applications.

Saldanha, H. V. and et al. (2011). A cloud architecture for

bioinformatics workﬂows. In 1st International Con-

ference on Cloud Computing and Services Science,

CLOSER.

Schatz, M. C. (2009). CloudBurst: Highly Sensitive Read

Mapping with MapReduce. Bioinformatics, 25:1363–

1369.

Sultan, M. and et al. (2008). A Global View of Gene Ac-

tivity and Alternative Splicing by Deep Sequencing of

the Human Transcriptome. Science, 321(5891):956–

960.

Wall, D. and et al. (2010). Cloud computing for comparative

genomics. BMC Bioinformatics, 11(1):259.

Zhang, L. and et al. (2011). Gene set analysis in the cloud.

Bioinformatics, 13:1–10.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

120
