VALIDATION AND VERIFICATION POLICIES FOR GOVERNANCE

OF SERVICE CHOREOGRAPHIES

Guglielmo De Angelis

, Antonia Bertolino

and Andrea Polini

CNR– ISTI, Via Moruzzi 1, 56124 Pisa, Italy

Computer Science Division, School of Science and Technologies, University of Camerino, 62032 Camerino, Italy

Keywords:

Service Choreography, SOA Governance, V&V Policies, On-line Testing, Ranking, Reputation, Service

Oriented Architecture.

Abstract:

The Future Internet (FI) sustains the emerging vision of a software ecosystem in which pieces of software,

developed, owned and run by different organizations, can be dynamically discovered and bound to each other

so to readily start to interact. Nevertheless, without suitable mechanisms, paradigms and tools, this ecosystem

is at risk of tending towards chaos. Indeed the take off of FI passes through the introduction of paradigms and

tools permitting to establish some discipline. Choreography speciﬁcations and Governance are two different

proposals which can contribute to such a vision, by permitting to deﬁne rules and functioning agreements

both at the technical level and at the social (among organizations) level. In this paper we discuss such aspects

and introduce a policy framework so to support a FI ecosystem in which V&V activities are controlled and

perpetually run so to contribute to the quality and trustworthiness perceived by all the involved stakeholders.

1 INTRODUCTION

The Future Internet (FI) is changing the way software

is conceived, implemented and used: many research

projects are undertaken from all over the world (Pan

et al., 2011) to re-design the FI architecture so to ad-

dress the various emerging needs for trustworthiness,

security, mobility, scale, ﬂexibility, content distribu-

tion, adaptation, and so on. As highlighted in (Pan

et al., 2011), the FI cannot be achieved by “assem-

bling different cleanslate solutions targeting different

aspects”, but a coordinated comprehensive approach

addressing new design principles is required.

Still today, by reading the reports and roadmaps

(e.g., (Pollak, 2006; Fiedler et al., 2011)) produced

by such widespread research effort, it is evident that

analysts and experts do not yet agree on a common

vision for, or are not yet able to precisely predict, the

shape of the next-coming FI. Nevertheless, from the

above mentioned documents some underlying com-

monalities can be already identiﬁed. One of such

common thinkings concerns recognizing the growing

importance in the engineering of the FI architecture

of social aspects over those merely technical (Fiedler

et al., 2011), due to the inherent inter-organization na-

ture of the FI. In particular, we claim that one of the

biggest challenges concerns the capability of introdu-

cing some form of discipline in new forms of collab-

orative software development and management, so to

permit the effective integration and deﬁnition of in-

dependently developed service-based applications, as

foreseen in the Service-oriented Architecture (SOA)

paradigm. Thus, we need to conceive methodologies

and approaches that will permit the smooth integra-

tion of independently developed pieces of software in

order to derive and provide users with more complex

composite services, according to their changing re-

quests.

In this line two main proposals can be identiﬁed.

The ﬁrst one concerns the introduction of application-

level global protocols that service providers can take

as a reference in the development of their own ser-

vices. These speciﬁcations, typically deﬁned and

managed by third party organizations, are generally

referred to as Choreographies. Speciﬁcally a service

choreography is a description of the peer-to-peer ex-

ternally observable interactions that cooperating ser-

vices should put in place (Barker et al., 2009). Such

multi-party collaboration model focuses on message

exchange, and does not rely on a central coordina-

tion of the described activities. Therefore, service

choreographies can be one of the right instruments

to solve “technical and social” issues posed by FI, as

they model a higher level of abstraction with respect

Angelis G., Bertolino A. and Polini A..

VALIDATION AND VERIFICATION POLICIES FOR GOVERNANCE OF SERVICE CHOREOGRAPHIES.

DOI: 10.5220/0003936200580070

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 58-70

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

to those of services.

The second proposal is the introduction of a clear

and explicit SOA governance (Woolf, 2007). Gen-

erally speaking, governance is the act of governing

or administrating, and refers to all measures, rules,

decision-making, information, and enforcement that

ensure the proper functioning and control of the gov-

erned system. SOA governance addresses speciﬁc

aspects of SOA life-cycle (Woolf, 2007). Speciﬁ-

cally, SOA governance approaches include: SOA pol-

icy management and enforcement; registry and meta-

data management; data collection for statistical and

Key Performance Indicators; monitoring and manage-

ment; application and service life cycle management.

Choreographies and SOA governance are also

needed in order to support the progressive moving

of traditional Software Engineering activities from

the only pre-runtime phases towards “also at run-

time” (Trossen et al., 2009), i.e., during normal oper-

ating of deployed services. In this line, some authors

(Greiler et al., 2010; Bertolino et al., 2012) elaborated

in particular on the possibility, as well as the opportu-

nity, of extending to on-line the SOA testing activities,

also based on appropriate governance approaches for

V&V.

In this paper, we continue the investigation on

such topic proposing a V&V policy framework aim-

ing at sustaining the governance of on-line V&V.

Policies are at the heart of governance: they deﬁne

the rules according to which systems and their owners

should behave to ensure the mutual understanding, in-

teraction and cooperation. More speciﬁcally, the con-

cept of a policy has been introduced as representing

some constraint or condition on describing, deploy-

ing, and using some service (MacKenzie et al., 2006).

When such constraints or conditions are agreed be-

tween two or more parties, they become a contract.

Indeed, SOA governance asks for the deﬁnition of

policies and supporting tools to take into account the

social and runtime aspect of FI above highlighted. It

is worth noting that the framework we propose mainly

focuses on V&V aspects, nevertheless a FI infrastruc-

ture will have to include mechanisms for governing all

the other aspects related to service and choreography

lifecycle. At the same time policies and mechanisms

we propose should not be considered exhaustive. In-

stead they permit to deﬁne a “border” in which a set

of rules need to be observed and monitored. It is cer-

tainly possible to imagine that in a given context the

deﬁned policies and rules to observe are constituted

by a different set.

In this paper the focus is mainly on V&V poli-

cies on which governance of choreography is based,

speciﬁcally to support V&V on-line activities. Of

course, these policies cover only part of the complex

task of choreography governance, and other policies

are needed to support overall choreography manage-

ment. The rest of the paper is organized as follows:

Section 2 introduces some background material in

particular with reference to on-line testing and SOA

governance, then Section 3 introduces a classiﬁcation

for policies enabling V&V activities. Successively in

the following sections 4, 5 and 6 we respectively illus-

trate policies for activation, rating and ranking both

of services and choreographies. In Section 7 we in-

troduce some policies related to Choreography enact-

ment and in Section 8 policies for test case selection

are discussed. Then the paper closes with Section 9 in

which policies are illustrated with real examples and

Section 10 in which we draw some conclusions and

opportunities for future work.

2 BACKGROUND

The motivation behind V&V Policies for Service

Choreographies relies on two main concepts: On-line

testing (Section 2.1) and SOA Governance for V&V

activities (Section 2.2).

2.1 Testing in the SOA Setting

Due to the high dynamism and the multi-

organizational characteristics of SOA, the traditional

testing process is not anymore adequate to guarantee

acceptable levels of reliability and trust. Speciﬁcally,

during the last years, various research works (Greiler

et al., 2010; Bertolino et al., 2012; Ghezzi, 2011)

argued in favor of extending testing activities from

the laboratory to the ﬁeld, i.e., towards run-time.

This is in line with the emerging trend of a sur-

rounding open world (Baresi et al., 2006), in which

software-intensive systems are more and more per-

vasive and evolve at unprecedented pace, the bound-

aries between software and the external world become

fuzzy, and no single organization is anymore in con-

trol of a whole system. In the future, SOA develop-

ment is going to be decentralized and multi-supplier,

and services are going to be pervasive, dynamic, au-

tonomic, multi-tenant. Quoting (Baresi et al., 2006),

developers recognize that they must shift from the

prevailing synchronous approach to distributed pro-

gramming to a fundamentally more delay-tolerant

and failure resilient asynchronous programming ap-

proach. Global behaviors emerge by asynchronous

combinations of individual behaviors, and bindings

and compositions change dynamically.

In such a context, where it will be the norm that

VALIDATIONANDVERIFICATIONPOLICIESFORGOVERNANCEOFSERVICECHOREOGRAPHIES

services that are “stranger” to each other dynamically

connect and collaborate, how can the behavior of a

SOA system be validated?

SOA on-line testing foresees the proactive launch-

ing of selected test cases that evaluate the real system

within the services’ real execution environment. By

extending testing from the laboratory to the ﬁeld dur-

ing normal operation, on-line testing can help in the

timely detection of unrevealed inconsistencies as well

as of functional and non-functional failures. For ex-

ample, as shown in (Bertolino et al., 2012), on-line

testing can be used to assess an access control sys-

tem’s resilience. In this case, test cases consist of ac-

cess requests under different roles and to different re-

sources. If the system grants unauthorized access, the

tester will report a security breach in the audit log;

if the system denies a supposedly authorized access,

the tester will report this as well, permitting a quick

and proactive solution of problems that might affect

legitimate users. An on-line testing session can occur

periodically or after some relevant event, according to

the established SOA test governance process.

Choreography-based applications yield distin-

guishing characteristics such as adaptiveness, dy-

namic execution environment, limited controllability

on the execution environment, and late service bind-

ing. All such characteristics demand new testing

strategies both for development time and for run-time.

In this paper we focus on on-line testing of choreogra-

phies.

2.2 SOA Governance for V&V

Activities

In the introduction we anticipated that two means to

address FI challenges are choreographies and SOA

governance.

SOA governance is meant as a set of best prac-

tices and policies for ensuring interoperability, ad-

equacy, and reuse of services over several different

platforms (Woolf, 2007) and among different organi-

zations. Both design-time and run-time governance

are usually considered in SOA governance solutions.

Achieving SOA governance is a complex and ar-

ticulated task that involves many different and orthog-

onal domains (i.e., technical, legal, standards, internal

procedures). In the most abstract formulation, SOA

governance is realized through a cycle consisting of:

policy deﬁnition, auditing and monitoring, and ﬁnally

evaluation and validation.

As people would formulate decisions in terms of

policies (e.g., design policies, development policies,

run-time policies) that would be audited, monitored,

and validated, it is necessary to clearly state the scope

of their activities, and their responsibilities. With re-

spect to V&V activities for choreographies, we iden-

tify the following main actors: the Choreography De-

signer, the Service Provider, the Service Consumer,

and the V&V Manager.

Brieﬂy, the Choreography Designer is the respon-

sible of a given choreography speciﬁcation. For each

choreography speciﬁcation, he/she may foresee a set

of policy templates that actors playing within the

choreography have to abide by. The Service Provider

roughly represents both the developer, and the main-

tainer of a set of services; while the Service Consumer

discovers and then uses such services by querying a

repository/registry. Both the Service Consumer, and

the services offered by a Service Provider would play

a role in a given choreography speciﬁcation.

In this scenario, the V&V Manager is responsi-

ble for the deﬁnition and the implementation of the

V&V strategy within the established governance set-

ting. For example the V&V Manager is in charge of:

the selection of a suitable test strategy (e.g., driven by

the choreography speciﬁcation); the analysis and the

management of the impact of the V&V results on both

the choreography and the service life-cycle; the deﬁ-

nition of the V&V policies that will be applied in the

governance settings (e.g., how often V&V activities

are performed or after which events).

In the following we present two relevant scenarios

for that area of the SOA Governance regulating V&V

activities. Speciﬁcally, each scenario describes both

the respective responsibilities of the actors introduced

above, and the their mutual interactions.

The ﬁrst scenario is referred to as Choreography

Registration Use Case. Speciﬁcally, when the de-

sign of a choreography is completed, the Choreog-

raphy Designer can make it available by registering

a speciﬁcation of such choreography on a dedicated

registry. With reference to such registration, the life-

cycle at run-time of the choreography is regulated by

means of a set of policies that are mainly deﬁned

by the V&V Manager. For example, a policy may

concern the rules under which a choreography is en-

actable, another deals with the criteria and the param-

eters for evaluating the quality associated with of a

choreography.

The second scenario concerns the Service Reg-

istration Use Case. We consider that the Service

Providers promote their services (i.e. either develop,

or adapt) as participants “ﬁtting” one or more roles

to be played in a given choreography. Speciﬁcally,

this scenario is conceived to ﬁt the case that a chore-

ography speciﬁcation is already available, and ser-

vices can dynamically enter and exit the choreogra-

phy, playing one of the speciﬁed roles.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

From a testing perspective, these are the most

challenging scenarios, as the V&V Manager would

refer to them in order to check whether a service

can comply to the role, by testing it for conformance

against the choreography speciﬁcation.

3 GOVERNANCE POLICIES

ENABLING V&V ACTIVITIES

As part of the choreography V&V process would take

place at run-time, thus also the V&V activities should

refer to a set of rules, policies, and mechanisms gov-

erning the validation of both the choreography enact-

ments, and the implementations of the services they

refer.

The policies governing the V&V activities we are

proposing in this paper extend the work on on-line

testing earlier proposed in (Bertolino et al., 2006)

and (Bertolino et al., 2012). These policies are meant

to regulate the testing of a service implementation in

order to validate if it actually behaves according to

the role the Service Provider claimed at the time of its

registration. Furthermore, such policies are equally

important for governing “perpetual” V&V activities;

in other word V&V policies can regulate when to re-

test a service (i.e. either periodically, or event-driven)

that has been already registered in order to guarantee

that its behaviour did not change over time.

In the next sections we propose and discuss a set

of policies and rules that could be adopted and imple-

mented within a given V&V governance framework.

For clarity of exposition we organize such policies ac-

cording to the following classiﬁcation:

1. V&V Activation Policies that describe rules for

regulating the activation of the on-line testing ses-

sions. As described in the following, such acti-

vation could be either periodical, driven from the

events about the lifecycle of a service, or linked to

some kind of quality indicator;

2. V&V Rating Policies that prescribe which as-

pects have to be considered for rating the quality

of both choreographies, and services.

3. V&V Ranking Policies deﬁning the rules and the

metrics for computing the quality parameters ex-

pressed into the V&V Rating Policies;

4. Choreography Enactment Policies that pre-

scribe rules for deciding when a service choreog-

raphy could be enacted;

5. Test Cases Selection Policies regulating the test-

ing strategies that can be applied at run-time.

The rest of the paper describes such policies in de-

tail by considering a given choreography C.

4 V&V ACTIVATION POLICIES

The idea of V&V governance was originally proposed

in (Bertolino and Polini, 2009) to support an on-line

testing session when a service asks for registration

within a registry. In this vision, only services pass-

ing the testing phase are logged in the registry. As a

result, the registry is expected to include only “high-

quality” services that passed the validation steps fore-

seen by a more general governance framework. In

addition to the registration of a new service, the on-

line validation process could be also extended to other

events, like the release of a new service version.

Note that when entering a new service registration

in a registry, the service provider is naturally wishful

to promote the service and therefore can be explicitly

willing to submit it to on-line testing. On the other

hand, the notiﬁcation of a service upgrade could be

notiﬁed only sporadically. The governance mecha-

nisms oriented to V&V activities could mitigate this

aspect by means of speciﬁc policies and obligations

that the service providers should abide by, when bind-

ing their services to a choreography.

During the life-cycle of a choreography C, a ser-

vice that was originally registered to play a given role

in C could be modiﬁed or become deprecated. This

event might impact on the regular progress of some

of the activities described in C. Thus, the V&V gov-

ernance should support rules that verify if the registry

still points at one or more active services that could

play all the roles subscribed by the removed service

in C.

Besides, the service provider might omit to no-

tify the deprecation of a service to the service registry.

For these cases, the monitoring system infrastructure

of the V&V governance architecture could cooperate

with the Service Registry in order to verify and notify

if any registered service is not reachable anymore.

Within a choreography a service may play one or

more roles. Also, the same service may be involved in

several choreographies. Service provider may decide

to change the roles that their services are playing in

the choreographies in order to fulﬁll new needs, new

business requirements, or the evolution of the techni-

cal solutions offered by the service. In all these sce-

narios, one of the V&V governance rules we propose

is that any modiﬁcation (i.e. activation, modiﬁcation,

cancellation) to the role of a service in C should acti-

vate a new testing session. Speciﬁcally:

Activation: when a new role A is added to a service

S in C, execute the integration test suite for A in

VALIDATIONANDVERIFICATIONPOLICIESFORGOVERNANCEOFSERVICECHOREOGRAPHIES

C and run it through S. Evaluate the impact of the

result of such on-line testing session on the test-

ing scores of the choreography C (as detailed in

Section 5).

Cancellation: when a role A is deleted from the roles

that a service S in could play in C, verify that the

service registry still points to at least one active

service that could play A in C.

Modiﬁcation: this step could be processed as a se-

quence of a cancellation and an activation of a role

for a service in C.

V&V activation policies could also regulate on-

line testing sessions by referring to rating manage-

ment architectures (e.g. based either on trust, or rep-

utation models). As an example, they can specify the

admissible ranking rates that each service participat-

ing in a choreography must yield, and then trigger on-

line testing sessions whenever the rank of a service

decreases below such thresholds. We introduce rank-

ing policies in Section 6.

Finally, in addition to the event-driven activation

of the on-line testing sessions (e.g. service registra-

tion, etc), V&V policies can also regulate the “perpet-

ual” testing of software services either periodically, or

when a speciﬁed deadline is met.

5 V&V RATING POLICIES

Section 4 describes how the on-line validation of a

service that is indexed by a service registry can be ex-

ploited in order to build a trustful environment. This

section describes the V&V governance policies rating

both a single service that is bound to a choreography

C, and also C as a whole. We partition these poli-

cies in two main categories: rating policies based on

objective testing scores; and rating policies based on

subjective evaluation (i.e. feedbacks).

Concerning the ﬁrst category, we refer to a sce-

nario implementing some perpetual validation tech-

niques, e.g. (Bertolino et al., 2006; Bertolino et al.,

2012). The results of the testing sessions somehow

allow us to quantify the service trustworthiness val-

ues according to the testing goals. Thus, we can use

such results to determine what service is trustable ac-

cording to an objective estimation (i.e. test passed VS.

test failed). Several trust models could be associated

to V&V governance aspects; in Section 6.2 we detail

a metric based on testing results.

Similarly to the rating of trustworthiness for single

services the V&V governance framework could refer

to some objective trust models in order to estimate the

potential trustworthiness score for the whole choreog-

raphy. In particular, for each role A deﬁned in C, the

trust model could consider the trustworthiness based

on testing score of all the services on the registry that

can play as A. The trustworthiness of the whole C is

a function of the testing scores computed for all the

roles, and it could be interpreted as the resulting and

objective potential quality state (e.g. a benchmark) of

the whole choreography. A concrete metric that in-

stantiates this trust model is described in Section 6.1.

Concerning the subjective category, we refer to

service reputation. As argued in (Jøsang et al., 2007),

in this context we consider service reputation as a

metric of how a service is generally perceived by its

users. Thus, differently from the testing-based trust

systems described above, that are based on objective

measures, here reputation systems are based on sub-

jective judgments.

We consider reputation as an interesting indicator

to be referred within governance policies for V&V ac-

tivities. The basic idea of a reputation system is to

let parties rate each other, for example after the com-

pletion of an interaction, and use the aggregated rat-

ings about a given party to derive a reputation score,

which can assist other parties in deciding whether or

not to interact with that party in the future (Jøsang

et al., 2007). Currently, reputation systems represent

an interesting and signiﬁcant trend in decision sup-

port, service provision, and service selection (e.g. the

Google’s +1 Button, the eBay’s feedback forum, the

Facebook’s Thumbs Up button, the LinkedIn’s Rec-

ommendations). Several and conﬁgurable reputation

models could be associated to this V&V governance

aspect; in particular Section 6.3 describes a model im-

plementing this kind of reputation rule.

Finally, V&V governance policies could refer to

some compositional model of the user’s feedbacks in

order to estimate a potential reputation score for the

whole choreography. In particular, for each role A de-

ﬁned in C, the trust model could consider the reputa-

tion score (i.e. positive feedbacks VS. negative feed-

backs) of all the services on the registry that can play

as A. The reputation score of C (as a whole) is a func-

tion of the feedback scores computed for all the roles.

Thus here, the reputation score of C is interpreted as a

benchmark of subjective judgments for the choreog-

raphy.

6 RANKING RULES FOR V&V

RATING POLICIES

Rating policies rely on some metrics to evaluate the

choreography as well as its participating services. In

this section we propose some possible ranking rules

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

for this purpose. In particular, Section 6.1 describes a

rule for ranking a service choreography according to

both the topology of the choreography itself and the

ranking of the available/known services that can play

a role speciﬁed by the choreography. Then, according

to the V&V Rating Policies described in Section 5,

we provide two possible strategies for calculating the

service ranking function. Speciﬁcally, Section 6.2 de-

scribes an objective ranking strategy that is based on

the results of the testing sessions, while Section 6.3

describes a subjective ranking strategy that is based

on a reputation model.

Other different criteria for service ranking could

be considered in future extensions, for example an in-

teresting way to complement our proposed numerical

rankings could be to also take into account ontological

matching, as proposed in (Arroyo and Sicilia, 2008).

6.1 Choreography Rank

The ranking metric for a service choreography de-

scribed in the following is based on the well-known

PageRank algorithm (Page et al., 1999) used by

Google.

Differently from the other web search engines that

have been used until year 2000, Google dominated the

market due to the superior search results that its inno-

vative PageRank algorithm delivered. As described

in (Jøsang et al., 2007), the PageRank algorithm can

be considered as a reputation mechanism because it

ranks the web pages according to the number of other

pages pointing at it. In other words, the algorithm in-

terprets the collection of hyperlinks to a given page as

public information that can be combined to derive an

objective reputation score.

In the original deﬁnition (Page et al., 1999) (Kam-

var et al., 2003), the PageRank algorithm considers a

collection of web pages as a graph where each node

is a web page, and the hyperlinks of the pages where

modeled as outgoing edges of the graph. In this

sense, the strategy proposed by PageRank algorithm

can be applied to any problem that can be formulated

in terms of a graph.

Our interpretation of the PageRank algorithm con-

siders both the services involved in a choreogra-

phy, and the graph that the choreography subsumes.

Speciﬁcally, let us denote S as a set of services. We

deﬁne :

= {A|A is a role in C} (1)

as the set of all the roles deﬁned in C, and:

Ω

(A) = {ω ∈ S|A ∈ A

, ω plays A in C} (2)

as the set of all the services in S that can play the role

A in C. Also, given a relation of dependency among

the roles in a choreography, for each role A in C we

denote both the set of roles in C on which A depends

(i.e. N

(A)), and the set of roles in C that depend on

A (i.e. N

−

(A)). Speciﬁcally:

(A) = {B|A ∈ A

, B ∈ A

, ∃ dep. from A to B in C}

(3)

−

(A) = {B|A ∈ A

, B ∈ A

, ∃ dep. from B to A in C}

(4)

Note that the deﬁnitions above are given in terms

of an abstract notion of dependency that can occour

among the roles belonging to a choreography. Sec-

tion 9.1 will present an example by using a speciﬁc

dependency relation.

Let us denote R as a ranking function for a given

service (see either Section 6.2, or Section 6.3), thus

Equation 5 deﬁnes the ranking function of a role A in

a choreography C.

R (A,t, C) =

∑

ω∈Ω

(A)

R(ω,t)

Ω

(A)

(5)

Speciﬁcally, Equation 5 gives rank values based

on the ranking of all the services that are implement-

ing A in C: the more the services that can play A in C

rank well, the better A will perform in the choreogra-

phy. The effect of such impact is normalized accord-

ing to the number of services playing the role A. On

the other hand, the equation computes a poor ranking

for A if there exist only few and poorly ranked ser-

vices that can play A in C. In other words, this means

that A could be considered critical for the enactment

of C.

Nevertheless, the role ranking in Equation 5 does

not take into account the context where the role is

used. Equation 6 introduces a correction factor of the

ranking R taking into account the role dependencies

implied by a choreography speciﬁcation.

Given a role A in choreography C, the case t = 0

in Equation 6 deﬁnes the initial condition for δ, while

the recursive deﬁnition for the case t ≥ 1 is an in-

terpretation of the PageRank algorithm (Page et al.,

1999) (Kamvar et al., 2003). Speciﬁcally, such deﬁ-

nition is composed by two terms: using the terminol-

ogy adopted within the PageRank algorithm, the ﬁrst

term of Equation 6 is the source-of-rank which is a

parameter inﬂuencing the ﬁnal rank. In our case the

source-of-rank is R , giving rank values based on the

evaluation of all the services that are implementing A

in C.

The second term in Equation 6 gives rank values

as a function of the other roles in C on which A de-

pends. In other words, we consider that if the be-

VALIDATIONANDVERIFICATIONPOLICIESFORGOVERNANCEOFSERVICECHOREOGRAPHIES

δ(A,t, C) =











λR (A,t, C) + (1− λ)

∑

B∈N

(A)

R (B,t − 1, C)



−

(B)



for t ≥ 1

ϕ otherwise

(6)

haviour foreseen for A in C relies on the actions per-

formed by another role B (e.g. B is the initiator of a

task with A), then the rank values scored by B should

impact the ranking of A within the whole C. This met-

ric is generally helpful, however we consider it partic-

ularly signiﬁcant when B is badly ranked, for example

because most of the services playing B are not reli-

able. Note that, as the metric in Equation 6 does not

take into account the enactment status of the chore-

ography C, the effect of how much B impacts on A is

proportionally calculated by considering the number

of all the roles that depend from B.

The parameter λ can be used to tune the contri-

bution of each term in the computation of the role’s

ranking function; in the literature on the PageRank

algorithm, typically its most cited value is 0.85 (Kam-

var et al., 2003).

Finally, we denote the ranking function for the

whole choreography C as:

R(C,t) =

∑

A∈A

δ(A,t, C)R (A,t, C) (7)

6.2 Testing-based Service Rank

As described in Section 5, in those scenarios includ-

ing perpetual V&V activities, the analysis of the re-

sults of each testing session can be used for building

a trust model for services.

The very general idea of this assumption is that

data from testing results (i.e. both test passed, and

test failed) represents quantitative facts that permit to

determine how much a service playing a given role is

trustable according to an objective estimation. For ex-

ample, if the testing sessions that are executed focus

on integration issues, the testing-based service rank

explains how a service is behaving with respect to the

scenario foreseen by a choreography.

Furthermore, as service behaviour may continu-

ously evolve (e.g. change in the implementation,

dynamic binding with other services), a trust model

should consider that the closer in time a service has

been tested the more reliable are the results obtained

from the testing session. Thus the deﬁnition of a

testing-based ranking for services should decrease

over time.

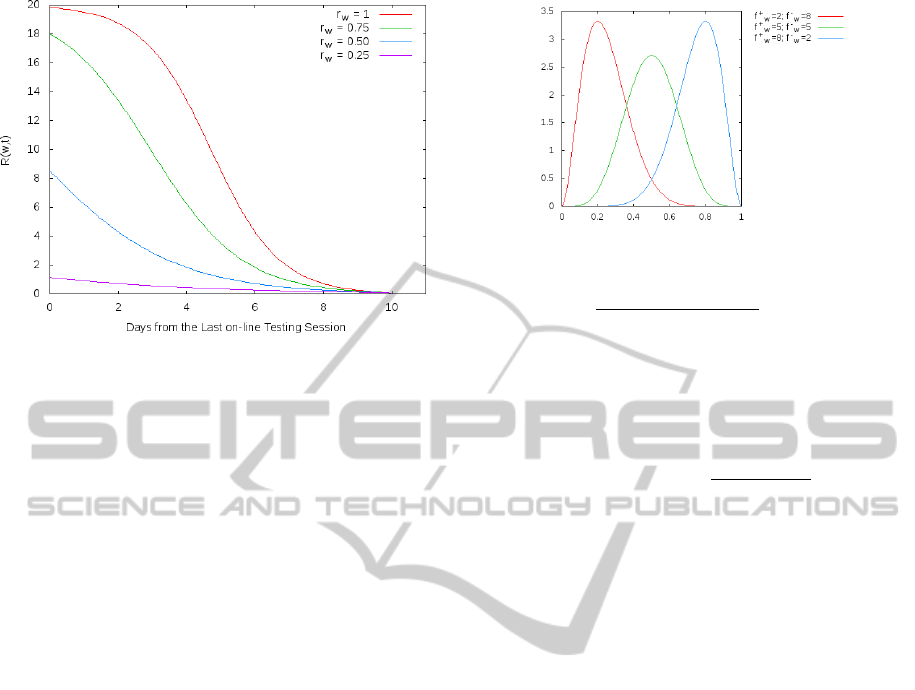

The logistic function is a well-studied mathemati-

cal function that was originally proposed in (Verhulst,

1838), and is often used in ecology for modeling pop-

ulation growth. Speciﬁcally, in one of its most com-

mon formulation, the logistic function offers a non

linear evolution of the population function P over the

parameter t (e.g. the time) depending on the two pa-

rameters: the carrying capacity K, and the growth rate

The testing-based ranking we propose deﬁnes a

function of trust basing on the logistic function, where

K is interpreted as the highest admissible level of

trust, while for each service w, r is the number of the

tests passed over the total number of test executed (see

Equation 8).

#passedTest

#runTest

(8)

For a given service ω ∈ Ω

(A) that can play the

role A in C, Equation 9 deﬁnes a test-based trust

model based on the logistic function.

T (t, ω) =

Fade

(−r

(t−h

Offset

))

K + v

Fade

(−r

(t−h

Offset

))

− 1)

(9)

Speciﬁcally, in Equation 9, the h

Offset

, and the v

Fade

are conﬁgurable parameters useful for translating, and

fading the values returned by the trust model. In addi-

tion, as the trust model T is actually an instantiation

of the logistic function, the setting of the parameters

for T must keep satisfying the stability criteria fore-

seen by logistic function (e.g. K > 1).

Finally, Equation 10 deﬁnes a testing-based rank-

ing function for a given service ω playing a given role

A in C (i.e. ω ∈ Ω

(A)). As introduced in Section 6.1,

such service-level ranking function can be exploited

in order to compute the testing-based rank of the role

A (see Equation 5), and consequently the testing-rank

of the whole choreography C (see Equation 7).

R(t, ω) =







T (t, ω) if t < h

Offset

0 else

(10)

According to the deﬁnition in Equation 10, the conﬁg-

urable parameter h

Offset

is interpreted as the maximum

observation period (e.g time, hours, days, week, etc.)

after which the testing-based service rank is consid-

ered not sufﬁciently reliable, and then a new testing

session for the service is recommended.

As an example, Figure 1 depicts the evolution of

the function R(t, ω) with respect to t (i.e. time), and

by considering different values of r

. Speciﬁcally the

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

Figure 1: Examples of the evolution of the testing-based

service rank function.

ﬁgure shows the case all the test cases passed (i.e.

= 1), the case some of the test cases passed (i.e.

= 0.75), the case half of the test cases passed (i.e.

= 0.50), and the case most of the test cases failed

(i.e. r

= 0.25).

6.3 Reputation-based Service Rank

The testing-based service rank proposed in Sec-

tion 6.2 offers a quantiﬁable, and objective metric

evaluating how a service is behaving; for example

with respect to the scenario envisioned by a service

choreography. Differently, reputation systems based

on feedbacks provide a widely adopted solution in or-

der to share subjective evaluation of a service after the

direct experience of its users.

In the literature several ranking models have been

proposed in order to combine user’s feedbacks and

derive reputation ratings (Jøsang et al., 2007). Among

the others, in this section we will refer to a reputa-

tion model based on the Beta Density function (β),

and originally proposed in (Jøsang and Ismail, 2002).

Speciﬁcally, the authors in (Jøsang and Ismail, 2002)

argue how reputation systems based on the β function

are both ﬂexible, and relatively simple to implement

in practical applications. Furthermore, such systems

have good foundation on the theory of statistics.

Let us consider a service ω playing a given role

A in C (i.e. ω ∈ Ω

(A)). Than, we denote f

, f

−

≥

0 as the number of positive and negative feedbacks

collected by the service ω, respectively.

According with the formulation given in (Jøsang

and Ismail, 2002), the β function can be written as

reported in Equation 11, where Γ is the well-studied

Gamma function.

Figure 2: Examples of the β function.

β(p, f

, f

−

) =

Γ( f

+ f

−

+ 2)

Γ( f

+ 1) ∗ Γ( f

−

+ 1)

∗ p

∗ (1 − p)

−

(11)

The interesting consideration about the β function

is that its mathematical expectation is trivial to com-

pute; it is given by the Equation 12.

E(β(p, f

, f

−

)) =

+ 1

+ f

−

+ 2

(12)

In other words, the feedbacks that the users reported

during past interactions with a service ω are inter-

preted by Equation 12 as the probability of collecting

a positive feedback with ω on average in the future in-

teractions. For example, if E for the service ω is 0.8

means that is still uncertain if ω will collect a positive

feedback in the future (i.e. due to a positive interac-

tion), but it is likely that this would happen.

Figure 2 depicts three instantiation of the β func-

tion: the case most of the feedback are negatives (i.e.

= 2, f

−

= 8), the case half of the feedback are pos-

itives (i.e. f

= 5, f

−

= 5), and the case most of the

feedback are positives (i.e. f

= 8, f

−

= 2).

Finally, Equation 13 deﬁnes a reputation ranking

function based on user’s feedbacks for a given service

ω playing a given role A in C (i.e. ω ∈ Ω

(A)).

R(t, ω) = E(β(p, f

, f

−

)) (13)

As introduced in Section 6.1, also such service-level

ranking function can be exploited in order to compute

the reputation-based rank of the role A (see Equa-

tion 5), and consequently the reputation-rank of the

whole choreography C (see Equation 7).

7 CHOREOGRAPHY

ENACTMENT POLICIES

When the design of a choreography is completed, it

could be made available by registering its speciﬁca-

tion on a dedicated Choreography Registry. In ad-

dition to the canonical registry functionalities based

VALIDATIONANDVERIFICATIONPOLICIESFORGOVERNANCEOFSERVICECHOREOGRAPHIES

on service choreographies (i.e. store and retrieve

choreography speciﬁcations), a Choreography Reg-

istry should also store meta-information; for exam-

ple about the status of a choreography, i.e., if a given

choreography C is enactable or not.

Thus, from the registration of a choreography

speciﬁcation on a Choreography Registry, the lifecy-

cle at run-time of the choreography could be regu-

lated by means of a set of V&V governance policies;

among the others, some concerning the rules under

which a choreography could be considered enactable.

Many kind of strategies could be applied in order

to classify a choreography as enactable. For example,

a policy deﬁnes a choreography C enactable if for any

role A in C, it is possible to point to a set of services

(i.e. one or more services) that can play A in C.

In addition, Section 5 describes some V&V gov-

ernance policies based on rating mechanisms for both

services and choreographies. Thus, enactment poli-

cies for C could be also regulated in terms of the rating

scores evaluated for the choreography. For example,

C is enactable if and only if it scores either a minimal

trust (i.e. based on tests), or a minimal reputation (i.e.

based on feedbacks) level.

8 TEST CASES SELECTION

POLICIES

In literature various policies have been proposed in

order to identify a proper test suite for testing a third

party service. For example in (Tsai et al., 2003), the

authors suggested that for testing a service implemen-

tation, integrators should directly access and use test

cases provided by the same Service Provider.

In (Eler et al., 2010) and (Bartolini et al., 2011),

the authors proposed testable services as a solution

to provide third-party testers with structural coverage

information after a test session, yet without revealing

their internal details.

The main drawback of such approaches is that

both integrators, and service testers, do not have

enough information to improve their test set when

they get a low coverage measure because they do not

know which test requirements have not been covered.

In (Eler et al., 2011) the authors propose an approach

in which testable services are provided along with test

meta-data that will help their testers to get a higher

coverage.

Nevertheless, all these ideas could ﬁt well with the

speciﬁcation of both governance policies, and rules

enabling V&V activities. Speciﬁcally, policies could

require such meta-data as complementary documenta-

tion that service providers should supply for making

their service testable.

All the policies described above select test cases

from the test suite provided by the Service Provider.

In some cases, such approaches could not provide

completely objective test suites focusing on integra-

tion aspects.

An alternative approach is the deﬁnition of test

cases selection policies that enable the derivation

of test cases from models provided by the Service

Provider, for example during the registration of the

service. Speciﬁcally, similarly to (De Angelis et al.,

2010), it could be equally useful to derive test cases

from the service choreography. In fact, a choreogra-

phy speciﬁcation deﬁnes both the coordination sce-

narios in which a service under registration plays a

role, and the abstract behaviour expected by each

role.

9 EXAMPLES

Most of the policies proposed in the previous sections

are quite intuitive and we have given simple examples

while introducing them. For lack of space we pro-

vide in the following more detailed examples of im-

plementations only for ranking policies (Section 9.1)

and selection policies (Section 9.2).

9.1 A Simple Example about Rankings

Section 6.1 deﬁnes the ranking function of a role in

terms of an abstract notion of dependency that can

occour among the roles belonging to a choreography.

Speciﬁcally, for each role A in a choreography C, such

dependency is referred in order to compute both the

sets N

(A), and N

−

(A). In the following we de-

scribe a dependency relation that will be implemented

within the V&V governance framework.

Let us consider a choreography C, and let us de-

note the set of tasks deﬁned within C:

= {τ|τ is a task deﬁned in C} (14)

the set of roles participating in a given task of C:

Part(τ, C) = {A|A ∈ A

, τ ∈ T

, A is involved in τ}

(15)

and, for each task τ in C, Init(τ) is the role that initi-

ates a task τ.

Thus, given A, B roles in C, the dependency deﬁ-

nition we propose relates A with B if and only if B is

the initiator of a task were also A is involved. In other

words, in order to accomplish a given task in C, A re-

quires some action from B. More formally, we denote

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

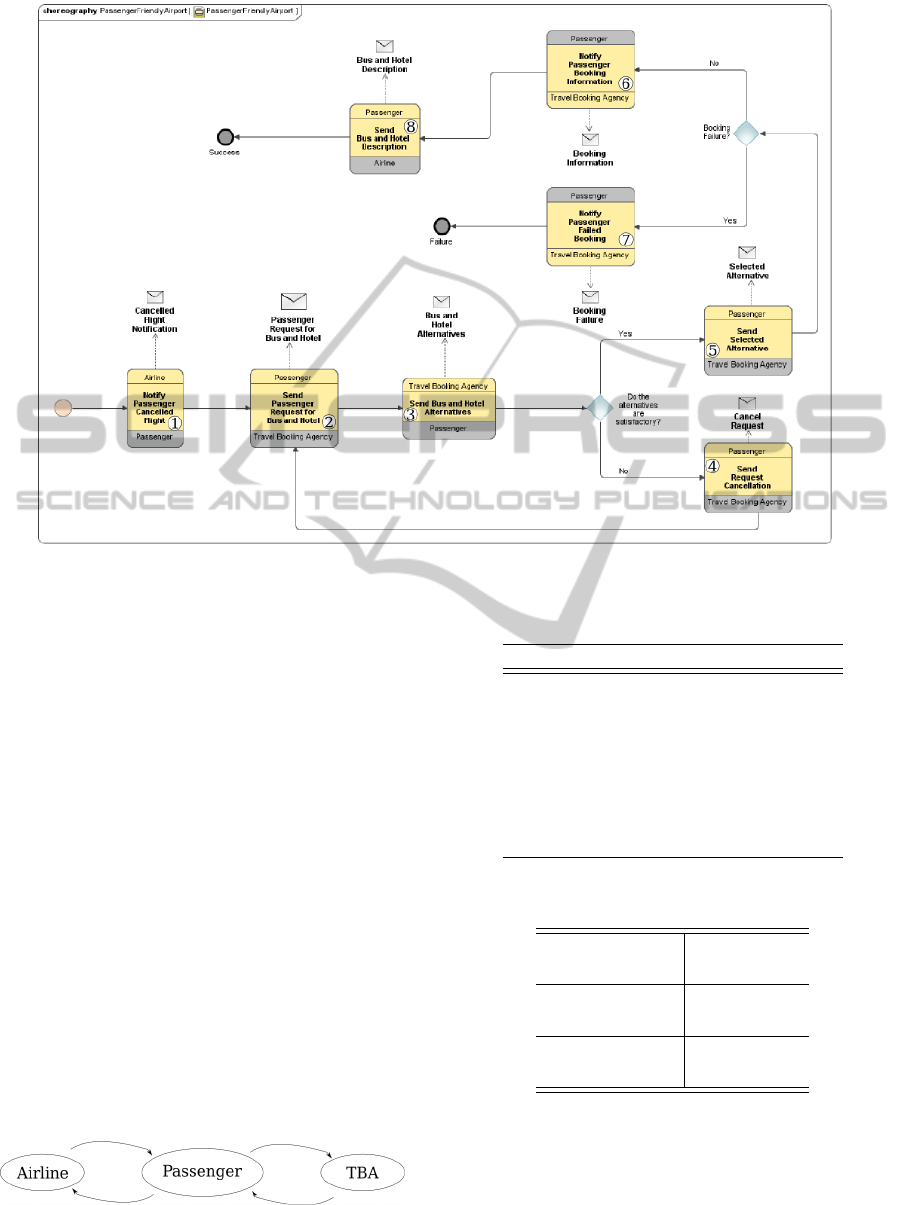

Figure 3: Example from the passenger-friendly-airport choreography.

this dependency relation on C as

⊆ A

× A

, so

that:

A2 ⇔ ∃τ ∈ T

, and

A1 6= A2, and

A1, A2 ∈ Part(t, C), and

A2 = Init(τ)

(16)

For example, Figure 3 depicts a simple service

choreography modeled with the BPMN Choreogra-

phy Diagram notation. With respect to this example,

the sets described above are instantiated as it follows:

• A

= { Passenger, Airline, TBA}

• T

= {¬, , ®, ¯, °, ±, ², ³,}

In addition, for each task τ ∈ T

, Table 1 reports both

the set Part(τ, C), and Init(τ); while Figure 4 depicts

the dependency graph resulting from the instantiation

of the relation

on this simple example. Finally,

according to the deﬁnitions given in both Equation 3,

and Equation 4, Table 2 reports the sets N

(A), and

−

(A) resulting form the speciﬁc instantiation of the

dependency relation here adopted.

Figure 4: Dependency graph according to the relation

Table 1: Instantiation of Part, and Init.

Task Part Init

¬ Passenger, Airline Airline

 Passenger, TBA Passenger

® Passenger, TBA TBA

¯ Passenger, TBA Passenger

° Passenger, TBA Passenger

± Passenger, TBA TBA

² Passenger, TBA TBA

³ Passenger, Airline Passenger

Table 2: Examples of N

(A), and N

−

(A).

(Passenger) Airline, TBA

−

(Passenger) Airline, TBA

(Airline) Passenger

−

(Airline) Passenger

(TBA) Passenger

−

(TBA) Passenger

In the following, the example will only focus

on the testing-based service rank described in Sec-

tion 6.2; however similar results, and considerations

can be achieved by using the reputation-based service

rank presented in Section 6.3.

VALIDATIONANDVERIFICATIONPOLICIESFORGOVERNANCEOFSERVICECHOREOGRAPHIES

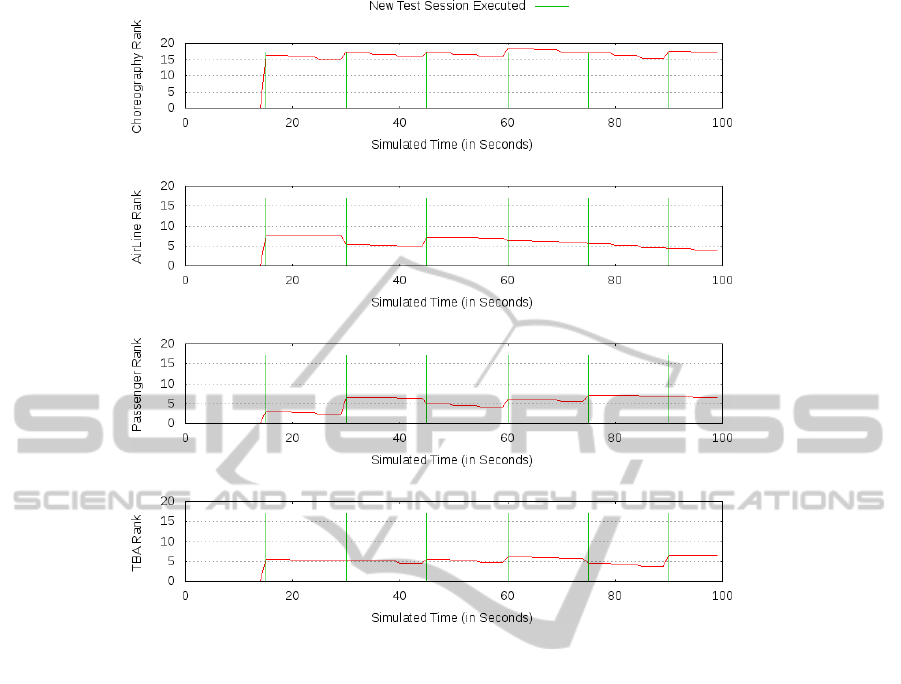

Figure 5: Results of the ranking simulation on the passenger-friendly-airport choreography.

Thus let us assume several services can implement

each role in C. Speciﬁcally, this example considers : 2

services acting as Passenger, 4 services acting as Air-

line, and 5 services acting as TBA. In this scenario, the

example foresees that each of these services is asso-

ciated with a speciﬁc test suite, whose periodical exe-

cution provides the index r

presented in Section 6.2.

Clearly, for each service, the experiment can refer

to a speciﬁc timeout simulating the execution of a new

testing session, and thus the deﬁnition of new values

for the indexes r

. Also, for each of service, the ex-

periment can also use the parameter h

Offset

introduced

in Equation 9 in order to control the decaying process

of the results from the latest testing session simulated.

Nevertheless, in order to keep the presentation of

the results simple, the simulation we run over this ex-

ample considered for all the services involved both

the same h

Offset

, and the same timeout for launching

the new testing sessions.

Figure 5 depicts the results of the simulation we

executed. In particular, the up-most diagram of the

ﬁgure depicts the rank for the whole choreography

computed according to Equation 7; while the other

diagrams show the computed rank for the three roles

(i.e. Passenger, Airline, TBA). In each diagram, the

vertical green bars denote when the execution of a

new testing session occurred. After each testing ses-

sion, the ranks of each role can either grow or de-

crease depending on the results collected from the

testing of the services playing it. Between two testing

sessions, each role fall-off in ranking as prescribed by

Equation 10.

9.2 A Simple Example about Test Cases

Selection

This section describes how a V&V Manager can de-

ﬁne V&V policies concerning the derivation test cases

from the service choreography. Speciﬁcally, the V&V

Manager could deﬁne test cases selection policies by

using a counter-example approach similarly to (De

Angelis et al., 2010).

The very general idea of test cases selection poli-

cies assumes that the V&V Manager speciﬁes the

characteristics that a test case should have through

a test purpose. Often, a common objective in deal-

ing with service choreography is trying to derive

test suites for the choreography participants that are

strongly focused on integration issues. For example,

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

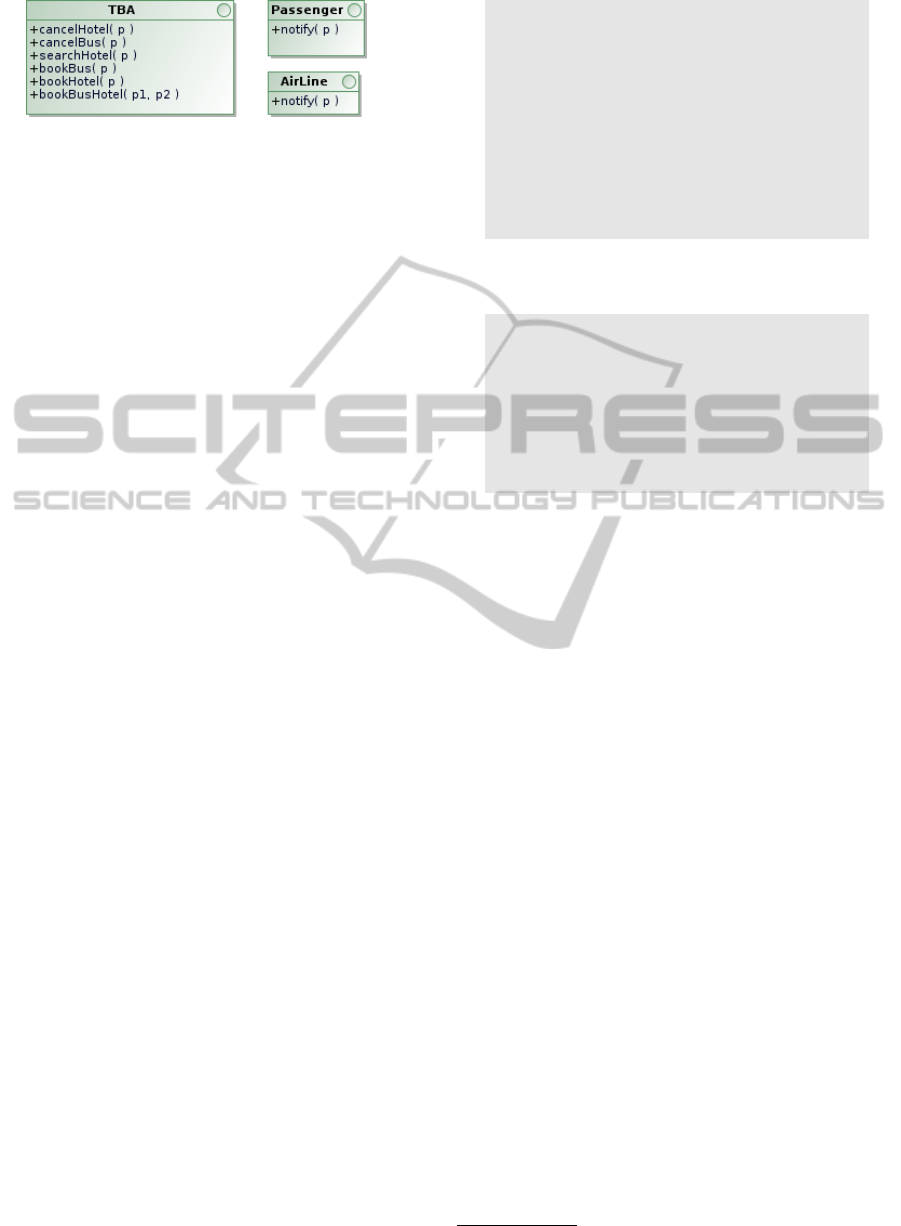

Figure 6: Interfaces associated with the participants the

choreography at Figure 3.

the V&V Manager can deﬁne the test case selection

process by means of the formulation of test purposes

in form of reachability properties. According to the

choreography speciﬁcation introduced in Figure 3, a

simple property deﬁned as a test cases selection pol-

icy, could be:

“The test cases must include task , fol-

lowed (in a future) by task °, and then

either by task ±, or ²”

(17)

As detailed in (De Angelis et al., 2010), such a

policy can be expressed in a temporal logic formula

(such as in LTL, CTL, Hennessy-Milner Logic) so

that it could be automatically processed by a test cases

generation framework.

Nevertheless, as more participants are involved in

a choreography task, from the same property the pol-

icy can select different test suites; usually one for each

service participating in the choreography. Thus, in ad-

dition to the property in (17) driving the generation of

test cases over the service choreography, a test cases

selection policy also has to specify the target of such

generation process. This process is usually referred

as projection of a trace on a service test case.

In this speciﬁc example, we assume that any par-

ticipant to the choreography in Figure 3 implements

one of the interfaces depicted in Figure 6. Listing 1,

and Listing 2 show the projection of two integration

test cases that could be derived for a service that is

willing to play as TBA from the property in (17). If

a service candidate to TBA fails one of such tests, it

cannot be integrated within the choreography at Fig-

ure 3.

Concluding, the V&V Manager can plan the test

cases generation process by means of the test case se-

lection policies. The section shown how a test case

can target in revealing potential integration issues of

the service choreography. Indeed, the test cases val-

idates if the usage of a service implementation as

participant of a choreography is compliant with the

service pre-conditions or with service protocol. The

V&V Manager can refer to the test cases selected by

such policies as an acceptance validation for the im-

plementation of the choreographed services.

1 b = searchBus(p1);

2 if (! isValid(b) )

3 return TestFailed;

4 h = searchHotel(p2);

5 if (! isValid(h) )

6 return TestFailed;

7 r = bookBusHotel(b,h);

8 if (r.isAKindOf(BookingInformation) || r.isAKindOf(

BookingFailure))

9 return TestPassed;

10 else

11 return TestFailed;

Listing 1: Example of integration test case derived for TBA.

1 s = searchBusHotel(p1,p2);

2 if ((!isValid(s.b)) || (!isValid(s.h)))

3 return TestFailed;

4 r = bookBusHotel(b,h);

5 if (r.isAKindOf(BookingInformation) || r.isAKindOf(

BookingFailure))

6 return TestPassed;

7 else

8 return TestFailed;

Listing 2: Another integration test case derived for TBA.

10 CONCLUSIONS AND FUTURE

WORK

Choreography and SOA governance are important in-

struments to enable the dynamic and ﬂexible interop-

erability among independent services which is at the

basis of the FI. Our work concerns the on-line V&V

of services and choreographies, which relies on a dis-

ciplined policy-based governance approach. Imple-

mentation of such a framework is a huge undertaking,

facing theoretical and technical challenges. We have

identiﬁed in this paper a set of policies, including ac-

tivation, rating, ranking, enactment and test case se-

lection policies. We have discussed how such policies

can support V&V and provided some preliminary ex-

amples. The policies illustrated here are undergoing

implementation in the context of the European project

CHOReOS

Future work will include the implementation of

a governance registry for the management of such

policies, and their instantiation within the CHOReOS

demonstration scenarios.

Furthermore, another important motivation for

V&V policies is to enable the scaling up of online

testing as the dimensions of the tackled choreogra-

phies increases. Indeed, within the FI any software

http://www.choreos.eu/

VALIDATIONANDVERIFICATIONPOLICIESFORGOVERNANCEOFSERVICECHOREOGRAPHIES

will be by nature characterized as an Ultra-Large-

Scale (ULS) software system, where a ULS sys-

tem “is ultra-large in size on any imaginable dimen-

sion” (Pollak, 2006), like in the resulting number of

lines of codes, in the number of people employing

the system for different purposes, in the amount of

data stored, accessed, manipulated, and reﬁned, in

the number of hardware elements (i.e. heterogeneity),

and ﬁnally in the number of possibly cooperating or-

ganizations. Therefore, future work will also include

the identiﬁcation of further policies to help mitigate

ULS effects in V&V of FI choreographies.

ACKNOWLEDGEMENTS

This paper is supported by the the European Project

FP7 IP 257178: CHOReOS, and partially by the Eu-

ropean Project FP7 NoE 256980: NESSoS.

REFERENCES

Arroyo, S. and Sicilia, M.-Á. (2008). Sophie: Use case

and evaluation. Information & Software Technology,

50(12):1266–1280.

Baresi, L., Nitto, E. D., and Ghezzi, C. (2006). Toward

open-world software: Issue and challenges. Com-

puter, 39:36–43.

Barker, A., Walton, C. D., and Robertson, D. (2009). Chore-

ographing web services. IEEE T. Services Computing,

2(2):152–166.

Bartolini, C., Bertolino, A., Elbaum, S. G., and Marchetti,

E. (2011). Bringing white-box testing to service

oriented architectures through a service oriented ap-

proach. Journal of Systems and Software, 84(4):655–

668.

Bertolino, A., De Angelis, G., Kellomäki, S., and Polini, A.

(2012). Enhancing service federation trustworthiness

through online testing. IEEE Computer, 45(1):66–72.

Bertolino, A., Frantzen, L., Polini, A., and Tretmans, J.

(2006). Audition of Web Services for Testing Confor-

mance to Open Speciﬁed Protocols. In Architecting

Systems with Trustworthy Components, number 3938

in LNCS, pages 1–25. Springer.

Bertolino, A. and Polini, A. (2009). Soa test governance:

Enabling service integration testing across organiza-

tion and technology borders. In Proc. of ICSTW, pages

277–286.

De Angelis, F., De Angelis, G., and Polini, A. (2010).

A counter-example testing approach for orchestrated

services. In Proc. of ICST 2010, pages 373–382, Paris,

France. IEEE Computer Society.

Eler, M., Delamaro, M., Maldonado, J., and Masiero, P.

(2010). Built-in structural testing of web services. In

Proc. of Brazilian Symp. on Soft. Engineering, pages

70–79.

Eler, M. M., Bertolino, A., and Masiero, P. (2011). More

testable service compositions by test metadata. In

Proc. of SOSE, Washington, DC, USA. IEEE Com-

puter Society.

Fiedler, M., Gavras, A., Papanikolaou, N., Schaffers, H.,

and Wainwright, N. (2011). Future Internet Assem-

bly Research Roadmap – Towards Framework 8: Re-

search Priorities for the Future Internet. Technical re-

port, Future Internet Assembly Working Group.

Ghezzi, C. (2011). The fading boundary between devel-

opment time and run time. In Keynote at ECOWS,

page 11. IEEE.

Greiler, M., Gross, H., and van Deursen, A. (2010). Eval-

uation of online testing for services: a case study. In

Proc. of PESOS, pages 36–42, New York, NY, USA.

ACM.

Jøsang, A. and Ismail, R. (2002). The Beta Reputation Sys-

tem. In Proc. of the Bled Electronic Commerce Con-

ference.

Jøsang, A., Ismail, R., and Boyd, C. (2007). A survey of

trust and reputation systems for online service provi-

sion. Decision Support Systems, 43(2):618–644.

Kamvar, S. D., Haveliwala, T. H., Manning, C. D., and

Golub, G. H. (2003). Exploiting the block structure

of the web for computing pagerank. Technical report,

Stanford University.

MacKenzie, C., Laskey, K., McCabe, F., Brown, P., and

Metz, R. (2006). Reference model for service-

oriented architecture, version 1.0. Technical report,

OASIS.

Page, L., Brin, S., Motwani, R., and Winograd, T. (1999).

The pagerank citation ranking: Bringing order to the

web. Technical Report SIDL-WP-1999-0120, Stan-

ford University.

Pan, J., Paul, S., and Jain, R. (2011). A survey of the re-

search on future internet architectures. Communica-

tions Magazine, IEEE, 49(7):26 –36.

Pollak, B., editor (2006). Ultra-Large-Scale Systems – The

Software Challenge of the Future. Software Engineer-

ing Institute – Carnegie Mellon.

Trossen, D., Briscoe, B., Mahonen, P., Sollins, K., Zhang,

L., Mendes, P., Hailes, S., Jerman-Blaciz, B., and Pa-

padimitrou, D. (2009). Starting the Discussions: A

white paper from the EIFFEL Think-Tank. Technical

report, Eiffel TT.

Tsai, W. T. et al. (2003). Scenario-based web service testing

with distributed agents. IEICE Transaction on Infor-

mation and System, E86-D(10):2130–2144.

Verhulst, P.-F. (1838). Notice sur la loi que la population

poursuit dans son accroissement. Correspondance

mathématique et physique, 10.

Woolf, B. (2007). Introduction to soa governance. Accessed

on 15 Jun 2011.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies
